Model and source
- Citation: Li Y, Ramirez-Valle F, Xue Y, Ventura JI, Gouedard O, Mei J, Takeshita K, Palmisano M, Zhou S. Population Pharmacokinetics and Exposure Response Assessment of CC-292, a Potent BTK Inhibitor, in Patients With Chronic Lymphocytic Leukemia. J Clin Pharmacol. 2017;57(10):1279-1289. doi:10.1002/jcph.923
- Description: Two-compartment population PK model for oral CC-292 (spebrutinib, a potent Bruton tyrosine kinase inhibitor) in 145 pooled subjects: 32 healthy adults (AVL-292-004) and 113 patients with relapsed and/or refractory B-cell malignancies including chronic lymphocytic leukemia (AVL-292-003). First-order absorption with a single absorption lag, linear elimination from the central compartment, with linear-deviation female-sex effect on apparent clearance (females have 26% lower CL/F) and a power age effect on apparent central volume (reference age 62 years). Residual variability is split into healthy-volunteer and patient strata.
- Article: https://doi.org/10.1002/jcph.923
Population
The model was fit to 145 subjects contributing 3156 plasma observations: 32 healthy adults from study AVL-292-004 (Part 1, 7-day QD multiple-dose at 50, 100, or 200 mg) and 113 patients with relapsed and/or refractory B-cell malignancies from study AVL-292-003 (QD doses 125-1000 mg or BID doses 375 or 500 mg in 28-day cycles). Median age 62 years (range 20-89), median body weight 79.5 kg (range 49.9-128.4), 60% male, 83.4% white. 25 of 145 subjects (17.2%) had moderate renal impairment (CLcr 30-60 mL/min); no subjects had severe renal impairment. Baseline demographics are summarised in Li 2017 Table 1.
The same information is available programmatically via
readModelDb("Li_2017_CC292")$population.
Source trace
Parameter provenance for each ini() entry (also recorded
as a comment beside the value in the model file):
| Equation / parameter | Value | Source location |
|---|---|---|
lka (ka, 1/h) |
log(0.974) | Table 2 |
lcl (CL/F, L/h) |
log(134) | Table 2 |
lvc (V2/F, L) |
log(158) | Table 2 |
lq (Q/F, L/h) |
log(18.7) | Table 2 |
lvp (V3/F, L) |
log(72) | Table 2 |
lalag (Alag1, h) |
log(0.427) | Table 2 |
e_sexf_cl (female effect on CL/F) |
-0.26 | Table 2 (magnitude 0.26); page 1283 covariate equations |
e_age_vc (power exponent (AGE/62) on V2/F) |
0.946 | Table 2; page 1283 covariate equations |
etalcl (var of eta on log CL/F) |
0.317 | Table 2 (omega^2 CL/F) |
etalvc (var of eta on log V2/F) |
0.755 | Table 2 (omega^2 V2/F) |
eta block covariance |
0.328 | Table 2 (omega(V2/F):omega(CL/F)) |
propSd_hv (HNP residual SD) |
sqrt(0.234) | Table 2 (HNP variance row) |
propSd_pt (Patients residual SD) |
sqrt(0.659) | Table 2 (Patients variance row) |
| 2-compartment ODE with first-order absorption + lag | – | Methods, Population Pharmacokinetic Model Building |
| Stratified residual (HNP vs Patients) | – | Methods, Population Pharmacokinetic Model Building |
| Sex linear-deviation effect form | – | Methods, Categorical covariates equation |
| Age power-equation effect form | – | Methods, Power equation |
Load the model
mod <- readModelDb("Li_2017_CC292")Virtual cohort – pooled healthy + patient design
The simulation below mimics the dose levels actually studied in AVL-292-004 and AVL-292-003, with a 60/40 male/female split and an age distribution roughly approximating Li 2017 Table 1 (median 62 years; healthy subjects were younger, patients older). Each subject receives a single oral dose followed by 36-hour sampling so PKNCA can compute Cmax / Tmax / AUC over a full 24-hour interval; multiple-dose results are checked separately below.
set.seed(2017)
dose_levels <- c(50, 100, 200, 125, 250, 400, 625, 750, 1000)
labels <- paste0(dose_levels, " mg")
# n per dose group; keep small so the vignette finishes well under 5 min
n_per <- 50
make_cohort <- function(dose_mg, label, id_offset) {
n <- n_per
ids <- id_offset + seq_len(n)
# First three doses correspond to AVL-292-004 healthy adults; the rest are
# patients from AVL-292-003. SEXF, AGE, DIS_HEALTHY drawn to roughly mirror
# Li 2017 Table 1.
is_healthy <- as.integer(dose_mg %in% c(50, 100, 200))
age_mean <- if (is_healthy == 1) 40 else 65
ages <- pmin(pmax(round(rnorm(n, age_mean, 12)), 20), 89)
sexf <- rbinom(n, 1, if (is_healthy == 1) 0.28 else 0.43)
cov_df <- tibble::tibble(id = ids, SEXF = sexf, AGE = ages,
DIS_HEALTHY = is_healthy, dose_group = label)
dose_df <- tibble::tibble(
id = ids, time = 0, evid = 1L, amt = dose_mg, cmt = "depot"
) |> dplyr::left_join(cov_df, by = "id")
obs_times <- c(0.5, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 30, 36)
obs_df <- tidyr::expand_grid(id = ids, time = obs_times) |>
dplyr::mutate(evid = 0L, amt = 0, cmt = "central") |>
dplyr::left_join(cov_df, by = "id")
dplyr::bind_rows(dose_df, obs_df) |>
dplyr::arrange(id, time, dplyr::desc(evid))
}
events <- dplyr::bind_rows(
lapply(seq_along(dose_levels), function(i) {
make_cohort(dose_levels[i], labels[i],
id_offset = (i - 1L) * n_per)
})
)
# Disjoint-ID assertion (vignette-template.md guidance for multi-cohort
# bind_rows simulations).
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))Simulate
sim <- rxode2::rxSolve(
mod,
events = events,
keep = c("dose_group", "DIS_HEALTHY", "SEXF", "AGE")
)
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_df <- as.data.frame(sim) |> dplyr::filter(time > 0)Figure – single-dose concentration profiles by dose group

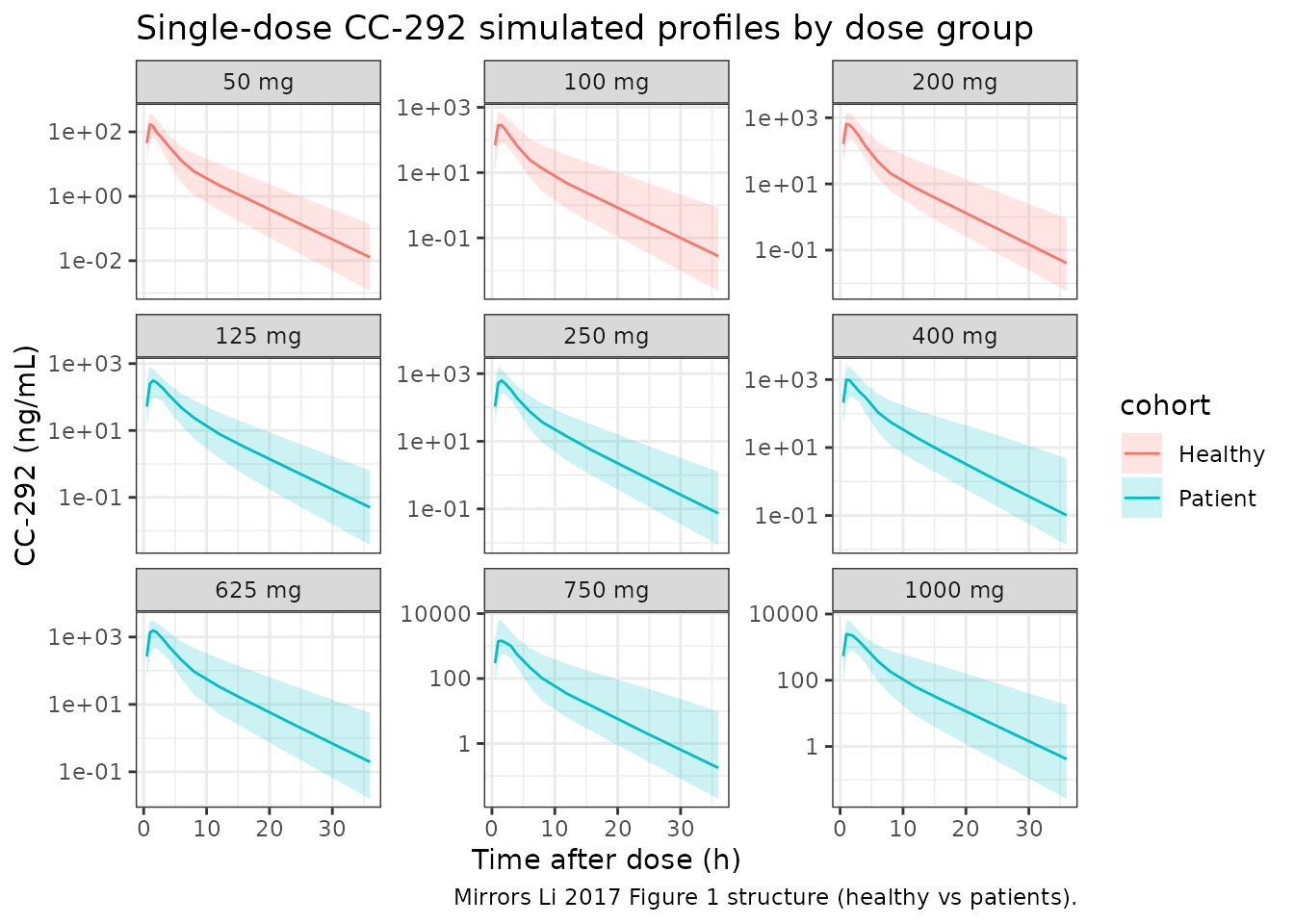

A VPC-style summary by dose group (median and 5/95 percentiles) after a single oral dose. Replicates the structure of Li 2017 Figure 1 (individual dose-normalized concentration-vs-time profiles, healthy vs patients).
sim_df |>
dplyr::group_by(dose_group, time, DIS_HEALTHY) |>
dplyr::summarise(
Q05 = quantile(Cc, 0.05, na.rm = TRUE),
Q50 = quantile(Cc, 0.50, na.rm = TRUE),
Q95 = quantile(Cc, 0.95, na.rm = TRUE),
.groups = "drop"
) |>
dplyr::mutate(
cohort = ifelse(DIS_HEALTHY == 1, "Healthy", "Patient"),
dose_group = factor(
dose_group,
levels = paste0(c(50, 100, 200, 125, 250, 400, 625, 750, 1000), " mg")
)
) |>
ggplot(aes(time, Q50, colour = cohort, fill = cohort)) +
geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, colour = NA) +
geom_line() +
facet_wrap(~ dose_group, scales = "free_y") +
scale_y_log10() +
labs(x = "Time after dose (h)", y = "CC-292 (ng/mL)",
title = "Single-dose CC-292 simulated profiles by dose group",
caption = "Mirrors Li 2017 Figure 1 structure (healthy vs patients).") +
theme_bw()
PKNCA validation
Single-dose NCA over the 0-24 h interval per dose group:
sim_nca <- sim_df |>
dplyr::filter(time <= 24, !is.na(Cc)) |>
dplyr::select(id, time, Cc, dose_group)
dose_nca <- events |>
dplyr::filter(evid == 1L) |>
dplyr::select(id, time, amt, dose_group)
conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | dose_group + id,
concu = "ng/mL", timeu = "h")
dose_obj <- PKNCA::PKNCAdose(dose_nca, amt ~ time | dose_group + id,
doseu = "mg")
intervals <- data.frame(
start = 0,
end = 24,
cmax = TRUE,
tmax = TRUE,
auclast = TRUE,
half.life = TRUE
)
nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res <- PKNCA::pk.nca(nca_data)
