Glucose (Bizzotto 2016)

Source: vignettes/articles/Bizzotto_2016_glucose.Rmd
Bizzotto_2016_glucose.Rmd

Model and source

  • Citation: Bizzotto R, Natali A, Gastaldelli A, Muscelli E, Brehm A, Roden M, Ferrannini E, Mari A. (2016). Glucose uptake saturation explains glucose kinetics profiles measured by different tests. Am J Physiol Endocrinol Metab 311(2):E346-E357. doi:10.1152/ajpendo.00045.2016. DDMORE Foundation Model Repository: DDMODEL00000227.
  • Description: Mechanistic model of glucose tracer kinetics in humans driven by time-varying plasma insulin and glucose regressors (Bizzotto 2016). Glucose uptake is a Michaelis-Menten function of glucose at the site of action whose maximum rate Vmax is itself a Hill (sigmoidal) function of insulin at the site of action; this captures the observation that hyperglycemia suppresses the glucose-clearance response to hyperinsulinemia. Two-compartment delays smooth plasma insulin and glucose into their site-of-action analogues, and a heart-lung block plus a three-channel periphery block give the tracer disposition. Distributed in the DDMORE Foundation Model Repository (DDMODEL00000227) as a simulation-only implementation; the linked publication fits the same equations to real data from 123 subjects spanning normal-tolerant, impaired-glucose-tolerance, and type 2 diabetic adults.
  • Article: https://doi.org/10.1152/ajpendo.00045.2016
  • DDMORE Foundation Model Repository entry: DDMODEL00000227

This model was extracted from the DDMORE Foundation Model Repository bundle for DDMODEL00000227 (scraped to dpastoor/ddmore_scraping/227/). The bundle contains:

  • glucoseKinetics.mdl – the human-readable MDL control object (gu_v1_par STRUCTURAL / VARIABILITY blocks for parameters, gu_v1_mdl MODEL_PREDICTION for equations).
  • glucoseKinetics.xml – PharmML rendering of the same MDL.
  • Executable_glucoseKinetics.mlxtran and Executable_glucoseKinetics.txt – Monolix 4.3.2 executable forms used to drive the bundle’s simulation.
  • Simulated_glucoseKinetics.csv – the simulated dataset (123 virtual subjects spread across five experimental tests: HGclamp, ISOclamp, OGTT/clamp, MTT, MTT/clamp). Each row carries the regressor columns iins / iglu (insulin / glucose at the current row time) and insn / glun / td / tn (next-row insulin / glucose / time, used by the bundle’s hand-rolled piecewise-linear interpolation in the .mlxtran).
  • Output_simulated_glucoseKinetics.txt – the simulated dataset reformatted by Monolix.
  • Output_real_glucoseKinetics.txt – population summary from a re-fit on the simulated dataset; flagged as meaningless for estimation in Long_technical_model_description_glucoseKinetics.txt because the simulation inputs collapse subject-level identity across paired tests.
  • Long_technical_model_description_glucoseKinetics.txt, Model_Accommodations.txt, DDMODEL00000227.rdf – provenance and scenario notes.
  • glucoseKineticsPLOT.pdf – the bundle-generated typical-value trajectories per test, said to correspond to Figure 3 of the Bizzotto 2016 publication.

The .mdl gu_v1_par STRUCTURAL block is annotated as the “final parameter estimates from related publication” and is the authoritative source of point values for this extraction. The Output_real_*.txt listing is not used as the parameter source because the bundle itself flags re-estimation on the shipped simulated dataset as unreliable.

Population

Bizzotto 2016 fits the model to glucose-tracer concentration data from 123 adults spanning the glucose-tolerance spectrum (normal-tolerant, impaired-glucose-tolerant, and type 2 diabetic), each undergoing one or more of: a three-step hyperglycemic-hyperinsulinemic clamp (HGclamp, n = 8), a two-step isoglycemic-hyperinsulinemic clamp (ISOclamp, n = 8), a paired oral glucose tolerance test plus euglycemic clamp (OGTT/clamp, n = 8), a mixed-meal test (MTT, n = 91), and a paired mixed-meal test plus hyperglycemic clamp (MTT/clamp, n = 8). The DDMORE bundle does not reproduce the published demographic table, so the model’s population metadata fields for weight_range, age_range, and sex_female_pct are intentionally NA. Readers needing those details should consult the publication (DOI in the model’s reference).

Source trace

Per-parameter and per-equation origin (also recorded as in-file comments in inst/modeldb/ddmore/Bizzotto_2016_glucose.R):

Equation / parameter Value (typical, log / logit form) Source location
lkmg log(3.88) mmol/L glucoseKinetics.mdl STRUCTURAL typ_KmG
lvmax0 log(338) umol/min/m^2 STRUCTURAL typ_Vmax0
lemax log(4812) umol/min/m^2 STRUCTURAL typ_Emax
lgamma log(1.62) STRUCTURAL typ_gamma
lkmi log(784) pmol/L STRUCTURAL typ_KmI
lt12i log(15.9) min STRUCTURAL typ_t12I
lt12g fixed(log(0.7)) min STRUCTURAL typ_t12G (fix = true)
lvtot log(12648) mL STRUCTURAL typ_V
lflambda3 log(0.0582 / 0.9418) STRUCTURAL typ_flambda3
lflambda2 log(0.154 / 0.846) STRUCTURAL typ_flambda2
lw1 log(0.609 / 0.391) STRUCTURAL typ_w1
lfw2 log(0.901 / 0.099) STRUCTURAL typ_fw2
lpflow fixed(log(2688)) mL/min/m^2 STRUCTURAL typ_F (fix = true, 3200*0.84)
etalkmg ~ 0.219 (log-scale variance) VARIABILITY var_KmG
etalemax ~ 0.112 VARIABILITY var_Emax
etalgamma + etalkmi block c(0.111, -0.0752, 0.263) VARIABILITY var_gamma, corr_gamma_KmI = -0.44, var_KmI
etalt12i ~ 0.151 VARIABILITY var_t12I
etalvtot ~ 0.0557 VARIABILITY var_V
etalflambda3 ~ 0.179 VARIABILITY var_flambda3
etalw1 ~ 0.773 VARIABILITY var_w1
addSd 0.014 mmol/L VARIABILITY alpha; observation Y = G + alpha*epsilon, epsilon ~ N(0,1)
d/dt(X1) = (GLU - X1) * log(2) / t12g n/a MODEL_PREDICTION DEQ
d/dt(X) = (X1 - X) * log(2) / t12g n/a MODEL_PREDICTION DEQ
d/dt(Z1) = (INS - Z1) * log(2) / t12i n/a MODEL_PREDICTION DEQ
d/dt(Z) = (Z1 - Z) * log(2) / t12i n/a MODEL_PREDICTION DEQ
Vmax_eff = vmax0 + emax * Z^gamma / (kmi^gamma + Z^gamma) n/a MODEL_PREDICTION DEQ (Hill insulin term)
cl = Vmax_eff / (kmg + X) n/a MODEL_PREDICTION DEQ
E = cl / pflow n/a MODEL_PREDICTION DEQ (per-pass extraction fraction)
G = c1 * (xHL1 - xHL2) with c1 = deltaHL*F/(deltaHL*VHL - 2F) n/a MODEL_PREDICTION DEQ heart-lung output
d/dt(xHL1) = c2 * xHL1 + Gv with c2 = -deltaHL*F/(deltaHL*VHL - F) n/a MODEL_PREDICTION DEQ
d/dt(xHL2) = -deltaHL * xHL2 + Gv n/a MODEL_PREDICTION DEQ
d/dt(xPER1..3) weighted-channel periphery n/a MODEL_PREDICTION DEQ lambda1 / lambda2 / lambda3
d/dt(xPER4) periphery sink n/a MODEL_PREDICTION DEQ
Gv = delta * xPER4 n/a MODEL_PREDICTION DEQ recirculation
f(xHL1) = f(xHL2) = 1 / pflow n/a COMPARTMENT block phi1 / phi2: {finput = 1/F}
Y = G + alpha * epsilon n/a OBSERVATION block (additiveError)

The constants VHL = 700 mL/m^2, deltaHL = 15 /min, and delta = 10 /min are also from MODEL_PREDICTION (the “# constants” block).

Validation strategy

The Bizzotto 2016 publication is not on disk in this worktree, so the standard publication-figure replication and PKNCA-vs-published-NCA checks are out of scope. The validation in this vignette therefore follows the F.2 / F.3 substitutes from the extraction skill:

  1. Mechanistic sanity (constant inputs). Holding plasma insulin and glucose constant at typical fasting values must drive the site-of-action delays X and Z to those values, and the undosed tracer state must remain at zero.
  2. Tracer impulse response (constant inputs). A small bolus of tracer into xHL1 with INS / GLU held at fasting values produces a biphasic decline in tracer concentration G, with the periphery channels recirculating tracer back into the heart-lung block on the documented time scales.
  3. Hyperglycemic clamp scenario. A stepped insulin and glucose schedule reproduces the qualitative shape of one of the experimental tests in the bundle (specifically a hyperglycemic- hyperinsulinemic clamp), with tracer concentration falling as peripheral clearance rises with insulin and glucose at the site of action.

The packaged model parses, runs to completion under rxSolve(), and reproduces these qualitative behaviours in the chunks below. The typical-value trajectories shown here are deterministic (no IIV, no residual error); inter-individual variability is not exercised in the validation simulations because the bundle is shipped as a typical-value simulator and the published cohort-level summaries are not on disk for comparison.

Setup

mod <- rxode2::rxode2(readModelDb("Bizzotto_2016_glucose"))
#> ℹ parameter labels from comments will be replaced by 'label()'
mod_typical <- rxode2::zeroRe(mod)

state_names <- mod$state
state_names
#>  [1] "X1"    "X"     "Z1"    "Z"     "xHL1"  "xHL2"  "xPER1" "xPER2" "xPER3"
#> [10] "xPER4"

1. Mechanistic sanity at constant inputs

Hold plasma glucose at 5.5 mmol/L and plasma insulin at 80 pmol/L (typical fasting values), with no tracer dose. The smoothing filters X1, X (glucose at the site of action) and Z1, Z (insulin at the site of action) start at zero (the .mdl’s default initial conditions) and must approach the regressor values within roughly six half-lives:

  • t12g = 0.7 min so X reaches 5.5 mmol/L within ~5 min.
  • t12i = 15.9 min so Z reaches 80 pmol/L within ~100 min.

The undosed heart-lung and periphery states must remain at zero, so tracer concentration G must stay numerically at zero throughout.

ev_baseline <- rxode2::et(seq(0, 240, by = 1))
ev_baseline$INS <- 80
ev_baseline$GLU <- 5.5

sim_baseline <- rxode2::rxSolve(mod_typical, ev_baseline) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalkmg', 'etalemax', 'etalgamma', 'etalkmi', 'etalt12i', 'etalvtot', 'etalflambda3', 'etalw1'

baseline_summary <- sim_baseline |>
  dplyr::filter(time %in% c(0, 5, 10, 30, 60, 120, 240)) |>
  dplyr::transmute(time, X1, X, Z1, Z, G)
knitr::kable(
  baseline_summary,
  digits = 4,
  caption = "Site-of-action quantities approaching the regressor values; tracer concentration G stays at 0 (no tracer dose)."
)
Site-of-action quantities approaching the regressor values; tracer concentration G stays at 0 (no tracer dose).
time X1 X Z1 Z G
0 0.0000 0.0000 0.0000 0.0000 0
5 5.4611 5.2684 15.6681 1.6456 0
10 5.4997 5.4970 28.2676 5.7152 0
30 5.5000 5.5000 58.3674 30.0757 0
60 5.5000 5.5000 74.1504 58.8498 0
120 5.5000 5.5000 79.5723 77.3347 0
240 5.5000 5.5000 79.9977 79.9738 0

stopifnot(
  abs(tail(sim_baseline$X, 1) - 5.5) < 1e-3,
  abs(tail(sim_baseline$Z, 1) - 80)  < 0.1,
  max(abs(sim_baseline$G), na.rm = TRUE) < 1e-8
)
sim_baseline |>
  dplyr::select(time, X, Z) |>
  tidyr::pivot_longer(c(X, Z), names_to = "state", values_to = "value") |>
  dplyr::mutate(state = recode(
    state,
    X = "Glucose at site of action (mmol/L)",
    Z = "Insulin at site of action (pmol/L)"
  )) |>
  ggplot(aes(time, value)) +
  geom_line() +
  geom_hline(
    data = data.frame(
      state = c("Glucose at site of action (mmol/L)",
                "Insulin at site of action (pmol/L)"),
      target = c(5.5, 80)
    ),
    aes(yintercept = target),
    linetype = "dashed", colour = "grey50"
  ) +
  facet_wrap(~ state, scales = "free_y") +
  labs(
    x = "Time (min)",
    y = NULL,

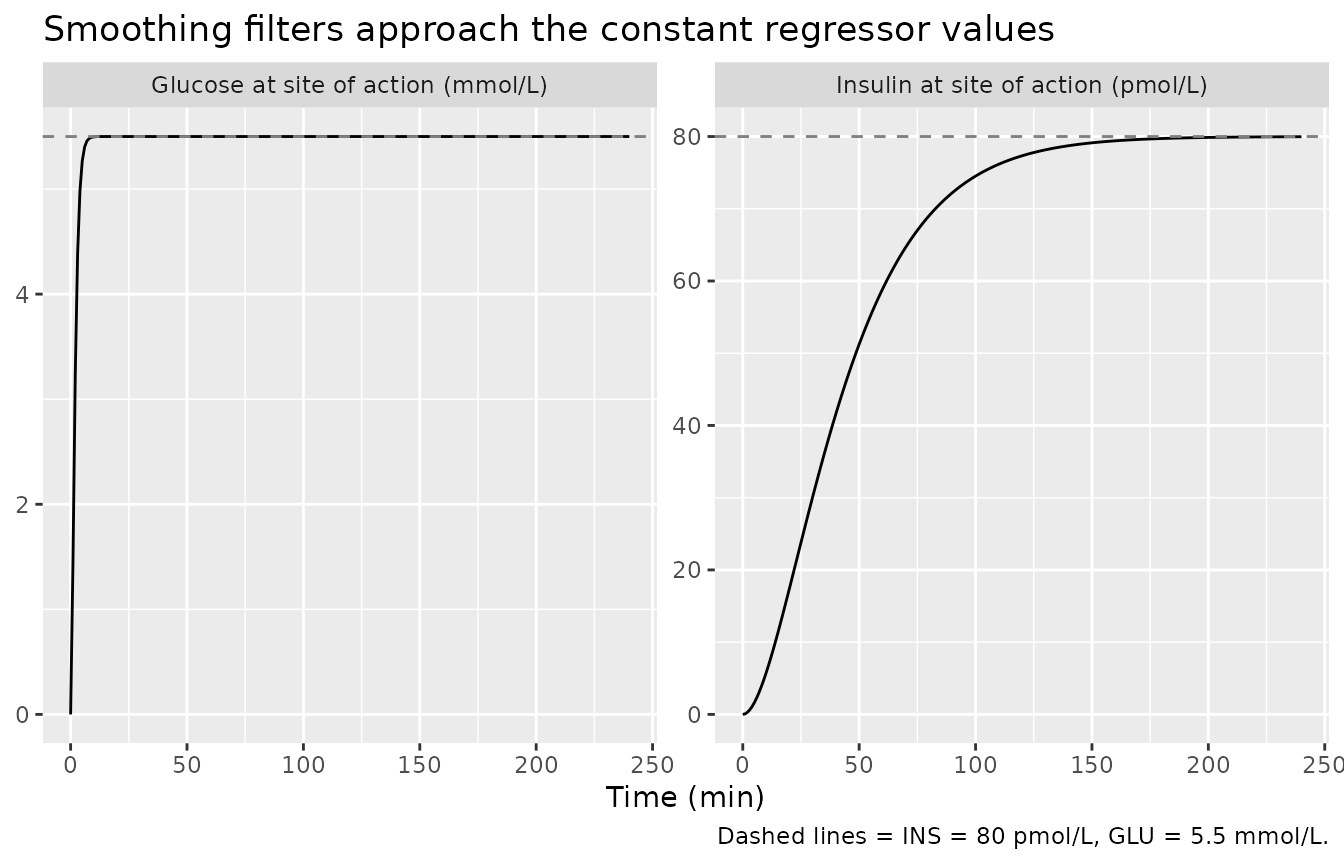

    title = "Smoothing filters approach the constant regressor values",
    caption = "Dashed lines = INS = 80 pmol/L, GLU = 5.5 mmol/L."
  )

2. Tracer impulse response under constant inputs

Inject 1000 umol/m^2 of tracer into the heart-lung compartment xHL1 at t = 0, with insulin and glucose held at the same fasting values. Tracer concentration G should rise rapidly in the heart-lung block, then decline biphasically as the periphery channels (with rate constants lambda1 > lambda2 > lambda3) drain into the xPER4 reservoir and recirculate.

ev_impulse <- rxode2::et(amt = 1000, cmt = "xHL1", time = 0)
ev_impulse <- rxode2::et(ev_impulse, seq(0, 180, by = 1))
ev_impulse$INS <- 80
ev_impulse$GLU <- 5.5

sim_impulse <- rxode2::rxSolve(mod_typical, ev_impulse) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalkmg', 'etalemax', 'etalgamma', 'etalkmi', 'etalt12i', 'etalvtot', 'etalflambda3', 'etalw1'

ggplot(sim_impulse, aes(time, G)) +
  geom_line() +
  scale_y_log10() +
  labs(
    x = "Time (min)",
    y = "Tracer concentration G (mmol/L, log scale)",

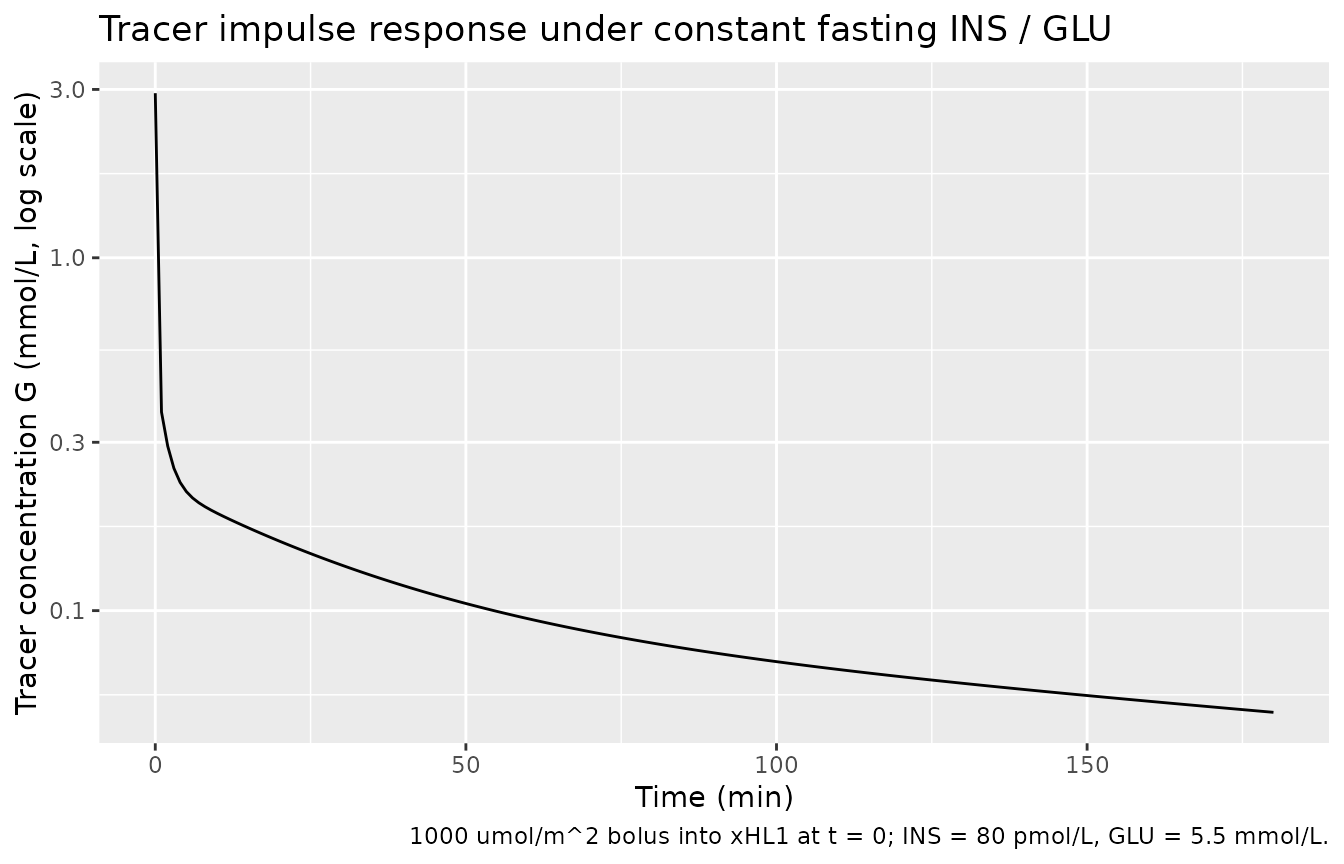

    title = "Tracer impulse response under constant fasting INS / GLU",
    caption = "1000 umol/m^2 bolus into xHL1 at t = 0; INS = 80 pmol/L, GLU = 5.5 mmol/L."
  )


impulse_summary <- sim_impulse |>
  dplyr::filter(time %in% c(0, 1, 2, 5, 10, 30, 60, 120, 180)) |>
  dplyr::transmute(time, G, xHL1, xHL2, xPER4)
knitr::kable(
  impulse_summary,
  digits = 4,
  caption = "Tracer state trajectory; G is biphasic, xPER4 reflects periphery recirculation."
)
Tracer state trajectory; G is biphasic, xPER4 reflects periphery recirculation.
time G xHL1 xHL2 xPER4
0 2.9274 0.3720 0.0000 0.0000
1 0.3655 0.0696 0.0231 0.0341
2 0.2926 0.0560 0.0188 0.0279
5 0.2175 0.0420 0.0144 0.0215
10 0.1886 0.0365 0.0125 0.0188
30 0.1346 0.0261 0.0089 0.0134
60 0.0949 0.0184 0.0063 0.0095
120 0.0650 0.0126 0.0043 0.0065
180 0.0515 0.0100 0.0034 0.0051

The peak of G should appear within the first few minutes (set by c1 * deltaHL), and the terminal decay should reflect the slowest periphery channel (lambda3). Both behaviours are visible in the trajectory above.

3. Hyperglycemic clamp scenario

Reproduce the qualitative shape of a stepped hyperglycemic- hyperinsulinemic clamp: hold subjects at fasting INS / GLU for ~60 min, then ramp glucose from 5.5 to ~10 mmol/L while insulin rises from 80 to ~400 pmol/L. The site-of-action saturable clearance cl = (vmax0 + emax * Z^gamma / (kmi^gamma + Z^gamma)) / (kmg + X) should rise as insulin drives Vmax up and as glucose builds up at the site of action; the resulting tracer trajectory after a constant infusion shows the Bizzotto 2016 saturation behaviour.

clamp_grid <- tibble::tibble(
  time = seq(0, 240, by = 1),
  INS = dplyr::case_when(
    time <  60                ~ 80,
    time >= 60  & time < 120  ~ 80  + (200 - 80)  * (time - 60)  / 60,
    time >= 120 & time < 180  ~ 200 + (400 - 200) * (time - 120) / 60,
    TRUE                      ~ 400
  ),
  GLU = dplyr::case_when(
    time <  60                ~ 5.5,
    time >= 60  & time < 120  ~ 5.5 + (8.0  - 5.5) * (time - 60)  / 60,
    time >= 120 & time < 180  ~ 8.0 + (10.0 - 8.0) * (time - 120) / 60,
    TRUE                      ~ 10.0
  )
)

ev_clamp <- rxode2::et(clamp_grid$time)
ev_clamp <- rxode2::et(ev_clamp, amt = 800, rate = 5, cmt = "xHL2", time = 0)
ev_clamp <- as.data.frame(ev_clamp)
ev_clamp$INS <- approx(clamp_grid$time, clamp_grid$INS, ev_clamp$time, rule = 2)$y
ev_clamp$GLU <- approx(clamp_grid$time, clamp_grid$GLU, ev_clamp$time, rule = 2)$y

sim_clamp <- rxode2::rxSolve(mod_typical, ev_clamp) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalkmg', 'etalemax', 'etalgamma', 'etalkmi', 'etalt12i', 'etalvtot', 'etalflambda3', 'etalw1'

clamp_long <- sim_clamp |>
  dplyr::select(time, INS, GLU, X, Z, G) |>
  dplyr::transmute(
    time,
    `Plasma insulin INS (pmol/L)`        = INS,
    `Plasma glucose GLU (mmol/L)`        = GLU,
    `Site-of-action insulin Z (pmol/L)`  = Z,
    `Site-of-action glucose X (mmol/L)`  = X,
    `Tracer concentration G (mmol/L)`    = G
  ) |>
  tidyr::pivot_longer(-time, names_to = "quantity", values_to = "value")

ggplot(clamp_long, aes(time, value)) +
  geom_line() +
  facet_wrap(~ quantity, scales = "free_y", ncol = 2) +
  labs(
    x = "Time (min)",
    y = NULL,

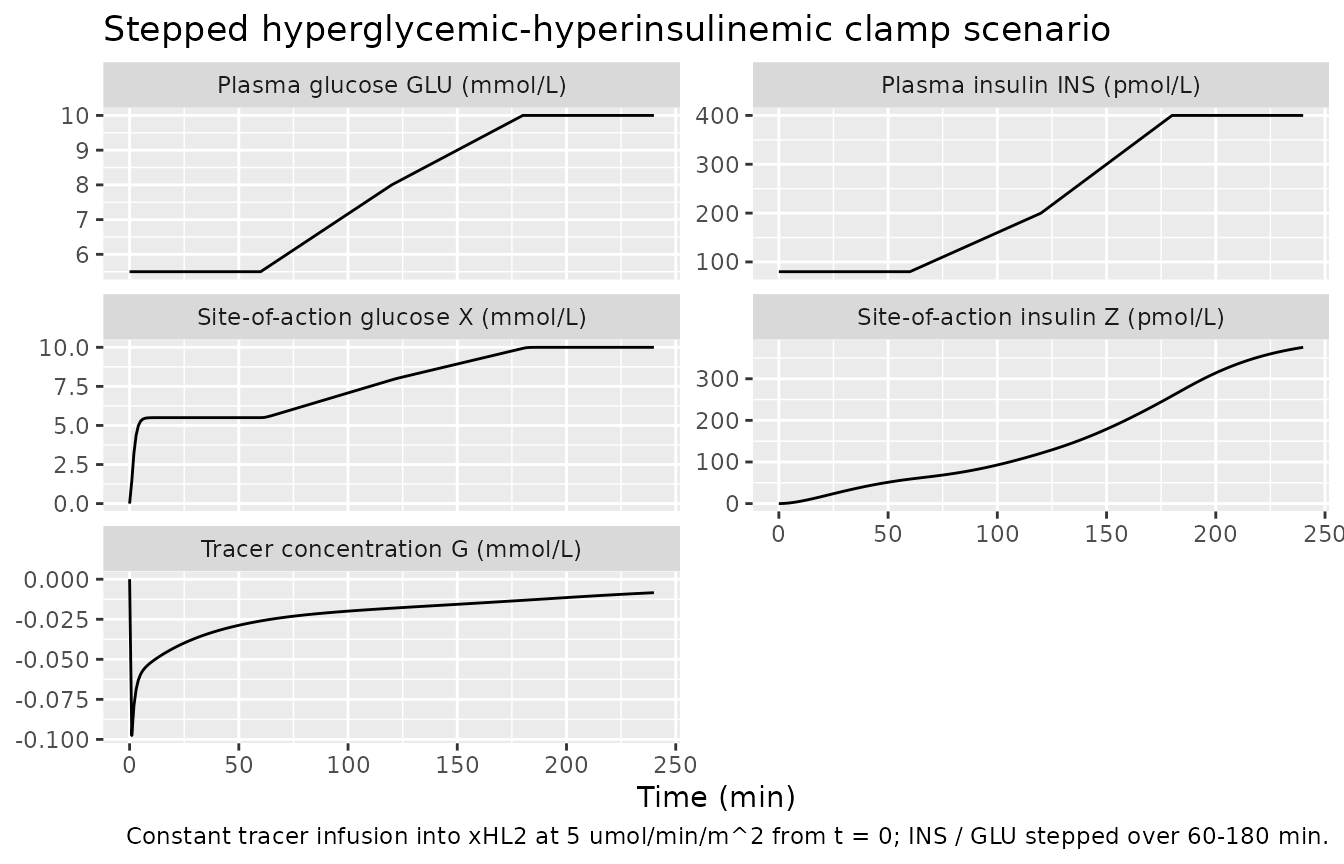

    title = "Stepped hyperglycemic-hyperinsulinemic clamp scenario",
    caption = "Constant tracer infusion into xHL2 at 5 umol/min/m^2 from t = 0; INS / GLU stepped over 60-180 min."
  )

The site-of-action quantities Z and X track the regressors with the model’s smoothing-filter delays; tracer concentration G declines as insulin and glucose at the site of action push Vmax up and clearance with it. This is the qualitative phenomenon that motivated the model – hyperglycemia attenuates the hyperinsulinemia-driven glucose clearance – captured here as the final phase of G’s trajectory plateauing rather than continuing to rise with the infusion.

4. Self-consistency vs the bundle’s simulated dataset

The bundle ships Simulated_glucoseKinetics.csv containing 6075 rows across 123 subjects. The dataset’s tracer-concentration column conc carries the per-subject Monolix simulation (each subject having its own draw of the etas and the residual). Re-simulating it through rxode2 would require either matching the per-subject etas (not in the bundle) or running the typical-value model and showing that the per-subject DV cloud brackets the deterministic trajectory.

The Simulated_glucoseKinetics.csv is not redistributed in this package (the bundle’s CSV uses a non-standard column convention iins / iglu / insn / glun / td / tn which the packaged model does not consume directly – the packaged model uses INS / GLU with linear interpolation declared in model() via linear(INS, GLU)). Users who want to reproduce the bundle’s simulated trajectories should download the CSV from dpastoor/ddmore_scraping/227, rename iins -> INS and iglu -> GLU, drop the insn / glun / td / tn columns, and pass the result to rxode2::rxSolve().

Assumptions and deviations

  • Simulation-only model. Per the bundle’s Long_technical_model_description_glucoseKinetics.txt, the DDMORE encoding of DDMODEL00000227 is intended as a typical-value simulator, not for parameter estimation. The Output_real_glucoseKinetics.txt listing in the bundle is a re-fit on the simulated dataset and is flagged as meaningless for estimation; this extraction therefore takes its parameter values from the .mdl STRUCTURAL block (annotated as the “final parameter estimates from related publication”), not from Output_real_*.

  • Bundle deviates from publication on subject identity. Per Model_Accommodations.txt, the MDL implementation differs from the publication in (1) not enforcing that paired tests share a subject identifier, and (2) being used as a simulation model rather than for re-estimation on the simulated dataset. The packaged model inherits both deviations.

  • Time-varying regressor handling. The bundle’s .mlxtran uses a hand-rolled piecewise-linear interpolation (`I = (t - T1) / (TOBS

    • T1) * (INS - INS1) + INS1, with the bracketing columnsiins / insn / iglu / glun / td / tncarried in the dataset) to enforce linear interpolation regardless of the simulator's default. The packagedrxode2model uses the equivalent native declarationlinear(INS, GLU)inmodel()so onlyINSandGLUneed to be supplied -- the bracketing columns are not required. The two forms are mathematically equivalent at any simulation time provided thatINSandGLU` are supplied at every observation row.

  • Bizzotto 2016 publication is not on disk. The packaged model’s reference field carries the citation and DOI, and the parameter values in the .mdl are annotated as the publication’s final estimates; however, no PDF of Bizzotto et al. is available in this worktree, so the in-vignette validation is restricted to mechanistic sanity (Sections 1-3) and a textual description of the F.2 self-consistency path (Section 4) rather than a side-by-side comparison against the published parameter table or Figure 3 trajectories. Demographic detail is recorded as NA in population for the same reason.

  • Output_real_glucoseKinetics.txt per-test residual SDs were collapsed into a single addSd = 0.014 mmol/L. The Monolix re-fit listing reports per-test additive SDs a_1 .. a_15 (ranging from ~0.003 to ~0.026 mmol/L) corresponding to the different experimental tests in the publication’s analysis. The .mdl parObj carries a single alpha = 0.014 mmol/L for the whole population, which is what the packaged model uses. A per-test residual would require a | treatment conditional error model and a treatment covariate column; that refinement is not part of this extraction.

  • flambda2, fw2, Vmax0, t12G, F carry no eta in the packaged model. The .mdl VARIABILITY block declares var_flambda2 = var_fw2 = var_Vmax0 = var_t12G = var_F = 0 (all fix = true), which is equivalent to “no IIV”; the packaged model omits the corresponding etas entirely.
