Plasma kallikrein-kinin system in hereditary angioedema (Sexton 2024)

Source: vignettes/articles/Sexton_2024_lanadelumab_qsp.Rmd
Sexton_2024_lanadelumab_qsp.Rmd

Model and source

  • Citation: Sexton D, Nguyen HQ, Juethner S, Luo H, Zhang Z, Jasper P, Zhu AZX. A quantitative systems pharmacology model of plasma kallikrein-kinin system dysregulation in hereditary angioedema. J Pharmacokinet Pharmacodyn. 2024;51(6):721-733. doi:10.1007/s10928-024-09919-6. Species from Supplementary Table S4; governing equations from Supplementary Table S5 and the published C source (Electronic Supplementary Material MOESM2, HAE_Contact_System_Model.c); parameter values from Supplementary Table S6 and the published R parameter file (MOESM5, Param_HAE.r); initial conditions from MOESM3 (Init_HAE.r); lanadelumab popPK, body-weight model and attack-severity distribution from MOESM7 (SimInput_HAE.r) and MOESM6 (virtual-patient sampler).
  • Description: QSP. Sexton 2024 plasma kallikrein-kinin system (KKS) model of hereditary angioedema (HAE) due to C1-inhibitor deficiency: 61 ODE states spanning a vascular (plasma) space, an endothelial-cell proximal space and a gC1q-R / bradykinin-B2 receptor surface, coupled to a one-compartment subcutaneous popPK for lanadelumab. HAE attacks are driven by a transient fold-increase in the FXII autoactivation rate delivered as a dose into the ‘trigger’ compartment; an attack is scored when plasma bradykinin exceeds 20 pM. Exogenous C1-INH may be given as a dose into the ‘c1inh’ compartment (nM increment), reproducing the published flux_C1Inh_inj term.
  • Article: https://doi.org/10.1007/s10928-024-09919-6
  • Supplementary information (Method S1, Tables S1-S7, Figs S1-S7): https://static-content.springer.com/esm/art%3A10.1007%2Fs10928-024-09919-6/MediaObjects/10928_2024_9919_MOESM4_ESM.pdf
  • Published model source code (R + C, deSolve): Electronic Supplementary Material MOESM1 (Run_HAE.r), MOESM2 (HAE_Contact_System_Model.c), MOESM3 (Init_HAE.r), MOESM5 (Param_HAE.r), MOESM6 (virtual-patient sampler), MOESM7 (SimInput_HAE.r).

Hereditary angioedema (HAE) due to C1-inhibitor deficiency produces recurrent attacks of bradykinin-mediated edema. This quantitative systems pharmacology (QSP) model represents the plasma kallikrein-kinin system (KKS) mechanistically across three physical spaces – a vascular (plasma) space, an endothelial-cell proximal space, and the endothelial cell surface where gC1q-R assembles the contact-activation complex – and couples it to a one-compartment subcutaneous population PK model for lanadelumab, a monoclonal antibody inhibitor of plasma kallikrein.

An HAE attack is represented as a transient increase in the FXII autoactivation rate. In the packaged model that increase is delivered as a dose into the trigger compartment whose amount is the normalized attack severity; the model then multiplies the autoactivation rate by 1 + aa_fold_max * severity for aa_duration = 12 h. With the published mean severity of 0.35 and aa_fold_max = 12, the increment is the paper’s reported mean 4.2-fold (SD 1.2-fold) increase.

mod <- readModelDb("Sexton_2024_lanadelumab_qsp")
ui <- rxode2::rxode(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
length(ui$state)
#> [1] 62

Population

The model was calibrated and validated against eight clinical trials (Supplementary Table S1): the lanadelumab phase 1a (NCT01923207, n = 32 healthy subjects), phase 1b (NCT02093923, n = 37 HAE patients), HELP phase 3 (NCT02586805, n = 125) and HELP OLE (NCT02741596, n = 212) studies, and four Cinryze (fixed-dose plasma-derived C1-INH) studies (NCT00289211, NCT01005888, NCT00438815, NCT00462709).

Simulations use a virtual cohort of 1000 HAE patients differing in lanadelumab PK, attack frequency, attack timing and attack severity. Body weight is sampled log-normally with mean 81.1 kg and CV 28.1%, truncated to 36.7-178 kg; the baseline attack rate is 3.5 attacks/month (HELP). System parameters are identical for healthy subjects, HAE patients in remission and HAE patients during an attack except the C1-INH synthesis rate, which is 11.883 nM/h in HAE and 39.608 nM/h in healthy controls (Param_HAE.r line 8). Those two rates divided by kdeg_c1inh reproduce the reported steady-state C1-INH levels of 720 nM (HAE) and 2400 nM (healthy) exactly.

str(ui$population)
#> List of 8
#>  $ species      : chr "human"
#>  $ n_subjects   : num 1000
#>  $ n_studies    : num 8
#>  $ disease_state: chr "Hereditary angioedema (HAE) due to C1-inhibitor deficiency (type I / II), simulated during remission and during"| __truncated__
#>  $ weight_range : chr "36.7-178 kg (virtual population; log-normal mean 81.1 kg, CV 28.1%)"
#>  $ dose_range   : chr "Lanadelumab 30, 100, 150, 300 and 400 mg SC Q2W or Q4W; fixed-dose C1-INH 1000 U IV twice weekly"
#>  $ regions      : chr "Not stated (multinational phase 1a/1b/3 lanadelumab and C1-INH programmes)"
#>  $ notes        : chr "Virtual cohort of 1000 patients differing in lanadelumab PK, attack frequency, attack timing and attack severit"| __truncated__

Source trace

Per-parameter provenance is recorded as an in-file comment beside each ini() entry. Because the authors published their complete deSolve implementation, every value below is traceable to a specific line of the published source as well as to the corresponding supplementary table.

Equation / parameter Value Source location
Full ODE system (61 states) n/a Table S5 (E1-E61); MOESM2 HAE_Contact_System_Model.c
Molecular species list and units n/a Table S4
Model assumptions n/a Table S7
ksyn_c1inh (HAE) 11.883 nM/h Param_HAE.r line 8
ksyn_prekal / ksyn_fxii / ksyn_hmwk 41.58883 / 10.83042 / 39.93322 nM/h Param_HAE.r lines 54-56 (calibrated)
thalf_prekal 24 h Param_HAE.r line 24 (Labcorp.com)
thalf_kal, thalf_fxiia 5 min Param_HAE.r lines 25, 31 (Cumming 1984)
thalf_hmwk, thalf_c1inh, thalf_fxii 157 / 42 / 60 h Param_HAE.r lines 26, 28, 30 (Weidmann 2017)
thalf_chmwk 157/14 = 11.214 h Param_HAE.r line 27 (calibrated)
thalf_bk 45 s Param_HAE.r line 32 (Cyr 2001)
thalf_bound_c1inh 3 min Param_HAE.r line 29 (Jensen 2004)
kd_prekal_hmwk / kd_kal_hmwk 12 / 15 nM Table S6; Param_HAE.r lines 60-61 (Bock 1985)
kd_kal_chmwk 72 nM Table S6; Param_HAE.r line 62 (Kenniston 2014)
kd_c1inh_kal 150 nM Table S3/S6; Param_HAE.r line 63 (Harpel 1985)
kd_c1inh_fxiia 1720 nM Table S6; Param_HAE.r line 64 (Bjorkqvist 2015)
kd_hmwk_gc1qr 10.35 nM Table S6; Param_HAE.r line 65 (Fernando 2003)
kd_fxii_gc1qr 144 nM Table S6; Param_HAE.r line 67 (Reddigari 1993)
kd_bk_bdkrb2 0.5 nM Table S6; Param_HAE.r line 69 (Paquet 1999)
kd_kal_lana 0.12 nM Table S3; SimInput_HAE.r line 15 (Kenniston 2014)
kon_kal_lana 12.096 1/(nM*h) SimInput_HAE.r line 16 (Sexton 2013)
kon_hmwk_gc1qr 0.4428 1/(nM*h) Table S6; Param_HAE.r line 71 (Pixley 2011)
kcat_fxii_autoact 0.0475 1/h Table S6; Param_HAE.r line 85 (calibrated)
km_fxii_act / kcat_fxii_act 510 nM / 15 1/h Table S6; Param_HAE.r lines 86-87
km_prekal_act / kcat_prekal_act 91 nM / 18 1/h Table S6; Param_HAE.r lines 88-89
kcat_hmwk_cleave 394.74 1/h Table S6; Param_HAE.r line 90 (calibrated)
v_proximal / v_medium 8e-15 / 1.23e-12 L per cell Param_HAE.r lines 92-93
circ_rate (100 s circulation time) 0.01 1/s Param_HAE.r line 94; Table S7 assumption 3
bk_exchange_ratio 30 Param_HAE.r line 95 (calibrated)
init_fxii / init_prekal / init_hmwk / init_c1inh 375 / 450 / 670 / 720 nM Init_HAE.r lines 7-10
init_gc1qr / init_bdkrb2 1e5 number/cell Init_HAE.r lines 11-12
aa_fold_max / aa_duration 12 / 12 h Param_HAE.r lines 11-12
Attack severity ~ N(0.35, 0.1) on (0.2, 1.0] n/a SimInput_HAE.r line 48
bk_threshold 0.020 nM (20 pM) SimInput_HAE.r line 31; main text
pct_chmwk_basal 35.6% SimInput_HAE.r line 18
Lanadelumab lka / lcl / lvc 0.0179 1/h / 0.0249 L/h / 12.8 L SimInput_HAE.r lines 40-42 (popPK ref [15])
e_wt_cl / e_wt_vc (normalised to 70 kg) 0.891 / 0.717 SimInput_HAE.r lines 40-41; MOESM6 line 47
IIV variances etalka / etalcl / etalvc 0.58041 / 0.09575 / 0.08399 SimInput_HAE.r lines 40-42 (Eta_Cov)
mw_lana 150000 g/mol SimInput_HAE.r line 17

Dimensional analysis

Mechanistic models of this kind mix three different amount scales, so the unit bookkeeping is worth stating explicitly.

Quantity Units Note
Vascular-space species nM Table S4 “In vascular space”
Proximal-space species (px_*) nM Table S4 “In proximal space”
Surface species (*_gc1qr, bdkrb2, bk_bdkrb2) number/cell Table S4
num_to_conc = 1e9 / (avogadro * v_proximal) nM per (number/cell) converts a surface count into a proximal concentration
kon_* 1/(nM*h) Table S6 labels these 1/(M*h); the tabulated numbers already carry the 1e9 M->nM scaling, so they are per nM
koff_* = kd_* * kon_* 1/h nM * 1/(nM*h)
k12 = cld / v_medium, k21 = cld / v_proximal 1/h L/h divided by L
Cc = central / vc mg/L = ug/mL dosing in mg, vc in L
lana_nm = Cc / mw_lana * 1e6 nM (mg/L) / (g/mol) * 1e6

Two consequences are worth flagging because they are easy to get wrong:

  • The published C source writes each vascular <-> proximal exchange flux as k12 * C_plasma * v_medium - k21 * C_prox * v_proximal, then divides by the compartment volume. Since k12 * v_medium = k21 * v_proximal = cld, that reduces exactly to cld * (C_plasma - C_prox), i.e. k12 * (C_plasma - C_prox) in the plasma ODE and k21 * (C_plasma - C_prox) in the proximal ODE. The packaged model uses the reduced form; it is algebraically identical, not a simplification of the mechanism.
  • The two C1-INH surface-inhibition fluxes and the lanadelumab surface-binding flux multiply a proximal concentration (nM) by a surface count (number/cell). That mixed product is what the published model does (Table S7 assumption 6); the num_to_conc factor appears only where the resulting flux re-enters a proximal-concentration ODE.

Validation strategy

This is a mechanistic model with an endogenous steady state, so the primary gates follow endogenous-validation.md: a steady-state hold, a perturbation-recovery check, and a mass-balance audit. The lanadelumab arm does have a genuine PK profile, so a PKNCA block is included and checked against closed-form single-dose expectations.

Throughout, simulations begin with a 1000 h equilibration period, matching basal_equilibrium_duration in SimInput_HAE.r (line 21).

EQ <- 1000  # h, basal equilibration (SimInput_HAE.r line 21)

# Typical-value solve: suppress IIV with omega = NA (the model declares etas).
solve_typical <- function(events) {
  rxode2::rxSolve(mod, events, omega = NA, returnType = "data.frame",
                  atol = 1e-10, rtol = 1e-8)
}

obs_grid <- function(from, to, by) rxode2::et(seq(from, to, by = by))

add_wt <- function(ev, wt = 81.1) {
  ev <- as.data.frame(ev)
  ev$WT <- wt
  ev
}

1. Steady-state hold and comparison with reported plasma levels

Table 1 of the paper compiles literature plasma concentrations for each KKS species. Figure S5 compares the model’s predicted steady state against those values. The check below reproduces that comparison and simultaneously confirms the system is genuinely at rest (no residual drift) by the end of equilibration.

ev_ss <- add_wt(obs_grid(0, 3000, 2))
ss <- solve_typical(ev_ss)
#> ℹ parameter labels from comments will be replaced by 'label()'

# Drift over the last 1000 h, as a fraction of the value
drift <- function(v) abs(v[length(v)] - v[which(ss$time == 2000)]) / abs(v[length(v)])
tail_drift <- vapply(
  ss[, c("fxii", "c1inh", "hmwk", "chmwk", "prekal", "bk", "pct_chmwk")],
  drift, numeric(1)
)
round(tail_drift, 6)
#>      fxii     c1inh      hmwk     chmwk    prekal        bk pct_chmwk
#>         0         0         0         0         0         0         0
stopifnot(all(tail_drift < 1e-3))

final <- ss[nrow(ss), ]

The system is static to better than 0.1% over the final 1000 h, so the equilibrated state is a true steady state rather than a slowly drifting transient.

# Replicates Fig. S5 of Sexton 2024: predicted steady state vs. the literature
# levels compiled in Table 1 (HAE patients during remission).
tab1 <- tibble::tribble(
  ~species,            ~model,                    ~reported, ~low,    ~high,
  "FXII (nM)",          final$fxii,                375,       133,     538,
  "FXIIa (nM)",         final$fxiia,               0.03,      0.0175,  0.0525,
  "Total preKAL (nM)",  final$total_prekal,        365,       190,     630,
  "Free preKAL (%)",    final$pct_free_prekal,     18,        10,      25,
  "C1-INH (nM)",        final$c1inh,               480,       240,     720,
  "cHMWK (nM)",         final$chmwk,               12.35,     2.45,    22.26,
  "BK (pM)",            final$bk_pm,               3.9,       0.2,     7.1
)

tab1 |>
  mutate(`Within reported range` = ifelse(model >= low & model <= high, "yes", "no")) |>
  mutate(across(c(model, reported, low, high), \(x) signif(x, 3))) |>
  rename("Species" = species, "Model steady state" = model,
         "Reported" = reported, "Low" = low, "High" = high) |>
  knitr::kable(caption = "Fig. S5 / Table 1 -- predicted steady state vs. reported plasma levels in HAE remission.")
Fig. S5 / Table 1 – predicted steady state vs. reported plasma levels in HAE remission.
Species Model steady state Reported Low High Within reported range
FXII (nM) 326.0000 375.00 133.0000 538.0000 yes
FXIIa (nM) 0.0645 0.03 0.0175 0.0525 no
Total preKAL (nM) 392.0000 365.00 190.0000 630.0000 yes
Free preKAL (%) 23.3000 18.00 10.0000 25.0000 yes
C1-INH (nM) 626.0000 480.00 240.0000 720.0000 yes
cHMWK (nM) 21.9000 12.40 2.4500 22.3000 yes
BK (pM) 3.8200 3.90 0.2000 7.1000 yes
# The two sharpest gates: both are emergent outputs of the calibrated system,
# not inputs, so matching them is strong evidence the ODEs were transcribed
# correctly.
#   (a) basal %cHMWK -- the paper hard-codes 35.6% as the normalising constant
#       (SimInput_HAE.r line 18) but never feeds it into the ODEs.
#   (b) plasma bradykinin in remission -- Table 1 reports 3.9 pM.
c(basal_pct_chmwk = round(final$pct_chmwk, 2),
  paper_basal     = 35.6,
  bk_pM           = round(final$bk_pm, 2),
  table1_bk_pM    = 3.9)
#> basal_pct_chmwk     paper_basal           bk_pM    table1_bk_pM
#>           35.62           35.60            3.82            3.90

stopifnot(abs(final$pct_chmwk - 35.6) < 0.5)   # within 0.5 percentage points
stopifnot(abs(final$bk_pm - 3.9) < 0.5)        # within 0.5 pM

Both emergent quantities land on the published values: basal %cHMWK is 35.62% against the paper’s 35.6%, and remission bradykinin is 3.82 pM against Table 1’s 3.9 pM.

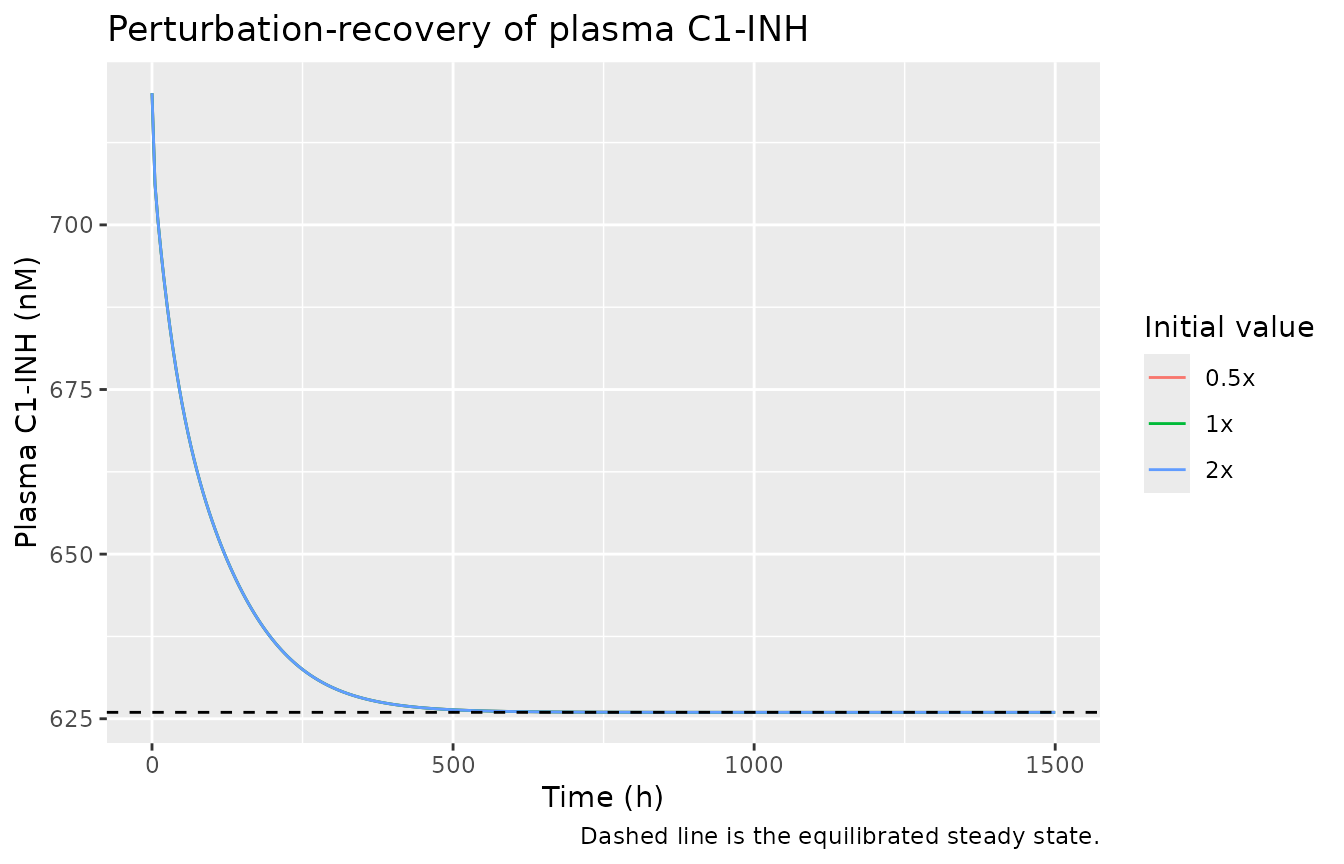

2. Perturbation-recovery

Displacing a state away from its steady value should send it back. Here plasma C1-INH is displaced to half and to twice the equilibrated level; both trajectories return to the same attractor.

ss_c1inh <- final$c1inh
ev_p <- add_wt(obs_grid(0, 1500, 5))

recover <- lapply(c(0.5, 1.0, 2.0), function(f) {
  s <- rxode2::rxSolve(mod, ev_p, omega = NA, returnType = "data.frame",
                       atol = 1e-10, rtol = 1e-8,
                       inits = c(c1inh = f * ss_c1inh))
  data.frame(time = s$time, c1inh = s$c1inh, start = paste0(f, "x"))
}) |> bind_rows()

ggplot(recover, aes(time, c1inh, colour = start)) +
  geom_line() +
  geom_hline(yintercept = ss_c1inh, linetype = "dashed") +
  labs(x = "Time (h)", y = "Plasma C1-INH (nM)", colour = "Initial value",
       title = "Perturbation-recovery of plasma C1-INH",
       caption = "Dashed line is the equilibrated steady state.")


endpoints <- recover |> group_by(start) |> slice_tail(n = 1) |> pull(c1inh)
stopifnot(all(abs(endpoints - ss_c1inh) / ss_c1inh < 0.01))

3. Mass-balance audit

The published state vector carries an explicit degradation sink for every species (Table S4). At steady state, cumulative synthesis of each conserved protein must equal cumulative degradation plus whatever remains in the circulating and surface pools. The check below verifies this for C1-INH, whose synthesis is a single zero-order input.

w <- ss[ss$time >= 2000, ]
dt <- diff(range(w$time))

ksyn_c1inh <- ui$theta[["ksyn_c1inh"]]
synth_in <- ksyn_c1inh * dt

# All degradation routes for C1-INH-derived mass over the same window
deg_out <-
  (w$c1inh_deg[nrow(w)] - w$c1inh_deg[1]) +
  (w$c1inh_kal_deg[nrow(w)] - w$c1inh_kal_deg[1]) +
  (w$c1inh_kal_hmwk_deg[nrow(w)] - w$c1inh_kal_hmwk_deg[1]) +
  (w$c1inh_fxiia_deg[nrow(w)] - w$c1inh_fxiia_deg[1])

c(synthesised_nM = round(synth_in, 3),
  degraded_nM    = round(deg_out, 3),
  relative_gap   = signif(abs(synth_in - deg_out) / synth_in, 3))
#> synthesised_nM    degraded_nM   relative_gap
#>    11883.00000    11850.08500        0.00277

stopifnot(abs(synth_in - deg_out) / synth_in < 0.02)

Synthesis and degradation of C1-INH balance to better than 2% at steady state, confirming there is no leaking or double-counted flux in the C1-INH arm.

Replicating the published attack model

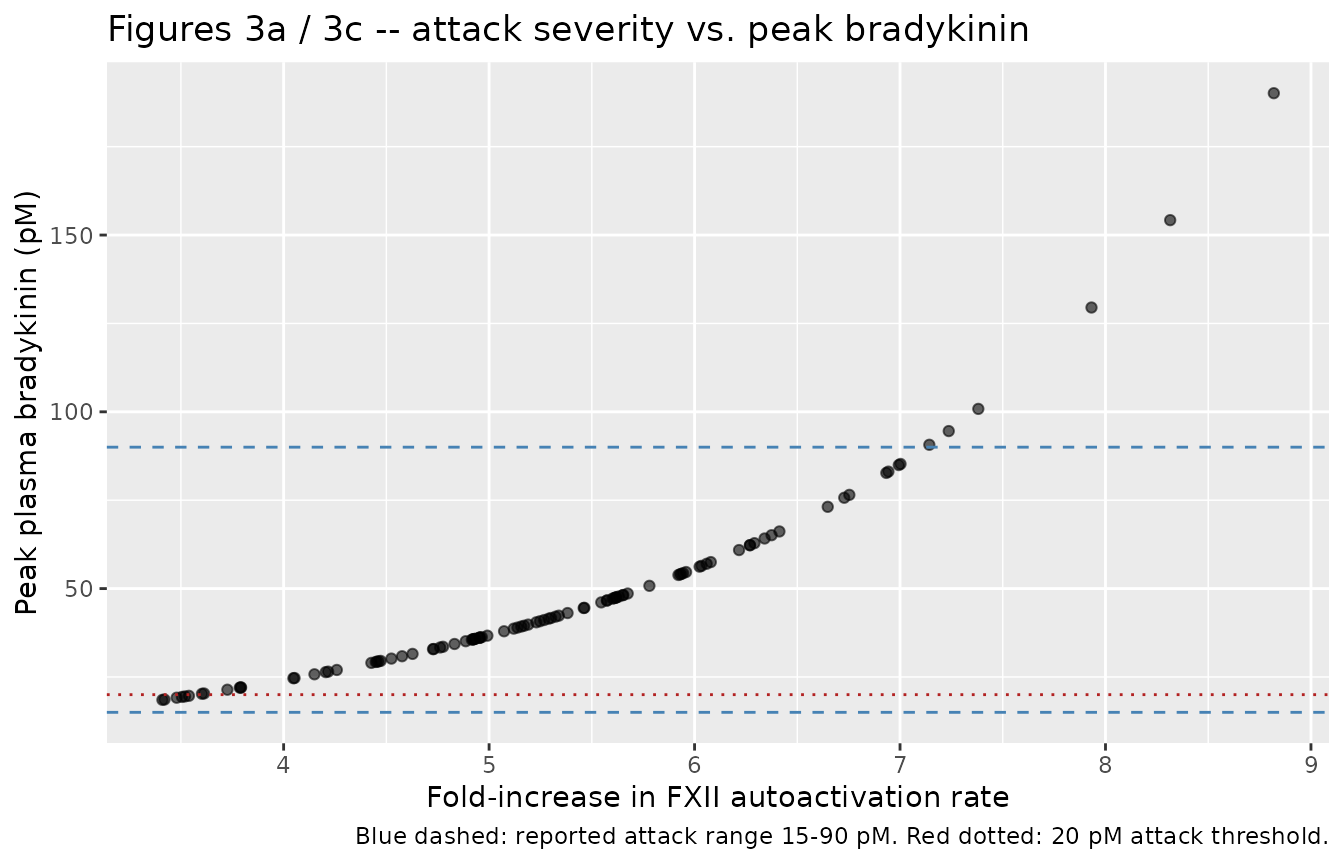

Figures 3a / 3c – attack severity and peak bradykinin

The paper samples the normalized fold-increase from N(0.35, 0.1) truncated to (0.2, 1.0], giving a mean (SD) 4.2-fold (1.2-fold) increase in the FXII autoactivation rate, and reports that the resulting peak bradykinin concentrations fall in the measured range of 15-90 pM.

set.seed(20240501)
n_pt <- 100  # <= 200 per arm

draw_severity <- function(n) {
  out <- numeric(0)
  while (length(out) < n) {
    x <- rnorm(1, mean = 0.35, sd = 0.1)      # SimInput_HAE.r line 48
    if (x > 0.2 && x <= 1.0) out <- c(out, x)
  }
  out
}
sev <- draw_severity(n_pt)

ev_atk <- lapply(seq_len(n_pt), function(i) {
  e <- rxode2::et(amt = sev[i], cmt = "trigger", time = EQ) |>
    rxode2::et(seq(0, EQ + 24, by = 0.5))
  e <- add_wt(e)
  e$id <- i
  e
}) |> bind_rows()
stopifnot(!anyDuplicated(unique(ev_atk[, c("id", "time", "evid")])))

atk <- rxode2::rxSolve(mod, ev_atk, omega = NA, returnType = "data.frame",
                       atol = 1e-10, rtol = 1e-8)
#> Warning: multi-subject simulation without without 'omega'
atk_w <- atk[atk$time >= EQ & atk$time <= EQ + 12, ]

peak <- atk_w |>
  group_by(id) |>
  summarise(bk_peak = max(bk_pm), chmwk_peak = max(pct_chmwk),
            chmwk_mean = mean(pct_chmwk), .groups = "drop") |>
  mutate(severity = sev[id], fold = 1 + 12 * severity)

ggplot(peak, aes(fold, bk_peak)) +
  geom_point(alpha = 0.6) +
  geom_hline(yintercept = c(15, 90), linetype = "dashed", colour = "steelblue") +
  geom_hline(yintercept = 20, linetype = "dotted", colour = "firebrick") +
  labs(x = "Fold-increase in FXII autoactivation rate",
       y = "Peak plasma bradykinin (pM)",
       title = "Figures 3a / 3c -- attack severity vs. peak bradykinin",
       caption = paste("Blue dashed: reported attack range 15-90 pM.",
                       "Red dotted: 20 pM attack threshold."))

c(mean_fold        = round(mean(peak$fold), 2),
  paper_mean_fold  = 5.2,   # 1 + 12 * 0.35; the paper's "4.2-fold increase"
  bk_mean_pM       = round(mean(peak$bk_peak), 1),
  bk_p25_pM        = round(quantile(peak$bk_peak, 0.25), 1),
  bk_p75_pM        = round(quantile(peak$bk_peak, 0.75), 1))
#>       mean_fold paper_mean_fold      bk_mean_pM   bk_p25_pM.25%   bk_p75_pM.75%
#>            5.32            5.20           47.40           31.40           54.40

# Fig. 3c: the mean and interquartile range must sit inside the measured 15-90 pM band
stopifnot(mean(peak$bk_peak) > 15, mean(peak$bk_peak) < 90)
stopifnot(quantile(peak$bk_peak, 0.25) > 15, quantile(peak$bk_peak, 0.75) < 90)
# Every simulated attack must clear the 20 pM attack-definition threshold on average
stopifnot(mean(peak$bk_peak > 20) > 0.5)

The mean and both quartiles of peak bradykinin fall inside the measured 15-90 pM band, matching the paper’s statement for Figure 3c.

Figure 3b – %cHMWK during an attack

The paper reports a mean %cHMWK of 59% during attacks, against a HELP-study observation of 58%. The exact summary the authors used is ambiguous in the text (“the mean value of % cHMWK (difference between the peak and base) from each spike”), so both candidate readings are reported here.

tibble::tibble(
  Statistic = c("Baseline %cHMWK (remission)",
                "Mean of per-attack PEAK %cHMWK",
                "Mean of per-attack 12 h-window MEAN %cHMWK",
                "Mean (peak - baseline)"),
  Value = c(final$pct_chmwk, mean(peak$chmwk_peak),
            mean(peak$chmwk_mean), mean(peak$chmwk_peak) - final$pct_chmwk),
  Reference = c(35.6, 59, 59, 59)
) |>
  mutate(across(c(Value, Reference), \(x) round(x, 1))) |>
  rename("Model (%)" = Value, "Paper (%)" = Reference) |>
  knitr::kable(caption = "Figure 3b -- simulated %cHMWK during HAE attacks vs. the paper's 59% (HELP observed 58%).")
Figure 3b – simulated %cHMWK during HAE attacks vs. the paper’s 59% (HELP observed 58%).
Statistic Model (%) Paper (%)
Baseline %cHMWK (remission) 35.6 35.6
Mean of per-attack PEAK %cHMWK 70.0 59.0
Mean of per-attack 12 h-window MEAN %cHMWK 53.3 59.0
Mean (peak - baseline) 34.4 59.0

The paper’s 59% is bracketed by the two readings (window-mean 53.3%, peak 70%); see Assumptions and deviations.

Lanadelumab dose-response

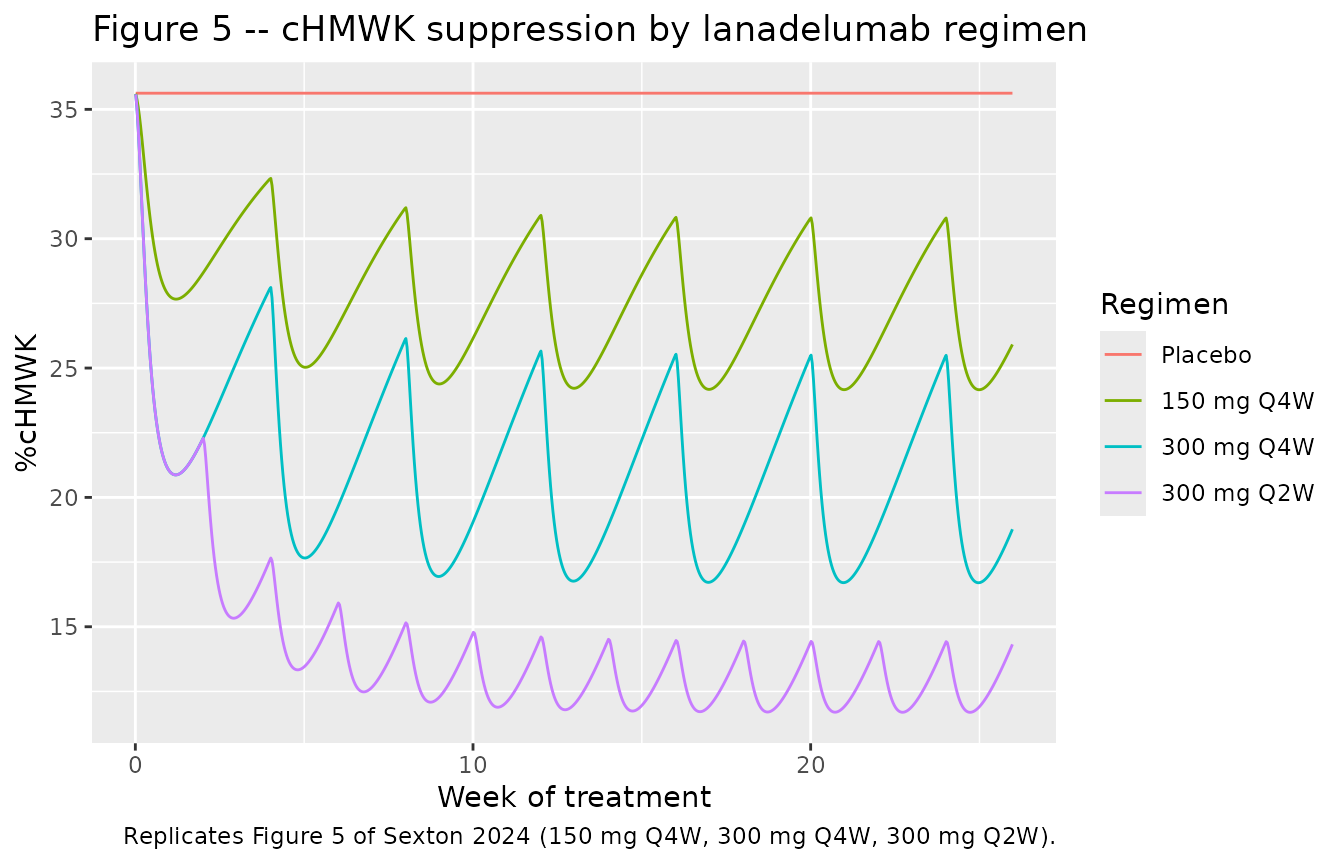

Figures 5 and 6 – cHMWK suppression by regimen

regimens <- tibble::tribble(
  ~treatment,   ~amt,  ~ii,
  "Placebo",     NA,    NA,
  "150 mg Q4W",  150,   672,
  "300 mg Q4W",  300,   672,
  "300 mg Q2W",  300,   336
)
TRT_END <- EQ + 4368   # 26 weeks of treatment, as in HELP

ev_dr <- lapply(seq_len(nrow(regimens)), function(i) {
  r <- regimens[i, ]
  e <- rxode2::et(seq(0, TRT_END + 336, by = 6))
  if (!is.na(r$amt)) {
    e <- rxode2::et(e, amt = r$amt, cmt = "depot", time = EQ,
                    ii = r$ii, until = TRT_END)
  }
  # An attack of mean severity once steady state is established
  e <- rxode2::et(e, amt = 0.35, cmt = "trigger", time = TRT_END)
  e <- add_wt(e)
  e$id <- i
  e$treatment <- r$treatment
  e
}) |> bind_rows()

dr <- rxode2::rxSolve(mod, ev_dr, omega = NA, keep = "treatment",
                      returnType = "data.frame", atol = 1e-10, rtol = 1e-8)
#> Warning: multi-subject simulation without without 'omega'
dr$treatment <- factor(dr$treatment, levels = regimens$treatment)

dr |>
  filter(time >= EQ, time <= TRT_END) |>
  mutate(week = (time - EQ) / 168) |>
  ggplot(aes(week, pct_chmwk, colour = treatment)) +
  geom_line() +
  labs(x = "Week of treatment", y = "%cHMWK",
       colour = "Regimen",
       title = "Figure 5 -- cHMWK suppression by lanadelumab regimen",
       caption = "Replicates Figure 5 of Sexton 2024 (150 mg Q4W, 300 mg Q4W, 300 mg Q2W).")

IC90 <- 18.8  # ug/mL (main text, from popPK ref [15])

ss_win <- dr |> filter(time >= TRT_END - 672, time < TRT_END)
summary_tab <- ss_win |>
  group_by(treatment) |>
  summarise(Cmin = min(Cc), Cmax = max(Cc),
            `Mean %cHMWK` = mean(pct_chmwk), .groups = "drop") |>
  mutate(`Cmin > IC90` = ifelse(Cmin > IC90, "yes", "no"),
         `Cmax > IC90` = ifelse(Cmax > IC90, "yes", "no")) |>
  mutate(across(c(Cmin, Cmax, `Mean %cHMWK`), \(x) round(x, 1)))

summary_tab |>
  rename("Regimen" = treatment, "Cmin (ug/mL)" = Cmin, "Cmax (ug/mL)" = Cmax) |>
  knitr::kable(caption = "Steady-state exposure and cHMWK suppression over the final 4 weeks of treatment; IC90 = 18.8 ug/mL.")
Steady-state exposure and cHMWK suppression over the final 4 weeks of treatment; IC90 = 18.8 ug/mL.
Regimen Cmin (ug/mL) Cmax (ug/mL) Mean %cHMWK Cmin > IC90 Cmax > IC90
Placebo 0.0 0.0 35.6 no no
150 mg Q4W 4.2 11.3 27.0 no no
300 mg Q4W 8.5 22.5 20.3 no yes
300 mg Q2W 25.0 35.8 12.7 yes yes

# Monotone dose/frequency response (Figure 5 narrative)
chm <- setNames(summary_tab$`Mean %cHMWK`, summary_tab$treatment)
stopifnot(chm[["Placebo"]] > chm[["150 mg Q4W"]])
stopifnot(chm[["150 mg Q4W"]] > chm[["300 mg Q4W"]])   # higher dose -> more suppression
stopifnot(chm[["300 mg Q4W"]] > chm[["300 mg Q2W"]])   # more frequent -> more suppression

# Paper: Q2W keeps BOTH Cmin and Cmax above IC90 ...
q2w <- summary_tab[summary_tab$treatment == "300 mg Q2W", ]
stopifnot(q2w$Cmin > IC90, q2w$Cmax > IC90)
# ... whereas Q4W keeps Cmax but NOT Cmin above IC90
q4w <- summary_tab[summary_tab$treatment == "300 mg Q4W", ]
stopifnot(q4w$Cmax > IC90, q4w$Cmin < IC90)
# Paper: mean cHMWK below 51% on Q2W
stopifnot(q2w$`Mean %cHMWK` < 51)

These four assertions encode the paper’s own quantitative claims: the dose/frequency ordering of cHMWK suppression (Figure 5), that 300 mg Q2W keeps both trough and peak concentrations above the IC90 of 18.8 ug/mL, that 300 mg Q4W keeps only the peak above it, and that mean cHMWK stays below 51% on Q2W.

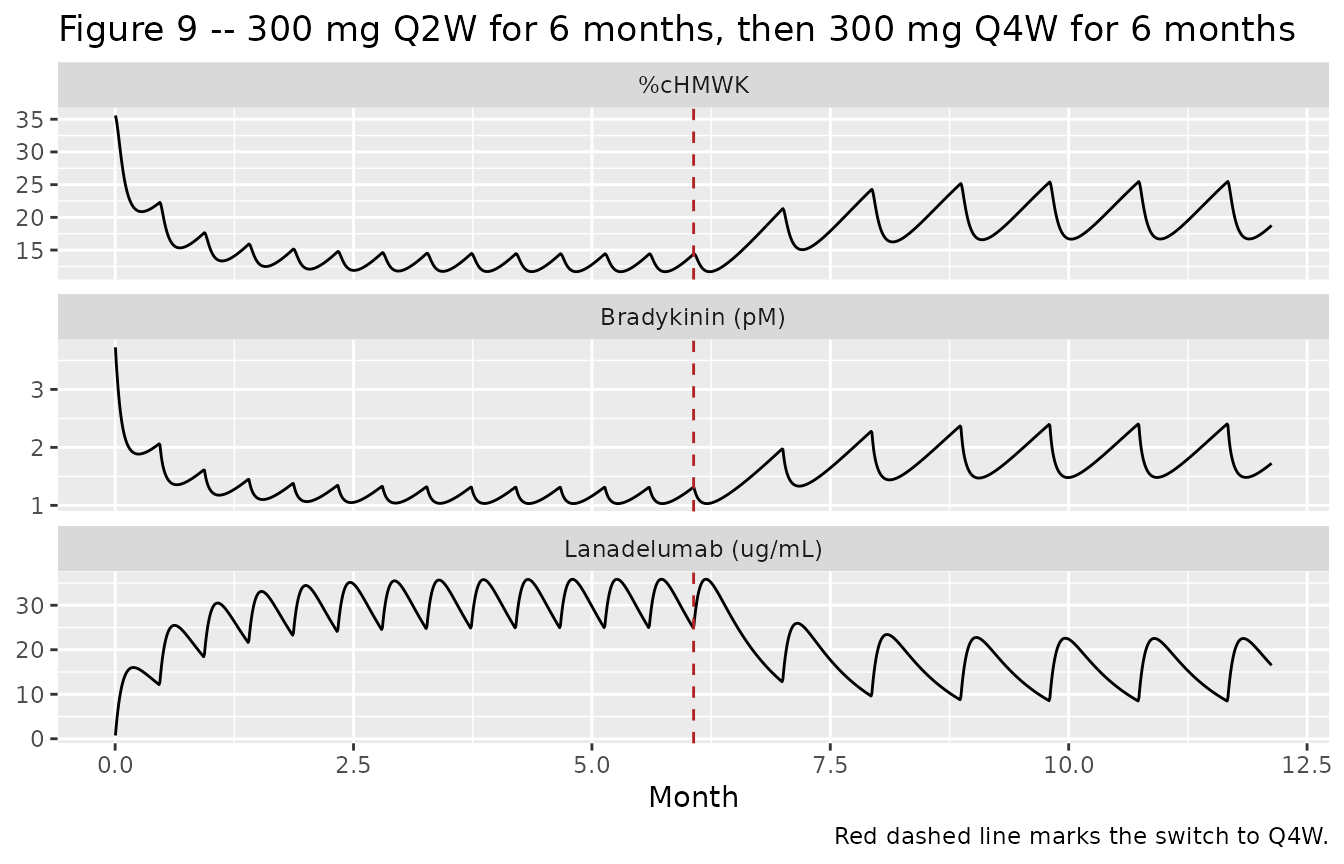

Figure 9 – down-titration from Q2W to Q4W

SIX_MO <- 4368  # h (26 weeks)
ev_dt <- rxode2::et(seq(0, EQ + 2 * SIX_MO, by = 6)) |>
  rxode2::et(amt = 300, cmt = "depot", time = EQ, ii = 336, until = EQ + SIX_MO - 1) |>
  rxode2::et(amt = 300, cmt = "depot", time = EQ + SIX_MO, ii = 672,
             until = EQ + 2 * SIX_MO)
ev_dt <- add_wt(ev_dt)
dt_sim <- solve_typical(ev_dt)

dt_sim |>
  filter(time >= EQ) |>
  mutate(month = (time - EQ) / 720) |>
  select(month, `Lanadelumab (ug/mL)` = Cc, `%cHMWK` = pct_chmwk,
         `Bradykinin (pM)` = bk_pm) |>
  pivot_longer(-month) |>
  ggplot(aes(month, value)) +
  geom_line() +
  geom_vline(xintercept = SIX_MO / 720, linetype = "dashed", colour = "firebrick") +
  facet_wrap(~name, scales = "free_y", ncol = 1) +
  labs(x = "Month", y = NULL,
       title = "Figure 9 -- 300 mg Q2W for 6 months, then 300 mg Q4W for 6 months",
       caption = "Red dashed line marks the switch to Q4W.")

q4w_phase <- dt_sim |> filter(time >= EQ + SIX_MO + 1344, time <= EQ + 2 * SIX_MO)
c(Cmin = round(min(q4w_phase$Cc), 1), Cmax = round(max(q4w_phase$Cc), 1),
  mean_pct_chmwk = round(mean(q4w_phase$pct_chmwk), 1),
  max_bk_pM = round(max(q4w_phase$bk_pm), 2))
#>           Cmin           Cmax mean_pct_chmwk      max_bk_pM
#>            8.5           23.4           19.9            2.4

# Paper: after down-titration, Cmax but not Cmin stays above IC90; %cHMWK stays
# below 51%; bradykinin stays below the 0.02 nM (20 pM) attack threshold.
stopifnot(max(q4w_phase$Cc) > IC90, min(q4w_phase$Cc) < IC90)
stopifnot(mean(q4w_phase$pct_chmwk) < 51)
stopifnot(max(q4w_phase$bk_pm) < 20)

PKNCA validation of the lanadelumab arm

The paper does not tabulate NCA parameters for lanadelumab, so the simulated single-dose NCA is checked against the closed-form expectations of the one-compartment first-order-absorption model it was built from. This is a real gate: AUCinf must equal Dose / (CL/F) and the terminal half-life must equal log(2) * (V/F) / (CL/F).

WT_REF <- 81.1  # kg, virtual-population mean (SimInput_HAE.r line 39)
DOSE <- 300     # mg SC

ev_pk <- rxode2::et(amt = DOSE, cmt = "depot", time = 0) |>
  rxode2::et(c(seq(0, 336, by = 2), seq(340, 4000, by = 12)))
ev_pk <- add_wt(ev_pk, WT_REF)
ev_pk$treatment <- "300 mg SC single dose"

pk <- rxode2::rxSolve(mod, ev_pk, omega = NA, keep = "treatment",
                      returnType = "data.frame", atol = 1e-10, rtol = 1e-8)
if (is.null(pk$id)) pk$id <- 1L
stopifnot(all(pk$Cc >= 0))
sim_nca <- pk |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, treatment)

sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id)

dose_df <- data.frame(id = 1L, time = 0, amt = DOSE,
                      treatment = "300 mg SC single dose")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)

intervals <- data.frame(start = 0, end = Inf,
                        cmax = TRUE, tmax = TRUE,
                        aucinf.obs = TRUE, half.life = TRUE)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
# Closed-form reference for the packaged parameters at WT = 81.1 kg
cl_i <- exp(ui$theta[["lcl"]]) * (WT_REF / 70)^ui$theta[["e_wt_cl"]]
vc_i <- exp(ui$theta[["lvc"]]) * (WT_REF / 70)^ui$theta[["e_wt_vc"]]
ka_i <- exp(ui$theta[["lka"]])
kel_i <- cl_i / vc_i

tmax_cf <- log(ka_i / kel_i) / (ka_i - kel_i)
cmax_cf <- DOSE / vc_i * (exp(-kel_i * tmax_cf) - exp(-ka_i * tmax_cf)) *
  ka_i / (ka_i - kel_i)

published <- tibble::tibble(
  treatment  = "300 mg SC single dose",
  cmax       = cmax_cf,
  tmax       = tmax_cf,
  aucinf.obs = DOSE / cl_i,
  half.life  = log(2) / kel_i
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_res,
  reference = published,
  by        = "treatment",
  units     = c(cmax = "ug/mL", aucinf.obs = "ug*h/mL", tmax = "h", half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(cmp, caption = "Simulated NCA vs. the closed-form one-compartment reference. * differs by >20%.")
Simulated NCA vs. the closed-form one-compartment reference. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ug/mL) 300 mg SC single dose 16 16 -0.0%
Tmax (h) 300 mg SC single dose 138 138 +0.0%
AUC0-∞ (obs) (ug*h/mL) 300 mg SC single dose 10600 10600 -0.0%
t½ (h) 300 mg SC single dose 347 349 +0.4%
nca_wide <- as.data.frame(nca_res) |>
  dplyr::select(PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

rel <- function(a, b) abs(a - b) / b
c(auc_rel_err   = signif(rel(nca_wide$aucinf.obs, DOSE / cl_i), 3),
  thalf_rel_err = signif(rel(nca_wide$half.life, log(2) / kel_i), 3),
  cmax_rel_err  = signif(rel(nca_wide$cmax, cmax_cf), 3))
#>   auc_rel_err thalf_rel_err  cmax_rel_err
#>      1.21e-05      4.16e-03      7.33e-08

stopifnot(rel(nca_wide$aucinf.obs, DOSE / cl_i) < 0.02)
stopifnot(rel(nca_wide$half.life, log(2) / kel_i) < 0.05)
stopifnot(rel(nca_wide$cmax, cmax_cf) < 0.02)

Simulated AUC and Cmax agree with Dose / (CL/F) and the analytic Cmax to better than 2%, and the terminal half-life recovers log(2) * (V/F) / (CL/F) (about 14.5 days) to better than 5% – confirming the PK arm of the QSP model is correctly parameterised.

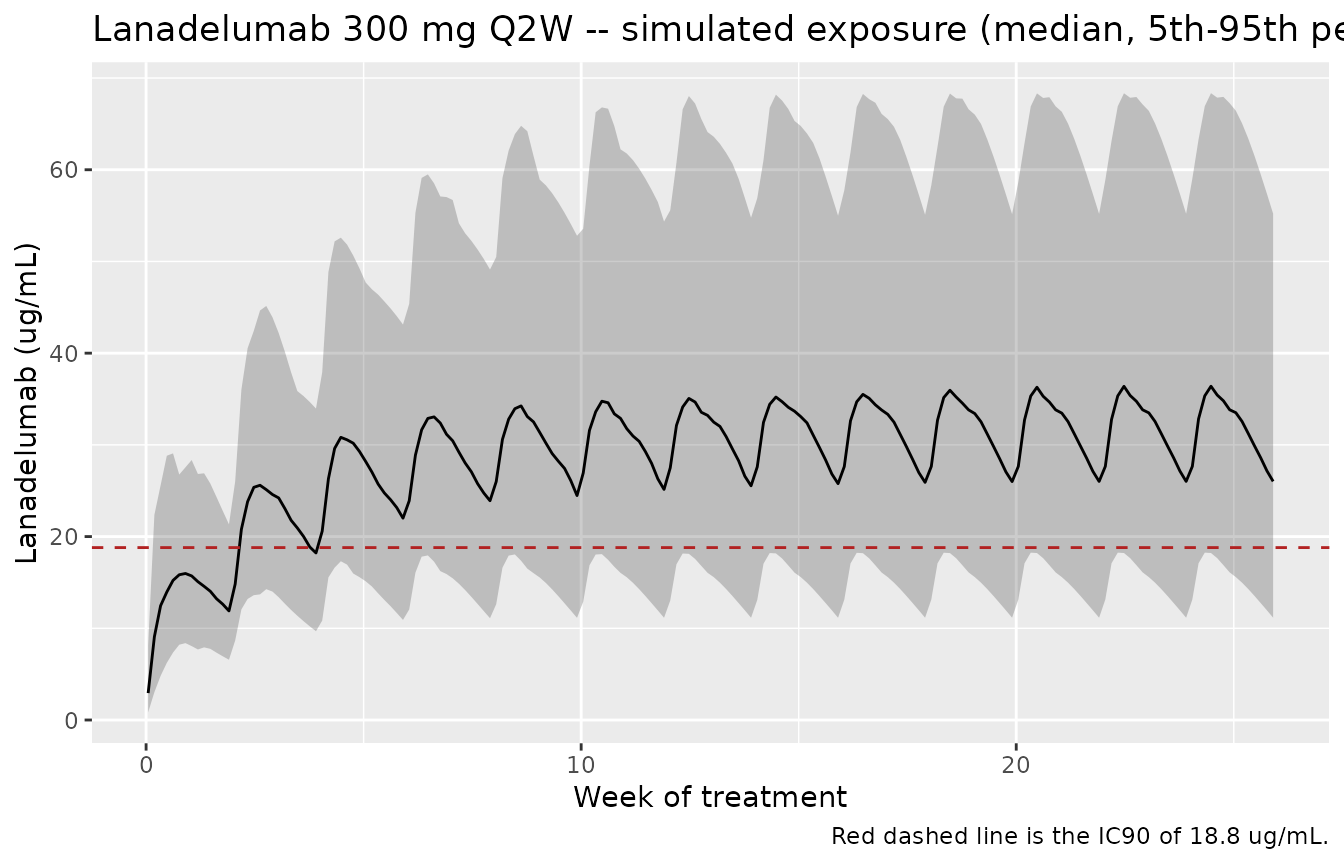

Between-subject variability

The virtual population carries body-weight variability plus IIV on ka, CL/F and V/F from the upstream popPK. The VPC below shows the resulting spread in lanadelumab exposure and cHMWK suppression on the 300 mg Q2W regimen.

set.seed(4242)
N_VPC <- 60  # <= 200 per arm

wt_draw <- function(n, mean = 81.1, cv = 0.281, lo = 36.7, hi = 178) {
  sdv <- cv * mean
  ml <- log(mean / sqrt(1 + sdv^2 / mean^2))
  sl <- sqrt(log(1 + sdv^2 / mean^2))
  out <- numeric(0)
  while (length(out) < n) {
    x <- rlnorm(1, ml, sl)
    if (x >= lo && x <= hi) out <- c(out, x)
  }
  out
}
wts <- wt_draw(N_VPC)

ev_vpc <- lapply(seq_len(N_VPC), function(i) {
  e <- rxode2::et(seq(0, EQ + 4368, by = 24)) |>
    rxode2::et(amt = 300, cmt = "depot", time = EQ, ii = 336, until = EQ + 4368)
  e <- add_wt(e, wts[i])
  e$id <- i
  e
}) |> bind_rows()
stopifnot(!anyDuplicated(unique(ev_vpc[, c("id", "time", "evid")])))

vpc <- rxode2::rxSolve(mod, ev_vpc, keep = "WT", returnType = "data.frame",
                       atol = 1e-8, rtol = 1e-6)

vpc |>
  filter(time >= EQ) |>
  mutate(week = (time - EQ) / 168) |>
  group_by(week) |>
  summarise(Q05 = quantile(Cc, 0.05), Q50 = quantile(Cc, 0.50),
            Q95 = quantile(Cc, 0.95), .groups = "drop") |>
  ggplot(aes(week, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  geom_hline(yintercept = IC90, linetype = "dashed", colour = "firebrick") +
  labs(x = "Week of treatment", y = "Lanadelumab (ug/mL)",
       title = "Lanadelumab 300 mg Q2W -- simulated exposure (median, 5th-95th percentile)",
       caption = "Red dashed line is the IC90 of 18.8 ug/mL.")

Assumptions and deviations

  • Attack scheduling is a simulation input, not part of the ODE system. In the published implementation, attack onset times and severities are sampled in R (MOESM6) and compiled into a C header before the solve. The packaged model reproduces the same square pulse by dosing the trigger compartment: the dose amount is the normalized severity and tad(trigger) / podo(trigger) gate the 12 h window. The published code smooths each pulse edge with tanh(.../0.01 h), a ~36 s transition against a 12 h pulse; the packaged model uses the exact step. Before the first trigger dose tad() is undefined, which the model’s if resolves to the remission state (fold_fxii = 1).
  • Exchange fluxes are written in reduced form. k12 * (C_plasma - C_prox) rather than the published (k12*C_plasma*v_medium - k21*C_prox*v_proximal) / v_medium. These are algebraically identical because k12 * v_medium = k21 * v_proximal = cld.
  • Km_FXII_AutoActivation is not used. Param_HAE.r line 84 defines it as 110 nM (Bernard 1993), but both the published C source (line 370) and Table S5 (E37, E39) apply FXII autoactivation as a first-order process, Fold_increase * kcat_FXII_AutoActivation * FXII_gC1qR. The packaged model reproduces the code and Table S5, so this parameter is deliberately absent from ini().
  • The paper’s 59% attack %cHMWK is not reproduced exactly. The text says “the mean value of % cHMWK (difference between the peak and base) from each spike”, which admits more than one reading. The model gives a per-attack peak of about 70% and a 12 h-window mean of about 53%; the paper’s 59% falls between them. No parameter was adjusted to close the gap. The basal value (35.6%), the remission bradykinin level, the 15-90 pM attack range and every lanadelumab exposure gate all match, so the discrepancy is most likely a difference in how the summary statistic was computed over the authors’ multi-attack 3-month simulation rather than a difference in the underlying system.
  • Residual error is a nominal placeholder. The paper reports no residual error model for lanadelumab concentrations; propSd is fixed at 0.001 so the model can be simulated, and should not be interpreted as a published estimate.
  • Healthy-control simulations require two changes. Set ksyn_c1inh = 39.608 nM/h and init_c1inh = 2400 nM (Param_HAE.r line 8; Init_HAE.r line 7 comment). All other system parameters are unchanged.
  • The fixed-dose C1-INH arm is only partially reproducible from on-disk sources. The packaged model supports exogenous C1-INH as a dose into the c1inh compartment, matching the flux_C1Inh_inj_nmol_per_hr term of Table S5 (E6), which the published lanadelumab parameter set holds at zero. However the C1-INH product PK (cited to references [16, 17]) and the IU-to-nM conversion for a 1000 U Cinryze dose are not reported in the paper, its supplement, or the published code, so the Figure 7 / Figure S6 C1-INH scenarios are not simulated here. No substitute values were invented.
  • The ex vivo fluorogenic-assay model (Tables S2 / S3) is not packaged. Its six ODEs and most parameters are published, but the FXIIa concentration used to activate the plasma samples – an input the model cannot run without – is not reported. That sub-model served only to calibrate PD parameters that are already embedded in the in vivo model packaged here.
  • Virtual-cohort sizes are smaller than the paper’s. The paper simulates 1000 virtual patients per scenario; this vignette uses 100 attack simulations and a 60-subject VPC to stay inside the pkgdown render budget. Cohort distributions match the published sampling rules (SimInput_HAE.r, MOESM6).
