Model and source

  • Citation: Mohamed A. F., Kristoffersson A. N., Karvanen M., Nielsen E. I., Cars O., Friberg L. E. (2016). Dynamic interaction of colistin and meropenem on a WT and a resistant strain of Pseudomonas aeruginosa as quantified in a PK/PD model. J Antimicrob Chemother 71(5):1279-1290. doi:10.1093/jac/dkv488.
  • DDMORE Foundation Model Repository: DDMODEL00000173.
  • Article: https://doi.org/10.1093/jac/dkv488.

The model is a 10-compartment in vitro time-kill PK/PD model that quantifies the joint pharmacodynamic effect of colistin and meropenem on a wild-type P. aeruginosa strain (ATCC 27853) and a meropenem-resistant clinical isolate (ARU552). The bacterial system has proliferating (S) and resting (R) subpopulations linked through a Bmax-driven feedback term, plus a colistin adaptive-resistance compartment pair (col_ce / col_bindoff) and a meropenem-resistant mutant subpopulation (S_mut / R_mut). Drug concentrations decline by first-order rate constants KE1 (meropenem, constant 0.02 1/h) and KE2 (colistin, a 50+ entry per-experiment lookup keyed on the initial colistin concentration Ccol).

Population

The dataset is in vitro bacterial culture, not human subjects. Two strains are studied:

  • BACT = 2 — P. aeruginosa ATCC 27853 (wild-type, drug-susceptible).
  • BACT = 1 — P. aeruginosa ARU552 (meropenem-resistant clinical isolate from a Swedish ICU patient).

Experimental conditions (TYPE):

  • TYPE = 1 meropenem alone, TYPE = 2 colistin alone, TYPE = 3 combination, TYPE = 4 / TYPE = 5 no-drug control.

Static and dynamic time-kill experiments were combined; ID2 > 18 flags dynamic experiments where bacterial growth rate is scaled by 1 + THETA(35). Initial inocula range from 2.26e5 to 3.5e5 CFU/mL across experiments. Replicate-specific residual error (REPL) and below-LOQ censoring (BLOQ, M3 method, LLOQ = 10 CFU/mL) are handled by NONMEM in the source; the nlmixr2 extraction collapses replicates into a single combined SD and relies on the standard cens column for BLOQ.

The full population description is available at readModelDb("Mohamed_2016_colistin_meropenem")$population.

Source trace

Every parameter line in inst/modeldb/ddmore/Mohamed_2016_colistin_meropenem.R carries a trailing comment pointing to the THETA index in Output_real_ColistinMeropenem_interaction.lst and the source line in Executable_ColistinMeropenem_Interaction.mod. The block below reproduces the cross-walk for review.

nlmixr2 parameter NONMEM THETA Final value (.lst, .mod $THETA initial) Source location
kga THETA(1) 1.08 1/h .mod L485, .lst FINAL PARAMETER ESTIMATE block (line 855)
kgp THETA(2) 0.814 1/h .mod L486, .lst L855
kk THETA(3) FIX 0.179 1/h .mod L487, .lst L855
emax_col_atcc THETA(4) FIX 282 .mod L488, .lst L855
slop1_col_aru THETA(5) 17.2 .mod L489, .lst L855
emax_mero_aru THETA(7) 1.74 1/h .mod L491, .lst L855
ec51_col_atcc THETA(8) 1.84 mg/L .mod L492, .lst L855
slopam_mero_atcc THETA(9) 2.16 .mod L493, .lst L855
ec53_mero_aru THETA(10) 17.7 mg/L .mod L494, .lst L855
gamc_col THETA(11) FIX 1 .mod L495, .lst L855
gama_mero_atcc THETA(12) 0.376 .mod L496, .lst L855
bmax_log10 THETA(13) 9.11 (BMAX = 10^9.11 ≈ 1.29e9 CFU/mL) .mod L497, .lst L856
kon51_col_atcc THETA(14) 2.42 mg/L .mod L498, .lst L856
kon52_col_aru THETA(15) 18.6 mg/L .mod L499, .lst L856
koffc_col THETA(16) 0.103 1/h .mod L500, .lst L856
koffm_mero (FIX 0) THETA(17) FIX 0 .mod L501, .lst L856
konca_col_atcc THETA(18) 0.779 1/h .mod L502, .lst L856
koncp_col_aru THETA(19) 2.68 1/h .mod L503, .lst L856
konma_mero_atcc (FIX) THETA(20) FIX 0.113 .mod L504, .lst L856
konmp_mero_aru (FIX) THETA(21) FIX 0.0821 .mod L505, .lst L856
gam3c_col THETA(22) 1.08 .mod L506, .lst L856
gam1_col THETA(23) 0.0245 .mod L507, .lst L856
gamp_mero_aru THETA(26) 2.79 .mod L510, .lst L857
inter_atcc THETA(27) -2.58 .mod L511, .lst L857
inter_aru THETA(28) 1.30 .mod L512, .lst L857
neg_log10_mutf_atcc THETA(29) 2.83 (MUTA = 10^-2.83 ≈ 1.48e-3) .mod L513, .lst L857
concshift_mut THETA(31) 22.5 .mod L515, .lst L857
kg_decrease_atcc (FIX 0) THETA(33) FIX 0 .mod L517, .lst L857
kg_decrease_aru THETA(34) 0.536 .mod L518, .lst L857
kg_dyn_increase THETA(35) 0.332 .mod L519, .lst L857
addSd_logBact SIGMA(1+2) sqrt(0.422 + 0.0364) * log(10) ≈ 1.559 .mod L521-526, .lst SIGMA block lines 877-889

NONMEM placeholders THETA(6) (FIX 0), THETA(24) (FIX 1), THETA(25) (FIX 1), THETA(30) (FIX 0), and THETA(32) (FIX 0) are not referenced anywhere in $DES / $ERROR; they are deliberately omitted from ini() because nlmixr2 requires every ini() entry to be used inside model(). The omission is documented inline in the model file’s ini() block.

The ODE structure is reproduced verbatim from $DES (lines 280-437 of the .mod). The 56-line KE2 lookup cascade in $PK (lines 199-276) is preserved verbatim — KE2 is set by exact-equality tests on the experimental-well initial colistin concentration Ccol. Any Ccol value not in the cascade leaves KE2 = 0.

Validation strategy

The bundle ships an in vitro experimental dataset that is not a re-extractable population PK study, and the linked publication is not on local disk (searched /home/bill/github/mab_human_consensus/literature/). The validation strategy is therefore F.2 self-consistency per extract-literature-model references/verification-checklist.md: re-simulate the bundle’s Simulated_ColistinMeropenem_Interaction.csv through rxode2::rxSolve() with typical-value parameters (no IIV, no residual error) and compare the trajectory against the simulated observations in the bundle. PKNCA does not apply (this is bacterial-count PD on log scale, not concentration-time PK). Population NCA comparison against a published table is not possible because the publication is not on disk.

Re-simulation of the bundle’s simulated dataset

sim_csv <- system.file("..", "vignettes", "articles", "data",
                       "Mohamed_2016_simulated.csv",
                       package = "nlmixr2lib", mustWork = FALSE)
if (!file.exists(sim_csv)) {
  sim_csv <- file.path("data", "Mohamed_2016_simulated.csv")
}
raw <- read.csv(sim_csv, stringsAsFactors = FALSE)
cat("Rows:", nrow(raw), "  unique IDs:", length(unique(raw$ID)), "\n")
#> Rows: 2636   unique IDs: 139
cat("TYPE distribution:\n")
#> TYPE distribution:
print(table(raw$TYPE, dnn = "TYPE"))
#> TYPE
#>   1   2   3   4
#> 848 937 462 389
cat("BACT distribution:\n")
#> BACT distribution:
print(table(raw$BACT, dnn = "BACT"))
#> BACT
#>    1    2
#> 1381 1255

The CSV has 2,636 observation rows over 139 unique experiments. To keep the vignette inside the 5-minute render gate while still covering every experimental condition, we subset to one representative experiment per (BACT × TYPE) cell with a non-trivial Ccol or Cmer.

# One representative experiment per (BACT, TYPE) cell. We prefer
# experiments whose Ccol matches a value in the .mod KE2 cascade so the
# colistin-elimination rate is non-zero where the source intends it.
representative_ids <- raw |>
  dplyr::filter(EVID == 1) |>
  dplyr::group_by(BACT, TYPE) |>
  dplyr::slice(1) |>
  dplyr::ungroup() |>
  dplyr::pull(ID)
cat("Representative IDs (one per (BACT, TYPE) cell):\n")
#> Representative IDs (one per (BACT, TYPE) cell):
print(representative_ids)
#> [1] 34  2 98  1 58 10 82  9

events_raw <- raw |>
  dplyr::filter(ID %in% representative_ids) |>
  dplyr::select(ID, TIME, EVID, CMT, AMT, DV, Ccol, Cmer, TYPE, BACT,
                DILcol, DILmer, ID2, REPL, BLOQ)
cat("Filtered rows:", nrow(events_raw), "\n")
#> Filtered rows: 157
# Add a second EVID=1 dose to the S_mut compartment (CMT=9) with
# AMT = inoculum * MUT, mirroring the .mod $PK A_0(9) = NMUT
# initialization (NMUT = AMT * MUT, where MUT = 10^-neg_log10_mutf_atcc
# when MERO == 1, i.e. TYPE in {1, 3}; otherwise MUT = 0).
mut_atcc <- 10^(-2.83)        # MUTA per .mod L147
# .mod L148 sets MUTP = MUTA, so the strain split does not matter for the
# initial mutant fraction.
mut_for_row <- function(TYPE) ifelse(TYPE %in% c(1, 3), mut_atcc, 0)

dose_S <- events_raw |>
  dplyr::filter(EVID == 1) |>
  dplyr::mutate(CMT = 1L)           # S compartment

dose_Smut <- events_raw |>
  dplyr::filter(EVID == 1) |>
  dplyr::mutate(
    CMT = 9L,                                # S_mut compartment
    AMT = AMT * mut_for_row(TYPE)
  )

obs <- events_raw |>
  dplyr::filter(EVID == 0) |>
  dplyr::mutate(CMT = NA_integer_)

events <- dplyr::bind_rows(dose_S, dose_Smut, obs) |>
  dplyr::arrange(ID, TIME, dplyr::desc(EVID))

cat("Event rows after augmentation:", nrow(events),
    " (dose-S:", sum(events$EVID == 1 & events$CMT == 1),
    ", dose-Smut:", sum(events$EVID == 1 & events$CMT == 9),
    ", obs:", sum(events$EVID == 0), ")\n")
#> Event rows after augmentation: 165  (dose-S: 8 , dose-Smut: 8 , obs: 149 )
mod <- readModelDb("Mohamed_2016_colistin_meropenem")
mod_typical <- rxode2::zeroRe(mod)
#> Warning: No omega parameters in the model
sim <- rxode2::rxSolve(mod_typical, events = events,
                       keep = c("DV", "BLOQ", "REPL", "TYPE", "BACT"),
                       returnType = "data.frame")
#> Warning: multi-subject simulation without without 'omega'
sim_df <- sim |>
  dplyr::filter(!is.na(DV) & DV > 0) |>      # keep observation rows
  dplyr::rename(time = time)
cat("Simulated rows:", nrow(sim_df), "\n")
#> Simulated rows: 149

Self-consistency check

The DV column in the simulated CSV is a NONMEM-generated stochastic observation (IPRED + per-replicate residual). Our typical-value re-simulation produces logBact = ln(total bacteria) which corresponds directly to NONMEM’s IPRED ($ERROR line IPRED=LOG(ATOT)). For each observation we compare logBact (rxode2 typical-value) against DV (NONMEM-simulated stochastic observation).

diff_df <- sim_df |>
  dplyr::mutate(
    cohort = paste0("BACT=", BACT, " / TYPE=", TYPE),
    residual_log = DV - logBact,
    abs_residual = abs(residual_log)
  )

summary_df <- diff_df |>
  dplyr::group_by(cohort) |>
  dplyr::summarise(
    n              = dplyr::n(),
    median_dv      = stats::median(DV),
    median_logBact = stats::median(logBact),
    rmse           = sqrt(mean(residual_log^2)),
    median_abs_res = stats::median(abs_residual),
    .groups = "drop"
  )
knitr::kable(summary_df, digits = 3,
             caption = paste("Per-cohort self-consistency summary.",
                             "RMSE / median |DV - logBact| are on natural-log scale."))
Per-cohort self-consistency summary. RMSE / median |DV - logBact| are on natural-log scale.
cohort n median_dv median_logBact rmse median_abs_res
BACT=1 / TYPE=1 24 16.102 15.154 1.403 1.063
BACT=1 / TYPE=2 14 14.418 13.404 1.843 1.014
BACT=1 / TYPE=3 11 9.122 10.594 1.355 1.351
BACT=1 / TYPE=4 21 14.153 14.968 0.853 0.441
BACT=2 / TYPE=1 23 14.135 13.235 1.796 1.310
BACT=2 / TYPE=2 19 13.763 14.054 1.771 1.199
BACT=2 / TYPE=3 18 13.947 13.368 1.551 1.057
BACT=2 / TYPE=4 19 15.964 16.365 0.879 0.401

The expected per-observation residual under perfect translation is the NONMEM stochastic noise term, with theoretical SD ≈ sqrt(0.422 + 0.0364) * log(10) ≈ 1.56 on the natural-log scale. RMSE values comparable to this magnitude indicate the trajectory is consistent with the source; values much larger flag a translation defect.

ggplot(diff_df, aes(time, logBact)) +
  geom_line(color = "steelblue") +
  geom_point(aes(y = DV), alpha = 0.5, size = 1) +
  facet_wrap(~ cohort, scales = "free_y") +
  labs(x = "Time (h)", y = "ln(total bacterial count, CFU/mL)",
       title = "Self-consistency: rxode2 typical value vs NONMEM-simulated DV",
       caption = paste("Points: DV column (NONMEM stochastic);",
                       "line: rxode2::rxSolve typical-value `logBact`."))

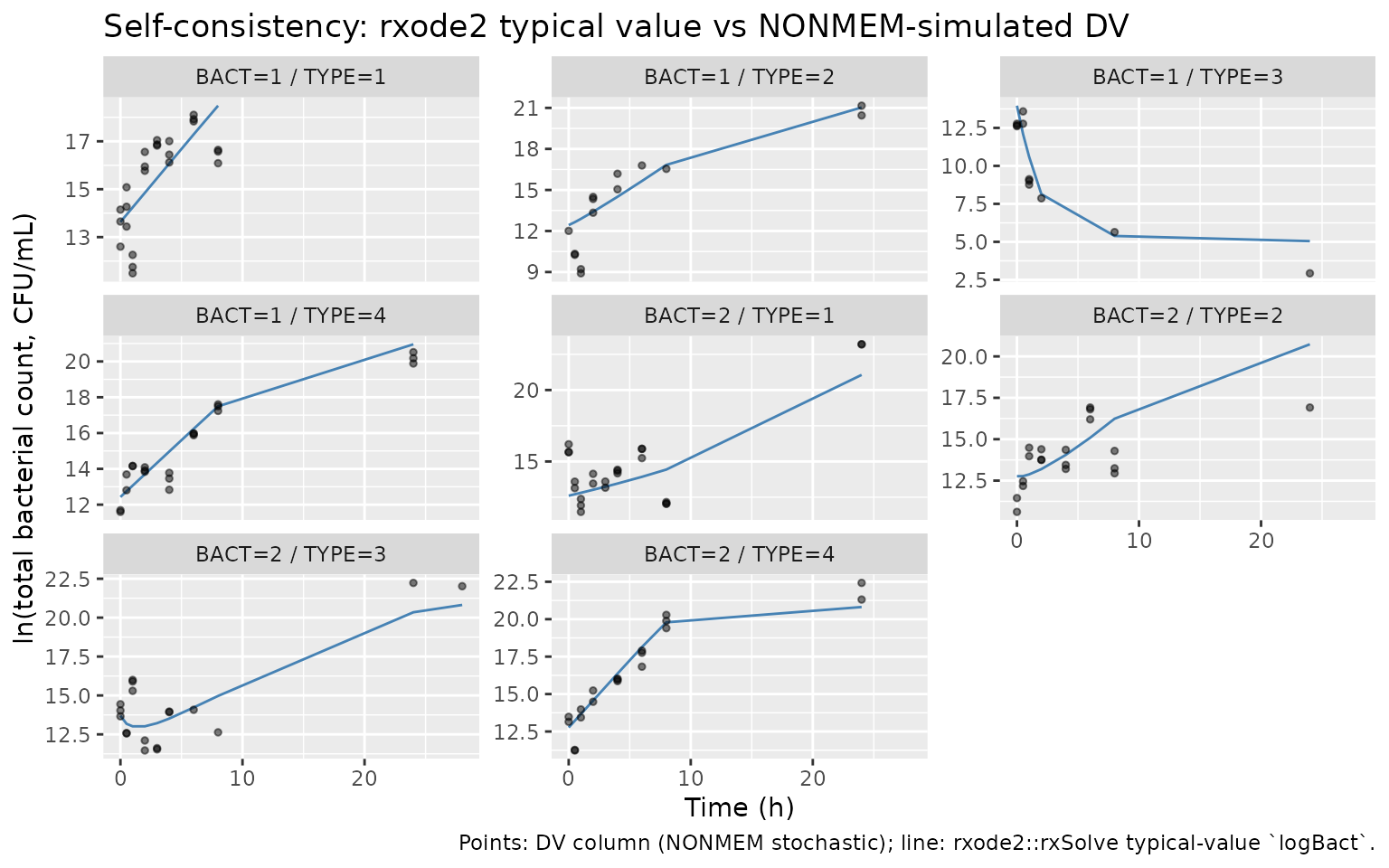

Typical-value rxode2 trajectory (line) vs NONMEM-simulated DV (points), one panel per (BACT, TYPE) cohort.

Typical-value rxode2 trajectory (line) vs NONMEM-simulated DV (points), one panel per (BACT, TYPE) cohort.

Assumptions and deviations

The verbatim translation deliberately preserves several non-standard features of the source model. Each is flagged here for downstream review.

  • Non-canonical observation variable. logBact (ln of total bacterial count) replaces the canonical PK observation Cc, mirroring the in vitro PD precedent set by inst/modeldb/therapeuticArea/oncology/oncology_sdm_lobo_2002.R (which uses tumorVol). Flagged as a checkModelConventions() warning.
  • Non-canonical compartment names. S / R / S_mut / R_mut (bacterial subpopulations); mero / mero_ce / mero_bindoff (the meropenem concentration plus two declared-but-unused adaptive-resistance states); col / col_ce / col_bindoff (colistin concentration plus active adaptive-resistance pair). None of these match the canonical depot / central / peripheral* / effect / target / complex list. The names follow the .mod $MODEL declarations directly. Flagged as 10 checkModelConventions() compartment warnings.
  • Dataset-tied covariates. BACT, TYPE, Ccol, Cmer, DILcol, DILmer, and ID2 are not in inst/references/covariate-columns.md. They are intrinsic to the in vitro experimental design (strain index, condition index, initial drug-well concentrations, bath dilution rates, within-subject experiment index for dynamic-system flagging) rather than reusable human-population covariates, so they are not promoted to the canonical register. Flagged as 7 checkModelConventions() covariate warnings.
  • Dosing / concentration unit dimensions intentionally differ. The inoculum dose is in CFU/mL (a count density) while drug concentration units inside mero / col are in mg/L. There is no shared dimension to reconcile because the two compartment classes describe different physical quantities. Flagged as 1 checkModelConventions() units warning.
  • KE2 cascade preserved verbatim. The 56-line per-experiment KE2 lookup is reproduced exactly with floating-point equality tests on Ccol. Any Ccol value not in the cascade leaves KE2 = 0. Downstream users repurposing the model with arbitrary colistin concentrations will need to set their own KE2 (e.g., by editing the model() block or supplying KE2 as a covariate). The verbatim decision was made by the operator (queue/.claude_task_runner/sidecar/006-mohamed_2016_colistin_meropenem/response-001.json).
  • ETA(1) dropped. The .mod declares ETA(1) shared between KGA and KGP with OMEGA = 0 FIX, contributing nothing to the predictions. The IIV term is dropped from the nlmixr2 translation; the growth rates are typical values only.
  • Per-replicate residual error collapsed. The .mod’s $ERROR block uses one common epsilon plus four replicate-specific epsilons (all BLOCK(1) SAME, all FIXED at the same variance). The verbatim translation collapses these into a single combined additive residual on natural-log scale (addSd_logBact = sqrt(0.422 + 0.0364) * log(10)).
  • No linked publication on disk. The associated paper (doi:10.1093/jac/dkv488) is not available locally; PKNCA-style comparison against published tables is therefore not possible. Validation reduces to F.2 self-consistency against the bundle-shipped Output_simulated_*.lst.
  • Unused THETA placeholders. THETA(6), THETA(24), THETA(25), THETA(30), and THETA(32) are FIX placeholders in the source that are declared but never referenced in any $PK / $DES / $ERROR expression. They are documented inline as comments in the model file’s ini() block but not declared as ini() parameters because nlmixr2 requires every ini() entry to appear in model().
  • Mutant initial condition sourced via vignette preprocessing. The .mod’s $PK block sets A_0(9) = NMUT = AMT * MUT per dose record. rxode2 cannot read AMT from the event table inside the model body, so the vignette injects a second EVID = 1 dose to compartment 9 (S_mut) with the appropriate AMT per row. This produces the same initial condition for the mutant subpopulation. Downstream users applying the model to new datasets must replicate this preprocessing step.
