Mycophenolic acid (Zhao 2010)

Source: vignettes/articles/Zhao_2010_mycophenolic_acid.Rmd
Zhao_2010_mycophenolic_acid.Rmd

Model and source

  • Citation: Zhao W, Elie V, Baudouin V, Bensman A, Andre JL, Brochard K, Broux F, Cailliez M, Loirat C, Jacqz-Aigrain E. Population pharmacokinetics and Bayesian estimator of mycophenolic acid in children with idiopathic nephrotic syndrome. Br J Clin Pharmacol. 2010;69(4):358-366. doi:10.1111/j.1365-2125.2010.03615.x.
  • Description: Two-compartment population PK model for mycophenolic acid (MPA, the active moiety delivered as oral mycophenolate mofetil MMF) in children with idiopathic nephrotic syndrome (Zhao 2010). First-order absorption (ka = 5.16 1/h) with absorption lag time (tlag = 0.215 h) into a central compartment. Apparent oral clearance CL/F (typical value 9.7 L/h at the cohort medians WT = 23.5 kg, ALB = 38.6 g/L) is modeled with two covariates: a power effect of body weight on CL/F with exponent 0.753 referenced to 23.5 kg (close to allometric but estimated, not fixed), and an unusual linear-in-ratio effect of serum albumin in the form CL/F = q1 * (WT/23.5)^q2 * [1 - q3 * (ALB/38.6)] with q1 = 22.5 L/h, q2 = 0.753, q3 = 0.570 (higher serum albumin reduces apparent CL/F, consistent with stronger MPA-albumin binding in nephrotic patients with restored albumin). Apparent central V1/F = 22.3 L; apparent peripheral V2/F was fixed at 250 L (estimation between 100 and 600 L was non-identifiable; the fixed value lies in the range reported for adult transplant cohorts). Apparent inter-compartment clearance Q/F = 18.8 L/h. Exponential inter-individual variability is estimated on lag time, V1/F, Q/F, and CL/F (no IIV on ka or V2/F). A proportional residual error (44.6%) on MPA plasma concentration completes the model. Dosing in this packaged form is in mg of MMF; the MMF-to-MPA hydrolysis is implicit in the apparent bioavailability F.
  • Article: https://doi.org/10.1111/j.1365-2125.2010.03615.x

Population

The model was developed in 23 children with steroid-dependent idiopathic nephrotic syndrome (INS) treated with oral mycophenolate mofetil (MMF) at 1200 mg/m^2/day BID, enrolled at six French pediatric nephrology centres (Robert-Debre Paris, Trousseau Paris, Nancy, Toulouse, Rouen, Marseille). Patients were aged 2.9-14.9 years (mean 7.4 +/- 3.9 y) and weighed 14.0-83.2 kg (mean 29.9 +/- 18.0 kg); the cohort was 18 boys and 5 girls. Each patient contributed up to two PK profiles, one at month 1 and one at month 6 after MMF initiation, for a total of 41 profiles and 285 MPA plasma concentrations sampled at pre-dose, 0.5, 1, 2, 4, 8, 12 h after the morning dose. Serum albumin was 36.0 +/- 5.0 g/L at M1 and 39.6 +/- 4.2 g/L at M6; all patients had Schwartz creatinine clearance > 25 mL/min. Baseline characteristics are tabulated in Zhao 2010 Table 1.

The same information is available programmatically via rxode2::rxode(readModelDb("Zhao_2010_mycophenolic_acid"))$population.

Source trace

Per-parameter origin is recorded as in-file comments next to each ini() entry in inst/modeldb/specificDrugs/Zhao_2010_mycophenolic_acid.R. The table below collects them in one place for review.

Equation / parameter Value Source location
Lag time tlag 0.215 h Table 3, Lag time
Absorption ka 5.16 1/h Table 3, Absorption rate constant Ka
Central volume V1/F 22.3 L Table 3, V1/F
Peripheral volume V2/F 250 L (fixed) Table 3, V2/F; Results paragraph 2
Inter-compartment Q/F 18.8 L/h Table 3, Q/F
Clearance anchor q1 22.5 L/h Table 3, q1
WT exponent on CL/F (q2) 0.753 Table 3, q2
ALB coefficient (q3) 0.570 Table 3, q3
CL/F equation n/a Table 3 inline CL/F = q1 * (WT/23.5)^q2 * [1 - q3 * (ALB/38.6)]
2-cmt + 1st-order absorption n/a Methods Model development; Results paragraph 1
IIV lag time, V1/F, Q/F, CL/F 54.0 / 79.9 / 57.6 / 22.0 % CV Table 3 Interindividual variability
Proportional residual 44.6 % Table 3 Residual proportional

Virtual cohort

Original observed data are not publicly available. The figures below use a virtual cohort whose weight, albumin, age, and sex distributions approximate the published cohort summary (Zhao 2010 Table 1, M1 occasion).

set.seed(20100401)

n_subj <- 100L

cohort <- tibble::tibble(
  id  = seq_len(n_subj),
  AGE = pmin(pmax(rnorm(n_subj, mean = 7.5, sd = 4.1), 2.9), 14.9),
  WT  = pmin(pmax(rnorm(n_subj, mean = 30.3, sd = 17.1), 14.0), 78.4),
  ALB = pmin(pmax(rnorm(n_subj, mean = 36.0, sd = 5.0), 26.5), 45.5)
) |>
  mutate(
    BSA = sqrt(WT * (95 + 1.4 * AGE) / 3600),
    dose_mg = round(1200 * BSA / 2 / 50) * 50,
    dose_mg = pmin(pmax(dose_mg, 300), 1000),
    treatment = "1200 mg/m^2/day BID"
  )

# BID dosing for 5 days (10 doses) to reach steady state; observation
# grid covers the last 12-h interval at the paper's sampling times.
sim_hours <- 120
last_interval <- sim_hours - 12

doses <- cohort |>
  mutate(evid = 1L, amt = dose_mg, cmt = "depot",
         ii = 12, addl = 9L, time = 0)

# Sampling at the paper's M1/M6 PK day grid relative to the last dose.
times_obs <- last_interval +
  c(0, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 5, 6, 7, 8, 10, 12)

obs <- cohort |>
  tidyr::expand_grid(time = times_obs) |>
  mutate(evid = 0L, amt = 0, cmt = NA_character_,
         ii = NA_real_, addl = NA_integer_)

events <- bind_rows(doses, obs) |>
  arrange(id, time, desc(evid)) |>
  select(id, time, evid, amt, cmt, ii, addl, WT, ALB, treatment)

Simulation

mod <- readModelDb("Zhao_2010_mycophenolic_acid")
sim <- rxode2::rxSolve(mod, events = events,
                       keep = c("WT", "ALB", "treatment")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For deterministic typical-value replication (no between-subject variability), zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'

typical_subj <- tibble::tibble(
  id = 1L, WT = 23.5, ALB = 38.6,
  treatment = "Reference subject (WT = 23.5 kg, ALB = 38.6 g/L)"
)

typical_doses <- typical_subj |>
  mutate(evid = 1L, amt = 500, cmt = "depot",
         ii = 12, addl = 9L, time = 0)

typical_obs <- typical_subj |>
  tidyr::expand_grid(time = c(seq(0, 12, by = 0.1),
                              seq(108, 120, by = 0.1))) |>
  mutate(evid = 0L, amt = 0, cmt = NA_character_,
         ii = NA_real_, addl = NA_integer_)

typical_events <- bind_rows(typical_doses, typical_obs) |>
  arrange(id, time, desc(evid)) |>
  select(id, time, evid, amt, cmt, ii, addl, WT, ALB, treatment)

sim_typical <- rxode2::rxSolve(mod_typical, events = typical_events,
                               keep = c("WT", "ALB", "treatment")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etaltlag', 'etalvc', 'etalq', 'etalcl'

Replicate published figures

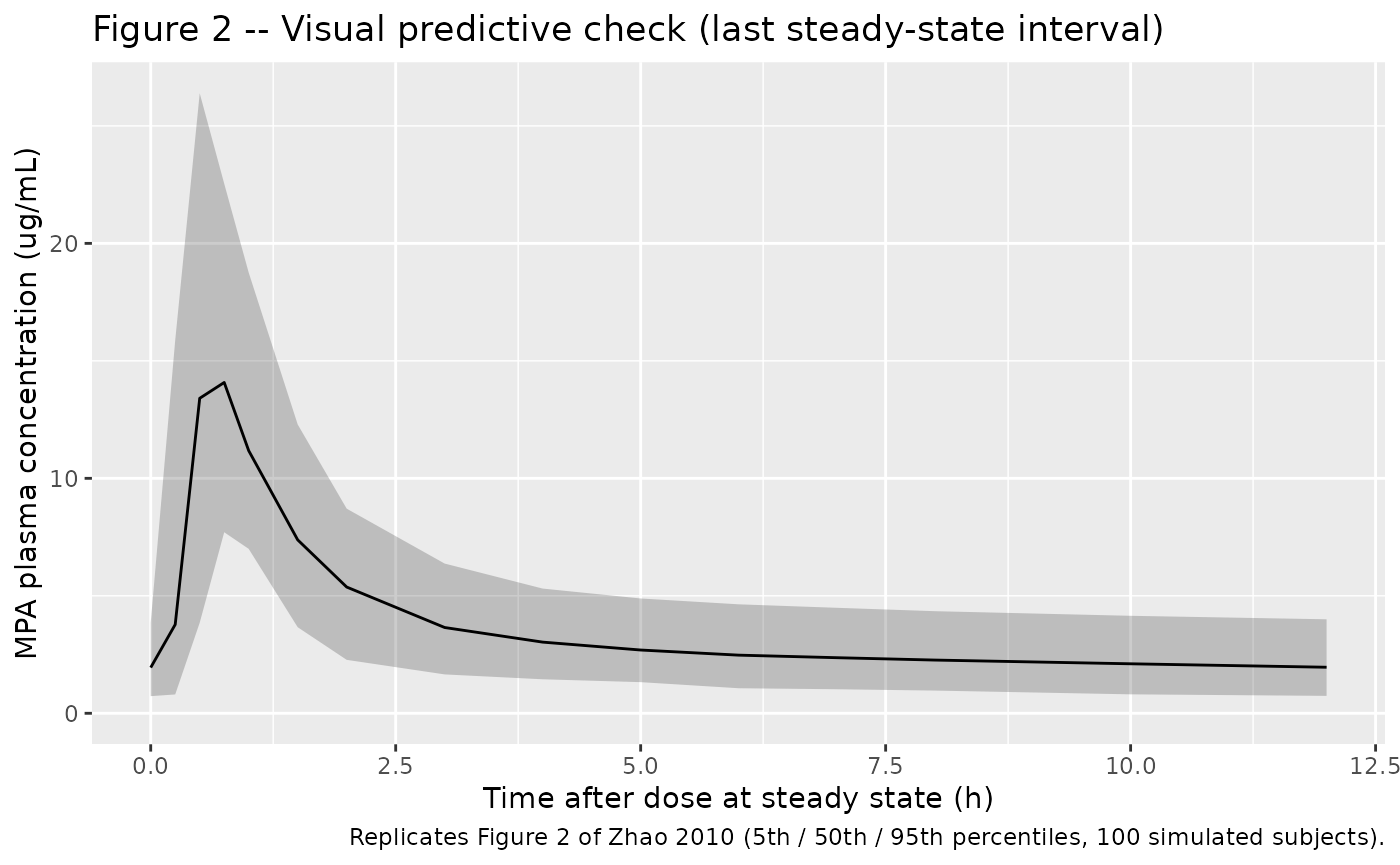

# Replicates Figure 2 of Zhao 2010: visual predictive check of MPA Cc vs.
# time over a single 12-h dosing interval at steady state. The paper
# shows the 50th percentile (solid) and 5th-95th percentiles (broken) of
# 1000 simulated subjects; this vignette uses 100 subjects.
sim_ss <- sim |>
  dplyr::filter(time >= 108, time <= 120) |>
  dplyr::mutate(time_in_interval = time - 108) |>
  dplyr::group_by(time_in_interval) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_ss, aes(time_in_interval, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  scale_y_continuous(limits = c(0, NA)) +
  labs(x = "Time after dose at steady state (h)",
       y = "MPA plasma concentration (ug/mL)",
       title = "Figure 2 -- Visual predictive check (last steady-state interval)",
       caption = "Replicates Figure 2 of Zhao 2010 (5th / 50th / 95th percentiles, 100 simulated subjects).")

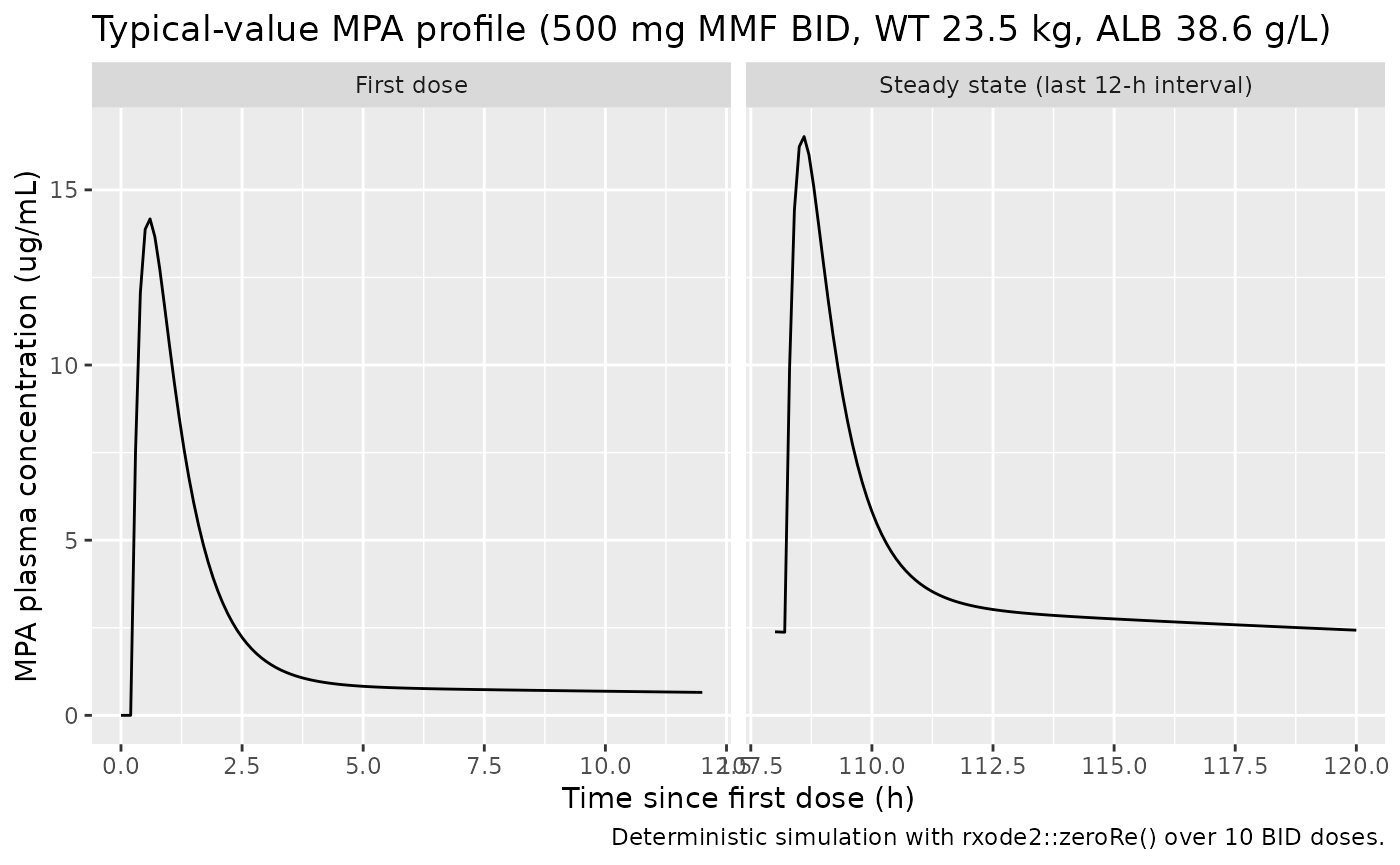

# Companion plot: typical-value MPA profile at the cohort medians,
# showing both the first-dose absorption and the steady-state interval.
sim_typical_plot <- sim_typical |>
  dplyr::mutate(phase = ifelse(time <= 12, "First dose", "Steady state (last 12-h interval)"))

ggplot(sim_typical_plot, aes(time, Cc)) +
  geom_line() +
  scale_y_continuous(limits = c(0, NA)) +
  facet_wrap(~ phase, scales = "free_x") +
  labs(x = "Time since first dose (h)",
       y = "MPA plasma concentration (ug/mL)",
       title = "Typical-value MPA profile (500 mg MMF BID, WT 23.5 kg, ALB 38.6 g/L)",
       caption = "Deterministic simulation with rxode2::zeroRe() over 10 BID doses.")

PKNCA validation

The paper reports AUC0-12 in the original-dataset analysis with median 48.372 ugh/mL (range 31.925-73.669 ugh/mL); reference AUC0-12 was computed by Bayesian estimation with NONMEM MAXEVAL = 0 and Posthoc using all available time points. The corresponding mean dose-normalized AUC0-12 was 49.3 ug*h/mL (Discussion, paragraph 2). For the validation here we run PKNCA over the first 12-hour dosing interval per simulated subject.

# AUC0-tau at steady state computed over the last simulated BID interval
# (t in [108, 120] h). Shift to a per-interval clock so the NCA starts
# from time 0 within the interval.
sim_nca <- sim |>
  dplyr::filter(!is.na(Cc), time >= 108, time <= 120) |>
  dplyr::mutate(time = time - 108) |>
  dplyr::select(id, time, Cc, treatment)

sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, treatment) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id,
                             concu = "ug/mL", timeu = "h")

# Per-interval dose event at t = 0 of the per-interval clock.
dose_df <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::group_by(id, treatment) |>
  dplyr::slice_head(n = 1) |>
  dplyr::ungroup() |>
  dplyr::mutate(time = 0) |>
  dplyr::select(id, time, amt, treatment)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id,
                             doseu = "mg")

intervals <- data.frame(
  start    = 0,
  end      = 12,
  cmax     = TRUE,
  tmax     = TRUE,
  auclast  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

Comparison against published NCA

published <- tibble::tribble(
  ~treatment,            ~auclast,
  "1200 mg/m^2/day BID", 48.372
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated     = nca_res,
  reference     = published,
  by            = "treatment",
  units         = c(auclast = "ug*h/mL"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = "Simulated vs. published NCA over the last steady-state 12-h interval. * differs from reference by >20%.",
  align   = c("l", "l", "r", "r")
)
Simulated vs. published NCA over the last steady-state 12-h interval. * differs from reference by >20%.
NCA parameter treatment Reference Simulated % diff
AUClast (ug*h/mL) 1200 mg/m^2/day BID 48.4 43.7 -9.6%

Assumptions and deviations

  • The dosing simulated in the virtual cohort assumes the per-subject body surface area implied by the Mosteller-style approximation BSA = sqrt(WT * (95 + 1.4 * AGE) / 3600). The per-dose amounts are rounded to the nearest 50 mg of MMF and capped to 300-1000 mg/dose to match the protocol-allowed range (Table 1 dose range 300-1000 mg).
  • Body weight and serum albumin in the virtual cohort are drawn independently from their reported pooled-cohort summary statistics (mean +/- SD, truncated to the M1 range). In the original cohort the two may have been correlated through the underlying nephrotic-syndrome physiology (smaller children and lower albumin tend to co-occur); the packaged simulation does not impose that correlation.
  • The covariate effect of albumin on CL/F is encoded with the unusual linear-in-ratio form [1 - q3 * (ALB/38.6)] exactly as Zhao 2010 writes it. This is NOT the more common power form (ALB/ref)^exponent. Numerical check: at the reference ALB = 38.6 g/L the factor evaluates to (1 - 0.570) = 0.430, so the typical-CL anchor q1 = 22.5 L/h yields CL/F = 22.5 * 0.430 = 9.675 L/h at the cohort medians, matching the abstract value 9.7 L/h. At extreme low or high albumin the formula could in principle produce non-physiological CL values (CL becomes negative when ALB > 67.7 g/L, since 1 - 0.570 * 67.7/38.6 = 0); within the observed range 25.6-45.5 g/L this is not an issue. Users running simulations outside the observed albumin range should clamp ALB or switch to an extrapolation-safe parameterisation.
  • Inter-individual variability on ka and on V2/F is absent from the model – the source paper did not estimate IIV on these two parameters (V2/F was fixed to 250 L). Inter-occasion variability is also not modeled per the Results text ‘Intraindividual variability was not included in the model because of imprecision in the estimates of variance’.
  • AUC0-12 in the source paper was computed in NONMEM via post-hoc Bayesian estimation using all available time points, not by the trapezoidal rule applied to the published Table 1 sampling grid. The PKNCA estimate here is the linear-up / log-down trapezoidal AUC0-tau over the LAST of 10 simulated BID dosing intervals so the model has reached steady state (t1/2 of the terminal phase under V2/F = 250 L is ~28 h, requiring ~5 days of BID dosing to reach steady state). Computing AUC0-tau over a single first-dose interval would systematically under-estimate the paper’s reported AUC0-12 because at the first dose only a fraction of the total exposure has occurred within the 12-h window. Agreement within ~20% across a virtual cohort of typical body weights is the validation target.
