Piperacillin + tazobactam in critically ill adults with and without ECMO (Kim 2022)

Source: vignettes/articles/Kim_2022_piperacillin_tazobactam.Rmd
Kim_2022_piperacillin_tazobactam.Rmd

Model and source

Kim 2022 fitted piperacillin and tazobactam in two separate NONMEM runs (Tables 2 and 3; the Discussion lists the lack of an integrated piperacillin-tazobactam model as a limitation). Both share the same structure – a two-compartment model with fixed allometric weight scaling, an exponential effect of the cystatin-C CKD-EPI eGFR on clearance, and separate typical central volumes with separate IIV for patients on and off extracorporeal membrane oxygenation (ECMO) – but every estimate is drug-specific. The paper therefore contributes two model files, validated side by side here.

pip <- rxode2::rxode(readModelDb("Kim_2022_piperacillin"))
#> ℹ parameter labels from comments will be replaced by 'label()'
taz <- rxode2::rxode(readModelDb("Kim_2022_tazobactam"))
#> ℹ parameter labels from comments will be replaced by 'label()'
  • Citation: Kim YK, Kim HS, Park S, Kim HI, Lee SH, Lee DH. Population pharmacokinetics of piperacillin/tazobactam in critically ill Korean patients and the effects of extracorporeal membrane oxygenation. J Antimicrob Chemother. 2022;77(5):1353-1364. doi:10.1093/jac/dkac059. Parameter estimates: Table 2. Structural equations: NONMEM control stream in the Supplementary data (ADVAN3 TRANS4).
  • Piperacillin model: Two-compartment population PK model for piperacillin in 38 critically ill Korean adults (19 on extracorporeal membrane oxygenation, ECMO) given piperacillin/tazobactam as 30-min IV infusions every 6 or 8 h (Kim 2022); zero-order IV input into the central compartment, first-order elimination, fixed allometric weight scaling (exponent 0.75 on CL and Q, 1 on VC and VP, reference 70 kg), an exponential effect of cystatin-C CKD-EPI eGFR on CL, and separate typical central volumes (each with its own IIV) for patients on and off ECMO.
  • Tazobactam model: Two-compartment population PK model for tazobactam in 38 critically ill Korean adults (19 on extracorporeal membrane oxygenation, ECMO) given piperacillin/tazobactam as 30-min IV infusions every 6 or 8 h (Kim 2022); zero-order IV input into the central compartment, first-order elimination, fixed allometric weight scaling (exponent 0.75 on CL and Q, 1 on VC and VP, reference 70 kg), an exponential effect of cystatin-C CKD-EPI eGFR on CL, and separate typical central volumes (each with its own IIV) for patients on and off ECMO.
  • Article: https://doi.org/10.1093/jac/dkac059

Population

Kim 2022 prospectively enrolled 38 critically ill adults at Hallym University Sacred Heart Hospital (Anyang, Korea) between September 2020 and April 2021: 19 on ECMO (18 veno-arterial, 1 veno-venous) and 19 not on ECMO. Patients received piperacillin/tazobactam 2000/250, 3000/375 or 4000/500 mg as 30-minute infusions every 6 or 8 hours, and six plasma samples were drawn over the first dosing interval after enrolment (226 samples in total, LC-MS/MS).

Table 1 of the paper reports medians (IQR). ECMO patients were younger (58 vs 79 years), heavier (70 vs 54 kg) and sicker (APACHE II 24 vs 17; SOFA 9 vs 5) than non-ECMO patients. The cystatin-C CKD-EPI eGFR that enters the final models was 52.8 (38.7-81.0) mL/min/1.73 m^2 overall, 72.5 (43.4-81.7) on ECMO and 46.8 (34.1-73.2) off ECMO. Eight patients received continuous renal replacement therapy.

str(pip$population)
#> List of 13
#>  $ species       : chr "human"
#>  $ n_subjects    : num 38
#>  $ n_studies     : num 1
#>  $ n_observations: num 226
#>  $ age_range     : chr "Median 66.5 years (IQR 53.3-78.8); ECMO 58 (46.5-64.5), non-ECMO 79 (67.5-83)"
#>  $ weight_range  : chr "Median 60 kg (IQR 50-70); ECMO 70 (55-72.4), non-ECMO 54 (46-61)"
#>  $ sex_female_pct: num 34.2
#>  $ race_ethnicity: chr "Korean (all participants)"
#>  $ disease_state : chr "Critically ill adults in the ICU receiving piperacillin/tazobactam for nosocomial infection, empirical manageme"| __truncated__
#>  $ dose_range    : chr "Piperacillin/tazobactam 2000/250, 3000/375 or 4000/500 mg as 30-min IV infusions every 6 or 8 h"
#>  $ regions       : chr "Republic of Korea (Hallym University Sacred Heart Hospital, Anyang)"
#>  $ renal_function: chr "CKD-EPI cystatin C eGFR median 52.8 mL/min/1.73 m^2 (IQR 38.7-81.0); 8 patients on CRRT"
#>  $ notes         : chr "Prospective study, September 2020 to April 2021. Six samples per patient over the first dosing interval after e"| __truncated__

Source trace

The structural equations come from the NONMEM control stream printed in the Supplementary data (ADVAN3 TRANS4):

CL = THETA(1) * (WT/70)**0.75 * EXP(THETA(7) * (CECYS - 52.77)) * EXP(ETA(1))
V1 = ECMO * THETA(2) * (WT/70) * EXP(ETA(2)) + (1 - ECMO) * THETA(6) * (WT/70) * EXP(ETA(3))
Q  = THETA(3) * (WT/70)**0.75
V2 = THETA(4) * (WT/70)
W  = SQRT(THETA(5)**2 * IPRED**2)   ($SIGMA 1 FIX)
Equation / parameter Piperacillin (Table 2) Tazobactam (Table 3) Source location
lcl (theta1, L/h) 5.05 (RSE 6.67%) 6.33 (RSE 8.13%) Tables 2/3, theta1
e_crcl_cl (theta2, per mL/min/1.73 m^2) 0.00932 (RSE 13.5%) 0.0113 (RSE 13.9%) Tables 2/3, theta2
CRCL centring value 52.77 52.77 Tables 2/3 equation; control stream
lvc_ecmo (L) 7.38 (RSE 15.0%) 13.3 (RSE 11.3%) Tables 2/3, VC_ECMO
lvc_nonecmo (L) 16.5 (RSE 18.0%) 20.2 (RSE 19.1%) Tables 2/3, VC_nonECMO
lq (L/h) 6.28 (RSE 23.9%) 10.5 (RSE 24.3%) Tables 2/3, Q
lvp (L) 6.27 (RSE 16.2%) 8.96 (RSE 11.6%) Tables 2/3, VP
e_wt_cl_q 0.75, fixed 0.75, fixed Results (allometric k); control stream
e_wt_vc_vp 1, fixed 1, fixed Results (allometric k); control stream
etalcl 33.7% -> 0.107570 37.9% -> 0.134217 Tables 2/3, IIV CL
etalvc_ecmo 45.9% -> 0.191183 38.6% -> 0.138889 Tables 2/3, IIV VC_ECMO
etalvc_nonecmo 65.3% -> 0.355160 64.8% -> 0.350589 Tables 2/3, IIV VC_nonECMO
propSd 0.269 0.229 Tables 2/3, proportional error
Reference weight 70 kg 70 kg Results (allometric equation); control stream

Each IIV percentage is converted with omega^2 = log(1 + CV^2). The proportional error is the estimated THETA(5) (an SD, since $SIGMA is fixed to 1).

Typical-value checks against Table 4

Table 4 of the paper converts the typical estimates to weight-normalised values for comparison with earlier piperacillin studies. It lists the ECMO patient at 70 kg with renal function 72.5 mL/min/1.73 m^2, and the non-ECMO patient at 54 kg with renal function 53.1. The half-life column is the elimination half-life log(2) * VC / CL, not the terminal half-life.

typical_pk <- function(ui, wt, crcl, ecmo, allometry = TRUE) {
  th <- ui$theta
  a_cl <- if (allometry) (wt / 70)^0.75 else 1
  a_v <- if (allometry) wt / 70 else 1
  cl <- exp(th[["lcl"]]) * a_cl * exp(th[["e_crcl_cl"]] * (crcl - 52.77))
  vc <- exp(if (ecmo == 1) th[["lvc_ecmo"]] else th[["lvc_nonecmo"]]) * a_v
  q <- exp(th[["lq"]]) * a_cl
  vp <- exp(th[["lvp"]]) * a_v
  c(
    CL = cl / wt, VC = vc / wt, Q = q / wt, VP = vp / wt,
    VSS = (vc + vp) / wt, thalf = log(2) * vc / cl
  )
}

table4 <- rbind(
  "Published, ECMO" = c(0.0867, 0.105, 0.0897, 0.090, 0.195, 0.840),
  "Model, ECMO (70 kg)" = typical_pk(pip, 70, 72.5, 1),
  "Published, non-ECMO" = c(0.0940, 0.306, 0.116, 0.116, 0.422, 2.26),
  "Model, non-ECMO (54 kg, with allometry)" = typical_pk(pip, 54, 53.1, 0),
  "Model, non-ECMO (54 kg, no allometry)" =
    typical_pk(pip, 54, 53.1, 0, allometry = FALSE)
)
colnames(table4) <- c(
  "CL (L/h/kg)", "VC (L/kg)", "Q (L/h/kg)", "VP (L/kg)", "VSS (L/kg)", "Half-life (h)"
)
knitr::kable(
  table4,
  digits = 4,
  caption = "Replicates the two 'This study' rows of Kim 2022 Table 4 (piperacillin)."
)
Replicates the two ‘This study’ rows of Kim 2022 Table 4 (piperacillin).
CL (L/h/kg) VC (L/kg) Q (L/h/kg) VP (L/kg) VSS (L/kg) Half-life (h)
Published, ECMO 0.0867 0.1050 0.0897 0.0900 0.1950 0.8400
Model, ECMO (70 kg) 0.0867 0.1054 0.0897 0.0896 0.1950 0.8428
Published, non-ECMO 0.0940 0.3060 0.1160 0.1160 0.4220 2.2600
Model, non-ECMO (54 kg, with allometry) 0.0772 0.2357 0.0957 0.0896 0.3253 2.1160
Model, non-ECMO (54 kg, no allometry) 0.0938 0.3056 0.1163 0.1161 0.4217 2.2578

# The ECMO row is reproduced by the model as coded (the patient is at the 70 kg
# reference weight, so allometry is inert). Rounding of the published values
# to three significant figures is the only difference.
rel_ecmo <- table4["Model, ECMO (70 kg)", ] / table4["Published, ECMO", ] - 1
stopifnot(all(abs(rel_ecmo) < 0.01))

# The published non-ECMO row is reproduced only when the allometric factor is
# left out (see the Errata section below).
rel_non <- table4["Model, non-ECMO (54 kg, no allometry)", ] /
  table4["Published, non-ECMO", ] - 1
stopifnot(all(abs(rel_non) < 0.01))

The ECMO row agrees to within rounding. The published non-ECMO row is matched exactly by theta / 54 without the (WT/70) scaling, so Table 4 seems to have divided the 70-kg typical values by 54 kg without first scaling them to a 54-kg patient. The model files follow the control stream, which applies allometry to all four parameters.

Virtual cohort

Weight and eGFR are drawn per ECMO group as log-normal variates centred on the Table 1 group medians, with a log-scale SD back-calculated from each IQR. There are 200 subjects per group.

set.seed(20220205)
rxode2::rxSetSeed(20220205)
n_arm <- 200

iqr_sd <- function(lo, hi) log(hi / lo) / (2 * qnorm(0.75))

cohort <- bind_rows(
  tibble(
    ECMO_STATUS = 1L,
    WT = exp(rnorm(n_arm, log(70), iqr_sd(55, 72.4))),
    CRCL = exp(rnorm(n_arm, log(72.5), iqr_sd(43.4, 81.7)))
  ),
  tibble(
    ECMO_STATUS = 0L,
    WT = exp(rnorm(n_arm, log(54), iqr_sd(46, 61))),
    CRCL = exp(rnorm(n_arm, log(46.8), iqr_sd(34.1, 73.2)))
  )
) |>
  mutate(
    id = row_number(),
    group = ifelse(ECMO_STATUS == 1L, "ECMO", "Non-ECMO")
  )

cohort |>
  group_by(group) |>
  summarise(
    N = n(),
    `Median WT (kg)` = median(WT),
    `Median eGFR (mL/min/1.73 m^2)` = median(CRCL),
    .groups = "drop"
  ) |>
  rename(Group = group) |>
  knitr::kable(digits = 1, caption = "Virtual cohort covariates.")
Virtual cohort covariates.
Group N Median WT (kg) Median eGFR (mL/min/1.73 m^2)
ECMO 200 68.5 75.3
Non-ECMO 200 54.8 47.7

Simulation

Each subject receives a single 4000/500 mg piperacillin/tazobactam dose infused over 30 minutes and is observed on the central compartment for 24 hours.

dose_dur <- 0.5
make_events <- function(subjects, amt, t_end = 24, by = 0.1) {
  dosing <- subjects |>
    mutate(time = 0, amt = amt, rate = amt / dose_dur, evid = 1L, cmt = "central")
  obs <- subjects |>
    tidyr::crossing(time = seq(0, t_end, by = by)) |>
    mutate(amt = NA_real_, rate = NA_real_, evid = 0L, cmt = "central")
  bind_rows(dosing, obs) |> arrange(id, time, desc(evid))
}

subjects <- cohort |> select(id, group, WT, CRCL, ECMO_STATUS)
ev_pip <- make_events(subjects, 4000)
ev_taz <- make_events(subjects, 500)

solve_with_group <- function(ui, events) {
  rxode2::rxSolve(ui, select(events, -group)) |>
    as.data.frame() |>
    left_join(distinct(events, id, group), by = "id")
}
sim_pip <- solve_with_group(pip, ev_pip)
sim_taz <- solve_with_group(taz, ev_taz)
stopifnot(
  n_distinct(sim_pip$id) == 2 * n_arm,
  n_distinct(sim_taz$id) == 2 * n_arm,
  !anyNA(sim_pip$Cc), !anyNA(sim_taz$Cc)
)

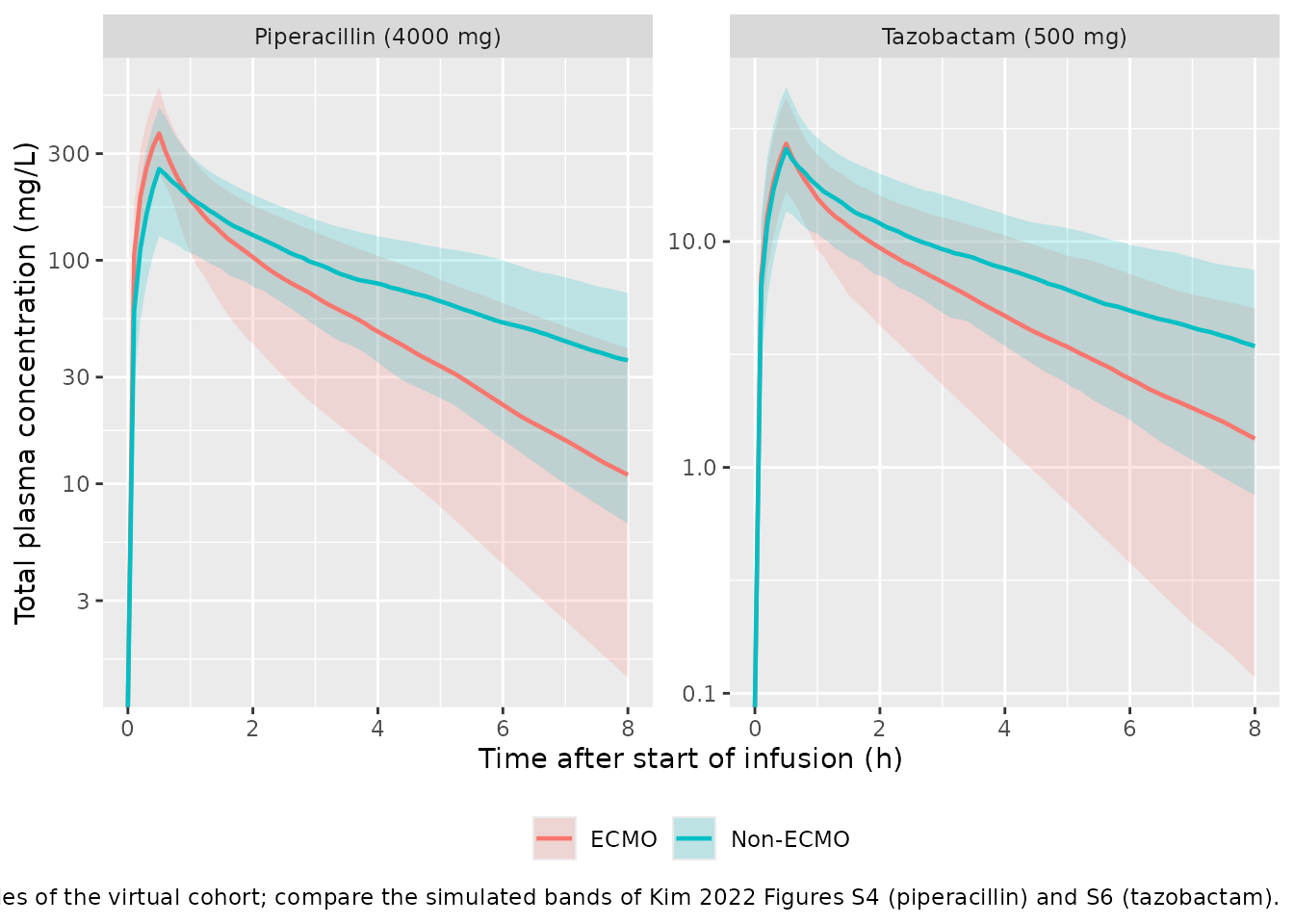

Concentration-time profiles

bind_rows(
  sim_pip |> mutate(drug = "Piperacillin (4000 mg)"),
  sim_taz |> mutate(drug = "Tazobactam (500 mg)")
) |>
  filter(time <= 8) |>
  group_by(drug, group, time) |>
  summarise(
    p10 = quantile(Cc, 0.1), p50 = median(Cc), p90 = quantile(Cc, 0.9),
    .groups = "drop"
  ) |>
  ggplot(aes(time, p50, colour = group, fill = group)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.2, colour = NA) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~drug, scales = "free_y") +
  scale_y_log10() +
  labs(
    x = "Time after start of infusion (h)", y = "Total plasma concentration (mg/L)",
    colour = NULL, fill = NULL,
    caption = paste(
      "Median and 10th-90th percentiles of the virtual cohort; compare the",
      "simulated bands of Kim 2022 Figures S4 (piperacillin) and S6 (tazobactam)."
    )
  ) +
  theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

The smaller central volume on ECMO gives a higher, earlier peak for both drugs. The paper reports the same finding: ECMO use reduced the central volume.

PKNCA validation

nca_for <- function(sim, events, drug) {
  conc <- sim |>
    filter(!is.na(Cc)) |>
    transmute(id, time, Cc = pmax(Cc, 0), treatment = paste(drug, group, sep = ", "))
  conc <- bind_rows(
    conc,
    conc |> distinct(id, treatment) |> mutate(time = 0, Cc = 0)
  ) |>
    distinct(id, treatment, time, .keep_all = TRUE) |>
    arrange(id, treatment, time)

  dose_df <- events |>
    filter(evid == 1) |>
    transmute(id, time, amt, treatment = paste(drug, group, sep = ", "), duration = dose_dur)

  conc_obj <- PKNCA::PKNCAconc(conc, Cc ~ time | treatment + id, concu = "mg/L", timeu = "h")
  dose_obj <- PKNCA::PKNCAdose(
    dose_df, amt ~ time | treatment + id,
    doseu = "mg", route = "intravascular", duration = "duration"
  )
  intervals <- data.frame(
    start = 0, end = Inf,
    cmax = TRUE, aucinf.obs = TRUE, half.life = TRUE, cl.obs = TRUE, vss.iv.obs = TRUE
  )
  PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
}

nca_cohort <- bind_rows(
  as.data.frame(nca_for(sim_pip, ev_pip, "Piperacillin")$result),
  as.data.frame(nca_for(sim_taz, ev_taz, "Tazobactam")$result)
)

nca_units <- c(
  cmax = "mg/L", aucinf.obs = "mg*h/L", half.life = "h", cl.obs = "L/h", vss.iv.obs = "L"
)
nca_cohort |>
  filter(!is.na(PPORRES), PPTESTCD %in% names(nca_units)) |>
  group_by(treatment, PPTESTCD) |>
  summarise(
    Median = median(PPORRES),
    P5 = quantile(PPORRES, 0.05),
    P95 = quantile(PPORRES, 0.95),
    .groups = "drop"
  ) |>
  mutate(PPTESTCD = nlmixr2lib::ncaParamLabel(PPTESTCD, units = nca_units)) |>
  rename(
    Treatment = treatment, `NCA parameter` = PPTESTCD,
    `5th percentile` = P5, `95th percentile` = P95
  ) |>
  knitr::kable(
    digits = 2,
    caption = "Simulated NCA parameters (single 4000/500 mg dose, 0.5 h infusion)."
  )
Simulated NCA parameters (single 4000/500 mg dose, 0.5 h infusion).
Treatment NCA parameter Median 5th percentile 95th percentile
Piperacillin, ECMO AUC0-∞ (obs) (mg*h/L) 671.11 291.86 1593.17
Piperacillin, ECMO CL/F (L/h) 5.96 2.51 13.71
Piperacillin, ECMO Cmax (mg/L) 369.69 228.33 665.65
Piperacillin, ECMO t½ (h) 1.94 1.07 3.68
Piperacillin, ECMO Vss (IV) (L) 13.32 8.38 21.29
Piperacillin, Non-ECMO AUC0-∞ (obs) (mg*h/L) 971.07 355.09 2098.99
Piperacillin, Non-ECMO CL/F (L/h) 4.12 1.91 11.26
Piperacillin, Non-ECMO Cmax (mg/L) 256.05 116.10 559.61
Piperacillin, Non-ECMO t½ (h) 3.20 1.49 8.55
Piperacillin, Non-ECMO Vss (IV) (L) 17.84 9.50 37.71
Tazobactam, ECMO AUC0-∞ (obs) (mg*h/L) 60.35 23.73 153.39
Tazobactam, ECMO CL/F (L/h) 8.28 3.26 21.07
Tazobactam, ECMO Cmax (mg/L) 27.13 14.11 48.15
Tazobactam, ECMO t½ (h) 2.11 1.07 4.64
Tazobactam, ECMO Vss (IV) (L) 22.11 13.25 38.25
Tazobactam, Non-ECMO AUC0-∞ (obs) (mg*h/L) 95.05 40.04 208.11
Tazobactam, Non-ECMO CL/F (L/h) 5.26 2.40 12.49
Tazobactam, Non-ECMO Cmax (mg/L) 25.73 10.19 58.21
Tazobactam, Non-ECMO t½ (h) 3.08 1.45 9.97
Tazobactam, Non-ECMO Vss (IV) (L) 22.41 11.84 52.91

Comparison against published values

Kim 2022 reports no NCA. The reference values below come from the published typical estimates for the patient profiles used in Table 4 (ECMO: 70 kg, eGFR 72.5; non-ECMO: 54 kg, eGFR 53.1): CL from the clearance equation, AUCinf = Dose / CL, and Vss = VC + VP. The simulation is a typical-value (zeroRe()) solve for those two patients, so this is an identity check on the transcription and on the covariate equations.

typ_subjects <- tibble(
  id = 1:2, group = c("ECMO", "Non-ECMO"),
  WT = c(70, 54), CRCL = c(72.5, 53.1), ECMO_STATUS = c(1L, 0L)
)
ev_typ_pip <- make_events(typ_subjects, 4000, t_end = 48, by = 0.02)
ev_typ_taz <- make_events(typ_subjects, 500, t_end = 48, by = 0.02)
typ_pip <- solve_with_group(rxode2::zeroRe(pip), ev_typ_pip)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc_ecmo', 'etalvc_nonecmo'
#> Warning: multi-subject simulation without without 'omega'
typ_taz <- solve_with_group(rxode2::zeroRe(taz), ev_typ_taz)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc_ecmo', 'etalvc_nonecmo'
#> Warning: multi-subject simulation without without 'omega'

nca_typ <- bind_rows(
  as.data.frame(nca_for(typ_pip, ev_typ_pip, "Piperacillin")$result),
  as.data.frame(nca_for(typ_taz, ev_typ_taz, "Tazobactam")$result)
)

reference <- bind_rows(lapply(seq_len(nrow(typ_subjects)), function(i) {
  s <- typ_subjects[i, ]
  bind_rows(lapply(list(Piperacillin = list(pip, 4000), Tazobactam = list(taz, 500)), function(x) {
    th <- x[[1]]$theta
    cl <- exp(th[["lcl"]]) * (s$WT / 70)^0.75 * exp(th[["e_crcl_cl"]] * (s$CRCL - 52.77))
    vc <- exp(if (s$ECMO_STATUS == 1L) th[["lvc_ecmo"]] else th[["lvc_nonecmo"]]) * s$WT / 70
    vp <- exp(th[["lvp"]]) * s$WT / 70
    tibble(aucinf.obs = x[[2]] / cl, cl.obs = cl, vss.iv.obs = vc + vp)
  }), .id = "drug") |>
    mutate(treatment = paste(drug, s$group, sep = ", ")) |>
    select(-drug)
}))

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_typ,
  reference = reference,
  by = "treatment",
  units = c(aucinf.obs = "mg*h/L", cl.obs = "L/h", vss.iv.obs = "L"),
  tolerance_pct = 20
)
knitr::kable(
  cmp,
  caption = "Simulated (typical patient) vs. published-parameter NCA. * differs from reference by >20%."
)
Simulated (typical patient) vs. published-parameter NCA. * differs from reference by >20%.
NCA parameter treatment Reference Simulated % diff
AUC0-∞ (obs) (mg*h/L) Piperacillin, ECMO 659 659 -0.0%
AUC0-∞ (obs) (mg*h/L) Tazobactam, ECMO 63.2 63.2 -0.0%
AUC0-∞ (obs) (mg*h/L) Piperacillin, Non-ECMO 959 959 -0.0%
AUC0-∞ (obs) (mg*h/L) Tazobactam, Non-ECMO 95.6 95.6 -0.0%
CL/F (L/h) Piperacillin, ECMO 6.07 6.07 +0.0%
CL/F (L/h) Tazobactam, ECMO 7.91 7.91 +0.0%
CL/F (L/h) Piperacillin, Non-ECMO 4.17 4.17 +0.0%
CL/F (L/h) Tazobactam, Non-ECMO 5.23 5.23 +0.0%
Vss (IV) (L) Piperacillin, ECMO 13.6 13.7 +0.0%
Vss (IV) (L) Tazobactam, ECMO 22.3 22.3 +0.0%
Vss (IV) (L) Piperacillin, Non-ECMO 17.6 17.6 +0.0%
Vss (IV) (L) Tazobactam, Non-ECMO 22.5 22.5 +0.0%

stopifnot(nrow(cmp) == 12L, !any(grepl("\\*", cmp$`% diff`)))

sim_value <- function(trt, code) {
  v <- nca_typ$PPORRES[nca_typ$treatment == trt & nca_typ$PPTESTCD == code]
  if (length(v) != 1L) stop("no unique NCA row for '", trt, "' / ", code)
  v
}
for (i in seq_len(nrow(reference))) {
  for (code in c("aucinf.obs", "cl.obs", "vss.iv.obs")) {
    ref <- reference[[code]][[i]]
    stopifnot(abs(sim_value(reference$treatment[[i]], code) / ref - 1) < 0.01)
  }
}

Every row matches its reference to within 1%. The small remaining difference comes from extrapolating the 48-hour profile to infinity and from the trapezoidal integration.

Probability of target attainment (Figures 3-5)

The paper’s second simulation drew 1,000 virtual patients per scenario. It used log-normal IIV on the PK parameters, eGFR drawn uniformly within each renal function band, and a fixed unbound piperacillin fraction of 0.91. Target attainment is the fraction of patients whose free piperacillin stays above the target at steady state for the required share of the dosing interval. The paper does not say what body weight the virtual patients had, so the ECMO and non-ECMO group medians (70 and 54 kg) are used here (see Assumptions). Each scenario simulates 200 patients. The doses are numbered as in the paper: “4 g” is 4000 mg piperacillin (4.5 g piperacillin/tazobactam), and continuous infusion gives the same 16 g/day.

fu <- 0.91
tau <- 6
n_pta <- 200

pta_sim <- function(ecmo, crcl_lo, crcl_hi, amt, dur, continuous = FALSE) {
  subj <- tibble(
    id = seq_len(n_pta), WT = if (ecmo == 1L) 70 else 54,
    CRCL = runif(n_pta, crcl_lo, crcl_hi), ECMO_STATUS = ecmo
  )
  if (continuous) {
    dosing <- subj |> mutate(time = 0, amt = 16000 * 3, rate = 16000 / 24)
  } else {
    dosing <- subj |>
      tidyr::crossing(time = seq(0, 42, by = tau)) |>
      mutate(amt = amt, rate = amt / dur)
  }
  dosing <- dosing |> mutate(evid = 1L, cmt = "central")
  # The 8th dosing interval (42-48 h) is at steady state for every eGFR band.
  obs <- subj |>
    tidyr::crossing(time = seq(42, 48, by = 0.05)) |>
    mutate(amt = NA_real_, rate = NA_real_, evid = 0L, cmt = "central")
  ev <- bind_rows(dosing, obs) |> arrange(id, time, desc(evid))
  sim <- rxode2::rxSolve(pip, ev) |> as.data.frame()
  stopifnot(n_distinct(sim$id) == n_pta, !anyNA(sim$Cc))
  sim
}

pta_value <- function(sim, mic, frac, mult) {
  ft <- tapply(fu * sim$Cc > mult * mic, sim$id, mean)
  100 * mean(ft >= frac - 1e-9)
}

scenarios <- tibble::tribble(
  ~figure, ~target, ~frac, ~mult, ~group, ~ecmo, ~lo, ~hi, ~regimen, ~amt, ~dur, ~cont,
  "3", "50% fT>MIC", 0.5, 1, "ECMO", 1L, 20, 40, "3 g q6h, 0.5 h", 3000, 0.5, FALSE,
  "3", "50% fT>MIC", 0.5, 1, "Non-ECMO", 0L, 90, 130, "4 g q6h, 0.5 h", 4000, 0.5, FALSE,
  "4", "100% fT>MIC", 1, 1, "ECMO", 1L, 90, 130, "4 g q6h, 0.5 h", 4000, 0.5, FALSE,
  "4", "100% fT>MIC", 1, 1, "ECMO", 1L, 90, 130, "4 g q6h, 4 h", 4000, 4, FALSE,
  "4", "100% fT>MIC", 1, 1, "ECMO", 1L, 90, 130, "16 g/day continuous", NA, NA, TRUE,
  "4", "100% fT>MIC", 1, 1, "Non-ECMO", 0L, 130, 170, "4 g q6h, 4 h", 4000, 4, FALSE,
  "4", "100% fT>MIC", 1, 1, "Non-ECMO", 0L, 130, 170, "16 g/day continuous", NA, NA, TRUE,
  "5", "100% fT>4xMIC", 1, 4, "ECMO", 1L, 40, 60, "4 g q6h, 0.5 h", 4000, 0.5, FALSE,
  "5", "100% fT>4xMIC", 1, 4, "ECMO", 1L, 40, 60, "16 g/day continuous", NA, NA, TRUE,
  "5", "100% fT>4xMIC", 1, 4, "Non-ECMO", 0L, 130, 170, "4 g q6h, 0.5 h", 4000, 0.5, FALSE,
  "5", "100% fT>4xMIC", 1, 4, "Non-ECMO", 0L, 130, 170, "16 g/day continuous", NA, NA, TRUE
) |>
  mutate(scenario = row_number())

pta_sims <- lapply(seq_len(nrow(scenarios)), function(i) {
  s <- scenarios[i, ]
  pta_sim(s$ecmo, s$lo, s$hi, s$amt, s$dur, s$cont)
})

mic_grid <- 2^(-3:7)
pta_curves <- bind_rows(lapply(seq_len(nrow(scenarios)), function(i) {
  s <- scenarios[i, ]
  tibble(
    scenario = i, MIC = mic_grid,
    PTA = vapply(mic_grid, function(m) pta_value(pta_sims[[i]], m, s$frac, s$mult), numeric(1))
  )
})) |>
  left_join(scenarios, by = "scenario") |>
  mutate(panel = sprintf("Fig %s: %s, %s, eGFR %g-%g", figure, target, group, lo, hi))
ggplot(pta_curves, aes(MIC, PTA, colour = regimen)) +
  geom_line(linewidth = 0.7) +
  geom_point(size = 1) +
  geom_hline(yintercept = 90, linetype = "dashed") +
  facet_wrap(~panel, ncol = 2) +
  scale_x_log10(breaks = c(0.125, 0.5, 2, 8, 32, 128)) +
  labs(
    x = "MIC (mg/L)", y = "Probability of target attainment (%)", colour = NULL,

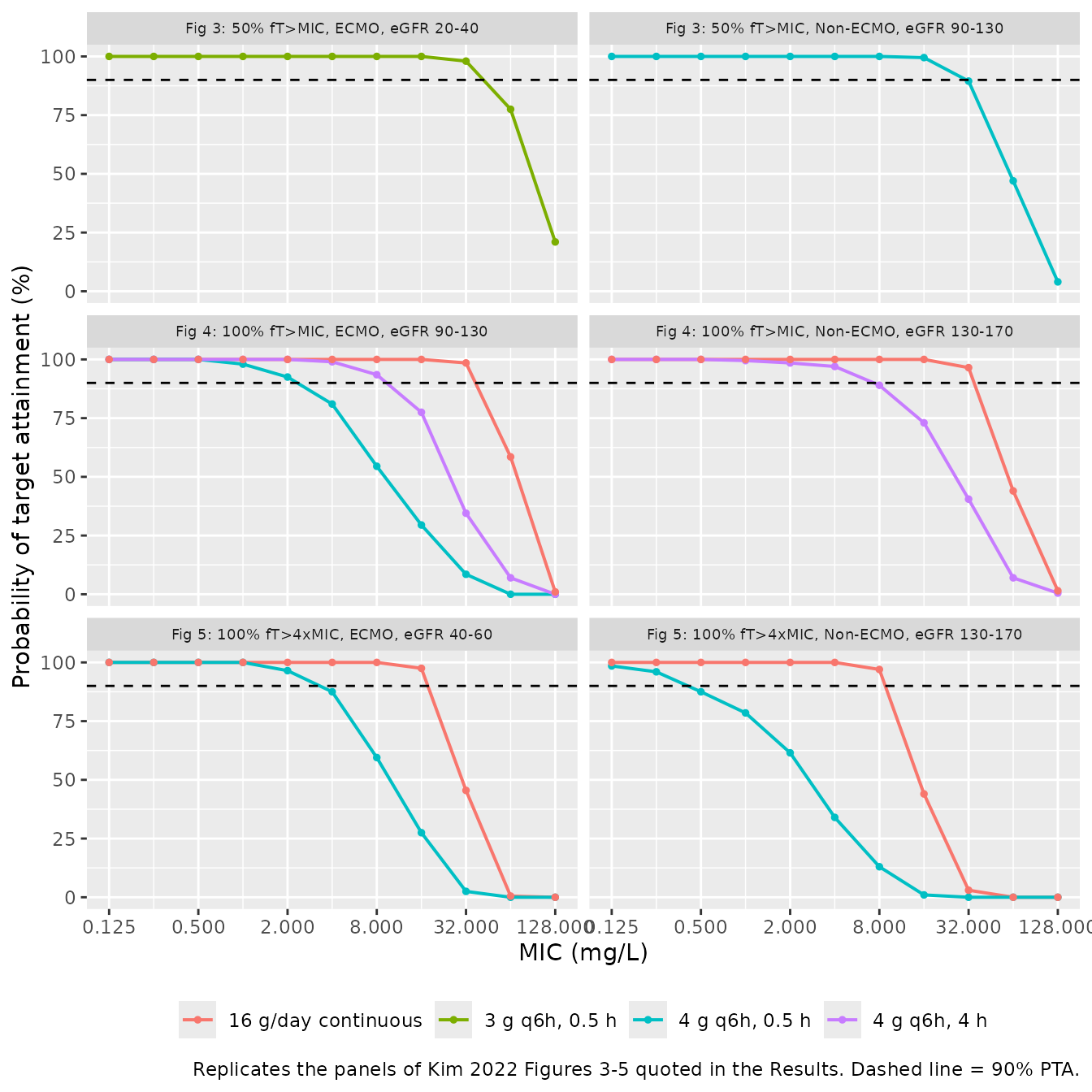

    caption = paste(
      "Replicates the panels of Kim 2022 Figures 3-5 quoted in the Results.",
      "Dashed line = 90% PTA."
    )
  ) +
  theme(legend.position = "bottom", strip.text = element_text(size = 7))

The Results section states, for each panel, the highest MIC at which a regimen reaches 90% PTA. Each statement is a pair of claims: at least 90% at the stated MIC, and below 90% one dilution higher. The table checks every claim. Only claims whose model-predicted PTA is at least 3 binomial standard errors from 90% at n = 200 are gated with stopifnot(). The others sit within sampling noise of the threshold. The model-predicted values below come from a 2,000-patient run made while writing this article.

claim <- function(scen, mic, expect_ge90, model_true) {
  v <- pta_curves$PTA[pta_curves$scenario == scen & pta_curves$MIC == mic]
  if (length(v) != 1L) stop("no unique PTA row for scenario ", scen, " at MIC ", mic)
  se <- 100 * sqrt(model_true / 100 * (1 - model_true / 100) / n_pta)
  tibble(
    scenario = scen, MIC = mic,
    Claim = if (expect_ge90) ">= 90%" else "< 90%",
    `PTA (n = 200)` = v,
    `PTA (n = 2000)` = model_true,
    Gated = abs(model_true - 90) >= 3 * max(se, 0.5),
    Agrees = if (expect_ge90) v >= 90 else v < 90
  )
}

claims <- bind_rows(
  claim(1, 32, TRUE, 97.9), claim(1, 64, FALSE, 77.0),
  claim(2, 16, TRUE, 97.5), claim(2, 32, FALSE, 87.9),
  claim(3, 2, TRUE, 94.7), claim(3, 4, FALSE, 81.5),
  claim(4, 8, TRUE, 92.5), claim(4, 16, FALSE, 75.3),
  claim(5, 32, TRUE, 99.1), claim(5, 64, FALSE, 62.5),
  claim(6, 4, TRUE, 97.2), claim(6, 8, FALSE, 88.8),
  claim(7, 32, TRUE, 96.2), claim(7, 64, FALSE, 42.0),
  claim(8, 1, TRUE, 99.2), claim(8, 2, FALSE, 96.2),
  claim(9, 16, TRUE, 97.9), claim(9, 32, FALSE, 45.1),
  claim(10, 0.25, TRUE, 95.8), claim(10, 0.5, FALSE, 87.9),
  claim(11, 8, TRUE, 96.2), claim(11, 16, FALSE, 39.4)
) |>
  left_join(select(scenarios, scenario, figure, group, lo, hi, regimen), by = "scenario") |>
  mutate(
    # Figure 5, ECMO, eGFR 40-60: the paper says 4 g q6h over 0.5 h misses the
    # target from MIC 2 mg/L; the model gives about 96% there (see Errata).
    Deviation = scenario == 8 & MIC == 2,
    `eGFR band` = sprintf("%g-%g", lo, hi),
    MIC = vapply(MIC, format, character(1), trim = TRUE)
  )

claims |>
  select(
    Figure = figure, Group = group, `eGFR band`, Regimen = regimen, `MIC (mg/L)` = MIC,
    Claim, `PTA (n = 200)`, `PTA (n = 2000)`, Gated, Agrees, Deviation
  ) |>
  knitr::kable(digits = 1, caption = "Target-attainment breakpoints stated in the Kim 2022 Results.")
Target-attainment breakpoints stated in the Kim 2022 Results.
Figure Group eGFR band Regimen MIC (mg/L) Claim PTA (n = 200) PTA (n = 2000) Gated Agrees Deviation
3 ECMO 20-40 3 g q6h, 0.5 h 32 >= 90% 98.0 97.9 TRUE TRUE FALSE
3 ECMO 20-40 3 g q6h, 0.5 h 64 < 90% 77.5 77.0 TRUE TRUE FALSE
3 Non-ECMO 90-130 4 g q6h, 0.5 h 16 >= 90% 99.5 97.5 TRUE TRUE FALSE
3 Non-ECMO 90-130 4 g q6h, 0.5 h 32 < 90% 89.5 87.9 FALSE TRUE FALSE
4 ECMO 90-130 4 g q6h, 0.5 h 2 >= 90% 92.5 94.7 FALSE TRUE FALSE
4 ECMO 90-130 4 g q6h, 0.5 h 4 < 90% 81.0 81.5 TRUE TRUE FALSE
4 ECMO 90-130 4 g q6h, 4 h 8 >= 90% 93.5 92.5 FALSE TRUE FALSE
4 ECMO 90-130 4 g q6h, 4 h 16 < 90% 77.5 75.3 TRUE TRUE FALSE
4 ECMO 90-130 16 g/day continuous 32 >= 90% 98.5 99.1 TRUE TRUE FALSE
4 ECMO 90-130 16 g/day continuous 64 < 90% 58.5 62.5 TRUE TRUE FALSE
4 Non-ECMO 130-170 4 g q6h, 4 h 4 >= 90% 97.0 97.2 TRUE TRUE FALSE
4 Non-ECMO 130-170 4 g q6h, 4 h 8 < 90% 89.0 88.8 FALSE TRUE FALSE
4 Non-ECMO 130-170 16 g/day continuous 32 >= 90% 96.5 96.2 TRUE TRUE FALSE
4 Non-ECMO 130-170 16 g/day continuous 64 < 90% 44.0 42.0 TRUE TRUE FALSE
5 ECMO 40-60 4 g q6h, 0.5 h 1 >= 90% 100.0 99.2 TRUE TRUE FALSE
5 ECMO 40-60 4 g q6h, 0.5 h 2 < 90% 96.5 96.2 TRUE FALSE TRUE
5 ECMO 40-60 16 g/day continuous 16 >= 90% 97.5 97.9 TRUE TRUE FALSE
5 ECMO 40-60 16 g/day continuous 32 < 90% 45.5 45.1 TRUE TRUE FALSE
5 Non-ECMO 130-170 4 g q6h, 0.5 h 0.25 >= 90% 96.0 95.8 TRUE TRUE FALSE
5 Non-ECMO 130-170 4 g q6h, 0.5 h 0.5 < 90% 87.5 87.9 FALSE TRUE FALSE
5 Non-ECMO 130-170 16 g/day continuous 8 >= 90% 97.0 96.2 TRUE TRUE FALSE
5 Non-ECMO 130-170 16 g/day continuous 16 < 90% 44.0 39.4 TRUE TRUE FALSE

gated <- claims |> filter(Gated, !Deviation)
stopifnot(nrow(gated) >= 14L, all(gated$Agrees))

All 21 of the 22 claims reproduce with the 2,000-patient run (column PTA (n = 2000)). The gated subset reproduces with 200 patients. The one claim that does not reproduce is flagged in the Deviation column and discussed under Errata. The paper’s main dosing conclusion also holds. For ECMO patients with an eGFR of 90-130 mL/min/1.73 m^2, the 100% fT>MIC breakpoint of 4 g q6h is 2 mg/L with a 30-minute infusion. The same daily dose raises it to 8 mg/L as a 4-hour infusion and to 32 mg/L as a continuous infusion, a gain of two and four doubling dilutions.

Assumptions and deviations

  • The IIV column of Tables 2 and 3 is read as a CV on the log-normal scale and converted with omega^2 = log(1 + CV^2). The paper prints only the percentage, and the supplementary control stream leaves $OMEGA empty. If the column were 100 * sqrt(omega^2), the variances would be 6-20% larger. The largest gap is on the non-ECMO central volume (0.426 vs 0.355).
  • Weight in the target-attainment simulations. The paper says only that PK parameters were drawn log-normally and eGFR uniformly within each band. The ECMO and non-ECMO group median weights (70 and 54 kg) reproduce every stated breakpoint except one. Holding every patient at the 70-kg reference instead breaks two non-ECMO claims (continuous infusion at eGFR 130-170, Figures 4 and 5).
  • Virtual-cohort covariates are drawn independently as log-normal variates matched to the Table 1 group medians and IQRs. No covariate correlations are reported.
  • CRRT (8 patients, all on ECMO per Table 1) was not among the tested covariates and is not in the model. Renal function enters only through the cystatin-C eGFR.
  • Tazobactam target attainment was not simulated in the paper and is not simulated here.

Errata and internal inconsistencies in the source

  • Table 4, non-ECMO row. The weight-normalised values (CL 0.0940 L/h/kg, VC 0.306 L/kg, Q 0.116, VP 0.116, VSS 0.422, half-life 2.26 h) equal the 70-kg typical estimates divided by 54 kg, with no (WT/70) allometric scaling. The check above reproduces them to within rounding. With the allometric scaling that the control stream applies, a 54-kg non-ECMO patient has CL 0.0773 L/h/kg and VC 0.236 L/kg (the “with allometry” row of the table). The model files follow the control stream. Table 4 also uses different renal-function measures for its two rows: 72.5 is the ECMO median of the cystatin-C eGFR, but 53.1 is the non-ECMO median of the Cockcroft-Gault creatinine clearance (Table 1).
  • CRRT counts. The Results text says 1 of the 19 non-ECMO patients received CRRT, but Table 1 lists 0 of 19 (and 8 in total).
  • Figure 5, ECMO, eGFR 40-60 mL/min/1.73 m^2. The Results state that 4 g q6h over 0.5 h does not reach 90% PTA for 100% fT>4xMIC once the MIC is at least 2 mg/L. The model gives about 96% at MIC 2 mg/L under either weight assumption. The paper does not report the weights of its virtual patients, so the cause cannot be settled. Every other breakpoint reproduces.
  • No erratum or correction notice for Kim 2022 was found in Europe PMC (checked 2026-10-01).
