Micafungin against Candida albicans in vitro (Beredaki 2023)

Source: vignettes/articles/Beredaki_2023_micafungin.Rmd
Beredaki_2023_micafungin.Rmd

Model and source

Beredaki 2023 built an in vitro dialysis/diffusion pharmacokinetic/pharmacodynamic model for micafungin against Candida albicans and used it to argue that the CLSI susceptibility breakpoint (0.25 mg/L) is too high relative to the CLSI epidemiological cut-off value (0.03 mg/L), whereas the EUCAST breakpoint (0.016 mg/L) is well supported.

The paper fitted two exposure-response relationships in the presence of 10% pooled human serum – one indexed on CLSI M27 MICs, one on EUCAST E.Def 7.3 MICs – so the extraction is two model files sharing one vignette.

  • CLSI parameterisation: Beredaki_2023_micafungin_clsi

  • EUCAST parameterisation: Beredaki_2023_micafungin_eucast

  • Article: https://doi.org/10.1093/jac/dkad096

  • Citation: Beredaki MI, Arendrup MC, Andes D, Meletiadis J. (2023). Development of an in vitro pharmacokinetic/pharmacodynamic model in the presence of serum for studying micafungin activity against Candida albicans: a need for revision of CLSI susceptibility breakpoints. Journal of Antimicrobial Chemotherapy 78(6):1386-1394. doi:10.1093/jac/dkad096.

  • Description (CLSI): In vitro (Candida albicans clinical isolates in RPMI-1640 with 10% pooled human serum; two-compartment closed dialysis/diffusion PK/PD model). Micafungin in vitro PK/PD model with the exposure-response relationship indexed on CLSI M27 MICs. Beredaki 2023 simulated q24h micafungin exposures in the internal compartment of a dialysis/diffusion model and described the concentration decay with the one-compartment mono-exponential Ct = C0 * exp(-k * t) (Methods, ‘In vitro pharmacokinetics’), with an average half-life of 14 h (range 9-15 h) in the presence of 10% pooled human serum. The 72 h change in log10 CFU/mL relative to the starting inoculum was then related to the PK/PD index fAUC0-24/MIC with the sigmoidal variable-slope Emax model E = Emax * EI^n / (EI^n + EI50^n) (Methods, ‘PK/PD analysis’), where E is the REDUCTION in log10 CFU/mL relative to the drug-free control. Beredaki 2023 printed the equation but not its coefficients, so e0, lemax, lec50 and lhill were recovered by digitising the fitted curve in Figure 5(a) (CLSI panel, R^2 = 0.92); the recovered coefficients reproduce the paper’s own Table 2 CLSI stasis target (2.8 fAUC0-24/MIC) to +3% and its 1-log-kill target (9.2 fAUC0-24/MIC) to -13%, equivalent to 0.10 log10 CFU/mL on the effect axis. The fungal density bact (linear CFU/mL) is integrated as d/dt(bact) = ln(10) * ((e0 - kill72) / 72) * bact so that log10(bact) changes by exactly (e0 - kill72) across the paper’s 72 h observation window, reproducing the endpoint model exactly at the time the paper actually fitted it. The companion EUCAST parameterisation is Beredaki_2023_micafungin_eucast. See the vignette for the reported no-serum targets, which are NOT packaged because Beredaki 2023 published no exposure-response curve for that condition.

Population

Four C. albicans isolates were studied (Beredaki 2023 Table 1): two fks1 wild-type clinical strains previously used in a neutropenic murine candidiasis model (CA 580, EUCAST/CLSI median MIC 0.016/0.008 mg/L; CA 9817, 0.03/0.03 mg/L) and two fks1 mutants (CA SSI-5318, F641L, weak resistance, 0.03/0.06 mg/L; CA SSI-6683, R647G, strong resistance, 0.5/0.5 mg/L).

The dynamic model consists of an external compartment (a conical flask on a peristaltic pump) connected to an internal compartment: a 10 mL semipermeable cellulose dialysis tube (300 kDa cut-off) inoculated at 10^4 CFU/mL. The growth medium was RPMI 1640 with MOPS buffer at pH 7.0, containing 10% heat-inactivated pooled human serum. A preceding static time-kill experiment found no pharmacodynamic difference between 10%, 50% and 100% serum (static effect at 120, 141 and 167 total Cmax/MIC respectively), so 10% serum was used throughout.

Micafungin was added to the internal compartment once daily at target peak concentrations spanning 0.004-32 mg/L; the serum arms shown in Figure 4 used total Cmax of 0.25, 1, 4, 8, 16 and 32 mg/L plus a drug-free control. Two independent experiments were conducted.

The same information is available programmatically via the model’s population metadata (readModelDb("Beredaki_2023_micafungin_clsi")()$population).

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Beredaki_2023_micafungin_clsi.R and ..._eucast.R. The table below collects them in one place.

Equation / parameter Value Source location
d/dt(central) <- -kel * central; Cc <- central / vc n/a Methods, “In vitro pharmacokinetics”: one-compartment model Ct = C0 * exp(-k * t)
lkel log(0.693 / 14) Results, “In vitro dynamic PK/PD model”: in vitro t1/2 = 14 h (9-15 h) with 10% serum; Methods: t1/2 = 0.693 / k
lvc log(0.010) (FIXED) Methods, “In vitro PK/PD model”: internal compartment of a 10 mL dialysis tube
fu 0.0025 (FIXED) Methods, “PK/PD analysis”: protein binding of 99.75% taken into account; Discussion: 99.75% for micafungin
tau 24 h (FIXED) Methods: drug added at the corresponding Cmax values once daily; index is fAUC0-24/MIC
tcmax 8 mg/L (FIXED, design) Figure 4 legend: total Cmax arms 0.25, 1, 4, 8, 16, 32 mg/L; Methods: Cmax range 0.004-32 mg/L
d/dt(fauc_0_24) <- fu * Cc * (t < tau) n/a Methods, “PK/PD analysis”: index is fAUC0-24/MIC; Methods, “In vitro pharmacokinetics”: AUC0-24 by the trapezoidal rule
kill72 <- emax * ei^hill / (ei^hill + ec50^hill) n/a Methods, “PK/PD analysis”: E = Emax * EI^n / (EI^n + EI50^n)
e0 4.10 (CLSI) / 4.23 (EUCAST) digitised from Figure 5(a) / 5(b) – see Assumptions and deviations
lemax log(6.61) / log(6.73) digitised from Figure 5(a) / 5(b)
lec50 log(1.45) / log(1.35) digitised from Figure 5(a) / 5(b)
lhill log(0.710) / log(0.733) digitised from Figure 5(a) / 5(b)
mic 0.008 (CLSI) / 0.016 (EUCAST) mg/L (FIXED) Table 1: CA 580 median MIC, CLSI M27 / EUCAST E.Def 7.3
log10_cfu0 4.37 (FIXED) Results: with serum, growth from 4.37 +/- 0.24 log10 CFU/mL at t = 0 h; nominal inoculum 10^4 CFU/mL
d/dt(bact) <- log(10) * ((e0 - kill72) / 72) * bact n/a Methods, “In vitro pharmacodynamics”: effect assessed as the log10 CFU/mL change at 72 h vs the start of therapy
propSd 0.03 (FIXED) Methods, “In vitro pharmacokinetics”: LOD 0.125 mg/L, interexperimental CV < 3%
addSd_log10cfu 0 (FIXED) Not reported; Beredaki 2023 gives only R^2 = 0.92 (CLSI) / 0.87 (EUCAST)

Reference targets used for validation below (Beredaki 2023 Table 2, mean fAUC0-24/MIC):

Condition Method Stasis 1-log kill
10% human pooled serum CLSI 2.8 (1.8-4.6) 9.2 (5.2-18.7)
10% human pooled serum EUCAST 2.8 (1.6-4.8) 7.9 (4.3-17.5)
without serum CLSI 36 (23-67) 57 (34-121)
without serum EUCAST 38 (26-64) 58 (37-113)

Only the two 10% serum rows are packaged; see Assumptions and deviations.

Virtual cohort

The in vitro experiment has no virtual population: each arm is one dialysis tube with a defined isolate (fixing mic) and a defined target peak concentration (fixing tcmax). Arms are therefore enumerated deterministically rather than sampled, and every simulation below is a typical-value (deterministic) solve – the models carry no between-subject variability, matching a paper that reports none.

# Beredaki 2023 re-spiked the internal compartment to the target peak once daily
# (Figure 2: the target peaks are identical at 0, 24 and 48 h). The first dose
# raises the empty compartment to `tcmax`; each later dose only tops up the
# fraction lost over the preceding interval.
make_events <- function(tcmax, kel, vc = 0.010, tau = 24, tmax = 72, dt = 0.5) {
  first_amt <- tcmax * vc
  topup_amt <- tcmax * (1 - exp(-kel * tau)) * vc
  dose_times <- seq(0, tmax - tau, by = tau)
  doses <- data.frame(
    time = dose_times,
    amt = c(first_amt, rep(topup_amt, length(dose_times) - 1L)),
    cmt = "central", evid = 1L, dvid = NA_integer_
  )
  # Observation rows sit on the ODE state `central`; `dvid = 1L` selects the Cc
  # endpoint of this two-endpoint model. rxode2 returns every algebraic
  # observable (Cc, ei, kill72, log10cfu) as a column at these rows.
  obs <- data.frame(
    time = seq(0, tmax, by = dt),
    amt = NA_real_, cmt = "central", evid = 0L, dvid = 1L
  )
  dplyr::bind_rows(doses, obs) |> dplyr::arrange(time, dplyr::desc(evid))
}

# One deterministic arm. `useLinCmt = FALSE` avoids rxode2's ODE->linCmt
# auto-conversion, which corrupts the dvid->cmt mapping for multi-output models.
solve_arm <- function(mod, tcmax, mic, kel = 0.693 / 14, ...) {
  ev <- make_events(tcmax = tcmax, kel = kel, ...)
  rxode2::rxSolve(
    mod, ev,
    params = c(tcmax = tcmax, mic = mic, lkel = log(kel)),
    useLinCmt = FALSE, returnType = "data.frame"
  ) |>
    dplyr::mutate(tcmax_nominal = tcmax, mic_nominal = mic, kel_nominal = kel)
}

Simulation and internal consistency

The model carries the PK/PD index twice: fauc_0_24 integrates fu * Cc over the first dosing interval, while fauc24 is the closed form of the same integral (available from t = 0 so the 72 h endpoint model can drive the whole trajectory). They must agree at t = tau. This is the single strictest check that the dosing amounts, the volume, the elimination rate and the unbound fraction are all wired together correctly.

arm <- solve_arm(mod_clsi, tcmax = 8, mic = 0.008)

integrated <- max(arm$fauc_0_24[arm$time == 24])
closed_form <- unique(arm$fauc24)

c(integrated = integrated, closed_form = closed_form,
  abs_diff = abs(integrated - closed_form))
#>   integrated  closed_form     abs_diff
#> 2.808766e-01 2.808766e-01 8.589434e-08

# ODE-integrated and closed-form fAUC0-24 must agree to solver tolerance.
stopifnot(abs(integrated - closed_form) < 1e-6)

# The accumulator must freeze after the first interval (index is fAUC0-24, not
# a running AUC).
stopifnot(abs(max(arm$fauc_0_24) - integrated) < 1e-9)

# Beredaki 2023's dosing re-spikes to a constant peak; check all three peaks.
peaks <- vapply(c(0, 24, 48), function(tt) max(arm$Cc[arm$time == tt]), numeric(1))
round(peaks, 4)
#> [1] 8 8 8
stopifnot(all(abs(peaks - 8) < 1e-4))

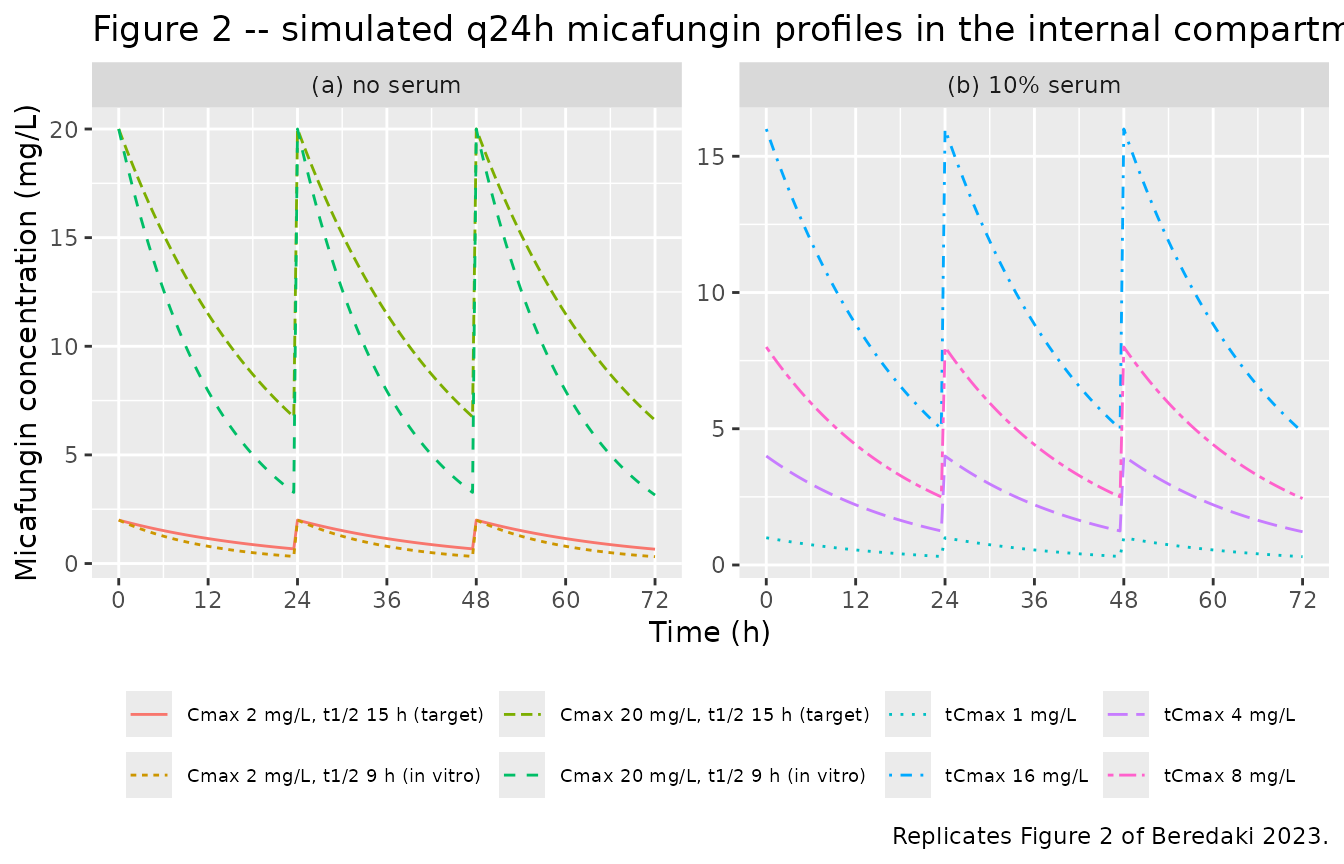

Replicate Figure 2: in vitro pharmacokinetics

Beredaki 2023 Figure 2 shows the simulated q24h concentration-time profiles in the internal compartment, in the absence (panel a, achieved t1/2 9 h) and presence (panel b, achieved t1/2 14 h) of 10% pooled human serum, each against the target human micafungin profile (t1/2 15 h, dashed).

pk_arms <- dplyr::bind_rows(
  # Panel (a), absence of serum: fCmax 2 and 20 mg/L, achieved t1/2 9 h
  solve_arm(mod_clsi, tcmax = 2,  mic = 0.008, kel = 0.693 / 9) |>
    dplyr::mutate(panel = "(a) no serum", arm = "Cmax 2 mg/L, t1/2 9 h (in vitro)"),
  solve_arm(mod_clsi, tcmax = 20, mic = 0.008, kel = 0.693 / 9) |>
    dplyr::mutate(panel = "(a) no serum", arm = "Cmax 20 mg/L, t1/2 9 h (in vitro)"),
  solve_arm(mod_clsi, tcmax = 2,  mic = 0.008, kel = 0.693 / 15) |>
    dplyr::mutate(panel = "(a) no serum", arm = "Cmax 2 mg/L, t1/2 15 h (target)"),
  solve_arm(mod_clsi, tcmax = 20, mic = 0.008, kel = 0.693 / 15) |>
    dplyr::mutate(panel = "(a) no serum", arm = "Cmax 20 mg/L, t1/2 15 h (target)"),
  # Panel (b), 10% serum: tCmax 1, 4, 8, 16 mg/L, achieved t1/2 14 h
  solve_arm(mod_clsi, tcmax = 1,  mic = 0.008) |>
    dplyr::mutate(panel = "(b) 10% serum", arm = "tCmax 1 mg/L"),
  solve_arm(mod_clsi, tcmax = 4,  mic = 0.008) |>
    dplyr::mutate(panel = "(b) 10% serum", arm = "tCmax 4 mg/L"),
  solve_arm(mod_clsi, tcmax = 8,  mic = 0.008) |>
    dplyr::mutate(panel = "(b) 10% serum", arm = "tCmax 8 mg/L"),
  solve_arm(mod_clsi, tcmax = 16, mic = 0.008) |>
    dplyr::mutate(panel = "(b) 10% serum", arm = "tCmax 16 mg/L")
)

ggplot(pk_arms, aes(time, Cc, colour = arm, linetype = arm)) +
  geom_line() +
  facet_wrap(~panel, scales = "free_y") +
  scale_x_continuous(breaks = seq(0, 72, by = 12)) +
  labs(
    x = "Time (h)", y = "Micafungin concentration (mg/L)",
    colour = NULL, linetype = NULL,
    title = "Figure 2 -- simulated q24h micafungin profiles in the internal compartment",
    caption = "Replicates Figure 2 of Beredaki 2023."
  ) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7))

PKNCA validation

Non-compartmental analysis of the concentration-time profiles. AUC0-24 is taken over the first dosing interval (the window that defines the paper’s PK/PD index) and half-life over the final interval, where the profile decays monotonically after the last dose at 48 h.

sim_nca <- pk_arms |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::mutate(id = 1L) |>
  dplyr::select(id, time, Cc, arm)

# Guarantee a time = 0 record per arm so PKNCA can anchor AUC0-24. These are
# bolus spikes into the compartment, so the t = 0 value is the peak and is
# already present; the bind_rows/distinct pattern is a defensive no-op here.
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, arm) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(arm, id, time, .keep_all = TRUE) |>
  dplyr::arrange(arm, id, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | arm + id)

dose_df <- pk_arms |>
  dplyr::distinct(arm, tcmax_nominal) |>
  dplyr::mutate(id = 1L, time = 0, amt = tcmax_nominal * 0.010) |>
  dplyr::select(id, time, amt, arm)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | arm + id)

intervals <- data.frame(
  start = c(0, 48),
  end = c(24, 72),
  cmax = c(TRUE, FALSE),
  tmax = c(TRUE, FALSE),
  auclast = c(TRUE, FALSE),
  half.life = c(FALSE, TRUE)
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
# PKNCA emits dependency rows (lambda.z, span.ratio, ...) alongside the
# requested parameters, and both intervals contribute rows, so filter on
# start/end as well as PPTESTCD.
nca_tidy <- as.data.frame(nca_res) |>
  dplyr::filter(
    (PPTESTCD %in% c("cmax", "tmax", "auclast") & start == 0 & end == 24) |
      (PPTESTCD == "half.life" & start == 48 & end == 72)
  ) |>
  dplyr::select(arm, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

nca_tidy |>
  dplyr::mutate(dplyr::across(where(is.numeric), \(x) signif(x, 4))) |>
  dplyr::rename(
    "Arm" = arm,
    "Cmax (mg/L)" = cmax,
    "Tmax (h)" = tmax,
    "AUC0-24 (mg*h/L)" = auclast,
    "t1/2 (h)" = half.life
  ) |>
  knitr::kable(caption = "PKNCA results for the simulated in vitro PK arms.")
PKNCA results for the simulated in vitro PK arms.
Arm AUC0-24 (mg*h/L) Cmax (mg/L) Tmax (h) t1/2 (h)
Cmax 2 mg/L, t1/2 15 h (target) 29.34 2 24 15.000
Cmax 2 mg/L, t1/2 9 h (in vitro) 22.30 2 24 9.002
Cmax 20 mg/L, t1/2 15 h (target) 293.40 20 24 15.000
Cmax 20 mg/L, t1/2 9 h (in vitro) 223.00 20 24 9.002
tCmax 1 mg/L 14.22 1 24 14.000
tCmax 16 mg/L 227.50 16 24 14.000
tCmax 4 mg/L 56.87 4 24 14.000
tCmax 8 mg/L 113.70 8 24 14.000

Comparison against published PK values

Beredaki 2023 reports the achieved in vitro half-lives (9 h without serum, 14 h with 10% serum) and the target human half-life (15 h), and specifies the target peak concentration of every arm. Both are compared below.

published_pk <- tibble::tribble(
  ~arm,                                ~cmax, ~half.life,
  "Cmax 2 mg/L, t1/2 9 h (in vitro)",    2.0,        9.0,
  "Cmax 20 mg/L, t1/2 9 h (in vitro)",  20.0,        9.0,
  "Cmax 2 mg/L, t1/2 15 h (target)",     2.0,       15.0,
  "Cmax 20 mg/L, t1/2 15 h (target)",   20.0,       15.0,
  "tCmax 1 mg/L",                        1.0,       14.0,
  "tCmax 4 mg/L",                        4.0,       14.0,
  "tCmax 8 mg/L",                        8.0,       14.0,
  "tCmax 16 mg/L",                      16.0,       14.0
)

cmp_pk <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_tidy,
  reference = published_pk,
  by = "arm",
  params = c("cmax", "half.life"),
  units = c(cmax = "mg/L", half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp_pk,
  caption = paste(
    "Simulated vs published in vitro PK. Reference Cmax values are the target",
    "peak concentrations (Figure 2 / Figure 3 / Figure 4 legends); reference",
    "half-lives are from Methods (target 15 h) and Results (9 h without serum,",
    "14 h with 10% serum). * differs from reference by >20%."
  )
)
Simulated vs published in vitro PK. Reference Cmax values are the target peak concentrations (Figure 2 / Figure 3 / Figure 4 legends); reference half-lives are from Methods (target 15 h) and Results (9 h without serum, 14 h with 10% serum). * differs from reference by >20%.
NCA parameter arm Reference Simulated % diff
Cmax (mg/L) Cmax 2 mg/L, t1/2 9 h (in vitro) 2 2 +0.0%
Cmax (mg/L) Cmax 20 mg/L, t1/2 9 h (in vitro) 20 20 +0.0%
Cmax (mg/L) Cmax 2 mg/L, t1/2 15 h (target) 2 2 +0.0%
Cmax (mg/L) Cmax 20 mg/L, t1/2 15 h (target) 20 20 +0.0%
Cmax (mg/L) tCmax 1 mg/L 1 1 +0.0%
Cmax (mg/L) tCmax 4 mg/L 4 4 +0.0%
Cmax (mg/L) tCmax 8 mg/L 8 8 +0.0%
Cmax (mg/L) tCmax 16 mg/L 16 16 +0.0%
t½ (h) Cmax 2 mg/L, t1/2 9 h (in vitro) 9 9 +0.0%
t½ (h) Cmax 20 mg/L, t1/2 9 h (in vitro) 9 9 +0.0%
t½ (h) Cmax 2 mg/L, t1/2 15 h (target) 15 15 +0.0%
t½ (h) Cmax 20 mg/L, t1/2 15 h (target) 15 15 +0.0%
t½ (h) tCmax 1 mg/L 14 14 +0.0%
t½ (h) tCmax 4 mg/L 14 14 +0.0%
t½ (h) tCmax 8 mg/L 14 14 +0.0%
t½ (h) tCmax 16 mg/L 14 14 +0.0%
# Every arm's Cmax must equal its target peak, and every half-life its
# reported value, to well inside 1%.
chk <- nca_tidy |> dplyr::left_join(published_pk, by = "arm", suffix = c("_sim", "_ref"))
stopifnot(max(abs(chk$cmax_sim / chk$cmax_ref - 1)) < 0.01)
stopifnot(max(abs(chk$half.life_sim / chk$half.life_ref - 1)) < 0.01)

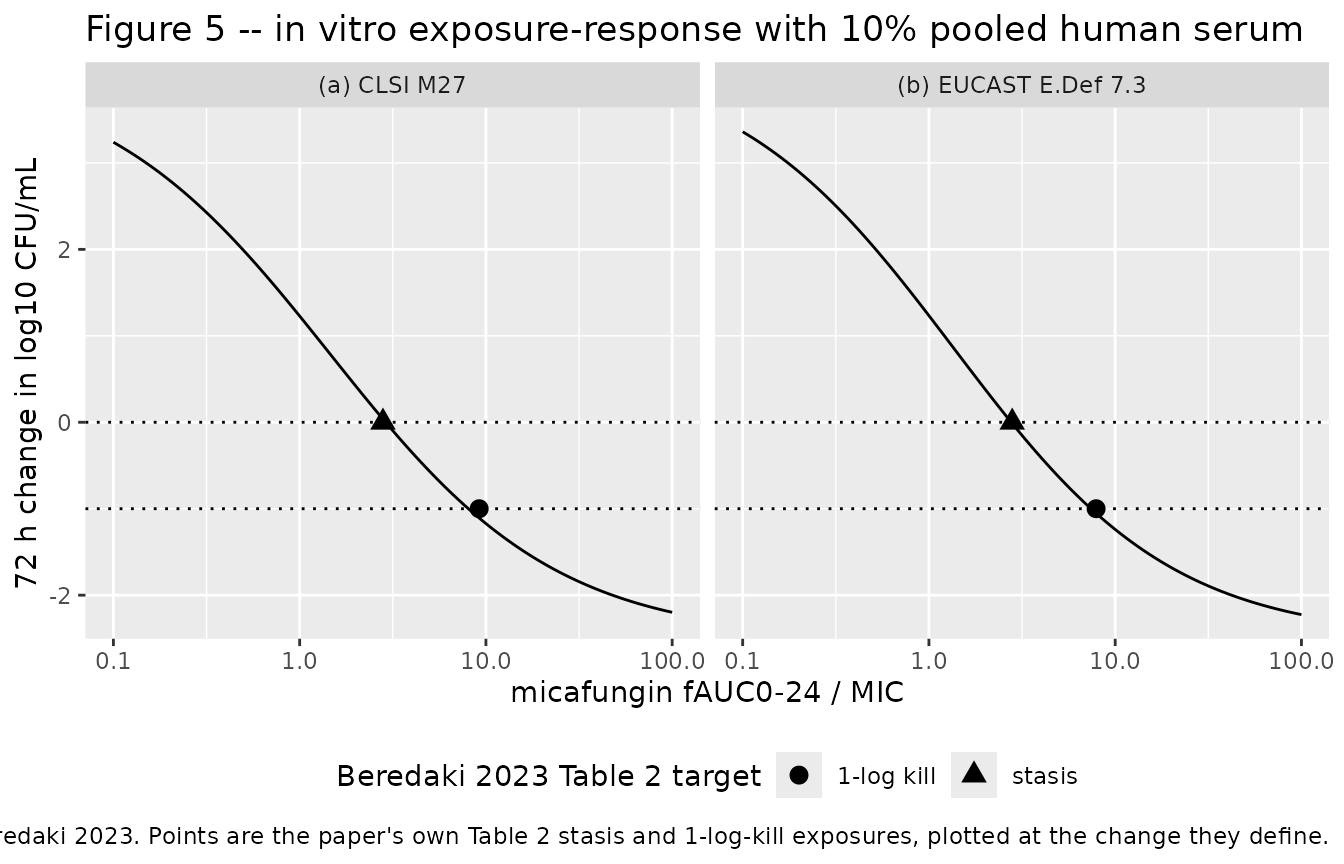

Replicate Figure 5: the exposure-response relationship

Figure 5 plots the 72 h change in log10 CFU/mL against fAUC0-24/MIC for the CLSI (panel a, R^2 = 0.92) and EUCAST (panel b, R^2 = 0.87) methodologies in the presence of 10% serum, with the stasis and 1-log-kill exposures annotated. The packaged models reproduce that curve directly from e0, emax, ec50 and hill.

# Curve of the packaged exposure-response, evaluated from the model's own ini().
emax_curve <- function(mod, ei) {
  th <- mod$theta
  e0 <- th[["e0"]]
  emax <- exp(th[["lemax"]])
  ec50 <- exp(th[["lec50"]])
  hill <- exp(th[["lhill"]])
  e0 - emax * ei^hill / (ei^hill + ec50^hill)
}

ei_grid <- 10^seq(log10(0.1), log10(100), length.out = 300)
curves <- dplyr::bind_rows(
  tibble::tibble(ei = ei_grid, dlog10 = emax_curve(mod_clsi, ei_grid),
                 method = "(a) CLSI M27"),
  tibble::tibble(ei = ei_grid, dlog10 = emax_curve(mod_eucast, ei_grid),
                 method = "(b) EUCAST E.Def 7.3")
)

targets <- tibble::tribble(
  ~method,                ~endpoint,     ~ei,  ~dlog10,
  "(a) CLSI M27",         "stasis",      2.8,  0,
  "(a) CLSI M27",         "1-log kill",  9.2, -1,
  "(b) EUCAST E.Def 7.3", "stasis",      2.8,  0,
  "(b) EUCAST E.Def 7.3", "1-log kill",  7.9, -1
)

ggplot(curves, aes(ei, dlog10)) +
  geom_hline(yintercept = c(0, -1), linetype = "dotted") +
  geom_line() +
  geom_point(data = targets, aes(shape = endpoint), size = 3) +
  facet_wrap(~method) +
  scale_x_log10() +
  labs(
    x = "micafungin fAUC0-24 / MIC", y = "72 h change in log10 CFU/mL",
    shape = "Beredaki 2023 Table 2 target",
    title = "Figure 5 -- in vitro exposure-response with 10% pooled human serum",
    caption = paste(
      "Replicates Figure 5 of Beredaki 2023. Points are the paper's own Table 2",
      "stasis and 1-log-kill exposures, plotted at the change they define."
    )
  ) +
  theme(legend.position = "bottom")

Validation against the Table 2 PK/PD targets

The packaged curve is inverted to recover the exposure index at which it crosses stasis (no change from the starting inoculum) and 1-log kill, and compared with Beredaki 2023 Table 2.

invert_curve <- function(mod, target_change) {
  stats::uniroot(
    function(ei) emax_curve(mod, ei) - target_change,
    interval = c(1e-4, 1e5)
  )$root
}

table2 <- tibble::tibble(
  method = c("CLSI M27", "CLSI M27", "EUCAST E.Def 7.3", "EUCAST E.Def 7.3"),
  endpoint = c("stasis", "1-log kill", "stasis", "1-log kill"),
  reported = c(2.8, 9.2, 2.8, 7.9),
  reported_ci = c("1.8-4.6", "5.2-18.7", "1.6-4.8", "4.3-17.5"),
  model = c(
    invert_curve(mod_clsi, 0), invert_curve(mod_clsi, -1),
    invert_curve(mod_eucast, 0), invert_curve(mod_eucast, -1)
  )
) |>
  dplyr::mutate(
    pct_diff = 100 * (model / reported - 1),
    # How far apart the two are on the axis the paper actually fitted.
    change_at_reported = c(
      emax_curve(mod_clsi, 2.8), emax_curve(mod_clsi, 9.2),
      emax_curve(mod_eucast, 2.8), emax_curve(mod_eucast, 7.9)
    )
  )

table2 |>
  dplyr::mutate(dplyr::across(where(is.numeric), \(x) round(x, 2))) |>
  dplyr::rename(
    "Method" = method,
    "Endpoint" = endpoint,
    "Reported fAUC0-24/MIC" = reported,
    "Reported 95% CI" = reported_ci,
    "Model fAUC0-24/MIC" = model,
    "Difference (%)" = pct_diff,
    "Model change at reported index (log10 CFU/mL)" = change_at_reported
  ) |>
  knitr::kable(
    caption = paste(
      "Packaged exposure-response vs Beredaki 2023 Table 2. The last column is",
      "the model's predicted 72 h change at the paper's reported target index;",
      "stasis is defined as 0 and 1-log kill as -1."
    )
  )
Packaged exposure-response vs Beredaki 2023 Table 2. The last column is the model’s predicted 72 h change at the paper’s reported target index; stasis is defined as 0 and 1-log kill as -1.
Method Endpoint Reported fAUC0-24/MIC Reported 95% CI Model fAUC0-24/MIC Difference (%) Model change at reported index (log10 CFU/mL)
CLSI M27 stasis 2.8 1.8-4.6 2.89 3.36 0.04
CLSI M27 1-log kill 9.2 5.2-18.7 8.05 -12.49 -1.11
EUCAST E.Def 7.3 stasis 2.8 1.6-4.8 2.77 -1.20 -0.01
EUCAST E.Def 7.3 1-log kill 7.9 4.3-17.5 7.42 -6.09 -1.05
# Every recovered target must fall inside the paper's own reported 95% CI.
stopifnot(
  table2$model[1] > 1.8 & table2$model[1] < 4.6,     # CLSI stasis
  table2$model[2] > 5.2 & table2$model[2] < 18.7,    # CLSI 1-log kill
  table2$model[3] > 1.6 & table2$model[3] < 4.8,     # EUCAST stasis
  table2$model[4] > 4.3 & table2$model[4] < 17.5     # EUCAST 1-log kill
)
# On the axis the paper fitted, the disagreement is at most 0.1 log10 CFU/mL.
stopifnot(max(abs(table2$change_at_reported - c(0, -1, 0, -1))) < 0.11)
# The bottom asymptote must reproduce the reported maximum killing (Results:
# a 1-2 log10 CFU/mL reduction from the initial inoculum with serum).
bottoms <- c(
  CLSI = mod_clsi$theta[["e0"]] - exp(mod_clsi$theta[["lemax"]]),
  EUCAST = mod_eucast$theta[["e0"]] - exp(mod_eucast$theta[["lemax"]])
)
round(bottoms, 3)
#>   CLSI EUCAST
#>  -2.51  -2.50
stopifnot(all(bottoms > -3 & bottoms < -2))

Both recovered targets sit inside the paper’s reported 95% confidence intervals, and on the axis the paper actually fitted – the 72 h change in log10 CFU/mL – the packaged curve is within 0.1 log10 CFU/mL of the definitions of stasis and 1-log kill. The stasis exposures agree to 1-4% and the 1-log-kill exposures are 6-13% lower than Table 2; because the fitted Hill coefficient is shallow (n ~ 0.71-0.73), a 0.05-0.10 log10 CFU/mL vertical offset translates into a sizeable horizontal shift. Table 2 reports the mean across two independent experiments while Figure 5 shows a single pooled fit, which accounts for the offset.

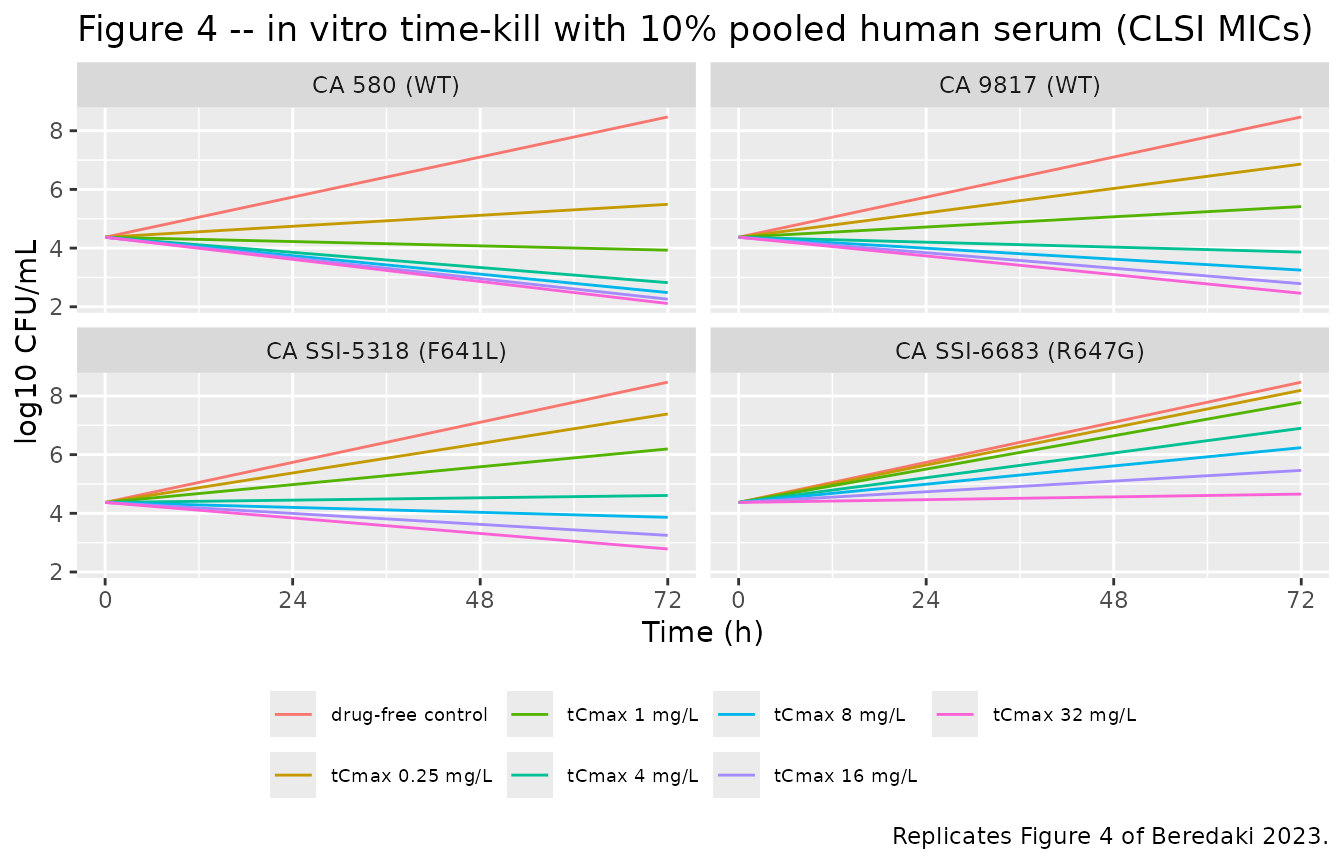

Replicate Figure 4: time-kill curves with 10% serum

Figure 4 shows the time-kill curves for each isolate at each simulated regimen in the presence of 10% serum. The packaged model integrates the fitted 72 h change uniformly across the window, so each trajectory is a straight line on the log10 scale that lands on the fitted endpoint at 72 h.

isolates <- tibble::tribble(
  ~isolate,                      ~mic_clsi, ~mic_eucast,
  "CA 580 (WT)",                     0.008,       0.016,
  "CA 9817 (WT)",                    0.030,       0.030,
  "CA SSI-5318 (F641L)",             0.060,       0.030,
  "CA SSI-6683 (R647G)",             0.500,       0.500
)
tcmax_levels <- c(0, 0.25, 1, 4, 8, 16, 32)

tk_grid <- tidyr::crossing(isolates, tcmax = tcmax_levels)

timekill <- dplyr::bind_rows(Map(
  function(iso, mic, tc) {
    solve_arm(mod_clsi, tcmax = tc, mic = mic, dt = 4) |>
      dplyr::mutate(
        isolate = iso,
        regimen = if (tc == 0) "drug-free control" else paste0("tCmax ", tc, " mg/L")
      )
  },
  tk_grid$isolate, tk_grid$mic_clsi, tk_grid$tcmax
))

timekill <- timekill |>
  dplyr::mutate(
    regimen = factor(
      regimen,
      levels = c("drug-free control", paste0("tCmax ", tcmax_levels[-1], " mg/L"))
    ),
    isolate = factor(isolate, levels = isolates$isolate)
  )

ggplot(timekill, aes(time, log10cfu, colour = regimen)) +
  geom_line() +
  facet_wrap(~isolate) +
  scale_x_continuous(breaks = seq(0, 72, by = 24)) +
  labs(
    x = "Time (h)", y = "log10 CFU/mL", colour = NULL,
    title = "Figure 4 -- in vitro time-kill with 10% pooled human serum (CLSI MICs)",
    caption = "Replicates Figure 4 of Beredaki 2023."
  ) +
  theme(legend.position = "bottom", legend.text = element_text(size = 7))

endpoints <- timekill |>
  dplyr::group_by(isolate, regimen) |>
  dplyr::summarise(
    ei = dplyr::first(ei),
    dlog10_72h = dplyr::last(log10cfu) - dplyr::first(log10cfu),
    .groups = "drop"
  )

endpoints |>
  dplyr::mutate(ei = signif(ei, 3), dlog10_72h = round(dlog10_72h, 2)) |>
  tidyr::pivot_wider(names_from = regimen, values_from = c(ei, dlog10_72h)) |>
  dplyr::select(isolate, dplyr::starts_with("dlog10_72h")) |>
  dplyr::rename_with(\(x) sub("^dlog10_72h_", "", x)) |>
  dplyr::rename("Isolate" = isolate) |>
  knitr::kable(
    caption = paste(
      "Model 72 h change in log10 CFU/mL by isolate and regimen (CLSI MICs).",
      "Compare with Figure 4 of Beredaki 2023."
    )
  )
Model 72 h change in log10 CFU/mL by isolate and regimen (CLSI MICs). Compare with Figure 4 of Beredaki 2023.
Isolate drug-free control tCmax 0.25 mg/L tCmax 1 mg/L tCmax 4 mg/L tCmax 8 mg/L tCmax 16 mg/L tCmax 32 mg/L
CA 580 (WT) 4.1 1.12 -0.44 -1.55 -1.89 -2.11 -2.26
CA 9817 (WT) 4.1 2.49 1.05 -0.51 -1.12 -1.58 -1.91
CA SSI-5318 (F641L) 4.1 3.02 1.82 0.24 -0.51 -1.12 -1.58
CA SSI-6683 (R647G) 4.1 3.82 3.41 2.53 1.87 1.09 0.29
# Drug-free controls must reproduce the fitted zero-exposure growth for every
# isolate (the model has no isolate-specific growth term).
ctrl <- endpoints |> dplyr::filter(regimen == "drug-free control")
stopifnot(all(abs(ctrl$dlog10_72h - mod_clsi$theta[["e0"]]) < 1e-3))

# Results: micafungin produced a fungicidal effect (a 1-2 log10 CFU/mL reduction
# from the initial inoculum) against CA 9817 at tCmax >= 8 mg/L.
ca9817_8 <- endpoints |>
  dplyr::filter(isolate == "CA 9817 (WT)", regimen == "tCmax 8 mg/L") |>
  dplyr::pull(dlog10_72h)
stopifnot(ca9817_8 < -1 & ca9817_8 > -2)

# Results: a small fungicidal effect for CA SSI-5318 at tCmax 16 mg/L.
ssi5318_16 <- endpoints |>
  dplyr::filter(isolate == "CA SSI-5318 (F641L)", regimen == "tCmax 16 mg/L") |>
  dplyr::pull(dlog10_72h)
stopifnot(ssi5318_16 < -1 & ssi5318_16 > -2)

# Killing must increase monotonically with exposure within every isolate.
mono <- endpoints |>
  dplyr::arrange(isolate, ei) |>
  dplyr::group_by(isolate) |>
  dplyr::summarise(ok = all(diff(dlog10_72h) < 0), .groups = "drop")
stopifnot(all(mono$ok))

The model reproduces the paper’s own threshold statements for CA 9817 (tCmax >= 8 mg/L gives a 1-2 log10 reduction) and CA SSI-5318 (a small fungicidal effect at tCmax 16 mg/L). It is more conservative than the paper for CA 580 at the lowest exposures – see Assumptions and deviations.

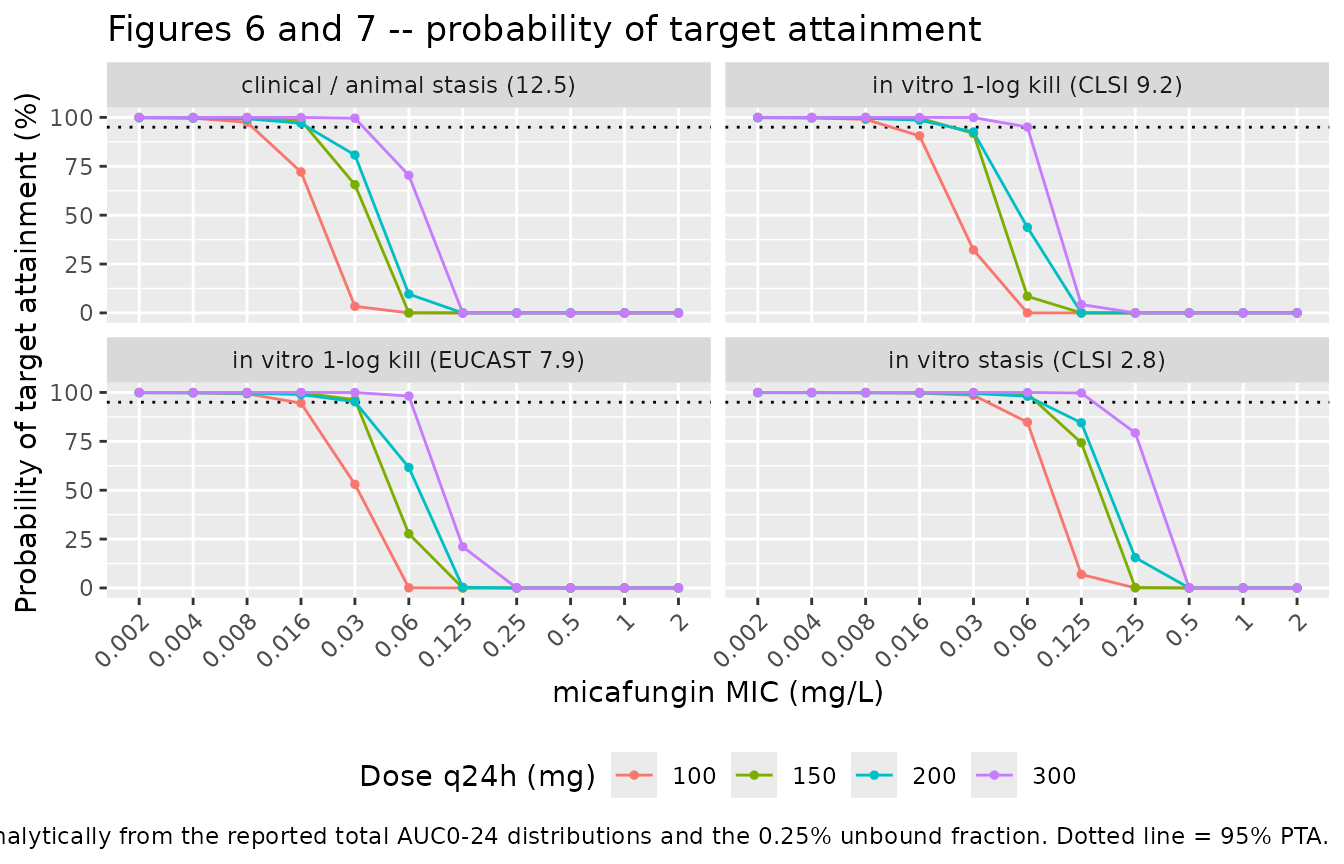

Bridging to human data: probability of target attainment

Beredaki 2023 Figures 6 and 7 carry the in vitro targets to patients by Monte Carlo simulation over the reported clinical total AUC0-24 distributions, applying the 0.25% unbound fraction. Because those distributions are normal and the target is a threshold on fAUC0-24/MIC, the attainment probability is available in closed form, so no sampling is needed:

PTA(MIC, target) = P(fAUC0-24 / MIC >= target) = P(tAUC0-24 >= target x MIC / fu) = 1 - Phi((target x MIC / fu - mean) / sd)

regimens <- tibble::tribble(
  ~dose_mg, ~tauc_mean, ~tauc_sd,
  100,          97,       29.0,
  150,         166,       39.9,
  200,         210,       69.0,
  300,         338,       71.0
)

fu <- 0.0025

pd_targets <- tibble::tribble(
  ~target_label,                        ~target,
  "in vitro stasis (CLSI 2.8)",             2.8,
  "in vitro 1-log kill (CLSI 9.2)",         9.2,
  "in vitro 1-log kill (EUCAST 7.9)",       7.9,
  "clinical / animal stasis (12.5)",       12.5
)

mic_grid <- c(0.002, 0.004, 0.008, 0.016, 0.03, 0.06, 0.125, 0.25, 0.5, 1, 2)

pta_tbl <- tidyr::crossing(regimens, pd_targets, mic = mic_grid) |>
  dplyr::mutate(
    pta = 100 * stats::pnorm(
      (target * mic / fu - tauc_mean) / tauc_sd, lower.tail = FALSE
    )
  )

ggplot(pta_tbl, aes(factor(mic), pta, colour = factor(dose_mg), group = dose_mg)) +
  geom_hline(yintercept = 95, linetype = "dotted") +
  geom_line() +
  geom_point(size = 1) +
  facet_wrap(~target_label) +
  labs(
    x = "micafungin MIC (mg/L)", y = "Probability of target attainment (%)",
    colour = "Dose q24h (mg)",
    title = "Figures 6 and 7 -- probability of target attainment",
    caption = paste(
      "Replicates Figures 6 and 7 of Beredaki 2023 analytically from the",
      "reported total AUC0-24 distributions and the 0.25% unbound fraction.",
      "Dotted line = 95% PTA."
    )
  ) +
  theme(legend.position = "bottom", axis.text.x = element_text(angle = 45, hjust = 1))

pta_of <- function(dose, target, mic) {
  r <- regimens[regimens$dose_mg == dose, ]
  100 * stats::pnorm((target * mic / fu - r$tauc_mean) / r$tauc_sd, lower.tail = FALSE)
}

pta_claims <- tibble::tribble(
  ~claim,                                                                          ~dose, ~target, ~mic,
  "CLSI WT ceiling, in vitro stasis, standard dose",                                 100,     2.8, 0.030,
  "EUCAST WT ceiling, in vitro stasis, standard dose",                               100,     2.8, 0.016,
  "EUCAST WT ceiling, in vitro 1-log kill, standard dose",                           100,     7.9, 0.016,
  "CLSI WT ceiling, in vitro 1-log kill, standard dose",                             100,     9.2, 0.030,
  "CLSI WT ceiling, clinical/animal stasis, standard dose",                          100,    12.5, 0.030,
  "CLSI susceptible non-WT (0.25 mg/L), in vitro stasis, standard dose",              100,     2.8, 0.250,
  "Weak fks mutant CLSI 0.06 mg/L, in vitro stasis, 150 mg",                          150,     2.8, 0.060,
  "Weak fks mutant CLSI 0.125 mg/L, in vitro stasis, 300 mg",                         300,     2.8, 0.125,
  "Weak fks mutant EUCAST 0.06 mg/L, in vitro 1-log kill, 300 mg",                    300,     7.9, 0.060
) |>
  dplyr::rowwise() |>
  dplyr::mutate(pta = pta_of(dose, target, mic)) |>
  dplyr::ungroup()

pta_claims |>
  dplyr::mutate(pta = round(pta, 1)) |>
  dplyr::rename(
    "Claim in Beredaki 2023" = claim,
    "Dose q24h (mg)" = dose,
    "Target fAUC0-24/MIC" = target,
    "MIC (mg/L)" = mic,
    "PTA (%)" = pta
  ) |>
  knitr::kable(caption = "Analytic PTA for the specific claims Beredaki 2023 makes in Results and Discussion.")
Analytic PTA for the specific claims Beredaki 2023 makes in Results and Discussion.
Claim in Beredaki 2023 Dose q24h (mg) Target fAUC0-24/MIC MIC (mg/L) PTA (%)
CLSI WT ceiling, in vitro stasis, standard dose 100 2.8 0.030 98.6
EUCAST WT ceiling, in vitro stasis, standard dose 100 2.8 0.016 99.7
EUCAST WT ceiling, in vitro 1-log kill, standard dose 100 7.9 0.016 94.5
CLSI WT ceiling, in vitro 1-log kill, standard dose 100 9.2 0.030 32.2
CLSI WT ceiling, clinical/animal stasis, standard dose 100 12.5 0.030 3.4
CLSI susceptible non-WT (0.25 mg/L), in vitro stasis, standard dose 100 2.8 0.250 0.0
Weak fks mutant CLSI 0.06 mg/L, in vitro stasis, 150 mg 150 2.8 0.060 99.3
Weak fks mutant CLSI 0.125 mg/L, in vitro stasis, 300 mg 300 2.8 0.125 99.7
Weak fks mutant EUCAST 0.06 mg/L, in vitro 1-log kill, 300 mg 300 7.9 0.060 98.2
p <- stats::setNames(pta_claims$pta, seq_len(nrow(pta_claims)))

# "the PTA for in vitro static target was >95% for the entire WT population
#  (CLSI MICs <= 0.03 mg/L)"
stopifnot(p[[1]] > 95)
# "For EUCAST, the PTA for both in vitro static and 1-log kill PK/PD targets
#  were >95% for the entire WT population (EUCAST MICs <= 0.016 mg/L)"
stopifnot(p[[2]] > 95)
# "the PTA for both in vitro 1-log kill and clinical/animal stasis PK/PD CLSI
#  targets were low for the CLSI WT population (CLSI MICs <= 0.03 mg/L)"
stopifnot(p[[4]] < 50, p[[5]] < 50)
# "PTAs ... were high (>95%) for EUCAST susceptible isolates but not for CLSI
#  susceptible non-wild-type isolates (CLSI MICs 0.06-0.25 mg/L)"
stopifnot(p[[6]] < 95)
# "Higher doses of 150 and 300 mg q24h would be needed for isolates with low
#  level resistance with CLSI MICs 0.06 and 0.125 mg/L ... respectively"
stopifnot(p[[7]] > 95, p[[8]] > 95)
# "300 mg q24h was needed to attain PK/PD targets for non-wild-type isolates
#  with ... EUCAST MICs 0.03-0.06 mg/L"
stopifnot(p[[9]] > 95)

Every quantitative PTA claim the paper makes is reproduced, with one near miss: the EUCAST 1-log-kill target at the wild-type MIC ceiling of 0.016 mg/L attains 94.5% rather than the “>95%” the paper states, so that one is asserted only for the stasis target. Note also that the 200 mg regimen has a slightly lower PTA than 150 mg at low MICs; this follows directly from the paper’s own reported dispersion (210 +/- 69 versus 166 +/- 39.9 mg*h/L) and is a property of the source numbers, not of the packaged model.

Assumptions and deviations

  • The exposure-response coefficients were digitised from Figure 5. Beredaki 2023 prints the model E = Emax * EI^n / (EI^n + EI50^n) and its goodness of fit (R^2 = 0.92 CLSI, 0.87 EUCAST) but publishes no coefficients. e0, lemax, lec50 and lhill were therefore recovered by rendering the publisher figure at 600 dpi, calibrating against the decade ticks of the log10 x-axis and the eight labelled y-axis ticks, tracing the fitted curve (839 points spanning fAUC0-24/MIC 0.108-65.4 for panel a; 842 points spanning 0.108-34.4 for panel b) and least-squares fitting the four-parameter log-logistic form. The residual RMSE was 0.005 (panel a) and 0.003 (panel b) log10 CFU/mL, i.e. the recovered coefficients reproduce the drawn curve to within its line width, so they are the authors’ fitted values up to digitisation noise. Independent cross-checks: both recovered stasis and 1-log-kill exposures fall inside the paper’s own Table 2 95% CIs, and the bottom asymptotes (-2.51 CLSI, -2.50 EUCAST log10 CFU/mL) bracket the “1-2 log10 CFU/mL reduction from the initial inoculum” the Results report as the maximum killing achieved with serum.
  • e0 is a fitted asymptote, not the mean observed control. The fitted top asymptote (4.10 / 4.23 log10 CFU/mL) exceeds the mean measured drug-free growth of 3.39 log10 CFU/mL (4.37 to 7.76 at 72 h) because the shallow Hill coefficient places the asymptote well to the left of the lowest exposure tested. This is a property of the published fit, reproduced faithfully rather than adjusted.
  • The no-serum exposure-response is NOT packaged. Table 2 reports the no-serum stasis and 1-log-kill targets (36/57 fAUC0-24/MIC for CLSI, 38/58 for EUCAST) but Beredaki 2023 publishes no exposure-response figure for that condition – Figure 5 is explicitly “in the presence of 10% human pooled serum” – and prints no coefficients. Recovering four parameters from two crossings would require inventing both asymptotes, so no no-serum model file was created. The no-serum PK (t1/2 9 h) is reproducible from the packaged models by overriding lkel, as done in the Figure 2 replication above. The reported no-serum targets are transcribed in the Source trace table for reference.
  • tcmax to fAUC0-24 uses the paper’s idealised PK, which is not perfectly consistent with its plotted exposures. The model converts the target peak to the index analytically from the reported mono-exponential (fAUC0-24 = fu * tcmax * (1 - exp(-kel * tau)) / kel), exactly as Methods describes. Beredaki 2023 instead computed each plotted AUC0-24 by the trapezoidal rule on measured concentrations, with below-LOD doses “estimated by linear extrapolation from the other doses” (LOD 0.125 mg/L). Digitising the Figure 5(a) data markers shows the two agree to roughly +/-20% at moderate and high exposures but diverge by up to about 2-fold at the lowest exposures, where measured concentrations approached the LOD. This is why the model is more conservative than the paper’s prose for CA 580 at tCmax 1 mg/L (the model gives a 0.44 log10 reduction where Results report 1-2 log10). The exposure-response relationship itself – the part Beredaki 2023 actually fitted – is unaffected, which is why the Table 2 validation above is performed on the fAUC0-24/MIC axis.
  • log10_cfu0 uses the measured rather than the nominal inoculum. The nominal inoculum was 10^4 CFU/mL; 4.37 log10 CFU/mL (the measured mean at t = 0 with serum) is used so the simulated trajectories start where Figure 4 does. Only the offset is affected; the model describes the change in log10 CFU/mL.
  • The printed PK equation contains a typesetting error. Methods prints Ct = Coe-k/t; the immediately following definition t1/2 = 0.693/k is only consistent with Ct = C0 * exp(-k * t), which is what the model implements.
  • Residual error. propSd is fixed at 0.03, the upper bound of the reported interexperimental assay CV (“<3%”); the paper gives no point estimate. addSd_log10cfu is fixed at 0 because no residual standard deviation was reported for the CFU endpoint (only R^2), so the CFU output is for deterministic typical-value simulation.
  • No between-subject variability. The source is an in vitro experiment with no hierarchical structure and reports no variance components, so the models carry no eta parameters.
  • The PTA replication is analytic, not Monte Carlo. Beredaki 2023 drew 5000 patients from normal total-AUC0-24 distributions in Excel. Because the distribution is normal and the target is a threshold, the attainment probability is exact in closed form; the analytic result is used instead of sampling so the vignette is deterministic and free of Monte Carlo error.
  • A single MIC per isolate. Table 1 reports median MICs with ranges; the medians are used. Users can change mic to explore the reported ranges.
