Naproxcinod (Bjornsson 2011)

Source: vignettes/articles/Bjornsson_2011_naproxcinod.Rmd
Bjornsson_2011_naproxcinod.Rmd

Model and source

  • Citation: Bjornsson MA, Simonsson USH. Modelling of pain intensity and informative dropout in a dental pain model after naproxcinod, naproxen and placebo administration. Br J Clin Pharmacol. 2011;71(6):899-906. doi:10.1111/j.1365-2125.2011.03924.x.
  • Description: Joint population PK / pain intensity (PI) / informative-dropout model for naproxen following oral administration of naproxcinod (a naproxen nitrate ester prodrug), naproxen, or placebo after wisdom-tooth extraction (Bjornsson 2011, 242 patients with moderate-to-severe post-surgical dental pain). PK: one-compartment disposition of unbound naproxen with parallel Savic transit-compartment absorption chains for naproxcinod (MTT 1.77 h, NN 3.58) and naproxen (MTT 0.500 h, NN 4.23) feeding a shared central compartment. Total naproxen is computed from unbound via a saturable albumin-binding equation Ctot = Cu + Bmax * Cu / (Km + Cu) (Bmax = 643 umol/L, Km = 0.549 umol/L). Relative bioavailability of naproxen via naproxcinod vs naproxen is 59.7%. PD: pain intensity on a 100-mm visual analogue scale modeled as PI(t) = PI_baseline * (1 - placebo(t)) * (1 - drug(t)), where placebo(t) = Pmax * (1 - exp(-kpl * t)) (Pmax 20.2%, kpl 0.237 /h; additive IIV on Pmax allows individual PI to either decrease or increase from baseline) and drug(t) is a sigmoid Emax function of unbound naproxen with Emax fixed at 1, EC50 0.135 umol/L, and Hill exponent 1.61. TTE: rescue-medication request modeled as a Weibull hazard (lambda 0.00999, alpha 0.729) with log-linear covariate effects of PI(t) and (PI_baseline - 55) on the slope of PI(t); the hazard is set to zero for t < 1.5 h to reflect the protocol’s rescue-medication abstention window.
  • Article: https://doi.org/10.1111/j.1365-2125.2011.03924.x

The model is a joint population PK / pain intensity (PI) / informative-dropout analysis of a randomized, double-blind, placebo-controlled, single-dose dental-pain study after wisdom-tooth extraction. Patients received either naproxcinod (a naproxen nitrate ester prodrug; 375, 750, 1500, or 2250 mg), naproxen (500 mg), or placebo. The PK of unbound naproxen is described by a one-compartment disposition with parallel Savic transit-compartment absorption chains for naproxcinod and naproxen feeding a shared central compartment, and total naproxen is derived from unbound through a saturable albumin-binding equation. Pain intensity on a 100-mm VAS is modelled by a multiplicative placebo + drug-effect model on baseline PI, with placebo onset described by an exponential and the drug effect by a sigmoid Emax in unbound naproxen. Rescue-medication request is described by a Weibull time-to-event hazard with log-linear covariate effects of PI(t) and baseline PI deviation from the cohort median (55 mm).

Population

The dataset is the single-dose, single-centre wisdom-tooth-extraction trial of Bjornsson 2011 Table 1: 242 patients (48% male, 52% female), age 19-38 years, BMI 18-31 kg/m^2, randomized between naproxcinod 375, 750, 1500, and 2250 mg (n = 41, 37, 42, 41), naproxen 500 mg (n = 39), and placebo (n = 42). Baseline pain intensity ranged 7-100 mm on a 100-mm VAS (entry criterion: PI >= 40 mm within 6 h of local anaesthetic). The trial was performed at the Eastman International Centre for Excellence in Dentistry (London, UK), under ICH GCP and sponsored by AstraZeneca.

PK samples were collected in roughly one-third of patients (15, 12, 18, 15, and 16 patients in the naproxcinod 375 / 750 / 1500 / 2250 mg and naproxen 500 mg arms respectively) at 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, and 8 h post-dose. Total naproxen concentrations were measured throughout; unbound concentrations were measured by ultrafiltration at 1, 3, and 8 h. Three subjects who took rescue medication before 1.5 h were excluded from the dropout analysis.

The same metadata is available programmatically:

mod <- rxode2::rxode(readModelDb("Bjornsson_2011_naproxcinod"))
str(mod$population, max.level = 1)
#> List of 12
#>  $ species       : chr "human"
#>  $ n_subjects    : int 242
#>  $ n_studies     : int 1
#>  $ age_range     : chr "19-38 years"
#>  $ age_median    : chr "~25 years (per-arm means in Bjornsson 2011 Table 1 ranged 24.0-25.6 years)"
#>  $ weight_range  : chr "not transcribed in the publication (BMI 18-31 kg/m^2 reported in Table 1)"
#>  $ sex_female_pct: num 52
#>  $ race_ethnicity: NULL
#>  $ disease_state : chr "Healthy adults undergoing surgical removal of mandibular wisdom teeth under local anaesthesia, with moderate-to"| __truncated__
#>  $ dose_range    : chr "Single oral dose: naproxcinod 375 mg (1182 umol), 750 mg (2364 umol), 1500 mg (4728 umol), or 2250 mg (7092 umo"| __truncated__
#>  $ regions       : chr "United Kingdom (Eastman International Centre for Excellence in Dentistry, London)"
#>  $ notes         : chr "PI measured on a 100-mm visual analogue scale (VAS) immediately before drug administration (baseline) and at 0."| __truncated__

Source trace

Per-parameter origins are recorded as inline comments next to each ini() entry in inst/modeldb/specificDrugs/Bjornsson_2011_naproxcinod.R. The table below collects them in one place for review.

nlmixr2 parameter Value Source location
lcl log(515) Table 2, CL_u/F = 515 L/h
lvc log(4290) Table 2, V_u/F = 4290 L
lmtt_naproxcinod log(1.77) Table 2, MTT_naproxcinod = 1.77 h
lnn_naproxcinod log(3.58) Table 2, NN_naproxcinod = 3.58
lmtt_naproxen log(0.500) Table 2, MTT_naproxen = 0.500 h
lnn_naproxen log(4.23) Table 2, NN_naproxen = 4.23
lbmax log(643) Table 2, Bmax = 643 umol/L
lkm log(0.549) Table 2, Km = 0.549 umol/L
lfdepot_naproxcinod log(0.597) Table 2, F_rel = 59.7%
etalcl log(1 + 0.25^2) Table 2, IIV CL_u/F = 25%
etalvc log(1 + 0.44^2) Table 2, IIV V_u/F = 44%
etalbmax log(1 + 0.17^2) Table 2, IIV Bmax = 17%
etalmtt_naproxcinod/etalnn_naproxcinod block rho = -0.52 Table 2, IIV MTT_NC / NN_NC = 58% / 58%; Corr(MTT_NC, NN_NC) = -52%
etalmtt_naproxen log(1 + 1.00^2) Table 2, IIV MTT_naproxen = 100%
etalnn_naproxen log(1 + 0.64^2) Table 2, IIV NN_naproxen = 64%
addSd 6.19 Table 2, sigma_T,add = 6.19 umol/L
propSd 0.0843 Table 2, sigma_T,prop = 8.43%
propSd_Cc_unbound 0.186 Table 2, sigma_U,prop = 18.6%
lrbase log(52.7) Table 3, PI_baseline = 52.7 mm
pmax 0.202 Table 3, P_max = 20.2% (fractional decrease)
lkpl log(0.237) Table 3, k_pl = 0.237 /h
lemax fixed(log(1)) Methods + Table 3: Emax fixed at 1
lec50 log(0.135) Table 3, EC50 = 0.135 umol/L
lhill log(1.61) Table 3, gamma = 1.61
etalrbase log(1 + 0.32^2) Table 3, IIV PI_baseline = 32%
etapmax (1.20 * 0.202)^2 Table 3, IIV P_max = 120% (additive)
etalkpl log(1 + 0.43^2) Table 3, IIV k_pl = 43%
etalec50 log(1 + 1.20^2) Table 3, IIV EC50 = 120%
addSd_PI 7.82 Table 3, sigma_PI = 7.82 mm
llambda_haz log(0.00999) Table 3, lambda = 0.00999
lalpha_haz log(0.729) Table 3, alpha = 0.729
e_pi_haz 0.0782 Table 3, q_PI = 0.0782
e_pibase_haz -0.00261 Table 3, q_baseline = -0.00261
Saturable binding Ctot = Cu + Bmax * Cu / (Km + Cu) (equation) Methods, “Pharmacokinetic model”
Sigmoid Emax drug effect (equation) Methods, “Model for PI”
Multiplicative PI combination (equation, image-encoded) Methods, “Model for PI”
Weibull hazard with log-linear COV term (equation, image-encoded) Methods, “Model for request of rescue medication”
1.5 h rescue-medication abstention window (logic) Methods, “Model for request of rescue medication”

Mechanistic structure

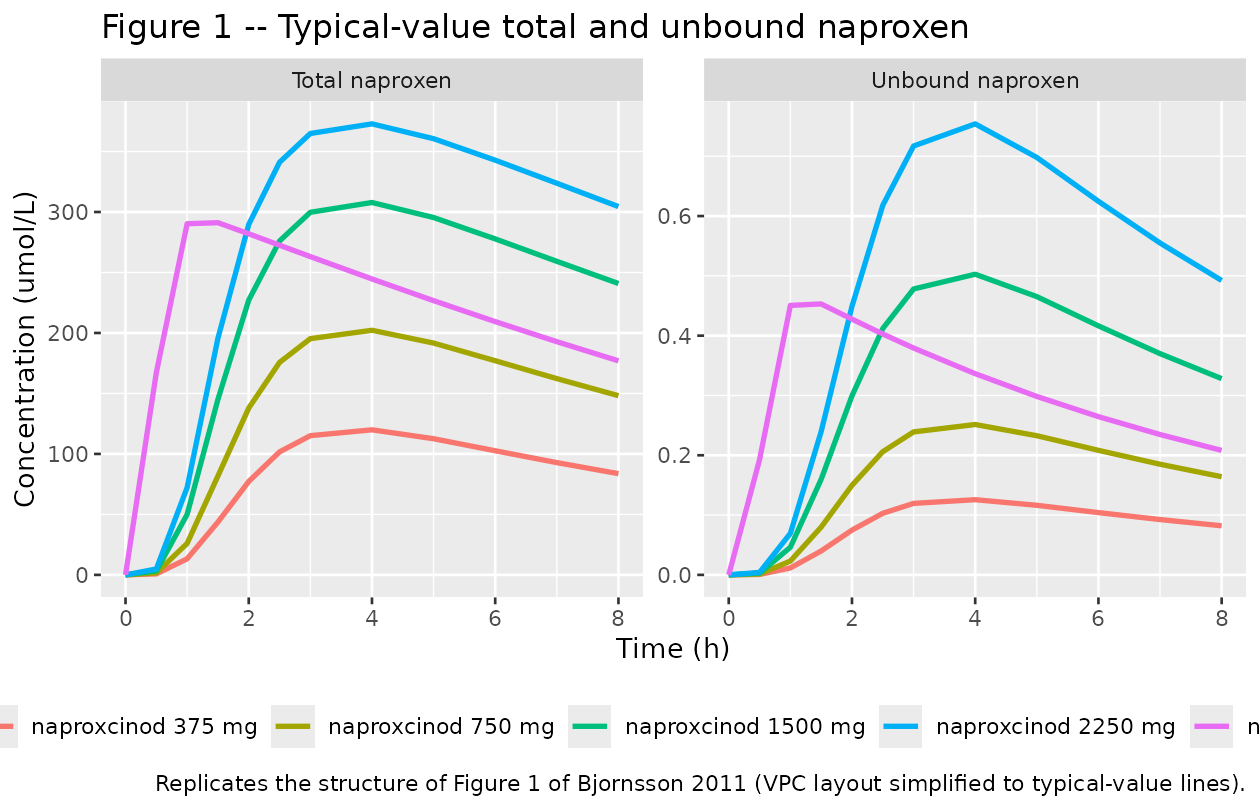

The PK of unbound naproxen is one-compartmental with apparent unbound clearance CL_u/F = 515 L/h and apparent unbound volume V_u/F = 4290 L. Two parallel transit-compartment absorption chains feed a shared central compartment: naproxcinod (MTT 1.77 h, NN 3.58) acts as a prodrug for naproxen with relative bioavailability F_rel = 59.7%, and naproxen (MTT 0.500 h, NN 4.23) has reference bioavailability of 1. Total naproxen is derived from unbound by the saturable albumin-binding model

Ctot=Cu+Bmax⋅CuKm+Cu C_\mathrm{tot} = C_u + \frac{B_\mathrm{max} \cdot C_u}{K_m + C_u}

with B_max = 643 umol/L and K_m = 0.549 umol/L. The Bmax corresponds to approximately one binding site per albumin molecule.

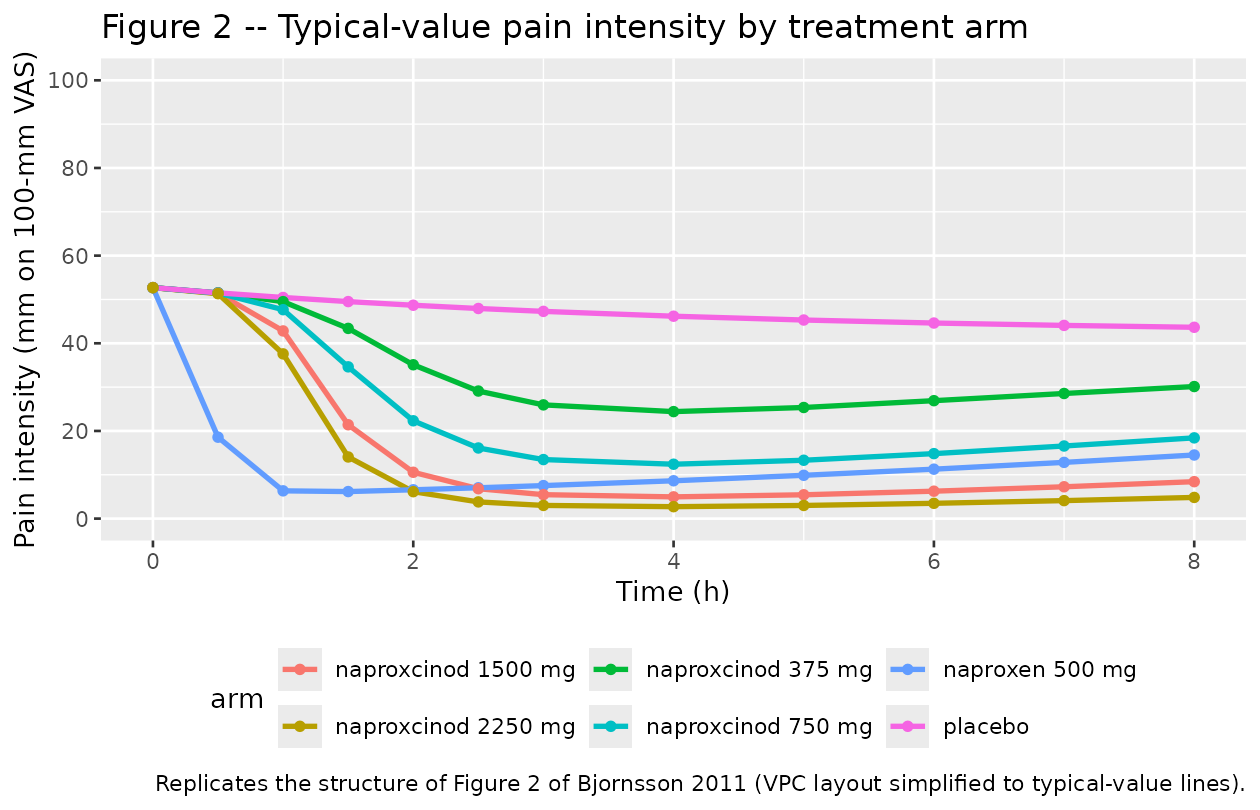

Pain intensity is modelled by

PI(t)=PIbaseline⋅(1−placebo(t))⋅(1−drug(t)) \mathrm{PI}(t) = \mathrm{PI}_{\mathrm{baseline}} \cdot \big(1 - \mathrm{placebo}(t)\big) \cdot \big(1 - \mathrm{drug}(t)\big)

with placebo(t) = P_max * (1 - exp(-k_pl * t)) (P_max = 0.202, k_pl = 0.237 /h) and drug(t) = E_max * Cu^gamma / (EC50^gamma + Cu^gamma) (E_max fixed at 1, EC50 = 0.135 umol/L, gamma = 1.61). PI is clamped to [0, 100] mm. The IIV on P_max is additive (P_max_i = P_max + eta_pmax) so the individual placebo effect can cross zero.

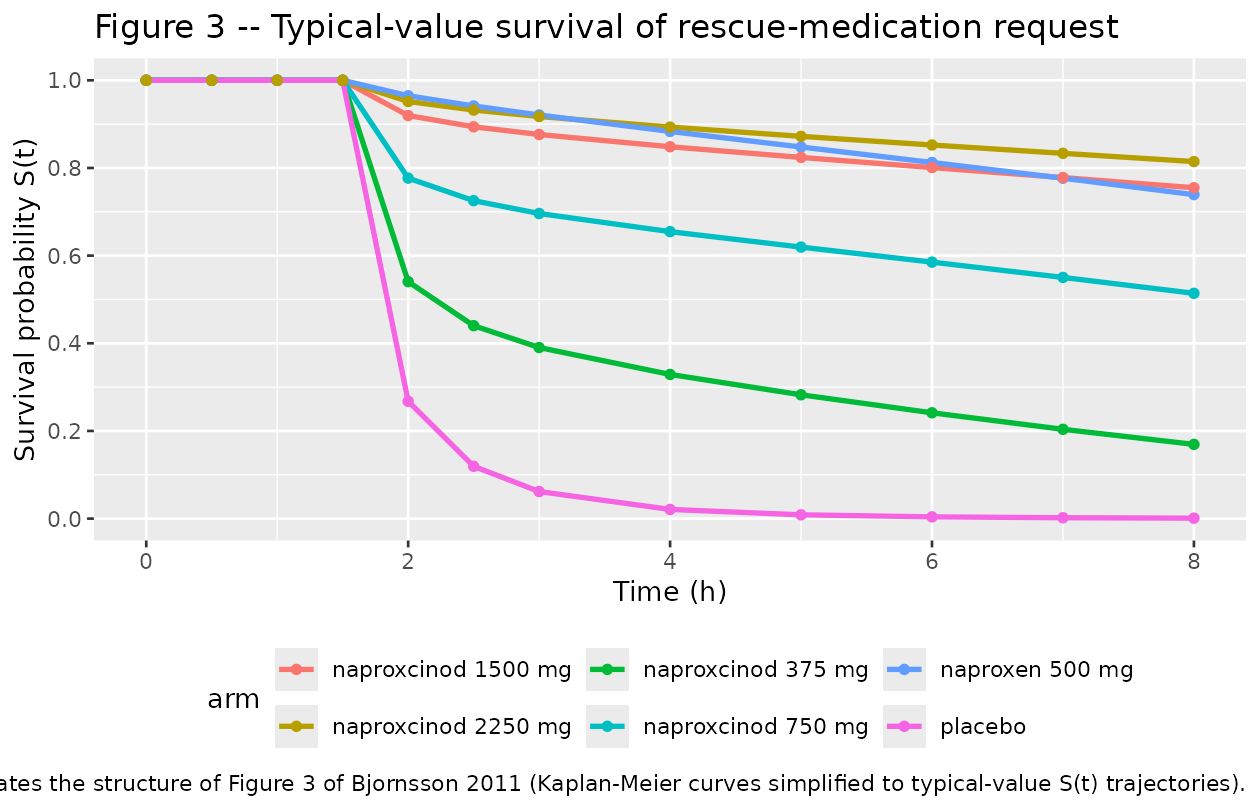

Rescue-medication time-to-event is a Weibull baseline hazard with log-linear covariate effects:

h(t)=[λ⋅α⋅(λ⋅(t−1.5))α−1]⋅exp⁡([qPI+qbaseline⋅(PIbaseline−55)]⋅PI(t)) h(t) = \big[\lambda \cdot \alpha \cdot (\lambda \cdot (t - 1.5))^{\alpha - 1}\big] \cdot \exp\Big(\big[q_{PI} + q_{\mathrm{baseline}} \cdot (\mathrm{PI}_{\mathrm{baseline}} - 55)\big] \cdot \mathrm{PI}(t)\Big)

for t >= 1.5 h (the protocol’s rescue-medication abstention window) and zero for t < 1.5 h. The baseline-PI modulator captures the paper’s clinical finding that subjects entering the study with a high baseline PI have a lower hazard at a given current PI than those entering with a low baseline.

Virtual cohort

The figures below use typical-value (no between-subject variability) simulations for each treatment arm at the protocol’s PI / PK sampling grid (0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8 h). Doses are entered in micromoles of the parent compound dosed (naproxcinod or naproxen). The molecular weights used for the mg-to-umol conversion are 317.30 g/mol (naproxcinod) and 230.26 g/mol (naproxen), giving the dose conversions tabulated below.

arms <- tibble::tribble(
  ~arm,                   ~depot,                  ~mg,    ~mw,    ~umol,
  "placebo",              "depot_naproxen",        0,      230.26, 0,
  "naproxen 500 mg",      "depot_naproxen",        500,    230.26, 500 / 230.26 * 1000,
  "naproxcinod 375 mg",   "depot_naproxcinod",     375,    317.30, 375 / 317.30 * 1000,
  "naproxcinod 750 mg",   "depot_naproxcinod",     750,    317.30, 750 / 317.30 * 1000,
  "naproxcinod 1500 mg",  "depot_naproxcinod",     1500,   317.30, 1500 / 317.30 * 1000,
  "naproxcinod 2250 mg",  "depot_naproxcinod",     2250,   317.30, 2250 / 317.30 * 1000
)
arms$umol <- round(arms$umol, 0)
arms |>
  dplyr::rename(
    "Arm"        = arm,
    "Depot cmt"  = depot,
    "Dose (mg)"  = mg,
    "MW (g/mol)" = mw,
    "Dose (umol)" = umol
  ) |>
  knitr::kable(caption = "Six arms of Bjornsson 2011 single-dose dental-pain trial.")
Six arms of Bjornsson 2011 single-dose dental-pain trial.
Arm Depot cmt Dose (mg) MW (g/mol) Dose (umol)
placebo depot_naproxen 0 230.26 0
naproxen 500 mg depot_naproxen 500 230.26 2171
naproxcinod 375 mg depot_naproxcinod 375 317.30 1182
naproxcinod 750 mg depot_naproxcinod 750 317.30 2364
naproxcinod 1500 mg depot_naproxcinod 1500 317.30 4727
naproxcinod 2250 mg depot_naproxcinod 2250 317.30 7091

The PI / PK observation grid mirrors the protocol:

obs_times <- c(0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8)
obs_times
#>  [1] 0.0 0.5 1.0 1.5 2.0 2.5 3.0 4.0 5.0 6.0 7.0 8.0

Simulation

Each arm is simulated as a single typical-value subject. Doses target the arm-specific depot (depot_naproxcinod or depot_naproxen), and the placebo arm has no dosing event but is solved on the same observation grid. Each subject has a unique ID so a bind_rows()-ed multi-arm table satisfies the rxSolve per-ID disjointness rule. The PK / PD parameters are taken at their population-typical values via zeroRe().

mod_typical <- rxode2::zeroRe(mod)

# One typical-value subject per arm. A token `evid = 1, amt = 0` event at
# t = 0 on `depot_naproxen` for the placebo arm primes the transit() reader
# so the rxode2 solver evaluates podo()/tad() on a defined compartment;
# this avoids transient NaN in derived variables when no dose is present.
build_events <- function(arm_row, id) {
  if (arm_row$umol == 0) {
    et <- rxode2::et(amt = 0, cmt = "depot_naproxen", time = 0, evid = 1)
  } else {
    et <- rxode2::et(amt = arm_row$umol, cmt = arm_row$depot, time = 0)
  }
  et <- et |> rxode2::et(obs_times, cmt = "Cc")
  ev_df <- as.data.frame(et)
  ev_df$id  <- id
  ev_df$arm <- arm_row$arm
  ev_df
}

events_all <- dplyr::bind_rows(lapply(seq_len(nrow(arms)),
                                      function(i) build_events(arms[i, ], id = i)))
stopifnot(!anyDuplicated(unique(events_all[, c("id", "time", "evid")])))

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events_all,
  keep   = "arm"
) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalbmax', 'etalmtt_naproxcinod', 'etalnn_naproxcinod', 'etalmtt_naproxen', 'etalnn_naproxen', 'etalrbase', 'etapmax', 'etalkpl', 'etalec50'
#> Warning: multi-subject simulation without without 'omega'

# Drop time-0 row for plotting only when needed (concentrations are 0 there).
head(sim_typical, 12)
#>    id time  cl   vc mtt_naproxcinod nn_naproxcinod mtt_naproxen nn_naproxen
#> 1   1  0.0 515 4290            1.77           3.58          0.5        4.23
#> 2   1  0.5 515 4290            1.77           3.58          0.5        4.23
#> 3   1  1.0 515 4290            1.77           3.58          0.5        4.23
#> 4   1  1.5 515 4290            1.77           3.58          0.5        4.23
#> 5   1  2.0 515 4290            1.77           3.58          0.5        4.23
#> 6   1  2.5 515 4290            1.77           3.58          0.5        4.23
#> 7   1  3.0 515 4290            1.77           3.58          0.5        4.23
#> 8   1  4.0 515 4290            1.77           3.58          0.5        4.23
#> 9   1  5.0 515 4290            1.77           3.58          0.5        4.23
#> 10  1  6.0 515 4290            1.77           3.58          0.5        4.23
#> 11  1  7.0 515 4290            1.77           3.58          0.5        4.23
#> 12  1  8.0 515 4290            1.77           3.58          0.5        4.23
#>    bmax    km fdepot_naproxcinod ktr_naproxcinod ktr_naproxen       kel
#> 1   643 0.549              0.597        2.587571        10.46 0.1200466
#> 2   643 0.549              0.597        2.587571        10.46 0.1200466
#> 3   643 0.549              0.597        2.587571        10.46 0.1200466
#> 4   643 0.549              0.597        2.587571        10.46 0.1200466
#> 5   643 0.549              0.597        2.587571        10.46 0.1200466
#> 6   643 0.549              0.597        2.587571        10.46 0.1200466
#> 7   643 0.549              0.597        2.587571        10.46 0.1200466
#> 8   643 0.549              0.597        2.587571        10.46 0.1200466
#> 9   643 0.549              0.597        2.587571        10.46 0.1200466
#> 10  643 0.549              0.597        2.587571        10.46 0.1200466
#> 11  643 0.549              0.597        2.587571        10.46 0.1200466
#> 12  643 0.549              0.597        2.587571        10.46 0.1200466
#>      Cc_unbound           Cc pibase_i pmax_i   kpl emax  ec50 hill       cu_pos
#> 1  0.000000e+00 0.000000e+00     52.7  0.202 0.237    1 0.135 1.61 0.000000e+00
#> 2  1.984840e-20 2.326670e-17     52.7  0.202 0.237    1 0.135 1.61 1.984840e-20
#> 3  4.971793e-20 5.828037e-17     52.7  0.202 0.237    1 0.135 1.61 4.971793e-20
#> 4  5.883689e-20 6.896980e-17     52.7  0.202 0.237    1 0.135 1.61 5.883689e-20
#> 5  6.717272e-20 7.874123e-17     52.7  0.202 0.237    1 0.135 1.61 6.717272e-20
#> 6  7.347448e-20 8.612829e-17     52.7  0.202 0.237    1 0.135 1.61 7.347448e-20
#> 7  7.627882e-20 8.941559e-17     52.7  0.202 0.237    1 0.135 1.61 7.627882e-20
#> 8  7.384486e-20 8.656246e-17     52.7  0.202 0.237    1 0.135 1.61 7.384486e-20
#> 9  6.701966e-20 7.856181e-17     52.7  0.202 0.237    1 0.135 1.61 6.701966e-20
#> 10 5.983534e-20 7.014021e-17     52.7  0.202 0.237    1 0.135 1.61 5.983534e-20
#> 11 9.452360e-20 1.108025e-16     52.7  0.202 0.237    1 0.135 1.61 9.452360e-20
#> 12 2.528741e-17 2.964241e-14     52.7  0.202 0.237    1 0.135 1.61 2.528741e-17
#>       placebo     drug_eff   pi_raw       PI t_haz lambda_haz alpha_haz
#> 1  0.00000000 0.000000e+00 52.70000 52.70000   0.0    0.00999     0.729
#> 2  0.02257313 4.780800e-31 51.51040 51.51040   0.0    0.00999     0.729
#> 3  0.04262376 2.096760e-30 50.45373 50.45373   0.0    0.00999     0.729
#> 4  0.06043377 2.749784e-30 49.51514 49.51514   0.0    0.00999     0.729
#> 5  0.07625353 3.403637e-30 48.68144 48.68144   0.5    0.00999     0.729
#> 6  0.09030547 3.932262e-30 47.94090 47.94090   1.0    0.00999     0.729
#> 7  0.10278713 4.176697e-30 47.28312 47.28312   1.5    0.00999     0.729
#> 8  0.12372191 3.964225e-30 46.17986 46.17986   2.5    0.00999     0.729
#> 9  0.14023927 3.391159e-30 45.30939 45.30939   3.5    0.00999     0.729
#> 10 0.15327132 2.825301e-30 44.62260 44.62260   4.5    0.00999     0.729
#> 11 0.16355350 5.899055e-30 44.08073 44.08073   5.5    0.00999     0.729
#> 12 0.17166605 4.773518e-26 43.65320 43.65320   6.5    0.00999     0.729
#>            h0 slope_pi     hazard         sur     ipredSim          sim
#> 1  1.07253326 0.084203  0.0000000 1.000000000 0.000000e+00 0.000000e+00
#> 2  1.07253326 0.084203  0.0000000 1.000000000 2.326670e-17 2.326670e-17
#> 3  1.07253326 0.084203  0.0000000 1.000000000 5.828037e-17 5.828037e-17
#> 4  1.07253326 0.084203 69.3625270 0.999999993 6.896980e-17 6.896980e-17
#> 5  0.03061891 0.084203  1.8459343 0.267699412 7.874123e-17 7.874123e-17
#> 6  0.02537527 0.084203  1.4373304 0.119411021 8.612829e-17 8.612829e-17
#> 7  0.02273474 0.084203  1.2183764 0.061741845 8.941559e-17 8.941559e-17
#> 8  0.01979561 0.084203  0.9667527 0.020980576 8.656246e-17 8.656246e-17
#> 9  0.01807042 0.084203  0.8201302 0.008634141 7.856181e-17 7.856181e-17
#> 10 0.01688069 0.084203  0.7230853 0.004003268 7.014021e-17 7.014021e-17
#> 11 0.01598720 0.084203  0.6542688 0.002014262 1.108025e-16 1.108025e-16
#> 12 0.01527957 0.084203  0.6031990 0.001075416 2.964241e-14 2.964241e-14
#>    depot_naproxcinod depot_naproxen      central       cumhaz CMT     arm
#> 1       0.000000e+00   0.000000e+00 0.000000e+00 0.000000e+00   5 placebo
#> 2       3.334864e-18   3.822712e-17 8.514962e-17 0.000000e+00   5 placebo
#> 3       2.179654e-17   7.644569e-18 2.132899e-16 0.000000e+00   5 placebo
#> 4       3.785157e-17   4.220442e-19 2.524103e-16 7.290052e-09   5 placebo
#> 5       3.910122e-17   8.667779e-21 2.881709e-16 1.317891e+00   5 placebo
#> 6       2.985604e-17   1.452149e-22 3.152055e-16 2.125184e+00   5 placebo
#> 7       1.888333e-17   4.620260e-24 3.272361e-16 2.784793e+00   5 placebo
#> 8       5.304989e-18   2.593345e-23 3.167945e-16 3.864158e+00   5 placebo
#> 9       1.109134e-18   2.122973e-21 2.875143e-16 4.752031e+00   5 placebo
#> 10      1.912886e-19  -4.261193e-19 2.566936e-16 5.520644e+00   5 placebo
#> 11      3.143441e-20  -1.759837e-16 4.055063e-16 6.207502e+00   5 placebo
#> 12      4.207727e-21  -1.070385e-13 1.084830e-13 6.835048e+00   5 placebo

Replicate published figures

Figure 1 – VPC of total and unbound naproxen concentrations

Bjornsson 2011 Figure 1 shows VPC of total (top row) and unbound (bottom row) naproxen concentrations after each PK-sampled arm (naproxcinod 375 / 750 / 1500 / 2250 mg and naproxen 500 mg). Reproduction is via typical-value simulation here; published VPCs additionally overlay observed quantiles which are not available without the underlying trial data.

pk_arms <- c("naproxcinod 375 mg", "naproxcinod 750 mg",
             "naproxcinod 1500 mg", "naproxcinod 2250 mg",
             "naproxen 500 mg")

pk_long <- sim_typical |>
  dplyr::filter(arm %in% pk_arms) |>
  tidyr::pivot_longer(c(Cc, Cc_unbound),
                      names_to = "fraction", values_to = "conc") |>
  dplyr::mutate(
    fraction = dplyr::recode(fraction,
                             "Cc" = "Total naproxen",
                             "Cc_unbound" = "Unbound naproxen"),
    arm = factor(arm, levels = pk_arms)
  )

ggplot(pk_long, aes(time, conc, colour = arm)) +
  geom_line(linewidth = 1) +
  facet_wrap(~fraction, scales = "free_y") +
  labs(x = "Time (h)", y = "Concentration (umol/L)",
       title = "Figure 1 -- Typical-value total and unbound naproxen",
       caption = "Replicates the structure of Figure 1 of Bjornsson 2011 (VPC layout simplified to typical-value lines).") +
  theme(legend.position = "bottom")

Figure 2 – Pain intensity vs. time

Bjornsson 2011 Figure 2 shows VPCs of PI by arm without (top row) and with (bottom row) informative dropout. The typical-value PI trajectory below illustrates how the placebo + drug effect combination produces the arm-specific PI time course; the dropout (and thus the observation-conditional PI) is captured by the survival curve in Figure 3.

ggplot(sim_typical, aes(time, PI, colour = arm)) +
  geom_line(linewidth = 1) +
  geom_point(size = 1.5) +
  scale_y_continuous(limits = c(0, 100), breaks = seq(0, 100, 20)) +
  labs(x = "Time (h)", y = "Pain intensity (mm on 100-mm VAS)",
       title = "Figure 2 -- Typical-value pain intensity by treatment arm",
       caption = "Replicates the structure of Figure 2 of Bjornsson 2011 (VPC layout simplified to typical-value lines).") +
  theme(legend.position = "bottom")

Figure 3 – Survival (Kaplan-Meier surrogate) for rescue medication

Bjornsson 2011 Figure 3 shows Kaplan-Meier survival for time-to-rescue per arm. With typical-value simulation, the model produces a single deterministic S(t) = exp(-cumulative_hazard(t)) per arm. The hazard is zero for t < 1.5 h (per protocol), then follows the Weibull baseline modulated by exp(slope * PI(t)).

ggplot(sim_typical, aes(time, sur, colour = arm)) +
  geom_line(linewidth = 1) +
  geom_point(size = 1.5) +
  scale_y_continuous(limits = c(0, 1), breaks = seq(0, 1, 0.2)) +
  labs(x = "Time (h)", y = "Survival probability S(t)",
       title = "Figure 3 -- Typical-value survival of rescue-medication request",
       caption = "Replicates the structure of Figure 3 of Bjornsson 2011 (Kaplan-Meier curves simplified to typical-value S(t) trajectories).") +
  theme(legend.position = "bottom")

PKNCA validation

We run a non-compartmental analysis on the simulated total naproxen concentrations for the five active PK arms (the placebo arm has Cc = 0 throughout and is excluded). PKNCA returns Cmax, Tmax, AUC0-8, and the terminal half-life per arm. The paper does not tabulate NCA values directly (only the parametric estimates in Table 2), so the table below is a forward NCA derived from the packaged model rather than a comparison against published NCA quantities.

sim_nca <- sim_typical |>
  dplyr::filter(arm %in% pk_arms, !is.na(Cc)) |>
  dplyr::select(id, time, Cc, arm)

# Guarantee a time=0 record per (id, arm); for extravascular dosing this is
# the correct pre-dose baseline (Cc = 0).
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, arm) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, arm, time, .keep_all = TRUE) |>
  dplyr::arrange(id, arm, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | arm + id)

dose_df <- events_all |>
  dplyr::filter(evid == 1, amt > 0) |>
  dplyr::select(id, time, amt, arm)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | arm + id)

intervals <- data.frame(
  start         = 0,
  end           = 8,
  cmax          = TRUE,
  tmax          = TRUE,
  auclast       = TRUE,
  half.life     = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

nca_summary <- as.data.frame(nca_res$result) |>
  dplyr::select(arm, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

knitr::kable(nca_summary,
             digits = 2,
             caption = paste("Typical-value NCA of total naproxen (umol/L)",
                             "over 0-8 h per dose arm."))
Typical-value NCA of total naproxen (umol/L) over 0-8 h per dose arm.
arm auclast cmax tmax tlast lambda.z r.squared adj.r.squared lambda.z.time.first lambda.z.time.last lambda.z.n.points clast.pred half.life span.ratio
naproxcinod 1500 mg 1836.04 307.86 4.0 8 0.07 1 1 6 8 3 241.07 9.73 0.21
naproxcinod 2250 mg 2277.57 372.87 4.0 8 0.06 1 1 6 8 3 304.70 11.68 0.17
naproxcinod 375 mg 674.15 119.93 4.0 8 0.10 1 1 6 8 3 83.74 6.80 0.29
naproxcinod 750 mg 1164.88 202.23 4.0 8 0.09 1 1 6 8 3 148.24 7.78 0.26
naproxen 500 mg 1810.36 291.16 1.5 8 0.08 1 1 6 8 3 177.06 8.24 0.24

The Cmax and AUC0-8 scale roughly proportionally with naproxen-equivalent dose, modulated by the saturable albumin binding (higher doses push the binding closer to saturation, increasing the apparent free fraction and the total Cmax slightly less than dose-proportionally) and the slower naproxcinod transit-absorption chain (MTT 1.77 h vs 0.500 h for naproxen directly). The 8-hour observation window truncates the terminal phase of naproxen (literature half-life ~14 h), so the PKNCA half-life column reflects the slope over 6-8 h only and should not be compared against the full absorption-and-elimination terminal half-life.

Assumptions and deviations

  • Functional forms image-encoded in the paper. The PI combination formula (paper Methods, “Model for PI”, first display equation) and the hazard COV form (paper Methods, “Model for request of rescue medication”, display equation following “h(t) = h0(t) * exp(COV)”) are both rendered as figure images in the PDF and were not recoverable from the trimmed text. The packaged model implements the most-common NONMEM conventions consistent with the surrounding paper prose: multiplicative combination PI = PI_baseline * (1 - placebo) * (1 - drug) for the PI sub-model (placebo expressed as a fractional reduction, drug as a sigmoid Emax fractional reduction, both clamped through PI’s [0, 100] bounds), and log-linear exp(slope_pi * PI(t)) for the hazard’s covariate term (with slope_pi = q_PI + q_baseline * (PI_baseline - 55)). If the paper’s original NONMEM control stream surfaces, this should be reaffirmed or corrected.
  • Additive IIV on P_max – variance interpretation. Table 3 reports “IIV 120%” for P_max with the footnote “in % of the parameter estimate” and the prose “for Pmax where an additive model was used”. The packaged model interprets this as SD(eta_pmax) = 1.20 * P_max = 1.20 * 0.202 = 0.2424 and therefore omega^2 = SD^2 = 0.05876, treating “120%” as a ratio of SD-on-the-additive-scale to the typical-value estimate (the natural reading of an additive-IIV percentage). The alternative reading – SD(eta_pmax) = 1.20 directly – would give omega^2 = 1.44 and is inconsistent with the additive-IIV convention.
  • Transit-chain depot-drain rate. The paper reports MTT and NN per formulation but does not separately report a depot-drain absorption rate constant (typical k_a). The packaged model uses the canonical Savic 2007 parameterisation in which the depot drains at k_tr = (NN + 1) / MTT, consistent with rxode2’s transit(n, mtt, bio) analytical input rate combined with a matched k_tr first-order drain.
  • Dose unit convention. The packaged model expects dose amounts in micromoles of the parent compound dosed (naproxcinod or naproxen). The paper does not explicitly state the NONMEM control stream’s dose unit; this convention preserves the molar-balance interpretation of F_rel = 59.7% (the fraction of administered naproxcinod-molecules that yield unbound naproxen-equivalents in central). Users dosing in mg should convert using MW(naproxcinod) = 317.30 g/mol or MW(naproxen) = 230.26 g/mol before passing through.
  • No demographic covariates retained in the final model. The trial recorded sex, age, BMI, and baseline PI (Bjornsson 2011 Table 1), but none of these (except baseline PI, which enters the hazard via the q_baseline modulator) was retained on PK or PD parameters in the published model. These covariates are documented in covariatesDataExcluded for provenance but are not referenced in model().
  • Body weight not reported. Table 1 reports BMI ranges only; body weight is not transcribed in the publication. Allometric scaling is therefore not implemented and CL_u/F / V_u/F are taken at their population-typical values as published.
  • Cc_unbound non-negative clamp. Inside model(), cu_pos <- ifelse(Cc_unbound < 0, 0, Cc_unbound) is used before raising to the Hill exponent in the drug-effect term. rxode2’s stiff solver can return numerical-noise-sized negative values (~1e-18) on the placebo arm where central is identically zero; raising a slightly negative base to a fractional power returns NaN and would poison the entire downstream PI / hazard / survival chain. This is a numerical guard, not a structural deviation.
  • Cu not observed at every PK time-point in the trial. The trial measured unbound concentrations at only 1, 3, and 8 h post-dose (paper Methods, “Study design”). The packaged model exposes Cc_unbound as a continuous output for downstream simulation and validation regardless of the original observation cadence.
  • NCA against paper – no comparison table. Bjornsson 2011 does not tabulate NCA quantities (Cmax, AUC, half-life) in the published paper; parametric estimates only. The PKNCA section therefore reports forward NCA on the packaged-model typical-value simulation, not a side-by-side comparison with published values.
