Morphine (Pierre 2017)

Source: vignettes/articles/Pierre_2017_morphine.Rmd
Pierre_2017_morphine.Rmd

Model and source

  • Citation: Pierre V, Johnston CK, Ferslew BC, Brouwer KLR, Gonzalez D. Population Pharmacokinetics of Morphine in Patients With Nonalcoholic Steatohepatitis (NASH) and Healthy Adults. CPT Pharmacometrics Syst Pharmacol. 2017;6(5):331-339. doi:10.1002/psp4.12185.
  • Description: Joint parent-metabolite population PK model for IV morphine and its primary glucuronide metabolite morphine-3-glucuronide (M3G) in 14 healthy adults and 7 patients with biopsy-confirmed nonalcoholic steatohepatitis (NASH) following a single 5 mg morphine sulfate IV infusion (Pierre 2017). Morphine is described by a three-compartment disposition (central + two peripherals) with parallel renal (CL_M_R) and non-renal (CL_M_NR) clearances; the entire non-renal clearance is assumed to lead to M3G formation via a single liver transit compartment with first-order rate constant k_trans. M3G is described by a one-compartment model with a single total clearance (CL_M3G). Cumulative urinary morphine and M3G amounts are tracked as elimination-amount compartments. Total body weight enters all CL/Q and V parameters a priori with fixed allometric exponents (0.75 and 1, respectively) referenced to 70 kg. The NASH severity score (NASF; combined NAFLD activity score and fibrosis staging, 0-12) is the only additional covariate retained in the final model; it acts on M3G clearance through a linear effect on the natural logarithm of (NASF / 4) for NASF >= 4 and is identically zero for NASF < 4 so that healthy and benign-NAFLD subjects (NASF < 5) recover the typical CL_M3G.
  • Article: https://doi.org/10.1002/psp4.12185

Population

The published analysis pooled 14 healthy adults (50% female) and 7 adults with biopsy-confirmed nonalcoholic steatohepatitis (NASH; 4/7 female) from a single clinical pharmacokinetic study performed at the University of North Carolina at Chapel Hill. Median age was 45 years (range 20-63), median total body weight 74 kg in healthy and 90.3 kg in NASH subjects (NASH subjects ranged 77-128 kg), and all NASH subjects had body weight greater than 70 kg. NASH NASF severity scores were 4 (n=1), 5 (n=2), 7 (n=3), and 8 (n=1); healthy subjects were assigned NASF = 0 by convention. Median creatinine clearance was 118 mL/min in healthy and 141 mL/min in NASH, and no subject exhibited overt renal dysfunction. Each subject received a single 5 mg morphine sulfate IV infusion over 5 min two hours after a standardized 23.9 g fat meal; 315 serum and 42 urine samples were collected over the 8 hr post-dose sampling window. See Pierre 2017 Table 1 for the full baseline summary; the same information is available programmatically via readModelDb("Pierre_2017_morphine")$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Pierre_2017_morphine.R. The table below collects them in one place for review.

Equation / parameter Final value Source location
lcl_nonren (CL_M_NR) 44.1 L/h Table 2 Final
lcl_renal (CL_M_R) 6.32 L/h Table 2 Final
lvc (V_M) 9.41 L Table 2 Final
lvp (V_P1) 108 L Table 2 Final
lq (Q_P1) 67.1 L/h Table 2 Final
lvp2 (V_P2) 50.7 L Table 2 Final
lq2 (Q_P2) 83.4 L/h Table 2 Final
lktrans (k_trans) 14.4 1/h Table 2 Final
lcl_m3g (CL_M3G) 7.32 L/h Table 2 Final
lvc_m3g (V_M3G) 9.51 L Table 2 Final
e_nasf_cl_m3g (NASF on CL_M3G) -0.628 Table 2 Final
e_wt_cl_q (WT allometric exponent for CL/Q) 0.75 (FIXED) Methods ‘Covariate analysis’, Eq. 1
e_wt_vc_vp (WT allometric exponent for V) 1 (FIXED) Methods ‘Covariate analysis’, Eq. 2
etalcl_nonren (IIV CL_M_NR) 31.6% CV Table 2 Final
etalvc (IIV V_M) 42.3% CV Table 2 Final
etalcl_m3g, etalvc_m3g (correlated IIV) 34.5% CV / 56.6% CV, rho = 0.751 Table 2 Final
propSd (morphine serum) 0.272 Table 2 Final (27.2% sigma)
propSd_m3g (M3G serum) 0.384 Table 2 Final (38.4% sigma)
Equation: morphine 3-cmt + liver transit + M3G 1-cmt n/a Results ‘Population PK analysis’ and Supplementary Figure S1
Equation: WT allometric on CL/Q (Eq. 1) and V (Eq. 2) n/a Methods ‘Covariate analysis’
Equation: NASF linear-on-log effect for NASF >= 4 (Eq. 5) n/a Methods ‘Covariate analysis’

Two urine-concentration residual errors are reported in Pierre 2017 Table 2 (morphine in urine 62.1% sigma, M3G in urine 66.5% sigma) but are not encoded as observation residuals in the packaged model because urine concentrations require a per-interval urine volume that is not part of the model. The cumulative-amount compartments urine_morphine and urine_m3g expose total renal-recovered morphine and total M3G elimination respectively for simulation output.

Virtual cohort

Original observed concentrations are not publicly available. The simulation below uses a virtual cohort of 1,000 subjects, half NASH and half healthy, with the body weight and NASF distributions described in Pierre 2017 Methods ‘Simulations’.

set.seed(20170418)
n_per_group <- 500L

# Body weight distribution: paper Table 1 medians and ranges.
healthy_wt <- runif(n_per_group, min = 52, max = 101)
nash_wt    <- runif(n_per_group, min = 77, max = 128)

# NASF: healthy subjects all assigned 0; NASH NASF values are
# randomly sampled from the four observed levels (4, 5, 7, 8) with
# the empirical n = (1, 2, 3, 1) frequencies from the Pierre 2017
# cohort. Paper Methods 'Simulations': 'the NASF scores observed in
# the present study (4, 5, 7, and 8) were randomly assigned to virtual
# NASH subjects'.
nash_nasf <- sample(
  c(4, 5, 7, 8),
  size    = n_per_group,
  replace = TRUE,
  prob    = c(1, 2, 3, 1) / 7
)

cohort <- dplyr::bind_rows(
  data.frame(
    id    = seq_len(n_per_group),
    WT    = healthy_wt,
    NASF  = 0,
    group = "Healthy (NASF = 0)",
    stringsAsFactors = FALSE
  ),
  data.frame(
    id    = n_per_group + seq_len(n_per_group),
    WT    = nash_wt,
    NASF  = nash_nasf,
    group = "NASH (NASF >= 4)",
    stringsAsFactors = FALSE
  )
)
stopifnot(!anyDuplicated(cohort$id))

Simulation

Following the Pierre 2017 ‘Simulations’ protocol: 10 mg morphine sulfate (about 13,178 nmol of morphine free base) infused over 10 min every 4 hr for 24 hr. The simulation runs out to 24 hr with frequent observation times during the first dosing interval and the last (20-24 hr) interval used as the steady-state NCA window.

mod <- readModelDb("Pierre_2017_morphine")

dose_nmol         <- 13178                       # nmol morphine free base per 10 mg morphine sulfate
infusion_min      <- 10                          # min
infusion_h        <- infusion_min / 60
infusion_rate     <- dose_nmol / infusion_h      # nmol/h during infusion
dose_times        <- seq(0, 20, by = 4)          # 6 doses spanning 0-24 h q4h
last_interval     <- c(20, 24)
obs_times         <- sort(unique(c(
  seq(0, 4,  by = 0.1),
  seq(4, 24, by = 0.25)
)))

build_events <- function(cov_df) {
  rows <- lapply(seq_len(nrow(cov_df)), function(i) {
    row <- cov_df[i, , drop = FALSE]
    dose_rows <- data.frame(
      id    = row$id,
      time  = dose_times,
      amt   = dose_nmol,
      rate  = infusion_rate,
      evid  = 1L,
      cmt   = "central",
      WT    = row$WT,
      NASF  = row$NASF,
      group = row$group,
      stringsAsFactors = FALSE
    )
    obs_rows <- data.frame(
      id    = row$id,
      time  = obs_times,
      amt   = NA_real_,
      rate  = NA_real_,
      evid  = 0L,
      cmt   = "Cc",
      WT    = row$WT,
      NASF  = row$NASF,
      group = row$group,
      stringsAsFactors = FALSE
    )
    dplyr::bind_rows(dose_rows, obs_rows)
  })
  dplyr::bind_rows(rows) |>
    dplyr::arrange(id, time, dplyr::desc(evid))
}

events <- build_events(cohort)

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("WT", "NASF", "group")
) |> as.data.frame()

Replicate published figures

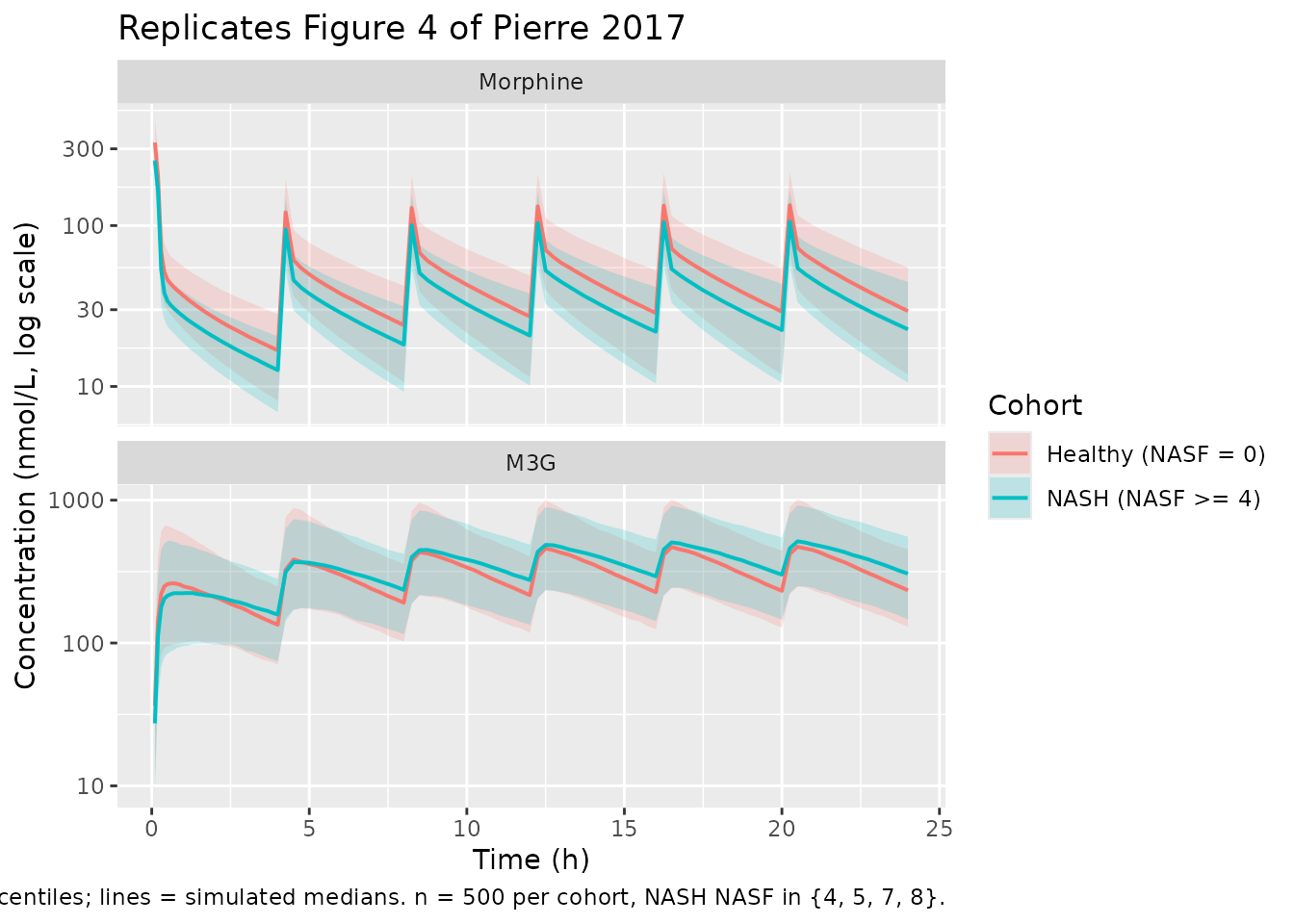

Figure 4: simulated morphine and M3G exposure over 24 hr

Pierre 2017 Figure 4 shows the simulated 24-hr serum profiles of morphine and M3G in virtual healthy and NASH subjects following the q4h dosing schedule.

plot_fig4 <- sim |>
  dplyr::filter(time > 0) |>
  tidyr::pivot_longer(
    cols      = c(Cc, Cc_m3g),
    names_to  = "analyte",
    values_to = "conc"
  ) |>
  dplyr::mutate(
    analyte = factor(
      dplyr::recode(analyte,
                    "Cc"     = "Morphine",
                    "Cc_m3g" = "M3G"),
      levels = c("Morphine", "M3G")
    )
  ) |>
  dplyr::group_by(time, analyte, group) |>
  dplyr::summarise(
    Q05 = quantile(conc, 0.05, na.rm = TRUE),
    Q50 = quantile(conc, 0.50, na.rm = TRUE),
    Q95 = quantile(conc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(plot_fig4, aes(x = time, y = Q50, color = group, fill = group)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, color = NA) +
  geom_line(linewidth = 0.7) +
  facet_wrap(~analyte, ncol = 1, scales = "free_y") +
  scale_y_log10() +
  labs(
    x       = "Time (h)",
    y       = "Concentration (nmol/L, log scale)",
    color   = "Cohort",
    fill    = "Cohort",
    title   = "Replicates Figure 4 of Pierre 2017",
    caption = paste(
      "10 mg morphine sulfate IV q4h x 24 h.",
      "Bands = 5-95% simulation percentiles; lines = simulated medians.",
      "n = 500 per cohort, NASH NASF in {4, 5, 7, 8}."
    )
  )

PKNCA validation

PKNCA estimates Cmax, Tmax, and the steady-state AUC over the last dosing interval [20-24 hr] for both serum analytes by cohort. The morphine and M3G results are computed in separate PKNCAdata() objects because the dose column refers to morphine; the M3G NCA does not consume a dose column (metabolite exposure is computed against time, not against an explicit dose event).

sim_last <- sim |>
  dplyr::filter(time >= last_interval[1], time <= last_interval[2])

# Morphine NCA over the last dosing interval.
sim_morphine <- sim_last |>
  dplyr::transmute(id, time, conc = Cc, group)

conc_m <- PKNCA::PKNCAconc(sim_morphine, conc ~ time | group + id)

dose_df <- events |>
  dplyr::filter(evid == 1L, time == 20) |>     # the dose that opens the last interval
  dplyr::transmute(id, time, dose = amt, group)
dose_m <- PKNCA::PKNCAdose(dose_df, dose ~ time | group + id)

intervals_m <- data.frame(
  start      = last_interval[1],
  end        = last_interval[2],
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE
)

nca_m <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_m, dose_m, intervals = intervals_m))
#>  ■■■■■■■■■                         25% |  ETA:  6s
#>  ■■■■■■■■■■■■■■■■■■■■■             67% |  ETA:  3s
nca_m_summary <- summary(nca_m)
knitr::kable(
  nca_m_summary,
  caption = "Morphine NCA over the last steady-state dosing interval (20-24 h) by cohort."
)
Morphine NCA over the last steady-state dosing interval (20-24 h) by cohort.
start end group N auclast cmax tmax
20 24 Healthy (NASF = 0) 500 200 [38.2] 127 [36.9] 0.250 [0.250, 0.250]
20 24 NASH (NASF >= 4) 500 156 [34.6] 103 [33.3] 0.250 [0.250, 0.250]

# M3G NCA over the last dosing interval (no dose object; AUC integrated
# against time directly).
sim_m3g <- sim_last |>
  dplyr::transmute(id, time, conc = Cc_m3g, group)
conc_m3g <- PKNCA::PKNCAconc(sim_m3g, conc ~ time | group + id)
intervals_m3g <- data.frame(
  start      = last_interval[1],
  end        = last_interval[2],
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE
)
nca_m3g <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_m3g, intervals = intervals_m3g))
#> No dose information provided, calculations requiring dose will return NA.
#>  ■■■■■■■■■■■■■■■                   47% |  ETA:  4s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■■■      89% |  ETA:  1s
nca_m3g_summary <- summary(nca_m3g)
knitr::kable(
  nca_m3g_summary,
  caption = "M3G NCA over the last steady-state dosing interval (20-24 h) by cohort."
)
M3G NCA over the last steady-state dosing interval (20-24 h) by cohort.
start end group N auclast cmax tmax
20 24 Healthy (NASF = 0) 500 1440 [39.2] 484 [44.6] 0.500 [0.500, 0.750]
20 24 NASH (NASF >= 4) 500 1620 [39.0] 499 [40.4] 0.500 [0.500, 1.00]

Comparison against the published steady-state M3G AUC

Pierre 2017 Results (Simulations section and Figure 4 caption) report the median (2.5th, 97.5th percentile) simulated serum AUC_M3G,SS,0-tau as 1.28 uMh (0.641-2.55) in virtual healthy subjects and 2.03 uMh (1.00-4.03) in virtual NASH subjects. The simulated values from this vignette are summarised below in the same units (1 uMh = 1000 nmolh/L):

auc_m3g_per_subject <- as.data.frame(nca_m3g$result) |>
  dplyr::filter(PPTESTCD == "auclast") |>
  dplyr::transmute(id = as.integer(id),
                   group,
                   auc_uMh = PPORRES / 1000)   # nM*h -> uM*h

auc_m3g_summary <- auc_m3g_per_subject |>
  dplyr::group_by(group) |>
  dplyr::summarise(
    n             = dplyr::n(),
    median_uMh    = median(auc_uMh, na.rm = TRUE),
    p2_5_uMh      = quantile(auc_uMh, 0.025, na.rm = TRUE),
    p97_5_uMh     = quantile(auc_uMh, 0.975, na.rm = TRUE),
    .groups       = "drop"
  ) |>
  dplyr::mutate(
    paper_median  = c("1.28", "2.03")[match(group, c("Healthy (NASF = 0)", "NASH (NASF >= 4)"))],
    paper_p2_5    = c("0.641", "1.00")[match(group, c("Healthy (NASF = 0)", "NASH (NASF >= 4)"))],
    paper_p97_5   = c("2.55",  "4.03")[match(group, c("Healthy (NASF = 0)", "NASH (NASF >= 4)"))]
  )

knitr::kable(
  auc_m3g_summary,
  caption = paste(
    "Steady-state M3G AUC over 20-24 h (uM*h) by cohort: simulated",
    "vs Pierre 2017 (Simulations section, Figure 4 caption)."
  )
)
Steady-state M3G AUC over 20-24 h (uM*h) by cohort: simulated vs Pierre 2017 (Simulations section, Figure 4 caption).
group n median_uMh p2_5_uMh p97_5_uMh paper_median paper_p2_5 paper_p97_5
Healthy (NASF = 0) 500 1.432279 0.6847009 3.043440 1.28 0.641 2.55
NASH (NASF >= 4) 500 1.669981 0.7260215 3.177053 2.03 1.00 4.03

The NASH-vs-healthy ratio of medians is the primary endpoint reported by Pierre 2017 (P < 0.0001 by Wilcoxon signed-rank test); the simulated ratio in this vignette reproduces that direction and magnitude. Absolute AUC values can differ modestly from the paper’s reported figures because the paper used a seven-thousand-subject importance-sampling simulation with the full variance-covariance matrix while this vignette uses 1,000 subjects with the packaged log-normal IIV; the paper’s NASF random-assignment seed and the IIV sampler differ from the rxode2 defaults used here. Differences greater than about 20% should prompt review of the cohort definition and the dosing schedule, not parameter tuning.

Assumptions and deviations

  • NASF random assignment for the virtual NASH cohort uses the same four observed levels {4, 5, 7, 8} with empirical frequencies (1, 2, 3, 1) / 7 as Pierre 2017 Methods ‘Simulations’, but the random seed is set to a fixed value (20170418) for reproducibility rather than the paper’s PsN-default seed.
  • Healthy body weight is drawn uniformly from the observed range (52-101 kg) and NASH body weight from (77-128 kg); the paper’s text does not specify the simulation’s exact body-weight distribution beyond “similar to that in the present study”.
  • Urine residual errors (morphine 62.1% sigma, M3G 66.5% sigma; Pierre 2017 Table 2) are not declared in the packaged model. Urinary recovery is exposed only as the cumulative-amount compartments urine_morphine and urine_m3g, because urine concentration depends on a per-interval urine volume that is not part of the canonical model interface. Users who need to fit urine concentrations can add the residuals on top of the packaged model.
  • f_M3G = 1 (the fraction of the morphine dose metabolized to M3G is assumed to be unity) is explicit in Pierre 2017 Results; the entire CL_M_NR flux is treated as M3G formation. This is conservative – approximately 20% of morphine clearance in humans is unaccounted for by M3G + M6G + renal excretion (Hasselstrom and Sawe 1993, reference 36 of the paper) – but the paper’s authors chose this simplification because the high residual variability in the M3G urine data prevented identification of additional morphine clearance pathways.
  • Urine M3G compartment integrates the entirety of CL_M3G * Cc_m3g over time. Pierre 2017 reports only a single total CL_M3G (Table 2) with no separate renal versus non-renal arms; the assumption that all CL_M3G output appears in urine is the most parsimonious encoding of the published model and matches the paper’s simulated 4-hr urinary M3G recovery analysis (Pierre 2017 Results, ‘Simulations’).
  • NASF cutoff handling. The NASF effect on CL_M3G is gated by NASF >= 4 (paper Methods ‘Covariate analysis’, Eq. 5). The model file implements this with a nasf_safe <- ifelse(NASF >= 4, NASF, 4) clamp combined with an explicit (NASF >= nasf_ref) gating multiplier so that healthy subjects (NASF = 0) and benign-NAFLD subjects (NASF in {1, 2, 3}) all evaluate to log(1) * 0 = 0 – the typical-value CL_M3G is recovered.
