Sathe_2024_sacituzumab
Source:vignettes/articles/Sathe_2024_sacituzumab.Rmd
Sathe_2024_sacituzumab.RmdModel and source
- Citation: Sathe AG, Singh I, Singh P, Diderichsen PM, Wang X, Chang P, Taqui A, Phan S, Girish S, Othman AA. Population Pharmacokinetics of Sacituzumab Govitecan in Patients with Metastatic Triple-Negative Breast Cancer and Other Solid Tumors. Clin Pharmacokinet. 2024;63(5):669-681.
- Article: https://doi.org/10.1007/s40262-024-01366-3
- Open-access PMC version: https://pmc.ncbi.nlm.nih.gov/articles/PMC11106201/
- Supplement (NONMEM control streams, Section 6): https://static-content.springer.com/esm/art%3A10.1007%2Fs40262-024-01366-3/MediaObjects/40262_2024_1366_MOESM1_ESM.pdf
Sacituzumab govitecan (SG) is an antibody-drug conjugate (ADC) of an anti-Trop-2 humanized monoclonal antibody (hRS7) covalently linked to the topoisomerase 1 inhibitor SN-38 via a hydrolyzable linker (average drug-to-antibody ratio = 8). This model jointly describes three analyte profiles after SG infusion:
-
SG (the ADC) — output
Ccin the model. Two-compartment PK with body-weight allometric scaling and a baseline-albumin power covariate on CL. -
Free SN-38 (the released payload) — output
Csn38. Two-compartment PK generated sequentially from SG via a first-order release rateKREL. Apparent central and peripheral volumes are fixed to literature values (Klein et al. Clin Pharmacol Ther 2002;72:638-647). -
Total antibody (tAB) — output
Ctab. Two-compartment PK with time-dependent CL, IIV on CL and V1 with covariance, and covariates of baseline albumin (CL), tumor type (CL), and sex (V1).
Population
The pooled analysis included 529 patients from the phase I/II IMMU-132-01 (NCT01631552, n = 276) and phase III ASCENT (NCT02574455, n = 253) studies. Patients had metastatic triple-negative breast cancer (mTNBC, n = 277), metastatic urothelial cancer (mUC, n = 36), HR+/HER2- metastatic breast cancer (n = 32), or other solid tumors (n = 184; epithelial cancers including small-cell and non-small-cell lung, colorectal, esophageal, and pancreatic ductal adenocarcinoma). Median (range) age was 58 years (27-88), body weight 70 kg (37-140), and serum albumin 38 g/L (19-50). 78% were female and 84% White (Sathe 2024 Section 3.1 and Table S2).
The full population metadata is available programmatically:
mod_meta <- rxode2::rxode(readModelDb("Sathe_2024_sacituzumab"))
#> ℹ parameter labels from comments will be replaced by 'label()'
str(mod_meta$population, max.level = 1)
#> List of 16
#> $ n_subjects : num 529
#> $ n_studies : num 2
#> $ age_range : chr "27-88 years"
#> $ age_median : chr "58 years"
#> $ weight_range : chr "37-140 kg"
#> $ weight_median : chr "70 kg"
#> $ sex_female_pct : num 78
#> $ race_ethnicity : Named num [1:4] 84 7 2 6
#> ..- attr(*, "names")= chr [1:4] "White" "Black_or_African_American" "Asian" "Other"
#> $ disease_state : chr "Metastatic triple-negative breast cancer (mTNBC, n = 277), metastatic urothelial cancer (mUC, n = 36), HR+/HER2"| __truncated__
#> $ dose_range : chr "Phase I/II (IMMU-132-01): 8, 10, 12, or 18 mg/kg IV on days 1 and 8 of 21-day cycles. Phase III (ASCENT): 10 mg"| __truncated__
#> $ regions : chr "Multinational pooled analysis (IMMU-132-01 + ASCENT)"
#> $ studies : chr "IMMU-132-01 (NCT01631552, n = 276 of which mTNBC = 24, mUC = 36, HR+/HER2- mBC = 32, other = 184) and ASCENT (N"| __truncated__
#> $ baseline_albumin_median: chr "38 g/L (range 19-50)"
#> $ baseline_clcr_median : chr "91 mL/min (range 22-262); 51% normal (>= 90), 38% mild impairment (60 to < 90), 11% moderate impairment (30 to "| __truncated__
#> $ notes : chr "Sacituzumab govitecan is an ADC of an anti-Trop-2 humanized monoclonal antibody (hRS7) covalently linked to the"| __truncated__
#> $ dosing_note : chr "Each SG infusion event generates inputs to both the SG compartment and the tAB compartment. To simulate, provid"| __truncated__Source trace
| Equation / parameter | Value | Source location |
|---|---|---|
lclSG (SG CL) |
log(0.13333) L/h | Sathe 2024 Table 1; supplement Section 6.b TH(1) FIX |
lvcSG (SG V1) |
log(2.77011) L | Sathe 2024 Table 1; supplement Section 6.b TH(2) FIX |
lqSG (SG Q) |
log(0.0055141) L/h | Sathe 2024 Table 1; supplement Section 6.b TH(3) FIX |
lvpSG (SG V2) |
log(0.907787) L | Sathe 2024 Table 1; supplement Section 6.b TH(4) FIX |
allo_clSG (Body-wt exponent on SG CL/Q) |
0.507571 | Sathe 2024 Table 1; supplement Section 6.b TH(6) FIX |
allo_vSG (Body-wt exponent on SG V1/V2) |
0.532396 | Sathe 2024 Table 1; supplement Section 6.b TH(7) FIX |
e_alb_clSG (Baseline-albumin exponent on SG CL) |
-0.355253 | Sathe 2024 Table 1; supplement Section 6.b TH(8) FIX |
lkrel (log SG-to-SN-38 release rate) |
-2.34 (= 0.0961 1/h) | Sathe 2024 Table 2 |
lclSN38 (log apparent SN-38 CL) |
6.02 (= 409 L/h) | Sathe 2024 Table 2 |
lqSN38 (log apparent SN-38 Q) |
5.51 (= 247 L/h) | Sathe 2024 Table 2 |
lvcSN38 (apparent SN-38 V1, FIXED) |
log(49) L | Sathe 2024 Table 2; literature ref [19] (Klein 2002) |
lvpSN38 (apparent SN-38 V2, FIXED) |
log(2177) L | Sathe 2024 Table 2; literature ref [19] (Klein 2002) |
allo_clSN38 (Body-wt exponent on SN-38 CL/Q) |
0.500 | Sathe 2024 Table 2 |
lclTAB (tAB CL, baseline at t=0) |
log(0.016) L/h | Sathe 2024 Table 3 |
lvcTAB (tAB V1) |
log(3.06) L | Sathe 2024 Table 3 |
lqTAB (tAB Q) |
log(0.010) L/h | Sathe 2024 Table 3 |
lvpTAB (tAB V2) |
log(1.20) L | Sathe 2024 Table 3 |
allo_clTAB (Body-wt exponent on tAB CL/Q) |
0.372 | Sathe 2024 Table 3 |
allo_vTAB (Body-wt exponent on tAB V1/V2) |
0.446 | Sathe 2024 Table 3 |
e_alb_clTAB (Baseline-albumin exponent on tAB CL) |
-0.735 | Sathe 2024 Table 3 |
e_tumor_clTAB (Tumor-Other multiplicative on tAB
CL) |
-0.134 | Sathe 2024 Table 3 |
e_sex_vTAB (Male multiplicative on tAB V1) |
+0.121 | Sathe 2024 Table 3 |
maxRedTAB (Max relative reduction of tAB CL) |
16.7% | Sathe 2024 Table 3 |
keffTAB (tAB CL time-decline rate constant) |
6.08e-4 1/h | Sathe 2024 Table 3 |
| IIV variance on lclSG | 0.011 | Sathe 2024 Table 1 |
| IIV BLOCK(2) on lkrel + lclSN38 | (0.332, 0.269, 0.411) | Sathe 2024 Table 2 |
| IIV BLOCK(2) on lclTAB + lvcTAB | (0.100, 0.045, 0.046) | Sathe 2024 Table 3 |
| Residual SD on log SG | 0.204 | Sathe 2024 Table 1 |
| Residual SD on log SN-38 | 0.357 (= exp(-1.03)) | Sathe 2024 Table 2 |
| tAB additive residual SD | 27.3 ug/mL | Sathe 2024 Table 3 |
| tAB proportional residual SD | 0.207 | Sathe 2024 Table 3 |
| Equation: SG ODE (2-cmt linear) | n/a | Sathe 2024 Section 3.2; supplement Section 6.b $DES |
| Equation: free SN-38 ODE (sequential generation from SG via KREL) | n/a | Sathe 2024 Section 3.3; supplement Section 6.b $DES |
| Equation: tAB ODE (2-cmt linear with time-dependent CL) | n/a | Sathe 2024 Section 3.4; supplement Section 6.c |

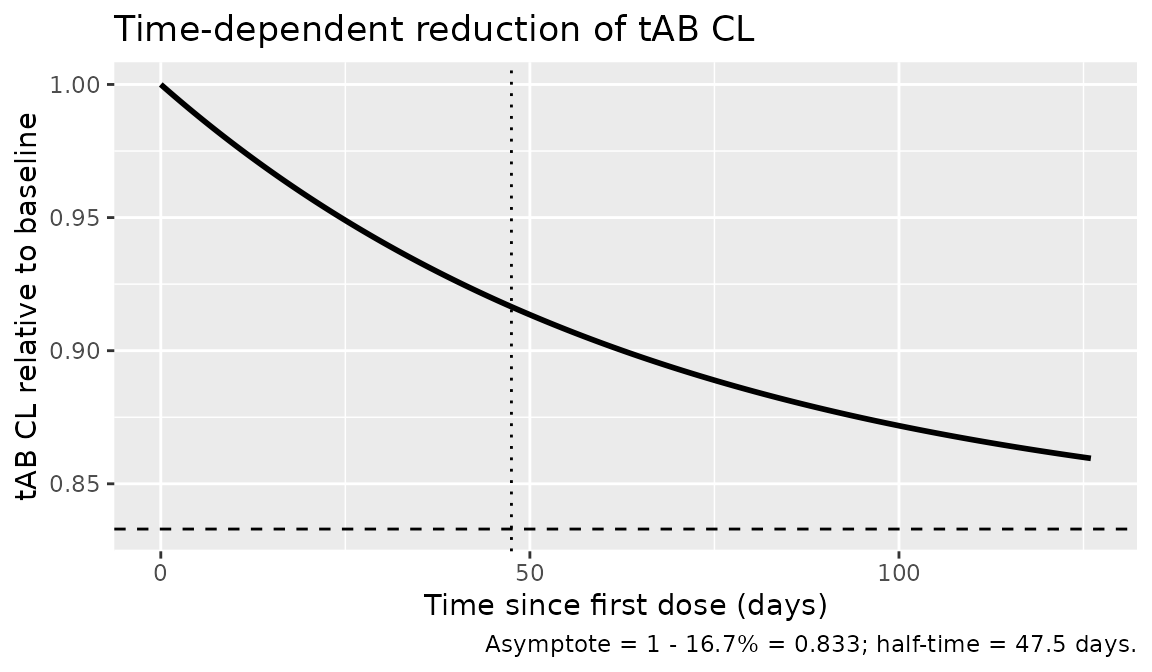

Equation: time-dependent tAB CL
1 - max/100 * (1 - exp(-keff*t))
|
n/a | Sathe 2024 Table 3; supplement Section 6.c $PK |
Virtual cohort
Original observed data are not publicly available. The simulation below uses a virtual cohort whose covariate distributions approximate Sathe 2024 Table S2: median body weight 70 kg (range 37-140), median baseline albumin 38 g/L (range 19-50), 78% female, and tumor-type composition matching the pooled analysis (52% mTNBC, 7% mUC, 6% HR+/HER2- mBC, 35% other solid tumors).
set.seed(20240405)
n_subj <- 200
make_cohort <- function(n) {
# Body weight: log-normal-ish around 70 kg, clamped to the source range.
wt <- pmin(pmax(round(rnorm(n, mean = 70, sd = 16), 1), 37), 140)
# Baseline albumin: normal around 38 g/L, clamped to the source range.
alb <- pmin(pmax(round(rnorm(n, mean = 38, sd = 5), 1), 19), 50)
# Sex 78% female.
sexf <- rbinom(n, 1, prob = 0.78)
# Tumor type: 35% "Other" (per Sathe 2024 Table S2: 184/529).
tumor_oth <- rbinom(n, 1, prob = 184/529)
data.frame(
id = seq_len(n),
WT = wt,
ALB = alb,
SEXF = sexf,
TUMTP_OTH = tumor_oth,
cohort = "10 mg/kg q1q8 of 21-day cycle"
)
}
cov_df <- make_cohort(n_subj)
# Build the event table: 10 mg/kg as a 30-min IV infusion on days 1 and 8 of a
# 21-day cycle, two cycles. Each SG infusion needs TWO simultaneous dose events
# (cmt = sgCentral and cmt = tabCentral) so that both compartments receive the
# same input mass at the same time (model file's documented dosing convention).
infusion_dur <- 0.5 # hours
dose_times_h <- c(0, 7 * 24, 21 * 24, 21 * 24 + 7 * 24) # days 1, 8, 22, 29
events <- cov_df |>
rowwise() |>
do({
rows <- .
amt_dose <- 10 * rows$WT # mg per dose at 10 mg/kg
rate_dose <- amt_dose / infusion_dur
dose_rows <- expand.grid(time = dose_times_h, cmt = c("sgCentral", "tabCentral"),
stringsAsFactors = FALSE)
dose_rows$id <- rows$id
dose_rows$amt <- amt_dose
dose_rows$rate <- rate_dose
dose_rows$evid <- 1
obs_rows <- data.frame(
id = rows$id,
time = c(0.001, seq(0.5, 21 * 24 + 7 * 24 + 14 * 24, length.out = 220)),
cmt = "Cc", amt = NA_real_, rate = NA_real_, evid = 0
)
out <- dplyr::bind_rows(dose_rows, obs_rows)
out$WT <- rows$WT
out$ALB <- rows$ALB
out$SEXF <- rows$SEXF
out$TUMTP_OTH <- rows$TUMTP_OTH
out$cohort <- rows$cohort
out
}) |>
ungroup() |>
arrange(id, time, evid)Simulation
mod <- rxode2::rxode(readModelDb("Sathe_2024_sacituzumab"))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- rxode2::rxSolve(mod, events = events, keep = c("cohort", "WT"))Typical-value simulation (no IIV / RUV) for replicating the paper’s per-figure medians:
mod_typical <- mod |> rxode2::zeroRe()
typical_cov <- data.frame(
id = 1, WT = 70, ALB = 38, SEXF = 1, TUMTP_OTH = 0
)
typical_events <- expand.grid(
time = dose_times_h, cmt = c("sgCentral", "tabCentral"),
stringsAsFactors = FALSE
)
typical_events$id <- 1
typical_events$amt <- 700
typical_events$rate <- 700 / infusion_dur
typical_events$evid <- 1
typical_obs <- data.frame(
id = 1,
time = c(0.001, seq(0.5, 21 * 24 + 7 * 24 + 14 * 24, length.out = 600)),
cmt = "Cc", amt = NA_real_, rate = NA_real_, evid = 0
)
typical_events <- dplyr::bind_rows(typical_events, typical_obs)
typical_events$WT <- 70
typical_events$ALB <- 38
typical_events$SEXF <- 1
typical_events$TUMTP_OTH <- 0
sim_typical <- rxode2::rxSolve(mod_typical, events = typical_events)
#> ℹ omega/sigma items treated as zero: 'etalclSG', 'etalkrel', 'etalclSN38', 'etalclTAB', 'etalvcTAB'Replicate published figures

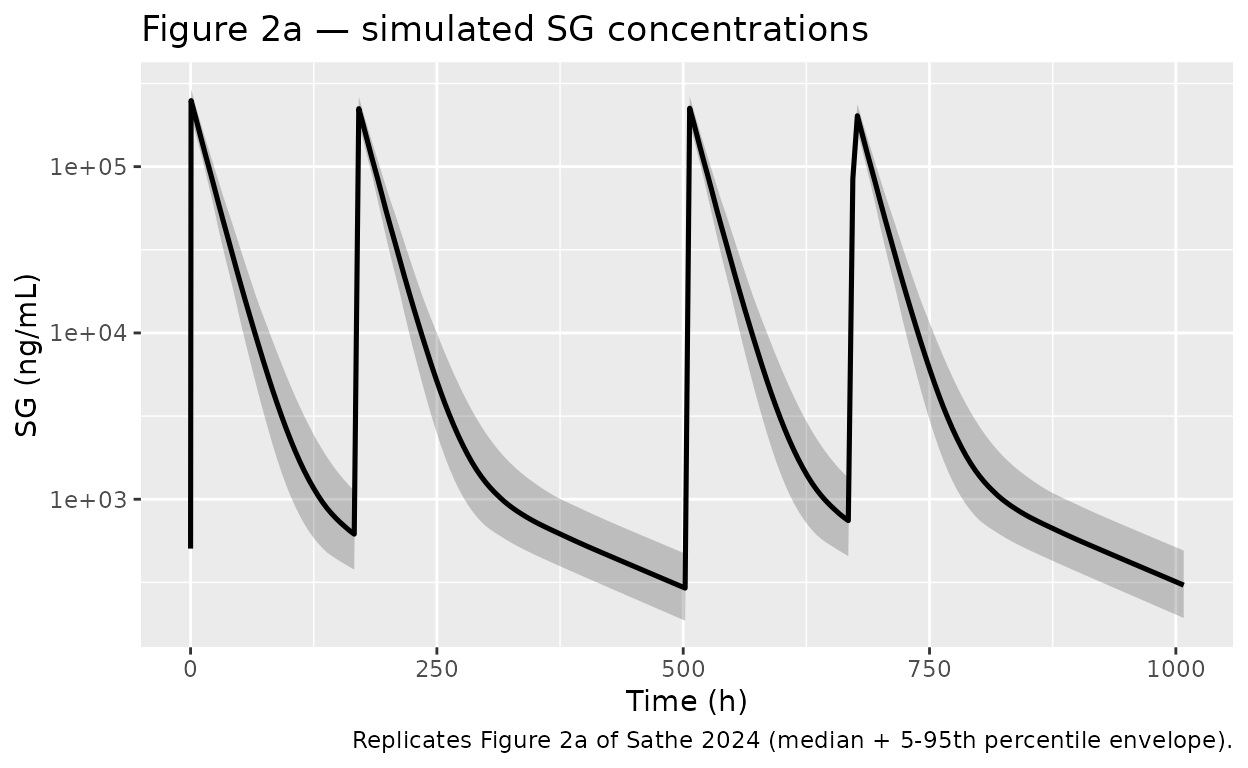

Figure 2a — SG concentrations versus time after last dose
The Sathe 2024 Figure 2a shows a prediction-corrected VPC for SG.
With virtual covariates and no observed data we show the simulated
5/50/95 percentiles versus time. Multiplying the model output
(Cc, in ug/mL) by 1000 converts to the paper’s reporting
unit ng/mL.
sim_sg <- sim |>
filter(time > 0) |>
mutate(SG_ng_per_mL = Cc * 1000)
sim_sg_summary <- sim_sg |>
group_by(time) |>
summarise(
Q05 = quantile(SG_ng_per_mL, 0.05, na.rm = TRUE),
Q50 = quantile(SG_ng_per_mL, 0.50, na.rm = TRUE),
Q95 = quantile(SG_ng_per_mL, 0.95, na.rm = TRUE),
.groups = "drop"
)
ggplot(sim_sg_summary, aes(time, Q50)) +
geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
geom_line(linewidth = 0.9) +
scale_y_log10() +
labs(x = "Time (h)", y = "SG (ng/mL)",
title = "Figure 2a — simulated SG concentrations",
caption = "Replicates Figure 2a of Sathe 2024 (median + 5-95th percentile envelope).")

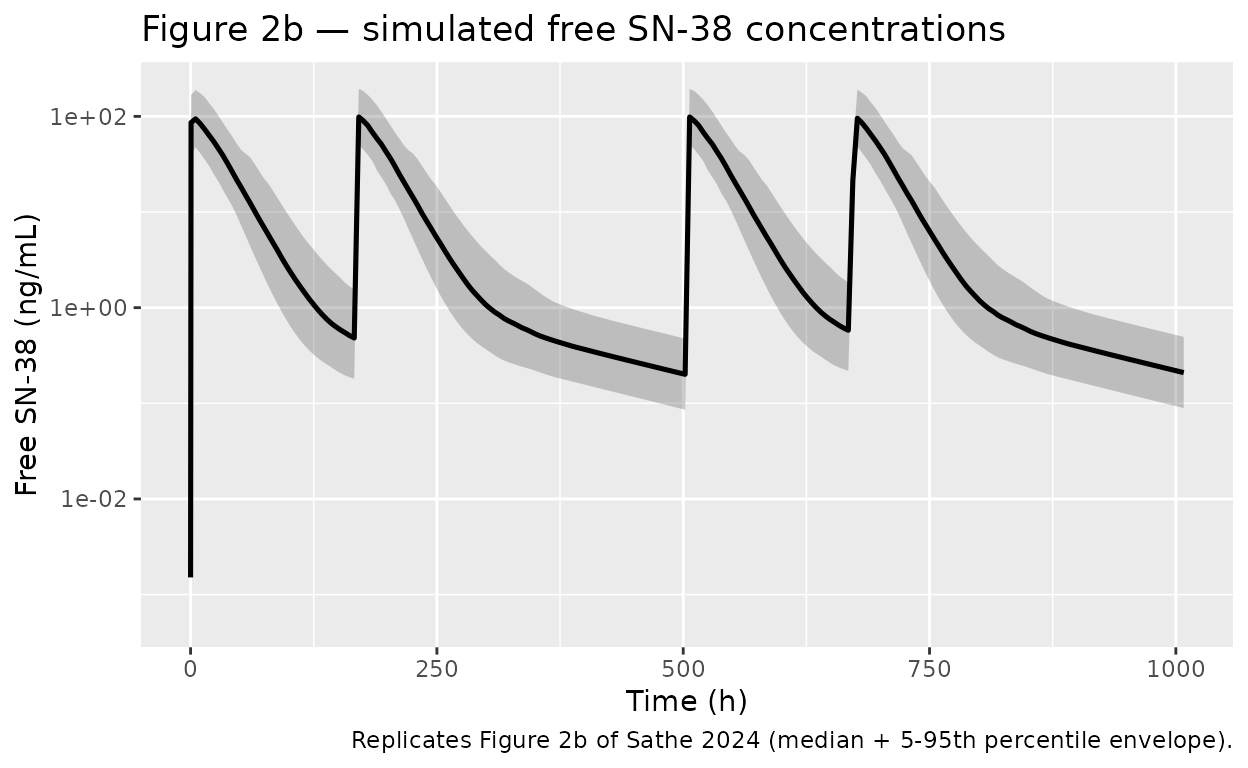

Figure 2b — Free SN-38 concentrations versus time
sim_sn38 <- sim |>
filter(time > 0) |>
mutate(SN38_ng_per_mL = Csn38 * 1000)
sim_sn38_summary <- sim_sn38 |>
group_by(time) |>
summarise(
Q05 = quantile(SN38_ng_per_mL, 0.05, na.rm = TRUE),
Q50 = quantile(SN38_ng_per_mL, 0.50, na.rm = TRUE),
Q95 = quantile(SN38_ng_per_mL, 0.95, na.rm = TRUE),
.groups = "drop"
)
ggplot(sim_sn38_summary, aes(time, Q50)) +
geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
geom_line(linewidth = 0.9) +
scale_y_log10() +
labs(x = "Time (h)", y = "Free SN-38 (ng/mL)",
title = "Figure 2b — simulated free SN-38 concentrations",
caption = "Replicates Figure 2b of Sathe 2024 (median + 5-95th percentile envelope).")

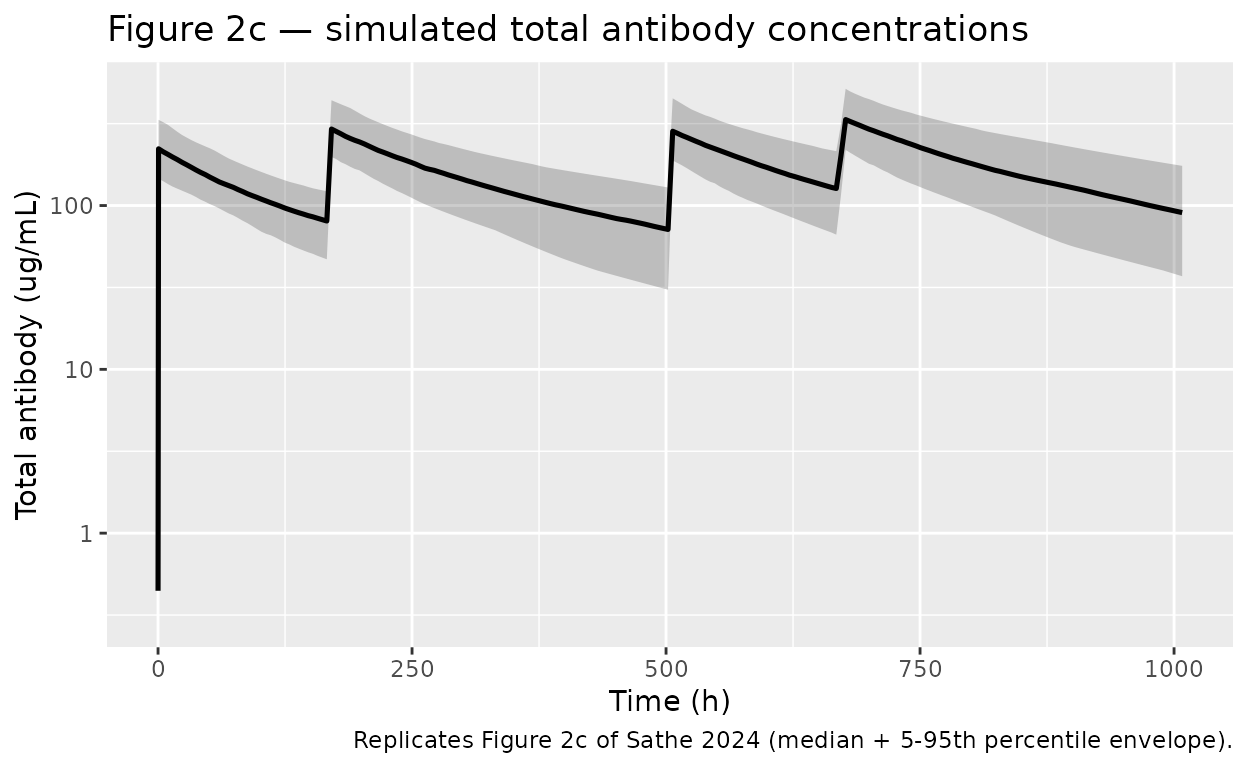

Figure 2c — Total antibody concentrations versus time
sim_tab <- sim |>
filter(time > 0)
sim_tab_summary <- sim_tab |>
group_by(time) |>
summarise(
Q05 = quantile(Ctab, 0.05, na.rm = TRUE),
Q50 = quantile(Ctab, 0.50, na.rm = TRUE),
Q95 = quantile(Ctab, 0.95, na.rm = TRUE),
.groups = "drop"
)
ggplot(sim_tab_summary, aes(time, Q50)) +
geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
geom_line(linewidth = 0.9) +
scale_y_log10() +
labs(x = "Time (h)", y = "Total antibody (ug/mL)",
title = "Figure 2c — simulated total antibody concentrations",
caption = "Replicates Figure 2c of Sathe 2024 (median + 5-95th percentile envelope).")
Figure 3a — body-weight effect on SG AUC
Sathe 2024 Figure 3a/b show that body weights at the 5th (49 kg) and 95th (110 kg) percentiles produce SG AUC of 0.84 (95% CI 0.81-0.86) and 1.25 (95% CI 1.21-1.29) relative to a 70 kg typical patient, with constant 10 mg/kg mg/kg dosing. Reproduce with the typical-value model:
bw_grid <- c(49, 70, 110)
out_bw <- lapply(bw_grid, function(wt) {
ev <- expand.grid(time = dose_times_h, cmt = c("sgCentral", "tabCentral"),
stringsAsFactors = FALSE)
ev$id <- 1
ev$amt <- 10 * wt
ev$rate <- (10 * wt) / infusion_dur
ev$evid <- 1
obs <- data.frame(id = 1, time = c(0.001, seq(0.5, 21 * 24, length.out = 250)),
cmt = "Cc", amt = NA_real_, rate = NA_real_, evid = 0)
ev <- bind_rows(ev, obs)
ev$WT <- wt; ev$ALB <- 38; ev$SEXF <- 1; ev$TUMTP_OTH <- 0
s <- rxode2::rxSolve(mod_typical, events = ev)
data.frame(WT = wt, time = s$time, Cc = s$Cc, Ctab = s$Ctab)
})
#> ℹ omega/sigma items treated as zero: 'etalclSG', 'etalkrel', 'etalclSN38', 'etalclTAB', 'etalvcTAB'
#> ℹ omega/sigma items treated as zero: 'etalclSG', 'etalkrel', 'etalclSN38', 'etalclTAB', 'etalvcTAB'
#> ℹ omega/sigma items treated as zero: 'etalclSG', 'etalkrel', 'etalclSN38', 'etalclTAB', 'etalvcTAB'
out_bw <- bind_rows(out_bw)
# AUC over the first 21-day treatment cycle via trapezoidal rule
trapz <- function(x, y) sum(diff(x) * (head(y, -1) + tail(y, -1)) / 2)
auc_first_cycle <- out_bw |>
filter(time <= 21 * 24) |>
group_by(WT) |>
summarise(
AUC_SG_ug_h_per_mL = trapz(time, Cc),
AUC_TAB_ug_h_per_mL = trapz(time, Ctab),
.groups = "drop"
)
ref_70 <- auc_first_cycle |> filter(WT == 70)
auc_relative <- auc_first_cycle |>
mutate(
SG_AUC_rel = AUC_SG_ug_h_per_mL / ref_70$AUC_SG_ug_h_per_mL,
TAB_AUC_rel = AUC_TAB_ug_h_per_mL / ref_70$AUC_TAB_ug_h_per_mL
)
knitr::kable(auc_relative, digits = 3,
caption = "Body-weight effect on first-cycle AUC relative to a 70 kg typical patient.")| WT | AUC_SG_ug_h_per_mL | AUC_TAB_ug_h_per_mL | SG_AUC_rel | TAB_AUC_rel |
|---|---|---|---|---|
| 49 | 8825.842 | 55778.47 | 0.839 | 0.807 |
| 70 | 10518.741 | 69115.28 | 1.000 | 1.000 |
| 110 | 13138.178 | 90665.72 | 1.249 | 1.312 |
The simulated SG AUC ratios at 49 kg and 110 kg should bracket roughly 0.84 and 1.25 respectively (Sathe 2024 Figure 3a). Total antibody AUC scales slightly more with body weight because the dosing regimen is mg/kg-based and the allometric exponents on tAB CL/V are less than 1.
PKNCA validation
Per Sathe 2024 Section 3.5, the simulated first-cycle AUC and Cmax
are compared across body-weight strata. Run PKNCA separately for each
analyte; carry the weight-band stratification through
keep.
sim_first_cycle <- sim |>
filter(time > 0, time <= 21 * 24) |>
mutate(
weight_band = case_when(
WT < 60 ~ "Low (<60 kg)",
WT > 90 ~ "High (>90 kg)",
TRUE ~ "Mid (60-90 kg)"
)
)
dose_first_cycle <- events |>
filter(evid == 1, cmt == "sgCentral", time < 21 * 24) |>
mutate(weight_band = case_when(
WT < 60 ~ "Low (<60 kg)",
WT > 90 ~ "High (>90 kg)",
TRUE ~ "Mid (60-90 kg)"
)) |>
select(id, time, amt, weight_band)SG NCA
sim_sg_nca <- sim_first_cycle |>
filter(!is.na(Cc)) |>
select(id, time, Cc, weight_band)
conc_sg <- PKNCA::PKNCAconc(sim_sg_nca, Cc ~ time | weight_band + id,
concu = "ug/mL", timeu = "h")
dose_sg <- PKNCA::PKNCAdose(dose_first_cycle, amt ~ time | weight_band + id,
doseu = "mg")
intervals_sg <- data.frame(
start = 0,
end = 21 * 24,
cmax = TRUE,
tmax = TRUE,
auclast = TRUE
)
nca_sg <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_sg, dose_sg, intervals = intervals_sg))
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
sg_summary <- as.data.frame(nca_sg$result) |>
filter(PPTESTCD %in% c("cmax", "auclast")) |>
group_by(weight_band, PPTESTCD) |>
summarise(median = median(PPORRES, na.rm = TRUE),
q05 = quantile(PPORRES, 0.05, na.rm = TRUE),
q95 = quantile(PPORRES, 0.95, na.rm = TRUE),
.groups = "drop")
knitr::kable(sg_summary, digits = 2,
caption = "Simulated first-cycle SG Cmax (ug/mL) and AUClast (ug*h/mL) by body-weight band.")| weight_band | PPTESTCD | median | q05 | q95 |
|---|---|---|---|---|
| High (>90 kg) | auclast | NA | NA | NA |
| High (>90 kg) | cmax | 293.45 | 281.67 | 313.48 |
| Low (<60 kg) | auclast | NA | NA | NA |
| Low (<60 kg) | cmax | 220.33 | 185.48 | 231.10 |
| Mid (60-90 kg) | auclast | NA | NA | NA |
| Mid (60-90 kg) | cmax | 256.50 | 232.79 | 277.30 |
Free SN-38 NCA
sim_sn38_nca <- sim_first_cycle |>
filter(!is.na(Csn38)) |>
select(id, time, Csn38, weight_band)
names(sim_sn38_nca)[names(sim_sn38_nca) == "Csn38"] <- "Cc"
conc_sn38 <- PKNCA::PKNCAconc(sim_sn38_nca, Cc ~ time | weight_band + id,
concu = "ug/mL", timeu = "h")
nca_sn38 <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_sn38, dose_sg,
intervals = intervals_sg))
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
sn38_summary <- as.data.frame(nca_sn38$result) |>
filter(PPTESTCD %in% c("cmax", "auclast")) |>
group_by(weight_band, PPTESTCD) |>
summarise(median = median(PPORRES, na.rm = TRUE),
q05 = quantile(PPORRES, 0.05, na.rm = TRUE),
q95 = quantile(PPORRES, 0.95, na.rm = TRUE),
.groups = "drop")
knitr::kable(sn38_summary, digits = 4,
caption = "Simulated first-cycle free SN-38 Cmax (ug/mL) and AUClast (ug*h/mL) by body-weight band.")| weight_band | PPTESTCD | median | q05 | q95 |
|---|---|---|---|---|
| High (>90 kg) | auclast | NA | NA | NA |
| High (>90 kg) | cmax | 0.1189 | 0.0587 | 0.1845 |
| Low (<60 kg) | auclast | NA | NA | NA |
| Low (<60 kg) | cmax | 0.0703 | 0.0388 | 0.1676 |
| Mid (60-90 kg) | auclast | NA | NA | NA |
| Mid (60-90 kg) | cmax | 0.1043 | 0.0605 | 0.2003 |
Total antibody NCA
sim_tab_nca <- sim_first_cycle |>
filter(!is.na(Ctab)) |>
select(id, time, Ctab, weight_band)
names(sim_tab_nca)[names(sim_tab_nca) == "Ctab"] <- "Cc"
conc_tab <- PKNCA::PKNCAconc(sim_tab_nca, Cc ~ time | weight_band + id,
concu = "ug/mL", timeu = "h")
nca_tab <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_tab, dose_sg,
intervals = intervals_sg))
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
tab_summary <- as.data.frame(nca_tab$result) |>
filter(PPTESTCD %in% c("cmax", "auclast")) |>
group_by(weight_band, PPTESTCD) |>
summarise(median = median(PPORRES, na.rm = TRUE),
q05 = quantile(PPORRES, 0.05, na.rm = TRUE),
q95 = quantile(PPORRES, 0.95, na.rm = TRUE),
.groups = "drop")
knitr::kable(tab_summary, digits = 2,
caption = "Simulated first-cycle total antibody Cmax (ug/mL) and AUClast (ug*h/mL) by body-weight band.")| weight_band | PPTESTCD | median | q05 | q95 |
|---|---|---|---|---|
| High (>90 kg) | auclast | NA | NA | NA |
| High (>90 kg) | cmax | 357.27 | 262.29 | 537.40 |
| Low (<60 kg) | auclast | NA | NA | NA |
| Low (<60 kg) | cmax | 248.32 | 161.31 | 349.07 |
| Mid (60-90 kg) | auclast | NA | NA | NA |
| Mid (60-90 kg) | cmax | 298.85 | 210.74 | 435.16 |
Comparison with published abstract values
The Sathe 2024 abstract reports population-typical CL of 0.133 L/h and Vss of 3.68 L for SG, and 0.0164 L/h / 4.26 L for tAB. With body-weight allometric scaling to 70 kg, infinite-time AUC after a single 700 mg dose simplifies to dose / CL.
auc_inf_predicted <- data.frame(
analyte = c("SG", "tAB"),
CL_pop_L_per_h = c(0.133, 0.0164),
Dose_mg = 700,
AUCinf_predicted_ug_h_per_mL = c(700 / 0.133, 700 / 0.0164)
)
knitr::kable(auc_inf_predicted, digits = 1,
caption = "Predicted single-dose AUCinf at 70 kg / 38 g/L typical covariate values: dose / CL.")| analyte | CL_pop_L_per_h | Dose_mg | AUCinf_predicted_ug_h_per_mL |
|---|---|---|---|
| SG | 0.1 | 700 | 5263.2 |
| tAB | 0.0 | 700 | 42682.9 |
Time-dependent CL of total antibody
Sathe 2024 Table 3 reports a maximum 16.7% relative reduction in tAB CL with a half-time of approximately 48 days (rate constant 6.08e-4 1/h). Reproduce this trajectory:
maxRed <- 16.7
keff <- 6.08e-4
t_grid <- seq(0, 21 * 6 * 24, length.out = 200) # 6 cycles = ~126 days
cl_factor <- 1 - (maxRed / 100) * (1 - exp(-keff * t_grid))
half_time_h <- log(2) / keff
half_time_days <- half_time_h / 24
ggplot(data.frame(time_days = t_grid / 24, cl_factor = cl_factor),
aes(time_days, cl_factor)) +
geom_line(linewidth = 1) +
geom_hline(yintercept = 1 - maxRed / 100, linetype = "dashed") +
geom_vline(xintercept = half_time_days, linetype = "dotted") +
labs(x = "Time since first dose (days)",
y = "tAB CL relative to baseline",
title = "Time-dependent reduction of tAB CL",
caption = sprintf(
"Asymptote = 1 - %.1f%% = %.3f; half-time = %.1f days.",
maxRed, 1 - maxRed / 100, half_time_days
))
Assumptions and deviations
-
Dosing convention. Each SG infusion event is
represented in the event table as TWO simultaneous dose rows (one with
cmt = "sgCentral", one withcmt = "tabCentral") so that the SG and tAB compartments receive the same input mass at the same time. This matches the source paper’s setup, in which the SG and tAB models were fit independently using the SG dose directly. - tAB CL / V “true” vs. model values. Sathe 2024 Methods 2.3 reports that the “true” tAB CL and volume parameters are the model estimates multiplied by 0.92 (mass ratio of naked antibody to SG). The values stored in this model are the model-fit estimates intended to be used with the SG dose directly, not the 0.92-scaled “true” values. Multiply by 0.92 when comparing against per-mass-of-antibody PK estimates from other sources.
-
Compartment names. Multi-output ADC simulation
requires named compartments (
sgCentral,sgPeripheral1,sn38Central,sn38Peripheral1,tabCentral,tabPeripheral1) outside the canonicalcentral/peripheral1set defined innaming-conventions.md.nlmixr2lib::checkModelConventionsflags these compartments as warnings; this is by design for multi-analyte models (see alsoBender_2014_trastuzumabEmtansine_mechanistic). -
Time-after-last-dose effect on residual error.
Sathe 2024 Tables 1 and 2 report a small TALD effect that scales the
residual variance for SG (
+0.005per hour of TALD onW^2) and free SN-38 (+0.011per hour). These effects are dropped from the simulation residual model so that the proportional SD is constant at the baseline values 0.204 (SG) and 0.357 (SN-38). Including them would primarily widen the prediction envelope at late post-dose times; the median trajectory is unaffected. -
Study-indicator effect on residual error. Sathe
2024 Tables 2 and 3 report a study-IMMU-132-01 indicator on RUV (-0.230
for free SN-38 and -0.250 for tAB on
W). This is also dropped from the simulation; the simulated cohort is treated as a single pooled population. - Race covariate. Race was tested but not retained in any of the three final models (Sathe 2024 Section 3.6); it does not appear in the model and is not required in the simulation event table.
- Tumor-Trop-2 expression, UGT1A1 genotype, ECOG status, renal/hepatic function, ADA, age, prior treatment, prior lines of therapy. Tested but not retained as final covariates in any model (Sathe 2024 Section 3.6).
- Virtual cohort distribution. The body-weight, baseline-albumin, sex, and tumor-type distributions in the simulation cohort are reconstructed from Sathe 2024 Table S2 summary statistics (medians, ranges, percentages). The individual-level covariate joint distribution is not published.
-
Time reference for the time-dependent CL. The
expression
1 - maxRedTAB/100 * (1 - exp(-keffTAB * t))uses the rxode2 simulation time variablet, which is referenced to the first dose att = 0. Match the simulation start to the start of treatment when reproducing the time- decline trajectory.
