Model and source

Arshad et al. (2021) analysed routine therapeutic-drug-monitoring (TDM) concentrations of high-dose methotrexate (MTX) from adults treated at the University Hospital of Cologne and used the model to compare BSA-based, flat and BSA-stratified dosing. The paper contributes two models:

  • Arshad_2021_methotrexate – the final model: three compartments, linear elimination, covariates on CL, used by the authors for every simulation.

  • Arshad_2021_methotrexate_nonlinear – the combined linear + Michaelis-Menten elimination model of the Supplementary Table, which fitted better (OFV -70) but was unstable and slow, so the authors did not carry it forward.

  • Citation: Arshad U, Taubert M, Seeger-Nukpezah T, Ullah S, Spindeldreier KC, Jaehde U, Hallek M, Fuhr U, Vehreschild JJ, Jakob C. Evaluation of body-surface-area adjusted dosing of high-dose methotrexate by population pharmacokinetics in a large cohort of cancer patients. BMC Cancer. 2021;21:719. doi:10.1186/s12885-021-08443-x

  • Description (final model): Three-compartment population PK model for high-dose intravenous methotrexate (4 h or 24 h infusion) in adults with haematological malignancies or solid tumours (Arshad 2021), with linear elimination. Clearance carries power effects of baseline serum creatinine (centred at 0.74 mg/dL), age (58 years) and body surface area (1.73 m^2) and a fractional decrease in women; correlated inter-individual variability on CL and central volume and inter-occasion (per treatment cycle) variability on CL; combined additive and exponential residual error.

  • Description (combined model): Three-compartment population PK model for high-dose intravenous methotrexate in adults with haematological malignancies or solid tumours (Arshad 2021, supplementary combined model), with parallel linear and Michaelis-Menten elimination from the central compartment. The linear clearance carries power effects of baseline serum creatinine (centred at 0.74 mg/dL) and age (58 years) and a fractional decrease in women; correlated inter-individual variability on linear CL and central volume; combined additive and exponential residual error. The authors preferred the linear-elimination model (Arshad_2021_methotrexate) for covariate and dosing work because this model’s estimation was unstable.

  • Article: https://doi.org/10.1186/s12885-021-08443-x (BMC Cancer 2021;21:719, open access)

  • Supplement: Additional file 1 (Supplementary Table, GOF and NPC figures) on the article page.

Both models work in amounts of umol and concentrations of umol/L, the units of the paper’s TDM thresholds, assay LLOQ and Figures 1-2. Convert a mg dose with the molecular weight of methotrexate (454.44 g/mol).

mw_mtx <- 454.44 # g/mol
mg_to_umol <- function(mg) mg / mw_mtx * 1000

Population

229 adults (83 women, 36%) with haematological malignancies or solid tumours treated with high-dose MTX between 2005 and 2018 contributed 2182 concentrations (1-65 per patient, median 7) over a median of 3 treatment cycles (range 1-9). Most infusions ran over 4 h or 24 h. Median (range) age was 58 (19-82) years, weight 78.4 (41.5-227) kg, BSA 1.96 (1.34-3.42) m^2 and serum creatinine 0.74 (0.36-1.66) mg/dL; women were older (median 66 vs 51 years), smaller (BSA 1.80 vs 2.06 m^2) and had lower creatinine (0.67 vs 0.84 mg/dL) than men (Arshad 2021 Table 1). Low-aggressive non-Hodgkin lymphoma (101) and acute lymphoblastic leukaemia (64) were the commonest diagnoses (Table 2).

The same information is available programmatically via readModelDb("Arshad_2021_methotrexate")()$population.

Source trace

Every ini() value carries an in-file comment naming its source; the table collects them. Table 3 of the paper prints bootstrap medians for the final model; the Supplementary Table prints bootstrap means for the combined model.

Parameter Final model Combined model Source
CL / linear CL (L/h) 4.52 4.77 Eq. 4 typical value (Table 3 bootstrap median 4.33) / Suppl. Table LCL
Vmax (umol/h) – 2.46 Suppl. Table
Km (umol/L) – 1.02 Suppl. Table
V1 (L) 4.29 1.12 Table 3 / Suppl. Table
V2 (L) 2.51 3.87 Table 3 / Suppl. Table
V3 (L) 2.36 5.08 Table 3 / Suppl. Table
Q1 (L/h) 0.37 0.52 Table 3 / Suppl. Table
Q2 (L/h) 0.02 0.04 Table 3 / Suppl. Table
SCr exponent (ref 0.74 mg/dL) -0.49 -0.91 Eq. 4 and Table 3 / Suppl. Table
Age exponent (ref 58 y) -0.18 -0.23 Eq. 4 and Table 3 / Suppl. Table
Female fractional change -0.16 -0.28 Eq. 4 and Table 3 / Suppl. Table
BSA exponent (ref 1.73 m^2) +0.23 not included Table 3 (Eq. 4 prints -0.23; see below)
omega^2 CL, V1, cov 0.11, 1.34, 0.29 0.07, 2.127, 0.10 Table 3 / Suppl. Table
IOV omega^2 CL (per cycle) 0.09 not encoded Table 3 / see below
Additive sigma^2 0.02 0.02 Table 3 / Suppl. Table
Exponential sigma^2 0.26 0.22 Table 3 / Suppl. Table
CL = 4.52 (SCr/0.74)^-0.49 (Age/58)^-0.18 (BSA/1.73)^0.23 (1 - 0.16 Sex) Eq. 4 (BSA sign from Table 3)
Three-compartment linear disposition Results, ‘PK model’

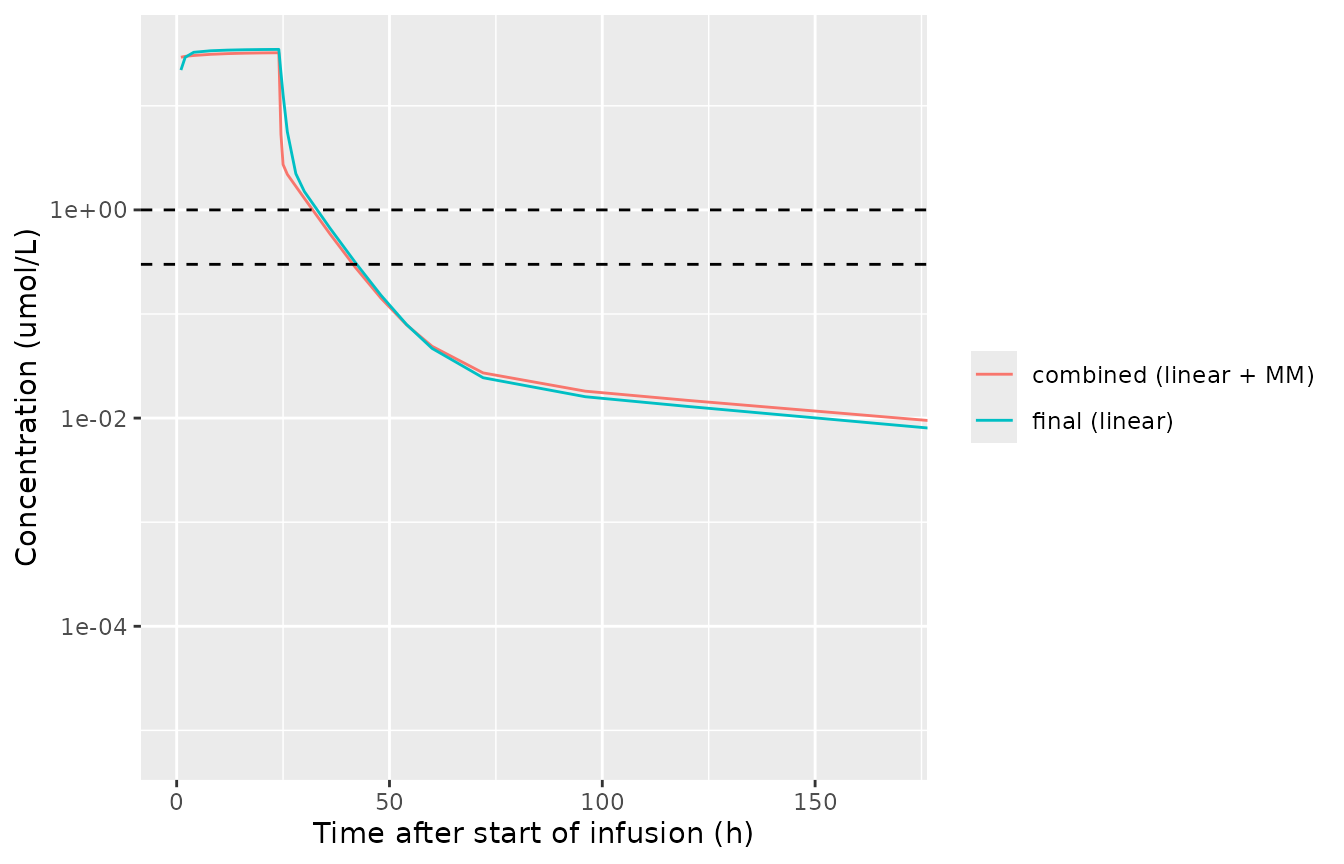

Linear + Michaelis-Menten elimination Results, ‘PK model’; Suppl. Table

Typical-value clearance (Eq. 4)

A deterministic check that the model reproduces Eq. 4: the reference patient (man, 58 years, SCr 0.74 mg/dL, BSA 1.73 m^2) has CL = 4.52 L/h, and each covariate moves CL by exactly its printed factor.

mod <- readModelDb("Arshad_2021_methotrexate")
mod_typ <- rxode2::zeroRe(mod)
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line

eq4_pat <- tibble::tribble(
  ~case,                 ~SEXF, ~AGE, ~CREAT, ~BSA,
  "reference man",           0,   58,   0.74, 1.73,
  "woman",                   1,   58,   0.74, 1.73,
  "SCr 1.48 mg/dL",          0,   58,   1.48, 1.73,
  "age 29 years",            0,   29,   0.74, 1.73,
  "BSA 2.30 m^2",            0,   58,   0.74, 2.30
) |>
  mutate(id = row_number(), OCC = 1)

eq4_ev <- eq4_pat |>
  mutate(time = 0, amt = 1000, rate = 1000 / 24, evid = 1, cmt = "central") |>
  bind_rows(eq4_pat |> mutate(time = 12, amt = 0, rate = 0, evid = 0, cmt = "central")) |>
  arrange(id, time, desc(evid))

eq4_sim <- rxode2::rxSolve(mod_typ, events = eq4_ev, keep = "case") |>
  as.data.frame() |>
  distinct(case, cl)
#> Warning: multi-subject simulation without without 'omega'

eq4_expected <- 4.52 * c(1, 1 - 0.16, 2^-0.49, 0.5^-0.18, (2.30 / 1.73)^0.23)
eq4_sim$expected <- eq4_expected
knitr::kable(eq4_sim, digits = 4, caption = "Clearance (L/h) from the model vs Eq. 4.")
Clearance (L/h) from the model vs Eq. 4.
case cl expected
reference man 4.5200 4.5200
woman 3.7968 3.7968
SCr 1.48 mg/dL 3.2184 3.2184
age 29 years 5.1206 5.1206
BSA 2.30 m^2 4.8260 4.8260
stopifnot(
  nrow(eq4_sim) == 5,
  max(abs(eq4_sim$cl / eq4_sim$expected - 1)) < 1e-10
)

Virtual cohort

The paper does not describe how its virtual patients were generated beyond their stratification by BSA quartile. The cohort below is drawn in base R (so it is identical on every machine) from sex-specific distributions matching Table 1: 36% women; BSA log-normal around the sex-specific medians, truncated to the observed ranges by redrawing; age and serum creatinine likewise by sex. The spreads were chosen so the cohort’s BSA quartiles sit near the 1.7 and 2.12 m^2 cut-offs of Table 4.

set.seed(20210618)
n_sub <- 200
rtrunc <- function(n, draw, lo, hi) {
  x <- draw(n)
  while (any(bad <- x < lo | x > hi)) x[bad] <- draw(sum(bad))
  x
}
sexf <- rbinom(n_sub, 1, 83 / 229)
nf <- sum(sexf)
nm <- n_sub - nf
cohort <- tibble(id = seq_len(n_sub), SEXF = sexf, BSA = NA_real_, AGE = NA_real_, CREAT = NA_real_)
cohort$BSA[sexf == 1] <- rtrunc(nf, function(k) exp(rnorm(k, log(1.78), 0.12)), 1.34, 2.11)
cohort$BSA[sexf == 0] <- rtrunc(nm, function(k) exp(rnorm(k, log(2.06), 0.13)), 1.54, 3.42)
cohort$AGE[sexf == 1] <- rtrunc(nf, function(k) rnorm(k, 66, 12), 19, 77)
cohort$AGE[sexf == 0] <- rtrunc(nm, function(k) rnorm(k, 51, 15), 19, 82)
cohort$CREAT[sexf == 1] <- rtrunc(nf, function(k) exp(rnorm(k, log(0.67), 0.25)), 0.38, 1.34)
cohort$CREAT[sexf == 0] <- rtrunc(nm, function(k) exp(rnorm(k, log(0.84), 0.25)), 0.36, 1.66)
bsa_q <- quantile(cohort$BSA, c(0, 0.25, 0.5, 0.75, 1))
cohort <- cohort |>
  mutate(
    bsa_group = cut(BSA, bsa_q, include.lowest = TRUE, labels = c("<25%", "25-50%", "50-75%", ">75%")),
    OCC = 1
  )
round(bsa_q, 2)
#>   0%  25%  50%  75% 100%
#> 1.39 1.77 1.94 2.10 3.19
cohort |>
  group_by(SEXF) |>
  summarise(n = n(), BSA = median(BSA), AGE = median(AGE), CREAT = median(CREAT)) |>
  knitr::kable(digits = 2, caption = "Virtual cohort medians by sex (SEXF = 1 women); compare Table 1.")
Virtual cohort medians by sex (SEXF = 1 women); compare Table 1.
SEXF n BSA AGE CREAT
0 122 2.04 51.14 0.86
1 78 1.77 65.10 0.69

Dosing regimens (Table 4)

Each virtual patient receives each of the three 24-h infusion regimens of Table 4 at a reference level of 2000 mg/m^2: BSA-based 2000 mg/m^2, flat 3400 mg, and stratified 3000 / 3400 / 3800 mg for BSA < 1.7, 1.7-2.12 and > 2.12 m^2. Subject identifiers are offset per regimen so the three arms stay disjoint.

obs_times <- c(0, 1, 2, 4, 8, 12, 16, 20, 24, 24.5, 25, 26, 28, 30, 36, 42, 48, 54, 60, 72, 96, 120, 168, 240, 336, 504, 672, 1008)

make_regimen <- function(cohort, regimen, dose_mg, id_offset) {
  subj <- cohort |>
    mutate(regimen = regimen, dose_mg = dose_mg, id = id + id_offset)
  dose <- subj |>
    mutate(time = 0, amt = mg_to_umol(dose_mg), rate = amt / 24, evid = 1, cmt = "central")
  obs <- subj |>
    tidyr::crossing(time = obs_times) |>
    mutate(amt = 0, rate = 0, evid = 0, cmt = "central")
  bind_rows(dose, obs) |> arrange(id, time, desc(evid))
}

strat_dose <- function(bsa, doses) {
  ifelse(bsa < 1.7, doses[1], ifelse(bsa <= 2.12, doses[2], doses[3]))
}

regimen_events <- function(level_mg_m2, flat_mg, strat_mg) {
  bind_rows(
    make_regimen(cohort, "BSA-based", level_mg_m2 * cohort$BSA, 0L),
    make_regimen(cohort, "Flat", flat_mg, 1000L),
    make_regimen(cohort, "Stratified", strat_dose(cohort$BSA, strat_mg), 2000L)
  )
}

ev_2000 <- regimen_events(2000, 3400, c(3000, 3400, 3800))
stopifnot(!anyDuplicated(unique(ev_2000[, c("id", "time", "evid")])))

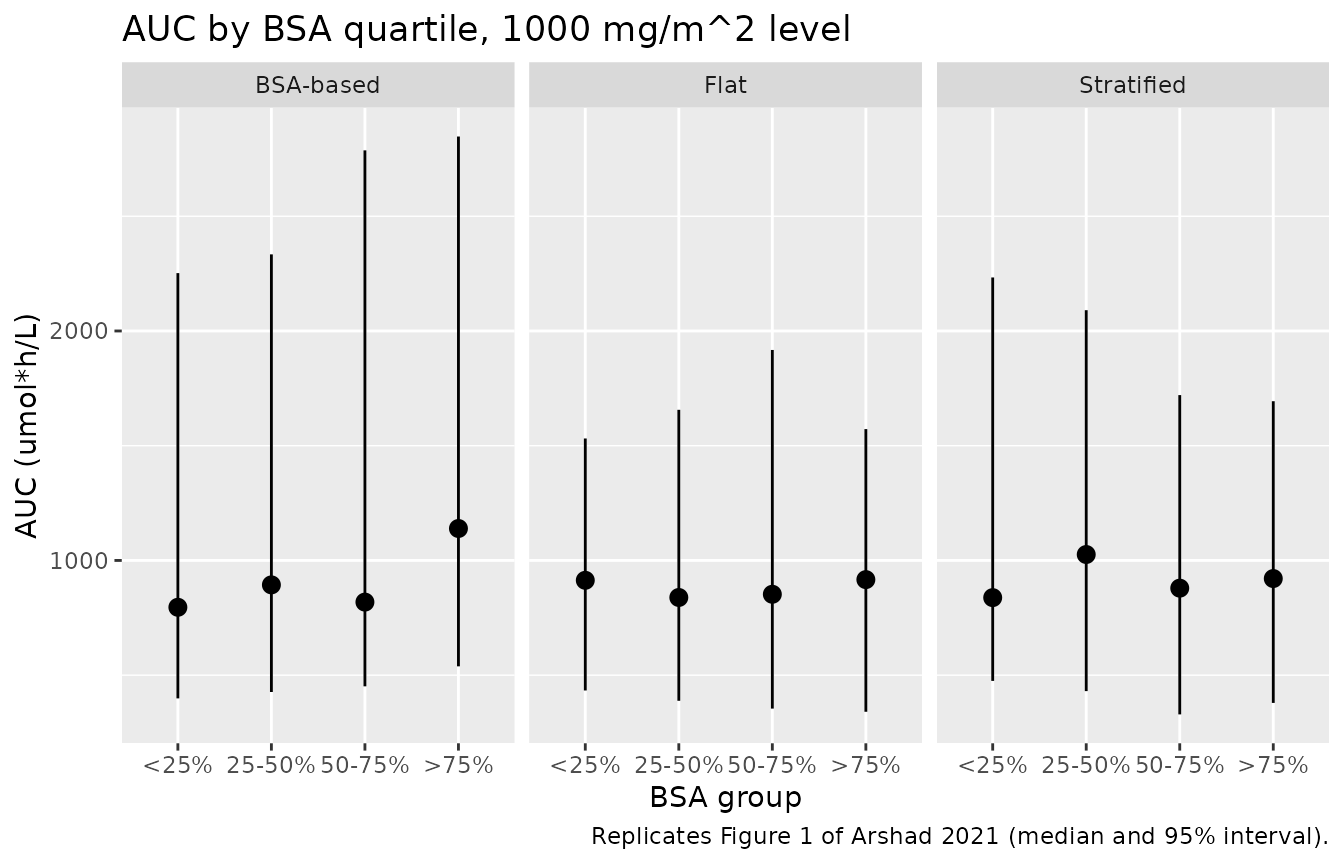

Replicate Figure 1: AUC by BSA quartile (typical values)

Figure 1 plots the median simulated AUC per BSA quartile for each regimen. Because MTX is linear in this model, the median AUC of a quartile is driven by the covariates; the typical-value solve below (random effects zeroed) gives it deterministically, and PKNCA computes the AUC from the simulated profiles.

sim_typ <- rxode2::rxSolve(
  mod_typ,
  events = ev_2000,
  keep = c("regimen", "bsa_group", "dose_mg", "BSA"),
  rtol = 1e-8, atol = 1e-10
) |>
  as.data.frame()
#> Warning: multi-subject simulation without without 'omega'

conc_df <- sim_typ |>
  filter(!is.na(Cc)) |>
  mutate(Cc = pmax(Cc, 0)) |>
  select(id, time, Cc, regimen, bsa_group)
dose_df <- ev_2000 |>
  filter(evid == 1) |>
  select(id, time, amt, regimen, bsa_group)

conc_obj <- PKNCA::PKNCAconc(conc_df, Cc ~ time | regimen + bsa_group + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | regimen + bsa_group + id)
intervals <- data.frame(start = 0, end = Inf, cmax = TRUE, aucinf.obs = TRUE, half.life = TRUE)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

# Structural identity: for linear elimination AUC(0-inf) = Dose / CL exactly.
auc_chk <- as.data.frame(nca_res$result) |>
  filter(PPTESTCD == "aucinf.obs") |>
  left_join(sim_typ |> distinct(id, cl), by = "id") |>
  left_join(dose_df |> select(id, amt), by = "id") |>
  mutate(pct_diff = 100 * (PPORRES / (amt / cl) - 1))
summary(auc_chk$pct_diff)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#> -0.4858 -0.4200 -0.4101 -0.4122 -0.3999 -0.3887
stopifnot(
  nrow(auc_chk) == 3 * n_sub,
  max(abs(auc_chk$pct_diff)) < 2
)

The AUC medians per quartile, digitised from Figure 1 (2000 mg/m^2 dose level), against the model:

fig1_ref <- tibble::tribble(
  ~regimen,     ~bsa_group, ~aucinf.obs,
  "BSA-based",  "<25%",     1720,
  "BSA-based",  "25-50%",   1896,
  "BSA-based",  "50-75%",   2044,
  "BSA-based",  ">75%",     2176,
  "Flat",       "<25%",     2115,
  "Flat",       "25-50%",   1929,
  "Flat",       "50-75%",   1786,
  "Flat",       ">75%",     1676,
  "Stratified", "<25%",     1995,
  "Stratified", "25-50%",   1978,
  "Stratified", "50-75%",   1835,
  "Stratified", ">75%",     1819
)
nca_auc <- as.data.frame(nca_res$result) |>
  filter(PPTESTCD == "aucinf.obs") |>
  mutate(bsa_group = as.character(bsa_group))
cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_auc,
  reference = fig1_ref,
  by = c("regimen", "bsa_group"),
  units = c(aucinf.obs = "umol*h/L"),
  tolerance_pct = 20
)
knitr::kable(cmp, caption = "Median AUC(0-inf) per BSA quartile: digitised Figure 1 (2000 mg/m^2 level) vs typical-value simulation. * differs by >20%.")
Median AUC(0-inf) per BSA quartile: digitised Figure 1 (2000 mg/m^2 level) vs typical-value simulation. * differs by >20%.
NCA parameter regimen bsa_group Reference Simulated % diff
AUC0-∞ (obs) (umol*h/L) BSA-based <25% 1720 1800 +4.8%
AUC0-∞ (obs) (umol*h/L) BSA-based 25-50% 1900 1870 -1.4%
AUC0-∞ (obs) (umol*h/L) BSA-based 50-75% 2040 1970 -3.7%
AUC0-∞ (obs) (umol*h/L) BSA-based >75% 2180 2280 +4.9%
AUC0-∞ (obs) (umol*h/L) Flat <25% 2120 1910 -9.6%
AUC0-∞ (obs) (umol*h/L) Flat 25-50% 1930 1720 -10.8%
AUC0-∞ (obs) (umol*h/L) Flat 50-75% 1790 1650 -7.5%
AUC0-∞ (obs) (umol*h/L) Flat >75% 1680 1670 -0.2%
AUC0-∞ (obs) (umol*h/L) Stratified <25% 2000 1790 -10.4%
AUC0-∞ (obs) (umol*h/L) Stratified 25-50% 1980 1720 -13.0%
AUC0-∞ (obs) (umol*h/L) Stratified 50-75% 1840 1650 -9.9%
AUC0-∞ (obs) (umol*h/L) Stratified >75% 1820 1860 +2.3%
pct <- as.numeric(gsub("[*%+]", "", cmp[["% diff"]]))
stopifnot(length(pct) == 12, all(!is.na(pct)), max(abs(pct)) < 20)

All twelve cells agree within 20%, although the paper’s virtual population is not described and cannot be matched exactly.

BSA exponent: Table 3 (+0.23) against Eq. 4 (-0.23)

Eq. 4 prints the BSA exponent as -0.23, whereas Table 3 prints +0.23, the Results state that ‘the higher clearance for higher BSA values more than compensated’ for the higher BSA-based doses, and Figure 1 shows the flat-dose AUC falling with BSA while the stratified doses of Table 4 rise with BSA. The packaged model uses +0.23. The check below regresses the flat-dose AUC on BSA across the cohort under both signs. The slope includes the effect of the covariates that travel with BSA (sex, age, creatinine), so it is not simply the exponent. The quartile medians of Figure 1 imply a slope near log(2115 / 1676) / log(1.38 / 2.21) = -0.49, where 1.38 and 2.21 m^2 are the quartile BSAs implied by the BSA-based / flat AUC ratios of the same figure.

flat_auc_slope <- function(m) {
  s <- rxode2::rxSolve(
    rxode2::zeroRe(m),
    events = make_regimen(cohort, "Flat", 3400, 0L) |> filter(evid == 1 | time == 0),
    keep = "BSA"
  ) |>
    as.data.frame() |>
    distinct(id, BSA, cl)
  unname(coef(lm(log(1 / cl) ~ log(BSA), data = s))[2])
}
slope_table3 <- flat_auc_slope(mod)
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: multi-subject simulation without without 'omega'
slope_eq4 <- flat_auc_slope(mod |> rxode2::ini(e_bsa_cl = -0.23))
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: multi-subject simulation without without 'omega'
c(table3_sign = slope_table3, eq4_sign = slope_eq4)
#> table3_sign    eq4_sign
#>  -0.3124529   0.1475471
# Table 3 sign: about -0.31 on this cohort; Eq. 4 sign: about +0.15. Figure 1
# needs a clearly negative slope. The bounds are deterministic (base-R cohort,
# typical-value solve) and the second one is the mutation control: it fails if
# the sign in the model file is flipped back to Eq. 4.
stopifnot(slope_table3 < -0.15, slope_eq4 > 0)

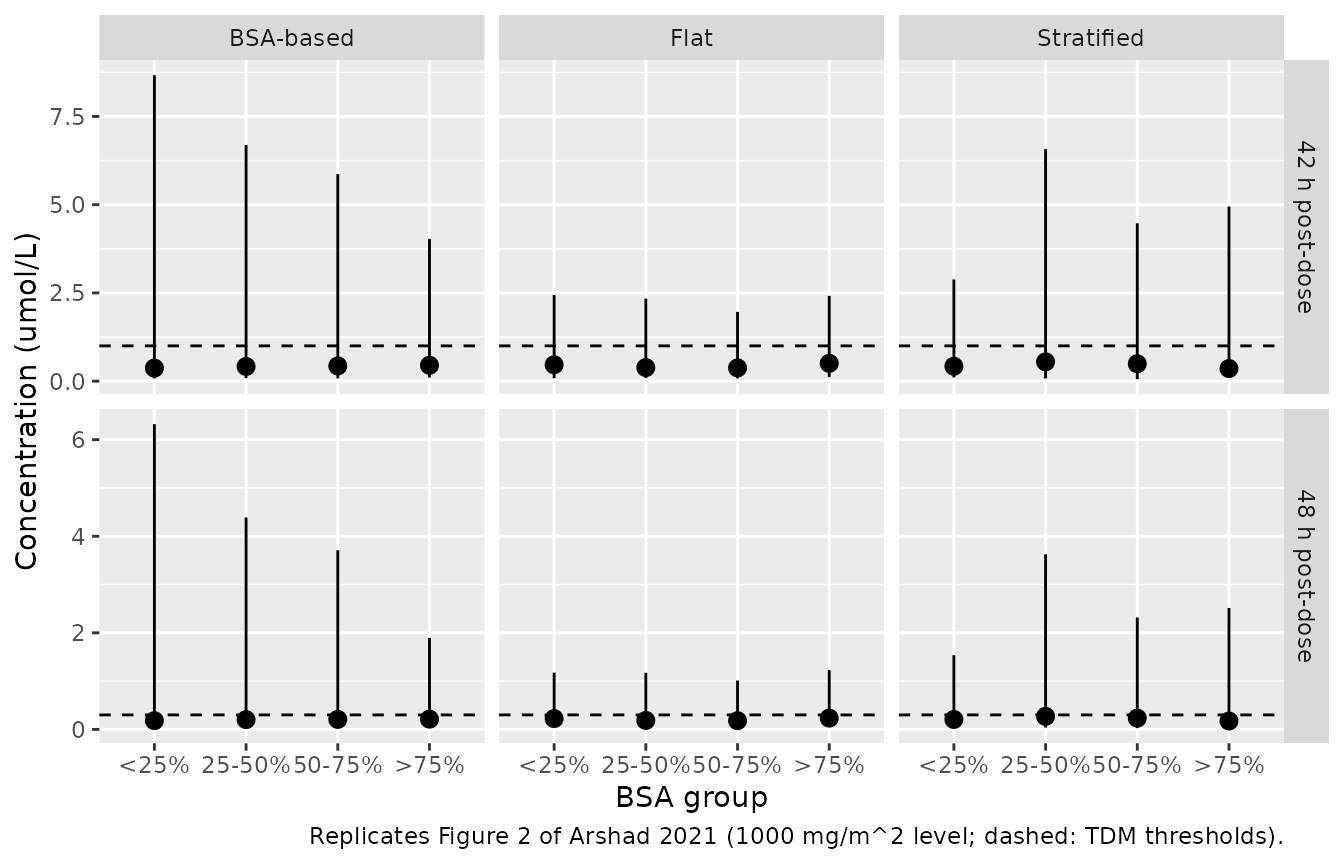

Replicate Figures 1 and 2 with variability

A stochastic simulation at the 1000 mg/m^2 level (flat 1700 mg; stratified 1550 / 1700 / 1900 mg) with between-subject and inter-occasion variability (one cycle, OCC = 1). AUC per subject is Dose / CL, exact for this linear model; concentrations at 42 and 48 h after the start of the infusion are read from the solve and compared with the TDM thresholds (1 and 0.3 umol/L).

rxode2::rxSetSeed(20210618)
ev_1000 <- regimen_events(1000, 1700, c(1550, 1700, 1900)) |>
  filter(evid == 1 | time %in% c(24, 42, 48))
sim_st <- rxode2::rxSolve(mod, events = ev_1000, keep = c("regimen", "bsa_group", "dose_mg")) |>
  as.data.frame()
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6, etaiov_cl_7, etaiov_cl_8, etaiov_cl_9
#> as a work-around try putting the mu-referenced expression on a simple line

auc_st <- sim_st |>
  distinct(id, regimen, bsa_group, dose_mg, cl) |>
  mutate(auc = mg_to_umol(dose_mg) / cl)

auc_st |>
  group_by(regimen, bsa_group) |>
  summarise(
    median = median(auc), lo = quantile(auc, 0.025), hi = quantile(auc, 0.975),
    .groups = "drop"
  ) |>
  ggplot(aes(bsa_group, median)) +
  geom_pointrange(aes(ymin = lo, ymax = hi)) +
  facet_wrap(~regimen) +
  labs(
    x = "BSA group", y = "AUC (umol*h/L)",
    title = "AUC by BSA quartile, 1000 mg/m^2 level",
    caption = "Replicates Figure 1 of Arshad 2021 (median and 95% interval)."
  )


# Centre check, robust to the cohort draw: the stochastic median AUC per
# regimen sits near the typical-value median (half the 2000 mg/m^2 values).
# Realised within about 7%; a mis-transcribed CL, dose or unit moves it by
# tens of percent.
typ_med <- nca_auc |> group_by(regimen) |> summarise(typ = median(PPORRES) / 2)
st_med <- auc_st |> group_by(regimen) |> summarise(st = median(auc)) |> left_join(typ_med, by = "regimen")
st_med
#> # A tibble: 3 × 3
#>   regimen       st   typ
#>   <chr>      <dbl> <dbl>
#> 1 BSA-based   925.  993.
#> 2 Flat        882.  859.
#> 3 Stratified  909.  881.
stopifnot(nrow(st_med) == 3, all(abs(st_med$st / st_med$typ - 1) < 0.25))
sim_st |>
  filter(time %in% c(42, 48)) |>
  group_by(time, regimen, bsa_group) |>
  summarise(
    median = median(Cc), lo = quantile(Cc, 0.025), hi = quantile(Cc, 0.975),
    .groups = "drop"
  ) |>
  mutate(
    time = paste(time, "h post-dose"),
    threshold = ifelse(time == "42 h post-dose", 1, 0.3)
  ) |>
  ggplot(aes(bsa_group, median)) +
  geom_pointrange(aes(ymin = lo, ymax = hi)) +
  geom_hline(aes(yintercept = threshold), linetype = "dashed") +
  facet_grid(time ~ regimen, scales = "free_y") +
  labs(
    x = "BSA group", y = "Concentration (umol/L)",
    caption = "Replicates Figure 2 of Arshad 2021 (1000 mg/m^2 level; dashed: TDM thresholds)."
  )

The medians of Figure 2 at the 1000 mg/m^2 level, digitised by the maintainers, against the stochastic medians and the typical-value medians (the 2000 mg/m^2 typical-value solve halved, exact for this linear model):

fig2_ref <- tibble::tribble(
  ~regimen,     ~bsa_group, ~C42,  ~C48,
  "BSA-based",  "<25%",     0.50,  0.242,
  "BSA-based",  "25-50%",   0.47,  0.226,
  "BSA-based",  "50-75%",   0.45,  0.215,
  "BSA-based",  ">75%",     0.43,  0.207,
  "Flat",       "<25%",     0.59,  0.285,
  "Flat",       "25-50%",   0.46,  0.223,
  "Flat",       "50-75%",   0.38,  0.183,
  "Flat",       ">75%",     0.32,  0.156,
  "Stratified", "<25%",     0.54,  0.261,
  "Stratified", "25-50%",   0.46,  0.223,
  "Stratified", "50-75%",   0.38,  0.183,
  "Stratified", ">75%",     0.37,  0.177
) |>
  pivot_longer(c(C42, C48), names_to = "time", values_to = "figure2") |>
  mutate(time = as.numeric(sub("C", "", time)))

fig2_st <- sim_st |>
  filter(time %in% c(42, 48)) |>
  mutate(bsa_group = as.character(bsa_group)) |>
  group_by(regimen, bsa_group, time) |>
  summarise(stochastic = median(Cc), .groups = "drop")
fig2_typ <- sim_typ |>
  filter(time %in% c(42, 48)) |>
  mutate(bsa_group = as.character(bsa_group)) |>
  group_by(regimen, bsa_group, time) |>
  summarise(typical = median(Cc) / 2, .groups = "drop")
fig2_cmp <- fig2_ref |>
  left_join(fig2_st, by = c("regimen", "bsa_group", "time")) |>
  left_join(fig2_typ, by = c("regimen", "bsa_group", "time")) |>
  mutate(
    pct_stochastic = 100 * (stochastic / figure2 - 1),
    pct_typical = 100 * (typical / figure2 - 1)
  )
fig2_cmp |>
  dplyr::rename(
    "Regimen" = regimen, "BSA group" = bsa_group, "Time (h)" = time,
    "Figure 2 (umol/L)" = figure2, "Stochastic median" = stochastic,
    "Typical-value median" = typical, "% diff stochastic" = pct_stochastic,
    "% diff typical" = pct_typical
  ) |>
  knitr::kable(digits = 3, caption = "Median concentration at 42 and 48 h after the start of a 24-h infusion, 1000 mg/m^2 level.")
Median concentration at 42 and 48 h after the start of a 24-h infusion, 1000 mg/m^2 level.
Regimen BSA group Time (h) Figure 2 (umol/L) Stochastic median Typical-value median % diff stochastic % diff typical
BSA-based <25% 42 0.500 0.371 0.423 -25.858 -15.480
BSA-based <25% 48 0.242 0.180 0.207 -25.427 -14.513
BSA-based 25-50% 42 0.470 0.416 0.365 -11.461 -22.415
BSA-based 25-50% 48 0.226 0.202 0.177 -10.512 -21.482
BSA-based 50-75% 42 0.450 0.432 0.372 -4.086 -17.367
BSA-based 50-75% 48 0.215 0.207 0.181 -3.758 -15.982
BSA-based >75% 42 0.430 0.449 0.432 4.424 0.567
BSA-based >75% 48 0.207 0.212 0.211 2.375 1.703
Flat <25% 42 0.590 0.464 0.433 -21.309 -26.605
Flat <25% 48 0.285 0.224 0.212 -21.498 -25.683
Flat 25-50% 42 0.460 0.385 0.338 -16.394 -26.488
Flat 25-50% 48 0.223 0.186 0.165 -16.745 -26.189
Flat 50-75% 42 0.380 0.376 0.308 -1.180 -18.978
Flat 50-75% 48 0.183 0.180 0.150 -1.563 -18.247
Flat >75% 42 0.320 0.504 0.316 57.649 -1.129
Flat >75% 48 0.156 0.233 0.154 49.523 -1.401
Stratified <25% 42 0.540 0.422 0.408 -21.849 -24.482
Stratified <25% 48 0.261 0.205 0.199 -21.335 -23.672
Stratified 25-50% 42 0.460 0.548 0.338 19.136 -26.488
Stratified 25-50% 48 0.223 0.270 0.165 21.179 -26.189
Stratified 50-75% 42 0.380 0.492 0.308 29.475 -18.978
Stratified 50-75% 48 0.183 0.234 0.150 27.673 -18.247
Stratified >75% 42 0.370 0.358 0.351 -3.358 -5.245
Stratified >75% 48 0.177 0.173 0.171 -2.070 -3.621
stopifnot(nrow(fig2_cmp) == 24, !anyNA(fig2_cmp$typical), !anyNA(fig2_cmp$stochastic))

# Deterministic: the typical-value medians run 0-27% below Figure 2 (median
# about -19%). A mis-transcribed volume or intercompartmental clearance moves
# the 42-48 h concentrations by far more than this band.
stopifnot(all(fig2_cmp$pct_typical > -35 & fig2_cmp$pct_typical < 10))
# Stochastic: individual cells scatter widely (50 subjects per quartile and a
# V1 variance of 1.34), so only the centre across all 24 cells is asserted.
# Realised about -4%; the bound is about three standard errors of that centre.
stopifnot(abs(median(fig2_cmp$pct_stochastic)) < 20)

Across the 24 cells the stochastic medians are centred on Figure 2, while the typical-value medians sit about 19% lower. That gap is expected: with a large V1 variance, subjects with a large central volume eliminate slowly, which lifts the median concentration 18-24 h after the end of the infusion above the typical-value prediction. Individual cells of the stochastic simulation scatter by up to about +/-50% at this cohort size.

The combined linear + Michaelis-Menten model

The Results state that in the combined model ‘the fraction of CL contributed by the linear component … was 4.77 L/h, whereas nonlinear CL solely contributed 0.42 L/h at median MTX concentrations (2.20 umol/L)’. With the Supplementary Table’s Vmax and Km, Vmax / (Km + C) is 0.76 L/h at 2.20 umol/L and 0.42 L/h at 4.84 umol/L, which is 2.20 mg/L: the quoted median concentration appears to be in mg/L.

mod_nl <- readModelDb("Arshad_2021_methotrexate_nonlinear")
ini_nl <- rxode2::rxode(mod_nl)$iniDf
vmax <- exp(ini_nl$est[ini_nl$name == "lvmax"])
km <- exp(ini_nl$est[ini_nl$name == "lkm"])
cl_nl <- function(conc) vmax / (km + conc)
c(at_2.20_umol_L = cl_nl(2.20), at_2.20_mg_L = cl_nl(2.20 / mw_mtx * 1000))
#> at_2.20_umol_L   at_2.20_mg_L
#>      0.7639752      0.4197148
stopifnot(abs(cl_nl(2.20 / mw_mtx * 1000) - 0.42) < 0.005)

The authors judged that the nonlinear component had a negligible impact on exposure and on exceeding the TDM thresholds. A typical-value comparison of the two models for the reference man (58 years, SCr 0.74 mg/dL, BSA 1.73 m^2) after 1000 mg/m^2 over 24 h:

ref_pat <- tibble(id = 1L, SEXF = 0, AGE = 58, CREAT = 0.74, BSA = 1.73, OCC = 1, bsa_group = "ref")
ev_ref <- make_regimen(ref_pat, "reference", 1000 * 1.73, 0L)
cmp_models <- bind_rows(
  rxode2::rxSolve(mod_typ, events = ev_ref) |> as.data.frame() |> mutate(model = "final (linear)"),
  rxode2::rxSolve(rxode2::zeroRe(mod_nl), events = ev_ref) |> as.data.frame() |> mutate(model = "combined (linear + MM)")
)
ggplot(cmp_models |> filter(time > 0), aes(time, Cc, colour = model)) +
  geom_line() +
  geom_hline(yintercept = c(1, 0.3), linetype = "dashed") +
  scale_y_log10() +
  coord_cartesian(xlim = c(0, 168)) +
  labs(x = "Time after start of infusion (h)", y = "Concentration (umol/L)", colour = NULL)


cmp_tab <- cmp_models |>
  group_by(model) |>
  summarise(
    C24 = Cc[time == 24], C42 = Cc[time == 42], C48 = Cc[time == 48],
    AUC_0_1008 = sum(diff(time) * (head(Cc, -1) + tail(Cc, -1)) / 2)
  )
knitr::kable(cmp_tab, digits = 3, caption = "Typical-value comparison of the two models (concentrations umol/L, AUC umol*h/L, linear trapezoid).")
Typical-value comparison of the two models (concentrations umol/L, AUC umol*h/L, linear trapezoid).
model C24 C42 C48 AUC_0_1008
combined (linear + MM) 32.341 0.280 0.142 773.528
final (linear) 34.831 0.311 0.151 840.910
ratio_nl <- unlist(cmp_tab[cmp_tab$model == "combined (linear + MM)", c("C42", "C48", "AUC_0_1008")]) /
  unlist(cmp_tab[cmp_tab$model == "final (linear)", c("C42", "C48", "AUC_0_1008")])
ratio_nl
#>        C42        C48 AUC_0_1008
#>  0.8984665  0.9379713  0.9198705
# Deterministic; realised 0.90-0.94. The paper's claim is qualitative
# ('negligible'), so the bound is a 20% band around agreement.
stopifnot(nrow(cmp_tab) == 2, all(abs(ratio_nl - 1) < 0.2))

Despite very different structural values (a central volume of 1.12 vs 4.29 L and larger peripheral volumes), the two models predict AUC and the 42- and 48-h concentrations within about 10% of each other for the reference patient, consistent with the authors’ statement that the nonlinear component changes exposure and threshold exceedance negligibly. No figure or table in the paper reports predictions from the combined model, so it cannot be compared with the source directly.

Assumptions and deviations

  • BSA exponent sign. Eq. 4 prints (BSA/1.73)^-0.23; Table 3 prints +0.23. The Results text (‘higher clearance for higher BSA values’), the falling flat-dose AUC of Figure 1 and the rising stratified doses of Table 4 all require a positive exponent, and the check above shows that only the positive sign reproduces Figure 1’s direction. The model uses +0.23.
  • Final estimates vs bootstrap medians. The paper prints a final point estimate only for CL (4.52 L/h, Eq. 4). All other final-model values are the bootstrap medians of Table 3, the only parameter table (the abstract quotes the bootstrap median CL of 4.33 L/h). The abstract’s IIV and IOV on CL (29.7% and 23.1% CV) do not correspond to the Table 3 variances (0.11 and 0.09); the Table 3 variances are used so that the CL-V1 covariance, which is reported on the same scale, stays consistent.
  • Concentration units. The Supplementary Figure 1 caption says mg/L, but the low observations in that figure fall on exact multiples of 0.01, the reporting step of an assay with LLOQ 0.009 umol/L, and the TDM thresholds, Figures 1-2, Vmax and Km are all in umol. The models therefore work in umol and umol/L, and the additive residual SD (sqrt(0.02) = 0.141) is in umol/L.
  • Residual error. The combined additive + exponential error is encoded as additive + proportional, with the proportional SD equal to the exponential (log-scale) SD, because rxode2 cannot simulate lnorm() + add(). With an exponential SD of 0.51 the first-order approximation is coarse: the linear-scale CV implied by the exponential arm is sqrt(exp(0.26) - 1) = 0.54.
  • Covariate forms. Table 3’s unit labels (‘mg^-1 dL’, ‘year^-1’) suggest linear effects, but Eq. 4 gives power forms centred at the medians; Eq. 4 is followed. For the combined model the Supplementary Table gives only the coefficients; the Eq. 4 forms and centring values are assumed, applied to the linear clearance.
  • Occasions. IOV is per treatment cycle. Nine occasions are encoded (the maximum number of cycles per patient); occasions 2-9 share the occasion-1 variance.
  • Combined model IOV. The Supplementary Table’s IOV block (LCL 0.07, V1 2.13, Vmax 0.10) repeats the IIV block digit for digit, including the RSEs and confidence intervals, and its ‘Vmax’ row equals the IIV covariance row. It is a copy of the IIV rows, so the combined model’s IOV variances are not recoverable and IOV is not encoded in Arshad_2021_methotrexate_nonlinear.
  • Combined model: bootstrap means. Its values are bootstrap means, the only values printed, and BSA is not included (printed as ‘-’).
  • Virtual cohort. The paper’s virtual population is not described; the cohort here is drawn from sex-specific distributions matching Table 1, and Figures 1 and 2 were digitised by the maintainers. No correction notice for the article was found as of 2026-09-28.
