Model and source

  • Citation: Nolain P, Djebli N, Brunet A, Fabre D, Khier S. Combined Semi-mechanistic Target-Mediated Drug Disposition and Pharmacokinetic-Pharmacodynamic Models of Alirocumab, PCSK9, and Low-Density Lipoprotein Cholesterol in a Pooled Analysis of Randomized Phase I/II/III Studies. Eur J Drug Metab Pharmacokinet. 2022;47:789-802. doi:10.1007/s13318-022-00787-4
  • Article: Eur J Drug Metab Pharmacokinet 47:789-802 (2022) (open access)

Nolain et al. 2022 fitted, in one step, a joint model of total alirocumab, total PCSK9 and LDL cholesterol (LDL-C) to nine phase I-III studies. The pharmacokinetic layer is a two-compartment quasi-steady-state (QSS) target-mediated drug disposition (TMDD) model in which alirocumab binds its circulating target PCSK9; the pharmacodynamic layer is an indirect-response model in which free PCSK9 (not the drug) inhibits LDL-C degradation through a steep sigmoid Imax function. Removing free PCSK9 therefore speeds up LDL-C clearance from its pre-treatment rate kout(0) towards kout.

mod <- readModelDb("Nolain_2022_alirocumab")
ui <- rxode2::rxode2(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
ui
#>  ── rxode2-based free-form 5-cmt ODE model ──────────────────────────────────────
#>  ── Initalization: ──
#> Fixed Effects ($theta):
#>                  lcl                  lvc                   lq
#>           -1.5095926            1.1631508           -0.5851900
#>                  lvp                  lka          logitfdepot
#>            0.9593502           -1.0613165            0.7583712
#>                ltlag                lkint                lkdeg
#>           -3.5648935           -2.0635682            0.2926696
#>                  lkd                  lk1                lkout
#>           -0.5447272            6.3261495           -1.3470736
#>            logitimax                lki50                lhill
#>            1.0511726            1.7967470            2.4510051
#>   e_conmed_statin_vc e_conmed_statin_imax   e_tpcsk9_base_ki50
#>            1.7500000            0.1400000            0.9300000
#>                addSd               propSd  addSd_Ctotal_target
#>            0.4260000            0.2550000            1.0700000
#> propSd_Ctotal_target            addSd_ldl           propSd_ldl
#>            0.2790000            5.7100000            0.1420000
#>
#> Omega ($omega):
#>                etalcl etalkint etalkdeg etalvc etalka etalogitfdepot etalkout
#> etalcl           0.27   0.0000    0.000 0.0000  0.000          0.000    0.000
#> etalkint         0.00   0.0554    0.000 0.0000  0.000          0.000    0.000
#> etalkdeg         0.00   0.0000    0.124 0.0000  0.000          0.000    0.000
#> etalvc           0.00   0.0000    0.000 0.0648  0.000          0.000    0.000
#> etalka           0.00   0.0000    0.000 0.0000  0.344          0.000    0.000
#> etalogitfdepot   0.00   0.0000    0.000 0.0000  0.000          0.626    0.000
#> etalkout         0.00   0.0000    0.000 0.0000  0.000          0.000    0.256
#> etalogitimax     0.00   0.0000    0.000 0.0000  0.000          0.000    0.000
#> etalki50         0.00   0.0000    0.000 0.0000  0.000          0.000    0.000
#>                etalogitimax etalki50
#> etalcl                0.000  0.00000
#> etalkint              0.000  0.00000
#> etalkdeg              0.000  0.00000
#> etalvc                0.000  0.00000
#> etalka                0.000  0.00000
#> etalogitfdepot        0.000  0.00000
#> etalkout              0.000  0.00000
#> etalogitimax          0.146  0.00000
#> etalki50              0.000  0.00578
#> attr(,"lotriLabels")
#> [1] "Table 4 omega2 CL 0.270 (55.7%)"
#> [2] "Table 4 omega2 kclear 0.0554 (23.9%)"
#> [3] "Table 4 omega2 kdeg 0.124 (36.4%)"
#> [4] "Table 4 omega2 Vc 0.0648 (25.9%)"
#> [5] "Table 4 omega2 ka 0.344 (64.1%)"
#> [6] "Table 4 omega2 F 0.626 (logit scale)"
#> [7] "Table 4 omega2 kout 0.256 (54.0%)"
#> [8] "Table 4 omega2 Imax 0.146 (logit scale)"
#> [9] "Table 4 omega2 IC50 0.00578 (7.61%)"
#> attr(,"lotriFix")
#>                etalcl etalkint etalkdeg etalvc etalka etalogitfdepot etalkout
#> etalcl          FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalkint        FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalkdeg        FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalvc          FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalka          FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalogitfdepot  FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalkout        FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalogitimax    FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#> etalki50        FALSE    FALSE    FALSE  FALSE  FALSE          FALSE    FALSE
#>                etalogitimax etalki50
#> etalcl                FALSE    FALSE
#> etalkint              FALSE    FALSE
#> etalkdeg              FALSE    FALSE
#> etalvc                FALSE    FALSE
#> etalka                FALSE    FALSE
#> etalogitfdepot        FALSE    FALSE
#> etalkout              FALSE    FALSE
#> etalogitimax          FALSE    FALSE
#> etalki50              FALSE    FALSE
#>
#> States ($state or $stateDf):
#>   Compartment Number Compartment Name
#> 1                  1            depot
#> 2                  2          central
#> 3                  3      peripheral1
#> 4                  4     total_target
#> 5                  5              ldl
#>  ── Multiple Endpoint Model ($multipleEndpoint): ──
#>            variable                          cmt                          dvid*
#> 1            Cc ~ …            cmt='Cc' or cmt=6            dvid='Cc' or dvid=1
#> 2 Ctotal_target ~ … cmt='Ctotal_target' or cmt=7 dvid='Ctotal_target' or dvid=2
#> 3           ldl ~ …           cmt='ldl' or cmt=5           dvid='ldl' or dvid=3
#>   * If dvids are outside this range, all dvids are re-numered sequentially, ie 1,7, 10 becomes 1,2,3 etc
#>
#>  ── μ-referencing ($muRefTable): ──
#>         theta            eta level
#> 1         lcl         etalcl    id
#> 2         lvc         etalvc    id
#> 3         lka         etalka    id
#> 4 logitfdepot etalogitfdepot    id
#> 5       lkint       etalkint    id
#> 6       lkdeg       etalkdeg    id
#> 7       lkout       etalkout    id
#> 8       lki50       etalki50    id
#>
#>  ── Model (Normalized Syntax): ──
#> function() {
#>     compartmentData <- list(depot = list(analyte = "alirocumab",
#>         units = "nmol", specimen = "administration site", verified = TRUE),
#>         central = list(analyte = "alirocumab (total: free + PCSK9-bound)",
#>             units = "nmol", specimen = "serum", verified = TRUE),
#>         peripheral1 = list(analyte = "alirocumab (free)", units = "nmol",
#>             specimen = "not applicable", verified = TRUE), total_target = list(analyte = "PCSK9 (total: free + alirocumab-bound)",
#>             units = "nmol", specimen = "serum", verified = TRUE),
#>         ldl = list(analyte = "low-density lipoprotein cholesterol",
#>             units = "mg/dL", specimen = "serum", verified = TRUE))
#>     covariateData <- list(TPCSK9_BASE = list(description = "Baseline (pre-dose) total serum PCSK9 concentration, time-fixed per subject",
#>         units = "nM", type = "continuous", reference_category = NULL,
#>         notes = "Nolain 2022 uses the individual observed baseline total PCSK9 twice: (1) as the initial condition and synthesis anchor of the total-PCSK9 state (Ptot(0) = [Ptot]baseline * Vc; ksyn = kdeg * [Ptot]baseline; Table 3) and in kout(0) (Table 3), and (2) as the covariate TBSPCSK9 on the free-PCSK9 IC50, power form centred on the dataset median 6.99 nM (Eq. 6). Units are nM in this model, not the register default ng/mL. Modelling dataset mean 7.66 nM (SD 3.06), range 2.36-19.6 nM (Table 2). The paper's a priori effect of TBSPCSK9 on kdeg (Eq. 7) was removed in the covariate-reduction step (Sect. 3.2.2) and is not encoded.",
#>         source_name = "TBSPCSK9"), LDLC = list(description = "Baseline (pre-dose) LDL cholesterol, time-fixed per subject",
#>         units = "mg/dL", type = "continuous", reference_category = NULL,
#>         notes = "Individual observed baseline LDL-C ([LDLC]baseline, Table 3). Sets the initial condition of the `ldl` turnover state and, through the pre-treatment steady state kin = kout(0) * [LDLC]baseline, the zero-order LDL-C production rate. Because the model is linear in the state, percent change from baseline is independent of this value. Modelling dataset mean 140 mg/dL (SD 33.1), range 88.5-356 (Table 2).",
#>         source_name = "[LDLC]baseline"), CONMED_STATIN = list(description = "Concomitant statin therapy",
#>         units = "(binary)", type = "binary", reference_category = "0 (no statin)",
#>         notes = "STATIN = 1 with statin co-administration, 0 otherwise (Eqs. 3 and 5). Multiplicative 1.75-fold effect on Vc (Eq. 3) and additive +0.140 effect on the typical Imax (Eq. 5; 74.1% -> 88.1%). The a priori statin effect on kout (Eq. 4) was removed in the covariate-reduction step (Sect. 3.2.2) and is not encoded. 60.9% of the modelling dataset received a statin (Table 2).",
#>         source_name = "STATIN"))
#>     covariatesDataExcluded <- list(SEXF = list(description = "Female sex indicator",
#>         units = "(binary)", type = "binary", reference_category = "0 (male)",
#>         notes = "Additive effect of female sex on Imax (Eq. 5; SEX = 1 for women) was included a priori in the full fixed-effects model but removed in the reduction step as not clinically relevant (Sect. 3.2.2, Fig. 2c). No final-model estimate is reported.",
#>         source_name = "SEX"))
#>     description <- "Semi-mechanistic population PK/PD model for alirocumab, total PCSK9 and LDL cholesterol in healthy adults and adults with hypercholesterolaemia (Nolain 2022). Two-compartment alirocumab disposition with first-order SC absorption (lag time, logit-normal bioavailability), quasi-steady-state target-mediated drug disposition (TMDD-QSS) binding to PCSK9 with zero-order PCSK9 synthesis, and an indirect-response (type II, inhibition of loss) LDL-C model in which free PCSK9 inhibits LDL-C degradation through a sigmoid Imax function. Statin co-administration increases Vc and Imax; baseline total PCSK9 scales the free-PCSK9 IC50."
#>     population <- list(species = "human", n_subjects = 527L,
#>         n_studies = 9L, n_observations = 13731L, phases = "Phase I, II and III",
#>         age_range = "18-75 years", age_mean = "52.5 years (SD 13.0)",
#>         weight_range = "45.8-154 kg", weight_mean = "80.6 kg (SD 16.4)",
#>         sex_female_pct = 46.9, disease_state = "Healthy volunteers (28.5%) and patients with hypercholesterolaemia (71.5%), all with LDL-C >= 100 mg/dL; 30.0% heterozygous familial hypercholesterolaemia.",
#>         co_medication = "Statin 60.9% (low dose 38.5%, high dose 22.4%), ezetimibe 12.9%, fibrate 4.74%; 29.8% alirocumab alone.",
#>         dose_range = "Single IV doses 0.3-12 mg/kg (one phase I study, NCT01026597); SC 50-300 mg single dose or Q2W/Q4W for up to 104 weeks.",
#>         pcsk9_baseline = "Baseline total PCSK9 mean 7.66 nM (SD 3.06), range 2.36-19.6 nM; median 6.99 nM (Sect. 3.2.2).",
#>         ldlc_baseline = "Baseline LDL-C mean 140 mg/dL (SD 33.1), range 88.5-356 mg/dL.",
#>         renal_function = "MDRD creatinine clearance mean 109 mL/min/1.73 m^2 (SD 30.4), range 38.1-253.",
#>         notes = "Modelling dataset (Table 1 upper block, Table 2 first column). An external validation dataset of 2273 patients from four further phase II/III studies (Table 1 lower block) was used for MAP-Bayesian predictive checks only.")
#>     reference <- "Nolain P, Djebli N, Brunet A, Fabre D, Khier S. Combined Semi-mechanistic Target-Mediated Drug Disposition and Pharmacokinetic-Pharmacodynamic Models of Alirocumab, PCSK9, and Low-Density Lipoprotein Cholesterol in a Pooled Analysis of Randomized Phase I/II/III Studies. Eur J Drug Metab Pharmacokinet. 2022;47:789-802. doi:10.1007/s13318-022-00787-4"
#>     units <- list(time = "day", dosing = "mg", concentration = "nM")
#>     vignette <- "Nolain_2022_alirocumab"
#>     ini({
#>         lcl <- -1.50959257746438
#>         label("Linear clearance of free alirocumab CL (L/day)")
#>         lvc <- 1.16315080980568
#>         label("Central volume of distribution Vc without statin (L)")
#>         lq <- -0.585190039054853
#>         label("Inter-compartmental clearance of free alirocumab Q (L/day)")
#>         lvp <- fix(0.959350221334602)
#>         label("Peripheral volume of free alirocumab Vp (L)")
#>         lka <- -1.06131650392441
#>         label("First-order SC absorption rate constant ka (1/day)")
#>         logitfdepot <- 0.758371203364668
#>         label("Logit of absolute SC bioavailability F (F = 0.681)")
#>         ltlag <- -3.56489347433295
#>         label("SC absorption lag time LAG (day)")
#>         lkint <- -2.06356819252355
#>         label("Rate constant for alirocumab-PCSK9 complex clearance kclear (1/day)")
#>         lkdeg <- 0.29266961396282
#>         label("First-order degradation rate constant of free PCSK9 kdeg (1/day)")
#>         lkd <- fix(-0.544727175441672)
#>         label("Equilibrium dissociation constant kD = koff/kon (nM)")
#>         lk1 <- fix(6.3261494731551)
#>         label("Association rate constant kon of the drug-target complex (1/nM/day)")
#>         lkout <- -1.34707364796661
#>         label("First-order LDL-C degradation rate constant during treatment kout (1/day)")
#>         logitimax <- 1.05117256359655
#>         label("Logit of maximal inhibition of LDL-C degradation by free PCSK9 without statin (Imax = 0.741)")
#>         lki50 <- 1.79674701073909
#>         label("Free PCSK9 concentration giving half of Imax at the median baseline total PCSK9, IC50 (nM)")
#>         lhill <- 2.45100509811232
#>         label("Hill coefficient gamma of the free-PCSK9 Imax function (unitless)")
#>         e_conmed_statin_vc <- 1.75
#>         label("Multiplicative factor on Vc with statin co-administration, Vc = theta * factor^STATIN (unitless)")
#>         e_conmed_statin_imax <- 0.14
#>         label("Additive increment in typical Imax with statin co-administration (fraction)")
#>         e_tpcsk9_base_ki50 <- 0.93
#>         label("Power exponent of baseline total PCSK9 (TPCSK9_BASE / 6.99 nM) on IC50 (unitless)")
#>         addSd <- c(0, 0.426)
#>         label("Additive residual error, total alirocumab (nM)")
#>         propSd <- c(0, 0.255)
#>         label("Proportional residual error, total alirocumab (fraction)")
#>         addSd_Ctotal_target <- c(0, 1.07)
#>         label("Additive residual error, total PCSK9 (nM)")
#>         propSd_Ctotal_target <- c(0, 0.279)
#>         label("Proportional residual error, total PCSK9 (fraction)")
#>         addSd_ldl <- c(0, 5.71)
#>         label("Additive residual error, LDL-C (mg/dL)")
#>         propSd_ldl <- c(0, 0.142)
#>         label("Proportional residual error, LDL-C (fraction)")
#>         etalcl ~ 0.27
#>         label("Table 4 omega2 CL 0.270 (55.7%)")
#>         etalkint ~ 0.0554
#>         label("Table 4 omega2 kclear 0.0554 (23.9%)")
#>         etalkdeg ~ 0.124
#>         label("Table 4 omega2 kdeg 0.124 (36.4%)")
#>         etalvc ~ 0.0648
#>         label("Table 4 omega2 Vc 0.0648 (25.9%)")
#>         etalka ~ 0.344
#>         label("Table 4 omega2 ka 0.344 (64.1%)")
#>         etalogitfdepot ~ 0.626
#>         label("Table 4 omega2 F 0.626 (logit scale)")
#>         etalkout ~ 0.256
#>         label("Table 4 omega2 kout 0.256 (54.0%)")
#>         etalogitimax ~ 0.146
#>         label("Table 4 omega2 Imax 0.146 (logit scale)")
#>         etalki50 ~ 0.00578
#>         label("Table 4 omega2 IC50 0.00578 (7.61%)")
#>     })
#>     model({
#>         mw_alirocumab <- 146000
#>         nmol_per_mg <- 1e+06/mw_alirocumab
#>         cl <- exp(lcl + etalcl)
#>         vc <- exp(lvc + etalvc) * e_conmed_statin_vc^CONMED_STATIN
#>         q <- exp(lq)
#>         vp <- exp(lvp)
#>         ka <- exp(lka + etalka)
#>         fdepot <- expit(logitfdepot + etalogitfdepot, 0, 1)
#>         tlag <- exp(ltlag)
#>         kint <- exp(lkint + etalkint)
#>         kdeg <- exp(lkdeg + etalkdeg)
#>         kd <- exp(lkd)
#>         k1 <- exp(lk1)
#>         kss <- kd + kint/k1
#>         kout <- exp(lkout + etalkout)
#>         imax_typ <- expit(logitimax, 0, 1) + e_conmed_statin_imax *
#>             CONMED_STATIN
#>         imax <- expit(logit(imax_typ, 0, 1) + etalogitimax, 0,
#>             1)
#>         ki50 <- exp(lki50 + etalki50) * (TPCSK9_BASE/6.99)^e_tpcsk9_base_ki50
#>         hill <- exp(lhill)
#>         kel <- cl/vc
#>         kcp <- q/vc
#>         kpc <- q/vp
#>         ksyn <- kdeg * TPCSK9_BASE
#>         kout0 <- kout * (1 - imax * TPCSK9_BASE^hill/(ki50^hill +
#>             TPCSK9_BASE^hill))
#>         kin <- kout0 * LDLC
#>         atot <- central/vc
#>         ptot <- total_target/vc
#>         qss_a <- atot - ptot - kss
#>         qss_s <- sqrt(qss_a^2 + 4 * kss * atot)
#>         if (qss_a < 0) {
#>             afree <- 2 * kss * atot/(qss_s - qss_a)
#>         }
#>         else {
#>             afree <- (qss_a + qss_s)/2
#>         }
#>         fbound <- afree/(kss + afree)
#>         pfree <- ptot * (1 - fbound)
#>         cplx <- ptot * fbound
#>         d/dt(depot) <- -ka * depot
#>         d/dt(central) <- ka * depot - (kel + kcp) * afree * vc +
#>             kpc * peripheral1 - kint * total_target * fbound
#>         d/dt(peripheral1) <- kcp * afree * vc - kpc * peripheral1
#>         d/dt(total_target) <- ksyn * vc - kdeg * total_target -
#>             (kint - kdeg) * total_target * fbound
#>         d/dt(ldl) <- kin - kout * (1 - imax * pfree^hill/(ki50^hill +
#>             pfree^hill)) * ldl
#>         total_target(0) <- TPCSK9_BASE * vc
#>         ldl(0) <- LDLC
#>         f(depot) <- fdepot * nmol_per_mg
#>         alag(depot) <- tlag
#>         f(central) <- nmol_per_mg
#>         Cc <- atot
#>         Ctotal_target <- ptot
#>         Cc ~ add(addSd) + prop(propSd)
#>         Ctotal_target ~ add(addSd_Ctotal_target) + prop(propSd_Ctotal_target)
#>         ldl ~ add(addSd_ldl) + prop(propSd_ldl)
#>     })
#> }

Population

The modelling dataset held 527 alirocumab-treated subjects (13,731 observations) from nine studies (Table 1): healthy volunteers (28.5%) and patients with primary hypercholesterolaemia (71.5%; 30.0% heterozygous familial hypercholesterolaemia), all with LDL-C >= 100 mg/dL. Mean (SD) characteristics (Table 2): age 52.5 (13.0) years, body weight 80.6 (16.4) kg, 46.9% female, baseline total PCSK9 7.66 (3.06) nM (median 6.99 nM), baseline LDL-C 140 (33.1) mg/dL. 60.9% were on a statin, 12.9% on ezetimibe and 4.7% on a fibrate. Alirocumab was given SC at 50-300 mg (single dose, Q2W or Q4W) and, in one phase I study, IV at 0.3-12 mg/kg.

The same information is available as ui$population.

Source trace

Every ini() value carries an in-file comment naming its location in the paper. The equations follow Table 3.

Element Value Source
CL 0.221 L/day Table 4
Vc (no statin) 3.20 L Table 4
Q 0.557 L/day Table 4
Vp 2.61 L (fixed) Table 4, Sect. 3.2.1
ka 0.346 /day Table 4
F 68.1% (logit-normal) Table 4, Sect. 3.2.1
LAG 0.0283 day Table 4
kclear (kint) 0.127 /day Table 4
kdeg 1.34 /day Table 4
kD (kd) 0.58 nM (fixed, in vitro) Table 4, Table 3
kon (k1) 559 /nM/day (fixed) Table 4, Sect. 3.2.1
kout 0.260 /day Table 4
Imax (no statin) 74.1% (logit-normal) Table 4
IC50 of free PCSK9 (ki50) 6.03 nM Table 4
Hill coefficient gamma 11.6 Table 4
Statin on Vc x 1.75 Table 4, Eq. 3
Statin on Imax + 0.140 Table 4, Eq. 5
Baseline total PCSK9 on IC50 (TBSPCSK9 / 6.99)^0.930 Table 4, Eq. 6
IIV variances (CL, kclear, kdeg, Vc, ka, F, kout, Imax, IC50) 0.270, 0.0554, 0.124, 0.0648, 0.344, 0.626, 0.256, 0.146, 0.00578 Table 4
Residual error (add / prop) alirocumab 0.426 nM / 25.5%; PCSK9 1.07 nM / 27.9%; LDL-C 5.71 mg/dL / 14.2% Table 4
Depot, total alirocumab, peripheral ODEs – Table 3
kss = kD + kclear / kon; QSS free drug – Table 3
Total PCSK9 ODE, ksyn = kdeg * [Ptot]baseline, Ptot(0) = [Ptot]baseline * Vc – Table 3
LDL-C ODE, kout(0), kin = kout(0) * [LDLC]baseline – Table 3

Virtual cohort

Covariates are drawn to match Table 2: 61% statin users, baseline total PCSK9 log-normal with mean 7.66 nM and SD 3.06 nM truncated to the observed 2.36-19.6 nM, and baseline LDL-C log-normal with mean 140 mg/dL and SD 33.1 mg/dL truncated to 88.5-356 mg/dL. The three regimens are the ones the paper simulates in Figure 4: 75 mg SC Q2W, 150 mg SC Q2W and 300 mg SC Q4W, each for 12 weeks.

rxode2::rxSetSeed(20221016)
n_per_arm <- 150

rlnorm_ms <- function(n, mean, sd, lo, hi) {
  sdlog <- sqrt(log(1 + (sd / mean)^2))
  x <- rlnorm(n, log(mean) - sdlog^2 / 2, sdlog)
  pmin(pmax(x, lo), hi)
}

regimens <- tibble::tribble(
  ~treatment,    ~amt, ~ii, ~ndose,
  "75 mg Q2W",     75,  14,      6,
  "150 mg Q2W",   150,  14,      6,
  "300 mg Q4W",   300,  28,      3
)

cov <- tibble(id = seq_len(n_per_arm * nrow(regimens))) |>
  mutate(
    treatment = rep(regimens$treatment, each = n_per_arm),
    CONMED_STATIN = rbinom(n(), 1, 0.609),
    TPCSK9_BASE = rlnorm_ms(n(), 7.66, 3.06, 2.36, 19.6),
    LDLC = rlnorm_ms(n(), 140, 33.1, 88.5, 356)
  )

obs_times <- sort(unique(c(seq(0, 28, by = 0.5), seq(29, 150, by = 1))))

make_events <- function(cov, regimens, obs_times) {
  doses <- cov |>
    inner_join(regimens, by = "treatment") |>
    group_by(id) |>
    reframe(
      treatment = treatment, CONMED_STATIN = CONMED_STATIN,
      TPCSK9_BASE = TPCSK9_BASE, LDLC = LDLC,
      time = seq(0, by = ii[1], length.out = ndose[1]), amt = amt[1]
    ) |>
    mutate(evid = 1L, cmt = "depot", dvid = NA_integer_)
  obs <- tidyr::crossing(cov, time = obs_times) |>
    mutate(amt = 0, evid = 0L, cmt = "central", dvid = 1L)
  bind_rows(doses, obs) |>
    arrange(id, time, desc(evid)) |>
    select(id, time, evid, amt, cmt, dvid, treatment, CONMED_STATIN, TPCSK9_BASE, LDLC)
}

events <- make_events(cov, regimens, obs_times)

Simulation

Observation rows sit on the central state with dvid = 1; rxode2 returns every model output (total alirocumab Cc, total PCSK9 Ctotal_target, ldl, free PCSK9 pfree) on each of those rows. Concentrations below are individual predictions (between-subject variability, no residual error).

sim <- rxode2::rxSolve(ui, events, sigma = NA, keep = "treatment",
                       returnType = "data.frame") |>
  mutate(
    treatment = factor(treatment, levels = regimens$treatment),
    ldl_pct = 100 * (ldl / LDLC - 1)
  )
stopifnot(!anyNA(sim$Cc), !anyNA(sim$ldl))
vpc <- sim |>
  select(treatment, time, `Total alirocumab (nM)` = Cc,
         `Total PCSK9 (nM)` = Ctotal_target, `Free PCSK9 (nM)` = pfree,
         `LDL-C change from baseline (%)` = ldl_pct) |>
  pivot_longer(-c(treatment, time), names_to = "output") |>
  group_by(treatment, time, output) |>
  summarise(q05 = quantile(value, 0.05), q50 = median(value),
            q95 = quantile(value, 0.95), .groups = "drop")

ggplot(vpc, aes(time, q50, colour = treatment, fill = treatment)) +
  geom_ribbon(aes(ymin = q05, ymax = q95), alpha = 0.15, colour = NA) +
  geom_line() +
  facet_wrap(~output, ncol = 1, scales = "free_y") +
  labs(x = "Time (day)", y = NULL, colour = NULL, fill = NULL,

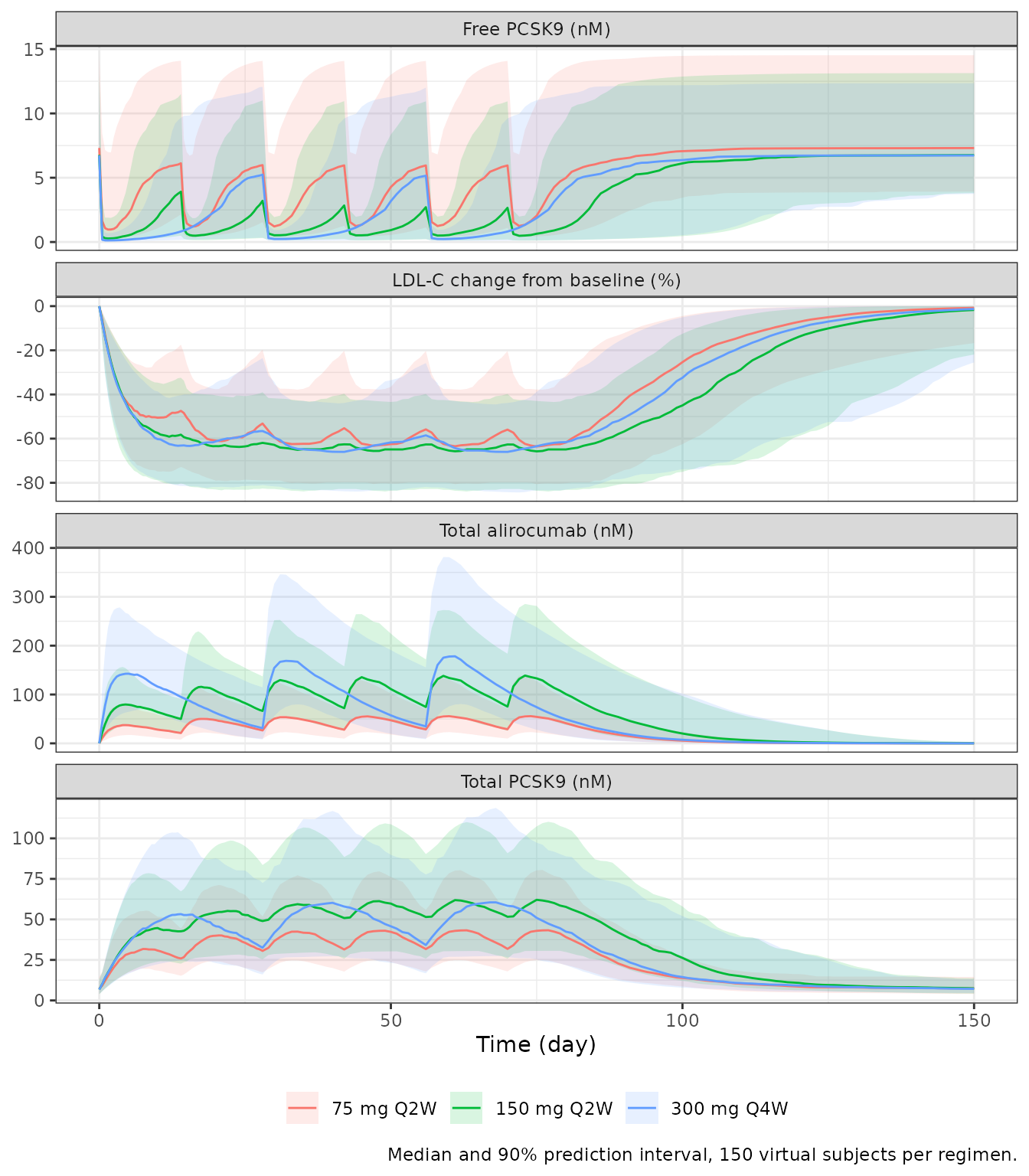

       caption = "Median and 90% prediction interval, 150 virtual subjects per regimen.") +
  theme_bw() + theme(legend.position = "bottom")

Replicate published figures

Figure 4: typical profiles by regimen

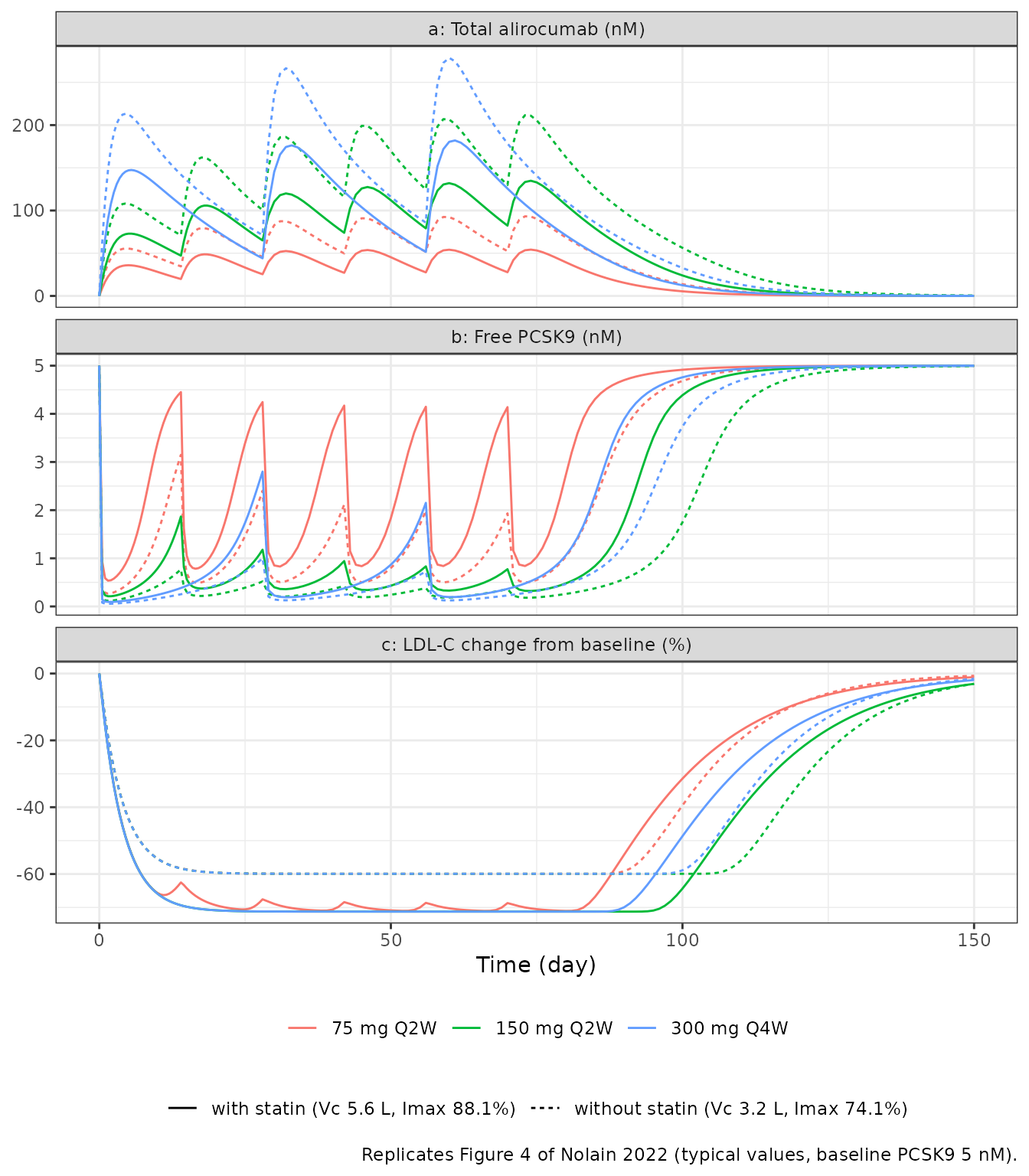

Figure 4 shows typical alirocumab, free PCSK9 and LDL-C profiles for the three regimens with a baseline free PCSK9 of 5 nM (read off Figure 4b). The paper does not state whether these curves are for a statin user, so both covariate states are drawn here.

typ_cov <- tidyr::crossing(treatment = regimens$treatment, CONMED_STATIN = 0:1) |>
  mutate(id = row_number(), TPCSK9_BASE = 5, LDLC = 140)
typ_events <- make_events(typ_cov, regimens, obs_times)
typ <- rxode2::rxSolve(ui, typ_events, omega = NA, sigma = NA,
                       keep = "treatment", returnType = "data.frame") |>
  mutate(
    treatment = factor(treatment, levels = regimens$treatment),
    statin = ifelse(CONMED_STATIN == 1, "with statin (Vc 5.6 L, Imax 88.1%)",
                    "without statin (Vc 3.2 L, Imax 74.1%)"),
    ldl_pct = 100 * (ldl / LDLC - 1)
  )

typ |>
  select(treatment, statin, time, `a: Total alirocumab (nM)` = Cc,
         `b: Free PCSK9 (nM)` = pfree, `c: LDL-C change from baseline (%)` = ldl_pct) |>
  pivot_longer(-c(treatment, statin, time), names_to = "panel") |>
  ggplot(aes(time, value, colour = treatment, linetype = statin)) +
  geom_line() +
  facet_wrap(~panel, ncol = 1, scales = "free_y") +
  labs(x = "Time (day)", y = NULL, colour = NULL, linetype = NULL,
       caption = "Replicates Figure 4 of Nolain 2022 (typical values, baseline PCSK9 5 nM).") +
  theme_bw() + theme(legend.position = "bottom", legend.box = "vertical")

The values digitised from Figure 4 fall between the two typical curves:

fig4 <- typ |>
  group_by(treatment, CONMED_STATIN) |>
  summarise(
    cmax_first = max(Cc[time < 14]),
    pfree_day14 = pfree[time == 13.5],
    ldl_plateau = min(ldl_pct),
    .groups = "drop"
  )

fig4_75 <- fig4 |> filter(treatment == "75 mg Q2W") |> arrange(CONMED_STATIN)
fig4_digitised <- c(cmax_first = 43, pfree_day14 = 4.1, ldl_plateau = -68.6)

fig4_75 |>
  select(CONMED_STATIN, cmax_first, pfree_day14, ldl_plateau) |>
  mutate(across(-CONMED_STATIN, ~ signif(.x, 3))) |>
  bind_rows(tibble(CONMED_STATIN = NA, !!!as.list(fig4_digitised))) |>
  mutate(Curve = c("Model, no statin", "Model, statin", "Figure 4 (digitised)")) |>
  select(Curve, `First-dose Cmax (nM)` = cmax_first,
         `Free PCSK9 before dose 2 (nM)` = pfree_day14,
         `LDL-C plateau (%)` = ldl_plateau) |>
  knitr::kable(caption = "75 mg SC Q2W, baseline PCSK9 5 nM.")
75 mg SC Q2W, baseline PCSK9 5 nM.
Curve First-dose Cmax (nM) Free PCSK9 before dose 2 (nM) LDL-C plateau (%)
Model, no statin 55.5 2.96 -59.9
Model, statin 35.9 4.39 -71.0
Figure 4 (digitised) 43.0 4.10 -68.6

stopifnot(
  # Each digitised value lies inside the [statin, no-statin] typical envelope.
  fig4_digitised[["cmax_first"]] > fig4_75$cmax_first[2],
  fig4_digitised[["cmax_first"]] < fig4_75$cmax_first[1],
  fig4_digitised[["pfree_day14"]] > fig4_75$pfree_day14[1],
  fig4_digitised[["pfree_day14"]] < fig4_75$pfree_day14[2],
  fig4_digitised[["ldl_plateau"]] > fig4_75$ldl_plateau[2],
  fig4_digitised[["ldl_plateau"]] < fig4_75$ldl_plateau[1]
)

Figure 2: size of each retained covariate effect

Figure 2 quantifies each covariate relationship by switching it on alone at 75 mg Q2W and reading alirocumab AUC over weeks 10-12 and the LDL-C decrease at week 12, relative to a reference subject (no statin, baseline PCSK9 at the median 6.99 nM). The paper reports an AUC decrease of about 45% for the statin effect on Vc (Sect. 3.2.2); the LDL-C distributions for the statin effects on Vc and on Imax are centred near -20% and +20% (Fig. 2a; 42% and 48% probability of exceeding a 20% change). The AUC is computed with PKNCA.

fig2_scenarios <- list(
  "Reference" = list(mod = ui, statin = 0, ic50_pcsk9 = 6.99),
  "Statin on Vc only" = list(mod = rxode2::ini(ui, e_conmed_statin_imax = 0), statin = 1, ic50_pcsk9 = 6.99),
  "Statin on Imax only" = list(mod = rxode2::ini(ui, e_conmed_statin_vc = 1), statin = 1, ic50_pcsk9 = 6.99),
  "IC50 at baseline PCSK9 9.10 nM (p75) only" = list(mod = ui, statin = 0, ic50_pcsk9 = 9.10)
)
#> ℹ change initial estimate of `e_conmed_statin_imax` to `0`
#> ℹ change initial estimate of `e_conmed_statin_vc` to `1`

fig2_cov <- tibble(id = 1L, treatment = "75 mg Q2W", CONMED_STATIN = 0L,
                   TPCSK9_BASE = 6.99, LDLC = 140)
fig2_events <- make_events(fig2_cov, regimens, seq(0, 84, by = 0.25))

fig2_sim <- bind_rows(lapply(names(fig2_scenarios), function(nm) {
  sc <- fig2_scenarios[[nm]]
  # The p75 scenario moves only the covariate inside the IC50 equation (Eq. 6)
  # and keeps the PCSK9 turnover at the median baseline, as Figure 2b does.
  m <- rxode2::ini(sc$mod, lki50 = log(6.03 * (sc$ic50_pcsk9 / 6.99)^0.930))
  ev <- mutate(fig2_events, CONMED_STATIN = sc$statin)
  rxode2::rxSolve(m, ev, omega = NA, sigma = NA, returnType = "data.frame") |>
    mutate(scenario = nm, id = 1L)
}))
#> ℹ change initial estimate of `lki50` to `1.79674701073909`
#> ℹ change initial estimate of `lki50` to `1.79674701073909`
#> ℹ change initial estimate of `lki50` to `1.79674701073909`
#> ℹ change initial estimate of `lki50` to `2.04207529800678`

conc_obj <- PKNCA::PKNCAconc(
  fig2_sim |> filter(!is.na(Cc)) |> select(scenario, id, time, Cc),
  Cc ~ time | scenario + id
)
dose_obj <- PKNCA::PKNCAdose(
  fig2_events |> filter(evid == 1) |> select(id, time, amt) |>
    tidyr::crossing(scenario = names(fig2_scenarios)),
  amt ~ time | scenario + id
)
fig2_nca <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj, dose_obj,
  intervals = data.frame(start = 70, end = 84, auclast = TRUE, cmax = TRUE)
))

fig2_tab <- as.data.frame(fig2_nca$result) |>
  filter(PPTESTCD == "auclast") |>
  select(scenario, auc = PPORRES) |>
  left_join(
    fig2_sim |> filter(time == 84) |> transmute(scenario, ldl_drop = 100 * (1 - ldl / 140)),
    by = "scenario"
  ) |>
  mutate(
    auc_change = 100 * (auc / auc[scenario == "Reference"] - 1),
    ldl_change = 100 * (ldl_drop / ldl_drop[scenario == "Reference"] - 1)
  ) |>
  arrange(factor(scenario, levels = names(fig2_scenarios)))

fig2_tab |>
  mutate(across(where(is.numeric), ~ round(.x, 1))) |>
  select(Scenario = scenario, `AUC wk 10-12 (nM*day)` = auc,
         `AUC change (%)` = auc_change, `LDL-C decrease wk 12 (%)` = ldl_drop,
         `Change in LDL-C decrease (%)` = ldl_change) |>
  knitr::kable()
Scenario AUC wk 10-12 (nM*day) AUC change (%) LDL-C decrease wk 12 (%) Change in LDL-C decrease (%)
Reference 986.7 0.0 62.0 0.0
Statin on Vc only 559.2 -43.3 48.5 -21.8
Statin on Imax only 986.7 0.0 74.0 19.4
IC50 at baseline PCSK9 9.10 nM (p75) only 986.7 0.0 18.0 -71.0

get_row <- function(nm) fig2_tab[fig2_tab$scenario == nm, ]
stopifnot(
  # Statin on Vc: paper reports approximately -45% AUC.
  abs(get_row("Statin on Vc only")$auc_change - (-45)) < 5,
  # Statin effects on LDL-C decrease: Figure 2a centres near -20% and +20%.
  abs(get_row("Statin on Vc only")$ldl_change - (-20)) < 5,
  abs(get_row("Statin on Imax only")$ldl_change - 20) < 5,
  # Imax does not enter the PK, so its AUC equals the reference up to the
  # ODE solver tolerance.
  abs(get_row("Statin on Imax only")$auc_change) < 0.01
)

For the IC50 relationship the paper states that subjects with a baseline PCSK9 at or above 9.10 nM would have a lipid-lowering effect reduced by about 60% versus the median subject (Sect. 3.2.2); Figure 2b shows a wide distribution centred near -60%. Moving only the IC50 covariate gives a reduction of 71% with the typical parameters, inside the spread of Figure 2b (which reflects the uncertainty of the estimates, and in particular of the steep Hill coefficient).

Note that this is a property of the single relationship, not of a real high-PCSK9 subject. In the full model a higher baseline PCSK9 also raises the total-PCSK9 initial condition and kout(0). Because the IC50 exponent (0.930) is close to 1, the ratio of baseline PCSK9 to IC50 hardly changes, and the week-12 LDL-C reduction at 9.10 nM is only a few percent smaller than at the median:

p75_full <- rxode2::rxSolve(ui, mutate(fig2_events, TPCSK9_BASE = 9.10),
                            omega = NA, sigma = NA, returnType = "data.frame")
ref_full <- rxode2::rxSolve(ui, fig2_events, omega = NA, sigma = NA, returnType = "data.frame")
round(100 * (1 - c(median_6.99 = ref_full$ldl[ref_full$time == 84],
                   p75_9.10 = p75_full$ldl[p75_full$time == 84]) / 140), 1)
#> median_6.99    p75_9.10
#>          62          57

Mechanistic checks

Without drug the system must stay at its pre-treatment steady state (total PCSK9 at baseline, LDL-C at baseline). With free PCSK9 fully suppressed, the LDL-C turnover settles at kin / kout, so the maximal fractional reduction is Imax * H0 with H0 = P0^gamma / (IC50^gamma + P0^gamma) evaluated at the baseline PCSK9 P0. At the median baseline (6.99 nM) that is 62.8% without a statin and 74.6% with one, consistent with the “up to 62.7%” LDL-C reduction the paper cites from the clinical programme.

mech_cov <- tidyr::crossing(treatment = c("none", "300 mg Q2W"), CONMED_STATIN = 0:1) |>
  mutate(id = row_number(), TPCSK9_BASE = 6.99, LDLC = 140)
mech_regimens <- tibble(treatment = c("none", "300 mg Q2W"), amt = c(0, 300), ii = 14, ndose = c(1, 12))
mech <- rxode2::rxSolve(ui, make_events(mech_cov, mech_regimens, seq(0, 168, by = 1)),
                        omega = NA, sigma = NA, keep = "treatment", returnType = "data.frame")

imax_typ <- c(0.741, 0.741 + 0.140)
h0 <- 1 / (1 + (6.03 / 6.99)^11.6)
closed_form <- 100 * imax_typ * h0

mech_summary <- mech |>
  group_by(treatment, CONMED_STATIN) |>
  summarise(
    ptot_range = diff(range(Ctotal_target)),
    ldl_range = diff(range(ldl)),
    max_ldl_drop = 100 * (1 - min(ldl) / 140),
    .groups = "drop"
  )
mech_summary |> mutate(closed_form = closed_form[CONMED_STATIN + 1]) |> knitr::kable(digits = 3)
treatment CONMED_STATIN ptot_range ldl_range max_ldl_drop closed_form
300 mg Q2W 0 65.533 87.901 62.786 62.786
300 mg Q2W 1 64.989 104.508 74.649 74.649
none 0 0.000 0.000 0.000 62.786
none 1 0.000 0.000 0.000 74.649

untreated <- filter(mech_summary, treatment == "none")
treated <- filter(mech_summary, treatment == "300 mg Q2W") |> arrange(CONMED_STATIN)
stopifnot(
  # The same drawn parameters on both sides: pure numerical error, so tight.
  all(untreated$ptot_range < 1e-6),
  all(untreated$ldl_range < 1e-6),
  all(abs(treated$max_ldl_drop - closed_form) < 0.5)
)

PKNCA validation

The paper reports no non-compartmental summaries. PKNCA is run on total alirocumab for the first dosing interval and the last (twelfth week) Q2W interval of the virtual cohort, grouped by regimen.

nca_conc <- sim |>
  filter(!is.na(Cc)) |>
  select(id, treatment, time, Cc)
nca_dose <- events |>
  filter(evid == 1) |>
  select(id, treatment, time, amt)

intervals <- bind_rows(
  data.frame(treatment = c("75 mg Q2W", "150 mg Q2W"), start = 0, end = 14),
  data.frame(treatment = "300 mg Q4W", start = 0, end = 28),
  data.frame(treatment = c("75 mg Q2W", "150 mg Q2W"), start = 70, end = 84),
  data.frame(treatment = "300 mg Q4W", start = 56, end = 84)
) |>
  mutate(cmax = TRUE, tmax = TRUE, auclast = TRUE, cmin = TRUE)

nca <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(nca_conc, Cc ~ time | treatment + id),
  PKNCA::PKNCAdose(nca_dose, amt ~ time | treatment + id),
  intervals = intervals
))

as.data.frame(nca$result) |>
  group_by(treatment, start, end, PPTESTCD) |>
  summarise(median = signif(median(PPORRES), 3), .groups = "drop") |>
  pivot_wider(names_from = PPTESTCD, values_from = median) |>
  select(Regimen = treatment, Start = start, End = end,
         `Cmax (nM)` = cmax, `Tmax (day)` = tmax,
         `Cmin (nM)` = cmin, `AUClast (nM*day)` = auclast) |>
  knitr::kable(caption = "Median NCA of total alirocumab in the virtual cohort.")
Median NCA of total alirocumab in the virtual cohort.
Regimen Start End Cmax (nM) Tmax (day) Cmin (nM) AUClast (nM*day)
150 mg Q2W 0 14 82.3 4.50 0.0 895
150 mg Q2W 70 84 140.0 4.00 75.3 1600
300 mg Q4W 0 28 148.0 4.50 0.0 2520
300 mg Q4W 56 84 184.0 4.00 34.6 3050
75 mg Q2W 0 14 38.9 4.75 0.0 397
75 mg Q2W 70 84 56.3 4.00 28.9 632

Assumptions and deviations

  • Molecular weight. Nolain 2022 doses in nmol and does not state the alirocumab molecular weight. The model accepts doses in mg and converts with 146,000 g/mol, the approximate molecular weight on the Praluent label (the value also used by Sokolov_2019_antipcsk9_qsp). Djebli_2017_alirocumab uses 144,100 g/mol; the 1.3% difference is negligible against the 68.1% bioavailability.
  • IV dosing. IV doses go to central in mg and are converted to nmol with the same factor (bioavailability 1). The paper’s IV infusion term In(t) is reproduced by an infusion record on central.
  • Statin effect on Imax. Eq. 5 adds the statin coefficient to the typical Imax (74.1% + 14.0% = 88.1%, matching the 88% in the abstract and Sect. 3.2.3). The logit-normal between-subject variability is applied around that sum.
  • Free-drug QSS root. Table 3’s free alirocumab expression is evaluated in the algebraically identical form 2 kss [Atot] / (sqrt(.) - a) when a = [Atot] - [Ptot] - kss is negative, which avoids cancellation when the drug is far below the target.
  • Parameter names. The paper’s complex clearance rate kclear is stored as the canonical kint, kon as k1, kD as kd, and the IC50 of free PCSK9 (a target concentration, not a drug concentration) as ki50.
  • Dropped covariates. The statin effect on kout, the sex effect on Imax and the baseline-PCSK9 effect on kdeg were tested a priori and removed in the covariate reduction step (Sect. 3.2.2); they are not encoded.
  • Figure 4 covariates. Figure 4 does not state the statin status of the simulated subject. Its curves fall between the no-statin and statin typical curves for every panel read (first-dose peak, free PCSK9 before dose 2, LDL-C plateau), and a population median with the dataset’s 61% statin mix does not reproduce them either. The figure is therefore compared as an envelope, not point by point.
  • Supplement. The supplement (base-model estimates, VPCs) was not used; the final model is fully specified by Table 3, Eqs. 3-7 and Table 4.
  • Virtual cohort. Baseline PCSK9 and LDL-C are drawn independently from log-normal distributions matched to the Table 2 means and SDs; the correlation between them is not reported.
