Simvastatin QSP PKPD module (Pichardo-Almarza 2017)

Source: vignettes/articles/PichardoAlmarza_2017_simvastatin_qsp.Rmd
PichardoAlmarza_2017_simvastatin_qsp.Rmd

Model and source

  • Citation: Pichardo-Almarza C, Diaz-Zuccarini V. Understanding the Effect of Statins and Patient Adherence in Atherosclerosis via a Quantitative Systems Pharmacology Model Using a Novel, Hybrid, and Multi-Scale Approach. Front Pharmacol. 2017;8:635. doi:10.3389/fphar.2017.00635. The 30/70 split of CL2 between metabolite formation and other elimination is read from the predecessor paper by the same authors, which prints the percentages on the same model diagram: Pichardo-Almarza C, Metcalf L, Finkelstein A, Diaz-Zuccarini V. Using a Systems Pharmacology Approach to Study the Effect of Statins on the Early Stage of Atherosclerosis in Humans. CPT Pharmacometrics Syst Pharmacol. 2015;4(1):41-50. doi:10.1002/psp4.7. Both papers attribute the PKPD parameter estimates to Kim J, Ahn BJ, Chae HS, Han S, Doh K, Choi J, et al. A population pharmacokinetic-pharmacodynamic model for simvastatin that predicts low-density lipoprotein-cholesterol reduction in patients with primary hyperlipidaemia. Basic Clin Pharmacol Toxicol. 2011;109(3):156-163. doi:10.1111/j.1742-7843.2011.00700.x.
  • Description: QSP (pharmacokinetic/pharmacodynamic module). Simvastatin parent/metabolite pharmacokinetics coupled to an inhibitory turnover model of circulating LDL, forming the drug module of the hybrid multiscale quantitative-systems-pharmacology model of atherosclerosis progression and statin adherence of Pichardo-Almarza and Diaz-Zuccarini (2017). Simvastatin (lactone) is absorbed first order from a gut compartment into a single simvastatin compartment whose total apparent clearance CL2 splits 30 percent to formation of the active metabolite simvastatin acid and 70 percent to other elimination; simvastatin acid is eliminated first order from its own compartment. Circulating LDL is a zero-order-in, first-order-out turnover pool whose production Kin is inhibited by simvastatin acid through a fractional Emax function, with Kout defined as Kin divided by the LDL baseline so the drug-free pool sits exactly at baseline. Parameters are the typical-patient values of Table 1, originally estimated by Kim 2011 in healthy male volunteers. The multiscale arterial-wall module of the source (hemodynamics, endothelial LDL transport, oxidised LDL, monocytes, macrophages, foam cells and plaque growth) is NOT encoded here because its wall geometry, endothelial surface area, LDL wall diffusivity and per-species volume constants are not reported in any source on disk; see the validation vignette for the full gap list. The vignette also reproduces the paper’s two-state Markov chain for medication adherence, which is a dosing-schedule construct rather than part of the differential-equation system.
  • Article: https://doi.org/10.3389/fphar.2017.00635
  • Predecessor paper (same authors; supplies the 30/70 clearance split and the two published validation figures used below): https://doi.org/10.1002/psp4.7

Pichardo-Almarza and Diaz-Zuccarini (2017) describe a hybrid, multi-scale quantitative systems pharmacology (QSP) model of atherosclerosis under statin therapy. The model has four coupled parts: (1) arterial hemodynamics and wall shear stress, (2) endothelial and intramural transport of LDL, monocytes, macrophages and foam cells with a discrete plaque-growth event, (3) a pharmacokinetic/pharmacodynamic (PKPD) module for simvastatin and its effect on circulating LDL, and (4) a two-state Markov chain for medication adherence.

This package encodes part (3), the PKPD module. Parts (1) and (2) are not encoded; the reason, and exactly which constants are missing, is set out in Assumptions and deviations at the end. Part (4) is not part of the differential-equation system at all – it is a rule for building the dosing schedule – and is reproduced in this vignette rather than in the model file.

Population

The PKPD module’s parameters are the typical-patient values of Table 1 of the 2017 paper (identical to Table 1 of the 2015 predecessor). Both papers attribute them to Kim et al. (2011). The 2015 Methods section states that the model “was developed using data collected from 27 healthy male volunteers with a daily dose of 40 mg of simvastatin given for 14 d”, with simvastatin and simvastatin acid plasma concentrations at 0, 0.5, 1, 1.5, 2, 3, 3.5, 4, 5, 6, 8, 10 and 12 and 24 h post-dose on days 1, 7 and 14, and LDL measured daily after an overnight fast. Kim et al. (2011) is titled for prediction in patients with primary hyperlipidaemia, so the estimation cohort and the intended prediction population differ; that paper was not available on disk, so only the two Pichardo-Almarza papers were used to characterise the cohort.

The source reports a single typical-patient parameter set: there is no inter-individual variability and no residual-error model on any PKPD parameter. The 1,000-subject virtual population of the 2015 paper varies lumen radius, blood viscosity and circulating LDL, all of which are inputs to the arterial-wall module rather than to the PKPD module.

The same information is available programmatically via readModelDb("PichardoAlmarza_2017_simvastatin_qsp")()$population.

Source trace

Per-parameter provenance is also recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/PichardoAlmarza_2017_simvastatin_qsp.R.

Equation / parameter Value Source location
lka (Ka) 2.76 1/h 2017 Table 1, PKPD MODEL block
lcl (CL2) 1,740 L/h 2017 Table 1, “Clearance compartment 2”
lvc (V2) 8,980 L 2017 Table 1, “Volume compartment 2”
logitfm (FM) 0.30 2015 Figure 4: the two arrows out of compartment 2 are labelled “CL2 (30%)” into simvastatin acid and “CL2 (70%)” to elimination. 2017 Figure 4 draws the same arm as “CL23” with no value.
lcle_acid (CL3) 383 L/h 2017 Table 1, “Clearance compartment 3”
lvc_acid (V3) 1,190 L 2017 Table 1, “Volume compartment 3”
lkin (Kin) 29.52 nmol/L/h 2017 Table 1, “Production rate of LDL”
lrbase (LDLbaseline) 1,400 nmol/L 2017 Table 1, “Baseline LDL”
limax (Emax) 0.489 2017 Table 1, “Max. effect due to the drug”
lic50 (EC50) 0.0868 ng/mL 2017 Table 1, “Blood concentration at half max. effect”
kout <- kin / rbase derived 2015 Table 1 lists Kout as “Kin/LDLbaseline” (the row is absent from the 2017 table)
PK topology gut -> simvastatin -> simvastatin acid n/a 2017 Figure 4 and 2015 Figure 4
Inhibitory turnover of LDL driven by the metabolite n/a 2017 Methods, “Modeling the Effect of the Drug …”: “an inhibitory turnover model with the metabolite (simvastatin acid) as the driver”
Markov adherence chain (Eqs. 6-10) pt, qnt 2017 Methods, “Evaluating Medication Adherence”; the worked scenario uses pt = 90%, qnt = 25% (2017 Results)
Residual error not reported fixed at 0 in ini(); the source is a simulation model
mod <- readModelDb("PichardoAlmarza_2017_simvastatin_qsp")

Structural gates

The PKPD module is fully deterministic (no random effects), so every check below is an exact comparison against a closed form rather than a cohort summary, and can carry a tight tolerance.

Dose-recovery identities

For a linear parent/metabolite chain with complete absorption, the parent AUC to infinity is Dose / CL2 and the metabolite AUC to infinity is FM * Dose / CL3, independent of Ka, V2 and V3. The metabolite identity is the one that pins FM = 0.30: if the 30/70 split were dropped or mis-read, this gate goes red.

dose_mg <- 40
# Dense early grid so the trapezoidal AUC resolves the absorption peak.
grid_h <- sort(unique(c(seq(0, 12, by = 0.01), seq(12, 24 * 30, by = 0.5))))

solve_single <- function(target_cmt) {
  ev <- rxode2::et(amt = dose_mg, cmt = target_cmt) |>
    rxode2::et(grid_h, cmt = "Cc")
  rxode2::rxSolve(mod, ev, returnType = "data.frame", atol = 1e-12, rtol = 1e-10)
}

sd_oral <- solve_single("depot")
sd_iv <- solve_single("central")

auc_check <- tibble::tibble(
  route = rep(c("oral (depot)", "direct into simvastatin cmt"), each = 2),
  analyte = rep(c("simvastatin", "simvastatin acid"), 2),
  simulated = c(
    PKNCA::pk.calc.auc.last(conc = sd_oral$Cc, time = sd_oral$time),
    PKNCA::pk.calc.auc.last(conc = sd_oral$Cc_acid, time = sd_oral$time),
    PKNCA::pk.calc.auc.last(conc = sd_iv$Cc, time = sd_iv$time),
    PKNCA::pk.calc.auc.last(conc = sd_iv$Cc_acid, time = sd_iv$time)
  ),
  closed_form = rep(c(1000 * dose_mg / 1740, 1000 * 0.30 * dose_mg / 383), 2)
) |>
  dplyr::mutate(pct_diff = 100 * (simulated - closed_form) / closed_form)

auc_check |>
  dplyr::rename(
    "Route" = route, "Analyte" = analyte,
    "AUClast (ng*h/mL)" = simulated,
    "Dose/CL closed form (ng*h/mL)" = closed_form,
    "% diff" = pct_diff
  ) |>
  knitr::kable(digits = 3, caption = "Dose-recovery identity, single 40 mg dose.")
Dose-recovery identity, single 40 mg dose.
Route Analyte AUClast (ng*h/mL) Dose/CL closed form (ng*h/mL) % diff
oral (depot) simvastatin 22.988 22.989 0.000
oral (depot) simvastatin acid 31.331 31.332 -0.001
direct into simvastatin cmt simvastatin 22.989 22.989 0.000
direct into simvastatin cmt simvastatin acid 31.331 31.332 -0.001

# Residual AUC beyond the 30-day window is negligible for both analytes, so the
# only error here is trapezoidal, and the 0.01 h early grid makes it tiny:
# observed max |% diff| = 0.001 %. The bound is set two orders of magnitude
# above that, which still goes red on any real structural error (dropping the
# 30/70 split alone moves the metabolite row by 70 %).
stopifnot(max(abs(auc_check$pct_diff)) < 0.05)

The metabolite arm is live

The cl / vc name pair can cause rxode2 to solve a one-compartment system analytically and discard the explicit ODEs. Perturbing logitfm must move the metabolite profile; if the ODEs were being bypassed it would not.

ev_live <- rxode2::et(amt = dose_mg, cmt = "depot") |>
  rxode2::et(seq(0, 48, by = 0.1), cmt = "Cc")
s_ref <- rxode2::rxSolve(mod, ev_live, returnType = "data.frame")
s_halffm <- rxode2::rxSolve(
  mod, ev_live,
  returnType = "data.frame",
  params = c(logitfm = qlogis(0.15))
)
ratio <- max(s_halffm$Cc_acid) / max(s_ref$Cc_acid)
cat(sprintf("Cmax(acid) at FM = 0.15 relative to FM = 0.30: %.4f\n", ratio))
#> Cmax(acid) at FM = 0.15 relative to FM = 0.30: 0.5000
# The metabolite input is linear in FM, so halving FM must halve its Cmax.
stopifnot(abs(ratio - 0.5) < 0.01)
# ... and the parent must be untouched, because CL2 is the TOTAL parent
# clearance and the split only routes it. The bound is on the RELATIVE
# difference: changing the metabolite equation changes the solver's step
# selection, so the two parent profiles differ by solver noise rather than
# being bit-identical (observed 2e-7 relative).
parent_rel <- max(abs(s_halffm$Cc - s_ref$Cc) / pmax(s_ref$Cc, 1e-12))
cat(sprintf("Max relative change in the parent profile: %.2e\n", parent_rel))
#> Max relative change in the parent profile: 2.03e-07
stopifnot(parent_rel < 1e-4)

Drug-free steady-state hold

Kout is defined as Kin / LDLbaseline, so with no drug the LDL pool must sit exactly at 1,400 nmol/L for all time.

ev_nodrug <- rxode2::et(seq(0, 24 * 365, by = 24), cmt = "Cc")
s_nodrug <- rxode2::rxSolve(mod, ev_nodrug, returnType = "data.frame")
cat(sprintf(
  "LDL over one drug-free year: min %.6f, max %.6f nmol/L\n",
  min(s_nodrug$ldl), max(s_nodrug$ldl)
))
#> LDL over one drug-free year: min 1400.000000, max 1400.000000 nmol/L
stopifnot(max(abs(s_nodrug$ldl - 1400)) < 1e-6)
stopifnot(max(s_nodrug$Cc, s_nodrug$Cc_acid) == 0)

Replicating the published PK figure

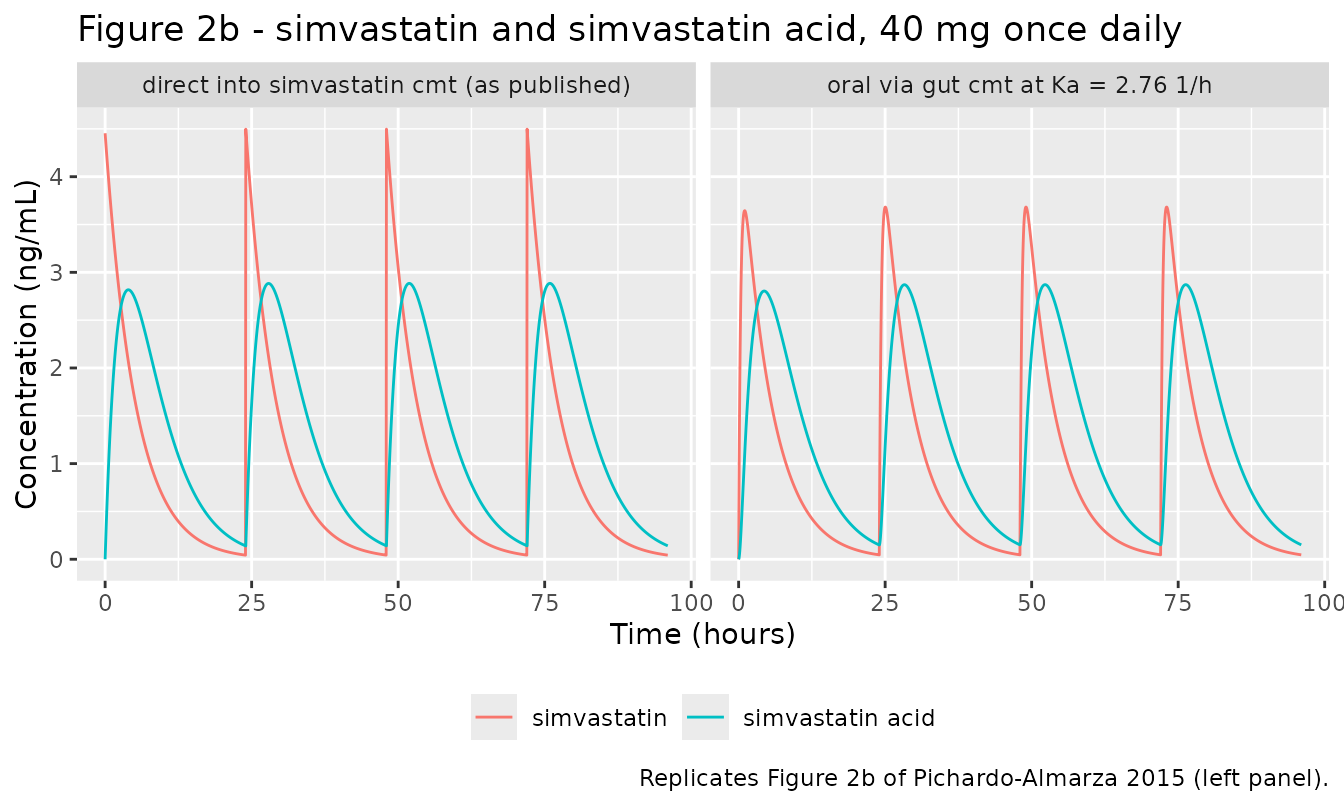

Figure 2b of the 2015 predecessor paper shows simvastatin and simvastatin acid concentrations over the first 96 h of 40 mg once-daily dosing. Its simvastatin curve rises vertically at each dose time to approximately Dose / V2, which is the signature of the dose being placed directly in the simvastatin compartment rather than passing through the gut compartment at Ka = 2.76 1/h. Both routes are simulated below; the packaged model keeps the published structure (gut -> simvastatin), and the direct-injection route is shown because it is what reproduces the published figure.

ev_qd <- function(target_cmt) {
  rxode2::et(amt = dose_mg, cmt = target_cmt, ii = 24, addl = 3) |>
    rxode2::et(seq(0, 96, by = 0.05), cmt = "Cc")
}
sim_iv <- rxode2::rxSolve(mod, ev_qd("central"), returnType = "data.frame")
sim_oral <- rxode2::rxSolve(mod, ev_qd("depot"), returnType = "data.frame")

dplyr::bind_rows(
  dplyr::mutate(sim_iv, route = "direct into simvastatin cmt (as published)"),
  dplyr::mutate(sim_oral, route = "oral via gut cmt at Ka = 2.76 1/h")
) |>
  dplyr::select(time, route, simvastatin = Cc, `simvastatin acid` = Cc_acid) |>
  tidyr::pivot_longer(c("simvastatin", "simvastatin acid"),
    names_to = "analyte", values_to = "conc"
  ) |>
  ggplot(aes(time, conc, colour = analyte)) +
  geom_line() +
  facet_wrap(~route) +
  labs(
    x = "Time (hours)", y = "Concentration (ng/mL)", colour = NULL,
    title = "Figure 2b - simvastatin and simvastatin acid, 40 mg once daily",
    caption = "Replicates Figure 2b of Pichardo-Almarza 2015 (left panel)."
  ) +
  theme(legend.position = "bottom")

PKNCA validation, last dosing interval

NCA is run on the fourth dosing interval (72-96 h), with time re-zeroed at the dose. The reference column holds values digitised from Figure 2b of the 2015 paper (667 x 523 px JPEG supplied with the open-access record; the axis calibration resolves approximately 0.02 ng/mL per pixel vertically and 0.32 h per pixel horizontally, so the digitised numbers carry roughly 1-2% and 0.3 h of reading error respectively).

nca_frame <- function(sim, conc_col) {
  sim |>
    dplyr::filter(time >= 72, !is.na(.data[[conc_col]])) |>
    dplyr::transmute(
      id = 1L,
      treatment = "40 mg QD, interval 4",
      time = time - 72,
      conc = .data[[conc_col]]
    )
}
dose_df <- data.frame(
  id = 1L, treatment = "40 mg QD, interval 4", time = 0, amt = dose_mg
)
intervals <- data.frame(start = 0, end = 24, cmax = TRUE, tmax = TRUE, auclast = TRUE)

run_nca <- function(conc_df) {
  PKNCA::pk.nca(PKNCA::PKNCAdata(
    PKNCA::PKNCAconc(conc_df, conc ~ time | treatment + id),
    PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id),
    intervals = intervals
  ))
}
nca_parent <- run_nca(nca_frame(sim_iv, "Cc"))
nca_acid <- run_nca(nca_frame(sim_iv, "Cc_acid"))
# Digitised from Pichardo-Almarza 2015 Figure 2b. auclast is not read off the
# figure; the closed-form steady-state value Dose/CL (parent) and
# FM*Dose/CL3 (metabolite) is used as the reference instead, which for a
# linear system equals AUC over one steady-state dosing interval.
published_parent <- tibble::tribble(
  ~treatment, ~cmax, ~tmax, ~auclast,
  "40 mg QD, interval 4", 4.36, 0.0, 1000 * dose_mg / 1740
)
published_acid <- tibble::tribble(
  ~treatment, ~cmax, ~tmax, ~auclast,
  "40 mg QD, interval 4", 2.84, 3.84, 1000 * 0.30 * dose_mg / 383
)

cmp_parent <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_parent, reference = published_parent, by = "treatment",
  units = c(cmax = "ng/mL", tmax = "h", auclast = "ng*h/mL"),
  tolerance_pct = 20
)
cmp_acid <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_acid, reference = published_acid, by = "treatment",
  units = c(cmax = "ng/mL", tmax = "h", auclast = "ng*h/mL"),
  tolerance_pct = 20
)
knitr::kable(cmp_parent, caption = "Simvastatin: simulated vs. digitised Figure 2b. * differs by >20%.")
Simvastatin: simulated vs. digitised Figure 2b. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) 40 mg QD, interval 4 4.36 4.5 +3.1%
Tmax (h) 40 mg QD, interval 4 0 0 —
AUClast (ng*h/mL) 40 mg QD, interval 4 23 23 -0.0%
knitr::kable(cmp_acid, caption = "Simvastatin acid: simulated vs. digitised Figure 2b. * differs by >20%.")
Simvastatin acid: simulated vs. digitised Figure 2b. * differs by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) 40 mg QD, interval 4 2.84 2.88 +1.6%
Tmax (h) 40 mg QD, interval 4 3.84 3.9 +1.6%
AUClast (ng*h/mL) 40 mg QD, interval 4 31.3 31.3 -0.0%
# ncaComparisonTable() returns formatted character, so the numeric gate is
# recomputed from the PKNCA results directly.
getp <- function(res, code) {
  r <- as.data.frame(res$result)
  r$PPORRES[r$PPTESTCD == code][1]
}
gate <- tibble::tibble(
  what = c("parent cmax", "acid cmax", "acid tmax"),
  simulated = c(getp(nca_parent, "cmax"), getp(nca_acid, "cmax"), getp(nca_acid, "tmax")),
  reference = c(4.36, 2.84, 3.84)
) |>
  dplyr::mutate(pct_diff = 100 * (simulated - reference) / reference)
print(as.data.frame(gate))
#>          what simulated reference pct_diff
#> 1 parent cmax  4.497330      4.36 3.149777
#> 2   acid cmax  2.884433      2.84 1.564530
#> 3   acid tmax  3.900000      3.84 1.562500
# Cmax tolerance is 5%: the digitisation itself carries 1-2%, and the
# simulated values sit within 3% of the read values (observed 3.2%, 1.6%).
stopifnot(all(abs(gate$pct_diff[1:2]) < 5))
# Tmax of the metabolite: half a pixel of the time axis is 0.16 h; allow 0.5 h.
stopifnot(abs(gate$simulated[3] - gate$reference[3]) < 0.5)

The three digitised quantities agree with the packaged model to within the resolution of the figure. Together with the two dose-recovery identities this confirms CL2, V2, CL3, V3 and the 30/70 clearance split.

LDL response over 12 months

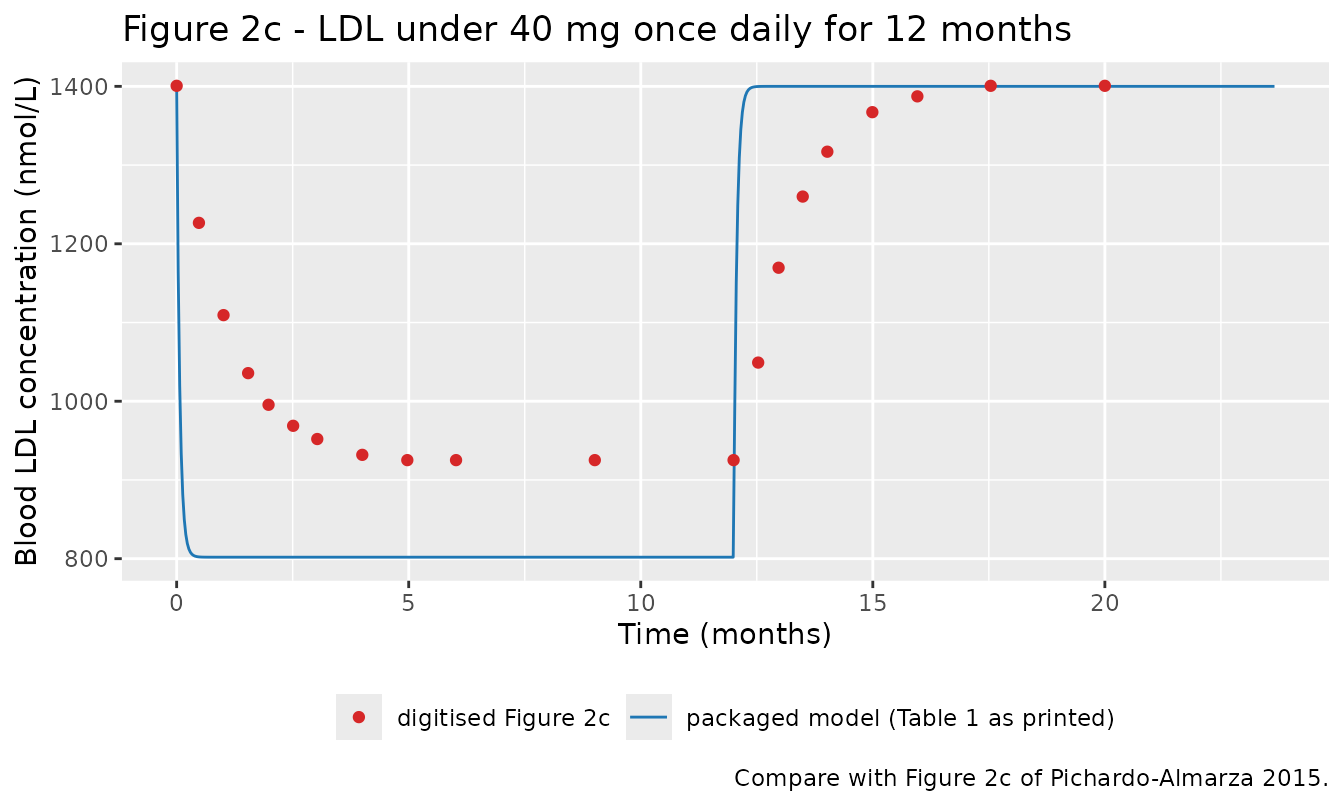

Figure 2c of the 2015 paper shows the LDL trajectory for 40 mg once daily for 12 months followed by 12 months off drug. The digitised curve is overlaid on the model prediction below. This is a known deviation, not a passing gate – see the discussion immediately after the plot.

months <- 30.4375 * 24 # hours per month, as used for the figure's x axis
ev_12mo <- rxode2::et(amt = dose_mg, cmt = "depot", ii = 24, addl = 364) |>
  rxode2::et(seq(0, 24 * 720, by = 24), cmt = "Cc")
sim_12mo <- rxode2::rxSolve(mod, ev_12mo, returnType = "data.frame")

fig2c_digitised <- tibble::tribble(
  ~month, ~ldl,
  0.00, 1400.7, 0.48, 1226.6, 1.01, 1109.4, 1.54, 1035.7, 1.98, 995.5,
  2.51, 968.8, 3.03, 952.0, 4.00, 931.9, 4.97, 925.2, 6.02, 925.2,
  9.01, 925.2, 12.00, 925.2, 12.53, 1049.1, 12.97, 1169.6, 13.49, 1260.0,
  14.02, 1317.0, 14.99, 1367.2, 15.96, 1387.3, 17.54, 1400.7, 20.00, 1400.7
)

ggplot() +
  geom_line(
    data = dplyr::mutate(sim_12mo, month = time / months),
    aes(month, ldl, colour = "packaged model (Table 1 as printed)")
  ) +
  geom_point(
    data = fig2c_digitised,
    aes(month, ldl, colour = "digitised Figure 2c")
  ) +
  scale_colour_manual(values = c("packaged model (Table 1 as printed)" = "#1f77b4",
                                 "digitised Figure 2c" = "#d62728")) +
  labs(
    x = "Time (months)", y = "Blood LDL concentration (nmol/L)", colour = NULL,
    title = "Figure 2c - LDL under 40 mg once daily for 12 months",
    caption = "Compare with Figure 2c of Pichardo-Almarza 2015."
  ) +
  theme(legend.position = "bottom")

on_rx <- dplyr::filter(sim_12mo, time >= 24 * 180, time <= 24 * 360)
model_plateau <- mean(on_rx$ldl)
fig_plateau <- 925.2
# Time to reach 90% of the eventual drop, model vs figure.
drop_model <- 1400 - model_plateau
t90_model <- min(sim_12mo$time[sim_12mo$ldl <= 1400 - 0.9 * drop_model]) / months
t90_fig <- min(fig2c_digitised$month[fig2c_digitised$ldl <= 1400 - 0.9 * (1400 - fig_plateau)])

tibble::tibble(
  quantity = c("on-treatment LDL plateau (nmol/L)",
               "LDL reduction from baseline (%)",
               "time to 90% of the drop (months)"),
  model = c(model_plateau, 100 * (1 - model_plateau / 1400), t90_model),
  `Figure 2c` = c(fig_plateau, 100 * (1 - fig_plateau / 1400), t90_fig)
) |>
  knitr::kable(digits = 2, caption = "Model vs. digitised Figure 2c (a known deviation).")
Model vs. digitised Figure 2c (a known deviation).
quantity model Figure 2c
on-treatment LDL plateau (nmol/L) 801.89 925.20
LDL reduction from baseline (%) 42.72 33.91
time to 90% of the drop (months) 0.16 2.51

Two separate disagreements are visible, and both are reported here rather than resolved by changing any parameter value:

  1. Plateau. The published figure plateaus at about 925 nmol/L (a 33.9% reduction); the packaged model plateaus near 800 nmol/L (about 43%). The plateau of an inhibitory turnover model is LDLbaseline * (1 - Emax * <C/(EC50 + C)>) and is independent of Kin, Kout and of the solver: with the Table 1 values the acid concentration spends the whole dosing interval far above EC50 = 0.0868 ng/mL (trough 0.15 ng/mL, peak 2.8 ng/mL), so the time-averaged inhibition is about 0.89 of Emax, not 0.69 as the figure requires. No reading of Table 1 that also reproduces Figure 2b (which is matched to within the figure’s resolution above) reproduces this plateau.
  2. Time scale. The figure’s LDL takes roughly four months to plateau and roughly five months to recover. With Kin in the printed units of nmol/L/hour, Kout = Kin / LDLbaseline = 0.0211 1/h gives an LDL half-life of 33 hours, so the packaged model plateaus within about a week. Reading Kin as nmol/L/day instead would give Kout = 0.0211 1/day, an LDL half-life of 33 days and a months-scale response consistent with the figure. The packaged model keeps the printed unit, because the figure is demonstrably inconsistent with Table 1 on the plateau as well – a quantity that no unit choice affects – so it is not a reliable arbiter of the Kin unit. A user who wants the Figure 2c time course can rescale with rxSolve(mod, ev, params = c(lkin = log(29.52 / 24))), which moves the response onto a months-scale without changing the plateau.

Medication adherence: the two-state Markov chain

Equations 6-10 of the 2017 paper define a two-state chain over “taking” and “not taking” the daily dose, with pt = P(take | took yesterday) and qnt = P(skip | skipped yesterday), giving the transition matrix P = [[pt, 1 - pt], [1 - qnt, qnt]]. The stationary probability of taking a dose is (1 - qnt) / ((1 - pt) + (1 - qnt)).

markov_doses <- function(n_days, pt, qnt, start_taking = TRUE) {
  taking <- logical(n_days)
  state <- start_taking
  for (i in seq_len(n_days)) {
    state <- if (state) runif(1) < pt else runif(1) >= qnt
    taking[i] <- state
  }
  taking
}

# The paper's worked scenario (2017 Results): pt = 90%, qnt = 25%, described as
# "missing ~10% of the total number of doses".
stationary_taking <- function(pt, qnt) (1 - qnt) / ((1 - pt) + (1 - qnt))
cat(sprintf(
  "Stationary fraction of doses taken at pt = 0.90, qnt = 0.25: %.3f (missed %.1f%%)\n",
  stationary_taking(0.90, 0.25), 100 * (1 - stationary_taking(0.90, 0.25))
))
#> Stationary fraction of doses taken at pt = 0.90, qnt = 0.25: 0.882 (missed 11.8%)
# The paper's own prose is the reference: "missing ~10% of the total number of
# doses". The chain it specifies must reproduce that.
stopifnot(abs(100 * (1 - stationary_taking(0.90, 0.25)) - 10) < 5)
set.seed(20170913)
n_per_arm <- 40L
n_days <- 365L

arms <- tibble::tribble(
  ~arm, ~pt, ~qnt,
  "fully adherent", NA_real_, NA_real_,
  "less adherent (pt = 0.90, qnt = 0.25)", 0.90, 0.25,
  "low adherence (pt = qnt = 0.75)", 0.75, 0.75
)

make_arm <- function(arm, pt, qnt, id_offset) {
  do.call(rbind, lapply(seq_len(n_per_arm), function(i) {
    taking <- if (is.na(pt)) rep(TRUE, n_days) else markov_doses(n_days, pt, qnt)
    doses <- data.frame(
      id = id_offset + i, time = (which(taking) - 1) * 24,
      amt = dose_mg, evid = 1L, cmt = "depot", arm = arm
    )
    obs <- data.frame(
      id = id_offset + i, time = seq(0, (n_days - 1) * 24, by = 24),
      amt = NA_real_, evid = 0L, cmt = "Cc", arm = arm
    )
    rbind(doses, obs)
  }))
}
events <- dplyr::bind_rows(lapply(seq_len(nrow(arms)), function(k) {
  make_arm(arms$arm[k], arms$pt[k], arms$qnt[k], id_offset = (k - 1L) * 1000L)
}))
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

taken <- events |>
  dplyr::filter(evid == 1) |>
  dplyr::count(arm, id, name = "n_doses") |>
  dplyr::group_by(arm) |>
  dplyr::summarise(pct_taken = 100 * mean(n_doses) / n_days, .groups = "drop")
knitr::kable(taken, digits = 1, caption = "Realised adherence per arm.")
Realised adherence per arm.
arm pct_taken
fully adherent 100.0
less adherent (pt = 0.90, qnt = 0.25) 88.5
low adherence (pt = qnt = 0.75) 49.9
# Each arm's realised adherence must match its chain's stationary value.
stopifnot(abs(taken$pct_taken[taken$arm == arms$arm[2]] - 88.2) < 3)
stopifnot(abs(taken$pct_taken[taken$arm == arms$arm[3]] - 50.0) < 5)
sim_adh <- rxode2::rxSolve(mod, events, keep = "arm", returnType = "data.frame")
#> Warning: multi-subject simulation without without 'omega'

sim_adh |>
  dplyr::mutate(month = time / months) |>
  dplyr::group_by(arm, month) |>
  dplyr::summarise(
    Q05 = quantile(ldl, 0.05), Q50 = median(ldl), Q95 = quantile(ldl, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(month, Q50, colour = arm, fill = arm)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, colour = NA) +
  geom_line() +
  labs(
    x = "Time (months)", y = "Blood LDL concentration (nmol/L)",
    colour = NULL, fill = NULL,
    title = "Effect of medication adherence on the LDL response",

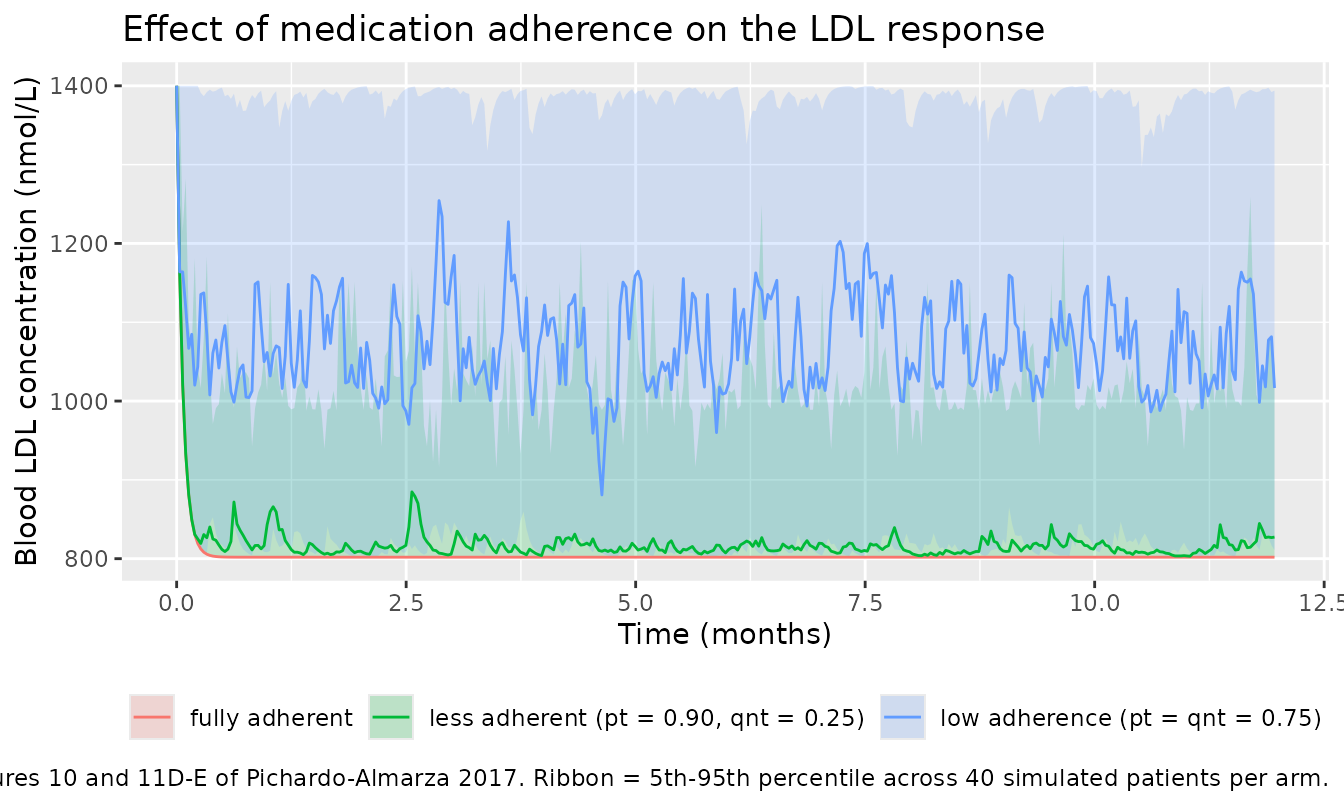

    caption = paste(
      "Compare with Figures 10 and 11D-E of Pichardo-Almarza 2017.",
      "Ribbon = 5th-95th percentile across", n_per_arm, "simulated patients per arm."
    )
  ) +
  theme(legend.position = "bottom")

endpoint <- sim_adh |>
  dplyr::filter(time == (n_days - 1) * 24) |>
  dplyr::group_by(arm) |>
  dplyr::summarise(
    ldl = mean(ldl),
    reduction_pct = 100 * (1 - mean(ldl) / 1400),
    .groups = "drop"
  )
knitr::kable(endpoint, digits = 1, caption = "LDL at 12 months by adherence arm.")
LDL at 12 months by adherence arm.
arm ldl reduction_pct
fully adherent 801.9 42.7
less adherent (pt = 0.90, qnt = 0.25) 884.2 36.8
low adherence (pt = qnt = 0.75) 1077.8 23.0

ratio_adherent_vs_low <-
  endpoint$reduction_pct[endpoint$arm == arms$arm[1]] /
    endpoint$reduction_pct[endpoint$arm == arms$arm[3]]
cat(sprintf(
  "LDL reduction, fully adherent / low adherence: %.2f\n", ratio_adherent_vs_low
))
#> LDL reduction, fully adherent / low adherence: 1.86
# The 2017 Model Validation section compares against Kazerooni 2013, which
# reported a 37 mg/dL LDL fall in adherent patients vs 18 mg/dL in
# non-adherent patients at 12 months -- a ratio of 2.06 -- and states that the
# QSP model "reproduces similar differences" for a group taking around 50% of
# the prescription. The gate is on that ratio, which is unit-free and so does
# not require the unpublished nmol/L-to-mg/dL conversion.
stopifnot(ratio_adherent_vs_low > 1.4, ratio_adherent_vs_low < 2.8)

The 2017 paper also notes that an advantage of the QSP model is showing the oscillations in the LDL time course caused by missed doses (its Figure 11E). Those oscillations are visible in the ribbon above.

Assumptions and deviations

What is and is not encoded

  • Encoded: the PKPD module (Figure 4 of both papers, Table 1 PKPD block) and the LDL inhibitory turnover.
  • Not encoded: the arterial-wall and plaque-growth module. The 2015 predecessor paper does publish its differential equations – LDL transport (Eq. 8), oxidised LDL (Eq. 9), monocytes (Eqs. 10-11), macrophages (Eq. 12), foam cells (Eq. 13) – and Table 1 gives the rate constants (km, dm, dlox, dM, dF, rw, rho1, gamma0, the WSS threshold, m_lumen, sigma, Delta p, Q, blood viscosity, lumen radius). What is not published anywhere on disk is everything needed to close the system:
    • the arterial-wall volume and endothelial surface area, which set the conversion from the Kedem-Katchalsky flux Js into the well-stirred wall concentration in Eq. 8;
    • the LDL diffusivity in the wall Dw;
    • the initial conditions of the five wall species;
    • the per-particle and per-cell volumes needed to turn species amounts into plaque volume, and hence into %TAV (Eqs. 14-15). The computational supplement (Supplementary Materials S2 of the 2015 paper) states these only as unevaluated placeholders (V_LDL_part = f11(...), V_cells = f12(...), Wall = f13(...)).
    The predecessor that would carry these constants, Di Tomaso, Diaz-Zuccarini and Pichardo-Almarza (2011), IEEE Trans Biomed Eng 58:3460-3463, doi:10.1109/TBME.2011.2165066, is not open access and was not obtainable. Rather than substitute typical arterial geometry from outside the sources, the module is left out and recorded here.
  • Not encoded (by design): the adherence Markov chain. It builds the dosing schedule and is not part of the differential-equation system; it is reproduced in this vignette above.
  • Not encoded: the hemodynamics. Equations 1-2 of the 2017 paper are the continuity and Navier-Stokes equations, a spatial CFD problem with no ODE form. The 2015 paper’s own simplification – Poiseuille wall shear stress tau = 4 mu Q / (pi r^3) – is algebraic, but it only matters through the wall module, which is not encoded.

Parameter-level assumptions

  • FM = 0.30 comes from the 2015 figure, not the 2017 table. The 2017 paper’s Figure 4 labels the simvastatin-to-simvastatin-acid arm “CL23” and Table 1 gives no value for it, so the 2017 paper alone does not determine the metabolite exposure. The 2015 paper by the same authors draws the identical diagram with the two arms out of compartment 2 labelled “CL2 (30%)” and “CL2 (70%)”, which both identifies CL2 as the total clearance of that compartment and fixes FM. The dose-recovery gate above and the digitised metabolite Cmax (2.84 ng/mL published vs 2.88 simulated) both confirm it.
  • Ka is retained but is not exercised by the source’s own figures. Table 1 reports Ka = 2.76 1/h and both papers draw a gut compartment feeding the simvastatin compartment, so the packaged model keeps that structure. The published Figure 2b, however, shows the simvastatin concentration rising vertically to Dose / V2 at each dose, which only happens if the dose is placed directly in the simvastatin compartment. Both routes are simulated in this vignette; the oral route gives a 17% lower parent Cmax (3.68 vs 4.45 ng/mL) and shifts parent Tmax to about 1 h.
  • Emax / EC50 are encoded as limax / lic50. The source names them Emax and EC50, but they enter as a fractional inhibition of LDL production, so the canonical inhibitory names are used. No numerical change.
  • Kin unit and the Figure 2c plateau are discussed in full in the LDL section above. The printed value and unit are used as-is.
  • No inter-individual variability and no residual error are reported. All ten structural parameters are wrapped in fixed() and the three residual standard deviations are fixed(0). No variance was invented.
  • Kim et al. (2011), the originating PKPD publication, is not open access and was not available on disk. Every value used here is printed in one of the two Pichardo-Almarza papers; nothing was taken from Kim et al. directly.

Digitisation provenance

Figures 2b and 2c of the 2015 paper were digitised from the open-access figure files distributed with PMC4337252 (psp40004-e00007-f2.jpg, 667 x 523 px) by locating the plot frame and axis tick labels and mapping the coloured curve pixels back to data coordinates. The calibration reproduces the known pre-treatment LDL baseline (1,400 nmol/L) to within 1 nmol/L, which is the check that the mapping is right. Digitised values are used only as comparison references in this vignette; no packaged parameter value derives from them except FM, which is read from a printed percentage label rather than from a curve.
