Vortioxetine (Naik 2016)

Source: vignettes/articles/Naik_2016_vortioxetine.Rmd
Naik_2016_vortioxetine.Rmd

Model and source

  • Citation: Naik H, Chan S, Vakilynejad M, Chen G, Loft H, Mahableshwarkar AR, Areberg J. A Population Pharmacokinetic-Pharmacodynamic Meta-Analysis of Vortioxetine in Patients with Major Depressive Disorder. Basic Clin Pharmacol Toxicol. 2016;118(5):344-355. doi:10.1111/bcpt.12513
  • Description: Two-compartment population PK model for vortioxetine in adult patients with major depressive disorder or generalized anxiety disorder, with first-order oral absorption, region-specific oral clearance, and linear creatinine-clearance and height effects on CL/F (Naik 2016)
  • Article: https://doi.org/10.1111/bcpt.12513 (Basic & Clinical Pharmacology & Toxicology, 2016)

Naik et al. 2016 pooled vortioxetine PK and MADRS efficacy data from 12 Phase II/III trials in adults with major depressive disorder (MDD, 10 studies) or generalized anxiety disorder (GAD, 2 studies). The structural PK model is a two-compartment disposition with first-order oral absorption and first-order elimination; the absorption rate constant, intercompartmental clearance, and peripheral volume were fixed at the values estimated in an upstream Phase I popPK analysis (Areberg et al. 2014). This vignette packages the popPK piece of the analysis; the PK/efficacy model (an Emax model relating end-of-treatment MADRS change to steady-state Cav) is described below for context but is not encoded as an rxode2 model because it operates on Cav rather than a time-course concentration.

Population

A total of 3160 patients with MDD (10 studies) or GAD (2 studies) contributed 10498 plasma vortioxetine concentrations to the population PK analysis (LLOQ samples, 8 percent of the total, were excluded). Baseline demographics (Naik 2016 Table 2):

  • Age 18-88 years (median 46)
  • Weight 39-173 kg (median 74)
  • Height 137-203 cm (median 167)
  • Body mass index 16-60 kg/m^2 (median 26)
  • Creatinine clearance 26-322 mL/min (median 106)
  • Sex distribution in the PK/efficacy subset: 1709 female / 828 male (67 percent female)
  • Region distribution in the PK/efficacy subset: 765 USA / 1772 non-USA (Canada, Australia, EU, Asia)

Vortioxetine doses ranged from 1 to 20 mg administered once daily orally for 6 to 52 weeks. The same population metadata is available programmatically via rxode2::rxode(readModelDb("Naik_2016_vortioxetine"))$population.

Source trace

Equation / parameter Value Source location
lcl (typical CL/F, USA reference) log(51) L/hr Table 3 (CL/F for US = 51 L/hr)
e_region_europe_cl (EU vs USA, log-multiplicative) log(39/51) Table 3 (CL/F for EU = 39 L/hr; CL/F for US = 51 L/hr)
e_region_row_cl (RoW vs USA, log-multiplicative) log(38/51) Table 3 (CL/F for RoW = 38 L/hr; CL/F for US = 51 L/hr)
lvc (V2/F) log(2900) L Table 3 (V2/F = 2.9 x 10^3 L)
lq (Q/F, fixed) log(23) L/hr Table 3 (Q/F = 23 L/hr, fixed from Areberg 2014)
lvp (V3/F, fixed) log(670) L Table 3 (V3/F = 6.7 x 10^2 L, fixed from Areberg 2014)
lka (ka, fixed) log(0.14) 1/hr Table 3 (ka = 0.14 /hr, fixed from Areberg 2014; Table 3 unit “L/hr” is a typo)
e_crcl_cl (linear CrCL effect on CL/F) 0.18 L/hr per (mL/min - 106) Table 3 (CrCL on CL/F)
e_ht_cl (linear height effect on CL/F) 0.40 L/hr per (cm - 167) Table 3 (Height on CL/F)
etalcl (IIV on CL/F) omega^2 = 0.62 Table 3 (RoW value; paper estimated separate variances per region 0.38:0.90:0.62)
etalvc (IIV on V2/F) omega^2 = 0.82 Table 3 (omega^2 for V2/F = 0.82)
expSd (residual SD on log-transformed concentrations) 0.26 Table 4 (Residual error)
Equation 12: CL/F = TVCL_region + 0.18(CRCL - 106) + 0.40(HT - 167) n/a Page 348, equation 12
2-compartment ODE with first-order absorption n/a Page 348, Figure 1 (PK schematic)

The PK/efficacy model parameters (Table 3) for context:

PD parameter Value Source location
E0 (placebo response, MADRS units) 13.2 Table 3
Emax (maximum drug-attributable change in MADRS) 7.0 Table 3
EC50 (Cav at half-Emax, ng/mL) 24.9 Table 3
Kb (baseline-MADRS coefficient on EC50) 0.6 Table 3

Equation 13 of the paper carries an additional region-specific shift on Emax (r0 * region_i), but the numerical r0 value is not reported in Table 3.

Virtual cohort

Original observed data are not publicly available. The figures below use virtual populations whose covariate distributions approximate the published trial demographics (Naik 2016 Table 2).

set.seed(2016)
mod <- rxode2::rxode(readModelDb("Naik_2016_vortioxetine"))
#> ℹ parameter labels from comments will be replaced by 'label()'

n_per_arm <- 100L
sim_horizon_hr <- 8L * 7L * 24L  # 8 weeks
obs_every_hr   <- 12L

# Helper: simulate one (region, dose) cohort with per-subject covariates carried
# via iCov, and stochastic etalcl / etalvc draws by rxSolve.
simulate_cohort <- function(region, dose_mg, n = n_per_arm, id_offset = 0L) {
  ids <- id_offset + seq_len(n)
  icov <- data.frame(
    id            = ids,
    REGION_EUROPE = as.integer(region == "EU"),
    REGION_ROW    = as.integer(region == "RoW"),
    HT            = pmin(pmax(rnorm(n, 167, 9),  137), 203),
    CRCL          = pmin(pmax(rnorm(n, 106, 36), 26),  322)
  )
  ev <- rxode2::et(amt = dose_mg, ii = 24, until = sim_horizon_hr, cmt = "depot") |>
    rxode2::et(seq(0, sim_horizon_hr, by = obs_every_hr)) |>
    rxode2::et(id = ids)
  rxode2::rxSolve(mod, events = ev, iCov = icov) |>
    as.data.frame() |>
    dplyr::mutate(region = region, dose_mg = dose_mg,
                  treatment = paste0(region, " ", dose_mg, " mg QD"))
}

doses <- c(5, 10, 20)
regions <- c("USA", "EU", "RoW")
grid <- tidyr::expand_grid(region = regions, dose_mg = doses) |>
  dplyr::mutate(id_offset = (seq_len(n()) - 1L) * n_per_arm)

sim <- purrr::pmap_dfr(grid, simulate_cohort) |>
  dplyr::as_tibble() |>
  dplyr::filter(time > 0)

Replicate published figures

Figure 1 of Naik 2016 is the PK model schematic – reproduced structurally by the model file (depot -> central <-> peripheral1, first-order absorption from depot).

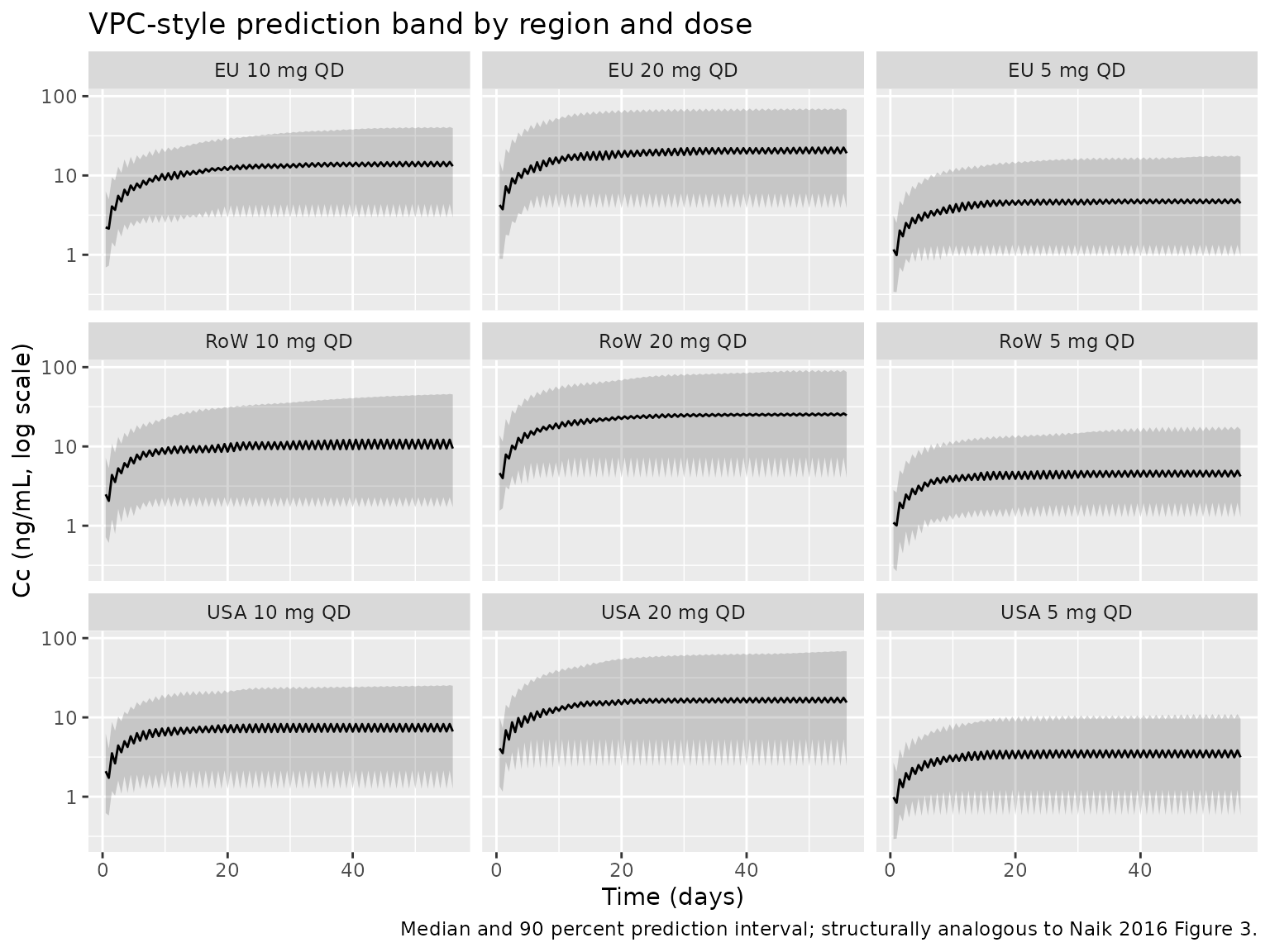

Figure 3 of Naik 2016 is a visual predictive check for the popPK final model. The plot below is the analogous typical-cohort prediction band aggregated across all simulated subjects.

sim |>
  dplyr::group_by(time, treatment) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot2::ggplot(ggplot2::aes(time / 24, Q50)) +
  ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.2) +
  ggplot2::geom_line() +
  ggplot2::facet_wrap(~treatment, ncol = 3) +
  ggplot2::scale_y_log10() +
  ggplot2::labs(
    x = "Time (days)",
    y = "Cc (ng/mL, log scale)",
    title = "VPC-style prediction band by region and dose",
    caption = "Median and 90 percent prediction interval; structurally analogous to Naik 2016 Figure 3."
  )

Figure 4 of Naik 2016 is a tornado-style figure of the effect of CrCL and height on AUC and Cmax at 10 mg QD steady-state, relative to the typical EU subject (167 cm, 106 mL/min CrCL). The table below reproduces the relative-change calculation using deterministic typical-value simulations.

mod_typ <- rxode2::zeroRe(mod)

simulate_scenario <- function(label, HT_val, CRCL_val) {
  ev <- rxode2::et(amt = 10, ii = 24, until = 12L * 7L * 24L, cmt = "depot") |>
    rxode2::et(seq(0, 12L * 7L * 24L, by = 2)) |>
    rxode2::et(id = 1L)
  icov <- data.frame(
    id = 1L,
    REGION_EUROPE = 1L, REGION_ROW = 0L,
    HT = HT_val, CRCL = CRCL_val
  )
  rxode2::rxSolve(mod_typ, events = ev, iCov = icov) |>
    as.data.frame() |>
    dplyr::filter(time >= 11L * 7L * 24L) |>
    dplyr::summarise(scenario = label, HT = HT_val, CRCL = CRCL_val,
                     Cmax_ss = max(Cc, na.rm = TRUE),
                     Cav_ss  = mean(Cc, na.rm = TRUE))
}

scenarios <- list(
  list("Reference (EU, HT=167, CRCL=106)", 167, 106),
  list("Low height (153 cm)",               153, 106),
  list("High height (184 cm)",              184, 106),
  list("Low CrCL (64 mL/min)",              167, 64),
  list("High CrCL (181 mL/min)",            167, 181)
)
sweep_results <- purrr::map_dfr(scenarios, ~ simulate_scenario(.x[[1]], .x[[2]], .x[[3]]))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'

knitr::kable(
  sweep_results, digits = 2,
  caption = "Steady-state Cmax and Cav (ng/mL) for a typical EU 10 mg QD subject under perturbations in height and CrCL. Compare against Naik 2016 Figure 4 (relative change vs the reference subject; the paper reports up to about 22-23 percent change in Cmax/AUC across these covariate ranges)."
)
Steady-state Cmax and Cav (ng/mL) for a typical EU 10 mg QD subject under perturbations in height and CrCL. Compare against Naik 2016 Figure 4 (relative change vs the reference subject; the paper reports up to about 22-23 percent change in Cmax/AUC across these covariate ranges).
scenario HT CRCL Cmax_ss Cav_ss
Reference (EU, HT=167, CRCL=106) 167 106 11.13 10.67
Low height (153 cm) 153 106 12.92 12.46
High height (184 cm) 184 106 9.55 9.08
Low CrCL (64 mL/min) 167 64 13.70 13.24
High CrCL (181 mL/min) 167 181 8.39 7.92

PKNCA validation

PKNCA is used here to derive steady-state NCA parameters from the typical-value simulation; the percentages-by-cohort comparison against the published reference follows.

# Typical-value steady-state simulation (the deterministic version of the cohort
# build above; uses zeroRe(mod) to drop between-subject variability so the NCA
# table reflects the model's mean prediction per region/dose group).
simulate_typ_cohort <- function(region, dose_mg) {
  ev <- rxode2::et(amt = dose_mg, ii = 24, until = sim_horizon_hr, cmt = "depot") |>
    rxode2::et(seq(11L * 7L * 24L, 12L * 7L * 24L, by = 1)) |>
    rxode2::et(id = 1L)
  icov <- data.frame(
    id = 1L,
    REGION_EUROPE = as.integer(region == "EU"),
    REGION_ROW    = as.integer(region == "RoW"),
    HT = 167, CRCL = 106
  )
  rxode2::rxSolve(mod_typ, events = ev, iCov = icov) |>
    as.data.frame() |>
    dplyr::mutate(region = region, dose_mg = dose_mg,
                  treatment = paste0(region, " ", dose_mg, " mg QD"))
}

typ_sim <- purrr::pmap_dfr(grid, function(region, dose_mg, id_offset)
  simulate_typ_cohort(region, dose_mg)) |>
  dplyr::as_tibble()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'

nca_input <- typ_sim |>
  dplyr::filter(time >= 11L * 7L * 24L, Cc > 0) |>
  dplyr::transmute(
    id = match(treatment, unique(treatment)),
    time_h_within_week = time - 11L * 7L * 24L,
    Cc,
    treatment
  )

dose_df <- data.frame(
  treatment = unique(nca_input$treatment),
  id        = seq_along(unique(nca_input$treatment)),
  time      = 0,
  amt       = vapply(strsplit(unique(nca_input$treatment), " "), function(x) as.numeric(x[2]), numeric(1)),
  route     = "extravascular"
)

conc_obj <- PKNCA::PKNCAconc(nca_input, Cc ~ time_h_within_week | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id, route = "route")

intervals <- data.frame(
  start    = 0, end = 24,
  cmax     = TRUE, tmax = TRUE,
  auclast  = TRUE, cav  = TRUE
)
nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

knitr::kable(
  as.data.frame(nca_res$result),
  caption = "Steady-state NCA parameters (final dosing-week interval) by region and dose group. Cav is the mean concentration over the 24-hour dosing interval."
)
Steady-state NCA parameters (final dosing-week interval) by region and dose group. Cav is the mean concentration over the 24-hour dosing interval.
treatment id start end PPTESTCD PPORRES exclude
EU 10 mg QD 5 0 24 auclast 1.5199428 NA
EU 10 mg QD 5 0 24 cmax 0.0713401 NA
EU 10 mg QD 5 0 24 tmax 0.0000000 NA
EU 10 mg QD 5 0 24 cav 0.0633309 NA
EU 20 mg QD 6 0 24 auclast 3.0398855 NA
EU 20 mg QD 6 0 24 cmax 0.1426801 NA
EU 20 mg QD 6 0 24 tmax 0.0000000 NA
EU 20 mg QD 6 0 24 cav 0.1266619 NA
EU 5 mg QD 4 0 24 auclast 0.7599714 NA
EU 5 mg QD 4 0 24 cmax 0.0356700 NA
EU 5 mg QD 4 0 24 tmax 0.0000000 NA
EU 5 mg QD 4 0 24 cav 0.0316655 NA
RoW 10 mg QD 8 0 24 auclast 1.7604477 NA
RoW 10 mg QD 8 0 24 cmax 0.0824040 NA
RoW 10 mg QD 8 0 24 tmax 0.0000000 NA
RoW 10 mg QD 8 0 24 cav 0.0733520 NA
RoW 20 mg QD 9 0 24 auclast 3.5208955 NA
RoW 20 mg QD 9 0 24 cmax 0.1648079 NA
RoW 20 mg QD 9 0 24 tmax 0.0000000 NA
RoW 20 mg QD 9 0 24 cav 0.1467040 NA
RoW 5 mg QD 7 0 24 auclast 0.8802239 NA
RoW 5 mg QD 7 0 24 cmax 0.0412020 NA
RoW 5 mg QD 7 0 24 tmax 0.0000000 NA
RoW 5 mg QD 7 0 24 cav 0.0366760 NA
USA 10 mg QD 2 0 24 auclast 0.2869823 NA
USA 10 mg QD 2 0 24 cmax 0.0138952 NA
USA 10 mg QD 2 0 24 tmax 0.0000000 NA
USA 10 mg QD 2 0 24 cav 0.0119576 NA
USA 20 mg QD 3 0 24 auclast 0.5739645 NA
USA 20 mg QD 3 0 24 cmax 0.0277904 NA
USA 20 mg QD 3 0 24 tmax 0.0000000 NA
USA 20 mg QD 3 0 24 cav 0.0239152 NA
USA 5 mg QD 1 0 24 auclast 0.1434910 NA
USA 5 mg QD 1 0 24 cmax 0.0069476 NA
USA 5 mg QD 1 0 24 tmax 0.0000000 NA
USA 5 mg QD 1 0 24 cav 0.0059788 NA

Comparison against published NCA

Naik 2016 reports population mean CL/F values (USA = 51, EU = 39, RoW = 38 L/hr; Table 3) but does not tabulate per-dose-group NCA parameters. The expected steady-state Cav for a 10 mg QD regimen is Dose / (CL * tau):

Region CL/F (L/hr) Cav at 10 mg QD (ng/mL)
USA 51 8.17
EU 39 10.68
RoW 38 10.96

The simulated Cav values in the PKNCA table above should fall within rounding / sampling-grid error of these analytical estimates.

Assumptions and deviations

  • IIV on CL/F. Naik 2016 estimated separate variances per region (omega^2 = 0.38 for EU, 0.90 for USA, 0.62 for RoW). The packaged model uses a single etalcl with the RoW value (0.62) as a representative single-value compromise. Users who want to simulate region-specific variability should override etalcl before simulating.
  • PK/efficacy model is not packaged as an rxode2 observation. Naik 2016 Equation 13 defines an Emax model on the change-from-baseline MADRS score using steady-state Cav rather than a time-course concentration. The Emax, EC50, E0, and Kb point estimates (Table 3) are listed in the Source trace table above. The numerical region-effect coefficient r0 on Emax in Equation 13 is not reported in Table 3; only its qualitative effect (USA predicted dMADRS 4.07 points lower than non-USA at 10 mg QD) is stated in the Discussion. Users who want to evaluate the PK/efficacy relationship in the absence of an r0 value can apply the Emax model directly to a Cav computed from this PK model and the base (non-region-stratified) PD parameters.
  • PK/safety logistic regression is not packaged. The nausea-incidence logistic regression (Table 6) is a binary-outcome model that does not fit the rxode2 observation framework as configured here.
  • Cockcroft-Gault formula assumed for CrCL. The paper reports CrCL in mL/min without specifying the formula or BSA-normalization, so this file follows the common adult-popPK default (raw Cockcroft-Gault mL/min). The reference value of 106 mL/min is the population median (Table 2).
  • Region-membership encoding. Naik 2016 stratified study sites into USA, EU, and RoW; subjects with REGION_EUROPE = REGION_ROW = 0 are in the USA reference. The RoW group spans Canada, Australia, and Asia (Table 1).
  • ka unit in Table 3 is a typo. Naik 2016 Table 3 labels ka as “0.14 (L/hr)”; the correct unit is 1/hr (first-order absorption rate constant).
  • Concentration unit conversion. The model file scales the rxode2 central compartment (dose in mg, vc in L gives mg/L = ug/mL) by a factor of 1000 to match Naik 2016’s reporting in ng/mL.
