Model and source
- Citation: Li X, Nielsen J, Cirincione B, Li H, Addy C, Wagner J, Hartford A, Erondu N, Gantz I, Morgan J, Stone J. Development of a Population Pharmacokinetic Model for Taranabant, a Cannabinoid-1 Receptor Inverse Agonist. AAPS J. 2010;12(4):537-547. doi:10.1208/s12248-010-9212-2
- Description: Three-compartment population PK model for oral taranabant in healthy and obese adults (Li 2010)
- Article: AAPS J 12(4):537-547 (2010), doi:10.1208/s12248-010-9212-2
Population
Li 2010 pooled 6,834 plasma taranabant concentrations from 572 subjects across 12 Phase 1 studies (n = 187 healthy adults, mostly white males, median BMI 24.8 kg/m^2, median age 32 years) and one Phase 2 trial in obese subjects (n = 385, predominantly white females, median BMI 35 kg/m^2, median age 41 years). A small Phase 1 substudy included subjects with mild, moderate, and severe renal insufficiency (CrCL range 5.1-171 mL/min). Subjects with moderate hepatic insufficiency were excluded because matched healthy-volunteer hepatic-function data were unavailable. Single doses above 12 mg and multiple doses at or above 10 mg were also excluded so that auto-induction of metabolism would not need to be modelled. Source: Li 2010 Tables I and II.
The packaged metadata is available programmatically:
pop <- rxode2::rxode(readModelDb("Li_2010_taranabant"))$population
#> ℹ parameter labels from comments will be replaced by 'label()'
str(pop, max.level = 1)
#> List of 14
#> $ species : chr "human"
#> $ n_subjects : num 572
#> $ n_studies : num 13
#> $ age_range : chr "18-69 years"
#> $ age_median : chr "39 years"
#> $ weight_range : chr "50-151 kg"
#> $ weight_median : chr "88.9 kg"
#> $ sex_female_pct: num 64.3
#> $ race_ethnicity: Named num [1:5] 61.9 17 14.3 6.1 0.7
#> ..- attr(*, "names")= chr [1:5] "White" "Black" "Hispanic" "Asian" ...
#> $ disease_state : chr "Pooled Phase 1 healthy volunteers (n = 187) and Phase 2 obese subjects with BMI 30-43 kg/m^2 (n = 385); 12 Phas"| __truncated__
#> $ dose_range : chr "0.5-8 mg oral (single and multiple daily doses; multiple doses >= 10 mg excluded from analysis)"
#> $ regions : chr "Multinational including a Japanese Phase 1 sub-study"
#> $ renal_function: chr "Includes mild and moderate renal insufficiency from Phase 1 study 029 (CRCL range 5.1-171 mL/min). Subjects wit"| __truncated__
#> $ notes : chr "Baseline demographics from Li 2010 Table II (pooled column). 6,834 plasma concentrations contributed to the fit."Source trace
Per-parameter source-of-truth is in the in-file comments next to each
ini() entry of
inst/modeldb/specificDrugs/Li_2010_taranabant.R. The table
below collates them for review.
| Equation / parameter | Value | Source |
|---|---|---|
ka (absorption rate, 1/h) |
2.73 | Table III |
cl base coefficient (CL/F, L/h) |
25.4 | Table III, Eq. 1 |
vc (V2/F, L) |
175 | Table III |
vp (V3/F, L) |
273 | Table III (no IIV estimated) |
vp2 base coefficient (V4/F, L) |
2130 | Table III, Eq. 3 |
vp2 age intercept (L) |
752 | Table III, Eq. 3 |
q (Q3/F, L/h) |
24.6 | Table III |
q2 base coefficient (Q4/F, L/h) |
30.4 | Table III, Eq. 2 |
| BMI exponent on CL/F | -1.11 | Table III, Eq. 1 |
| CrCL slope on CL/F (L/h per mL/min) | 0.0668 | Table III, Eq. 1 |
| BMI exponent on V4/F | 1.38 | Table III, Eq. 3 |
| AGE exponent on V4/F | 2.10 | Table III, Eq. 3 |
| SEXF additive shift on V4/F (L) | 643 | Table III, Eq. 3 |
| CrCL slope on V4/F (L per mL/min) | 12.5 | Table III, Eq. 3 |
| AGE exponent on Q4/F | 0.357 | Table III, Eq. 2 |
| omega^2 ka (3 x 3 block) | 0.4272 | Table III (73.0% CV) |
| omega^2 Q3, Q4 (block) | 0.1297, 0.1212 | Table III (37.2%, 35.9% CV) |
| cov(ka, Q3), cov(ka, Q4), cov(Q3, Q4) | 0.0901, 0.0676, 0.0764 | Table III |
| omega^2 CL, Vc, V4 (diagonal) | 0.1779, 0.0846, 0.1051 | Table III (44.1%, 29.7%, 33.3% CV) |
| Proportional residual error (Phase 2) | 0.355 | Table III (variance 0.126) |
| CL/F equation | n/a | Eq. 1 |
| Q4/F equation | n/a | Eq. 2 |
| V4/F equation | n/a | Eq. 3 |
| Three-compartment ODE with first-order absorption | n/a | Methods + Results |
| Reference covariates (BMI 31.5, AGE 39, CRCL 80.6) | n/a | embedded in Eq. 1-3 |
Virtual cohort
The published trial data are not redistributable; the figures below use virtual populations whose covariate distributions approximate the Phase 1 and Phase 2 demographics from Table II of Li 2010.
set.seed(20100706) # arbitrary fixed seed; date of publication used for traceability
make_cohort <- function(n, label, bmi_mean, bmi_sd, age_mean, age_sd,
crcl_mean, crcl_sd, sex_female_pct, wt_mean, wt_sd,
dose_mg, n_doses, tau_h, obs_h, id_offset = 0L) {
ids <- id_offset + seq_len(n)
covs <- tibble(
id = ids,
BMI = pmax(15, rnorm(n, bmi_mean, bmi_sd)),
AGE = pmax(18, rnorm(n, age_mean, age_sd)),
CRCL = pmax(5, rnorm(n, crcl_mean, crcl_sd)),
SEXF = rbinom(n, 1, sex_female_pct / 100),
WT = pmax(40, rnorm(n, wt_mean, wt_sd)),
cohort = label
)
dose_times <- seq(0, by = tau_h, length.out = n_doses)
doses <- tidyr::expand_grid(id = ids, time = dose_times) |>
dplyr::mutate(evid = 1L, amt = dose_mg, cmt = "depot")
obs <- tidyr::expand_grid(id = ids, time = obs_h) |>
dplyr::mutate(evid = 0L, amt = NA_real_, cmt = "central")
ev <- dplyr::bind_rows(doses, obs) |>
dplyr::left_join(covs, by = "id") |>
dplyr::arrange(id, time, evid)
ev
}
# Phase 1 single-dose-like cohort: 2 mg single dose, healthy non-obese
phase1 <- make_cohort(
n = 200, label = "Phase1_2mg_SD",
bmi_mean = 25.0, bmi_sd = 3.2,
age_mean = 33.5, age_sd = 11.6,
crcl_mean = 95.6, crcl_sd = 26.3,
sex_female_pct = 19.8, # 37 / 187 from Phase 1 Table II
wt_mean = 74.3, wt_sd = 12.0,
dose_mg = 2, n_doses = 1, tau_h = 24,
obs_h = unique(c(seq(0, 24, by = 0.5), seq(28, 168, by = 4))),
id_offset = 0L
)
# Phase 2 multiple-dose cohort: 6 mg QD x 28 days, obese
phase2 <- make_cohort(
n = 200, label = "Phase2_6mg_QD28",
bmi_mean = 35.4, bmi_sd = 3.8,
age_mean = 42.3, age_sd = 10.18,
crcl_mean = 73.3, crcl_sd = 16.2,
sex_female_pct = 86.0, # 331 / 385 from Phase 2 Table II
wt_mean = 97.1, wt_sd = 14.4,
dose_mg = 6, n_doses = 28, tau_h = 24,
obs_h = unique(c(seq(0, 24, by = 0.5),
seq(24, 27 * 24, by = 6),
seq(27 * 24, 28 * 24, by = 0.5),
seq(28 * 24, 35 * 24, by = 6))),
id_offset = 200L
)
events <- dplyr::bind_rows(phase1, phase2)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))Simulation
mod <- rxode2::rxode(readModelDb("Li_2010_taranabant"))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- rxode2::rxSolve(
mod,
events = events,
keep = c("cohort", "BMI", "AGE", "CRCL", "SEXF", "WT")
) |>
as.data.frame()Replicate published figures
Li 2010 Figures 3 and 4 are visual predictive checks of dose-normalised plasma taranabant concentrations against time-since-last-dose. We reproduce the equivalent dose-normalised median + 5th/95th-percentile envelope from the simulation.
sim |>
dplyr::filter(cohort == "Phase1_2mg_SD", time > 0, Cc > 0) |>
dplyr::mutate(Cc_per_mg = Cc / 2) |> # normalise by 2 mg single dose
dplyr::group_by(time) |>
dplyr::summarise(
Q05 = quantile(Cc_per_mg, 0.05, na.rm = TRUE),
Q50 = quantile(Cc_per_mg, 0.50, na.rm = TRUE),
Q95 = quantile(Cc_per_mg, 0.95, na.rm = TRUE),
.groups = "drop"
) |>
ggplot2::ggplot(ggplot2::aes(time, Q50)) +
ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
ggplot2::geom_line() +
ggplot2::scale_y_log10() +
ggplot2::labs(
x = "Time since last dose (h)", y = "Dose-normalised Cc (ug/mL per mg)",

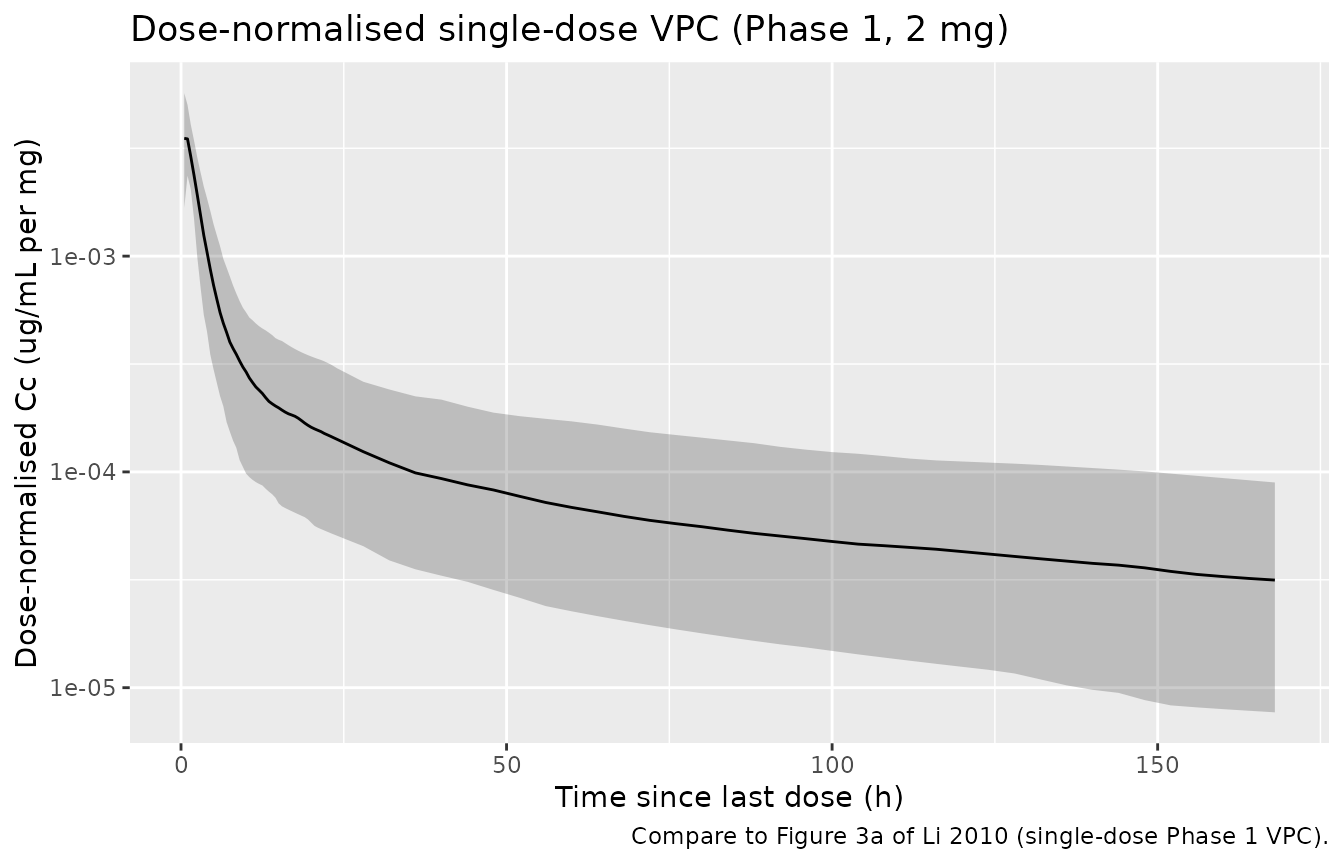

title = "Dose-normalised single-dose VPC (Phase 1, 2 mg)",
caption = "Compare to Figure 3a of Li 2010 (single-dose Phase 1 VPC)."
)
# Final dosing interval (day 28) at steady state, dose-normalised by 6 mg
final_start <- 27 * 24
sim |>
dplyr::filter(cohort == "Phase2_6mg_QD28", time >= final_start, Cc > 0) |>
dplyr::mutate(
tsld = time - final_start,
Cc_per_mg = Cc / 6
) |>
dplyr::group_by(tsld) |>
dplyr::summarise(
Q05 = quantile(Cc_per_mg, 0.05, na.rm = TRUE),
Q50 = quantile(Cc_per_mg, 0.50, na.rm = TRUE),
Q95 = quantile(Cc_per_mg, 0.95, na.rm = TRUE),
.groups = "drop"
) |>
ggplot2::ggplot(ggplot2::aes(tsld, Q50)) +
ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
ggplot2::geom_line() +
ggplot2::scale_y_log10() +
ggplot2::labs(
x = "Time since last dose (h)", y = "Dose-normalised Cc (ug/mL per mg)",

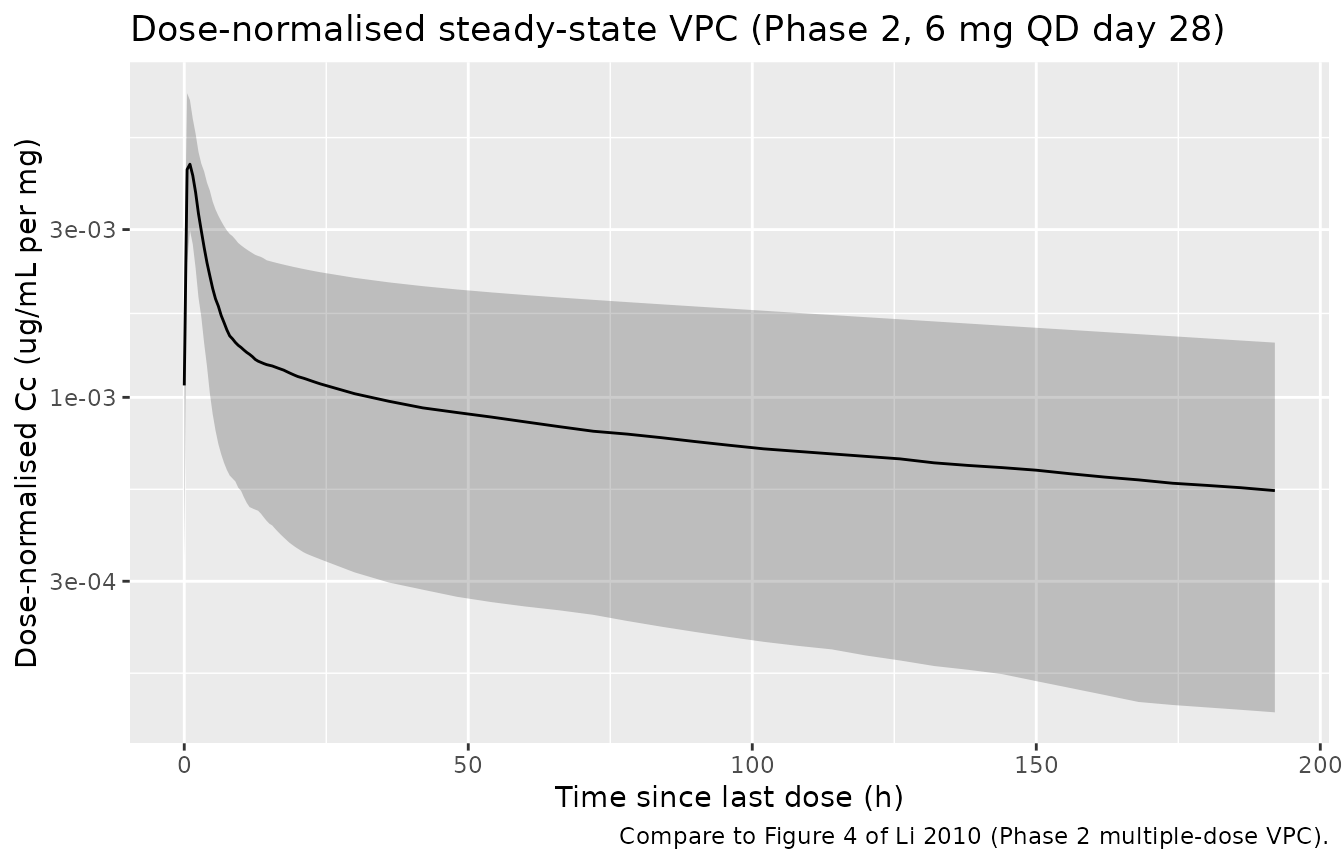

title = "Dose-normalised steady-state VPC (Phase 2, 6 mg QD day 28)",
caption = "Compare to Figure 4 of Li 2010 (Phase 2 multiple-dose VPC)."
)
PKNCA validation
We run PKNCA on the Phase 1 single-dose simulation to characterise Cmax / Tmax / AUC0-inf / half-life, and on the Phase 2 final dosing interval (day 28) for steady-state Cmax,ss / Tmax,ss / AUC0-24 / Cmin,ss.
sd_conc <- sim |>
dplyr::filter(cohort == "Phase1_2mg_SD", !is.na(Cc), Cc > 0) |>
dplyr::select(id, time, Cc, cohort)
sd_dose <- events |>
dplyr::filter(cohort == "Phase1_2mg_SD", evid == 1) |>
dplyr::select(id, time, amt, cohort)
conc_sd <- PKNCA::PKNCAconc(sd_conc, Cc ~ time | cohort + id,
concu = "ug/mL", timeu = "h")
dose_sd <- PKNCA::PKNCAdose(sd_dose, amt ~ time | cohort + id,
doseu = "mg")
intervals_sd <- data.frame(
start = 0,
end = Inf,
cmax = TRUE,
tmax = TRUE,
aucinf.obs = TRUE,
half.life = TRUE,
clast.obs = TRUE,
lambda.z = TRUE
)
nca_sd <- PKNCA::pk.nca(
PKNCA::PKNCAdata(conc_sd, dose_sd, intervals = intervals_sd)
)
