Antibody tumor-to-lymph-node PBPK (Salgado 2022)

Source: vignettes/articles/Salgado_2022_antibody_tumor_lymph_node_pbpk.Rmd
Salgado_2022_antibody_tumor_lymph_node_pbpk.Rmd

Model and source

  • Citation: Salgado E, Cao Y. A Physiologically Based Pharmacokinetic Framework for Quantifying Antibody Distribution Gradients from Tumors to Tumor-Draining Lymph Nodes. Antibodies (Basel). 2022;11(2):28. doi:10.3390/antib11020028. Calibration data digitized by the authors from Bensch F et al., Nat Med 2018;24:1852-1858.
  • Article: Antibodies (Basel) 2022;11(2):28 (open access)

Salgado and Cao built a proof-of-concept minimal physiologically based pharmacokinetic (PBPK) model of how a therapeutic antibody distributes from plasma into an organ-specific primary tumor (PT) and on to its tumor-draining lymph node (TDLN). They calibrated the same structural model separately to eleven antibody / tumor pairs, using immuno-PET standardized uptake values (SUV) digitized from eight published imaging studies, and then used the calibrated model to explore metastasis, surgical resection, and tumor-induced inflammation.

Each calibration is packaged as its own model; all eleven share the same model() block and differ only in the Table 1 / Table 2 parameter values.

models <- tibble::tribble(
  ~panel, ~model,                                          ~label,
  "a",    "Salgado_2022_fresolimumab_glioblastoma_pbpk",   "a) Brain: 89Zr-fresolimumab",
  "b",    "Salgado_2022_bevacizumab_nsclc_pbpk",           "b) Lung: 89Zr-bevacizumab",
  "c",    "Salgado_2022_bevacizumab_breast_pbpk",          "c) Breast: 89Zr-bevacizumab",
  "d",    "Salgado_2022_bevacizumab_renal_pbpk",           "d) Renal: 89Zr-bevacizumab",
  "e",    "Salgado_2022_trastuzumab_breast_pbpk",          "e) Breast: 64Cu-DOTA-trastuzumab",
  "f",    "Salgado_2022_trastuzumab_esophagogastric_pbpk", "f) Esophagogastric: 89Zr-trastuzumab",
  "g",    "Salgado_2022_MMOT0530A_pancreatic_pbpk",        "g) Pancreatic: 89Zr-MMOT0530A",
  "h",    "Salgado_2022_MMOT0530A_ovarian_pbpk",           "h) Ovarian: 89Zr-MMOT0530A",
  "i",    "Salgado_2022_atezolizumab_nsclc_pbpk",          "i) Lung: 89Zr-atezolizumab",
  "j",    "Salgado_2022_atezolizumab_breast_pbpk",         "j) Breast: 89Zr-atezolizumab",
  "k",    "Salgado_2022_atezolizumab_bladder_pbpk",        "k) Bladder: 89Zr-atezolizumab"
)
mods <- lapply(models$model, readModelDb)
names(mods) <- models$panel
knitr::kable(models |> dplyr::rename("Figure 2 panel" = panel, "Model" = model, "Tumor: tracer" = label))
Figure 2 panel Model Tumor: tracer
a Salgado_2022_fresolimumab_glioblastoma_pbpk a) Brain: 89Zr-fresolimumab
b Salgado_2022_bevacizumab_nsclc_pbpk b) Lung: 89Zr-bevacizumab
c Salgado_2022_bevacizumab_breast_pbpk c) Breast: 89Zr-bevacizumab
d Salgado_2022_bevacizumab_renal_pbpk d) Renal: 89Zr-bevacizumab
e Salgado_2022_trastuzumab_breast_pbpk e) Breast: 64Cu-DOTA-trastuzumab
f Salgado_2022_trastuzumab_esophagogastric_pbpk f) Esophagogastric: 89Zr-trastuzumab
g Salgado_2022_MMOT0530A_pancreatic_pbpk g) Pancreatic: 89Zr-MMOT0530A
h Salgado_2022_MMOT0530A_ovarian_pbpk h) Ovarian: 89Zr-MMOT0530A
i Salgado_2022_atezolizumab_nsclc_pbpk i) Lung: 89Zr-atezolizumab
j Salgado_2022_atezolizumab_breast_pbpk j) Breast: 89Zr-atezolizumab
k Salgado_2022_atezolizumab_bladder_pbpk k) Bladder: 89Zr-atezolizumab

Population

The model was calibrated to published group-mean (+/- SD) SUV time courses, not to individual patients, so no subject count or demographic table applies. The eleven calibration data sets (Salgado 2022 Section 2.2 and Figure 2) are 89Zr-fresolimumab in recurrent high-grade glioma (den Hollander 2015); 89Zr-bevacizumab in non-small-cell lung cancer (Bahce 2014), primary breast cancer (Gaykema 2013) and renal cell carcinoma (Oosting 2015); 64Cu-DOTA-trastuzumab in HER2-positive breast cancer (Tamura 2013); 89Zr-trastuzumab in esophagogastric cancer (O’Donoghue 2018); 89Zr-MMOT0530A (anti-mesothelin) in pancreatic and ovarian cancer (Lamberts 2016); and 89Zr-atezolizumab (anti-PD-L1) in non-small-cell lung, breast and bladder cancer (Bensch 2018). Each model’s population metadata names its source study (readModelDb("<model>")()$population).

Model structure

The ODEs are Salgado 2022 Appendix A, Eqs. A1-A5. With C denoting total antibody concentration, Cf the free antibody concentration, R_T the total target concentration and AR the antibody-target complex:

  • Plasma (A1): Vp dCp/dt = Input - (1 - sigma_V) Lorgan Cp - CLp Cp + Leff Cf2 FcRnb2
  • PT interstitium (A2): VISF,PT dC_PT/dt = (1 - sigma_V) Lorgan Cp - (1 - sigma_L) Laff Cf1 FcRnb1 - kint AR_PT VISF,PT
  • PT target (A3): dR_T,PT/dt = ksyn,PT - kdeg (R_T,PT - AR_PT) - kint AR_PT, initial value R01
  • TDLN interstitium (A4): VISF,TDLN dC_TDLN/dt = (1 - sigma_L) Laff Cf1 FcRnb1 - Leff Cf2 FcRnb2 - kint AR_TDLN VISF,TDLN
  • TDLN target (A5): dR_T,TDLN/dt = ksyn,TDLN - kdeg (R_T,TDLN - AR_TDLN) - kint AR_TDLN, initial value R02
  • Free antibody (A6, A7): Cf = 0.5 ((C - R_T - Kd) + sqrt((C - R_T - Kd)^2 + 4 C Kd))
  • Complex (A8, A9): AR = R_T Cf / (Kd + Cf)
  • Lymphatic FcRn salvage (A10): FcRnb = 0.418 + ([FcRn] / (Cf + Kd,FcRn + [FcRn]))^dln

The packaged models use central (plasma, nmol), is_tumor (PT interstitium, nmol), lnode (TDLN interstitium, nmol), and total_target_tumor / total_target_lnode (nM). Outputs are the total antibody concentrations Cc, Ctumor and Clnode (nM). Doses are in nmol.

Target synthesis: the printed term versus the steady-state term

Eqs. A3 and A5 as printed use the baseline concentration R01 (R02) itself as the zero-order synthesis term, with the same R01 (R02) as initial condition. With kdeg = 0.01 1/h that is not a steady state: the total target would climb toward R01 / kdeg, 100-fold above baseline. The Figure 1 caption names the synthesis rate ksyn, and the steady-state form ksyn = kdeg * R01 reproduces the Figure 2 calibration curves, whereas the literal form does not. The packaged models therefore use ksyn = kdeg * R0. The chunk below re-solves the pancreatic calibration (Figure 2g) both ways at a 1 nmol dose.

SUV is computed as C (nM) * 70 L / dose (nmol) (Appendix F with a 70 L whole-body volume; see Assumptions).

suv_volume <- 70 # L; whole-body volume used to convert nM to SUV (see Assumptions)

# One-subject event table: an IV bolus into central, then observation rows
# keyed by dvid (the model has three declared endpoints, none of them a state).
make_events <- function(dose, times) {
  dplyr::bind_rows(
    data.frame(id = 1L, time = 0, evid = 1L, amt = dose, cmt = "central", dvid = NA_integer_),
    data.frame(id = 1L, time = times, evid = 0L, amt = NA_real_, cmt = NA_character_, dvid = 1L)
  )
}

simulate_suv <- function(mod, dose = 1, times = seq(0, 200, by = 2), params = NULL) {
  sim <- rxode2::rxSolve(mod, events = make_events(dose, times), params = params, useLinCmt = FALSE) |>
    as.data.frame()
  data.frame(
    time = sim$time,
    Plasma = sim$Cc * suv_volume / dose,
    PT = sim$Ctumor * suv_volume / dose,
    TDLN = sim$Clnode * suv_volume / dose
  )
}
ui_panc <- rxode2::rxode(mods[["g"]])
ui_panc_literal <- ui_panc |>
  rxode2::model(ksyn_tumor <- r0_tumor) |>
  rxode2::model(ksyn_lnode <- r0_lnode)
syn <- dplyr::bind_rows(
  simulate_suv(ui_panc) |> dplyr::mutate(form = "ksyn = kdeg * R0 (packaged)"),
  simulate_suv(ui_panc_literal) |> dplyr::mutate(form = "ksyn = R0 (as printed)")
)
syn_tab <- syn |>
  dplyr::filter(time %in% c(50, 100, 150, 200)) |>
  dplyr::select(form, time, PT, TDLN)
knitr::kable(syn_tab, digits = 2, caption = "Pancreatic calibration (Figure 2g): PT and TDLN SUV under the two synthesis forms. Figure 2g shows the TDLN curve rising to about 6 by 150-200 h.")
Pancreatic calibration (Figure 2g): PT and TDLN SUV under the two synthesis forms. Figure 2g shows the TDLN curve rising to about 6 by 150-200 h.
form time PT TDLN
ksyn = kdeg * R0 (packaged) 50 8.27 2.73
ksyn = kdeg * R0 (packaged) 100 10.92 5.27
ksyn = kdeg * R0 (packaged) 150 10.84 6.07
ksyn = kdeg * R0 (packaged) 200 9.59 5.79
ksyn = R0 (as printed) 50 8.28 0.16
ksyn = R0 (as printed) 100 10.94 0.24
ksyn = R0 (as printed) 150 10.87 0.26
ksyn = R0 (as printed) 200 9.62 0.25

tdln_150 <- syn |> dplyr::filter(time == 150)
stopifnot(
  # Figure 2g TDLN reads about 6 at 150 h. The packaged form lands within 20%;
  # the printed form is about 25-fold lower.
  abs(tdln_150$TDLN[tdln_150$form == "ksyn = kdeg * R0 (packaged)"] / 6 - 1) < 0.2,
  tdln_150$TDLN[tdln_150$form == "ksyn = R0 (as printed)"] < 1
)

Source trace

Every ini() value carries an in-file comment pointing to its source. All eleven models share the parameters in the first table; the second table lists the organ- and antibody-specific values (Salgado 2022 Tables 1 and 2).

Parameter Value Source
sigma_l (sigma_L) 0.2 (fixed) Table 1 footnote (ref 27)
l_aff (Laff) 0.004 L/h (fixed) Table 1 footnote (ref 28)
l_eff (Leff) 0.004 L/h (fixed) Table 1 footnote (ref 28)
lv_lnode (VISF,TDLN) log(0.0000584 L) (fixed) Table 1 footnote (ref 28)
fcrn ([FcRn]) 40000 nM = 40 uM (fixed) Table 1 footnote (ref 29)
f_fcrn_base (Base) 0.418 (fixed) Appendix B (ref 47)
kdeg 0.01 1/h (fixed) Table 2 footnote
kint 0.01 1/h (fixed) Table 2 footnote
propSd, propSd_Ctumor, propSd_Clnode 0 (fixed) not reported; deterministic model
ODEs central, is_tumor, total_target_tumor, lnode, total_target_lnode n/a Appendix A Eqs. A1-A5 (synthesis term: see above)
cf_tumor, cf_lnode n/a Appendix A Eqs. A6, A7
complex_tumor, complex_lnode n/a Appendix A Eqs. A8, A9
fcrnb_tumor, fcrnb_lnode n/a Appendix A Eq. A10; Appendix B Eqs. A11-A15
param_names <- c(
  "sigma_v", "l_organ", "v_isf_tumor", "lvc", "r0_tumor", "r0_lnode",
  "kd", "kd_fcrn", "dln", "lcl"
)
ptab <- lapply(seq_len(nrow(models)), function(i) {
  ini <- rxode2::rxode(mods[[i]])$iniDf
  est <- stats::setNames(ini$est, ini$name)[param_names]
  data.frame(
    panel = models$panel[i],
    sigma_V = est[["sigma_v"]],
    Lorgan = est[["l_organ"]],
    VISF_PT = est[["v_isf_tumor"]],
    Vp = exp(est[["lvc"]]),
    R01 = est[["r0_tumor"]],
    R02 = est[["r0_lnode"]],
    Kd = est[["kd"]],
    Kd_FcRn = est[["kd_fcrn"]],
    dln = est[["dln"]],
    CLp = exp(est[["lcl"]])
  )
}) |>
  dplyr::bind_rows()
ptab |>
  dplyr::rename(
    "Panel" = panel, "sigma_V" = sigma_V, "Lorgan (L/h)" = Lorgan,
    "VISF,PT (L)" = VISF_PT, "Vp (L)" = Vp, "R01 (nM)" = R01, "R02 (nM)" = R02,
    "Kd (nM)" = Kd, "Kd,FcRn (nM)" = Kd_FcRn, "dln" = dln, "CLp (L/h)" = CLp
  ) |>
  knitr::kable(caption = "Organ- and antibody-specific parameters as packaged (Salgado 2022 Table 1: sigma_V, Lorgan, VISF,PT, Vp; Table 2: R01, R02, Kd, Kd,FcRn, dln, CLp).")
Organ- and antibody-specific parameters as packaged (Salgado 2022 Table 1: sigma_V, Lorgan, VISF,PT, Vp; Table 2: R01, R02, Kd, Kd,FcRn, dln, CLp).
Panel sigma_V Lorgan (L/h) VISF,PT (L) Vp (L) R01 (nM) R02 (nM) Kd (nM) Kd,FcRn (nM) dln CLp (L/h)
a 0.94 0.050 0.2650 5 1 1.0 1.700 2400 19 0.0750
b 0.85 0.012 0.1750 5 10 10.0 0.058 2400 21 0.0700
c 0.95 0.008 0.1120 5 1 1.5 0.058 2400 20 0.0600
d 0.97 0.082 0.0600 5 10 2.5 0.058 2400 21 0.0420
e 0.65 0.008 0.1120 5 100 100.0 5.000 774 61 0.0630
f 0.95 0.007 0.0050 7 30 30.0 5.000 774 63 0.0288
g 0.87 0.004 0.0290 5 1000 1000.0 0.500 2400 21 0.0330
h 0.95 0.004 0.0010 5 24 24.0 0.500 2400 24 0.0330
i 0.80 0.012 0.1750 5 7 7.0 0.430 2400 21 0.0083
j 0.90 0.008 0.1120 5 1 2.5 0.430 2400 20 0.0083
k 0.86 0.001 0.0084 5 11 11.0 0.430 2400 24 0.0083

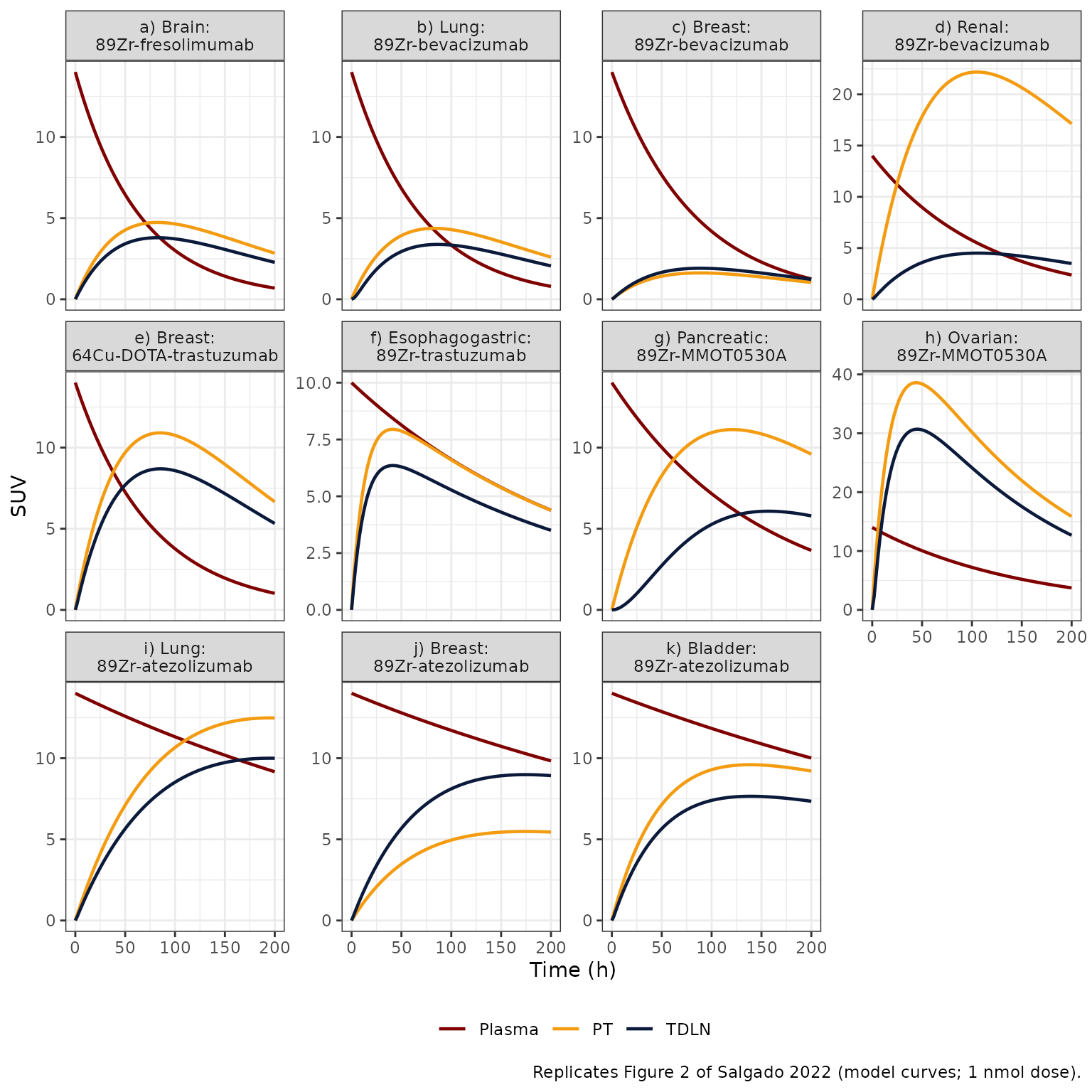

Replicate Figure 2: calibration in eleven tumor / TDLN pairs

The doses given in the source imaging studies are not restated in Salgado 2022. The simulations below use a 1 nmol tracer dose; the model is nearly dose-proportional in SUV terms at tracer doses (see the dose-sensitivity table further down), so the SUV curves are insensitive to this choice except for the high-affinity, small-volume ovarian and renal calibrations.

fig2 <- lapply(seq_len(nrow(models)), function(i) {
  simulate_suv(mods[[i]]) |> dplyr::mutate(label = models$label[i], panel = models$panel[i])
}) |>
  dplyr::bind_rows() |>
  tidyr::pivot_longer(c(Plasma, PT, TDLN), names_to = "site", values_to = "SUV")

ggplot(fig2, aes(time, SUV, colour = site)) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~label, scales = "free_y", ncol = 4, labeller = label_wrap_gen(24)) +
  scale_colour_manual(values = c(Plasma = "#7f0000", PT = "#f39c12", TDLN = "#0b1a3a")) +
  labs(x = "Time (h)", y = "SUV", colour = NULL, caption = "Replicates Figure 2 of Salgado 2022 (model curves; 1 nmol dose).") +
  theme_bw() +
  theme(legend.position = "bottom")

The table compares the simulated maximum SUV over 0-200 h with the maximum of the model curves in Figure 2, read off the published figure by the maintainers (readings are approximate, about +/- 0.5 SUV).

fig2_published <- tibble::tribble(
  ~panel, ~PT_pub, ~TDLN_pub,
  "a",     5.0,     4.2,
  "b",     4.6,     3.9,
  "c",     1.7,     2.7,
  "d",    21.0,     6.0,
  "e",    11.2,     8.9,
  "f",    13.8,    11.3,
  "g",    11.2,     6.0,
  "h",    18.0,    16.5,
  "i",    13.4,    11.8,
  "j",     7.0,    11.3,
  "k",    12.8,    10.4
)
fig2_cmp <- fig2 |>
  dplyr::group_by(panel, site) |>
  dplyr::summarise(SUVmax = max(SUV), .groups = "drop") |>
  tidyr::pivot_wider(names_from = site, values_from = SUVmax) |>
  dplyr::left_join(fig2_published, by = "panel") |>
  dplyr::mutate(
    PT_pct = 100 * (PT / PT_pub - 1),
    TDLN_pct = 100 * (TDLN / TDLN_pub - 1)
  )
stopifnot(nrow(fig2_cmp) == 11, !anyNA(fig2_cmp$PT_pct))
fig2_cmp |>
  dplyr::select(panel, PT, PT_pub, PT_pct, TDLN, TDLN_pub, TDLN_pct) |>
  dplyr::rename(
    "Panel" = panel,
    "PT SUVmax (sim)" = PT, "PT SUVmax (Fig. 2)" = PT_pub, "PT diff (%)" = PT_pct,
    "TDLN SUVmax (sim)" = TDLN, "TDLN SUVmax (Fig. 2)" = TDLN_pub, "TDLN diff (%)" = TDLN_pct
  ) |>
  knitr::kable(digits = 1, caption = "Simulated versus published (Figure 2 model curve) maximum SUV over 0-200 h.")
Simulated versus published (Figure 2 model curve) maximum SUV over 0-200 h.
Panel PT SUVmax (sim) PT SUVmax (Fig. 2) PT diff (%) TDLN SUVmax (sim) TDLN SUVmax (Fig. 2) TDLN diff (%)
a 4.7 5.0 -5.3 3.8 4.2 -9.7
b 4.4 4.6 -5.0 3.4 3.9 -13.4
c 1.6 1.7 -4.5 1.9 2.7 -29.3
d 22.2 21.0 5.6 4.5 6.0 -24.9
e 10.9 11.2 -2.6 8.7 8.9 -2.3
f 7.9 13.8 -42.4 6.4 11.3 -43.8
g 11.1 11.2 -0.8 6.1 6.0 1.3
h 38.6 18.0 114.4 30.7 16.5 86.0
i 12.5 13.4 -6.9 10.0 11.8 -15.3
j 5.5 7.0 -21.6 9.0 11.3 -20.5
k 9.6 12.8 -25.0 7.7 10.4 -26.4

# Deterministic model: these are solver-exact numbers, not cohort statistics.
# Seven calibrations reproduce the published PT curve maximum within 10%
# (measured: -8% to +6%); the gate is set at 15%. Panels f, h, j and k are
# known deviations discussed below and are not gated.
good_pt <- c("a", "b", "c", "d", "e", "g", "i")
stopifnot(all(abs(fig2_cmp$PT_pct[fig2_cmp$panel %in% good_pt]) < 15))
# Plasma SUV at time zero equals the whole-body-to-plasma volume ratio.
p0 <- fig2 |> dplyr::filter(time == 0, site == "Plasma")
stopifnot(all(abs(p0$SUV - suv_volume / ptab$Vp[match(p0$panel, ptab$panel)]) < 1e-6))

Agreement is close for the PT in seven of the eleven calibrations and for the plasma curves throughout (the plasma SUV starts at 70/Vp = 14, or 10 for the esophagogastric calibration with Vp = 7 L, as in Figure 2). The known deviations are:

  • Esophagogastric (panel f): the simulated PT and TDLN peaks are about 40% below the published curves at any tracer dose, although the plasma curve matches. With VISF,PT = 0.005 L the simulated PT concentration is close to the plasma concentration, so a PT SUV of 13-14 is not reachable with the printed Table 1 / Table 2 values for this row.
  • Ovarian (panel h): the simulated PT and TDLN SUVs depend strongly on dose, because the tiny interstitial volume (0.001 L) holds a saturable target pool. The published curves (rapid rise to a peak near 15 h, then a decline paralleling plasma) resemble the simulation at doses of roughly 50-100 nmol, where the target is saturated; the dose used for the calibration is not reported.
  • Atezolizumab breast and bladder (panels j, k) and the TDLN of the bevacizumab breast and renal calibrations (panels c, d) run 20-30% below the published curves; the PT:TDLN gradient (the quantity the paper studies) is preserved.
dose_sens <- lapply(seq_len(nrow(models)), function(i) {
  lapply(c(1, 10, 100), function(d) {
    s <- simulate_suv(mods[[i]], dose = d)
    data.frame(panel = models$panel[i], dose = d, PT = max(s$PT), TDLN = max(s$TDLN))
  }) |>
    dplyr::bind_rows()
}) |>
  dplyr::bind_rows() |>
  tidyr::pivot_wider(names_from = dose, values_from = c(PT, TDLN), names_sep = " SUVmax, dose (nmol) ")
dose_sens |>
  dplyr::rename("Panel" = panel) |>
  knitr::kable(digits = 1, caption = "Maximum PT and TDLN SUV over 0-200 h at 1, 10 and 100 nmol.")
Maximum PT and TDLN SUV over 0-200 h at 1, 10 and 100 nmol.
Panel PT SUVmax, dose (nmol) 1 PT SUVmax, dose (nmol) 10 PT SUVmax, dose (nmol) 100 TDLN SUVmax, dose (nmol) 1 TDLN SUVmax, dose (nmol) 10 TDLN SUVmax, dose (nmol) 100
a 4.7 4.7 4.8 3.8 3.8 3.9
b 4.4 4.4 4.4 3.4 3.4 3.9
c 1.6 1.6 1.4 1.9 2.0 1.5
d 22.2 22.1 14.0 4.5 4.8 7.4
e 10.9 10.9 10.9 8.7 8.7 8.9
f 7.9 7.8 6.6 6.4 6.3 5.5
g 11.1 11.1 11.1 6.1 6.1 6.1
h 38.6 34.2 14.0 30.7 28.2 13.1
i 12.5 12.4 11.4 10.0 10.4 10.0
j 5.5 5.1 4.1 9.0 8.2 4.4
k 9.6 9.2 5.8 7.7 7.5 5.3

Replicate Figure 4: surgical resection

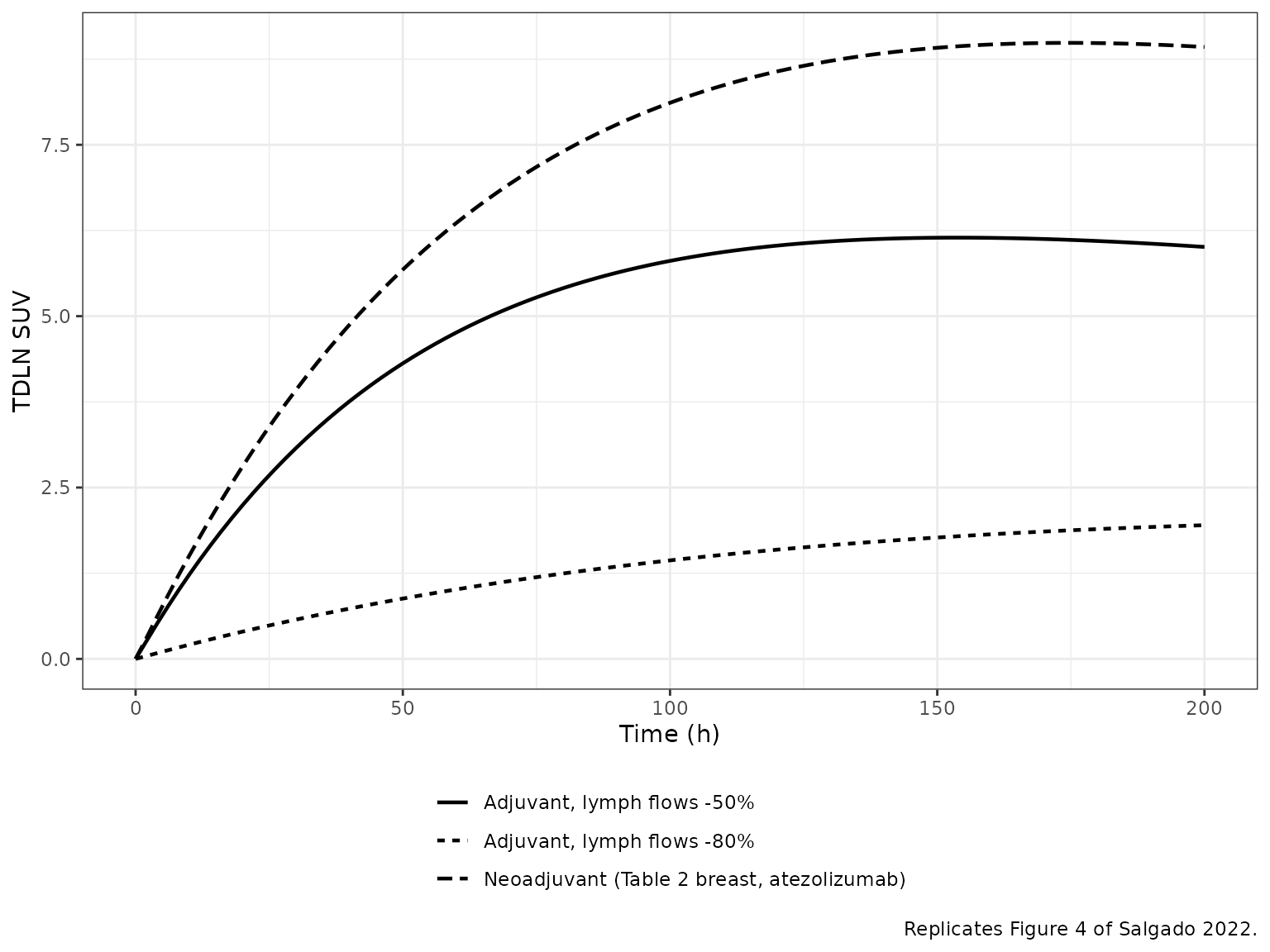

Figure 4 contrasts the TDLN SUV before surgery (neoadjuvant setting) with the residual TDLN after resection of the primary tumor (adjuvant setting). Appendix D (Table A1) parameterizes the resected case on the atezolizumab breast calibration with R01 = 0.001 nM, R02 = 2.5 nM and dln = 5, and the text reduces the local lymph flows (Lorgan and Laff) by 50% and 80%.

brA <- mods[["j"]]
brA_ini <- stats::setNames(rxode2::rxode(brA)$iniDf$est, rxode2::rxode(brA)$iniDf$name)
resected <- c(r0_tumor = 0.001, r0_lnode = 2.5, dln = 5)
fig4 <- dplyr::bind_rows(
  simulate_suv(brA) |> dplyr::mutate(scenario = "Neoadjuvant (Table 2 breast, atezolizumab)"),
  simulate_suv(brA, params = c(resected, l_organ = 0.5 * brA_ini[["l_organ"]], l_aff = 0.5 * brA_ini[["l_aff"]])) |>
    dplyr::mutate(scenario = "Adjuvant, lymph flows -50%"),
  simulate_suv(brA, params = c(resected, l_organ = 0.2 * brA_ini[["l_organ"]], l_aff = 0.2 * brA_ini[["l_aff"]])) |>
    dplyr::mutate(scenario = "Adjuvant, lymph flows -80%")
)
ggplot(fig4, aes(time, TDLN, linetype = scenario)) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time (h)", y = "TDLN SUV", linetype = NULL, caption = "Replicates Figure 4 of Salgado 2022.") +
  theme_bw() +
  theme(legend.position = "bottom", legend.direction = "vertical")


fig4_200 <- fig4 |>
  dplyr::filter(time == 200) |>
  dplyr::select(scenario, TDLN) |>
  dplyr::mutate(Fig4 = c(10.5, 8.8, 4.0))
fig4_200 |>
  dplyr::rename("Scenario" = scenario, "TDLN SUV at 200 h (sim)" = TDLN, "TDLN SUV at 200 h (Fig. 4, read)" = Fig4) |>
  knitr::kable(digits = 1)
Scenario TDLN SUV at 200 h (sim) TDLN SUV at 200 h (Fig. 4, read)
Neoadjuvant (Table 2 breast, atezolizumab) 8.9 10.5
Adjuvant, lymph flows -50% 6.0 8.8
Adjuvant, lymph flows -80% 2.0 4.0
stopifnot(
  fig4_200$TDLN[1] > fig4_200$TDLN[2],
  fig4_200$TDLN[2] > fig4_200$TDLN[3]
)

The simulation reproduces the direction and ordering of Figure 4 (surgery lowers TDLN exposure, more so for the larger lymph-flow loss) but predicts a larger reduction than the figure shows (about 30% and 80% versus about 15% and 60% read from the figure). The paper does not state which parameter set the neoadjuvant curve used or whether Leff was also reduced, so the published magnitudes could not be pinned down.

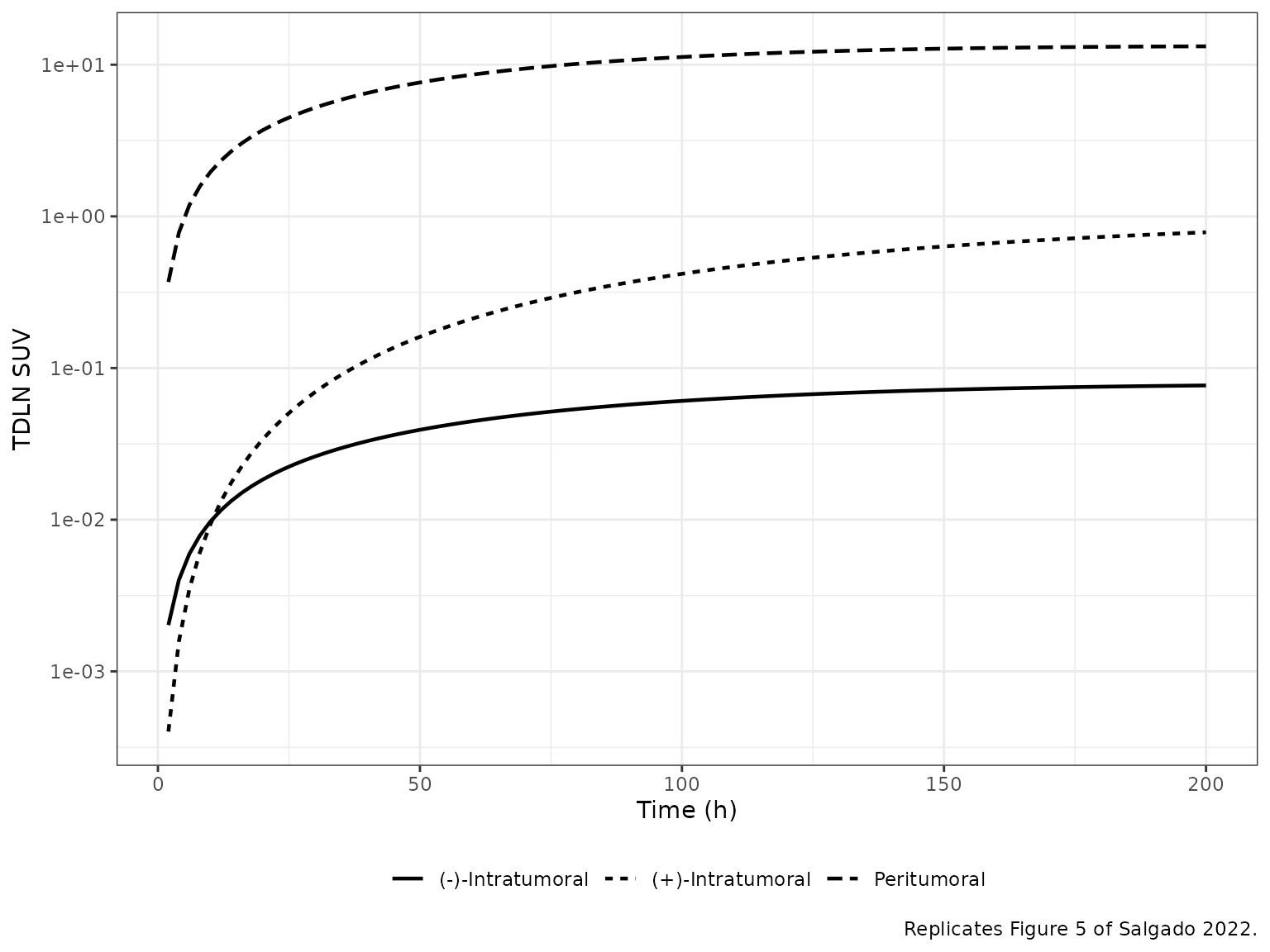

Replicate Figure 5: peri- and intra-tumoral TDLNs

Appendix E (Tables A2 and A3) defines three TDLN networks on the 64Cu-DOTA- trastuzumab breast calibration: a peritumoral node with ten-fold increased afferent lymph flow, a tumor-positive (+) intratumoral node with collapsed lymphatics, and a tumor-negative (-) intratumoral node with no target (R02 = 0). The values are used exactly as printed, including the CLp column.

brT <- mods[["e"]]
appE_common <- c(sigma_v = 0.87, l_organ = 0.008, v_isf_tumor = 0.1122, lvc = log(5),
                 r0_tumor = 500, kd = 5, kd_fcrn = 2400, dln = 5)
fig5 <- dplyr::bind_rows(
  simulate_suv(brT, params = c(appE_common, l_aff = 0.04, l_eff = 0.004, r0_lnode = 100, lcl = log(0.004))) |>
    dplyr::mutate(scenario = "Peritumoral"),
  simulate_suv(brT, params = c(appE_common, l_aff = 0.00001, l_eff = 0.00001, r0_lnode = 100, lcl = log(0.00001))) |>
    dplyr::mutate(scenario = "(+)-Intratumoral"),
  simulate_suv(brT, params = c(appE_common, l_aff = 0.004, l_eff = 0.004, r0_lnode = 0, lcl = log(0.004))) |>
    dplyr::mutate(scenario = "(-)-Intratumoral")
)
ggplot(fig5[fig5$TDLN > 0, ], aes(time, TDLN, linetype = scenario)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "TDLN SUV", linetype = NULL, caption = "Replicates Figure 5 of Salgado 2022.") +
  theme_bw() +
  theme(legend.position = "bottom")


fig5_200 <- fig5 |> dplyr::filter(time == 200) |> dplyr::select(scenario, TDLN)
knitr::kable(fig5_200 |> dplyr::rename("Scenario" = scenario, "TDLN SUV at 200 h" = TDLN), digits = 3)
Scenario TDLN SUV at 200 h
Peritumoral 13.216
(+)-Intratumoral 0.785
(-)-Intratumoral 0.077
peri <- fig5_200$TDLN[fig5_200$scenario == "Peritumoral"]
pos <- fig5_200$TDLN[fig5_200$scenario == "(+)-Intratumoral"]
neg <- fig5_200$TDLN[fig5_200$scenario == "(-)-Intratumoral"]
# Figure 5 (log scale) separates the three networks by roughly an order of
# magnitude each: peritumoral about 8-15, (+) about 0.6, (-) about 0.04-0.08.
stopifnot(pos / peri < 0.1, neg / pos < 0.2, pos > 0.3, pos < 1.5)

Figure 5 is reproduced in ordering and order of magnitude: the (+) intratumoral node settles near SUV 0.7 and the (-) intratumoral node below 0.1, as in the figure. The published peritumoral curve rises faster (to about 15 within a day) than the simulation does.

Figure 6: sensitivity of the PT profile to key parameters

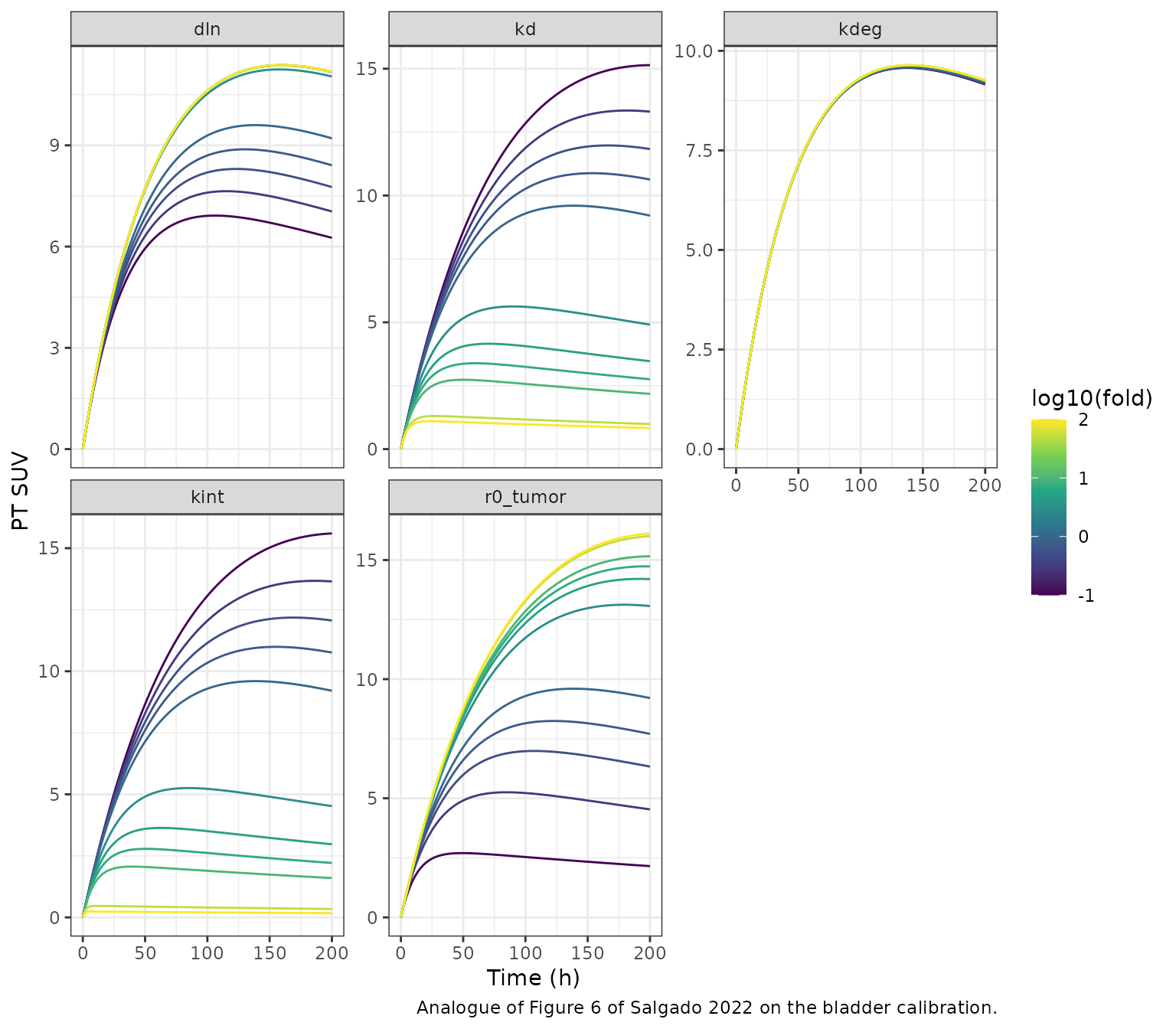

Figure 6 varies R01/R02, dln, Kd, kint and kdeg from 0.1- to 100-fold. The paper does not state which calibration underlies the figure, so the atezolizumab bladder calibration (panel k) is used here to check the direction of each effect stated in Section 3.5: the PT profile rises with R01/R02 and dln, falls with Kd and kint, and is insensitive to kdeg.

bl <- mods[["k"]]
bl_ini <- stats::setNames(rxode2::rxode(bl)$iniDf$est, rxode2::rxode(bl)$iniDf$name)
folds <- c(0.1, 0.3, 0.5, 0.7, 1, 3, 5, 7, 10, 50, 100)
sens_par <- c("r0_tumor", "dln", "kd", "kint", "kdeg")
fig6 <- lapply(sens_par, function(p) {
  lapply(folds, function(f) {
    pp <- stats::setNames(f * bl_ini[[p]], p)
    simulate_suv(bl, params = pp) |> dplyr::mutate(parameter = p, fold = f)
  }) |>
    dplyr::bind_rows()
}) |>
  dplyr::bind_rows()
ggplot(fig6, aes(time, PT, group = fold, colour = log10(fold))) +
  geom_line() +
  facet_wrap(~parameter, scales = "free_y") +
  scale_colour_viridis_c(name = "log10(fold)") +
  labs(x = "Time (h)", y = "PT SUV", caption = "Analogue of Figure 6 of Salgado 2022 on the bladder calibration.") +
  theme_bw()


pt200 <- fig6 |> dplyr::filter(time == 200)
at <- function(p, f) pt200$PT[pt200$parameter == p & pt200$fold == f]
sens_tab <- data.frame(
  parameter = sens_par,
  fold_0.1 = vapply(sens_par, at, numeric(1), f = 0.1),
  fold_1 = vapply(sens_par, at, numeric(1), f = 1),
  fold_10 = vapply(sens_par, at, numeric(1), f = 10)
)
sens_tab |>
  dplyr::rename("Parameter" = parameter, "PT SUV 200 h, 0.1x" = fold_0.1, "1x" = fold_1, "10x" = fold_10) |>
  knitr::kable(digits = 2, row.names = FALSE)
Parameter PT SUV 200 h, 0.1x 1x 10x
r0_tumor 2.15 9.21 15.16
dln 6.26 9.21 11.18
kd 15.14 9.21 2.18
kint 15.60 9.21 1.60
kdeg 9.16 9.21 9.25
stopifnot(
  at("r0_tumor", 10) > at("r0_tumor", 1), at("r0_tumor", 1) > at("r0_tumor", 0.1),
  at("dln", 10) > at("dln", 1),
  at("kd", 10) < at("kd", 1), at("kd", 1) < at("kd", 0.1),
  at("kint", 10) < at("kint", 1), at("kint", 1) < at("kint", 0.1),
  # kdeg: Section 3.5 calls it 'not a sensitive model parameter'
  abs(at("kdeg", 10) / at("kdeg", 0.1) - 1) < 0.25
)

PKNCA: plasma disposition

Plasma is a single pool cleared by CLp, with a fraction of the dose diverted into the tumor and TDLN, where some of it is internalized with its target rather than returning to plasma. The plasma AUC therefore sits at or below Dose / CLp; the shortfall is largest (about 20%) for the atezolizumab lung calibration, whose low CLp lets the tumor influx compete with systemic clearance. For most calibrations the terminal half-life is close to ln(2) Vp / CLp. Two exceptions follow from the structure: in the brain calibration (panel a) the large tumor interstitium (0.265 L) drains back to plasma slowly through the lymph and sets a longer terminal phase, and in the atezolizumab lung calibration (panel i) internalization in the tumor adds to CLp and shortens it.

nca_times <- c(0, 1, 2, 4, 8, 12, 24, 48, 72, 96, 120, 168, 240, 336, 504, 672, 1008, 1344, 2016)
pk <- lapply(seq_len(nrow(models)), function(i) {
  ev <- make_events(1, nca_times)
  sim <- rxode2::rxSolve(mods[[i]], events = ev, useLinCmt = FALSE) |> as.data.frame()
  data.frame(id = i, panel = models$panel[i], time = sim$time, Cc = sim$Cc)
}) |>
  dplyr::bind_rows()
stopifnot(!anyNA(pk$Cc), all(pk$Cc > 0))
dose_df <- data.frame(id = seq_len(nrow(models)), panel = models$panel, time = 0, amt = 1)

conc_obj <- PKNCA::PKNCAconc(pk |> dplyr::filter(!is.na(Cc)), Cc ~ time | panel + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | panel + id, route = "intravascular")
intervals <- data.frame(start = 0, end = Inf, cmax = TRUE, aucinf.obs = TRUE, half.life = TRUE)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

nca_tab <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "aucinf.obs", "half.life")) |>
  dplyr::select(panel, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::left_join(ptab |> dplyr::select(panel, Vp, CLp), by = "panel") |>
  dplyr::mutate(
    auc_ratio = aucinf.obs * CLp / 1,
    thalf_closed = log(2) * Vp / CLp
  )
nca_tab |>
  dplyr::select(panel, cmax, aucinf.obs, auc_ratio, half.life, thalf_closed) |>
  dplyr::rename(
    "Panel" = panel, "Cmax (nM)" = cmax, "AUC0-inf (nM*h)" = aucinf.obs,
    "AUC x CLp / Dose" = auc_ratio, "t1/2 (h, PKNCA)" = half.life,
    "ln(2) Vp / CLp (h)" = thalf_closed
  ) |>
  knitr::kable(digits = 3, caption = "PKNCA plasma NCA after a 1 nmol IV dose.")
PKNCA plasma NCA after a 1 nmol IV dose.
Panel Cmax (nM) AUC0-inf (nM*h) AUC x CLp / Dose t1/2 (h, PKNCA) ln(2) Vp / CLp (h)
a 0.200 13.141 0.986 87.146 46.210
b 0.200 13.930 0.975 53.894 49.511
c 0.200 16.569 0.994 65.248 57.762
d 0.200 22.520 0.946 78.643 82.518
e 0.200 15.261 0.961 63.585 55.012
f 0.143 34.673 0.999 168.336 168.473
g 0.200 29.834 0.985 103.406 105.022
h 0.200 30.268 0.999 104.968 105.022
i 0.200 95.054 0.789 330.422 417.559
j 0.200 114.733 0.952 399.381 417.559
k 0.200 119.467 0.992 414.281 417.559
stopifnot(
  # Cmax at time zero is Dose / Vp exactly.
  all(abs(nca_tab$cmax - 1 / nca_tab$Vp) < 1e-6),
  # AUC x CLp / Dose is the fraction of the dose eliminated by CLp; the rest
  # is internalized in the tumor and TDLN, so the ratio cannot exceed 1. A
  # 1-h-step trapezoid to 20000 h gives 0.79 (atezolizumab NSCLC: low CLp and
  # a large tumor influx) to 1.00 (ovarian, esophagogastric).
  all(nca_tab$auc_ratio < 1.01), all(nca_tab$auc_ratio > 0.7)
)

No NCA results are published for these immuno-PET calibrations, so there is no published-versus-simulated NCA table.

Assumptions and deviations

  • Target synthesis term. Eqs. A3 and A5 print the baseline target concentration (R01, R02) as the synthesis rate. The packaged models use ksyn = kdeg * R0, which keeps the target at its baseline before dosing and reproduces Figure 2; the printed form drives total target up to 100-fold over baseline and misses Figure 2 (shown above for the pancreatic calibration).
  • SUV conversion. Appendix F defines SUV as concentration at the target site times whole-body volume divided by the injected dose, without stating the whole-body volume. A volume of 70 L reproduces the published plasma SUV at time zero (about 14 for Vp = 5 L and about 10 for Vp = 7 L). The tumor and TDLN SUVs use the interstitial-fluid concentration of total (free plus bound) antibody, which reproduces the published PT curves.
  • Dose. The calibration doses of the source imaging studies are not given in Salgado 2022. The figures use a 1 nmol tracer dose; the dose-sensitivity table shows where this matters.
  • Free-antibody root. Eqs. A6 and A7 are coded in the algebraically identical rationalized form when C - R_T - Kd < 0, to avoid round-off near time zero; the values are unchanged.
  • Fixed versus calibrated parameters. The paper lists sigma_V, R01, R02, Kd, dln and CLp as the organ- and antibody-specific calibrated parameters but cites literature sources for Kd and Kd,FcRn. sigma_V, R01, R02, dln and CLp are therefore left unfixed and every literature or physiological value (including Kd) is wrapped in fixed(). No standard errors were reported.
  • No variability. The model was calibrated to group means; there is no between-subject or residual variability, and the residual-error parameters are fixed to zero.
  • Single channel. Eq. A1 sums over tumor / TDLN channels when metastases are added. The lung-metastasis channels of Figure 3a-b and the target densities of Figure 3c-d are not reported, so only the single-channel (primary tumor) models are packaged and Figure 3 is not reproduced.
  • Appendix E CLp column. Table A3 prints CLp = 0.004, 0.00001 and 0.004 L/h for the three TDLN networks, which equal the Laff values of Table A2 and differ from the 0.063 L/h of the trastuzumab breast calibration. They are used as printed.
  • Literature check. No correction notice for Salgado 2022 was found in Europe PMC or in the Crossref record of the DOI as of 2026-10-01.
