Isoniazid, rifampicin, pyrazinamide and ethambutol in children with tuberculous meningitis (Panjasawatwong 2020)

Source: vignettes/articles/Panjasawatwong_2020_antituberculosis_tbm.Rmd
Panjasawatwong_2020_antituberculosis_tbm.Rmd

Panjasawatwong et al. (2020) described the plasma and cerebrospinal fluid (CSF) pharmacokinetics of the four first-line antituberculosis drugs in 100 Vietnamese children with tuberculous meningitis (TBM). Each drug was modelled separately, and the time to death was modelled with its own time-to-event model, so the package ships five model files that share this vignette:

inh <- nlmixr2lib::readModelDb("Panjasawatwong_2020_isoniazid")
rif <- nlmixr2lib::readModelDb("Panjasawatwong_2020_rifampicin")
pza <- nlmixr2lib::readModelDb("Panjasawatwong_2020_pyrazinamide")
emb <- nlmixr2lib::readModelDb("Panjasawatwong_2020_ethambutol")
tte <- nlmixr2lib::readModelDb("Panjasawatwong_2020_tbm_mortality")

Reference: Panjasawatwong N, Wattanakul T, Hoglund RM, Bang ND, Pouplin T, Nosoongnoen W, Ngo VN, Day JN, Tarning J (2020). Population pharmacokinetic properties of antituberculosis drugs in Vietnamese children with tuberculous meningitis. Antimicrob Agents Chemother 65(1):e00487-20. doi:10.1128/AAC.00487-20

Population

One hundred children younger than 15 years with suspected TBM were enrolled at Pham Ngoc Thach Hospital, Ho Chi Minh City, between October 2009 and March 2011 and treated with the 2006 WHO paediatric regimen: isoniazid 5 mg/kg, rifampicin 10 mg/kg, pyrazinamide 25 mg/kg and ethambutol 15 mg/kg once daily (plus streptomycin for 2 months and adjunctive dexamethasone). Six plasma samples were drawn per child over days 1, 14, 30 and 90, with two CSF samples on days 30 and 90. Ethambutol could not be quantified in CSF.

Characteristic (Table 1) Value
Boys / girls 56 / 44
Body weight, kg 10.9 (4.0-43)
Age, years 3.0 (0.167-15.0)
Weight-for-age z-score -1.93 (-5.52 to 1.99)
TBM grade I / II / III 58 / 24 / 18
HIV positive / negative / unknown 4 / 92 / 4
NAT2 fast / intermediate / slow / unknown 17 / 47 / 28 / 8
CSF protein, g/L 1.20 (0.1-5)

Values are median (range) or counts.

Model structure

All four models share one skeleton (Figure 2 of the paper): oral dose into a depot, a chain of transit compartments in which the absorption rate constant equals the transit rate constant (ktr = (n + 1) / MTT with n = 2 for isoniazid, rifampicin and ethambutol and n = 3 for pyrazinamide), and one or two disposition compartments. Isoniazid, rifampicin and pyrazinamide carry a CSF compartment whose volume is fixed from age (Methods Eq 1). Drug enters it at QCSF * fu * PC * Cc and leaves at QCSF * Ccsf, so at steady state the CSF-to-plasma AUC ratio equals fu * PC.

Every clearance and inter-compartmental flow is scaled by (WT / 10.9)^0.75 and every plasma volume by WT / 10.9. Clearance also carries a sigmoidal maturation function of postmenstrual age, PMA^HILL / (PMA^HILL + MAT50^HILL), with PMA in months equal to postnatal age plus 9.33 months. The tabulated estimates are “scaled to typical patient at 10.9 kg and 3 years” (Tables 2-5, footnote b), so the maturation term is divided by its value at 3 years (PMA 45.33 months).

Drug-specific terms:

  • Isoniazid: two-compartment disposition; CL/F is 56.4% lower in NAT2 slow acetylators. Fast, intermediate and ungenotyped children form a single reference group.
  • Rifampicin: autoinduction through an enzyme-turnover pool with kENZ, Emax and EC50 fixed to the adult values of Smythe et al. (2012). The pool multiplies the pre-induced CL/F. The penetration multiplier rises exponentially with CSF protein: PC = 0.844 * exp(0.245 * CSF_TPRO).
  • Pyrazinamide: CL/F changes by +4.76% and Vc/F by -4.65% per unit of weight-for-age z-score, and relative bioavailability carries interoccasion variability across the four sampling days.
  • Ethambutol: two-compartment disposition, plasma only; the maturation Hill coefficient is fixed to 1.

Residual error is additive on log-transformed concentrations for every matrix (lnorm()).

The time-to-death model (supplemental Table S3) has a Weibull hazard, h(t) = lambda * alpha * (lambda * t)^(alpha - 1), with time in hours from the start of treatment. The shape factor alpha is shared across the cohort, and the scale factor lambda is estimated separately for each baseline TBM grade. The grade is supplied as two indicators, TBM_GRADE_II and TBM_GRADE_III, with grade I as the reference. The model has no drug input: the first-day plasma and CSF exposures of all four drugs were tested and none improved the fit. It returns the cumulative hazard (lambda * t)^alpha and the survival probability sur = exp(-cumhaz) in closed form.

Source trace

Quantity Isoniazid Rifampicin Pyrazinamide Ethambutol Source
CL/F (L/h) 9.43 3.22 (pre-induced) 1.07 28.2 Tables 2-5
Vc/F (L) 3.78 12.3 7.38 98.6 Tables 2-5
Q/F (L/h) 28.0 - - 16.9 Tables 2, 5
Vp/F (L) 15.3 - - 153 Tables 2, 5
MTT (h) 0.878 1.25 0.457 1.8 Tables 2-5
Transit compartments 2 2 3 2 Results, each drug
MAT50 (months PMA) 12.7 6.81 12.1 3.99 Tables 2-5
HILL 4.7 1.38 2.73 1 (fixed) Tables 2-5
QCSF/F (L/h) 13.7 0.00482 0.0964 - Tables 2-4
fu (fixed) 0.9 0.2 0.9 - Tables 2-4
PC 1.65 0.844 1.02 - Tables 2-4
Covariate effects slow acetylator -56.4% on CL CSF protein +24.5%/(g/L), exponential on PC WAZ +4.76% on CL, -4.65% on Vc - Tables 2-4
Autoinduction (fixed) - kENZ 0.00369 1/h, Emax 1.04, EC50 70.5 ug/L - - Table 3; Eqs 2-3
IIV (%CV) CL 36.8, Q 101 CL 19.4, Vc 23.0, MTT 85.0, PC 22.0 CL 20.0, Vc 18.3, MTT 64.5 F 20.1, Vc 51.1, MTT 18.4, Vp 96.3 Tables 2-5
IOV (%CV) - - F 19.0 - Table 4
Residual variance, plasma / CSF 0.474 / 0.170 0.513 / 0.309 0.0274 / 0.0114 0.197 / - Tables 2-5
Allometric exponents 0.75 (flows), 1 (volumes), fixed same same same Methods
Maturation function Eq 4 Eq 4 Eq 4 Eq 4 Methods
CSF volume Eq 1 Eq 1 Eq 1 - Methods
Enzyme pool - Eqs 2-3 - - Methods

Time-to-death model:

Quantity Value Source
Weibull scale lambda, grade I (1/h) 5.74e-9 Table S3 ‘Baseline (hr-1)’
Weibull scale lambda, grade II (1/h) 2.35e-6 Table S3
Weibull scale lambda, grade III (1/h) 7.94e-5 Table S3
Weibull shape alpha 0.391 Table S3 ‘Slope’
Hazard lambda * alpha * (lambda * t)^(alpha - 1) - Table S3 equation
Grade-specific lambda - Table S3 equation; Results (dOFV -19.0)
Grade definition (BCS below 5 years, GCS from 5 years) - Table 1 footnote b

Structural verification

These checks compare a typical-value solve (all random effects zeroed) against its own closed form, so both sides use the same parameters and the only difference is numerical integration error. They are asserted tightly.

# Two endpoints (Cc, Ccsf): observation rows nominate the endpoint through dvid.
# dvid = 1 on every observation row returns both Cc and Ccsf as columns.
steady_state_events <- function(amt, n_doses, grid = 0.05, two_endpoints = TRUE) {
  t_last <- (n_doses - 1) * 24
  dose <- data.frame(
    time = 0, amt = amt, evid = 1, cmt = "depot",
    ii = ifelse(n_doses > 1, 24, 0), addl = n_doses - 1
  )
  obs <- data.frame(time = seq(t_last, t_last + 24, by = grid))
  obs$amt <- NA_real_
  obs$evid <- 0
  obs$ii <- 0
  obs$addl <- 0
  if (two_endpoints) {
    dose$dvid <- NA_real_
    obs$cmt <- NA_character_
    obs$dvid <- 1
    keep <- c("time", "amt", "evid", "cmt", "ii", "addl", "dvid")
  } else {
    obs$cmt <- "central"
    keep <- c("time", "amt", "evid", "cmt", "ii", "addl")
  }
  rbind(dose[, keep], obs[, keep])
}

trap <- function(time, conc) {
  sum(diff(time) * (utils::head(conc, -1) + utils::tail(conc, -1)) / 2)
}

typical_profile <- function(model, amt, covariates, n_doses = 21, two_endpoints = TRUE) {
  ev <- steady_state_events(amt, n_doses, two_endpoints = two_endpoints)
  for (nm in names(covariates)) ev[[nm]] <- covariates[[nm]]
  out <- rxode2::rxSolve(rxode2::zeroRe(model), ev, returnType = "data.frame")
  out <- out[!duplicated(out$time), ]
  out$time <- out$time - (n_doses - 1) * 24
  out
}

typical_child <- list(WT = 10.9, AGE = 3)

Isoniazid. At steady state the amount cleared over one interval equals the dose, so CL * AUCtau must equal the dose for both acetylator groups. The CSF-to-plasma AUC ratio must equal fu * PC = 0.9 * 1.65 = 1.485. The slow-to-fast plasma AUC ratio must equal 1 / (1 - 0.564).

inh_dose <- 5 * 10.9
inh_fast <- typical_profile(inh, inh_dose, c(typical_child, NAT2_SLOW = 0))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq'
inh_slow <- typical_profile(inh, inh_dose, c(typical_child, NAT2_SLOW = 1))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq'
auc_inh_fast <- trap(inh_fast$time, inh_fast$Cc)
auc_inh_slow <- trap(inh_slow$time, inh_slow$Cc)

stopifnot(
  abs(9.43 * auc_inh_fast / inh_dose - 1) < 0.002,
  abs(9.43 * (1 - 0.564) * auc_inh_slow / inh_dose - 1) < 0.002,
  abs(trap(inh_fast$time, inh_fast$Ccsf) / auc_inh_fast - 0.9 * 1.65) < 0.005,
  abs(auc_inh_slow / auc_inh_fast - 1 / (1 - 0.564)) < 0.005,
  # The explicit ODE system survives: no closed-form linCmt() takeover.
  identical(
    rxode2::rxode2(inh)$state,
    c("depot", "transit1", "transit2", "central", "peripheral1", "csf")
  )
)
#> ℹ parameter labels from comments will be replaced by 'label()'
c(auc_fast = auc_inh_fast, auc_slow = auc_inh_slow)
#>  auc_fast  auc_slow
#>  5.779432 13.255573

Pyrazinamide and ethambutol. The same mass balance holds at the reference covariates. For pyrazinamide the reference is WAZ = 0 and the IOV is switched off (OCC = 0). The pyrazinamide CSF ratio must equal 0.9 * 1.02 = 0.918.

pza_dose <- 25 * 10.9
pza_typ <- typical_profile(pza, pza_dose, c(typical_child, WAZ = 0, OCC = 0))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_fdepot_1, etaiov_fdepot_2, etaiov_fdepot_3, etaiov_fdepot_4
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_fdepot_1, etaiov_fdepot_2, etaiov_fdepot_3, etaiov_fdepot_4
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etaiov_fdepot_1', 'etaiov_fdepot_2', 'etaiov_fdepot_3', 'etaiov_fdepot_4'
auc_pza <- trap(pza_typ$time, pza_typ$Cc)

emb_dose <- 15 * 10.9
emb_typ <- typical_profile(emb, emb_dose, typical_child, two_endpoints = FALSE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalfdepot', 'etalvc', 'etalmtt', 'etalvp'
auc_emb <- trap(emb_typ$time, emb_typ$Cc)

stopifnot(
  abs(1.07 * auc_pza / pza_dose - 1) < 0.002,
  abs(trap(pza_typ$time, pza_typ$Ccsf) / auc_pza - 0.9 * 1.02) < 0.005,
  abs(28.2 * auc_emb / emb_dose - 1) < 0.002
)
c(auc_pza = auc_pza, auc_emb = auc_emb)
#>    auc_pza    auc_emb
#> 254.672901   5.797872

Rifampicin. Autoinduction raises clearance over the first weeks, so the check runs after 60 daily doses; the paper reports that steady state was reached within 40 days. With the pool at steady state, the dose must equal AUCtau times the time-averaged induced clearance. The time average is CLpre times the mean enzyme amount over the interval. The CSF-to-plasma AUC ratio must equal fu * PC(protein) = 0.2 * 0.844 * exp(0.245 * protein) at each protein level.

rif_dose <- 10 * 10.9
rif_ss <- lapply(c(0.2, 1.2, 5), function(p) {
  typical_profile(rif, rif_dose, c(typical_child, CSF_TPRO = p), n_doses = 61)
})
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
rif_ratio <- vapply(rif_ss, function(d) trap(d$time, d$Ccsf) / trap(d$time, d$Cc), numeric(1))
rif_expected <- 0.2 * 0.844 * exp(0.245 * c(0.2, 1.2, 5))
rif_cl_avg <- trap(rif_ss[[2]]$time, 3.22 * rif_ss[[2]]$enz_pool) / 24
auc_rif_ss <- trap(rif_ss[[2]]$time, rif_ss[[2]]$Cc)

rif_day1 <- typical_profile(rif, rif_dose, c(typical_child, CSF_TPRO = 1.2), n_doses = 1)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
auc_rif_day1 <- trap(rif_day1$time, rif_day1$Cc)

stopifnot(
  all(abs(rif_ratio / rif_expected - 1) < 0.01),
  abs(rif_cl_avg * auc_rif_ss / rif_dose - 1) < 0.005,
  # Induction lowers steady-state exposure below the first-dose exposure.
  auc_rif_ss < auc_rif_day1
)
data.frame(
  protein_g_L = c(0.2, 1.2, 5),
  csf_plasma_auc_ratio = signif(rif_ratio, 4),
  expected = signif(rif_expected, 4)
)
#>   protein_g_L csf_plasma_auc_ratio expected
#> 1         0.2               0.1773   0.1773
#> 2         1.2               0.2265   0.2265
#> 3         5.0               0.5746   0.5746
c(auc_day1 = auc_rif_day1, auc_ss = auc_rif_ss, induced_cl_over_pre = rif_cl_avg / 3.22)
#>            auc_day1              auc_ss induced_cl_over_pre
#>           33.200826           21.737094            1.561435

For the typical child, the time-averaged steady-state clearance is 56% above the pre-induced value. The paper reports that “the fully induced clearance rate was 80.1% higher than the preinduced clearance rate” without saying how that figure was summarised. The enzyme pool’s ceiling is 1 + Emax = 2.04, and the pool runs below it because plasma rifampicin falls towards the EC50 late in each dosing interval. The typical-value first-dose to steady-state plasma AUC ratio is 1.53. For comparison, the ratio of the cohort’s post hoc medians is 1.75: 37.6 mgh/L on day 1 (Table S1, fully recovered children) against 21.5 mgh/L at steady state (Table 3).

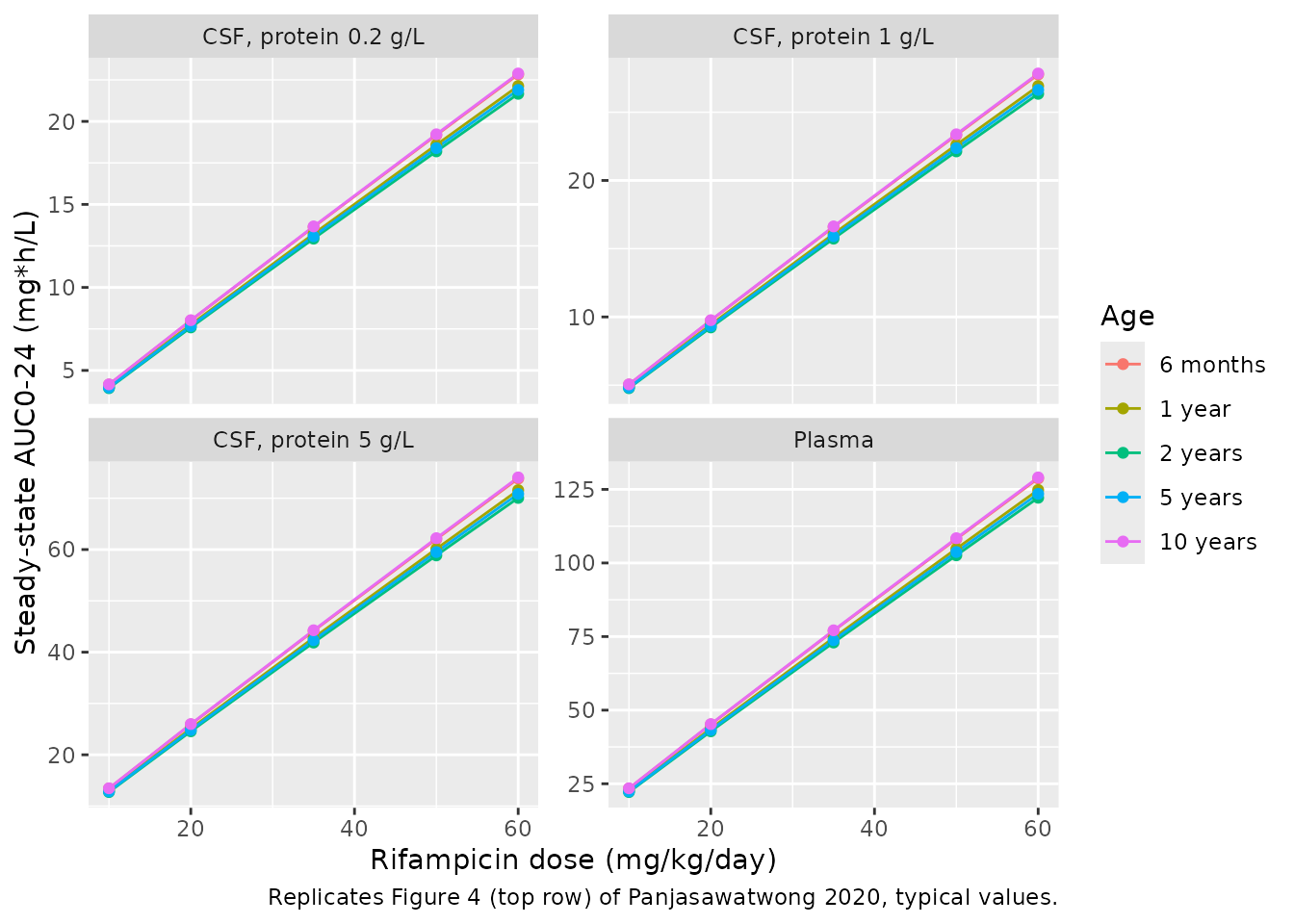

Rifampicin exposure by dose, age and CSF protein (Figure 4)

Figure 4 of the paper shows simulated steady-state rifampicin plasma and CSF AUC0-24 over doses of 10-60 mg/kg in five age groups, and at CSF protein of 0.2, 1.0 and 5.0 g/L. The typical-value curves below use the Table S5 median body weight for each age group (6.9, 8.5, 10.5, 14.5 and 20.2 kg). The paper’s box medians at 60 mg/kg in 10-year-olds read off the figure are about 125 mgh/L (plasma) and about 23, 28 and 75 mgh/L (CSF at 0.2, 1.0 and 5.0 g/L).

age_groups <- data.frame(
  age_label = c("6 months", "1 year", "2 years", "5 years", "10 years"),
  AGE = c(0.5, 1, 2, 5, 10),
  WT = c(6.90, 8.50, 10.5, 14.5, 20.2)
)
fig4_grid <- expand.grid(
  age_idx = seq_len(nrow(age_groups)),
  dose_mgkg = c(10, 20, 35, 50, 60),
  protein = c(0.2, 1.0, 5.0)
)
fig4 <- do.call(rbind, lapply(seq_len(nrow(fig4_grid)), function(i) {
  g <- fig4_grid[i, ]
  a <- age_groups[g$age_idx, ]
  d <- typical_profile(
    rif, g$dose_mgkg * a$WT,
    list(WT = a$WT, AGE = a$AGE, CSF_TPRO = g$protein),
    n_doses = 61
  )
  data.frame(
    age_label = a$age_label, dose_mgkg = g$dose_mgkg, protein = g$protein,
    auc_plasma = trap(d$time, d$Cc), auc_csf = trap(d$time, d$Ccsf)
  )
}))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalmtt', 'etalpc'
fig4$age_label <- factor(fig4$age_label, levels = age_groups$age_label)

fig4_long <- rbind(
  fig4 |>
    dplyr::filter(protein == 1.0) |>
    dplyr::transmute(age_label, dose_mgkg, panel = "Plasma", auc = auc_plasma),
  fig4 |>
    dplyr::transmute(age_label, dose_mgkg, panel = paste0("CSF, protein ", protein, " g/L"), auc = auc_csf)
)

ggplot(fig4_long, aes(dose_mgkg, auc, colour = age_label)) +
  geom_line() +
  geom_point() +
  facet_wrap(~panel, scales = "free_y") +
  labs(
    x = "Rifampicin dose (mg/kg/day)", y = "Steady-state AUC0-24 (mg*h/L)",
    colour = "Age", caption = "Replicates Figure 4 (top row) of Panjasawatwong 2020, typical values."
  )


fig4_check <- fig4 |> dplyr::filter(age_label == "10 years", dose_mgkg == 60)
fig4_check
#>   age_label dose_mgkg protein auc_plasma  auc_csf
#> 1  10 years        60     0.2   129.0915 22.88544
#> 2  10 years        60     1.0   129.0713 27.83641
#> 3  10 years        60     5.0   128.8856 74.06219
stopifnot(
  # The CSF-protein effect is uncentred: at 5 g/L the CSF/plasma ratio is
  # 0.2 * 0.844 * exp(0.245 * 5) = 0.574, matching Figure 4 (about 75/125).
  # Centring on the cohort median of 1.2 g/L would give about 0.43.
  abs(fig4_check$auc_csf[fig4_check$protein == 5] /
    fig4_check$auc_plasma[fig4_check$protein == 5] - 0.574) < 0.01
)

Virtual cohort

The paper’s Tables 2-5 report median (range) steady-state exposures derived from the individual (post hoc) estimates of the study children at the study doses. A virtual cohort resembling the study population is simulated below at the same doses. Age is log-normal around the 3-year median, truncated to the observed 2 months to 15 years. Weight is the Table S5 median weight for age, interpolated on the log scale, with 15% variation, truncated to the observed 4-43 kg. Truncation redraws values outside the limits rather than clamping them. Weight-for-age z-scores and CSF protein are drawn around the Table 1 medians within the observed ranges. 28% of children are slow acetylators.

n_sub <- 200

draw_truncated <- function(n, draw, lower, upper) {
  out <- draw(n)
  bad <- out < lower | out > upper
  while (any(bad)) {
    out[bad] <- draw(sum(bad))
    bad <- out < lower | out > upper
  }
  out
}

age <- draw_truncated(n_sub, function(n) exp(rnorm(n, log(3), 0.9)), 0.167, 15)
wt_median <- exp(stats::approx(
  log(age_groups$AGE), log(age_groups$WT),
  xout = log(pmin(pmax(age, 0.5), 10))
)$y)
# Beyond the Table S5 age span, extend the growth curve with the end slopes.
slope_lo <- log(8.50 / 6.90) / log(1 / 0.5)
slope_hi <- log(20.2 / 14.5) / log(10 / 5)
wt_median <- ifelse(age < 0.5, 6.90 * (age / 0.5)^slope_lo, wt_median)
wt_median <- ifelse(age > 10, 20.2 * (age / 10)^slope_hi, wt_median)
wt_factor <- draw_truncated(n_sub, function(n) exp(rnorm(n, 0, 0.15)), 0.5, 2)
wt <- wt_median * wt_factor
wt[wt < 4 | wt > 43] <- NA
while (anyNA(wt)) {
  i <- is.na(wt)
  wt[i] <- wt_median[i] * exp(rnorm(sum(i), 0, 0.15))
  wt[wt < 4 | wt > 43] <- NA
}

cohort <- data.frame(
  id = seq_len(n_sub),
  AGE = age,
  WT = wt,
  NAT2_SLOW = as.integer(runif(n_sub) < 0.28),
  WAZ = draw_truncated(n_sub, function(n) rnorm(n, -1.93, 1.4), -5.52, 1.99),
  CSF_TPRO = draw_truncated(n_sub, function(n) exp(rnorm(n, log(1.2), 0.8)), 0.1, 5)
)

stopifnot(
  nrow(cohort) <= 200,
  all(cohort$WT >= 4 & cohort$WT <= 43),
  abs(median(cohort$AGE) / 3 - 1) < 0.25,
  abs(median(cohort$WT) / 10.9 - 1) < 0.25
)
summary(cohort[, c("AGE", "WT", "WAZ", "CSF_TPRO")])
#>       AGE                WT              WAZ            CSF_TPRO
#>  Min.   : 0.2087   Min.   : 4.339   Min.   :-5.291   Min.   :0.1539
#>  1st Qu.: 1.5402   1st Qu.: 9.522   1st Qu.:-2.925   1st Qu.:0.7199
#>  Median : 2.6967   Median :11.404   Median :-1.887   Median :1.1445
#>  Mean   : 3.5474   Mean   :12.312   Mean   :-1.907   Mean   :1.3749
#>  3rd Qu.: 4.4933   3rd Qu.:14.646   3rd Qu.:-1.023   3rd Qu.:1.7196
#>  Max.   :14.9646   Max.   :28.343   Max.   : 1.684   Max.   :4.9771
# Daily doses in mg/kg; the last dosing interval is observed on a 0.25-h grid.
cohort_events <- function(mg_per_kg, n_doses, two_endpoints = TRUE) {
  do.call(rbind, lapply(seq_len(nrow(cohort)), function(i) {
    ev <- steady_state_events(mg_per_kg * cohort$WT[i], n_doses,
      grid = 0.25,
      two_endpoints = two_endpoints
    )
    ev <- cbind(id = cohort$id[i], ev)
    ev$time <- ev$time
    for (nm in c("AGE", "WT", "NAT2_SLOW", "WAZ", "CSF_TPRO")) ev[[nm]] <- cohort[[nm]][i]
    ev
  }))
}

simulate_ss <- function(model, mg_per_kg, n_doses, two_endpoints = TRUE, extra = list()) {
  ev <- cohort_events(mg_per_kg, n_doses, two_endpoints)
  for (nm in names(extra)) ev[[nm]] <- extra[[nm]]
  out <- rxode2::rxSolve(model, ev, returnType = "data.frame")
  t_last <- (n_doses - 1) * 24
  out <- out[out$time >= t_last, ]
  out$time <- out$time - t_last
  out
}

sim_inh <- simulate_ss(inh, 5, 21) |>
  dplyr::select(-dplyr::any_of("NAT2_SLOW")) |>
  dplyr::left_join(cohort[, c("id", "NAT2_SLOW")], by = "id") |>
  dplyr::mutate(arm = ifelse(NAT2_SLOW == 1, "Slow acetylators", "Fast and intermediate"))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_rif <- simulate_ss(rif, 10, 61) |> dplyr::mutate(arm = "All")
#> ℹ parameter labels from comments will be replaced by 'label()'
# Occasion 3 (day 30) carries the steady-state IOV draw on F.
sim_pza <- simulate_ss(pza, 25, 21, extra = list(OCC = 3)) |> dplyr::mutate(arm = "All")
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_fdepot_1, etaiov_fdepot_2, etaiov_fdepot_3, etaiov_fdepot_4
#> as a work-around try putting the mu-referenced expression on a simple line
sim_emb <- simulate_ss(emb, 15, 21, two_endpoints = FALSE) |> dplyr::mutate(arm = "All")
#> ℹ parameter labels from comments will be replaced by 'label()'

stopifnot(
  # Random effects actually varied across subjects.
  dplyr::n_distinct(round(sim_rif$Cc[sim_rif$time == 2], 6)) > 50,
  dplyr::n_distinct(round(sim_emb$Cc[sim_emb$time == 2], 6)) > 50
)
vpc_data <- dplyr::bind_rows(
  sim_inh |> dplyr::transmute(id, time, drug = "Isoniazid", Plasma = Cc, CSF = Ccsf),
  sim_rif |> dplyr::transmute(id, time, drug = "Rifampicin", Plasma = Cc, CSF = Ccsf),
  sim_pza |> dplyr::transmute(id, time, drug = "Pyrazinamide", Plasma = Cc, CSF = Ccsf),
  sim_emb |> dplyr::transmute(id, time, drug = "Ethambutol", Plasma = Cc, CSF = NA_real_)
) |>
  tidyr::pivot_longer(c(Plasma, CSF), names_to = "matrix", values_to = "conc") |>
  dplyr::filter(!is.na(conc)) |>
  dplyr::group_by(drug, matrix, time) |>
  dplyr::summarise(
    p05 = quantile(conc, 0.05), p50 = median(conc), p95 = quantile(conc, 0.95),
    .groups = "drop"
  )

ggplot(vpc_data, aes(time, p50, colour = matrix, fill = matrix)) +
  geom_ribbon(aes(ymin = p05, ymax = p95), alpha = 0.2, colour = NA) +
  geom_line() +
  facet_wrap(~drug, scales = "free_y") +
  scale_y_log10() +
  labs(
    x = "Time after dose at steady state (h)", y = "Concentration (mg/L)",
    colour = NULL, fill = NULL,

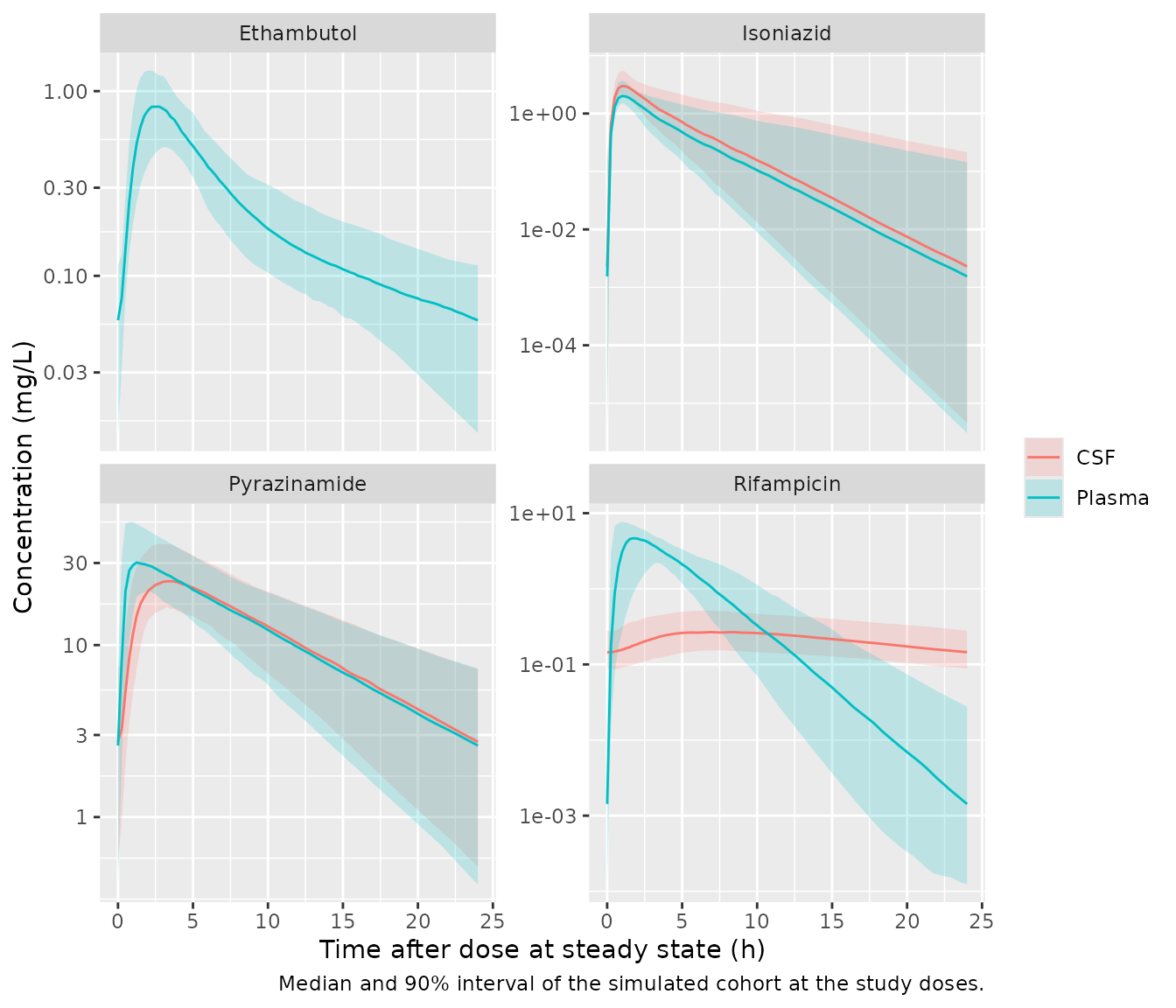

    caption = "Median and 90% interval of the simulated cohort at the study doses."
  )

PKNCA

PKNCA computes AUC0-24, Cmax and Tmax over the steady-state interval for each drug and matrix. The concentration frame is filtered only on missingness, so the time-zero record survives.

run_nca <- function(sim, conc_col) {
  dat <- sim |>
    dplyr::mutate(conc = .data[[conc_col]], treatment = arm) |>
    dplyr::filter(!is.na(conc)) |>
    dplyr::select(id, treatment, time, conc)
  doses <- dat |>
    dplyr::distinct(id, treatment) |>
    dplyr::mutate(time = 0)
  o_conc <- PKNCA::PKNCAconc(dat, conc ~ time | id / treatment)
  o_dose <- PKNCA::PKNCAdose(doses, ~ time | id + treatment)
  intervals <- data.frame(start = 0, end = 24, auclast = TRUE, cmax = TRUE, tmax = TRUE)
  res <- PKNCA::pk.nca(PKNCA::PKNCAdata(o_conc, o_dose, intervals = intervals))
  as.data.frame(res$result) |>
    dplyr::filter(PPTESTCD %in% c("auclast", "cmax", "tmax"))
}

nca_all <- dplyr::bind_rows(
  run_nca(sim_inh, "Cc") |> dplyr::mutate(drug = "Isoniazid", matrix = "Plasma"),
  run_nca(sim_inh, "Ccsf") |> dplyr::mutate(drug = "Isoniazid", matrix = "CSF"),
  run_nca(sim_rif, "Cc") |> dplyr::mutate(drug = "Rifampicin", matrix = "Plasma"),
  run_nca(sim_rif, "Ccsf") |> dplyr::mutate(drug = "Rifampicin", matrix = "CSF"),
  run_nca(sim_pza, "Cc") |> dplyr::mutate(drug = "Pyrazinamide", matrix = "Plasma"),
  run_nca(sim_pza, "Ccsf") |> dplyr::mutate(drug = "Pyrazinamide", matrix = "CSF"),
  run_nca(sim_emb, "Cc") |> dplyr::mutate(drug = "Ethambutol", matrix = "Plasma")
)

stopifnot(
  nrow(nca_all) > 0,
  !any(is.na(nca_all$PPORRES))
)

Comparison against the published exposures

The reference values are the median steady-state exposures of Tables 2-5.

simulated_long <- nca_all |>
  dplyr::mutate(group = paste(drug, matrix, treatment, sep = " | ")) |>
  dplyr::select(group, PPTESTCD, PPORRES)

published <- tibble::tribble(
  ~group,                                       ~auclast, ~cmax, ~tmax,
  "Isoniazid | Plasma | Fast and intermediate", 6.35,     2.12,  0.942,
  "Isoniazid | CSF | Fast and intermediate",    9.42,     3.14,  0.955,
  "Isoniazid | Plasma | Slow acetylators",      12.4,     2.41,  1.14,
  "Isoniazid | CSF | Slow acetylators",         18.4,     3.58,  1.15,
  "Rifampicin | Plasma | All",                  21.5,     4.94,  2.13,
  "Rifampicin | CSF | All",                     4.08,     0.253, 10.0,
  "Pyrazinamide | Plasma | All",                288,      42.5,  1.08,
  "Pyrazinamide | CSF | All",                   266,      31.3,  3.06,
  "Ethambutol | Plasma | All",                  8.18,     1.26,  2.59
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = simulated_long,
  reference = published,
  by = "group",
  params = c("auclast", "cmax", "tmax"),
  tolerance_pct = 20
)
knitr::kable(cmp)
NCA parameter group Reference Simulated % diff
Cmax Isoniazid | Plasma | Fast and intermediate 2.12 1.97 -7.1%
Cmax Isoniazid | CSF | Fast and intermediate 3.14 2.92 -7.0%
Cmax Isoniazid | Plasma | Slow acetylators 2.41 2.44 +1.2%
Cmax Isoniazid | CSF | Slow acetylators 3.58 3.62 +1.2%
Cmax Rifampicin | Plasma | All 4.94 5.01 +1.4%
Cmax Rifampicin | CSF | All 0.253 0.273 +7.8%
Cmax Pyrazinamide | Plasma | All 42.5 31.6 -25.6%*
Cmax Pyrazinamide | CSF | All 31.3 23.7 -24.3%*
Cmax Ethambutol | Plasma | All 1.26 0.853 -32.3%*
Tmax Isoniazid | Plasma | Fast and intermediate 0.942 1 +6.2%
Tmax Isoniazid | CSF | Fast and intermediate 0.955 1 +4.7%
Tmax Isoniazid | Plasma | Slow acetylators 1.14 1 -12.3%
Tmax Isoniazid | CSF | Slow acetylators 1.15 1 -13.0%
Tmax Rifampicin | Plasma | All 2.13 2 -6.1%
Tmax Rifampicin | CSF | All 10 6.5 -35.0%*
Tmax Pyrazinamide | Plasma | All 1.08 1 -7.4%
Tmax Pyrazinamide | CSF | All 3.06 3.25 +6.2%
Tmax Ethambutol | Plasma | All 2.59 2.62 +1.4%
AUClast Isoniazid | Plasma | Fast and intermediate 6.35 6.14 -3.2%
AUClast Isoniazid | CSF | Fast and intermediate 9.42 9.13 -3.1%
AUClast Isoniazid | Plasma | Slow acetylators 12.4 13.8 +11.2%
AUClast Isoniazid | CSF | Slow acetylators 18.4 20.5 +11.3%
AUClast Rifampicin | Plasma | All 21.5 22.7 +5.6%
AUClast Rifampicin | CSF | All 4.08 5.13 +25.7%*
AUClast Pyrazinamide | Plasma | All 288 296 +2.7%
AUClast Pyrazinamide | CSF | All 266 272 +2.1%
AUClast Ethambutol | Plasma | All 8.18 5.94 -27.4%*

auc_cmp <- simulated_long |>
  dplyr::filter(PPTESTCD == "auclast") |>
  dplyr::group_by(group) |>
  dplyr::summarise(sim = median(PPORRES), .groups = "drop") |>
  dplyr::inner_join(published[, c("group", "auclast")], by = "group") |>
  dplyr::mutate(ratio = sim / auclast)

auc_checked <- auc_cmp |>
  dplyr::filter(!grepl("Ethambutol", group), group != "Rifampicin | CSF | All")
stopifnot(
  # Isoniazid (both matrices), rifampicin plasma and pyrazinamide (both
  # matrices) AUC medians agree with the published medians. Ethambutol and
  # rifampicin CSF are discussed below.
  nrow(auc_checked) == 7,
  all(abs(auc_checked$ratio - 1) < 0.2)
)

The isoniazid and pyrazinamide AUC rows (plasma and CSF) and the rifampicin plasma AUC row reproduce the published medians. The CSF-to-plasma ratios follow from fu * PC, which the structural gate checks exactly. Some rows differ, and they are reported here rather than tuned:

  • Ethambutol simulates about 30% below the published AUC and Cmax medians. At steady state AUC0-24 equals F * Dose / CL exactly, and ethambutol CL/F carries no IIV. A median of 8.18 mg*h/L therefore implies a median dose about 40% above the nominal 15 mg/kg at the tabulated CL/F of 28.2 L/h. The paper’s own adult comparison (114 L/h scaled to 70 kg) confirms that tabulated CL/F. The most likely explanation is that the dispensed milligram doses (rounded to tablet strengths) exceeded the nominal mg/kg; the actual doses are not reported.
  • Pyrazinamide Cmax runs below the published median while AUC agrees. For a 10.9-kg child the tabulated Vc/F of 7.38 L bounds the peak from a 272.5-mg dose at about 37 mg/L, below the published median of 42.5 mg/L, so this row, too, points to actual doses above nominal.
  • Rifampicin CSF AUC runs about 25% above the published median. The CSF exposure depends on each child’s CSF protein, and the virtual cohort draws protein around the baseline median of 1.20 g/L. The published steady-state ratio of CSF to plasma AUC medians (4.08 / 21.5 = 0.19) corresponds to 0.2 * 0.844 * exp(0.245 * protein) at a protein of about 0.5 g/L. The CSF samples were taken on days 30 and 90, and CSF protein at those visits is not reported; it may have fallen from baseline with treatment.
  • Rifampicin CSF Tmax is about 6 h in the simulation against a published median of 10.0 h (range 5.72-13.9). It depends on QCSF and the transit absorption rather than on the CSF volume (varying the volume 4-fold moves it by under 0.5 h). The simulated CSF Cmax and AUC agree with the table.

Time to death (Figure 7)

The survival model is solved for one typical child in each TBM grade over the 240-day follow-up. It is algebraic, so the solve is compared against the Table S3 closed form, and the hazard against the numerical derivative of the cumulative hazard. Both sides use the same parameters, so the bounds are tight.

tte_grid <- sort(unique(c(seq(0, 24, by = 1), seq(0, 240 * 24, by = 24))))
tte_events <- data.frame(
  id = rep(1:3, each = length(tte_grid)),
  time = rep(tte_grid, times = 3),
  evid = 0
)
tte_events$TBM_GRADE_II <- as.integer(tte_events$id == 2)
tte_events$TBM_GRADE_III <- as.integer(tte_events$id == 3)

tte_sim <- rxode2::rxSolve(tte, tte_events, returnType = "data.frame") |>
  dplyr::mutate(grade = c("Grade I", "Grade II", "Grade III")[id])

closed_form <- exp(-(tte_sim$lam * tte_sim$time)^tte_sim$alfa)
stopifnot(max(abs(tte_sim$sur - closed_form)) < 1e-12)

# Hazard against the central-difference derivative of the cumulative hazard,
# with a step of 0.1% of t, away from t = 0 where the alpha < 1 hazard is
# unbounded.
check_t <- c(1, 24, 168, 960, 5760)
deriv_events <- expand.grid(
  step = c(-1, 0, 1),
  check_t = check_t,
  id = 1:3
) |>
  dplyr::mutate(
    time = check_t * (1 + 1e-3 * step),
    evid = 0,
    TBM_GRADE_II = as.integer(id == 2),
    TBM_GRADE_III = as.integer(id == 3)
  ) |>
  dplyr::arrange(id, time)
deriv_check <- rxode2::rxSolve(
  tte,
  deriv_events,
  returnType = "data.frame",
  keep = c("step", "check_t")
) |>
  dplyr::group_by(id, check_t) |>
  dplyr::summarise(
    dh = (cumhaz[step == 1] - cumhaz[step == -1]) /
      (time[step == 1] - time[step == -1]),
    hazard = hazard[step == 0],
    .groups = "drop"
  )
stopifnot(
  nrow(deriv_check) == 15,
  max(abs(deriv_check$dh / deriv_check$hazard - 1)) < 1e-4
)

Figure 7 of the paper is a visual predictive check of the Kaplan-Meier curve in each grade, with a 95% prediction interval from 1,000 simulated trials. Here 200 trials of the Table 1 grade sizes (58, 24 and 18 children) are drawn by inverting the survival function, T = (-log(U))^(1 / alpha) / lambda, with censoring at 240 days. The points are the observed survival at 240 days read from Figure 7.

grade_n <- c("Grade I" = 58, "Grade II" = 24, "Grade III" = 18)
tte_par <- tte_sim |>
  dplyr::distinct(grade, lam, alfa)
day_grid <- 0:240
n_trials <- 200

km_trials <- lapply(seq_len(nrow(tte_par)), function(i) {
  g <- tte_par$grade[i]
  n <- grade_n[[g]]
  surv_mat <- vapply(
    seq_len(n_trials),
    function(r) {
      event_h <- (-log(stats::runif(n)))^(1 / tte_par$alfa[i]) / tte_par$lam[i]
      vapply(day_grid, function(d) mean(event_h > d * 24), numeric(1))
    },
    numeric(length(day_grid))
  )
  data.frame(
    grade = g,
    day = day_grid,
    lo = apply(surv_mat, 1, stats::quantile, probs = 0.025),
    hi = apply(surv_mat, 1, stats::quantile, probs = 0.975)
  )
}) |>
  dplyr::bind_rows()

fig7_observed <- data.frame(
  grade = c("Grade I", "Grade II", "Grade III"),
  day = 240,
  sur = c(0.98, 0.83, 0.50)
)

ggplot() +
  geom_ribbon(
    data = km_trials,
    aes(x = day, ymin = lo, ymax = hi),
    fill = "grey75"
  ) +
  geom_line(
    data = tte_sim,
    aes(x = time / 24, y = sur),
    linewidth = 0.8
  ) +
  geom_point(data = fig7_observed, aes(x = day, y = sur), shape = 1, size = 2.5) +
  facet_wrap(~grade) +
  coord_cartesian(ylim = c(0, 1)) +
  labs(
    x = "Time (days)",
    y = "Survival",

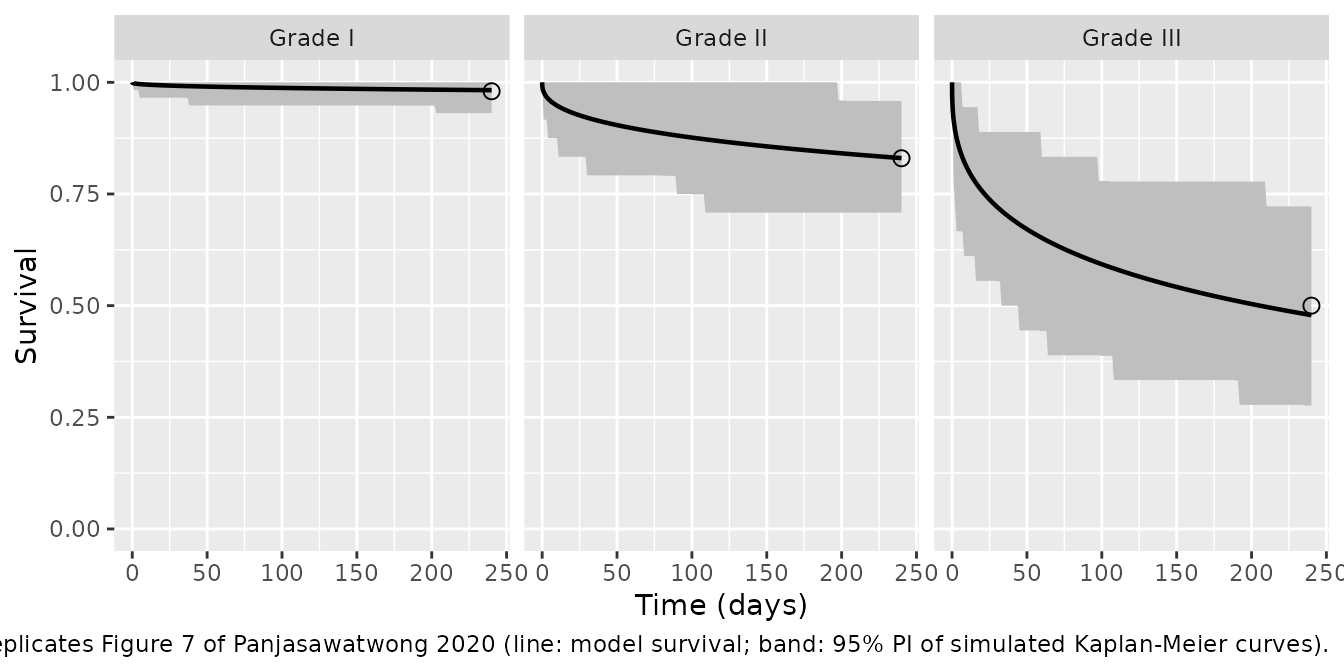

    caption = "Replicates Figure 7 of Panjasawatwong 2020 (line: model survival; band: 95% PI of simulated Kaplan-Meier curves)."
  )

Expected deaths follow from the model survival and the grade sizes. The observed counts are 1, 4 and 10 deaths in grades I, II and III (15 in total; Table 1 and Discussion), with 8 of the 15 in the first week (Results).

expected_deaths <- tte_sim |>
  dplyr::filter(time %in% c(7 * 24, 240 * 24)) |>
  dplyr::mutate(
    n = grade_n[grade],
    deaths = n * (1 - sur),
    window = ifelse(time == 7 * 24, "first_week", "day_240")
  ) |>
  dplyr::select(grade, n, window, deaths) |>
  tidyr::pivot_wider(names_from = window, values_from = deaths) |>
  dplyr::mutate(
    observed = c("Grade I" = 1, "Grade II" = 4, "Grade III" = 10)[grade]
  )

expected_deaths |>
  dplyr::rename(
    "TBM grade" = grade,
    "Children" = n,
    "Model deaths, first week" = first_week,
    "Model deaths, 240 days" = day_240,
    "Observed deaths" = observed
  ) |>
  knitr::kable(digits = 2)
TBM grade Children Model deaths, first week Model deaths, 240 days Observed deaths
Grade I 58 0.26 1.02 1
Grade II 24 1.09 4.07 4
Grade III 18 3.04 9.38 10

stopifnot(
  # Each grade's 240-day expected deaths lie within 1.5 of the observed count,
  # and the total within 1 of the observed 15. Deterministic (no sampling).
  all(abs(expected_deaths$day_240 - expected_deaths$observed) < 1.5),
  abs(sum(expected_deaths$day_240) - 15) < 1
)

The model reproduces the observed 240-day survival in every grade (Figure 7) and the number of deaths per grade. It places fewer deaths early than were observed, though: about 4.4 in the first week against the 8 reported. The fitted shape factor of 0.391 spreads the deaths over the whole follow-up. Figure 7’s observed grade III curve falls below the model line during the first 2 months and stays inside the paper’s prediction band. This is reported as a property of the published estimates and has not been tuned.

Assumptions and deviations

  • CSF volume equation (Methods Eq 1). As typeset, Eq 1 reads 150 * [38.78 + age^1.071 * (102.6 - 38.78)] / (age^1.071 + 1.297^1.071) mL, which gives about 8 L for a 3-year-old. Here it is read as a sigmoid in percent of the 150-mL adult CSF volume: 150 * (38.78 + age^1.071 * (102.6 - 38.78) / (age^1.071 + 1.297^1.071)) / 100, giving 58 mL at birth, 126 mL at 3 years and about 154 mL in adults. This reading also reproduces the published rifampicin CSF Cmax (0.257 vs 0.253 mg/L for the typical child at the cohort-median protein).
  • CSF protein effect is uncentred. The paper does not print a centring value for the exponential CSF-protein effect on rifampicin PC. The uncentred form 0.844 * exp(0.245 * protein) reproduces Figure 4’s CSF exposures at 0.2, 1.0 and 5.0 g/L (see the Figure 4 check above). Centring on the cohort median of 1.20 g/L would lower the 5.0-g/L CSF AUC by about 25%.
  • WAZ reference. The paper does not print a centring value for the linear WAZ effects on pyrazinamide CL/F and Vc/F. Here WAZ enters uncentred, so the tabulated CL/F and Vc/F apply at WAZ = 0, the growth-standard median. Had the authors centred on the cohort median of -1.93, the typical CL/F and Vc/F at WAZ = 0 would be about 9% higher and 9% lower, respectively. The comparison above cannot separate the two because actual doses are uncertain.
  • Maturation normalisation. Tables 2-5 give estimates “scaled to typical patient at 10.9 kg and 3 years”. The maturation term is therefore divided by its value at 3 years (PMA 45.33 months), so the tabulated CL/F applies to a 3-year-old of 10.9 kg.
  • IIV and residual error scales. Tables 2-5 give IIV and IOV as %CV. They are converted to log-scale variances with omega^2 = log(1 + CV^2). Residual error is described as “variance of the residual variability, incorporated as an additive error on the logarithmic scale” (Tables 2-5, footnote a). It is encoded as lnorm(sqrt(variance)).
  • Transit chain. “Two fixed-transit absorption compartments (ka was set to be identical to ktr)” together with Figure 2 (dose compartment, transit compartments, central) is encoded as depot plus n transit compartments with ktr = (n + 1) / MTT. The typical isoniazid Tmax of 0.96 h matches the published median of 0.942 h.
  • CSF mass balance. Drug moving into the CSF is removed from the central compartment, following the arrows of Figure 2. Because the CSF volume is about 0.1 L, this has a negligible effect on plasma concentrations.
  • NAT2 phenotype. Slow acetylators are the only group with a separate clearance. Fast, intermediate and ungenotyped children share the reference clearance, as in the paper’s reduced two-group covariate model.
  • Pyrazinamide IOV. One shared IOV variance on F is used across the four sampling occasions (days 1, 14, 30 and 90). OCC values outside 1-4 switch the IOV off.
  • Rifampicin autoinduction. kENZ, Emax and EC50 are fixed to the adult values of Smythe et al. (2012), as in the paper; EC50 is converted from 70.5 ug/L to 0.0705 mg/L. The enzyme pool starts at 1 with production equal to kENZ.
  • Time-to-death scale factors. Table S3 writes lambda = (10^theta)(TBM Severity) and prints, under ‘Baseline (hr-1)’, one value per grade. These printed values are taken to be lambda itself, the estimate back-transformed from the 10^theta form used in NONMEM. With time in hours this reading reproduces the observed 240-day survival of each grade in Figure 7 (0.98, 0.83 and 0.50 against 0.982, 0.830 and 0.479 in the model). Reading the time axis in days instead would predict about 5 deaths in total rather than 15.
  • TBM grade encoding. The paper uses one three-level severity column. It is supplied here as two mutually exclusive indicators, TBM_GRADE_II and TBM_GRADE_III, with grade I as the reference, following the package’s convention for multi-level categories.
  • No variability in the time-to-death model. Table S3 reports only the four fixed effects, so the model has no random effects and no residual error. Simulated event times come from the survival function, as in the Figure 7 check above. The four children lost to follow-up are not treated as censored in the expected-death table, which slightly overstates the expected counts.
  • Virtual cohort. Age, weight, WAZ and CSF protein are drawn independently around the Table 1 medians, and weight follows the Table S5 growth curve. The study’s individual covariates are not published.
