Lumefantrine in vitro P. falciparum susceptibility (Simpson 2013)
Source:vignettes/articles/Simpson_2013_lumefantrine.Rmd
Simpson_2013_lumefantrine.RmdModel and source
- Citation: Simpson JA, Jamsen KM, Anderson TJC, Zaloumis S, Nair S, Woodrow C, White NJ, Nosten F, Price RN. (2013). Nonlinear Mixed-Effects Modelling of In Vitro Drug Susceptibility and Molecular Correlates of Multidrug Resistant Plasmodium falciparum. PLoS ONE 8(7):e69505.
- Article (open access): https://doi.org/10.1371/journal.pone.0069505
This is an in vitro pharmacodynamic model of lumefantrine effect on
Plasmodium falciparum parasite growth, fit to data from a
hypoxanthine-uptake-inhibition susceptibility assay on 324 P. falciparum
clinical isolates collected at the Shoklo Malaria Research Unit (SMRU),
western Thai-Myanmar border, between 1993 and 2005. The “subject” in the
NLME framework is the parasite isolate. The per-record drug-well
concentration STIM_LUMEFANTRINE_NM drives a sigmoid Emax
inhibition of normalised hypoxanthine uptake; the model has no PK and no
time evolution. Lumefantrine had the highest STS-method exclusion rate
among the four drugs (24.4% of isolates had CV > 15%, Table 2),
reflecting its relatively narrow dynamic range across the
doubling-dilution series.
Population
- 324 P. falciparum clinical isolates with lumefantrine concentration-effect data (Results paragraph 1; Table 3).
- Pfmdr1 genotype distribution (Table 3 lumefantrine row): Genotype 1 (single-copy WT) 183 isolates (56.5%), Genotype 2 (single-copy 86Y) 16 (4.9%), Genotype 3 (single-copy 1042D) 17 (5.2%), Genotype 4 (double-copy WT) 83 (25.6%), Genotype 5 (triple+ copy WT) 25 (7.7%).
- Assay: hypoxanthine-uptake inhibition (Methods, In vitro Drug Assay). Doubling-dilution series 2.40-235.8 nM lumefantrine plus drug-free controls.
Source trace
| nlmixr2 parameter | Value (typical) | Source location |
|---|---|---|
e0 (fixed) |
0.01 | Table 3 footnote #E0 fixed to 0.01
|
emax (fixed) |
0.98 | Table 3 footnote #Emax fixed to 0.98
|
lec50 (EC50 35.7 nM) |
log(35.7) | Table 3, Lumefantrine Genotype 1 (WT reference) row, Estimated value (nM): 35.7 (95% CI 31.4, 39.9) |
lgamma (gamma 2.73) |
log(2.73) | Table 1, NLME row lumefantrine, slope estimate 2.73 (95% reference range 1.22-6.10) |
e_pfmdr1_86y_ec50 |
-0.31 | Table 3, Lumefantrine Genotype 2 percent change -31 (95% CI -62, 0) |
e_pfmdr1_1042d_ec50 |
-0.57 | Table 3, Lumefantrine Genotype 3 percent change -57 (95% CI -76, -37) |
e_pfmdr1_cn2_ec50 |
0.82 | Table 3, Lumefantrine Genotype 4 percent change 82 (95% CI 46, 119) |
e_pfmdr1_cn3plus_ec50 |
0.75 | Table 3, Lumefantrine Genotype 5 percent change 75 (95% CI 28, 122) |
etalec50 variance |
0.63 | Table 3 footnote: between-isolate variance for EC50 = 0.63 (SE 0.050) lumefantrine |
etalgamma variance |
0.41^2 = 0.1681 | Table 1 NLME lumefantrine slope SD (log_e units) = 0.41 |
propSd (proportional) |
sqrt(0.019) | Table 3 footnote: proportional variance 0.019 (SE 0.0020) lumefantrine |
addSd (additive) |
sqrt(0.0009) | Table 3 footnote: additive variance 0.0009 (SE 0.0002) lumefantrine |
| Structural eq. 1 | n/a | Methods Eq. 1: E = Emax - (Emax - E0) * C^gamma / (C^gamma + EC50^gamma) |
| Random-effects eq. 2 | n/a | Methods Eq. 2 modified with theta_1..theta_4 for pfmdr1 genotypes |
| Residual eq. 3 | n/a | Methods Eq. 3 (combined additive + proportional) |
Mechanistic structure
The sigmoid Emax inhibition equation and the genotype covariate parameterisation are common across the four Simpson 2013 drugs; see the chloroquine vignette’s “Mechanistic structure” section for the equations. Lumefantrine shows a similar pattern to mefloquine: the 86Y and 1042D SNPs lower EC50, while gene amplification raises EC50. The CN2 -> CN3+ transition for lumefantrine is non-monotone in the EC50 estimate (82% -> 75% relative shift, Table 3), unlike mefloquine and artesunate where each additional copy further increases EC50.
Virtual cohort
set.seed(20260528)
genotype_grid <- tibble::tribble(
~ genotype, ~ PFMDR1_86Y, ~ PFMDR1_1042D, ~ PFMDR1_CN2, ~ PFMDR1_CN3PLUS,
"Single WT", 0L, 0L, 0L, 0L,
"Single 86Y mutant", 1L, 0L, 0L, 0L,
"Single 1042D mutant", 0L, 1L, 0L, 0L,
"Double WT", 0L, 0L, 1L, 0L,
"Triple+ WT", 0L, 0L, 0L, 1L
)
# Concentration grid: linear 0-300 nM (matches Figure 1 lumefantrine x-axis).
conc_grid <- c(0, 2.5, 5, 10, 15, 25, 35, 50, 75, 100, 150, 200, 250, 300)
events <- tidyr::expand_grid(genotype_grid, STIM_LUMEFANTRINE_NM = conc_grid)
events$id <- seq_len(nrow(events))
events$time <- 0
events$evid <- 0
head(events, 10)
#> # A tibble: 10 × 9
#> genotype PFMDR1_86Y PFMDR1_1042D PFMDR1_CN2 PFMDR1_CN3PLUS
#> <chr> <int> <int> <int> <int>
#> 1 Single WT 0 0 0 0
#> 2 Single WT 0 0 0 0
#> 3 Single WT 0 0 0 0
#> 4 Single WT 0 0 0 0
#> 5 Single WT 0 0 0 0
#> 6 Single WT 0 0 0 0
#> 7 Single WT 0 0 0 0
#> 8 Single WT 0 0 0 0
#> 9 Single WT 0 0 0 0
#> 10 Single WT 0 0 0 0
#> # ℹ 4 more variables: STIM_LUMEFANTRINE_NM <dbl>, id <int>, time <dbl>,
#> # evid <dbl>Simulation (typical-value)
mod_fn <- readModelDb("Simpson_2013_lumefantrine")
mod_typical <- rxode2::zeroRe(rxode2::rxode2(mod_fn))
#> ℹ parameter labels from comments will be replaced by 'label()'
sim <- rxode2::rxSolve(
mod_typical, events = events,
keep = c("genotype", "STIM_LUMEFANTRINE_NM",
"PFMDR1_86Y", "PFMDR1_1042D", "PFMDR1_CN2", "PFMDR1_CN3PLUS")
)
#> ℹ omega/sigma items treated as zero: 'etalec50', 'etalgamma'
#> Warning: multi-subject simulation without without 'omega'
sim_df <- as.data.frame(sim) |>
dplyr::select(id, time, genotype, STIM_LUMEFANTRINE_NM, ec50, gamma, effect)
head(sim_df)
#> id time genotype STIM_LUMEFANTRINE_NM ec50 gamma effect
#> 1 1 0 Single WT 0.0 35.7 2.73 0.9800000
#> 2 2 0 Single WT 2.5 35.7 2.73 0.9793176
#> 3 3 0 Single WT 5.0 35.7 2.73 0.9754903
#> 4 4 0 Single WT 10.0 35.7 2.73 0.9508436
#> 5 5 0 Single WT 15.0 35.7 2.73 0.8968618
#> 6 6 0 Single WT 25.0 35.7 2.73 0.7138742
sim_df |>
ggplot(aes(STIM_LUMEFANTRINE_NM, effect,
colour = genotype, linetype = genotype)) +
geom_line(linewidth = 1) +
coord_cartesian(xlim = c(0, 300), ylim = c(0, 1)) +
labs(x = "Lumefantrine concentration (nM)",
y = "Estimated sigmoid inhibitory effect E",
colour = "Pfmdr1 genotype",
linetype = "Pfmdr1 genotype",

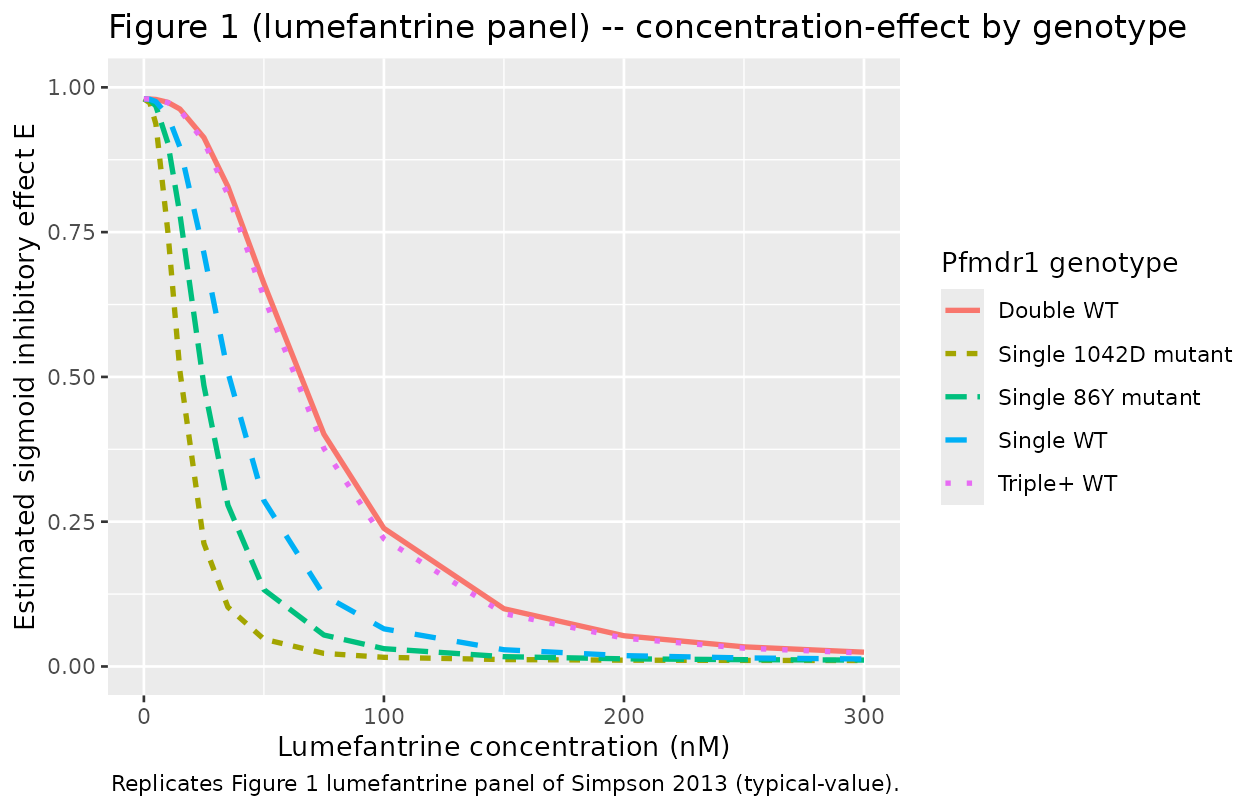

title = "Figure 1 (lumefantrine panel) -- concentration-effect by genotype",
caption = "Replicates Figure 1 lumefantrine panel of Simpson 2013 (typical-value).")
Comparison against published EC50 values (Table 3)
table3_obs <- tibble::tibble(
genotype = c("Single WT", "Single 86Y mutant", "Single 1042D mutant",
"Double WT", "Triple+ WT"),
ec50_obs = c(35.7, 24.6, 15.5, 65.0, 62.4)
)
table3_sim <- sim_df |>
dplyr::distinct(genotype, ec50) |>
dplyr::rename(ec50_sim = ec50)
cmp <- dplyr::left_join(table3_obs, table3_sim, by = "genotype")
cmp$pct_diff <- 100 * (cmp$ec50_sim - cmp$ec50_obs) / cmp$ec50_obs
knitr::kable(cmp, digits = 2,
caption = "Per-genotype EC50 (nM): Simpson 2013 Table 3 lumefantrine row vs simulated typical-value.")| genotype | ec50_obs | ec50_sim | pct_diff |
|---|---|---|---|
| Single WT | 35.7 | 35.70 | 0.00 |
| Single 86Y mutant | 24.6 | 24.63 | 0.13 |
| Single 1042D mutant | 15.5 | 15.35 | -0.96 |
| Double WT | 65.0 | 64.97 | -0.04 |
| Triple+ WT | 62.4 | 62.47 | 0.12 |
Genotype effect on the EC50 shift
ratio_obs <- tibble::tibble(
genotype = c("Single 86Y mutant", "Single 1042D mutant",
"Double WT", "Triple+ WT"),
pct_obs = c(-31, -57, 82, 75),
pct_ci = c("(-62, 0)", "(-76, -37)", "(46, 119)", "(28, 122)")
)
ratio_sim <- sim_df |>
dplyr::filter(genotype != "Single WT") |>
dplyr::distinct(genotype, ec50)
ref_ec50 <- sim_df |>
dplyr::filter(genotype == "Single WT") |>
dplyr::pull(ec50) |>
unique()
ratio_sim$pct_sim <- 100 * (ratio_sim$ec50 - ref_ec50) / ref_ec50
cmp_pct <- dplyr::left_join(ratio_obs, ratio_sim, by = "genotype") |>
dplyr::select(genotype, pct_obs, pct_ci, pct_sim)
knitr::kable(cmp_pct, digits = 2,
caption = "Per-genotype EC50 percent change vs single WT: Simpson 2013 Table 3 lumefantrine row (with 95% CI) vs simulated.")| genotype | pct_obs | pct_ci | pct_sim |
|---|---|---|---|
| Single 86Y mutant | -31 | (-62, 0) | -31 |
| Single 1042D mutant | -57 | (-76, -37) | -57 |
| Double WT | 82 | (46, 119) | 82 |
| Triple+ WT | 75 | (28, 122) | 75 |
Assumptions and deviations
See the chloroquine vignette’s “Assumptions and deviations” section for the common deviations across the four Simpson 2013 drug-specific extractions. Lumefantrine-specific notes:
- Highest STS-method exclusion rate. 24.4% of lumefantrine isolates had STS-method EC50 with CV > 15% (Table 2), the highest of the four drugs. The NLME analysis includes these less-precise isolates without exclusion (Methods, Statistical Analysis paragraph 3), and the between-isolate variance for EC50 (0.63) is correspondingly the second-highest of the four drugs (after artesunate at 0.67).
- Non-monotone copy-number effect. Lumefantrine is the only drug in the study where the CN3+ EC50 estimate (62.4 nM, +75% vs WT) is slightly lower than the CN2 estimate (65.0 nM, +82% vs WT) (Table 3). The 95% CIs overlap (28-122% for CN3+ vs 46-119% for CN2), so the apparent non-monotonicity is within statistical uncertainty.
- 86Y SNP CI includes zero. The 86Y EC50 effect (-31%) has a 95% CI of (-62, 0), so the lower-bound of the effect just reaches the no-effect null. The packaged model uses the point estimate as the typical-value.
