Doxycycline (Hopkins 2017) • nlmixr2lib

Model and source

Citation: Hopkins AM, Wojciechowski J, Abuhelwa AY, Mudge S, Upton RN, Foster DJR (2017). Population pharmacokinetic model of doxycycline plasma concentrations using pooled study data. Antimicrobial Agents and Chemotherapy 61(5):e02401-16. doi:10.1128/AAC.02401-16.
Article: https://doi.org/10.1128/AAC.02401-16
Shiny application accompanying the paper: https://isop.shinyapps.io/DoxycyclineSimulation/

The model is a two-compartment oral population PK model with two transit absorption compartments, fat-free-mass allometric scaling (CL exponent 0.75, V exponent 1.0, reference 70 kg FFM), Doryx tablet / Doryx MPC delayed-release tablet / Doryx capsule formulation effects on relative bioavailability and absorption rate, a food (fed-state) effect on relative bioavailability, a formulation-dependent food effect on the transit absorption rate, and a 14.4 % increase in CL for female sex. Doryx tablet is the reference formulation; Doryx MPC was developed with a modified-acid-resistance profile (formulation code MP336) to reduce drug release prior to gastric emptying.

Population

The model was developed from 178 healthy adult volunteers enrolled across eight phase 1 trials conducted in the United States by Mayne Pharma International (Hopkins 2017 Tables 1 and 6). Subjects received single or multiple oral doses of doxycycline 75 / 100 / 120 / 150 / 200 mg as Doryx delayed-release tablets, Doryx MPC delayed-release tablets (120 mg per tablet, formulation code MP336), or Doryx (conventional release) capsules under fasted or fed conditions. The cohort was 67 % male / 33 % female (n = 120 male, n = 58 female), mean age 28 years (range 18 to 73), mean weight 75.9 kg (range 47.2 to 114.4 kg), mean FFM 56.3 kg (range 32.3 to 80.1 kg), 56 % Caucasian / White and 44 % Other, and 12 % current smokers. All subjects had normal renal function; doxycycline elimination via renal, biliary, and intestinal wall pathways gives a half-life of 15 to 25 h in the literature (Hopkins 2017 Introduction paragraph 4).

The eight phase 1 studies (local identifiers 10, 20, 30, 40, 50, 60, 70, 80) ran six single-dose and two multiple-dose protocols. Doxycycline plasma concentrations were assayed by HPLC (LLOQ 0.01 to 0.1 ug/mL across studies). 7,093 plasma observations were retained from 651 oral doses; 12.7 % of observations were below the limit of quantification, predominantly at the start and end of sampling periods, and were excluded a priori (M1 method). The same metadata is available programmatically via readModelDb("Hopkins_2017_doxycycline")$population.

Source trace

Every parameter is anchored to its source location in an in-file comment in inst/modeldb/specificDrugs/Hopkins_2017_doxycycline.R. The table below summarises the source location for each structural component.

Equation / parameter	Value	Source location
Two-compartment + two-transit absorption structure	n/a	Hopkins 2017 Fig. 1; Methods ‘Base model’ paragraph 1
Allometric scaling on FFM, ref 70 kg, exp 0.75 (CL) / 1.0 (V)	n/a	Methods ‘General modeling strategy’ paragraph 5
`lcl` (CL/F)	4.63 L/h/70 kg FFM	Table 3 Theta 4
`lvc` (V/F)	55.2 L/70 kg FFM	Table 3 Theta 3
`lvp` (VP1/F)	49.8 L/70 kg FFM	Table 3 Theta 5
`lq` (CLP1/F)	11.3 L/h/70 kg FFM	Table 3 Theta 6
`lktr` (KTR)	2.0 1/h	Table 3 Theta 7
`lf1mpc` (F1MPC)	0.863	Table 3 Theta 8
`lf1cap` (F1CAP)	0.978	Table 3 Theta 9
`e_fed_ktr_tab` (COVFED, Doryx tablet / capsule food on KTR)	-0.209	Table 3 Theta 10
`e_fed_ktr_mpc` (COVFED2, Doryx MPC food on KTR)	-0.549	Table 3 Theta 11
`e_alag1` (ALAG1)	0.115 h	Table 3 Theta 12
`e_ftlag2` (FTLAG2)	0.203 h	Table 3 Theta 13
`e_fed_relf` (COVFEDF, magnitude of food-induced F decrease)	0.105	Table 3 Theta 19; Discussion paragraph 5
`e_sex_cl` (COVSEX)	0.144 (+14.4 % CL in females)	Table 3 Theta 20
`propSd` (RUV_PROP)	0.196 (19.6 % CV)	Table 3 Theta 1
`addSd` (RUV_ADD)	19.8 ug/L	Table 3 Theta 2
BSV / PPV omega matrix (CL, KTR, VP1, V)	19.3 / 28.2 / 15.1 / 37.6 % CV with correlations	Table 3 ‘Between-subject variability’ + ‘Population variability’ + ‘Covariance’ blocks

The Table 3 ‘Covariance’ block has off-diagonal magnitudes incompatible with literal covariances at the variance scale implied by the on-diagonal % CV values (the largest reported value 0.884 would imply correlation >> 1). Those entries are therefore interpreted as Pearson correlations, and the model file reconstructs the covariance matrix via cov(i,j) = corr(i,j) * sqrt(var(i) * var(j)) with var(i) = log(1 + CV(i)^2) for the log-normal omega.

Virtual cohort

set.seed(20260602)

make_arm <- function(n, label, formulation, fed, dose_mg, id_offset) {
  ffm_kg <- pmax(28, pmin(85, rnorm(n, mean = 56.3, sd = 11)))
  sexf   <- rbinom(n, 1, 0.326)
  tibble::tibble(
    id   = id_offset + seq_len(n),
    arm  = label,
    FFM  = ffm_kg,
    SEXF = sexf,
    FED  = fed,
    FORM_DORYX_MPC = if (formulation == "MPC") 1L else 0L,
    FORM_CAPSULE   = if (formulation == "capsule") 1L else 0L,
    dose = dose_mg
  )
}

n_per_arm <- 50L

arms <- list(
  list(label = "Doryx tablet 100 mg fasted",    formulation = "tablet",  fed = 0, dose = 100),
  list(label = "Doryx MPC 120 mg fasted",       formulation = "MPC",     fed = 0, dose = 120),
  list(label = "Doryx capsule 100 mg fasted",   formulation = "capsule", fed = 0, dose = 100),
  list(label = "Doryx tablet 100 mg fed",       formulation = "tablet",  fed = 1, dose = 100),
  list(label = "Doryx MPC 120 mg fed",          formulation = "MPC",     fed = 1, dose = 120),
  list(label = "Doryx capsule 100 mg fed",      formulation = "capsule", fed = 1, dose = 100)
)

cohort <- dplyr::bind_rows(
  Map(function(a, k) make_arm(n_per_arm, a$label, a$formulation, a$fed, a$dose,
                              id_offset = (k - 1L) * n_per_arm),
      arms, seq_along(arms))
)

# Build dose + observation rows per subject.
build_events <- function(df) {
  per_id <- split(df, df$id)
  do.call(rbind, lapply(per_id, function(row1) {
    dose_row <- data.frame(
      id   = row1$id,
      time = 0,
      amt  = row1$dose,
      evid = 1,
      cmt  = "depot"
    )
    obs_times <- c(seq(0, 6, by = 0.25), seq(7, 24, by = 1), seq(26, 96, by = 2))
    obs_rows <- data.frame(
      id   = row1$id,
      time = obs_times,
      amt  = 0,
      evid = 0,
      cmt  = NA_character_
    )
    rows <- rbind(dose_row, obs_rows)
    rows$arm  <- row1$arm
    rows$FFM  <- row1$FFM
    rows$SEXF <- row1$SEXF
    rows$FED  <- row1$FED
    rows$FORM_DORYX_MPC <- row1$FORM_DORYX_MPC
    rows$FORM_CAPSULE   <- row1$FORM_CAPSULE
    rows
  }))
}

events <- build_events(cohort)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod         <- readModelDb("Hopkins_2017_doxycycline")
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("arm", "FED", "FORM_DORYX_MPC", "FORM_CAPSULE")
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalktr', 'etalvp', 'etalvc'
#> Warning: multi-subject simulation without without 'omega'

sim_stoch <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("arm", "FED", "FORM_DORYX_MPC", "FORM_CAPSULE")
)
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_typical carries the typical-value (zero between-subject variability) prediction for every subject (each with their FFM / SEXF realisation), while sim_stoch adds the published correlated BSV / PPV on CL, KTR, VP1, and V. Both runs use the same residual-error model.

Replicate published figures

Hopkins 2017 reports a prediction-corrected VPC (Figure 3) and a BLOQ VPC (Figure 4) of the eight-study pooled doxycycline plasma data. The pooled observed dataset is not publicly available; the figures below use a virtual cohort and reproduce the qualitative pcVPC pattern stratified by formulation and food condition (Figure 3) and by formulation alone under fasted dosing (Figure 2 analogue), which is the simulation feature the published Shiny application also exposes.

# Per-arm typical curve + simulated 5/50/95th percentile envelope from the
# stochastic run. Reproduces the panel layout of Hopkins 2017 Figure 3
# (formulations under fasted / fed conditions).
typical_summary <- sim_typical |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(arm, time) |>
  dplyr::summarise(typical = mean(Cc, na.rm = TRUE), .groups = "drop")

stoch_summary <- sim_stoch |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(arm, time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

plot_df <- dplyr::left_join(stoch_summary, typical_summary, by = c("arm", "time"))

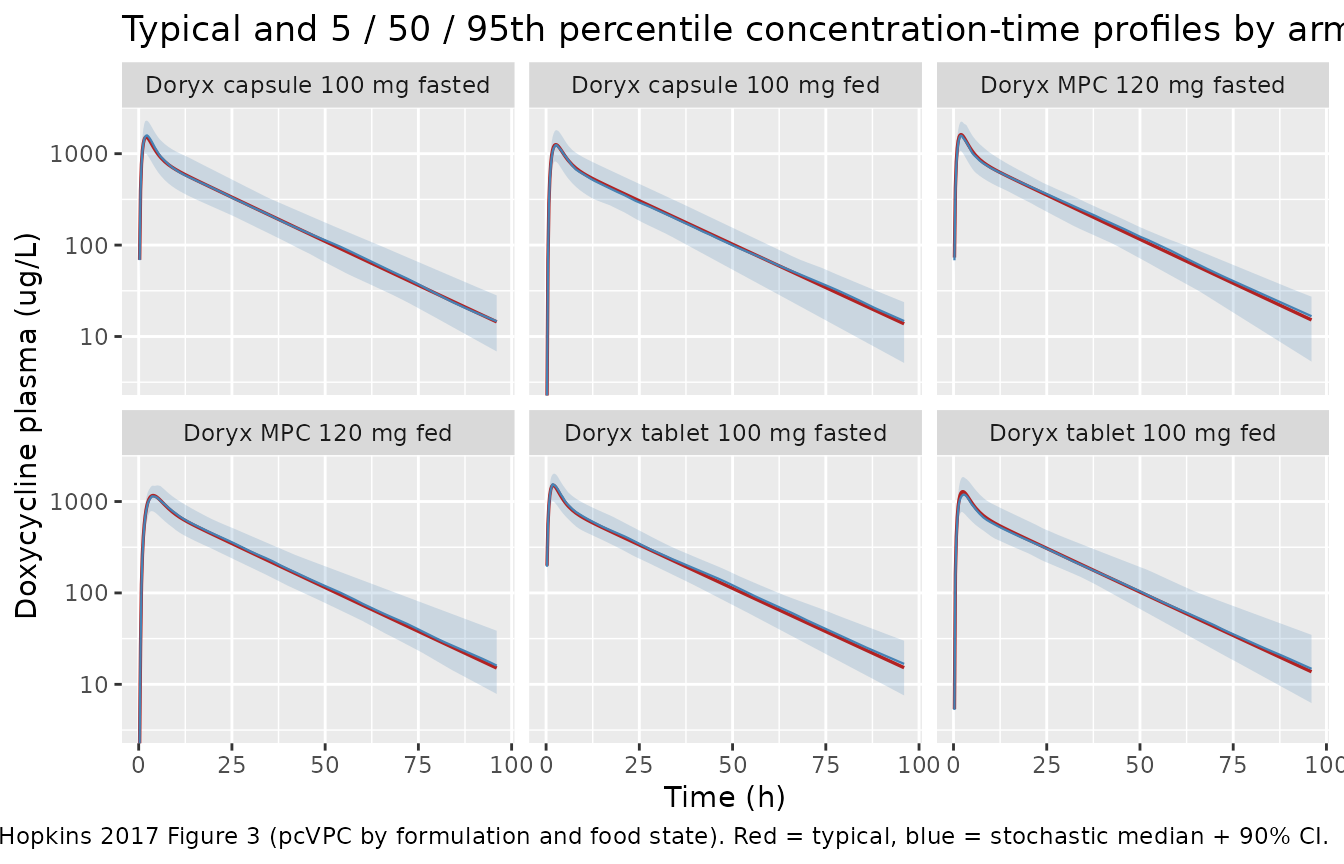

ggplot2::ggplot(plot_df, ggplot2::aes(time, Q50)) +
  ggplot2::geom_ribbon(ggplot2::aes(ymin = Q05, ymax = Q95), alpha = 0.2, fill = "steelblue") +
  ggplot2::geom_line(ggplot2::aes(y = typical), colour = "firebrick", linewidth = 0.6) +
  ggplot2::geom_line(colour = "steelblue", linewidth = 0.4) +
  ggplot2::facet_wrap(~arm) +
  ggplot2::scale_y_log10() +
  ggplot2::labs(
    x = "Time (h)", y = "Doxycycline plasma (ug/L)",
    title = "Typical and 5 / 50 / 95th percentile concentration-time profiles by arm",
    caption = "Replicates the panel structure of Hopkins 2017 Figure 3 (pcVPC by formulation and food state). Red = typical, blue = stochastic median + 90% CI."
  )
#> Warning in ggplot2::scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

PKNCA validation
