Tacrolimus after liver transplantation: theory-based and Michaelis-Menten models (Cai 2022)

Source: vignettes/articles/Cai_2022_tacrolimus.Rmd
Cai_2022_tacrolimus.Rmd

Model and source

Cai et al. (2022) fitted two competing final models to the same 906 whole-blood tacrolimus troughs from 176 adult liver transplant recipients and compared them:

  1. A theory-based one-compartment model (Cai_2022_tacrolimus) whose parameters are on the plasma scale; whole blood is linked to plasma through saturable binding to erythrocytes scaled by hematocrit.
  2. An empirical steady-state Michaelis-Menten (MM) model (Cai_2022_tacrolimus_mm) that predicts the patient’s total daily dose from the measured steady-state trough, with a time-varying Km. The authors judged it the better of the two and used it to propose starting doses (Table 6).
  • Citation: Cai XJ, Li RD, Li JH, Tao YF, Zhang QB, Shen CH, Zhang XF, Wang ZX, Jiao Z. Prospective population pharmacokinetic study of tacrolimus in adult recipients early after liver transplantation: A comparison of Michaelis-Menten and theory-based pharmacokinetic models. Front Pharmacol. 2022;13:1031969. doi:10.3389/fphar.2022.1031969
  • Article: https://doi.org/10.3389/fphar.2022.1031969

Population

The cohort comprised 176 adults (150 men, 26 women) receiving a first liver transplant from donation after cardiac death at Huashan Hospital, Shanghai, between June 2018 and October 2019, followed until discharge. Mean age was 50.7 years (range 18-74) and mean weight 64.5 kg (range 40-104). Troughs were taken in the early postoperative period (postoperative day, POD, 2-72; median 10), on immediate-release oral tacrolimus given every 12 h at 0.25-8 mg/day (median 2.5 mg/day). Median hematocrit was 31.3% (15.4-53.6), median total bilirubin 58.25 umol/L (5.1-786.3) and median AST 45 U/L (9-2547). Of the recipients, 47.2% were CYP3A5 expressers (1/1 or 1/3). Voriconazole or fluconazole was co-administered at 56 of the 906 sampling occasions (Cai 2022 Tables 1 and 2).

The same information is available programmatically via readModelDb("Cai_2022_tacrolimus")()$population.

Source trace

Every ini() value carries an in-file comment pointing to its source. The equations are printed in Section 3.2 of the paper; the estimates are in Table 4.

Model Parameter Value Source
theory lka (ka) 4.48 1/h, fixed Section 2.5.1 and Table 4 (from Zhu 2015)
theory lcl (CLpl/F) 234 L/h Table 4; Section 3.2.1 final equation
theory e_ast_cl -0.216 Table 4 theta AST; (AST/45)^theta
theory e_dose_tac_cl_emax 3.51 Table 4 theta DDmax; 3.51 * DD / (2.44 + DD)
theory e_dose_tac_cl_ed50 2.44 mg/day Table 4 theta DD50
theory e_cyp3a5_expr_cl 0.168 Table 4 theta CYP3A5*1 (x 1.168)
theory e_conmed_azole_cl -0.575 Table 4 theta VRCZ (x 0.425)
theory lvc (Vpl/F) 11000 L Table 4
theory e_pod_vc 0.887 Table 4 theta POD; exp(0.887 * POD / 15)
theory etalcl 29.7% CV Table 4 omega CLpl/F
theory etalvc 59.2% CV Table 4 omega Vpl/F
theory propSd 0.308 Table 4 delta1
theory Bmax, KD (in model()) 418 ug/L, 3.8 ug/L Section 2.5.2.1, Eq. 6
MM lvmax (Vm) 6.62 mg/day Table 4
MM lkm (Km) 6.46 ng/mL Table 4
MM e_pod_km 0.277 Table 4 theta POD; (POD/15)^theta
MM e_hct_km 1.16 Table 4 theta HCT; (HCT/31)^theta
MM e_tbili_km 0.286 Table 4 theta TBIL; (TBIL/58.25)^theta
MM e_cyp3a5_expr_km -0.365 Table 4 theta CYP3A5*1 (x 0.635)
MM e_conmed_azole_km 2.15 Table 4 theta VRCZ (x 3.15)
MM etalkm 65.3% CV Table 4 omega Km
MM propSd, addSd 0.204, 0.568 mg/day Table 4 delta1, delta2
MM time factor 10/theta theta = min(POD, 10) Section 2.5.2.2, Eq. 7

Theory-based compartmental model

mod_t <- readModelDb("Cai_2022_tacrolimus")
ui_t <- rxode2::rxode(mod_t)
#> ℹ parameter labels from comments will be replaced by 'label()'

Reference clearance

The Discussion states that a CYP3A5 nonexpresser with AST 45 U/L, no triazole antifungal and 1 mg/day has CLpl/F of about 234 L/h. The printed equation gives 234 * 3.51 * 1 / (2.44 + 1):

th <- ui_t$theta
cl_ref <- exp(th[["lcl"]]) * th[["e_dose_tac_cl_emax"]] * 1 /
  (th[["e_dose_tac_cl_ed50"]] + 1)
cl_ref
#> [1] 238.7616
# The Emax factor is 1.02 at 1 mg/day, so the quoted 234 L/h is the rounded
# equation intercept rather than a separate estimate.
stopifnot(abs(cl_ref / 234 - 1) < 0.05)

Steady-state trough against the closed form

With postoperative day held constant the model is a linear one-compartment oral model, so its steady-state trough has a closed form. This checks the ODE encoding, the plasma unit conversion and the whole-blood equation together.

tau <- 12
dd <- 2.5
pod <- 10
hct <- 31.3
ev_cf <- rxode2::et(amt = dd / 2, cmt = "depot", ii = tau, addl = 119) |>
  rxode2::et(seq(1428, 1440, by = 0.5), cmt = "central") |>
  as.data.frame() |>
  mutate(
    AST = 45, DOSE_TAC_MGD = dd, CYP3A5_EXPR = 0, CONMED_AZOLE = 0,
    POD = pod, HCT = hct
  )
sim_cf <- as.data.frame(rxode2::rxSolve(rxode2::zeroRe(mod_t), events = ev_cf))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'

cl <- exp(th[["lcl"]]) * th[["e_dose_tac_cl_emax"]] * dd / (th[["e_dose_tac_cl_ed50"]] + dd)
vc <- exp(th[["lvc"]]) * exp(th[["e_pod_vc"]] * pod / 15)
ka <- exp(th[["lka"]])
k <- cl / vc
ctrough_cf <- 1000 * (dd / 2) * ka / (vc * (ka - k)) *
  (exp(-k * tau) / (1 - exp(-k * tau)) - exp(-ka * tau) / (1 - exp(-ka * tau)))
cwb_cf <- ctrough_cf * (1 + (hct / 100) * 418 / (ctrough_cf + 3.8))

trough_sim <- sim_cf[sim_cf$time == 1440, ]
c(plasma_closed = ctrough_cf, plasma_sim = trough_sim$Cc,
  blood_closed = cwb_cf, blood_sim = trough_sim$Cwb)
#> plasma_closed    plasma_sim  blood_closed     blood_sim
#>     0.2215016     0.2215008     7.4277517     7.4277253
# Same parameters on both sides, so the difference is solver error only.
stopifnot(
  abs(trough_sim$Cc / ctrough_cf - 1) < 1e-3,
  abs(trough_sim$Cwb / cwb_cf - 1) < 1e-3
)

At this typical reference patient the plasma trough is about 0.22 ng/mL and the whole-blood trough about 7.4 ng/mL: whole blood carries roughly 34 times the plasma concentration at a hematocrit of 31%, which is why the paper’s goodness-of-fit and VPC plots (Figures 1A and 2A) are on a 0-0.6 ng/mL scale.

Virtual cohort

Observed data are not public. The cohort below draws covariates to resemble Table 1: daily dose log-normal around the 2.5 mg/day median, AST log-normal around 45 U/L, hematocrit normal around 31.8%, 47% CYP3A5 expressers and 10% of patients on a triazole antifungal. Dosing starts on POD 1 and troughs are sampled each morning to POD 30. Postoperative day is carried as a time-varying covariate.

set.seed(2022)
n_t <- 200
subj_t <- tibble(
  id = seq_len(n_t),
  DOSE_TAC_MGD = pmin(pmax(round(4 * exp(rnorm(n_t, log(2.5), 0.5))) / 4, 0.5), 8),
  AST = pmin(pmax(exp(rnorm(n_t, log(45), 0.8)), 9), 2547),
  HCT = pmin(pmax(rnorm(n_t, 31.8, 5), 15.4), 53.6),
  CYP3A5_EXPR = rbinom(n_t, 1, 0.472),
  CONMED_AZOLE = rbinom(n_t, 1, 0.10)
)
dose_times <- seq(0, 29 * 24 + 12, by = 12)
obs_times <- seq(24, 29 * 24, by = 24) - 0.01
ev_t <- bind_rows(
  tidyr::crossing(id = subj_t$id, time = dose_times) |>
    mutate(evid = 1, cmt = "depot"),
  tidyr::crossing(id = subj_t$id, time = obs_times) |>
    mutate(evid = 0, cmt = "central")
) |>
  left_join(subj_t, by = "id") |>
  mutate(
    amt = ifelse(evid == 1, DOSE_TAC_MGD / 2, 0),
    POD = 1 + time / 24
  ) |>
  arrange(id, time, desc(evid))
sim_t <- as.data.frame(rxode2::rxSolve(mod_t, events = ev_t)) |>
  mutate(POD = 1 + time / 24)
#> ℹ parameter labels from comments will be replaced by 'label()'

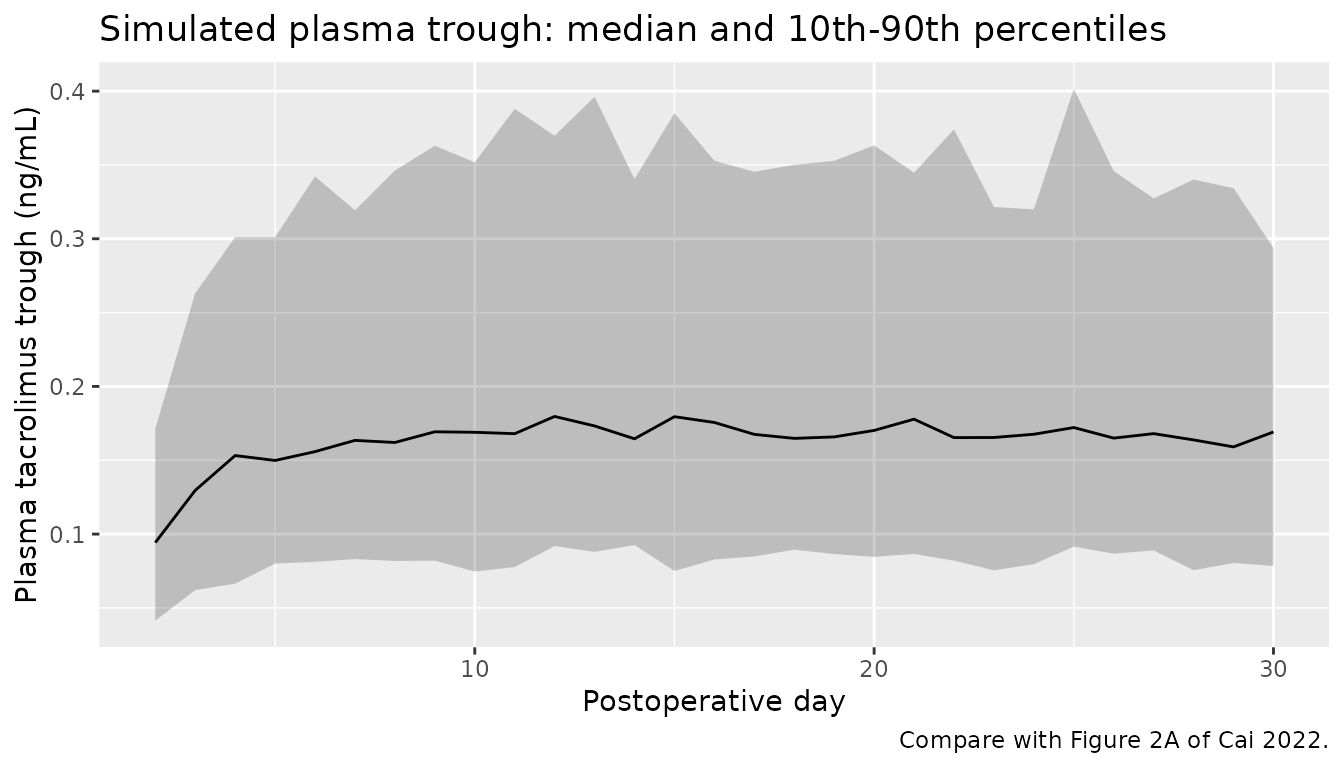

Trough concentrations over the postoperative course

# Compare with Figure 2A of Cai 2022 (plasma scale). Simulated percentiles
# include residual error through the `sim` column.
sim_t |>
  mutate(day = round(POD)) |>
  group_by(day) |>
  summarise(
    p10 = quantile(sim, 0.1), p50 = median(sim), p90 = quantile(sim, 0.9),
    .groups = "drop"
  ) |>
  ggplot(aes(day, p50)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.25) +
  geom_line() +
  labs(
    x = "Postoperative day", y = "Plasma tacrolimus trough (ng/mL)",
    title = "Simulated plasma trough: median and 10th-90th percentiles",
    caption = "Compare with Figure 2A of Cai 2022."
  )

chk_t <- sim_t |>
  filter(POD >= 7) |>
  summarise(median_plasma = median(Cc), median_blood = median(Cwb))
chk_t
#>   median_plasma median_blood
#> 1     0.1765877      6.05498
stopifnot(
  # Figure 2A puts the median plasma trough near 0.2 ng/mL; Table 1 puts the
  # median whole-blood trough at 5.96 ng/mL. The cohort's doses were drawn
  # independently of concentration whereas the study titrated them to target,
  # so only an envelope is meaningful here; a 100-fold hematocrit-scale error
  # or a mg/ug slip on the volume falls far outside it.
  chk_t$median_plasma > 0.08, chk_t$median_plasma < 0.5,
  chk_t$median_blood > 3, chk_t$median_blood < 15
)

The simulated median whole-blood trough from POD 7 onward, 6.05 ng/mL, is close to the observed Table 1 median of 5.96 ng/mL, and the median plasma trough, 0.18 ng/mL, sits where Figure 2A places the observed median (about 0.2 ng/mL).

PKNCA over a steady-state dosing interval

The paper sampled troughs only and reports no NCA, so there is no published table to compare against. PKNCA is used here to check internal consistency: at steady state the AUC over a dosing interval must equal the dose divided by clearance. Postoperative day is held at 14 so the system reaches steady state.

ev_nca <- bind_rows(
  tidyr::crossing(id = subj_t$id, time = seq(0, 1428, by = 12)) |>
    mutate(evid = 1, cmt = "depot"),
  tidyr::crossing(id = subj_t$id, time = seq(1428, 1440, by = 0.5)) |>
    mutate(evid = 0, cmt = "central")
) |>
  left_join(subj_t, by = "id") |>
  mutate(amt = ifelse(evid == 1, DOSE_TAC_MGD / 2, 0), POD = 14) |>
  arrange(id, time, desc(evid))
sim_nca <- as.data.frame(rxode2::rxSolve(mod_t, events = ev_nca)) |>
  mutate(
    treatment = paste0(
      ifelse(CYP3A5_EXPR == 1, "CYP3A5 expresser", "CYP3A5 nonexpresser"),
      ifelse(CONMED_AZOLE == 1, " + azole", "")
    )
  )

conc_df <- sim_nca |>
  filter(!is.na(Cc)) |>
  select(id, time, Cc, treatment)
dose_df <- ev_nca |>
  filter(evid == 1) |>
  left_join(sim_nca |> distinct(id, treatment), by = "id") |>
  select(id, time, amt, treatment)

conc_obj <- PKNCA::PKNCAconc(conc_df, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id)
intervals <- data.frame(
  start = 1428, end = 1440,
  cmax = TRUE, tmax = TRUE, cmin = TRUE, auclast = TRUE
)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

nca_wide <- as.data.frame(nca_res$result) |>
  select(treatment, id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

nca_wide |>
  group_by(treatment) |>
  summarise(
    N = n(),
    cmax = median(cmax), cmin = median(cmin), auclast = median(auclast),
    .groups = "drop"
  ) |>
  dplyr::rename(
    "Group" = treatment,
    "Cmax (ng/mL)" = cmax, "Cmin (ng/mL)" = cmin,
    "AUC0-12 (ng*h/mL)" = auclast
  ) |>
  knitr::kable(digits = 3, caption = "Median simulated plasma NCA over one steady-state 12 h interval, POD 14.")
Median simulated plasma NCA over one steady-state 12 h interval, POD 14.
Group N Cmax (ng/mL) Cmin (ng/mL) AUC0-12 (ng*h/mL)
CYP3A5 expresser 83 0.243 0.192 2.673
CYP3A5 expresser + azole 11 0.559 0.464 6.146
CYP3A5 nonexpresser 94 0.272 0.228 3.065
CYP3A5 nonexpresser + azole 12 0.695 0.656 8.118
cl_ind <- sim_nca |>
  filter(time == 1440) |>
  select(id, cl, DOSE_TAC_MGD)
chk_nca <- nca_wide |>
  left_join(cl_ind, by = "id") |>
  mutate(
    auc_ss = 1000 * (DOSE_TAC_MGD / 2) / cl,
    pct_diff = 100 * (auclast / auc_ss - 1)
  )
summary(chk_nca$pct_diff)
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#> -4.37186 -0.24527 -0.14478 -0.24985 -0.09443 -0.06439
stopifnot(
  # Linear-up/log-down trapezoids on a 0.5 h grid against Dose/CL. Subjects with
  # a very large V/F and low CL/F are still approaching steady state after 60
  # days, so assert on the centre and a robust quantile, not the extremes.
  abs(median(chk_nca$pct_diff)) < 2,
  quantile(abs(chk_nca$pct_diff), 0.9) < 10
)

Michaelis-Menten model

mod_m <- readModelDb("Cai_2022_tacrolimus_mm")
ui_m <- rxode2::rxode(mod_m)
#> ℹ parameter labels from comments will be replaced by 'label()'

The model has no compartments: each record supplies the measured steady-state trough CTROUGH and the covariates, and the model returns the predicted total daily dose daily_dose (mg/day),

daily_dose = Vm * CTROUGH / ((10 / min(POD, 10)) * Km + CTROUGH).

Starting-dose recommendations (Table 6)

Table 6 of the paper lists, for a POD-7 target trough of 8-12 ng/mL, the daily dose ranges for each combination of CYP3A5 genotype, triazole antifungal co-therapy, hematocrit band and total-bilirubin band. Inverting the typical-value model at troughs of 8 and 12 ng/mL reproduces it. The paper’s Supplementary Table S4 defines the 48 scenarios by band only, so the values used here (hematocrit 25, 35 and 45%; bilirubin 10, 51.3, 128.25 and 250 umol/L, i.e. band midpoints with representative values for the open-ended bands) were chosen by the maintainers.

scen <- tidyr::crossing(
  CYP3A5_EXPR = c(1, 0), CONMED_AZOLE = c(1, 0),
  HCT = c(25, 35, 45), TBILI = c(10, 51.3, 128.25, 250),
  CTROUGH = c(8, 12)
) |>
  mutate(id = row_number(), time = 0, evid = 0, POD = 7)
pred <- as.data.frame(rxode2::rxSolve(rxode2::zeroRe(mod_m), events = scen))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalkm'
#> Warning: multi-subject simulation without without 'omega'
scen$daily_dose <- pred$daily_dose

computed <- scen |>
  select(CYP3A5_EXPR, CONMED_AZOLE, HCT, TBILI, CTROUGH, daily_dose) |>
  tidyr::pivot_wider(names_from = CTROUGH, values_from = daily_dose, names_prefix = "c")

# Table 6 of Cai 2022, transcribed by row (TBIL band) and column
# (azole x hematocrit band); each cell is "low - high" mg/day.
published <- tibble::tribble(
  ~CYP3A5_EXPR, ~CONMED_AZOLE, ~HCT, ~TBILI, ~pub_low, ~pub_high,
  1, 1, 25, 10, 3.25, 4, 1, 1, 35, 10, 2.75, 3.25, 1, 1, 45, 10, 2.25, 3,
  1, 0, 25, 10, 5, 5.5, 1, 0, 35, 10, 4.5, 5, 1, 0, 45, 10, 4, 4.5,
  1, 1, 25, 51.3, 2.5, 3.25, 1, 1, 35, 51.3, 2, 2.75, 1, 1, 45, 51.3, 1.75, 2.25,
  1, 0, 25, 51.3, 4.5, 5, 1, 0, 35, 51.3, 3.75, 4.5, 1, 0, 45, 51.3, 3.25, 4,
  1, 1, 25, 128.25, 2.25, 3, 1, 1, 35, 128.25, 1.75, 2.25, 1, 1, 45, 128.25, 1.5, 2,
  1, 0, 25, 128.25, 4, 4.5, 1, 0, 35, 128.25, 3.5, 4, 1, 0, 45, 128.25, 3, 3.5,
  1, 1, 25, 250, 2, 2.5, 1, 1, 35, 250, 1.5, 2, 1, 1, 45, 250, 1.25, 1.75,
  1, 0, 25, 250, 3.75, 4.25, 1, 0, 35, 250, 3.25, 3.75, 1, 0, 45, 250, 2.75, 3.25,
  0, 1, 25, 10, 2.5, 3.25, 0, 1, 35, 10, 2, 2.5, 0, 1, 45, 10, 1.75, 2.25,
  0, 0, 25, 10, 4.5, 5, 0, 0, 35, 10, 3.75, 4.5, 0, 0, 45, 10, 3.25, 4,
  0, 1, 25, 51.3, 2, 2.5, 0, 1, 35, 51.3, 1.5, 2, 0, 1, 45, 51.3, 1.25, 1.75,
  0, 0, 25, 51.3, 3.75, 4.25, 0, 0, 35, 51.3, 3, 3.75, 0, 0, 45, 51.3, 2.5, 3.25,
  0, 1, 25, 128.25, 1.75, 2.25, 0, 1, 35, 128.25, 1.25, 1.75, 0, 1, 45, 128.25, 1, 1.5,
  0, 0, 25, 128.25, 3.25, 4.25, 0, 0, 35, 128.25, 2.75, 3.75, 0, 0, 45, 128.25, 2.25, 3.25,
  0, 1, 25, 250, 1.5, 2, 0, 1, 35, 250, 1.25, 1.5, 0, 1, 45, 250, 1, 1.25,
  0, 0, 25, 250, 3, 3.75, 0, 0, 35, 250, 2.5, 3, 0, 0, 45, 250, 2, 2.5
)

t6 <- published |>
  left_join(computed, by = c("CYP3A5_EXPR", "CONMED_AZOLE", "HCT", "TBILI")) |>
  mutate(
    Genotype = ifelse(CYP3A5_EXPR == 1, "*1/*1 or *1/*3", "*3/*3"),
    Azole = ifelse(CONMED_AZOLE == 1, "yes", "no"),
    Published = sprintf("%.2f - %.2f", pub_low, pub_high),
    Simulated = sprintf("%.2f - %.2f", c8, c12)
  )
t6 |>
  select(Genotype, Azole, HCT, TBILI, Published, Simulated) |>
  dplyr::rename(
    "CYP3A5" = Genotype, "Triazole antifungal" = Azole,
    "HCT (%)" = HCT, "TBIL (umol/L)" = TBILI,
    "Table 6 (mg/day)" = Published, "Typical model, C0 8-12 ng/mL (mg/day)" = Simulated
  ) |>
  knitr::kable(caption = "Replicates Table 6 of Cai 2022.")
Replicates Table 6 of Cai 2022.
CYP3A5 Triazole antifungal HCT (%) TBIL (umol/L) Table 6 (mg/day) Typical model, C0 8-12 ng/mL (mg/day)
1/1 or 1/3 yes 25 10.00 3.25 - 4.00 3.52 - 4.17
1/1 or 1/3 yes 35 10.00 2.75 - 3.25 2.88 - 3.55
1/1 or 1/3 yes 45 10.00 2.25 - 3.00 2.42 - 3.07
1/1 or 1/3 no 25 10.00 5.00 - 5.50 5.18 - 5.58
1/1 or 1/3 no 35 10.00 4.50 - 5.00 4.69 - 5.19
1/1 or 1/3 no 45 10.00 4.00 - 4.50 4.27 - 4.84
1/1 or 1/3 yes 25 51.30 2.50 - 3.25 2.75 - 3.42
1/1 or 1/3 yes 35 51.30 2.00 - 2.75 2.15 - 2.78
1/1 or 1/3 yes 45 51.30 1.75 - 2.25 1.75 - 2.32
1/1 or 1/3 no 25 51.30 4.50 - 5.00 4.58 - 5.10
1/1 or 1/3 no 35 51.30 3.75 - 4.50 3.99 - 4.60
1/1 or 1/3 no 45 51.30 3.25 - 4.00 3.52 - 4.17
1/1 or 1/3 yes 25 128.25 2.25 - 3.00 2.34 - 2.99
1/1 or 1/3 yes 35 128.25 1.75 - 2.25 1.79 - 2.37
1/1 or 1/3 yes 45 128.25 1.50 - 2.00 1.44 - 1.94
1/1 or 1/3 no 25 128.25 4.00 - 4.50 4.19 - 4.78
1/1 or 1/3 no 35 128.25 3.50 - 4.00 3.57 - 4.22
1/1 or 1/3 no 45 128.25 3.00 - 3.50 3.09 - 3.75
1/1 or 1/3 yes 25 250.00 2.00 - 2.50 2.06 - 2.68
1/1 or 1/3 yes 35 250.00 1.50 - 2.00 1.55 - 2.09
1/1 or 1/3 yes 45 250.00 1.25 - 1.75 1.23 - 1.69
1/1 or 1/3 no 25 250.00 3.75 - 4.25 3.89 - 4.51
1/1 or 1/3 no 35 250.00 3.25 - 3.75 3.25 - 3.92
1/1 or 1/3 no 45 250.00 2.75 - 3.25 2.77 - 3.44
3/3 yes 25 10.00 2.50 - 3.25 2.78 - 3.44
3/3 yes 35 10.00 2.00 - 2.50 2.17 - 2.80
3/3 yes 45 10.00 1.75 - 2.25 1.77 - 2.34
3/3 no 25 10.00 4.50 - 5.00 4.60 - 5.12
3/3 no 35 10.00 3.75 - 4.50 4.01 - 4.62
3/3 no 45 10.00 3.25 - 4.00 3.54 - 4.19
3/3 yes 25 51.30 2.00 - 2.50 2.06 - 2.68
3/3 yes 35 51.30 1.50 - 2.00 1.55 - 2.08
3/3 yes 45 51.30 1.25 - 1.75 1.23 - 1.69
3/3 no 25 51.30 3.75 - 4.25 3.89 - 4.51
3/3 no 35 51.30 3.00 - 3.75 3.25 - 3.91
3/3 no 45 51.30 2.50 - 3.25 2.77 - 3.44
3/3 yes 25 128.25 1.75 - 2.25 1.71 - 2.27
3/3 yes 35 128.25 1.25 - 1.75 1.26 - 1.73
3/3 yes 45 128.25 1.00 - 1.50 0.99 - 1.38
3/3 no 25 128.25 3.25 - 4.25 3.46 - 4.12
3/3 no 35 128.25 2.75 - 3.75 2.82 - 3.49
3/3 no 45 128.25 2.25 - 3.25 2.36 - 3.01
3/3 yes 25 250.00 1.50 - 2.00 1.48 - 2.00
3/3 yes 35 250.00 1.25 - 1.50 1.08 - 1.50
3/3 yes 45 250.00 1.00 - 1.25 0.84 - 1.19
3/3 no 25 250.00 3.00 - 3.75 3.15 - 3.81
3/3 no 35 250.00 2.50 - 3.00 2.52 - 3.17
3/3 no 45 250.00 2.00 - 2.50 2.08 - 2.70
dev <- c(t6$c8 - t6$pub_low, t6$c12 - t6$pub_high)
summary(dev)
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#> -0.26273  0.01956  0.10217  0.10260  0.19063  0.33898
stopifnot(
  # Table 6 is printed in 0.25 mg steps from a Monte Carlo simulation, so a
  # deviation of one step is expected; a mis-transcribed exponent, a dropped
  # 10/theta time factor or a swapped covariate effect moves dozens of cells
  # by 0.5 mg or more.
  median(abs(dev)) < 0.2,
  max(abs(dev)) < 0.4
)

Dose-trough relationship

curve_df <- tidyr::crossing(
  CTROUGH = seq(0.5, 20, by = 0.5), CYP3A5_EXPR = c(0, 1), CONMED_AZOLE = c(0, 1)
) |>
  mutate(id = row_number(), time = 0, evid = 0, POD = 7, HCT = 31, TBILI = 58.25)
curve_df$daily_dose <- as.data.frame(
  rxode2::rxSolve(rxode2::zeroRe(mod_m), events = curve_df)
)$daily_dose
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalkm'
#> Warning: multi-subject simulation without without 'omega'
curve_df |>
  mutate(
    group = paste0(
      ifelse(CYP3A5_EXPR == 1, "expresser", "nonexpresser"),
      ifelse(CONMED_AZOLE == 1, " + azole", "")
    )
  ) |>
  ggplot(aes(CTROUGH, daily_dose, colour = group)) +
  geom_line() +
  geom_hline(yintercept = exp(ui_m$theta[["lvmax"]]), linetype = "dashed") +
  annotate("rect", xmin = 8, xmax = 12, ymin = -Inf, ymax = Inf, alpha = 0.1) +
  labs(
    x = "Steady-state whole-blood trough (ng/mL)",
    y = "Predicted daily dose (mg/day)", colour = NULL,

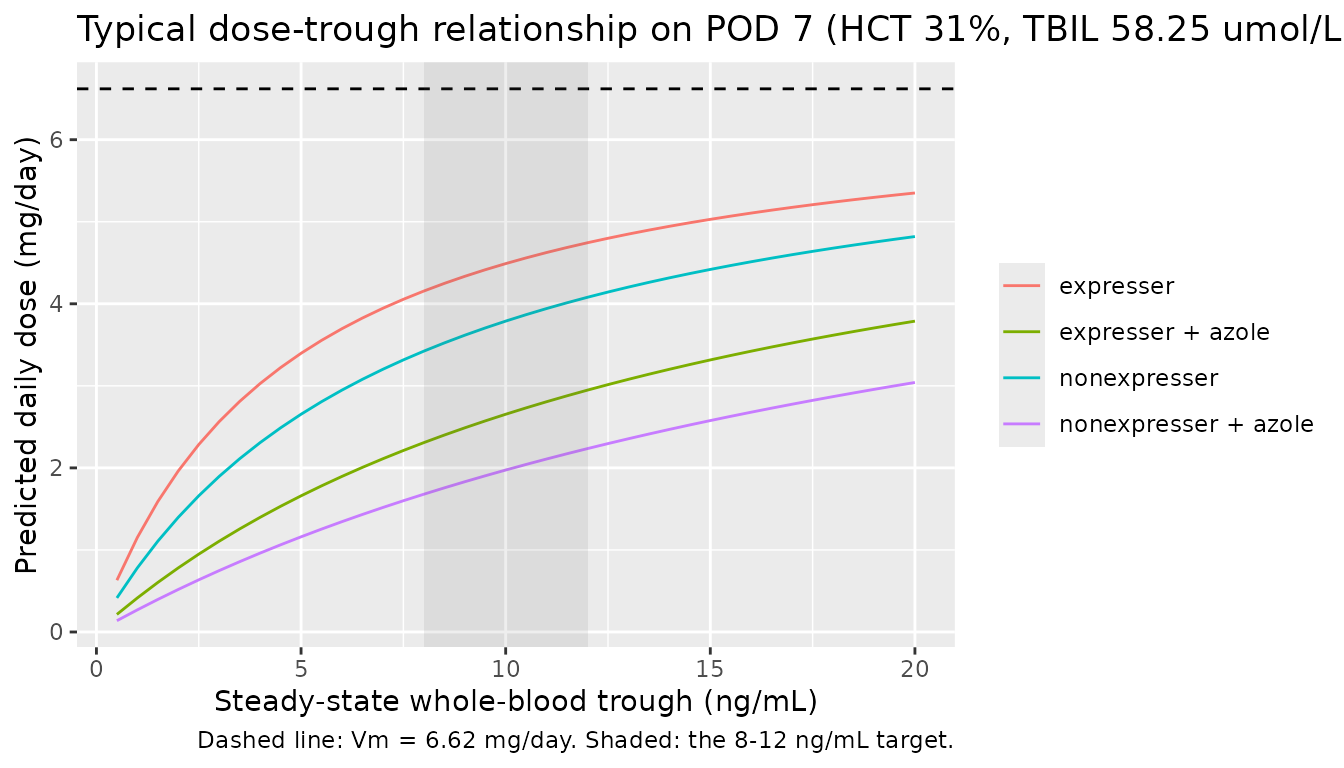

    title = "Typical dose-trough relationship on POD 7 (HCT 31%, TBIL 58.25 umol/L)",
    caption = "Dashed line: Vm = 6.62 mg/day. Shaded: the 8-12 ng/mL target."
  )

Stochastic predictions over the postoperative course

The cohort below assigns each simulated patient five troughs drawn around the Table 1 median of 5.96 ng/mL at random postoperative days, with hematocrit and bilirubin drawn to resemble Table 1. The model’s predicted daily doses (with between-subject and residual variability, the sim column) are compared with the Table 1 median dose and with Figure 2B.

set.seed(2023)
n_m <- 200
subj_m <- tibble(
  id = seq_len(n_m),
  CYP3A5_EXPR = rbinom(n_m, 1, 0.472),
  CONMED_AZOLE = rbinom(n_m, 1, 0.10)
)
ev_m <- tidyr::crossing(id = subj_m$id, occ = 1:5) |>
  left_join(subj_m, by = "id") |>
  mutate(
    time = occ, evid = 0,
    POD = sample(2:40, n(), replace = TRUE),
    CTROUGH = pmin(pmax(exp(rnorm(n(), log(5.96), 0.5)), 1), 23),
    HCT = pmin(pmax(rnorm(n(), 31.8, 5), 15.4), 53.6),
    TBILI = pmin(pmax(exp(rnorm(n(), log(58.25), 0.9)), 5.1), 786.3)
  )
sim_m <- as.data.frame(rxode2::rxSolve(mod_m, events = ev_m, keep = "POD"))
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_m |>
  mutate(pod_bin = cut(POD, c(1, 4, 7, 10, 15, 20, 30, 40))) |>
  group_by(pod_bin) |>
  summarise(
    p10 = quantile(sim, 0.1), p50 = median(sim), p90 = quantile(sim, 0.9),
    POD = median(POD), .groups = "drop"
  ) |>
  ggplot(aes(POD, p50)) +
  geom_ribbon(aes(ymin = p10, ymax = p90), alpha = 0.25) +
  geom_line() +
  labs(
    x = "Postoperative day", y = "Predicted daily dose (mg/day)",

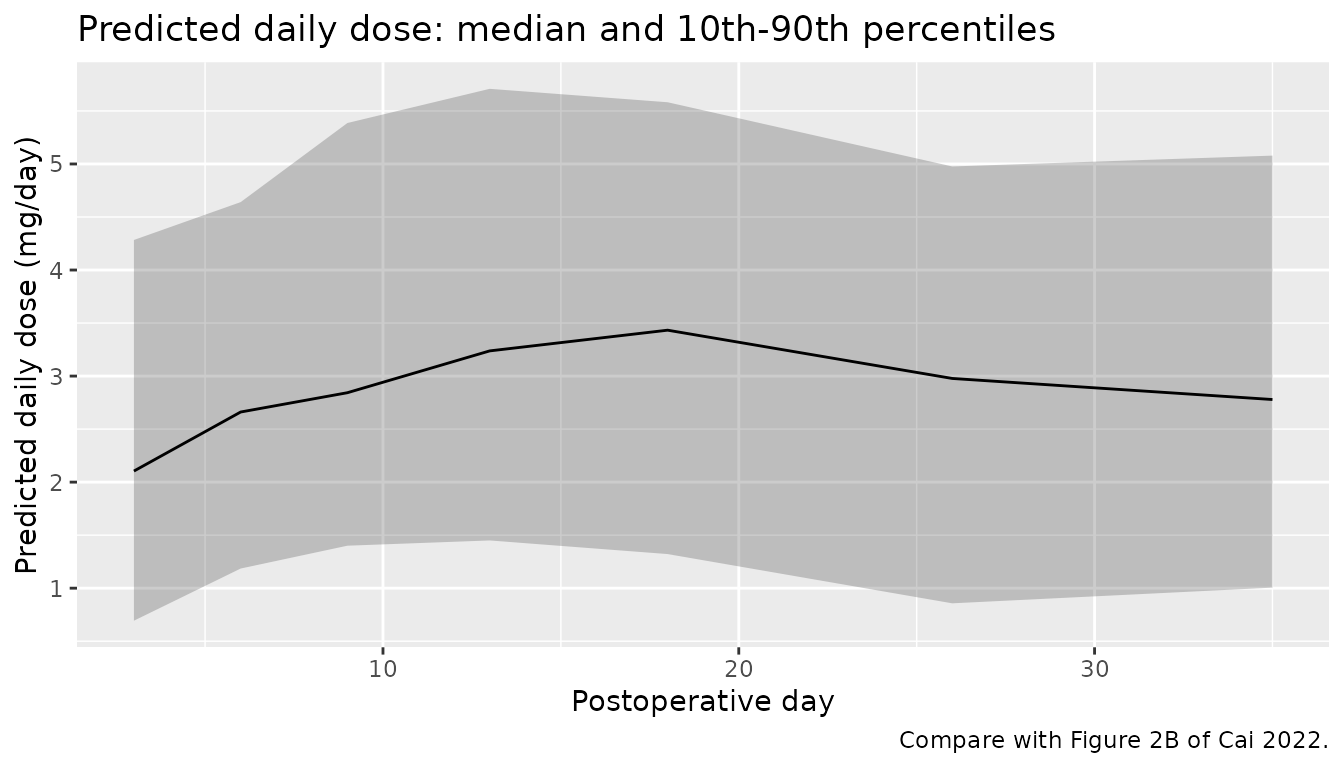

    title = "Predicted daily dose: median and 10th-90th percentiles",
    caption = "Compare with Figure 2B of Cai 2022."
  )

med_dose <- median(sim_m$daily_dose)
med_dose
#> [1] 2.99652
stopifnot(
  # Table 1 median daily dose 2.5 mg/day; Figure 2B median about 2-3.5 mg/day
  # after the first postoperative week.
  med_dose > 1.5, med_dose < 4.5
)

The rise of the predicted dose over the first ten days followed by a slow decline mirrors Figure 2B: the 10 / min(POD, 10) factor inflates Km, and so lowers the dose needed for a given trough, in the first postoperative days, while the (POD / 15)^0.277 term raises Km thereafter.

Assumptions and deviations

  • Hematocrit scale in the erythrocyte-binding equation. Section 2.5.2.1 says HCT is entered “as %”. Taken literally, with HCT = 31 the whole-blood to plasma ratio would be about 3,400 instead of the about 34 that maps the observed 6 ng/mL whole-blood troughs onto the 0.1-0.6 ng/mL plasma scale of Figures 1A and 2A. The model therefore divides HCT (supplied in percent) by 100, as does Storset_2014_tacrolimus, which uses the same equation and constants.
  • Scale of the theory-based residual error. The goodness-of-fit and VPC plots of the theory-based model are on the plasma scale, so the 30.8% proportional error is applied to the plasma concentration Cc. The whole-blood concentration Cwb is an algebraic output without its own residual error.
  • POD normaliser. Both final-model equations divide POD by 15 days, while the Table 1 median is 10 days. The printed equations are followed; the Table 6 reproduction above, which is sensitive to the POD terms, supports them.
  • Between-subject variability. Table 4 reports BSV in percent. It is read as a coefficient of variation of a log-normal random effect and converted with omega^2 = log(CV^2 + 1).
  • Output of the MM model. The paper’s MM model predicts the daily dose from the trough (the y-axes of Figures 1B, 2B and 3B are in mg/day, and the additive residual error is in mg/day), so the model returns the predicted daily dose daily_dose with the trough supplied as the covariate CTROUGH. It is not converted to a compartmental model, because that would require a volume and an absorption rate that the paper does not estimate.
  • Triazole antifungals. Table 4 labels the antifungal effect “VRCZ” while the text and equations call it TAF (voriconazole and fluconazole). It is encoded with CONMED_AZOLE, covering both.
  • Absorption. Ka is fixed at 4.48 1/h from Zhu et al. (2015), as in the paper; bioavailability is not identifiable from oral troughs and CL/F and V/F are apparent values.
  • Table 6 scenarios. Supplementary Table S4 of the paper defines the Table 6 scenarios by hematocrit and bilirubin band only. The representative values above were chosen by the maintainers, and the reproduction uses the typical model rather than the paper’s 200-replicate Monte Carlo simulation.
  • Base models. Only the two final models are provided; the base-model estimates of Table 3 are not packaged.
