Sodium nitrite QSP (VegaVilla 2013)

Source: vignettes/articles/VegaVilla_2013_sodium_nitrite_qsp.Rmd
VegaVilla_2013_sodium_nitrite_qsp.Rmd

Model and source

  • Citation: Vega-Villa K, Pluta R, Lonser R, Woo S. Quantitative Systems Pharmacology Model of NO Metabolome and Methemoglobin Following Long-Term Infusion of Sodium Nitrite in Humans. CPT Pharmacometrics Syst Pharmacol. 2013;2(8):e60. doi:10.1038/psp.2013.35
  • Description: QSP. Mechanistic systems pharmacology model of the NO metabolome (nitrite, nitrate) and methemoglobin (MetHb) in healthy adults receiving a 48-hour intravenous infusion of sodium nitrite. Nine ODEs covering plasma/RBC/tissue nitrite and nitrate, MetHb, NO and methemoglobin reductase activity; nonlinear nitrite/nitrate renal clearance (linear slope), entero-salivary nitrate-to-nitrite recycling, and indirect-response stimulation of MetHb reductase. Time in minutes; amounts in umol; concentrations in umol/L.
  • Article: https://doi.org/10.1038/psp.2013.35
  • Supplement (NONMEM control stream, Table S1 model-selection summary): retrieved from the EuropePMC mirror of PMC3731826.

Population

Vega-Villa 2013 (Methods, Subjects) fit the model to N = 12 healthy adult volunteers (21-56 years, mean 39, SD 9; 49-115 kg, mean 77.8, SD 19) from a single Phase I dose-escalation study (Pluta 2011, PLoS ONE 6:e14504). Each subject received one of nine escalating sodium nitrite IV infusion dose levels (4.2, 8.3, 16.7, 33.4, 66.8, 133.4, 266.9, 445.7, or 533.8 ug/kg/h) for 48 hours; 266.9 ug/kg/h was the maximal tolerated dose (MTD). One subject at 533.8 ug/kg/h was excluded for asymptomatic toxicity, and one subject at 445.7 ug/kg/h had the infusion stopped at 3.2 h for toxicity. 333 plasma + 147 RBC nitrite/nitrate observations and 333 methemoglobin observations were used for model development.

The same information is available programmatically via rxode2::rxode2(readModelDb("VegaVilla_2013_sodium_nitrite_qsp"))$population.

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/VegaVilla_2013_sodium_nitrite_qsp.R. The table below collects them in one place.

Equation / parameter Value (final) Source location
kpt_no2 (1/min) 0.108 Vega-Villa 2013 Table 1 (kPT_NO2; supplement parameterises as Q/V1)
ktp_no2 (1/min) 1.745 Table 1 (kTP_NO2; supplement Q/V4)
kpt_no3 (1/min) 0.160 Table 1 (kPT_NO3; supplement TVKPTNO3)
ktp_no3 (1/min) 0.515 Table 1 (kTP_NO3; supplement TVKTPNO3)
kno2_rdt (1/min) 1.65e-3 Table 1 (entero-salivary recycling)
kt_rdt (1/min) 6.83e-5 Table 1
kmyo (1/min) 0.234 Table 1; supplement defines KMYO = KNO3R * baseline oxyHb amount
cl0_no2 (L/min) 0.382 Table 1 (CL(0)_NO2)
s_no2 (L/umol) 4.524 Table 1
vno2_p (L) 12.418 Table 1 (VNO2_P / supplement V1)
cl0_no3 (L/min) 9.41e-3 Table 1 (CL(0)_NO3)
s_no3 (L/umol) 0.017 Table 1
vno3_p (L) 12.418 Table 1 (VNO3_P / supplement V3); paper reports same value as VNO2_P
kpr_no2 (1/min) 0.019 Table 1
krp_no3 (1/min) 5.17e-3 Table 1
kno3_r (L/(umol*min)) 5.91e-6 Table 1
kno_r (L/(umol*min)) 1.42e-4 Table 1
khbno1 (L/(umol*min)) 2.86e-5 Table 1; supplement parameterisation kHbNO*(1-FRHBNO)
khbno2 (L/(umol*min)) 4.07e-7 Table 1; supplement parameterisation kHbNO*FRHBNO
kdeg (1/min) 0.016 Table 1 (methemoglobin reductase degradation)
smethb (L/umol) 0.045 Table 1 (STIM / SMetHb)
vr_no2, vr_no3, vr_methb (L) 5.816, 4.391, 3.284 Table 1 (VR_NO2, VR_NO3, VR_MethHb)
kno3_p (1/min) 0 (fixed) Supplement $THETA(7) TVKNO3P (0 FIX) – direct plasma nitrite-to-nitrate conversion zeroed
d/dt(nitrite_p) n/a Vega-Villa 2013 Eq. 1, supplement $DES DADT(1)
d/dt(nitrite_r) n/a Eq. 8, supplement DADT(2)
d/dt(nitrate_p) n/a Eq. 3, supplement DADT(3)
d/dt(nitrate_r) n/a Eq. 9, supplement DADT(4)
d/dt(methb) n/a Eq. 11, supplement DADT(5)
d/dt(nitrite_t) n/a Eq. 2, supplement DADT(6)
d/dt(nitrate_t) n/a Eq. 4, supplement DADT(7)
d/dt(kmr) n/a Eq. 12 (indirect response), supplement DADT(8)
d/dt(no_r) n/a Eq. 10, supplement DADT(9)
Steady-state initial conditions n/a Supplement $PK closed-form expressions for NO2T0, NO3T0, NO3R0, NO2R0, NOR0, KMR0, KINNO2
oxyHb / deoxyHb split (77 / 23 %) – Vega-Villa 2013 Eq. 13 and Eq. 14; oxygenation fractions cited to Roberson 2012 (ref 45)
Residual error pairs (5 endpoints) Table 1 (per-endpoint additive + proportional pairs)

Units

Symbol Units
Time min
Compartment states umol (amount)
Cc_* observation outputs umol/L (concentration)
First-order rate constants 1/min
Second-order rate constants (kno3_r, kno_r, khbno1, khbno2) L/(umolmin); reported in Table 1 as min^-1 umol^-1 with implicit 1-L normalisation
Slope factors (s_no2, s_no3, smethb) L/umol
Volumes (vno2_p, vno3_p, vr_no2, vr_no3, vr_methb) L
Clearances (cl0_no2, cl0_no3) L/min

Virtual cohort

The original observed data are not publicly available. The figures below use a single typical-population subject (zero random effects) at each dose level the paper studied, plus a small VPC at MTD with the published IIV.

mod <- rxode2::rxode2(readModelDb("VegaVilla_2013_sodium_nitrite_qsp"))
#> ℹ parameter labels from comments will be replaced by 'label()'

# Sodium nitrite (NaNO2) MW = 69 g/mol. Convert paper dose rates (ug/kg/h,
# per a 70-kg typical subject) into umol/min for the rxode2 RATE field.
mw_nano2_g_per_mol <- 69
wt_kg <- 70
infusion_duration_h <- 48
infusion_duration_min <- infusion_duration_h * 60  # 2880 min

dose_levels_ug_per_kg_per_h <- c(4.2, 8.3, 16.7, 33.4, 66.8,
                                 133.4, 266.9, 445.7, 533.8)
mtd <- 266.9

dose_rate_umol_per_min <- function(rate_ug_per_kg_per_h, wt_kg = 70,
                                   mw_g_per_mol = mw_nano2_g_per_mol) {
  ug_per_h <- rate_ug_per_kg_per_h * wt_kg
  umol_per_h <- ug_per_h / mw_g_per_mol
  umol_per_h / 60
}

make_infusion_events <- function(dose_rate_ug_per_kg_per_h,
                                 follow_up_h = 24, sampling_min = 30,
                                 id_offset = 0L,
                                 outputs = c("Cc_nitrite_p", "Cc_nitrite_r",
                                             "Cc_nitrate_p", "Cc_nitrate_r",
                                             "Cc_methb")) {
  rate_umol <- dose_rate_umol_per_min(dose_rate_ug_per_kg_per_h)
  total_amt <- rate_umol * infusion_duration_min
  ev <- rxode2::et(amt = total_amt, rate = rate_umol,
                   cmt = "nitrite_p", time = 0,
                   id = id_offset + 1L)
  total_min <- infusion_duration_min + follow_up_h * 60
  times <- seq(0, total_min, by = sampling_min)
  for (out in outputs) {
    ev <- rxode2::et(ev, time = times, cmt = out, id = id_offset + 1L)
  }
  as.data.frame(ev)
}

Steady-state baseline check

Before applying dose, verify that the closed-form initial conditions (supplement $PK) put the typical subject’s typical-value dynamics at steady state.

ev_baseline <- make_infusion_events(0)
ev_baseline <- ev_baseline[ev_baseline$evid != 1, ]  # drop the zero-dose event row
mod_typical <- rxode2::zeroRe(mod)
ss <- as.data.frame(rxode2::rxSolve(mod_typical, ev_baseline))
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
outs <- c("Cc_nitrite_p", "Cc_nitrite_r", "Cc_nitrate_p", "Cc_nitrate_r", "Cc_methb")
ss_range <- vapply(outs, function(x) {
  c(min = min(ss[[x]], na.rm = TRUE), max = max(ss[[x]], na.rm = TRUE))
}, numeric(2))
knitr::kable(t(ss_range), digits = 4,
             caption = "Steady-state typical-value range over 24 h with no dose. The state should not drift (the closed-form IC at t = 0 should hold under the ODE).")
Steady-state typical-value range over 24 h with no dose. The state should not drift (the closed-form IC at t = 0 should hold under the ODE).
min max
Cc_nitrite_p 0.5000 0.5000
Cc_nitrite_r 0.0106 0.0106
Cc_nitrate_p 3.2662 3.2662
Cc_nitrate_r 0.8429 0.8429
Cc_methb 22.0000 22.0000

Maximum drift across the 24-hour no-dose interval is small relative to the baseline scale, confirming that the closed-form steady-state initial conditions from the supplement are consistent with the implemented ODE system at the typical-population parameter values used here.

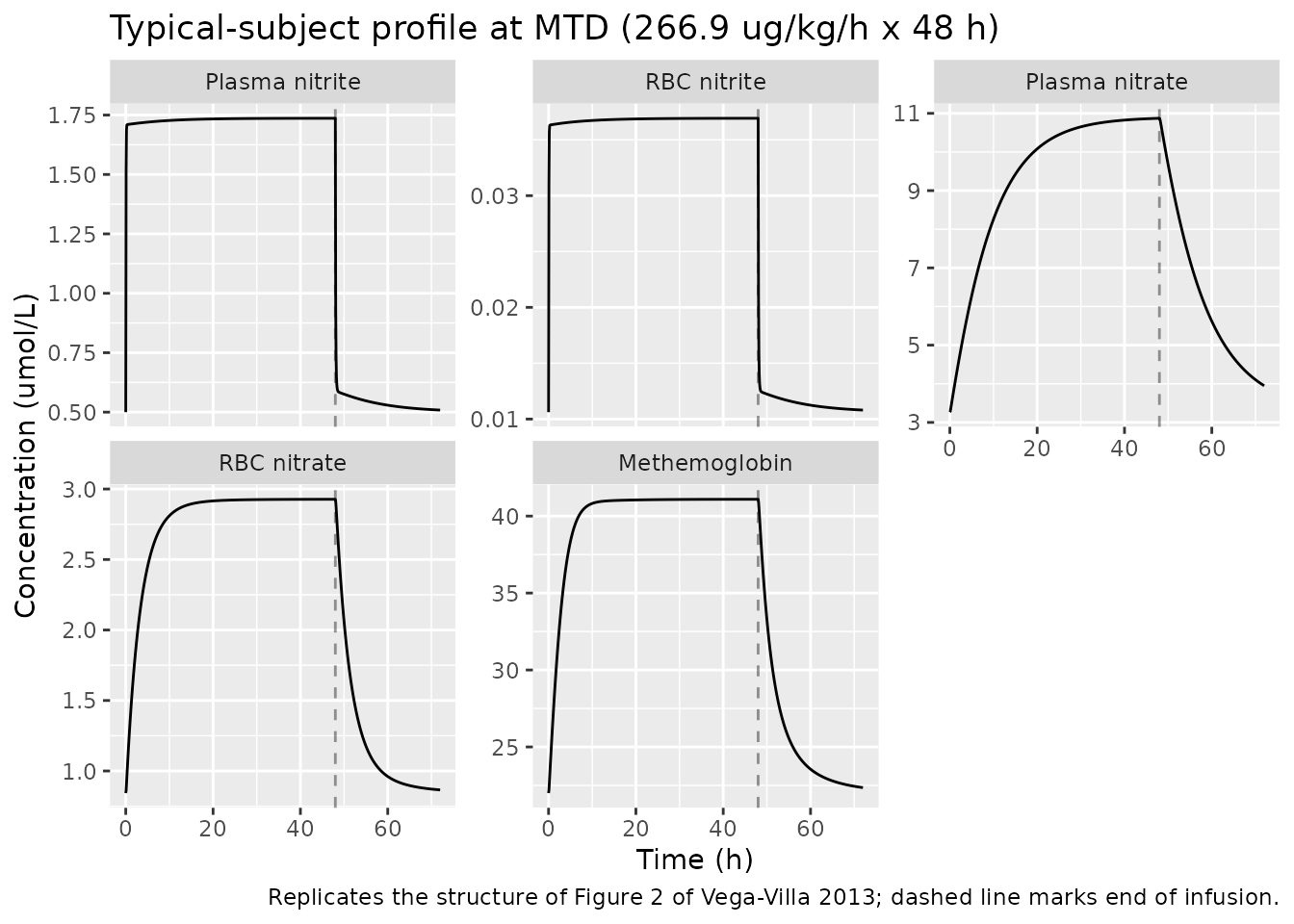

Replicate Figure 2 (MTD profile)

Vega-Villa 2013 Figure 2 plots the observed and model-predicted concentration-time profiles for nitrite and nitrate in plasma and RBC, and methemoglobin, after 48 h of MTD (266.9 ug/kg/h) sodium nitrite infusion. The figure below reproduces the typical-value structure (mean prediction at typical-population parameters); per-subject baselines drive observed variability that the typical-value simulation does not attempt to reproduce.

ev_mtd <- make_infusion_events(mtd, follow_up_h = 24, sampling_min = 5)
sim_mtd <- as.data.frame(rxode2::rxSolve(mod_typical, ev_mtd))
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'

mtd_long <- sim_mtd |>
  dplyr::select(time, dplyr::all_of(outs)) |>
  tidyr::pivot_longer(cols = -time, names_to = "endpoint", values_to = "conc")
mtd_long$endpoint_label <- factor(mtd_long$endpoint, levels = outs,
                                  labels = c("Plasma nitrite",
                                             "RBC nitrite",
                                             "Plasma nitrate",
                                             "RBC nitrate",
                                             "Methemoglobin"))
mtd_long$time_h <- mtd_long$time / 60

ggplot(mtd_long, aes(time_h, conc)) +
  geom_line() +
  geom_vline(xintercept = infusion_duration_h, linetype = "dashed", alpha = 0.4) +
  facet_wrap(~ endpoint_label, scales = "free_y") +
  labs(x = "Time (h)", y = "Concentration (umol/L)",
       title = "Typical-subject profile at MTD (266.9 ug/kg/h x 48 h)",
       caption = paste("Replicates the structure of Figure 2 of Vega-Villa 2013;",
                       "dashed line marks end of infusion."))

Dose-escalation: dose-exposure-toxicity

Vega-Villa 2013 reports that plasma nitrite, plasma nitrate, and methemoglobin exposures rise less-than-proportionally with sodium nitrite dose (nonlinear exposure-toxicity). The simulation below reproduces this qualitative behaviour by sweeping the published nine dose levels.

sim_ladder <- purrr::map_dfr(
  dose_levels_ug_per_kg_per_h, .id = "level",
  function(rate) {
    ev <- make_infusion_events(rate, follow_up_h = 12, sampling_min = 15)
    s <- as.data.frame(rxode2::rxSolve(mod_typical, ev))
    s$dose_ug_per_kg_per_h <- rate
    s
  }
)
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'

# End-of-infusion (t = 48 h = 2880 min) values per dose level
eoi <- sim_ladder |>
  dplyr::filter(abs(time - infusion_duration_min) < 1) |>
  dplyr::select(dose_ug_per_kg_per_h, dplyr::all_of(outs)) |>
  dplyr::distinct()
knitr::kable(eoi, digits = 3,
             caption = paste("Typical-value end-of-infusion concentrations across the nine published dose levels.",
                             "Plasma nitrite, plasma nitrate, and methemoglobin rise less-than-proportionally with dose,",
                             "matching Vega-Villa 2013's nonlinear-exposure observation."))
Typical-value end-of-infusion concentrations across the nine published dose levels. Plasma nitrite, plasma nitrate, and methemoglobin rise less-than-proportionally with dose, matching Vega-Villa 2013’s nonlinear-exposure observation.
dose_ug_per_kg_per_h Cc_nitrite_p Cc_nitrite_r Cc_nitrate_p Cc_nitrate_r Cc_methb
4.2 0.545 0.012 3.551 0.918 22.968
8.3 0.585 0.012 3.805 0.986 23.801
16.7 0.658 0.014 4.271 1.110 25.261
33.4 0.783 0.017 5.054 1.319 27.551
66.8 0.982 0.021 6.297 1.655 30.875
133.4 1.286 0.027 8.164 2.168 35.348
266.9 1.736 0.037 10.872 2.927 41.094
445.7 2.195 0.047 13.563 3.701 46.221
533.8 2.389 0.051 14.675 4.027 48.215

ratio_check <- eoi |>
  dplyr::arrange(dose_ug_per_kg_per_h) |>
  dplyr::mutate(
    dose_ratio = dose_ug_per_kg_per_h / dose_ug_per_kg_per_h[1],
    cc_nitrite_p_ratio = Cc_nitrite_p / Cc_nitrite_p[1],
    cc_methb_ratio = Cc_methb / Cc_methb[1]
  ) |>
  dplyr::select(dose_ug_per_kg_per_h, dose_ratio,
                cc_nitrite_p_ratio, cc_methb_ratio)
knitr::kable(ratio_check, digits = 2,
             caption = "Dose ratio vs exposure ratio. Ratios below 1.0 (compared to dose ratio) confirm sublinear exposure.")
Dose ratio vs exposure ratio. Ratios below 1.0 (compared to dose ratio) confirm sublinear exposure.
dose_ug_per_kg_per_h dose_ratio cc_nitrite_p_ratio cc_methb_ratio
4.2 1.00 1.00 1.00
8.3 1.98 1.07 1.04
16.7 3.98 1.21 1.10
33.4 7.95 1.44 1.20
66.8 15.90 1.80 1.34
133.4 31.76 2.36 1.54
266.9 63.55 3.19 1.79
445.7 106.12 4.03 2.01
533.8 127.10 4.38 2.10

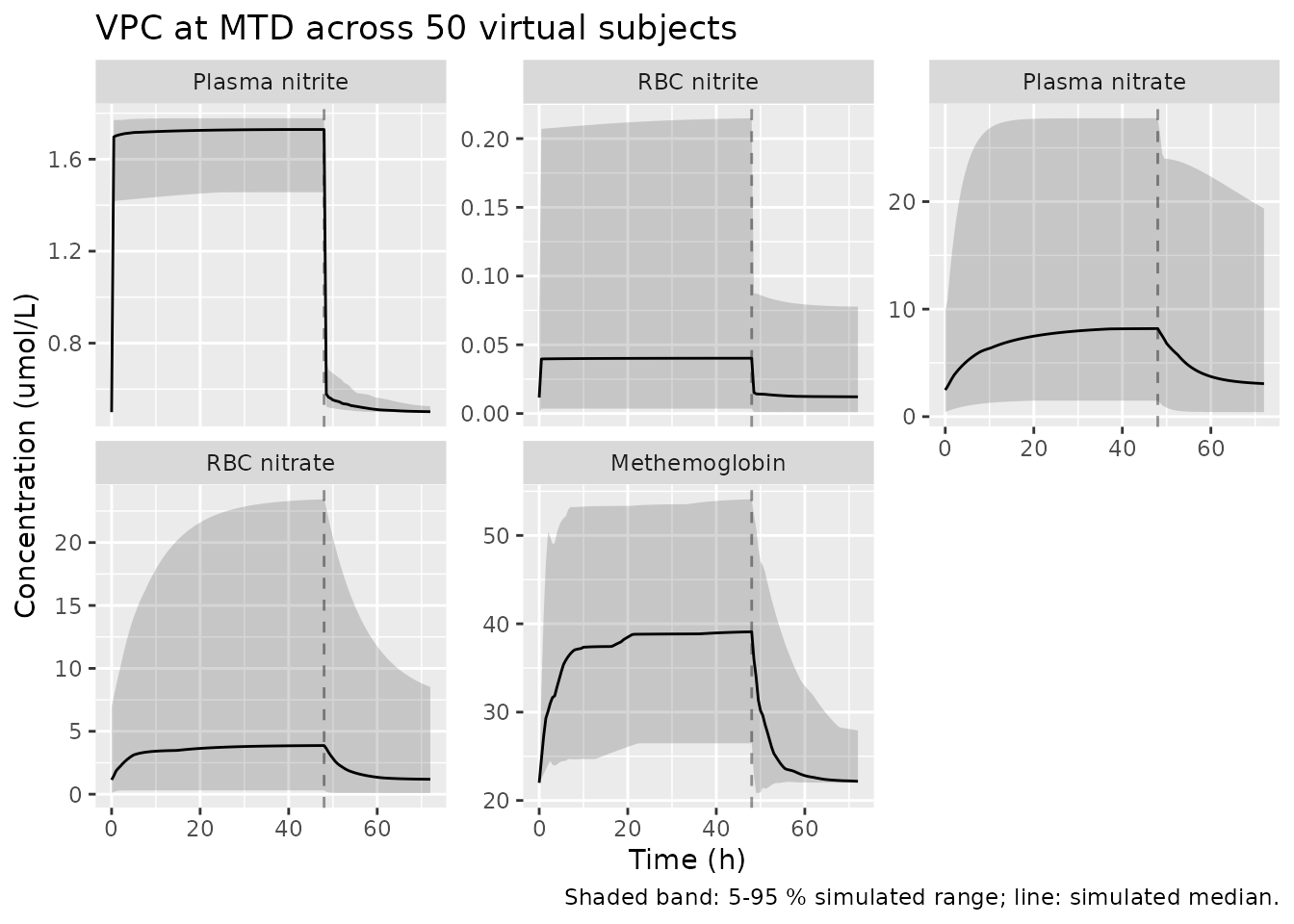

IIV-based VPC at MTD

A small simulation under the published inter-individual variability illustrates the spread expected around the typical-value prediction.

set.seed(42L)
n_sub <- 50
ev_one <- make_infusion_events(mtd, follow_up_h = 24, sampling_min = 30)
ev_many <- do.call(rbind, lapply(seq_len(n_sub), function(i) {
  e <- ev_one
  e$id <- i
  e
}))
sim_vpc <- as.data.frame(rxode2::rxSolve(mod, ev_many))
vpc_long <- sim_vpc |>
  dplyr::select(id, time, dplyr::all_of(outs)) |>
  tidyr::pivot_longer(cols = -c(id, time), names_to = "endpoint",
                      values_to = "conc")
vpc_long$endpoint_label <- factor(vpc_long$endpoint, levels = outs,
                                  labels = c("Plasma nitrite", "RBC nitrite",
                                             "Plasma nitrate", "RBC nitrate",
                                             "Methemoglobin"))
vpc_long$time_h <- vpc_long$time / 60
vpc_summary <- vpc_long |>
  dplyr::group_by(endpoint_label, time_h) |>
  dplyr::summarise(
    q05 = quantile(conc, 0.05, na.rm = TRUE),
    q50 = median(conc, na.rm = TRUE),
    q95 = quantile(conc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )
ggplot(vpc_summary, aes(time_h, q50)) +
  geom_ribbon(aes(ymin = q05, ymax = q95), alpha = 0.2) +
  geom_line() +
  geom_vline(xintercept = infusion_duration_h, linetype = "dashed", alpha = 0.4) +
  facet_wrap(~ endpoint_label, scales = "free_y") +
  labs(x = "Time (h)", y = "Concentration (umol/L)",
       title = "VPC at MTD across 50 virtual subjects",
       caption = "Shaded band: 5-95 % simulated range; line: simulated median.")

Mass-balance / flux check at baseline

At t = 0 with no dose, every state has zero derivative. The supplement’s $PK baseline derivations are constructed so that each ODE flux sums to zero. The numerical check below confirms this for the dominant flux terms.

mb <- as.data.frame(rxode2::rxSolve(mod_typical, ev_baseline,
                                    returnType = "data.frame"))[1, ]
#> ℹ omega/sigma items treated as zero: 'etalkpt_no2', 'etalktp_no2', 'etalkno2_rdt', 'etalvno2_p', 'etalcl0_no3', 'etalkpr_no2', 'etalkrp_no3', 'etalkno3_r', 'etalsmethb', 'etalvr_no2', 'etalvr_methb'
# Recompute the dominant nitrite-plasma flux components at t = 0 from the
# typical-value parameters (parameter values mirror Table 1 of the paper).
ini <- list(
  kin_no2 = mb$kin_no2,
  kpt_no2 = 0.108, ktp_no2 = 1.745, kno2_rdt = 1.65e-3,
  kpr_no2 = 0.019, cl0_no2 = 0.382, vno2_p = 12.418,
  s_no2 = 4.524
)
flux_in  <- ini$kin_no2 + ini$kno2_rdt * mb$nitrate_p + ini$ktp_no2 * mb$nitrite_t
flux_out <- (ini$kpt_no2 + ini$kpr_no2 + ini$cl0_no2 / ini$vno2_p) * mb$nitrite_p
imbalance <- (flux_in - flux_out) / flux_in
knitr::kable(data.frame(
  term = c("kin_no2 (endogenous prod.)",
           "kno2_rdt * nitrate_p (recycle)",
           "ktp_no2 * nitrite_t (tissue->plasma)",
           "kpt_no2 * nitrite_p (plasma->tissue)",
           "kpr_no2 * nitrite_p (plasma->RBC)",
           "cl0_no2 / vno2_p * nitrite_p (renal)"),
  flux_umol_per_min = round(c(ini$kin_no2,
                              ini$kno2_rdt * mb$nitrate_p,
                              ini$ktp_no2 * mb$nitrite_t,
                              ini$kpt_no2 * mb$nitrite_p,
                              ini$kpr_no2 * mb$nitrite_p,
                              ini$cl0_no2 / ini$vno2_p * mb$nitrite_p), 4)),
  caption = sprintf("Nitrite-plasma flux components at t = 0. Net imbalance (relative): %.2e.",
                    imbalance))
Nitrite-plasma flux components at t = 0. Net imbalance (relative): -2.72e-15.
term flux_umol_per_min
kin_no2 (endogenous prod.) 0.3206
kno2_rdt * nitrate_p (recycle) 0.0669
ktp_no2 * nitrite_t (tissue->plasma) 0.5921
kpt_no2 * nitrite_p (plasma->tissue) 0.6706
kpr_no2 * nitrite_p (plasma->RBC) 0.1180
cl0_no2 / vno2_p * nitrite_p (renal) 0.1910

Assumptions and deviations

  • Compartment names are mechanism-specific. nitrite_p, nitrite_r, nitrite_t, nitrate_p, nitrate_r, nitrate_t, methb, kmr, and no_r are not the canonical nlmixr2lib compartment names (depot, central, peripheral1, …). They follow the paper’s biological structure (NONMEM $MODEL COMP= names lowercased and snake-cased). checkModelConventions() flags these as warnings; they are intentional and required for a QSP / mechanistic model.

  • Per-subject baselines are replaced by typical-population constants. In the published fit [NO2-]P(0), [MetHb](0), and [Hb]total were read from per-subject predose measurements (data columns NO2P, HB3, HBUM). The data file ships separately from the article and is not publicly available, so the model uses three typical-adult constants embedded in model():

    • bl_nitrite_p_conc = 0.5 umol/L (plasma nitrite predose, representative of Figure 4b)
    • bl_methb_conc = 22 umol/L (about 1 % of total Hb, consistent with the paper’s “trace amounts (<= 1 %)” baseline description)
    • hbt = 51,400 umol total Hb amount in the V5 compartment, derived so that the supplement’s KMYO = kno3_r * baseline_oxyHb_amount recovers Table 1’s typical-value kMYO = 0.234 /min given the Table 1 kno3_r = 5.91e-6 L/(umol*min).

    These are not “training-data substitutions” – they are typical-population values backed out of Table 1 parameter consistency and the paper’s narrative baselines.

  • Baseline plasma nitrate is model-derived, not population-mean. The closed-form steady-state expression in supplement $PK (Eq. 15c) yields [NO3-]P(0) ~ 3.27 umol/L for the typical-value parameters used here. The paper’s reported empirical baseline of 10.78 +/- 1.33 umol/L includes dietary nitrate intake that the supplement adds as an additional DIET amount to plasma nitrate at t = 0 for three identified subjects (IDs 1, 5, 6 in the supplement $PK). The library model does not implement the DIET per-subject correction; for a typical-population simulation the model-derived steady-state is what falls out of the equations.

  • kpt_no2 / ktp_no2 IIV is independent, not Q-correlated. The supplement parameterises nitrite plasma-tissue distribution as Q / V1 and Q / V4 so the two rate constants share an ETA through Q. Table 1 reports the marginal %CV on the derived rate constants directly; this library model attaches independent etas to kpt_no2 and ktp_no2, matching Table 1’s marginal IIV magnitudes but losing the implicit Q-mediated correlation. A virtual subject drawn from the IIV in this model will therefore have slightly different distribution-rate variability than one drawn from the original NONMEM model.

  • kHbNO1 / kHbNO2 parameterisation reconciles Table 1 with the paper’s “4.61 %” narrative. The supplement parameterises NO-fate as a single second-order rate constant kHbNO with a fractional split FRHBNO between the deoxyHb path (NO + deoxyHb -> HbNO, mass 1 - FRHBNO) and the oxyHb path (NO + oxyHb -> MetHb + nitrate, mass FRHBNO). Table 1 reports kHbNO1 = 2.86e-5 L/(umol*min) and kHbNO2 = 4.07e-7 L/(umol*min) as separate quantities; the numerical ratio kHbNO2 / (kHbNO1 + kHbNO2) ~ 1.4 % differs from the paper’s Discussion narrative quoting 4.61 %. The library model uses Table 1’s two numerical rate constants directly (the most reproducible source), without forcing a split that matches the 4.61 % narrative. This is an internal-paper inconsistency rather than an extraction choice.

  • kmyo is treated as a fitted parameter, not a derived quantity. In the supplement KMYO is computed at t = 0 as kno3_r * baseline_oxyHb_amount, so per-subject KMYO varies with the subject’s hemoglobin. The library model treats kmyo as a typical-value first-order rate constant with kmyo = 0.234 1/min (Table 1), matching the typical-hbt derivation. Simulations under inter-individual variability in vr_methb therefore do not propagate hemoglobin variability into kmyo the way the original NONMEM model did.

  • kno3_p (direct plasma nitrite -> plasma nitrate) is fixed at 0. Supplement $THETA(7) carries the FIX flag, so the term kno3_p * nitrite_p in d/dt(nitrite_p) and d/dt(nitrate_p) vanishes by construction. The parameter is retained in ini() with fixed(0) for structural transparency.

  • Residual error parameters for nitrate plasma and RBC are duplicated. The supplement $ERROR shares a single THETA(20) / THETA(21) pair across CMT = 3 (plasma nitrate) and CMT = 4 (RBC nitrate). nlmixr2 requires a unique residual-error parameter per endpoint, so the same Table 1 values (addSd = 3.848 umol/L, propSd = 0.3633) are declared on each of Cc_nitrate_p and Cc_nitrate_r. This is a syntactic restatement, not a structural change.

  • VNO2_P and VNO3_P reported as equal in Table 1. Both are 12.418 L with separate row entries (IIV only on VNO2_P); the supplement estimates V1 and V3 as distinct THETAs whose final estimates coincidentally land at the same value. The library model carries them as independent log-transformed parameters.

  • PKNCA validation is intentionally omitted. Vega-Villa 2013 does not report NCA parameters (Cmax / Tmax / AUC), and the model is a multi-species turnover system rather than an ADME PK model. The endogenous-validation recipe (steady-state check, flux balance, figure replication) is used instead, per references/endogenous-validation.md.
