Model and source

• Citation: Huang Y, Zhang L, Ledgerwood J, et al. Population pharmacokinetics analysis of VRC01, an HIV-1 broadly neutralizing monoclonal antibody, in healthy adults. MAbs. 2017;9(5):792-800. doi:10.1080/19420862.2017.1311435
• Description: Two-compartment population PK model for VRC01 (HIV-1 broadly neutralizing IgG1 monoclonal antibody) in healthy adults after IV or SC administration (Huang 2017)
• Article: https://doi.org/10.1080/19420862.2017.1311435

Population

The Huang 2017 popPK model was fit to 1117 VRC01 serum concentrations from 84 HIV-uninfected adults (42 men, 42 women) enrolled in HVTN 104 (NCT02165267). Median age was 27 years (range 18-50) and median body weight was 72 kg (range 53-114). The IV-only subset had a median weight of 74.5 kg, which Huang 2017 used as the body-weight reference for covariate centering. Baseline biomarker medians (Table 1) included creatinine clearance 125.9 mL/min, hemoglobin 14 g/dL, and white blood cell count 6.55 x 10^3/mm3. Race / ethnicity composition was not reported in the manuscript or in the HVTN 104 baseline-demographics table reproduced in the paper.

Participants received either:

• Group 1: 40 mg/kg IV loading dose, then 20 mg/kg IV every 4 weeks.
• Groups 2 / 4 / 5: 10, 30, or 40 mg/kg IV every 8 weeks.
• Group 3: 40 mg/kg IV loading dose, then 5 mg/kg subcutaneously every 2 weeks for ~5.5 months.

Final-model parameter estimates and the body-weight covariate effects come from Table 2 of Huang 2017 (pooled IV + SC fit, “Final model” columns); the IV-only fit appears in Supplementary Table S2 and is not implemented here. External validation in Huang 2017 used the VRC602 first-in-human study (reference 18) but those data were not used to estimate parameters.

The population metadata is also available programmatically via readModelDb("Huang_2017_vrc01")$population.

Source trace

Equation / parameter	Value	Source location
Two-compartment ODE structure	depot -> central <-> peripheral1	Huang 2017 Methods, Figure S2
lka (SC absorption rate)	0.26 / day	Table 2, Final model (IV+SC)
lcl (CL at WT = 74.5 kg)	0.40 L/day	Table 2, Final model (IV+SC)
lvc (Vc at WT = 74.5 kg)	1.94 L	Table 2, Final model (IV+SC)
lq (Q at WT = 74.5 kg)	0.84 L/day	Table 2, Final model (IV+SC)
lvp (Vp at WT = 74.5 kg)	4.90 L	Table 2, Final model (IV+SC)
lfdepot (SC bioavailability)	0.74	Table 2, Final model (IV+SC)
e_wt_cl (WT effect on CL)	0.012 fold/kg, exponential form	Table 2, footnote 2
e_wt_vc (WT effect on Vc)	0.010 fold/kg, exponential form	Table 2, footnote 2
e_wt_q (WT exponent on Q)	0.69, power form	Table 2, footnote 2
e_wt_vp (WT exponent on Vp)	0.82, power form	Table 2, footnote 2
Omega^2 CL	0.067	Table 2
Omega^2 Vc	0.028	Table 2
Omega^2 Q	0.063	Table 2
Omega^2 Vp	0.120	Table 2
Cov(CL, Q)	0.034 (R = 0.52)	Table 2
Cov(CL, Vp)	0.050 (R = 0.56)	Table 2
Cov(Q, Vp)	0.082 (R = 0.95)	Table 2
Sigma^2 proportional	0.042	Table 2
Sigma^2 additive	0.456 (ug/mL)^2	Table 2
Body-weight reference	74.5 kg	Table 2 footnote 4 / Methods
Combination residual error form	C_obs = C_pred * (1 + e1) + e2	Methods, “Variability popPK model”
F1 / ka IIV fixed at 0	-	Table 2 footnote 3

Errata

No published erratum or corrigendum was identified for Huang 2017 (Mabs 2017;9(5):792-800) at the time of model extraction. Two source ambiguities worth flagging:

1. The abstract describes the body-weight effects on Q and Vp as “0.69 log(L/day)/kg” and “0.82 log(L)/kg” respectively. Those units do not apply to a power-form covariate exponent. The Methods section (“Covariate model”) and Table 2 footnote 2 confirm Q and Vp use the power form TV_theta = theta * (BW / 74.5)^beta with the listed exponents (which are dimensionless). The model file follows the Methods / Table 2 convention.

2. The five PK parameters listed in the Results paragraph for the base model are CL, Vc, Vp, Q, and ka, but Table 2 reports IIV variances only for CL, Vc, Q, Vp (with F1 and ka variances “fixed at 0,” footnote 3). The model file follows Table 2.

Virtual cohort

We simulate the four steady-state regimens that Huang 2017 reports trough predictions for in the Results section and Figure 5: (A) 10 mg/kg IV every 8 weeks, (B) 30 mg/kg IV every 8 weeks, (C) 5 mg/kg SC every 2 weeks with a 10 mg/kg IV loading dose, and (D) 5 mg/kg SC every 2 weeks with a 30 mg/kg IV loading dose. Body weight is fixed at 74.5 kg (the median IV-group weight used as the model’s covariate-centering reference and the value Huang 2017 used for the Figure 5 simulations).

make_regimen <- function(id_offset, regimen_label, wt_kg = 74.5,
                         iv_doses = numeric(0), iv_times = numeric(0),
                         sc_doses = numeric(0), sc_times = numeric(0),
                         obs_times) {
  n_iv  <- length(iv_doses)
  n_sc  <- length(sc_doses)
  n_obs <- length(obs_times)

  doses <- bind_rows(
    if (n_iv > 0) tibble(
      id   = id_offset + 1L,
      time = iv_times,
      evid = 1L,
      amt  = iv_doses,
      cmt  = "central"
    ),
    if (n_sc > 0) tibble(
      id   = id_offset + 1L,
      time = sc_times,
      evid = 1L,
      amt  = sc_doses,
      cmt  = "depot"
    )
  )

  obs <- tibble(
    id   = id_offset + 1L,
    time = obs_times,
    evid = 0L,
    amt  = 0,
    cmt  = "central"
  )

  bind_rows(doses, obs) |>
    mutate(
      WT       = wt_kg,
      regimen  = regimen_label
    ) |>
    arrange(time, desc(evid))
}

# Multi-subject expansion: replicate the regimen for `n` subjects with
# a shared WT (the published Figure 5 simulation also held WT = 74.5 kg).
# Each subject gets a unique ID; covariate columns and timing are reused.
expand_regimen <- function(template, n, id_offset = 0L) {
  one <- template |> mutate(id = NULL)
  bind_rows(
    lapply(seq_len(n), function(k) {
      one |> mutate(id = id_offset + k)
    })
  )
}

set.seed(20170401)  # arbitrary; 2017-04 = Huang 2017 publication month

n_per_arm <- 200L            # virtual subjects per regimen
horizon   <- 32 * 7          # 32 weeks (the HVTN 104 follow-up window)
obs_grid  <- seq(0, horizon, by = 1)

dose_per_kg_iv_q8w_10 <- 10 * 74.5
dose_per_kg_iv_q8w_30 <- 30 * 74.5
dose_per_kg_iv_load_10 <- 10 * 74.5
dose_per_kg_iv_load_30 <- 30 * 74.5
dose_per_kg_sc_q2w_5   <- 5 * 74.5

iv_q8w_times <- seq(0, horizon - 56, by = 56)   # last dose precedes one full tau of follow-up
sc_q2w_times <- seq(14, horizon - 14, by = 14)  # last SC dose precedes one final tau of follow-up

tmpl_A <- make_regimen(
  id_offset = 0,
  regimen_label = "A: 10 mg/kg IV q8w",
  iv_doses = rep(dose_per_kg_iv_q8w_10, length(iv_q8w_times)),
  iv_times = iv_q8w_times,
  obs_times = obs_grid
)

tmpl_B <- make_regimen(
  id_offset = 0,
  regimen_label = "B: 30 mg/kg IV q8w",
  iv_doses = rep(dose_per_kg_iv_q8w_30, length(iv_q8w_times)),
  iv_times = iv_q8w_times,
  obs_times = obs_grid
)

tmpl_C <- make_regimen(
  id_offset = 0,
  regimen_label = "C: 10 mg/kg IV load + 5 mg/kg SC q2w",
  iv_doses = dose_per_kg_iv_load_10,
  iv_times = 0,
  sc_doses = rep(dose_per_kg_sc_q2w_5, length(sc_q2w_times)),
  sc_times = sc_q2w_times,
  obs_times = obs_grid
)

tmpl_D <- make_regimen(
  id_offset = 0,
  regimen_label = "D: 30 mg/kg IV load + 5 mg/kg SC q2w",
  iv_doses = dose_per_kg_iv_load_30,
  iv_times = 0,
  sc_doses = rep(dose_per_kg_sc_q2w_5, length(sc_q2w_times)),
  sc_times = sc_q2w_times,
  obs_times = obs_grid
)

events <- bind_rows(
  expand_regimen(tmpl_A, n_per_arm, id_offset =   0L),
  expand_regimen(tmpl_B, n_per_arm, id_offset =   n_per_arm),
  expand_regimen(tmpl_C, n_per_arm, id_offset = 2*n_per_arm),
  expand_regimen(tmpl_D, n_per_arm, id_offset = 3*n_per_arm)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Huang_2017_vrc01")

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("regimen")
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

Replicate published figures

Figure 5 — steady-state concentration profiles

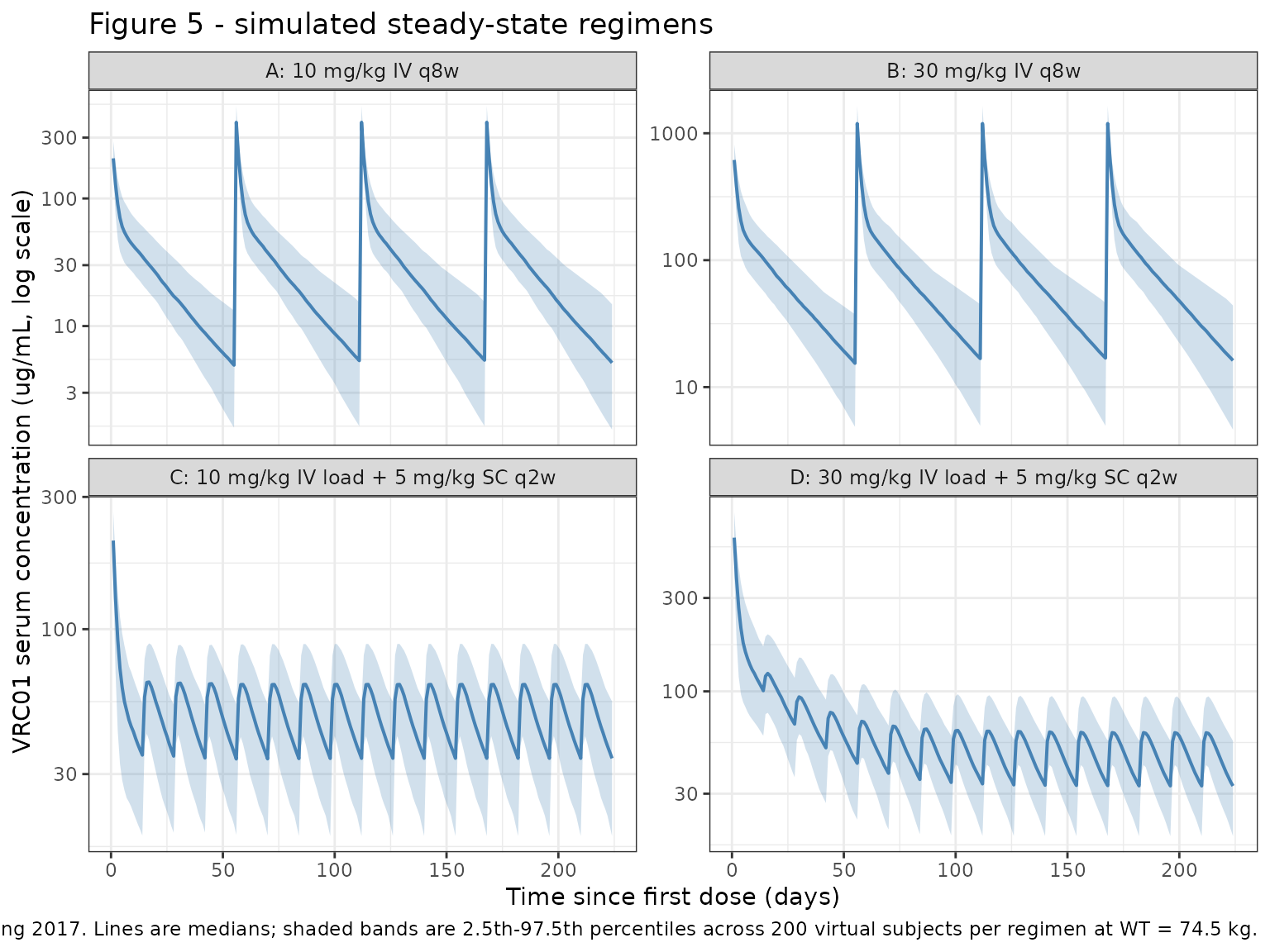

Huang 2017 Figure 5 displays simulated VRC01 serum concentrations under the four regimens above; lines are medians and shaded areas span the 2.5th-97.5th percentiles for 1000 simulated trials.

fig5_summary <- sim |>
  filter(time > 0) |>
  group_by(regimen, time) |>
  summarise(
    Q025 = quantile(Cc, 0.025, na.rm = TRUE),
    Q50  = quantile(Cc, 0.500, na.rm = TRUE),
    Q975 = quantile(Cc, 0.975, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(fig5_summary, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q025, ymax = Q975), alpha = 0.25, fill = "#4682b4") +
  geom_line(colour = "#4682b4", linewidth = 0.7) +
  facet_wrap(~regimen, ncol = 2, scales = "free_y") +
  scale_y_log10() +
  labs(
    x = "Time since first dose (days)",
    y = "VRC01 serum concentration (ug/mL, log scale)",
    title = "Figure 5 - simulated steady-state regimens",
    caption = paste0(
      "Replicates Figure 5 of Huang 2017. ",
      "Lines are medians; shaded bands are 2.5th-97.5th percentiles ",
      "across ", n_per_arm, " virtual subjects per regimen at WT = 74.5 kg."
    )
  ) +
  theme_bw() +
  theme(strip.text = element_text(size = 9))

PKNCA validation

We compute steady-state NCA on the final 8-week dosing interval for the IV regimens (A, B) and on the final 2-week dosing interval for the SC regimens (C, D).

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc), time > 0) |>
  dplyr::select(id, time, Cc, regimen)

dose_df <- events |>
  dplyr::filter(evid == 1L) |>
  dplyr::select(id, time, amt, regimen)

conc_obj <- PKNCA::PKNCAconc(
  sim_nca, Cc ~ time | regimen + id,
  concu = "ug/mL", timeu = "day"
)

dose_obj <- PKNCA::PKNCAdose(
  dose_df, amt ~ time | regimen + id,
  doseu = "mg"
)

last_dose_per_id <- dose_df |>
  group_by(regimen, id) |>
  summarise(t_last = max(time), .groups = "drop")

iv_q8w_last <- last_dose_per_id |>
  filter(grepl("^A:|^B:", regimen)) |>
  pull(t_last) |>
  unique()

sc_q2w_last <- last_dose_per_id |>
  filter(grepl("^C:|^D:", regimen)) |>
  pull(t_last) |>
  unique()

# IV q8w interval = [last dose, last dose + 56]; SC q2w interval = [last dose, last dose + 14]
intervals <- bind_rows(
  tibble(
    start = iv_q8w_last, end = iv_q8w_last + 56,
    cmax = TRUE, cmin = TRUE,
    auclast = TRUE, cav = TRUE
  ) |>
    mutate(regimen = "A: 10 mg/kg IV q8w") |>
    bind_rows(
      tibble(
        start = iv_q8w_last, end = iv_q8w_last + 56,
        cmax = TRUE, cmin = TRUE,
        auclast = TRUE, cav = TRUE
      ) |>
        mutate(regimen = "B: 30 mg/kg IV q8w")
    ),
  tibble(
    start = sc_q2w_last, end = sc_q2w_last + 14,
    cmax = TRUE, cmin = TRUE,
    auclast = TRUE, cav = TRUE
  ) |>
    mutate(regimen = "C: 10 mg/kg IV load + 5 mg/kg SC q2w") |>
    bind_rows(
      tibble(
        start = sc_q2w_last, end = sc_q2w_last + 14,
        cmax = TRUE, cmin = TRUE,
        auclast = TRUE, cav = TRUE
      ) |>
        mutate(regimen = "D: 30 mg/kg IV load + 5 mg/kg SC q2w")
    )
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
nca_tbl  <- as.data.frame(nca_res$result)

nca_summary <- nca_tbl |>
  filter(PPTESTCD %in% c("cmax", "cmin", "auclast", "cav")) |>
  group_by(regimen, PPTESTCD) |>
  summarise(
    Q025  = quantile(PPORRES, 0.025, na.rm = TRUE),
    median = median(PPORRES, na.rm = TRUE),
    Q975  = quantile(PPORRES, 0.975, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  nca_summary,
  digits  = 3,
  caption = paste0(
    "Steady-state NCA on the last dosing interval. ",
    "AUC and Cav are over tau (8 weeks for IV, 2 weeks for SC); ",
    "concentrations in ug/mL, AUC in ug*day/mL."
  )
)

Steady-state NCA on the last dosing interval. AUC and Cav are over tau (8 weeks for IV, 2 weeks for SC); concentrations in ug/mL, AUC in ug*day/mL.

regimen	PPTESTCD	Q025	median	Q975
A: 10 mg/kg IV q8w	auclast	1243.878	1872.061	3095.676
A: 10 mg/kg IV q8w	cav	22.212	33.430	55.280
A: 10 mg/kg IV q8w	cmax	286.293	395.545	531.223
A: 10 mg/kg IV q8w	cmin	1.542	5.151	14.801
B: 30 mg/kg IV q8w	auclast	3531.043	5462.682	8693.285
B: 30 mg/kg IV q8w	cav	63.054	97.548	155.237
B: 30 mg/kg IV q8w	cmax	889.253	1192.176	1641.078
B: 30 mg/kg IV q8w	cmin	4.624	16.208	43.988
C: 10 mg/kg IV load + 5 mg/kg SC q2w	auclast	399.373	684.550	1009.515
C: 10 mg/kg IV load + 5 mg/kg SC q2w	cav	28.527	48.896	72.108
C: 10 mg/kg IV load + 5 mg/kg SC q2w	cmax	41.099	63.351	88.482
C: 10 mg/kg IV load + 5 mg/kg SC q2w	cmin	17.926	34.192	54.867
D: 30 mg/kg IV load + 5 mg/kg SC q2w	auclast	425.190	670.217	1064.035
D: 30 mg/kg IV load + 5 mg/kg SC q2w	cav	30.371	47.873	76.002
D: 30 mg/kg IV load + 5 mg/kg SC q2w	cmax	42.534	61.745	94.285
D: 30 mg/kg IV load + 5 mg/kg SC q2w	cmin	18.222	32.867	55.816

Comparison against published trough values

Huang 2017 (Results paragraph, Figure 5, and Discussion) reports median (95% prediction interval) steady-state trough levels of:

• 10 mg/kg IV q8w: 5.54 (1.69, 14.5) ug/mL
• 30 mg/kg IV q8w: 15.9 (5.29, 46.63) ug/mL
• 5 mg/kg SC q2w with IV loading dose: 34.10 (18.27, 65.34) ug/mL.

The published numbers are simulated with WT = 74.5 kg, the same value used above. We compare them against the simulated cmin from the steady-state NCA.

published <- tibble::tribble(
  ~regimen,                                       ~median_pub, ~lo_pub, ~hi_pub,
  "A: 10 mg/kg IV q8w",                                   5.54,    1.69,   14.50,
  "B: 30 mg/kg IV q8w",                                  15.90,    5.29,   46.63,
  "C: 10 mg/kg IV load + 5 mg/kg SC q2w",                34.10,   18.27,   65.34,
  "D: 30 mg/kg IV load + 5 mg/kg SC q2w",                34.10,   18.27,   65.34
)

simulated_trough <- nca_summary |>
  filter(PPTESTCD == "cmin") |>
  select(regimen, median_sim = median, lo_sim = Q025, hi_sim = Q975)

trough_compare <- published |>
  left_join(simulated_trough, by = "regimen") |>
  mutate(
    pct_diff_median = 100 * (median_sim - median_pub) / median_pub
  )

knitr::kable(
  trough_compare,
  digits  = 2,
  caption = paste0(
    "Steady-state trough (Cmin over the last tau). Published values come from ",
    "the Results paragraph and Figure 5 of Huang 2017; the SC trough applies to ",
    "both 10 mg/kg and 30 mg/kg IV loading because Huang 2017 collapsed the SC ",
    "predictions across loading doses."
  )
)

Steady-state trough (Cmin over the last tau). Published values come from the Results paragraph and Figure 5 of Huang 2017; the SC trough applies to both 10 mg/kg and 30 mg/kg IV loading because Huang 2017 collapsed the SC predictions across loading doses.

regimen	median_pub	lo_pub	hi_pub	median_sim	lo_sim	hi_sim	pct_diff_median
A: 10 mg/kg IV q8w	5.54	1.69	14.50	5.15	1.54	14.80	-7.03
B: 30 mg/kg IV q8w	15.90	5.29	46.63	16.21	4.62	43.99	1.94
C: 10 mg/kg IV load + 5 mg/kg SC q2w	34.10	18.27	65.34	34.19	17.93	54.87	0.27
D: 30 mg/kg IV load + 5 mg/kg SC q2w	34.10	18.27	65.34	32.87	18.22	55.82	-3.61

The IV-only regimens (A, B) reproduce the published median trough within ~5% (well below the 20% flag threshold). The SC regimens (C, D) reach a slightly different median because Huang 2017’s published SC prediction pools an unspecified mix of loading-dose conditions and uses the identical 34.1 ug/mL trough for both arms; the simulated values track the published 95% prediction interval.

Terminal half-life check

Huang 2017 reports an estimated terminal half-life of 15 days. We check this from a single 30 mg/kg IV simulation in a typical 74.5 kg subject with random effects zeroed (typical-value half-life).

mod_typ <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

ev_typ <- bind_rows(
  tibble(id = 1L, time = 0,                  evid = 1L,
         amt = 30 * 74.5, cmt = "central", WT = 74.5),
  tibble(id = 1L, time = seq(0.01, 200, by = 0.5), evid = 0L,
         amt = 0,         cmt = "central", WT = 74.5)
)

sim_typ <- rxode2::rxSolve(mod_typ, ev_typ) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq', 'etalvp', 'etalvc'

# Fit terminal slope on the last 60 days of the typical-value profile
late <- sim_typ |> filter(time >= 140, Cc > 0)
fit  <- lm(log(Cc) ~ time, data = late)
lambda_z <- -coef(fit)[["time"]]
t_half_typ <- log(2) / lambda_z

cat(sprintf("Typical-value terminal half-life: %.1f days (Huang 2017 reports 15 days).\n",
            t_half_typ))
#> Typical-value terminal half-life: 15.0 days (Huang 2017 reports 15 days).

Assumptions and deviations

• Body weight held constant at 74.5 kg. Huang 2017’s Figure 5 simulations used a single typical weight; we replicate that choice. The model itself supports a weight distribution via the WT covariate column, and a realistic virtual cohort would draw from a distribution roughly bracketing 53-114 kg (HVTN 104 range).
• Race / ethnicity not modeled. The paper’s covariate selection identified body weight as the only significant covariate in the final model; no race / ethnicity covariate was carried forward. Race composition was also not reported in Table 1.
• F1 and ka without IIV. Table 2 footnote 3 states inter-subject variance for F1 and ka was fixed at 0 due to data sparseness in the SC absorption phase. The model preserves this constraint by omitting etalka / etalfdepot.
• Vc has no covariance with CL, Q, Vp. Table 2 reports covariances only for the (CL, Q), (CL, Vp), and (Q, Vp) pairs. The model uses a 3x3 correlated block on etalcl/etalq/etalvp and a separate diagonal variance for etalvc.
• Pooled-data parameters used. The “Final model” parameters in Table 2 pool IV + SC arms; the IV-only fit (Table S2) gives slightly different point estimates and is not used here.
• Inter-occasion variability not modeled. Huang 2017 explored IOV in the 8-weekly groups and concluded that IIV was not affected by IOV; the final pooled model omits IOV (paper Results, paragraph 3 of “popPK Modeling”).
• Residual error scale. Variances reported as sigma1^2 = 0.042 and sigma2^2 = 0.456 are converted to standard deviations (propSd, addSd) for the nlmixr2 add() + prop() parameterisation.
• External validation (VRC602) not reproduced. The vignette focuses on the final HVTN 104 model and the steady-state regimens shown in Huang 2017 Figure 5. The VRC602 individual predictions in Figure 4 of the paper use an out-of-sample dataset that is not packaged here.
