Tacrolimus and mycophenolic acid in kidney transplantation (Quintairos 2021)

Source: vignettes/articles/Quintairos_2021_tacrolimus_mycophenolic_acid.Rmd
Quintairos_2021_tacrolimus_mycophenolic_acid.Rmd

Model and source

Quintairos 2021 built two population PK models, one for tacrolimus and one for mycophenolic acid (MPA), in the same cohort of adult de novo kidney transplant recipients. It then used the individual exposures predicted by these models, together with two urinary biomarkers, as candidate predictors in a logistic regression of acute rejection. The three models were fitted separately, so they are packaged as three model files:

  • Quintairos_2021_tacrolimus: Two-compartment population PK model for whole-blood tacrolimus after oral twice-daily dosing in adult de novo kidney transplant recipients during the first 6 months post-transplant (Quintairos 2021). First-order absorption with an absorption lag time and first-order elimination; fixed-exponent allometric scaling on body weight (0.75 on CL/F and Q/F; 1 on Vc/F and Vp/F); no other covariates retained. Between-subject variability on CL/F, Q/F and Vc/F, small fixed-variance random effects on ka, Vp/F and the lag time, and an additive residual error on log-transformed concentrations (log-normal).
  • Quintairos_2021_mycophenolic_acid: Two-compartment population PK model for mycophenolic acid (MPA) after oral mycophenolate mofetil (doses entered as MPA molar equivalents) in adult de novo kidney transplant recipients during the first 6 months post-transplant (Quintairos 2021). First-order absorption with an absorption lag time and first-order elimination; fixed-exponent allometric scaling on body weight (0.75 on CL/F and Q/F; 1 on Vc/F and Vp/F; and, as in the published control stream, a linear weight scaling on ka). Vp/F is fixed at 800 L. Correlated between-subject variability on CL/F, Vc/F and Vp/F, small fixed-variance random effects on Q/F, ka and the lag time, and proportional residual error.
  • Quintairos_2021_kidneyTransplantRejection: Logistic regression of the risk of biopsy-proven acute rejection (AR) on urinary-pellet miR155-5p relative expression in adult de novo kidney transplant recipients during the first 6 months post-transplant (Quintairos 2021). logit(P) = -5.89 + 3.51 * MIR155_URINE, where MIR155_URINE is the 2^-dCq relative expression measured at a study visit and P is the probability that AR is diagnosed before the next visit (rejection events were attributed to the visit preceding their occurrence). No tacrolimus or mycophenolic acid exposure term is present: individual cumulative AUC and mean trough concentrations from the companion popPK models, and urinary CXCL-10, were tested and not retained. No between-subject variability (the control stream fixes the only omega at 0) and no residual error (Bernoulli likelihood).
  • Citation: Quintairos L, Colom H, Millan O, Fortuna V, Espinosa C, Guirado L, Budde K, Sommerer C, Lizana A, Lopez-Pua Y, Brunet M. Early prognostic performance of miR155-5p monitoring for the risk of rejection: Logistic regression with a population pharmacokinetic approach in adult kidney transplant patients. PLoS ONE. 2021;16(1):e0245880. doi:10.1371/journal.pone.0245880. Parameter values from Table 4; random-effect and residual-error structure from the S1 Appendix NONMEM control stream (‘Tacrolimus PK model’).
  • Article: https://doi.org/10.1371/journal.pone.0245880 (open access). The supporting information includes the NONMEM control streams (S1 Appendix) and the analysis datasets (S1-S3 Tables).

The PK models are validated first. The logistic regression is covered in its own section at the end.

Population

The PK sub-study included 58 of the 80 adult de novo kidney recipients enrolled at three European centres: Charite Berlin and Heidelberg in Germany, and Fundacio Puigvert in Barcelona, Spain (EudraCT 2013-001817-33). The recipients had deceased (28) or living (30) donors. Median age was 48 years (IQR 38-58), and 20 of 58 were female. Median weight was 73 kg (IQR 62.9-86.8) and median GFR 44 mL/min (IQR 15-55) (Table 1). All patients were Caucasian. Eight patients (14%) had biopsy-proven acute rejection.

All patients received twice-daily oral tacrolimus (Prograf) and mycophenolate mofetil (Myfenax), methylprednisolone, and basiliximab induction. Doses were adjusted by therapeutic drug monitoring. Sampling was intensive at week 1 (0 to 12 h post-dose) and at 0, 1.5, 2 and 4 h post-dose at months 1, 2, 3 and 6. The tacrolimus model used 1102 whole-blood concentrations and the MPA model 1071 plasma concentrations.

The same information is available programmatically through the population element of each model, for example readModelDb("Quintairos_2021_tacrolimus")()$population.

Source trace

PK parameter values come from Table 4 and the logistic-regression values from Table 5. The model structure comes from the S1 Appendix NONMEM control streams. The PK streams are ADVAN4/TRANS4 two-compartment models with first-order absorption and ALAG1, MU-referenced exponential random effects, and the error models transcribed below. The stream $THETA records are initial estimates (for example, the MPA V2 initial value is 46 L against the final 106 L), so no value is taken from them.

Model Parameter / equation Value Source
Tacrolimus CL/F (lcl) 16.5 L/h/70 kg Table 4
Tacrolimus Vc/F (lvc) 311 L/70 kg Table 4
Tacrolimus Q/F (lq) 20.5 L/h/70 kg Table 4
Tacrolimus Vp/F (lvp) 56300 L/70 kg Table 4
Tacrolimus ka (lka) 3.08 1/h Table 4
Tacrolimus tlag (ltlag) 0.295 h Table 4
Tacrolimus BSV CL, Q, Vc 57.6%, 68.9%, 55.6% -> omega 0.3318, 0.4747, 0.3091 Table 4
Tacrolimus Residual error (expSd, log-normal) 0.366 Table 4; control stream Y = LOG(F) + EPS(1)
Tacrolimus Cc = central / vc * 1000 (ng/mL from mg and L) n/a control stream S2 = V2/1000
MPA CL/F (lcl) 11.8 L/h/70 kg Table 4
MPA Vc/F (lvc) 106 L/70 kg Table 4
MPA Q/F (lq) 37.1 L/h/70 kg Table 4
MPA Vp/F (lvp) 800 L/70 kg, fixed Table 4; control stream 800 FIX
MPA ka (lka) 1.79 1/h Table 4
MPA tlag (ltlag) 0.243 h Table 4
MPA BSV CL, Vc, Vp 34.9%, 133.8%, 164.6% -> omega 0.1218, 1.790, 2.709 Table 4
MPA Residual error (propSd) 0.553 Table 4; control stream Y = F + F*EPS(1)
MPA ka multiplied by WT/70 exponent 1, fixed control stream KA = EXP(MU_5+ETA(5)) * DCOV
Both Allometry (WT/70)^0.75 on CL/F and Q/F, (WT/70)^1 on Vc/F and Vp/F fixed Methods, Pharmacokinetic models; MPA control stream ECOV, DCOV
Both Fixed random effects omega = 0.01 (tacrolimus ka, Vp, tlag; MPA Q, ka, tlag) fixed control stream $OMEGA 0.01 FIX
Acute rejection Intercept (logit_ref) -5.89 Table 5, beta0
Acute rejection miR155-5p slope (e_mir155_urine_logit) 3.51 per 2^-dCq unit Table 5, beta1
Acute rejection logit = logit_ref + e_mir155_urine_logit * MIR155_URINE; prob = expit(logit) n/a Table 5 equation; control stream $PRED
Acute rejection No between-subject variability omega 0 control stream $OMEGA 0 FIX

Reading of the BSV column

Table 4 prints BSV as a percentage without stating the transformation. The packaged models read it as sqrt(omega) x 100. The MPA control stream supports this. Its initial $OMEGA values (0.123, 1.85, 2.41) are close to the squares of the printed percentages (0.1218, 1.790, 2.709). They are far from the log-normal CV reading log(1 + CV^2) (0.115, 1.03, 1.31), which would halve the Vc and Vp variances.

mpa_bsv <- c(CL = 34.9, VC = 133.8, VP = 164.6) / 100
stream_init <- c(CL = 0.123, VC = 1.85, VP = 2.41)
omega_check <- data.frame(
  parameter = names(mpa_bsv),
  stream_initial = stream_init,
  sqrt_reading = mpa_bsv^2,
  cv_reading = log(1 + mpa_bsv^2)
)
knitr::kable(omega_check, digits = 3, row.names = FALSE)
parameter stream_initial sqrt_reading cv_reading
CL 0.123 0.122 0.115
VC 1.850 1.790 1.026
VP 2.410 2.709 1.311
# The square-root reading is within 13% of every stream value; the CV reading
# is off by more than 40% for Vc and Vp.
stopifnot(
  all(abs(omega_check$sqrt_reading / omega_check$stream_initial - 1) < 0.15),
  all(abs(omega_check$cv_reading / omega_check$stream_initial - 1)[2:3] > 0.4)
)

Virtual cohort

The simulation follows the study’s visit schedule: week 1 (day 7) and months 1, 2, 3 and 6 (days 30, 60, 90, 180). Doses are given every 12 h. Table 2 pairs each visit’s mean trough with that visit’s mean dose (it reports Ctrough/Dose per visit), so the dose leading up to each visit is the Table 2 mean dose for that visit, and the month-6 dose continues after the last visit. Table 2 reports doses per day. They are halved to twice-daily amounts here, matching the per-administration amounts in the S1 and S2 Table datasets (for example, tacrolimus 7.5 mg per dose at week 1). Mycophenolate mofetil doses are converted to MPA molar equivalents by the molecular-weight ratio 320.34 / 433.49; 1000 mg of MMF gives the 738.96 mg of MPA carried in the S2 Table dataset.

Body weight is log-normal with a median of 73 kg and a log-scale SD of 0.24, which reproduces the Table 1 IQR of 62.9-86.8 kg. Each drug has one arm of 200 subjects.

set.seed(20210122)
rxode2::rxSetSeed(20210122)
n_sub <- 200
visit_day <- c(7, 30, 60, 90, 180)
visit_lab <- c("Week 1", "Month 1", "Month 2", "Month 3", "Month 6")
end_day <- 184

mmf_to_mpa <- 320.34 / 433.49
daily_dose <- list(
  tacrolimus = c(14.60, 10.63, 7.78, 6.79, 5.29), # Table 2, mg/day
  mpa = c(1875.91, 1655.41, 1552.02, 1402.64, 1238.67) * mmf_to_mpa # Table 2 MMF mg/day -> MPA
)

# Dense sampling over the week-1 and month-6 dosing intervals (for the profile
# figure and NCA), plus a pre-dose trough at every visit.
profile_hours <- c(0, 0.25, 0.5, 0.75, 1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12)
obs_times <- sort(unique(c(
  visit_day * 24 - 0.05,
  visit_day[1] * 24 + profile_hours,
  visit_day[5] * 24 + profile_hours
)))

make_cohort <- function(daily, drug, id_offset) {
  wt <- exp(rnorm(n_sub, log(73), 0.24))
  # Dose k is given from the previous visit up to visit k, so the trough
  # sampled just before visit k reflects dose k; the month-6 dose continues
  # over the month-6 profile interval.
  starts <- c(0, visit_day) * 24
  ends <- c(visit_day, end_day) * 24
  daily <- c(daily, daily[5])
  doses <- data.frame(
    time = starts,
    amt = daily / 2,
    ii = 12,
    addl = (ends - starts) / 12 - 1
  )
  bind_rows(lapply(seq_len(n_sub), function(i) {
    bind_rows(
      doses |> mutate(evid = 1L, cmt = "depot"),
      data.frame(time = obs_times, amt = 0, ii = 0, addl = 0, evid = 0L, cmt = "central")
    ) |>
      mutate(id = id_offset + i, WT = wt[i], drug = drug)
  })) |>
    arrange(id, time, desc(evid))
}

events_tac <- make_cohort(daily_dose$tacrolimus, "Tacrolimus", 0L)
events_mpa <- make_cohort(daily_dose$mpa, "MPA", n_sub)
stopifnot(
  length(unique(events_tac$id)) == n_sub,
  length(unique(events_mpa$id)) == n_sub,
  !any(unique(events_tac$id) %in% unique(events_mpa$id))
)

Simulation

mod_tac <- readModelDb("Quintairos_2021_tacrolimus")
mod_mpa <- readModelDb("Quintairos_2021_mycophenolic_acid")

sim_tac <- rxSolve(mod_tac, events_tac, keep = c("drug", "WT"), returnType = "data.frame")
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_mpa <- rxSolve(mod_mpa, events_mpa, keep = c("drug", "WT"), returnType = "data.frame")
#> ℹ parameter labels from comments will be replaced by 'label()'

typ_tac <- rxSolve(zeroRe(mod_tac), events_tac |> filter(id == 1) |> mutate(WT = 70),
  returnType = "data.frame"
)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq', 'etalvc', 'etalka', 'etalvp', 'etaltlag'
typ_mpa <- rxSolve(zeroRe(mod_mpa), events_mpa |> filter(id == n_sub + 1) |> mutate(WT = 70),
  returnType = "data.frame"
)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalq', 'etalka', 'etaltlag'

Trough concentrations by visit (Table 2)

Table 2 gives the mean observed trough at each visit. The table below compares it with the simulated mean pre-dose concentration under the Table 2 dose schedule. The comparison uses the individual prediction Cc, without residual error.

trough_times <- visit_day * 24 - 0.05
obs_trough <- data.frame(
  drug = rep(c("Tacrolimus", "MPA"), each = 5),
  visit = rep(visit_lab, 2),
  observed = c(8.85, 11.15, 8.92, 9.11, 8.35, 2.37, 2.93, 2.70, 2.90, 2.37) # Table 2
)
sim_trough <- bind_rows(sim_tac, sim_mpa) |>
  filter(time %in% trough_times) |>
  mutate(visit = visit_lab[match(time, trough_times)]) |>
  group_by(drug, visit) |>
  summarise(simulated_mean = mean(Cc), simulated_median = median(Cc), .groups = "drop")
trough_cmp <- obs_trough |>
  left_join(sim_trough, by = c("drug", "visit")) |>
  mutate(pct_diff = 100 * (simulated_mean - observed) / observed)

trough_cmp |>
  dplyr::rename(
    Drug = drug, Visit = visit, `Observed mean (Table 2)` = observed,
    `Simulated mean` = simulated_mean, `Simulated median` = simulated_median,
    `Difference (%)` = pct_diff
  ) |>
  knitr::kable(digits = 2, caption = "Tacrolimus in ng/mL, MPA in mg/L.")
Tacrolimus in ng/mL, MPA in mg/L.
Drug Visit Observed mean (Table 2) Simulated mean Simulated median Difference (%)
Tacrolimus Week 1 8.85 8.83 6.87 -0.23
Tacrolimus Month 1 11.15 7.92 6.42 -28.96
Tacrolimus Month 2 8.92 7.35 6.72 -17.63
Tacrolimus Month 3 9.11 7.56 7.07 -17.03
Tacrolimus Month 6 8.35 7.94 7.25 -4.94
MPA Week 1 2.37 2.62 2.41 10.68
MPA Month 1 2.93 3.10 2.99 5.90
MPA Month 2 2.70 3.09 3.03 14.53
MPA Month 3 2.90 2.87 2.77 -1.00
MPA Month 6 2.37 2.58 2.57 8.70

The models have no time-varying clearance. The paper reports that dose-normalised troughs rose steadily over the 6 months, and Table 2 shows tacrolimus C/D rising from 0.61 at week 1 to 1.63 at month 6. The per-visit comparison is therefore expected to drift by some tens of percent. The gate below is on the centre of the comparison across visits. A mis-transcribed clearance, volume or unit conversion would move every visit together by far more.

chk <- trough_cmp |>
  group_by(drug) |>
  summarise(mean_pct = mean(pct_diff), max_abs_pct = max(abs(pct_diff)))
knitr::kable(chk, digits = 1)
drug mean_pct max_abs_pct
MPA 7.8 14.5
Tacrolimus -13.8 29.0
# Realised centres: tacrolimus -10.9% / -13.8% and MPA +5.8% / +7.8% on a
# 16-thread / 1-2-thread solve (largest single visit 27-29%). Moving each dose
# to the period AFTER its visit instead gives about +9% and +15%, so the
# dose-schedule assumption alone moves the centre by about 20 points. 25%
# admits that plus the cohort noise. A mis-transcribed CL/F, a volume or the
# ng/mL scaling moves every visit by 50% or more and still fails here.
stopifnot(
  all(abs(chk$mean_pct) < 25),
  all(chk$max_abs_pct < 45)
)

Week-1 and month-6 dosing-interval profiles

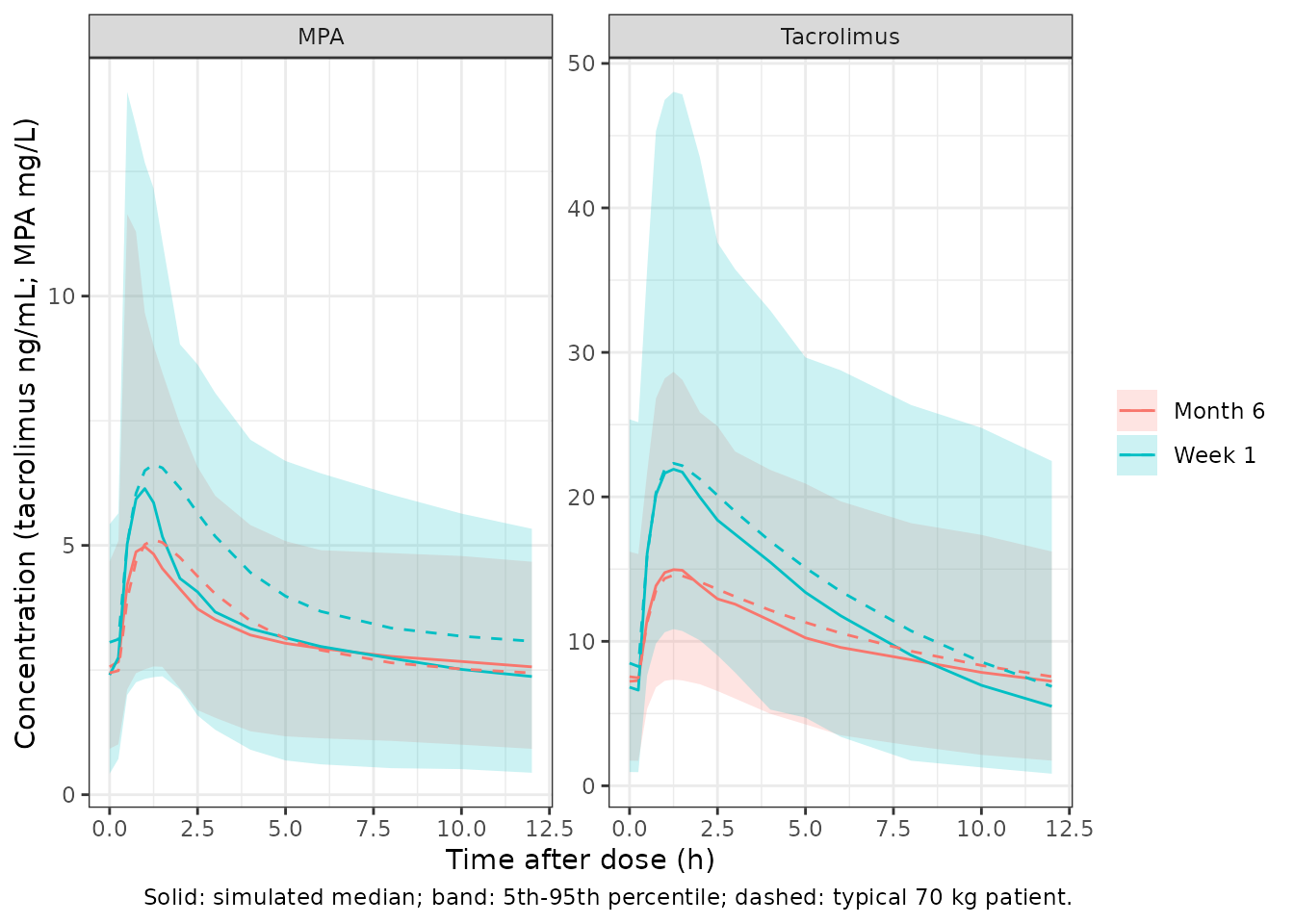

The figure shows the simulated concentrations over one 12-h dosing interval at week 1 and at month 6: the median, the 5th-95th percentile band, and the typical 70 kg patient. The shape (tmax near 1-1.5 h after the lag time) is the one the paper’s prediction-corrected VPCs show (Figures 1 and 2).

prof <- bind_rows(sim_tac, sim_mpa) |>
  mutate(
    visit = case_when(
      time >= visit_day[1] * 24 & time <= visit_day[1] * 24 + 12 ~ "Week 1",
      time >= visit_day[5] * 24 & time <= visit_day[5] * 24 + 12 ~ "Month 6"
    ),
    tad = time - ifelse(visit == "Week 1", visit_day[1], visit_day[5]) * 24
  ) |>
  filter(!is.na(visit)) |>
  group_by(drug, visit, tad) |>
  summarise(
    med = median(Cc), lo = quantile(Cc, 0.05), hi = quantile(Cc, 0.95),
    .groups = "drop"
  )
typ_prof <- bind_rows(
  typ_tac |> mutate(drug = "Tacrolimus"),
  typ_mpa |> mutate(drug = "MPA")
) |>
  mutate(
    visit = case_when(
      time >= visit_day[1] * 24 & time <= visit_day[1] * 24 + 12 ~ "Week 1",
      time >= visit_day[5] * 24 & time <= visit_day[5] * 24 + 12 ~ "Month 6"
    ),
    tad = time - ifelse(visit == "Week 1", visit_day[1], visit_day[5]) * 24
  ) |>
  filter(!is.na(visit))

ggplot(prof, aes(tad, med, colour = visit, fill = visit)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.2, colour = NA) +
  geom_line() +
  geom_line(data = typ_prof, aes(tad, Cc, colour = visit), linetype = "dashed", inherit.aes = FALSE) +
  facet_wrap(~drug, scales = "free_y") +
  labs(
    x = "Time after dose (h)", y = "Concentration (tacrolimus ng/mL; MPA mg/L)",
    colour = NULL, fill = NULL,
    caption = "Solid: simulated median; band: 5th-95th percentile; dashed: typical 70 kg patient."
  ) +
  theme_bw()

NCA of the week-1 and month-6 dosing intervals

The paper reports no NCA. PKNCA is run over the week-1 and month-6 dosing intervals of the simulated cohort, one drug at a time because the concentration units differ. The results summarise the exposures the models imply.

run_nca <- function(sim, events, conc_unit) {
  conc <- sim |>
    filter(!is.na(Cc)) |>
    mutate(treatment = drug) |>
    select(id, time, Cc, treatment)
  dose <- events |>
    filter(evid == 1) |>
    mutate(treatment = drug) |>
    select(id, time, amt, treatment)
  starts <- c(visit_day[1], visit_day[5]) * 24
  # Dose records carry ADDL; add explicit dose rows at the start of each NCA
  # interval so PKNCA sees the dose that opens it.
  dose_int <- dose |>
    group_by(id, treatment) |>
    reframe(time = starts, amt = amt[findInterval(starts, time)])
  intervals <- data.frame(
    start = starts, end = starts + 12,
    cmax = TRUE, tmax = TRUE, cmin = TRUE, auclast = TRUE
  )
  conc_obj <- PKNCA::PKNCAconc(conc, Cc ~ time | treatment + id, concu = conc_unit, timeu = "h")
  dose_obj <- PKNCA::PKNCAdose(dose_int, amt ~ time | treatment + id, doseu = "mg")
  PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
}
nca_tac <- run_nca(sim_tac, events_tac, "ng/mL")
nca_mpa <- run_nca(sim_mpa, events_mpa, "mg/L")
summary(nca_tac)
#>  Interval Start Interval End  treatment   N AUClast (h*ng/mL) Cmax (ng/mL)
#>             168          180 Tacrolimus 200        147 [55.1]  22.4 [45.8]
#>            4320         4332 Tacrolimus 200        118 [50.2]  14.6 [44.5]
#>  Cmin (ng/mL)           Tmax (h)
#>    4.92 [132] 1.25 [0.750, 1.50]
#>   6.42 [80.3] 1.25 [0.750, 1.50]
#>
#> Caption: AUClast, Cmax, Cmin: geometric mean and geometric coefficient of variation; Tmax: median and range; N: number of subjects
summary(nca_mpa)
#>  Interval Start Interval End treatment   N AUClast (h*mg/L) Cmax (mg/L)
#>             168          180       MPA 200      37.4 [56.0] 6.20 [61.2]
#>            4320         4332       MPA 200      36.5 [41.2] 5.38 [50.2]
#>  Cmin (mg/L)           Tmax (h)
#>  2.01 [92.0] 1.25 [0.500, 2.50]
#>  2.29 [54.1] 1.25 [0.500, 2.50]
#>
#> Caption: AUClast, Cmax, Cmin: geometric mean and geometric coefficient of variation; Tmax: median and range; N: number of subjects

As a consistency check, the median MPA AUC over the week-1 dosing interval is compared with the MPA target range of 30-60 mg*h/L that is used for therapeutic drug monitoring. The simulated median should fall near that range, because the doses were adjusted to reach it.

auc_mpa <- as.data.frame(nca_mpa) |>
  filter(PPTESTCD == "auclast", start == visit_day[1] * 24)
med_auc_mpa <- median(auc_mpa$PPORRES)
med_auc_mpa
#> [1] 38.27639
stopifnot(med_auc_mpa > 20, med_auc_mpa < 80)

Acute-rejection logistic regression

The paper’s final logistic model links a single predictor, the urinary-pellet miR155-5p relative expression measured at a visit (MIR155_URINE, 2^-dCq), to the probability of biopsy-proven acute rejection (AR):

logit(P) = -5.89 + 3.51 x MIR155_URINE (Table 5).

Each rejection was attributed to the visit before it occurred, so P is the probability that AR is diagnosed before the next visit. The predicted tacrolimus and MPA exposures (cumulative AUC and mean troughs from the two PK models above) and urinary CXCL-10 were tested and not retained. The model therefore has no drug input, and the PK models are not needed to use it.

Refit of the deposited dataset

The S3 Table dataset holds the analysis data for this model. After the control stream’s IGNORE filters (visits with a missing or zero miR155-5p value are dropped), 183 visit records from 58 patients remain, with 8 AR events, matching the Results text. The miR155-5p values of those 183 records, in dataset order, and the positions of the 8 AR records are reproduced below. An ordinary maximum-likelihood logistic regression on them (glm) is equivalent to the NONMEM Laplacian fit with its only omega fixed at 0, so it should return the Table 5 estimates.

# S3 Table (Quintairos 2021), column M155, after the control stream filters
# IGNORE = (M155.EQ.9999) and IGNORE = (M155.EQ.0).
mir155 <- c(
  0.08, 0.32, 0.63, 0.11, 0.24, 0.36, 0.40, 0.66, 0.01, 0.03, 0.26, 0.03, 0.03, 0.24,
  0.44, 0.21, 0.33, 0.03, 0.03, 0.16, 0.18, 0.22, 0.06, 1.03, 0.22, 0.09, 0.03, 0.02,
  0.04, 0.97, 0.17, 0.05, 0.57, 1.09, 0.07, 0.24, 0.08, 0.04, 0.19, 0.29, 0.94, 0.16,
  0.23, 0.35, 0.19, 0.05, 0.03, 0.01, 0.10, 0.02, 0.01, 0.01, 0.01, 0.06, 0.06, 0.01,
  0.26, 0.03, 0.04, 0.02, 0.07, 0.03, 0.09, 1.13, 0.01, 0.50, 0.07, 0.52, 0.20, 0.20,
  0.23, 0.20, 0.36, 0.03, 0.05, 0.05, 0.52, 0.06, 0.08, 0.04, 0.02, 0.02, 0.01, 0.45,
  0.12, 0.06, 1.54, 0.02, 0.19, 0.08, 1.27, 0.04, 0.04, 0.01, 0.01, 0.19, 0.40, 1.85,
  0.02, 0.22, 1.25, 0.33, 0.96, 0.02, 0.03, 0.03, 0.04, 0.04, 0.85, 1.05, 1.27, 0.01,
  0.03, 0.44, 0.23, 1.24, 0.04, 0.08, 0.12, 0.08, 0.03, 0.01, 1.26, 0.83, 0.02, 0.08,
  0.03, 0.19, 0.13, 0.26, 0.03, 0.07, 0.63, 0.06, 0.07, 0.01, 2.23, 0.40, 0.66, 0.60,
  1.82, 0.05, 0.02, 0.39, 0.21, 0.02, 0.04, 0.01, 0.36, 0.40, 0.24, 0.01, 0.01, 0.05,
  0.01, 0.01, 0.02, 0.03, 0.03, 0.85, 0.01, 0.01, 0.01, 1.04, 1.06, 0.94, 1.63, 0.84,
  0.10, 0.77, 1.22, 1.45, 0.08, 0.06, 0.03, 0.02, 2.80, 1.84, 0.06, 0.15, 0.05, 0.10,
  0.08
)
ar_rows <- c(98, 116, 165, 167, 168, 172, 177, 178)
ar_data <- data.frame(mir155 = mir155, ar = 0L)
ar_data$ar[ar_rows] <- 1L
c(records = nrow(ar_data), events = sum(ar_data$ar))
#> records  events
#>     183       8
stopifnot(nrow(ar_data) == 183, sum(ar_data$ar) == 8)
refit <- glm(ar ~ mir155, family = binomial(), data = ar_data)
refit_tab <- data.frame(
  parameter = c("beta0 (logit_ref)", "beta1 (e_mir155_urine_logit)"),
  table5 = c(-5.89, 3.51),
  table5_rse_pct = c(15, 24),
  refit = unname(coef(refit)),
  refit_rse_pct = unname(100 * sqrt(diag(vcov(refit))) / abs(coef(refit)))
)
knitr::kable(refit_tab, digits = c(0, 2, 0, 3, 1), row.names = FALSE)
parameter table5 table5_rse_pct refit refit_rse_pct
beta0 (logit_ref) -5.89 15 -5.891 18.9
beta1 (e_mir155_urine_logit) 3.51 24 3.506 24.5
# glm is deterministic, so a tight bound holds on every platform: a misread
# coefficient or a wrong data filter moves the refit by far more than 0.01.
stopifnot(all(abs(refit_tab$refit - refit_tab$table5) < 0.01))

The refit reproduces both coefficients to the printed precision, and the slope RSE (24.5% against the printed 24%). The intercept RSE is about 19% against the printed 15%. That difference most likely comes from the two covariance estimators (the glm Wald standard error against the NONMEM covariance step), and it does not affect the point estimates.

Packaged model against the deposited data

The packaged model is solved at the 183 observed miR155-5p values. Its probabilities must equal the closed form expit(-5.89 + 3.51 x MIR155_URINE). A maximum-likelihood logistic fit with an intercept also has the property that its fitted probabilities sum to the observed number of events, so the packaged (rounded) coefficients should predict very nearly 8 events over these visits.

mod_ar <- readModelDb("Quintairos_2021_kidneyTransplantRejection")
ev_ar <- data.frame(
  id = seq_len(nrow(ar_data)), time = 0, amt = 0, evid = 0L,
  MIR155_URINE = ar_data$mir155
)
sim_ar <- as.data.frame(rxode2::rxSolve(mod_ar, events = ev_ar, returnType = "data.frame"))
#> Warning: multi-subject simulation without without 'omega'
ar_data$prob <- sim_ar$prob_acute_rejection
closed_form <- plogis(-5.89 + 3.51 * ar_data$mir155)
expected_events <- sum(ar_data$prob)
expected_events
#> [1] 8.022628
stopifnot(
  # Same parameters on both sides: the difference is numerical only.
  all(abs(ar_data$prob - closed_form) < 1e-8),
  abs(expected_events - 8) < 0.25
)

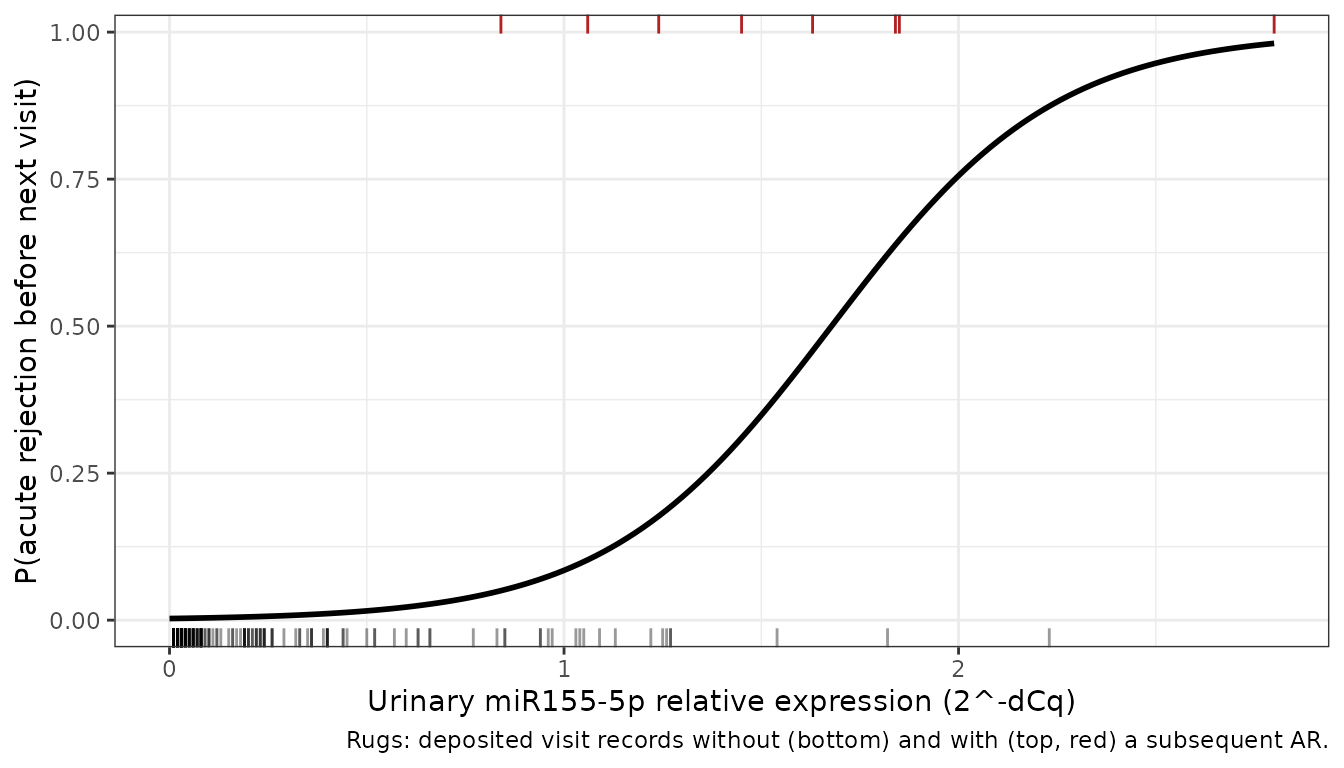

Predicted risk against miR155-5p (Figures 3 and 4)

grid_ar <- data.frame(
  id = 1L, time = seq_len(141), amt = 0, evid = 0L,
  MIR155_URINE = seq(0, 2.8, by = 0.02)
)
curve_ar <- as.data.frame(rxode2::rxSolve(mod_ar, events = grid_ar, returnType = "data.frame"))
curve_ar$MIR155_URINE <- grid_ar$MIR155_URINE
ggplot(curve_ar, aes(MIR155_URINE, prob_acute_rejection)) +
  geom_line(linewidth = 1) +
  geom_rug(data = filter(ar_data, ar == 0), aes(x = mir155), inherit.aes = FALSE,
           sides = "b", alpha = 0.4) +
  geom_rug(data = filter(ar_data, ar == 1), aes(x = mir155), inherit.aes = FALSE,
           sides = "t", colour = "firebrick") +
  labs(
    x = "Urinary miR155-5p relative expression (2^-dCq)",
    y = "P(acute rejection before next visit)",
    caption = "Rugs: deposited visit records without (bottom) and with (top, red) a subsequent AR."
  ) +
  theme_bw()

The probability stays below 1% up to an expression of about 0.37 (75% of the visits), rises to 8.5% at 1.0 and passes 50% at 1.68.

Figure 4 of the paper compares observed and predicted AR proportions across 10 bins of miR155-5p expression. The same comparison is made below with 10 equal-count bins of the deposited records. The predicted column is the mean probability from the packaged model, and the interval is the 2.5th to 97.5th percentile of the number of events in 1000 Bernoulli replicates of each bin.

set.seed(20210122)
reps <- matrix(rbinom(1000 * nrow(ar_data), 1, rep(ar_data$prob, 1000)), nrow = nrow(ar_data))
bins <- ar_data |>
  mutate(bin = dplyr::ntile(mir155, 10), row = dplyr::row_number()) |>
  group_by(bin) |>
  summarise(
    mir155_range = sprintf("%.2f-%.2f", min(mir155), max(mir155)),
    n = n(),
    observed_events = sum(ar),
    predicted_events = sum(prob),
    pi_low = unname(quantile(colSums(reps[row, , drop = FALSE]), 0.025)),
    pi_high = unname(quantile(colSums(reps[row, , drop = FALSE]), 0.975)),
    .groups = "drop"
  )
bins |>
  dplyr::rename(
    "Bin" = bin, "miR155-5p range" = mir155_range, "Visits" = n,
    "Observed AR" = observed_events, "Predicted AR" = predicted_events,
    "95% PI low" = pi_low, "95% PI high" = pi_high
  ) |>
  knitr::kable(digits = 2)
Bin miR155-5p range Visits Observed AR Predicted AR 95% PI low 95% PI high
1 0.01-0.01 19 0 0.05 0 1
2 0.01-0.03 19 0 0.06 0 1
3 0.03-0.04 19 0 0.06 0 1
4 0.04-0.06 18 0 0.06 0 1
5 0.06-0.09 18 0 0.06 0 1
6 0.09-0.19 18 0 0.08 0 1
7 0.20-0.26 18 0 0.11 0 1
8 0.29-0.52 18 0 0.20 0 1
9 0.52-1.04 18 1 0.89 0 3
10 1.05-2.80 18 7 6.45 3 10
# Seven of the eight events fall in the top bin, where the model also places
# most of its predicted events; every bin's observed count lies inside its
# replicate interval.
stopifnot(all(bins$observed_events >= bins$pi_low & bins$observed_events <= bins$pi_high))

Assumptions and deviations

  • Weight scaling on tacrolimus. The S1 Appendix tacrolimus control stream has no weight scaling. The article states that all disposition parameters were scaled a priori with fixed exponents of 0.75 (flows) and 1 (volumes). Table 4 gives the tacrolimus estimates per 70 kg, and the Discussion says the fixed-exponent scaling improved the model predictions. The packaged tacrolimus model therefore includes the scaling. The deposited dataset supports this choice. With every Table 4 value fixed and only the individual random effects estimated (FOCEi, diagonal omega), the objective function was 7.4 points lower with the scaling than without it. The stream’s $THETA records are initial estimates, so it is not the run that produced Table 4.
  • Weight scaling on MPA ka. The MPA control stream multiplies ka by WT/70. The article describes scaling of the disposition parameters only, and Table 4 prints ka in 1/h. The packaged model keeps the executed form. The same fixed-estimate check on the S2 Table dataset favoured ka without weight scaling by 5.7 objective-function points. Both forms give the same ka at 70 kg and differ by a factor of about 0.7 to 1.5 across the 49-108 kg cohort weight range.
  • Omega block off-diagonals. Both control streams estimate a 3 x 3 omega block: tacrolimus CL, Q and Vc; MPA CL, Vc and Vp. The paper reports only the variances, so the covariances are set to zero. Simulated marginal variability matches the paper. Joint behaviour, such as a CL-Vc correlation, does not.
  • Fixed random effects. Both control streams carry $OMEGA 0.01 FIX on the parameters without estimated BSV. Table 4 lists those parameters as “not estimated”. They are kept as fixed(0.01), which is part of the executed model and adds about 10% variability to those parameters.
  • Tacrolimus residual error is additive on the log scale in the control stream and printed as “Proportional 36.6%” in Table 4. It is encoded as log-normal (lnorm) with SD 0.366.
  • MMF dosing is entered as MPA molar equivalents, as in the paper. A user simulating an MMF dose must multiply it by 320.34 / 433.49 = 0.739.
  • Virtual dose schedule. Real doses were individualised by therapeutic drug monitoring. The simulation gives the Table 2 mean dose for each visit over the period leading up to that visit, at the nominal visit days.
  • Logistic model: miR155-5p scale. Table 2 and Figures 3 and 4 label the miR155-5p unit ‘dCt’. The Methods define the reported value as the relative expression 2^-dCq, and the deposited values (all positive, 0.01-2.80) are on that scale, so MIR155_URINE holds 2^-dCq. A user with raw dCq values must convert them with 2^(-dCq) first.
  • Logistic model: random effect and residual error. The control stream carries ETA(1) on the logit with $OMEGA 0 FIX, so the model has no between-subject variability and the zero-variance eta is omitted. A Bernoulli outcome has no residual error. The packaged model returns the probability and attaches a placeholder additive error (SD 0.001, fixed) only so that rxode2 has an observation model. To simulate events, draw rbinom(n, 1, prob_acute_rejection) from the solved probabilities.
  • Logistic model: prediction window. Because each rejection was attributed to the preceding visit, the probability refers to the interval up to the next scheduled visit (about 3 weeks after week 1, 1 month after months 1 and 2, and 3 months after month 3). It is not a probability over a fixed duration. In the deposited dataset seven of the eight events are recorded on the first-occasion (week-1) record, so most of the information behind the slope comes from the first post-transplant month.
