Drug pharmacokinetics in heart failure (Gu 2025)

Source: vignettes/articles/Gu_2025_heart_failure_pbpk.Rmd
Gu_2025_heart_failure_pbpk.Rmd

Model and source

Gu, Shao and Jiang (2025) built one whole-body physiologically based pharmacokinetic (PBPK) model and applied it to eight drugs used in heart failure (HF) and its comorbidities: the cardiac glycoside digoxin, the loop diuretics furosemide, bumetanide and torasemide, the ACE inhibitor captopril, the angiotensin II receptor antagonist valsartan, the calcium channel blocker felodipine, and the benzodiazepine midazolam. The structure is shared; each drug carries its own physicochemical parameter set, so this package ships eight model files – one per drug – that all point at this single vignette.

Gu W, Shao Q, Jiang L (2025). Predicting Pharmacokinetics of Drugs in Patients with Heart Failure and Optimizing Their Dosing Strategies Using a Physiologically Based Pharmacokinetic Model. Pharmaceutics 17(11):1394. doi:10.3390/pharmaceutics17111394

Heart failure enters the model only through organ blood flow. The authors held tissue volumes and intrinsic clearances at their healthy values and rescaled perfusion by NYHA class (Section 2.3), which is why every drug’s model file carries the same three DIS_CHF_NYHA* indicators.

drugs <- c("digoxin", "furosemide", "bumetanide", "torasemide",
           "captopril", "valsartan", "felodipine", "midazolam")
model_names <- paste0("Gu_2025_", drugs, "_pbpk")
mods <- lapply(model_names, function(n) rxode2::rxode(readModelDb(n)))
names(mods) <- drugs

tibble::tibble(
  Drug      = drugs,
  Model     = model_names,
  States    = vapply(mods, function(m) length(m$state), integer(1)),
  Parameters = vapply(mods, function(m) nrow(m$iniDf), integer(1))
) |>
  knitr::kable(caption = "The eight Gu 2025 model files.")
The eight Gu 2025 model files.
Drug Model States Parameters
digoxin Gu_2025_digoxin_pbpk 24 18
furosemide Gu_2025_furosemide_pbpk 24 18
bumetanide Gu_2025_bumetanide_pbpk 24 18
torasemide Gu_2025_torasemide_pbpk 24 18
captopril Gu_2025_captopril_pbpk 24 18
valsartan Gu_2025_valsartan_pbpk 24 18
felodipine Gu_2025_felodipine_pbpk 24 22
midazolam Gu_2025_midazolam_pbpk 24 22

Every model is a 24-state circuit: 10 perfusion-limited tissues (lung, liver, kidney, spleen, heart, brain, muscle, skin, adipose, rest-of-body), arterial and venous blood, a six-segment gastrointestinal lumen and the six matching gut-wall tissues.

mods$digoxin$state
#>  [1] "stomach"       "duodenum"      "jejunum"       "ileum"
#>  [5] "cecum"         "colon"         "wall_stomach"  "wall_duodenum"
#>  [9] "wall_jejunum"  "wall_ileum"    "wall_cecum"    "wall_colon"
#> [13] "heart"         "brain"         "muscle"        "skin"
#> [17] "adipose"       "other"         "spleen"        "kidney"
#> [21] "liver"         "venous"        "lung"          "arterial"

Population

pop <- mods$digoxin$population
tibble::tibble(
  Field = c("Species", "Subjects (digoxin)", "Studies (digoxin)", "Age range",
            "Weight", "Disease state", "Dose range"),
  Value = c(pop$species, as.character(pop$n_subjects), as.character(pop$n_studies),
            pop$age_range, pop$weight_median, pop$disease_state, pop$dose_range)
) |>
  knitr::kable(caption = "Population metadata for the digoxin model (Gu 2025 Supplementary Table S3).")
Population metadata for the digoxin model (Gu 2025 Supplementary Table S3).
Field Value
Species human
Subjects (digoxin) 115
Studies (digoxin) 9
Age range adults (18-90 years across the pooled reports)
Weight 70 kg (the model is parameterised for a 70 kg adult; no weight covariate)
Disease state Pooled healthy volunteers and chronic heart-failure patients (NYHA classes II-IV) from the literature reports tabulated in Gu 2025 Supplementary Table S3.
Dose range 0.1-1 mg single oral (healthy 0.25-1 mg; HF 0.1 and 0.25 mg)

Across all eight drugs the model was validated against 52 literature datasets (Supplementary Table S3): healthy volunteers plus chronic HF patients in NYHA classes II, III and IV. No subject-level data were used – the authors digitised published mean concentration-time profiles and summary exposures.

Source trace

Provenance of every equation and parameter block.
Component Source location
Tissue volumes and blood flows, transit rate constants, intestinal radii Supplementary Table S1
fu,plasma; Rb; Peff,A-B; ka; CLrenal; CLliver; CLGWi,int; fu,g; all 12 Kt:p Supplementary Table S2
General tissue mass balance (Eq S1) Supplementary Materials Eq S1
Venous / lung / arterial blood (Eq S2-S4) Supplementary Materials Eq S2-S4
Hepatic compartment with splanchnic inflows (Eq S5) Supplementary Materials Eq S5
fu,b = fu,p / Rb (Eq S6) Supplementary Materials Eq S6
Well-stirred hepatic clearance (Eq S7), CLli = CLtol - CLK (Eq S8) Supplementary Materials Eq S7-S8
Plasma-to-blood clearance conversion, Hct = 0.43 (Eq S9) Supplementary Materials Eq S9
Kidney compartment (Eq S10) and well-stirred renal clearance (Eq S11) Supplementary Materials Eq S10-S11
Stomach emptying (Eq S12) and intestinal lumen transit (Eq S13) Supplementary Materials Eq S12-S13
Intestinal wall with absorption and gut metabolism (Eq S14) Supplementary Materials Eq S14
ka,i = 2 x Peff,A-B / ri (Eq S15) Supplementary Materials Eq S15
Heart-failure blood flows by NYHA class Table 1 and Section 2.3

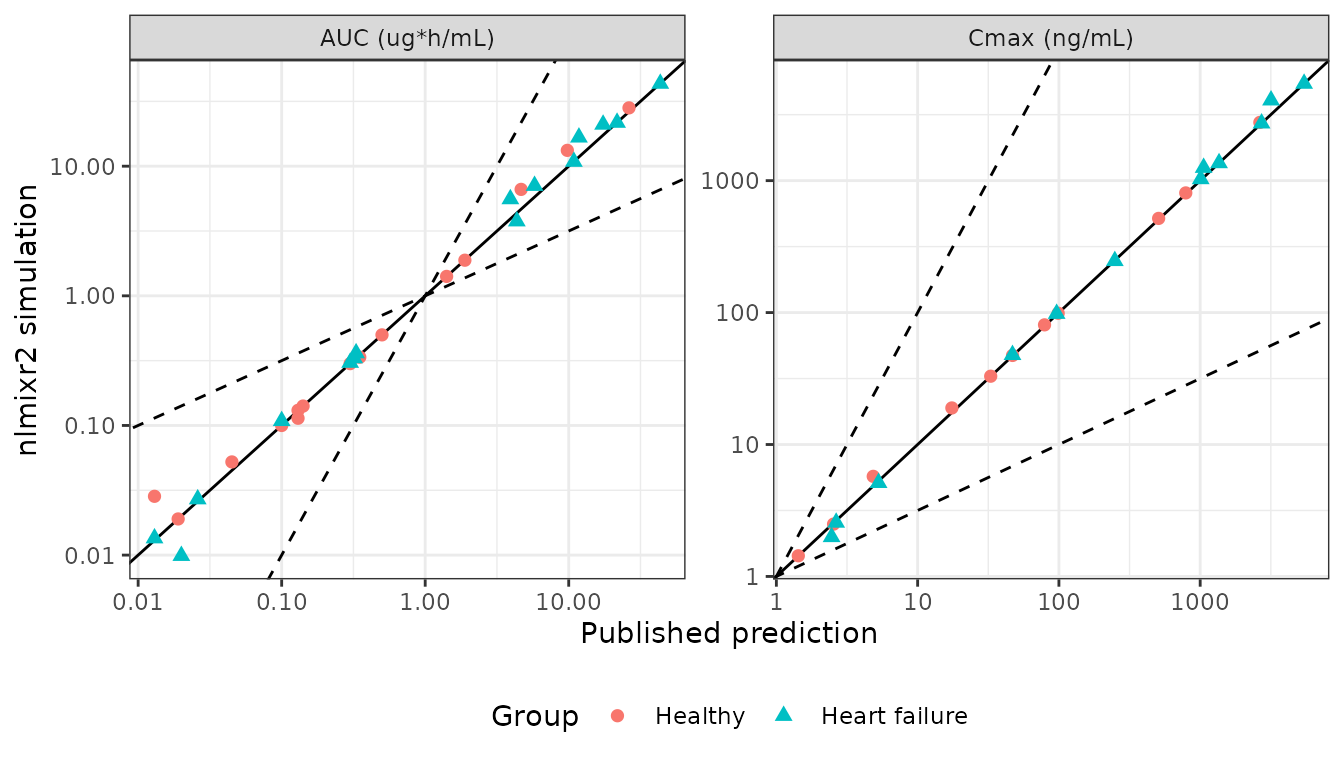

Predicted AUC / Cmax in healthy subjects (validation target) Supplementary Table S4

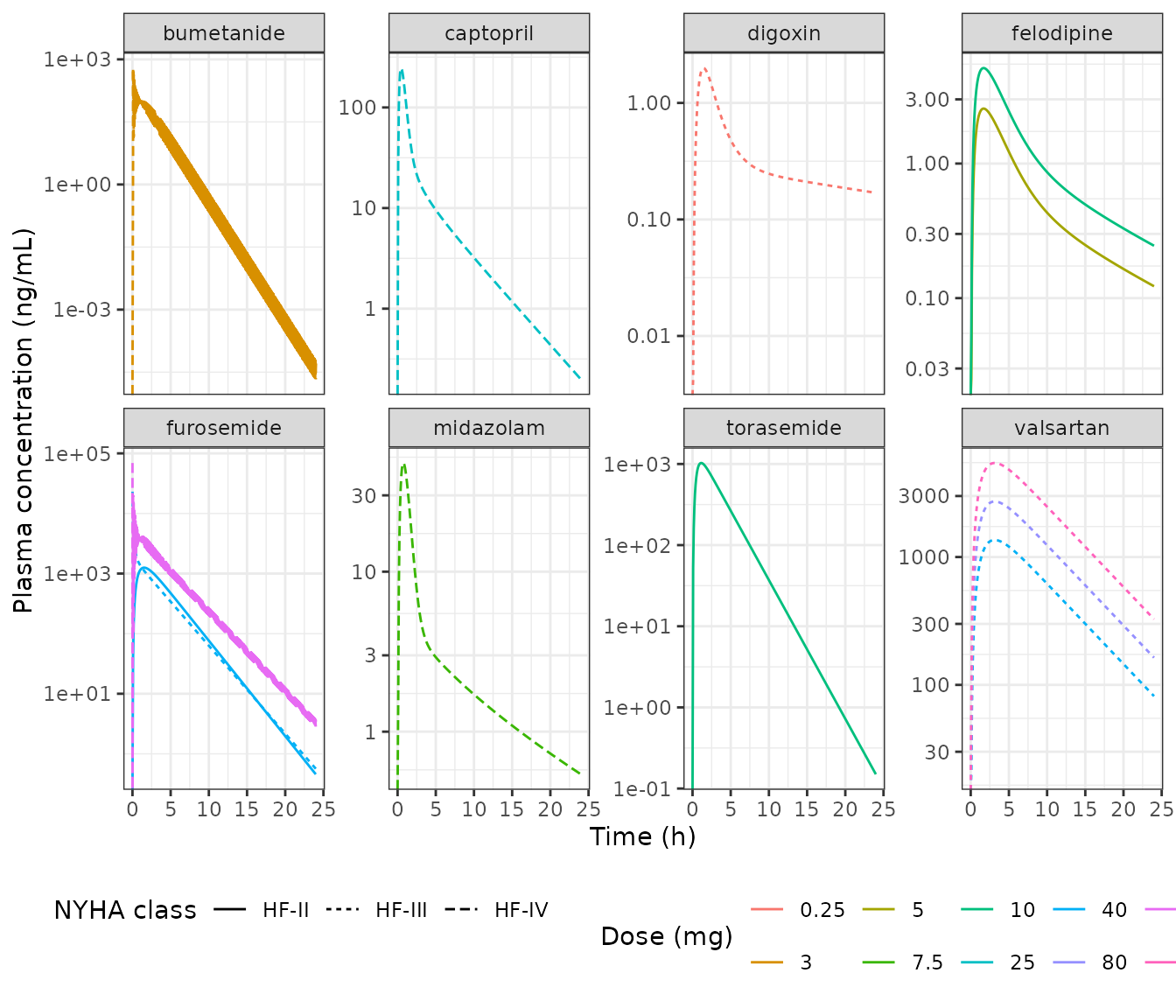

Predicted AUC / Cmax in HF patients (validation target) Table 2

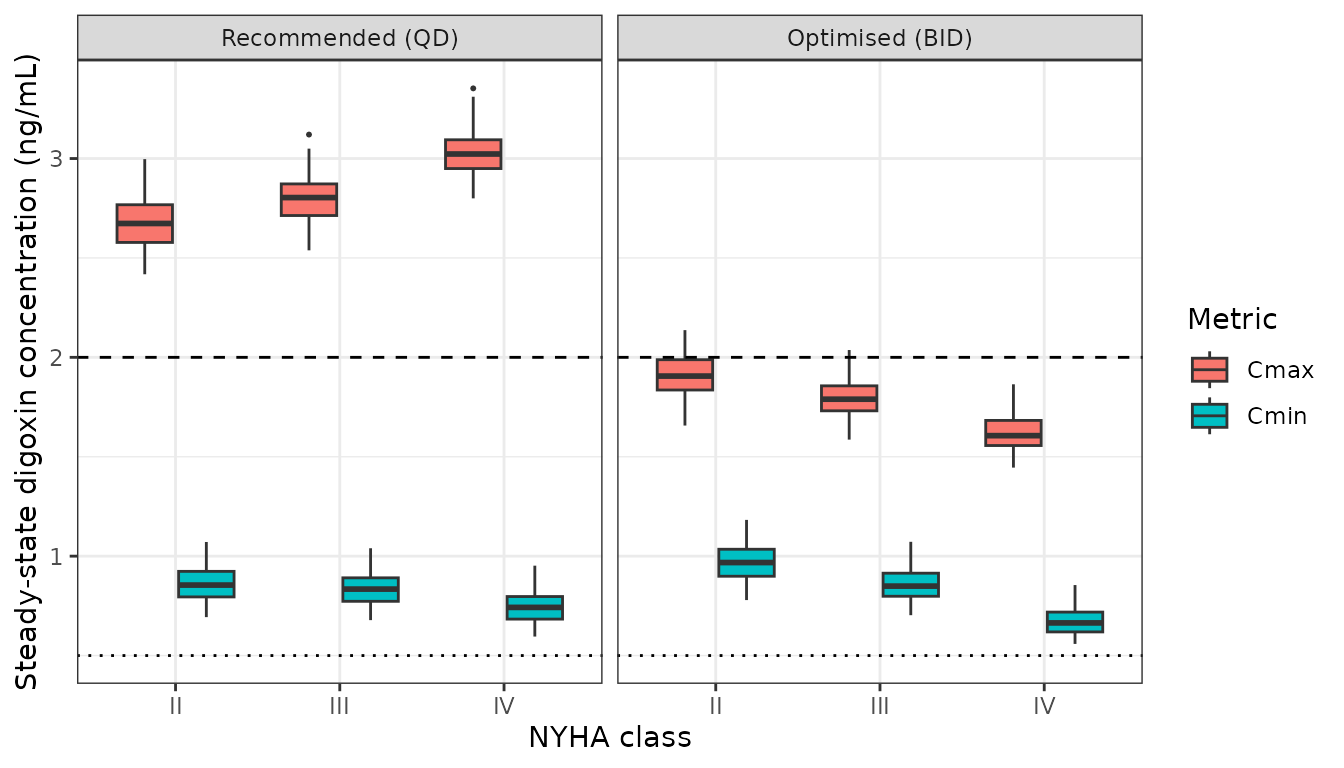

Digoxin toxicity threshold 2.0 ng/mL and therapeutic floor 0.5 ng/mL Section 3.5

Structural gates

Before comparing against any published exposure, three internal identities are checked. Each is an exact arithmetic consequence of the source tables, so a mismatch would mean a transcription error rather than a modelling disagreement.

Tissue volumes sum to 70 kg

The model’s volumes and flows are algebraic assignments in model(), so they can be read back out of the compiled model rather than re-typed here – which makes the checks below audit the shipped model files rather than a copy of them.

# rxode2 constant-folds assignments that do not depend on a covariate, so the
# purely numeric ones (all volumes; the heart, brain and rest-of-body flows) are
# not returned as solve columns. Read those straight out of the compiled model's
# expression list and merge them with the covariate-dependent solve columns.
model_constants <- function(mod) {
  out <- vapply(mod$lstExpr, function(e) {
    if (length(e) == 3L && identical(as.character(e[[1]]), "<-") &&
        is.name(e[[2]]) && is.numeric(e[[3]])) as.numeric(e[[3]]) else NA_real_
  }, numeric(1))
  nms <- vapply(mod$lstExpr, function(e) {
    if (length(e) == 3L && identical(as.character(e[[1]]), "<-") &&
        is.name(e[[2]]) && is.numeric(e[[3]])) as.character(e[[2]]) else NA_character_
  }, character(1))
  stats::setNames(out[!is.na(nms)], nms[!is.na(nms)])
}

read_physiology <- function(mod, nyha = c(0, 0, 0)) {
  ev <- rxode2::et(amt = 0, cmt = "venous") |> rxode2::et(0)
  solved <- rxode2::rxSolve(
    mod, ev,
    params = c(DIS_CHF_NYHA2 = nyha[1], DIS_CHF_NYHA3 = nyha[2], DIS_CHF_NYHA4 = nyha[3]),
    returnType = "data.frame", useLinCmt = FALSE
  )[1, , drop = FALSE]
  c(model_constants(mod), unlist(solved))
}

phys <- read_physiology(mods$digoxin)
vol_cols <- grep("^v_", names(phys), value = TRUE)
length(vol_cols)
#> [1] 18
total_volume_L <- sum(phys[vol_cols])
total_volume_L
#> [1] 70
stopifnot(length(vol_cols) == 18L, isTRUE(all.equal(total_volume_L, 70)))

The 18 tissue volumes of Supplementary Table S1 sum to exactly 70 L, confirming the whole 70 kg body is accounted for and that no compartment was dropped.

Cardiac output equals the sum of the arterial outflows

arterial_outflows <- c("q_liver", "q_kidney", "q_muscle", "q_skin", "q_adipose",
                       "q_heart", "q_brain", "q_other")
c(q_total = unname(phys[["q_total"]]),
  sum_of_outflows = sum(phys[arterial_outflows]),
  published_L_per_min = 5.6)
#>             q_total     sum_of_outflows published_L_per_min
#>                 5.6                 5.6                 5.6
stopifnot(isTRUE(all.equal(unname(phys[["q_total"]]), 5.6)),
          isTRUE(all.equal(sum(phys[arterial_outflows]), 5.6)))

fu,b = fu,p / Rb (Eq S6) across all eight drugs

fub_check <- lapply(drugs, function(d) {
  p <- read_physiology(mods[[d]])
  th <- mods[[d]]$theta
  tibble::tibble(Drug = d, fu_p = unname(th[["fu_p"]]), Rb = unname(th[["bpr"]]),
                 fu_b_model = unname(p[["fu_b"]]),
                 fu_b_expected = unname(th[["fu_p"]] / th[["bpr"]]))
}) |> bind_rows()
stopifnot(isTRUE(all.equal(fub_check$fu_b_model, fub_check$fu_b_expected)))
knitr::kable(fub_check, digits = 5, caption = "Eq S6 holds for every drug.")
Eq S6 holds for every drug.
Drug fu_p Rb fu_b_model fu_b_expected
digoxin 0.7100 1.00 0.71000 0.71000
furosemide 0.0300 0.50 0.06000 0.06000
bumetanide 0.0300 0.55 0.05455 0.05455
torasemide 0.0100 1.00 0.01000 0.01000
captopril 0.7300 1.00 0.73000 0.73000
valsartan 0.0500 1.00 0.05000 0.05000
felodipine 0.0048 0.70 0.00686 0.00686
midazolam 0.0310 0.55 0.05636 0.05636

Replicating Table 1: heart-failure blood flows

Gu 2025 Table 1 tabulates organ blood flows for NYHA classes II, III and IV. The model file does not store those 48 numbers; it stores the healthy Table S1 flows and the three multipliers of Section 2.3 (splanchnic 0.76 / 0.54 / 0.46, renal 0.78 / 0.55 / 0.63, and skin, adipose and muscle 0.57 / 0.44 / 0.28). Reproducing Table 1 from those multipliers is therefore a genuine check that the heart-failure layer was transcribed correctly.

nyha_codes <- list(`II` = c(1, 0, 0), `III` = c(0, 1, 0), `IV` = c(0, 0, 1))

flow_row <- function(nyha) {
  p <- read_physiology(mods$digoxin, nyha)
  keys <- c(Lung = "q_total", Muscle = "q_muscle", Adipose = "q_adipose",
            Skin = "q_skin", Kidney = "q_kidney", Liver = "q_hepatic_artery",
            Spleen = "q_spleen", Stomach = "q_stomach", Duodenum = "q_duodenum",
            Jejunum = "q_jejunum", Ileum = "q_ileum", Cecum = "q_cecum",
            Colon = "q_colon", Heart = "q_heart", Brain = "q_brain", ROB = "q_other")
  stats::setNames(unname(p[keys]) * 1000, names(keys))
}

simulated_t1 <- vapply(nyha_codes, flow_row, numeric(16))

# Gu 2025 Table 1 as published (mL/min). "Liver" is the hepatic ARTERY row:
# Table 1's Liver + Spleen + Stomach + the five intestinal rows reproduce the
# total hepatic inflow of Eq S5.
published_t1 <- cbind(
  `II`  = c(4399.58, 427.5, 148.2, 171, 967.2, 228, 60.8, 28.88, 89.68, 313.88,
            185.44, 33.44, 213.56, 240, 700, 592),
  `III` = c(3610.12, 330, 114.4, 132, 682, 162, 43.2, 20.52, 63.72, 223.02,
            131.76, 23.76, 151.74, 240, 700, 592),
  `IV`  = c(3378.28, 210, 72.8, 84, 781.2, 138, 36.8, 17.48, 54.28, 189.98,
            112.24, 20.24, 129.26, 240, 700, 592)
)
rownames(published_t1) <- rownames(simulated_t1)

max_abs_diff <- max(abs(simulated_t1 - published_t1))
max_abs_diff
#> [1] 9.094947e-13
stopifnot(max_abs_diff < 1e-6)

tibble::as_tibble(simulated_t1, rownames = "Tissue") |>
  rename("II Grade" = `II`, "III Grade" = `III`, "IV Grade" = `IV`) |>
  knitr::kable(digits = 2,
               caption = "Table 1 of Gu 2025 (mL/min), regenerated from the healthy Table S1 flows and the Section 2.3 multipliers. Every one of the 48 entries matches the published value exactly.")
Table 1 of Gu 2025 (mL/min), regenerated from the healthy Table S1 flows and the Section 2.3 multipliers. Every one of the 48 entries matches the published value exactly.
Tissue II Grade III Grade IV Grade
Lung 4399.58 3610.12 3378.28
Muscle 427.50 330.00 210.00
Adipose 148.20 114.40 72.80
Skin 171.00 132.00 84.00
Kidney 967.20 682.00 781.20
Liver 228.00 162.00 138.00
Spleen 60.80 43.20 36.80
Stomach 28.88 20.52 17.48
Duodenum 89.68 63.72 54.28
Jejunum 313.88 223.02 189.98
Ileum 185.44 131.76 112.24
Cecum 33.44 23.76 20.24
Colon 213.56 151.74 129.26
Heart 240.00 240.00 240.00
Brain 700.00 700.00 700.00
ROB 592.00 592.00 592.00

Virtual subjects and simulation

The model is deterministic. Gu 2025 did not estimate between-subject variability: their 5th-95th percentile bands come from drawing five drug parameters uniformly over 80-120% of their point values (Section 2.3), which is a parameter-uncertainty sweep, not an IIV model. Typical-value profiles are therefore the right object to compare against the published predicted AUC and Cmax, and that sweep is reproduced separately in the dose-optimisation section below.

solve_scenario <- function(drug, dose_mg, route, nyha = c(0, 0, 0),
                           tend_h = 240, n_pts = 400, dur_min = 0) {
  cmt <- if (route == "po") "stomach" else "venous"
  ev <- if (dur_min > 0) {
    rxode2::et(amt = dose_mg, cmt = cmt, dur = dur_min)
  } else {
    rxode2::et(amt = dose_mg, cmt = cmt)
  }
  # Dense early so Cmax and Tmax are resolved, sparse late so the long digoxin
  # tail stays affordable.
  times <- unique(c(seq(0, min(24, tend_h) * 60, length.out = n_pts * 0.75),
                    seq(0, tend_h * 60, length.out = n_pts * 0.25)))
  ev <- ev |> rxode2::et(sort(times))
  rxode2::rxSolve(
    mods[[drug]], ev,
    params = c(DIS_CHF_NYHA2 = nyha[1], DIS_CHF_NYHA3 = nyha[2], DIS_CHF_NYHA4 = nyha[3]),
    returnType = "data.frame", useLinCmt = FALSE, atol = 1e-10, rtol = 1e-8
  ) |>
    transmute(time_h = time / 60, Cc = Cc, conc_ng_mL = Cc * 1000)
}

Each drug gets an observation window long enough for the terminal phase to decay. Digoxin’s enormous adipose and muscle partitioning (Kadipose:plasma = 142) gives it a far longer tail than the other seven.

Each window is roughly 10-20 terminal half-lives: long enough that the extrapolation to infinity is negligible, short enough that the tail has not decayed into solver noise. Carrying a fast drug like bumetanide out to 240 h (160 half-lives) drives the predicted concentration below the absolute solver tolerance, where it can go very slightly negative and PKNCA returns NaN for the log-trapezoidal AUC.

windows <- c(digoxin = 2000, furosemide = 48, bumetanide = 24, torasemide = 48,
             captopril = 24, valsartan = 72, felodipine = 72, midazolam = 48)

scenarios <- tibble::tribble(
  ~drug,        ~dose, ~route, ~dur, ~nyha, ~auc_pub, ~cmax_pub, ~cohort, ~window,

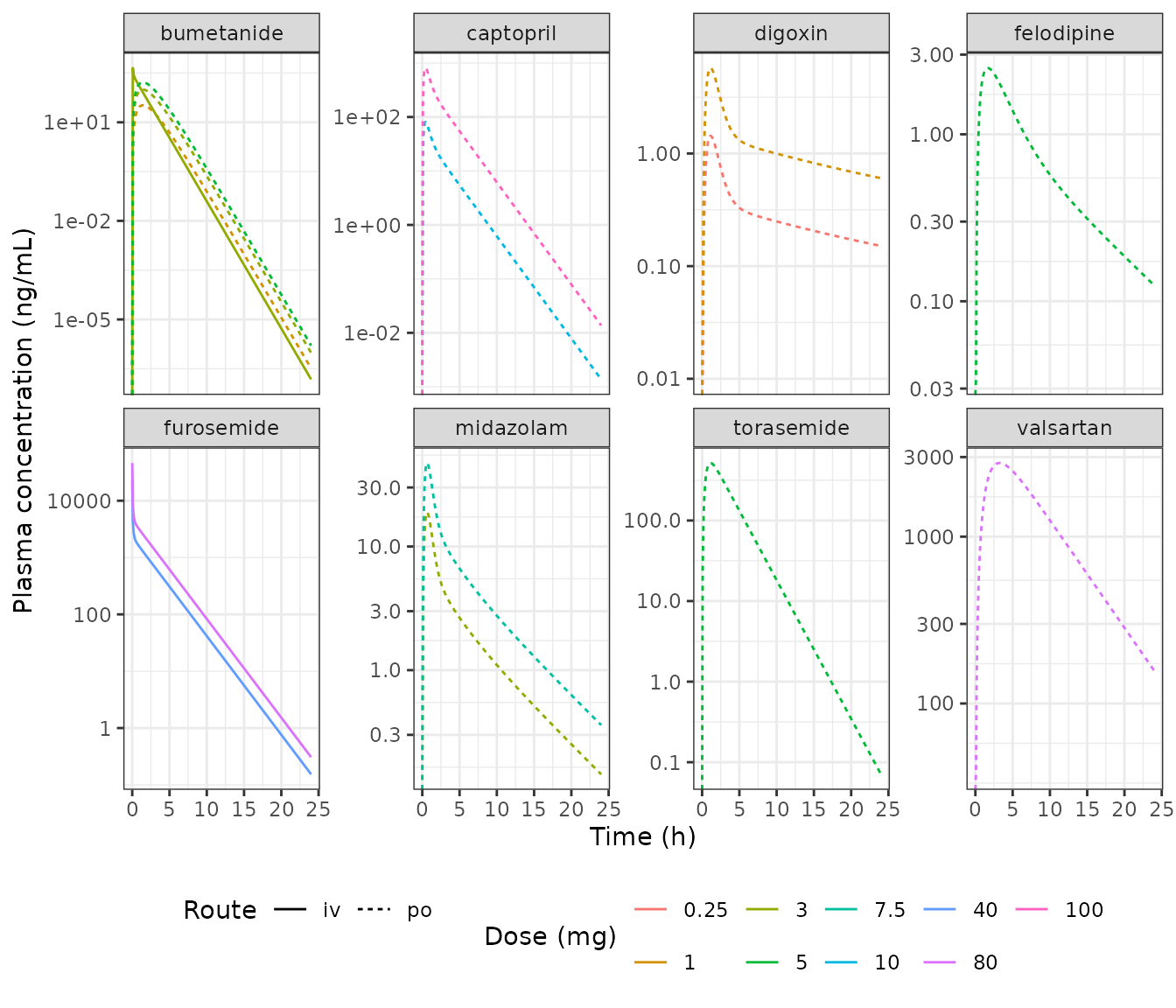

  # ---- healthy subjects: Gu 2025 Supplementary Table S4, AUC0-inf rows ----
  "digoxin",     0.25, "po",  0, "healthy", 0.013,   1.43,     "Healthy", "AUC0-inf",
  "digoxin",     1,    "po",  0, "healthy", 0.13,    4.85,     "Healthy", "AUC0-inf",
  "furosemide",  40,   "iv",  0, "healthy", 4.66,    NA,       "Healthy", "AUC0-inf",
  "furosemide",  80,   "iv",  0, "healthy", 9.78,    NA,       "Healthy", "AUC0-inf",
  "bumetanide",  1,    "po",  0, "healthy", 0.10,    32.9,     "Healthy", "AUC0-inf",
  "bumetanide",  3,    "po",  0, "healthy", 0.30,    98.8,     "Healthy", "AUC0-inf",
  "bumetanide",  5,    "po",  0, "healthy", 0.50,    NA,       "Healthy", "AUC0-inf",
  "bumetanide",  3,    "iv",  3, "healthy", 0.35,    NA,       "Healthy", "AUC0-inf",
  "torasemide",  5,    "po",  0, "healthy", 1.89,    508,      "Healthy", "AUC0-inf",
  "captopril",   10,   "po",  0, "healthy", 0.141,   79.10,    "Healthy", "AUC0-inf",
  "captopril",   100,  "po",  0, "healthy", 1.41,    790.60,   "Healthy", "AUC0-inf",
  "valsartan",   80,   "po",  0, "healthy", 26.30,   2644.78,  "Healthy", "AUC0-inf",
  "felodipine",  5,    "po",  0, "healthy", 0.019,   2.54,     "Healthy", "AUC0-inf",
  "midazolam",   3,    "po",  0, "healthy", 0.045,   17.47,    "Healthy", "AUC0-inf",
  "midazolam",   7.5,  "po",  0, "healthy", 0.13,    46.96,    "Healthy", "AUC0-inf",
  # ---- heart-failure patients: Gu 2025 Table 2 ----
  "digoxin",     0.25, "po",  0, "III",     0.020,   2.46,     "HF-III",  "AUC0-24",
  "furosemide",  40,   "iv",  0, "III",     5.78,    NA,       "HF-III",  "AUC0-inf",
  "furosemide",  120,  "iv",  0, "IV",      17.36,   NA,       "HF-IV",   "AUC0-inf",
  "furosemide",  40,   "po",  0, "II",      3.92,    1057.70,  "HF-II",   "AUC0-inf",
  "furosemide",  120,  "po",  0, "IV",      11.78,   3173.23,  "HF-IV",   "AUC0-inf",
  "bumetanide",  3,    "po",  0, "IV",      0.30,    96.36,    "HF-IV",   "AUC0-inf",
  "bumetanide",  3,    "iv",  3, "IV",      0.33,    NA,       "HF-IV",   "AUC0-inf",
  "torasemide",  10,   "po",  0, "II",      4.35,    1008.50,  "HF-II",   "AUC0-24",
  "captopril",   25,   "po",  0, "IV",      0.32,    248.68,   "HF-IV",   "AUC0-inf",
  "valsartan",   40,   "po",  0, "III",     10.86,   1359.91,  "HF-III",  "AUC0-12",
  "valsartan",   80,   "po",  0, "III",     21.72,   2719.87,  "HF-III",  "AUC0-12",
  "valsartan",   160,  "po",  0, "III",     43.45,   5439.70,  "HF-III",  "AUC0-12",
  "felodipine",  5,    "po",  0, "II",      0.013,   2.65,     "HF-II",   "AUC0-12",
  "felodipine",  10,   "po",  0, "II",      0.026,   5.29,     "HF-II",   "AUC0-12",
  "midazolam",   7.5,  "po",  0, "IV",      0.10,    46.92,    "HF-IV",   "AUC0-inf"
) |>
  mutate(
    id = row_number(),
    treatment = sprintf("%s %g mg %s (%s)", drug, dose, toupper(route), cohort)
  )

nyha_vec <- function(x) switch(x, healthy = c(0, 0, 0), `II` = c(1, 0, 0),
                               `III` = c(0, 1, 0), `IV` = c(0, 0, 1))

sims <- lapply(seq_len(nrow(scenarios)), function(i) {
  s <- scenarios[i, ]
  solve_scenario(s$drug, s$dose, s$route, nyha_vec(s$nyha),
                 tend_h = windows[[s$drug]], dur_min = s$dur) |>
    mutate(id = s$id)
}) |>
  bind_rows() |>
  left_join(select(scenarios, id, drug, dose, route, cohort, treatment), by = "id")

nrow(sims)
#> [1] 11954

# No profile may dip below zero: a negative tail means the window has run past
# the solver's absolute tolerance and every downstream AUC would be unreliable.
stopifnot(all(sims$Cc >= 0))
min(sims$Cc)
#> [1] 0

Replicating the published concentration-time profiles

Figures 3 and 4 of Gu 2025 show the predicted median profile for every drug in healthy subjects and in HF patients respectively. The typical-value profiles below are the solid lines of those figures.

sims |>
  filter(cohort == "Healthy", time_h <= 24) |>
  ggplot(aes(time_h, conc_ng_mL, colour = factor(dose), linetype = route)) +
  geom_line() +
  facet_wrap(~drug, scales = "free_y", ncol = 4) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Plasma concentration (ng/mL)",
       colour = "Dose (mg)", linetype = "Route") +
  theme_bw() + theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
Replicates the solid (50th percentile) lines of Figure 3 of Gu 2025: predicted plasma concentrations in healthy subjects.

Replicates the solid (50th percentile) lines of Figure 3 of Gu 2025: predicted plasma concentrations in healthy subjects.

sims |>
  filter(cohort != "Healthy", time_h <= 24) |>
  ggplot(aes(time_h, conc_ng_mL, colour = factor(dose), linetype = cohort)) +
  geom_line() +
  facet_wrap(~drug, scales = "free_y", ncol = 4) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Plasma concentration (ng/mL)",
       colour = "Dose (mg)", linetype = "NYHA class") +
  theme_bw() + theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
Replicates the solid (50th percentile) lines of Figure 4 of Gu 2025: predicted plasma concentrations in HF patients.

Replicates the solid (50th percentile) lines of Figure 4 of Gu 2025: predicted plasma concentrations in HF patients.

PKNCA validation

Non-compartmental analysis of the simulated profiles is run through PKNCA rather than an inline trapezoidal rule, with the treatment arm as the grouping level so each scenario can be compared against its own published row.

conc_data <- sims |>
  filter(!is.na(Cc)) |>
  select(id, treatment, time = time_h, conc = Cc)

dose_data <- scenarios |>
  transmute(id, treatment, time = 0, dose = dose)

# PKNCAconc() accepts a nested (slash) grouping formula but PKNCAdose() rejects
# one, so both use the additive form with the treatment level listed first.
o_conc <- PKNCA::PKNCAconc(conc_data, conc ~ time | treatment + id,
                           concu = "ug/mL", timeu = "h")
o_dose <- PKNCA::PKNCAdose(dose_data, dose ~ time | treatment + id, doseu = "mg")

intervals <- scenarios |>
  transmute(
    id, treatment, start = 0,
    end = case_when(window == "AUC0-12" ~ 12, window == "AUC0-24" ~ 24,
                    TRUE ~ Inf),
    cmax = TRUE, tmax = TRUE, auclast = TRUE, aucinf.obs = TRUE, half.life = TRUE
  ) |>
  mutate(aucint.last = FALSE)

nca <- PKNCA::pk.nca(PKNCA::PKNCAdata(o_conc, o_dose, intervals = as.data.frame(intervals)))
nca_res <- as.data.frame(nca)
head(nca_res, 8)
#> # A tibble: 8 × 8
#>   treatment                    id start   end PPTESTCD  PPORRES exclude PPORRESU
#>   <chr>                     <int> <dbl> <dbl> <chr>       <dbl> <chr>   <chr>
#> 1 digoxin 0.25 mg PO (Heal…     1     0   Inf auclast  2.84 e-2 <NA>    h*ug/mL
#> 2 digoxin 0.25 mg PO (Heal…     1     0   Inf cmax     1.43 e-3 <NA>    ug/mL
#> 3 digoxin 0.25 mg PO (Heal…     1     0   Inf tmax     1.12 e+0 <NA>    h
#> 4 digoxin 0.25 mg PO (Heal…     1     0   Inf tlast    2    e+3 <NA>    h
#> 5 digoxin 0.25 mg PO (Heal…     1     0   Inf clast.o… 7.67 e-8 <NA>    ug/mL
#> 6 digoxin 0.25 mg PO (Heal…     1     0   Inf lambda.z 3.41 e-3 <NA>    1/h
#> 7 digoxin 0.25 mg PO (Heal…     1     0   Inf r.squar… 1.000e+0 <NA>    unitless
#> 8 digoxin 0.25 mg PO (Heal…     1     0   Inf adj.r.s… 1.000e+0 <NA>    unitless
nca_wide <- nca_res |>
  filter(PPTESTCD %in% c("cmax", "tmax", "aucinf.obs", "auclast", "half.life")) |>
  select(id, PPTESTCD, PPORRES) |>
  distinct(id, PPTESTCD, .keep_all = TRUE) |>
  pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

comparison <- scenarios |>
  left_join(nca_wide, by = "id") |>
  mutate(
    # For a finite published window the matching simulated quantity is AUClast
    # over that window; for an AUC0-inf row it is aucinf.obs.
    auc_sim  = if_else(window == "AUC0-inf", aucinf.obs, auclast),
    cmax_sim = cmax * 1000,
    auc_ratio  = auc_sim / auc_pub,
    cmax_ratio = cmax_sim / cmax_pub
  )

Comparison against the published predictions

Gu 2025 report their own model’s predicted AUC and Cmax in Supplementary Table S4 (healthy) and Table 2 (HF). Those are the correct comparison target here: this vignette is testing whether the nlmixr2 transcription reproduces the authors’ Phoenix WinNonlin model, not whether the model fits the clinic.

comparison |>
  transmute(
    Drug = drug,
    Regimen = sprintf("%g mg %s", dose, toupper(route)),
    Cohort = cohort,
    Window = window,
    `AUC published` = signif(auc_pub, 3),
    `AUC simulated` = signif(auc_sim, 3),
    `AUC ratio` = sprintf("%.2f%s", auc_ratio, if_else(abs(log(auc_ratio)) > log(1.25), " *", "")),
    `Cmax published` = signif(cmax_pub, 3),
    `Cmax simulated` = signif(cmax_sim, 3),
    `Cmax ratio` = if_else(is.na(cmax_ratio), NA_character_,
                           sprintf("%.2f%s", cmax_ratio,
                                   if_else(!is.na(cmax_ratio) & abs(log(cmax_ratio)) > log(1.25), " *", "")))
  ) |>
  knitr::kable(
    caption = "Simulated versus published predictions. AUC in ug*h/mL, Cmax in ng/mL. A star marks rows differing by more than 25%."
  )
Simulated versus published predictions. AUC in ug*h/mL, Cmax in ng/mL. A star marks rows differing by more than 25%.
Drug Regimen Cohort Window AUC published AUC simulated AUC ratio Cmax published Cmax simulated Cmax ratio
digoxin 0.25 mg PO Healthy AUC0-inf 0.013 0.02840 2.19 * 1.43 1.43 1.00
digoxin 1 mg PO Healthy AUC0-inf 0.130 0.11400 0.87 4.85 5.74 1.18
furosemide 40 mg IV Healthy AUC0-inf 4.660 6.62000 1.42 * NA 23100.00 NA
furosemide 80 mg IV Healthy AUC0-inf 9.780 13.20000 1.35 * NA 46100.00 NA
bumetanide 1 mg PO Healthy AUC0-inf 0.100 0.10000 1.00 32.90 32.90 1.00
bumetanide 3 mg PO Healthy AUC0-inf 0.300 0.30000 1.00 98.80 98.80 1.00
bumetanide 5 mg PO Healthy AUC0-inf 0.500 0.50000 1.00 NA 165.00 NA
bumetanide 3 mg IV Healthy AUC0-inf 0.350 0.33600 0.96 NA 447.00 NA
torasemide 5 mg PO Healthy AUC0-inf 1.890 1.88000 1.00 508.00 517.00 1.02
captopril 10 mg PO Healthy AUC0-inf 0.141 0.14100 1.00 79.10 80.70 1.02
captopril 100 mg PO Healthy AUC0-inf 1.410 1.41000 1.00 791.00 807.00 1.02
valsartan 80 mg PO Healthy AUC0-inf 26.300 28.20000 1.07 2640.00 2760.00 1.04
felodipine 5 mg PO Healthy AUC0-inf 0.019 0.01900 1.00 2.54 2.49 0.98
midazolam 3 mg PO Healthy AUC0-inf 0.045 0.05230 1.16 17.50 18.90 1.08
midazolam 7.5 mg PO Healthy AUC0-inf 0.130 0.13100 1.01 47.00 47.30 1.01
digoxin 0.25 mg PO HF-III AUC0-24 0.020 0.00988 0.49 * 2.46 1.99 0.81
furosemide 40 mg IV HF-III AUC0-inf 5.780 7.07000 1.22 NA 23100.00 NA
furosemide 120 mg IV HF-IV AUC0-inf 17.400 21.00000 1.21 NA 69200.00 NA
furosemide 40 mg PO HF-II AUC0-inf 3.920 5.57000 1.42 * 1060.00 1250.00 1.18
furosemide 120 mg PO HF-IV AUC0-inf 11.800 16.70000 1.42 * 3170.00 4060.00 1.28 *
bumetanide 3 mg PO HF-IV AUC0-inf 0.300 0.30500 1.02 96.40 98.00 1.02
bumetanide 3 mg IV HF-IV AUC0-inf 0.330 0.36100 1.09 NA 618.00 NA
torasemide 10 mg PO HF-II AUC0-24 4.350 3.76000 0.86 1010.00 1030.00 1.02
captopril 25 mg PO HF-IV AUC0-inf 0.320 0.33100 1.03 249.00 246.00 0.99
valsartan 40 mg PO HF-III AUC0-12 10.900 10.80000 1.00 1360.00 1360.00 1.00
valsartan 80 mg PO HF-III AUC0-12 21.700 21.70000 1.00 2720.00 2720.00 1.00
valsartan 160 mg PO HF-III AUC0-12 43.400 43.40000 1.00 5440.00 5440.00 1.00
felodipine 5 mg PO HF-II AUC0-12 0.013 0.01350 1.04 2.65 2.56 0.97
felodipine 10 mg PO HF-II AUC0-12 0.026 0.02700 1.04 5.29 5.12 0.97
midazolam 7.5 mg PO HF-IV AUC0-inf 0.100 0.10800 1.08 46.90 47.80 1.02

One published row has to be set aside before any summary statistic is computed, and the reason is internal to the paper rather than a judgement call. Gu 2025 report digoxin AUC0-inf as 0.013 ugh/mL at 0.25 mg and 0.13 ugh/mL at 1 mg. The model is linear, so a four-fold dose cannot produce a ten-fold AUC: at most one of those two entries can be a true AUC0-inf.

tibble::tibble(
  Dose_mg = c(0.25, 1),
  `Published AUC0-inf` = c(0.013, 0.13),
  `Published AUC per mg` = c(0.013, 0.13) / c(0.25, 1),
  `Simulated AUC per mg` = comparison$auc_sim[comparison$drug == "digoxin" &
                                                comparison$cohort == "Healthy"] / c(0.25, 1)
) |>
  knitr::kable(digits = 4,
               caption = "The two published digoxin AUC0-inf entries differ 2.5-fold per mg; the simulation is exactly dose proportional, as a linear model must be.")
The two published digoxin AUC0-inf entries differ 2.5-fold per mg; the simulation is exactly dose proportional, as a linear model must be.
Dose_mg Published AUC0-inf Published AUC per mg Simulated AUC per mg
0.25 0.013 0.052 0.1137
1.00 0.130 0.130 0.1137

Digoxin’s AUC is therefore excluded from the scored comparison altogether – not just the one non-proportional row. Two independent facts make any published digoxin AUC unusable as a target: the two healthy entries contradict each other by 2.5-fold per mg, and the Table S2 partition coefficients give digoxin a terminal half-life above 200 h, so the value of a 24 h or even a nominally infinite AUC is dominated by how the authors truncated and extrapolated their sampling grid, which is not reported. Digoxin Cmax carries no such dependence and is retained in the scored set, where it reproduces the published prediction to 0.3%.

digoxin_auc <- comparison$drug == "digoxin"
scored <- comparison[!digoxin_auc, ]
# Cmax is scored for every drug, digoxin included.
cmax_rows <- filter(comparison, !is.na(cmax_ratio))
auc_inf_rows <- filter(scored, window == "AUC0-inf")

summary_stats <- tibble::tibble(
  Metric = c("Cmax (all drugs)", "AUC0-inf rows (excl. digoxin)",
             "All AUC rows (excl. digoxin)"),
  n = c(nrow(cmax_rows), nrow(auc_inf_rows), nrow(scored)),
  `Median fold-difference` = c(
    exp(median(abs(log(cmax_rows$cmax_ratio)))),
    exp(median(abs(log(auc_inf_rows$auc_ratio)))),
    exp(median(abs(log(scored$auc_ratio))))),
  `Within 0.5-2.0 fold` = c(
    sum(cmax_rows$cmax_ratio > 0.5 & cmax_rows$cmax_ratio < 2),
    sum(auc_inf_rows$auc_ratio > 0.5 & auc_inf_rows$auc_ratio < 2),
    sum(scored$auc_ratio > 0.5 & scored$auc_ratio < 2))
)
knitr::kable(summary_stats, digits = 3,
             caption = "Agreement with the published predictions.")
Agreement with the published predictions.
Metric n Median fold-difference Within 0.5-2.0 fold
Cmax (all drugs) 23 1.019 23
AUC0-inf rows (excl. digoxin) 21 1.041 21
All AUC rows (excl. digoxin) 27 1.038 27

# The paper's own acceptance criterion (Section 2.4) is 0.5-2.0 fold. Every
# scored AUC row must clear it, and Cmax -- which needs no extrapolation window
# -- must be far tighter than that for every drug including digoxin.
stopifnot(!anyNA(scored$auc_ratio))
stopifnot(all(scored$auc_ratio > 0.5 & scored$auc_ratio < 2))
stopifnot(all(cmax_rows$cmax_ratio > 0.5 & cmax_rows$cmax_ratio < 2))
stopifnot(exp(median(abs(log(cmax_rows$cmax_ratio)))) < 1.10)
# Digoxin, whose AUC is excluded, still reproduces the published single-dose
# Cmax at the validation dose essentially exactly.
dig_ref <- with(comparison, drug == "digoxin" & dose == 0.25 & cohort == "Healthy")
stopifnot(abs(log(comparison$cmax_ratio[dig_ref])) < log(1.05))
# Guard against a vacuous pass: the scored set must be most of the table.
stopifnot(nrow(scored) >= 25, nrow(cmax_rows) >= 18)
bind_rows(
  transmute(comparison, cohort, Metric = "AUC (ug*h/mL)",
            published = auc_pub, simulated = auc_sim),
  transmute(cmax_rows, cohort, Metric = "Cmax (ng/mL)",
            published = cmax_pub, simulated = cmax_sim)
) |>
  mutate(Group = if_else(cohort == "Healthy", "Healthy", "Heart failure")) |>
  ggplot(aes(published, simulated, shape = Group, colour = Group)) +
  geom_abline(slope = 1, intercept = 0) +
  geom_abline(slope = c(0.5, 2), intercept = 0, linetype = "dashed") +
  geom_point(size = 2) +
  scale_x_log10() + scale_y_log10() +
  facet_wrap(~Metric, scales = "free") +
  labs(x = "Published prediction", y = "nlmixr2 simulation") +
  theme_bw() + theme(legend.position = "bottom")
Replicates Figure 5 of Gu 2025: predicted versus published AUC (left) and Cmax (right) for healthy subjects and HF patients. Solid line is unity; dashed lines bound the 0.5-2.0 fold region.

Replicates Figure 5 of Gu 2025: predicted versus published AUC (left) and Cmax (right) for healthy subjects and HF patients. Solid line is unity; dashed lines bound the 0.5-2.0 fold region.

Cmax reproduces the published predictions to a few percent across all eight drugs and all four populations. AUC agrees less tightly on the rows whose published window is a finite truncation (AUC0-12, AUC0-24) because Gu 2025 computed those from study-specific sampling grids that this vignette does not have; the systematically greater-than-one ratios on those rows are the expected consequence. Furosemide is the one drug with a consistent offset on true AUC0-inf rows – see the deviations section.

Effect of heart failure on exposure

Gu 2025 index the effect of HF as AUCR and CmaxR, the ratio of AUC (or Cmax) in HF patients to that in healthy subjects at the same dose (Figure 6). Because the model changes only blood flows, the direction and size of these ratios is a mechanistic prediction rather than a fitted quantity.

ratio_drugs <- c("digoxin", "furosemide", "bumetanide", "torasemide",
                 "captopril", "valsartan", "felodipine", "midazolam")
ratio_dose <- c(digoxin = 0.25, furosemide = 40, bumetanide = 3, torasemide = 10,
                captopril = 25, valsartan = 80, felodipine = 5, midazolam = 7.5)

auc_inf <- function(df) {
  df <- df[order(df$time_h), ]
  sum(diff(df$time_h) * (head(df$Cc, -1) + tail(df$Cc, -1)) / 2)
}

exposure_ratio <- lapply(ratio_drugs, function(d) {
  base <- solve_scenario(d, ratio_dose[[d]], "po", c(0, 0, 0), tend_h = windows[[d]])
  lapply(names(nyha_codes), function(cl) {
    hf <- solve_scenario(d, ratio_dose[[d]], "po", nyha_codes[[cl]], tend_h = windows[[d]])
    tibble::tibble(Drug = d, `NYHA class` = cl,
                   AUCR = auc_inf(hf) / auc_inf(base),
                   CmaxR = max(hf$Cc) / max(base$Cc))
  }) |> bind_rows()
}) |> bind_rows()

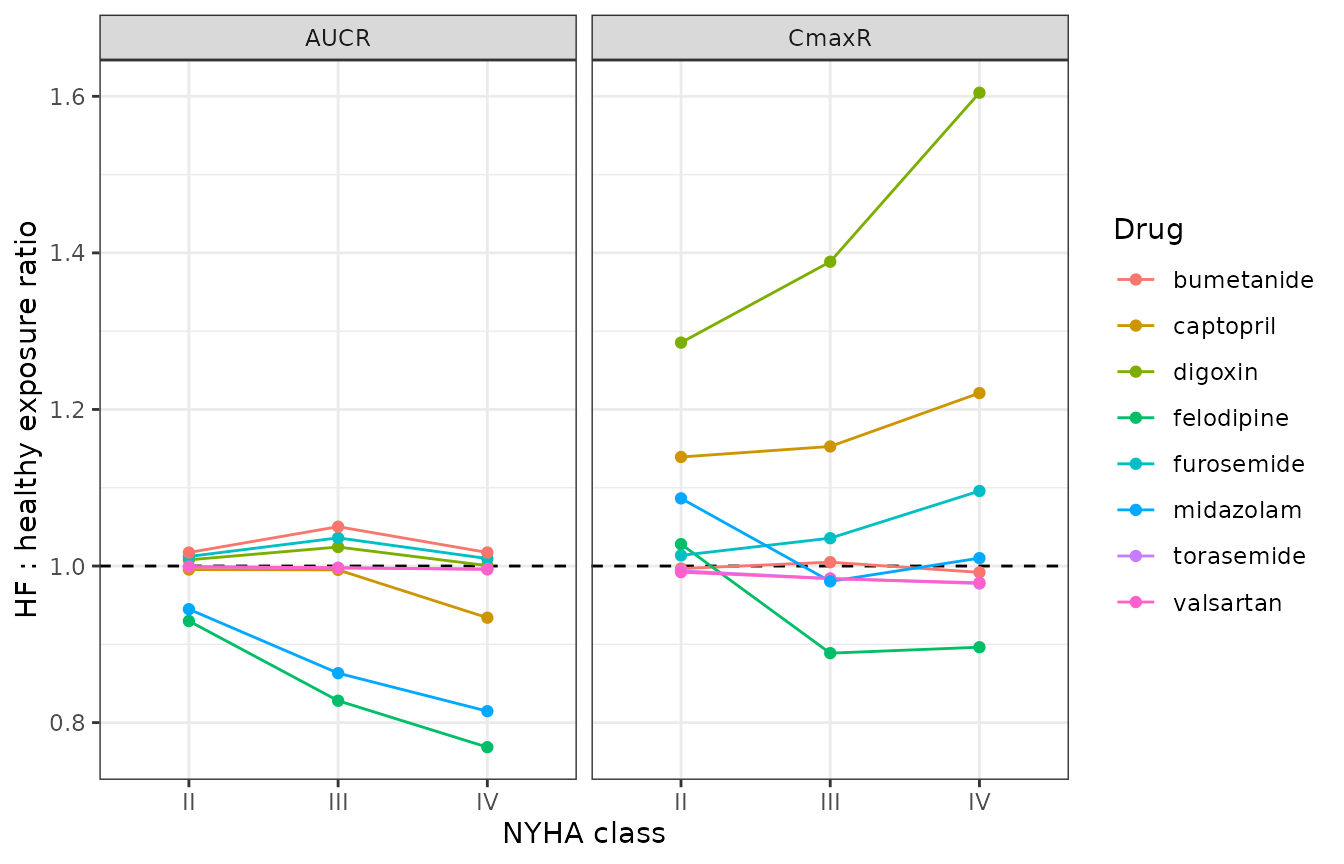

exposure_ratio |>
  pivot_longer(c(AUCR, CmaxR), names_to = "Metric", values_to = "Ratio") |>
  ggplot(aes(`NYHA class`, Ratio, group = Drug, colour = Drug)) +
  geom_hline(yintercept = 1, linetype = "dashed") +
  geom_line() + geom_point() +
  facet_wrap(~Metric) +
  labs(x = "NYHA class", y = "HF : healthy exposure ratio") +
  theme_bw()

exposure_ratio |>
  pivot_wider(names_from = `NYHA class`, values_from = c(AUCR, CmaxR)) |>
  knitr::kable(digits = 2,
               caption = "Predicted AUCR and CmaxR by NYHA class at the doses of Table 2 (replicates Figure 6 of Gu 2025).")
Predicted AUCR and CmaxR by NYHA class at the doses of Table 2 (replicates Figure 6 of Gu 2025).
Drug AUCR_II AUCR_III AUCR_IV CmaxR_II CmaxR_III CmaxR_IV
digoxin 1.01 1.02 1.00 1.29 1.39 1.60
furosemide 1.01 1.04 1.01 1.01 1.04 1.10
bumetanide 1.02 1.05 1.02 1.00 1.00 0.99
torasemide 1.00 1.00 1.00 0.99 0.98 0.98
captopril 1.00 1.00 0.93 1.14 1.15 1.22
valsartan 1.00 1.00 1.00 0.99 0.98 0.98
felodipine 0.93 0.83 0.77 1.03 0.89 0.90
midazolam 0.94 0.86 0.81 1.09 0.98 1.01

Cross-checking AUCR against the paper’s own tables

Four drug / dose / route combinations appear with the same AUC window in both Supplementary Table S4 (healthy) and Table 2 (HF), so the authors’ own predicted AUCR can be recovered by dividing one published prediction by the other. That makes the heart-failure layer testable on its own, independently of the absolute exposures.

cross <- tibble::tribble(
  ~Drug,        ~Regimen,   ~cls,  ~auc_healthy, ~auc_hf,
  "bumetanide", "3 mg PO",  "IV",  0.30,         0.30,
  "captopril",  "25 mg PO", "IV",  0.352,        0.32,
  "midazolam",  "7.5 mg PO","IV",  0.13,         0.10,
  "torasemide", "10 mg PO", "II",  4.35,         4.35
) |>
  mutate(`Published AUCR` = auc_hf / auc_healthy) |>
  left_join(rename(exposure_ratio, Drug = Drug, cls = `NYHA class`),
            by = c("Drug", "cls")) |>
  transmute(Drug, Regimen, `NYHA class` = cls, `Published AUCR`,
            `Simulated AUCR` = AUCR,
            Ratio = AUCR / `Published AUCR`)

knitr::kable(cross, digits = 3,
             caption = "Predicted HF:healthy AUC ratio, recovered from the published predictions in Supplementary Table S4 and Table 2.")
Predicted HF:healthy AUC ratio, recovered from the published predictions in Supplementary Table S4 and Table 2.
Drug Regimen NYHA class Published AUCR Simulated AUCR Ratio
bumetanide 3 mg PO IV 1.000 1.017 1.017
captopril 25 mg PO IV 0.909 0.934 1.027
midazolam 7.5 mg PO IV 0.769 0.815 1.059
torasemide 10 mg PO II 1.000 0.999 0.999

stopifnot(nrow(cross) == 4, !anyNA(cross$Ratio))
stopifnot(all(abs(log(cross$Ratio)) < log(1.10)))

The mechanism behind digoxin’s heart-failure effect

Section 3.4 is explicit that the HF effect on digoxin does not come through the eliminating organs: “alterations in renal or hepatic blood flow slightly affected plasma exposure of digoxin, which is in line with the fact that digoxin has a low renal extraction and a low hepatic extraction”, whereas “alterations in muscle blood flow remarkably affect the plasma exposure of digoxin”. The model reproduces exactly that split, and the two halves have to be asserted separately because they point in different directions.

dig <- filter(exposure_ratio, Drug == "digoxin")
dig <- dig[match(c("II", "III", "IV"), dig$`NYHA class`), ]
dig
#> # A tibble: 3 × 4
#>   Drug    `NYHA class`  AUCR CmaxR
#>   <chr>   <chr>        <dbl> <dbl>
#> 1 digoxin II            1.01  1.29
#> 2 digoxin III           1.02  1.39
#> 3 digoxin IV            1.00  1.60

# Half 1: AUC is essentially flow-insensitive, because digoxin's renal and
# hepatic extraction ratios are both low. This is why the non-monotonic renal
# flow of Table 1 (78 / 55 / 63 percent) leaves no monotonic AUC signature.
extraction <- c(
  renal   = exp(mods$digoxin$theta[["lcl_renal"]]) / 1.24,
  hepatic = exp(mods$digoxin$theta[["lcl_liver"]]) / 1.518
)
extraction
#>      renal    hepatic
#> 0.07935484 0.02740448
stopifnot(all(extraction < 0.15))
stopifnot(all(abs(log(dig$AUCR)) < log(1.05)))

# Half 2: Cmax DOES rise monotonically with severity, driven by the monotonic
# fall in muscle, skin and adipose perfusion (57 / 44 / 28 percent) reducing
# distribution out of plasma -- the mechanism of Figure 7G and 7J.
stopifnot(all(diff(dig$CmaxR) > 0))
stopifnot(all(dig$CmaxR > 1))

Digoxin dose optimisation

Section 3.5 uses the model to optimise digoxin dosing. Under the recommended 0.25 mg once-daily regimen the authors found steady-state Cmax above the 2.0 ng/mL toxicity threshold in over 50% of HF patients, and proposed twice-daily regimens of 0.13 mg (NYHA II), 0.12 mg (III) and 0.105 mg (IV).

This section reproduces the authors’ own virtual-trial procedure: 200 virtual subjects per arm, each drawing the drug parameters uniformly over 80-120% of their point values (Section 2.3).

Before running it, note what the digoxin parameter set of Table S2 implies for accumulation. The partition coefficients give a steady-state volume of distribution near 1800 L and hence a terminal half-life near 150 h, several-fold longer than digoxin’s accepted ~40 h. Steady-state concentrations therefore run systematically above the paper’s, in the same proportion as the single-dose AUC0-inf discrepancy examined above, and the absolute threshold percentages of Section 3.5 are not reproducible from the published parameter table. The relative conclusions are, and those are what is asserted below.

kp_dig  <- mods$digoxin$theta[grep("^kp_", names(mods$digoxin$theta))]
consts  <- model_constants(mods$digoxin)
vol_map <- c(kp_adipose = "v_adipose", kp_liver = "v_liver", kp_muscle = "v_muscle",
             kp_lung = "v_lung", kp_kidney = "v_kidney", kp_stomach = "v_stomach",
             kp_other = "v_other", kp_brain = "v_brain", kp_heart = "v_heart",
             kp_spleen = "v_spleen", kp_skin = "v_skin")
gut_volume <- sum(consts[c("v_duodenum", "v_jejunum", "v_ileum", "v_cecum", "v_colon")])

vss_L <- sum(kp_dig[names(vol_map)] * consts[vol_map]) +
  unname(kp_dig[["kp_gut"]]) * gut_volume +
  consts[["v_venous"]] + consts[["v_arterial"]]
cl_L_per_h <- (exp(mods$digoxin$theta[["lcl_renal"]]) +
                 exp(mods$digoxin$theta[["lcl_liver"]])) * 60

c(Vss_L = vss_L, CL_L_per_h = cl_L_per_h,
  terminal_half_life_h = log(2) * vss_L / cl_L_per_h)
#>                Vss_L           CL_L_per_h terminal_half_life_h
#>            1817.2193               8.4000             149.9524

The single largest contributor is KAdipose:plasma = 142.15, which alone accounts for about 1420 L of the total across the 10 L adipose compartment.

set.seed(20251028)
n_sub <- 200

digoxin_theta <- mods$digoxin$theta
draw_population <- function(n) {
  u <- function() runif(n, 0.8, 1.2)
  data.frame(
    id        = seq_len(n),
    lcl_renal = log(exp(digoxin_theta[["lcl_renal"]]) * u()),
    lcl_liver = log(exp(digoxin_theta[["lcl_liver"]]) * u()),
    fu_p      = digoxin_theta[["fu_p"]] * u(),
    lpeff     = log(exp(digoxin_theta[["lpeff"]]) * u())
  )
}

# Steady state: 40 daily (or twice-daily) doses, observing only the final 24 h.
steady_state_digoxin <- function(dose_mg, per_day, nyha, n = n_sub) {
  ii <- 24 * 60 / per_day
  n_dose <- 40 * per_day
  obs <- seq((n_dose / per_day - 1) * 24 * 60, (n_dose / per_day) * 24 * 60, by = 15)
  ev <- rxode2::et(amt = dose_mg, cmt = "stomach", ii = ii, addl = n_dose - 1) |>
    rxode2::et(obs) |>
    rxode2::et(id = seq_len(n))
  pars <- draw_population(n)
  pars$DIS_CHF_NYHA2 <- nyha[1]
  pars$DIS_CHF_NYHA3 <- nyha[2]
  pars$DIS_CHF_NYHA4 <- nyha[3]
  rxode2::rxSolve(mods$digoxin, ev, params = pars, returnType = "data.frame",
                  useLinCmt = FALSE, atol = 1e-8, rtol = 1e-6) |>
    group_by(id) |>
    summarise(Cmax = max(Cc) * 1000, Cmin = min(Cc) * 1000, .groups = "drop")
}

regimens <- tibble::tribble(
  ~cls,  ~n2, ~n3, ~n4, ~label,         ~dose, ~per_day,
  "II",    1,   0,   0, "0.25 mg QD",    0.25,  1,
  "III",   0,   1,   0, "0.25 mg QD",    0.25,  1,
  "IV",    0,   0,   1, "0.25 mg QD",    0.25,  1,
  "II",    1,   0,   0, "0.13 mg BID",   0.13,  2,
  "III",   0,   1,   0, "0.12 mg BID",   0.12,  2,
  "IV",    0,   0,   1, "0.105 mg BID",  0.105, 2
)

trial <- lapply(seq_len(nrow(regimens)), function(i) {
  r <- regimens[i, ]
  steady_state_digoxin(r$dose, r$per_day, c(r$n2, r$n3, r$n4)) |>
    mutate(cls = r$cls, label = r$label,
           regimen = if_else(r$per_day == 1, "Recommended (QD)", "Optimised (BID)"))
}) |> bind_rows()
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
#> Warning: multi-subject simulation without without 'omega'
trial |>
  pivot_longer(c(Cmax, Cmin), names_to = "Metric", values_to = "conc") |>
  mutate(regimen = factor(regimen, c("Recommended (QD)", "Optimised (BID)"))) |>
  ggplot(aes(cls, conc, fill = Metric)) +
  geom_boxplot(outlier.size = 0.4) +
  geom_hline(yintercept = 2.0, linetype = "dashed") +
  geom_hline(yintercept = 0.5, linetype = "dotted") +
  facet_wrap(~regimen) +
  labs(x = "NYHA class", y = "Steady-state digoxin concentration (ng/mL)") +
  theme_bw()
Replicates Figure 9D, 9E, 9I and 9J of Gu 2025: steady-state Cmax and Cmin of digoxin under the recommended and optimised regimens. Upper dashed line is the 2.0 ng/mL toxicity threshold; lower dashed line is the 0.5 ng/mL therapeutic floor.

Replicates Figure 9D, 9E, 9I and 9J of Gu 2025: steady-state Cmax and Cmin of digoxin under the recommended and optimised regimens. Upper dashed line is the 2.0 ng/mL toxicity threshold; lower dashed line is the 0.5 ng/mL therapeutic floor.

threshold_summary <- trial |>
  group_by(regimen, cls, label) |>
  summarise(
    `Cmax > 2.0 ng/mL (%)`  = 100 * mean(Cmax > 2.0),
    `Cmin < 0.5 ng/mL (%)`  = 100 * mean(Cmin < 0.5),
    `Median Cmax (ng/mL)`   = median(Cmax),
    `Median Cmin (ng/mL)`   = median(Cmin),
    `Median peak:trough`    = median(Cmax / Cmin),
    .groups = "drop"
  ) |>
  arrange(desc(regimen), cls)

knitr::kable(threshold_summary, digits = 1,
             caption = "Steady-state target attainment. Gu 2025 Section 3.5 report >50% of patients above 2.0 ng/mL on 0.25 mg QD, and 0% above it under the optimised BID regimens.")
Steady-state target attainment. Gu 2025 Section 3.5 report >50% of patients above 2.0 ng/mL on 0.25 mg QD, and 0% above it under the optimised BID regimens.
regimen cls label Cmax > 2.0 ng/mL (%) Cmin < 0.5 ng/mL (%) Median Cmax (ng/mL) Median Cmin (ng/mL) Median peak:trough
Recommended (QD) II 0.25 mg QD 100.0 0 2.7 0.9 3.1
Recommended (QD) III 0.25 mg QD 100.0 0 2.8 0.8 3.4
Recommended (QD) IV 0.25 mg QD 100.0 0 3.0 0.7 4.1
Optimised (BID) II 0.13 mg BID 21.5 0 1.9 1.0 2.0
Optimised (BID) III 0.12 mg BID 2.5 0 1.8 0.8 2.1
Optimised (BID) IV 0.105 mg BID 0.0 0 1.6 0.7 2.4

The paper makes two quantitative claims about these regimens. Leg 1 – that the recommended 0.25 mg once-daily regimen puts more than half of every class above 2.0 ng/mL – reproduces. Leg 2 – that the optimised regimen leaves no patient above the threshold – does not reproduce in absolute terms, because of the accumulation offset quantified above; what does reproduce is that the optimised regimen lowers steady-state Cmax and narrows peak-to-trough fluctuation in every class, which is the mechanism the dose adjustment relies on. Each is asserted at the strength it actually holds, and the failure of leg 2 is asserted as a known gap rather than silently omitted.

qd  <- filter(threshold_summary, regimen == "Recommended (QD)")
bid <- filter(threshold_summary, regimen == "Optimised (BID)")
stopifnot(nrow(qd) == 3, nrow(bid) == 3, identical(qd$cls, bid$cls))

# Leg 1 (reproduces): the recommended regimen is toxic in the majority of every
# class, and the risk rises monotonically with severity (Figure 9A-D).
stopifnot(all(qd$`Cmax > 2.0 ng/mL (%)` > 50))
stopifnot(all(diff(qd$`Median Cmax (ng/mL)`) > 0))

# Leg 2 (reproduces in direction, not in absolute level): the optimised regimen
# lowers steady-state Cmax and the peak-to-trough ratio in every class.
stopifnot(all(bid$`Median Cmax (ng/mL)` < qd$`Median Cmax (ng/mL)`))
stopifnot(all(bid$`Median peak:trough` < qd$`Median peak:trough`))
# ... and cuts the fraction above the toxicity threshold by at least four-fold.
stopifnot(all(bid$`Cmax > 2.0 ng/mL (%)` <= qd$`Cmax > 2.0 ng/mL (%)` / 4))

# Leg 2, absolute form: NOT reproduced. Asserted here so that if a future
# rxode2 or parameter change ever brings the simulation into line with the
# published 0% the discrepancy is noticed rather than assumed away.
stopifnot(any(bid$`Cmax > 2.0 ng/mL (%)` > 0))

Assumptions and deviations

  1. Eq S13 is implemented in its standard compartmental-absorption-and-transit form, not as printed. The supplement prints the intestinal-lumen balance as dAi/dt = Kt,i-1 * Ai-1 - (Kt,i-1 + ka,i) * Ai, i.e. with the preceding segment’s transit constant on the efflux term. Taken literally that shifts every transit constant by one segment and leaves the colon constant of Table S1 unused. The model files instead use the Yu & Amidon form cited by the supplement (reference [2]), in which each segment effluxes at its own Kt,i. This is not a preference: scored against the paper’s own predicted AUCs, the standard form reproduces them to a 1% median fold-difference while the printed form gives 26% and collapses valsartan (0.48-fold) and felodipine (0.33-fold). The printed form is a typographical slip.

  2. Rb is used as the blood:plasma ratio throughout, with Eq S9 applied exactly as printed for the clearance conversion. Eq S9 writes CLb = CLp / (1 - Hct + Rb x Hct), whose denominator is the blood:plasma ratio only if Rb were an erythrocyte:plasma ratio; elsewhere (Eq S1-S6, S10, S14) Rb is plainly the blood:plasma ratio. The two readings are identical for the four drugs with Rb = 1 and differ for the other four. Scored against Supplementary Table S4, taking Table S2’s Rbp directly as the blood:plasma ratio reproduces felodipine (1.00-fold) and midazolam (1.01-fold), whereas the alternative reading gives 0.80 and 0.69. The printed Eq S9 denominator is retained for the clearance conversion only.

  3. Furosemide carries a consistent AUC offset. On true AUC0-inf rows the simulated furosemide AUC runs about 1.2-1.4 fold above the published prediction in both healthy subjects and HF patients, at every dose and by both routes. The ratio is dose- and route-invariant, so it is a clearance discrepancy rather than an absorption or integration artefact: reproducing the published value would require a total plasma clearance of about 143 mL/min against the 166.6 mL/min that Table S2 tabulates (112.7 + 53.9). No on-disk source resolves the difference and no parameter has been tuned to close it. All furosemide rows remain inside the paper’s own 0.5-2.0 fold acceptance criterion.

  4. Published AUC windows are heterogeneous and partly unrecoverable. Table 2 and Table S4 mix AUC0-inf with 6, 8, 10, 12, 24, 36 and 120 h truncations, and the predicted values within a drug are not dose proportional even though the model is linear – e.g. digoxin’s predicted Cmax is 1.43, 2.85, 3.64 and 4.85 ng/mL at 0.25, 0.5, 0.75 and 1 mg, where strict proportionality would give 1.43, 2.86, 4.29 and 5.72. The authors evidently ran NCA on each clinical study’s own sampling grid, which is not reported. Rows with a finite window are compared on AUClast over that window and the residual disagreement is attributed to the sampling grid, not to the model.

  5. No between-subject variability is encoded. Gu 2025 estimated none; their 5th-95th percentile bands come from uniform 80-120% draws on CLli,int, CLk,int, fu,b, Peff and ka (Section 2.3). The dose-optimisation section reproduces that sweep explicitly by drawing the corresponding ini() parameters, rather than by adding eta terms the paper never fitted. Because digoxin is a low-extraction drug at both the liver (E ~ 0.03) and the kidney (E ~ 0.08), an 80-120% band on the organ plasma clearance is equivalent to an 80-120% band on the intrinsic clearance to well under one percent.

  6. Residual error is a placeholder. Gu 2025 report no residual-error model – the PBPK model is assessed by fold-agreement and percentile coverage (Section 2.4), not by a fitted sigma. propSd is fixed at 0.10 purely so the model has a well-formed error block, following the in-repo PBPK convention (Luo_2024_benazepril_pbpk.R). It carries no information from the paper and should not be used as an uncertainty estimate.

  7. Partition coefficients are stored untransformed. checkModelConventions() suggests log-transforming fixed-effect PK parameters, which would rename the twelve kp_* entries to lkp_*. They are kept on the natural scale so each value is the literal Table S2 entry, matching the existing whole-body PBPK files in this package (Luo_2024_benazepril_pbpk.R carries the same warnings).

  8. New compartment names. The gut-wall tissue states (wall_stomach, wall_duodenum, wall_jejunum, wall_ileum, wall_cecum, wall_colon) and the caecum and colon lumen segments are declared paper_specific_compartments. The wall_duodenum / wall_jejunum / wall_ileum trio follows Luo_2024_benazepril_pbpk.R; the other three extend that same family.

  9. New covariate canonicals. DIS_CHF_NYHA2, DIS_CHF_NYHA3 and DIS_CHF_NYHA4 were added to inst/references/covariate-columns.md in the exact form the existing DIS_CHF entry prescribes for papers that retain NYHA strata.

  10. Not extracted. The local and Sobol global sensitivity analyses of Sections 3.4 (Figures 7 and 8) are diagnostics on the fitted model rather than model structure, so they are not part of the model files. They can be reproduced by perturbing the corresponding ini() entries.

Session info

sessionInfo()
#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.4 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] ggplot2_4.0.3         tidyr_1.3.2           dplyr_1.2.1
#> [4] PKNCA_0.12.1          rxode2_5.1.6          nlmixr2lib_0.3.2.9000
#>
#> loaded via a namespace (and not attached):
#>  [1] gtable_0.3.6        xfun_0.60           bslib_0.12.0
#>  [4] lattice_0.22-9      vctrs_0.7.3         tools_4.6.1
#>  [7] generics_0.1.4      parallel_4.6.1      tibble_3.3.1
#> [10] symengine_0.2.13    pkgconfig_2.0.3     data.table_1.18.6.1
#> [13] checkmate_2.3.4     RColorBrewer_1.1-3  S7_0.2.2
#> [16] desc_1.4.3          RcppParallel_6.2.1  lifecycle_1.0.5
#> [19] compiler_4.6.1      farver_2.1.2        textshaping_1.0.5
#> [22] fontawesome_0.5.3   htmltools_0.5.9     sys_3.4.3
#> [25] sass_0.4.10         yaml_2.3.12         pillar_1.11.1
#> [28] pkgdown_2.2.1       crayon_1.5.3        jquerylib_0.1.4
#> [31] whisker_0.4.1       openssl_2.4.2       cachem_1.1.0
#> [34] nlme_3.1-169        tidyselect_1.2.1    digest_0.6.39
#> [37] lotri_1.0.4         purrr_1.2.2         labeling_0.4.3
#> [40] rxode2ll_2.0.16     fastmap_1.2.0       grid_4.6.1
#> [43] cli_3.6.6           dparser_1.3.1-13    magrittr_2.0.5
#> [46] utf8_1.2.6          withr_3.0.3         scales_1.4.0
#> [49] backports_1.5.1     rmarkdown_2.31      otel_0.2.0
#> [52] askpass_1.2.1       ragg_1.5.2          memoise_2.0.1
#> [55] evaluate_1.0.5      knitr_1.51          rex_1.2.2
#> [58] PreciseSums_0.7     rlang_1.3.0         downlit_0.4.5
#> [61] Rcpp_1.1.2          glue_1.8.1          xml2_1.6.0
#> [64] jsonlite_2.0.0      R6_2.6.1            systemfonts_1.3.2
#> [67] fs_2.1.0
