Model and source

Sano 2023 developed two sequentially-fitted models, packaged here as two model files that share this vignette.

  • Population PK of 5-HMT: modellib("Sano_2023_fesoterodine")

  • Exposure-response on MCC: modellib("Sano_2023_fesoterodine_mcc")

  • Citation: Sano Y, Shoji S, Shahin M, Sweeney K, Darekar A, Malhotra BK. Population Pharmacokinetic and Pharmacodynamic Modeling of Fesoterodine in Pediatric Patients with Neurogenic Detrusor Overactivity. Eur J Drug Metab Pharmacokinet. 2023 May;48(3):257-269. doi:10.1007/s13318-023-00818-8. PMID: 36892805. PMCID: PMC10175358.

  • Article: https://doi.org/10.1007/s13318-023-00818-8 (open access; PMCID PMC10175358)

  • Supplement (Online Resources 1-12, including both NM-TRAN control streams): https://doi.org/10.1007/s13318-023-00818-8 (Supplementary Information)

Fesoterodine is a muscarinic receptor antagonist. It is a prodrug: it is hydrolysed by non-specific esterases to 5-hydroxymethyl tolterodine (5-HMT), which is the active moiety and the only analyte measured. Every concentration in this vignette is therefore a 5-HMT concentration, while every dose is a fesoterodine dose.

The two models are independent fits to different datasets (142 patients / 428 concentrations for the PK; 121 patients / 242 MCC observations for the PD), so they are packaged as two files per the library’s replicate-the-author-structure policy. The link between them is one-directional: the PD model consumes CAV (individual 5-HMT Cavg,ss) computed from the PK model’s individual clearance.

Population

The PK analysis population (Sano 2023 Table 1) pooled 142 pediatric patients aged 6-17 years from two trials: the phase II study 1066 (NCT00857896, 21 patients with overactive bladder, roughly half with neurogenic detrusor overactivity) and the phase III study 1047 (NCT01557244, 121 patients with symptoms of neurogenic detrusor overactivity). Median age was 10 years (range 6-17) and median total body weight 33.6 kg (range 11.7-85.0). The population was 47.9% female, 50.7% White / 44.4% Asian / 3.5% Black / 1.4% other, and only 3 of 142 patients (2.1%) were CYP2D6 poor metabolizers.

Study 1047 split patients by a 25 kg body-weight cutoff into two cohorts that received different doses and different formulations: cohort 1 (patients over 25 kg, median weight 38 kg, median age 11) received fesoterodine 4 or 8 mg tablets once daily, and cohort 2 (patients 25 kg or less, median weight 22 kg, median age 7) received fesoterodine 2 or 4 mg beads-in-capsule (BIC) once daily. Formulation is therefore strongly confounded with both body weight and dose in this dataset, which is the single most important caveat attached to the 0.648 relative-bioavailability estimate.

The PK/PD analysis population (Sano 2023 Online Resource 11) is the study-1047 subset: 121 patients, median age 9 years (range 6-16), median weight 28 kg, 49.6% female, median baseline MCC 152 mL (range 16-451). Each patient contributes exactly two MCC observations – baseline and week 12 – for 242 records.

Sampling was sparse throughout (up to three PK samples per patient at week 4 in study 1047), which produced substantial eta shrinkage on Vd/F (42.1%) and ka (45.0%). The authors flag this as a caveat for any empirical-Bayes-based diagnostic or exposure metric, including the Online Resource 10 table this vignette validates against.

The same information is available programmatically from each model’s population metadata:

str(readModelDb("Sano_2023_fesoterodine")()$population, max.level = 1)
#> List of 14
#>  $ species        : chr "human"
#>  $ n_subjects     : int 142
#>  $ n_observations : int 428
#>  $ n_studies      : int 2
#>  $ age_range      : chr "6-17 years (median 10, mean 10.1, SD 3.00)"
#>  $ weight_range   : chr "11.7-85.0 kg (median 33.6, mean 36.2, SD 16.1)"
#>  $ sex_female_pct : num 47.9
#>  $ race_ethnicity : Named num [1:4] 50.7 3.5 44.4 1.4
#>   ..- attr(*, "names")= chr [1:4] "White" "Black" "Asian" "Other"
#>  $ cyp2d6_pm_pct  : num 2.1
#>  $ formulation_pct: Named num [1:2] 64.8 35.2
#>   ..- attr(*, "names")= chr [1:2] "Tablet" "BIC"
#>  $ disease_state  : chr "Pediatric patients with overactive bladder (OAB) or neurogenic detrusor overactivity (NDO). Study 1066 enrolled"| __truncated__
#>  $ dose_range     : chr "Fesoterodine 4 mg tablet QD then 8 mg tablet QD (study 1066, 4-week periods); fesoterodine 4 or 8 mg tablet QD "| __truncated__
#>  $ regions        : chr "Multinational (NCT00857896 phase II study 1066; NCT01557244 phase III study 1047)."
#>  $ notes          : chr "Demographics from Sano 2023 Table 1 (pharmacokinetic analysis population). Sampling was sparse: study 1066 coll"| __truncated__

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Sano_2023_fesoterodine.R and inst/modeldb/specificDrugs/Sano_2023_fesoterodine_mcc.R. The tables below collect them in one place.

Population PK model (5-HMT)

Equation / parameter Value Source location
lcl (CL/F) 71.6 L/h Table 2, “CL/F (L/h)”
lvc (Vd/F) 68.1 L Table 2, “Vd/F (L)”
lka (ka) 0.0897 1/h Table 2, “ka (1/h)”
ltlag (ALAG) 0.285 h Table 2, “ALAG (h)”
e_wt_cl 0.75, FIXED Table 2, “Effect of body weight on CL/F”; $THETA(4) 0.75 FIX in Online Resource 4
e_wt_vc 1, FIXED Table 2, “Effect of body weight on Vd/F”; $THETA(5) 1 FIX in Online Resource 4
e_cyp2d6_pm_cl 0.546 Table 2, “Effect of CYP2D6 metabolizer on CL/F”
e_sexf_cl 0.862 Table 2, “Effect of sex on CL/F”
e_sexf_vc 0.634 Table 2, “Effect of sex on Vd/F”
lfdepot 0.648 Table 2, “Effect of fesoterodine formulations on F”
Reference weight 35 kg Methods section 2.3; Online Resource 8a
IIV block (CL/F, Vd/F, ka) 46.3 / 114 / 43.2 %CV; covariances 0.298, 0.0815, 0.435 Table 2; $OMEGA BLOCK(3) in Online Resource 4
expSd 0.381 Table 2, “sigma” (38.1 %CV on the log scale)
Structural equations n/a Equations 1-2; assembled forms in Online Resource 8a
Residual-error form ln(Y) = ln(F) + eps Methods section 2.5; Online Resource 8c; $ERROR in Online Resource 4

Exposure-response model (MCC)

Equation / parameter Value Source location
lrbase (BASE, age > 12) 190 mL Table 3, “BASE (mL)”
lec50 (EC50) 6.22 ng/mL Table 3, “EC50 (ng/mL)”
lemax (Emax, age > 12) 390 mL, FIXED Table 3, “Emax (mL)” (“390, Fixed”); EBC rule in Methods section 2.2.3
Age scaling (AGE + 1)/13 n/a Equations 5-8; Online Resource 8b
IIV block (BASE, Emax) 48.8 / 47.1 %CV; covariance 0.122 Table 3; $OMEGA BLOCK(2) in Online Resource 5
propSd_MCC 0.0741 Table 3, “sigma_PRP” (7.41 %CV)
addSd_MCC 34.6 mL Table 3, “sigma_ADD (mL)”
Emax equation n/a Equation 3; Online Resource 8b
CAV = F * DOSE / (CL/F * tau) n/a Equation 4
Residual-error form Y = F * (1 + eps_PRP) + eps_ADD Methods section 2.4; Online Resource 8d

Two features of Table 2 / Table 3 required interpretation and are recorded in detail in the model files:

  1. The % CV column is sqrt(variance), not the log-normal sqrt(exp(omega^2) - 1). Under the log-normal reading, the reported Vd/F-ka covariance of 0.435 implies a correlation of 1.15, which is impossible; under the sqrt-of-variance reading it is 0.88, which is valid. The implied variances also sit on top of the Online Resource 4 / 5 $OMEGA initial estimates. Both assembled blocks are positive definite.
  2. Emax is the maximum attainable MCC, not the maximum increment. The drug effect is a fraction of the headroom between baseline MCC and the age-based expected bladder capacity ceiling. A naive Emax * C / (EC50 + C) increment form overpredicts the change from baseline by roughly 2.5-fold.
# Two independent checks against prose the models were not fitted to.
mcc_base <- function(age, plateau = 190) plateau * pmin((age + 1) / 13, 1)
mcc_emax <- function(age, plateau = 390) plateau * pmin((age + 1) / 13, 1)

# Discussion: "typical baseline MCC at median age (9 years) was estimated
# to be 146 mL".
round(mcc_base(9), 1)
#> [1] 146.2

# Results: 25-35 kg on 4 mg tablet QD gives a median CFB MCC of 47.8 mL at a
# median Cavg,ss of 2.83 ng/mL. Typical patient, median age 9.
round((mcc_emax(9) - mcc_base(9)) * 2.83 / (6.22 + 2.83), 1)
#> [1] 48.1

Virtual cohort

Original observed data are not publicly available. The simulations below use virtual populations whose covariate distributions approximate the published per-cohort demographics (Sano 2023 Table 1 and Online Resource 11).

Body weight is drawn from a lognormal truncated to the observed cohort range, and age from a normal truncated to the observed cohort range, coupled by a Gaussian copula with rank correlation 0.75 so that older patients are heavier. The paper does not report the joint weight-age distribution; the copula is an assumption, and it matters because Cavg,ss is driven by weight while both baseline MCC and the Emax ceiling are driven by age.

# Truncated-inverse-CDF sampling, so no probability mass piles up on the
# range endpoints (a plain clamp would distort the median).
rtrunc_lnorm <- function(u, meanlog, sdlog, lo, hi) {
  p_lo <- plnorm(lo, meanlog, sdlog)
  p_hi <- plnorm(hi, meanlog, sdlog)
  qlnorm(p_lo + u * (p_hi - p_lo), meanlog, sdlog)
}

rtrunc_norm <- function(u, mean, sd, lo, hi) {
  p_lo <- pnorm(lo, mean, sd)
  p_hi <- pnorm(hi, mean, sd)
  qnorm(p_lo + u * (p_hi - p_lo), mean, sd)
}

# One cohort of subjects with weight and age coupled by a Gaussian copula.
make_subjects <- function(n, id_offset,
                          wt_med, wt_sdlog, wt_lo, wt_hi,
                          age_mean, age_sd, age_lo, age_hi,
                          pct_female, pct_pm, form_capsule,
                          rho = 0.75) {
  z1 <- rnorm(n)
  z2 <- rho * z1 + sqrt(1 - rho^2) * rnorm(n)
  tibble(
    id = id_offset + seq_len(n),
    WT = rtrunc_lnorm(pnorm(z1), log(wt_med), wt_sdlog, wt_lo, wt_hi),
    AGE = round(rtrunc_norm(pnorm(z2), age_mean, age_sd, age_lo, age_hi)),
    SEXF = rbinom(n, 1L, pct_female / 100),
    CYP2D6_PM = rbinom(n, 1L, pct_pm / 100),
    FORM_CAPSULE = form_capsule
  )
}

# Steady-state QD event table: 8 daily doses, then a dense observation grid
# over the final dosing interval. Observations are placed on the `central`
# ODE state -- never on the algebraic observable `Cc`.
TAU <- 24
SS_START <- 7 * TAU
SS_END <- SS_START + TAU

make_events <- function(subjects, dose_ug) {
  dosing <- subjects |>
    tidyr::crossing(time = seq(0, SS_START, by = TAU)) |>
    mutate(amt = dose_ug, evid = 1L, cmt = "depot")
  obs <- subjects |>
    tidyr::crossing(time = seq(SS_START, SS_END, by = 0.25)) |>
    mutate(amt = NA_real_, evid = 0L, cmt = "central")
  bind_rows(dosing, obs) |>
    arrange(id, time, desc(evid)) |>
    as.data.frame()
}

# Steady-state NCA over the final dosing interval. Used for both the
# Figure 3b replication and the Online Resource 10 comparison, so every
# NCA number in this vignette comes from PKNCA rather than a hand-rolled
# trapezoid.
SS_INTERVALS <- data.frame(
  start = SS_START,
  end = SS_END,
  cmax = TRUE,
  tmax = TRUE,
  cmin = TRUE,
  auclast = TRUE,
  cav = TRUE
)

run_ss_nca <- function(sim_df, events_df) {
  conc <- sim_df |>
    dplyr::filter(!is.na(Cc)) |>
    dplyr::select(id, time, Cc, treatment)
  dose <- events_df |>
    dplyr::filter(evid == 1) |>
    dplyr::select(id, time, amt, treatment)
  PKNCA::pk.nca(PKNCA::PKNCAdata(
    PKNCA::PKNCAconc(conc, Cc ~ time | treatment + id,
                     concu = "ng/mL", timeu = "h"),
    PKNCA::PKNCAdose(dose, amt ~ time | treatment + id, doseu = "ug"),
    intervals = SS_INTERVALS
  ))
}
set.seed(20230501)

N_ARM <- 150

# Study 1047 cohort 2 (25 kg or less): BIC formulation, median weight 22 kg,
# median age 7, 54.0% female. Sano 2023 Table 1.
coh2 <- function(n, id_offset) {
  make_subjects(
    n, id_offset,
    wt_med = 22, wt_sdlog = 0.25, wt_lo = 11.7, wt_hi = 25.0,
    age_mean = 7.64, age_sd = 1.82, age_lo = 6, age_hi = 15,
    pct_female = 54.0, pct_pm = 0, form_capsule = 1
  )
}

# Study 1047 cohort 1 (over 25 kg): tablet, median weight 38 kg, median
# age 11, 45.1% female, 2.8% CYP2D6 PM. Sano 2023 Table 1.
coh1 <- function(n, id_offset) {
  make_subjects(
    n, id_offset,
    wt_med = 38, wt_sdlog = 0.35, wt_lo = 25.1, wt_hi = 85.0,
    age_mean = 10.9, age_sd = 2.44, age_lo = 7, age_hi = 16,
    pct_female = 45.1, pct_pm = 2.8, form_capsule = 0
  )
}

arms <- list(
  list(label = "<=25 kg, 2 mg QD BIC",   subj = coh2(N_ARM,   0L), dose_ug = 2000),
  list(label = "<=25 kg, 4 mg QD BIC",   subj = coh2(N_ARM, 150L), dose_ug = 4000),
  list(label = ">25 kg, 4 mg QD tablet", subj = coh1(N_ARM, 300L), dose_ug = 4000),
  list(label = ">25 kg, 8 mg QD tablet", subj = coh1(N_ARM, 450L), dose_ug = 8000)
)

events <- bind_rows(lapply(arms, function(a) {
  make_events(a$subj, a$dose_ug) |> mutate(treatment = a$label)
}))

# Disjoint IDs across cohorts are mandatory: rxSolve treats id as the subject
# key, so a collision silently merges two subjects and sums their doses.
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))
stopifnot(length(unique(events$id)) == 4 * N_ARM)

Doses are supplied in micrograms (fesoterodine 2 mg = 2000 ug), matching the source NM-TRAN dataset, so that central / vc yields ug/L = ng/mL directly.

Simulation

mod_pk <- readModelDb("Sano_2023_fesoterodine")

sim <- rxode2::rxSolve(
  mod_pk,
  events = events,
  keep = c("treatment", "WT", "AGE", "SEXF", "FORM_CAPSULE")
) |>
  as.data.frame()

nrow(sim)
#> [1] 58200

The absorption of 5-HMT in this model is flip-flop: ka (0.0897 1/h) is an order of magnitude slower than kel = CL/F / (Vd/F) = 1.05 1/h, so the terminal phase is absorption-rate-limited. This is worth checking explicitly, because it is the feature most likely to be mis-transcribed from Table 2.

tibble(
  quantity = c("t1/2 from ka", "t1/2 from kel", "Tmax,ss"),
  model = c(
    log(2) / 0.0897,
    log(2) / (71.6 / 68.1),
    log(0.0897 / (71.6 / 68.1)) / (0.0897 - 71.6 / 68.1)
  ),
  published = c(7.73, NA, 2.55)
) |>
  mutate(across(c(model, published), \(x) round(x, 2))) |>
  knitr::kable(caption = "Flip-flop absorption checks against Sano 2023 Table 2 / Results section 3.1.")
Flip-flop absorption checks against Sano 2023 Table 2 / Results section 3.1.
quantity model published
t1/2 from ka 7.73 7.73
t1/2 from kel 0.66 NA
Tmax,ss 2.56 2.55

The published 7.73 h half-life is recovered from ka, not from kel (which would give 0.66 h), and the published steady-state Tmax of 2.55 h is recovered from the standard first-order-absorption expression. Both confirm the Table 2 ka is correct as printed.

Replicate published figures

Figure 2 – exposure-response of MCC on Cavg,ss

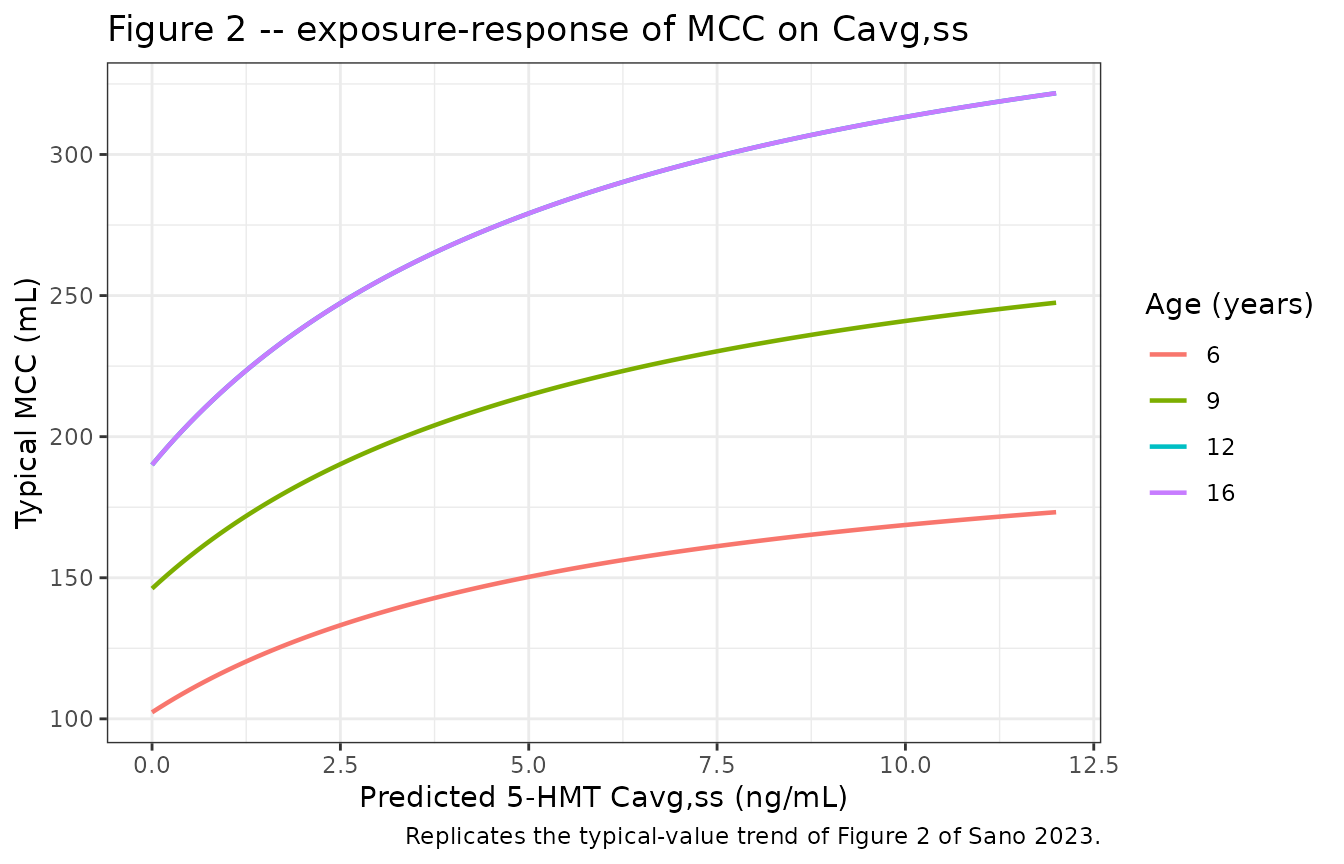

Sano 2023 Figure 2 plots observed MCC (baseline and week 12) against individual predicted Cavg,ss, stratified by treatment. The packaged Emax model produces the underlying typical-value curve; the age scaling makes it a family of curves rather than one.

mod_pd <- readModelDb("Sano_2023_fesoterodine_mcc")

er_curve <- tidyr::crossing(
  AGE = c(6, 9, 12, 16),
  CAV = seq(0, 12, by = 0.1)
) |>
  mutate(
    id = as.integer(factor(AGE)),
    ageScale = pmin((AGE + 1) / 13, 1),
    MCC = 190 * ageScale + (390 - 190) * ageScale * CAV / (6.22 + CAV)
  )

ggplot(er_curve, aes(CAV, MCC, colour = factor(AGE))) +
  geom_line(linewidth = 0.8) +
  labs(
    x = "Predicted 5-HMT Cavg,ss (ng/mL)",
    y = "Typical MCC (mL)",
    colour = "Age (years)",
    title = "Figure 2 -- exposure-response of MCC on Cavg,ss",
    caption = "Replicates the typical-value trend of Figure 2 of Sano 2023."
  ) +
  theme_bw()

Because few observations lay above EC50 (6.22 ng/mL), the relationship is close to linear across the observed exposure range – which is exactly why the authors caution that EC50 carries wide uncertainty (95% CI 4.11-10.1 ng/mL).

Figure 3b – weight-based simulation of AUCtau,ss and Cmax,ss

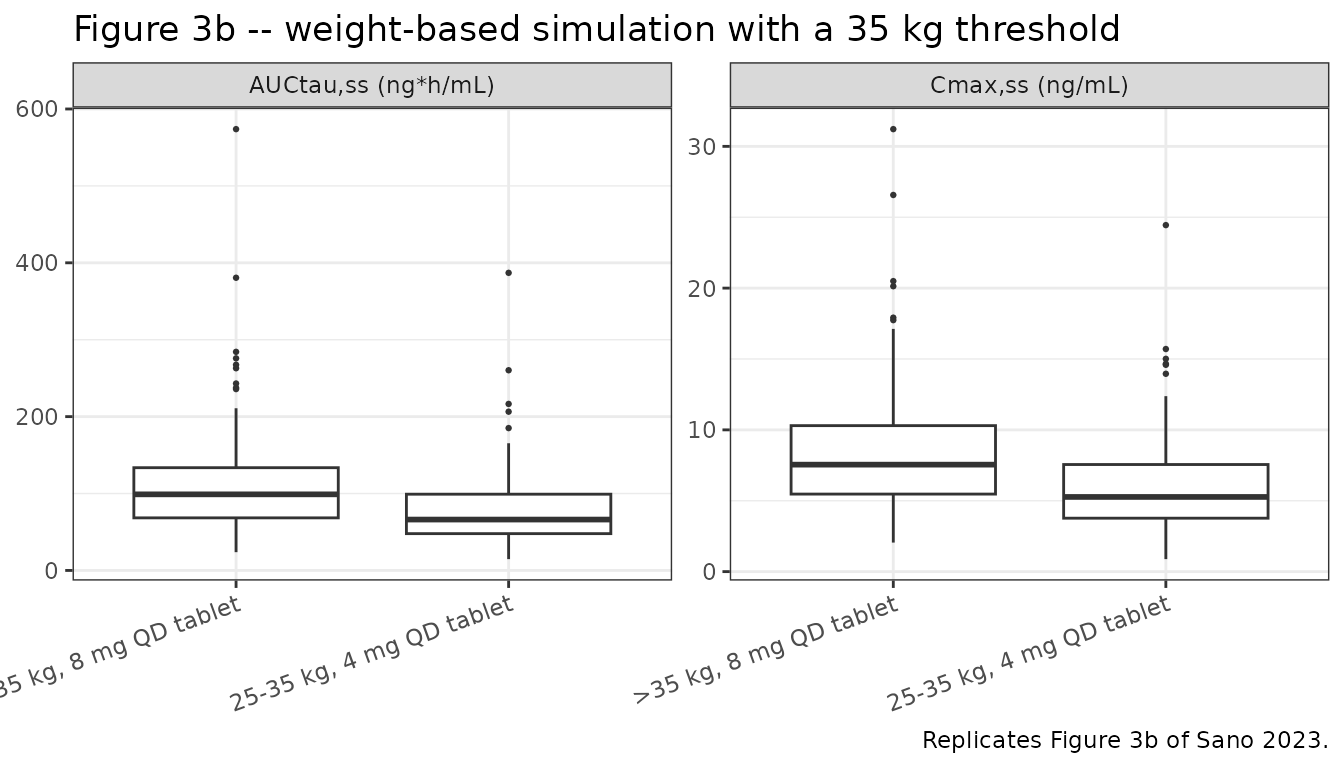

Sano 2023 Figure 3b simulates exposure under the proposed weight-banded regimen: 4 mg tablet QD for patients 25-35 kg and 8 mg tablet QD for patients over 35 kg.

set.seed(20230502)

N_TH <- 200

# Patients 25-35 kg on 4 mg tablet QD, and patients over 35 kg on 8 mg tablet
# QD. Both are drawn from the study 1047 cohort 1 (tablet) demographics,
# restricted to the relevant weight band.
band_lo <- make_subjects(
  N_TH, 0L,
  wt_med = 30, wt_sdlog = 0.12, wt_lo = 25.0, wt_hi = 35.0,
  age_mean = 9.5, age_sd = 2.2, age_lo = 6, age_hi = 16,
  pct_female = 45.1, pct_pm = 2.8, form_capsule = 0
)
band_hi <- make_subjects(
  N_TH, 200L,
  wt_med = 48, wt_sdlog = 0.28, wt_lo = 35.01, wt_hi = 85.0,
  age_mean = 12.0, age_sd = 2.2, age_lo = 7, age_hi = 16,
  pct_female = 45.1, pct_pm = 2.8, form_capsule = 0
)

events_th <- bind_rows(
  make_events(band_lo, 4000) |> mutate(treatment = "25-35 kg, 4 mg QD tablet"),
  make_events(band_hi, 8000) |> mutate(treatment = ">35 kg, 8 mg QD tablet")
)
stopifnot(!anyDuplicated(unique(events_th[, c("id", "time", "evid")])))

sim_th <- rxode2::rxSolve(
  mod_pk,
  events = events_th,
  keep = c("treatment", "WT", "AGE")
) |>
  as.data.frame()
nca_th <- run_ss_nca(sim_th, events_th)

as.data.frame(nca_th$result) |>
  filter(PPTESTCD %in% c("cmax", "auclast")) |>
  mutate(metric = recode(PPTESTCD,
    cmax = "Cmax,ss (ng/mL)",
    auclast = "AUCtau,ss (ng*h/mL)"
  )) |>
  rename(value = PPORRES) |>
  ggplot(aes(treatment, value)) +
  geom_boxplot(outlier.size = 0.5) +
  facet_wrap(~metric, scales = "free_y") +
  labs(
    x = NULL, y = NULL,
    title = "Figure 3b -- weight-based simulation with a 35 kg threshold",
    caption = "Replicates Figure 3b of Sano 2023."
  ) +
  theme_bw() +
  theme(axis.text.x = element_text(angle = 20, hjust = 1))

Figure 4 – weight-based simulation of change from baseline in MCC

Sano 2023 Figure 4 simulates CFB MCC at week 12 under the same weight-banded regimen. Cavg,ss is computed per patient from the individual apparent clearance using Equation 4, then supplied to the Emax model as the CAV covariate; the baseline occasion uses CAV = 0, which collapses the Emax term so the baseline prediction is exactly BASE.

set.seed(20230503)

# Equation 4: Cavg,ss = F * DOSE / ((CL/F) * tau). The tablet arms have F = 1,
# and `cl` from the PK simulation is already the individual CL/F.
cav_tbl <- sim_th |>
  group_by(id, treatment, AGE) |>
  summarise(cl = first(cl), .groups = "drop") |>
  mutate(
    dose_ug = if_else(treatment == "25-35 kg, 4 mg QD tablet", 4000, 8000),
    CAV = dose_ug / (cl * TAU)
  )

# Two occasions per patient: baseline (CAV = 0) and week 12 (CAV = Cavg,ss).
# Both rows share an id, so they share the patient's PD random effects.
pd_events <- bind_rows(
  cav_tbl |> mutate(time = 0, CAV = 0, occasion = "baseline"),
  cav_tbl |> mutate(time = 12, occasion = "week 12")
) |>
  mutate(amt = NA_real_, evid = 0L) |>
  arrange(id, time) |>
  as.data.frame()

sim_pd <- rxode2::rxSolve(
  mod_pd,
  events = pd_events,
  keep = c("treatment", "AGE", "CAV", "occasion")
) |>
  as.data.frame()

# `sim` carries the residual error (proportional + additive); the published
# prediction intervals include it, which is why their lower bounds are negative.
cfb <- sim_pd |>
  select(id, treatment, occasion, sim) |>
  tidyr::pivot_wider(names_from = occasion, values_from = sim) |>
  mutate(cfb_mcc = `week 12` - baseline)

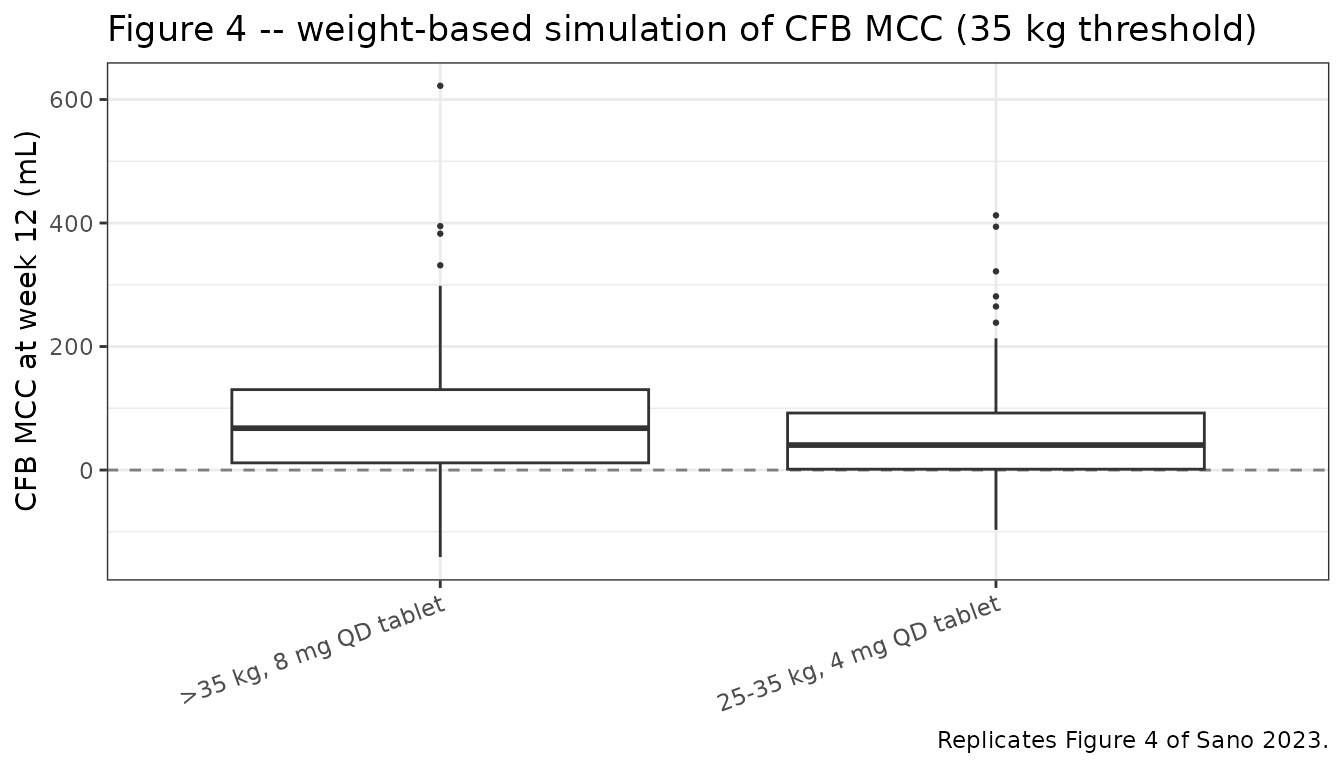

ggplot(cfb, aes(treatment, cfb_mcc)) +
  geom_hline(yintercept = 0, linetype = "dashed", colour = "grey50") +
  geom_boxplot(outlier.size = 0.5) +
  labs(
    x = NULL, y = "CFB MCC at week 12 (mL)",
    title = "Figure 4 -- weight-based simulation of CFB MCC (35 kg threshold)",
    caption = "Replicates Figure 4 of Sano 2023."
  ) +
  theme_bw() +
  theme(axis.text.x = element_text(angle = 20, hjust = 1))

published_fig4 <- tibble::tribble(
  ~treatment,                  ~cav_pub, ~cfb_pub, ~cfb_lo_pub, ~cfb_hi_pub,
  "25-35 kg, 4 mg QD tablet",  2.83,     47.8,     -50.8,       211,
  ">35 kg, 8 mg QD tablet",    4.06,     68.8,     -51.4,       286
)

cav_tbl |>
  group_by(treatment) |>
  summarise(cav_sim = median(CAV), .groups = "drop") |>
  left_join(
    cfb |>
      group_by(treatment) |>
      summarise(
        cfb_sim = median(cfb_mcc),
        cfb_lo_sim = quantile(cfb_mcc, 0.025),
        cfb_hi_sim = quantile(cfb_mcc, 0.975),
        .groups = "drop"
      ),
    by = "treatment"
  ) |>
  left_join(published_fig4, by = "treatment") |>
  mutate(across(where(is.numeric), \(x) round(x, 1))) |>
  select(
    treatment,
    cav_pub, cav_sim,
    cfb_pub, cfb_sim,
    cfb_lo_pub, cfb_lo_sim,
    cfb_hi_pub, cfb_hi_sim
  ) |>
  dplyr::rename(
    "Regimen" = treatment,
    "Cavg,ss published" = cav_pub,
    "Cavg,ss simulated" = cav_sim,
    "CFB MCC published" = cfb_pub,
    "CFB MCC simulated" = cfb_sim,
    "CFB 2.5% published" = cfb_lo_pub,
    "CFB 2.5% simulated" = cfb_lo_sim,
    "CFB 97.5% published" = cfb_hi_pub,
    "CFB 97.5% simulated" = cfb_hi_sim
  ) |>
  knitr::kable(
    caption = paste(
      "Median [95% prediction interval] Cavg,ss (ng/mL) and CFB MCC (mL)",
      "against the values reported in Sano 2023 Results section 3.3."
    )
  )
Median [95% prediction interval] Cavg,ss (ng/mL) and CFB MCC (mL) against the values reported in Sano 2023 Results section 3.3.
Regimen Cavg,ss published Cavg,ss simulated CFB MCC published CFB MCC simulated CFB 2.5% published CFB 2.5% simulated CFB 97.5% published CFB 97.5% simulated
25-35 kg, 4 mg QD tablet 2.8 2.8 47.8 40.4 -50.8 -79.1 211 239.3
>35 kg, 8 mg QD tablet 4.1 4.1 68.8 67.8 -51.4 -76.4 286 296.7

PKNCA validation

Sano 2023 Online Resource 10 reports empirical-Bayes Cmax,ss, AUCtau,ss and Cavg,ss by weight cohort and formulation for study 1047. Those are model-predicted individual exposures rather than observed NCA, so the comparison below uses the individual prediction Cc (no residual error) over the final dosing interval.

nca_res <- run_ss_nca(sim, events)

The NCA interval starts at the time of the final dose (168 h) and ends one dosing interval later, and a concentration record exists at both endpoints, so no time-zero back-extrapolation is requested.

Comparison against published NCA

published <- tibble::tribble(
  ~treatment,               ~cmax, ~auclast, ~cav,
  "<=25 kg, 2 mg QD BIC",   2.51,  29.1,     1.21,
  "<=25 kg, 4 mg QD BIC",   5.25,  63.2,     2.64,
  ">25 kg, 4 mg QD tablet", 4.94,  59.7,     2.49,
  ">25 kg, 8 mg QD tablet", 8.64,  101,      4.22
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_res,
  reference = published,
  by = "treatment",
  units = c(cmax = "ng/mL", auclast = "ng*h/mL", cav = "ng/mL"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = paste(
    "Simulated steady-state NCA vs the empirical-Bayes values in Sano 2023",
    "Online Resource 10 (medians). * differs from reference by >20%."
  ),
  align = c("l", "l", "r", "r", "r")
)
Simulated steady-state NCA vs the empirical-Bayes values in Sano 2023 Online Resource 10 (medians). * differs from reference by >20%.
NCA parameter treatment Reference Simulated % diff
Cmax (ng/mL) <=25 kg, 2 mg QD BIC 2.51 2.35 -6.2%
Cmax (ng/mL) <=25 kg, 4 mg QD BIC 5.25 5.34 +1.8%
Cmax (ng/mL) >25 kg, 4 mg QD tablet 4.94 4.38 -11.3%
Cmax (ng/mL) >25 kg, 8 mg QD tablet 8.64 8.38 -3.0%
AUClast (ng*h/mL) <=25 kg, 2 mg QD BIC 29.1 29 -0.4%
AUClast (ng*h/mL) <=25 kg, 4 mg QD BIC 63.2 66.1 +4.6%
AUClast (ng*h/mL) >25 kg, 4 mg QD tablet 59.7 54.6 -8.6%
AUClast (ng*h/mL) >25 kg, 8 mg QD tablet 101 110 +8.7%
Cavg (ng/mL) <=25 kg, 2 mg QD BIC 1.21 1.21 -0.2%
Cavg (ng/mL) <=25 kg, 4 mg QD BIC 2.64 2.75 +4.3%
Cavg (ng/mL) >25 kg, 4 mg QD tablet 2.49 2.27 -8.7%
Cavg (ng/mL) >25 kg, 8 mg QD tablet 4.22 4.57 +8.4%

Assumptions and deviations

  • Joint weight-age distribution. The paper reports weight and age marginals per cohort but not their joint distribution. Weight and age are coupled here by a Gaussian copula with rank correlation 0.75 and sampled by truncated inverse-CDF so no mass piles up at the range endpoints. This matters because Cavg,ss is weight-driven while both baseline MCC and the Emax ceiling are age-driven.
  • Weight-band demographics for Figures 3b and 4. The paper resampled the actual 121 study-1047 patients. The bands here are drawn from the cohort 1 (tablet) demographics restricted to the relevant weight range, with the lognormal median and dispersion chosen to place the band medians near 30 kg and 48 kg. Individual band-level demographics are not published.
  • Prediction-interval precision. Sano 2023 simulated 121 patients 1000 times per arm; this vignette uses 200 patients once per arm (the library’s per-arm cohort cap). The medians are well determined, but the simulated 2.5th and 97.5th percentiles carry visible sampling noise relative to the published values.
  • Race and CYP2D6 phenotype. Race is not a covariate in either model and is not simulated. CYP2D6 poor metabolizers are drawn at the published 2.8% (cohort 1) and 0% (cohort 2) prevalence; with 3 poor metabolizers in the whole analysis population, this covariate is essentially unidentified in the source data and its 0.546-fold effect should be read as imprecise.
  • Imprecise covariate effects retained as published. Both sex effects have 95% CIs spanning the null value of 1.0 (CL/F 0.716-1.02; Vd/F 0.161-1.26) and ALAG has 45.1% RSE. They are kept because the authors carried them into the final model, not because they are well estimated.
  • Formulation is confounded with weight and dose. BIC was given only to the 25-kg-or-less cohort and tablets only to the heavier cohort, so the 0.648 relative bioavailability cannot be cleanly separated from a weight or dose effect within this dataset. The authors note their model-predicted 64.8% is lower than the 79.9-87.9% observed by NCA in healthy adults, and attribute the gap to design differences and unknown fed/fasted state.
  • Residual error encoded as lnorm, not prop. Online Resource 8c writes the residual form as ln(Y) = ln(F) + eps, a true log-normal. A 0.381 log-scale SD is a 39.5% CV, not 38.1%, so the distinction is material at this magnitude.
  • % CV read as sqrt(variance). See the Source trace section. The log-normal reading of Table 2 would make the reported Vd/F-ka covariance imply a correlation of 1.15, which is impossible.
  • Emax is fixed but carries IIV. The typical value is fixed to the age-based expected bladder capacity, while the between-patient spread around it (47.1% CV) is estimated. This is encoded as fixed(log(390)) with an estimated etalemax.
  • Age held constant over the 12-week window. Baseline age drives both BASE and Emax; the paper does not advance age over follow-up, and neither does this vignette.
  • No non-paper-derived parameter values. Every ini() value traces to Sano 2023 Table 2, Table 3, or Online Resources 4, 5 and 8. No value was digitised from a figure, supplied by correspondence, or carried from an upstream model.
