Model and source

Aregbe 2012 is a 5-page Short Communication that publishes the first population PK model for the heat shock protein 90 inhibitor 17-DMAG (alvespimycin, NSC 707545). The structural model is a NONMEM ADVAN11 / TRANS4 three-compartment IV model with first-order elimination (Aregbe 2012 Methods, “Base model structure” and Results). None of the screened covariates (age, albumin, ALT, AST, bilirubin, BUN, BSA, creatinine, weight, sex) reached the forward-addition / backward-elimination significance threshold, so the final model has no covariate effects. Random-effects structure: log-normal IIV on CL, Q3, V1, V2, V3; log-normal between-occasion variability (BOV) on Q2 and V1; proportional residual error.

Population

Aregbe 2012 pooled PK data from two phase I / II studies (Aregbe 2012 Methods, “Study setting and participants” and Table 1):

  • N = 67 adult patients with histologically confirmed advanced solid tumors not curable by standard therapies.
  • 48 patients (72%) at the University of Pittsburgh Cancer Institute (PCI) on either schedule A (5 daily doses) or schedule B (3 daily doses) under an accelerated dose-titration design starting at 1.5 or 2.5 mg/m^2 IV.
  • 19 patients (28%) at Memorial Sloan-Kettering Cancer Center (MSKCC) who each received a single pre-specified IV infusion.
  • All infusions were 1 h IV.
  • 1148 plasma concentration measurements total (1000 from PCI; 148 from MSKCC). The PCI median per-subject sample count was 21 (range 7-25); MSKCC was 8 (range 7-9).

Demographics from Table 1: 42 male / 25 female (sex_female_pct = 37%), median age 63 years (range 28-82), median weight 80.3 kg (48.2-136.5), median BSA 1.9 m^2 (1.5-2.6). Baseline lab medians: albumin 3.8 g/dL (2.6-5.1), ALT 22 U/L (10-106), AST 25 U/L (12-75), bilirubin 0.5 mg/dL (0.1-3.0), BUN 15 mg/dL (5-70), creatinine 1.0 mg/dL (0.6-1.8). Inclusion criteria required adequate hepatic, renal, and cardiac function (ALT/AST <= 1.5x ULN, normal BUN and creatinine, ECOG <= 2, no QTc prolongation or cardiac comorbidity per the strict 17-AAG-derived exclusion criteria). One patient is missing all laboratory values; albumin was missing for 6 patients and BUN for 2. Per-dose range was 2.2-413 mg/m^2 with a median of 36 mg/m^2.

The same information is available programmatically: readModelDb("Aregbe_2012_alvespimycin")$population.

Source trace

Per-parameter origin (recorded as in-file comments next to each ini() entry of inst/modeldb/specificDrugs/Aregbe_2012_alvespimycin.R):

Equation / parameter Value Source location
lcl (log CL) log(8.4) Aregbe 2012 Table 2: CL = 8.4 L/h, %SE 11.2
lvc (log V1) log(27.4) Aregbe 2012 Table 2: V1 = 27.4 L, %SE 11.7
lq (log Q2) log(85.1) Aregbe 2012 Table 2: Q2 = 85.1 L/h, %SE 9.6
lvp (log V2) log(66.4) Aregbe 2012 Table 2: V2 = 66.4 L, %SE 10.1
lq2 (log Q3) log(11.6) Aregbe 2012 Table 2: Q3 = 11.6 L/h, %SE 13.1
lvp2 (log V3) log(142) Aregbe 2012 Table 2: V3 = 142 L, %SE 13.5
etalcl (IIV CL) 0.2543 Table 2: IIV CL = 53.8% (%SE 22.9); variance = log(0.538^2 + 1)
etalvc (IIV V1) 0.1034 Table 2: IIV V1 = 33.0% (%SE 111.9); variance = log(0.330^2 + 1)
etalvp (IIV V2) 0.2288 Table 2: IIV V2 = 50.7% (%SE 23.7); variance = log(0.507^2 + 1)
etalq2 (IIV Q3) 0.4539 Table 2: IIV Q3 = 75.8% (%SE 32.0); variance = log(0.758^2 + 1)
etalvp2 (IIV V3) 0.3756 Table 2: IIV V3 = 67.5% (%SE 37.3); variance = log(0.675^2 + 1)
etaiov_q_1..5 (BOV Q2) 0.1010 Table 2: BOV Q2 = 32.6% (%SE 37.2); variance = log(0.326^2 + 1); occasions 2-5 fixed equal per $OMEGA BLOCK(1) SAME
etaiov_vc_1..5 (BOV V1) 0.3049 Table 2: BOV V1 = 59.7% (%SE 31.2); variance = log(0.597^2 + 1); occasions 2-5 fixed equal per $OMEGA BLOCK(1) SAME
propSd 0.161 Table 2: proportional residual error = 16.1% (%SE 2.7)
d/dt(central, peripheral1, peripheral2) n/a Methods “Base model structure” describes ADVAN11 / TRANS4 with first-order elimination; the explicit ODEs reproduce the standard mass-balance form
Cc = central / vc n/a Plasma concentration in the central compartment; dose units mg, V in L -> Cc in mg/L (Aregbe 2012 reports the LC/MS assay output in ug/mL = mg/L)
Cc ~ prop(propSd) n/a Methods: “proportional residual error… best described the 17-DMAG concentration data” (selected over additive and combined-error structures)

The OCC covariate column has no effect on the typical-value trajectory; it multiplexes which of the five etaiov_q_<k> and etaiov_vc_<k> slots is active for each dose. The encoding mirrors Jonsson_2011_ethambutol.R’s 4-occasion IOV-on-CL pattern.

Virtual cohort

Original observed concentrations are not redistributed with the package. The cohort below mirrors the Aregbe 2012 simulation scenario that produced the published AUC0-24 prediction interval: median dose 36 mg/m^2 given as a 1 h IV infusion daily for 5 days (Pittsburgh schedule A), with BSA drawn from a distribution matching Table 1 (median 1.9 m^2, range 1.5-2.6 m^2).

set.seed(20120327L)

n_subjects <- 100L

# BSA distribution: median 1.9 m^2 with the Table 1 range 1.5-2.6 m^2.
# Use a truncated normal centered at the median; the 5th-95th percentile
# of the truncated draw spans most of the Table 1 range.
bsa <- pmin(pmax(rnorm(n_subjects, mean = 1.9, sd = 0.20), 1.5), 2.6)

# Schedule A protocol used in the Aregbe 2012 prediction-interval
# simulation: five 1 h IV infusions of 36 mg/m^2 once daily.
dose_per_m2_mg <- 36
n_doses        <- 5L
infusion_dur_h <- 1
dose_interval_h <- 24

per_subject_dose_mg <- dose_per_m2_mg * bsa  # absolute mg per dose

# Observation grid: hourly through hour 24 (the AUC0-24 window the
# paper reports the prediction interval over). Sparse enough to be
# fast, dense enough that PKNCA's trapezoidal rule is faithful for the
# 17-DMAG profile (peaks at end of infusion at t = 1 h, then
# multi-exponential decay).
obs_hours <- c(seq(0, 4, by = 0.25), seq(4.5, 24, by = 0.5))

dose_rows <- tibble::tibble(
  id   = rep(seq_len(n_subjects), each = n_doses),
  time = rep(seq.int(0L, by = dose_interval_h, length.out = n_doses),
             times = n_subjects),
  amt  = rep(per_subject_dose_mg, each = n_doses),
  rate = rep(per_subject_dose_mg / infusion_dur_h, each = n_doses),
  evid = 1L,
  cmt  = "central",
  OCC  = rep(seq_len(n_doses), times = n_subjects)
)

obs_rows <- tibble::tibble(
  id   = rep(seq_len(n_subjects), each = length(obs_hours)),
  time = rep(obs_hours, times = n_subjects),
  amt  = 0,
  rate = 0,
  evid = 0L,
  cmt  = NA_character_,
  # OCC on observation rows: assign by the dose interval the
  # observation falls within, so the BOV multiplexer picks the
  # correct occasion's eta as the trajectory rolls forward.
  OCC  = rep(pmin(pmax(floor(obs_hours / dose_interval_h) + 1L, 1L), n_doses),
             times = n_subjects)
)

events <- dplyr::bind_rows(dose_rows, obs_rows) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode2(readModelDb("Aregbe_2012_alvespimycin"))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_q_1, etaiov_q_2, etaiov_q_3, etaiov_q_4, etaiov_q_5, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5
#> as a work-around try putting the mu-referenced expression on a simple line

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("OCC")
) |>
  as.data.frame()

For the typical-value reference trajectory (deterministic, no IIV and no BOV), zero out the random effects:

mod_typical <- mod |> rxode2::zeroRe()
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_q_1, etaiov_q_2, etaiov_q_3, etaiov_q_4, etaiov_q_5, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5
#> as a work-around try putting the mu-referenced expression on a simple line
sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("OCC")
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalvp', 'etalq2', 'etalvp2', 'etaiov_q_1', 'etaiov_q_2', 'etaiov_q_3', 'etaiov_q_4', 'etaiov_q_5', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5'
#> Warning: multi-subject simulation without without 'omega'

Replicate Supplemental Figure 2

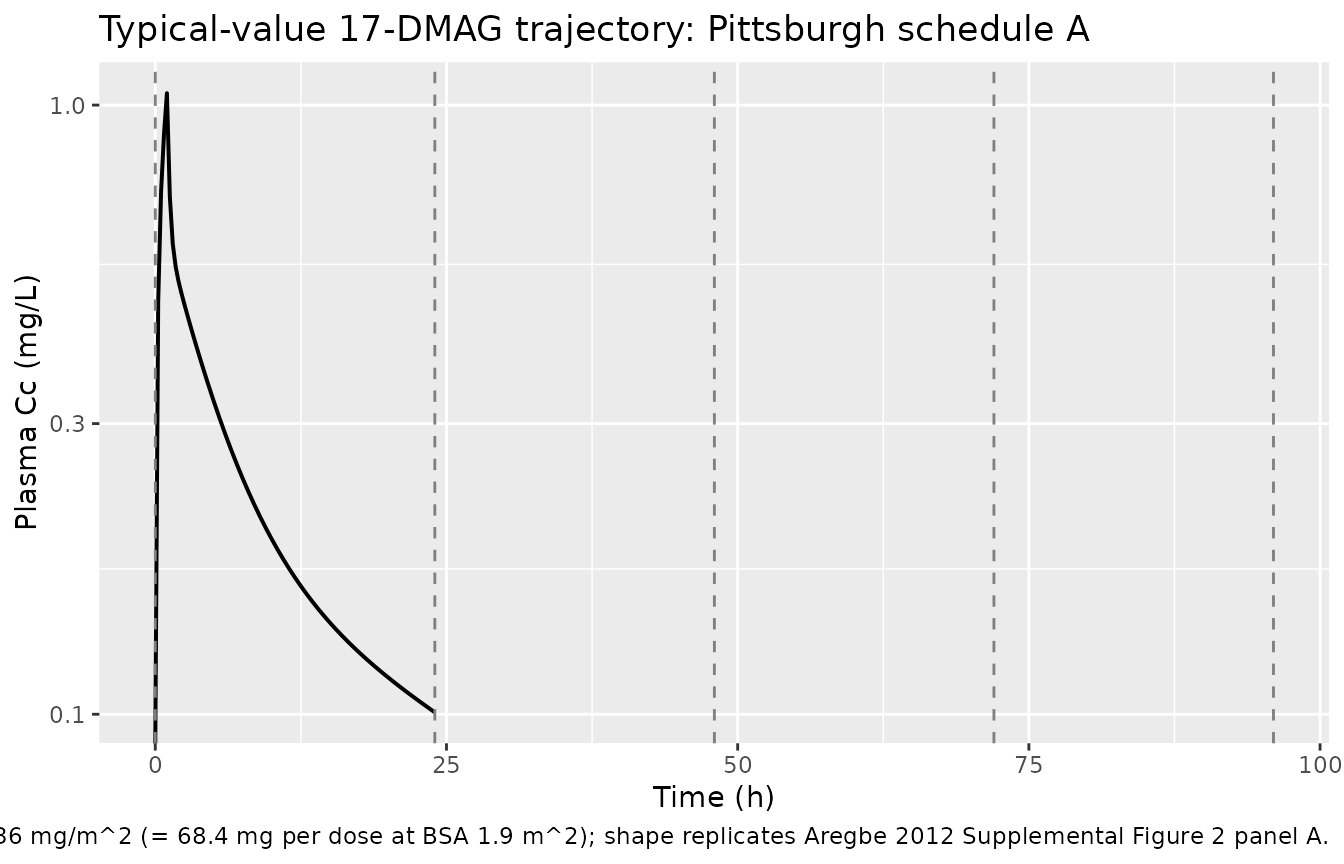

The supplement’s Figure 2 shows the 17-DMAG plasma concentration vs. time profile for two typical patients: (A) a 3-dose 1 h infusion of 33 mg per dose at Pittsburgh and (B) a single-dose 1 h infusion of 170 mg at MSKCC. The deterministic (zero-RE) trajectory below reproduces the Pittsburgh schedule-A typical profile at the median dose (36 mg/m^2 x 1.9 m^2 = 68.4 mg per dose) over five daily infusions; the shape and peak / trough structure should match the shape of the supplemental figure’s panel (A).

typical_one <- sim_typical |>
  dplyr::filter(id == 1L)

ggplot(typical_one, aes(time, Cc)) +
  geom_line(linewidth = 0.7) +
  geom_vline(xintercept = seq(0, by = 24, length.out = n_doses),
             linetype = "dashed", colour = "grey50") +
  scale_y_log10() +
  labs(
    x = "Time (h)",
    y = "Plasma Cc (mg/L)",
    title = "Typical-value 17-DMAG trajectory: Pittsburgh schedule A",
    caption = paste("Five 1 h IV infusions of 36 mg/m^2 (= 68.4 mg per dose at BSA 1.9 m^2);",
                    "shape replicates Aregbe 2012 Supplemental Figure 2 panel A.")
  )
#> Warning in scale_y_log10(): log-10 transformation introduced
#> infinite values.

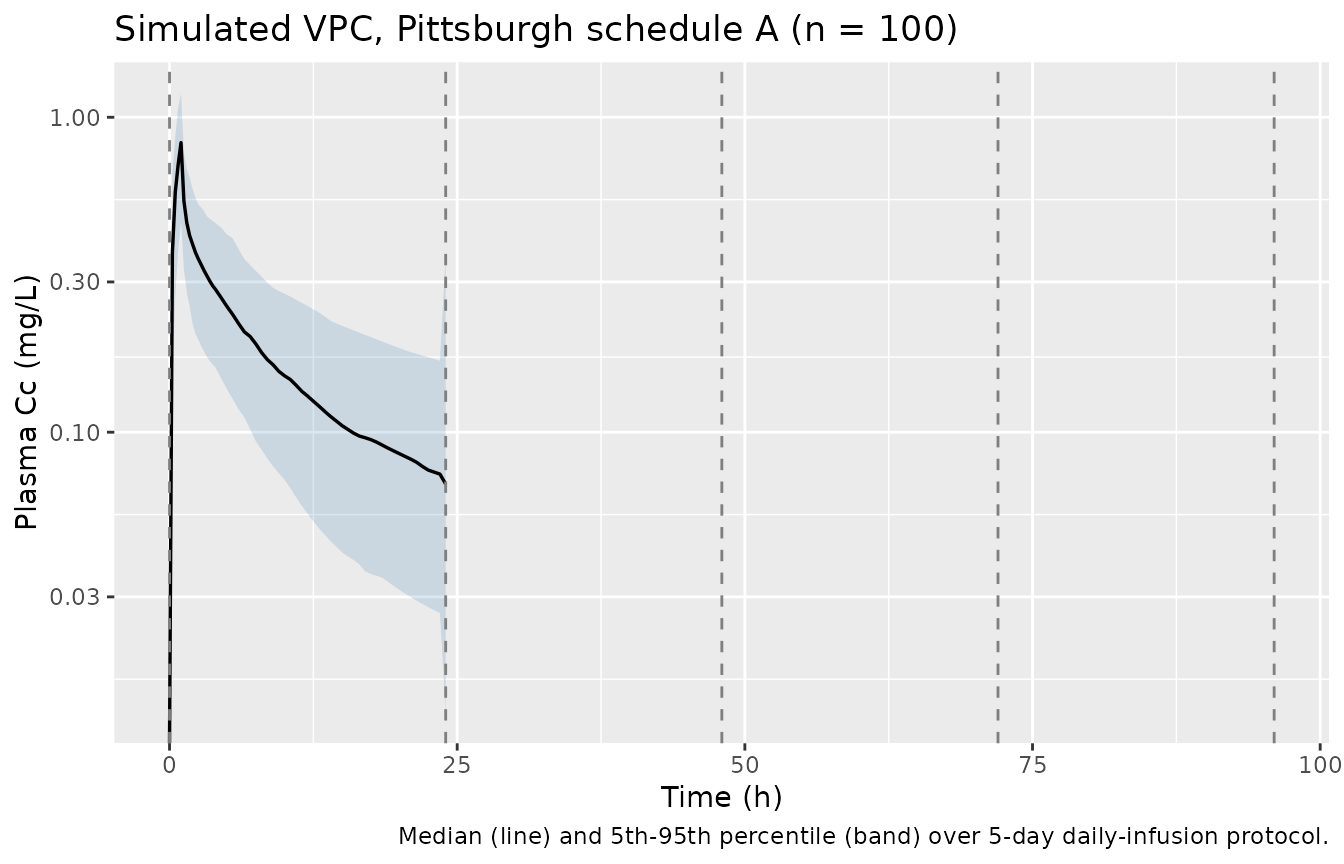

A stochastic VPC over the same five-day window shows the inter-individual spread the model attributes to IIV + BOV at the published parameter values:

vpc_summary <- sim |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = stats::quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = stats::quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc_summary, aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.20, fill = "steelblue") +
  geom_line(linewidth = 0.6) +
  geom_vline(xintercept = seq(0, by = 24, length.out = n_doses),
             linetype = "dashed", colour = "grey50") +
  scale_y_log10() +
  labs(
    x = "Time (h)",
    y = "Plasma Cc (mg/L)",
    title = "Simulated VPC, Pittsburgh schedule A (n = 100)",
    caption = "Median (line) and 5th-95th percentile (band) over 5-day daily-infusion protocol."
  )
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

PKNCA validation

The Aregbe 2012 Discussion / “Effects of inter-occasion variability and between-occasion variability on 17-DMAG exposure” reports a simulated 95% prediction interval for AUC0-24 of 1,059-9,007 ug.h/L (= 1.06-9.0 mg.h/L) at the median 36 mg/m^2 dose under schedule A with both IIV and BOV active. (The paper’s stated “mg/L h” units cannot reconcile dimensionally with Dose / CL = 68.4 mg / 8.4 L/h ~ 8.14 mg.h/L; the prediction interval becomes consistent once read as ug.h/L = mg.h/L by the conventional ng/mL.h convention. See Errata.)

The PKNCA block below recomputes AUC0-24 from the post-first-dose concentration window and reports the simulated 5th-50th-95th percentiles. The published 1.06-9.0 mg.h/L PI should bracket the simulated 5th-95th percentile.

# Drop NAs and any negative excursions from the ODE solver, but retain the
# t = 0 zero-concentration row so PKNCA can integrate AUC from the dose time
# without rejecting `start = 0` for being earlier than the first measurement.
first_dose_window <- sim |>
  dplyr::filter(time <= 24, !is.na(Cc), Cc >= 0) |>
  dplyr::mutate(treatment = "schedule A, dose 1")

dose_first <- events |>
  dplyr::filter(evid == 1L, time == 0) |>
  dplyr::mutate(
    treatment = "schedule A, dose 1",
    dur_h     = infusion_dur_h
  )

conc_obj <- PKNCA::PKNCAconc(first_dose_window, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_first, amt ~ time | treatment + id,
                             route = "intravascular",
                             duration = "dur_h")

intervals <- data.frame(
  start   = 0,
  end     = 24,
  cmax    = TRUE,
  tmax    = TRUE,
  auclast = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

nca_summary <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "auclast")) |>
  dplyr::group_by(PPTESTCD) |>
  dplyr::summarise(
    p05    = stats::quantile(PPORRES, 0.05, na.rm = TRUE),
    median = stats::median(PPORRES, na.rm = TRUE),
    p95    = stats::quantile(PPORRES, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  nca_summary,
  digits  = 3,
  caption = paste("Simulated NCA after dose 1 of 36 mg/m^2 schedule A (n = 100).",
                  "AUC0-24 in mg*h/L (= ug*h/mL); Cmax in mg/L; Tmax in h.")
)
Simulated NCA after dose 1 of 36 mg/m^2 schedule A (n = 100). AUC0-24 in mgh/L (= ugh/mL); Cmax in mg/L; Tmax in h.
PPTESTCD p05 median p95
auclast 2.667 4.379 7.053
cmax 0.477 0.839 1.232
tmax 1.000 1.000 1.000

Comparison against published AUC prediction interval

Quantity Published 95% PI Simulated 5th-95th
AUC0-24 (mg.h/L) 1.06 - 9.0 (Aregbe 2012 abstract / Discussion, “1,059-9,007 ug.h/L”) computed in the chunk above

Aregbe 2012 also reports a tighter BOV-only prediction interval of 2.91-4.08 mg.h/L (i.e., AUC variability when IIV is removed but BOV is retained). nlmixr2 has no built-in switch to zero only the IIV etas while retaining the BOV occasion etas, so this side-by-side check is not run here; if a reviewer wants to confirm the BOV-only spread, build a custom omega matrix that zeroes only the IIV diagonals and pass it as omega = to rxode2::rxSolve().

Assumptions and deviations

  • No covariates in the final model. Aregbe 2012 screened nine continuous covariates (age, albumin, ALT, AST, bilirubin, BUN, BSA, creatinine, weight) and one binary covariate (sex) by stepwise forward addition / backward elimination, but none cleared the OFV significance threshold. The packaged model omits all covariate effects to match the source’s final model. The Discussion notes this is partly an artefact of the strict eligibility criteria (adequate hepatic, hematological, and renal function), which truncated the covariate ranges available for testing; downstream users who want to extrapolate beyond the studied population should not interpret the absence of a covariate effect here as a general-population assertion.
  • $OMEGA BLOCK(1) SAME for BOV was unrolled into five independent etas with fix(...) after the first. nlmixr2 has no SAME shortcut, so the first occasion’s etaiov_q_1 / etaiov_vc_1 is the estimated variance and occasions 2-5 are hard-fixed at the same value. This matches the convention used by Jonsson_2011_ethambutol for analogous 4-occasion IOV.
  • Five occasion slots. The pooled dataset spans up to five daily doses (Pittsburgh schedule A); patients on schedule B contribute three occasions and the MSKCC cohort contributes one occasion. Subjects who never reach occasion 4 or 5 simply do not multiplex through etaiov_q_4..5 / etaiov_vc_4..5. The packaged model is written to handle the maximum (5); downstream simulators with shorter regimens can leave OCC <= n_doses.
  • BSA and dose convention. Aregbe 2012 reports doses on a per-m^2 basis (median 36 mg/m^2). The packaged model itself is parameterised in absolute mg, L, and L/h units, so the vignette’s event-table builder multiplies the per-m^2 dose by per-subject BSA to recover the absolute infused dose. Reference [8] (Ramanathan 2010, J Clin Oncol 28:1520) and [12] (Kummar 2010, Eur J Cancer 46:340) report prior NCA-only analyses of 17-DMAG; downstream consumers comparing AUC values across publications should confirm whether the source used per-m^2-normalised AUCs or absolute AUCs.
  • AUC unit reconciliation (Errata-style note). The Aregbe 2012 abstract and Results section state the AUC0-24 prediction interval in “mg/L h”; that cannot be dimensionally consistent with Dose / CL = 68.4 mg / 8.4 L/h ~ 8.14 mg.h/L, but interpreting the reported “1,059-9,007” as ug.h/L (= mg.h/L by the more conventional ng/mL.h reading) yields a 1.06-9.0 mg.h/L range that brackets the typical-value AUC computed from the model parameters. The published units string is treated as a typo per this reading; the comparison table above uses mg.h/L throughout.
  • No supplementary control stream. The Springer SI ships three diagnostic-figure DOCX files (MOESM1: GOF panels, MOESM2 / MOESM3: concentration-time profiles for representative patients) but no NONMEM control stream. Final parameter values are taken from Aregbe 2012 Table 2 directly; no .lst FINAL PARAMETER ESTIMATE block was available for cross-checking.
  • Errata search. A targeted PubMed query (22450873[UID] AND erratum) returned no results as of the extraction date; no published correction is on file.
