Somatropin / rhGH translational human (Thorsted 2016)

Source: vignettes/articles/Thorsted_2016_somatropin_human.Rmd
Thorsted_2016_somatropin_human.Rmd

Model and source

mod <- readModelDb("Thorsted_2016_somatropin_human")
ui  <- rxode2::rxode(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
cat(ui$reference, sep = "\n")
#> Thorsted A, Thygesen P, Agerso H, Laursen T, Kreilgaard M. Translational mixed-effects PKPD modelling of recombinant human growth hormone - from hypophysectomized rat to patients. Br J Pharmacol. 2016 Jun;173(11):1742-55. doi:10.1111/bph.13473. Parameters scaled from the rat fit; see also modellib('Thorsted_2016_somatropin_rat').
  • Description: Translational (allometrically-scaled rat-to-human) population PKPD model for recombinant human growth hormone (rhGH / somatropin) in growth-hormone-deficient adult males. Structural parameter values are derived from the Thorsted 2016 hypophysectomized-rat PKPD fit by allometric scaling to a 70 kg reference subject (Table 3 of the source paper): clearance terms (CL, Q) and Vmax with exponent 0.75; distribution volumes (Vc, Vp) with exponent 0.9 (the empirically-selected best-fit exponent for human i.v. data); first-order absorption rate constants (ka1, ka2) and kout with exponent -0.25; KM unscaled; Emax and EC50 unscaled. The s.c. absorption model is the corrected form (Table 3 / Figure 5): bioavailability of the ka2 path reduced from 0.833 (rat) to 0.500, and one transit compartment added to the ka1 path. The IGF-1 indirect response uses kin = kout * R0 with R0 fixed to 65 ng/mL (human population mean per Laursen 1996) and is driven directly by plasma rhGH (no effect-delay chain - the rat CPLAG chain is intentionally dropped for the human prediction). Bodyweight gain is not included in the human model. Variability is inherited from the rat PKPD fit; residual error is fixed at the values used for the human-simulation validation (Methods).
  • Article: Br J Pharmacol 173(11):1742-55

This is the translational (allometrically-scaled rat-to-human) companion model to Thorsted_2016_somatropin_rat. Parameter values are obtained from the rat fit by scaling clearances and Vmax with exponent 0.75, distribution volumes with exponent 0.9 (the empirically-selected best-fit exponent for human i.v. data per Thorsted 2016 Figure 4), and first-order absorption / IGF-1 turnover rate constants with exponent -0.25, around a reference adult body weight of 70 kg (Thorsted 2016 Table 3). The s.c. absorption model is the corrected form (F2 reduced from 0.833 to 0.500 and a transit compartment added to the ka1 path; Thorsted 2016 Figure 5 narrative). The GH effect-delay (CPLAG) chain is intentionally dropped for the human prediction.

Population

str(ui$population)
#> List of 9
#>  $ species       : chr "human"
#>  $ n_subjects    : int 10
#>  $ n_studies     : int 1
#>  $ age_range     : chr "Adult males (Laursen 1996 validation cohort)"
#>  $ weight_range  : chr "approximately 70 kg (Table 3 reference)"
#>  $ sex_female_pct: num 0
#>  $ disease_state : chr "Growth hormone deficient adult males withdrawn from rhGH treatment for 1 week to washout IGF-1 prior to study ("| __truncated__
#>  $ dose_range    : chr "5 ug/kg i.v. bolus and 33.5 ug/kg s.c. single doses (Laursen 1996 validation)"
#>  $ notes         : chr "Translational forward-simulation construct rather than a fit to human data: parameter values are obtained by al"| __truncated__

The translational target is a 70-kg GH-deficient adult male as described in the Laursen 1996 validation cohort cited by Thorsted 2016 (10 patients, withdrawn from rhGH treatment for 1 week to washout IGF-1 prior to study, dosed at 5 ug/kg i.v. bolus and at 33.5 ug/kg s.c.). The packaged model is intended for forward simulation rather than re-fitting to human data.

Source trace

Equation / parameter Rat value (Table 2) Scaling Human value (Table 3) Source
CL 0.0285 L/h 0.75 3.88 L/h Table 3
Vmax 11.5 ug/h 0.75 1565 ug/h Table 3
KM 358 ug/L - (not scaled, see Errata) 358 ug/L Table 3 (Methods text)
Vc 0.0069 L 0.9 2.51 L Table 3
Q 0.0101 L/h 0.75 1.37 L/h Table 3
Vp 0.0081 L 0.9 2.94 L Table 3
ka1 3.02 1/h -0.25 0.587 1/h Table 3
ka2 1.22 1/h -0.25 0.237 1/h Table 3
F1 0.0316 - 0.0316 Table 3 (kept as in rat)
F2 0.833 corrected to 0.500 0.500 Results / Figure 5 narrative
kout 0.0913 1/h -0.25 0.0178 1/h Table 3
R0 29.4 ng/mL fixed to human pop mean 65 ng/mL Table 3 / Methods (Laursen 1996)
Emax 9.88 - 9.88 Table 3
EC50 16.3 ug/L - 16.3 ug/L Table 3
GH effect-delay chain active in rat dropped not present Methods (Prediction of human PKPD)
Proportional residual error (PK) 0.233 fixed at 0.25 0.25 Methods
Additive residual SD (PK) 0.279 ng/mL fixed at 0.25 0.25 ng/mL Methods
Additive residual SD (IGF-1) 21.3 ng/mL fixed at 10 10 ng/mL Methods
IIV CL / Vp / ka2 / R0 inherited from rat inherited from rat inherited from rat Methods (variability as estimated in PKPD model)

Virtual cohort

set.seed(20260516)

ref_wt <- 70

make_sc_cohort <- function(n, dose_ug_per_kg, regimen_label, id_offset = 0L,
                           obs_grid = c(0, 0.5, 1, 2, 4, 6, 8, 12, 24, 36, 48)) {
  ids <- id_offset + seq_len(n)
  dose_amt <- dose_ug_per_kg * ref_wt
  doses_depot  <- tidyr::expand_grid(id = ids, time = 0, evid = 1,
                                     amt = dose_amt, cmt = "depot")
  doses_depot2 <- doses_depot |> dplyr::mutate(cmt = "depot2")
  obs <- tidyr::expand_grid(id = ids, time = obs_grid) |>
    dplyr::mutate(evid = 0, amt = 0, cmt = "Cc")
  events <- dplyr::bind_rows(doses_depot, doses_depot2, obs) |>
    dplyr::arrange(id, time, evid) |>
    dplyr::mutate(WT = ref_wt, cohort = regimen_label)
  events
}

make_iv_cohort <- function(n, dose_ug_per_kg, regimen_label, id_offset = 0L,
                           obs_grid = c(0, 0.08, 0.17, 0.33, 0.5, 1, 2, 4, 6,
                                        8, 12, 24)) {
  ids <- id_offset + seq_len(n)
  dose_amt <- dose_ug_per_kg * ref_wt
  doses <- tidyr::expand_grid(id = ids, time = 0, evid = 1,
                              amt = dose_amt, cmt = "central")
  obs <- tidyr::expand_grid(id = ids, time = obs_grid) |>
    dplyr::mutate(evid = 0, amt = 0, cmt = "Cc")
  events <- dplyr::bind_rows(doses, obs) |>
    dplyr::arrange(id, time, evid) |>
    dplyr::mutate(WT = ref_wt, cohort = regimen_label)
  events
}

events <- dplyr::bind_rows(
  make_iv_cohort(20,   5, "IV 5 ug/kg",     id_offset =   0L),
  make_sc_cohort(20, 33.5, "SC 33.5 ug/kg", id_offset = 100L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid", "cmt")])))

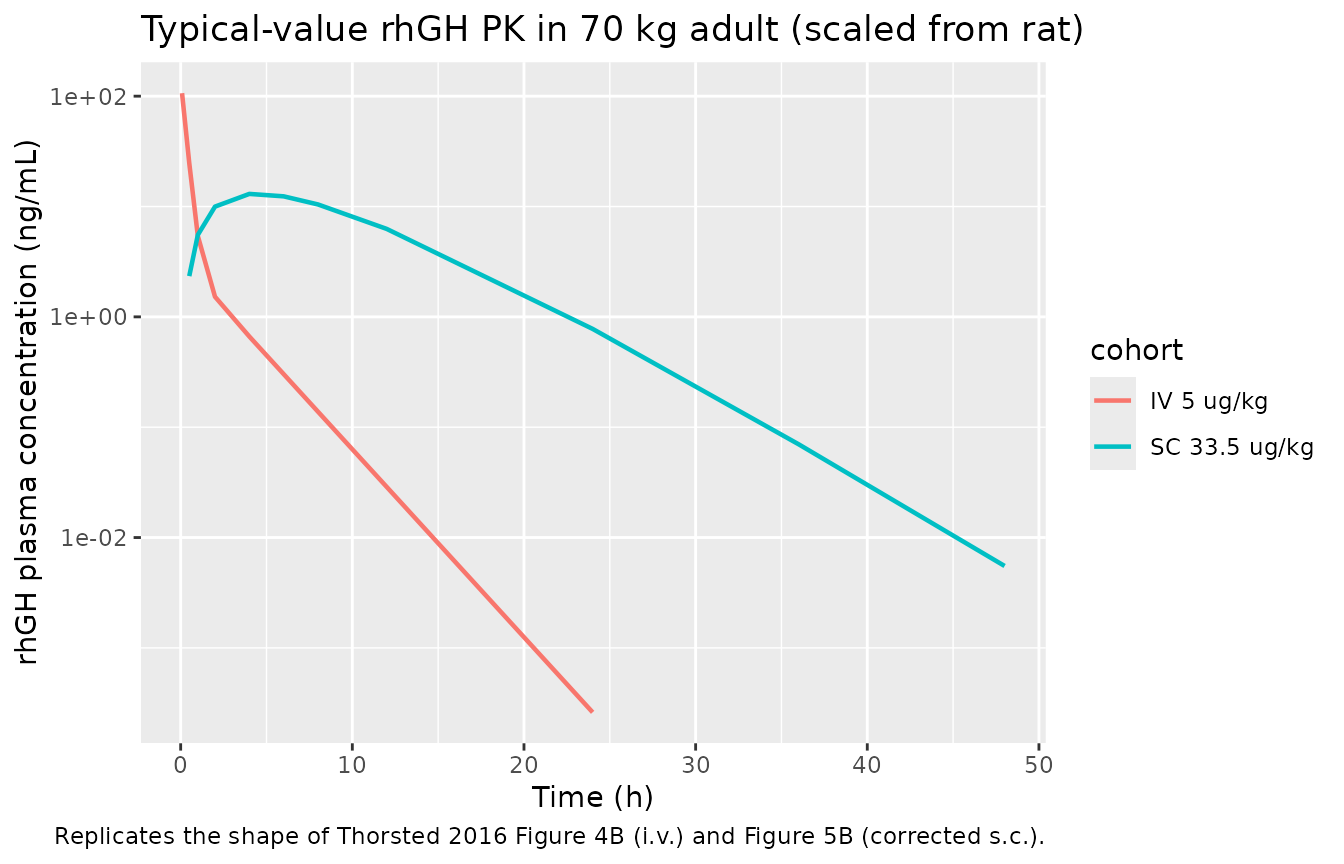

Typical-value simulation

mod_typ <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typ <- rxode2::rxSolve(mod_typ, events = events,
                           keep = c("cohort", "WT")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp', 'etalka2', 'etalr0'
#> Warning: multi-subject simulation without without 'omega'
sim_typ |>
  dplyr::filter(time > 0) |>
  dplyr::distinct(cohort, time, .keep_all = TRUE) |>
  ggplot(aes(time, Cc, colour = cohort)) +
  geom_line(size = 0.8) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "rhGH plasma concentration (ng/mL)",
       title = "Typical-value rhGH PK in 70 kg adult (scaled from rat)",
       caption = "Replicates the shape of Thorsted 2016 Figure 4B (i.v.) and Figure 5B (corrected s.c.).")
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.

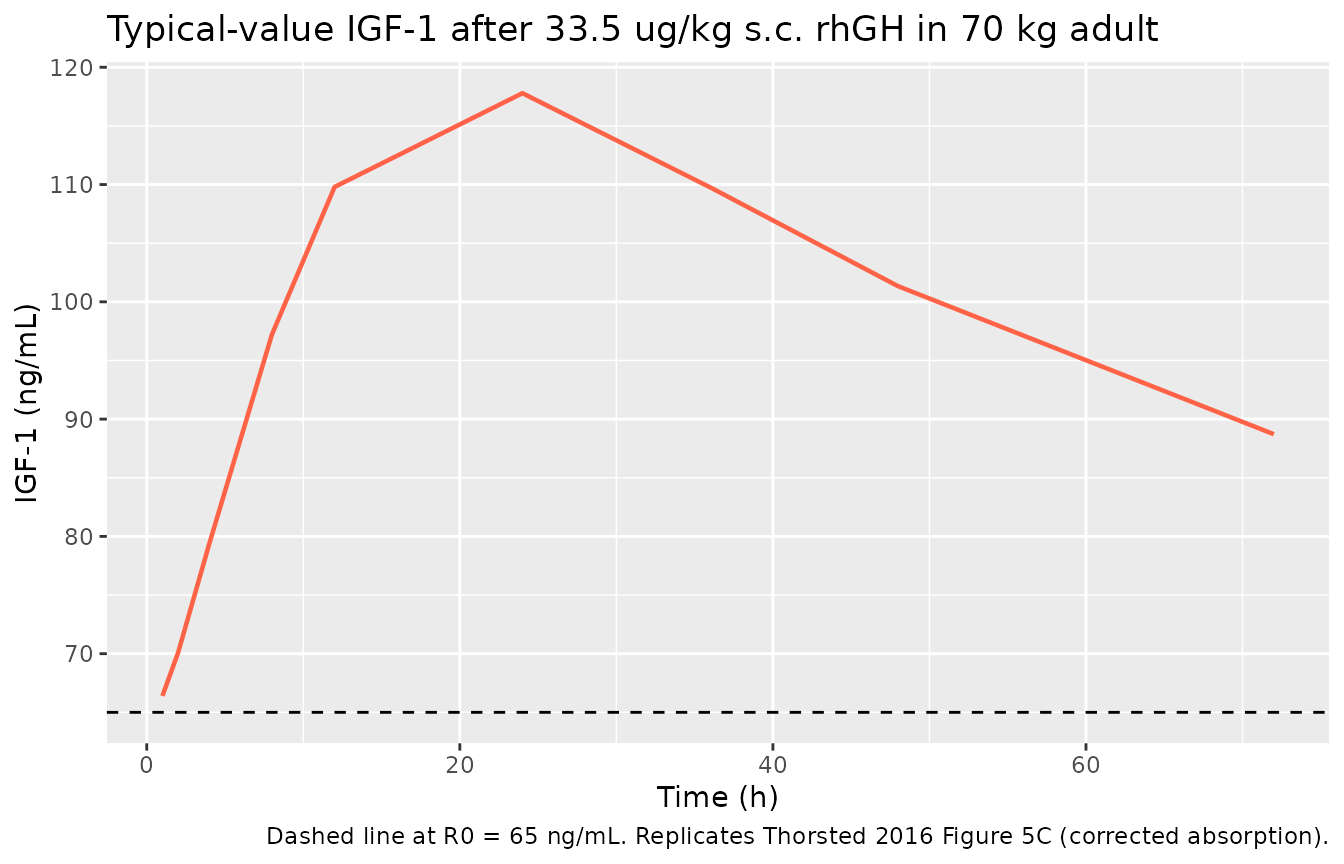

IGF-1 induction after a single SC dose

events_pd <- make_sc_cohort(
  n = 10, dose_ug_per_kg = 33.5, regimen_label = "SC 33.5 ug/kg",
  id_offset = 500L,
  obs_grid = c(0, 1, 2, 4, 8, 12, 24, 36, 48, 72)
)
sim_pd <- rxode2::rxSolve(mod_typ, events = events_pd,
                          keep = c("cohort", "WT")) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp', 'etalka2', 'etalr0'
#> Warning: multi-subject simulation without without 'omega'
sim_pd |>
  dplyr::filter(time > 0) |>
  dplyr::distinct(time, .keep_all = TRUE) |>
  ggplot(aes(time, IGF1)) +
  geom_line(size = 0.8, colour = "tomato") +
  geom_hline(yintercept = 65, linetype = "dashed") +
  labs(x = "Time (h)", y = "IGF-1 (ng/mL)",
       title = "Typical-value IGF-1 after 33.5 ug/kg s.c. rhGH in 70 kg adult",
       caption = "Dashed line at R0 = 65 ng/mL. Replicates Thorsted 2016 Figure 5C (corrected absorption).")

NCA validation of rhGH after i.v. dosing

sim_nca <- sim_typ |>
  dplyr::filter(time > 0, grepl("^IV ", cohort)) |>
  dplyr::select(id, time, Cc, cohort)

dose_df <- events |>
  dplyr::filter(evid == 1, grepl("^IV ", cohort)) |>
  dplyr::select(id, time, amt, cohort)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id)

intervals <- data.frame(
  start      = 0,
  end        = 24,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.08) is not allowed
knitr::kable(summary(nca_res),
             caption = "Simulated NCA for rhGH after i.v. bolus (typical-value 70 kg adult).")
Simulated NCA for rhGH after i.v. bolus (typical-value 70 kg adult).
start end cohort N cmax tmax half.life aucinf.obs
0 24 IV 5 ug/kg 20 106 [0.000] 0.0800 [0.0800, 0.0800] 1.76 [0.000] NC

Assumptions and deviations

  • Translational, not fitted. This model is a forward simulation construct built by allometrically scaling the rat fit. It is not a fit to human data. Residual error parameters are fixed at the values used by Thorsted 2016 for the human-simulation validation (Methods), not estimated.

  • KM = 358 ug/L (text) versus 403 ug/L (Table 3). Thorsted 2016 Methods (Prediction of human PKPD) state: “The constant KM was not scaled.” Table 3 column “Predicted” reports KM = 403 ug/L for the human-scaled model, which is internally inconsistent with the text (no scaling exponent should leave the value unchanged at 358). The packaged model uses the text-consistent value 358; treat this as a minor typographic discrepancy in Table 3.

  • ka2 IIV = 9.3% CV (Table 2) versus 19.3% (Table 3). Thorsted 2016 Methods state that the human-prediction variability is “as estimated in the PKPD model” (i.e., inherited unchanged from the rat fit). Table 2 reports rat ka2 IIV at 9.3% CV; Table 3 reports human ka2 IIV at 19.3%, inconsistent with the text. The packaged model uses 9.3% (Table 2) for both rat and human.

  • GH effect-delay (CPLAG) chain dropped for human prediction. The rat IGF-1 response is delayed by a three-compartment effect chain feeding the Emax stimulation; Thorsted 2016 explicitly drops this chain for the human prediction (Methods: “The effect delay for rats was not included for predictions, as patients had only been deprived of rhGH for 1 week in order to washout IGF-1”). The packaged human model therefore drives IGF-1 stimulation directly from plasma rhGH concentration.

  • Bodyweight gain dropped. The rat model’s linear bodyweight gain driven by IGF-1 above baseline is not included in the human model, consistent with Thorsted 2016 (which uses bodyweight gain only as a preclinical efficacy biomarker, not a human end-point).

  • Parallel-absorption dosing convention. SC doses require two event records per administration in user-supplied datasets (one with cmt = "depot" and one with cmt = "depot2", same amt). IV doses use a single event with cmt = "central".
