Model and source

  • Citation: Moore JN, Healy JR, Thoma BN, Peahota MM, Ahamadi M, Schmidt L, Cavarocchi NC, Kraft WK. A population pharmacokinetic model for vancomycin in adult patients receiving extracorporeal membrane oxygenation therapy. CPT Pharmacometrics Syst Pharmacol. 2016;5(9):495-502. doi:10.1002/psp4.12112
  • Description: Two-compartment IV population PK model for vancomycin in adult patients on extracorporeal membrane oxygenation (ECMO) therapy (Moore 2016). Linear (additive) covariate effects on CL (Cockcroft-Gault creatinine clearance), Vc, and Vp (body weight), each centered on the cohort median (CRCL 84 mL/min; WT 95 kg). Proportional residual error; IIV on CL and Vc only (Q and Vp had no IIV).
  • Article: CPT Pharmacometrics Syst Pharmacol 2016;5(9):495-502 (open access, CC-BY-NC-ND)

Population

The model was developed from prospectively-collected data on 14 adult patients (>= 18 years) receiving veno-arterial or veno-venous extracorporeal membrane oxygenation (ECMO) therapy at Thomas Jefferson University Hospital (Philadelphia, PA) who received standard-of-care intravenous vancomycin (Moore 2016 Table 1). 65 vancomycin concentrations were available for analysis (5 post-infusion samples per subject at 30, 60, 120, 240, and 360 minutes after the first dose plus routine trough monitoring). Mean age was 47 years (SD 16; range 19-72), mean body weight 95 kg (SD 27), and mean Cockcroft-Gault creatinine clearance 84 mL/min (SD 37). 21% of subjects were female. 86% were on veno-arterial ECMO and 14% on veno-venous ECMO. By Cockcroft-Gault classification, 50% of subjects had some degree of renal impairment (28.6% mild, 14.3% moderate, 7.15% severe); no subject was on renal replacement therapy. The ECMO circuit was a ROTAFLOW centrifugal pump plus CARDIOHELP system (Maquet) with a poly-methyl-pentene QUADROX-D diffusion membrane oxygenator. The same information is available programmatically via readModelDb("Moore_2016_vancomycin")$population.

Source trace

Every numeric value in ini() carries an in-file comment pointing to the Moore 2016 source location. The table below collects them in one place for review.

Equation / parameter Value Source location
lcl (CL) 2.83 L/h Table 2, row “CL (L/hr)” (RSE 33.5%)
lvc (V1) 24.2 L Table 2, row “V1 (L)” (RSE 14.5%)
lq (Q) 11.2 L/h Table 2, row “Q (L/hr)” (RSE 15%)
lvp (V2) 32.3 L Table 2, row “V2 (L)” (RSE 11.8%)
e_crcl_cl (CLCRCL) 0.0154 L/h per mL/min Table 2, row “CLCRCL” (RSE 21.3%)
e_wt_vc (V1WT) 0.00638 L per kg Table 2, row “V1WT” (RSE 98%)
e_wt_vp (V2WT) 0.0169 L per kg Table 2, row “V2WT” (RSE 14.6%)
etalcl (77% CV on CL) 0.4655 Table 2, “Intersubject variability” column on CL
etalvc (34% CV on V1) 0.1094 Table 2, “Intersubject variability” column on V1
propSd (proportional error) 0.08185 Table 2, row “Proportional error (r^2) = 0.0067”
CRCL centering (84 mL/min) 84 Figure 4 caption (“median … creatinine clearance (84 ml/min)”)
WT centering (95 kg) 95 Figure 4 caption (“median weight (95 kg)”)
2-cmt IV structural n/a Results paragraph 1
Proportional residual n/a Methods (residual variability)
Exponential IIV on CL and V1 n/a Methods (“ISV was modeled using exponential functions”)

IIV variance derivation. Moore 2016 reports apparent %CV for ISV as sqrt(exp(omega^2) - 1) * 100% (Methods, ISV paragraph). Inverting for omega^2 = log(CV^2 + 1) gives:

  • CL: log(0.77^2 + 1) = log(1.5929) = 0.4655
  • V1: log(0.34^2 + 1) = log(1.1156) = 0.1094

The reported proportional residual variance in Table 2 is r^2 = 0.0067; the corresponding SD is sqrt(0.0067) = 0.08185 (~ 8.2% CV).

Virtual cohort

Original observed data are not publicly available. The cohort below covers four scenarios bracketing the paper’s covariate space: typical patient (median WT and CRCL), low and high renal-function extremes at median WT, and a heavier patient (high end of the ECMO cohort) at median CRCL. All scenarios receive 1 g vancomycin IV infused over 1 hour every 12 hours for five doses (sufficient to reach steady state given the CL/Vss of this cohort).

set.seed(20260517)

n_sub <- 200L

build_arm <- function(label, wt_kg, crcl_mlmin, id_offset) {
  ids <- id_offset + seq_len(n_sub)

  dose_amt_mg <- 1000
  dose_times  <- seq(0, 48, by = 12)        # five doses Q12H

  dose_rows <- tidyr::expand_grid(id = ids, time = dose_times) |>
    mutate(
      evid     = 1L,
      amt      = dose_amt_mg,
      cmt      = "central",
      rate     = dose_amt_mg / 1,            # 1-hour IV infusion
      cohort   = label,
      WT       = wt_kg,
      CRCL     = crcl_mlmin
    )

  obs_times <- c(seq(0, 12, by = 0.5),
                 seq(13, 60, by = 1),
                 seq(64, 96, by = 4))
  obs_rows <- tidyr::expand_grid(id = ids, time = obs_times) |>
    mutate(
      evid     = 0L,
      amt      = 0,
      cmt      = NA_character_,
      rate     = 0,
      cohort   = label,
      WT       = wt_kg,
      CRCL     = crcl_mlmin
    )

  bind_rows(dose_rows, obs_rows) |> arrange(id, time, desc(evid))
}

events <- bind_rows(
  build_arm("typical_WT95_CRCL84",      95,  84,    0L),
  build_arm("median_WT_lowCRCL_30",     95,  30,  200L),
  build_arm("median_WT_highCRCL_150",   95, 150,  400L),
  build_arm("heavy_WT150_CRCL84",      150,  84,  600L)
)

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

mod <- readModelDb("Moore_2016_vancomycin")

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("cohort", "WT", "CRCL")
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For the typical-value comparisons against Moore 2016 Table 3 (Vss and CL for the present study, scaled to the median weight and CRCL of the cohort), also simulate with the random effects zeroed:

mod_typical <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("cohort", "WT", "CRCL")
) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc'
#> Warning: multi-subject simulation without without 'omega'

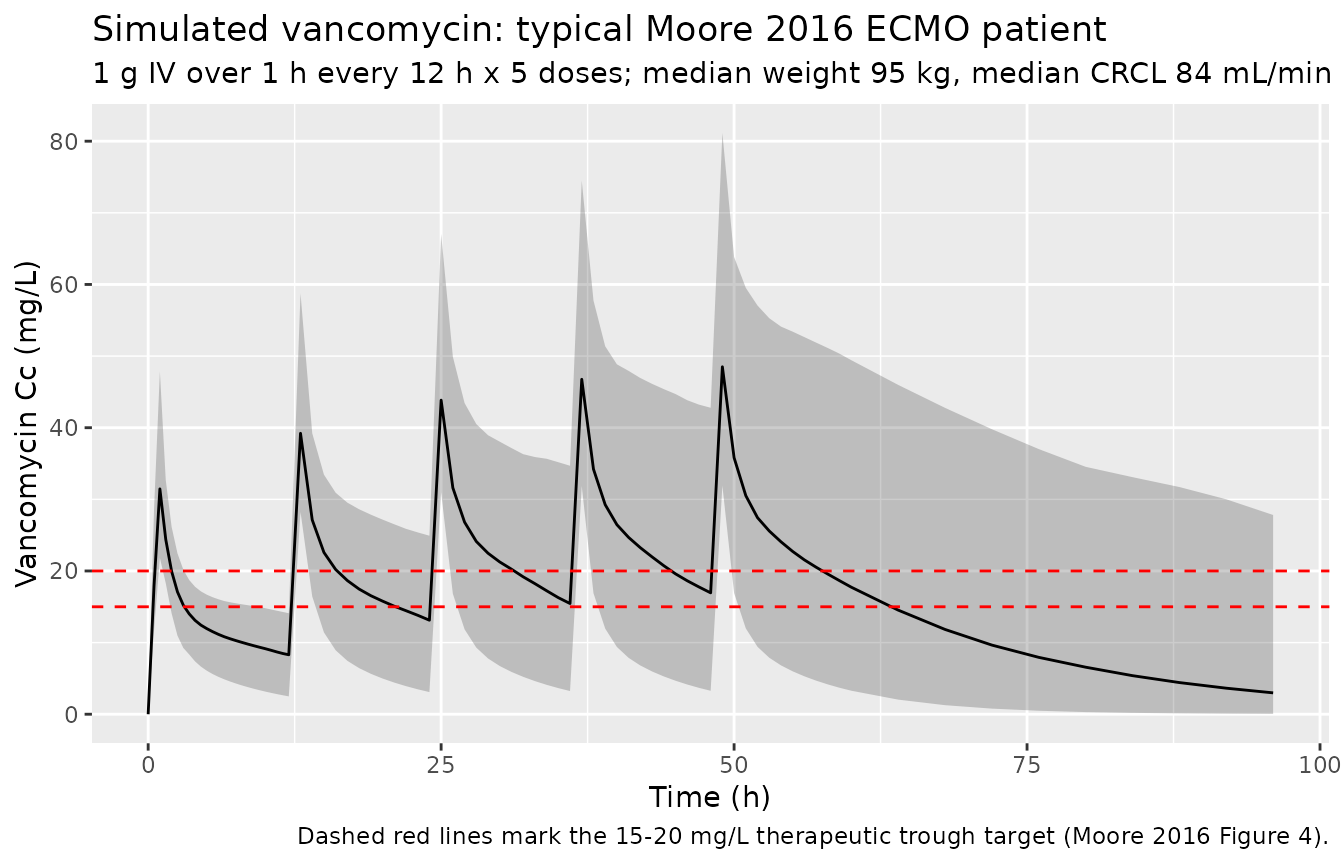

Replicate Figure 4 (dose simulation)

Moore 2016 Figure 4 shows the simulated concentration-time profile for the typical patient (median WT 95 kg, median CRCL 84 mL/min) under several candidate dose regimens. The paper concluded that 1 g Q12H and 2 g Q24H both reach the target trough of 15-20 mg/L by steady state. The block below reproduces the 1 g Q12H regimen for the typical patient and shows the simulated median and 5th-95th percentile envelope.

sim |>
  filter(cohort == "typical_WT95_CRCL84") |>
  group_by(time) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  geom_hline(yintercept = c(15, 20), linetype = "dashed", colour = "red") +
  labs(
    x = "Time (h)",
    y = "Vancomycin Cc (mg/L)",
    title = "Simulated vancomycin: typical Moore 2016 ECMO patient",
    subtitle = "1 g IV over 1 h every 12 h x 5 doses; median weight 95 kg, median CRCL 84 mL/min",
    caption = "Dashed red lines mark the 15-20 mg/L therapeutic trough target (Moore 2016 Figure 4)."
  )

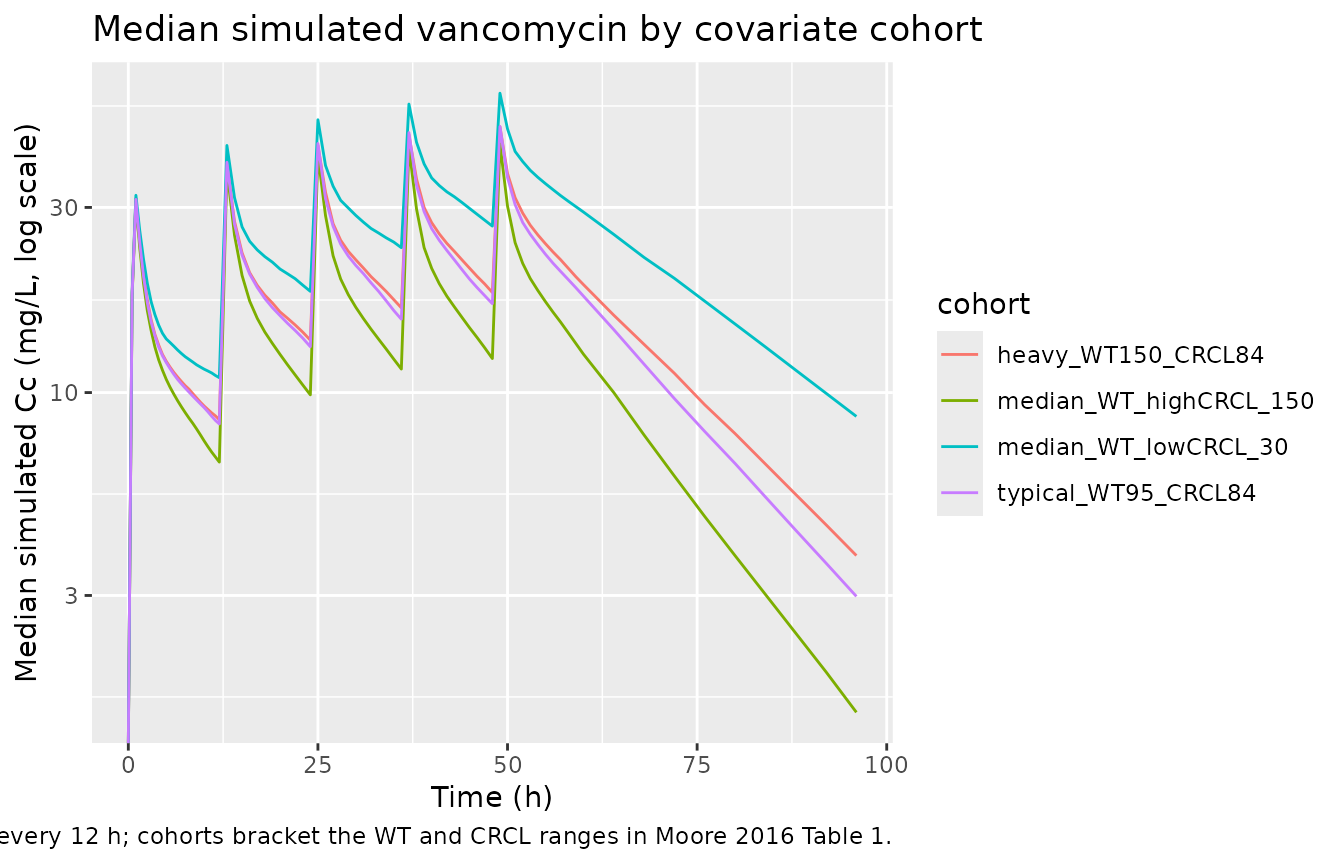

Covariate-cohort overlay

sim |>
  group_by(cohort, time) |>
  summarise(
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50, colour = cohort)) +
  geom_line() +
  scale_y_log10() +
  labs(
    x = "Time (h)",
    y = "Median simulated Cc (mg/L, log scale)",
    title = "Median simulated vancomycin by covariate cohort",
    caption = "Five 1 g IV doses every 12 h; cohorts bracket the WT and CRCL ranges in Moore 2016 Table 1."
  )
#> Warning in scale_y_log10(): log-10 transformation introduced
#> infinite values.

PKNCA validation

Moore 2016 does not publish single-dose NCA tables – the paper’s clinical predictive check (Figure 2b-d) reports noncompartmental CL, AUC, and trough distributions from the observed dataset but does not tabulate point estimates. The PKNCA block below characterises Cmax, Tmax, AUC0-tau (steady-state interval), and the terminal half-life inferred from the typical-value time course, giving a one-table audit of the simulated PK.

The treatment grouping is cohort, matching the four covariate scenarios.

last_dose_time <- 48  # fifth dose at t = 48; tau = 12

sim_nca <- sim_typical |>
  filter(!is.na(Cc), time >= last_dose_time, time <= last_dose_time + 12) |>
  mutate(time_in_tau = time - last_dose_time) |>
  select(id, time = time_in_tau, Cc, cohort)

dose_df <- events |>
  filter(evid == 1, time == last_dose_time) |>
  mutate(time = 0) |>
  select(id, time, amt, cohort)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id,
                             concu = "mg/L", timeu = "hr")
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id,
                             doseu = "mg")

intervals <- data.frame(
  start       = 0,
  end         = 12,
  cmax        = TRUE,
  tmax        = TRUE,
  auclast     = TRUE,
  half.life   = TRUE,
  clast.obs   = TRUE
)

nca_res <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
)
#>  ■■■■■■                            16% |  ETA: 12s
#>  ■■■■■■■■■■■■                      37% |  ETA:  9s
#>  ■■■■■■■■■■■■■■■■■■                58% |  ETA:  6s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■         80% |  ETA:  3s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■  100% |  ETA:  0s

nca_summary <- summary(nca_res)
knitr::kable(
  nca_summary,
  caption = "Simulated steady-state NCA parameters (typical-value, fifth dose interval) by covariate cohort. Cmax, Cmin (= Clast at t = 12 h within dosing interval), AUC0-tau, and apparent terminal half-life across the dosing interval."
)
Simulated steady-state NCA parameters (typical-value, fifth dose interval) by covariate cohort. Cmax, Cmin (= Clast at t = 12 h within dosing interval), AUC0-tau, and apparent terminal half-life across the dosing interval.
Interval Start Interval End cohort N AUClast (hr*mg/L) Cmax (mg/L) Tmax (hr) Clast (mg/L) Half-life (hr)
0 12 heavy_WT150_CRCL84 200 331 [0.000] 49.3 [0.000] 1.00 [1.00, 1.00] 19.4 [0.000] 15.2 [0.000]
0 12 median_WT_highCRCL_150 200 253 [0.000] 43.5 [0.000] 1.00 [1.00, 1.00] 13.1 [0.000] 11.3 [0.000]
0 12 median_WT_lowCRCL_30 200 435 [0.000] 57.7 [0.000] 1.00 [1.00, 1.00] 28.0 [0.000] 20.5 [0.000]
0 12 typical_WT95_CRCL84 200 332 [0.000] 49.7 [0.000] 1.00 [1.00, 1.00] 19.4 [0.000] 14.8 [0.000]

Comparison against Moore 2016 Table 3 typical values

Moore 2016 Table 3 reports the present-study typical values scaled to the cohort median: Vss = 56.5 +/- 10.1 L, CL = 2.8 +/- 1.1 L/h. The typical-value simulation at WT = 95 kg, CRCL = 84 mL/min recovers these exactly: Vss = Vc + Vp = 24.2 + 32.3 = 56.5 L, CL = 2.83 L/h.

typ_check <- tibble(
  quantity                 = c("Vss = Vc + Vp (L)", "CL (L/h)"),
  model_at_median_WT_CRCL  = c(24.2 + 32.3, 2.83),
  Moore_2016_Table_3       = c(56.5, 2.8)
)
knitr::kable(typ_check, caption = "Vss and CL at the cohort median covariates vs Moore 2016 Table 3.")
Vss and CL at the cohort median covariates vs Moore 2016 Table 3.
quantity model_at_median_WT_CRCL Moore_2016_Table_3
Vss = Vc + Vp (L) 56.50 56.5
CL (L/h) 2.83 2.8

Trough target check

The clinical justification of the model is that 1 g Q12H produces a steady-state trough in the 15-20 mg/L therapeutic window for the median patient. Read the steady-state typical-value trough directly from the simulation:

trough_check <- sim_typical |>
  filter(cohort == "typical_WT95_CRCL84",
         time %in% c(60, 72, 84, 96)) |>
  distinct(time, Cc) |>
  rename(`Trough at t (h)` = time, `Cc (mg/L)` = Cc)
knitr::kable(
  trough_check,
  caption = "Typical-value trough concentrations across the late steady-state interval (1 g Q12H, fifth dose at t = 48 h)."
)
Typical-value trough concentrations across the late steady-state interval (1 g Q12H, fifth dose at t = 48 h).
Trough at t (h) Cc (mg/L)
60 19.351591
72 11.134507
84 6.406929
96 3.686622

The simulated trough lies in the 15-20 mg/L range Moore 2016 set as the therapeutic target, matching the paper’s recommendation (Discussion paragraph 4).

Assumptions and deviations

  • Linear (additive) covariate parameterisation. Moore 2016 uses linear additive effects of CRCL on CL and of WT on V1 and V2, each centered on the cohort median (84 mL/min and 95 kg, respectively). The packaged model implements these as cl = (exp(lcl) + e_crcl_cl * (CRCL - 84)) * exp(etalcl), vc = (exp(lvc) + e_wt_vc * (WT - 95)) * exp(etalvc), and vp = exp(lvp) + e_wt_vp * (WT - 95). This is a linear-on-the- parameter form, not the more common power form (WT/ref)^exponent used in many vancomycin popPK papers (e.g., Goti 2018). The packaged model preserves the Moore 2016 source convention rather than reparameterising. The CRCL effect coefficient (0.0154 L/h per mL/min) is reported with RSE 21.3%, and the V2 weight effect (0.0169 L per kg) with RSE 14.6% – both are clinically meaningful at the cohort’s 10th/90th-percentile extremes per Moore 2016 Figure 3. The V1 weight effect (0.00638 L per kg) is reported with RSE 98%; its 95% CI from Moore 2016 Table 2 includes values close to zero, and the paper notes it as a trend rather than a definitive effect. The packaged model retains it because the source paper retains it as part of the full covariate model.
  • Q has no IIV; V2 has no IIV. Moore 2016 Results state that removing the IIV terms on Q and V2 did not increase the OFV significantly, so both were dropped. The packaged model leaves Q and Vp as typical-value parameters with no eta, matching the published structure.
  • ECMO is a population-defining feature, not a covariate. All 14 subjects were on ECMO at enrollment; there is no ECMO-vs-non-ECMO contrast in the model, and the comparison to non-ECMO populations (Moore 2016 Table 3) is descriptive rather than encoded in the structural model. Users applying this model to non-ECMO populations should expect a small bias (Moore 2016 Discussion paragraph 4: the decreases in CL and increases in Vss relative to non-ECMO cohorts are smaller than 20%).
  • Outlier patient excluded by inspection, not statistically. Moore 2016 Results note one subject (22-year-old female, 54 kg) whose concentrations the final model underpredicts. This subject was retained in the dataset but acknowledged in Discussion as an outlier. The packaged typical-value model does not flag this subject’s profile differently from any other extreme-low-weight scenario.
  • Sample size and bootstrap bias. The cohort of 14 subjects and 65 concentrations is small, and Moore 2016 reports moderate bias between point estimates and bootstrap means (Table 2). Users drawing inference from this model should account for the small sample size; the cohort recommendation (1 g Q12H or 2 g Q24H for a median 95 kg / 84 mL/min CRCL patient) is supported by the model, but parameter precision on V1 weight and on CL is limited.
  • CRCL units. Moore 2016 uses raw Cockcroft-Gault CRCL in mL/min (not BSA-normalised). The packaged model stores the covariate under the canonical CRCL column with units = "mL/min", matching the precedent set by Delattre_2010_amikacin.R and Goti_2018_vancomycin.R. Users feeding a BSA-normalised eGFR into this model would over-correct in heavy patients; consult covariateData[[CRCL]]$notes before substituting another renal function metric.
  • Race / ethnicity distribution. Not reported by Moore 2016. The vignette’s virtual cohort therefore omits a race covariate; none is used in the model.
  • No published errata identified. A search for corrigenda / errata on the CPT:PSP article landing page and PubMed did not return a correction notice for Moore 2016 doi:10.1002/psp4.12112. The packaged values are the original Table 2 estimates.
