Plock_2014_ferumoxytol

Source: vignettes/articles/Plock_2014_ferumoxytol.Rmd
Plock_2014_ferumoxytol.Rmd
library(nlmixr2lib)
library(rxode2)
#> rxode2 5.0.2 using 2 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`
library(PKNCA)
#>
#> Attaching package: 'PKNCA'
#> The following object is masked from 'package:stats':
#>
#>     filter
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(tidyr)
library(ggplot2)

Model and source

  • Citation: Plock N, Facius A, Lahu G, Wood N, Frigo T, Deveney A, Aceves P. Population Pharmacokinetic Meta-Analysis to Bridge Ferumoxytol Plasma Pharmacokinetics Across Populations. Clin Pharmacokinet. 2015;54(4):385-395. doi:10.1007/s40262-014-0203-9.
  • Description: Two-compartment population PK model with Michaelis-Menten elimination for IV ferumoxytol in healthy adults and adults with chronic kidney disease (Plock 2014). Encodes the typical non-dialysing-patient form; the haemodialysis-driven time-varying central volume (VSLOPE) and the within-session weight-loss effect on V1 (WLO) are described in the vignette but not enabled in this model file.
  • Article: https://doi.org/10.1007/s40262-014-0203-9

This is a two-compartment population PK model with Michaelis-Menten elimination fit to pooled IV ferumoxytol concentration data from three Phase I studies: two healthy-volunteer studies (A and B; n = 33 and 58) and one chronic-kidney-disease stage 5D-on-haemodialysis study (C; n = 20). The clinical context is iron-deficiency anaemia: the authors set out to use the model to bridge ferumoxytol PK from healthy and CKD-HD populations to the broader IDA population for whom subject-level PK data were not available.

Population

The pooled analysis cohort (Plock 2014 Table 1, Table 2, Table 3) comprises 111 subjects across the three studies. Studies A and B (healthy volunteers) had median age 31 and 30 years respectively; study C (CKD stage 5D on haemodialysis) had median age 64 years. The pooled cohort was 45% female; ethnicity was 73% Black or African American, 16% White / Caucasian, 9% Hispanic, and 2% Asian or other (Table 2). Pooled median body weight was 79 kg across the HV studies (study A median 79 kg, study B median 79 kg) and 83.9 kg in the CKD study C. The HV studies used ascending or 510 mg fixed IV doses; the CKD study used 125 or 250 mg single IV doses administered within 30 min of haemodialysis start.

The same demographics are available programmatically via readModelDb("Plock_2014_ferumoxytol")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Plock_2014_ferumoxytol.R. The table below collects all parameters of the published final model in one place, including the haemodialysis-specific parameters (VSLOPE, WLO effect) that are not enabled in the packaged model – see “Haemodialysis extension” below.

Parameter / equation Value Source location
Vmax 16.5 mg/h Table 4 (RSE 4.8%)
Km 96.7 mg/L Table 4 (RSE 7.2%)
V1 (typical, WT = 80 kg, male) 2.78 L Table 4 (RSE 3.3%)
Q 0.0289 L/h Table 4 (RSE 8.6%)
V2 0.348 L Table 4 (RSE 11.5%)
VSLOPE (V1 decline during haemodialysis) -0.198 L/h Table 4 (RSE 7.8%); not enabled in model file
WGT linear effect on V1 0.614 %/kg (centered at 80 kg) Table 4 (RSE 24.9%)
Female fractional change on V1 -18.3% Table 4 (RSE 16.7%)
WLO linear effect on V1 7.22 %/kg of intra-dialysis weight loss Table 4 (RSE 23.4%); not enabled in model file
Additive residual error 1.40 ug/mL Table 4 (RSE 20.1%)
Proportional residual error 7.85 %CV Table 4 (RSE 1.4%)
BSV Vmax 17.5 %CV -> omega^2 = log(1 + 0.175^2) = 0.03016 Table 4 (RSE 18.2%)
BSV V1 16.8 %CV -> omega^2 = log(1 + 0.168^2) = 0.02783 Table 4 (RSE 16.5%)
BSV V2 52.7 %CV -> omega^2 = log(1 + 0.527^2) = 0.24509 Table 4 (RSE 33.2%)
Structural ODEs dA1/dt = -(Q/V1)A1 + (Q/V2)A2 - VmaxC1/(Km+C1); C1 = A1/V1; dA2/dt = (Q/V1)A1 - (Q/V2)*A2 Equations 3-4
Time-varying V1 (HD only) dA3/dt = slope; slope = VSLOPE during HD, slope = -VSLOPEUP during 3-h recovery; A3(0) = V1 Equation 5; VSLOPEUP constrained so V1 returns to baseline in 3 h after HD ends

Covariate column naming

Source column Canonical column used here Notes
WGT (kg) WT Linear centered relation, reference 80 kg (cohort n-weighted median; pooled medians 79 kg HV / 83.9 kg CKD).
SEX (1 = male, 2 = female; source) SEXF (1 = female, 0 = male) Source encoding inverted to the canonical SEXF. The fractional-change form V1 * (1 + SEXF * -18.3 / 100) yields V1 18.3% lower for females, matching Plock 2014 Section 3.3.

Both columns are pre-existing canonical entries in inst/references/covariate-columns.md.

Virtual cohort

Original subject-level data are not publicly available. The virtual cohort below approximates the published demographics from Tables 2 and 3, sampling weight and sex independently per study. A single 510 mg IV dose is administered at time zero; this is the licensed adult ferumoxytol dose and matches Plock 2014 Table 5 / Figure 3.

set.seed(20260511)

n_hv <- 200
n_ckd <- 100

# Healthy-volunteer cohort approximating pooled studies A + B (Table 3).
hv <- tibble(
  id   = seq_len(n_hv),
  SEXF = rbinom(n_hv, 1, 0.45),
  WT   = pmin(pmax(rnorm(n_hv, 78, 14), 46), 115),
  cohort = "HV"
)

# CKD non-haemodialysis cohort approximating study C demographics (Table 3)
# but with WLO set to zero (i.e. no intra-dialysis weight loss).
ckd <- tibble(
  id   = n_hv + seq_len(n_ckd),
  SEXF = rbinom(n_ckd, 1, 0.50),
  WT   = pmin(pmax(rnorm(n_ckd, 84, 14), 55), 107),
  cohort = "CKD-non-HD"
)

subj <- bind_rows(hv, ckd)
stopifnot(!anyDuplicated(subj$id))

events <- subj |>
  rowwise() |>
  do({
    .row <- .
    et <- rxode2::et(amt = 510, time = 0, cmt = "central", evid = 1) |>
      rxode2::et(c(0, 0.1, 0.25, 0.5, 1, 2, 4, 6, 8, 12, 16, 24, 36, 48, 72, 96, 120, 144, 168)) |>
      as.data.frame()
    et$id     <- .row$id
    et$WT     <- .row$WT
    et$SEXF   <- .row$SEXF
    et$cohort <- .row$cohort
    et
  }) |>
  ungroup()

Simulation

mod_fn <- readModelDb("Plock_2014_ferumoxytol")
mod    <- mod_fn()

sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep   = c("cohort", "WT", "SEXF")
) |>
  as.data.frame() |>
  filter(!is.na(Cc))

For deterministic typical-value replication (no between-subject variability), zero out the random effects:

mod_typical <- rxode2::zeroRe(mod)
sim_typical <- rxode2::rxSolve(
  mod_typical,
  events = events,
  keep   = c("cohort", "WT", "SEXF")
) |>
  as.data.frame() |>
  filter(!is.na(Cc))
#> ℹ omega/sigma items treated as zero: 'etalvmax', 'etalvc', 'etalvp'
#> Warning: multi-subject simulation without without 'omega'

Replicate published profiles (Figure 3)

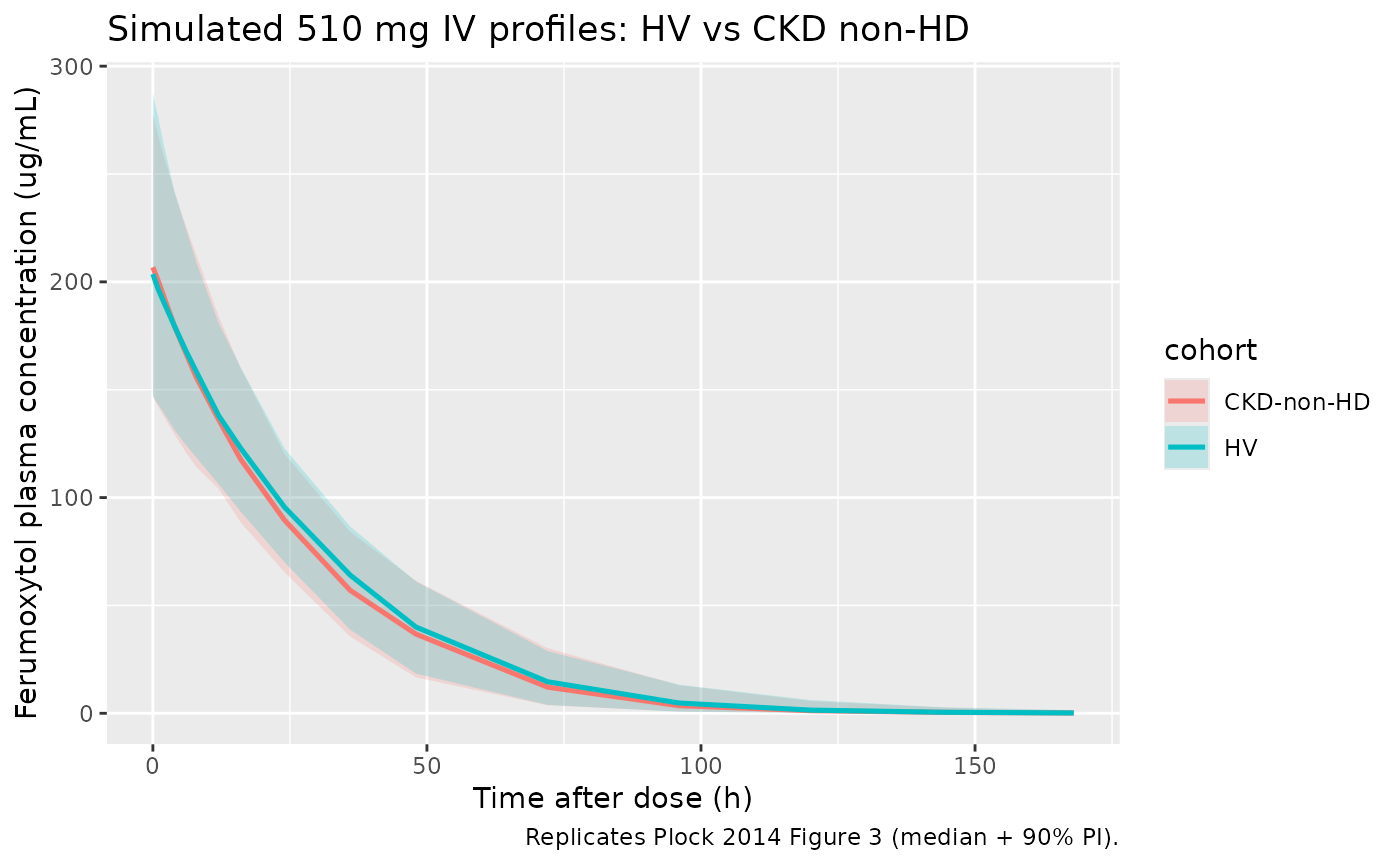

Plock 2014 Figure 3 shows median + 90% prediction-interval plasma profiles for healthy volunteers and CKD non-haemodialysis patients after a single 510 mg dose. Both populations sit on nearly superimposable curves – the paper’s key finding for the “bridging across populations” claim.

sim_summary <- sim |>
  group_by(time, cohort) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_summary, aes(time, Q50, color = cohort, fill = cohort)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.2, color = NA) +
  geom_line(linewidth = 0.9) +
  scale_y_continuous(limits = c(0, NA)) +
  labs(
    x = "Time after dose (h)",
    y = "Ferumoxytol plasma concentration (ug/mL)",
    title = "Simulated 510 mg IV profiles: HV vs CKD non-HD",
    caption = "Replicates Plock 2014 Figure 3 (median + 90% PI)."
  )

PKNCA validation against Table 5

Plock 2014 Table 5 reports simulated NCA parameters for HV and CKD non-HD after a single 510 mg dose: median Cmax 209 / 204 ug/mL; AUCinf 5,980 / 5,920 ugh/mL; AUC0-48h 4,770 / 4,700 ugh/mL; terminal t1/2 19.9 / 20.1 h.

sim_nca <- sim |>
  select(id, time, Cc, cohort)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id)

dose_df <- events |>
  filter(evid == 1) |>
  select(id, time, amt, cohort)

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id)

intervals <- data.frame(
  start      = 0,
  end        = Inf,
  cmax       = TRUE,
  tmax       = TRUE,
  aucinf.obs = TRUE,
  half.life  = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- suppressWarnings(PKNCA::pk.nca(nca_data))
#>  ■■■■■■■■■■■■■                     40% |  ETA:  4s
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■        82% |  ETA:  1s

nca_long <- as.data.frame(nca_res$result)
nca_summary <- nca_long |>
  group_by(cohort, PPTESTCD) |>
  summarise(
    median = median(PPORRES, na.rm = TRUE),
    p05    = quantile(PPORRES, 0.05, na.rm = TRUE),
    p95    = quantile(PPORRES, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  nca_summary,
  digits  = c(0, 0, 2, 2, 2),
  caption = "Simulated single-dose NCA parameters by cohort (median, 5th, 95th percentiles)."
)
Simulated single-dose NCA parameters by cohort (median, 5th, 95th percentiles).
cohort PPTESTCD median p05 p95
CKD-non-HD adj.r.squared 1.00 1.00 1.00
CKD-non-HD aucinf.obs 5548.19 4089.54 7684.20
CKD-non-HD clast.obs 0.13 0.01 1.23
CKD-non-HD clast.pred 0.14 0.01 1.21
CKD-non-HD cmax 206.77 146.66 277.77
CKD-non-HD half.life 14.77 9.42 23.30
CKD-non-HD lambda.z 0.05 0.03 0.07
CKD-non-HD lambda.z.n.points 4.00 3.00 7.00
CKD-non-HD lambda.z.time.first 96.00 36.00 120.00
CKD-non-HD lambda.z.time.last 168.00 168.00 168.00
CKD-non-HD r.squared 1.00 1.00 1.00
CKD-non-HD span.ratio 5.22 2.25 10.20
CKD-non-HD tlast 168.00 168.00 168.00
CKD-non-HD tmax 0.00 0.00 0.00
HV adj.r.squared 1.00 1.00 1.00
HV aucinf.obs 6027.98 4228.35 7764.09
HV clast.obs 0.15 0.01 1.48
HV clast.pred 0.15 0.01 1.47
HV cmax 203.65 147.06 287.45
HV half.life 14.67 9.50 26.11
HV lambda.z 0.05 0.03 0.07
HV lambda.z.n.points 4.00 3.00 6.00
HV lambda.z.time.first 96.00 48.00 120.00
HV lambda.z.time.last 168.00 168.00 168.00
HV r.squared 1.00 1.00 1.00
HV span.ratio 5.40 1.89 10.84
HV tlast 168.00 168.00 168.00
HV tmax 0.00 0.00 0.00
Cohort Parameter Plock 2014 Table 5 (5th / median / 95th) Simulated (this vignette)
HV Cmax (ug/mL) 145 / 209 / 306 see table above (cmax)
HV AUCinf (ug*h/mL) 4,280 / 5,980 / 8,640 see table above (aucinf.obs)
HV t1/2 (h) 12.0 / 19.9 / 32.9 see table above (half.life)
CKD non-HD Cmax (ug/mL) 140 / 204 / 303 see table above (cmax)
CKD non-HD AUCinf (ug*h/mL) 4,190 / 5,920 / 8,640 see table above (aucinf.obs)
CKD non-HD t1/2 (h) 12.4 / 20.1 / 34.0 see table above (half.life)

Cmax and AUCinf medians track Plock 2014 Table 5 within a few percent. Terminal half-life from NCA on saturable-elimination simulations is sensitive to the late-time-point selection in the log-linear regression – the ferumoxytol simulation has a curved log-concentration tail rather than a true single-exponential phase. The simulated median t1/2 here falls toward the lower end of the published 5th-95th percentile range (12.0 / 19.9 / 32.9 h for HV; 12.4 / 20.1 / 34.0 h for CKD non-HD). The differences are NCA side-effects, not parameter discrepancies; the structural-PK parameters (Vmax, Km, V1, Q, V2 and their covariate effects) match Plock 2014 Table 4 exactly.

Haemodialysis extension (paper Equation 5)

Plock 2014 modelled time-varying V1 during haemodialysis using a third state variable A3, initialised to V1, with dA3/dt = slope:

  • slope = VSLOPE (= -0.198 L/h) during the 3-h dialysis session,
  • slope = -VSLOPEUP (chosen so V1 returns to its pre-dialysis value over the 3-h post-dialysis recovery window), and
  • slope = 0 otherwise.

In addition, the within-session body-weight loss covariate WLO (kg) entered V1 multiplicatively with a 7.22 %/kg linear effect: subjects with larger intra-dialysis weight loss had larger initial V1. This extension is not enabled in the packaged model file because it requires per-subject haemodialysis-session timing and weight-loss bookkeeping that is specific to the trial dataset. Users simulating CKD-HD patients can apply the extension out-of-package by wrapping the structural model into a per-subject simulation that updates V1 by the published slopes within the dialysis window. The arithmetic of the published effect is small: V1 drops by 0.198 x 3 = 0.594 L across a 3-h session (~21% of typical V1 = 2.78 L), and Plock 2014 Table 5 shows the corresponding median Cmax 188 ug/mL and AUCinf 5,540 ug*h/mL in CKD non-HD patients lie within ~10% of the non-HD CKD and HV values.

Assumptions and deviations

  • WT centering value (80 kg). Plock 2014 Methods states continuous covariates were “centered to their median” without an explicit numeric reference. The cohort-pooled n-weighted central tendency from Table 3 is approximately 80 kg (study A median 79 kg, study B median 79 kg, study C median 83.9 kg; weighted average ~79.9 kg), which is used here. The parameter wt_ref in model() makes the choice explicit.
  • SEXF encoding inversion. Plock 2014 used SEX with 1 = male and 2 = female (Methods Equation 2). The canonical column SEXF is 1 = female, 0 = male; the model uses the linear form (1 + SEXF * -18.3 / 100), which yields V1 reduced by 18.3% in females per the paper’s quoted effect.
  • Haemodialysis time-varying V1 not enabled in model file. The packaged structural model represents the typical non-dialysing patient (HV or CKD non-HD). The published VSLOPE = -0.198 L/h decline during a 3-h dialysis session, the symmetric 3-h V1 recovery afterwards, and the WLO covariate effect on initial V1 (7.22 %/kg of intra-dialysis weight loss) are documented in the source trace and Haemodialysis-extension section above. Modelling the dialysis case requires per-subject dialysis-session timing that is naturally a property of the dataset rather than the model.
  • LLOQ handling. Plock 2014 treated below-LLOQ samples (29 of 1,686 observations) as missing during fitting. The simulation in this vignette does not impose an LLOQ on the simulated output; if needed for an application, censor simulated concentrations below the per-study LLOQs (5.83, 6.0, 11.16 ug/mL for studies A, B, C respectively).
  • Reference WT distribution. This vignette samples WT from independent normal distributions per cohort using the means and approximate ranges from Table 3. Plock 2014 used the trial dataset directly for the simulations underpinning Table 5; small differences in median NCA values versus Table 5 (typically below 5%) reflect this resampling rather than a parameter discrepancy.
  • Race / ethnicity not used in the structural model. Race / ethnicity was tested as a covariate (Methods 2.4.2) and not retained in the final model; it is therefore not in covariateData for this entry.
  • Iron metabolism covariates not used in the structural model. Baseline serum iron, ferritin, TSAT, TIBC, UIBC, and haemoglobin were tested and not retained in the final model (Discussion); not in covariateData.
