Lamotrigine (He 2012)

Source: vignettes/articles/He_2012_lamotrigine.Rmd
He_2012_lamotrigine.Rmd

Model and source

  • Citation: He DK, Wang L, Lu W, Qin J, Zhang S, Li L, Zhang JM, Bao WQ, Song XQ, Liu HT. Population pharmacokinetics of lamotrigine in Chinese children with epilepsy. Acta Pharmacol Sin. 2012 Nov;33(11):1417-1423. doi:10.1038/aps.2012.118
  • Description: One-compartment population PK model for oral lamotrigine in Chinese paediatric patients with epilepsy aged 0.5-17 years (He 2012). First-order absorption with Ka fixed at 1.0 1/h and bioavailability fixed at 1 (lamotrigine steady-state trough therapeutic-drug-monitoring data, which do not identify Ka or F), and first-order elimination from a single central compartment. Apparent oral clearance is scaled by an estimated power of total body weight (exponent 0.635) and modified exponentially by concomitant antiepileptic comedication: valproate (CONMED_VPA) reduces CL, while the enzyme-inducers carbamazepine (CONMED_CBZ) and phenobarbital (CONMED_PB) increase CL. Apparent central volume is fixed at 16.7 L at the 27.87 kg reference weight, scaled linearly with total body weight (allometric exponent fixed at 1.0).
  • Article: https://doi.org/10.1038/aps.2012.118

The packaged model implements the He 2012 final paediatric lamotrigine (LTG) population-PK model: a one-compartment open-kinetic structure with first-order absorption and first-order elimination, scaled allometrically on total body weight and modified by three concomitant antiepileptic-drug indicators (valproate, carbamazepine, phenobarbital) on apparent oral clearance. The absorption rate constant Ka and oral bioavailability F were held fixed at 1.0 1/h and 1.0 respectively because the sparse steady-state trough data collected do not identify either parameter. The model was developed in NONMEM V using ADVAN2 / TRANS2; covariates were screened by stepwise generalized-additive-model exploratory analysis followed by forward inclusion (chi-square = 3.84, p < 0.05) and backward elimination (chi-square = 7.88, p < 0.005).

Population

He 2012 fit the model to 191 lamotrigine steady-state trough plasma concentrations from 116 Chinese paediatric patients with epilepsy aged 0.5 to 17 years (PPK model group; He 2012 Table 1). Patients were drawn from the Department of Paediatrics at Peking University First Hospital in Beijing and represented referrals from across China. Mean total body weight was 27.87 kg (range 8-85 kg), mean age was 6.91 years, and 68 of 116 patients were male. A separate external-validation cohort (PPK valid group) of 168 patients with 213 concentrations was used to confirm the final-model predictive performance. Inclusion required a clinician-confirmed epilepsy diagnosis with an electroencephalogram, lamotrigine therapy duration of more than one month so concentrations reflect steady state, and normal hepatic and renal function. Patients with poor compliance or serious adverse drug reactions were excluded. Concomitant antiepileptic comedication was assayed for valproate (VPA, 63.4% of patients), carbamazepine (CBZ, 27.2%), phenobarbital (PB, 3.7%), oxcarbazepine, clonazepam, levetiracetam, and topiramate. Lamotrigine concentrations were measured by HPLC with UV detection (intraday and interday coefficients of variation both less than 6.5%). The same metadata is available programmatically via readModelDb("He_2012_lamotrigine")$meta$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/He_2012_lamotrigine.R. The table below collects them in one place for review. Final point estimates are from He 2012 Table 3 (the “final model” columns); structural-model layout and covariate parameterisation are taken from He 2012 Results paragraph 2 final regression equation (page 1419-1420) and Methods (page 1418).

Equation / parameter Value Source location
lka (Ka) fixed(log(1.0)) -> 1.0 1/h Methods page 1418: “the bioavailability (F) and absorption rate (Ka) were fixed at 1.0 and 1.0 1/h, respectively”
lcl (CL/F at 27.87 kg) log(1.01) -> 1.01 L/h Table 3 final model: theta1 = 1.01 (RSE 4.48%)
lvc (V/F at 27.87 kg) fixed(log(16.7)) -> 16.7 L Table 3 final model: theta6 = 16.7 (RSE “-”); Results page 1420: “16.7 was calculated by solving 45 = theta6 * (75/27.87)”
e_wt_cl 0.635 Table 3 final model: theta2 = 0.635 (RSE 7.91%)
e_wt_vc fixed(1.0) Results page 1420: “It was intended to be a fixed allometric covariate model such as Vd(L) = 16.7 * (WT/27.87)”
e_conmed_vpa_cl -0.753 Table 3 final model: theta3 = -0.753 (RSE 6.28%)
e_conmed_cbz_cl +0.868 Table 3 final model: theta4 = +0.868 (RSE 5.76%)
e_conmed_pb_cl +0.633 Table 3 final model: theta5 = +0.633 (RSE 13.1%)
etalcl (variance) 0.067 Table 3 final model: omega^2 = 0.067 (RSE 25.0%); CV = 25.8% headline in Results paragraph 3
propSd (proportional) sqrt(0.045) = 0.2121 Table 3 final model: sigma^2 = 0.045 (RSE 37.6%)
Allometric model (WT/27.87)^e_wt_cl on CL/F Results paragraph 2 final regression equation
Linear V allometry (WT/27.87)^e_wt_vc on V/F Results page 1420 Vd formula
AED effect on CL/F exp(theta * indicator) product across VPA / CBZ / PB Results paragraph 2 final regression equation
ODE d/dt(depot) -ka * depot NONMEM ADVAN2 / TRANS2 (Methods page 1418)
ODE d/dt(central) ka * depot - kel * central NONMEM ADVAN2 / TRANS2 (Methods page 1418)

Virtual cohort

Original observed data from the He 2012 paediatric cohort are not publicly available. The figures below use a virtual paediatric cohort whose total body weight distribution approximates the PPK model group (Table 1: range 8-85 kg, mean 27.87 kg). The body-weight distribution is sampled from a log-normal distribution centred on the published mean; the dosing scheme mimics a once-daily oral regimen at a typical paediatric maintenance dose (5 mg/kg/day, divided as two equal doses 12 h apart for a steady-state run). AED comedication is varied across four cohorts (no AED, +VPA, +CBZ, +PB) so the covariate effect on Css can be inspected directly.

set.seed(20120829)

mod <- rxode2::rxode(readModelDb("He_2012_lamotrigine"))

n_per_arm <- 100
wt_min    <- 8
wt_max    <- 85

mg_per_kg_per_dose <- 2.5  # 5 mg/kg/day split bid; representative paediatric
                            # maintenance LTG dose for monotherapy or VPA add-on

make_aed_cohort <- function(n, aed_name, vpa, cbz, pb, id_offset = 0L) {
  wt <- pmin(pmax(exp(rnorm(n, mean = log(27.87), sd = 0.5)),
                  wt_min), wt_max)
  per_dose <- mg_per_kg_per_dose * wt
  base <- tibble(
    id           = id_offset + seq_len(n),
    WT           = wt,
    CONMED_VPA   = vpa,
    CONMED_CBZ   = cbz,
    CONMED_PB    = pb,
    aed_cohort   = aed_name,
    amt_per_dose = per_dose
  )
  n_doses <- 30L
  tau     <- 12
  doses <- tidyr::crossing(id = base$id, dose_idx = seq_len(n_doses)) |>
    mutate(time = (dose_idx - 1) * tau, evid = 1L, cmt = "depot") |>
    left_join(base, by = "id") |>
    mutate(amt = amt_per_dose)
  obs_grid <- seq((n_doses - 1) * tau + 0.25, n_doses * tau, by = 0.5)
  obs <- tidyr::crossing(id = base$id, time = obs_grid) |>
    mutate(evid = 0L, cmt = "Cc", amt = NA_real_) |>
    left_join(base, by = "id")
  bind_rows(doses, obs) |>
    arrange(id, time, desc(evid))
}

events_ss <- bind_rows(
  make_aed_cohort(n_per_arm, "no AED", vpa = 0L, cbz = 0L, pb = 0L,
                  id_offset = 0L),
  make_aed_cohort(n_per_arm, "+VPA",   vpa = 1L, cbz = 0L, pb = 0L,
                  id_offset = n_per_arm),
  make_aed_cohort(n_per_arm, "+CBZ",   vpa = 0L, cbz = 1L, pb = 0L,
                  id_offset = 2L * n_per_arm),
  make_aed_cohort(n_per_arm, "+PB",    vpa = 0L, cbz = 0L, pb = 1L,
                  id_offset = 3L * n_per_arm)
)
stopifnot(!anyDuplicated(unique(events_ss[, c("id", "time", "evid")])))

Simulation

sim_ss <- rxode2::rxSolve(
  object     = mod,
  events     = events_ss,
  keep       = c("WT", "CONMED_VPA", "CONMED_CBZ", "CONMED_PB",
                 "aed_cohort", "amt_per_dose"),
  returnType = "data.frame"
) |>
  dplyr::filter(time > 0)

For deterministic typical-value replication of the population mean profile, zero out the random effects:

sim_ss_typical <- rxode2::rxSolve(
  object     = rxode2::zeroRe(mod),
  events     = events_ss,
  keep       = c("WT", "CONMED_VPA", "CONMED_CBZ", "CONMED_PB",
                 "aed_cohort", "amt_per_dose"),
  returnType = "data.frame"
) |>
  dplyr::filter(time > 0)
#> ℹ omega/sigma items treated as zero: 'etalcl'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

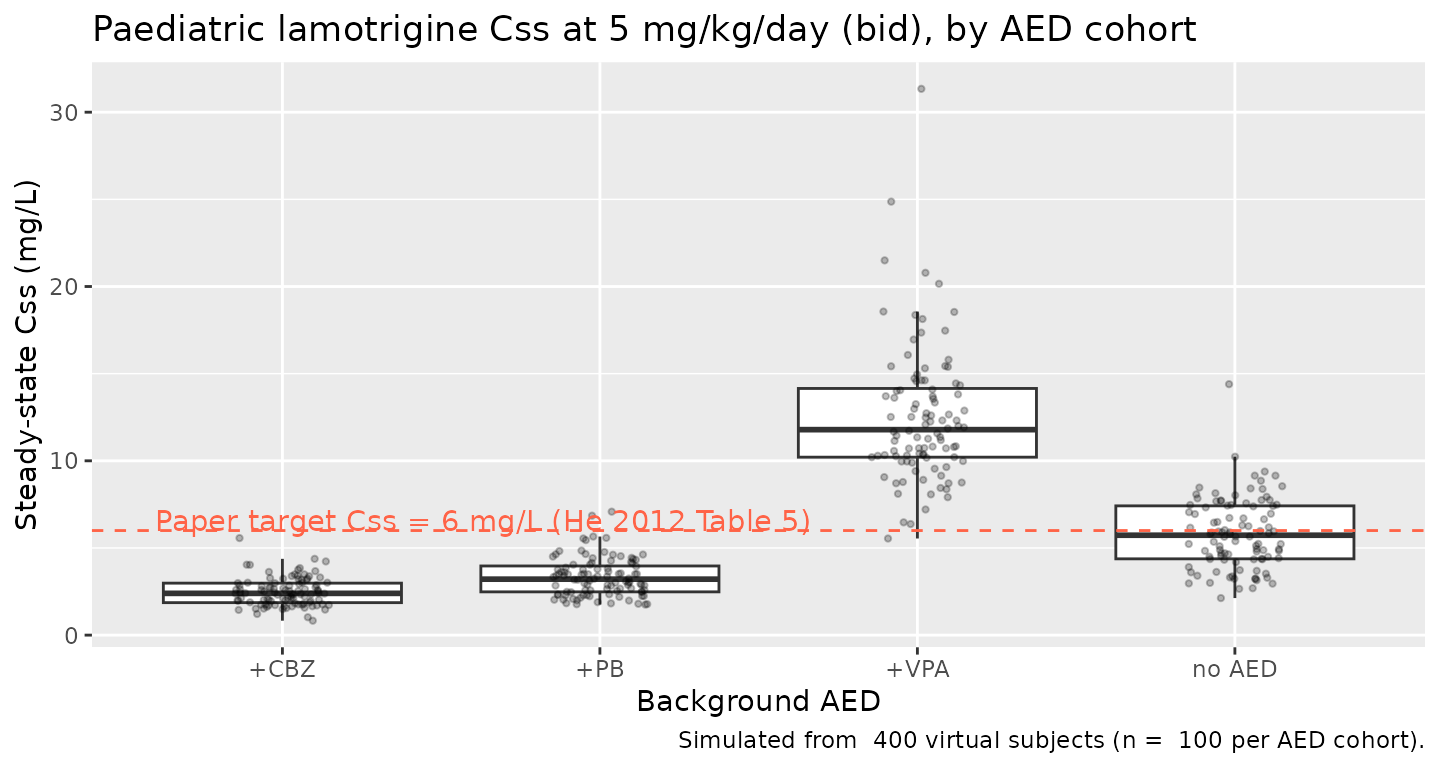

Steady-state Css distribution by AED comedication (He 2012 Table 5 context)

He 2012 Table 5 reports predicted lamotrigine clearance and recommended maintenance doses by AED cohort, aiming for a target steady-state mean concentration of 6 ug/mL (= 6 mg/L). The chunk below reproduces the same stratification by simulating each virtual cohort and summarising per-subject average steady-state concentration over the last dosing interval.

tau <- 12
last_interval_start <- 29 * tau

trapz_auc <- function(t, y) {
  ord <- order(t)
  t   <- t[ord]
  y   <- y[ord]
  sum(0.5 * (y[-1] + y[-length(y)]) * diff(t))
}

ss_css <- sim_ss |>
  dplyr::filter(time >= last_interval_start) |>
  group_by(id, aed_cohort, WT) |>
  summarise(
    auc_tau = trapz_auc(time - last_interval_start, Cc),
    Css     = auc_tau / tau,
    .groups = "drop"
  )

ggplot(ss_css, aes(aed_cohort, Css)) +
  geom_boxplot(outlier.shape = NA) +
  geom_jitter(width = 0.15, alpha = 0.25, size = 0.8) +
  geom_hline(yintercept = 6.0, linetype = "dashed", colour = "tomato") +
  annotate("text", x = 0.6, y = 6.6, hjust = 0, colour = "tomato",
           label = "Paper target Css = 6 mg/L (He 2012 Table 5)") +
  labs(x = "Background AED",
       y = "Steady-state Css (mg/L)",
       title = "Paediatric lamotrigine Css at 5 mg/kg/day (bid), by AED cohort",
       caption = paste("Simulated from ", 4L * n_per_arm,
                       "virtual subjects (n = ", n_per_arm,
                       "per AED cohort).", sep = " "))

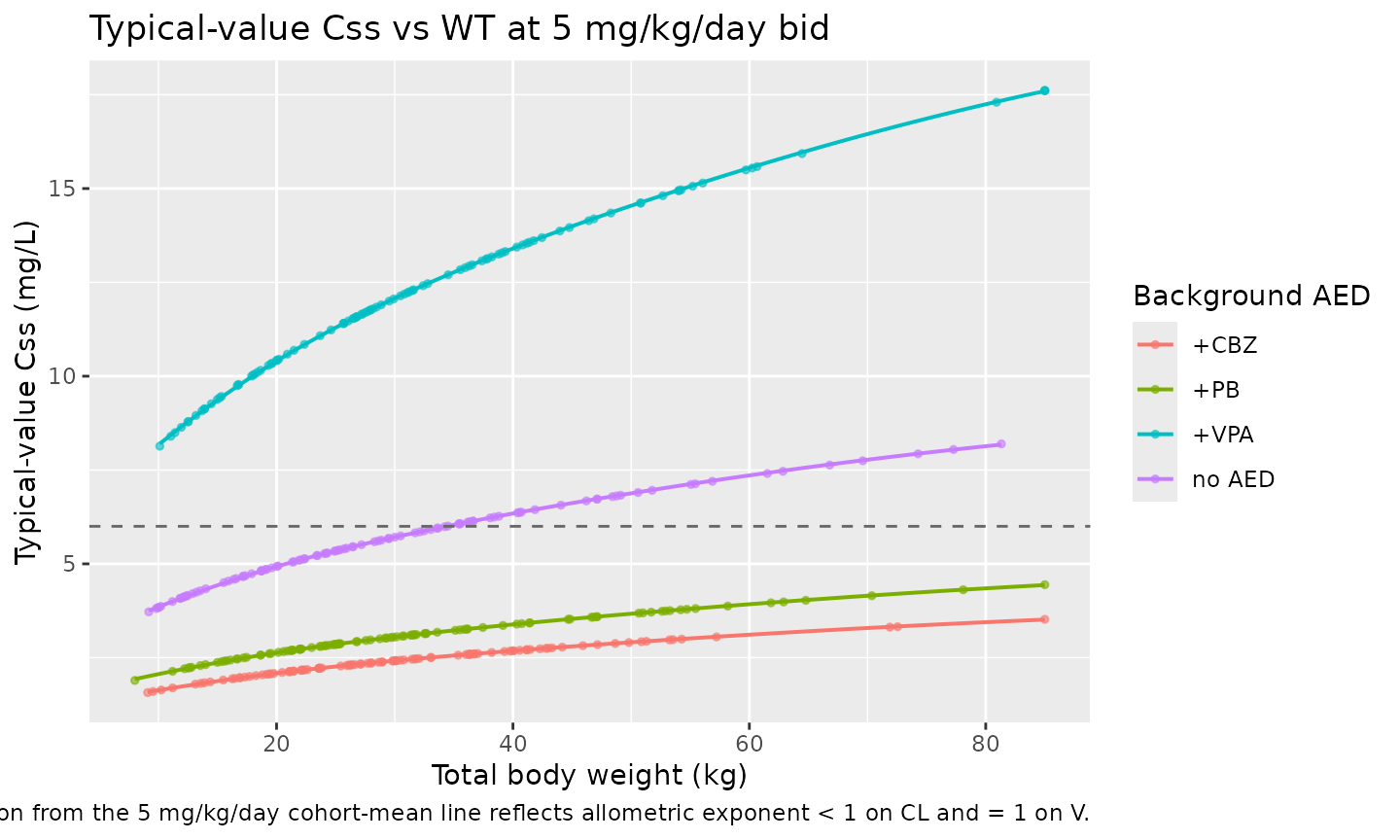

Typical-value Css vs WT (He 2012 Figure context)

He 2012 Figures 1 and 2 show scatter plots of measured versus predicted LTG concentrations for the basic and final models (internal and external validation). The chunk below shows the typical-value Css trajectory across the paediatric body-weight range at a fixed 5 mg/kg/day bid dose, separated by AED background. The flat-with-WT shape inside each cohort reflects the dose-proportional 5 mg/kg/day scaling; the vertical separation between cohorts is driven by the AED multiplicative effect on CL.

ss_typ_css <- sim_ss_typical |>
  dplyr::filter(time >= last_interval_start) |>
  group_by(id, aed_cohort, WT, amt_per_dose) |>
  summarise(
    auc_tau = trapz_auc(time - last_interval_start, Cc),
    Css     = auc_tau / tau,
    .groups = "drop"
  )

ggplot(ss_typ_css, aes(WT, Css, colour = aed_cohort)) +
  geom_point(alpha = 0.6, size = 1) +
  geom_smooth(se = FALSE, linewidth = 0.7, method = "loess",
              formula = y ~ x) +
  geom_hline(yintercept = 6.0, linetype = "dashed", colour = "grey40") +
  labs(x = "Total body weight (kg)",
       y = "Typical-value Css (mg/L)",
       colour = "Background AED",
       title  = "Typical-value Css vs WT at 5 mg/kg/day bid",
       caption = "Random effects zeroed; deviation from the 5 mg/kg/day cohort-mean line reflects allometric exponent < 1 on CL and = 1 on V.")

PKNCA validation

PKNCA is run on the typical-value steady-state simulation, restricted to the final dosing interval (time in [29tau, 30tau] h, with the dose at the start of the interval re-anchored to time = 0). The treatment grouping is the AED cohort so each background can be compared against the others and the paper’s reported Table 5 clearances and target Css.

last_dose_time <- last_interval_start
ss_nca_conc <- sim_ss_typical |>
  dplyr::filter(time >= last_dose_time, time <= last_dose_time + tau) |>
  dplyr::mutate(time = time - last_dose_time) |>
  dplyr::select(id, time, Cc, aed_cohort, WT, amt_per_dose) |>
  dplyr::filter(!is.na(Cc))

ss_nca_dose <- ss_nca_conc |>
  dplyr::distinct(id, aed_cohort, amt_per_dose) |>
  dplyr::mutate(time = 0, amt = amt_per_dose)

conc_obj <- PKNCA::PKNCAconc(
  ss_nca_conc, Cc ~ time | aed_cohort + id,
  concu = "mg/L", timeu = "hr"
)
dose_obj <- PKNCA::PKNCAdose(
  ss_nca_dose, amt ~ time | aed_cohort + id,
  doseu = "mg"
)

intervals_ss <- data.frame(
  start      = 0,
  end        = tau,
  cmax       = TRUE,
  tmax       = TRUE,
  auclast    = TRUE,
  cmin       = TRUE,
  cav        = TRUE
)

nca_ss <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals_ss)
)
