Bedaquiline lung and lesion distribution across species (Karakitsios 2025)

Source: vignettes/articles/Karakitsios_2025_bedaquiline_lung_pbpk.Rmd
Karakitsios_2025_bedaquiline_lung_pbpk.Rmd

Model and source

Karakitsios 2025 builds one middle-out, permeability-limited lung PBPK structure and parameterises it for four species. Because each species has its own empirical plasma model and its own tabulated lung physiology, the paper’s structure maps onto four model files that share a single lung mechanism:

model_names <- c(
  "Karakitsios_2025_bedaquiline_mouse_pbpk",
  "Karakitsios_2025_bedaquiline_rat_pbpk",
  "Karakitsios_2025_bedaquiline_dog_pbpk",
  "Karakitsios_2025_bedaquiline_human_pbpk"
)
uis <- lapply(model_names, function(n) rxode2::rxode(readModelDb(n)))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
names(uis) <- model_names

tibble(
  Model   = model_names,
  Species = vapply(uis, function(u) u$population$species, character(1)),
  States  = vapply(uis, function(u) length(u$state), integer(1))
) |>
  knitr::kable(caption = "The four species-specific model files contributed by this paper.")
The four species-specific model files contributed by this paper.
Model Species States
Karakitsios_2025_bedaquiline_mouse_pbpk mouse (BALB/c, C3HeB/FeJ ‘Kramnik’, and Swiss SPF (CD1)) 13
Karakitsios_2025_bedaquiline_rat_pbpk rat (Sprague-Dawley) 6
Karakitsios_2025_bedaquiline_dog_pbpk beagle dog 6
Karakitsios_2025_bedaquiline_human_pbpk human 15
  • Citation: Karakitsios E, Della Pasqua O, Dokoumetzidis A. Extrapolation of lung pharmacokinetics of bedaquiline across species using physiologically-based pharmacokinetic modelling. Br J Clin Pharmacol. 2025;91(11):3167-3178. doi:10.1002/bcp.70163. The plasma layer is the bedaquiline (parent) component of Svensson E. M., Dosne A.-G., Karlsson M. O. (2016). Population Pharmacokinetics of Bedaquiline and Metabolite M2 in Patients With Drug-Resistant Tuberculosis. CPT Pharmacometrics Syst Pharmacol 5(12):682-691. doi:10.1002/psp4.12147; see modellib(‘Svensson_2016_bedaquiline’).
  • Article: https://doi.org/10.1002/bcp.70163
  • Supporting Information (open access, equations S1-S19 and Tables S1-S14): https://doi.org/10.1002/bcp.70163

The lung is divided into pulmonary blood (PB), extracellular water (EW), intracellular water (IW) and lysosomes. Instantaneous equilibrium is assumed between PB and EW and between IW and lysosomes, so only two ODE states are needed for the healthy lung: lung_ew holds the unbound EW concentration and lung_iw the total IW concentration. Both hold concentrations, not amounts. The infected lung adds a lesion state (macrophages of cellular granulomas) and a caseous arm in which the outer caseum of foamy macrophages is in instantaneous equilibrium with caseum1, which then diffuses inward through caseum2 to caseum6 – 300 micrometre rings of the necrotic core.

Population

The lung, lesion and caseum parameters were all estimated in mice and then held constant across species. Mouse plasma data came from Janssen R&D rich-sampling protocols; mouse lung data pooled three strains (BALB/c, C3HeB/FeJ “Kramnik” and Swiss SPF (CD1)) with a random effect on cellular permeability. Infected-lung data came from Irwin 2016 (BALB/c cellular lesions and Kramnik caseous granulomas) and Walter 2023 (Kramnik caseum ring dissection). Rats (Sprague-Dawley) and dogs (beagle) provided healthy-lung validation data only. The human layer has no lung data of any kind and is a pure extrapolation; its plasma layer is the bedaquiline component of the Svensson 2016 model fitted in 335 patients with drug-resistant tuberculosis.

uis[["Karakitsios_2025_bedaquiline_mouse_pbpk"]]$population$dose_range
#> [1] "Oral gavage. 25 mg/kg single dose (BALB/c and Kramnik, Irwin 2016); 25 mg/kg/day single and multiple doses (Kramnik, Walter 2023; up to 17 daily doses); 6.25 and 25 mg/kg single and multiple doses (Swiss SPF (CD1), Janssen R&D). Table S1."

Mean rather than individual concentrations were modelled throughout, because most preclinical protocols used only about three animals per sampling time (Methods 2.1). Every simulation in this vignette is therefore a typical-value simulation with the random effects zeroed, which is what the paper’s own figures show.

typ <- lapply(uis, rxode2::zeroRe)

# All four models declare several `~` endpoints, so observation rows must carry
# an explicit dvid; and rxode2's automatic ODE -> linCmt conversion corrupts the
# dvid mapping for multi-state models, hence useLinCmt = FALSE.
solve_typical <- function(name, dose_times, amt, obs_times, covs = NULL) {
  dos <- data.frame(id = 1L, time = dose_times, amt = amt, evid = 1L,
                    cmt = "depot", dvid = NA_integer_)
  obs <- data.frame(id = 1L, time = obs_times, amt = NA_real_, evid = 0L,
                    cmt = "central", dvid = 1L)
  ev <- rbind(dos, obs)
  if (!is.null(covs)) for (nm in names(covs)) ev[[nm]] <- covs[[nm]]
  ev <- ev[order(ev$time, -ev$evid), ]
  out <- rxode2::rxSolve(typ[[name]], ev, returnType = "data.frame",
                         useLinCmt = FALSE)
  if (is.null(out$id)) out$id <- 1L
  out
}

trapz <- function(t, y) sum(diff(t) * (head(y, -1) + tail(y, -1)) / 2)

Source trace

Every ini() entry carries an in-file comment naming its source location. The table below collects the load-bearing ones.

Equation / parameter Value Source location
d/dt(lung_ew) (EW mass balance) n/a Supporting Information equation (S1)
d/dt(lung_iw) (IW + lysosome effective volume) n/a Supporting Information equation (S4)
d/dt(lesion) (macrophage permeation) n/a Supporting Information equation (S11)
d/dt(caseum1) (outer caseum in equilibrium with cas1) n/a Supporting Information equation (S12)
d/dt(caseum2..5) (catenary diffusion) n/a Supporting Information equation (S13)
d/dt(caseum6) (terminal ring) n/a Supporting Information equation (S14)
kcaseum = kcas/(t + tau)^h (fractal diffusion) n/a Supporting Information equation (S15)
kp_lysosome from fuLYS*fniLYS n/a Supporting Information equations (S8), (S9)
unbound lesion / caseum concentrations n/a Supporting Information equations (S16)-(S19)
pka1, pka2 8.5, 1.1 (both basic) Table S2; Figure S8
qlung, sa_cells, v_pb, v_ew, v_lysosome, v_iw, ph_* per species Table S3
bp, fu_plasma, fu_ew per species Table S4
Mouse plasma model (lka, lcl, lvc, lq, lvp, lq2, lvp2, lfdepot, omegas, propSd) Table S5
Rat plasma model Table S6
Dog plasma model (incl. addSd) Table S7
lperm_cells, kp_lysosome (mouse fit) 55.7 cm/h, 3.48e6 Table S8
lrate_macrophage, lkp_macrophage 1.43e5 1/h, 5.68e6 Table S11
lrate_foamy, lkp_foamy, lkp_caseum, lkcas, h_caseum 5.78e3, 1.44e6, 0.71, 0.25, 0.75 Table S13
flys_cell 0.078 Supporting Information (Ufuk 2017)
ratio_cas1, ratio_inner 1.67, 1.0 Supporting Information
ph_lesion_iw 5.84 Methods 2.3 (Kempker 2017)
Human plasma layer Svensson 2016 Table 3, via modellib("Svensson_2016_bedaquiline")

Validation 1 – healthy-lung extrapolation to the rat (Figure S4)

Figure S4 is the paper’s own answer key: it reports both the observed and the model predicted lung AUC0-24, Cmax and Tmax in male Sprague-Dawley rats after a single oral 20 mg/kg dose. Because the rat plasma model (Table S6) is tabulated, this is an absolute test of the transcribed lung equations, not just a shape test.

rat <- solve_typical("Karakitsios_2025_bedaquiline_rat_pbpk",
                     dose_times = 0, amt = 20 * 0.25,       # 20 mg/kg, 0.25 kg rat
                     obs_times = seq(0, 24, by = 0.05))
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalcl', 'etalq2'
rat_nca <- rat |>
  dplyr::filter(!is.na(c_lung)) |>
  dplyr::transmute(id, time, Cc = c_lung, treatment = "rat 20 mg/kg oral")

rat_nca <- dplyr::bind_rows(
  rat_nca,
  rat_nca |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

conc_obj <- PKNCA::PKNCAconc(rat_nca, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(
  data.frame(id = 1L, time = 0, amt = 5, treatment = "rat 20 mg/kg oral"),
  amt ~ time | treatment + id
)
rat_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj, dose_obj,
  intervals = data.frame(start = 0, end = 24,
                         auclast = TRUE, cmax = TRUE, tmax = TRUE)
))
published_rat <- tibble::tribble(
  ~treatment,            ~auclast, ~cmax,  ~tmax,
  "rat 20 mg/kg oral",   502.35,   35.22,  6.75
)

cmp_rat <- nlmixr2lib::ncaComparisonTable(
  simulated = rat_res,
  reference = published_rat,
  by        = "treatment",
  units     = c(auclast = "ug*h/g", cmax = "ug/g", tmax = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp_rat,
  caption = paste("Rat healthy lung, single 20 mg/kg oral dose: this implementation versus",
                  "the model prediction printed in Figure S4. * marks >20% difference.",
                  "For reference, Figure S4's OBSERVED values were AUC0-24 340.67 ug*h/g,",
                  "Cmax 22.26 ug/g and Tmax 8 h."),
  align = c("l", "l", "r", "r", "r")
)
Rat healthy lung, single 20 mg/kg oral dose: this implementation versus the model prediction printed in Figure S4. * marks >20% difference. For reference, Figure S4’s OBSERVED values were AUC0-24 340.67 ug*h/g, Cmax 22.26 ug/g and Tmax 8 h.
NCA parameter treatment Reference Simulated % diff
Cmax (ug/g) rat 20 mg/kg oral 35.2 32.3 -8.3%
Tmax (h) rat 20 mg/kg oral 6.75 9.45 +40.0%*
AUClast (ug*h/g) rat 20 mg/kg oral 502 528 +5.2%

AUC0-24 agrees with the paper’s own prediction to +5.2% and Cmax to -8.3%, both comfortably inside the 20% tolerance. Tmax is starred at +40% (9.45 h here against the printed 6.75 h) and was investigated rather than tuned: the predicted lung profile is essentially flat between about 6 and 11 hours – total lung concentration varies by under 3% across that window – so Tmax is a poorly conditioned statistic here, and a sub-percent difference in the plasma peak shifts it by hours without moving the curve. Note that the paper’s own predicted Tmax (6.75 h) sits below its own observed Tmax (8 h), while this implementation sits above it; both are within the flat region. The two well-conditioned statistics, AUC and Cmax, agree closely, and the residual differences are consistent with rounding in the Table S6 plasma estimates and with the assumed 0.25 kg reference rat weight.

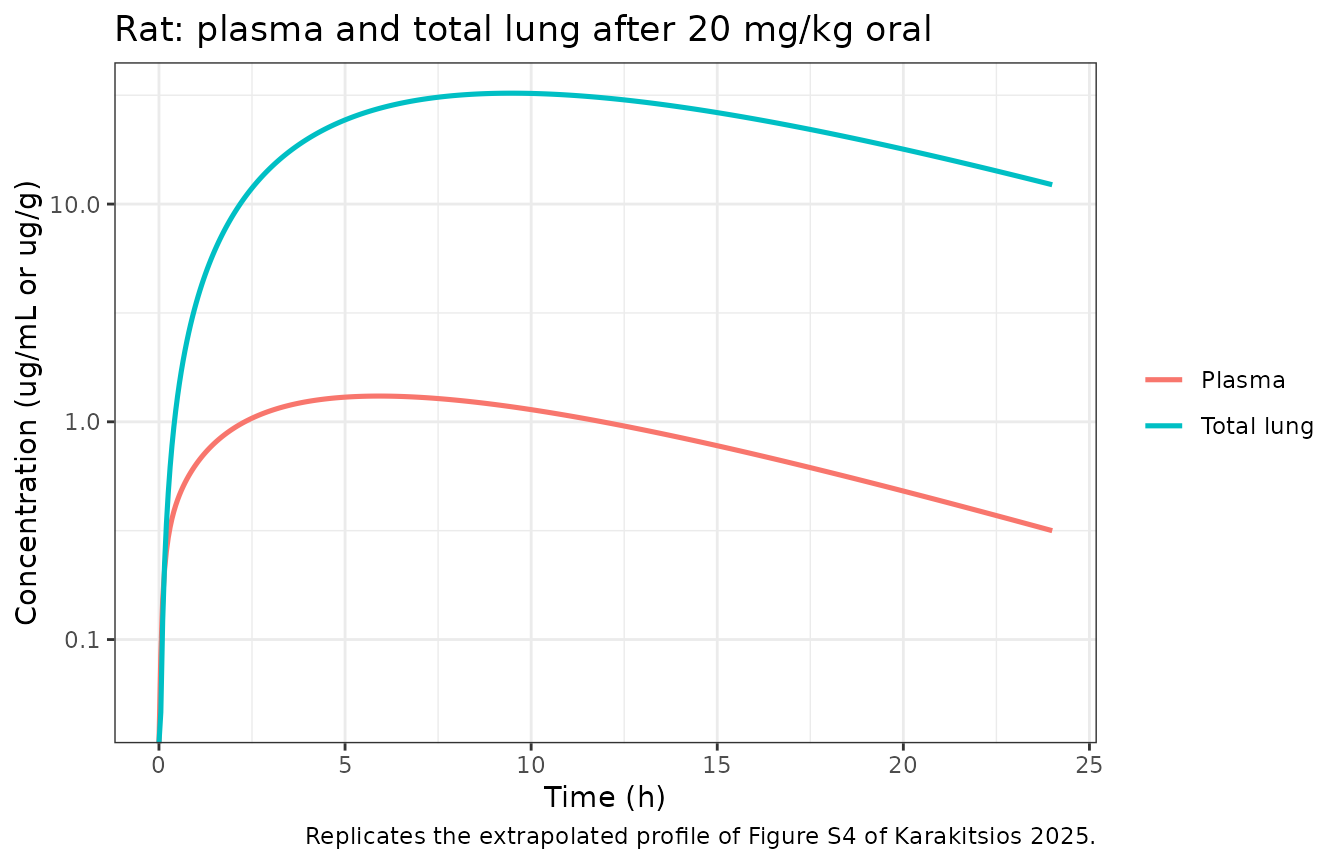

rat |>
  dplyr::select(time, `Total lung` = c_lung, Plasma = Cc) |>
  tidyr::pivot_longer(-time, names_to = "matrix", values_to = "conc") |>
  ggplot(aes(time, conc, colour = matrix)) +
  geom_line(linewidth = 0.9) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Concentration (ug/mL or ug/g)",
       colour = NULL, title = "Rat: plasma and total lung after 20 mg/kg oral",
       caption = "Replicates the extrapolated profile of Figure S4 of Karakitsios 2025.") +
  theme_bw()
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

Validation 2 – mouse tissue:plasma partitioning (Irwin 2016 Table 3)

The infected-lung parameters of Tables S11 and S13 were estimated against the Irwin 2016 BALB/c and Kramnik plasma models, which this paper does not tabulate. Absolute mouse tissue concentrations therefore cannot be reproduced from on-disk sources (see Errata). What the lung PBPK actually determines – the tissue-to-plasma exposure ratio – can be checked directly against the independent noncompartmental analysis in Irwin 2016 Table 3.

mouse <- solve_typical("Karakitsios_2025_bedaquiline_mouse_pbpk",
                       dose_times = 0, amt = 25 * 0.025,   # 25 mg/kg, 0.025 kg mouse
                       obs_times = seq(0, 168, by = 0.05))
#> ℹ omega/sigma items treated as zero: 'etalfdepot', 'etalka', 'etalperm_cells'

auc_plasma <- trapz(mouse$time, mouse$Cc)
ratios <- tibble(
  Matrix = c("Uninvolved lung", "Cellular lesion"),
  Model  = c(trapz(mouse$time, mouse$c_lung)   / auc_plasma,
             trapz(mouse$time, mouse$c_lesion) / auc_plasma),
  `Irwin 2016 BALB/c` = c(28.4, 28.2),
  `Irwin 2016 C3HeB/FeJ` = c(18.2, 10.8)
)
ratios |>
  dplyr::mutate(Model = round(Model, 1)) |>
  knitr::kable(
    caption = paste("Tissue:plasma AUC0-168 ratio after a single 25 mg/kg oral dose.",
                    "Reference values are the AUC_UL/AUC_plasma and AUC_Les/AUC_plasma rows",
                    "of Irwin 2016 Table 3 (doi:10.1021/acsinfecdis.5b00127), the source of",
                    "the mouse lesion data used to fit Table S11."))
Tissue:plasma AUC0-168 ratio after a single 25 mg/kg oral dose. Reference values are the AUC_UL/AUC_plasma and AUC_Les/AUC_plasma rows of Irwin 2016 Table 3 (doi:10.1021/acsinfecdis.5b00127), the source of the mouse lesion data used to fit Table S11.
Matrix Model Irwin 2016 BALB/c Irwin 2016 C3HeB/FeJ
Uninvolved lung 27.0 28.4 18.2
Cellular lesion 31.4 28.2 10.8

Both partitioning ratios reproduce the BALB/c observations within about 10%, which is the strongest available check that equations (S1), (S4) and (S11) were transcribed correctly.

Validation 3 – the caseum gradient in Kramnik mice (Figure 5, Figure S6)

Table S14 lists the mean caseum concentrations that were fitted, binned by distance from the outer caseum edge, after a single 25 mg/kg dose and after 17 daily doses.

kram <- solve_typical("Karakitsios_2025_bedaquiline_mouse_pbpk",
                      dose_times = seq(0, 16 * 24, by = 24), amt = 25 * 0.025,
                      obs_times = sort(unique(c(seq(0, 430, by = 0.25), 5, 24, 389, 408))))
#> ℹ omega/sigma items treated as zero: 'etalfdepot', 'etalka', 'etalperm_cells'

pick <- function(tt, col) kram[[col]][which.min(abs(kram$time - tt))]

obs_caseum <- tibble::tribble(
  ~time, ~ring,            ~observed,
  5,     "Outer caseum",    1.30,
  5,     "caseum1",         1.19,
  5,     "caseum2",         0.374,
  5,     "caseum3",         0.0196,
  24,    "Outer caseum",    2.62,
  24,    "caseum1",         2.19,
  24,    "caseum2",         0.179,
  24,    "caseum3",         0.0664,
  24,    "caseum4",         0.0187,
  389,   "Outer caseum",    6.78,
  389,   "caseum1",         5.65,
  389,   "caseum2",         2.14,
  389,   "caseum3",         1.20,
  389,   "caseum4",         0.699,
  389,   "caseum5",         0.433
) |>
  dplyr::mutate(
    column   = ifelse(ring == "Outer caseum", "c_outer_caseum", ring),
    model    = mapply(pick, time, column),
    `model / observed` = round(model / observed, 2),
    model    = signif(model, 3)
  ) |>
  dplyr::select(`Time (h)` = time, Ring = ring, Observed = observed,
                Model = model, `model / observed`)

knitr::kable(
  obs_caseum,
  caption = paste("Kramnik mouse caseum concentrations (ug/g) against the fitted data of",
                  "Table S14. Times 5 h and 24 h follow a single 25 mg/kg dose; 389 h is",
                  "5 h after the seventeenth daily dose. Absolute levels are low because the",
                  "Table S5 mouse plasma model under-predicts the Irwin/Walter plasma",
                  "exposure by about 2.5-fold (see Errata); the spatial gradient and its",
                  "flattening with repeated dosing are reproduced.")
)
Kramnik mouse caseum concentrations (ug/g) against the fitted data of Table S14. Times 5 h and 24 h follow a single 25 mg/kg dose; 389 h is 5 h after the seventeenth daily dose. Absolute levels are low because the Table S5 mouse plasma model under-predicts the Irwin/Walter plasma exposure by about 2.5-fold (see Errata); the spatial gradient and its flattening with repeated dosing are reproduced.
Time (h) Ring Observed Model model / observed
5 Outer caseum 1.3000 0.8430 0.65
5 caseum1 1.1900 0.5990 0.50
5 caseum2 0.3740 0.1280 0.34
5 caseum3 0.0196 0.0240 1.22
24 Outer caseum 2.6200 1.3500 0.51
24 caseum1 2.1900 0.9580 0.44
24 caseum2 0.1790 0.4210 2.35
24 caseum3 0.0664 0.1340 2.02
24 caseum4 0.0187 0.0351 1.88
389 Outer caseum 6.7800 4.6900 0.69
389 caseum1 5.6500 3.3300 0.59
389 caseum2 2.1400 1.9300 0.90
389 caseum3 1.2000 0.9980 0.83
389 caseum4 0.6990 0.4610 0.66
389 caseum5 0.4330 0.1990 0.46

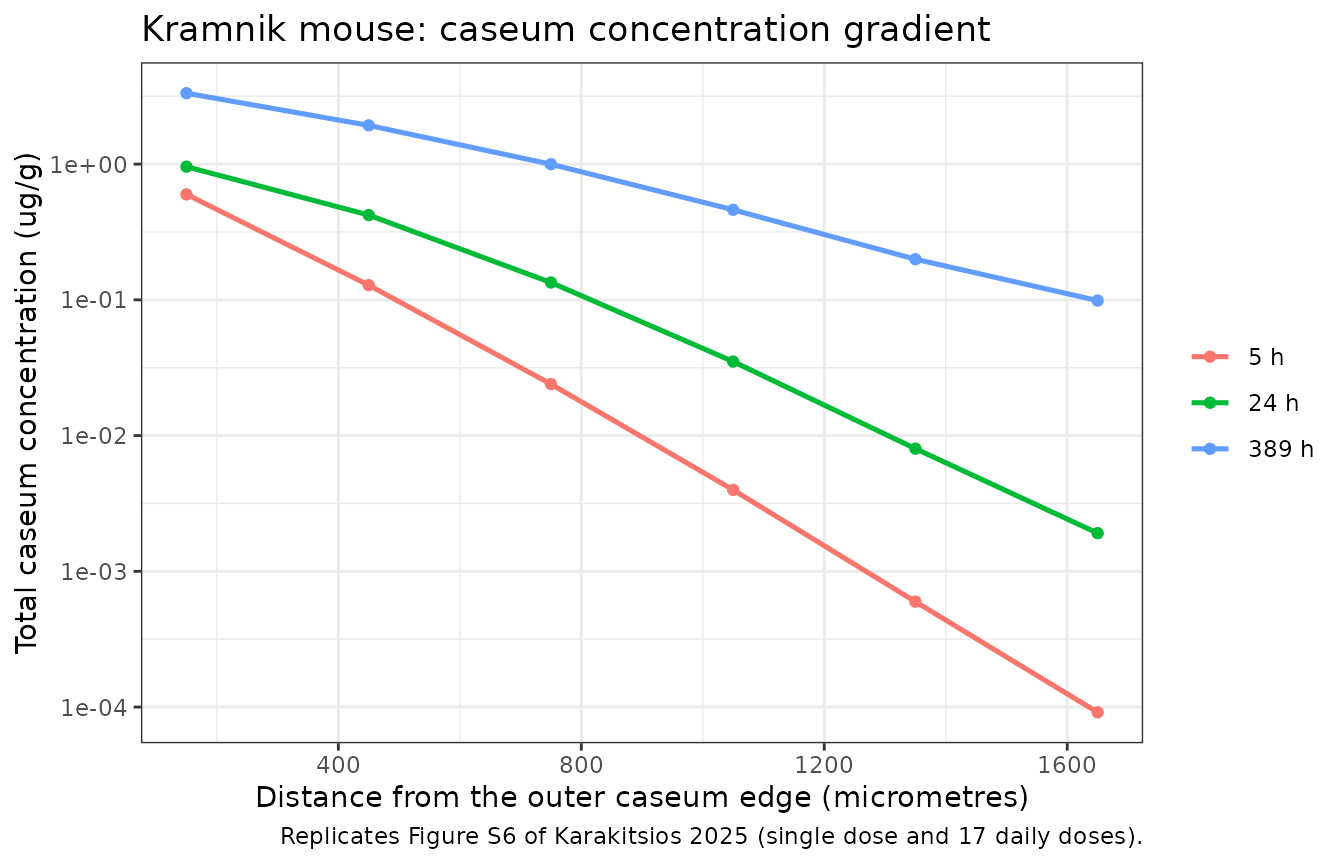

kram |>
  dplyr::filter(time %in% c(5, 24, 389)) |>
  dplyr::select(time, caseum1:caseum6) |>
  tidyr::pivot_longer(-time, names_to = "ring", values_to = "conc") |>
  dplyr::mutate(distance = 300 * as.integer(sub("caseum", "", ring)) - 150,
                time = factor(paste0(time, " h"), levels = c("5 h", "24 h", "389 h"))) |>
  ggplot(aes(distance, conc, colour = time)) +
  geom_line(linewidth = 0.9) + geom_point() +
  scale_y_log10() +
  labs(x = "Distance from the outer caseum edge (micrometres)",
       y = "Total caseum concentration (ug/g)", colour = NULL,
       title = "Kramnik mouse: caseum concentration gradient",
       caption = "Replicates Figure S6 of Karakitsios 2025 (single dose and 17 daily doses).") +
  theme_bw()

The concentration gradient spans three to four orders of magnitude across 1800 micrometres after a single dose and flattens – without disappearing – by the seventeenth dose, exactly as described in Results 3.4.

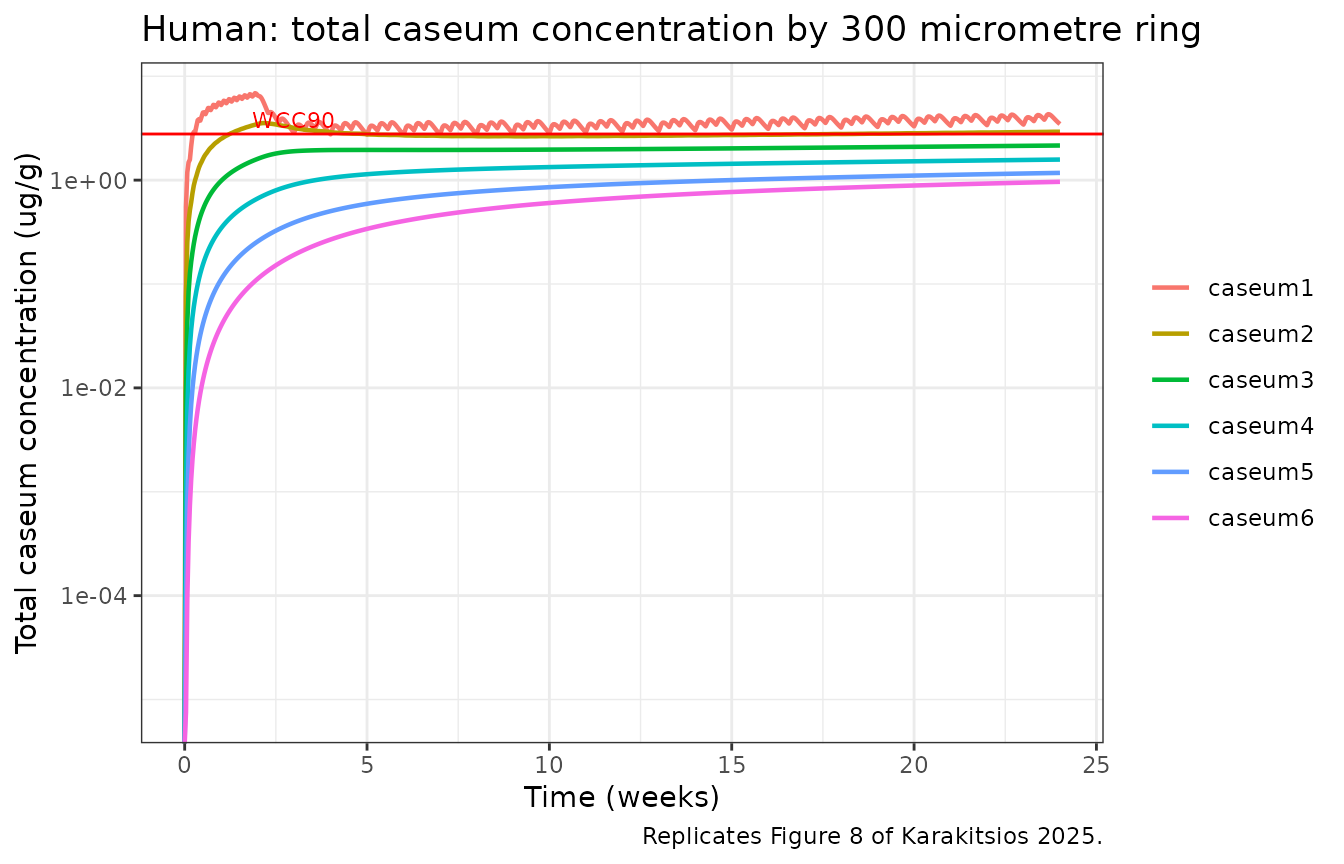

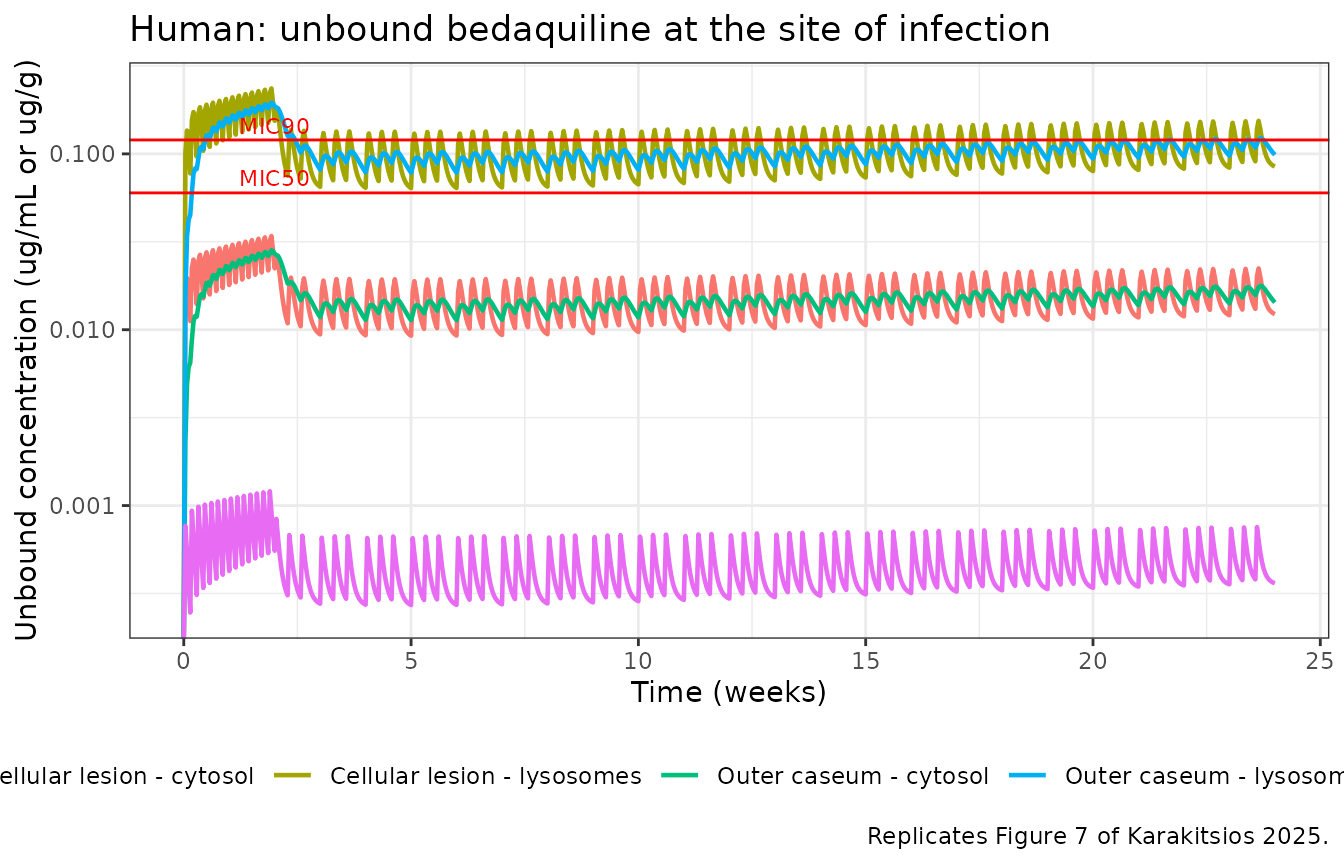

Validation 4 – the human extrapolation (Figures 7 and 8)

The approved regimen is 400 mg once daily for a two-week loading phase, then 200 mg three times weekly through week 24. Covariates are set to the typical patient the paper simulated.

loading <- seq(0, 13 * 24, by = 24)
maintenance <- sort(as.vector(outer(c(0, 48, 96), seq(14 * 24, 24 * 7 * 24 - 1, by = 7 * 24), "+")))
maintenance <- maintenance[maintenance <= 24 * 7 * 24]

human_dos <- rbind(
  data.frame(id = 1L, time = loading,     amt = 400, evid = 1L, cmt = "depot", dvid = NA_integer_),
  data.frame(id = 1L, time = maintenance, amt = 200, evid = 1L, cmt = "depot", dvid = NA_integer_)
)
human_obs <- data.frame(id = 1L, time = seq(0, 24 * 7 * 24, by = 6),
                        amt = NA_real_, evid = 0L, cmt = "central", dvid = 1L)
human_ev <- rbind(human_dos, human_obs)
human_ev$WT <- 70; human_ev$ALB <- 4.04; human_ev$AGE <- 32; human_ev$RACE_BLACK <- 0
human_ev <- human_ev[order(human_ev$time, -human_ev$evid), ]

human <- rxode2::rxSolve(typ[["Karakitsios_2025_bedaquiline_human_pbpk"]],
                         human_ev, returnType = "data.frame", useLinCmt = FALSE)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalq', 'etalfdepot', 'etalmat'
if (is.null(human$id)) human$id <- 1L

Figure 7 – unbound concentrations against the MIC

Results 3.5 states that unbound bedaquiline in plasma, in the cytosol of cellular lesions and in the cytosol of the outer caseum all remain below the MIC50 in clinical isolates (60 ng/mL) for the whole 24 weeks, and that only the lysosomes of macrophages and of foamy macrophages exceed it.

mic50 <- 0.060   # ug/mL, Results 3.5 (clinical isolates)
mic90 <- 0.120   # ug/mL, Figure 7 caption

tibble(
  Compartment = c("Plasma (unbound)",
                  "Cellular lesion -- cytosol", "Cellular lesion -- lysosomes",
                  "Outer caseum -- cytosol",    "Outer caseum -- lysosomes"),
  `Max unbound (ug/mL)` = signif(c(max(human$cu_plasma),
                                   max(human$cu_lesion_iw), max(human$cu_lesion_lys),
                                   max(human$cu_caseum_iw), max(human$cu_caseum_lys)), 3)
) |>
  dplyr::mutate(
    `vs MIC50` = ifelse(`Max unbound (ug/mL)` > mic50, "above", "below"),
    `Paper (Results 3.5)` = c("below", "below", "above", "below", "above")
  ) |>
  knitr::kable(caption = paste("Peak unbound bedaquiline concentrations over 24 weeks of the",
                               "approved regimen, against the MIC50 of 60 ng/mL in clinical",
                               "isolates. Replicates the conclusion drawn from Figure 7."))
Peak unbound bedaquiline concentrations over 24 weeks of the approved regimen, against the MIC50 of 60 ng/mL in clinical isolates. Replicates the conclusion drawn from Figure 7.
Compartment Max unbound (ug/mL) vs MIC50 Paper (Results 3.5)
Plasma (unbound) 0.00121 below below
Cellular lesion – cytosol 0.03410 below below
Cellular lesion – lysosomes 0.23600 above above
Outer caseum – cytosol 0.02830 below below
Outer caseum – lysosomes 0.19600 above above
human |>
  dplyr::select(time,
                `Plasma` = cu_plasma,
                `Cellular lesion - cytosol` = cu_lesion_iw,
                `Cellular lesion - lysosomes` = cu_lesion_lys,
                `Outer caseum - cytosol` = cu_caseum_iw,
                `Outer caseum - lysosomes` = cu_caseum_lys) |>
  tidyr::pivot_longer(-time, names_to = "compartment", values_to = "conc") |>
  dplyr::mutate(week = time / 168) |>
  ggplot(aes(week, conc, colour = compartment)) +
  geom_line(linewidth = 0.8) +
  geom_hline(yintercept = c(mic50, mic90), colour = "red") +
  annotate("text", x = 2, y = mic50, label = "MIC50", vjust = -0.4, colour = "red", size = 3) +
  annotate("text", x = 2, y = mic90, label = "MIC90", vjust = -0.4, colour = "red", size = 3) +
  scale_y_log10() +
  labs(x = "Time (weeks)", y = "Unbound concentration (ug/mL or ug/g)", colour = NULL,
       title = "Human: unbound bedaquiline at the site of infection",
       caption = "Replicates Figure 7 of Karakitsios 2025.") +
  theme_bw() + theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

Figure 8 – total caseum concentrations against the WCC90

wcc90 <- 2.78   # ug/g, the Wayne cidal concentration (Figure 8)

human |>
  dplyr::select(time, caseum1:caseum6) |>
  tidyr::pivot_longer(-time, names_to = "ring", values_to = "conc") |>
  dplyr::mutate(week = time / 168) |>
  ggplot(aes(week, conc, colour = ring)) +
  geom_line(linewidth = 0.8) +
  geom_hline(yintercept = wcc90, colour = "red") +
  annotate("text", x = 3, y = wcc90, label = "WCC90", vjust = -0.4, colour = "red", size = 3) +
  scale_y_log10() +
  labs(x = "Time (weeks)", y = "Total caseum concentration (ug/g)", colour = NULL,
       title = "Human: total caseum concentration by 300 micrometre ring",
       caption = "Replicates Figure 8 of Karakitsios 2025.") +
  theme_bw()
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

tibble(
  Ring = paste0("caseum", 1:6),
  `Distance from edge (um)` = paste0(300 * (0:5), "-", 300 * (1:6)),
  `Max total (ug/g)` = signif(vapply(paste0("caseum", 1:6),
                                     function(v) max(human[[v]]), numeric(1)), 3)
) |>
  dplyr::mutate(`vs WCC90 (2.78 ug/g)` = ifelse(`Max total (ug/g)` > wcc90, "above", "below")) |>
  knitr::kable(caption = paste("Peak total caseum concentration per ring over 24 weeks.",
                               "Results 3.5: 'only concentrations near the outer caseum edge",
                               "are higher than the WCC90 value'."))
Peak total caseum concentration per ring over 24 weeks. Results 3.5: ‘only concentrations near the outer caseum edge are higher than the WCC90 value’.
Ring Distance from edge (um) Max total (ug/g) vs WCC90 (2.78 ug/g)
caseum1 0-300 6.870 above
caseum2 300-600 3.540 above
caseum3 600-900 2.150 below
caseum4 900-1200 1.580 below
caseum5 1200-1500 1.170 below
caseum6 1500-1800 0.964 below

Only the two outermost rings clear the Wayne cidal concentration, matching Results 3.5 and mirroring the 25 mg/kg Kramnik mouse result of Figure 6, where Cas1 and Cas2 exceeded WCC90 and the inner core did not.

Cross-species lysosomal trapping

Equation (S9) is the whole basis of the cross-species extrapolation: the product fuLYS * fniLYS is fitted in mice and held constant, so the lysosome:cytosol partition in any other species follows from its own intracellular pH.

tibble(
  Species = c("Mouse", "Rat", "Dog", "Human"),
  `pH_IW` = vapply(uis, function(u) {
    v <- u$theta[["ph_iw"]]; if (is.null(v)) NA_real_ else v
  }, numeric(1)),
  `KpLYS:IW / fuIW` = signif(c(
    mouse$kp_lysosome[1],
    rat$kp_lysosome[1],
    solve_typical("Karakitsios_2025_bedaquiline_dog_pbpk", 0, 100, c(0, 1))$kp_lysosome[1],
    human$kp_lysosome[1]
  ), 3)
) |>
  knitr::kable(caption = paste("Lysosomal trapping falls as the cytosolic pH approaches the",
                               "lysosomal pH of 5.0. The mouse value reproduces the fitted",
                               "3.48e6 of Table S8 exactly."))
#> ℹ omega/sigma items treated as zero: 'etalfdepot', 'etalvc', 'etalvp', 'etalq2'
Lysosomal trapping falls as the cytosolic pH approaches the lysosomal pH of 5.0. The mouse value reproduces the fitted 3.48e6 of Table S8 exactly.
Species pH_IW KpLYS:IW / fuIW
Mouse 7.36 3480000
Rat 7.36 3480000
Dog 7.04 1730000
Human 6.69 786000

Assumptions and deviations

The ionisation factor is applied in its diprotic-base product form. The Supporting Information prints a general four-term Henderson-Hasselbalch factor, W = 1 + 10^(pKa1-pH) + 10^(pH-pKa2) + 10^(pKa1+pKa2-2pH). Those four terms are exactly the expansion of (1 + 10^(pKa1-pH)) * (1 + 10^(pKa2-pH)) except that the printed third term has its exponent reversed – it is the monoprotic acid term, whereas Table S2 and Figure S8 both declare bedaquiline’s two pKa values to be basic. The models use the product form. This is not a stylistic choice: taken literally, the printed third term dominates W by six orders of magnitude, inverts the lysosomal pH gradient that the entire paper is about, and reproduces the paper’s own rat prediction (Figure S4) roughly 80-fold low (lung AUC0-24 of 6.3 instead of 502 ug*h/g). The product form reproduces it within 5%.

The fitted Kp/(fuIW*fniIW) ratio is un-normalised before equations (S18)-(S19). Tables S11 and S13 report Kpmphi/(fuIW*fniIW) and Kpfmphi/(fuIW*fniIW), estimated with fuIW and fniIW fixed to 1. Equations (S16)-(S19) are statements about the true Kp = CLYS/CIW, so the model files convert the ratio back using the prediction-time fniIW at the cellular-lesion pH of 5.84 given in Methods 2.3. Without that step the predicted unbound lysosomal concentrations come out about 460-fold low and contradict the paper’s own conclusion that they exceed the MIC50 and MIC90. The ODE states are untouched: equation (S11) is written and was fitted in terms of the ratio and is left exactly as published.

The cellular-lesion cytosolic pH is assumed equal to the foamy-macrophage value. Methods 2.3 gives pH 5.84 for foamy macrophages and states that mice and humans share the same pH in cellular lesions as well as in the cellular rim, but never gives a separate figure for the macrophages of cellular lesions. The same 5.84 is applied to both. This affects only the derived unbound observables, never any ODE state or total concentration.

tau in equation (S15) is not reported. The paper fixes it to “a very small positive constant to avoid infinities for t = 0” without a value; 1e-3 h is used. Because h < 1 the time integral of kcaseum converges, so the choice is weakly influential – over 0-24 h, tau = 1e-3 and tau = 1e-6 differ by about 7% in cumulative diffusion, and less thereafter.

Absolute mouse infected-lung concentrations are not reproducible from on-disk sources. Results 3.3 and 3.4 state that the cellular-lesion and caseum parameters were optimised using the empirical plasma models for the Irwin 2016 BALB/c and Kramnik mice, which this paper does not tabulate. The mouse model file uses the only tabulated mouse plasma model, Table S5, whose plasma AUC0-168 after 25 mg/kg is 13.7 ugh/mL against the 33.7 ugh/mL measured by Irwin 2016 (Table 3) in BALB/c mice. Mouse tissue predictions are therefore roughly 2 to 3-fold below the tabulated observations, in proportion to that plasma difference. Validation 2 works around this by comparing tissue:plasma ratios, which are what the lung PBPK actually determines and which agree with Irwin 2016 within about 10%.

KEW:B is derived, not tabulated. The paper uses KEW:B in equation (S1) but does not list a value. It follows from the paper’s own stated instantaneous PB/EW equilibrium of the unbound-unionised drug, giving KEW:B = (fupls/fuEW) * (x_ew/x_plasma) from the tabulated Table S3 pH values and Table S4 unbound fractions.

Body weight is a fixed species constant, not a covariate. Tables S6 and S7 report the rat and dog plasma models per kilogram; the model files multiply by the Simcyp reference weights of Table S3 footnote a (0.25 kg, 10 kg). Table S3’s lung blood flow, sub-volumes and cell surface area are fixed per-species quantities and do not scale with weight within a species, so exposing a weight covariate on the plasma layer alone would be misleading. The human file does carry the inherited Svensson 2016 weight allometry on its plasma layer, but its lung layer stays at the Table S3 reference human.

The M2 metabolite is omitted from the human plasma layer. The Supporting Information selects the bedaquiline component of Svensson 2016 as the human plasma driver; M2 does not enter the lung model. The full parent-plus-metabolite model is available separately as modellib("Svensson_2016_bedaquiline"). The Discussion notes that characterising the lung PK of M2 remains future work.

Inter-strain, not inter-individual, variability. etalperm_cells in the mouse file carries the Table S8 omega_Permcells of 0.39, which the paper describes as inter-strain variability across the Kramnik, Swiss SPF and BALB/c mice pooled in the lung fit (empirical Bayes values of 29.6, 43.5-68.2 and 79.1 cm/h respectively, Methods 2.2), not between-subject variability.

The human lung layer is entirely unvalidated. Methods 2.1 and the Discussion both state that no human lung data exist. Every lung, lesion and caseum parameter in the human file is fixed at its mouse estimate, and all human lung outputs are extrapolations whose only support is the successful healthy-lung extrapolation to rats and dogs.

Caseum compartment naming. caseum1 to caseum6 are declared through paper_specific_compartments rather than as canonical compartments, pending operator ratification of a caseum<n> canonical chain prefix in inst/references/compartment-names.md.
