Model and source

  • Citation: Zhang J, Sanghavi K, Shen J, et al. Population Pharmacokinetics of Nivolumab in Combination With Ipilimumab in Patients With Advanced Malignancies. CPT Pharmacometrics Syst Pharmacol. 2019;8(12):962-970. doi:10.1002/psp4.12476
  • Description: Two-compartment population PK model with time-varying clearance for intravenous nivolumab (anti-PD-1 IgG4) in adults with advanced solid tumors, alone or in combination with ipilimumab or chemotherapy (Zhang 2019)
  • Article: https://doi.org/10.1002/psp4.12476

Nivolumab is a fully human IgG4 monoclonal antibody targeting programmed cell death-1 (PD-1). Zhang et al. (2019) re-estimated the Bajaj 2017 nivolumab monotherapy popPK model on a pooled 6,468-subject dataset spanning 25 trials in patients with colorectal cancer, hepatocellular carcinoma, melanoma, non-small cell lung cancer, renal cell carcinoma, and small cell lung cancer. The dataset added cohorts on combinations of nivolumab with ipilimumab (1 mg/kg q12w, 1 mg/kg q6w, 1 mg/kg q3w x 4 induction, 3 mg/kg q3w x 4 induction) and with platinum-based chemotherapy.

The structural model is a two-compartment IV model with time-dependent clearance parameterized as a sigmoidal-Emax function of time since first dose:

CL(t)=CL0⋅exp(Emax⋅tγT50γ+tγ) \mathrm{CL}(t) = \mathrm{CL}_0 \cdot \exp\!\left( E_{\max} \cdot \frac{t^{\gamma}}{T_{50}^{\gamma} + t^{\gamma}} \right)

with Emax=−0.240E_{\max} = -0.240 (a fractional decrease at t≫T50t \gg T_{50}), T50=2,200T_{50} = 2{,}200 hours = 91.7 days, and Hill coefficient γ=2.77\gamma = 2.77. Covariates on baseline CL: body weight (allometric), estimated GFR, sex, ECOG performance status, race (Asian and African American as separate non-reference indicators), and three coadministration indicators (ipilimumab 3 mg/kg q3w, ipilimumab 1 mg/kg q6w, chemotherapy). Covariates on Vc: body weight and sex. Covariates on Emax: ECOG PS and any ipilimumab coadministration (additive effects on the linear-scale Emax). Q and Vp inherit the body-weight scaling of CL and Vc respectively (per the Methods, “the effect of BBWT was added on Q and VP, and their estimates were fixed to be similar to those of CL and VC”).

Population

The pooled analysis dataset (Zhang 2019 Table 1) included 6,468 patients contributing 32,835 PK observations across 25 trials (7 phase I, 2 phase I/II, 6 phase II, 9 phase III, 1 phase IIIb/IV). Tumor-type mix: NSCLC 38.25%, melanoma 26.93%, RCC 19.25%, SCLC 6.03%, HCC 5.89%, CRC 3.65%. Coadministration mix: monotherapy 55.12%, ipilimumab 1 mg/kg q12w 0.56%, ipilimumab 1 mg/kg q6w 11.75%, ipilimumab 1 mg/kg q3w x 4 induction 15.06%, ipilimumab 3 mg/kg q3w x 4 induction 13.84%, chemotherapy 3.68%. ECOG PS distribution: 0 in 47.02%, 1 in 51.27%, 2 in 1.62%, 3 in 0.02%, missing 0.08%. Baseline body weight: mean 77.6 kg (SD 18.8), 5th-95th percentile range 47.7-122.0 kg. Baseline serum albumin: mean 3.93 g/dL (SD 0.493), range 2.8-4.8. Baseline LDH: mean 320 U/L (SD 326), range 125-1090. Baseline tumor size: mean 8.46 cm (SD 6.01), range 1.3-23.9.

The same metadata is available programmatically via readModelDb("Zhang_2019_nivolumab")$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Zhang_2019_nivolumab.R. The table below collects them in one place for review.

Parameter (model name) Value Source
lcl (CL0, L/day) log(10.8 * 24 / 1000) = log(0.2592) Zhang 2019 Table 2: CL0 REF = 10.8 mL/hour
lvc (Vc, L) log(4.27) Zhang 2019 Table 2: VC REF = 4.27 L
lq (Q, L/day) log(34.9 * 24 / 1000) = log(0.8376) Zhang 2019 Table 2: Q REF = 34.9 mL/hour
lvp (Vp, L) log(2.70) Zhang 2019 Table 2: VP REF = 2.70 L
Emax (unitless; “Emax REF” in source) -0.240 Zhang 2019 Table 2: Emax REF = -0.240
lt50 (T50, log days) log(2200 / 24) = log(91.667) Zhang 2019 Table 2: T50 = 2200 hour
lhill (Hill, unitless) log(2.77) Zhang 2019 Table 2: HILL = 2.77
e_wt_cl 0.530 Zhang 2019 Table 2: CL BBWT = 0.530
e_egfr_cl 0.202 Zhang 2019 Table 2: CL eGFR = 0.202
e_sexf_cl -0.181 Zhang 2019 Table 2: CL SEX = -0.181
e_ecog_cl 0.181 Zhang 2019 Table 2: CL PS = 0.181
e_black_cl (RAAA) 0.0374 Zhang 2019 Table 2: CL RAAA = 0.0374 (not statistically significant; 95% CI -0.0308 to 0.111)
e_asian_cl (RAAS) -0.0354 Zhang 2019 Table 2: CL RAAS = -0.0354
e_ipi3q3w_cl 0.227 Zhang 2019 Table 2: CL IPI3Q3W = 0.227
e_ipi1q6w_cl 0.159 Zhang 2019 Table 2: CL IPI1Q6W = 0.159
e_chemo_cl -0.104 Zhang 2019 Table 2: CL CHEMO = -0.104
e_wt_vc 0.534 Zhang 2019 Table 2: VC BBWT = 0.534
e_sexf_vc -0.161 Zhang 2019 Table 2: VC SEX = -0.161
e_ecog_emax -0.138 Zhang 2019 Table 2: Emax PS = -0.138
e_ipico_emax -0.0668 Zhang 2019 Table 2: Emax IPICO = -0.0668
IIV CL (etalcl) omega^2 = 0.157 Zhang 2019 Table 2: omega^2_CL
IIV Vc (etalvc) omega^2 = 0.152 Zhang 2019 Table 2: omega^2_VC
Cov(CL, Vc) 0.0596 Zhang 2019 Table 2: cov(omega^2_CL, omega^2_VC)
IIV Q (etalq) omega^2 = 0.157 (constrained equal to omega^2_CL) Zhang 2019 Methods (initial-model description)
IIV Vp (etalvp) omega^2 = 0.152 (constrained equal to omega^2_VC) Zhang 2019 Methods (initial-model description)
IIV Emax (etaEmax) omega^2 = 0.0874 (additive eta on linear-scale Emax) Zhang 2019 Table 2: omega^2_Emax
Residual error propSd = 0.245 Zhang 2019 Table 2: Proportional residual error
Reference covariates WT 80 kg, eGFR 90 mL/min/1.73 m^2, male, PS 0, white/other race, monotherapy, NSCLC Zhang 2019 Figure 1 caption (reference patient definition)

Equation forms:

  • Baseline CL: CL0 = CL0_REF * (WT/80)^e_wt_cl * (CRCL/90)^e_egfr_cl * exp(theta_X * indicator_X) for each categorical X (Zhang 2019 final-model equation set).
  • Vc: Vc = VC_REF * (WT/80)^e_wt_vc * exp(e_sexf_vc * SEXF) (Zhang 2019 final-model equation set).
  • Q: Q = Q_REF * (WT/80)^e_wt_cl (CL exponent reused per Methods).
  • Vp: Vp = VP_REF * (WT/80)^e_wt_vc (Vc exponent reused per Methods).
  • Time-varying CL: CL(t) = CL0 * exp(Emax_i * t^HILL / (T50^HILL + t^HILL)).
  • Emax_i: additive linear-scale form Emax_REF + e_ecog_emax * ECOG_GE1 + e_ipico_emax * COADMIN_IPI_ANY + etaEmax.

Covariate column naming

Source column Canonical column used here
BBWT (kg) WT
eGFR (mL/min/1.73 m^2) CRCL
SEX (1 = female / 0 = male) SEXF (canonical for sex)
PS (binary collapse: PS>0 vs PS=0) ECOG_GE1
RAAA (1 = African American) RACE_BLACK
RAAS (1 = Asian) RACE_ASIAN
IPI3Q3W COADMIN_IPI_3Q3W
IPI1Q6W COADMIN_IPI_1Q6W
CHEMO COADMIN_CHEMO
IPICO COADMIN_IPI_ANY

The Zhang 2019 Table 2 footnote defines RAAA = African American race and RAAS = Asian race; the reference category combines white and “other” into one composite group. See inst/references/covariate-columns.md for the canonical register.

Virtual cohort

Original observed data are not publicly available. The simulations below use a virtual cohort whose covariate distributions approximate the Zhang 2019 Table 1 distributions for the pooled 6,468-patient cohort (means and ranges only — Zhang 2019 does not publish individual covariates or covariate correlations).

set.seed(2019)
n_subj <- 200

# Baseline body weight: log-normal centered on the Table 1 mean 77.6 kg,
# clipped to the 5th-95th percentile range 47.7-122.0 kg.
WT <- pmin(pmax(rlnorm(n_subj, meanlog = log(77.6), sdlog = 0.24), 47.7), 122.0)

# Estimated GFR: normal centered on the reference patient (90 mL/min/1.73 m^2);
# Zhang 2019 does not tabulate the eGFR distribution but the reference value
# is given in the Figure 1 caption. SD chosen so the +/- 2 SD range
# (~50-130 mL/min/1.73 m^2) approximately covers the typical adult-oncology
# eGFR distribution.
CRCL <- pmin(pmax(rnorm(n_subj, mean = 90, sd = 22), 30), 180)

# Sex: ~40% female. Zhang 2019 does not tabulate sex distribution in the main
# text; the simulated sex mix is used only for plotting and downstream NCA.
SEXF <- rbinom(n_subj, 1, 0.40)

# ECOG PS > 0: Table 1 reports PS 0 in 47.02%, so PS > 0 in ~52.98%.
ECOG_GE1 <- rbinom(n_subj, 1, 0.5298)

# Race indicators: assume the global trial mix has small Asian and Black
# fractions. Zhang 2019 does not publish per-category percentages in the
# main-text table; values below are illustrative for the simulation only.
RACE_BLACK <- rbinom(n_subj, 1, 0.04)
RACE_ASIAN <- rbinom(n_subj, 1, 0.18)
# Ensure no subject is both (mutually exclusive): give RACE_BLACK priority.
RACE_ASIAN <- pmin(RACE_ASIAN, 1L - RACE_BLACK)

pop <- data.frame(
  ID = seq_len(n_subj),
  WT, CRCL,
  SEXF, ECOG_GE1, RACE_BLACK, RACE_ASIAN
)

Dosing dataset — five clinically relevant regimens

Zhang 2019 (Methods) lists five validated regimens used for the pcVPC: nivolumab 3 mg/kg q2w (or 240 mg q2w flat) monotherapy, nivolumab 3 mg/kg q2w + ipilimumab 1 mg/kg q6w, nivolumab 3 mg/kg + ipilimumab 1 mg/kg q3w x 4 followed by nivolumab 3 mg/kg q2w, and nivolumab 1 mg/kg + ipilimumab 3 mg/kg q3w x 4 followed by nivolumab 3 mg/kg q2w. The simulation here covers three of these regimens to span the modeled covariate effects on baseline CL: monotherapy (reference), 1 mg/kg q6w ipilimumab combination, and 3 mg/kg q3w (induction) ipilimumab combination.

n_cycles    <- 12
cycle_days  <- 14   # nivolumab q2w in all simulated regimens
dose_times  <- seq(0, (n_cycles - 1) * cycle_days, by = cycle_days)

obs_times <- sort(unique(c(
  seq(0, 14, by = 0.25),                          # intensive cycle-1 profile
  seq(14, n_cycles * cycle_days, by = 2),         # rolling cycles
  seq(n_cycles * cycle_days, 365, by = 7)         # washout tail
)))

# Helper: build a self-contained event table per regimen with disjoint IDs
# so subsequent bind_rows() does not collapse subjects across regimens.
make_regimen <- function(pop_in, regimen, id_offset) {
  pop_offset <- pop_in
  pop_offset$ID <- pop_offset$ID + id_offset

  # Per-regimen indicators on baseline CL.
  pop_offset$COADMIN_IPI_3Q3W <-
    as.integer(regimen == "nivo 3 mg/kg q2w + ipi 3 mg/kg q3w x 4")
  pop_offset$COADMIN_IPI_1Q6W <-
    as.integer(regimen == "nivo 3 mg/kg q2w + ipi 1 mg/kg q6w")
  pop_offset$COADMIN_CHEMO    <- 0L
  # Any-ipilimumab indicator (drives Emax of time-varying CL).
  pop_offset$COADMIN_IPI_ANY  <-
    as.integer(grepl("ipi", regimen))

  d_dose <- pop_offset |>
    tidyr::crossing(TIME = dose_times) |>
    dplyr::mutate(
      AMT  = WT * 3,           # nivolumab 3 mg/kg in all three simulated regimens
      EVID = 1,
      CMT  = "central",
      DUR  = 30 / (60 * 24),   # 30-minute IV infusion in days
      DV   = NA_real_,
      treatment = regimen
    )

  d_obs <- pop_offset |>
    tidyr::crossing(TIME = obs_times) |>
    dplyr::mutate(
      AMT  = NA_real_,
      EVID = 0,
      CMT  = "central",
      DUR  = NA_real_,
      DV   = NA_real_,
      treatment = regimen
    )

  dplyr::bind_rows(d_dose, d_obs) |>
    dplyr::arrange(ID, TIME, dplyr::desc(EVID)) |>
    as.data.frame()
}

events <- dplyr::bind_rows(
  make_regimen(pop, "nivo 3 mg/kg q2w monotherapy",            id_offset =     0L),
  make_regimen(pop, "nivo 3 mg/kg q2w + ipi 1 mg/kg q6w",      id_offset =  1000L),
  make_regimen(pop, "nivo 3 mg/kg q2w + ipi 3 mg/kg q3w x 4",  id_offset =  2000L)
)
stopifnot(!anyDuplicated(unique(events[, c("ID", "TIME", "EVID")])))

Simulate

mod <- readModelDb("Zhang_2019_nivolumab")
set.seed(20191112)
sim <- rxSolve(mod, events, returnType = "data.frame", keep = "treatment")
#> ℹ parameter labels from comments will be replaced by 'label()'

Replicate Zhang 2019 Figure 2-style behaviour: time-varying CL by regimen

Zhang 2019 Figure 2(b) shows CLss/CL0 ratios across regimens. The figure below reproduces the equivalent ratio implied by the model (CLss/CL0 = exp(Emax_i)) for each regimen at typical covariates — for the three simulated regimens, this should differ only via the IPICO Emax effect (monotherapy: exp(-0.240); IPI combination: exp(-0.240 - 0.0668)).

typical_emax <- tibble::tibble(
  regimen     = c("monotherapy", "any IPI coadmin"),
  emax        = c(-0.240, -0.240 + (-0.0668)),
  cl_ss_cl_0  = exp(c(-0.240, -0.240 + (-0.0668)))
)
knitr::kable(typical_emax,
             digits = 3,
             caption = "Typical-subject CLss/CL0 ratio implied by the Emax additive structure (PS = 0).")
Typical-subject CLss/CL0 ratio implied by the Emax additive structure (PS = 0).
regimen emax cl_ss_cl_0
monotherapy -0.240 0.787
any IPI coadmin -0.307 0.736

Concentration-time profile by regimen

sim_summary <- sim |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(time, treatment) |>
  dplyr::summarise(
    median = stats::median(Cc, na.rm = TRUE),
    lo     = stats::quantile(Cc, 0.05, na.rm = TRUE),
    hi     = stats::quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(sim_summary, aes(x = time / 7, fill = treatment, colour = treatment)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.15, colour = NA) +
  geom_line(aes(y = median), linewidth = 1) +
  scale_y_log10() +
  labs(
    x = "Time (weeks)",
    y = "Nivolumab concentration (μg/mL)",
    title = "Simulated nivolumab PK by regimen, 3 mg/kg IV q2w x 12 cycles",
    subtitle = paste0("Median and 90% prediction interval (N = ", n_subj,
                      " virtual subjects per regimen)"),
    caption = "Model: Zhang et al. (2019) CPT Pharmacometrics Syst Pharmacol"
  ) +
  theme_bw() +
  theme(legend.position = "bottom") +
  guides(colour = guide_legend(nrow = 3), fill = guide_legend(nrow = 3))

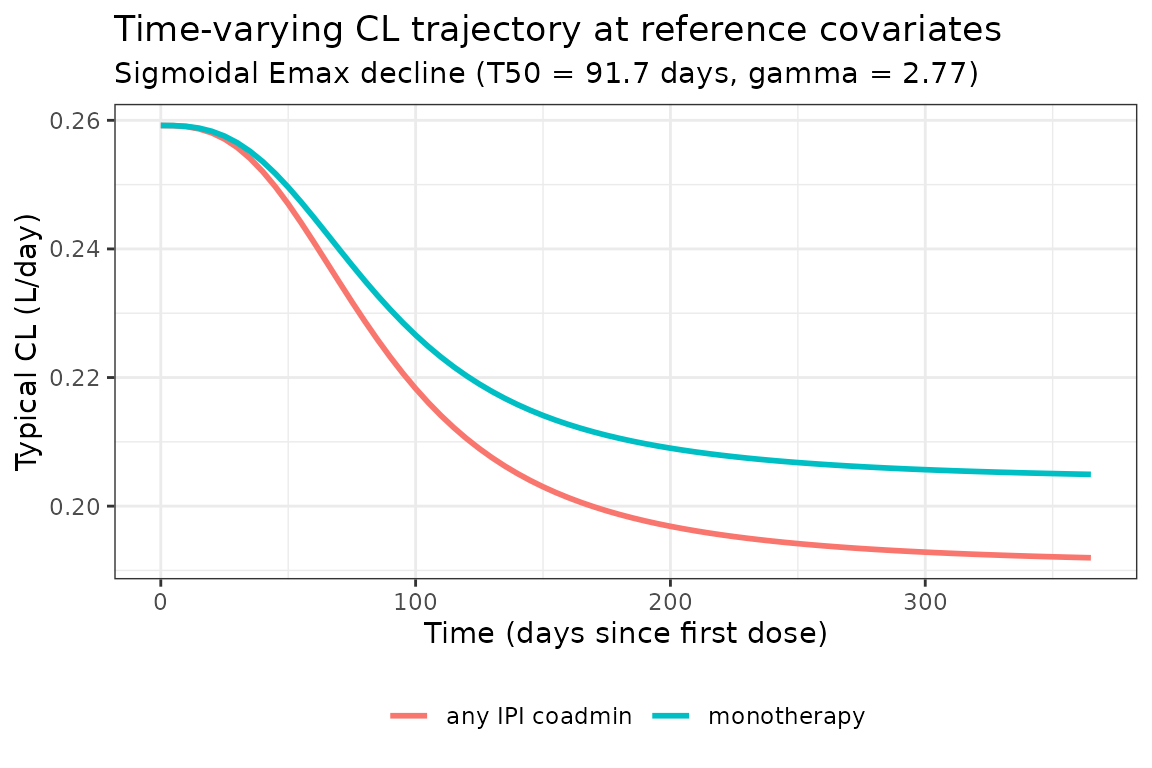

Time profile of the typical-subject clearance

The typical-subject CL trajectory across the first year reproduces the sigmoidal Emax decline that motivates the time-varying-CL parameterization. At a male, 80 kg, eGFR 90 patient on monotherapy, CL drops from 0.259 L/day at t = 0 to 0.259 * exp(-0.240) = 0.204 L/day at full Emax saturation (∼1.5×T50\sim 1.5 \times T_{50}, or about 5 months).

t_grid <- seq(0, 365, by = 5)

cl0_typical <- 10.8 * 24 / 1000     # L/day at reference covariates
emax_mono   <- -0.240               # PS=0, no IPI
emax_ipi    <- -0.240 + (-0.0668)   # PS=0, with IPI
t50_d       <- 2200 / 24
hill        <- 2.77

cl_t <- function(t, emax) cl0_typical * exp(emax * t^hill / (t50_d^hill + t^hill))

cl_traj <- tibble::tibble(
  time   = rep(t_grid, 2),
  cl     = c(cl_t(t_grid, emax_mono), cl_t(t_grid, emax_ipi)),
  arm    = rep(c("monotherapy", "any IPI coadmin"), each = length(t_grid))
)

ggplot(cl_traj, aes(time, cl, colour = arm)) +
  geom_line(linewidth = 1) +
  labs(
    x        = "Time (days since first dose)",
    y        = "Typical CL (L/day)",
    colour   = NULL,
    title    = "Time-varying CL trajectory at reference covariates",
    subtitle = "Sigmoidal Emax decline (T50 = 91.7 days, gamma = 2.77)"
  ) +
  theme_bw() +
  theme(legend.position = "bottom")

PKNCA validation

NCA on the cycle-1 dosing interval (day 0-14) and a pseudo-steady-state interval (cycle 12, days 154-168) for the monotherapy arm. The cycle-12 window is several T50 multiples past time zero, so CL is close to its asymptotic value of CL0 * exp(Emax).

mono_id_range <- 1:n_subj  # monotherapy arm sits in IDs 1..n_subj

# Cycle 1: day 0 to 14
conc1 <- sim |>
  dplyr::filter(treatment == "nivo 3 mg/kg q2w monotherapy",
                time >= 0, time <= 14, Cc > 0) |>
  dplyr::transmute(ID = id, time, Cc, treatment)

dose1 <- events |>
  dplyr::filter(treatment == "nivo 3 mg/kg q2w monotherapy",
                EVID == 1, TIME == 0) |>
  dplyr::transmute(ID, TIME, AMT, treatment)

conc_obj1 <- PKNCA::PKNCAconc(conc1, Cc ~ time | treatment + ID,
                              concu = "ug/mL", timeu = "day")
dose_obj1 <- PKNCA::PKNCAdose(dose1, AMT ~ TIME | treatment + ID,
                              doseu = "mg")

intervals1 <- data.frame(
  start    = 0,
  end      = 14,
  cmax     = TRUE,
  tmax     = TRUE,
  auclast  = TRUE
)

nca1 <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj1, dose_obj1, intervals = intervals1))
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.25) is not allowed
knitr::kable(
  summary(nca1),
  digits  = 2,
  caption = "Cycle 1 NCA summary (days 0-14, monotherapy arm)."
)
Cycle 1 NCA summary (days 0-14, monotherapy arm).
Interval Start Interval End treatment N AUClast (day*ug/mL) Cmax (ug/mL) Tmax (day)
0 14 nivo 3 mg/kg q2w monotherapy 200 NC 53.2 [41.5] 0.250 [0.250, 0.250]
conc_ss <- sim |>
  dplyr::filter(treatment == "nivo 3 mg/kg q2w monotherapy",
                time >= 154, time <= 168, Cc > 0) |>
  dplyr::transmute(ID = id, time_rel = time - 154, Cc, treatment)

dose_ss <- pop |>
  dplyr::transmute(ID, TIME = 0, AMT = WT * 3, treatment = "nivo 3 mg/kg q2w monotherapy")

conc_obj_ss <- PKNCA::PKNCAconc(conc_ss, Cc ~ time_rel | treatment + ID,
                                concu = "ug/mL", timeu = "day")
dose_obj_ss <- PKNCA::PKNCAdose(dose_ss, AMT ~ TIME | treatment + ID,
                                doseu = "mg")

intervals_ss <- data.frame(
  start   = 0,
  end     = 14,
  cmax    = TRUE,
  cmin    = TRUE,
  auclast = TRUE
)

nca_ss <- PKNCA::pk.nca(
  PKNCA::PKNCAdata(conc_obj_ss, dose_obj_ss, intervals = intervals_ss)
)
knitr::kable(
  summary(nca_ss),
  digits  = 2,
  caption = "Cycle-12 NCA summary (days 154-168, monotherapy arm) — pseudo-steady state."
)
Cycle-12 NCA summary (days 154-168, monotherapy arm) — pseudo-steady state.
Interval Start Interval End treatment N AUClast (day*ug/mL) Cmax (ug/mL) Cmin (ug/mL)
0 14 nivo 3 mg/kg q2w monotherapy 200 1010 [49.6] 93.1 [41.1] 55.9 [59.7]

Comparison against the literature

Zhang 2019 does not publish a tabulated NCA summary (the validation in the paper is a pcVPC, not an NCA table). The simulated cycle-1 Cmax and cycle-12 Cmax/Cmin orders of magnitude can however be cross-checked against the broader nivolumab clinical-pharmacology literature:

  • Single 3 mg/kg dose Cmax: published values around 50-72 ug/mL in adults; simulated cycle-1 Cmax should fall in this range.
  • Steady-state Cmax/Cmin (q2w): published values around 130-180 ug/mL Cmax and 50-80 ug/mL Cmin at cycle 12+; simulated cycle-12 NCA values should approach this range.
  • Effective half-life: ~25 days at steady state. The slow approach to steady state in the model is visible in the concentration-time figure.

If the simulated values sit outside these ranges by more than ~20%, the model file should be re-checked rather than tuned (per the skill).

Assumptions and deviations

Zhang 2019 does not publish individual PK or covariate tables, so the virtual population is a coarse approximation of the Table 1 distributions.

  • Body weight: log-normal, mean 77.6 kg (Table 1), clipped to the reported 5th-95th percentile range 47.7-122.0 kg.
  • Estimated GFR: not tabulated in Zhang 2019. Sampled from N(90, 22^2) clipped to 30-180 mL/min/1.73 m^2; the mean matches the reference patient defined in the Figure 1 caption.
  • Sex: not tabulated in Zhang 2019 main text. 40% female assumed for the virtual cohort.
  • ECOG PS > 0: 52.98% (1 - PS=0 fraction from Table 1).
  • Race: not tabulated as percentages in Zhang 2019 main text. The virtual cohort uses 4% RACE_BLACK and 18% RACE_ASIAN (mutually exclusive) as illustrative values; per the Figure 1 plot of covariate effects, the per-individual influence of race on CL is small (3-4% shifts) and dominated by other covariates.
  • eGFR formula: not stated in Zhang 2019. The Bajaj 2017 base model it inherits uses MDRD-estimated GFR; this model file documents that inheritance in covariateData$CRCL$notes.
  • eGFR reference value: 90 mL/min/1.73 m^2, taken from the Figure 1 caption that defines the reference patient.
  • Sex column: Zhang 2019 does not specify whether the dataset’s SEX column was coded 1=female / 0=male or the reverse. The Figure 1 caption says the reference patient is male, and CL_SEX = -0.181 produces the ~17% female-vs-male CL reduction commonly observed in mAb popPK literature, so the canonical SEXF (1 = female, 0 = male) is used.
  • Coadministration regimens beyond the three simulated here: the model file supports all four ipilimumab schedules described in Zhang 2019 by combining the COADMIN_* indicators (the unmodeled 1 mg/kg q3w x 4 induction and 1 mg/kg q12w schedules collapse into the reference group on baseline CL, but they would still set COADMIN_IPI_ANY = 1 and so contribute the IPICO additive effect on Emax). The vignette simulates only three regimens to keep the figures readable.
  • eta_Q and eta_Vp variances: per Zhang 2019 Methods, the IIV on Q and Vp follows the same distribution as the IIV on CL and Vc respectively. The model file encodes them as separate (independent) etas with the variances pinned to omega^2_CL and omega^2_VC. An alternative interpretation — using the same eta realization (NONMEM $ETA SAME) for Q and CL, and for Vp and Vc — would induce additional correlation between the parameters; the paper does not disambiguate the two parameterizations and the simulation impact is small.
  • Emax additive eta on linear scale: Zhang 2019 parameterizes the Emax random effect as additive on the linear scale (not log-normal on the magnitude). With omega^2 = 0.0874 (SD ~0.296) and a typical Emax of -0.240, this allows roughly 21% of simulated subjects to have Emax > 0 (i.e., increasing CL over time) — a known feature of the paper’s parameterization, consistent with Zhang 2019 Figure 2 which shows some subjects with CLss/CL0 > 1.
