Model and source

Britz 2019 is primarily a whole-body PBPK paper: it builds PK-Sim / MoBi models of fluvoxamine and theophylline and couples them with existing caffeine, rifampicin and midazolam models into a CYP1A2 drug-drug-interaction network. Alongside that work the authors ran a NONMEM population-PK analysis of fluvoxamine, reported in full in Supplement S1 section 4, to quantify the effect of CYP2D6 poor metabolism and of cigarette smoking on fluvoxamine clearance and to check those effect sizes against the PBPK predictions.

It is that population-PK analysis that is packaged here. The two source studies were analysed separately (Supplement S1 section 4.2: “The two studies were analyzed separately using ADVAN6”), each yielding its own set of parameter estimates in Table S11, so the analysis is packaged as two independent model files following the paper’s own structure. The PK-Sim whole-body PBPK layer is not reproduced: its tissue-plasma partition coefficients are reported only as a calculation-method name (“Schmitt”, “PK-Sim”, “R+R”) and its organ volumes and blood flows are platform database outputs that appear nowhere in the paper.

mod_cyp2d6 <- readModelDb("Britz_2019_fluvoxamine_cyp2d6")
mod_smoking <- readModelDb("Britz_2019_fluvoxamine_smoking")
  • Citation: Britz H, Hanke N, Volz AK, Spigset O, Schwab M, Eissing T, Wendl T, Frechen S, Lehr T. Physiologically-Based Pharmacokinetic Models for CYP1A2 Drug-Drug Interaction Prediction: A Modeling Network of Fluvoxamine, Theophylline, Caffeine, Rifampicin, and Midazolam. CPT Pharmacometrics Syst Pharmacol. 2019;8(5):296-307. doi:10.1002/psp4.12397. Population-PK parameters from Supplement S1, Table S11 (column ‘Spigset 1997’). Underlying clinical study: Spigset O, Granberg K, Hagg S, Norstrom A, Dahlqvist R. Relationship between fluvoxamine pharmacokinetics and CYP2D6/CYP2C19 phenotype polymorphisms. Eur J Clin Pharmacol. 1997;52(2):129-133.
  • Article: https://doi.org/10.1002/psp4.12397
  • Supplement S1 (model documentation, Tables S1a-S11): distributed with the article on the CPT:PSP website and via Europe PMC (PMC6539736, supplementary file psp412397-sup-0001-SupplementS1.pdf).

Britz_2019_fluvoxamine_cyp2d6

One-compartment population PK model for a single 50 mg oral dose of fluvoxamine in 10 healthy volunteers phenotyped for CYP2D6 (Britz 2019, Supplement S1 section 4, dataset of Spigset 1997). Zero-order absorption of duration D into the central compartment preceded by an absorption lag time ALAG, and first-order elimination; volume and clearance are apparent (Vc/F, CL/F). The single retained covariate is the CYP2D6 poor-metabolizer phenotype, which multiplies CL/F by 0.775 (a 22 percent reduction) relative to extensive metabolizers. All subjects were non-smokers. This is the NONMEM population-PK analysis reported alongside, and used to corroborate, the paper’s PK-Sim whole-body PBPK model; the PBPK layer itself is not reproduced here.

Britz_2019_fluvoxamine_smoking

One-compartment population PK model for a single 50 mg oral dose of fluvoxamine in 24 healthy volunteers stratified by cigarette smoking (Britz 2019, Supplement S1 section 4, dataset of Spigset 1995). Zero-order absorption of duration D into the central compartment preceded by an absorption lag time ALAG, and first-order elimination; volume and clearance are apparent (Vc/F, CL/F). The single retained covariate is current cigarette smoking, which multiplies CL/F by 1.28 (a 28 percent increase) relative to non-smokers, reflecting induction of CYP1A2. All subjects were CYP2D6 extensive metabolizers. This is the NONMEM population-PK analysis reported alongside, and used to corroborate, the paper’s PK-Sim whole-body PBPK model; the PBPK layer itself is not reproduced here.

Population

Both models describe a single 50 mg oral dose of fluvoxamine in healthy volunteers, with blood sampled pre-dose and at 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 24, 32 and 48 h; plasma concentrations were measured by HPLC with a lower limit of quantification of 0.5 nmol/L (Supplement S1 section 4.2).

Spigset 1997 (CYP2D6 model). Ten young healthy volunteers categorised by CYP2D6 phenotype: five extensive metabolizers (the single female plus four males) and five poor metabolizers (all male). All subjects were non-smokers. Mean age 25 years, body weight 55-86 kg. 139 concentrations entered the analysis.

Spigset 1995 (smoking model). Twenty-four young healthy volunteers, 12 non-smokers and 12 smokers, with five females and seven males in each group. All were CYP2D6 extensive metabolizers. Mean age 36.5 years, body weight 51-95 kg. 311 concentrations entered the analysis.

Because each study varies only one factor and holds the other fixed, the two covariates are cleanly separated: the CYP2D6 model is estimated entirely in non-smokers and the smoking model entirely in CYP2D6 extensive metabolizers. Neither model can therefore speak to the combination of the two.

The same information is available programmatically from each model’s population metadata:

str(readModelDb("Britz_2019_fluvoxamine_cyp2d6")()$population, max.level = 1)
#> List of 13
#>  $ species         : chr "human"
#>  $ n_subjects      : num 10
#>  $ n_studies       : num 1
#>  $ age_median      : chr "25 years"
#>  $ weight_range    : chr "55-86 kg"
#>  $ sex_female_pct  : num 10
#>  $ disease_state   : chr "healthy volunteers"
#>  $ dose_range      : chr "50 mg oral single dose (tablet)"
#>  $ regions         : chr "Sweden"
#>  $ smoking_status  : chr "all subjects non-smokers"
#>  $ cyp2d6_phenotype: chr "5 extensive metabolizers, 5 poor metabolizers"
#>  $ n_observations  : num 139
#>  $ notes           : chr "Britz 2019 Supplement S1 section 4.3 'Study population': 'The population of the study by Spigset et al. 1997 co"| __truncated__

Source trace

Every value below is transcribed from Britz 2019 Supplement S1, Table S11 (“Parameter estimates of the final population pharmacokinetic models”), whose two numeric columns are headed “Spigset 1997” and “Spigset 1995”. The same citations appear as in-file comments beside each ini() entry in inst/modeldb/specificDrugs/Britz_2019_fluvoxamine_cyp2d6.R and inst/modeldb/specificDrugs/Britz_2019_fluvoxamine_smoking.R.

Equation / parameter _cyp2d6 (Spigset 1997) _smoking (Spigset 1995) Source location
ld1 - zero-order input duration D 1.53 h (RSE 12%) 3.51 h (RSE 9%) Table S11 row “D (h)”; corroborated in section 4.3 prose
ltlag - absorption lag time ALAG 2.75 h (RSE 1%) 1.79 h (RSE 6%) Table S11 row “ALAG (h)”; corroborated in section 4.3 prose
lvc - apparent central volume Vc/F 2610 L (RSE 11%) 3030 L (RSE 12%) Table S11 row “VCentral (l/F)”; corroborated in section 4.3 prose
lcl - apparent clearance CL/F 147 L/h (RSE 25%) 133 L/h (RSE 18%) Table S11 row “CL (l/h/F)”; corroborated in section 4.3 prose
e_cyp2d6_pm_cl - CYP2D6 PM effect on CL/F 0.775 (RSE 33%) n/a Table S11 row “CYP2D6 poor metabolism on CL”
e_smoke_cl - smoking effect on CL/F n/a 1.28 (RSE 21%) Table S11 row “Smoking on CL”
etalvc - IIV on Vc/F 29 %CV (RSE 21%) -> 0.0807501 53 %CV (RSE 18%) -> 0.2475630 Table S11 row “IIV VCentral (%CV)”; omega^2 = log(1 + CV^2)
etalcl - IIV on CL/F 49 %CV (RSE 17%) -> 0.2151920 49 %CV (RSE 22%) -> 0.2151920 Table S11 row “IIV CL (%CV)”; omega^2 = log(1 + CV^2)
propSd - proportional residual SD 0.34 (RSE 13%) 0.49 (RSE 18%) Table S11 row “Proportional (%)”
addSd - additive residual SD fixed(2.86506e-07) ng/mL 9.5502e-04 ng/mL (RSE 50%) Table S11 row “Additive (nmol/ml)”: (9e-10) fixed, and 3e-6; converted with MW 318.34 g/mol from Table S1b
Structure: 1 compartment, zero-order input, lag, linear elimination n/a n/a Section 4.3 “Population pharmacokinetic model”; section 4.2 model-building narrative
Exponential (log-normal) IIV n/a n/a Section 4.2: “IIVs were modelled exponentially”
Combined proportional + additive residual error n/a n/a Section 4.3: “Residual variability was best described with a combined error model”
MW 318.34 g/mol (unit conversion only) n/a n/a Supplement S1 Table S1b row “MW”

Reference values used later for validation come from Supplement S1 Table S1d (“Observed and predicted AUC and Cmax values of fluvoxamine”), rows for Spigset 1995 and Spigset 1997 at 50 mg p.o. single dose.

Virtual cohort

The original subject-level data are not public, so the figures below use virtual cohorts of 200 subjects per arm. Only the covariate that each study varied is set; no body-weight or age covariate enters either model, so nothing else needs to be sampled.

Observation times combine a 0.25 h grid over the absorption phase with an hourly grid to 72 h, plus the exact end-of-input time tlag + d1 for each model so that Cmax and Tmax are resolved exactly rather than to the nearest grid point.

dose_mg <- 50

# End of the zero-order input = tlag + d1, the exact time of the peak.
peak_time <- c(cyp2d6 = 2.75 + 1.53, smoking = 1.79 + 3.51)

obs_grid <- function(peak) {
  sort(unique(c(seq(0, 12, by = 0.25), seq(12, 72, by = 1), peak)))
}

# One arm's event table. `rate = -2` is mandatory: it tells rxode2 to use the
# modelled duration dur(central) = d1. Without it the dose collapses to an
# instantaneous bolus.
make_arm <- function(n, cov_name, cov_value, arm, peak, id_offset = 0L) {
  sched <-
    rxode2::et(amt = dose_mg, cmt = "central", rate = -2) |>
    rxode2::et(obs_grid(peak), cmt = "central") |>
    as.data.frame()
  out <- do.call(rbind, lapply(seq_len(n), function(i) {
    x <- sched
    x$id <- id_offset + i
    x
  }))
  out[[cov_name]] <- cov_value
  out$arm <- arm
  out
}

n_per_arm <- 200L

ev_cyp2d6 <- dplyr::bind_rows(
  make_arm(n_per_arm, "CYP2D6_PM", 0L, "CYP2D6 EM", peak_time[["cyp2d6"]], 0L),
  make_arm(n_per_arm, "CYP2D6_PM", 1L, "CYP2D6 PM", peak_time[["cyp2d6"]], n_per_arm)
)
ev_smoking <- dplyr::bind_rows(
  make_arm(n_per_arm, "SMOKE", 0L, "Non-smoker", peak_time[["smoking"]], 0L),
  make_arm(n_per_arm, "SMOKE", 1L, "Smoker", peak_time[["smoking"]], n_per_arm)
)

# Disjoint ids per arm: duplicate ids would silently merge into one subject
# receiving the summed dose.
stopifnot(
  !anyDuplicated(unique(ev_cyp2d6[, c("id", "time", "evid")])),
  !anyDuplicated(unique(ev_smoking[, c("id", "time", "evid")]))
)

Simulation

Two simulations are run for each model: a stochastic cohort that carries the published inter-individual variability (used for the prediction-interval figures) and a typical-value solve with the random effects zeroed (used for the NCA comparison and the structural checks, both of which must be exactly reproducible).

rxode2::rxSetSeed(20190501)
sim_cyp2d6 <- rxode2::rxSolve(mod_cyp2d6, ev_cyp2d6, keep = "arm") |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

rxode2::rxSetSeed(20190502)
sim_smoking <- rxode2::rxSolve(mod_smoking, ev_smoking, keep = "arm") |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
typ_arm <- function(cov_name, cov_value, arm, peak, id_offset) {
  make_arm(1L, cov_name, cov_value, arm, peak, id_offset)
}

ev_typ_cyp2d6 <- dplyr::bind_rows(
  typ_arm("CYP2D6_PM", 0L, "CYP2D6 EM", peak_time[["cyp2d6"]], 1L),
  typ_arm("CYP2D6_PM", 1L, "CYP2D6 PM", peak_time[["cyp2d6"]], 2L)
)
ev_typ_smoking <- dplyr::bind_rows(
  typ_arm("SMOKE", 0L, "Non-smoker", peak_time[["smoking"]], 1L),
  typ_arm("SMOKE", 1L, "Smoker", peak_time[["smoking"]], 2L)
)

typ_cyp2d6 <- rxode2::rxSolve(
  rxode2::zeroRe(mod_cyp2d6), ev_typ_cyp2d6, keep = "arm"
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl'
#> Warning: multi-subject simulation without without 'omega'
typ_smoking <- rxode2::rxSolve(
  rxode2::zeroRe(mod_smoking), ev_typ_smoking, keep = "arm"
) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalcl'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

Figure S11c - impact of CYP2D6 phenotype and smoking

Supplement S1 Figure S11c plots simulated typical plasma concentration-time profiles for a single 50 mg oral dose from the two final population-PK models: CYP2D6 extensive versus poor metabolizers in the left panel, and non-smokers versus smokers in the right panel. The chunk below reproduces both panels.

# Replicates Figure S11c of Britz 2019 Supplement S1.
dplyr::bind_rows(
  typ_cyp2d6 |> dplyr::mutate(panel = "CYP2D6 phenotype (Spigset 1997)"),
  typ_smoking |> dplyr::mutate(panel = "Smoking status (Spigset 1995)")
) |>
  dplyr::filter(!is.na(Cc)) |>
  ggplot(aes(time, Cc, colour = arm, linetype = arm)) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~panel) +
  coord_cartesian(xlim = c(0, 48)) +
  labs(
    x = "Time (h)", y = "Fluvoxamine concentration (ng/mL)",
    colour = NULL, linetype = NULL,

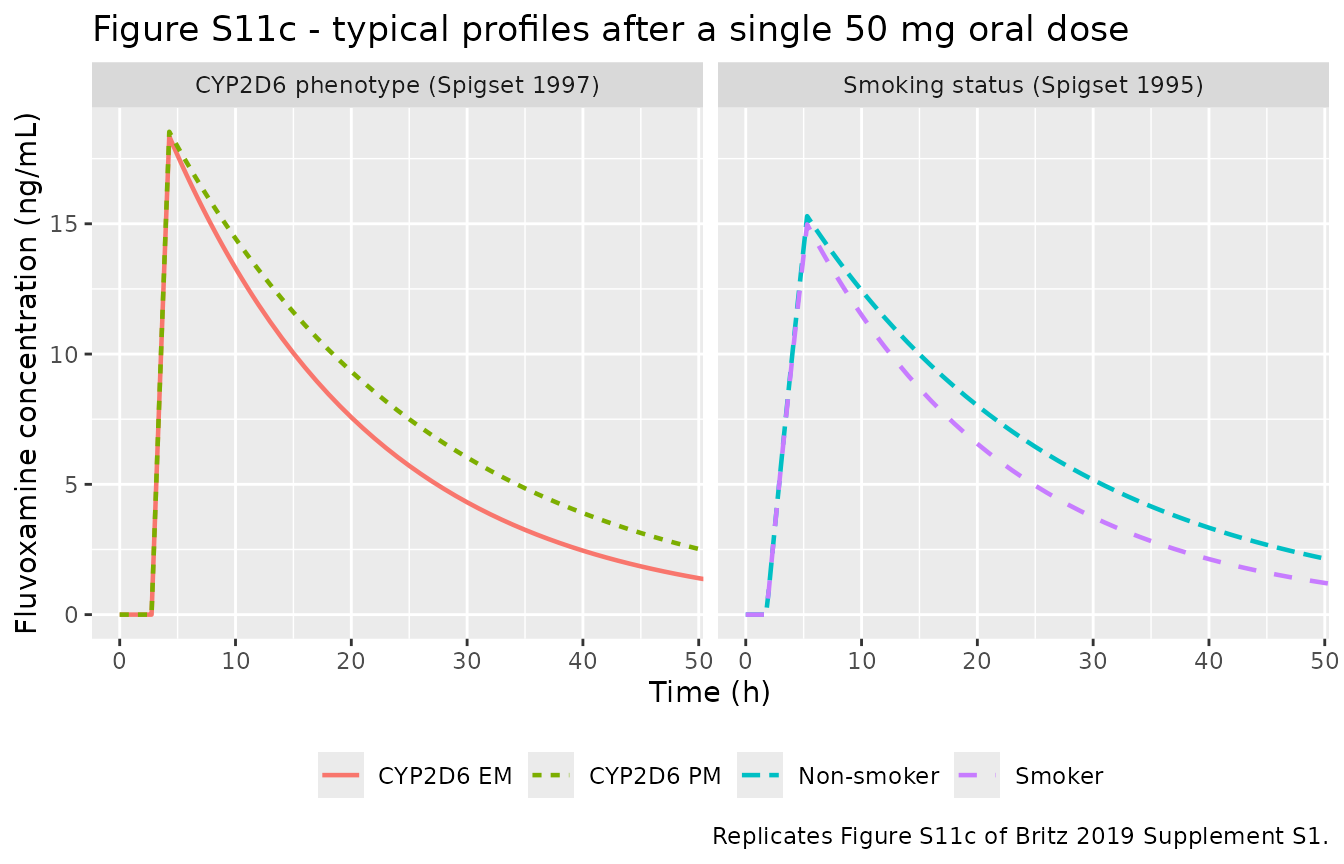

    title = "Figure S11c - typical profiles after a single 50 mg oral dose",
    caption = "Replicates Figure S11c of Britz 2019 Supplement S1."
  ) +
  theme(legend.position = "bottom")

The two published qualitative findings are reproduced: poor metabolizers show the higher and longer-lasting exposure of the two CYP2D6 strata, and smokers show the lower exposure of the two smoking strata. In both panels the curves are indistinguishable during the absorption phase and separate only after the peak, because each covariate acts on clearance alone.

Prediction intervals across the published variability

dplyr::bind_rows(
  sim_cyp2d6 |> dplyr::mutate(panel = "CYP2D6 phenotype (Spigset 1997)"),
  sim_smoking |> dplyr::mutate(panel = "Smoking status (Spigset 1995)")
) |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(panel, arm, time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05),
    Q50 = quantile(Cc, 0.50),
    Q95 = quantile(Cc, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50, colour = arm, fill = arm)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.18, colour = NA) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~panel) +
  coord_cartesian(xlim = c(0, 48)) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Fluvoxamine concentration (ng/mL)",
    colour = NULL, fill = NULL,

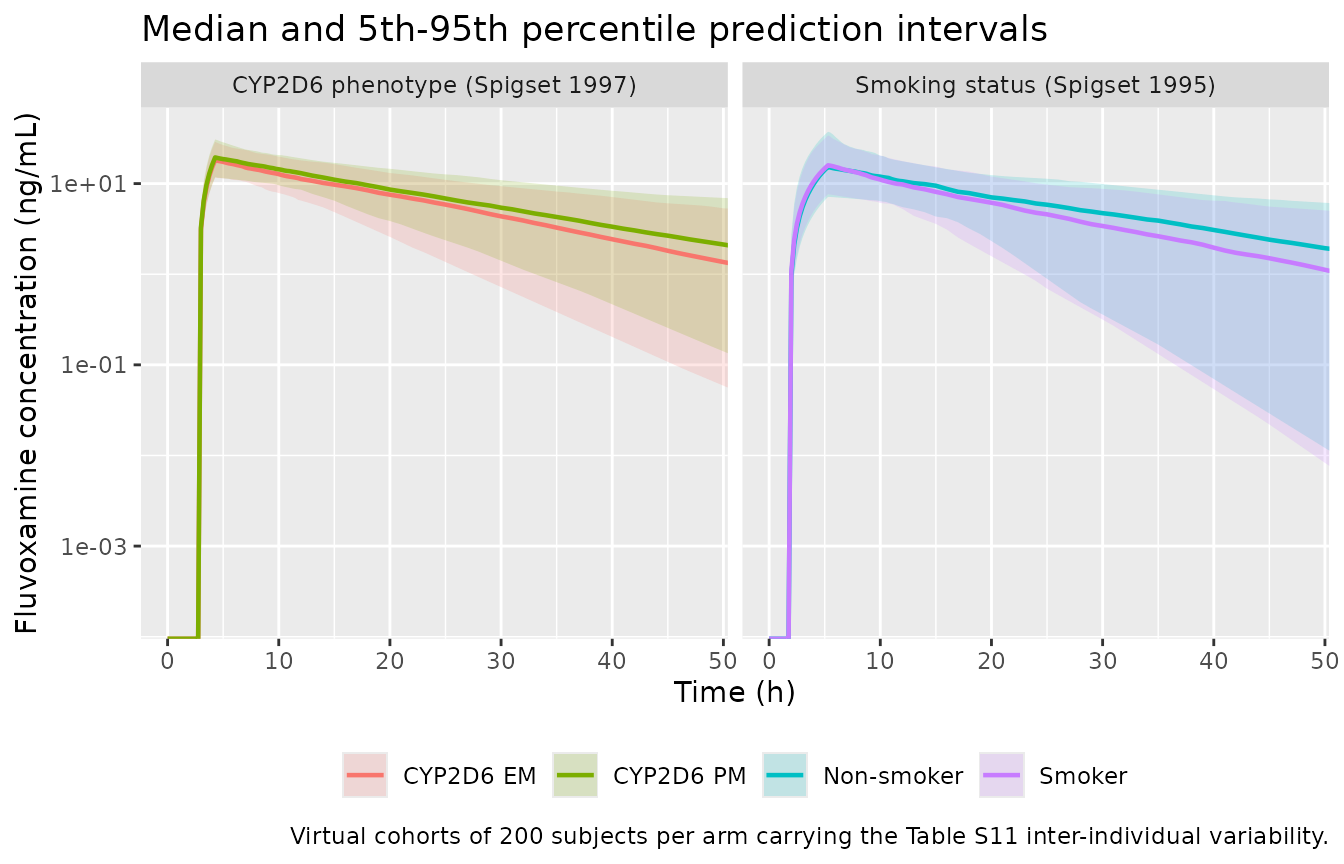

    title = "Median and 5th-95th percentile prediction intervals",
    caption = paste(
      "Virtual cohorts of", n_per_arm,
      "subjects per arm carrying the Table S11 inter-individual variability."
    )
  ) +
  theme(legend.position = "bottom")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

Structural checks

Because the models are one-compartment and linear, several quantities have exact closed forms. Both sides of each comparison below use the same parameter values, so the only difference is ODE-solver and NCA numerical error and a tight bound is appropriate.

p_cyp2d6 <- rxode2::rxode2(mod_cyp2d6)$theta
#> ℹ parameter labels from comments will be replaced by 'label()'
p_smoking <- rxode2::rxode2(mod_smoking)$theta
#> ℹ parameter labels from comments will be replaced by 'label()'

expected <- tibble::tibble(
  arm = c("CYP2D6 EM", "CYP2D6 PM", "Non-smoker", "Smoker"),
  cl = c(
    exp(p_cyp2d6[["lcl"]]),
    exp(p_cyp2d6[["lcl"]]) * p_cyp2d6[["e_cyp2d6_pm_cl"]],
    exp(p_smoking[["lcl"]]),
    exp(p_smoking[["lcl"]]) * p_smoking[["e_smoke_cl"]]
  ),
  vc = c(
    exp(p_cyp2d6[["lvc"]]), exp(p_cyp2d6[["lvc"]]),
    exp(p_smoking[["lvc"]]), exp(p_smoking[["lvc"]])
  ),
  tlag_plus_d1 = c(
    rep(exp(p_cyp2d6[["ltlag"]]) + exp(p_cyp2d6[["ld1"]]), 2),
    rep(exp(p_smoking[["ltlag"]]) + exp(p_smoking[["ld1"]]), 2)
  )
) |>
  dplyr::mutate(
    # AUC0-inf = Dose / (CL/F); dose in mg, CL in L/h, Cc reported in ng/mL.
    aucinf_expected = dose_mg / cl * 1000,
    half_life_expected = log(2) * vc / cl,
    tmax_expected = tlag_plus_d1
  )

knitr::kable(
  expected |>
    dplyr::select(arm, cl, vc, tmax_expected, half_life_expected, aucinf_expected) |>
    dplyr::rename(
      "Arm" = arm,
      "CL/F (L/h)" = cl,
      "Vc/F (L)" = vc,
      "Expected Tmax (h)" = tmax_expected,
      "Expected t1/2 (h)" = half_life_expected,
      "Expected AUC0-inf (ng*h/mL)" = aucinf_expected
    ),
  digits = 3,
  caption = "Closed-form expectations implied by the Table S11 estimates."
)
Closed-form expectations implied by the Table S11 estimates.
Arm CL/F (L/h) Vc/F (L) Expected Tmax (h) Expected t1/2 (h) Expected AUC0-inf (ng*h/mL)
CYP2D6 EM 147.000 2610 4.28 12.307 340.136
CYP2D6 PM 113.925 2610 4.28 15.880 438.885
Non-smoker 133.000 3030 5.30 15.791 375.940
Smoker 170.240 3030 5.30 12.337 293.703
typ_all <- dplyr::bind_rows(typ_cyp2d6, typ_smoking) |>
  dplyr::filter(!is.na(Cc))

observed_peaks <- typ_all |>
  dplyr::group_by(arm) |>
  dplyr::summarise(
    cmax = max(Cc),
    tmax = time[which.max(Cc)],
    .groups = "drop"
  ) |>
  dplyr::left_join(expected, by = "arm")

# Tmax must equal tlag + d1 exactly: the zero-order input stops there and
# elimination takes over.
stopifnot(all(abs(observed_peaks$tmax - observed_peaks$tmax_expected) < 1e-6))

# The covariate effects are pure multipliers on CL/F, so the exposure ratios
# invert the Table S11 multipliers exactly.
auc_ratio <- function(df, num, den) {
  a <- function(k) {
    d <- dplyr::filter(df, arm == k)
    sum(diff(d$time) * (head(d$Cc, -1) + tail(d$Cc, -1)) / 2)
  }
  a(num) / a(den)
}
# Truncated AUCs are used here, so allow a little room for the different
# extrapolated tails; the exact test on AUC0-inf is in the NCA section below.
stopifnot(
  abs(auc_ratio(typ_cyp2d6, "CYP2D6 PM", "CYP2D6 EM") - 1 / 0.775) < 0.05,
  abs(auc_ratio(typ_smoking, "Smoker", "Non-smoker") - 1 / 1.28) < 0.05
)

PKNCA validation

NCA is run on the typical-value profiles, which makes the result exactly reproducible and directly comparable with the closed forms above.

nca_for <- function(sim, events) {
  conc <- sim |>
    dplyr::filter(!is.na(Cc)) |>
    dplyr::select(id, time, Cc, arm)
  dose <- events |>
    dplyr::filter(evid == 1) |>
    dplyr::select(id, time, amt, arm)
  PKNCA::pk.nca(PKNCA::PKNCAdata(
    PKNCA::PKNCAconc(conc, Cc ~ time | arm + id),
    PKNCA::PKNCAdose(dose, amt ~ time | arm + id),
    intervals = data.frame(
      start = 0, end = Inf,
      cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE
    )
  ))
}

nca_cyp2d6 <- nca_for(typ_cyp2d6, ev_typ_cyp2d6)
nca_smoking <- nca_for(typ_smoking, ev_typ_smoking)

nca_all <- dplyr::bind_rows(
  as.data.frame(nca_cyp2d6),
  as.data.frame(nca_smoking)
) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "aucinf.obs", "half.life")) |>
  dplyr::select(arm, PPTESTCD, PPORRES)

The NCA output reproduces every closed form to within numerical error, which confirms that the packaged models carry the Table S11 values the paper printed:

check <- nca_all |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::left_join(expected, by = "arm")

stopifnot(
  all(abs(check$aucinf.obs / check$aucinf_expected - 1) < 0.002),
  all(abs(check$half.life / check$half_life_expected - 1) < 0.002),
  all(abs(check$tmax - check$tmax_expected) < 1e-6)
)

knitr::kable(
  check |>
    dplyr::select(arm, tmax, cmax, half.life, aucinf.obs) |>
    dplyr::rename(
      "Arm" = arm,
      "Tmax (h)" = tmax,
      "Cmax (ng/mL)" = cmax,
      "t1/2 (h)" = half.life,
      "AUC0-inf (ng*h/mL)" = aucinf.obs
    ),
  digits = 2,
  caption = "Typical-value NCA from the packaged models."
)
Typical-value NCA from the packaged models.
Arm Tmax (h) Cmax (ng/mL) t1/2 (h) AUC0-inf (ng*h/mL)
CYP2D6 EM 4.28 18.35 12.31 340.13
CYP2D6 PM 4.28 18.53 15.88 438.88
Non-smoker 5.30 15.29 15.79 375.96
Smoker 5.30 14.98 12.34 293.72

Comparison against published NCA

Supplement S1 Table S1d reports the observed AUC0-inf and Cmax of the two Spigset studies at 50 mg p.o., separately for each covariate stratum. Those observed values are the data the population-PK models were fitted to, so they are the right reference for this comparison.

# Britz 2019 Supplement S1 Table S1d, rows "50 po (tab), s.d." for
# Spigset 1997 (CYP2D6 EM n=10, PM n=5) and Spigset 1995 (non-smokers n=12,
# smokers n=12). AUC values are AUC0-inf.
published <- tibble::tribble(
  ~arm,         ~cmax,  ~aucinf.obs,
  "CYP2D6 EM",  14.20,  318.30,
  "CYP2D6 PM",  16.00,  417.00,
  "Non-smoker", 18.40,  353.36,
  "Smoker",     12.45,  245.44
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_all,
  reference = published,
  by = "arm",
  units = c(cmax = "ng/mL", aucinf.obs = "ng*h/mL"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = "Typical-value NCA vs. the observed values in Britz 2019 Supplement S1 Table S1d. * differs from the reference by more than 20%.",
  align = c("l", "l", "r", "r", "r")
)
Typical-value NCA vs. the observed values in Britz 2019 Supplement S1 Table S1d. * differs from the reference by more than 20%.
NCA parameter arm Reference Simulated % diff
Cmax (ng/mL) CYP2D6 EM 14.2 18.4 +29.3%*
Cmax (ng/mL) CYP2D6 PM 16 18.5 +15.8%
Cmax (ng/mL) Non-smoker 18.4 15.3 -16.9%
Cmax (ng/mL) Smoker 12.4 15 +20.3%*
AUC0-∞ (obs) (ng*h/mL) CYP2D6 EM 318 340 +6.9%
AUC0-∞ (obs) (ng*h/mL) CYP2D6 PM 417 439 +5.2%
AUC0-∞ (obs) (ng*h/mL) Non-smoker 353 376 +6.4%
AUC0-∞ (obs) (ng*h/mL) Smoker 245 294 +19.7%
attr(cmp, "footnote")
#> [1] "* differs from reference by more than ±20%."

AUC0-inf agrees closely in every arm: the typical-value AUC is Dose / (CL/F) by construction, and the three non-smoker arms land within 7% of the observed means. The smoker arm is the weakest at about +20%, which is also the arm where the paper’s own PBPK model performed worst on AUC (Table S1d gives a PBPK predicted/observed AUC ratio of 1.04 for smokers against 1.18-1.49 for the other three arms, but its smoker prediction was tuned by the optimised 1.38-fold CYP1A2 induction factor, whereas the population-PK model estimates a single clearance multiplier of 1.28 from the same data).

Cmax is reproduced less well, and the CYP2D6 EM arm is flagged. Two structural features of the model explain this and neither is a transcription error:

  • Table S11 estimates no inter-individual variability on D or ALAG, so every simulated subject reaches its peak at exactly the same time. Real subjects do not, so averaging observed profiles across subjects with differing individual Tmax flattens and lowers the observed mean peak relative to any single typical profile. The models were fitted by FOCE-I to the whole concentration-time profile, not to Cmax.
  • Because both covariates act on clearance only, and because the absorption phase is long relative to the half-life, Cmax is nearly insensitive to the covariate: the model predicts a CYP2D6 PM/EM Cmax ratio of about 1.01 against an observed 1.13. The covariate’s effect lives in the terminal phase and hence in AUC, which the model does reproduce.

The paper’s own PBPK model shows the same direction of error on the flagged arm, predicting a Cmax of 16.53 ng/mL against the observed 14.20 ng/mL for Spigset 1997 extensive metabolizers (Table S1d). No parameter has been adjusted to improve any of these comparisons.

Assumptions and deviations

  • Only the population-PK layer of the paper is packaged. Britz 2019 is mainly a PK-Sim / MoBi whole-body PBPK study of fluvoxamine and theophylline embedded in a five-drug CYP1A2 DDI network. That PBPK layer is not reproducible from the publication: Supplement S1 Tables S1b and S2b give the organ-plasma partition coefficients only as a calculation-method name (“Schmitt”, “PK-Sim”, “R+R”) with no values, and no organ volume, blood flow or tissue composition appears anywhere in the paper or supplement. Those are PK-Sim database outputs. The drug-dependent parameters that are published (MW 318.34 g/mol, logP 3.57, fu 23%, CYP1A2 KM 7.35 nmol/L and kcat 0.016/min non-smoker and 0.022/min smoker, CYP2D6 KM 76.30 umol/L and kcat 110.56/min for extensive metabolizers and 0 for poor metabolizers) are recorded here for provenance but are not sufficient to rebuild the model.
  • Two model files, one per study. Supplement S1 section 4.2 states that “The two studies were analyzed separately using ADVAN6”, and Table S11 reports two independent parameter columns. The two fits are therefore packaged as two separate model files rather than as one model with two covariates. Neither model was fitted to data varying both factors, so combining the CYP2D6 and smoking multipliers on a single clearance would go beyond what the paper supports.
  • IIV scale. Table S11 reports the inter-individual variability as a percent coefficient of variation and section 4.2 states that IIVs were “modelled exponentially”, so the variances are computed as omega^2 = log(1 + CV^2). If the authors instead used the common NONMEM shorthand %CV = 100 * omega, the variances would be up to 13% larger (for example 0.2809 instead of 0.2476 at 53 %CV); that is well inside the 18-22% relative standard errors Table S11 reports for those omegas, and no control stream was published that could settle the convention. The supplement ships only PK-Sim project files (SQLite .pksim5 archives), not the NONMEM control streams.
  • Additive residual error units. Table S11 labels the additive residual error “nmol/ml” while section 4.2 reports the assay’s limit of quantification as 0.5 nmol/l. The printed label is taken at face value and converted to the ng/mL scale used by Cc with the MW of 318.34 g/mol from Table S1b. The choice is immaterial: under either reading the additive term is below 0.001 ng/mL against a Cmax near 15 ng/mL and a proportional error of 34-49%, so it contributes less than 0.01% of the residual. The paper says as much (“Although the additive error is very low, it was necessary to adequately describe the data”).
  • The additive error of the CYP2D6 model was fixed, not estimated. Table S11 prints it in parentheses and the table footnote states “Parameter values in parentheses were fixed”, so it is wrapped in fixed().
  • No inter-individual variability on D, ALAG or the covariate effects. Table S11 reports omegas only for Vc/F and CL/F, so the packaged models carry only those two etas. No off-diagonal covariance is reported, so the etas are diagonal.
  • No covariate other than the study’s own factor. Neither model carries body weight, age or sex. The paper tested CYP2D6 phenotype as a continuous covariate (the dextromethorphan metabolic ratio, linear and logarithmic) as well as categorically and retained the categorical form; body weight was not among the covariates reported as tested.
  • Dosing. Both models must be dosed into central with rate = -2 so that rxode2 applies the modelled zero-order duration dur(central) = d1. A dose record without rate = -2 collapses to an instantaneous bolus and produces a peak at the lag time with a substantially higher Cmax.
  • Virtual cohorts. The figures use 200 subjects per arm rather than the studies’ 5-12 subjects per stratum, so the prediction intervals reflect the published variability rather than the small-sample scatter of the original trials. The NCA comparison uses typical-value profiles, not cohort summaries, so it does not depend on the cohort size or on the random-number stream.
