Model and source

  • Citation: Liu J, Neely M, Lipman J, Sime F, Roberts JA, Kiel PJ, Avedissian SN, Rhodes NJ, Scheetz MH. Development of Population and Bayesian Models for Applied Use in Patients Receiving Cefepime. Clin Pharmacokinet. 2020;59(8):1027-1036. doi:10.1007/s40262-020-00873-3. PMID 32140940; PMC7222999. Preliminary results presented as IDWeek 2019 abstract 1573, Open Forum Infect Dis. 2019;6(Suppl 2):S575 (PMC6810068).
  • Description: Two-compartment population PK model for intravenous cefepime fitted jointly to adults (febrile neutropenia with haematological malignancy, and critical illness) and hospitalised children aged 2 months to 16 years. Central volume scales linearly with total body weight standardised to 70 kg. The elimination rate constant is an additive non-renal intercept plus a renal component proportional to raw Cockcroft-Gault creatinine clearance standardised to 120 mL/min, the whole sum multiplied by an allometric (WT/70)^-0.25 scaler. Inter-compartmental distribution is parameterised directly as the micro-constants KCP and KPC. Estimated with the Pmetrics non-parametric adaptive grid (NPAG); typical values are the medians of the non-parametric joint density and the diagonal omegas are log-normal reconstructions from the published per-parameter CV% (see the vignette Assumptions and deviations). Liu 2020, n = 70 subjects (34 adults, 36 children), 683 plasma concentrations.
  • Article: https://doi.org/10.1007/s40262-020-00873-3 (open access, PMC7222999)
  • Electronic supplementary material (differential equations, Table S1): https://europepmc.org/article/PMC/PMC7222999#supplementary-material

Liu 2020 builds one population PK model for intravenous cefepime that covers both adults and children, with the explicit aim of serving as a Bayesian prior for precision dosing. The structural model is two-compartment, written with rate constants rather than clearances. Body weight scales the central volume linearly and the elimination rate constant allometrically, and Cockcroft-Gault creatinine clearance drives a renal arm of the elimination rate constant on top of a non-renal intercept:

Vc=V0⋅WT70,Ke=(KeIntcpt+CrCL120⋅Ke0)⋅(WT70)−0.25 V_c = V_0 \cdot \frac{WT}{70}, \qquad K_e = \left(K_eIntcpt + \frac{CrCL}{120} \cdot K_e0\right) \cdot \left(\frac{WT}{70}\right)^{-0.25}

The paper first appeared as IDWeek 2019 abstract 1573 (PMC6810068); the abstract prints no parameter values, so the full publication is the source.

Population

Seventy subjects contributed 683 plasma cefepime concentrations from four studies: adults with febrile neutropenia and a haematological malignancy (Sime, n = 12; Whited, n = 9), critically ill adults from the DALI study (Roberts, n = 13), and hospitalised children treated with intravenous cefepime monotherapy (Reed 1997, n = 36). The 34 adults were 22-82 years old (mean 55.4) with mean [SD] weight 82.7 [21.5] kg and Cockcroft-Gault creatinine clearance 106.7 [58.4] mL/min. The 36 children were about 2 months to 16 years old (mean 3.9) with weight 16.0 [16.1] kg and creatinine clearance 195.6 [40.5] mL/min (Results, “Demographics”). The Cockcroft-Gault formula was applied to the children too, which is why their raw creatinine clearance is higher than the adults’.

The model was built on 9 adults (Whited) and 24 randomly selected children (Reed), and evaluated on the remaining 12 children and both other adult studies (Figure 1). Sex and race were not reported.

pop <- rxode2::rxode(readModelDb("Liu_2020_cefepime"))$population
#> ℹ parameter labels from comments will be replaced by 'label()'
str(pop, max.level = 1)
#> List of 14
#>  $ species        : chr "human"
#>  $ n_subjects     : int 70
#>  $ n_studies      : int 4
#>  $ n_samples      : int 683
#>  $ age_range      : chr "Adults 22-82 years (mean 55.4); children approximately 2 months to 16 years (mean 3.9) (Results, 'Demographics')"
#>  $ weight_mean_sd : chr "Adults 82.7 [21.5] kg; children 16.0 [16.1] kg (mean [SD]; Results, 'Demographics')"
#>  $ crcl_mean_sd   : chr "Adults 106.7 [58.4] mL/min; children 195.6 [40.5] mL/min, raw Cockcroft-Gault (mean [SD]; Results, 'Demographics')"
#>  $ sex_female_pct : num NA
#>  $ race_ethnicity : chr "Not reported."
#>  $ disease_state  : chr "Adults: febrile neutropenia with haematological malignancy after chemotherapy and/or stem cell transplant (Sime"| __truncated__
#>  $ dose_range     : chr "Maximum labelled dosing in the adult febrile-neutropenia studies; the paediatric study used intravenous cefepim"| __truncated__
#>  $ regions        : chr "United States and Australia (pooled studies; Sime and Roberts DALI are Australian-led, Whited and Reed are US)."
#>  $ protein_binding: chr "Not fitted. The model outputs TOTAL plasma cefepime as Cc; the paper applies a literature protein binding of 20"| __truncated__
#>  $ notes          : chr "Model-building set: 9 adults (Whited) and 24 randomly selected children (Reed), 428 observations, 0.5-249.7 ug/"| __truncated__

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Liu_2020_cefepime.R. The table below collects them in one place.

Equation / parameter Value Source location
lvc (V0) 11.172 L (95% CI 9.40, 12.50) Table 2, row V0 (L)
lkel_nonren (KeIntcpt) 0.506 1/h (95% CI 0.33, 0.71) Table 2, row KeIntcpt
lkel_renal (Ke0) 0.236 1/h (95% CI 0.11, 0.40) Table 2, row Ke0
lk12 (KCP) 1.716 1/h (95% CI 1.02, 3.11) Table 2, row KCP; direction from the ESM definitions
lk21 (KPC) 1.502 1/h (95% CI 1.35, 1.90) Table 2, row KPC; direction from the ESM definitions
e_wt_vc 1 (structural constant) ESM equation 3; Table 1 final row V0 * (WT/70)
e_wt_kel -0.25 (structural constant) ESM equation 4; Methods, “Pharmacokinetic Models” (“raised to the negative 0.25th power”)
etalvc, etalkel_nonren, etalkel_renal, etalk12, etalk21 0.0501, 0.301, 1.028, 0.388, 0.313 Table 2 CV (%) column (22.66, 59.24, 133.95, 68.82, 60.63) via log(CV^2 + 1)
addSd, propSd 0.5 mg/L, 0.15 Methods, “Pharmacokinetic Models” (SD = C0 + C1 * Y, C0 = 0.5, C1 = 0.15)
Two-compartment ODEs n/a ESM equations 1-2
Vc = V0 * (WT/70) n/a ESM equation 3; Table 1 final row
Ke = (KeIntcpt + (CrCL/120) * Ke0) * (WT/70)^-0.25 n/a ESM equation 4; Table 1 final row
Reference WT 70 kg, CrCL 120 mL/min n/a Methods, “Pharmacokinetic Models”
Unbound fraction 0.80 n/a Methods, “Simulations and Probability of Target Attainment”; applied outside the model

Consistency of Table 2 with Table 3

Table 2 gives each parameter’s CV% and Table 3 the variance of the non-parametric distribution on the linear scale. Their ratio recovers the distribution’s mean, which sits close to the Table 2 median for the near-symmetric V0 and well above it for the strongly right-skewed Ke0, as a non-parametric fit allows. The CV% is therefore the CV about the mean, which is what log(CV^2 + 1) assumes.

tab <- tibble::tibble(
  parameter = c("V0", "KeIntcpt", "Ke0", "KCP", "KPC"),
  median = c(11.172, 0.506, 0.236, 1.716, 1.502),
  cv_pct = c(22.66, 59.24, 133.95, 68.82, 60.63),
  variance = c(6.366, 0.085, 0.499, 2.354, 1.414)
) |>
  dplyr::mutate(
    implied_mean = sqrt(variance) / (cv_pct / 100),
    omega2 = log((cv_pct / 100)^2 + 1)
  )

th <- rxode2::rxode(readModelDb("Liu_2020_cefepime"))$theta
#> ℹ parameter labels from comments will be replaced by 'label()'
om <- diag(rxode2::rxode(readModelDb("Liu_2020_cefepime"))$omega)
#> ℹ parameter labels from comments will be replaced by 'label()'
stopifnot(
  # The packaged typical values are the Table 2 medians.
  all(abs(exp(th[c("lvc", "lkel_nonren", "lkel_renal", "lk12", "lk21")]) -
    tab$median) < 1e-9),
  # The packaged omegas are log(CV^2 + 1) of the Table 2 CV%.
  all(abs(om[c("etalvc", "etalkel_nonren", "etalkel_renal", "etalk12", "etalk21")] -
    tab$omega2) < 1e-6)
)

tab |>
  dplyr::rename(
    "Parameter" = parameter, "Table 2 median" = median,
    "Table 2 CV (%)" = cv_pct, "Table 3 variance" = variance,
    "Implied mean, SD / CV" = implied_mean, "Packaged omega^2" = omega2
  ) |>
  knitr::kable(digits = 4)
Parameter Table 2 median Table 2 CV (%) Table 3 variance Implied mean, SD / CV Packaged omega^2
V0 11.172 22.66 6.366 11.1346 0.0501
KeIntcpt 0.506 59.24 0.085 0.4921 0.3008
Ke0 0.236 133.95 0.499 0.5274 1.0276
KCP 1.716 68.82 2.354 2.2294 0.3877
KPC 1.502 60.63 1.414 1.9613 0.3131

Virtual cohort

The paper’s Monte Carlo simulations fixed each population’s covariates at the arithmetic means (Methods, “Simulations and Probability of Target Attainment”), so the virtual cohort does the same: one adult arm at 82.7 kg and 106.7 mL/min, one paediatric arm at 16.0 kg and 195.6 mL/min. Between- subject variability comes from the random effects only. Each arm receives the paper’s maximum regimen for three doses (the first 24 h), each infused over 0.5 h: 2 g every 8 h for adults and 50 mg/kg every 8 h, 800 mg at 16 kg, for children. Concentrations are predicted every 0.1 h, the paper’s grid.

rxode2::rxSetSeed(20200306)
n_per_arm <- 200L

arms <- tibble::tibble(
  treatment = c("Adult, 2 g q8h", "Child, 800 mg q8h"),
  WT = c(82.7, 16.0),
  CRCL = c(106.7, 195.6),
  dose_mg = c(2000, 800),
  id_offset = c(0L, n_per_arm)
)

subjects <- arms |>
  dplyr::rowwise() |>
  dplyr::reframe(
    id = id_offset + seq_len(n_per_arm),
    treatment = treatment, WT = WT, CRCL = CRCL, dose_mg = dose_mg
  )

dose_rows <- subjects |>
  tidyr::crossing(time = c(0, 8, 16)) |>
  dplyr::mutate(amt = dose_mg, dur = 0.5, evid = 1L, cmt = "central")
obs_rows <- subjects |>
  tidyr::crossing(time = round(seq(0, 24, by = 0.1), 1)) |>
  dplyr::mutate(amt = NA_real_, dur = NA_real_, evid = 0L, cmt = "central")

events <- dplyr::bind_rows(dose_rows, obs_rows) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

Simulation

mod <- readModelDb("Liu_2020_cefepime")
sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep = c("treatment", "dose_mg"),
  rtol = 1e-10, atol = 1e-12
) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

stopifnot(
  length(unique(sim$id)) == 2L * n_per_arm,
  !any(is.na(sim$Cc)),
  all(sim$Cc >= -1e-6 * max(sim$Cc))
)

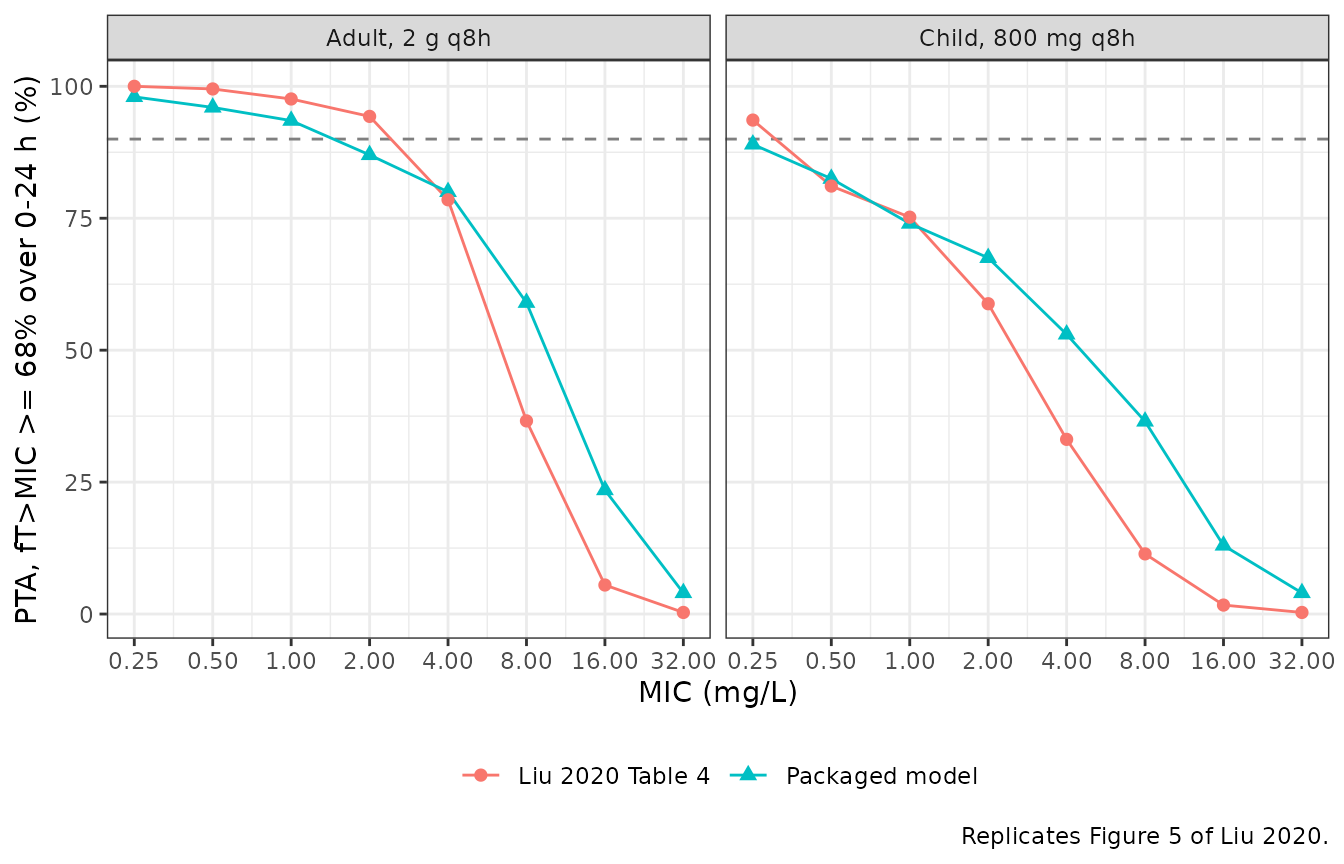

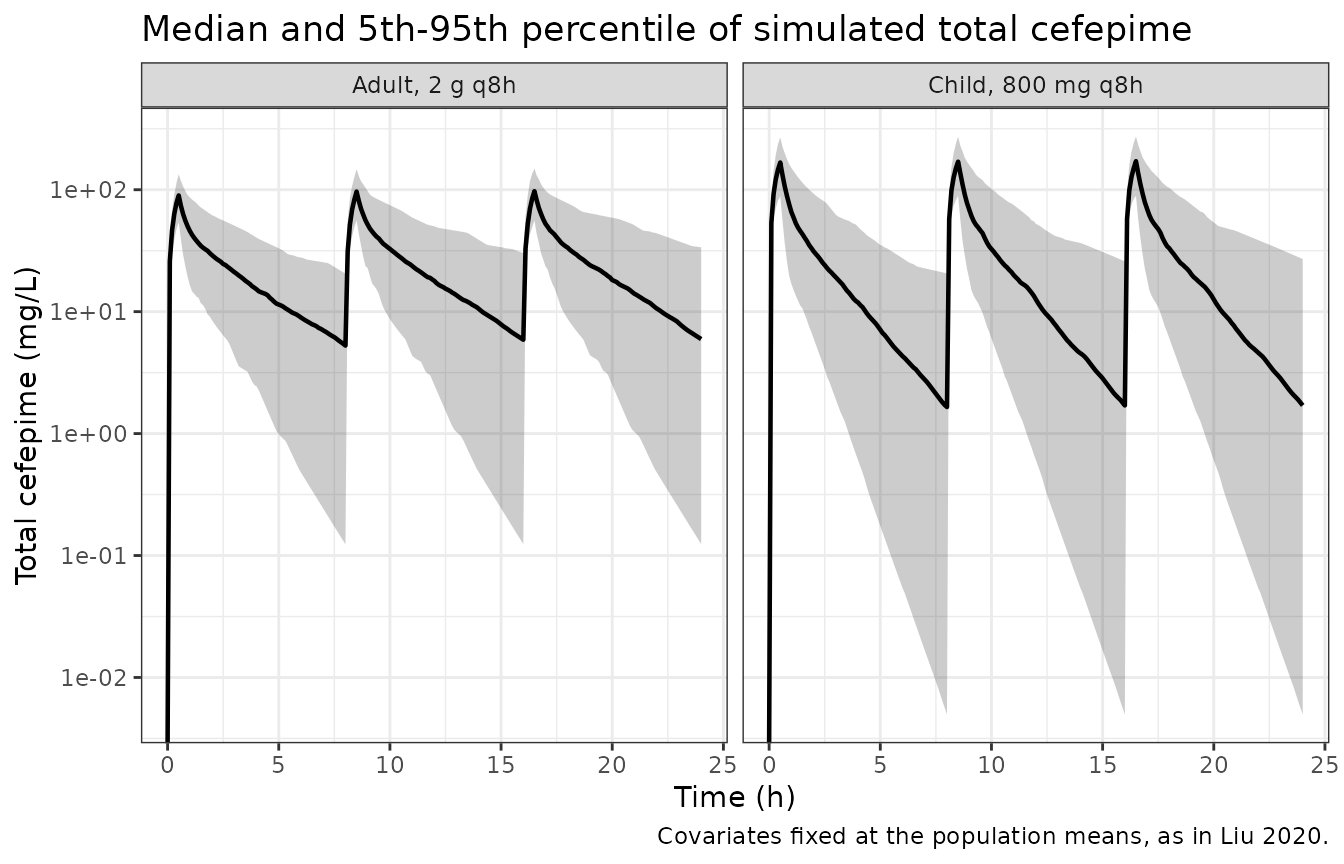

# Concentration-time percentiles over the first 24 h, the window of the
# paper's target-attainment analysis (Figure 5 and Table 4).
sim |>
  dplyr::group_by(treatment, time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05), Q50 = median(Cc), Q95 = quantile(Cc, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line(linewidth = 0.8) +
  facet_wrap(~treatment) +
  scale_y_log10() +
  labs(
    x = "Time (h)", y = "Total cefepime (mg/L)",
    title = "Median and 5th-95th percentile of simulated total cefepime",
    caption = "Covariates fixed at the population means, as in Liu 2020."
  ) +
  theme_bw()
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.
#> log-10 transformation introduced infinite values.

PKNCA validation

NCA is run on the first dosing interval of each subject. Two checks follow.

  1. Structural identity. For a linear model given one intravenous dose, AUC(0-inf) = Dose / CL with CL = kel * Vc. Both sides use the same per-subject parameters, so the residual is only trapezoid and extrapolation error.
  2. Comparison with the paper’s noncompartmental results. The Discussion reports NCA of the observed model-development data: clearance 7.59 L/h and half-life 2.98 h in adults, and means of 3.1 L/h and 3.0 h in children.
# Only `!is.na(Cc)`: a `time > 0` or `Cc > 0` filter would drop the
# time-zero row PKNCA needs to anchor AUC(0-*). The numerical undershoot
# below zero is floored as in the known-failure-pattern guidance.
sim_nca <- sim |>
  dplyr::filter(!is.na(Cc), time <= 8) |>
  dplyr::mutate(Cc = pmax(Cc, 0)) |>
  dplyr::select(id, time, Cc, treatment)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | treatment + id,
  concu = "mg/L", timeu = "h"
)
dose_obj <- PKNCA::PKNCAdose(
  dose_rows |> dplyr::filter(time == 0) |>
    dplyr::select(id, time, amt, treatment),
  amt ~ time | treatment + id,
  doseu = "mg"
)
intervals <- data.frame(
  start = 0, end = 8,
  cmax = TRUE, tmax = TRUE, auclast = TRUE,
  aucinf.obs = TRUE, cl.obs = TRUE, half.life = TRUE
)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj,
  intervals = intervals
))

nca_wide <- as.data.frame(nca_res$result) |>
  dplyr::select(id, treatment, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)
stopifnot(nrow(nca_wide) == 2L * n_per_arm)
indiv <- sim |>
  dplyr::filter(time == 0) |>
  dplyr::distinct(id, kel, vc, dose_mg)

check <- nca_wide |>
  dplyr::inner_join(indiv, by = "id") |>
  dplyr::mutate(
    auc_theory = dose_mg / (kel * vc),
    auc_err_pct = 100 * (aucinf.obs - auc_theory) / auc_theory
  )
stopifnot(nrow(check) == 2L * n_per_arm)

# Same parameters on both sides, so the difference is numerical. The bound
# is on the centre and a robust quantile, not the maximum, because the
# extrapolated tail of the slowest-equilibrating subjects carries the
# largest trapezoid error.
stopifnot(
  abs(median(check$auc_err_pct)) < 1,
  quantile(abs(check$auc_err_pct), 0.9) < 3
)

check |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    n = dplyr::n(),
    median_err = median(auc_err_pct),
    p90_abs_err = quantile(abs(auc_err_pct), 0.9),
    .groups = "drop"
  ) |>
  dplyr::rename(
    "Group" = treatment, "N" = n,
    "Median AUC error (%)" = median_err,
    "90th percentile of |AUC error| (%)" = p90_abs_err
  ) |>
  knitr::kable(digits = 3, caption = paste(
    "Per-subject identity AUC(0-inf) = Dose / (kel * Vc) after the first dose."
  ))
Per-subject identity AUC(0-inf) = Dose / (kel * Vc) after the first dose.
Group N Median AUC error (%) 90th percentile of |AUC error| (%)
Adult, 2 g q8h 200 -0.100 0.224
Child, 800 mg q8h 200 -0.131 0.278
# Liu 2020 Discussion: "The noncompartmental analysis conducted (in the
# model development adult population) in our study produced similar results
# (CL, 7.59 L/h; elimination half-life, 2.98 h)" and "In our pediatric
# population, means of CL and elimination half-life were 3.1 L/h and
# 3.0 h, respectively."
published_nca <- data.frame(
  treatment = c("Adult, 2 g q8h", "Child, 800 mg q8h"),
  cl.obs = c(7.59, 3.1),
  half.life = c(2.98, 3.0)
)

# The simulated side is summarised by the MEDIAN (the function's default),
# not the mean. The reconstructed eta on the renal arm has omega^2 = 1.03,
# so its log-normal mean is exp(1.03 / 2) = 1.67 times its median and the
# arithmetic-mean clearance is dominated by the upper tail of a parametric
# approximation (simulated mean CL is about 20% above the median in adults
# and about 30% above it in children).
cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = as.data.frame(nca_res$result) |>
    dplyr::filter(PPTESTCD %in% c("cl.obs", "half.life")),
  reference = published_nca,
  by = "treatment",
  units = c(cl.obs = "L/h", half.life = "h")
)
knitr::kable(cmp, caption = attr(cmp, "footnote"))
* differs from reference by more than ±20%.
NCA parameter treatment Reference Simulated % diff
t½ (h) Adult, 2 g q8h 2.98 2.55 -14.3%
t½ (h) Child, 800 mg q8h 3 1.34 -55.3%*
CL/F (L/h) Adult, 2 g q8h 7.59 9.75 +28.5%*
CL/F (L/h) Child, 800 mg q8h 3.1 3.45 +11.2%

The comparator is loose. The published values are NCA of the observed model-development data: 9 adults from one febrile-neutropenia study and 24 children, whose covariates the paper does not report separately. The simulation fixes covariates at the means of all 34 adults and all 36 children. The structural gate is therefore placed on the typical-value clearance at those means, which is deterministic. A mis-transcribed rate constant, volume, covariate reference or allometric exponent moves it by far more than the bound. The Discussion also cites an adult clearance of 8.6 L/h from Sime et al., whose 12 adults are in the evaluation set; that value is included.

typical_cl <- function(wt, crcl) {
  vc <- exp(th[["lvc"]]) * (wt / 70)^th[["e_wt_vc"]]
  kel <- (exp(th[["lkel_nonren"]]) + exp(th[["lkel_renal"]]) * crcl / 120) *
    (wt / 70)^th[["e_wt_kel"]]
  kel * vc
}
cl_check <- tibble::tibble(
  comparison = c(
    "Adults, NCA of model-development data",
    "Adults, Sime et al. (Discussion)",
    "Children, NCA of model-development data"
  ),
  published = c(7.59, 8.6, 3.1),
  typical = c(
    typical_cl(82.7, 106.7), typical_cl(82.7, 106.7),
    typical_cl(16.0, 195.6)
  )
) |>
  dplyr::mutate(diff_pct = 100 * (typical / published - 1))

stopifnot(all(abs(cl_check$diff_pct) < 25))

cl_check |>
  dplyr::rename(
    "Comparison" = comparison, "Published CL (L/h)" = published,
    "Model typical CL at the mean covariates (L/h)" = typical,
    "Difference (%)" = diff_pct
  ) |>
  knitr::kable(digits = 2)
Comparison Published CL (L/h) Model typical CL at the mean covariates (L/h) Difference (%)
Adults, NCA of model-development data 7.59 9.06 19.40
Adults, Sime et al. (Discussion) 8.60 9.06 5.38
Children, NCA of model-development data 3.10 3.29 6.11
nca_wide |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    dplyr::across(c(cmax, tmax, auclast, half.life, cl.obs), median),
    .groups = "drop"
  ) |>
  dplyr::rename(
    "Group" = treatment, "Cmax (mg/L)" = cmax, "Tmax (h)" = tmax,
    "AUC0-8 (mg*h/L)" = auclast, "Terminal t1/2 (h)" = half.life,
    "CL (L/h)" = cl.obs
  ) |>
  knitr::kable(digits = 2, caption = "Median simulated NCA, first dose.")
Median simulated NCA, first dose.
Group Cmax (mg/L) Tmax (h) AUC0-8 (mg*h/L) Terminal t1/2 (h) CL (L/h)
Adult, 2 g q8h 89.71 0.5 174.31 2.55 9.75
Child, 800 mg q8h 167.16 0.5 214.18 1.34 3.45
# Typical steady-state volume Vss = Vc * (1 + k12 / k21) at the mean weights,
# against the volume the published NCA pair implies, CL * t1/2 / ln(2).
vss <- function(wt) {
  exp(th[["lvc"]]) * (wt / 70)^th[["e_wt_vc"]] *
    (1 + exp(th[["lk12"]]) / exp(th[["lk21"]]))
}
tibble::tibble(
  group = c("Adults (82.7 kg)", "Children (16.0 kg)"),
  vss_model = c(vss(82.7), vss(16.0)),
  vz_published = c(7.59 * 2.98, 3.1 * 3.0) / log(2)
) |>
  dplyr::mutate(
    vss_model_per_kg = vss_model / c(82.7, 16.0),
    vz_published_per_kg = vz_published / c(82.7, 16.0)
  ) |>
  dplyr::rename(
    "Group" = group, "Model Vss (L)" = vss_model,
    "Published CL x t1/2 / ln 2 (L)" = vz_published,
    "Model Vss (L/kg)" = vss_model_per_kg,
    "Published (L/kg)" = vz_published_per_kg
  ) |>
  knitr::kable(digits = 2)
Group Model Vss (L) Published CL x t1/2 / ln 2 (L) Model Vss (L/kg) Published (L/kg)
Adults (82.7 kg) 28.28 32.63 0.34 0.39
Children (16.0 kg) 5.47 13.42 0.34 0.84

In children, the simulated median clearance is within 20% of the published NCA mean. In adults it is 28% above the published mean of the 9 adults in the model-development set, which is starred above. Their covariates are not reported, and the typical-value clearance at the mean covariates of all 34 adults is 19% above that value and 5% above the 8.6 L/h the Discussion quotes for Sime et al. Half-life agrees in adults but not in children: the simulated paediatric terminal half-life is well under half the published 3.0 h. PKNCA is fitting the terminal phase here. The typical terminal half-life, computed from the eigenvalues of the two-compartment system, is 2.4 h in adults and 1.4 h in children, matching the simulated medians.

The volume arithmetic above isolates the cause. The published adult pair implies a volume close to the model’s adult Vss. The published paediatric pair implies a volume per kilogram more than twice the model’s. The model scales central volume linearly with weight (ESM equation 3, Table 1 final row) and carries no weight effect on KCP or KPC, so its Vss per kilogram is the same at every weight. The published paediatric NCA means therefore cannot be reproduced by any child at the mean weight. They come from 24 children whose individual weights span about 2 months to 16 years of age, and a mean of per-subject half-lives weights the slow-eliminating subjects heavily. The paper does not report enough to resolve this further. Parameters were not adjusted.

Replicating Table 4 and Figure 5: probability of target attainment

The target is unbound cefepime above the MIC for at least 68% of the first 24 h, with an unbound fraction of 0.80. The paper sampled from the non-parametric support points with a smoothing covariance; this model samples log-normal random effects reconstructed from the marginal CV%, so agreement is expected in the centre of the curve rather than cell by cell.

unbound_fraction <- 0.80 # 20% protein binding (Methods)
mics <- c(0.25, 0.5, 1, 2, 4, 8, 16, 32)

ft <- sim |>
  dplyr::mutate(Cfree = unbound_fraction * Cc) |>
  tidyr::crossing(mic = mics) |>
  dplyr::group_by(treatment, id, mic) |>
  dplyr::summarise(ft_pct = 100 * mean(Cfree > mic), .groups = "drop")

pta <- ft |>
  dplyr::group_by(treatment, mic) |>
  dplyr::summarise(pta_sim = 100 * mean(ft_pct >= 68), .groups = "drop")

# Liu 2020 Table 4.
published_pta <- tibble::tibble(
  treatment = rep(c("Adult, 2 g q8h", "Child, 800 mg q8h"), each = 8),
  mic = rep(mics, 2),
  pta_pub = c(
    100, 99.5, 97.6, 94.3, 78.5, 36.6, 5.5, 0.3,
    93.6, 81.1, 75.2, 58.8, 33.1, 11.4, 1.7, 0.3
  )
)

pta_cmp <- dplyr::inner_join(pta, published_pta, by = c("treatment", "mic")) |>
  dplyr::mutate(diff = pta_sim - pta_pub)
stopifnot(nrow(pta_cmp) == 16L)

pta_cmp |>
  dplyr::rename(
    "Group" = treatment, "MIC (mg/L)" = mic,
    "Simulated PTA (%)" = pta_sim, "Liu 2020 Table 4 (%)" = pta_pub,
    "Difference (percentage points)" = diff
  ) |>
  knitr::kable(digits = c(0, 2, 1, 1, 1))
Group MIC (mg/L) Simulated PTA (%) Liu 2020 Table 4 (%) Difference (percentage points)
Adult, 2 g q8h 0.25 98.0 100.0 -2.0
Adult, 2 g q8h 0.50 96.0 99.5 -3.5
Adult, 2 g q8h 1.00 93.5 97.6 -4.1
Adult, 2 g q8h 2.00 87.0 94.3 -7.3
Adult, 2 g q8h 4.00 80.0 78.5 1.5
Adult, 2 g q8h 8.00 59.0 36.6 22.4
Adult, 2 g q8h 16.00 23.5 5.5 18.0
Adult, 2 g q8h 32.00 4.0 0.3 3.7
Child, 800 mg q8h 0.25 89.0 93.6 -4.6
Child, 800 mg q8h 0.50 82.5 81.1 1.4
Child, 800 mg q8h 1.00 74.0 75.2 -1.2
Child, 800 mg q8h 2.00 67.5 58.8 8.7
Child, 800 mg q8h 4.00 53.0 33.1 19.9
Child, 800 mg q8h 8.00 36.5 11.4 25.1
Child, 800 mg q8h 16.00 13.0 1.7 11.3
Child, 800 mg q8h 32.00 4.0 0.3 3.7
# Replicates Figure 5 of Liu 2020.
pta_cmp |>
  tidyr::pivot_longer(c(pta_sim, pta_pub), names_to = "source", values_to = "pta") |>
  dplyr::mutate(source = dplyr::recode(source,
    pta_sim = "Packaged model", pta_pub = "Liu 2020 Table 4"
  )) |>
  ggplot(aes(mic, pta, colour = source, shape = source)) +
  geom_hline(yintercept = 90, linetype = "dashed", colour = "grey50") +
  geom_line() +
  geom_point(size = 2) +
  facet_wrap(~treatment) +
  scale_x_continuous(trans = "log2", breaks = mics) +
  labs(
    x = "MIC (mg/L)", y = "PTA, fT>MIC >= 68% over 0-24 h (%)",
    colour = NULL, shape = NULL,
    caption = "Replicates Figure 5 of Liu 2020."
  ) +
  theme_bw() +
  theme(legend.position = "bottom")

# Centre-of-curve gates, per the repository's guidance on Monte Carlo
# assertions. With 200 subjects a single PTA cell has a binomial SE of at most
# 3.5 percentage points (about 3.1 at the 75% PTA of the paediatric MIC of
# 1 mg/L).
#  - Low MICs (0.25-1 mg/L) are attained by the bulk of each cohort and are
#    governed by the typical subject, so they are compared cell by cell. The
#    12-point bound sits more than 3 cell SEs beyond every observed
#    difference (tightest: the paediatric MIC of 0.25 mg/L, -4.6 points at
#    PTA 89%, SE 2.2).
#  - The median absolute difference over all eight MICs summarises the curve.
#  - The paper's qualitative conclusion: the paediatric maximum dose attains
#    less than the adult dose at every MIC from 0.25 to 8 mg/L (the smallest
#    simulated gap is 9 points at 0.25 mg/L, about 3.7 SE of the difference).
low_mic <- pta_cmp |> dplyr::filter(mic <= 1)
pta_summary <- pta_cmp |>
  dplyr::group_by(treatment) |>
  dplyr::summarise(
    max_abs_diff_low_mic = max(abs(diff[mic <= 1])),
    median_abs_diff = median(abs(diff)),
    .groups = "drop"
  )
adult_vs_child <- pta |>
  dplyr::filter(mic <= 8) |>
  tidyr::pivot_wider(names_from = treatment, values_from = pta_sim)

knitr::kable(pta_summary |>
  dplyr::rename(
    "Group" = treatment,
    "Max |PTA difference|, MIC 0.25-1 mg/L (points)" = max_abs_diff_low_mic,
    "Median |PTA difference|, all MICs (points)" = median_abs_diff
  ), digits = 1)
Group Max |PTA difference|, MIC 0.25-1 mg/L (points) Median |PTA difference|, all MICs (points)
Adult, 2 g q8h 4.1 3.9
Child, 800 mg q8h 4.6 6.6

stopifnot(
  nrow(low_mic) == 6L,
  all(abs(low_mic$diff) < 12),
  all(pta_summary$median_abs_diff < 15),
  nrow(adult_vs_child) == 6L,
  all(adult_vs_child[["Adult, 2 g q8h"]] > adult_vs_child[["Child, 800 mg q8h"]])
)

The packaged model reproduces Table 4 closely from 0.25 to 4 mg/L in adults and from 0.25 to 2 mg/L in children, and reproduces the paper’s conclusion that the maximum labelled paediatric dose attains less than the adult dose across the clinically relevant MIC range. At higher MICs the model’s curve is flatter than the paper’s: it keeps a larger minority of subjects above 68% fT>MIC at 8 and 16 mg/L. That is the direction expected from the two approximations listed below. A log-normal with the published CV% has a longer upper tail than the non-parametric support points in a slow-elimination direction. Dropping the negative KeIntcpt-Ke0 correlation also widens the spread of the total elimination rate constant. The 90% PTA crossings also shift slightly lower: the adult regimen drops below 90% between 1 and 2 mg/L in the model, against between 2 and 4 mg/L in Table 4, and the paediatric regimen is just under 90% already at 0.25 mg/L, against between 0.25 and 0.5 mg/L.

Assumptions and deviations

  • Between-subject variability is a log-normal reconstruction. Pmetrics NPAG estimates a discrete non-parametric joint density. Table 2 reports each marginal’s CV%, carried as omega^2 = log(CV^2 + 1) on the log scale. The typical values are the Table 2 medians. The non-parametric marginals are not log-normal; Ke0 in particular is strongly right-skewed (mean about 0.53 vs median 0.236 1/h), so tails of simulated distributions will differ from the paper’s. This is why the Table 4 comparison is asserted on the centre of the curve and not cell by cell.
  • Table 3 correlations are not encoded. Table 3 is the covariance matrix on the linear scale. Converting it to the log scale with sigma_ij = log(1 + Cov_ij / (m_i * m_j)) gives a 5 x 5 matrix with one negative eigenvalue (about -0.33), which is not a valid covariance matrix and would fail rxode2’s Cholesky sampler. The block is therefore diagonal. The largest omitted correlation is between KeIntcpt and Ke0 (about -0.74 on the linear scale), so simulated total elimination is somewhat more variable than in the paper.
  • The residual error is the assay-error floor. Pmetrics multiplies the assay polynomial SD = 0.5 + 0.15 * Y by gamma, which was “initially set at 4”; its final value is not reported. The polynomial is carried unscaled (gamma = 1) with combined1(), the form in which the two SD terms add linearly as in Pmetrics, and both terms are fixed().
  • Allometric scaler placement. The Table 2 footnote says “V0 and KeIntcpt are standardized to weight”, but ESM equation 4 and the Table 1 final row apply (WT/70)^-0.25 to the whole bracket, including the renal arm. The equation is encoded.
  • Covariates at the population means. The virtual cohort fixes weight and creatinine clearance at the reported means, as the paper does for its simulations. The 2 g adult dose and the 800 mg paediatric dose come from Table 4.
  • Sample count. The Results report 683 concentrations; the Abstract reports 604. The model metadata records 683.
  • Canonical names. The paper’s KeIntcpt and Ke0 are encoded as lkel_nonren and lkel_renal, registered with this model. The paper symbol Ke0 is not carried over because lke0 is the registered name for the effect-compartment equilibration rate constant, an unrelated quantity.
