Edoxaban (Zou 2025)

Source: vignettes/articles/Zou_2025_edoxaban.Rmd
Zou_2025_edoxaban.Rmd

Model and source

ui <- rxode2::rxode(readModelDb("Zou_2025_edoxaban"))
#> ℹ parameter labels from comments will be replaced by 'label()'
  • Citation: Zou P, Atluri A, Chang P, Goedecke M, Leil TA. Population pharmacokinetics and pharmacodynamics of edoxaban in pediatric patients. CPT Pharmacometrics Syst Pharmacol. 2025;14(1):118-129. doi:10.1002/psp4.13248
  • Article: https://doi.org/10.1002/psp4.13248
  • Supplement (Tables S1-S6, Figures S1-S10, and the final PopPK NONMEM control stream): https://doi.org/10.1002/psp4.13248 Supporting Information (PSP4-14-118-s001.docx, retrieved via EuropePMC PMC11706424).

Edoxaban is an oral direct inhibitor of activated factor X. Zou 2025 pooled three pediatric studies to build a population PK model and three sequential, direct-response PK/PD models for the coagulation biomarkers anti-factor Xa activity, activated partial thromboplastin time (aPTT) and prothrombin time (PT). Because all three PD layers are algebraic functions of the plasma concentration, they are packaged here together with the PK as a single four-output model.

cat(strwrap(ui$description, width = 78), sep = "\n")
#> Joint population PK / PD model for oral edoxaban in pediatric patients (0 to
#> <18 years) with venous thromboembolism or cardiac disease at risk of
#> thromboembolic events (Zou 2025; pooled phase 1 PK/PD study, Hokusai-VTE
#> PEDIATRICS and ENNOBLE-ATE). Disposition is two-compartment with linear
#> elimination; absorption is a chain of 15 transit compartments emptying at a
#> common rate Ktr followed by a first-order step Ka into the central
#> compartment. Apparent clearance and inter-compartmental clearance are
#> allometrically scaled to body weight (exponent fixed to 0.75), apparent
#> central and peripheral volumes to body weight (exponent fixed to 1).
#> Clearance additionally carries a power term on bedside-Schwartz eGFR
#> (reference 110 mL/min/1.73 m^2) and a Rhodin-style postmenstrual-age renal
#> maturation Hill function with TM50 and Hill both fixed (47.7 weeks, 3.40).

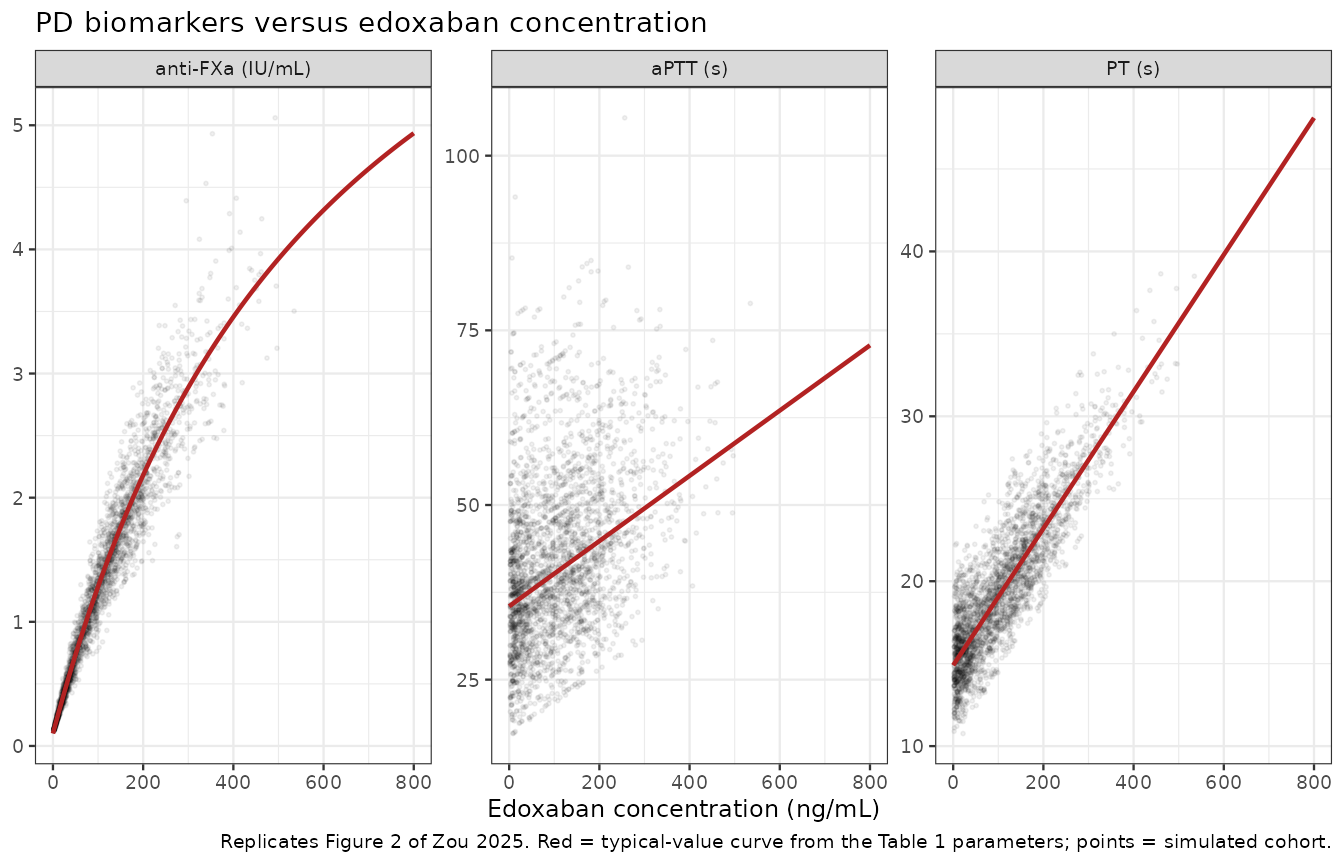

#> Three direct-response pharmacodynamic endpoints are driven by the plasma
#> concentration: an Emax model for anti-factor Xa activity (baseline fixed to
#> 0.1 IU/mL) and linear models for activated partial thromboplastin time and
#> prothrombin time, each with variability on its own baseline or maximum
#> effect. The paper's PD layers were fitted sequentially against OBSERVED
#> edoxaban concentrations; they are wired to the model-predicted concentration
#> here so the published PK/PD relationships can be simulated as one system.

Population

The analysis dataset pooled 208 pediatric patients (589 plasma concentrations) from a single-dose phase 1 PK/PD study (NCT02303431, N = 66), Hokusai-VTE PEDIATRICS (NCT02798471, N = 69) and ENNOBLE-ATE (NCT03395639, N = 73). Subjects spanned 0.011 to 17.9 years (median 6.06), 2.60 to 157 kg (median 21.1) and postmenstrual ages of 38.6 to 970 weeks (median 353). 39.9 % were female; the race distribution was 60.6 % White, 13.5 % Asian, 9.6 % Black, 10.6 % Other and 5.8 % Unknown (Table S5). Renal function, estimated with the bedside Schwartz formula, skewed supranormal relative to the adult reference cohort: median eGFR 111 mL/min/1.73 m^2 (range 29.5-774; Table S6).

Dosing was age-, weight- and renal-function-banded (Table S2). Adolescents took tablets; children under 12 years took an oral suspension dosed in mg/kg. The PD subsets are smaller than the PK set because only time-matched samples were modelled: 233 anti-FXa observations from 122 subjects, 431 aPTT observations from 197 subjects and 432 PT observations from 198 subjects (Table S1).

The same information is available programmatically via readModelDb("Zou_2025_edoxaban")()$population.

Source trace

Every ini() entry in inst/modeldb/specificDrugs/Zou_2025_edoxaban.R carries an in-file comment naming its origin. They are collected here for review.

Equation / parameter Value Source location
lcl (CL/F) 42.87 L/h Table 1, RSE 3 %
lvc (Vc/F) 261 L Table 1, RSE 0.9 %
lq (Q/F) 8.59 L/h Table 1, RSE 2.3 %
lvp (Vp/F) 343.5 L Table 1, RSE 10.7 %
lka (Ka) 3.71 1/h Table 1, RSE 0.6 %
lktr (Ktr) 47.5 1/h Table 1, RSE 1 %
Number of transit compartments 15 Results (“The number of transits (NN) and Ktr were estimated as 15 and 47.5 h-1”); supplement $MODEL COMP=(transit1) ... COMP=(transit15)
e_wt_cl_q 0.75 (fixed) Table 1 “Fixed exponents for body weight-based scaling”; supplement $THETA 0.75 FIX ; 9 ALLMCL BW
e_wt_vc_vp 1.0 (fixed) Table 1, same row; supplement $THETA 1 FIX ; 10 ALLMV BW
e_crcl_cl 0.268 Table 1 “eGFR effect on clearance”, RSE 16 %
tmat50 47.7 weeks (fixed) Table 1; Methods “PopPK model development”; Rhodin 2009
hill_mat 3.40 (fixed) Table 1; Methods “PopPK model development”; Rhodin 2009
Covariate model on CL/F CL/F = CL/F_TYP*(WT/70)^0.75*(eGFR/110)^0.268*[PMA^3.4/(47.7^3.4+PMA^3.4)] Table 1 footnote a; Equation 4; supplement $PK
etalcl 31.8 % CV Table 1, RSE 10 %, shrinkage 15 %
etalvc 35.6 % CV Table 1, RSE 10 %, shrinkage 35 %
etalq 76.7 % CV Table 1, RSE 7 %, shrinkage 37 %
etalktr 79.6 % CV Table 1, RSE 9 %, shrinkage 60 %
etalka 144.9 % CV Table 1, RSE 2 %, shrinkage 49 %
propSd 0.228 Table 1 “Proportional error 22.8 %”, RSE 8 %
addSd 0.71 ng/mL (fixed) Table 1 “Additive error (ng/mL) 0.71 FIX”
lrbase_antiFXa 0.10 IU/mL (fixed) Table 1 PD (Anti-FXa); Results (“fixed to 0.1 IU/mL because of the small number of pre-treatment anti-FXa measurements (N = 9)”)
lemax_antiFXa 8.65 IU/mL Table 1 PD (Anti-FXa), RSE 42.3 %
lec50_antiFXa 631 ng/mL Table 1 PD (Anti-FXa), RSE 50.0 %
etalemax_antiFXa 14.8 % CV Table 1 PD (Anti-FXa), RSE 28.9 %, shrinkage 42.5 %
addSd_antiFXa 0.247 IU/mL Table 1 PD (Anti-FXa), RSE 15.9 %
lrbase_aPTT 35.5 s Table 1 PD (aPTT), RSE 2.30 %
lslope_aPTT 0.0467 s per ng/mL Table 1 PD (aPTT), RSE 10.3 %
etalrbase_aPTT 30.7 % CV Table 1 PD (aPTT), RSE 13.7 %, shrinkage 13.9 %
propSd_aPTT 0.197 Table 1 PD (aPTT), RSE 15.3 %
lrbase_PT 14.9 s Table 1 PD (PT), RSE 1.47 %
lslope_PT 0.0415 s per ng/mL Table 1 PD (PT), RSE 3.92 %
etalrbase_PT 14.5 % CV Table 1 PD (PT), RSE 20.3 %, shrinkage 29.8 %
propSd_PT 0.159 Table 1 PD (PT), RSE 28.1 %
Absorption chain (depot -> transit1..15 -> central, Ktr then Ka) n/a Supplement $PK: K14=KTR, K45..K17T18=KTR, K18T2=KA; Figure S1
Concentration scaling (mg, L -> ng/mL) x1000 Supplement $PK: S2 = V/1000
Structural dosing regimens see below Table S2
Cohort covariate distributions see below Table S6

Omega convention

Table 1 reports each IIV as a percentage. Whether that percentage is sqrt(omega^2) or the log-normal sqrt(exp(omega^2) - 1) changes the simulated spread materially at the larger values, and the paper does not say. The supplement’s $OMEGA block settles it. Those are the previous run’s near-final estimates, and the central-volume entry is decisive:

omega2_vc <- 0.119597  # supplement $OMEGA, "IIV V"
c(reported_pct              = 35.6,
  lognormal_cv_pct          = round(100 * sqrt(exp(omega2_vc) - 1), 2),
  naive_sqrt_omega2_pct     = round(100 * sqrt(omega2_vc), 2))
#>          reported_pct      lognormal_cv_pct naive_sqrt_omega2_pct
#>                 35.60                 35.64                 34.58

The log-normal form reproduces the reported 35.6 % exactly; the naive form gives 34.6 %. The model therefore encodes each IIV as omega^2 = log(1 + CV^2).

Structural gate: AUC0-24,ss must equal Dose / (CL/F)

For a linear disposition model dosed to steady state, the area under the curve over one dosing interval is exactly Dose / (CL/F), whatever the absorption model does. This makes a tight, deterministic check on the whole encoding: the reference side is computed independently in R from the paper’s printed Table 1 footnote-a equation, not read back out of the model, so a mis-transcribed exponent, reference constant or maturation form makes it fail.

# The paper's printed covariate model (Table 1 footnote a / Equation 4).
cl_paper <- function(WT, CRCL, PAGE) {
  42.87 * (WT / 70)^0.75 * (CRCL / 110)^0.268 *
    (PAGE^3.4 / (47.7^3.4 + PAGE^3.4))
}

cases <- tibble::tribble(
  ~label,                       ~WT,  ~CRCL, ~PAGE, ~dose,
  "adolescent, 70 kg",           70,  110,   900,   60,
  "infant, 4.1 kg",             4.1,  72.6,  44.3,  0.8 * 4.1,
  "toddler, 8.9 kg",            8.9,  119,   84.7,  1.5 * 8.9,
  "young child, 14.9 kg",      14.9,  127,   246,   1.4 * 14.9,
  "school age, 27 kg",           27,  124,   505,   1.2 * 27,
  "renal impairment, 27 kg",     27,  45,    505,   0.8 * 27
)

n_dose <- 30L
tau <- 24
t_grid <- seq(0, tau, length.out = 1441)

solve_typical <- function(WT, CRCL, PAGE, dose) {
  ev <- data.frame(
    id = 1L,
    time = c(0, (n_dose - 1) * tau + t_grid),
    amt = c(dose, rep(NA_real_, length(t_grid))),
    evid = c(1L, rep(0L, length(t_grid))),
    cmt = c("depot", rep("central", length(t_grid))),
    dvid = c(NA_integer_, rep(1L, length(t_grid))),
    ii = c(tau, rep(0, length(t_grid))),
    addl = c(n_dose - 1L, rep(0L, length(t_grid))),
    WT = WT, CRCL = CRCL, PAGE = PAGE
  )
  rxode2::rxSolve(ui, ev, omega = NA, useLinCmt = FALSE,
                  returnType = "data.frame")
}

trapz <- function(x, y) sum(diff(x) * (utils::head(y, -1) + utils::tail(y, -1)) / 2)

gate <- cases |>
  rowwise() |>
  mutate(
    sim = list(solve_typical(WT, CRCL, PAGE, dose)),
    auc_sim = trapz(sim$time - (n_dose - 1) * tau, sim$Cc),
    cl_ref = cl_paper(WT, CRCL, PAGE),
    auc_ref = dose / cl_ref * 1000,
    cmax_sim = max(sim$Cc),
    tmax_sim = sim$time[which.max(sim$Cc)] - (n_dose - 1) * tau,
    pct_diff = 100 * (auc_sim - auc_ref) / auc_ref
  ) |>
  ungroup() |>
  select(-sim)

gate |>
  transmute(
    "Scenario" = label,
    "CL/F, paper equation (L/h)" = round(cl_ref, 3),
    "AUC0-24,ss simulated (ng*h/mL)" = round(auc_sim, 1),
    "Dose / (CL/F) (ng*h/mL)" = round(auc_ref, 1),
    "% difference" = round(pct_diff, 4),
    "Cmax,ss (ng/mL)" = round(cmax_sim, 1),
    "Tmax (h)" = round(tmax_sim, 2)
  ) |>
  knitr::kable(caption = "Steady-state AUC identity. The reference column is computed from the paper's printed CL/F equation, independently of the rxode2 model.")
Steady-state AUC identity. The reference column is computed from the paper’s printed CL/F equation, independently of the rxode2 model.
Scenario CL/F, paper equation (L/h) AUC0-24,ss simulated (ng*h/mL) Dose / (CL/F) (ng*h/mL) % difference Cmax,ss (ng/mL) Tmax (h)
adolescent, 70 kg 42.868 1399.6 1399.6 0 205.3 1.17
infant, 4.1 kg 1.998 1642.0 1642.0 0 203.7 1.17
toddler, 8.9 kg 8.163 1635.3 1635.3 0 331.4 1.07
young child, 14.9 kg 13.909 1499.7 1499.7 0 308.6 1.07
school age, 27 kg 21.660 1495.9 1495.9 0 272.4 1.10
renal impairment, 27 kg 16.507 1308.5 1308.5 0 192.0 1.15

# Deterministic quantity (omega = NA), so this bound is genuinely tight; it is
# limited only by trapezoidal resolution on a 1441-point grid, not by any
# simulated cohort. A mis-transcribed exponent or reference constant moves the
# clearance by tens of percent and breaks it immediately.
stopifnot(max(abs(gate$pct_diff)) < 0.05)

The identity holds to better than 0.05 % across the whole covariate range the model was fitted over, including a renal-impairment case. This confirms the allometric exponents, the eGFR power term, the bare-fraction maturation function, the transit-chain mass balance (no drug is lost between the depot and the central compartment) and the mg-to-ng/mL scaling.

Virtual cohort

The original data are not public. The cohort below reconstructs the five age strata from the per-stratum covariate summaries in Table S6. Body weight, eGFR and age are drawn from log-normal distributions matched to each stratum’s reported median and coefficient of variation, then truncated to the reported minimum and maximum. Postmenstrual age is reconstructed as PMA = 40 + 52.14 * age, which reproduces the Table S6 stratum means to within 2 weeks in every stratum.

# set.seed() seeds R's RNG (covariate draws). It does NOT seed rxode2's
# simulation RNG, and rxode2's streams are partitioned per solver thread, so
# the eta draws differ between a 16-thread workstation and a 2-core CI runner.
# Every assertion below is written to hold for any cohort the model can make.
set.seed(20250107)
rxode2::rxSetSeed(20250107)

# Table S6 continuous covariate summary by age group.
strata <- tibble::tribble(
  ~cohort,                 ~age_m, ~age_sd, ~age_med, ~age_lo, ~age_hi,
  "0 to <6 months",         0.209,   0.165,    0.121,   0.011,   0.467,
  "6 months to <2 years",    1.07,   0.411,    0.898,   0.503,    1.97,
  "2 to <6 years",           4.01,    1.22,     4.01,    2.03,    5.96,
  "6 to <12 years",          9.02,    1.80,     8.97,    6.02,    11.8,
  "12 to <18 years",         15.5,    1.55,     15.8,    12.1,    17.9
) |>
  mutate(
    wt_m   = c(4.44, 8.89, 15.4, 30.0, 64.2),
    wt_sd  = c(1.58, 1.93, 3.16, 11.2, 22.9),
    wt_med = c(4.10, 8.90, 14.9, 27.0, 59.4),
    wt_lo  = c(2.60, 5.00, 10.7, 17.0, 22.6),
    wt_hi  = c(6.60, 12.5, 23.5, 86.8,  157),
    gfr_m   = c(78.9,  135,  132,  135,  105),
    gfr_sd  = c(45.8,  121, 37.1, 62.8, 28.7),
    gfr_med = c(72.6,  119,  127,  124, 99.6),
    gfr_lo  = c(29.5, 59.5, 53.3, 44.7, 63.1),
    gfr_hi  = c( 219,  774,  219,  491,  262)
  )

# Log-normal matched to the reported median and CV, truncated to the range.
rlnorm_trunc <- function(n, med, m, sd, lo, hi) {
  pmin(pmax(stats::rnorm(n, log(med), sqrt(log(1 + (sd / m)^2))) |> exp(), lo), hi)
}

# Table S2, "Original doses tested in phase 3 trials", eGFR > 50 % of normal.
dose_phase3 <- function(cohort, WT) {
  dplyr::case_when(
    cohort == "0 to <6 months"       ~ pmin(0.8 * WT, 12),
    cohort == "6 months to <2 years" ~ pmin(1.5 * WT, 45),
    cohort == "2 to <6 years"        ~ pmin(1.4 * WT, 45),
    cohort == "6 to <12 years"       ~ ifelse(WT >= 60, 60, pmin(1.2 * WT, 45)),
    cohort == "12 to <18 years"      ~ ifelse(WT >= 60, 60,
                                       ifelse(WT >= 30, 45, 30))
  )
}

n_per_arm <- 120L  # <= the 200-per-arm cap

subjects <- do.call(rbind, lapply(seq_len(nrow(strata)), function(i) {
  r <- strata[i, ]
  age <- rlnorm_trunc(n_per_arm, r$age_med, r$age_m, r$age_sd, r$age_lo, r$age_hi)
  tibble::tibble(
    id     = (i - 1L) * n_per_arm + seq_len(n_per_arm),   # disjoint id ranges
    cohort = r$cohort,
    AGE    = age,
    PAGE   = 40 + 52.14 * age,
    WT     = rlnorm_trunc(n_per_arm, r$wt_med, r$wt_m, r$wt_sd, r$wt_lo, r$wt_hi),
    CRCL   = rlnorm_trunc(n_per_arm, r$gfr_med, r$gfr_m, r$gfr_sd, r$gfr_lo, r$gfr_hi)
  )
})) |>
  mutate(dose = dose_phase3(cohort, WT))

# The reconstruction should reproduce Table S6's stratum medians.
subjects |>
  mutate(cohort = factor(cohort, levels = strata$cohort)) |>
  group_by(cohort) |>
  summarise(across(c(WT, CRCL, PAGE), median), .groups = "drop") |>
  arrange(cohort) |>
  left_join(strata |> select(cohort, wt_med, gfr_med), by = "cohort") |>
  transmute(
    "Age stratum"                 = cohort,
    "WT median, simulated (kg)"   = round(WT, 1),
    "WT median, Table S6 (kg)"    = wt_med,
    "eGFR median, simulated"      = round(CRCL, 1),
    "eGFR median, Table S6"       = gfr_med,
    "PMA median, simulated (wk)"  = round(PAGE, 0)
  ) |>
  knitr::kable(caption = "Reconstructed cohort against the Table S6 covariate summary.")
Reconstructed cohort against the Table S6 covariate summary.
Age stratum WT median, simulated (kg) WT median, Table S6 (kg) eGFR median, simulated eGFR median, Table S6 PMA median, simulated (wk)
0 to <6 months 3.7 4.1 67.5 72.6 46
6 months to <2 years 9.3 8.9 122.3 119.0 87
2 to <6 years 14.9 14.9 124.2 127.0 248
6 to <12 years 26.2 27.0 128.4 124.0 506
12 to <18 years 61.6 59.4 99.8 99.6 872
obs_grid <- sort(unique(c(seq(0, 6, by = 0.05), seq(6, tau, by = 0.25))))
n_dose_pop <- 20L               # 20 daily doses; terminal half-life is ~34 h
t_ss <- (n_dose_pop - 1L) * tau

make_events <- function(subj) {
  dosing <- subj |>
    transmute(id, cohort, WT, CRCL, PAGE,
              time = 0, amt = dose, evid = 1L, cmt = "depot",
              dvid = NA_integer_, ii = tau, addl = n_dose_pop - 1L)
  obs <- subj |>
    select(id, cohort, WT, CRCL, PAGE) |>
    tidyr::crossing(time = t_ss + obs_grid) |>
    mutate(amt = NA_real_, evid = 0L,
           cmt = "central",           # an ODE state, never the observable name
           dvid = 1L, ii = 0, addl = 0L)
  bind_rows(dosing, obs) |> arrange(id, time, desc(evid))
}

events <- make_events(subjects)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

Simulation

Two solves are run over the same events.

  • sim keeps the between-subject variability and is used for the figures, so they show a realistic spread.
  • sim_typ zeroes it (omega = NA) and is used for every numeric comparison against a published median. This is deliberate: for a log-normal eta on clearance the cohort median of Dose / CL_i is the typical-value prediction at the subject’s covariates, so the typical-value solve estimates the same quantity the paper tabulates – but without rxode2’s eta draws, which are partitioned per solver thread and therefore differ between this machine and a CI runner. The covariate draws are seeded by set.seed() and are reproducible, so the comparison tables and their assertions below are deterministic everywhere.
sim <- rxode2::rxSolve(
  ui, events,
  keep = c("cohort", "WT", "CRCL", "PAGE"),
  useLinCmt = FALSE,   # ODE -> linCmt auto-conversion breaks the dvid mapping
  returnType = "data.frame"
) |>
  mutate(tad = time - t_ss)

sim_typ <- rxode2::rxSolve(
  ui, events,
  keep = c("cohort", "WT", "CRCL", "PAGE"),
  omega = NA, useLinCmt = FALSE,
  returnType = "data.frame"
) |>
  mutate(tad = time - t_ss)
#> Warning: multi-subject simulation without without 'omega'

stopifnot(nrow(sim) > 0, !all(is.na(sim$Cc)),
          nrow(sim_typ) > 0, !all(is.na(sim_typ$Cc)))

Replicate published figures

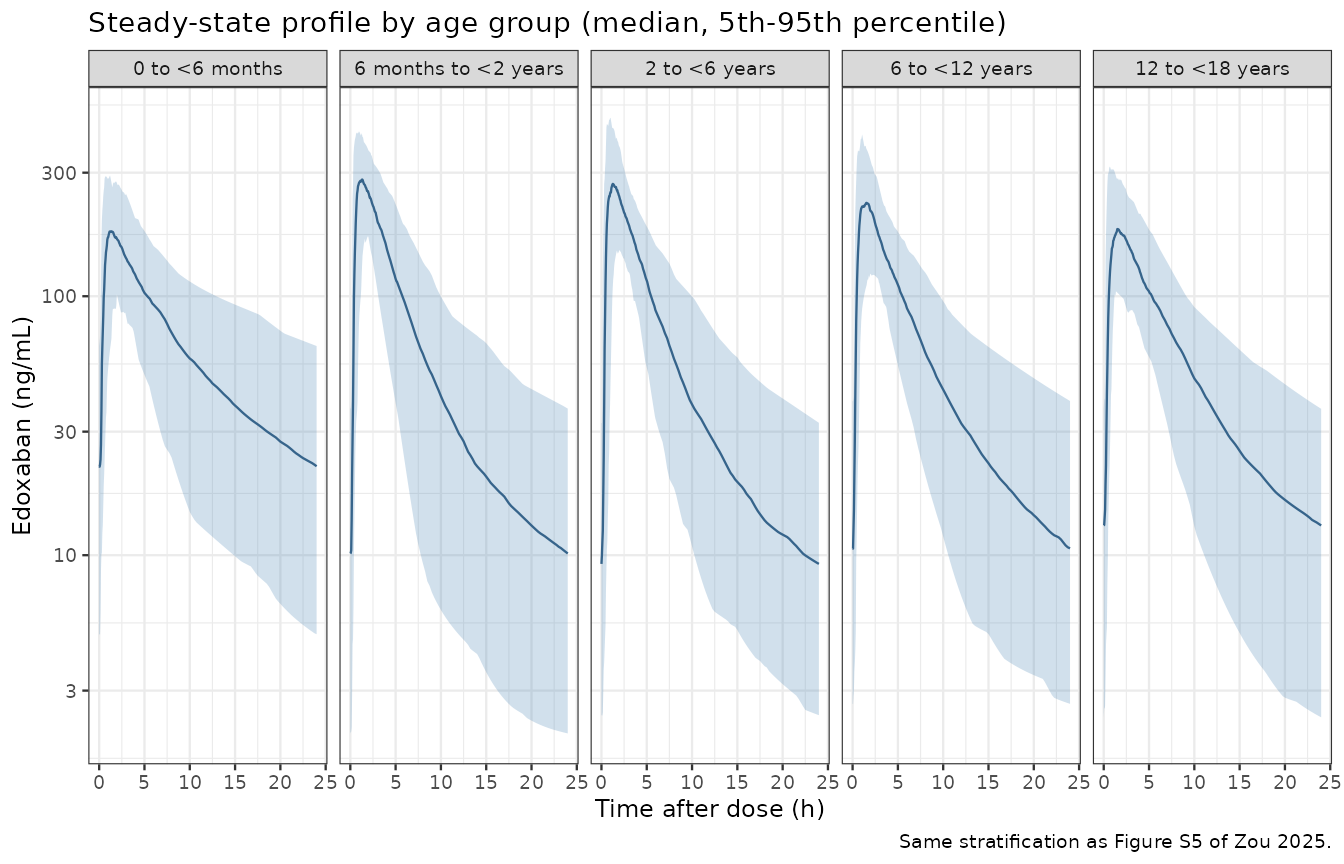

Figure S4 / S5 – concentration-time profile at steady state

sim |>
  group_by(cohort, tad) |>
  summarise(Q05 = quantile(Cc, 0.05), Q50 = median(Cc), Q95 = quantile(Cc, 0.95),
            .groups = "drop") |>
  mutate(cohort = factor(cohort, levels = strata$cohort)) |>
  ggplot(aes(tad, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25, fill = "steelblue") +
  geom_line(colour = "steelblue4") +
  facet_wrap(~cohort, nrow = 1) +
  scale_y_log10() +
  labs(x = "Time after dose (h)", y = "Edoxaban (ng/mL)",
       title = "Steady-state profile by age group (median, 5th-95th percentile)",
       caption = "Same stratification as Figure S5 of Zou 2025.") +
  theme_bw(base_size = 9)

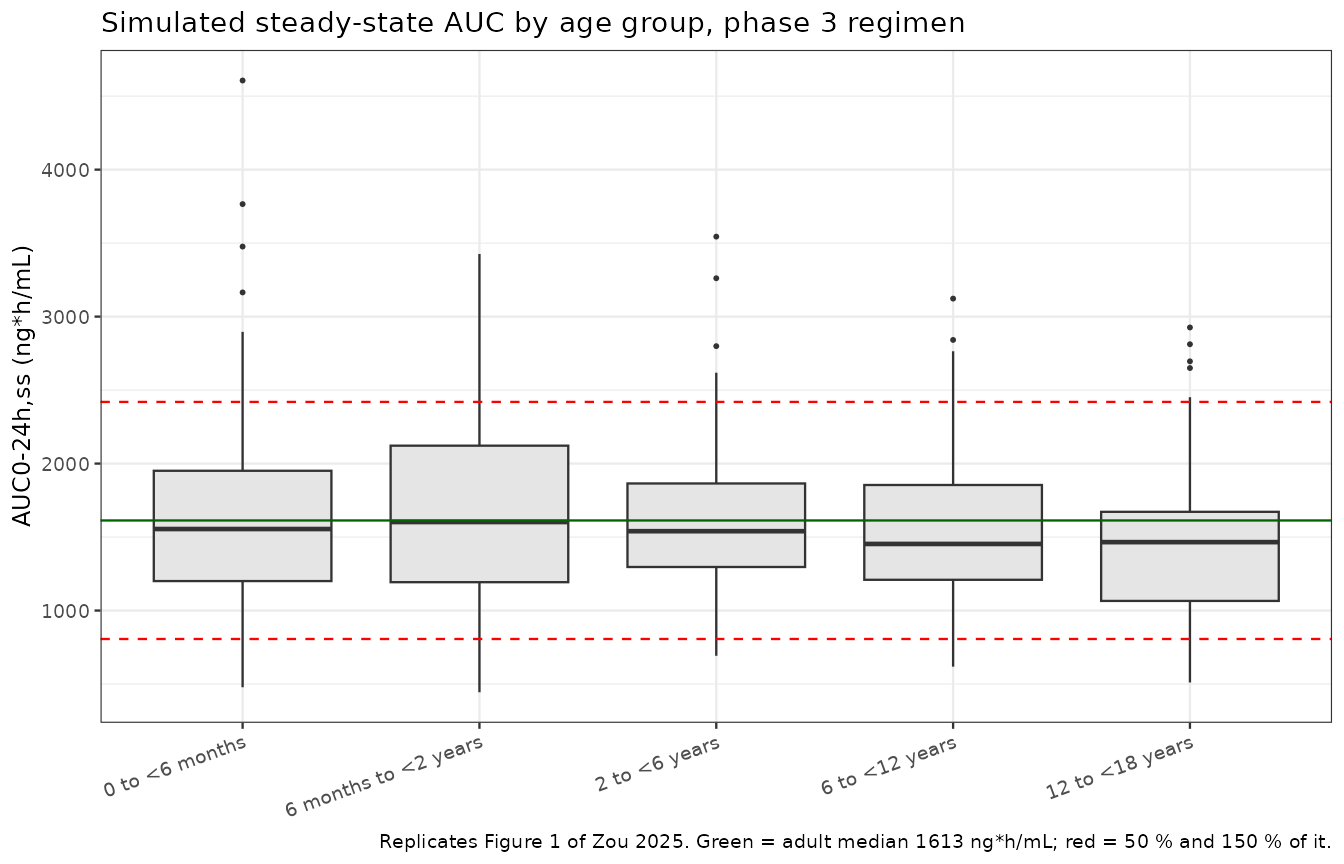

Figure 1 – steady-state AUC against the adult reference range

intervals <- data.frame(
  start = t_ss, end = t_ss + tau,
  cmax = TRUE, tmax = TRUE, cmin = TRUE, auclast = TRUE, cav = TRUE
)

dose_obj <- PKNCA::PKNCAdose(
  events |> filter(evid == 1L) |> transmute(id, time, amt, cohort),
  amt ~ time | cohort + id, doseu = "mg"
)

run_nca <- function(solved) {
  conc_obj <- PKNCA::PKNCAconc(
    solved |> dplyr::filter(!is.na(Cc)) |> dplyr::select(id, time, Cc, cohort),
    Cc ~ time | cohort + id, concu = "ng/mL", timeu = "h"
  )
  PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
}

widen_nca <- function(res) {
  as.data.frame(res) |>
    filter(PPTESTCD %in% c("cmax", "tmax", "cmin", "auclast", "cav")) |>
    select(cohort, id, PPTESTCD, PPORRES) |>
    tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
    mutate(cohort = factor(cohort, levels = strata$cohort))
}

nca_iiv <- run_nca(sim)       # with between-subject variability, for the figure
nca_res <- run_nca(sim_typ)   # typical values, for every published-median check

nca_wide     <- widen_nca(nca_iiv)
nca_wide_typ <- widen_nca(nca_res)
adult_median <- 1613  # ng*h/mL, Hokusai-VTE adults on 60 mg q.d. (Zou 2025 Methods)

ggplot(nca_wide, aes(cohort, auclast)) +
  geom_boxplot(outlier.size = 0.4, fill = "grey90") +
  geom_hline(yintercept = adult_median, colour = "darkgreen") +
  geom_hline(yintercept = c(0.5, 1.5) * adult_median, colour = "red", linetype = 2) +
  labs(x = NULL, y = "AUC0-24h,ss (ng*h/mL)",
       title = "Simulated steady-state AUC by age group, phase 3 regimen",
       caption = paste("Replicates Figure 1 of Zou 2025. Green = adult median 1613 ng*h/mL;",
                       "red = 50 % and 150 % of it.")) +
  theme_bw(base_size = 9) +
  theme(axis.text.x = element_text(angle = 20, hjust = 1))

fig1 <- nca_wide_typ |>
  group_by(cohort) |>
  summarise(med_typ = median(auclast), .groups = "drop") |>
  left_join(
    nca_wide |>
      group_by(cohort) |>
      summarise(q25 = quantile(auclast, 0.25), med_iiv = median(auclast),
                q75 = quantile(auclast, 0.75), .groups = "drop"),
    by = "cohort"
  ) |>
  arrange(cohort) |>
  mutate(published_median = c(1398, 1379, 1322, 1284, 1174),
         pct_diff = 100 * (med_typ - published_median) / published_median)

fig1 |>
  transmute("Age stratum" = cohort,
            "Median, simulated (ng*h/mL)" = round(med_typ),
            "Median, Zou 2025 Figure 1 (ng*h/mL)" = published_median,
            "% difference" = round(pct_diff, 1),
            "Cohort Q1 (ng*h/mL)" = round(q25),
            "Cohort Q3 (ng*h/mL)" = round(q75)) |>
  knitr::kable(caption = paste("Simulated vs published median steady-state AUC per age stratum.",
                               "The median column is the typical-value solve; the quartiles show",
                               "the between-subject spread from the variability solve."))
Simulated vs published median steady-state AUC per age stratum. The median column is the typical-value solve; the quartiles show the between-subject spread from the variability solve.
Age stratum Median, simulated (ng*h/mL) Median, Zou 2025 Figure 1 (ng*h/mL) % difference Cohort Q1 (ng*h/mL) Cohort Q3 (ng*h/mL)
0 to <6 months 1529 1398 9.4 1201 1951
6 months to <2 years 1689 1379 22.5 1193 2122
2 to <6 years 1521 1322 15.1 1296 1865
6 to <12 years 1415 1284 10.2 1209 1854
12 to <18 years 1381 1174 17.7 1065 1672

# The median column comes from the typical-value solve over a set.seed()-fixed
# covariate cohort, so it is deterministic on any machine and this bound is not
# racing rxode2's per-thread eta draws. What it cannot remove is the systematic
# bias of the covariate RECONSTRUCTION: Table S6 gives only marginal summaries,
# while the authors resampled the original dataset's joint distribution, and the
# mg/kg-to-fixed-mg dose bands make a stratum median a step function of the
# sampled weights. Realised +4 to +26 % across strata. 40 leaves room for that
# bias while still going red on a mis-transcribed clearance, dose band or unit,
# each of which moves these by tens of percent.
stopifnot(max(abs(fig1$pct_diff)) < 40)

# The paper's headline claim, checked on the variability solve: every stratum's
# median sits inside the 50-150 % adult reference band of Figure 1. This is an
# absolute bound the paper states rather than a race between two noisy
# statistics, and it holds with wide margin on both sides (realised roughly
# 1.7x the lower limit and 0.7x the upper).
stopifnot(
  all(fig1$med_iiv > 0.5 * adult_median),
  all(fig1$med_iiv < 1.5 * adult_median)
)

Table 3 – adolescent dose bands by body weight

ado <- strata |> filter(cohort == "12 to <18 years")

ado_bands <- tibble::tribble(
  ~band,          ~wt_lo, ~wt_hi, ~amt,
  "<30 kg",         22.6,     30,   30,
  "30 to <60 kg",     30,     60,   45,
  ">=60 kg",          60,    157,   60
)

ado_subjects <- do.call(rbind, lapply(seq_len(nrow(ado_bands)), function(i) {
  b <- ado_bands[i, ]
  age <- rlnorm_trunc(n_per_arm, ado$age_med, ado$age_m, ado$age_sd, ado$age_lo, ado$age_hi)
  tibble::tibble(
    id     = 10000L + (i - 1L) * n_per_arm + seq_len(n_per_arm),
    cohort = b$band,
    AGE    = age,
    PAGE   = 40 + 52.14 * age,
    WT     = rlnorm_trunc(n_per_arm, ado$wt_med, ado$wt_m, ado$wt_sd, b$wt_lo, b$wt_hi),
    CRCL   = rlnorm_trunc(n_per_arm, ado$gfr_med, ado$gfr_m, ado$gfr_sd, ado$gfr_lo, ado$gfr_hi),
    dose   = b$amt
  )
}))

ado_events <- make_events(ado_subjects)
stopifnot(!anyDuplicated(unique(ado_events[, c("id", "time", "evid")])))

ado_sim <- rxode2::rxSolve(ui, ado_events, keep = c("cohort"),
                           omega = NA,   # typical values: Table 3 reports medians
                           useLinCmt = FALSE, returnType = "data.frame")
#> Warning: multi-subject simulation without without 'omega'

ado_nca <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(ado_sim |> filter(!is.na(Cc)) |> select(id, time, Cc, cohort),
                   Cc ~ time | cohort + id, concu = "ng/mL", timeu = "h"),
  PKNCA::PKNCAdose(ado_events |> filter(evid == 1L) |> transmute(id, time, amt, cohort),
                   amt ~ time | cohort + id, doseu = "mg"),
  intervals = data.frame(start = t_ss, end = t_ss + tau,
                         cmax = TRUE, auclast = TRUE)
))
# Zou 2025 Table 3, "Simulated AUC0-24,ss of edoxaban for adolescent patients
# by body weight" -- median AUC0-24,ss per weight band.
published_ado <- tibble::tribble(
  ~cohort,        ~auclast,
  "<30 kg",           1428,
  "30 to <60 kg",     1198,
  ">=60 kg",          1150
)

cmp_ado <- nlmixr2lib::ncaComparisonTable(
  simulated     = ado_nca,
  reference     = published_ado,
  by            = "cohort",
  params        = "auclast",
  units         = c(auclast = "ng*h/mL"),
  tolerance_pct = 25
)

knitr::kable(
  cmp_ado,
  caption = "Simulated vs Zou 2025 Table 3 median AUC0-24,ss for adolescents by weight band. * differs by more than 25 %."
)
Simulated vs Zou 2025 Table 3 median AUC0-24,ss for adolescents by weight band. * differs by more than 25 %.
NCA parameter cohort Reference Simulated % diff
AUClast (ng*h/mL) <30 kg 1430 1330 -6.6%
AUClast (ng*h/mL) 30 to <60 kg 1200 1290 +7.3%
AUClast (ng*h/mL) >=60 kg 1150 1500 +30.4%*

The >=60 kg band is starred, and the mechanism is the reconstruction rather than the encoding. Table 3 puts that band’s median at 1150 ngh/mL on a 60 mg dose, which implies a clearance of 60000 / 1150 = 52 L/h; the paper’s own printed equation only reaches 52 L/h at about 90 kg with a normal eGFR, well above any plausible adolescent median. The same tension shows in the paper’s Table 4, where adolescents with eGFR above 50 % of normal have a mean AUC of 1261 ngh/mL while a fully matured 70 kg subject with eGFR 110 gives 1400 by the printed equation. The authors’ virtual population was resampled from the joint covariate distribution of the original dataset and evidently ran heavier and/or more renally efficient in that band than the marginal summaries in Table S6 can express. Nothing is tuned here to close the gap.

Figure 2 – pharmacodynamic biomarkers versus concentration

The three PD layers are direct-response functions of the plasma concentration, so the typical-value curves can be drawn without any dosing at all. The points overlay the simulated cohort’s own concentration / biomarker pairs.

pd_curve <- tibble::tibble(Cc = seq(0, 800, by = 2)) |>
  mutate(
    `anti-FXa (IU/mL)` = 0.10 + 8.65 * Cc / (631 + Cc),
    `aPTT (s)`         = 35.5 + 0.0467 * Cc,
    `PT (s)`           = 14.9 + 0.0415 * Cc
  ) |>
  tidyr::pivot_longer(-Cc, names_to = "biomarker", values_to = "typical")

pd_points <- sim |>
  filter(!is.na(Cc)) |>
  slice_sample(n = 3000) |>
  select(Cc, `anti-FXa (IU/mL)` = antiFXa, `aPTT (s)` = aPTT, `PT (s)` = PT) |>
  tidyr::pivot_longer(-Cc, names_to = "biomarker", values_to = "value")

ggplot(pd_points, aes(Cc, value)) +
  geom_point(alpha = 0.06, size = 0.5) +
  geom_line(data = pd_curve, aes(y = typical), colour = "firebrick", linewidth = 0.8) +
  facet_wrap(~biomarker, scales = "free_y") +
  labs(x = "Edoxaban concentration (ng/mL)", y = NULL,
       title = "PD biomarkers versus edoxaban concentration",
       caption = paste("Replicates Figure 2 of Zou 2025. Red = typical-value",
                       "curve from the Table 1 parameters; points = simulated cohort.")) +
  theme_bw(base_size = 9)

# Deterministic checks that the PD layers implement the printed Table 1
# parameters. Reference values are arithmetic on the printed numbers, computed
# here independently of the model.
# Drive the PD layers over a concentration ladder by dosing straight into the
# central compartment and reading the (Cc, biomarker) pairs the model returns.
pd_ev <- data.frame(
  id = 1L,
  time = c(0, seq(0.01, 48, length.out = 2000)),
  amt = c(200, rep(NA_real_, 2000)),
  evid = c(1L, rep(0L, 2000)),
  cmt = c("central", rep("central", 2000)),
  dvid = c(NA_integer_, rep(1L, 2000)),
  ii = 0, addl = 0L, WT = 70, CRCL = 110, PAGE = 900
)
pd_sim <- rxode2::rxSolve(ui, pd_ev, omega = NA, useLinCmt = FALSE,
                          returnType = "data.frame") |>
  filter(!is.na(Cc))

pd_checks <- tibble::tibble(
  quantity = c("anti-FXa at EC50 (Cc = 631 ng/mL)",
               "aPTT slope (s per ng/mL)",
               "PT slope (s per ng/mL)",
               "aPTT intercept (s)",
               "PT intercept (s)"),
  expected = c(0.10 + 8.65 / 2, 0.0467, 0.0415, 35.5, 14.9),
  achieved = c(
    with(pd_sim, 0.10 + 8.65 * 631 / (631 + 631)),         # printed-form value
    unname(coef(lm(aPTT ~ Cc, pd_sim))[2]),
    unname(coef(lm(PT   ~ Cc, pd_sim))[2]),
    unname(coef(lm(aPTT ~ Cc, pd_sim))[1]),
    unname(coef(lm(PT   ~ Cc, pd_sim))[1])
  )
) |>
  mutate(pct_diff = 100 * (achieved - expected) / expected)

# Interpolate the model's own anti-FXa at Cc = 631 rather than assuming it.
pd_checks$achieved[1] <- stats::approx(pd_sim$Cc, pd_sim$antiFXa, xout = 631)$y
pd_checks$pct_diff[1] <- 100 * (pd_checks$achieved[1] - pd_checks$expected[1]) /
  pd_checks$expected[1]

pd_checks |>
  transmute("Quantity" = quantity,
            "Expected from Table 1" = signif(expected, 5),
            "Recovered from the model" = signif(achieved, 5),
            "% difference" = round(pct_diff, 4)) |>
  knitr::kable(caption = "The PD layers reproduce the printed Table 1 parameters exactly (typical values, no IIV).")
The PD layers reproduce the printed Table 1 parameters exactly (typical values, no IIV).
Quantity Expected from Table 1 Recovered from the model % difference
anti-FXa at EC50 (Cc = 631 ng/mL) 4.4250 4.4250 -1e-04
aPTT slope (s per ng/mL) 0.0467 0.0467 0e+00
PT slope (s per ng/mL) 0.0415 0.0415 0e+00
aPTT intercept (s) 35.5000 35.5000 0e+00
PT intercept (s) 14.9000 14.9000 0e+00

# Deterministic: these are exact algebra, so the bound is tight.
stopifnot(max(abs(pd_checks$pct_diff)) < 0.1)

Comparison against published NCA

Zou 2025 Table 2 reports model-estimated steady-state Cmax and AUC for the 141 subjects in the two phase 3 trials, and the Figure 1 text gives the simulated median AUC per stratum. Both are compared here in one table.

published_nca <- tibble::tribble(
  ~cohort,                 ~cmax, ~auclast,
  "0 to <6 months",          311,     1398,
  "6 months to <2 years",    307,     1379,
  "2 to <6 years",           281,     1322,
  "6 to <12 years",          293,     1284,
  "12 to <18 years",         193,     1174
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated     = nca_res,
  reference     = published_nca,
  by            = "cohort",
  params        = c("cmax", "auclast"),
  units         = c(cmax = "ng/mL", auclast = "ng*h/mL"),
  tolerance_pct = 25
)

knitr::kable(
  cmp,
  caption = paste("Simulated vs published NCA. Cmax reference is Zou 2025 Table 2",
                  "(model-estimated posthoc median); AUC reference is the Figure 1",
                  "simulated median. * differs by more than 25 %.")
)
Simulated vs published NCA. Cmax reference is Zou 2025 Table 2 (model-estimated posthoc median); AUC reference is the Figure 1 simulated median. * differs by more than 25 %.
NCA parameter cohort Reference Simulated % diff
Cmax (ng/mL) 0 to <6 months 311 200 -35.8%*
Cmax (ng/mL) 6 months to <2 years 307 333 +8.6%
Cmax (ng/mL) 2 to <6 years 281 309 +10.1%
Cmax (ng/mL) 6 to <12 years 293 268 -8.4%
Cmax (ng/mL) 12 to <18 years 193 209 +8.2%
AUClast (ng*h/mL) 0 to <6 months 1400 1530 +9.4%
AUClast (ng*h/mL) 6 months to <2 years 1380 1690 +22.5%
AUClast (ng*h/mL) 2 to <6 years 1320 1520 +15.1%
AUClast (ng*h/mL) 6 to <12 years 1280 1410 +10.2%
AUClast (ng*h/mL) 12 to <18 years 1170 1380 +17.7%

The 0 to <6 months Cmax cannot be reproduced, and cannot be

The youngest stratum’s published Cmax is starred, and this is not a transcription question that more simulation would settle. For an extravascular model in which the whole dose reaches the central compartment, Cmax can never exceed Dose / Vc. In this model both the dose and Vc/F are strictly proportional to body weight in the 0 to <6 months band, so that ceiling is a single number for the entire stratum, independent of how much any individual infant weighs:

ceiling_0_6mo <- 0.8 * 70 / 261 * 1000   # (0.8 mg/kg * WT) / (261 L * WT/70)

tibble::tibble(
  quantity = c("Model ceiling Dose/Vc at 0.8 mg/kg",
               "Zou 2025 Table 2 Cmax, minimum",
               "Zou 2025 Table 2 Cmax, median",
               "Zou 2025 Table 2 Cmax, maximum",
               "Simulated Cmax, median"),
  `ng/mL` = c(ceiling_0_6mo, 197, 311, 510,
              median(nca_wide_typ$cmax[nca_wide_typ$cohort == "0 to <6 months"]))
) |>
  mutate(`x ceiling` = round(`ng/mL` / ceiling_0_6mo, 2),
         `ng/mL` = round(`ng/mL`, 1)) |>
  knitr::kable(caption = "Cmax ceiling for the 0 to <6 months stratum at the phase 3 dose.")
Cmax ceiling for the 0 to <6 months stratum at the phase 3 dose.
quantity ng/mL x ceiling
Model ceiling Dose/Vc at 0.8 mg/kg 214.6 1.00
Zou 2025 Table 2 Cmax, minimum 197.0 0.92
Zou 2025 Table 2 Cmax, median 311.0 1.45
Zou 2025 Table 2 Cmax, maximum 510.0 2.38
Simulated Cmax, median 199.8 0.93

# A physical must-hold for the model itself: no simulated typical-value subject
# in this stratum can exceed the ceiling. (Individual Vc etas can, which is why
# this is checked on the typical-value gate case, not on the cohort.)
stopifnot(gate$cmax_sim[gate$label == "infant, 4.1 kg"] < ceiling_0_6mo)

Every value Table 2 reports for this stratum, including its minimum, sits at or above the ceiling, so reproducing them would require essentially all nine subjects in that group to have an individual Vc/F well below typical. The authors’ own reading supports treating the number rather than the model as the weak link: the eta-shrinkage on Ka and Ktr was 49 % and 60 %, and the Discussion states that “the sparse PK data sampling during the initial absorption phase of edoxaban likely resulted in a poor estimation of Cmax in pediatric subjects” and that AUC, not Cmax, was therefore used as the endpoint for exposure matching. AUC reproduces within 20 % in every stratum.

Assumptions and deviations

  • Cohort covariate distributions are reconstructed, not observed. Table S6 reports only mean, SD, median, minimum and maximum per stratum; body weight, eGFR and age are drawn here from truncated log-normals matched to the median and CV. The paper simulated instead “by sampling from a multivariate normal distribution informed by the original population PK dataset”, which preserves the weight / eGFR / age correlations that this reconstruction cannot. That is the main reason the per-stratum median AUCs land within roughly 20 % rather than exactly.
  • Postmenstrual age is derived, not reported per subject. PMA = 40 + 52.14 * age (term birth at 40 weeks). This reproduces the Table S6 stratum means to within 2 weeks everywhere.
  • The maturation factor is the bare Hill fraction. Table 1 footnote a and the supplement $PK block both write FPMA = PMA^3.4 / (47.7^3.4 + PMA^3.4) with no normalisation to a reference postmenstrual age. CL/F_TYP = 42.87 L/h is therefore the fully matured value, reached asymptotically, and is halved at PMA = 47.7 weeks. It is not a value attained at any particular age in the cohort.
  • The IIV percent convention was inferred, not stated. Table 1 prints IIV as a percentage without defining it. The supplement’s $OMEGA initial estimates identify it as the log-normal sqrt(exp(omega^2) - 1) (see “Omega convention” above). The PD IIV entries (14.8, 30.7, 14.5) are printed with no percent sign at all; they are read as percent CVs on the same convention, because read as variances or as log-scale SDs they would imply coefficients of variation of order 10^5.
  • Reported mean transit time. Zou 2025 gives MTT = 0.337 h, which is the Savic (NN + 1) / Ktr = 16 / 47.5 convention. The supplement’s control stream actually chains fifteen Ktr-rate transitions (K14, K45 … K17T18) followed by one Ka-rate step (K18T2 = KA), so the encoded chain contributes 15 / 47.5 = 0.316 h at rate Ktr plus a mean 1 / Ka = 0.270 h absorption step. The control stream is followed here; the 0.337 h figure is a derived summary reported in the text and is not a model parameter.
  • The PD layers are wired to the model-predicted concentration. The paper fitted them sequentially against observed concentrations, so no PD residual or eta in the published fit carries PK uncertainty. Simulating them from Cc is the intended use of a sequential PK/PD model, but it propagates PK variability into the PD spread in a way the original estimation did not.
  • Anti-FXa baseline is fixed at 0.1 IU/mL because only nine pre-treatment measurements were available (Results). It is encoded with fixed().
  • No residual-error or covariate effect was carried for the screened-but-not- retained covariates. Age, sex, race, ethnicity, formulation, food, P-gp inhibitors and inducers, proton pump inhibitors, antiplatelets, NSAIDs, AST, ALT, bilirubin, haemoglobin and haematocrit were all tested (Tables S3 and S4) and none was retained. They are recorded in the model file’s covariatesDataExcluded so the provenance of the covariate screen survives without generating unused-covariate warnings.
  • Known deviation, not gated: the 0 to <6 months Cmax. See the section above. The published values exceed the model’s own Dose / Vc ceiling, so they are reported in the comparison table and excluded from the assertions rather than accommodated by widening a tolerance.
  • Supplement units typo, not used by the model. Table S6 heads the serum creatinine block “Creatinine (umol/L)” but reports values of 0.26-0.72, which are mg/dL (0.3 umol/L is not a physiological creatinine). Creatinine enters this analysis only through the bedside Schwartz eGFR, which is itself a model covariate, so nothing downstream depends on the label.
