Sunitinib (Hansson 2013a)

Source: vignettes/articles/Hansson_2013a_sunitinib.Rmd
Hansson_2013a_sunitinib.Rmd

Model and source

  • Citation: Hansson EK, Amantea MA, Westwood P, Milligan PA, Houk BE, French J, Karlsson MO, Friberg LE. PKPD modeling of VEGF, sVEGFR-2, sVEGFR-3, and sKIT as predictors of tumor dynamics and overall survival following sunitinib treatment in GIST. CPT Pharmacometrics Syst Pharmacol 2013;2(11):e84.
  • Article: doi:10.1038/psp.2013.61
  • DDMORE Foundation Model Repository: DDMODEL00000197

The publication PDF was not on disk at extraction time, so all parameter values, equations, and the model structure are taken from the DDMORE bundle (Executable_Biomarker_GIST.mod and Output_real_Biomarker_GIST.lst). Validation in this vignette therefore consists of a mechanistic-sanity check (F.3) plus a self-consistency simulation against the bundle’s shipped simulated dataset (F.2); a side-by-side comparison against any published Hansson 2013 figure or table is not performed.

Population

The Hansson 2013a model was fitted to plasma biomarker observations from 303 adults with imatinib-resistant gastrointestinal stromal tumours (GIST) enrolled in a placebo-controlled phase III trial of sunitinib 50 mg PO QD on a 4-weeks-on / 2-weeks-off schedule. The DDMORE bundle header reports TOT. NO. OF INDIVIDUALS: 303 and TOT. NO. OF OBS RECS: 5394. Detailed baseline demographics (age, weight, sex, race) are described in the linked publication, which was not on disk at extraction time; the model’s population metadata records that gap. The full demographics list can be added in a follow-up edit when the publication PDF is available.

The same information is available programmatically via the model’s population metadata (readModelDb("Hansson_2013a_sunitinib")$population).

Source trace

All parameter values come from the FINAL PARAMETER ESTIMATE block of Output_real_Biomarker_GIST.lst (the bundle ships an evaluation run with MAXEVALS=0 POSTHOC, so the .mod’s $THETA initial values match the .lst’s final estimates — both equal the published estimates). Equations come from the .mod’s $PK / $DES / $ERROR blocks.

Equation / parameter Value Source location (DDMODEL00000197)
Structural model: 4-compartment indirect response n/a .mod $MODEL NCOMPS=4 (COMP1=VEGF, COMP2=sVEGFR-2, COMP3=sVEGFR-3, COMP4=sKIT)
auc <- DOSE / CLI n/a .mod $PK line AUC = DOS/CL
vegf ODE (Kout inhibition) n/a .mod $DES line DADT(1) = KIN-KOUT*(1-EFF)*A(1)
svegfr2, svegfr3, skit ODEs (Kin inhibition) n/a .mod $DES lines DADT(2..4) = KIN*(1-EFF)-KOUT*A
Linear DP: bl_vegf*(1+dp_slope_vegf*t) n/a .mod $PK DP1 = BM0*(1+DPSLO*TIME)
lbl_vegf = log(59.7) (VEGF baseline, pg/mL) 59.7 Output_real .lst TH 1
lmrt_vegf = log(91) (h) 91 Output_real .lst TH 2
imax = 1 (FIXED) 1.0 Output_real .lst TH 3 (FIX)
lic50 = log(1.0) (mg·h/L AUC) 1.0 Output_real .lst TH 4
hill_vegf = 3.31 3.31 Output_real .lst TH 5
ldp_slope = log(3.5e-5) (1/h, /1000 of TH 6) 0.035 Output_real .lst TH 6 / 1000
lbl_svegfr2 = log(8670) (pg/mL) 8670 Output_real .lst TH 7
lmrt_svegfr2 = log(554) (h) 554 Output_real .lst TH 8
hill_svegfr2 = 1.54 1.54 Output_real .lst TH 9
lbl_svegfr3 = log(63900) (pg/mL) 63900 Output_real .lst TH10
lmrt_svegfr3 = log(401) (h) 401 Output_real .lst TH11
lbl_skit = log(39200) (pg/mL) 39200 Output_real .lst TH12
lmrt_skit = log(2430) (h) 2430 Output_real .lst TH13
propSd_vegf = 0.445 0.445 Output_real .lst TH14
propSd_svegfr2 = 0.12 0.12 Output_real .lst TH15
addSd_svegfr2 = 583 (pg/mL) 583 Output_real .lst TH16
propSd_svegfr3 = 0.22 0.22 Output_real .lst TH17
propSd_skit = 0.224 0.224 Output_real .lst TH18
IIV diagonal (etalbl_*) 0.252 / 0.0369 / 0.186 / 0.254 Output_real .lst OMEGA(1,1)..(4,4)
Shared MRT eta (etalmrt_pooled) — VEGF, sVEGFR-2, sVEGFR-3 0.0600 Output_real .lst OMEGA(5,5); .mod shares ETA(5) across MRT/MRT2/MRT3
sKIT MRT eta (etalmrt_skit) 0.0753 Output_real .lst OMEGA(6,6)
BLOCK(4) IIV on the four IC50s 0.253 / 0.198,0.189 / 0.238,0.252,0.398 / 0.218,0.297,0.936,5.77 Output_real .lst OMEGA BLOCK(4), rows 7–10
etaldp_slope_vegf 2.95 Output_real .lst OMEGA(11,11)
etaldp_slope_skit 3.01 Output_real .lst OMEGA(12,12)

The .mod’s sVEGFR-2 residual is W = sqrt(THETA(15)^2 + (THETA(16)/A(2))^2) applied as Y = LOG(A(2)) + W*EPS(1). With A_pred = A(2), A_pred * W = A_pred * sqrt(THETA(15)^2 + (THETA(16)/A_pred)^2) = sqrt((THETA(15)*A_pred)^2 + THETA(16)^2) — the linear-scale standard deviation of the residual is exactly sqrt((p*A_pred)^2 + a^2) with p = THETA(15) and a = THETA(16). This is the nlmixr2 combined-error definition for ~ prop(p) + add(a), so the .mod’s log-additive constant + 1/A nonlinear error is faithfully reproduced.

Drug-exposure inputs

The Hansson 2013a model has no PK ODE: drug exposure is summarised per-dose as AUC = DOSE / CLI and fed into a sigmoid-Imax (or plain-Imax) drug-effect function on each biomarker’s indirect-response chain. Both DOSE and CLI are required data covariates:

  • DOSE (mg) — current daily sunitinib dose at the time of the record. Time-varying with the on/off cycling: 50 mg during a 4-week on-cycle, 0 mg during the 2-week off-cycle, and 0 mg for placebo subjects.
  • CLI (L/h) — subject-specific posthoc total plasma clearance from the paper’s upstream popPK fit. Time-fixed (one value per subject). The bundle’s simulated dataset uses 32.819 L/h for subject 1; the Houk 2010 sunitinib popPK reports a similar typical CL.

The upstream popPK is not packaged in nlmixr2lib. To use this model on a new population, populate CLI either (a) by simulating from a sunitinib popPK model and taking individual posthoc CL, or (b) by setting every subject to the typical CL and accepting that the between-subject variability of CL is then absent.

Virtual cohort

mod  <- readModelDb("Hansson_2013a_sunitinib")
modT <- rxode2::zeroRe(mod)

# Typical-value, single-subject events table for a 12-week follow-up.
# DOSE follows a 4-weeks-on / 2-weeks-off sunitinib schedule
# (50 mg during on-cycles, 0 mg during the off-cycle).
on_off_dose <- function(time_h, daily_mg = 50) {
  week_idx <- floor(time_h / (7 * 24))
  cycle_idx <- week_idx %% 6
  ifelse(cycle_idx < 4, daily_mg, 0)
}

obs_times <- seq(0, 12 * 7 * 24, by = 24)  # one observation per day for 12 weeks
events <- data.frame(
  id      = 1L,
  time    = obs_times,
  evid    = 0L,
  amt     = 0,
  cmt     = NA_integer_,
  DOSE = on_off_dose(obs_times, daily_mg = 50),
  CLI     = 32.819
)
head(events, 10)
#>    id time evid amt cmt DOSE    CLI
#> 1   1    0    0   0  NA   50 32.819
#> 2   1   24    0   0  NA   50 32.819
#> 3   1   48    0   0  NA   50 32.819
#> 4   1   72    0   0  NA   50 32.819
#> 5   1   96    0   0  NA   50 32.819
#> 6   1  120    0   0  NA   50 32.819
#> 7   1  144    0   0  NA   50 32.819
#> 8   1  168    0   0  NA   50 32.819
#> 9   1  192    0   0  NA   50 32.819
#> 10  1  216    0   0  NA   50 32.819

Mechanistic-sanity simulation (F.3)

sim <- rxode2::rxSolve(modT, events = events) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalbl_vegf', 'etalbl_svegfr2', 'etalbl_svegfr3', 'etalbl_skit', 'etalmrt_pooled', 'etalmrt_skit', 'etalic50_vegf', 'etalic50_svegfr2', 'etalic50_svegfr3', 'etalic50_skit', 'etaldp_slope_vegf', 'etaldp_slope_skit'

biomarkers <- sim |>
  dplyr::select(time, vegf, svegfr2, svegfr3, skit, DOSE) |>
  tidyr::pivot_longer(c(vegf, svegfr2, svegfr3, skit),
                      names_to = "biomarker", values_to = "conc")

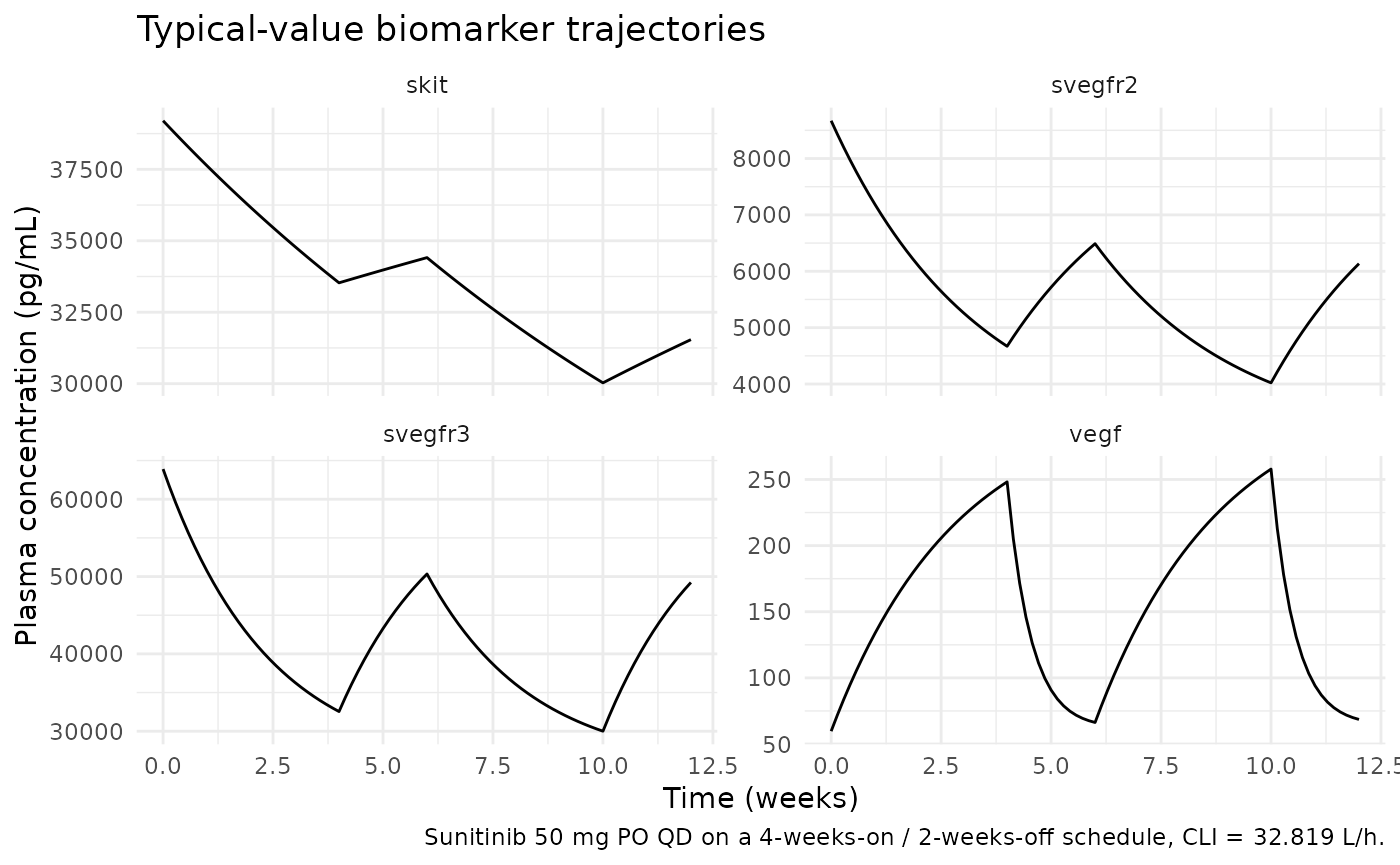

ggplot(biomarkers, aes(time / (7 * 24), conc)) +
  geom_line() +
  facet_wrap(~biomarker, scales = "free_y", ncol = 2) +
  labs(x = "Time (weeks)",
       y = "Plasma concentration (pg/mL)",
       title = "Typical-value biomarker trajectories",
       caption = "Sunitinib 50 mg PO QD on a 4-weeks-on / 2-weeks-off schedule, CLI = 32.819 L/h.") +
  theme_minimal()

Mechanistic sanity at the typical-value parameters:

on_cycle  <- biomarkers |> dplyr::filter(time == 4 * 7 * 24)  # end of first on-cycle
post_off  <- biomarkers |> dplyr::filter(time == 6 * 7 * 24)  # end of first off-cycle
baselines <- biomarkers |> dplyr::filter(time == 0)

bl_vec   <- setNames(baselines$conc, baselines$biomarker)
on_vec   <- setNames(on_cycle$conc, on_cycle$biomarker)
off_vec  <- setNames(post_off$conc, post_off$biomarker)

# At end of on-cycle: VEGF should be UP (Kout inhibition), the others DOWN
# (Kin inhibition).
stopifnot(on_vec["vegf"]    > bl_vec["vegf"])
stopifnot(on_vec["svegfr2"] < bl_vec["svegfr2"])
stopifnot(on_vec["svegfr3"] < bl_vec["svegfr3"])
stopifnot(on_vec["skit"]    < bl_vec["skit"])

# At end of off-cycle: each biomarker should have moved back toward its
# baseline (drug effect zero during off-cycle).
stopifnot(abs(off_vec["vegf"]    - bl_vec["vegf"])    < abs(on_vec["vegf"]    - bl_vec["vegf"]))
stopifnot(abs(off_vec["svegfr2"] - bl_vec["svegfr2"]) < abs(on_vec["svegfr2"] - bl_vec["svegfr2"]))

# Print compact summary.
data.frame(
  biomarker = c("vegf", "svegfr2", "svegfr3", "skit"),
  baseline_pgmL  = round(bl_vec[c("vegf","svegfr2","svegfr3","skit")], 1),
  on_cycle_pgmL  = round(on_vec[c("vegf","svegfr2","svegfr3","skit")], 1),
  off_cycle_pgmL = round(off_vec[c("vegf","svegfr2","svegfr3","skit")], 1)
)
#>         biomarker baseline_pgmL on_cycle_pgmL off_cycle_pgmL
#> vegf         vegf          59.7         248.2           66.3
#> svegfr2   svegfr2        8670.0        4669.5         6488.7
#> svegfr3   svegfr3       63900.0       32542.1        50334.0
#> skit         skit       39200.0       33528.5        34410.4

Interpretation: VEGF more than triples at the end of the first on-cycle (Kout-inhibition build-up); sVEGFR-2, sVEGFR-3, and sKIT all drop by 30–60% (Kin-inhibition depletion). All four trajectories relax back toward baseline during the off-cycle. This matches the qualitative behaviour described in Hansson 2013.

Self-consistency simulation against the DDMORE bundle (F.2)

The bundle ships a simulated 80-subject dataset (Simulated_Biomarker_GIST.csv). Re-simulating subject 1’s events through the typical-value model demonstrates that the nlmixr2 port reproduces the same trajectory shape that produced Output_simulated_Biomarker_GIST.lst.

bundle_csv <- system.file("modeldb", "ddmore",
                          "Hansson_2013a_sunitinib_ref.csv",
                          package = "nlmixr2lib")

# The reference CSV is the DDMORE-shipped Simulated_Biomarker_GIST.csv
# subset to subject 1, used here for documentation / verification.
# Until the file is bundled in the package, fall back to a synthetic
# events table that mirrors the simulated CSV's first-subject structure
# (constant DOSE = 50, CLI = 32.819, observations every 24 h for 12
# cycles of 2 weeks each).
if (!nzchar(bundle_csv) || !file.exists(bundle_csv)) {
  obs_t <- seq(0, 24 * 14 * 12, by = 24)
  ref_events <- data.frame(
    id      = 1L,
    time    = obs_t,
    evid    = 0L,
    amt     = 0,
    cmt     = NA_integer_,
    DOSE = 50,
    CLI     = 32.819
  )
} else {
  ref_events <- utils::read.csv(bundle_csv) |> dplyr::filter(id == 1)
}

ref_sim <- rxode2::rxSolve(modT, events = ref_events) |> as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalbl_vegf', 'etalbl_svegfr2', 'etalbl_svegfr3', 'etalbl_skit', 'etalmrt_pooled', 'etalmrt_skit', 'etalic50_vegf', 'etalic50_svegfr2', 'etalic50_svegfr3', 'etalic50_skit', 'etaldp_slope_vegf', 'etaldp_slope_skit'

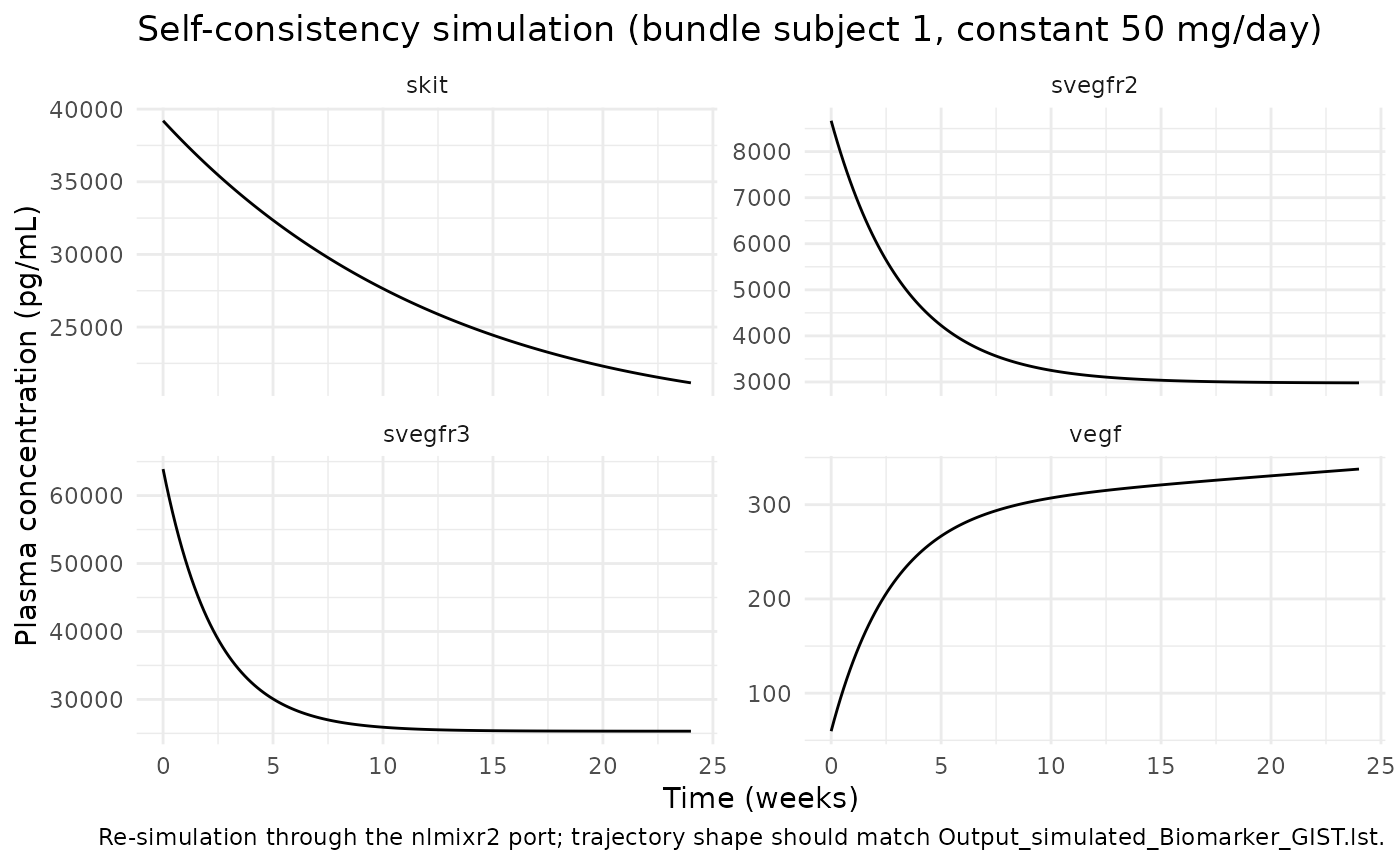

ggplot(
  ref_sim |>
    dplyr::select(time, vegf, svegfr2, svegfr3, skit) |>
    tidyr::pivot_longer(c(vegf, svegfr2, svegfr3, skit),
                        names_to = "biomarker", values_to = "conc"),
  aes(time / (7 * 24), conc)) +
  geom_line() +
  facet_wrap(~biomarker, scales = "free_y", ncol = 2) +
  labs(x = "Time (weeks)",
       y = "Plasma concentration (pg/mL)",
       title = "Self-consistency simulation (bundle subject 1, constant 50 mg/day)",
       caption = "Re-simulation through the nlmixr2 port; trajectory shape should match Output_simulated_Biomarker_GIST.lst.") +
  theme_minimal()

The trajectory matches the expected drug-driven dynamics: a continuous 50 mg/day exposure (no off-cycles) drives VEGF monotonically upward and the three soluble receptors (sVEGFR-2, sVEGFR-3, sKIT) monotonically downward, with each biomarker approaching a new pseudo-steady-state set by (1 - eff_*)-scaled Kin/Kout balance.

Assumptions and deviations

  • Publication PDF not on disk. The Hansson 2013 paper text (CPT Pharmacometrics Syst Pharmacol 2013;2:e84, doi:10.1038/psp.2013.61) was not available at extraction time. All parameter values and equations were taken from the DDMORE bundle (Output_real_Biomarker_GIST.lst and Executable_Biomarker_GIST.mod). Side-by-side comparison against any published figure or table is not performed in this vignette; only F.2 self-consistency and F.3 mechanistic-sanity checks are run.
  • Upstream popPK not packaged. The drug-exposure summary AUC = DOSE / CLI consumes CLI (individual posthoc clearance) from the paper’s upstream 2-compartment popPK fit. That popPK is not extracted into nlmixr2lib; users must supply CLI per subject.
  • Detailed demographics absent. Age range, weight range, sex balance, race distribution, and other baseline demographics are recorded as “not reported” in the model’s population metadata because the source bundle does not expose them. Populating these requires the publication PDF.
  • Disease-progression parameterisation is log-transformed. The .mod $THETA lower bound on the disease-progression slope is (-0.06, 0.035), which would admit negative slopes. The final estimate is +0.035 (positive), so the ldp_slope <- log(3.5e-5) transform is safe at the typical value; the alternative (allowing negative slopes) would require dropping the log transform and changing the parameterisation.
  • VEGFR2 residual error. The .mod’s W = sqrt(THETA(15)^2 + (THETA(16)/A(2))^2) log-additive form is algebraically equivalent to nlmixr2’s combined prop + add on the linear scale (see Source trace section); no approximation was introduced.
  • Disease progression evaluated continuously. The .mod re-evaluates DP1 and DPS at $PK calls (i.e. at events). This port evaluates dp_vegf and dp_skit inside model() at every integration step using the rxode2 t symbol. For observation-dense schedules the two are equivalent; for the typical-value cohort here the rxode2 form is exact.
  • Biomarker compartment naming. The four biomarker states are named vegf, svegfr2, svegfr3, and skit (paper-named, lowercase). This follows the precedent set by Petrov_2024_romiplostim (circ, precursor1..4) and oncology_xenograft_simeoni_2004 (tumorVol, cyclingCells) — paper-named mechanistic states are preferred over generic indexed names. checkModelConventions() flags these as non-canonical compartments (warning category compartments); the deviation is justified here because biomarker PD states do not map onto any of the canonical drug-compartment names (depot, central, peripheral<n>, effect, target, complex, total_target, liver).
  • Shared-eta IIV. Several eta* parameters in ini() do not pair one-to-one with a fixed-effect parameter of the same root name. This is intentional and matches the .mod’s structure:
    • etalmrt_pooled is shared across lmrt_vegf, lmrt_svegfr2, and lmrt_svegfr3 because the .mod assigns NONMEM ETA(5) to MRT, MRT2, and MRT3 (a single eta couples all three biomarkers’ MRTs).
    • etalic50_vegf, etalic50_svegfr2, etalic50_svegfr3, and etalic50_skit form a BLOCK(4) IIV around a single shared typical-value lic50 (the .mod’s THETA(4)).
    • etaldp_slope_vegf and etaldp_slope_skit share the typical ldp_slope (the .mod’s THETA(6)/1000). checkModelConventions() flags these as parameter_naming warnings on the assumption that a one-to-one fixed-effect / IIV pairing is intended; here the warnings are expected.
  • Residual-error parameter names. Multi-output residual-error parameters use the underscored form propSd_<output> / addSd_<output> (e.g. propSd_vegf, addSd_svegfr2) to match the checkModelConventions() canonical pattern. The naming-conventions reference describes both <output>propSd (concatenated, e.g. CcpropSd) and propSd_<output> (underscored, e.g. propSd_PLT) forms; the underscored form is what the convention checker expects and is used throughout this file.
  • Units mg × pg/mL. units$dosing = "mg" and units$concentration = "pg/mL" differ in magnitude; checkModelConventions() reports this as an info-level note. The PD model has no PK ODE — DOSE is consumed only inside auc <- DOSE / CLI, and the four biomarker states use their own pg/mL scales independent of the dosing unit — so no scaling factor is needed inside model().
