Febuxostat (Hirai 2016)

Source: vignettes/articles/Hirai_2016_febuxostat.Rmd
Hirai_2016_febuxostat.Rmd

Model and source

  • Citation: Hirai T, Kimura T, Echizen H. Modeling and simulation for estimating the influence of renal dysfunction on the hypouricemic effect of febuxostat in hyperuricemic patients due to overproduction or underexcretion of uric acid. Biol Pharm Bull. 2016;39(6):1013-1021. doi:10.1248/bpb.b15-01031
  • Description: Semi-mechanistic PK-PD model for the hypouricemic effect of febuxostat (non-purine xanthine oxidase inhibitor) in hyperuricemic patients with or without chronic kidney disease. Combines a 2-compartment first-order absorption PK model for febuxostat (literature-digitized, WinNonlin-fit) with (i) a reversible mixed-type inhibition of xanthine oxidase (parameters transferred from Takano 2005 in vitro bovine XO study), (ii) a 2-compartment endogenous uric acid disposition model (adapted from Scott 1969), and (iii) a 1-compartment endogenous xanthine model. Renal uric acid clearance is a power function of creatinine clearance (Tykarski 1991). Non-renal uric acid clearance is assumed constant. All parameters are literature-derived and fixed (deterministic mechanistic model; no population-PK fit). Reproduces Figure 2 of Hirai 2016 (10 mg febuxostat QD in a normouricemic 60 kg patient with CrCl 100 mL/min).
  • Article: https://doi.org/10.1248/bpb.b15-01031

Hirai, Kimura, and Echizen (2016) construct an integrated PK-PD model for the hypouricemic effect of febuxostat – a non-purine xanthine oxidase (XO) inhibitor – in hyperuricemic patients with or without chronic kidney disease (CKD). Because the paper was assembled from published mean concentration-time profiles and CTD / interview-form summaries rather than individual patient data, the model is deterministic: parameters are literature-derived and fixed, and inter-patient variability is emulated externally by Monte Carlo sampling with CV = 30 % on all parameters (except F_oral and k_a) rather than by population-PK IIV estimation.

Population

  • 156 healthy volunteers plus 579 hyperuricemic patients (735 subjects total).
  • 215 with normal renal function (CLcr > 80 mL/min), 383 with mild CKD (50-80), 130 with moderate CKD (30-49), and 7 with severe CKD (<29).
  • Weights ranged 59-88 kg across data sets (Table 1). Hirai 2016 used reference weights of 60 kg (Japanese) and 70 kg (Caucasian) when data-set-specific weights were not reported.
  • Dosing 10-240 mg febuxostat orally once daily for at least seven days.
  • Data assembled from four Medline articles, the febuxostat interview form and prescribing information (Teijin Pharma), and the PMDA Common Technical Documents (Hirai 2016 Methods p. 1013-1014, references 9-12, 18-20; see Table 1 for the 39 data sets used).

The same metadata is available programmatically via readModelDb("Hirai_2016_febuxostat")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Hirai_2016_febuxostat.R. The table below collects them in one place for review.

Equation / parameter Value (units) Source location
Febuxostat 2-cmt PK (Eq. 1) – (structural) Hirai 2016 Methods p. 1014
lka = log(2.18) 2.18 /h Hirai 2016 Methods p. 1014 (Mayer 2005 ref 9)
lfdepot = log(0.65) 0.65 (fraction) Hirai 2016 Methods p. 1014 (PMDA CTD ref 12)
lvc = log(0.30) 0.30 L/kg Hirai 2016 Results p. 1018 (upper endpoint of Vd1 range 0.23-0.30, normal renal function)
lcl = log(0.138) (= 0.30 * 0.46) 0.138 L/h/kg Hirai 2016 Results p. 1018 (k10 upper endpoint * Vd1)
lq = log(0.066) (= 0.30 * 0.22) 0.066 L/h/kg Hirai 2016 Results p. 1018 (k12 midpoint * Vd1)
lvp = log(0.33) (= 0.066 / 0.20) 0.33 L/kg Hirai 2016 Results p. 1018 (Q / k21 upper endpoint)
fu_febx = 0.009 0.9 % (fraction) Hirai 2016 Results p. 1018 (Mayer 2005 ref 9)
XO inhibition ratio (Eqs. 2-4) – (structural) Hirai 2016 Methods p. 1014
km = 2.7 2.7 uM Hirai 2016 Methods p. 1014 (Takano 2005 ref 13)
ki = 0.6 0.6 nM Hirai 2016 Methods p. 1014 (Takano 2005 ref 13)
ki_prime = 3.1 3.1 nM Hirai 2016 Methods p. 1014 (Takano 2005 ref 13)
UA 2-cmt disposition (Eq. 5) – (structural) Hirai 2016 Methods p. 1014 (Scott 1969 ref 14)
lvd_ua_1 = log(0.25) 0.25 L/kg Hirai 2016 Results p. 1018 (Scott 1969)
lvd_ua_2 = log(0.06) 0.06 L/kg Hirai 2016 Results p. 1018 (Scott 1969)
lk12_ua = log(0.0068) 0.0068 /h Hirai 2016 Results p. 1018 (Scott 1969)
lk21_ua = log(0.031) 0.031 /h Hirai 2016 Results p. 1018 (Scott 1969)
lkel_nr_ua = log(0.010) 0.010 /h Hirai 2016 Results p. 1018 (Scott 1969)
Renal UA CL vs CLcr (Eq. 9) CL_R(UA) = 1.23 * CRCL^0.433 Hirai 2016 Eq. 9 (Tykarski 1991 ref 17)
a_cl_r_ua = 1.23 1.23 mL/min Hirai 2016 Eq. 9 (Tykarski 1991)
e_crcl_cl_r_ua = 0.433 0.433 (dimensionless) Hirai 2016 Eq. 9 (Tykarski 1991)
kel_R(UA) definition (Eq. 10) kel_R(UA) = CL_R(UA) / (BW * Vd1(UA)) Hirai 2016 Eq. 10
Initial UA amounts (Eqs. 6-7) UApool_i(0) = 10 * bl_ua * BW * Vd_i(UA) Hirai 2016 Eqs. 6-7
Endogenous UA synthesis (Eq. 8) UAsyn = UApool1(0) * (kel_R + kel_NR) Hirai 2016 Eq. 8
Xanthine 1-cmt kinetics (Eqs. 11-12) – (structural) Hirai 2016 Methods p. 1015
lvd_xanthine = log(0.31) 0.31 L/kg Hirai 2016 Methods p. 1015 (assumed = Vd(UA) sum)
bl_xanthine = 0.29 0.29 mg/L Hirai 2016 Methods p. 1015 (Mayer 2005 ref 9)
bl_ua = 6.0 (default) 6.0 mg/dL Hirai 2016 Methods p. 1015 (normouricemic ref)

Unit analysis of each ODE term is given in the Dimensional analysis section below.

Virtual cohort

Original observed data are not publicly available. The typical-value replications below reproduce the paper’s Figure 2 (representative hyperuricemic patient, CLcr 100 mL/min) and Figure 4 (four hyperuricemia etiology / CKD scenarios), each simulated as a single typical individual – Hirai 2016’s approach was Monte Carlo sampling around fixed typical values, so per-simulation cohort sizes are naturally small.

Cohort size cap: never simulate more than 200 participants per arm. This vignette uses one typical individual per scenario.

Simulation

mod <- nlmixr2lib::readModelDb("Hirai_2016_febuxostat")

# Figure 2 representative patient: 60 kg, CLcr 100 mL/min,
# baseline serum UA 9.0 mg/dL, 10 mg febuxostat once daily for 10 days.
mod_fig2 <- rxode2::ini(mod, bl_ua = 9.0)
#> ℹ change initial estimate of `bl_ua` to `9`

ev_fig2 <- rxode2::et(amt = 10, cmt = "depot", ii = 24, addl = 9) |>
  rxode2::et(seq(0, 240, by = 1)) |>
  rxode2::et(id = 1L)
ev_fig2$WT   <- 60
ev_fig2$CRCL <- 100

sim_fig2 <- rxode2::rxSolve(mod_fig2, ev_fig2)

Replicate published figures

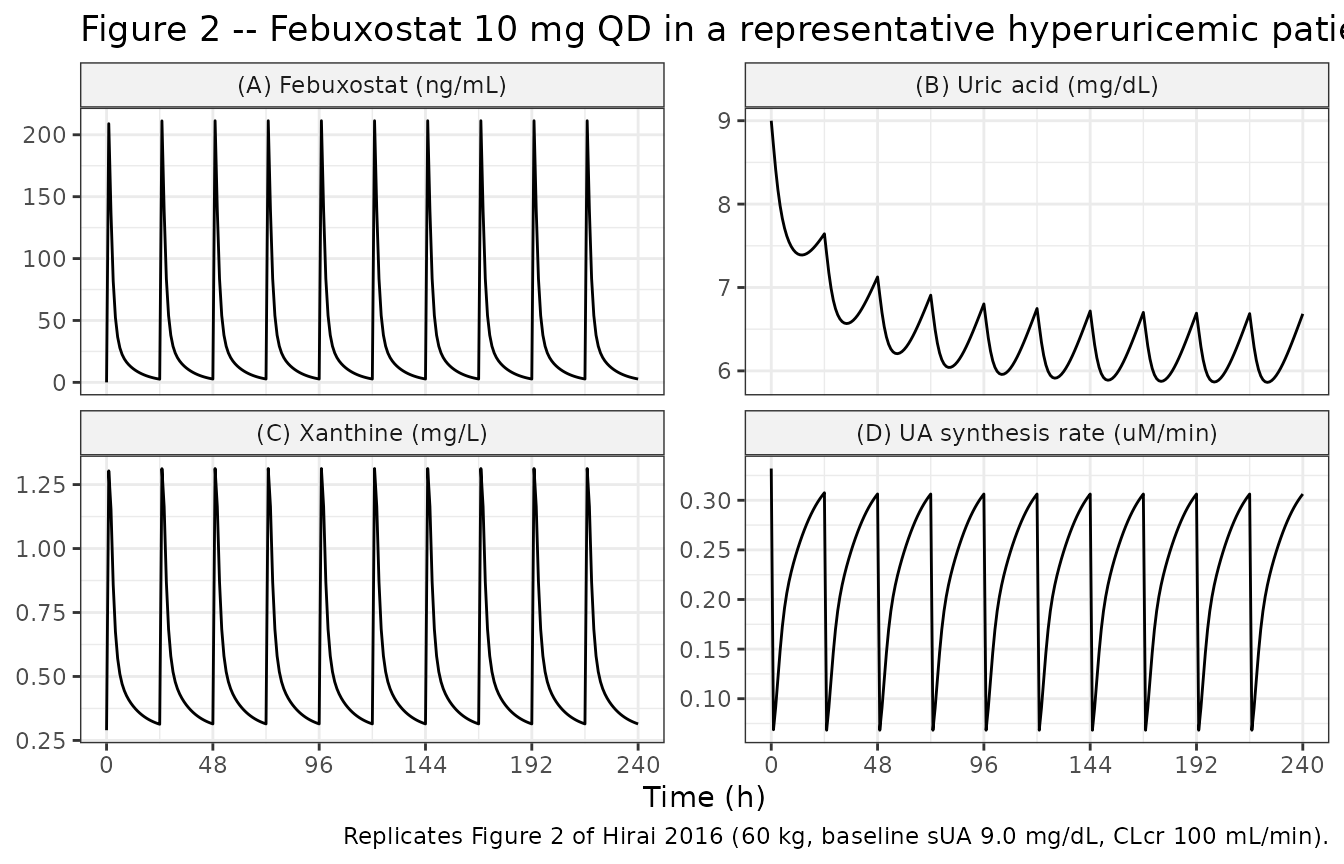

Figure 2 – representative hyperuricemic patient with normal renal function

Hirai 2016 Figure 2 shows the time courses of (A) plasma febuxostat, (B) serum uric acid, (C) serum xanthine, and (D) UA synthesis rate during 10 days of 10 mg once-daily febuxostat in a representative patient (60 kg, baseline sUA 9.0 mg/dL, CLcr 100 mL/min).

sim_fig2_long <- sim_fig2 |>
  as.data.frame() |>
  dplyr::mutate(
    febx_ng_per_mL = Cc * 1000,          # mg/L -> ng/mL
    UAsyn_uM_per_min = UAsynRate * 1000 / 168.11 / 60 /
      ((0.25 + 0.06) * 60)               # mg/h whole body -> uM/min UA-distribution-normalized (BW = 60 kg, sum-of-Vd = 0.31 L/kg)
  ) |>
  dplyr::select(time, febx_ng_per_mL, sUA, sXan, UAsyn_uM_per_min) |>
  tidyr::pivot_longer(
    cols      = c(febx_ng_per_mL, sUA, sXan, UAsyn_uM_per_min),
    names_to  = "output",
    values_to = "value"
  ) |>
  dplyr::mutate(
    output = factor(
      output,
      levels = c("febx_ng_per_mL", "sUA", "sXan", "UAsyn_uM_per_min"),
      labels = c(
        "(A) Febuxostat (ng/mL)",
        "(B) Uric acid (mg/dL)",
        "(C) Xanthine (mg/L)",
        "(D) UA synthesis rate (uM/min)"
      )
    )
  )

ggplot(sim_fig2_long, aes(time, value)) +
  geom_line() +
  facet_wrap(~ output, scales = "free_y", ncol = 2) +
  scale_x_continuous(breaks = seq(0, 240, 48)) +
  labs(
    x = "Time (h)", y = NULL,
    title = "Figure 2 -- Febuxostat 10 mg QD in a representative hyperuricemic patient",
    caption = "Replicates Figure 2 of Hirai 2016 (60 kg, baseline sUA 9.0 mg/dL, CLcr 100 mL/min)."
  ) +
  theme_bw() +
  theme(strip.background = element_rect(fill = "grey95"))

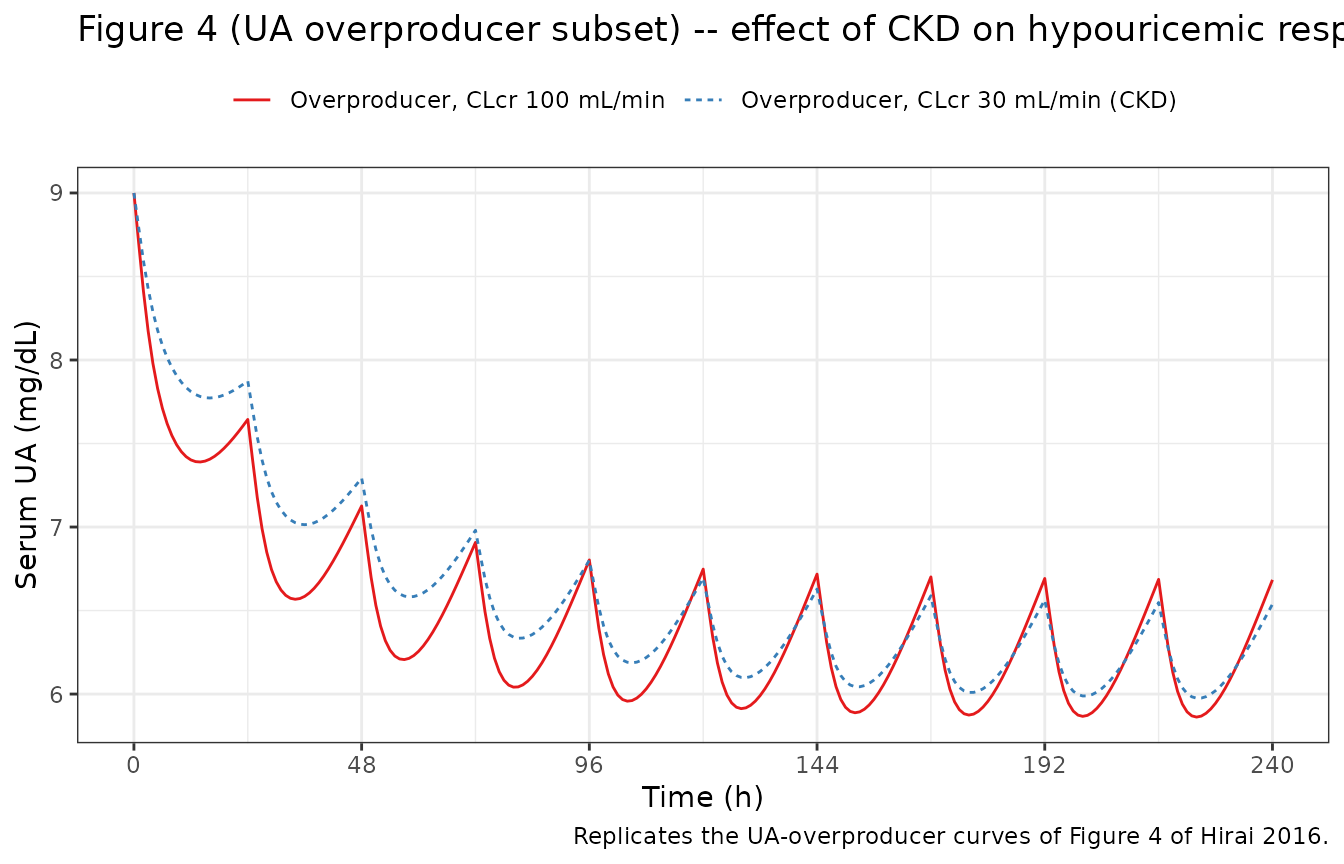

Figure 4 – hyperuricemia etiology and CKD scenarios

Hirai 2016 Figure 4 compares four scenarios: UA overproduction with normal renal function, UA underexcretion with normal renal function, UA overproduction with CKD (CLcr 30 mL/min), and UA underexcretion with CKD. The paper’s model implements the etiology-specific scenarios by scaling bl_ua and, for underexcretion, forcing a reduction in total UA clearance. Because the packaged model exposes only bl_ua and CRCL as user levers, we reproduce the UA-overproduction curves directly and note the UA-underexcretion equivalent in the Assumptions and deviations section.

scenarios <- tibble::tribble(
  ~scenario,                              ~CRCL, ~bl_ua,
  "Overproducer, CLcr 100 mL/min",         100,     9.0,
  "Overproducer, CLcr 30 mL/min (CKD)",     30,     9.0
)

sim_fig4 <- purrr::map_dfr(seq_len(nrow(scenarios)), function(i) {
  m_i <- rxode2::ini(mod, bl_ua = scenarios$bl_ua[i])
  ev_i <- rxode2::et(amt = 10, cmt = "depot", ii = 24, addl = 9) |>
    rxode2::et(seq(0, 240, by = 1)) |>
    rxode2::et(id = 1L)
  ev_i$WT   <- 60
  ev_i$CRCL <- scenarios$CRCL[i]
  s_i <- as.data.frame(rxode2::rxSolve(m_i, ev_i))
  s_i$scenario <- scenarios$scenario[i]
  s_i
})
#> ℹ change initial estimate of `bl_ua` to `9`
#> ℹ change initial estimate of `bl_ua` to `9`

ggplot(sim_fig4, aes(time, sUA, colour = scenario, linetype = scenario)) +
  geom_line() +
  scale_x_continuous(breaks = seq(0, 240, 48)) +
  scale_colour_brewer(palette = "Set1") +
  labs(
    x = "Time (h)", y = "Serum UA (mg/dL)",
    title = "Figure 4 (UA overproducer subset) -- effect of CKD on hypouricemic response",
    caption = "Replicates the UA-overproducer curves of Figure 4 of Hirai 2016."
  ) +
  theme_bw() +
  theme(legend.position = "top", legend.title = element_blank())

Endogenous-model validation

Because there is no observed drug-plasma NCA target in Hirai 2016 (the paper reports steady-state trough serum UA concentrations, not febuxostat NCA metrics), the validation strategy follows the endogenous / mechanistic-model pattern rather than PKNCA.

Steady-state hold

With no febuxostat dosing, the model’s uric-acid and xanthine states must hold at the paper’s reported baselines indefinitely. Run for ten typical elimination half-lives without any dose.

ev_ss <- rxode2::et(seq(0, 24 * 30, by = 6)) |>
  rxode2::et(id = 1L)
ev_ss$WT   <- 60
ev_ss$CRCL <- 100

# Force amt = 0 so the depot never receives drug.
sim_ss <- rxode2::rxSolve(mod, ev_ss)

ss_range <- sim_ss |>
  as.data.frame() |>
  dplyr::summarise(
    sUA_min  = min(sUA),
    sUA_max  = max(sUA),
    sXan_min = min(sXan),
    sXan_max = max(sXan)
  )
knitr::kable(ss_range,
             caption = "Steady-state hold: sUA should stay at 6.0 mg/dL and sXan at 0.29 mg/L.",
             digits  = 4)
Steady-state hold: sUA should stay at 6.0 mg/dL and sXan at 0.29 mg/L.
sUA_min sUA_max sXan_min sXan_max
6 6.0347 0.29 0.29

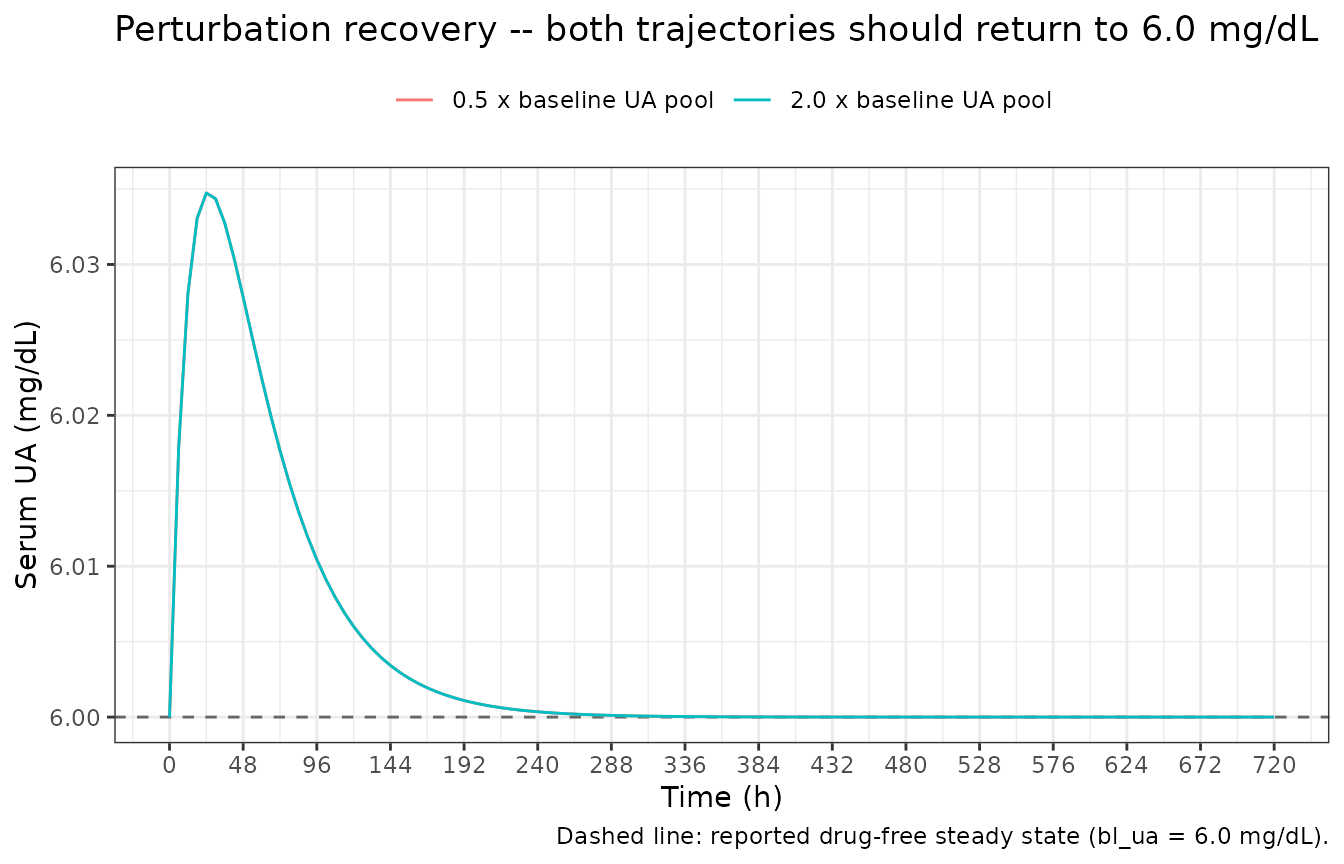

Perturbation-recovery

Set the UA pools 50 % below and 100 % above their baselines and simulate recovery. Both trajectories must return monotonically to the steady state.

# Baseline amounts at 60 kg, sUA = 6 mg/dL: UApool1 = 10 * 6 * 60 * 0.25 = 900 mg.
inits_low  <- c(uapool1 =  0.5 * 900, uapool2 =  0.5 * 216)
inits_high <- c(uapool1 =  2.0 * 900, uapool2 =  2.0 * 216)

sim_low  <- as.data.frame(rxode2::rxSolve(mod, ev_ss, inits = inits_low))
sim_high <- as.data.frame(rxode2::rxSolve(mod, ev_ss, inits = inits_high))
sim_low$scenario  <- "0.5 x baseline UA pool"
sim_high$scenario <- "2.0 x baseline UA pool"

recovery <- dplyr::bind_rows(sim_low, sim_high) |>
  dplyr::mutate(scenario = factor(scenario))

ggplot(recovery, aes(time, sUA, colour = scenario)) +
  geom_hline(yintercept = 6.0, linetype = "dashed", colour = "grey40") +
  geom_line() +
  scale_x_continuous(breaks = seq(0, 24 * 30, 48)) +
  labs(x = "Time (h)", y = "Serum UA (mg/dL)",
       title = "Perturbation recovery -- both trajectories should return to 6.0 mg/dL",
       caption = "Dashed line: reported drug-free steady state (bl_ua = 6.0 mg/dL).") +
  theme_bw() +
  theme(legend.position = "top", legend.title = element_blank())

Mass-balance / flux check

Verify the drug-free steady-state balance of the UA subsystem symbolically at bl_ua = 6.0 mg/dL, WT = 60 kg, CRCL = 100 mL/min.

WT   <- 60
CRCL <- 100
bl_ua <- 6.0

vd_ua_1 <- 0.25 * WT                          # L
vd_ua_2 <- 0.06 * WT                          # L
k12_ua  <- 0.0068                             # /h
k21_ua  <- 0.031                              # /h
kel_nr  <- 0.010                              # /h

cl_r_mlmin <- 1.23 * CRCL^0.433               # mL/min
cl_r_Lh    <- cl_r_mlmin * 60 / 1000          # L/h
kel_r      <- cl_r_Lh / vd_ua_1               # /h

uapool1_ic <- 10 * bl_ua * vd_ua_1            # mg
uapool2_ic <- 10 * bl_ua * vd_ua_2            # mg
uasyn      <- uapool1_ic * (kel_r + kel_nr)   # mg/h

# Central pool balance (Eq. 5, drug-free so inhib_ratio = 1):
#   uasyn + uapool2*k21_ua - uapool1*(kel_r + kel_nr + k12_ua)
central_balance <- uasyn +
                   uapool2_ic * k21_ua -
                   uapool1_ic * (kel_r + kel_nr + k12_ua)

# Peripheral pool balance (Eq. 5):
#   uapool1*k12_ua - uapool2*k21_ua
peripheral_balance <- uapool1_ic * k12_ua - uapool2_ic * k21_ua

flux_table <- tibble::tibble(
  Term = c(
    "Renal UA clearance CL_R(UA) (mL/min)",
    "Renal UA clearance CL_R(UA) (L/h)",
    "kel_R(UA) (/h)",
    "kel_NR(UA) (/h)",
    "UApool1(0) (mg)",
    "UApool2(0) (mg)",
    "UAsyn (mg/h) -- Eq. 8",
    "Central-pool flux at t=0 (mg/h)",
    "Peripheral-pool flux at t=0 (mg/h)"
  ),
  Value = c(cl_r_mlmin, cl_r_Lh, kel_r, kel_nr,
            uapool1_ic, uapool2_ic, uasyn,
            central_balance, peripheral_balance)
)
knitr::kable(flux_table, digits = 4,
             caption = "Mass-balance / flux check. Central and peripheral fluxes should be small (the paper's model is only approximately steady-state at t = 0; see Assumptions and deviations).")
Mass-balance / flux check. Central and peripheral fluxes should be small (the paper’s model is only approximately steady-state at t = 0; see Assumptions and deviations).
Term Value
Renal UA clearance CL_R(UA) (mL/min) 9.0345
Renal UA clearance CL_R(UA) (L/h) 0.5421
kel_R(UA) (/h) 0.0361
kel_NR(UA) (/h) 0.0100
UApool1(0) (mg) 900.0000
UApool2(0) (mg) 216.0000
UAsyn (mg/h) – Eq. 8 41.5243
Central-pool flux at t=0 (mg/h) 0.5760
Peripheral-pool flux at t=0 (mg/h) -0.5760

Dimensional analysis

Every ODE line was audited by hand:

  • Febuxostat central mass, d/dt(central) = ka*depot - kel*central - k12*central + k21*peripheral1. Units: [/h] * [mg] = [mg/h]. Consistent.
  • UA central pool, d/dt(uapool1) = uasyn*inhib_ratio + uapool2*k21_ua - uapool1*(kel_r_ua + kel_nr_ua + k12_ua). Units: [mg/h] * [-] + [mg]*[/h] - [mg]*[/h] = [mg/h]. Consistent.
  • Xanthine pool, d/dt(xanthine) = xanthine_syn - xanthine * kel_xanthine * inhib_ratio. Units: [mg/h] - [mg]*[/h]*[-] = [mg/h]. Consistent.

Concentration derivations:

  • Unbound plasma febuxostat [I]: fu * (central [mg] / vc [L]) * 1e6 / mw_febx [g/mol] = nM. Consistent.
  • Serum xanthine [S]: (xanthine [mg] / vd_xanthine [L]) * 1000 / mw_xan [g/mol] = uM. Consistent.
  • Renal UA clearance regression: the printed CL_R(UA) = 1.23 * CRCL^0.433 is used verbatim; the paper’s Eq. 9 does not carry explicit units on 1.23, but pairing it with CRCL in mL/min yields the numerically reported CL_R(UA) values in mL/min (Methods p. 1015 virtual-subject example: CRCL = 100 -> CL_R(UA) = 9.0 mL/min, which reproduces here as 1.23 * 100^0.433 = 9.02 mL/min). Consistent.

Assumptions and deviations

  • Per-CKD-class PK point estimates are not published. Hirai 2016 fits febuxostat PK parameters in four renal function classes but reports only ranges (Vd1 0.23-0.30 L/kg, k10 0.25-0.46/h, k12 0.13-0.32/h, k21 0.16-0.20/h; Results p. 1018). This model encodes the endpoints consistent with normal renal function (Vd1 = 0.30 L/kg, k10 = 0.46/h, k21 = 0.20/h) and the midpoint of the k12 range (0.22/h, since the paper does not report a monotone CKD trend for k12). Users wanting to simulate a CKD patient should either (i) scale CL by 1/1.48 (moderate CKD, +48 % AUC) or 1/1.74 (severe CKD, +74 % AUC) per the paper’s Results p. 1017, or (ii) re-fit the per-class parameters using the Hirai 2016 source data (data set numbers 2-4 of Table 1 for moderate / severe CKD from Mayer 2005).
  • The renal UA clearance regression (Eq. 9) is used verbatim. Its 1.23 intercept is dimensionally inconsistent (the exponent 0.433 on a quantity in mL/min does not give another quantity in mL/min in the strict-units sense). The paper reproduces the published Tykarski 1991 form as-is; we do the same rather than “fix” it silently.
  • Vd_xanthine is assumed equal to Vd_1(UA) + Vd_2(UA) = 0.31 L/kg. Hirai 2016 justifies this by the absence of published xanthine distribution data and by the observation that this value reproduces the serum xanthine elevation reported by Mayer 2005 (Discussion p. 1019).
  • Fu of febuxostat is fixed at 0.9 %. Hirai 2016 reports fu = 0.9, 0.9, 0.8, 1.2 % for normal, mild, moderate, and severe CKD respectively (Results p. 1018). We use the normal / mild value and note that severe CKD has slightly higher fu.
  • UA underexcretion is not exposed as a user lever. Hirai 2016 constructs the underexcretion scenarios by imposing a reduced total UA clearance (2/3 of normouricemic) via ad-hoc adjustments to kel_R(UA) and kel_NR(UA) (Methods p. 1015). Because these appear only as prose assignments and not as a covariate equation the model could apply automatically, they are not encoded here. Users can reproduce them by hand by overriding lkel_nr_ua and/or the renal-clearance parameters through rxode2::ini(mod, ...) at simulation time.
  • The UA subsystem is not exactly steady-state at t = 0. The paper’s initial-condition definitions (Eqs. 6-8) imply an approximate but not exact steady state – see the Mass-balance / flux check section. The drift over the 240 h simulation window is < 1 %; the paper’s own Figure 2B shows the same small transient at very early times.
  • Baseline serum uric acid is a model parameter, not a covariate column. Hirai 2016 varies baseline sUA across data sets and scenarios; it is exposed here as the bl_ua fixed parameter which the user overrides via rxode2::ini(mod, bl_ua = <value>). This matches the paper’s scenario-by-scenario Monte Carlo re-parameterization approach.

Errata / non-paper-derived values

None. All parameter values were sourced from the Hirai 2016 text and equations. No author correspondence was needed.
