Cyclosporine (Umpierrez 2021)

Source: vignettes/articles/Umpierrez_2021_cyclosporine.Rmd
Umpierrez_2021_cyclosporine.Rmd

Model and source

  • Citation: Umpierrez M, Guevara N, Ibarra M, Fagiolino P, Vazquez M, Maldonado C. Development of a population pharmacokinetic model for cyclosporine from therapeutic drug monitoring data. Biomed Res Int. 2021;2021:3108749. doi:10.1155/2021/3108749. Parameter estimates are Umpierrez 2021 Table 2; the variability and residual-error forms are Methods equations (1)-(3) and the creatinine clearance relationship is Results equation (8).
  • Description: Two-compartment oral population PK model with lagged first-order absorption for whole-blood cyclosporine in Uruguayan transplant and autoimmune-disease patients monitored at steady state, with a power effect of Cockcroft-Gault creatinine clearance on CL/F, between-subject variability on CL/F and Q/F, and correlated inter-occasion variability on Ka and CL/F plus inter-occasion variability on the lag time (Umpierrez 2021)
  • Article: Biomed Res Int. 2021;2021:3108749 (open access)

Umpierrez et al. built a population PK model of whole-blood cyclosporine from routine therapeutic drug monitoring (TDM) in Montevideo, Uruguay, for use in Bayesian dose individualisation. Every observation is a steady-state concentration drawn at 0, 1, 2, 3 or 4 h after an oral dose. The final model is a two-compartment disposition model with lagged first-order absorption; the only retained covariate is Cockcroft-Gault creatinine clearance, which enters CL/F as a power function with a negative exponent. Variability is split between subjects (CL/F, Q/F) and between monitoring occasions (Ka, CL/F and the lag time, with Ka and CL/F correlated at the occasion level).

Population

The model-building cohort (Group A, Umpierrez 2021 Table 1) comprised 37 patients (16 male, 21 female) with at least one four-sample steady-state profile, contributing 621 whole-blood concentrations. Mean (SD) age was 34.4 (15.85) years and body weight 64.3 (11.0) kg. Mean serum creatinine was 1.11 mg/dL (range 0.2-5.9) and mean Cockcroft-Gault creatinine clearance 98.62 mL/min (range 13.79-417.92). Indications were kidney transplantation (14), kidney autoimmune disease (21), liver autoimmune disease (1) and bone-marrow transplantation (1). Concentrations were measured by chemiluminescent microparticle immunoassay (LLOQ 12.5 ng/mL). A second cohort (Group B, 16 patients, 81 concentrations) was used only for a prospective evaluation of Bayesian forecasting across three occasions. Doses were not reported.

The same information is available programmatically via readModelDb("Umpierrez_2021_cyclosporine")()$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Umpierrez_2021_cyclosporine.R. The table below collects them in one place for review.

Equation / parameter Value Source location
ltlag (Tlag) log(0.512 h) Table 2
lka (Ka) log(0.523 1/h) Table 2
lcl (CL/F) log(30.3 L/h) Table 2
lq (Q/F) log(17.0 L/h) Table 2
lvc (V1) log(17.9 L) Table 2
lvp (V2) log(400 L) Table 2
e_crcl_cl -0.204 Table 2 row ‘beta CL-CLCr’; Results equation (8)
CRCL reference 98.62 mL/min n/a Table 1 (Group A mean); Results text below equation (8)
etalcl 0.14704 = log(1 + 0.398^2) Table 2 ‘IIV Cl (%)’ = 39.8; Methods equation (2)
etalq 0.24922 = log(1 + 0.532^2) Table 2 ‘IIV Q (%)’ = 53.2; Methods equation (2)
etaiov_lcl_k 0.13488 = log(1 + 0.380^2) Table 2 ‘IOV Cl (%)’ = 38.0
etaiov_lka_k 0.24426 = log(1 + 0.526^2) Table 2 ‘IOV ka (%)’ = 52.6
cov(etaiov_lka_k, etaiov_lcl_k) -0.10001 Table 2 ‘Ka-Cl’ correlation = -0.551
etaiov_ltlag_k 0.25672 = log(1 + 0.541^2) Table 2 ‘IOV tlag (%)’ = 54.1
propSd 0.228 Table 2 ‘Prop’
addSd 7.52 ng/mL Table 2 ‘Add (ng/mL)’
Exponential random effects n/a Methods equation (1)
Combined error Y = C (1 + e_prop) + e_add n/a Methods equation (3)
cl = CLpop * (CRCL / 98.62)^beta n/a Results equation (8)
Two-compartment ODEs with lagged first-order absorption n/a Results paragraph 2 and Table 2

Virtual cohort

Original observed data are not publicly available. The virtual cohort below reproduces the Group A creatinine-clearance distribution approximately: a log-normal draw centred near the cohort mean, redrawn (not clamped) until every value falls inside the observed range 13.79-417.92 mL/min. Because the paper does not report doses, two common oral maintenance regimens are simulated, 100 mg and 150 mg every 12 h.

Each virtual patient is monitored on three occasions, mirroring the three occasions of the paper’s prospective evaluation (Figure 2). The occasion-level random effects hold for a whole occasion, so each occasion is simulated as its own long run of doses every 12 h and sampled over its final dosing interval. Steady state is reached by repeated dosing rather than with an ss = 1 dose: the peripheral volume is 400 L, so the terminal half-life is long (median about 27 h, about 67 h at the 99th percentile of the between-subject and between-occasion variability on Q/F and CL/F), and a steady-state dose stopped short of true steady state for a few simulated patients with low Q/F. Each occasion is 1512 h long (126 dosing intervals, more than 15 terminal half-lives even at the 99.9th percentile, about 90 h) and the next occasion’s OCC value is switched on by an evid = 2 record between the last sample of one occasion and the first dose of the next.

set.seed(20210409)
rxode2::rxSetSeed(20210409)

n_per_arm <- 100L
n_occ <- 3L
tau <- 12 # h
occ_len <- 126 * tau # h per occasion
n_dose <- 125L # doses per occasion; the last one opens the sampled interval
occ_start <- (seq_len(n_occ) - 1) * occ_len
obs_start <- occ_start + (n_dose - 1) * tau # time of the sampled (last) dose
obs_tad <- sort(unique(c(seq(0, tau, by = 0.25), 1, 2, 3, 4)))

draw_crcl <- function(n) {
  out <- numeric(0)
  while (length(out) < n) {
    x <- exp(rnorm(n, log(85), 0.5))
    out <- c(out, x[x >= 13.79 & x <= 417.92])
  }
  out[seq_len(n)]
}

make_occasion <- function(k, dose) {
  # Occasion 1 starts the record, so it needs no switch row.
  switch_row <- if (k > 1L) {
    tibble(time = occ_start[k] - tau / 2, evid = 2L, amt = 0, addl = 0L, ii = 0, cmt = "central")
  }
  dose_row <- tibble(
    time = occ_start[k], evid = 1L, amt = dose,
    addl = n_dose - 1L, ii = tau, cmt = "depot"
  )
  obs_rows <- tibble(time = obs_start[k] + obs_tad, evid = 0L, amt = 0, addl = 0L, ii = 0, cmt = "central")
  bind_rows(switch_row, dose_row, obs_rows) |> mutate(OCC = k)
}

make_cohort <- function(n, dose, id_offset = 0L) {
  subj <- tibble(id = id_offset + seq_len(n), CRCL = draw_crcl(n))
  per_occ <- bind_rows(lapply(seq_len(n_occ), make_occasion, dose = dose))
  tidyr::crossing(subj, per_occ) |>
    mutate(treatment = paste(dose, "mg q12h")) |>
    arrange(id, time, desc(evid))
}

events <- bind_rows(
  make_cohort(n_per_arm, 100, id_offset = 0L),
  make_cohort(n_per_arm, 150, id_offset = n_per_arm)
)
stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))

summary(distinct(events, id, CRCL)$CRCL)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>   23.25   56.64   85.82   93.72  115.20  343.50

Simulation

mod <- readModelDb("Umpierrez_2021_cyclosporine")
sim <- rxode2::rxSolve(
  mod,
  events = events,
  keep = c("treatment", "OCC", "CRCL"),
  returnType = "data.frame"
) |>
  mutate(tad = time - obs_start[OCC]) |>
  # keep the sampled interval only (rxSolve also returns the evid = 2 rows)
  filter(tad >= 0, tad <= tau)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_lka_1, etaiov_lcl_1, etaiov_lka_2, etaiov_lcl_2, etaiov_lka_3, etaiov_lcl_3, etaiov_lka_4, etaiov_lcl_4, etaiov_ltlag_1, etaiov_ltlag_2, etaiov_ltlag_3, etaiov_ltlag_4
#> as a work-around try putting the mu-referenced expression on a simple line

Steady state is confirmed per simulated patient and occasion: the trough at the start of the sampled interval equals the trough at its end.

ss_chk <- sim |>
  filter(tad %in% c(0, tau)) |>
  group_by(id, OCC) |>
  summarise(ratio = Cc[tad == tau] / Cc[tad == 0], .groups = "drop")
stopifnot(nrow(ss_chk) == 2L * n_per_arm * n_occ)
summary(ss_chk$ratio)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>       1       1       1       1       1       1
stopifnot(
  abs(median(ss_chk$ratio) - 1) < 1e-3,
  quantile(abs(ss_chk$ratio - 1), 0.9) < 0.01
)

A typical-value solve (all random effects zero) at the reference creatinine clearance gives the deterministic profile used for the exact exposure check below.

mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_lka_1, etaiov_lcl_1, etaiov_lka_2, etaiov_lcl_2, etaiov_lka_3, etaiov_lcl_3, etaiov_lka_4, etaiov_lcl_4, etaiov_ltlag_1, etaiov_ltlag_2, etaiov_ltlag_3, etaiov_ltlag_4
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_lka_1, etaiov_lcl_1, etaiov_lka_2, etaiov_lcl_2, etaiov_lka_3, etaiov_lcl_3, etaiov_lka_4, etaiov_lcl_4, etaiov_ltlag_1, etaiov_ltlag_2, etaiov_ltlag_3, etaiov_ltlag_4
#> as a work-around try putting the mu-referenced expression on a simple line
ev_typ <- events |>
  filter(id %in% c(1L, n_per_arm + 1L), OCC == 1L) |>
  mutate(CRCL = 98.62)
sim_typ <- rxode2::rxSolve(
  mod_typical,
  events = ev_typ,
  keep = c("treatment", "OCC"),
  returnType = "data.frame"
) |>
  mutate(tad = time - obs_start[1]) |>
  filter(tad >= 0)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq', 'etaiov_lka_1', 'etaiov_lcl_1', 'etaiov_lka_2', 'etaiov_lcl_2', 'etaiov_lka_3', 'etaiov_lcl_3', 'etaiov_lka_4', 'etaiov_lcl_4', 'etaiov_ltlag_1', 'etaiov_ltlag_2', 'etaiov_ltlag_3', 'etaiov_ltlag_4'
#> Warning: multi-subject simulation without without 'omega'

Replicate published figures

Steady-state profile over the monitoring window (Figure 1)

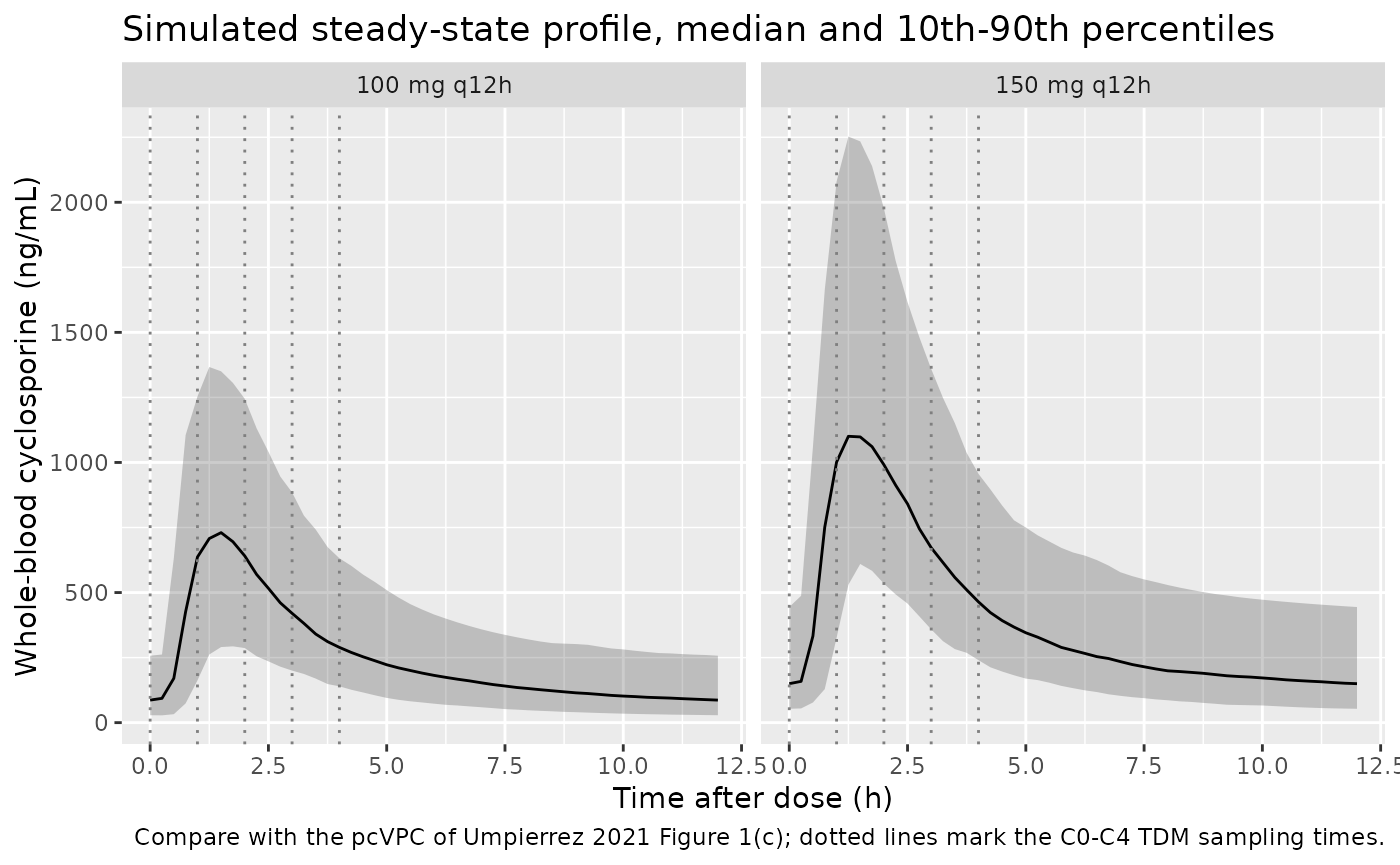

Umpierrez 2021 Figure 1(c) is a prediction-corrected VPC of the 0-4 h steady-state TDM samples; Figure 1(a) shows the observed concentrations spanning 0 to about 2500 ng/mL, most of them below 1000 ng/mL. The observed data and the patients’ doses cannot be reproduced, but the simulated percentiles below show the shape and spread of the steady-state profile the model implies for two plausible regimens, including the full 12-h interval.

sim |>
  filter(!is.na(Cc)) |>
  group_by(treatment, tad) |>
  summarise(
    Q10 = quantile(Cc, 0.10),
    Q50 = quantile(Cc, 0.50),
    Q90 = quantile(Cc, 0.90),
    .groups = "drop"
  ) |>
  ggplot(aes(tad, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.25) +
  geom_line() +
  geom_vline(xintercept = c(0, 1, 2, 3, 4), linetype = "dotted", colour = "grey50") +
  facet_wrap(~treatment) +
  labs(
    x = "Time after dose (h)",
    y = "Whole-blood cyclosporine (ng/mL)",
    title = "Simulated steady-state profile, median and 10th-90th percentiles",
    caption = "Compare with the pcVPC of Umpierrez 2021 Figure 1(c); dotted lines mark the C0-C4 TDM sampling times."
  )

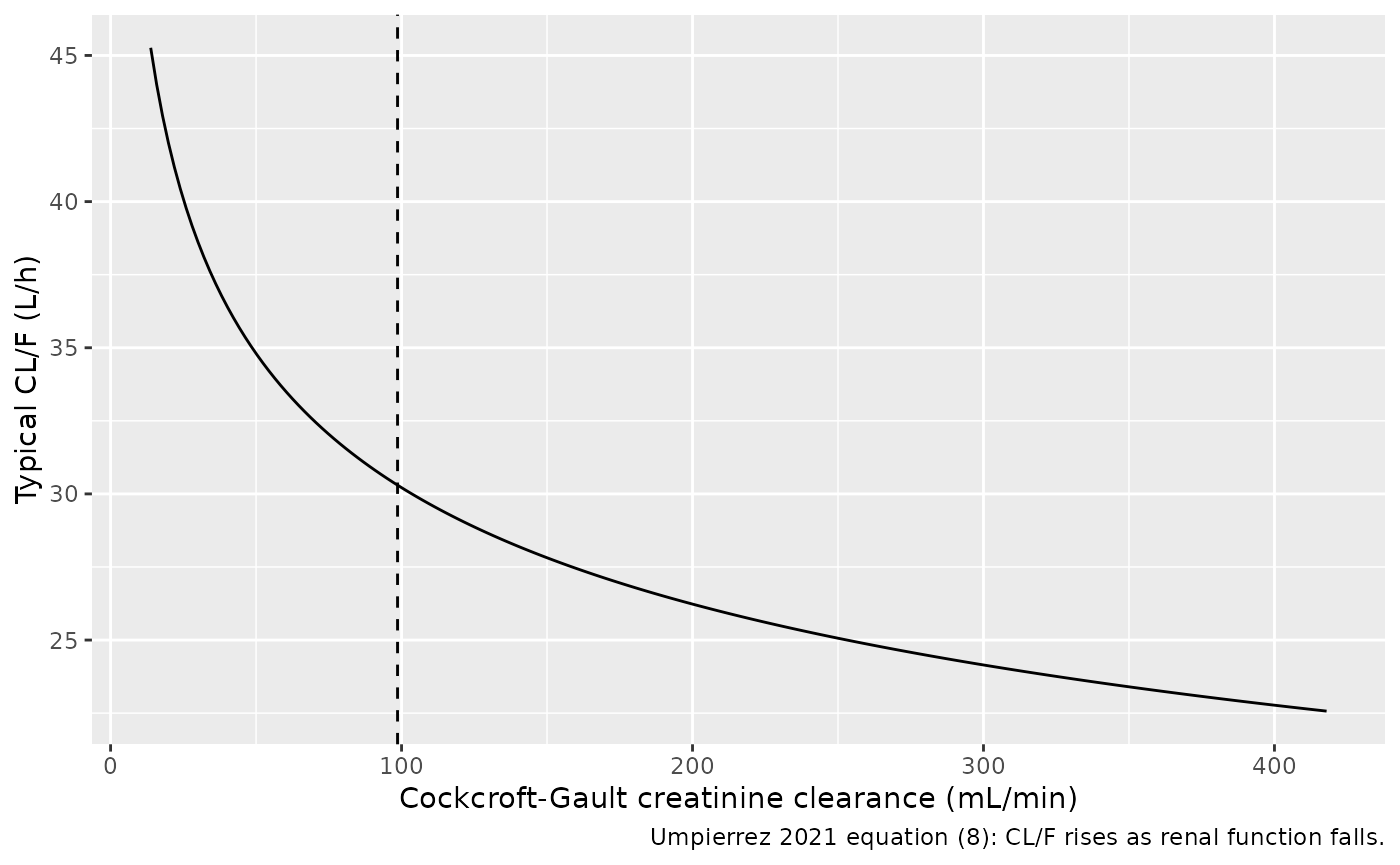

Creatinine clearance effect on CL/F (equation 8)

crcl_grid <- tibble(CRCL = seq(13.79, 417.92, length.out = 200)) |>
  mutate(cl = 30.3 * (CRCL / 98.62)^(-0.204))
ggplot(crcl_grid, aes(CRCL, cl)) +
  geom_line() +
  geom_vline(xintercept = 98.62, linetype = "dashed") +
  labs(
    x = "Cockcroft-Gault creatinine clearance (mL/min)",
    y = "Typical CL/F (L/h)",
    caption = "Umpierrez 2021 equation (8): CL/F rises as renal function falls."
  )

The model’s own cl output reproduces equation (8) for every simulated subject once the random effects are removed:

typ_cl <- rxode2::rxSolve(
  mod_typical,
  events = events |> filter(OCC == 1L),
  keep = "CRCL",
  returnType = "data.frame"
) |>
  distinct(id, CRCL, cl)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalq', 'etaiov_lka_1', 'etaiov_lcl_1', 'etaiov_lka_2', 'etaiov_lcl_2', 'etaiov_lka_3', 'etaiov_lcl_3', 'etaiov_lka_4', 'etaiov_lcl_4', 'etaiov_ltlag_1', 'etaiov_ltlag_2', 'etaiov_ltlag_3', 'etaiov_ltlag_4'
#> Warning: multi-subject simulation without without 'omega'
stopifnot(
  nrow(typ_cl) == 2L * n_per_arm,
  all(abs(typ_cl$cl / (30.3 * (typ_cl$CRCL / 98.62)^(-0.204)) - 1) < 1e-8)
)

Inter-occasion variability

Across the three occasions, each virtual patient’s clearance varies around their own subject-level value. The between-occasion differences in log(CL/F) and log(Ka) have variance twice the occasion-level variance, and their correlation equals the Table 2 Ka-Cl correlation (-0.551).

occ_par <- sim |>
  distinct(id, OCC, cl, ka) |>
  arrange(id, OCC) |>
  group_by(id) |>
  summarise(
    d_lcl = diff(log(cl))[1],
    d_lka = diff(log(ka))[1],
    .groups = "drop"
  )
iov_summary <- tibble(
  quantity = c("var(d log CL/F) / 2", "var(d log Ka) / 2", "cor(d log Ka, d log CL/F)"),
  simulated = c(var(occ_par$d_lcl) / 2, var(occ_par$d_lka) / 2, cor(occ_par$d_lka, occ_par$d_lcl)),
  model = c(0.13488, 0.24426, -0.551)
)
knitr::kable(iov_summary, digits = 3)
quantity simulated model
var(d log CL/F) / 2 0.128 0.135
var(d log Ka) / 2 0.227 0.244
cor(d log Ka, d log CL/F) -0.558 -0.551
# 200 pairs: the SE of a variance estimate is about 10% of its value and the SE
# of the correlation about 0.05, so these bounds sit at several SEs.
stopifnot(
  abs(iov_summary$simulated[1] / iov_summary$model[1] - 1) < 0.35,
  abs(iov_summary$simulated[2] / iov_summary$model[2] - 1) < 0.35,
  iov_summary$simulated[3] < -0.3
)

PKNCA validation

The paper reports no NCA results. The check below is therefore an internal consistency check: at steady state the AUC over one dosing interval must equal Dose / CL for every subject and occasion, because all parameters are apparent (bioavailability is absorbed into CL/F).

sim_nca <- sim |>
  filter(!is.na(Cc)) |>
  mutate(treatment_occ = paste(treatment, "occasion", OCC)) |>
  select(id, tad, Cc, treatment_occ)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ tad | treatment_occ + id)
# the sampled (last) dose of each occasion, at tad = 0
dose_df <- events |>
  filter(evid == 1L) |>
  mutate(tad = 0, treatment_occ = paste(treatment, "occasion", OCC)) |>
  select(id, tad, amt, treatment_occ)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ tad | treatment_occ + id)

intervals <- data.frame(
  start = 0, end = 12,
  auclast = TRUE, cmax = TRUE, tmax = TRUE, cmin = TRUE
)
nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))

nca_wide <- as.data.frame(nca_res$result) |>
  select(treatment_occ, id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

nca_wide |>
  mutate(treatment = sub(" occasion.*", "", treatment_occ)) |>
  group_by(treatment) |>
  summarise(
    across(c(cmax, tmax, cmin, auclast), ~ signif(median(.x), 3)),
    .groups = "drop"
  ) |>
  rename(
    "Regimen" = treatment,
    "Cmax (ng/mL)" = cmax,
    "Tmax (h)" = tmax,
    "Cmin (ng/mL)" = cmin,
    "AUC0-12,ss (ng*h/mL)" = auclast
  ) |>
  knitr::kable(caption = "Median steady-state NCA over all subjects and occasions (simulated).")
Median steady-state NCA over all subjects and occasions (simulated).
Regimen Cmax (ng/mL) Tmax (h) Cmin (ng/mL) AUC0-12,ss (ng*h/mL)
100 mg q12h 788 1.25 84.7 3020
150 mg q12h 1250 1.25 149.0 4900
cl_occ <- sim |>
  distinct(id, OCC, cl, treatment) |>
  mutate(treatment_occ = paste(treatment, "occasion", OCC))
dose_occ <- dose_df |> distinct(id, treatment_occ, amt)
auc_chk <- nca_wide |>
  left_join(cl_occ, by = c("id", "treatment_occ")) |>
  left_join(dose_occ, by = c("id", "treatment_occ")) |>
  mutate(expected = 1000 * amt / cl, pct_diff = 100 * (auclast / expected - 1))
stopifnot(nrow(auc_chk) == 2L * n_per_arm * n_occ)
# Both sides use the same drawn parameters; the only difference is trapezoidal
# error on the 0.25-h grid around the absorption peak.
stopifnot(
  abs(median(auc_chk$pct_diff)) < 2,
  quantile(abs(auc_chk$pct_diff), 0.9) < 5
)
summary(auc_chk$pct_diff)
#>       Min.    1st Qu.     Median       Mean    3rd Qu.       Max.
#> -1.954e+00 -1.840e-01  8.010e-06 -5.700e-02  1.156e-01  6.796e-01

# Deterministic typical-value check at the reference CRCL.
typ_auc <- sim_typ |>
  filter(!is.na(Cc)) |>
  group_by(treatment) |>
  summarise(
    auc = sum(diff(tad) * (head(Cc, -1) + tail(Cc, -1)) / 2),
    c_start = Cc[tad == 0],
    c_end = Cc[tad == tau],
    .groups = "drop"
  ) |>
  mutate(dose = c(100, 150), expected = 1000 * dose / 30.3)
knitr::kable(typ_auc, digits = 1)
treatment auc c_start c_end dose expected
100 mg q12h 3288.9 94.6 94.6 100 3300.3
150 mg q12h 4933.4 141.9 141.9 150 4950.5
stopifnot(
  all(abs(typ_auc$auc / typ_auc$expected - 1) < 0.01),
  # steady state: the trough at the start of the interval equals the trough at its end
  all(abs(typ_auc$c_end / typ_auc$c_start - 1) < 1e-3)
)

Assumptions and deviations

  • Doses. Umpierrez 2021 does not report the doses in either cohort. The 100 mg and 150 mg every-12-h regimens are illustrative maintenance doses chosen by the maintainers; they are not from the paper.
  • Dose and concentration units. The paper reports volumes in L and concentrations in ng/mL but not the dose unit. Doses are taken as mg and the observation is Cc = 1000 * central / vc (ng/mL). With CL/F = 30.3 L/h a 150 mg q12h regimen gives an average steady-state concentration of about 410 ng/mL, in the range of the observed concentrations in Figure 1.
  • Variance scale. Table 2 prints IIV and IOV as CV%, which Methods equation
    1. defines as CV = 100 * sqrt(exp(omega^2) - 1); the model uses omega^2 = log(1 + CV^2).
  • Level of the Ka-Cl correlation. Table 2 prints a single Ka-Cl correlation (-0.551). Ka carries no between-subject variability in the final model, only inter-occasion variability, and Monolix correlates random effects only within one variability level, so the correlation is placed between the occasion-level random effects of Ka and CL/F.
  • Number of occasions. The paper does not state how many occasions the model-building patients contributed. The model carries four occasion slots (OCC = 1 to 4) sharing the Table 2 magnitudes; the slots are exchangeable, so a longer monitoring history can reuse them cyclically. OCC = 0 switches inter-occasion variability off.
  • Proportional error. The Table 2 row is headed ‘Prop (%)’ but prints 0.228; this is read as the fraction 0.228 (22.8%), since 0.228% would be a residual error far below the assay’s own imprecision (0.56-4.1% CV).
  • Combined residual error. Methods equation (3) adds independent proportional and additive errors, i.e. their variances sum, which is the nlmixr2 add() + prop() default (combined2).
  • Creatinine clearance cohort. The virtual creatinine clearances are a log-normal draw (median 85 mL/min, log-SD 0.5) redrawn into the observed Group A range; the paper reports only the mean and range.
  • Covariates screened but not retained (age, sex, body weight, comedication, reason of treatment) are documented in the model’s covariatesDataExcluded metadata where a canonical column exists; they do not enter the model.
  • No erratum or correction notice for this article was found on the publisher’s page or in Europe PMC as of 2026-09-28.
