Ligelizumab (Bienczak 2025)

Source: vignettes/articles/Bienczak_2025_ligelizumab.Rmd
Bienczak_2025_ligelizumab.Rmd
library(nlmixr2lib)
library(PKNCA)
#>
#> Attaching package: 'PKNCA'
#> The following object is masked from 'package:stats':
#>
#>     filter
library(rxode2)
#> rxode2 5.0.2 using 2 threads (see ?getRxThreads)
#>   no cache: create with `rxCreateCache()`
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(tidyr)
library(ggplot2)

Model and source

  • Citation: Bienczak A, Gautier A, Hua E, Ji Y, Scosyrev E, Smeets S, Severin T, Drollmann A, Patekar M, Savelieva M. Model-Informed Drug Development for Ligelizumab in Patients With Chronic Spontaneous Urticaria. CPT Pharmacometrics Syst Pharmacol. 2025. doi:10.1002/psp4.70090
  • Description: Two-compartment population PK model for ligelizumab in adolescent and adult patients with chronic spontaneous urticaria and healthy adult volunteers (Bienczak 2025)
  • Article: https://doi.org/10.1002/psp4.70090

Population

The final population PK model for ligelizumab was developed on 17,411 serum concentrations from 1907 individuals across six studies pooled in the Novartis ligelizumab chronic-spontaneous-urticaria (CSU) development program:

  • 113 adolescent CSU patients (12-17 years) from studies C2202, C2302, and C2303,
  • 1593 adult CSU patients (18-80 years) from studies C2201, C2302, and C2303,
  • 201 adult healthy volunteers from studies A2103 and C2101.

Baseline weight ranged from 31.0 to 181.3 kg (median 73 kg in adults), baseline total IgE from 1 to 12,800 IU/mL (median 95.3 IU/mL in adult CSU), and the overall cohort was 72% female and 73% White (21% Asian, 2% Black, 4% Other). The full demographic breakdown is reproduced in Supplementary Information S1 Tables S4 and S5 of Bienczak 2025.

The same information is available programmatically via rxode2::rxode(readModelDb("Bienczak_2025_ligelizumab"))$meta$population.

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Bienczak_2025_ligelizumab.R. The table below collects them in one place for review.

Equation / parameter Value Source location
Two-compartment disposition; first-order absorption; first-order elimination n/a Supporting Information S1 Section 2.1
ka 0.218 1/day Table S6
CL/F 0.602 L/day Table S6
Vc/F 5.47 L Table S6
Q/F 0.969 L/day Table S6
Vp/F 10.2 L Table S6
Weight exponent on CL/F and Q/F 0.993 (fixed) Table S6, footnote d
Weight exponent on Vc/F and Vp/F 0.597 (fixed) Table S6, footnote d
IgE exponent on CL/F 0.106 Table S6
IgE exponent on Vp/F -0.0816 Table S6
ADA-positive on CL/F 0.243 (log-additive; +27.5%) Table S6
ADA-positive on Vp/F -0.526 (log-additive; -40.9%) Table S6
Healthy-volunteer on CL/F -0.087 (log-additive) Table S6
Study C2201 on CL/F 0.176 (log-additive) Table S6
IIV SD for CL/F 0.335 Table S6
IIV SD for Vp/F 0.39 Table S6
IIV correlation CL/F~Vp/F 0.484 Table S6
IIV SD for ka 0.00142 (100% shrinkage) Table S6
IIV SD for Vc/F 0.915 Table S6
IIV SD for Q/F 0.259 Table S6
Additive residual error 142 ng/mL Table S6
Proportional residual error 0.177 (17.7%) Table S6
Reference weight 70 kg Table S6, footnote b
Reference IgE 90 IU/mL Table S6, footnote a

Virtual cohort

Original observed data are not publicly available. We simulate a virtual population of 500 adult CSU patients whose covariate distributions approximate the pivotal-study demographics (median weight 73 kg, median baseline IgE 95 IU/mL, ADA-negative, not in study C2201).

set.seed(2025)
n_subj <- 500

# Adult CSU patients: weight log-normal around 73 kg
WT  <- pmin(pmax(rlnorm(n_subj, meanlog = log(73), sdlog = 0.25), 40), 180)

# Baseline total IgE log-normal around 95 IU/mL (median in adult CSU)
IGE <- pmin(pmax(rlnorm(n_subj, meanlog = log(95), sdlog = 1.1), 1), 12000)

pop <- data.frame(
  ID          = seq_len(n_subj),
  WT          = WT,
  IGE         = IGE,
  ADA_POS     = 0L,
  DIS_HEALTHY = 0L,
  STUDY_C2201 = 0L
)

Simulation

Simulate ligelizumab serum concentrations through 24 weeks of 120 mg q4w subcutaneous dosing (six doses) with observations every 7 days, plus 1-day-after-dose observations to capture the post-dose peak.

mod <- readModelDb("Bienczak_2025_ligelizumab")
conc_unit <- rxode2::rxode(mod)$meta$units[["concentration"]]
#> ℹ parameter labels from comments will be replaced by 'label()'

# Dosing schedule: q4w (28-day interval) for 6 doses
dose_times <- seq(0, 28 * 5, by = 28)
obs_times  <- sort(unique(c(seq(0, 28 * 6, by = 7), dose_times + 1, dose_times + 168)))

# Build a per-dose-level event table for a given dose (mg)
make_events <- function(dose_mg, dose_label, id_offset = 0L) {
  d_dose <- pop |>
    mutate(ID = ID + id_offset) |>
    slice(rep(seq_len(n()), each = length(dose_times))) |>
    mutate(
      TIME = rep(dose_times, times = n_subj),
      AMT  = dose_mg,
      EVID = 1,
      CMT  = "depot",
      DV   = NA_real_,
      dose_group = dose_label
    )
  d_obs <- pop |>
    mutate(ID = ID + id_offset) |>
    slice(rep(seq_len(n()), each = length(obs_times))) |>
    mutate(
      TIME = rep(obs_times, times = n_subj),
      AMT  = 0,
      EVID = 0,
      CMT  = "central",
      DV   = NA_real_,
      dose_group = dose_label
    )
  bind_rows(d_dose, d_obs) |>
    arrange(ID, TIME, desc(EVID))
}

events <- bind_rows(
  make_events(72,  "72 mg q4w",  id_offset = 0L),
  make_events(120, "120 mg q4w", id_offset = n_subj),
  make_events(240, "240 mg q4w", id_offset = 2L * n_subj)
)
stopifnot(!anyDuplicated(unique(events[, c("ID", "TIME", "EVID")])))

sim <- rxode2::rxSolve(mod, events = events, keep = c("dose_group", "WT", "IGE")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

Replicate Figure 3a – steady-state trough concentrations by dose

Bienczak 2025 reports median steady-state trough concentrations of 2.1, 3.5, and 6.9 ug/mL for the 72, 120, and 240 mg q4w doses (Results, Section “Simulations of Response to Ligelizumab Under Various Dosing Scenarios”). We extract the trough at the end of dose interval 5 (Week 20, day 140) as the steady-state anchor.

trough_ss <- sim |>
  filter(time == 140) |>
  group_by(dose_group) |>
  summarise(
    median = median(Cc, na.rm = TRUE),
    p25    = quantile(Cc, 0.25, na.rm = TRUE),
    p75    = quantile(Cc, 0.75, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  trough_ss,
  digits = 2,
  caption = sprintf(
    "Simulated steady-state trough (Week 20) ligelizumab concentration by dose group (%s).",
    conc_unit
  )
)
Simulated steady-state trough (Week 20) ligelizumab concentration by dose group (ug/mL).
dose_group median p25 p75
120 mg q4w 3.85 2.54 5.44
240 mg q4w 7.36 4.93 10.70
72 mg q4w 2.23 1.47 3.29

The simulated medians can be compared against the paper’s reported values of 2.1, 3.5, and 6.9 ug/mL for the 72, 120, and 240 mg q4w doses respectively.

Replicate Figure 4a – baseline-IgE subgroup at 72 mg q4w

Bienczak 2025 reports that the median steady-state trough increases by approximately 30% in patients with low baseline IgE and decreases by approximately 25% in patients with high baseline IgE relative to moderate-IgE patients receiving 72 mg q4w.

ige_summary <- sim |>
  filter(dose_group == "72 mg q4w", time == 140) |>
  mutate(
    ige_group = case_when(
      IGE <  40           ~ "Low (<40 IU/mL)",
      IGE >= 40 & IGE < 300 ~ "Moderate (40-300 IU/mL)",
      IGE >= 300          ~ "High (>=300 IU/mL)"
    ),
    ige_group = factor(ige_group,
                       levels = c("Low (<40 IU/mL)",
                                  "Moderate (40-300 IU/mL)",
                                  "High (>=300 IU/mL)"))
  ) |>
  group_by(ige_group) |>
  summarise(
    n = n(),
    median_cmin_ss = median(Cc, na.rm = TRUE),
    p25 = quantile(Cc, 0.25, na.rm = TRUE),
    p75 = quantile(Cc, 0.75, na.rm = TRUE),
    .groups = "drop"
  )

knitr::kable(
  ige_summary,
  digits = 2,
  caption = sprintf(
    "Simulated steady-state trough (%s) at 72 mg q4w stratified by baseline IgE category.",
    conc_unit
  )
)
Simulated steady-state trough (ug/mL) at 72 mg q4w stratified by baseline IgE category.
ige_group n median_cmin_ss p25 p75
Low (<40 IU/mL) 107 2.97 2.18 4.11
Moderate (40-300 IU/mL) 324 2.19 1.44 3.32
High (>=300 IU/mL) 69 1.75 1.13 2.19

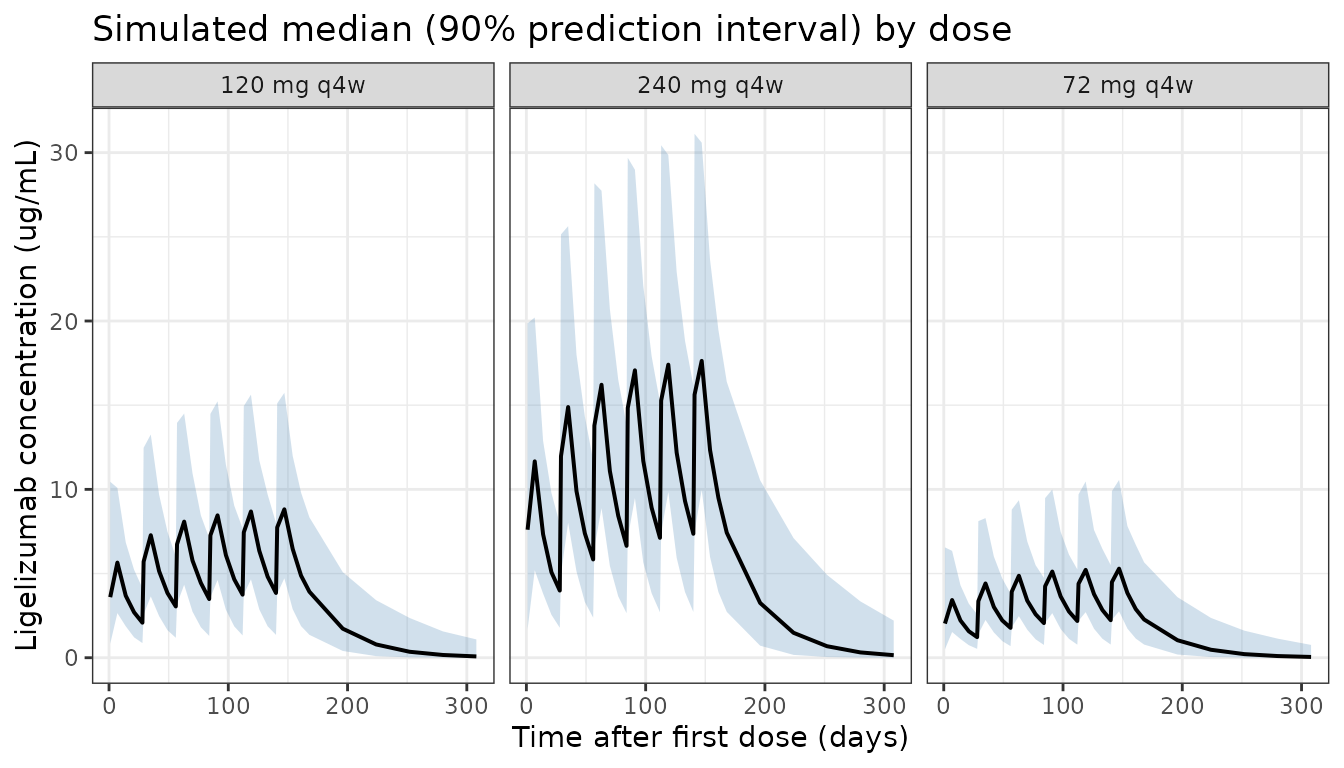

Visual predictive check – concentration-time profile

vpc <- sim |>
  filter(time > 0) |>
  group_by(dose_group, time) |>
  summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  )

ggplot(vpc, aes(x = time, y = Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), fill = "steelblue", alpha = 0.25) +
  geom_line(linewidth = 0.7) +
  facet_wrap(~ dose_group, nrow = 1) +
  labs(
    x = "Time after first dose (days)",
    y = sprintf("Ligelizumab concentration (%s)", conc_unit),
    title = "Simulated median (90% prediction interval) by dose"
  ) +
  theme_bw()

PKNCA validation

Single-dose NCA over the first 28-day dosing interval. We extract the first dosing cycle only so the AUC reflects a clean single-interval exposure rather than a multi-dose accumulation.

sim_first <- sim |>
  filter(time <= 28, !is.na(Cc)) |>
  select(id, time, Cc, dose_group)

dose_df <- events |>
  filter(EVID == 1, TIME == 0) |>
  transmute(id = ID, time = TIME, amt = AMT, dose_group = dose_group)

conc_obj <- PKNCAconc(sim_first, Cc ~ time | dose_group + id)
dose_obj <- PKNCAdose(dose_df, amt ~ time | dose_group + id)

intervals <- data.frame(
  start = 0,
  end   = 28,
  cmax  = TRUE,
  tmax  = TRUE,
  auclast = TRUE,
  half.life = TRUE
)

nca_data <- PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- pk.nca(nca_data)
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2
#> points)
#>  ■■■                                6% |  ETA: 17s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#>  ■■■■■■■■                          23% |  ETA: 14s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#>  ■■■■■■■■■■■■■                     40% |  ETA: 11s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 1
#> points)
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#>  ■■■■■■■■■■■■■■■■■■                57% |  ETA:  8s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#>  ■■■■■■■■■■■■■■■■■■■■■■■           75% |  ETA:  4s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#>  ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■     92% |  ETA:  1s
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Too few points for half-life calculation (min.hl.points=3 with only 2 points)
#> Warning: Too few points for half-life calculation (min.hl.points=3 with only 1
#> points)
knitr::kable(
  summary(nca_res),
  digits = 2,
  caption = "Simulated NCA parameters per dose group, first 28-day dosing interval."
)
Simulated NCA parameters per dose group, first 28-day dosing interval.
start end dose_group N auclast cmax tmax half.life
0 28 120 mg q4w 500 101 [39.6] 5.88 [46.3] 7.00 [1.00, 14.0] 16.7 [5.48], n=467
0 28 240 mg q4w 500 203 [38.9] 12.0 [46.2] 7.00 [1.00, 21.0] 16.5 [5.82], n=477
0 28 72 mg q4w 500 60.2 [43.4] 3.50 [49.8] 7.00 [1.00, 21.0] 16.8 [5.90], n=474

Assumptions and deviations

  • The original observed PK dataset is not public, so the virtual cohort is generated to match the published medians and ranges in Supplementary Information S1 Tables S4 and S5 rather than reproducing individual subjects.
  • Baseline IgE is sampled as log-normal around 95 IU/mL with a wide SD to span the published 1-12,800 IU/mL range. The subgroup analysis uses the paper’s IgE category thresholds (<40 IU/mL, 40-300 IU/mL, >=300 IU/mL, Bienczak 2025 Figure S14 caption).
  • The simulated cohort is set to ADA-negative, CSU patients, not enrolled in C2201. The C2201, healthy-volunteer, and ADA-positive arms can be enabled by toggling the corresponding indicator columns in pop before re-running rxSolve().
  • The ka inter-individual variability is reported with 100% shrinkage and an SD of 0.00142; the model retains the value as estimated (no fixed() wrapper) so the structure exactly matches Bienczak 2025 Table S6.
  • Time-varying weight was not implemented in the original PopPK model; the vignette uses baseline weight throughout, matching the source.
