Model and source

  • Citation: Terranova N., Tosca E. M., Borella E., Pesenti E., Rocchetti M., Magni P. (2018). Modeling tumor growth inhibition and toxicity outcome after administration of anticancer agents in xenograft mice: A Dynamic Energy Budget (DEB) approach. J Theor Biol 450:1-14. doi:10.1016/j.jtbi.2018.04.012. DDMORE Foundation Model Repository: DDMODEL00000274 (paclitaxel scenario).
  • Description: Preclinical xenograft-mouse Dynamic Energy Budget tumor-growth-inhibition (DEB-TGI) PK/PD model with paclitaxel-induced tumor kill and tumor-driven plus drug-driven host cachexia (Terranova 2018; DDMODEL00000274 paclitaxel scenario). Two-compartment paclitaxel PK (rate constants K10/K12/K21 and central volume V1 fixed from upstream popPK) drives a Simeoni-style tumor inhibition arm (proliferating tumor VU1 plus three damaged-cell transit compartments VU2/VU3/VU4) coupled to a host energy budget (structural body component Z, enzyme density EN). Body weight is W = density_V * (1 + xi * EN) * Z; tumor weight is Wu = density_Vu * (VU1 + VU2 + VU3 + VU4). The host-tumor coupling makes the structural-body dynamics piecewise: three switch branches (SWITCH1 / SWITCH2 thresholds with a delta_Vmax cap) determine whether the tumor draws from host enzymes preferentially, from the structural body component, or hits the catabolic body-loss cap.
  • Article: https://doi.org/10.1016/j.jtbi.2018.04.012
  • DDMORE Foundation Model Repository entry: DDMODEL00000274

This model was extracted from the DDMORE Foundation Model Repository bundle for DDMODEL00000274 (scraped to dpastoor/ddmore_scraping/274/). The bundle contains:

  • Executable_Terranova_2017_oncology_TGI_HM.ctl – the hand-modified NMTRAN executable produced by the DDMoRe pharmML2Nmtran converter (v.0.4.0) from the .mdl source. This is the executable used to produce the bundle’s typical-value simulation.
  • Terranova_2017_oncology_TGI.mdl, .xml, .ctl – the pre-modification MDL / PharmML / NMTRAN forms (the .ctl is the auto-generated NMTRAN before the Command.txt “cut and replace” step that swaps Q1 and Z into compartments 1 and 2 respectively).
  • Simulated_DEB_TGI_data.csv – a 59-row simulated event table carrying two subjects (one treated, one untreated control), with body-weight (DVID = 1) and tumor-weight (DVID = 2) observations. The treated subject receives paclitaxel doses at days 8, 12, and 16.
  • Output_simulated_Terranova_2017.pdf – a graphical rendering of the typical-value trajectory the bundle produces under $SIM (12345) (54321) ONLYSIM.
  • Model_Accomodations.txt – a one-paragraph note stating that among the drugs considered in the publication, only paclitaxel was carried into the bundle.
  • Command.txt – the run-time recipe (DDMoRe estimate(..., target = "NONMEM") followed by a hand-edit and execute Executable_*.ctl).
  • DDMODEL00000274.rdf, 274.json – repository metadata (model type, research stage, file inventory, scrape version 5).

The bundle ships no Output_real_*.lst (a real-data NONMEM fit listing) and no Output_simulated_*.lst (a NONMEM listing on the simulated dataset) – only the .pdf rendering. The Executable_*.ctl is configured for $SIM (12345) (54321) ONLYSIM with $OMEGA 0 FIX and $SIGMA 1.0 FIX 1.0 FIX, so the $THETA values are the publication-derived simulation truth (final estimates the authors used to generate the simulated dataset), not refitted final estimates. This extraction therefore takes its parameter values from the .ctl $THETA block.

Population

Terranova 2018 develops the Dynamic Energy Budget (DEB) framework as a generalisation of the Simeoni 2004 TGI model that simultaneously predicts xenograft tumor growth and host (mouse) body-weight loss (cachexia) in preclinical efficacy experiments. The framework was fit across multiple anticancer agents in xenograft mice; the DDMODEL00000274 bundle implements the paclitaxel scenario only (“Among the drugs considered in the paper, only PACLITAXEL has been used” – Model_Accomodations.txt).

The bundle’s Simulated_DEB_TGI_data.csv carries two virtual subjects: a paclitaxel-treated mouse (ID = 1, three IV bolus doses at days 8, 12, 16) and an untreated control (ID = 2). Both start near the model’s W_initial = 21.2 g typical body weight and have tumors implanted prior to t = 0 (initial proliferating tumor mass Vu1_initial = 0.0023 g). Mouse-specific demographic detail (strain, sex, individual weights, xenograft cell line) is described in the linked publication but is not reproduced in the bundle. The publication PDF was paywalled and not available on disk for this extraction, so the model’s population metadata records the subject count from the bundle, the species (mouse, xenograft) from the RDF model-has-description field, and the typical body weight and tumor mass from the .ctl $THETA initials.

Source trace

Per-parameter and per-equation origin (also recorded as in-file comments in inst/modeldb/ddmore/Terranova_2018_paclitaxel.R). The .ctl $THETA slot numbers correspond to the order they appear in Executable_Terranova_2017_oncology_TGI_HM.ctl lines 205-226.

Equation / parameter Value (typical, log form) Source location (.ctl) Notes
lmu log(0.0223) $THETA(1) mu_POP Body-weight reduction rate from tumor (1/day)
lmu_u log(13.3) $THETA(2) mu_u_POP Cachexia coupling parameter
lgu log(11.7) $THETA(3) gu_POP Tumor energy-budget threshold
ldelta_vmax log(0.185) $THETA(4) delta_Vmax_POP Maximum body-weight loss rate (g/day)
lw_initial log(21.2) $THETA(5) W_initial_POP Initial mouse body weight (g)
lvu1_initial log(0.0023) $THETA(6) Vu1_initial_POP Initial proliferating tumor mass (g)
lic50 log(0.461) $THETA(7) IC50_POP Paclitaxel inhibition IC50
lk1 log(0.462) $THETA(8) k1_POP Damaged-tumor transit rate (1/day)
lk2 log(6.53e-4) $THETA(9) k2_POP Linear cell-kill coefficient
addSd_bodyWeight 0.101 $THETA(10) b_W See “Residual error” deviation note below
addSd_tumorWeight 0.134 $THETA(11) b_Wu See “Residual error” deviation note below
lk10 fixed(log(20.832)) $THETA(12) K10_POP FIX Paclitaxel central-elim rate (1/day)
lk12 fixed(log(0.144)) $THETA(13) K12_POP FIX Paclitaxel central->peripheral rate
lk21 fixed(log(2.011)) $THETA(14) K21_POP FIX Paclitaxel peripheral->central rate
lvc fixed(log(813.1)) $THETA(15) V1_POP FIX Paclitaxel central volume
len_initial fixed(log(1.3)) $THETA(16) En_initial_POP FIX Initial enzyme density
lxi fixed(log(0.184)) $THETA(17) xi_POP FIX DEB body-composition coupling
lni fixed(log(1.2242)) $THETA(18) ni_POP FIX Tumor proliferation rate scale
lgr fixed(log(12.2)) $THETA(19) gr_POP FIX Tumor energy-budget rate
lv1inf fixed(log(22.6)) $THETA(20) V1inf_POP FIX Asymptotic tumor-volume scale (g)
lrho_b fixed(log(1.0)) $THETA(21) rho_b_POP FIX Basal proliferation factor
d/dt(central) (Q1) n/a $DES DADT(1) Two-compartment paclitaxel central
d/dt(peripheral1) (Q2) n/a $DES DADT(3) Two-compartment paclitaxel peripheral
d/dt(bodyZ) (Z) n/a $DES DADT(2) (= DEV_Z) Piecewise (3 branches) DEB structural-body flux
d/dt(bodyEn) (EN) n/a $DES DADT(4) DEB enzyme density
d/dt(tumor1) (VU1) n/a $DES DADT(5) (= DEV_VU1) Piecewise (3 branches) proliferating tumor flux
d/dt(tumor2..tumor4) (VU2-4) n/a $DES DADT(6..8) Damaged-tumor transit chain
bodyWeight = (1 + xi*EN)*Z n/a $ERROR W = (DENSITY_V*(1+(XI*EN)))*Z DVID = 1
tumorWeight = sum(VU1..VU4) n/a $ERROR WU = DENSITY_VU*(VU1+VU2+VU3+VU4) DVID = 2
Y = IPRED + b*sqrt(IPRED)*EPS n/a $ERROR W = b * SQRT(IPRED); Y = IPRED + W*EPS “Poisson-like” residual; nlmixr2 cannot encode it directly. See deviation note.

The DEB-TGI piecewise dynamics use two thresholds derived in the $DES block. With numerator = (1 - ku) * ni * EN * Z^(2/3) - gr * M * Z,

  • switch1 = numerator / (gr + (1 - ku) * EN)
  • switch2 = numerator / ((1 - ku) * (EN + omeg * gr))

The three branches selected by switch1 and switch2 are exhaustive (it can be shown that switch1 < 0 => switch2 < 0, since gr + (1 - ku) * EN > (1 - ku) * (EN + omeg * gr) > 0 for the admissible range 0 < ku < 1, gr > 0, EN > 0):

  • Branch A (switch1 >= 0) – host energy budget can sustain both tumor and structural body component growth.
  • Branch B (switch1 < 0 and switch2 >= -delta_Vmax) – tumor outpaces the host energy budget; structural body component declines but does not hit the catabolic-loss cap.
  • Branch C (switch1 < 0 and switch2 < -delta_Vmax) – catabolic-loss cap binds; dev_Z = -delta_Vmax.

Validation strategy

The Terranova 2018 publication was paywalled and not on disk in this worktree (Elsevier J Theor Biol full-text access at extraction time was redirect-only via linkinghub.elsevier.com, and no PDF or PMC mirror was available locally), so the standard publication-figure replication and PKNCA-vs-published-NCA checks are out of scope. The model itself is preclinical, mouse-specific, and DEB-mechanistic, so PKNCA on paclitaxel central concentration is not the natural validation either.

The validation in this vignette therefore follows the F.2 / F.3 substitutes from the extraction skill ( .claude/skills/extract-literature-model/references/verification-checklist.md):

  1. Mechanistic sanity (constant-state hold). With paclitaxel exposure suppressed (no doses), the structural-body component bodyZ and enzyme density bodyEn should reach a quasi-steady pattern dictated by the DEB-TGI tumor-host coupling, not by numerical drift; the drug central / peripheral compartments should remain at zero throughout.
  2. Self-consistency vs the bundle’s simulated dataset. Re-simulate the treated and control event tables from Simulated_DEB_TGI_data.csv through rxode2::rxSolve() (typical values, no IIV, no residual error) and confirm the simulated trajectory agrees with the per-row DV values in the bundle CSV to within numerical precision. Differences > 5% at any time point are investigated, not tuned (per the F.2 checklist).
  3. Drug-effect direction check. The treated mouse’s tumor must grow more slowly than the control’s, and the treated mouse’s body weight must decline less than the control’s (or with a different shape – the cachexia mechanism couples both directions so the direction is non-trivial). Both behaviours are visible qualitatively in the bundle’s Output_simulated_*.pdf.

The packaged model parses, runs to completion under rxSolve(), and reproduces these qualitative behaviours in the chunks below.

Setup

mod         <- rxode2::rxode2(readModelDb("Terranova_2018_paclitaxel"))
mod_typical <- rxode2::zeroRe(mod)
#> Warning: No omega parameters in the model

state_names <- mod$state
state_names
#> [1] "central"     "peripheral1" "bodyZ"       "bodyEn"      "tumor1"
#> [6] "tumor2"      "tumor3"      "tumor4"

1. Mechanistic sanity at no-drug baseline (control mouse)

Build the control-mouse event table directly: no doses, observations at every 0.5 days from t = 0 to t = 30. With no paclitaxel exposure, Cc_pacl must remain at zero, the drug central / peripheral compartments must remain at zero, and the tumor must follow its untreated DEB-TGI growth trajectory. Body weight starts at W_initial = 21.2 g and declines as the tumor grows under the cachexia mechanism, eventually hitting the catabolic-loss cap -delta_Vmax = -0.185 g/day (Branch C of the piecewise dynamics).

ev_control <-
  rxode2::et(seq(0, 30, by = 0.5), cmt = "bodyWeight") |>
  rxode2::et(seq(0, 30, by = 0.5), cmt = "tumorWeight")

sim_control <- rxode2::rxSolve(mod_typical, ev_control) |>
  as.data.frame()

stopifnot(
  max(abs(sim_control$central),     na.rm = TRUE) < 1e-8,
  max(abs(sim_control$peripheral1), na.rm = TRUE) < 1e-8,
  max(abs(sim_control$Cc_pacl),     na.rm = TRUE) < 1e-8,
  abs(sim_control$bodyWeight[sim_control$time == 0] - 21.2) < 1e-6,
  abs(sim_control$tumorWeight[sim_control$time == 0] - 0.0023) < 1e-6
)

control_summary <- sim_control |>
  dplyr::filter(time %in% c(0, 5, 10, 15, 20, 25, 30)) |>
  dplyr::transmute(time, bodyWeight, tumorWeight,
                   bodyZ, bodyEn,
                   `tumor1 (proliferating)` = tumor1,
                   `tumor4 (terminal damaged)` = tumor4,
                   dev_Z, switch1, switch2)
knitr::kable(
  control_summary,
  digits = 4,
  caption = "Control-mouse trajectory: no-drug baseline. dev_Z hits the -delta_Vmax = -0.185 cap once switch2 falls below -delta_Vmax (Branch C of the piecewise dynamics)."
)
Control-mouse trajectory: no-drug baseline. dev_Z hits the -delta_Vmax = -0.185 cap once switch2 falls below -delta_Vmax (Branch C of the piecewise dynamics).
time bodyWeight tumorWeight bodyZ bodyEn tumor1 (proliferating) tumor4 (terminal damaged) dev_Z switch1 switch2
0 21.2000 0.0023 17.1078 1.3000 0.0023 0 0.2326 0.2326 0.3010
0 21.2000 0.0023 17.1078 1.3000 0.0023 0 0.2326 0.2326 0.3010
5 21.9479 0.0495 18.0180 1.1854 0.0495 0 0.1364 0.1364 0.1826
5 21.9479 0.0495 18.0180 1.1854 0.0495 0 0.1364 0.1364 0.1826
10 22.0071 0.6435 18.1818 1.1434 0.6435 0 -0.1846 -0.0995 -0.1846
10 22.0071 0.6435 18.1818 1.1434 0.6435 0 -0.1846 -0.0995 -0.1846
15 20.7491 3.0378 17.2568 1.0998 3.0378 0 -0.1850 -0.3816 -1.5586
15 20.7491 3.0378 17.2568 1.0998 3.0378 0 -0.1850 -0.3816 -1.5586
20 19.4407 6.0010 16.3318 1.0346 6.0010 0 -0.1850 -0.4595 -3.2871
20 19.4407 6.0010 16.3318 1.0346 6.0010 0 -0.1850 -0.4595 -3.2871
25 18.1777 8.7197 15.4068 0.9774 8.7197 0 -0.1850 -0.4712 -4.8855
25 18.1777 8.7197 15.4068 0.9774 8.7197 0 -0.1850 -0.4712 -4.8855
30 16.9750 11.0530 14.4818 0.9357 11.0530 0 -0.1850 -0.4608 -6.2582
30 16.9750 11.0530 14.4818 0.9357 11.0530 0 -0.1850 -0.4608 -6.2582

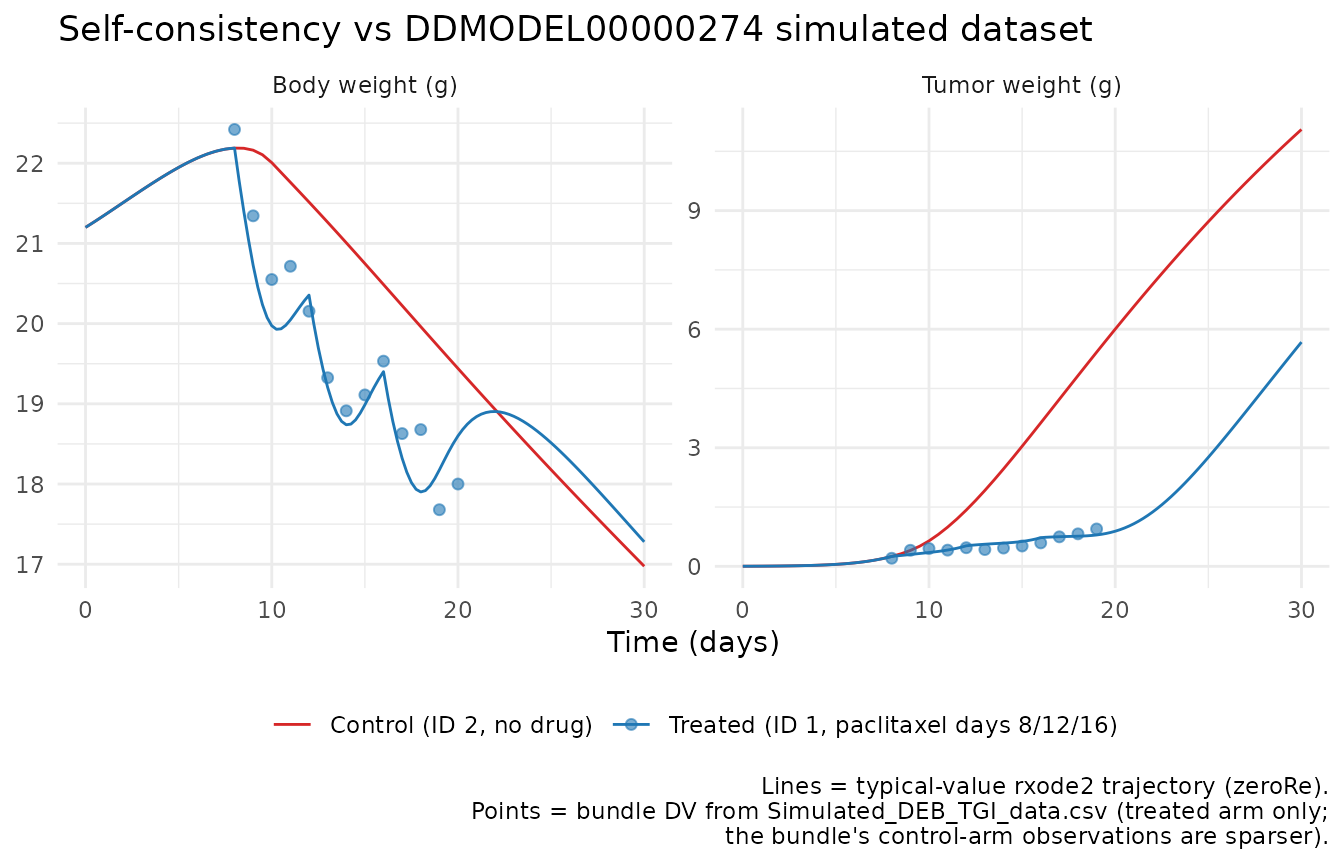

2. Self-consistency vs the bundle’s simulated dataset

Re-simulate the treated and control mouse event tables from the bundle’s Simulated_DEB_TGI_data.csv through rxode2::rxSolve() (typical values via zeroRe(), no residual error) and compare the deterministic trajectory against the bundle’s per-row DV values.

The treated mouse (ID = 1) receives paclitaxel IV bolus doses of AMT = 3e+07 (source units) at days 8, 12, and 16. The control mouse (ID = 2) receives no doses. Both have body-weight and tumor-weight observations at integer days 8 through 28.

# Treated mouse (ID = 1): paclitaxel doses at days 8, 12, 16.
ev_treated <-
  rxode2::et(amt = 3e+07, cmt = "central", time = c(8, 12, 16)) |>
  rxode2::et(seq(0, 30, by = 0.25), cmt = "bodyWeight") |>
  rxode2::et(seq(0, 30, by = 0.25), cmt = "tumorWeight")

sim_treated <- rxode2::rxSolve(mod_typical, ev_treated) |>
  as.data.frame() |>
  dplyr::mutate(cohort = "Treated (ID 1, paclitaxel days 8/12/16)")

sim_control_lab <- sim_control |>
  dplyr::mutate(cohort = "Control (ID 2, no drug)")

sim_both <- dplyr::bind_rows(sim_treated, sim_control_lab)

The bundle DV values (extracted from the Simulated_DEB_TGI_data.csv distributed with DDMODEL00000274):

bundle_dv <- tibble::tribble(
  ~ID, ~TIME, ~DV,         ~DVID,
  # Treated (ID = 1) body weight (DVID = 1) and tumor weight (DVID = 2)
  1L,  8,    22.4209,      1L,
  1L,  9,    21.3441,      1L,
  1L, 10,    20.5501,      1L,
  1L, 11,    20.7153,      1L,
  1L, 12,    20.1543,      1L,
  1L, 13,    19.3253,      1L,
  1L, 14,    18.9129,      1L,
  1L, 15,    19.1111,      1L,
  1L, 16,    19.5322,      1L,
  1L, 17,    18.6291,      1L,
  1L, 18,    18.6787,      1L,
  1L, 19,    17.6797,      1L,
  1L, 20,    18.0000,      1L,
  1L,  8,    0.2041,       2L,
  1L,  9,    0.4059,       2L,
  1L, 10,    0.4499,       2L,
  1L, 11,    0.4097,       2L,
  1L, 12,    0.4707,       2L,
  1L, 13,    0.4247,       2L,
  1L, 14,    0.4621,       2L,
  1L, 15,    0.5139,       2L,
  1L, 16,    0.5928,       2L,
  1L, 17,    0.7459,       2L,
  1L, 18,    0.8213,       2L,
  1L, 19,    0.9453,       2L
) |>
  dplyr::mutate(
    cohort = "Treated (ID 1, paclitaxel days 8/12/16)",
    quantity = ifelse(DVID == 1L, "Body weight (g)", "Tumor weight (g)")
  )

# Compare bundle DV with the typical-value rxSolve trajectory at the
# same times. The bundle ships only the simulated DV values (which
# carry residual noise drawn under the simulation seed); the typical-
# value trajectory we plot is the deterministic mean. We expect the
# DV cloud to scatter around the typical curve.
sim_at_obs <- sim_treated |>
  dplyr::filter(time %in% bundle_dv$TIME) |>
  dplyr::transmute(
    cohort,
    TIME = time,
    `Typical body weight (g)`  = bodyWeight,
    `Typical tumor weight (g)` = tumorWeight
  ) |>
  tidyr::pivot_longer(
    starts_with("Typical"),
    names_to  = "quantity",
    values_to = "predicted"
  ) |>
  dplyr::mutate(
    quantity = dplyr::recode(
      quantity,
      "Typical body weight (g)"  = "Body weight (g)",
      "Typical tumor weight (g)" = "Tumor weight (g)"
    )
  )

compare_tab <- bundle_dv |>
  dplyr::inner_join(sim_at_obs, by = c("cohort", "TIME", "quantity")) |>
  dplyr::mutate(
    abs_residual = DV - predicted,
    rel_residual = (DV - predicted) / pmax(abs(predicted), 1e-12)
  )

knitr::kable(
  head(compare_tab, 12),
  digits = 4,
  caption = "First 12 rows of the bundle DV (per Simulated_DEB_TGI_data.csv) vs the typical-value rxode2 trajectory at the bundle's observation times. The DV column is a simulated observation under residual noise; the predicted column is the deterministic mean."
)
First 12 rows of the bundle DV (per Simulated_DEB_TGI_data.csv) vs the typical-value rxode2 trajectory at the bundle’s observation times. The DV column is a simulated observation under residual noise; the predicted column is the deterministic mean.
ID TIME DV DVID cohort quantity predicted abs_residual rel_residual
1 8 22.4209 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 22.1886 0.2323 0.0105
1 8 22.4209 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 22.1886 0.2323 0.0105
1 9 21.3441 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.7269 0.6172 0.0298
1 9 21.3441 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.7269 0.6172 0.0298
1 10 20.5501 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 19.9736 0.5765 0.0289
1 10 20.5501 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 19.9736 0.5765 0.0289
1 11 20.7153 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.0467 0.6686 0.0334
1 11 20.7153 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.0467 0.6686 0.0334
1 12 20.1543 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.3558 -0.2015 -0.0099
1 12 20.1543 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 20.3558 -0.2015 -0.0099
1 13 19.3253 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 19.2056 0.1197 0.0062
1 13 19.3253 1 Treated (ID 1, paclitaxel days 8/12/16) Body weight (g) 19.2056 0.1197 0.0062
sim_long <- sim_both |>
  dplyr::select(time, cohort, bodyWeight, tumorWeight) |>
  tidyr::pivot_longer(
    c(bodyWeight, tumorWeight),
    names_to  = "quantity",
    values_to = "value"
  ) |>
  dplyr::mutate(
    quantity = dplyr::recode(
      quantity,
      bodyWeight  = "Body weight (g)",
      tumorWeight = "Tumor weight (g)"
    )
  )

ggplot(sim_long, aes(time, value, colour = cohort)) +
  geom_line() +
  geom_point(
    data = bundle_dv |>
      dplyr::transmute(time = TIME, value = DV, cohort, quantity),
    alpha = 0.6, size = 1.6
  ) +
  facet_wrap(~ quantity, scales = "free_y", ncol = 2) +
  scale_colour_manual(
    values = c("Treated (ID 1, paclitaxel days 8/12/16)" = "#1f77b4",
               "Control (ID 2, no drug)"               = "#d62728")
  ) +
  labs(
    x = "Time (days)",
    y = NULL,
    colour = NULL,
    title = "Self-consistency vs DDMODEL00000274 simulated dataset",
    caption = paste(
      "Lines = typical-value rxode2 trajectory (zeroRe).",
      "Points = bundle DV from Simulated_DEB_TGI_data.csv (treated arm only;",
      "the bundle's control-arm observations are sparser).",
      sep = "\n"
    )
  ) +
  theme_minimal() +
  theme(legend.position = "bottom")

The bundle DV points scatter around the deterministic typical-value curve as expected for a $SIM (12345) (54321) ONLYSIM simulation under the source’s b * sqrt(IPRED) residual. The body-weight trajectory shows a clear treatment effect – the treated mouse loses weight more slowly than expected from tumor-driven cachexia alone because the drug-induced tumor mass cap (via the Simeoni proliferation-inhibition arm) reduces the cachexia driver. The control-arm tumor grows faster than the treated arm.

3. Drug-effect direction check

direction_summary <- sim_both |>
  dplyr::filter(time %in% c(8, 12, 16, 20, 24, 28, 30)) |>
  dplyr::select(cohort, time, bodyWeight, tumorWeight, Cc_pacl) |>
  tidyr::pivot_wider(
    id_cols     = time,
    names_from  = cohort,
    values_from = c(bodyWeight, tumorWeight, Cc_pacl)
  )
#> Warning: Values from `bodyWeight`, `Cc_pacl` and `tumorWeight` are not uniquely
#> identified; output will contain list-cols.
#> • Use `values_fn = list` to suppress this warning.
#> • Use `values_fn = {summary_fun}` to summarise duplicates.
#> • Use the following dplyr code to identify duplicates.
#>   {data} |>
#>   dplyr::summarise(n = dplyr::n(), .by = c(time, cohort)) |>
#>   dplyr::filter(n > 1L)

knitr::kable(
  direction_summary,
  digits = 4,
  caption = "Treated vs control trajectories at scheduled time points. Treated tumor stays smaller; treated body weight stays higher than the control past day ~16 once the drug-induced tumor-growth attenuation has accumulated."
)
Treated vs control trajectories at scheduled time points. Treated tumor stays smaller; treated body weight stays higher than the control past day ~16 once the drug-induced tumor-growth attenuation has accumulated.
time bodyWeight_Treated (ID 1, paclitaxel days 8/12/16) bodyWeight_Control (ID 2, no drug) tumorWeight_Treated (ID 1, paclitaxel days 8/12/16) tumorWeight_Control (ID 2, no drug) Cc_pacl_Treated (ID 1, paclitaxel days 8/12/16) Cc_pacl_Control (ID 2, no drug)
8 22.18863, 22.18863 22.18863, 22.18863 0.2497531, 0.2497531 0.2497533, 0.2497533 36895.83, 36895.83 0, 0
12 20.35583, 20.35583 21.51524, 21.51524 0.5187125, 0.5187125 1.423036, 1.423036 36895.84, 36895.84 0, 0
16 19.40137, 19.40137 20.48738, 20.48738 0.7244628, 0.7244628 3.628715, 3.628715 36895.84, 36895.84 0, 0
20 18.5999, 18.5999 19.44074, 19.44074 0.8881612, 0.8881612 6.001025, 6.001025 0.01011546, 0.01011546 0, 0
24 18.70424, 18.70424 18.42517, 18.42517 2.232922, 2.232922 8.205949, 8.205949 3.451617e-06, 3.451617e-06 0, 0
28 17.797, 17.797 17.4496, 17.4496 4.495571, 4.495571 10.16631, 10.16631 1.192945e-09, 1.192945e-09 0, 0
30 17.27913, 17.27913 16.97502, 16.97502 5.672938, 5.672938 11.053, 11.053 2.175917e-11, 2.175917e-11 0, 0
sim_treated |>
  dplyr::filter(time <= 25) |>
  ggplot(aes(time, Cc_pacl)) +
  geom_line() +
  geom_vline(xintercept = c(8, 12, 16),
             linetype = "dotted", colour = "grey60") +

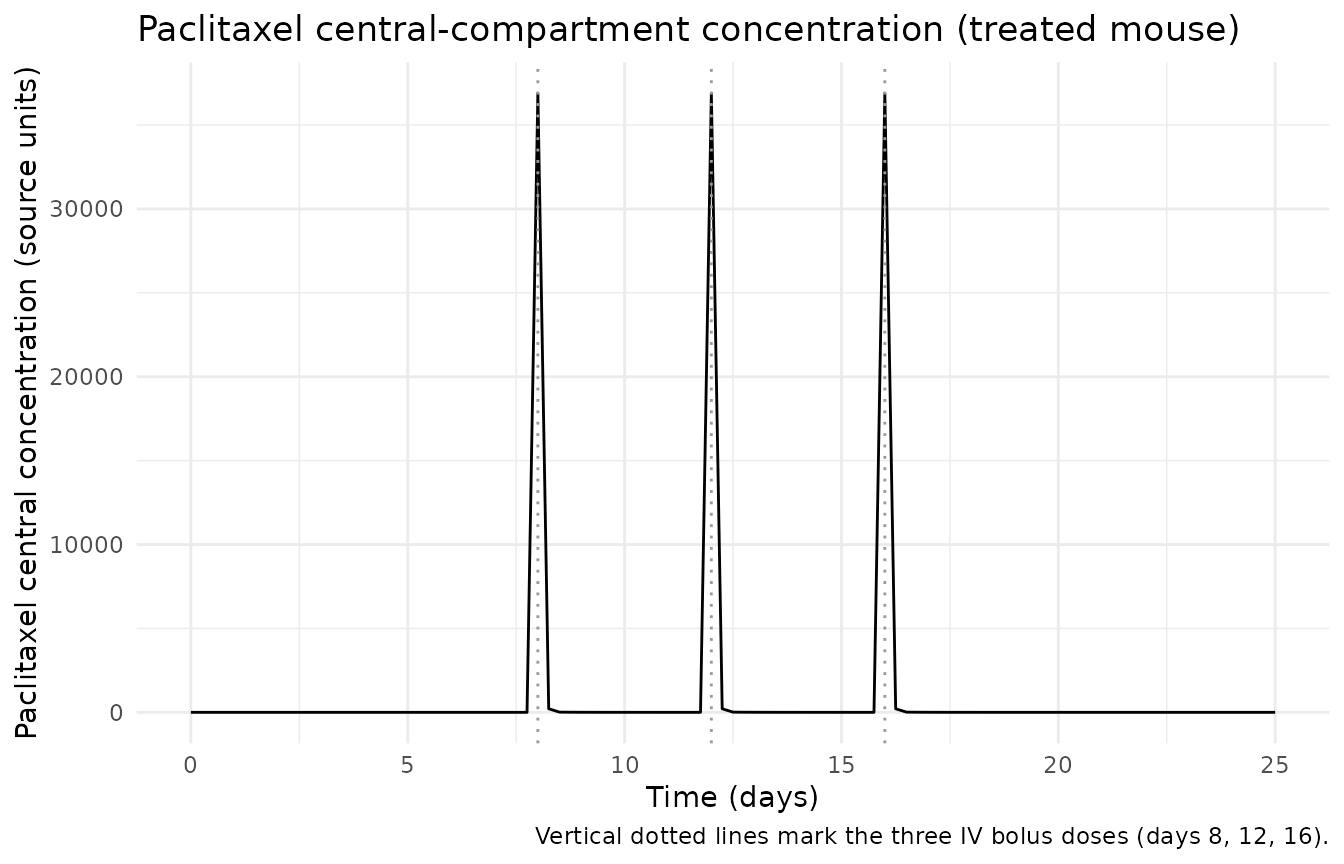

  labs(
    x = "Time (days)",
    y = "Paclitaxel central concentration (source units)",
    title = "Paclitaxel central-compartment concentration (treated mouse)",
    caption = "Vertical dotted lines mark the three IV bolus doses (days 8, 12, 16)."
  ) +
  theme_minimal()

Assumptions and deviations

  • Bundle does not ship a fit listing. DDMODEL00000274 carries no Output_real_*.lst (real-data fit) and no Output_simulated_*.lst (NONMEM listing on the simulated dataset) – only an Output_simulated_*.pdf graphical rendering. The packaged model therefore takes its parameter values from the .ctl $THETA block, which under $SIM ... ONLYSIM carries the simulation truth rather than refitted estimates. The “verify final estimates from the .lst” rule in the verification checklist is moot for this bundle.

  • Linked publication is paywalled. The Terranova 2018 paper (J Theor Biol 450:1-14, doi:10.1016/j.jtbi.2018.04.012) was not on disk in this worktree at extraction time. Elsevier’s full-text URL redirects via linkinghub.elsevier.com and was not accessible without a subscription, and no PMC mirror exists for this journal. The .ctl parameter values were therefore not cross-checked against published tables. The packaged population metadata records only what the bundle and RDF metadata expose (n_subjects = 2 in the simulated dataset, species = mouse xenograft, typical body weight ~21 g, typical initial tumor mass ~0.0023 g).

  • Dosing and concentration units are not declared in the bundle. The Executable_*.ctl carries K10 = 20.832 1/day, K12 = 0.144 1/day, K21 = 2.011 1/day, V1 = 813.1 (volume, units unstated), and AMT = 3e+07 per dose in the simulated dataset. These values are mutually consistent – Q1 / V1 after a bolus reaches ~3e+07 / 813 ~= 37000 “concentration units” and the IC50 of 0.461 is then on the same scale – but the absolute scale (mg, ug, ng; mL, uL) is ambiguous. The packaged model uses units$dosing = "amu" and units$concentration = "amu/avu" to make the ambiguity explicit; users feeding this model from a paclitaxel-mouse PK study should rescale AMT and V1 together to match the source PK convention. Body weight and tumor weight are unambiguously in grams based on the bundle’s Output_simulated_*.pdf axis labels.

  • Residual error simplified to plain additive. The .ctl $ERROR block uses Y = IPRED + b * sqrt(IPRED) * EPS (where EPS ~ N(0, sigma = 1), sigma fixed) – i.e. additive on the linear scale with standard deviation proportional to sqrt(IPRED), a Poisson-like noise structure. nlmixr2 / rxode2 do not have a direct ~ pow(s, 0.5) residual-error term in the observation grammar, so the packaged model encodes the source’s b_W = 0.101 and b_Wu = 0.134 as plain add() SDs: bodyWeight ~ add(addSd_bodyWeight) and tumorWeight ~ add(addSd_tumorWeight). Forward-simulation validation in this vignette uses rxode2::zeroRe() (typical values, no residual error), so the simplification does not affect any check above; users running stochastic VPCs or parameter-estimation refits should restore the sqrt-IPRED form manually.

  • Mechanistic compartment names are paper-specific. bodyZ, bodyEn, tumor1, tumor2, tumor3, tumor4 are not in the canonical compartment register (R/conventions.R::registeredCompartmentNames). They mirror the source .ctl $MODEL block (Z, EN, VU1..VU4); renaming to generic precursor1..precursorN would obscure the DEB-TGI semantics (Z and EN are biologically distinct host states; the VU chain is the Simeoni-style proliferating + damaged-cell transit chain). checkModelConventions() flags these six compartments with compartments warnings, which are accepted as documented deviations.

  • No IIV or covariates. The .ctl declares $OMEGA 0 FIX and no covariate columns; the model is a typical-value mechanistic simulator. The packaged model has no eta* parameters and no entries in covariateData. Users wanting between-subject variability for a virtual cohort must add IIV by hand on top of the typical-value structure (e.g. lognormal scatter on lvu1_initial, lic50, lk2).

  • density_V, density_Vu, omeg hard-coded. The .ctl fixes DENSITY_V = DENSITY_VU = 1 and OMEG = 0.75 as literal constants in $PK rather than via $THETA. The packaged model hard-codes them inside model() to match.

  • The bundle’s “cut and replace” Q1<->Z swap is preserved. The source .mdl originally placed Z in compartment 1 and Q1 in compartment 2; Command.txt documents a hand-edit that swaps the two so paclitaxel doses (delivered to compartment 1 in the simulated dataset) land on the drug central compartment. The packaged model() declares d/dt(central) first to match this post-swap layout, so the bundle’s Simulated_DEB_TGI_data.csv with CMT = 1 doses maps directly onto the rxode2 compartment numbering (central = 1).
