Pregabalin nociceptive pain models (van Esdonk 2018)

Source: vignettes/articles/vanEsdonk_2018_pregabalin_pain_models.Rmd
vanEsdonk_2018_pregabalin_pain_models.Rmd

Model and source

van Esdonk 2018 fitted three models in sequence and reports each as a separate result, so this paper contributes three model files to nlmixr2lib:

Model file Paper result
vanEsdonk_2018_pregabalin Population PK of a single 300 mg oral dose (Table 2, Figure 1a, Figure 3a)
vanEsdonk_2018_pregabalin_coldpressor Cold pressor pain tolerance threshold (PTT) turnover PD model (Table 3 left, Figure 1b, Figure 3b)
vanEsdonk_2018_pregabalin_electricalstim Electrical stimulation PTT turnover PD model (Table 3 right, Figure 1b, Figure 3c)
  • Citation: van Esdonk MJ, Lindeman I, Okkerse P, de Kam ML, Groeneveld GJ, Stevens J. (2018). Population pharmacokinetic/pharmacodynamic analysis of nociceptive pain models following an oral pregabalin dose administration to healthy subjects. CPT Pharmacometrics Syst Pharmacol 7(9):573-580. doi:10.1002/psp4.12318.
  • Article: https://doi.org/10.1002/psp4.12318
  • Study design: Okkerse 2017, Br J Clin Pharmacol 83:976-990, https://doi.org/10.1111/bcp.13204
mod_pk <- readModelDb("vanEsdonk_2018_pregabalin")
mod_cp <- readModelDb("vanEsdonk_2018_pregabalin_coldpressor")
mod_es <- readModelDb("vanEsdonk_2018_pregabalin_electricalstim")

Population

Sixteen healthy volunteers (8 men, 8 women) took part in part 2 (oral analgesics) of a two-part, four-way randomised, placebo-controlled crossover study run at the Centre for Human Drug Research, Leiden. Each subject attended four visits separated by a one-week washout, receiving imipramine, pregabalin, ibuprofen or placebo; only the placebo and pregabalin occasions enter this analysis. Baseline demographics (van Esdonk 2018 Table 1): weight 68.0 kg (SD 8.22, range 54.25-77.50), height 176 cm (SD 8.54), age 21.75 years (SD 1.61, range 19-25), BMI 21.89 kg/m^2 (SD 1.60), fat-free mass 50.26 kg (SD 9.95, Janmahasatian equation), serum creatinine 82.19 umol/L (SD 12.95) and Cockcroft-Gault GFR 112.7 mL/min (SD 18.18).

Pregabalin 300 mg was given as a single oral dose. PK samples were drawn predose and at 0.5, 1, 2, 3, 4, 5, 6, 8 and 10 h; 136 of 144 planned samples were above the 20 ug/L lower limit of quantification. The pain battery was performed 10 times per visit, including two predose measurements up to 1 h before dosing.

One subject was excluded from the cold pressor analysis for a continuously maximal PTT of 120 s on both visits, so that endpoint used 15 subjects (291 measurements) while the electrical stimulation endpoint used all 16 (313 measurements).

str(rxode2::rxode(mod_pk)$population)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> List of 17
#>  $ species              : chr "human"
#>  $ n_subjects           : int 16
#>  $ n_studies            : int 1
#>  $ age_range            : chr "19-25 years"
#>  $ age_mean             : chr "21.75 years (SD 1.61)"
#>  $ weight_range         : chr "54.25-77.50 kg"
#>  $ weight_mean          : chr "68.0 kg (SD 8.22)"
#>  $ height_mean          : chr "176 cm (SD 8.54); range 163.5-192.5 cm"
#>  $ bmi_mean             : chr "21.89 kg/m^2 (SD 1.60); range 19.4-24.9"
#>  $ ffm_mean             : chr "50.26 kg (SD 9.95); range 36.62-63.26 (Janmahasatian equation)"
#>  $ serum_creatinine_mean: chr "82.19 umol/L (SD 12.95); range 52-99"
#>  $ gfr_mean             : chr "112.7 mL/min (SD 18.18); range 79-149 (Cockcroft-Gault)"
#>  $ sex_female_pct       : num 50
#>  $ disease_state        : chr "Healthy volunteers"
#>  $ dose_range           : chr "Single 300 mg oral dose"
#>  $ regions              : chr "The Netherlands (Centre for Human Drug Research, Leiden)"
#>  $ notes                : chr "Part 2 (oral analgesics) of a two-part, four-way randomised placebo-controlled crossover study (Okkerse 2017, B"| __truncated__

Source trace

Every ini() entry carries an in-file comment naming its source location. The table below collects them.

Model Equation / parameter Value Source location
PK lka 6.07 /h Table 2, k a (/hour) (RSE 42.3%)
PK ltlag 0.495 h Table 2, Lag time (hour) (RSE 0.39%)
PK lvc 31.1 L Table 2, V d /70 kg (L) (RSE 3.13%)
PK lcl 4.5 L/h Table 2, CL/70 kg (L/hour) (RSE 2.53%)
PK e_wt_cl 0.75 (fixed) Covariate analysis, “clearance (CL; exponent = 0.75)”
PK e_wt_vc 1 (fixed) Covariate analysis, “volume of distribution (V d ; exponent = 1)”
PK etalka 2.6 Table 2, omega 2 k a (CV 353%)
PK etaltlag 7.09e-5 Table 2, omega 2 lag time (CV 0.842%)
PK etalvc 0.0101 Table 2, omega 2 V d / F (CV 10.1%)
PK etalcl 0.00672 Table 2, omega 2 CL/ F (CV 8.21%)
PK propSd sqrt(0.0146) Table 2, sigma 2 proportional
PK d/dt(depot), d/dt(central), alag(depot) n/a Figure 1a; Results, one-compartment model with lag time
CP lrbase 16.9 s Table 3 cold pressor, Baseline (RSE 16.8%)
CP lkout 0.39 /h Table 3 cold pressor, k out (RSE 21%)
CP slope_placebo -0.07 s/h Table 3 cold pressor, Slope over time (RSE 57.8%)
CP slope_drug 0.135 1/(mg/L) Table 3 cold pressor, Slope pregabalin (RSE 16.7%)
CP etalrbase 0.283 Table 3 cold pressor, omega 2 baseline (CV 57.2%)
CP etalkout 0.738 Table 3 cold pressor, omega 2 k out (CV 105%)
CP etaiov_rbase_1/2 0.057 Table 3 cold pressor, omega 2 BOV baseline (CV 24.2%)
CP propSd sqrt(0.041) Table 3 cold pressor, sigma 2 proportional
CP d/dt(ptt_cp) n/a Figure 1b (“CP: Linear (+)” on k in); Results, turnover compartment with a linear decrease over time and a linear concentration effect on k in
ES lrbase 19.1 mA Table 3 electrical stimulation, Baseline (RSE 7%)
ES lkout 0.494 /h Table 3 electrical stimulation, k out (RSE 24%)
ES lemax 0.322 Table 3 electrical stimulation, Effect pregabalin (RSE 18%)
ES etalemax 0.187 Table 3 electrical stimulation, omega 2 effect
ES etaiov_rbase_1/2 0.122 Table 3 electrical stimulation, omega 2 BOV baseline
ES propSd sqrt(0.0143) Table 3 electrical stimulation, sigma 2 proportional
ES d/dt(ptt_es) n/a Figure 1b (“ES: on/off (+)” on k in); Results, on/off effect preferred over an Emax model whose EC50 fell below 1 ug/L

The PK layer is reproduced inside both PD model files and every one of its parameters is wrapped in fixed() there, because the paper fitted the PD models sequentially: “individual post hoc Bayesian estimates of the developed PK model were added to the PD dataset”.

Published values, re-entered independently

The gates below compare the packaged models against closed-form expressions built from the paper’s Table 2 and Table 3 numbers re-entered here by hand. A transcription error in a model file therefore shows up as a failed gate rather than cancelling out.

# van Esdonk 2018 Table 2 (PK, 70 kg reference subject).
pub_ka <- 6.07 # /h
pub_tlag <- 0.495 # h
pub_vc <- 31.1 # L
pub_cl <- 4.5 # L/h
pub_dose <- 300 # mg

# van Esdonk 2018 Table 3.
pub_cp_base <- 16.9 # s
pub_cp_kout <- 0.39 # /h
pub_cp_slope_time <- -0.07 # s/h
pub_cp_slope_drug <- 0.135 # 1/(mg/L)

pub_es_base <- 19.1 # mA
pub_es_kout <- 0.494 # /h
pub_es_emax <- 0.322 # unitless

pub_kel <- pub_cl / pub_vc

# Closed-form NCA for a one-compartment oral model with a lag time.
ref_tmax <- pub_tlag + log(pub_ka / pub_kel) / (pub_ka - pub_kel)
ref_cmax <- (pub_dose / pub_vc) * (pub_ka / (pub_ka - pub_kel)) *
  (exp(-pub_kel * (ref_tmax - pub_tlag)) - exp(-pub_ka * (ref_tmax - pub_tlag)))
ref_aucinf <- pub_dose / pub_cl
ref_thalf <- log(2) / pub_kel

tibble::tibble(
  Quantity = c("kel (1/h)", "Tmax (h)", "Cmax (mg/L)", "AUCinf (mg*h/L)", "t1/2 (h)"),
  Value = c(pub_kel, ref_tmax, ref_cmax, ref_aucinf, ref_thalf)
) |>
  knitr::kable(digits = 4, caption = "Closed-form reference values derived from Table 2.")
Closed-form reference values derived from Table 2.
Quantity Value
kel (1/h) 0.1447
Tmax (h) 1.1256
Cmax (mg/L) 8.8051
AUCinf (mg*h/L) 66.6667
t1/2 (h) 4.7904

Virtual cohort

Individual data are not public, so the figures use a virtual cohort whose weight distribution matches Table 1 (normal, mean 68.0 kg, SD 8.22, truncated to the reported 54.25-77.50 kg range).

The study was a crossover, but rxSolve keys subjects on id, so each (subject, occasion) pair is given its own id. OCC = 1 is the placebo visit and OCC = 2 the pregabalin visit; only OCC = 2 carries a dose.

# set.seed() seeds R's RNG, not rxode2's -- rxode2 partitions its streams per
# solver thread, so CI draws a different cohort than a workstation does. Every
# assertion below is therefore written to hold for ANY cohort the model can
# produce, or is run on a typical-value (zeroRe) solve where no RNG is involved.
set.seed(20180813)

n_subj <- 100L # per occasion; well under the 200-per-arm cap

sample_wt <- function(n) {
  wt <- rnorm(n, mean = 68.0, sd = 8.22)
  pmin(pmax(wt, 54.25), 77.50)
}

subj_wt <- sample_wt(n_subj)

# PD observation grid: the pain battery ran 10 times per visit over ~10 h.
pd_times <- seq(0, 10.5, by = 0.25)

make_pd_occasion <- function(occ, dosed, state, id_offset) {
  subj <- tibble::tibble(
    id = id_offset + seq_len(n_subj),
    WT = subj_wt,
    OCC = occ,
    visit = if (dosed) "Pregabalin 300 mg" else "Placebo"
  )
  obs <- subj |>
    tidyr::crossing(time = pd_times) |>
    dplyr::mutate(evid = 0L, amt = NA_real_, cmt = state)
  if (!dosed) {
    return(dplyr::arrange(obs, id, time))
  }
  dose <- subj |>
    dplyr::mutate(time = 0, evid = 1L, amt = pub_dose, cmt = "depot")
  dplyr::bind_rows(dose, obs) |> dplyr::arrange(id, time, dplyr::desc(evid))
}

ev_cp <- dplyr::bind_rows(
  make_pd_occasion(1L, FALSE, "ptt_cp", 0L),
  make_pd_occasion(2L, TRUE, "ptt_cp", n_subj)
)
ev_es <- dplyr::bind_rows(
  make_pd_occasion(1L, FALSE, "ptt_es", 0L),
  make_pd_occasion(2L, TRUE, "ptt_es", n_subj)
)

# Disjoint-id guard: duplicate ids across occasions would silently merge two
# occasions into one subject receiving both event streams.
stopifnot(
  !anyDuplicated(unique(ev_cp[, c("id", "time", "evid")])),
  !anyDuplicated(unique(ev_es[, c("id", "time", "evid")])),
  length(intersect(ev_cp$id[ev_cp$OCC == 1], ev_cp$id[ev_cp$OCC == 2])) == 0L
)

# PK cohort: one dose, observations on `central` out to 24 h so the terminal
# phase is long enough (t1/2 = 4.79 h) for a stable lambda-z.
pk_times <- sort(unique(c(seq(0, 24, by = 0.05), c(0.5, 1, 2, 3, 4, 5, 6, 8, 10))))
pk_subj <- tibble::tibble(id = seq_len(n_subj), WT = subj_wt, OCC = 2L,
                          visit = "Pregabalin 300 mg")
ev_pk <- dplyr::bind_rows(
  pk_subj |> dplyr::mutate(time = 0, evid = 1L, amt = pub_dose, cmt = "depot"),
  pk_subj |> tidyr::crossing(time = pk_times) |>
    dplyr::mutate(evid = 0L, amt = NA_real_, cmt = "central")
) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

Pharmacokinetics

Gate 1 - the solved PK equals the closed-form one-compartment oral model

This is the strictest available check on the PK layer: it is deterministic, so the tolerance can be tight. It simultaneously confirms that the absorption lag is honoured, that the dose/volume units give mg/L, and that rxode2 is integrating the declared two-state system rather than silently substituting an analytic kernel that drops the depot.

typ_pk <- tibble::tibble(id = 1L, WT = 70, OCC = 2L) |>
  (\(s) dplyr::bind_rows(
    dplyr::mutate(s, time = 0, evid = 1L, amt = pub_dose, cmt = "depot"),
    tidyr::crossing(s, time = seq(0, 24, by = 0.05)) |>
      dplyr::mutate(evid = 0L, amt = NA_real_, cmt = "central")
  ))() |>
  dplyr::arrange(time, dplyr::desc(evid))

sim_pk_typ <- rxode2::rxSolve(
  rxode2::zeroRe(mod_pk), typ_pk, omega = NA, sigma = NA,
  returnType = "data.frame"
)
#> ℹ parameter labels from comments will be replaced by 'label()'
if (is.null(sim_pk_typ$id)) sim_pk_typ$id <- 1L

# Both declared states must survive to the output; if rxode2 had matched this
# model against a one-compartment analytic kernel, `depot` would be gone.
stopifnot(all(c("depot", "central", "Cc") %in% names(sim_pk_typ)))

cc_closed_form <- function(t) {
  ta <- pmax(t - pub_tlag, 0)
  ifelse(
    t < pub_tlag, 0,
    (pub_dose / pub_vc) * (pub_ka / (pub_ka - pub_kel)) *
      (exp(-pub_kel * ta) - exp(-pub_ka * ta))
  )
}

# rxSolve returns observation records only -- there is no `evid` column on the
# output, so an `evid == 0` filter here would error (or, worse, select nothing).
chk_pk <- sim_pk_typ |>
  dplyr::transmute(time, solved = Cc, closed = cc_closed_form(time)) |>
  dplyr::filter(time > pub_tlag + 0.05) # skip the lag discontinuity itself

max_rel_pk <- max(abs(chk_pk$solved - chk_pk$closed) / chk_pk$closed)

# Deterministic comparison: no cohort, no RNG, so a tight bound is correct and
# is what catches a future regression (realised ~1e-5).
stopifnot(nrow(chk_pk) > 300, max_rel_pk < 1e-3)

# The lag must actually delay absorption: nothing may appear before tlag.
stopifnot(all(sim_pk_typ$Cc[sim_pk_typ$time < pub_tlag] == 0))

cat(sprintf(
  "Max relative |solved - closed form| = %.2e over %d observations\n",
  max_rel_pk, nrow(chk_pk)
))
#> Max relative |solved - closed form| = 4.46e-07 over 470 observations

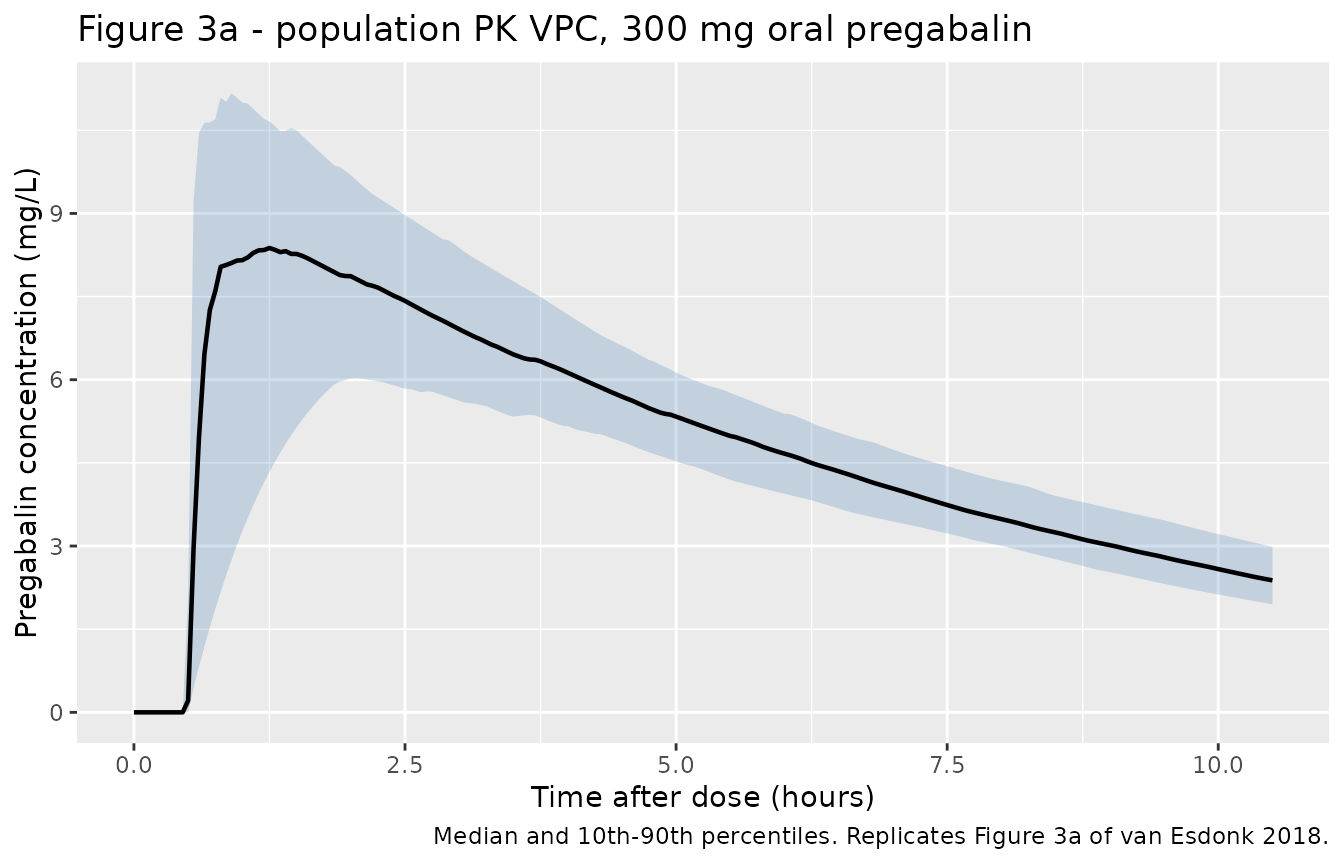

Figure 3a - population PK visual predictive check

sim_pk <- rxode2::rxSolve(mod_pk, ev_pk, keep = c("WT", "visit")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_pk |>
  dplyr::filter(time <= 10.5, !is.na(Cc)) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q10 = quantile(Cc, 0.10), Q50 = quantile(Cc, 0.50),
    Q90 = quantile(Cc, 0.90), .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.25, fill = "steelblue") +
  geom_line(linewidth = 0.8) +
  labs(
    x = "Time after dose (hours)", y = "Pregabalin concentration (mg/L)",
    title = "Figure 3a - population PK VPC, 300 mg oral pregabalin",
    caption = "Median and 10th-90th percentiles. Replicates Figure 3a of van Esdonk 2018."
  )

Figure 3a of the paper shows the median peaking near 8-9 mg/L at 1-2 h and falling to roughly 2.5-3 mg/L by 10 h, with observations spanning about 1-14 mg/L. The gate below asserts that envelope. The bounds are absolute values read from the published figure, not from any single simulated run.

pk_med <- sim_pk |>
  dplyr::filter(time <= 10.5, !is.na(Cc)) |>
  dplyr::group_by(time) |>
  dplyr::summarise(med = median(Cc), .groups = "drop")

peak_med <- max(pk_med$med)
peak_time <- pk_med$time[which.max(pk_med$med)]
med_at_10 <- pk_med$med[which.min(abs(pk_med$time - 10))]

stopifnot(
  peak_med > 6 && peak_med < 11, # Figure 3a median peak is ~8-9 mg/L
  peak_time > 0.6 && peak_time < 2.5, # Figure 3a median peaks between 1 and 2 h
  med_at_10 > 1.5 && med_at_10 < 4 # Figure 3a median at 10 h is ~2.5-3 mg/L
)

cat(sprintf(
  "Median peak %.2f mg/L at %.2f h; median at 10 h = %.2f mg/L\n",
  peak_med, peak_time, med_at_10
))
#> Median peak 8.38 mg/L at 1.25 h; median at 10 h = 2.58 mg/L

PKNCA validation

PKNCA is run on the typical-value (70 kg) profile so that the comparison against the closed-form reference is deterministic.

nca_in <- sim_pk_typ |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::transmute(id, time, Cc, treatment = "300 mg oral, 70 kg")

# Guarantee a time-zero anchor (extravascular predose Cc = 0). Do NOT filter on
# `time > 0` or `Cc > 0` -- both drop this row and trigger PKNCA's
# "AUC range starting (0) before the first measurement" warning.
nca_in <- dplyr::bind_rows(
  nca_in,
  nca_in |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, treatment, time)

stopifnot(nrow(nca_in) > 0, all(nca_in$Cc >= 0))

conc_obj <- PKNCA::PKNCAconc(nca_in, Cc ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(
  tibble::tibble(id = 1L, time = 0, amt = pub_dose,
                 treatment = "300 mg oral, 70 kg"),
  amt ~ time | treatment + id
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  conc_obj, dose_obj,
  intervals = data.frame(
    start = 0, end = Inf,
    cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE, half.life = TRUE
  )
))
published <- tibble::tibble(
  treatment = "300 mg oral, 70 kg",
  cmax = ref_cmax,
  tmax = ref_tmax,
  aucinf.obs = ref_aucinf,
  half.life = ref_thalf
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = nca_res,
  reference = published,
  by = "treatment",
  units = c(cmax = "mg/L", tmax = "h", aucinf.obs = "mg*h/L", half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = paste(
    "PKNCA on the simulated typical-value profile vs the closed-form values",
    "implied by van Esdonk 2018 Table 2. * marks a >20% difference."
  )
)
PKNCA on the simulated typical-value profile vs the closed-form values implied by van Esdonk 2018 Table 2. * marks a >20% difference.
NCA parameter treatment Reference Simulated % diff
Cmax (mg/L) 300 mg oral, 70 kg 8.81 8.8 -0.0%
Tmax (h) 300 mg oral, 70 kg 1.13 1.15 +2.2%
AUC0-∞ (obs) (mg*h/L) 300 mg oral, 70 kg 66.7 66.7 -0.0%
t½ (h) 300 mg oral, 70 kg 4.79 4.79 +0.0%
# ncaComparisonTable() returns character columns for display, so re-derive the
# comparison numerically rather than parsing the rendered table.
nca_wide <- as.data.frame(nca_res) |>
  dplyr::select(PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)

nca_pct <- function(sim, ref) 100 * (sim - ref) / ref

# Deterministic: one subject, no RNG. Tmax is compared on an ABSOLUTE scale
# because the observation grid quantises it to 0.05 h.
stopifnot(
  abs(nca_pct(nca_wide$cmax, ref_cmax)) < 1,
  abs(nca_wide$tmax - ref_tmax) <= 0.05,
  abs(nca_pct(nca_wide$aucinf.obs, ref_aucinf)) < 1,
  abs(nca_pct(nca_wide$half.life, ref_thalf)) < 1
)

# Dose-recovery identity: with F implicit at 1, CL * AUCinf must return the dose.
stopifnot(abs(pub_cl * nca_wide$aucinf.obs - pub_dose) / pub_dose < 0.01)

cat(sprintf(
  "CL * AUCinf = %.2f mg against a %.0f mg dose\n",
  pub_cl * nca_wide$aucinf.obs, pub_dose
))
#> CL * AUCinf = 299.98 mg against a 300 mg dose

Pharmacodynamics

Both PD models are turnover (indirect-response) models in which pregabalin stimulates the production rate k in (Figure 1b). They differ in the shape of that stimulation: linear in concentration for the cold pressor, all-or-none for electrical stimulation.

sim_cp <- rxode2::rxSolve(mod_cp, ev_cp, keep = c("WT", "visit")) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
sim_es <- rxode2::rxSolve(mod_es, ev_es, keep = c("WT", "visit")) |> as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line

solve_typ_pd <- function(mod, state, occ, dosed) {
  s <- tibble::tibble(id = 1L, WT = 70, OCC = occ)
  obs <- tidyr::crossing(s, time = seq(0, 10.5, by = 0.05)) |>
    dplyr::mutate(evid = 0L, amt = NA_real_, cmt = state)
  ev <- if (dosed) {
    dplyr::bind_rows(
      dplyr::mutate(s, time = 0, evid = 1L, amt = pub_dose, cmt = "depot"), obs
    )
  } else {
    obs
  }
  out <- rxode2::rxSolve(
    rxode2::zeroRe(mod), dplyr::arrange(ev, time, dplyr::desc(evid)),
    omega = NA, sigma = NA, returnType = "data.frame"
  )
  if (is.null(out$id)) out$id <- 1L
  out # rxSolve returns observation records only; there is no `evid` column
}

cp_typ_pbo <- solve_typ_pd(mod_cp, "ptt_cp", 1L, FALSE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
cp_typ_drg <- solve_typ_pd(mod_cp, "ptt_cp", 2L, TRUE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
es_typ_pbo <- solve_typ_pd(mod_es, "ptt_es", 1L, FALSE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
es_typ_drg <- solve_typ_pd(mod_es, "ptt_es", 2L, TRUE)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_rbase_1, etaiov_rbase_2
#> as a work-around try putting the mu-referenced expression on a simple line

Gate 2 - electrical stimulation, placebo occasion, holds exactly at baseline

With no dose the concentration is zero throughout, the on/off switch never turns on, and the model has no time trend for this endpoint (“No effect over time in the placebo occasion was significant”). The threshold must therefore sit exactly at its baseline for the whole visit. This is a steady-state hold: it goes red on a wrong initial condition, an unbalanced kin/kout pair, or a drug term that leaks into the placebo arm.

stopifnot(
  nrow(es_typ_pbo) > 100,
  max(abs(es_typ_pbo$ptt_es - pub_es_base)) < 1e-6
)
cat(sprintf(
  "Placebo-occasion ptt_es departs from %.1f mA by at most %.2e mA\n",
  pub_es_base, max(abs(es_typ_pbo$ptt_es - pub_es_base))
))
#> Placebo-occasion ptt_es departs from 19.1 mA by at most 8.17e-14 mA

Gate 3 - electrical stimulation, pregabalin occasion, matches its closed form

Because the drug term is an exact step that switches on at the absorption lag and never switches off within the visit (pregabalin remains measurable at 10 h), the turnover ODE has a closed-form solution:

ptt_es(t) = base + base * emax * (1 - exp(-kout * (t - tlag))) for t >= tlag.

es_closed_form <- function(t) {
  ifelse(
    t < pub_tlag, pub_es_base,
    pub_es_base + pub_es_base * pub_es_emax *
      (1 - exp(-pub_es_kout * (t - pub_tlag)))
  )
}

chk_es <- es_typ_drg |>
  dplyr::transmute(time, solved = ptt_es, closed = es_closed_form(time)) |>
  dplyr::filter(time > pub_tlag + 0.1) # skip the switch discontinuity

max_rel_es <- max(abs(chk_es$solved - chk_es$closed) / chk_es$closed)

# Deterministic; the tolerance only has to absorb the solver's handling of the
# step discontinuity in kin (realised ~1e-4).
stopifnot(nrow(chk_es) > 100, max_rel_es < 5e-3)

es_plateau <- pub_es_base * (1 + pub_es_emax)
cat(sprintf(
  "Max relative deviation from closed form = %.2e; plateau = %.2f mA\n",
  max_rel_es, es_plateau
))
#> Max relative deviation from closed form = 2.25e-07; plateau = 25.25 mA

# Figure 3c of the paper shows the pregabalin-occasion median rising from ~18 mA
# to a sustained ~25-27 mA. These are absolute bounds read off that figure.
stopifnot(es_plateau > 24 && es_plateau < 27)
stopifnot(max(es_typ_drg$ptt_es) <= es_plateau + 1e-6)

Gate 4 - cold pressor, placebo occasion, matches its closed form

On the placebo occasion kin = kout * (base + slope_placebo * t), giving

ptt_cp(t) = base + s * t - (s / kout) * (1 - exp(-kout * t)),

which is asymptotically linear in t with exactly the reported slope. That the solve reproduces this is what confirms the time drift was placed on the target level rather than added to kin as a constant offset.

cp_closed_form <- function(t) {
  pub_cp_base + pub_cp_slope_time * t -
    (pub_cp_slope_time / pub_cp_kout) * (1 - exp(-pub_cp_kout * t))
}

chk_cp <- cp_typ_pbo |>
  dplyr::transmute(time, solved = ptt_cp, closed = cp_closed_form(time))

max_rel_cp <- max(abs(chk_cp$solved - chk_cp$closed) / chk_cp$closed)
stopifnot(nrow(chk_cp) > 100, max_rel_cp < 1e-3)

# The late-time drift must recover the published -0.07 s/h slope.
late <- dplyr::filter(cp_typ_pbo, time >= 6)
late_slope <- unname(coef(lm(ptt_cp ~ time, data = late))[2])
stopifnot(abs(late_slope - pub_cp_slope_time) < 0.01)

cat(sprintf(
  "Max relative deviation from closed form = %.2e; late slope = %.4f s/h (published %.2f)\n",
  max_rel_cp, late_slope, pub_cp_slope_time
))
#> Max relative deviation from closed form = 1.86e-08; late slope = -0.0670 s/h (published -0.07)

Gate 5 - cold pressor, pregabalin occasion

No closed form exists here because kin tracks the full concentration-time profile. Figure 3b of the paper shows the pregabalin-occasion median rising from about 17 s to a peak near 28-30 s at 4-5 h, then falling back toward about 22 s by 10 h. The gate asserts that shape using absolute bounds from the figure.

Comparing the two occasions is also the drug-term sensitivity check: the placebo and pregabalin arms are solved from the same model and differ only in whether a dose is present, so a dead drug term would collapse them onto each other.

peak_idx <- which.max(cp_typ_drg$ptt_cp)
cp_peak <- cp_typ_drg$ptt_cp[peak_idx]
cp_peak_t <- cp_typ_drg$time[peak_idx]
cp_at_10 <- cp_typ_drg$ptt_cp[which.min(abs(cp_typ_drg$time - 10))]
cp_at_0 <- cp_typ_drg$ptt_cp[which.min(abs(cp_typ_drg$time - 0))]

stopifnot(
  cp_peak > 25 && cp_peak < 33, # Figure 3b median peak ~28-30 s
  cp_peak_t > 2.5 && cp_peak_t < 6.5, # Figure 3b median peaks at 4-5 h
  cp_at_10 < cp_peak, # the response falls back after the peak
  cp_at_0 > 16 && cp_at_0 < 18 # starts at the 16.9 s baseline
)

# Drug-term sensitivity: the two occasions must not coincide.
stopifnot(cp_peak / cp_at_0 > 1.4)

cat(sprintf(
  "Cold pressor typical profile: baseline %.2f s, peak %.2f s at %.2f h, %.2f s at 10 h\n",
  cp_at_0, cp_peak, cp_peak_t, cp_at_10
))
#> Cold pressor typical profile: baseline 16.90 s, peak 28.83 s at 4.60 h, 24.28 s at 10 h

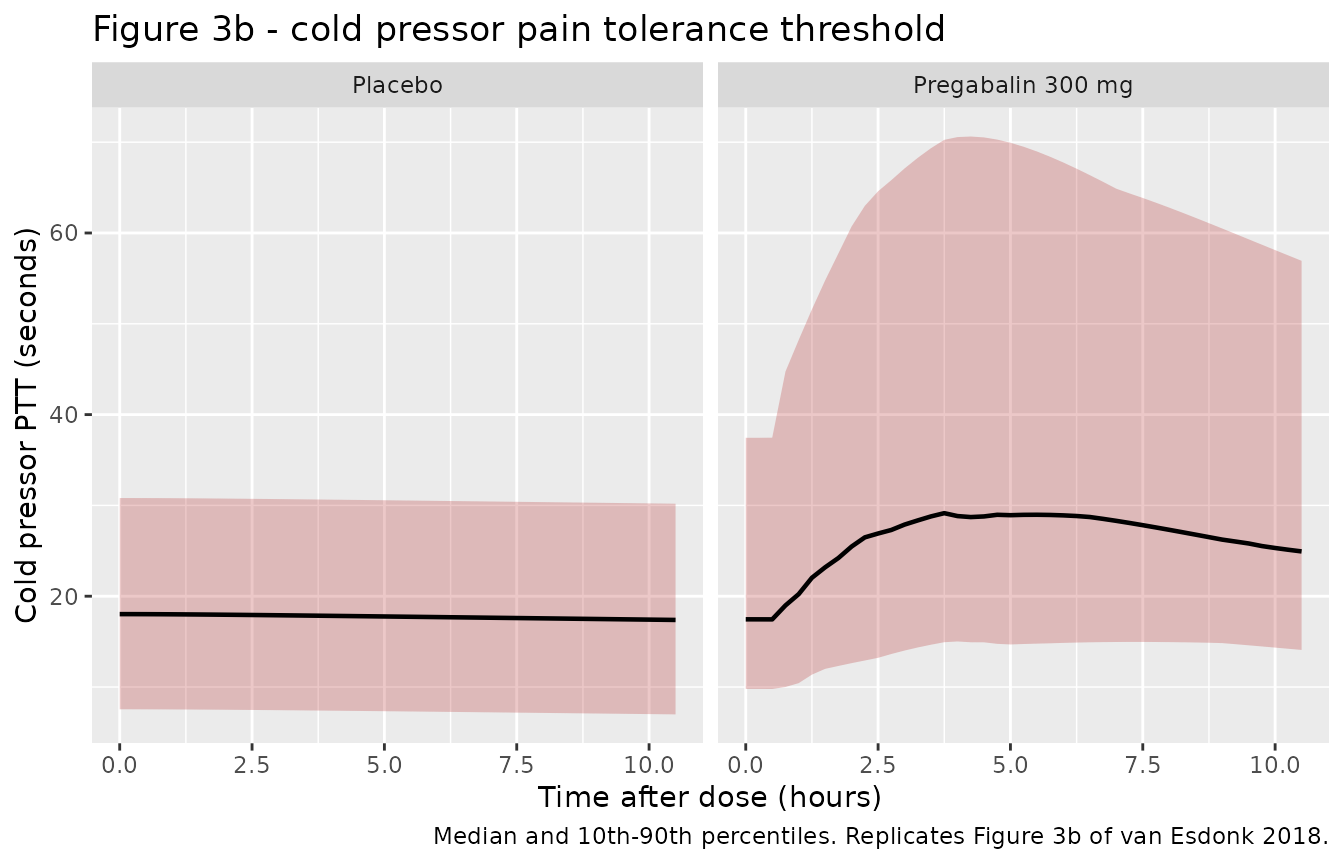

Figures 3b and 3c - pharmacodynamic visual predictive checks

sim_cp |>
  dplyr::filter(!is.na(ptt_cp)) |>
  dplyr::group_by(visit, time) |>
  dplyr::summarise(
    Q10 = quantile(ptt_cp, 0.10), Q50 = quantile(ptt_cp, 0.50),
    Q90 = quantile(ptt_cp, 0.90), .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.25, fill = "firebrick") +
  geom_line(linewidth = 0.8) +
  facet_wrap(~visit) +
  labs(
    x = "Time after dose (hours)", y = "Cold pressor PTT (seconds)",
    title = "Figure 3b - cold pressor pain tolerance threshold",
    caption = "Median and 10th-90th percentiles. Replicates Figure 3b of van Esdonk 2018."
  )

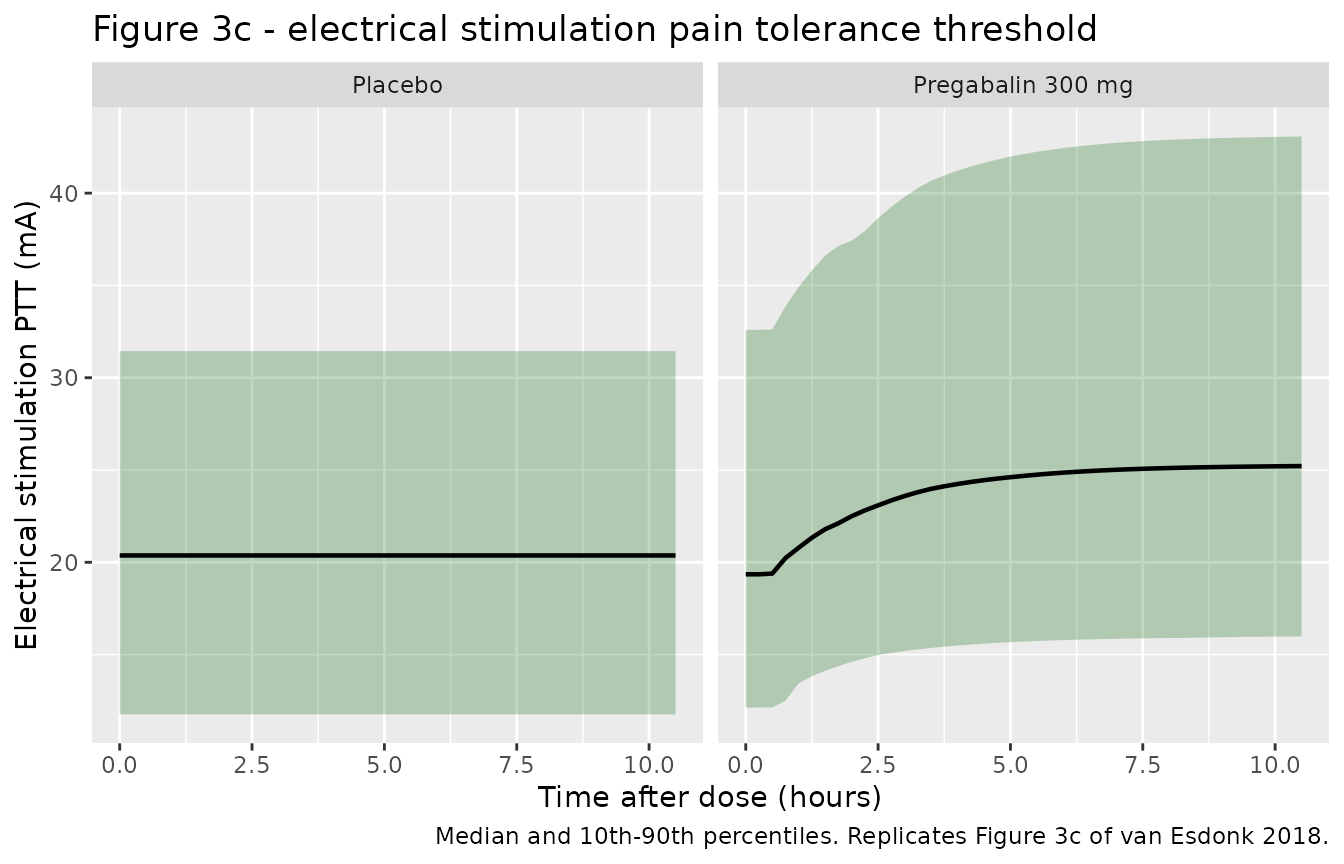

sim_es |>
  dplyr::filter(!is.na(ptt_es)) |>
  dplyr::group_by(visit, time) |>
  dplyr::summarise(
    Q10 = quantile(ptt_es, 0.10), Q50 = quantile(ptt_es, 0.50),
    Q90 = quantile(ptt_es, 0.90), .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.25, fill = "darkgreen") +
  geom_line(linewidth = 0.8) +
  facet_wrap(~visit) +
  labs(
    x = "Time after dose (hours)", y = "Electrical stimulation PTT (mA)",
    title = "Figure 3c - electrical stimulation pain tolerance threshold",
    caption = "Median and 10th-90th percentiles. Replicates Figure 3c of van Esdonk 2018."
  )

# Cohort-level gate. Assert the CENTRE, never the extremes of a random cohort:
# the per-subject maximum of a lognormal-IIV response is not reproducible
# across rxode2 builds or solver-thread counts.
cohort_summary <- dplyr::bind_rows(
  sim_cp |> dplyr::filter(!is.na(ptt_cp)) |>
    dplyr::group_by(visit, time) |>
    dplyr::summarise(med = median(ptt_cp), .groups = "drop") |>
    dplyr::mutate(endpoint = "Cold pressor PTT (s)"),
  sim_es |> dplyr::filter(!is.na(ptt_es)) |>
    dplyr::group_by(visit, time) |>
    dplyr::summarise(med = median(ptt_es), .groups = "drop") |>
    dplyr::mutate(endpoint = "Electrical stimulation PTT (mA)")
)

peaks <- cohort_summary |>
  dplyr::group_by(endpoint, visit) |>
  dplyr::summarise(peak_median = max(med), .groups = "drop")

stopifnot(nrow(peaks) == 4L)

# The pregabalin arm must exceed the placebo arm on both endpoints. This is a
# large effect (roughly +70% and +32% on the typical profile), not a near-zero
# one, so the ordering is a legitimate assertion rather than a coin flip.
for (ep in unique(peaks$endpoint)) {
  pk_ <- peaks$peak_median[peaks$endpoint == ep & peaks$visit == "Pregabalin 300 mg"]
  pb_ <- peaks$peak_median[peaks$endpoint == ep & peaks$visit == "Placebo"]
  stopifnot(length(pk_) == 1L, length(pb_) == 1L, pk_ > 1.15 * pb_)
}

knitr::kable(peaks, digits = 2, caption = "Peak of the cohort median by endpoint and visit.")
Peak of the cohort median by endpoint and visit.
endpoint visit peak_median
Cold pressor PTT (s) Placebo 18.03
Cold pressor PTT (s) Pregabalin 300 mg 29.15
Electrical stimulation PTT (mA) Placebo 20.37
Electrical stimulation PTT (mA) Pregabalin 300 mg 25.21

Assumptions and deviations

  • Appendix S3 (NONMEM control streams) is not recoverable. The paper states “All NONMEM model codes have been added in Appendix S3”, but the file deposited in that slot by the publisher (PSP4-7-573-s003.pdf, retrieved from the EuropePMC supplementary-files endpoint for PMC6157667) is a duplicate of Appendix S2 (“Model variance correlations”); the Wiley supplement endpoint is behind a challenge page. The structural readings below were therefore resolved from the paper text, Figure 1b and dimensional analysis, and each is confirmed against the published visual predictive checks in Figure 3 by Gates 2-5.

  • Placement of the cold pressor time slope. Table 3 reports the slope in seconds per hour - the units of the threshold per unit time, not of kin per unit time - so it is carried on the target level, kin = kout * (base + slope_placebo * t) * (1 + slope_drug * Cc). This makes the response asymptotically linear in time with exactly the reported slope, which is the “linear decrease in the cold pressor PTT over time” the paper describes. Adding the slope to kin instead would produce a constant offset rather than a drift, and would leave the reported units unexplained.

  • Multiplicative drug effect. slope_drug has units 1/(mg/L), so slope_drug * Cc is dimensionless and must multiply rather than add. This matches the paper’s own statement that the drug effect was implemented “as a proportional effect on the k in”.

  • The electrical stimulation on/off switch is driven by concentration. The paper describes an “on/off effect” without stating the switch variable. It is implemented as Cc > 0 rather than as a treatment-arm flag, so one model reproduces both visits: the placebo visit carries no dose, so the switch never turns on. The parameter retained is the maximal fractional increment on kin (canonical lemax); the paper dropped the accompanying EC50 because it estimated below 1 ug/L, i.e. below the 20 ug/L assay LLOQ, so the potency term is deliberately absent rather than missing.

  • Errata: the electrical stimulation %CV cells do not reconcile with their own variances. Table 3’s cold pressor column is internally consistent under CV = sqrt(exp(omega^2) - 1) for all three of its entries (0.057 -> 24.2%, 0.283 -> 57.2%, 0.738 -> 105%), matching every printed CV. The same formula applied to the electrical stimulation column gives 36.0% for omega^2 = 0.122 (printed 22%) and 45.3% for omega^2 = 0.187 (printed 70%). The omega^2 values are used as printed because each is corroborated by its own bootstrap confidence interval (0.070-0.172 and 0.02-0.60, both centred on the reported point estimate), and because the paper states IIV was drawn from a ln-normal distribution. The two %CV display cells are treated as the unreliable side of the discrepancy. No parameter was tuned.

  • Table 3’s parenthesised residual-error percentages are shrinkage, not CV. The row header reads “Residual error (shrinkage)”, so sigma^2 is a variance and the SD passed to nlmixr2 is its square root.

  • ptt_cp and ptt_es are declared as paper_specific_compartments. A pain tolerance threshold state is a first sighting in this library, and the standing ruling is that a compartment canonical requires a second independent paper. The consequence is a permanent checkModelConventions() warning (“Single-output observation variable … is not canonical”), which is accepted rather than silenced: registering the name now would mint a canonical off one paper. A second pain-threshold model arriving is the trigger to promote them. The existing canonical score was not reused - it is registered for a generic pain score (an 11-point Likert rating in Plan_2012_pain.R), whereas these states are stimulus-intensity thresholds in seconds and milliamps.

  • The crossover is simulated as independent occasions. Each (subject, occasion) pair gets its own id because rxSolve keys subjects on id. All etas - not only the between-occasion ones - are therefore redrawn per occasion. The marginal distribution within each panel of Figures 3b and 3c is unaffected, which is what those panels show; a within-subject paired analysis would need the IIV etas held constant across the two occasions.

  • Predose measurements are not simulated. The paper’s Figure 3b and 3c x-axes start at -2.5 h to show the two predose battery runs. The simulations here start at t = 0, where the turnover states are initialised at their baseline; the predose period carries no drug and, for the cold pressor, only 0.07 s/h of drift.

  • The pressure pain and heat pain models are deliberately not extracted. The paper developed and then abandoned both (“model development was not continued”) because of parameter estimates with RSEs above 200% and an IIV CV above 400%. Table 3 reports no final parameter set for either endpoint, so there is nothing to package.

  • Cohort weights are sampled, not observed. Individual data are not public; weights are drawn normal(68.0, 8.22) truncated to the Table 1 range 54.25-77.50 kg.

  • Bioavailability is not identifiable. The study is oral-only, so CL/F and Vd/F are apparent values and F is left implicit at 1. The dose-recovery identity in the PKNCA gate therefore reads CL * AUCinf = Dose.
