Mycophenolate EC-MPS and MMF in renal transplantation (Tsyplakova 2025)

Source: vignettes/articles/Tsyplakova_2025_mycophenolate.Rmd
Tsyplakova_2025_mycophenolate.Rmd

Model and source

Tsyplakova 2025 developed two population PK models for mycophenolic acid (MPA) in adult renal transplant recipients, one per oral formulation, and both are packaged separately:

modSodium  <- rxode2::rxode(readModelDb("Tsyplakova_2025_mycophenolateSodium"))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
modMofetil <- rxode2::rxode(readModelDb("Tsyplakova_2025_mycophenolateMofetil"))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
  • Citation: Tsyplakova A, Catic-Djordjevic A, Stefanovic N, Karalis VD (2025) Optimizing Mycophenolate Therapy in Renal Transplant Patients Using Machine Learning and Population Pharmacokinetic Modeling. Med Sci (Basel) 13(4):235. doi:10.3390/medsci13040235.
  • EC-MPS model: One-compartment population PK model with first-order absorption for mycophenolic acid after oral enteric-coated mycophenolate sodium (EC-MPS) in adult renal transplant recipients, with post-transplant time and total daily dose on apparent clearance and inter-occasion variability across monthly visits
  • MMF model: One-compartment population PK model with first-order absorption for mycophenolic acid after oral mycophenolate mofetil (MMF) in adult renal transplant recipients, with post-transplant time and total daily dose on apparent clearance and inter-occasion variability across monthly visits
  • Article: https://doi.org/10.3390/medsci13040235

The paper also applies machine-learning methods (principal component analysis and boosted-tree regression with SHAP attribution) to the same dataset. Those analyses identify which covariates drive MPA exposure but do not produce an ODE model, so they are outside the scope of this package; only the two population PK models are extracted here.

Population

The analysis pooled 76 adult renal transplant recipients from the nephrology clinic of the University Clinical Centre of Nis, Serbia, followed for six months from September 2018 (Tsyplakova 2025 Section 2.1 and Table 1). Patients were at least three months post-transplant, had stable graft function, and were on an immunosuppressive regimen of mycophenolate plus tacrolimus plus low-dose prednisone; serum albumin had to exceed 25 g/L. Median age was 51 years (IQR 14) and 26 of 76 (34.2%) were women. Median post-transplantation time was 70 months (IQR 84.3), and 54 (71%) grafts were from living donors against 18 (24%) from deceased donors.

Sixty-three patients (82.9%) received enteric-coated mycophenolate sodium (EC-MPS, 360-1440 mg/day twice daily) and 13 (17.1%) received mycophenolate mofetil (MMF, 500-2000 mg/day twice daily); MMF doses were placed on a common MPA-equivalent scale with a 0.72 conversion factor. Together they contributed 209 MPA plasma samples and 65 saliva samples. Only steady-state trough (C0) concentrations were measured, one per occasion, which is why the authors chose a one-compartment structure and estimated ka and V by maximum a posteriori estimation while CL was estimated by maximum likelihood.

Laboratory medians were urea 7.8 mmol/L (IQR 5.4), creatinine 136 umol/L (IQR 60), WBC 7.9 x10^9/L, RBC 4.7 x10^12/L, haemoglobin 138 g/L, haematocrit 41.4%, and platelets 225 x10^9/L. Body weight and serum albumin were not recorded, so the models carry no allometric or protein-binding term and creatinine clearance could not be computed (Section 4).

The same information is available programmatically:

str(readModelDb("Tsyplakova_2025_mycophenolateSodium")()$population)
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> List of 9
#>  $ species       : chr "human"
#>  $ n_subjects    : num 63
#>  $ n_studies     : num 1
#>  $ age_median    : chr "51 years (IQR 14; whole 76-patient cohort)"
#>  $ sex_female_pct: num 34.2
#>  $ disease_state : chr "adult renal transplant recipients, at least 3 months post-transplant with stable graft function, on mycophenola"| __truncated__
#>  $ dose_range    : chr "360-1440 mg/day enteric-coated mycophenolate sodium, given twice daily"
#>  $ regions       : chr "Serbia (University Clinical Centre of Nis)"
#>  $ notes         : chr "Tsyplakova 2025 Table 1: 76 patients total contributed 209 MPA plasma samples and 65 saliva samples; 63 (82.9%)"| __truncated__

Source trace

Every ini() entry carries an in-file comment naming its source location. They are collected here for review.

Equation / parameter EC-MPS value MMF value Source location
lka (ka) 0.18 /h 0.23 /h Table 2 / Table 3 kapop; Eq. 6 / Eq. 9
lvc (V/F) 192.42 L 196.43 L Table 2 / Table 3 Vpop; Eq. 7 / Eq. 10
lcl (CL/F) 9.3 L/h 9.3 L/h Table 2 / Table 3 Clpop; Eq. 8 / Eq. 11
e_pod_cl 0.16 0.33 Table 2 / Table 3 beta(PTP); Eq. 8 / Eq. 11
post-transplant reference 67 months 21 months Eq. 8 / Eq. 11 denominator (Cmean of Eq. 1)
e_dose_mpa_mgd_cl 0.77 1.27 Table 2 / Table 3 beta(TDD); Eq. 8 / Eq. 11
total-daily-dose reference 1500 mg/day 1500 mg/day Eq. 8 / Eq. 11 denominator
etalka SD 0.36 SD 0.27 Table 2 / Table 3 omega(ka)
etalvc SD 0.52 SD 0.09 Table 2 / Table 3 omega(V)
etalcl SD 0.27 SD 0.32 Table 2 / Table 3 omega(Cl)
etaiov_ka_* SD 0.28 SD 0.48 Table 2 / Table 3 gamma(ka)
etaiov_vc_* SD 0.52 SD 0.33 Table 2 / Table 3 gamma(V)
etaiov_cl_* SD 0.31 SD 0.27 Table 2 / Table 3 gamma(Cl)
addSd 0.04 mg/L not used Table 2 a; Eq. 5 combined error
propSd 0.06 0.17 Table 2 b / Table 3 b; Eq. 5 / Eq. 4
Covariate model form n/a n/a Eq. 1: log(Pi) = log(Ppop) + betaC * log(Ci/Cmean) + eta + kappa
d/dt(depot), d/dt(central) n/a n/a Section 3.1: one compartment, first-order absorption and elimination

Tables 2 and 3 are headed “Standard Deviation of the Random Effects”, so each reported omega and gamma is a standard deviation on the log scale; the model files therefore square them to variances (etalcl ~ 0.27^2).

Virtual cohort

Original observed data are not publicly available. The simulations below use virtual cohorts whose covariates are set at the reference values of each model’s covariate equation, so that apparent clearance reduces to the published Clpop of 9.3 L/h. Concretely, post-transplant time is set to the model’s own normalisation constant (67 months for EC-MPS, 21 months for MMF) and the total daily dose covariate is set to 1500 mg/day, making both power terms exactly 1. This matches Tsyplakova 2025 Section 3.3, which states that the Monte Carlo simulations used “the mean population clearance (Cl_pop = 9.3 L/h) estimated from the developed PopPK model”.

DAYS_PER_MONTH <- 30.4375  # mean Gregorian month; POD is a days-valued column

# Build one arm as a self-contained event table. `id_offset` keeps subject IDs
# disjoint so several arms can be bind_rows()-ed without rxSolve silently
# merging them into one subject.
make_arm <- function(n, dose, ii, addl, obs_times, pod_months, tdd = 1500,
                     id_offset = 0L, ...) {
  subj <- tibble(
    id           = id_offset + seq_len(n),
    POD          = pod_months * DAYS_PER_MONTH,
    DOSE_MPA_MGD = tdd,
    OCC          = 1,
    ...
  )
  doses <- subj |>
    mutate(time = 0, amt = dose, evid = 1L, cmt = "depot",
           ii = ii, addl = addl, ss = 0L)
  obs <- subj |>
    tidyr::crossing(time = obs_times) |>
    mutate(amt = NA_real_, evid = 0L, cmt = "central",
           ii = 0, addl = 0L, ss = 0L)
  bind_rows(doses, obs) |> arrange(id, time, desc(evid))
}

# Steady-state variant: a single ss=1 record establishes exact steady state,
# which is what the closed-form AUC identity below is tested against.
make_ss_arm <- function(n, dose, ii, obs_times, pod_months, tdd = 1500,
                        id_offset = 0L, ...) {
  subj <- tibble(
    id           = id_offset + seq_len(n),
    POD          = pod_months * DAYS_PER_MONTH,
    DOSE_MPA_MGD = tdd,
    OCC          = 1,
    ...
  )
  doses <- subj |>
    mutate(time = 0, amt = dose, evid = 1L, cmt = "depot",
           ii = ii, addl = 0L, ss = 1L)
  obs <- subj |>
    tidyr::crossing(time = obs_times) |>
    mutate(amt = NA_real_, evid = 0L, cmt = "central",
           ii = 0, addl = 0L, ss = 0L)
  bind_rows(doses, obs) |> arrange(id, time, desc(evid))
}

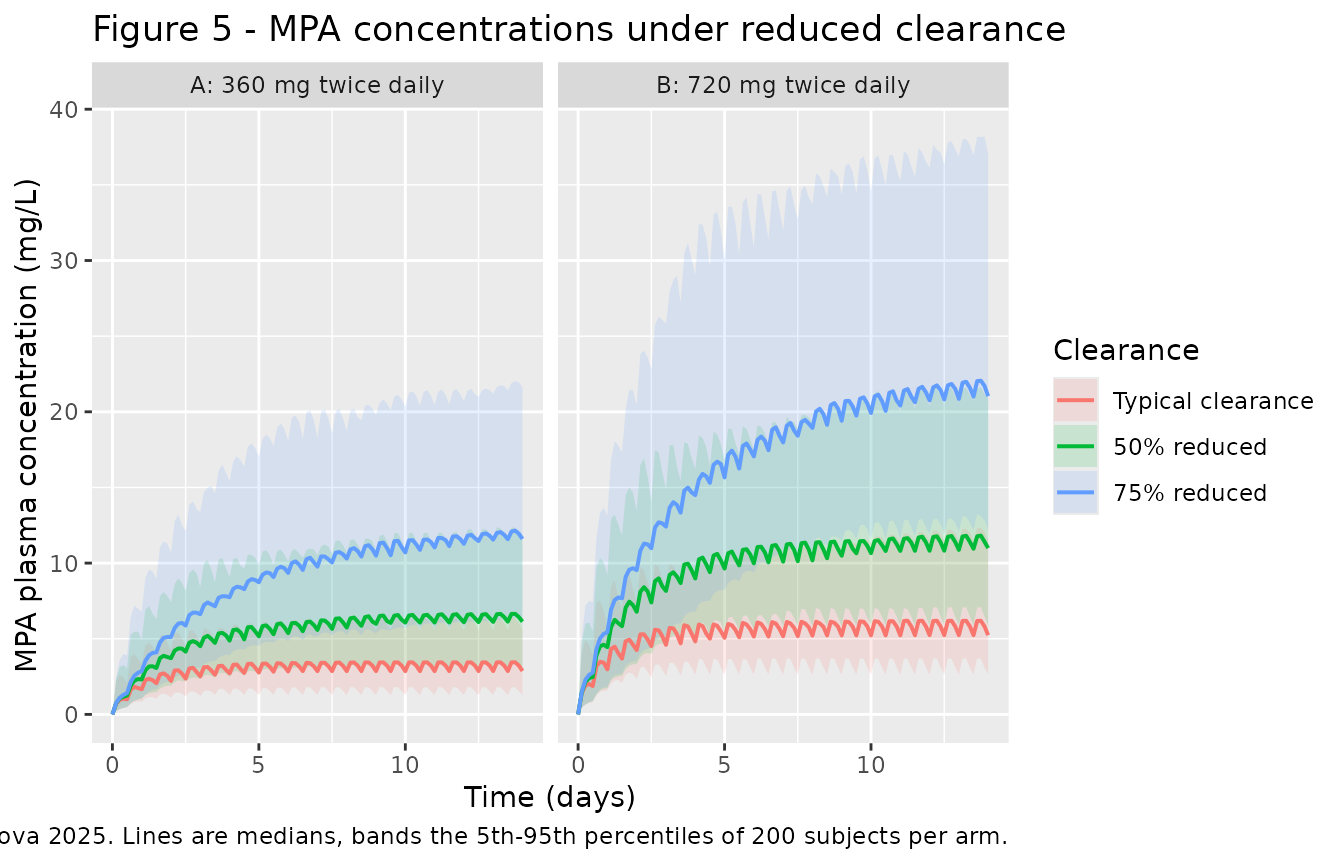

# Reduced-clearance scenarios are produced by scaling the typical CL/F, which
# is exactly what Section 3.3 describes ("reductions of 50% and 75%").
scale_cl <- function(mod, factor) {
  rxode2::ini(mod, lcl = log(9.3 * factor))
}

Single-dose disposition and the published half-life

Tsyplakova 2025 Section 4 states that “the half-life time of MPA from both EC-MPS and MMF formulations is about 14.5 h”. A single 720 mg dose simulated at the typical-value parameters recovers that directly.

sd_times <- c(seq(0, 24, by = 0.25), seq(25, 168, by = 1))

sd_events <- bind_rows(
  make_arm(1, dose = 720, ii = 0, addl = 0L, obs_times = sd_times,
           pod_months = 67, id_offset =  0L, formulation = "EC-MPS"),
  make_arm(1, dose = 720, ii = 0, addl = 0L, obs_times = sd_times,
           pod_months = 21, id_offset = 10L, formulation = "MMF")
)
stopifnot(!anyDuplicated(unique(sd_events[, c("id", "time", "evid")])))

# rxSolve drops the `id` column when the event table holds a single subject,
# so restore it explicitly from the arm's own id before binding the arms.
solve_one_arm <- function(mod, arm) {
  ev <- filter(sd_events, formulation == arm)
  out <- rxode2::rxSolve(rxode2::zeroRe(mod), events = as.data.frame(ev),
                         keep = "formulation") |>
    as.data.frame()
  if (is.null(out$id)) out$id <- unique(ev$id)
  out
}

sd_sim <- bind_rows(
  solve_one_arm(modSodium,  "EC-MPS"),
  solve_one_arm(modMofetil, "MMF")
)
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
stopifnot(dplyr::n_distinct(sd_sim$id) == 2L)

# The typical-value CL/F must collapse to the published Clpop of 9.3 L/h.
stopifnot(all(abs(sd_sim$cl - 9.3) < 1e-8))

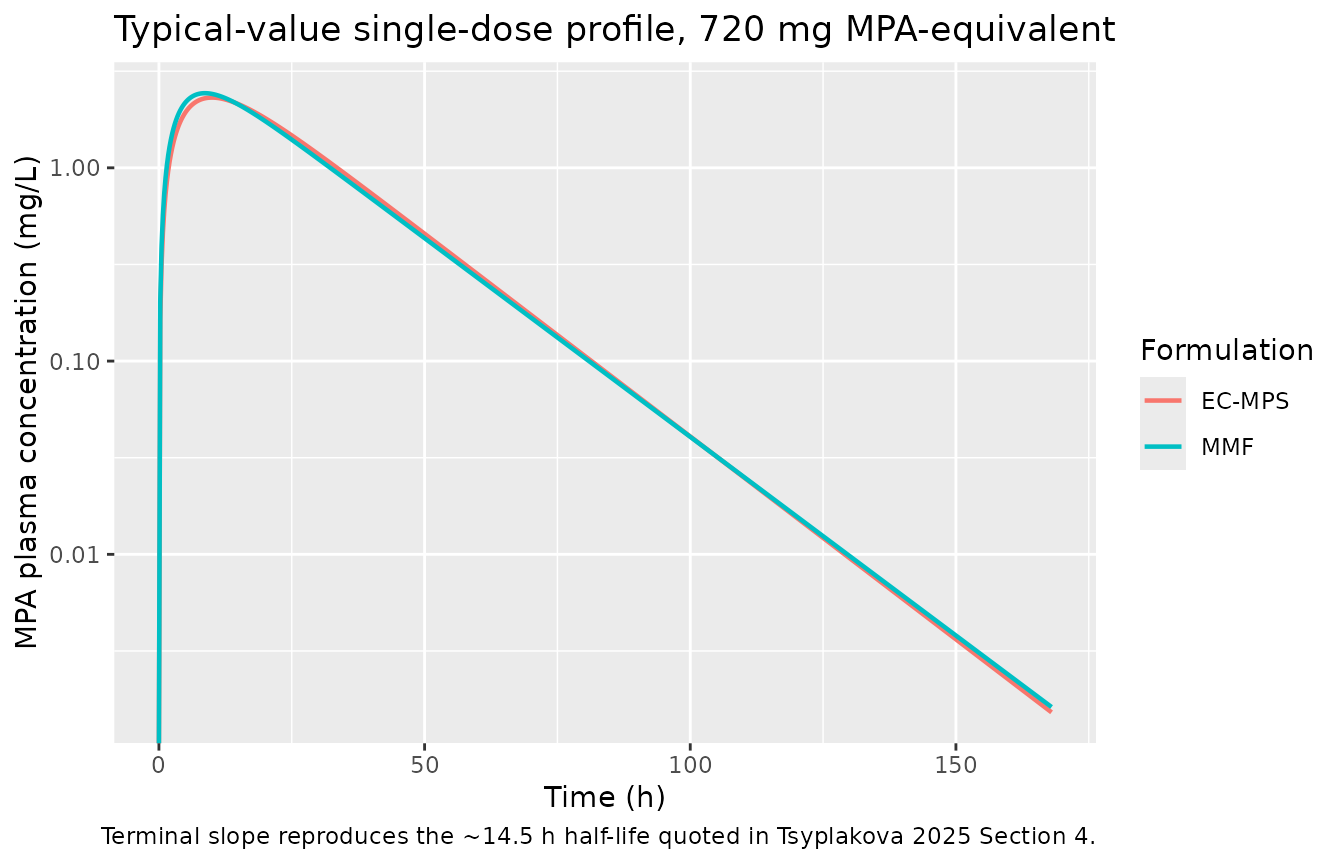

ggplot(sd_sim, aes(time, Cc, colour = formulation)) +
  geom_line(linewidth = 0.8) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "MPA plasma concentration (mg/L)",
       colour = "Formulation",
       title = "Typical-value single-dose profile, 720 mg MPA-equivalent",
       caption = "Terminal slope reproduces the ~14.5 h half-life quoted in Tsyplakova 2025 Section 4.")
#> Warning in scale_y_log10(): log-10 transformation introduced infinite values.

sd_nca <- sd_sim |>
  filter(!is.na(Cc)) |>
  select(id, time, Cc, formulation)

sd_nca <- bind_rows(
  sd_nca,
  sd_nca |> distinct(id, formulation) |> mutate(time = 0, Cc = 0)
) |>
  distinct(id, formulation, time, .keep_all = TRUE) |>
  arrange(id, formulation, time)

# Restrict lambda.z to the true terminal region. With ka = 0.18-0.23 /h the
# absorption phase is not complete until well past 24 h, and PKNCA's automatic
# lambda.z selection otherwise reads the oral half-life slightly long.
sd_nca$include_half.life <- sd_nca$time >= 96

sd_conc <- PKNCA::PKNCAconc(sd_nca, Cc ~ time | formulation + id,
                            include_half.life = "include_half.life")

sd_dose <- sd_events |>
  filter(evid == 1) |>
  select(id, time, amt, formulation)
sd_dose_obj <- PKNCA::PKNCAdose(sd_dose, amt ~ time | formulation + id)

sd_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  sd_conc, sd_dose_obj,
  intervals = data.frame(
    start = 0, end = Inf,
    cmax = TRUE, tmax = TRUE, aucinf.obs = TRUE,
    half.life = TRUE, cl.obs = TRUE
  )
))

Comparison against published values

Concentrations are in mg/L and doses in mg, so PKNCA’s cl.obs (dose / AUCinf) comes back directly in L/h and can be checked against the published Clpop. AUCinf is compared against the closed-form Dose / CL implied by the published clearance, and half.life against the value quoted in the Discussion.

published <- tibble::tribble(
  ~formulation, ~half.life, ~cl.obs, ~aucinf.obs,
  "EC-MPS",     14.5,       9.3,     720 / 9.3,
  "MMF",        14.5,       9.3,     720 / 9.3
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated = sd_res,
  reference = published,
  by        = "formulation",
  units     = c(cl.obs = "L/h", aucinf.obs = "mg*h/L",
                cmax = "mg/L", tmax = "h", half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  digits  = 2,
  caption = "Simulated vs. published MPA disposition after a single 720 mg dose. * differs from reference by >20%."
)
Simulated vs. published MPA disposition after a single 720 mg dose. * differs from reference by >20%.
NCA parameter formulation Reference Simulated % diff
AUC0-∞ (obs) (mg*h/L) EC-MPS 77.4 77.4 -0.0%
AUC0-∞ (obs) (mg*h/L) MMF 77.4 77.4 -0.0%
t½ (h) EC-MPS 14.5 14.3 -1.1%
t½ (h) MMF 14.5 14.6 +1.0%
CL/F (L/h) EC-MPS 9.3 9.3 +0.0%
CL/F (L/h) MMF 9.3 9.3 +0.0%

Half-life reads 14.3 h (EC-MPS) and 14.6 h (MMF) against the quoted “about 14.5 h”, and cl.obs returns the published 9.3 L/h, confirming both the ODE encoding and the dose/concentration unit chain.

Steady-state exposure and the closed-form AUC identity

At steady state the AUC over one dosing interval must equal Dose / CL exactly, regardless of ka or V. This single identity gates the ODE, the dose encoding, the steady-state event records, and PKNCA’s interval settings at once.

ss_grid <- seq(0, 12, by = 0.05)

ss_events <- bind_rows(
  make_ss_arm(1, dose = 360, ii = 12, obs_times = ss_grid, pod_months = 67,
              id_offset = 0L, regimen = "360 mg q12h"),
  make_ss_arm(1, dose = 720, ii = 12, obs_times = ss_grid, pod_months = 67,
              id_offset = 1L, regimen = "720 mg q12h")
)

ss_sim <- rxode2::rxSolve(rxode2::zeroRe(modSodium),
                          events = as.data.frame(ss_events),
                          keep = "regimen") |>
  as.data.frame() |>
  filter(!is.na(Cc))
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> Warning: multi-subject simulation without without 'omega'

ss_doses <- ss_events |>
  filter(evid == 1) |>
  select(regimen, dose = amt)

ss_auc <- ss_sim |>
  group_by(regimen) |>
  summarise(
    cl        = first(cl),
    auc_trapz = sum(diff(time) * (head(Cc, -1) + tail(Cc, -1)) / 2),
    .groups   = "drop"
  ) |>
  left_join(ss_doses, by = "regimen") |>
  mutate(
    auc_closed = dose / cl,
    pct_diff   = 100 * (auc_trapz - auc_closed) / auc_closed
  ) |>
  relocate(dose, .after = regimen)

# Strict gate: the numerical AUC must match Dose/CL to better than 0.1%.
stopifnot(all(abs(ss_auc$pct_diff) < 0.1))

ss_auc |>
  rename(
    "Regimen"                     = regimen,
    "Dose (mg)"                   = dose,
    "CL/F (L/h)"                  = cl,
    "AUC0-12 simulated (mg*h/L)"  = auc_trapz,
    "AUC0-12 = Dose/CL (mg*h/L)"  = auc_closed,
    "Difference (%)"              = pct_diff
  ) |>
  knitr::kable(digits = c(0, 0, 2, 3, 3, 4),
               caption = "Steady-state AUC identity for the EC-MPS model.")
Steady-state AUC identity for the EC-MPS model.
Regimen Dose (mg) CL/F (L/h) AUC0-12 simulated (mg*h/L) AUC0-12 = Dose/CL (mg*h/L) Difference (%)
360 mg q12h 360 9.3 38.710 38.710 -2e-04
720 mg q12h 720 9.3 77.419 77.419 -2e-04

Tsyplakova 2025 Sections 1 and 2.5 give the therapeutic reference range for AUC0-12 as approximately 30-60 ug*h/mL, which is numerically the same as 30-60 mg*h/L, the units used for plasma concentration in Figure 5. At the published typical clearance the 360 mg twice-daily regimen gives 38.7 mg*h/L, inside the therapeutic window, while 720 mg twice daily gives 77.4 mg*h/L, above it. That ordering is what drives the paper’s dose-reduction proposals below.

Replicating Figure 5: effect of reduced clearance

Figure 5 simulates MPA concentrations after initiating 360 mg twice daily (panel A) and 720 mg twice daily (panel B) under three conditions: the typical population clearance, a 50% reduction, and a 75% reduction. Terminal half-life rises from 14.3 h at full clearance to 28.7 h and 57.4 h respectively, so the simulation window has to be long enough for the most impaired arm to approach steady state. Fourteen days is 5.9 terminal half-lives for the 75%-reduced arm (98.3% of steady state).

fig5_times <- seq(0, 336, by = 3)
cl_conditions <- c("Typical clearance" = 1, "50% reduced" = 0.5, "75% reduced" = 0.25)

fig5_sim <- bind_rows(lapply(names(cl_conditions), function(cond) {
  events <- bind_rows(
    make_arm(200, dose = 360, ii = 12, addl = 27L, obs_times = fig5_times,
             pod_months = 67, id_offset =   0L, regimen = "A: 360 mg twice daily"),
    make_arm(200, dose = 720, ii = 12, addl = 27L, obs_times = fig5_times,
             pod_months = 67, id_offset = 200L, regimen = "B: 720 mg twice daily")
  )
  stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))
  # Same seed per condition so the three arms share one virtual cohort and the
  # only difference between them is the clearance scaling.
  set.seed(20251020)
  rxode2::rxSolve(scale_cl(modSodium, cl_conditions[[cond]]),
                  events = as.data.frame(events),
                  keep = "regimen") |>
    as.data.frame() |>
    mutate(condition = factor(cond, levels = names(cl_conditions)))
}))
#> ℹ change initial estimate of `lcl` to `2.23001440015921`
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ change initial estimate of `lcl` to `1.53686721959926`
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ change initial estimate of `lcl` to `0.84372003903932`
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line

fig5_sim |>
  filter(!is.na(Cc)) |>
  group_by(regimen, condition, time) |>
  summarise(
    Q05 = quantile(Cc, 0.05),
    Q50 = quantile(Cc, 0.50),
    Q95 = quantile(Cc, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time / 24, Q50, colour = condition, fill = condition)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.15, colour = NA) +
  geom_line(linewidth = 0.7) +
  facet_wrap(~regimen) +
  labs(x = "Time (days)", y = "MPA plasma concentration (mg/L)",
       colour = "Clearance", fill = "Clearance",
       title = "Figure 5 - MPA concentrations under reduced clearance",
       caption = paste("Replicates Figure 5 of Tsyplakova 2025.",
                       "Lines are medians, bands the 5th-95th percentiles of 200 subjects per arm."))

As in the paper, concentrations rise as clearance falls, and the effect is more pronounced at the higher dose. The median trough after 14 days rises roughly two- and four-fold across the three conditions, matching the reciprocal relationship between steady-state exposure and clearance.

fig5_sim |>
  filter(!is.na(Cc), time == 336) |>
  group_by(regimen, condition) |>
  summarise(trough = median(Cc), .groups = "drop") |>
  tidyr::pivot_wider(names_from = condition, values_from = trough) |>
  rename("Regimen" = regimen) |>
  knitr::kable(digits = 2,
               caption = "Median day-14 trough concentration (mg/L) by clearance condition.")
Median day-14 trough concentration (mg/L) by clearance condition.
Regimen Typical clearance 50% reduced 75% reduced
A: 360 mg twice daily 2.87 6.13 11.60
B: 720 mg twice daily 5.24 10.99 21.03

The proposed dose adjustments are exposure-neutral

Section 3.3 and Figures A2-A3 propose reduced regimens intended to restore the exposure of the unimpaired patient: 360 mg twice daily becomes 180 mg twice daily at 50% clearance and 180 mg once daily at 75% clearance, and 720 mg twice daily becomes 360 mg twice daily and 360 mg once daily respectively. Because steady-state daily exposure is daily dose / CL, each triplet should land on the same AUC over 24 h. This is an exact answer key from the paper’s own recommendations, so it is checked numerically rather than by eye.

regimens <- tibble::tribble(
  ~reference_regimen,     ~condition,     ~cl_factor, ~dose, ~ii,  ~label,
  "360 mg twice daily",   "Typical",      1.00,       360,   12,   "360 mg q12h",
  "360 mg twice daily",   "50% reduced",  0.50,       180,   12,   "180 mg q12h",
  "360 mg twice daily",   "75% reduced",  0.25,       180,   24,   "180 mg q24h",
  "720 mg twice daily",   "Typical",      1.00,       720,   12,   "720 mg q12h",
  "720 mg twice daily",   "50% reduced",  0.50,       360,   12,   "360 mg q12h",
  "720 mg twice daily",   "75% reduced",  0.25,       360,   24,   "360 mg q24h"
)

adjust_auc <- function(cl_factor, dose, ii) {
  grid <- seq(0, ii, by = ii / 480)
  ev <- make_ss_arm(1, dose = dose, ii = ii, obs_times = grid, pod_months = 67)
  s <- rxode2::rxSolve(rxode2::zeroRe(scale_cl(modSodium, cl_factor)),
                       events = as.data.frame(ev)) |>
    as.data.frame() |>
    filter(!is.na(Cc))
  auc_tau <- sum(diff(s$time) * (head(s$Cc, -1) + tail(s$Cc, -1)) / 2)
  tibble(cl = s$cl[1], auc_24 = auc_tau * 24 / ii)
}

adjust_res <- regimens |>
  rowwise() |>
  mutate(res = list(adjust_auc(cl_factor, dose, ii))) |>
  tidyr::unnest(res) |>
  ungroup() |>
  mutate(auc_24_closed = (dose * 24 / ii) / cl)
#> ℹ change initial estimate of `lcl` to `2.23001440015921`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> ℹ change initial estimate of `lcl` to `1.53686721959926`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> ℹ change initial estimate of `lcl` to `0.84372003903932`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> ℹ change initial estimate of `lcl` to `2.23001440015921`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> ℹ change initial estimate of `lcl` to `1.53686721959926`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> ℹ change initial estimate of `lcl` to `0.84372003903932`
#> ℹ omega/sigma items treated as zero: 'etalka', 'etalvc', 'etalcl', 'etaiov_ka_1', 'etaiov_ka_2', 'etaiov_ka_3', 'etaiov_ka_4', 'etaiov_ka_5', 'etaiov_ka_6', 'etaiov_vc_1', 'etaiov_vc_2', 'etaiov_vc_3', 'etaiov_vc_4', 'etaiov_vc_5', 'etaiov_vc_6', 'etaiov_cl_1', 'etaiov_cl_2', 'etaiov_cl_3', 'etaiov_cl_4', 'etaiov_cl_5', 'etaiov_cl_6'
#> Warning: There were 8 warnings in `mutate()`.
#> The first warning was:
#> ℹ In argument: `res = list(adjust_auc(cl_factor, dose, ii))`.
#> ℹ In row 1.
#> Caused by warning:
#> ! some etas defaulted to non-mu referenced, possible parsing error: etaiov_ka_1, etaiov_ka_2, etaiov_ka_3, etaiov_ka_4, etaiov_ka_5, etaiov_ka_6, etaiov_vc_1, etaiov_vc_2, etaiov_vc_3, etaiov_vc_4, etaiov_vc_5, etaiov_vc_6, etaiov_cl_1, etaiov_cl_2, etaiov_cl_3, etaiov_cl_4, etaiov_cl_5, etaiov_cl_6
#> as a work-around try putting the mu-referenced expression on a simple line
#> ℹ Run `dplyr::last_dplyr_warnings()` to see the 7 remaining warnings.

# Every triplet must land on one AUC0-24, and each value must match the
# closed-form daily-dose/CL prediction.
stopifnot(nrow(adjust_res) == 6L)
stopifnot(all(abs(adjust_res$auc_24 - adjust_res$auc_24_closed) /
                adjust_res$auc_24_closed < 0.001))

adjust_spread <- adjust_res |>
  group_by(reference_regimen) |>
  summarise(spread = max(auc_24) / min(auc_24) - 1, .groups = "drop")
stopifnot(nrow(adjust_spread) == 2L, all(adjust_spread$spread < 0.001))

adjust_res |>
  select(reference_regimen, condition, label, cl, auc_24, auc_24_closed) |>
  rename(
    "Reference regimen"            = reference_regimen,
    "Clearance"                    = condition,
    "Simulated regimen"            = label,
    "CL/F (L/h)"                   = cl,
    "AUC0-24 simulated (mg*h/L)"   = auc_24,
    "AUC0-24 = daily dose/CL"      = auc_24_closed
  ) |>
  knitr::kable(digits = c(0, 0, 0, 3, 2, 2),
               caption = "The dose adjustments of Figures A2-A3 are exposure-neutral: each reference regimen's three rows share one AUC0-24.")
The dose adjustments of Figures A2-A3 are exposure-neutral: each reference regimen’s three rows share one AUC0-24.
Reference regimen Clearance Simulated regimen CL/F (L/h) AUC0-24 simulated (mg*h/L) AUC0-24 = daily dose/CL
360 mg twice daily Typical 360 mg q12h 9.300 77.42 77.42
360 mg twice daily 50% reduced 180 mg q12h 4.650 77.42 77.42
360 mg twice daily 75% reduced 180 mg q24h 2.325 77.42 77.42
720 mg twice daily Typical 720 mg q12h 9.300 154.84 154.84
720 mg twice daily 50% reduced 360 mg q12h 4.650 154.84 154.84
720 mg twice daily 75% reduced 360 mg q24h 2.325 154.84 154.84

Both triplets reproduce exactly: 77.4 mg*h/L per 24 h for the 360 mg twice-daily reference and 154.8 mg*h/L for the 720 mg twice-daily reference. This confirms that the packaged model reproduces the arithmetic behind the paper’s dosing recommendations.

Assumptions and deviations

  • Post-transplant time is stored in days, not months. The canonical covariate column POD is defined in days, whereas Tsyplakova 2025 Eqs. 8 and 11 use months. The model files divide POD by 30.4375 days/month before forming the paper’s ratio, so a user supplies POD in days and the published coefficients apply unchanged.
  • The normalisation constants differ between the two models (67 months for EC-MPS, 21 months for MMF) and are not stated as such in the text; they are read off the denominators of Eqs. 8 and 11 and interpreted as the per-subgroup covariate means that Eq. 1 defines Cmean to be. The whole-cohort median in Table 1 is 70 months, consistent with the larger EC-MPS subgroup dominating.
  • Total daily dose is on an MPA-equivalent mass scale. Both models normalise to the same 1500 mg/day constant despite describing different formulations, which is only coherent if the covariate was placed on the common scale created by the 0.72 MMF-to-EC-MPS conversion described in Section 2.1. The paper does not state this explicitly; it is inferred from the shared constant. Note also that 1500 mg/day sits above the 360-1440 mg/day protocol range, which the Discussion reconciles by noting some participants exceeded the 2160 mg/day maximum therapeutic dose.
  • Six occasions are encoded for inter-occasion variability. Section 2.3 says each subsequent visit is a separate occasion and Section 2.2 describes monthly measurement over six months, so OCC runs 1-6. The paper does not report the realised maximum number of occasions per patient (209 samples across 76 patients implies most contributed fewer than six). Tables 2 and 3 report a single gamma per parameter, so occasions 2-6 are fixed to the occasion-1 variance.
  • The simulations hold the covariates at their reference values. Section 3.3 states the Monte Carlo work used Cl_pop = 9.3 L/h, i.e. the typical value without covariate adjustment, so this vignette sets POD and DOSE_MPA_MGD to the values that make both power terms equal 1. This is worth flagging: it is internally inconsistent with the fitted model, because the simulated regimens imply total daily doses of 720 and 1440 mg/day rather than 1500. A covariate-consistent simulation of 360 mg twice daily would give CL/F = 9.3 x (720/1500)^0.77 = 5.29 L/h and AUC0-12 = 68.1 mg*h/L, above the 30-60 mg*h/L therapeutic window rather than inside it. The paper’s conclusion that 360 mg twice daily hits the target therefore depends on holding the total-daily-dose covariate at 1500 mg/day. The packaged models reproduce the published equations faithfully; users simulating new regimens should decide deliberately whether to move DOSE_MPA_MGD with the simulated dose.
  • The total-daily-dose effect is positive and is confounded by indication. Higher daily doses associate with higher apparent clearance (exponents 0.77 and 1.27). The authors attribute this to dose titration in an already therapeutically-monitored stable cohort and note the covariate may partly proxy for body weight, which was not recorded. It should not be read as a mechanistic dose-dependency, and extrapolating it far outside the observed dose range is not supported.
  • V and CL are apparent. Only oral data were available and bioavailability was not estimated, so the packaged lvc and lcl are V/F and CL/F. The paper reports them as V and Cl.
  • No published NCA table exists to compare against. Only steady-state trough concentrations were measured, so the paper reports no Cmax, Tmax, or AUC observations. The comparison table above is therefore built from the three quantities the paper does publish or state: the typical clearance (Tables 2 and 3), the resulting closed-form Dose / CL exposure, and the ~14.5 h half-life quoted in Section 4.
  • The MMF model rests on 13 patients against 63 for EC-MPS. The authors themselves selected the EC-MPS model for their simulations “due to the larger proportion of data derived from this formulation” (Section 3.3), which is why the simulation sections here use the EC-MPS model.
  • The machine-learning component is not extracted. The PCA and boosted-tree analyses (Sections 2.4, 3.2) identify covariate importance but are not ODE models and produce no parameters that enter the packaged models.
