Recombinant Factor VIII / von Willebrand factor QSS-TMDD (Vargas Christensen 2019) -- rat

Source: vignettes/articles/VargasChristensen_2019_rfviii_rat.Rmd
VargasChristensen_2019_rfviii_rat.Rmd

Model and source

  • Citation: Vargas Christensen I, Loftager M, Rode F, Morck Nielsen H, Kreilgaard M, Larsen MS. Impact of capacity-limited binding on recombinant factor VIII and von Willebrand factor pharmacokinetics in hemophilia A rats. J Thromb Haemost 2019;17(6):964-974.
  • Article: doi:10.1111/jth.14441

Population

The model was developed from 30 hemophilia A rats (mean age 11 weeks, range 8-14; median body weight 300 g, range 200-550) bred at Novo Nordisk A/S (Maaloev, Denmark). Rats received a single IV bolus dose of recombinant Factor VIII (rFVIII) into the tail vein at one of four dose levels: 17.5 IU/kg (n = 8, 5 F / 3 M), 100 IU/kg (n = 6, 4 F / 2 M), 1000 IU/kg (n = 8, 5 F / 3 M), or 5000 IU/kg (n = 8, 5 F / 3 M). Plasma samples were collected over 48 hours; the 2-min post-dose samples were excluded from the analysis. Total rFVIII was measured by a chromogenic FVIII activity assay (Chromogenix, calibrated against a Turoctocog alfa SRM standard; LLOQ 120 mU/mL). Total VWF was measured by a novel luminescent oxygen channeling immunoassay (LOCI) calibrated against a literature-derived 14.94 nmol/L human VWF standard (LLOQ 0.3 nmol/L); no rat VWF calibrator was available. The rFVIII:VWF complex was measured by a second LOCI with no calibrator, so its dependent variable is the raw signal in counts per second (cps).

The same information is available programmatically via the model’s population metadata (readModelDb("VargasChristensen_2019_rfviii_rat")$population).

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/VargasChristensen_2019_rfviii_rat.R. The table below collects them in one place for review. All parameter estimates come from Table 1 of the paper; the NONMEM control stream lives in Data S1 (not on disk).

Parameter / equation Value (RSE) Source location
CL (lcl) 28.7 mL/h (23%) -> 0.0287 L/h Table 1
V (lvc) 9.9 mL (4%) -> 0.0099 L Table 1
k12 (lk12) 0.032 1/h (21%) Table 1
k21 (lk21) 0.0488 1/h (24%) Table 1
Kss (lkss) 0.142 nmol/L (30%) Table 1
R0 (lrbase) 11.5 nmol/L (6%) Table 1
kdeg (lkdeg) 0.031 1/h (21%) Table 1
KM,comp (lkm_comp) 0.871 nmol/L (39%) Table 1
Vmax,comp (lvmax_comp) 0.653 1/h (16%) Table 1
base_cps (lbase_cps) 298 cps (3%) Table 1
gamma (lhill_cps) 2.24 (3%) Table 1
cps50 (lcps50) 0.228 nmol/L (15%) Table 1
max_cps (lmax_cps) 127,000 cps (13%) Table 1
Allometric exponent on CL (e_wt_cl) 0.75 (fixed) Table 1 + Results
IIV CL (%CV) 57.1% (25); [shrinkage 13] Table 1
IIV R0 (%CV) 25.6% (13); [shrinkage 7] Table 1
IIV Vmax,comp (%CV) 36.3% (23); [shrinkage 36] Table 1
Proportional error rFVIII (%CV) 27.6% (10) Table 1
Proportional error VWF (%CV) 32.5% (9) Table 1
Proportional error rFVIII:VWF signal (%CV) 35.5% (8) Table 1
QSS TMDD algebra Complex, Cfree, Rfree closed-form Methods (Mager & Krzyzanski 2005)
Complex Michaelis-Menten elimination k_e,comp = Vmax,comp*Cfree/(KM,comp+Cfree) Methods Eq. (unnumbered)
LOCI 4-PL signal function base_cps + (max_cps-base_cps)*complexgamma/(cps50gamma+complex^gamma) Methods Eq. (unnumbered)
VWF steady-state derivation ksyn = kdeg * R0 Methods
Reference weight for allometry 0.3 kg (median cohort weight; assumed) Methods (cohort weights)

Loading the model

mod <- readModelDb("VargasChristensen_2019_rfviii_rat")
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

Virtual cohort

To replicate the dose-ranging visual predictive checks of Figure 3, we simulate 40 typical-value rats at each dose level (dose in IU/kg is converted to nmol per rat using the paper’s median body weight of 300 g and the FVIII activity specific activity of 5000 IU per mg of rFVIII protein, with a molecular weight of 170 kDa for B-domain-deleted rFVIII; the exact conversion is only needed to produce concentration-time profiles on the paper’s nmol/L scale and does not affect any of the fitted parameters).

median_wt_kg <- 0.3
mg_per_iu    <- 1 / 5000                     # rFVIII specific activity (approx)
mw_rfviii    <- 170e3                        # BDD-rFVIII molecular weight (g/mol)
iu_per_kg_to_nmol_per_rat <- function(dose_iu_per_kg, wt_kg = median_wt_kg) {
  dose_iu   <- dose_iu_per_kg * wt_kg
  dose_mg   <- dose_iu * mg_per_iu
  dose_nmol <- dose_mg / mw_rfviii * 1e6     # mg / (g/mol) * 1e6 = nmol
  dose_nmol
}

dose_levels_iu_per_kg <- c(17.5, 100, 1000, 5000)
dose_levels_nmol       <- vapply(dose_levels_iu_per_kg, iu_per_kg_to_nmol_per_rat, numeric(1L))
data.frame(dose_iu_per_kg = dose_levels_iu_per_kg, dose_nmol_per_rat = dose_levels_nmol)
#>   dose_iu_per_kg dose_nmol_per_rat
#> 1           17.5       0.006176471
#> 2          100.0       0.035294118
#> 3         1000.0       0.352941176
#> 4         5000.0       1.764705882

Simulation helper

make_events <- function(dose_nmol, wt_kg = median_wt_kg, tmax = 48, dt = 0.25) {
  times   <- seq(0, tmax, by = dt)
  # Multi-output model: dose goes to the central ODE state; observations
  # sit on any of the three algebraic observables (Cc / totalVWF /
  # lociComplex are auto-injected as observation slots by rxode2 after
  # the ODE states), and rxSolve returns all three as columns at each
  # observation time.
  obs     <- data.frame(id = 1L, time = times, evid = 0L, amt = 0,
                        cmt = "Cc", WT = wt_kg)
  dose_row <- data.frame(id = 1L, time = 0, evid = 1L, amt = dose_nmol,
                         cmt = "central", WT = wt_kg)
  dplyr::bind_rows(dose_row, obs)
}

Replicating Figure 3 – typical-value dose-ranging profiles

Figure 3 of the paper shows the visual predictive checks of total rFVIII, total VWF, and the rFVIII:VWF LOCI signal over 0-24 h for each dose level. We replicate the typical-value trajectories below (VPC bands would require sampling IIV; see Stochastic simulation with IIV further down).

sim_typ <- lapply(seq_along(dose_levels_iu_per_kg), function(k) {
  ev  <- make_events(dose_levels_nmol[k])
  sol <- as.data.frame(rxode2::rxSolve(mod_typical, ev))
  sol$dose_iu_per_kg <- dose_levels_iu_per_kg[k]
  sol
}) |> dplyr::bind_rows() |>
  dplyr::mutate(dose_label = factor(paste0(dose_iu_per_kg, " IU/kg"),
                                    levels = paste0(dose_levels_iu_per_kg, " IU/kg")))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalrbase', 'etalvmax_comp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalrbase', 'etalvmax_comp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalrbase', 'etalvmax_comp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalrbase', 'etalvmax_comp'

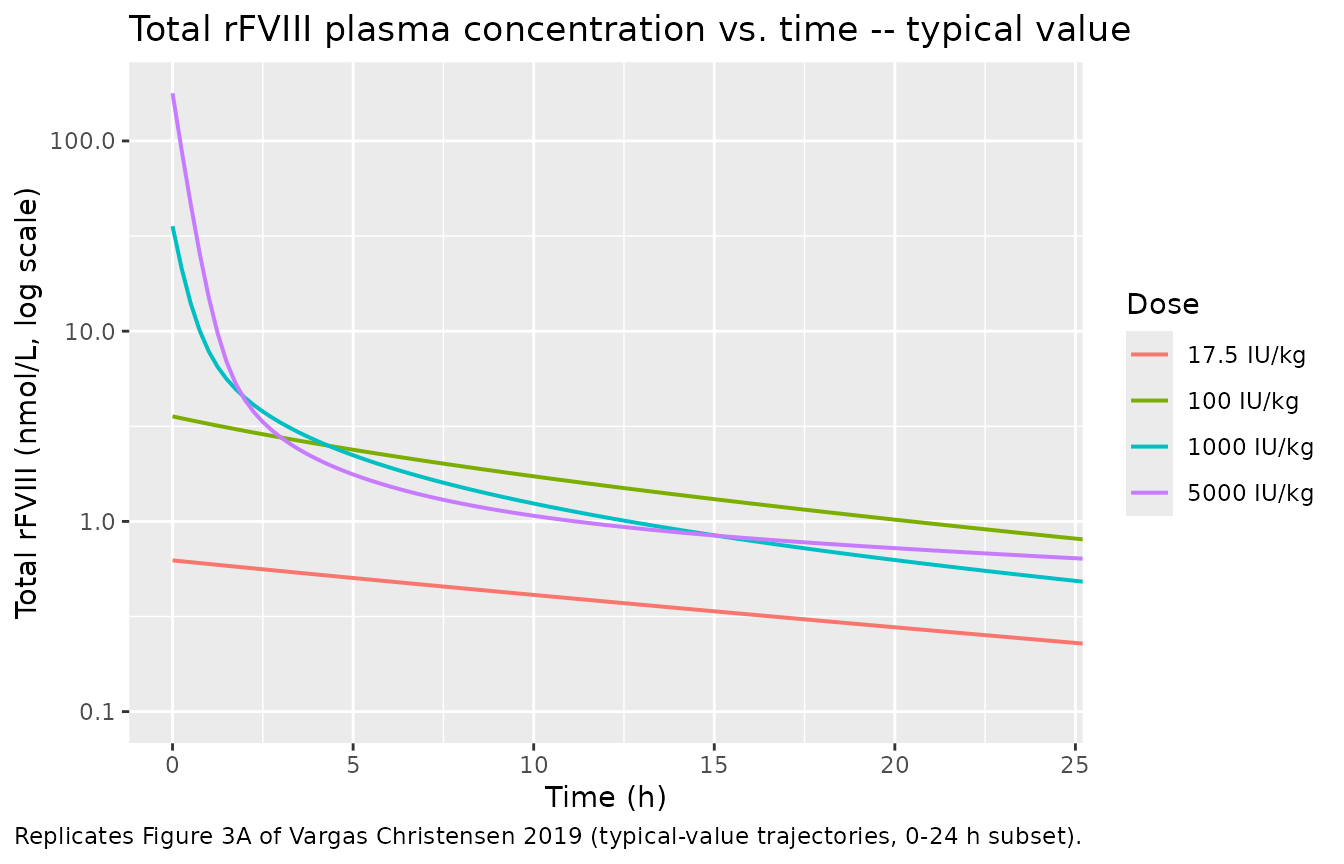

ggplot(sim_typ, aes(time, Cc, colour = dose_label)) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Total rFVIII (nmol/L, log scale)",
       colour = "Dose",
       title = "Total rFVIII plasma concentration vs. time -- typical value",
       caption = "Replicates Figure 3A of Vargas Christensen 2019 (typical-value trajectories, 0-24 h subset).") +
  coord_cartesian(xlim = c(0, 24))

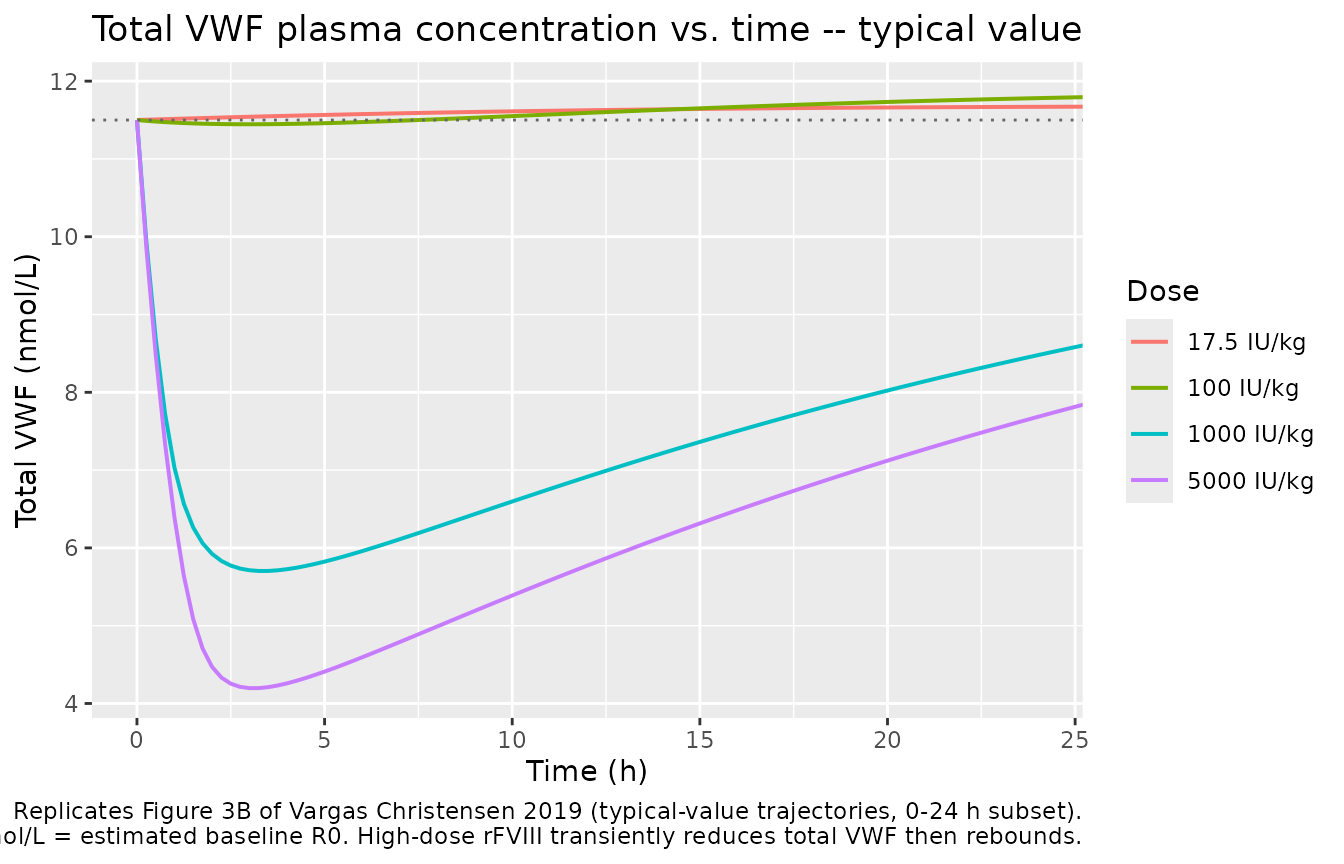

ggplot(sim_typ, aes(time, totalVWF, colour = dose_label)) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = 11.5, linetype = "dotted", colour = "grey40") +
  labs(x = "Time (h)", y = "Total VWF (nmol/L)",
       colour = "Dose",
       title = "Total VWF plasma concentration vs. time -- typical value",
       caption = paste0(
         "Replicates Figure 3B of Vargas Christensen 2019 (typical-value trajectories, 0-24 h subset).\n",
         "Dotted line at 11.5 nmol/L = estimated baseline R0. High-dose rFVIII transiently ",
         "reduces total VWF then rebounds."
       )) +
  coord_cartesian(xlim = c(0, 24))

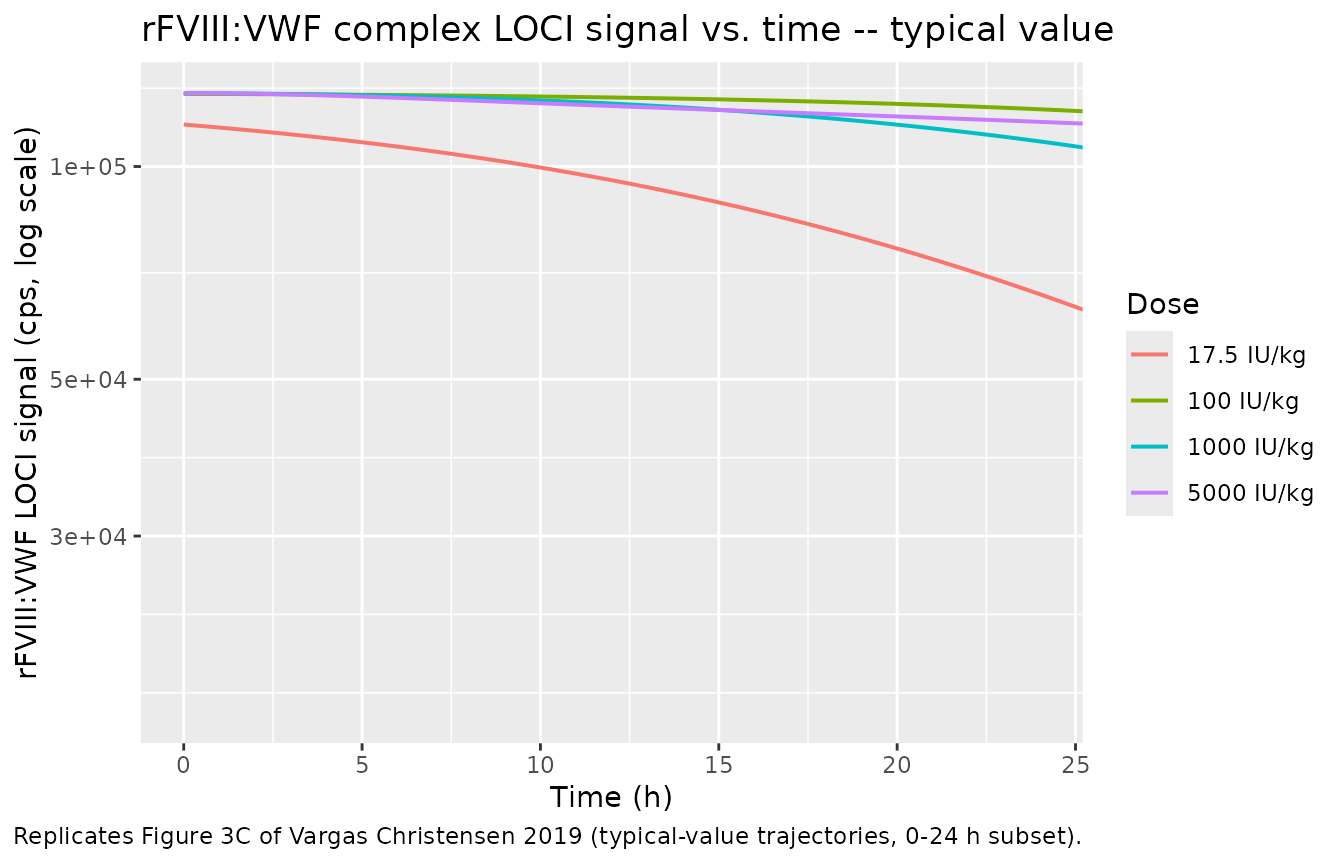

ggplot(sim_typ, aes(time, lociComplex, colour = dose_label)) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "rFVIII:VWF LOCI signal (cps, log scale)",
       colour = "Dose",
       title = "rFVIII:VWF complex LOCI signal vs. time -- typical value",
       caption = "Replicates Figure 3C of Vargas Christensen 2019 (typical-value trajectories, 0-24 h subset).") +
  coord_cartesian(xlim = c(0, 24))

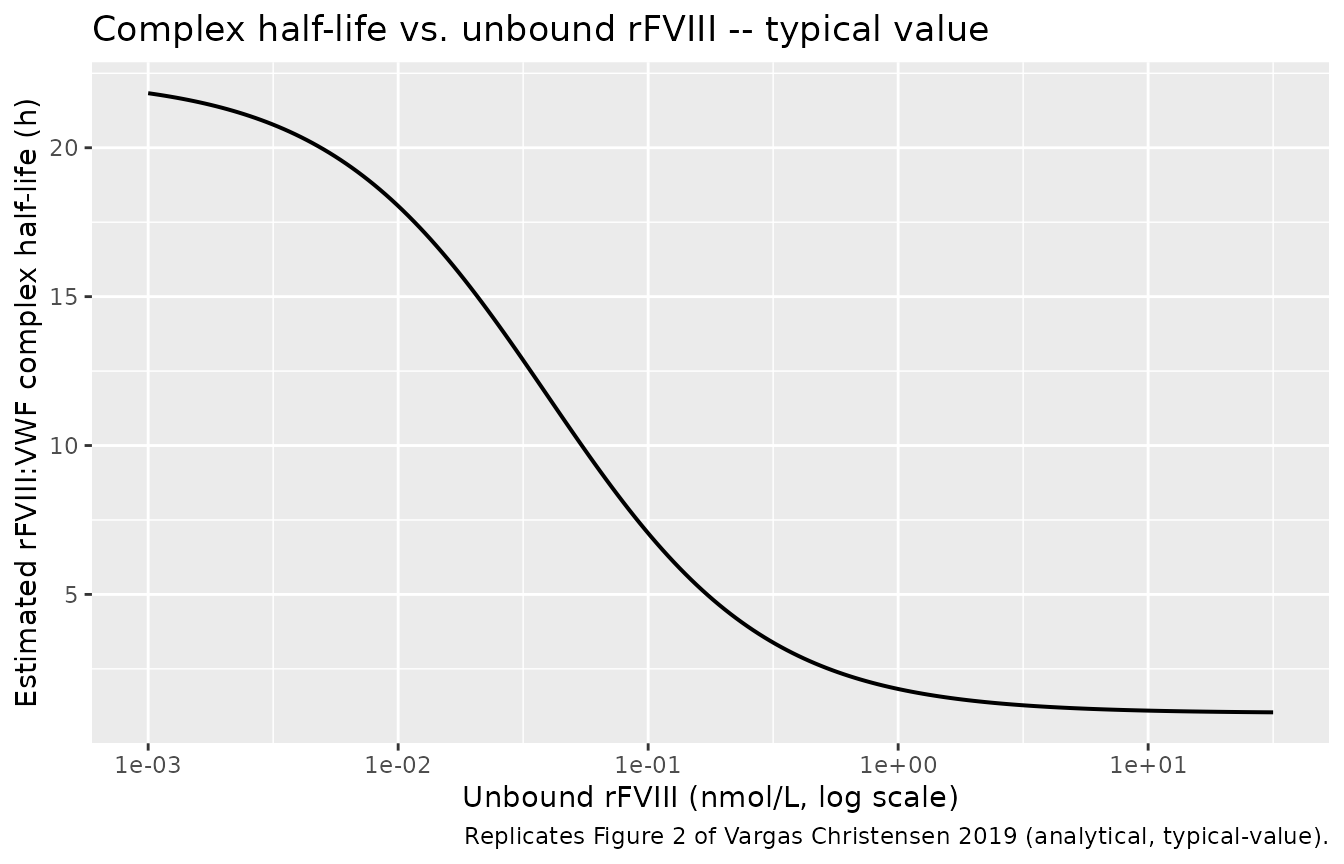

Replicating Figure 2 – rFVIII:VWF complex half-life vs. free rFVIII

Figure 2 of the paper shows how the estimated elimination half-life of the rFVIII:VWF complex depends on the unbound plasma concentration of rFVIII. At Cfree = 0 the complex has no direct elimination pathway (k_e,comp = 0) and its effective loss reduces to the free-VWF turnover (ln(2) / kdeg = ~22 h). At saturating Cfree the half-life approaches ln(2) / Vmax,comp = ~1 h.

cfree_grid <- 10 ^ seq(-3, 1.5, length.out = 200)
vmax_comp  <- 0.653
km_comp    <- 0.871
kdeg       <- 0.031
k_e_comp   <- vmax_comp * cfree_grid / (km_comp + cfree_grid)
# Effective complex loss combines direct k_e,comp with the free-VWF turnover
# that drains the complex through QSS re-equilibration.
effective_k <- k_e_comp + kdeg
thalf       <- log(2) / effective_k

fig2 <- data.frame(cfree = cfree_grid, thalf = thalf)

ggplot(fig2, aes(cfree, thalf)) +
  geom_line(linewidth = 0.7) +
  scale_x_log10() +
  labs(x = "Unbound rFVIII (nmol/L, log scale)",
       y = "Estimated rFVIII:VWF complex half-life (h)",
       title = "Complex half-life vs. unbound rFVIII -- typical value",
       caption = "Replicates Figure 2 of Vargas Christensen 2019 (analytical, typical-value).")

PKNCA validation of total rFVIII

Population NCA of the simulated total rFVIII concentration profile provides a model-vs.-model sanity check: single-dose Cmax scales with dose, AUC scales with dose (though less than proportionally at high doses because saturation of VWF binding increases the unbound fraction and CL of unbound rFVIII), and apparent half-life is dose-dependent because of the same nonlinearity. The paper does not report NCA-derived parameters, so no side-by-side comparison table is rendered.

pk_input <- sim_typ |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::mutate(id = as.integer(dose_iu_per_kg),  # one virtual subject per arm
                treatment = as.character(dose_iu_per_kg))

dose_input <- data.frame(id        = as.integer(dose_levels_iu_per_kg),
                         treatment = as.character(dose_levels_iu_per_kg),
                         time      = 0,
                         amt       = dose_levels_nmol)

conc_obj <- PKNCA::PKNCAconc(pk_input, Cc ~ time | treatment + id,
                             concu = "nmol/L", timeu = "h")
dose_obj <- PKNCA::PKNCAdose(dose_input, amt ~ time | treatment + id,
                             doseu = "nmol")
intervals <- data.frame(start = 0, end = Inf,
                         cmax = TRUE, tmax = TRUE, half.life = TRUE,
                         auclast = TRUE, aucinf.obs = TRUE)
data_obj <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(data_obj)
nca_summary <- as.data.frame(nca_res$result) |>
  dplyr::mutate(PPTESTCD = as.character(PPTESTCD)) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "tmax", "half.life", "auclast", "aucinf.obs")) |>
  dplyr::select(treatment, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES) |>
  dplyr::rename(
    "Dose (IU/kg)"         = treatment,
    "Cmax (nmol/L)"        = cmax,
    "Tmax (h)"             = tmax,
    "AUC0-last (h*nmol/L)" = auclast,
    "AUC0-inf (h*nmol/L)"  = aucinf.obs,
    "t1/2 (h)"             = half.life
  )
knitr::kable(nca_summary,
             caption = "PKNCA-derived NCA parameters of typical-value simulated total rFVIII.",
             digits  = 3)
PKNCA-derived NCA parameters of typical-value simulated total rFVIII.
Dose (IU/kg) AUC0-last (h*nmol/L) Cmax (nmol/L) Tmax (h) t1/2 (h) AUC0-inf (h*nmol/L)
100 54.540 3.565 0 17.820 62.800
1000 58.477 35.651 0 19.239 63.955
17.5 13.303 0.624 0 18.812 15.994
5000 108.399 178.253 0 31.086 125.558

Stochastic simulation with IIV

The IIV magnitudes reported in Table 1 (CL 57.1% CV, R0 25.6% CV, Vmax,comp 36.3% CV; the last with 36% shrinkage) can be sampled to produce a stochastic cohort. The example below simulates 40 rats per dose level. Given the cap on per-arm cohort sizes documented in the skill (200 subjects per arm), 40 rats per arm is well within budget and reproduces the between-subject variability shown in the paper’s VPC bands qualitatively.

set.seed(42)
per_arm     <- 40L
sim_stoch <- lapply(seq_along(dose_levels_iu_per_kg), function(k) {
  # Reuse a single set of observation times for all IDs in this arm.
  ev1 <- make_events(dose_levels_nmol[k])
  ev  <- lapply(seq_len(per_arm), function(i) {
    e <- ev1
    e$id <- i
    e
  }) |> dplyr::bind_rows()
  sol <- as.data.frame(rxode2::rxSolve(mod, ev))
  sol$dose_iu_per_kg <- dose_levels_iu_per_kg[k]
  sol
}) |> dplyr::bind_rows() |>
  dplyr::mutate(dose_label = factor(paste0(dose_iu_per_kg, " IU/kg"),
                                    levels = paste0(dose_levels_iu_per_kg, " IU/kg")))
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'
#> ℹ parameter labels from comments will be replaced by 'label()'

sim_stoch_summary <- sim_stoch |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::group_by(dose_label, time) |>
  dplyr::summarise(
    median = stats::median(Cc),
    lo     = stats::quantile(Cc, 0.05),
    hi     = stats::quantile(Cc, 0.95),
    .groups = "drop"
  )

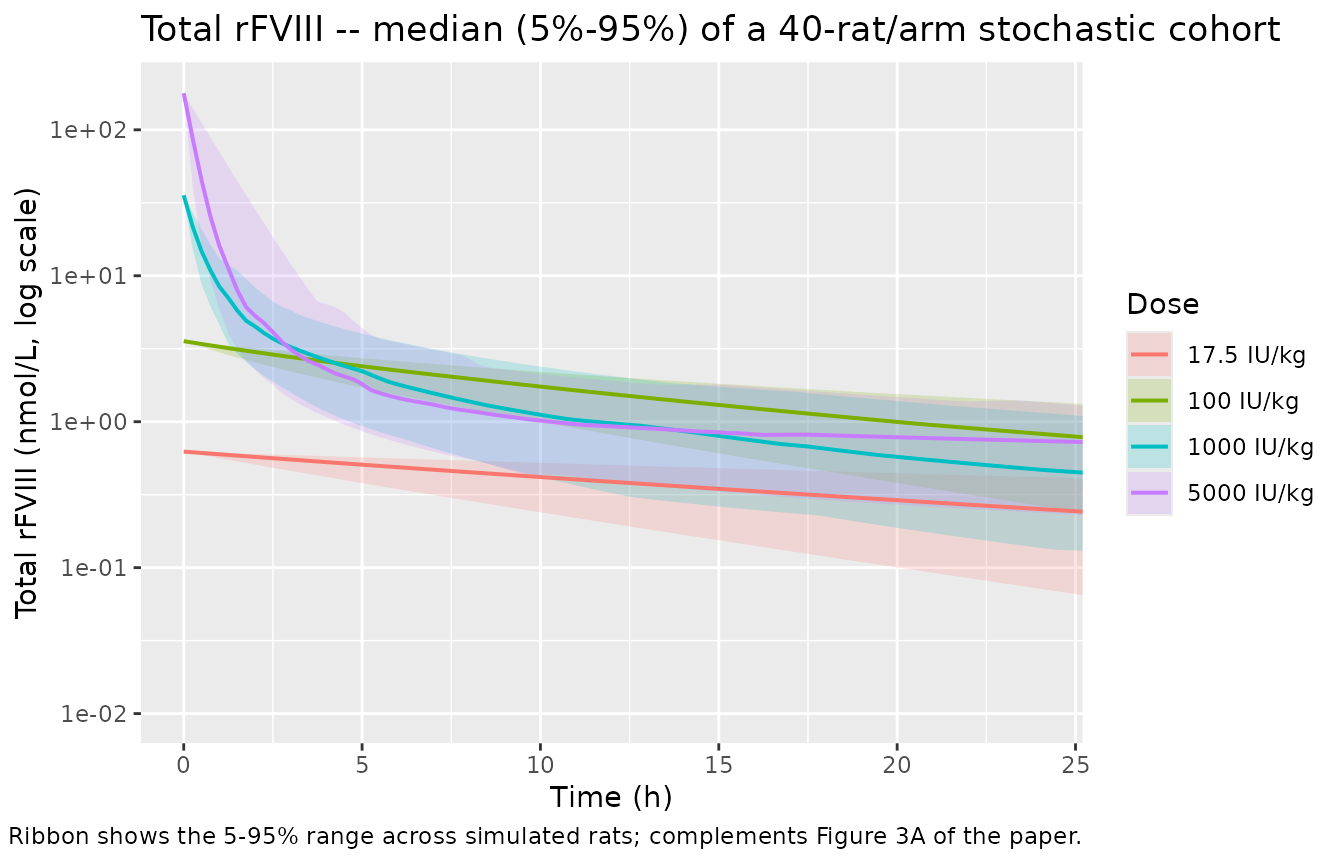

ggplot(sim_stoch_summary, aes(time, median, colour = dose_label, fill = dose_label)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), alpha = 0.2, colour = NA) +
  geom_line(linewidth = 0.7) +
  scale_y_log10() +
  labs(x = "Time (h)", y = "Total rFVIII (nmol/L, log scale)",
       colour = "Dose", fill = "Dose",
       title = "Total rFVIII -- median (5%-95%) of a 40-rat/arm stochastic cohort",
       caption = "Ribbon shows the 5-95% range across simulated rats; complements Figure 3A of the paper.") +
  coord_cartesian(xlim = c(0, 24))

Assumptions and deviations

  • Reference weight for allometry. The paper reports that CL scales with body weight at fixed allometric exponent 0.75 but does not print the reference weight explicitly. We use 0.3 kg (the reported cohort median weight); if the NONMEM code in Data S1 uses a different reference (e.g. 0.25 kg standard laboratory rat), simulated typical CL scales by (0.3 / actual_ref)^0.75, but the overall shape of every profile (including all nonlinearities) is unchanged.
  • IU-to-nmol dose conversion. Doses were reported in IU/kg. The Model disposition and observations are computed in nmol / nmol/L. We use a molecular weight of 170 kDa (B-domain-deleted rFVIII) and a specific activity of 5000 IU per mg of rFVIII protein to convert IU/kg to nmol per rat. Neither the exact molecular weight nor the specific activity is specified in the paper; using different assumed values changes only the x-axis scaling of dose (and the corresponding concentration axis linearly) without altering the ratio of the four dose-arm profiles.
  • Sex distribution. The paper reports 19/30 female rats (63.3%); no sex effect was retained. Neither sex nor age was carried into the model.
  • VWF calibrator. The paper’s own Discussion flags that the estimated R0 (11.5 nmol/L) is likely a distortion caused by using a human VWF preparation as calibrator in a rat assay – endogenous rat VWF may be higher. This is a discussion-level qualitative caution; the R0 estimate is left at the reported value.
  • rFVIII:VWF complex calibrator. No calibrator was available for the rFVIII:VWF complex LOCI assay, so the LOCI signal is the observation dependent variable rather than a concentration. Absolute complex concentrations predicted by the model (used inside lociComplex) are model- interpreted only and should not be treated as directly measured.
  • VPC vs. typical-value figures. The paper’s Figure 3 shows VPCs (data + simulation-based 95% CIs). The typical-value replications above show only the median trajectory; the stochastic-cohort section shows the 5-95% variability under sampled IIV.
  • Complex effective-half-life plot (Figure 2). The paper’s Figure 2 reports “estimated elimination half-life of rFVIII:VWF complex” as a function of the “estimated unbound concentration of rFVIII”. We reproduce it by combining the direct Michaelis-Menten k_e,comp with the free-VWF kdeg (the two mechanisms that drain the complex under QSS re-equilibration). The exact analytic Figure 2 that the paper used may differ in detail; either form gives ~22 h at Cfree = 0 and ~1 h at saturating Cfree, matching the paper’s stated range.
