Vitamin D3 / 25-hydroxyvitamin D PBPK in adults (Huang 2021)

Source: vignettes/articles/Huang_2021_cholecalciferol_pbpk.Rmd
Huang_2021_cholecalciferol_pbpk.Rmd
# Cholecalciferol molar mass used by the authors' deposited script
# (Final_model.R: DOSE/384.64*1000 converts ug to nmol). 1 ug = 40 IU.
mw_d3 <- 384.64
ug_to_nmol <- function(ug) ug * 1000 / mw_d3

# The system is stiff (blood flows turn over in seconds, 25(OH)D3 in weeks)
# and a year of daily doses exhausts rxode2's default step budget, which
# makes the solve stop with "could not solve the system". A large `maxsteps`
# is therefore load-bearing.
SOLVE <- function(mod, ev, ...) {
  out <- rxode2::rxSolve(mod, ev, maxsteps = 1e6, returnType = "data.frame", ...)
  stopifnot(!anyNA(out$Cc_25d3), !anyNA(out$Cc))
  out
}

mod <- rxode2::rxode(readModelDb("Huang_2021_cholecalciferol_pbpk"))

# Daily oral vitamin D3 for `days` days, observed daily (and at extra times).
daily_events <- function(dose_ug, days, d25_bl, regi_qd = 1, obs_days = seq(0, days)) {
  ev <- rxode2::et(amt = ug_to_nmol(dose_ug), cmt = "depot", ii = 24, addl = days - 1) |>
    rxode2::et(sort(unique(obs_days)) * 24)
  ev <- as.data.frame(ev)
  ev$D25OH_BL <- d25_bl
  ev$REGI_QD <- regi_qd
  ev
}

Model and source

Huang and You (2021) built a minimal physiologically based pharmacokinetic (PBPK) model of oral vitamin D3 (cholecalciferol) and its circulating metabolite 25-hydroxyvitamin D3 (25(OH)D3). They fitted it to arm-mean plasma concentrations collated from published trials. The final model, Run009b (paper Figure 3, supplement “Final Model” section), has these parts:

  • Vitamin D3 is absorbed first-order from a gastrointestinal depot into the liver. It then distributes perfusion-limited between venous blood, arterial blood, liver and a lumped rest of body.
  • Vitamin D3 is cleared from the liver at a rate that depends on the regimen: SCLH after a single dose and MCLH under repeated daily dosing.
  • One third of the cleared vitamin D3 becomes 25(OH)D3.
  • 25(OH)D3 has its own four compartments. It leaves the liver through a sigmoidal clearance, CLmax * C^gamma / (C50^gamma + C^gamma), so its clearance is close to zero below about 50 nmol/L and saturates above C50.
  • A constant endogenous vitamin D3 input ENDOG is back-calculated from the arm’s baseline plasma 25(OH)D3 (D25BASE). Every compartment therefore starts at the pre-dose steady state.

The supplement (PSP4-10-723-s001.zip) holds the authors’ deSolve implementation Final_model.R and the MCMC chain MCMC-Run009b.RDS. The model file follows the supplement’s printed equations. It was checked against that script, which settles the two typographical slips listed under Errata below.

  • Citation: Huang Z, You T. Personalise vitamin D3 using physiologically based pharmacokinetic modelling. CPT Pharmacometr Syst Pharmacol. 2021;10(7):723-734. doi:10.1002/psp4.12640
  • Model: Huang_2021_cholecalciferol_pbpk

Population

#> List of 9
#>  $ species       : chr "human"
#>  $ n_subjects    : chr "307 (vitamin D3 PK) and 6484 (25(OH)D3 PK), arm means only"
#>  $ n_studies     : chr "155 treatment arms from published trials, January 1970 to January 2019"
#>  $ age_range     : chr "18 years and over (most vitamin D3 PK subjects 30-50 years)"
#>  $ sex_female_pct: logi NA
#>  $ disease_state : chr "adults without disease or conditions known to alter vitamin D PK; normal renal function"
#>  $ dose_range    : chr "oral vitamin D3 single doses 70-50000 ug; repeated daily doses 10-1250 ug/day; 25(OH)D3 7 and 20 ug/day"
#>  $ regions       : chr "all continents except Antarctica; mostly USA, the Netherlands, UK and Canada"
#>  $ notes         : chr "Huang 2021 Results 'PK data collection': vitamin D3 PK from 307 subjects in 13 arms of 6 trials (Table S2); 25("| __truncated__

The model was fitted to arm means, not to individuals. The vitamin D3 PK set was 307 subjects in 13 arms of 6 trials (Table S2). The 25(OH)D3 set was 451 mean concentrations from 6484 subjects in 126 arms (Tables S3, S4). All subjects were adults (18 years or older) without conditions known to alter vitamin D PK. The training set was all of the vitamin D3 PK plus the 43 25(OH)D3 arms dosed 10 or 100 ug/day. The test set was 83 repeated-dose arms (12.5 to 1250 ug/day), 16 high single-dose arms and two 25(OH)D3 dosing arms. The paper estimated no interindividual variability and reported no residual error. The model is therefore a typical-value (arm-level) model, and each simulated “subject” below is an arm defined by its baseline 25(OH)D3.

Source trace

Element Value Source
lka log(0.19) h^-1 Table 1, Ka posterior mean
lkp_liver log(1), fixed Table 1, Kpl “1 (fixed)”
lkp_other log(0.09) Table 1, Kprb posterior mean
lsclh log(0.32) L/h Table 1, SCLH posterior mean
lmclh log(0.21) L/h Table 1, MCLH posterior mean
fm_25d3 1/3, fixed Table 1 Fm “0.33 (fixed)”; the supplement ODEs use exactly 1/3 and 3
lkp_liver_25d3 log(1), fixed Supplement ODEs carry Kp25l; value 1 in Final_model.R
lkp_other_25d3 log(0.54) Table 1, Kp25rb posterior mean
lc50 log(86.3) nmol/L Table 1, C50 posterior mean
lhill log(5.64) Table 1, gamma posterior mean
lclmax log(0.033) L/h Table 1, CLmax posterior mean
Qco, Ql, Qrb 312, 70.824, 241.176 L/h Table S6 (models without adipose)
Vven, Vl, Vrb, Vart 4.2, 1.8, 62.6, 1.4 L Table S6
endog CLmax Cg/(C50g+C^g) x D25BASE x 3 Supplement Final Model, first equation
Vitamin D3 ODEs depot, venous, liver, other, arterial Supplement Final Model, ODEs 1-5
25(OH)D3 ODEs four compartments Supplement Final Model, ODEs 6-9
clh switch SCLH single / MCLH repeated Supplement: “For single dose: CLH = SCLH. For repeated dose: CLH = MCLH.”
Initial conditions pre-dose steady state Supplement “Initial conditions”; Final_model.R section 1.B
Dose conversion ug x 1000 / 384.64 = nmol Final_model.R section 1.B

The Table 1 posterior means are the arithmetic means of exp() over the deposited MCMC chain. Recomputing them from MCMC-Run009b.RDS gives Kp25rb 0.542 (SD 0.145), C50 86.33 (4.23), gamma 5.636 (1.28) and CLmax 0.03277 (0.00231). These round to the printed 0.54 (0.15), 86.3 (4.23), 5.64 (1.28) and 0.033 (0.0023).

Validation 1: the untreated system holds at baseline

ENDOG and the initial conditions are built so that production exactly balances clearance at D25BASE. With no dose, every concentration must stay flat. This is an exact test of the whole ODE transcription: it catches a missing term, a wrong factor of 3, or a mis-scaled initial condition. Both sides come from the same deterministic solve, so the bound is tight.

hold <- expand.grid(d25 = c(10, 30, 50, 86.3, 150), regi = c(0, 1)) |>
  rowwise() |>
  do({
    ev <- data.frame(time = c(0, 24 * c(30, 180, 360)), evid = 0, amt = 0,
                     cmt = "venous_25d3", D25OH_BL = .$d25, REGI_QD = .$regi)
    s <- SOLVE(mod, ev)
    data.frame(d25 = .$d25, regi = .$regi,
               max_rel_dev_25d3 = max(abs(s$Cc_25d3 / .$d25 - 1)),
               max_rel_dev_d3 = max(abs(s$Cc / s$Cc[1] - 1)))
  }) |>
  ungroup()
knitr::kable(hold, digits = 12)
d25 regi max_rel_dev_25d3 max_rel_dev_d3
10.0 0 0e+00 0
30.0 0 3e-12 0
50.0 0 0e+00 0
86.3 0 0e+00 0
150.0 0 1e-12 0
10.0 1 0e+00 0
30.0 1 2e-12 0
50.0 1 1e-12 0
86.3 1 0e+00 0
150.0 1 0e+00 0
stopifnot(all(hold$max_rel_dev_25d3 < 1e-6), all(hold$max_rel_dev_d3 < 1e-6))

Validation 2: agreement with the authors’ deposited code

The values below were produced by running the authors’ Final_model.R deSolve function (VitaminD_PBPK, daspk solver) with the Table 1 posterior means substituted into its param vector. The substituted values are Kprb 0.09, MCLH 0.21, ka 0.19, Kp25rb 0.54, C50 86.3, gamma 5.64 and CLmax 0.033. The dosing is repeated daily and the output is venous 25(OH)D3 (CP) and venous vitamin D3 (A_ven / Vven). The rxode2 model must reproduce them up to numerical-integration error.

ref <- tribble(
  ~d25, ~dose, ~day, ~cp_25d3, ~cp_d3,
  10, 20, 30, 21.6462, 9.19103,
  10, 20, 90, 46.4839, 9.19112,
  10, 20, 180, 69.8667, 9.19112,
  10, 20, 360, 73.9635, 9.19112,
  50, 20, 30, 60.4574, 10.22830,
  50, 20, 90, 72.2143, 10.22839,
  50, 20, 180, 75.2146, 10.22839,
  50, 20, 360, 75.4492, 10.22839,
  50, 100, 30, 94.6715, 46.99237,
  50, 100, 90, 120.1611, 46.99281,
  50, 100, 180, 124.8355, 46.99283,
  50, 100, 360, 125.2456, 46.99283,
  30, 1250, 15, 320.9550, 572.70833,
  30, 1250, 30, 582.8653, 574.47396,
  30, 1250, 60, 926.6171, 574.47937,
  30, 1250, 120, 1228.3386, 574.47937
)
sim_ref <- ref |>
  group_by(d25, dose) |>
  group_modify(function(g, k) {
    days <- max(g$day)
    s <- SOLVE(mod, daily_events(k$dose, days + 1, k$d25, obs_days = g$day))
    s <- s[!duplicated(s$time), ]
    tibble(day = g$day,
           rx_25d3 = s$Cc_25d3[match(g$day * 24, s$time)],
           rx_d3 = s$Cc[match(g$day * 24, s$time)])
  }) |>
  ungroup() |>
  inner_join(ref, by = c("d25", "dose", "day")) |>
  mutate(rel_25d3 = rx_25d3 / cp_25d3 - 1, rel_d3 = rx_d3 / cp_d3 - 1)
sim_ref |>
  select(d25, dose, day, cp_25d3, rx_25d3, rel_25d3, cp_d3, rx_d3, rel_d3) |>
  rename("Baseline 25(OH)D3 (nmol/L)" = d25, "Dose (ug/day)" = dose, "Day" = day,
         "25(OH)D3, script" = cp_25d3, "25(OH)D3, rxode2" = rx_25d3,
         "Rel. diff 25(OH)D3" = rel_25d3, "D3, script" = cp_d3,
         "D3, rxode2" = rx_d3, "Rel. diff D3" = rel_d3) |>
  knitr::kable(digits = c(1, 0, 0, 3, 3, 6, 4, 4, 6))
Baseline 25(OH)D3 (nmol/L) Dose (ug/day) Day 25(OH)D3, script 25(OH)D3, rxode2 Rel. diff 25(OH)D3 D3, script D3, rxode2 Rel. diff D3
10 20 30 21.646 21.646 2e-06 9.1910 9.1910 -6e-06
10 20 90 46.484 46.484 -1e-06 9.1911 9.1911 -6e-06
10 20 180 69.867 69.867 1e-06 9.1911 9.1911 -6e-06
10 20 360 73.964 73.964 0e+00 9.1911 9.1911 -6e-06
30 1250 15 320.955 320.955 1e-06 572.7083 572.7050 -6e-06
30 1250 30 582.865 582.865 0e+00 574.4740 574.4709 -5e-06
30 1250 60 926.617 926.617 0e+00 574.4794 574.4763 -5e-06
30 1250 120 1228.339 1228.339 0e+00 574.4794 574.4763 -5e-06
50 20 30 60.457 60.457 1e-06 10.2283 10.2283 1e-06
50 20 90 72.214 72.214 1e-06 10.2284 10.2284 1e-06
50 20 180 75.215 75.215 1e-06 10.2284 10.2284 1e-06
50 20 360 75.449 75.449 -1e-06 10.2284 10.2284 1e-06
50 100 30 94.671 94.672 0e+00 46.9924 46.9921 -5e-06
50 100 90 120.161 120.161 0e+00 46.9928 46.9926 -5e-06
50 100 180 124.836 124.835 0e+00 46.9928 46.9926 -6e-06
50 100 360 125.246 125.246 0e+00 46.9928 46.9926 -6e-06
# Same parameters on both sides: the only difference is solver error (daspk
# atol = rtol = 1e-4 in the script), so a tight bound is correct.
stopifnot(all(abs(sim_ref$rel_25d3) < 1e-3), all(abs(sim_ref$rel_d3) < 1e-3))

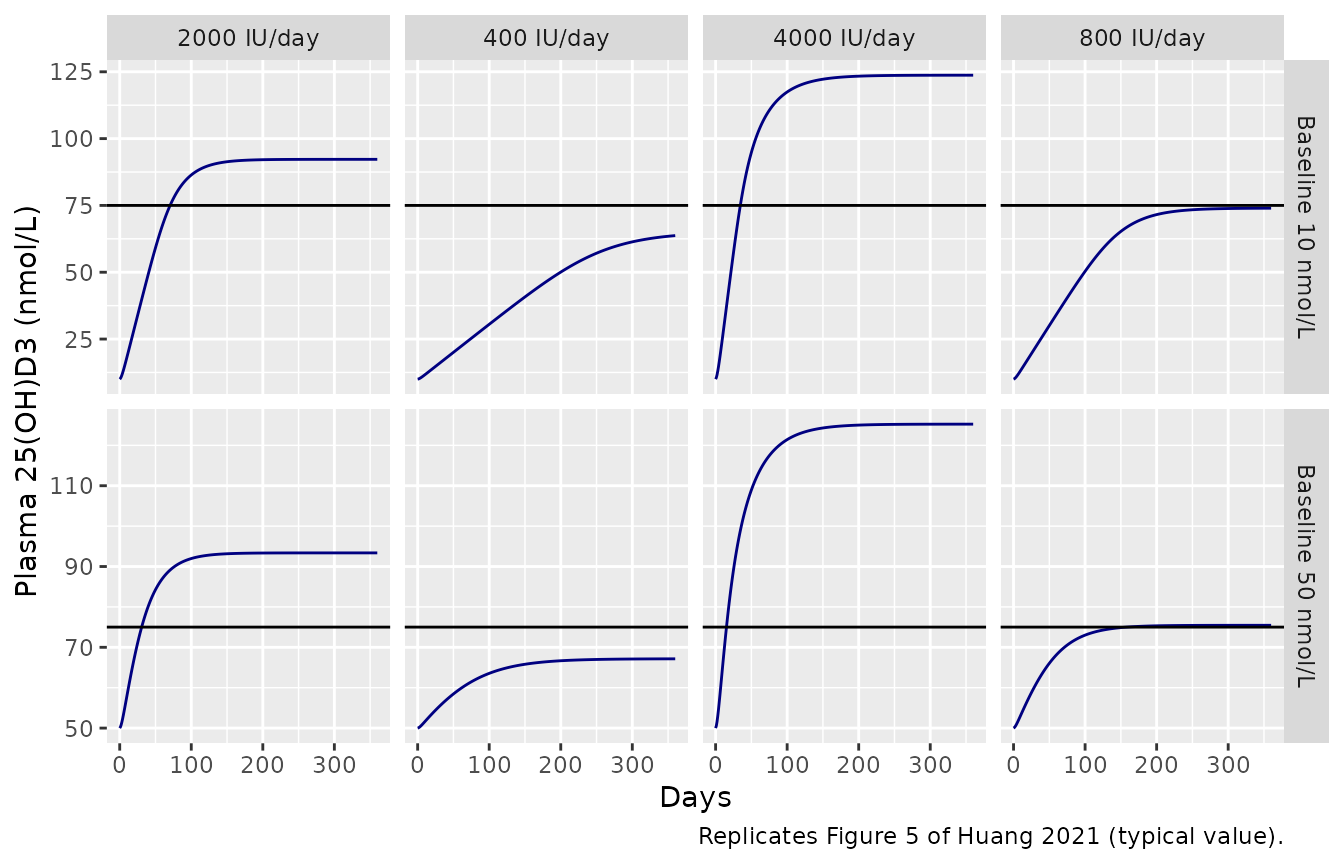

Validation 3: Figure 5 (daily dosing for 360 days)

Figure 5 simulates two individuals with baseline 25(OH)D3 of 10 and 50 nmol/L. Each gets 10, 20, 50 or 100 ug/day (400 to 4000 IU/day) for 360 days. The solid line is the expected value over the posterior and the band is the 5-95% interval. The maintainers digitised the day-360 plateau of each solid line from the figure and compare it with the typical-value simulation.

fig5 <- expand.grid(d25 = c(10, 50), dose = c(10, 20, 50, 100)) |>
  rowwise() |>
  do({
    s <- SOLVE(mod, daily_events(.$dose, 360, .$d25))
    s <- s[!duplicated(s$time), ]
    data.frame(d25 = .$d25, dose = .$dose, day = s$time / 24, c25 = s$Cc_25d3)
  }) |>
  ungroup()

ggplot(fig5, aes(day, c25)) +
  geom_line(colour = "navy") +
  geom_hline(yintercept = 75) +
  facet_grid(paste("Baseline", d25, "nmol/L") ~ paste(dose * 40, "IU/day"),
             scales = "free_y") +
  labs(x = "Days", y = "Plasma 25(OH)D3 (nmol/L)",
       caption = "Replicates Figure 5 of Huang 2021 (typical value).")

# Day-360 solid-line values digitised from Figure 5 panels a-h.
fig5_pub <- tribble(
  ~d25, ~dose, ~pub360,
  10, 10, 62.5, 10, 20, 73.5, 10, 50, 93, 10, 100, 125,
  50, 10, 67.5, 50, 20, 75, 50, 50, 93.5, 50, 100, 127
)
fig5_chk <- fig5 |>
  filter(day == 360) |>
  inner_join(fig5_pub, by = c("d25", "dose")) |>
  mutate(pct_diff = 100 * (c25 / pub360 - 1))
fig5_chk |>
  rename("Baseline (nmol/L)" = d25, "Dose (ug/day)" = dose,
         "Simulated day 360" = c25, "Figure 5 day 360" = pub360,
         "% difference" = pct_diff) |>
  select(-day) |>
  knitr::kable(digits = 1)
Baseline (nmol/L) Dose (ug/day) Simulated day 360 Figure 5 day 360 % difference
10 10 63.7 62.5 1.9
50 10 67.1 67.5 -0.5
10 20 74.0 73.5 0.6
50 20 75.4 75.0 0.6
10 50 92.2 93.0 -0.8
50 50 93.4 93.5 -0.1
10 100 123.7 125.0 -1.0
50 100 125.2 127.0 -1.4
stopifnot(all(abs(fig5_chk$pct_diff) < 5))

The eight plateaus agree to within a few percent. The time to reach 75 nmol/L also agrees for 50 ug/day (paper: about 75 and 30 days) and 100 ug/day (paper: 40 and 20 days):

fig5 |>
  group_by(d25, dose) |>
  summarise(first_day_at_75 = if (any(c25 >= 75)) min(day[c25 >= 75]) else NA_real_,
            .groups = "drop") |>
  rename("Baseline (nmol/L)" = d25, "Dose (ug/day)" = dose,
         "First day >= 75 nmol/L" = first_day_at_75) |>
  knitr::kable()
Baseline (nmol/L) Dose (ug/day) First day >= 75 nmol/L
10 10 NA
10 20 NA
10 50 71
10 100 35
50 10 NA
50 20 159
50 50 31
50 100 16

At 20 ug/day (800 IU/day) the paper’s prose does not match its own figure. The Results say it “might take over 200 days” for the 10 nmol/L individual and “~100 days” for the 50 nmol/L individual. In Figure 5b, however, the solid line levels off at about 73.5 nmol/L and never reaches 75. In Figure 5f it reaches 75 only after about 150 days. The simulation agrees with the figure. The prose times match where the upper edge of the uncertainty band crosses 75 nmol/L. Because this regimen levels off almost exactly at the threshold, the crossing time depends heavily on the parameters, so it is not used as a check.

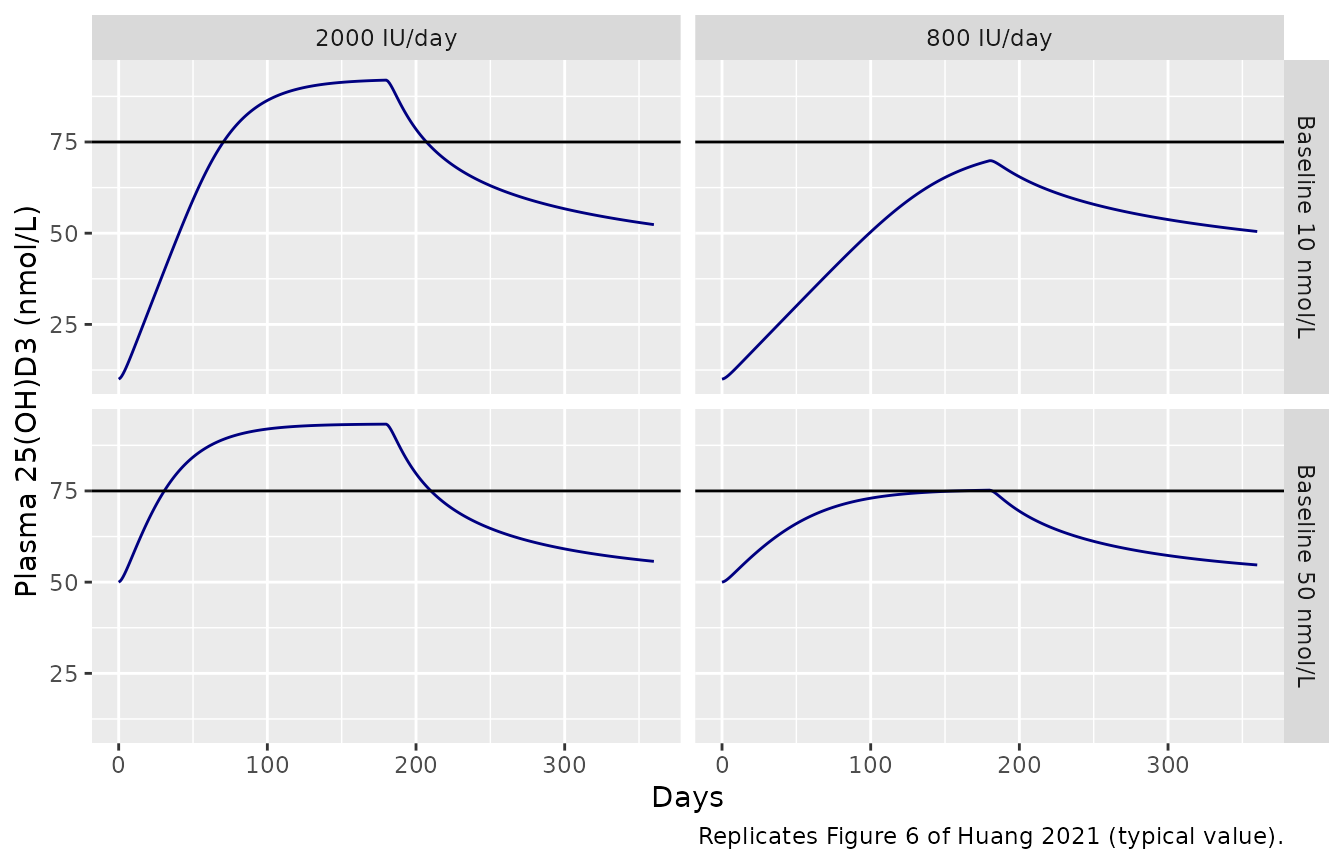

Validation 4: Figure 6 (dosing stopped after 180 days)

fig6 <- expand.grid(d25 = c(10, 50), dose = c(20, 50)) |>
  rowwise() |>
  do({
    s <- SOLVE(mod, daily_events(.$dose, 180, .$d25, obs_days = 0:360))
    s <- s[!duplicated(s$time), ]
    data.frame(d25 = .$d25, dose = .$dose, day = s$time / 24, c25 = s$Cc_25d3)
  }) |>
  ungroup()
ggplot(fig6, aes(day, c25)) +
  geom_line(colour = "navy") +
  geom_hline(yintercept = 75) +
  facet_grid(paste("Baseline", d25, "nmol/L") ~ paste(dose * 40, "IU/day")) +
  labs(x = "Days", y = "Plasma 25(OH)D3 (nmol/L)",
       caption = "Replicates Figure 6 of Huang 2021 (typical value).")


# Solid-line values digitised from Figure 6 at the last dose (day 180) and
# at day 360, taken from the panel titles (see Errata on the caption).
fig6_pub <- tribble(
  ~d25, ~dose, ~day, ~pub,
  10, 20, 180, 69, 10, 20, 360, 50,
  10, 50, 180, 91.5, 10, 50, 360, 51.5,
  50, 20, 180, 74.5, 50, 20, 360, 55,
  50, 50, 180, 94, 50, 50, 360, 56.5
)
fig6_chk <- fig6 |>
  inner_join(fig6_pub, by = c("d25", "dose", "day")) |>
  mutate(pct_diff = 100 * (c25 / pub - 1))
fig6_chk |>
  rename("Baseline (nmol/L)" = d25, "Dose (ug/day)" = dose, "Day" = day,
         "Simulated" = c25, "Figure 6" = pub, "% difference" = pct_diff) |>
  knitr::kable(digits = 1)
Baseline (nmol/L) Dose (ug/day) Day Simulated Figure 6 % difference
10 20 180 69.9 69.0 1.3
10 20 360 50.5 50.0 0.9
50 20 180 75.2 74.5 1.0
50 20 360 54.7 55.0 -0.5
10 50 180 92.0 91.5 0.5
10 50 360 52.4 51.5 1.7
50 50 180 93.3 94.0 -0.7
50 50 360 55.7 56.5 -1.4
stopifnot(all(abs(fig6_chk$pct_diff) < 5))

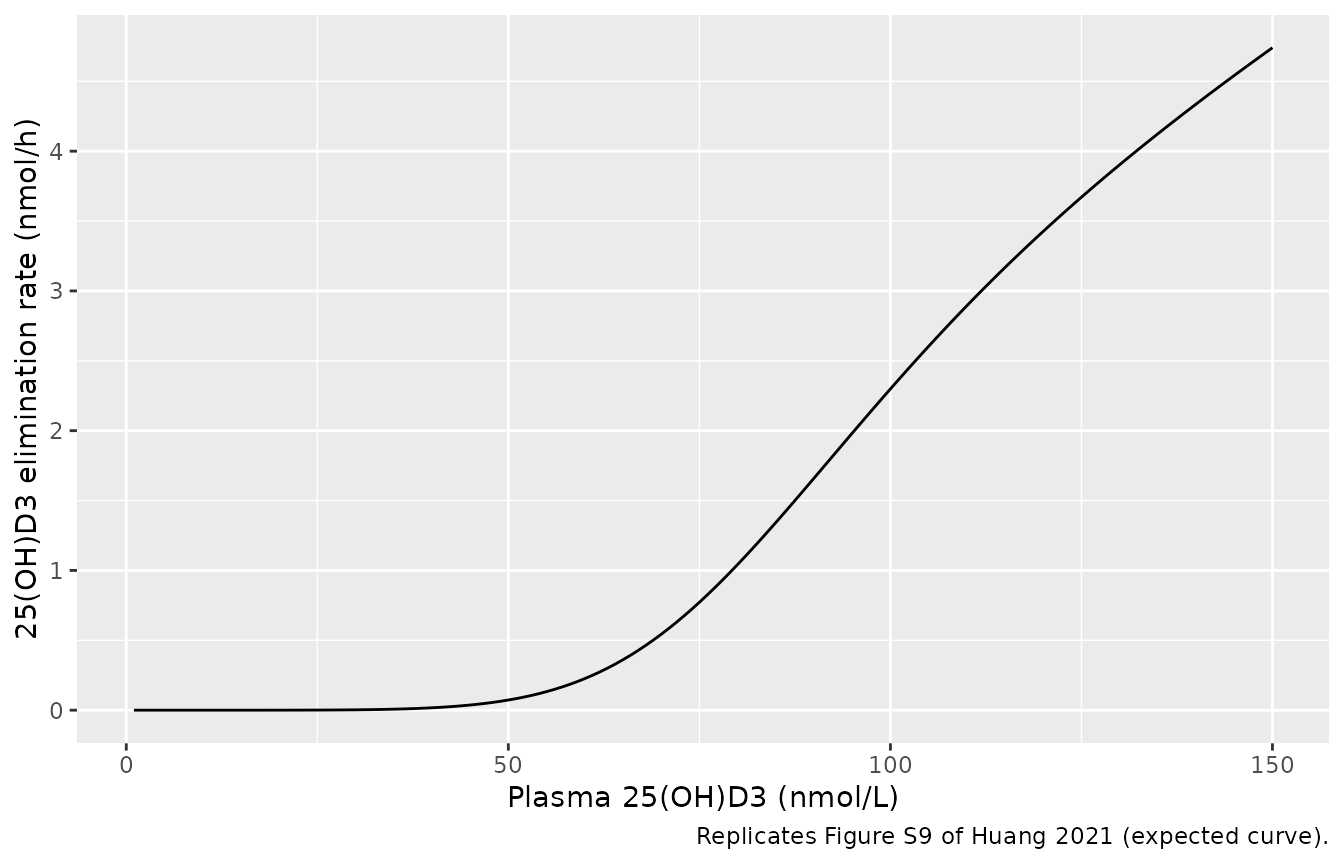

Validation 5: 25(OH)D3 clearance curve (Figure S9)

The supplement’s ENDOG.R plots the 25(OH)D3 elimination rate CLmax * C^gamma / (C50^gamma + C^gamma) * C against plasma 25(OH)D3. The rate is close to zero below 50 nmol/L. This is the mechanism the paper offers for its Figure 2 finding: the rise in 25(OH)D3 after dosing is smaller when the baseline is higher.

p <- mod$theta
s9 <- data.frame(c25 = 1:150) |>
  mutate(rate = exp(p[["lclmax"]]) * c25^exp(p[["lhill"]]) /
           (exp(p[["lc50"]])^exp(p[["lhill"]]) + c25^exp(p[["lhill"]])) * c25)
ggplot(s9, aes(c25, rate)) +
  geom_line() +
  labs(x = "Plasma 25(OH)D3 (nmol/L)", y = "25(OH)D3 elimination rate (nmol/h)",
       caption = "Replicates Figure S9 of Huang 2021 (expected curve).")

Vitamin D3 PK after single and repeated doses (PKNCA)

The paper reports no NCA table. Its data exploration notes that vitamin D3 has a half-life of “around 20 h” and reaches steady state “within 10 days” at 137.5 ug/day. Below, the three single-dose training arms (70, 140 and 2500 ug; REGI_QD = 0, clearance SCLH) are simulated from a 50 nmol/L baseline. The endogenous vitamin D3 baseline is subtracted before NCA so that the parameters describe the dose.

sd_events <- lapply(c(70, 140, 2500), function(d) {
  ev <- rxode2::et(amt = ug_to_nmol(d), cmt = "depot") |>
    rxode2::et(c(0, 0.5, 1, 2, 3, 4, 6, 8, 10, 12, 16, 24, 36, 48, 72, 96, 120, 168, 240))
  ev <- as.data.frame(ev)
  ev$id <- which(c(70, 140, 2500) == d)
  ev$D25OH_BL <- 50
  ev$REGI_QD <- 0
  ev$treatment <- paste(d, "ug single dose")
  ev
}) |> bind_rows()
sd_sim <- SOLVE(mod, sd_events, keep = "treatment") |>
  group_by(id) |>
  mutate(Cc_dose = Cc - first(Cc)) |>
  ungroup()

conc <- sd_sim |>
  filter(!is.na(Cc_dose)) |>
  select(id, treatment, time, Cc_dose)
dose_df <- sd_events |>
  filter(evid == 1) |>
  select(id, treatment, time, amt)
conc_obj <- PKNCAconc(conc, Cc_dose ~ time | treatment + id,
                      concu = "nmol/L", timeu = "h")
dose_obj <- PKNCAdose(dose_df, amt ~ time | treatment + id, doseu = "nmol")
intervals <- data.frame(start = 0, end = Inf, cmax = TRUE, tmax = TRUE,
                        half.life = TRUE, aucinf.obs = TRUE)
nca <- pk.nca(PKNCAdata(conc_obj, dose_obj, intervals = intervals))
nca_tab <- as.data.frame(nca$result) |>
  select(treatment, PPTESTCD, PPORRES) |>
  pivot_wider(names_from = PPTESTCD, values_from = PPORRES)
nca_tab |>
  rename("Regimen" = treatment, "Cmax (nmol/L)" = cmax, "Tmax (h)" = tmax,
         "t1/2 (h)" = half.life, "AUC0-inf (nmol*h/L)" = aucinf.obs) |>
  select("Regimen", "Cmax (nmol/L)", "Tmax (h)", "t1/2 (h)", "AUC0-inf (nmol*h/L)") |>
  knitr::kable(digits = 2)
Regimen Cmax (nmol/L) Tmax (h) t1/2 (h) AUC0-inf (nmol*h/L)
140 ug single dose 20.55 12 28.38 1134.72
2500 ug single dose 366.89 12 28.38 20262.94
70 ug single dose 10.27 12 28.38 567.36

# Everything that leaves the depot reaches the liver, and at the pre-dose
# steady state the vitamin D3 in blood is removed only by SCLH acting on the
# liver outflow concentration, which equals the venous concentration at steady
# state. The dose-attributable AUC therefore satisfies SCLH * AUC = dose.
sclh <- exp(mod$theta[["lsclh"]])
auc_chk <- nca_tab |>
  mutate(dose_nmol = ug_to_nmol(c(70, 140, 2500)[match(treatment, paste(c(70, 140, 2500), "ug single dose"))]),
         ratio = sclh * aucinf.obs / dose_nmol)
knitr::kable(auc_chk |> select(treatment, dose_nmol, ratio), digits = 3)
treatment dose_nmol ratio
140 ug single dose 363.977 0.998
2500 ug single dose 6499.584 0.998
70 ug single dose 181.988 0.998
stopifnot(all(abs(auc_chk$ratio - 1) < 0.03))

The simulated terminal half-life after a single dose is about 28 h. This is the typical-value result of SCLH 0.32 L/h acting on a vitamin D3 volume of about 13 L (Vven + Vl + Vart + Kprb x Vrb). The paper’s “around 20 h” describes the raw collated data, not the fitted model, so it is not a target. Under repeated dosing MCLH (0.21 L/h) gives a longer half-life of about 43 h. Steady state is then close to complete by day 10:

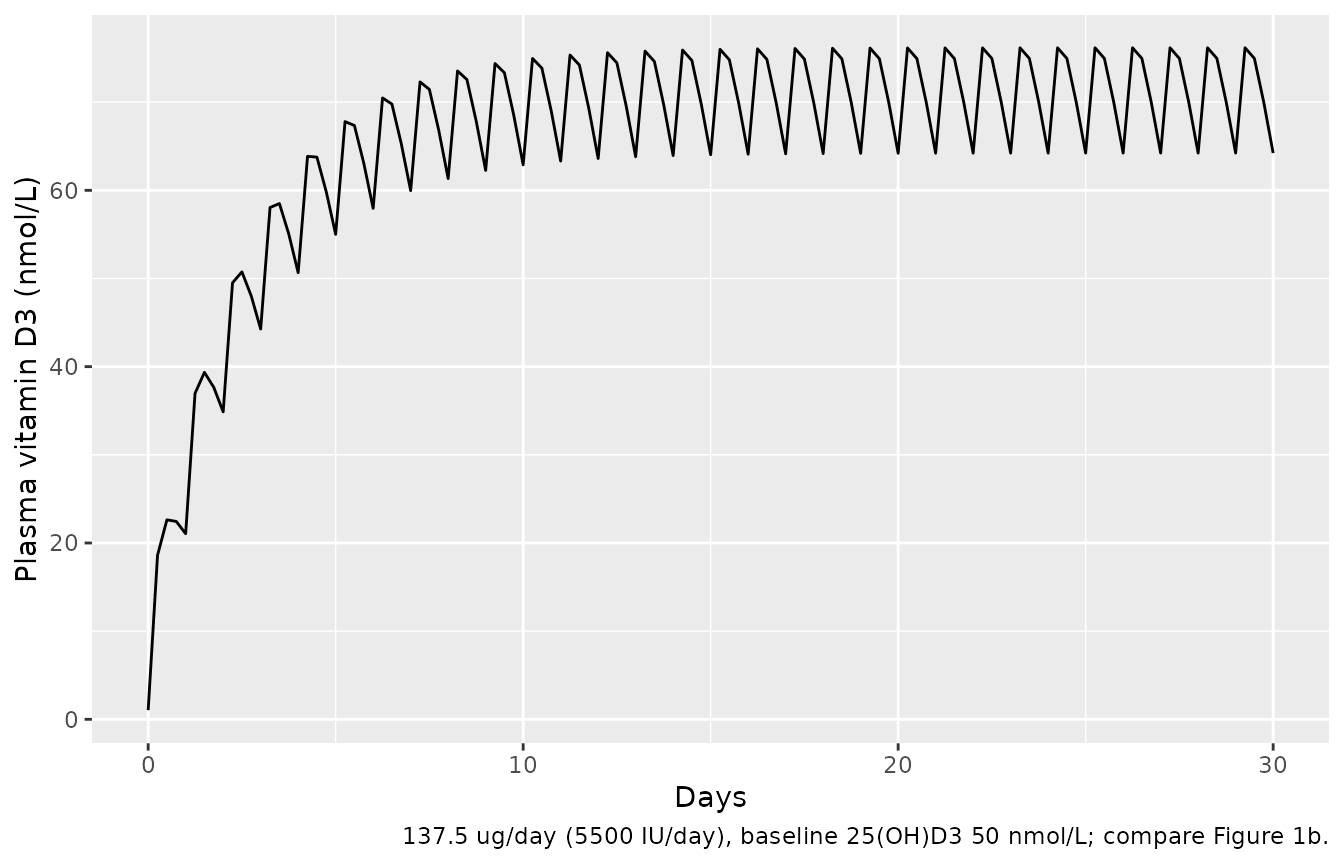

md <- SOLVE(mod, daily_events(137.5, 30, 50, obs_days = seq(0, 30, by = 0.25)))
md <- md[!duplicated(md$time), ]
ggplot(md, aes(time / 24, Cc)) +
  geom_line() +
  labs(x = "Days", y = "Plasma vitamin D3 (nmol/L)",
       caption = "137.5 ug/day (5500 IU/day), baseline 25(OH)D3 50 nmol/L; compare Figure 1b.")

trough <- md$Cc[match(c(10, 29) * 24, md$time)]
stopifnot(trough[1] / trough[2] > 0.95)

Sensitivity to the vitamin D3 values in the deposited script

The deposited Final_model.R sets ka = 0.2, Kprb = 0.1 and MCLH = 0.2. These are rounded versions of the Table 1 priors, not the posterior means 0.19 / 0.09 / 0.21. Its 25(OH)D3 point values are the exponentiated means of the log-scale chain (Kp25rb 0.522, C50 86.23, gamma 5.514, CLmax 0.03268), which also differ slightly from Table 1. The model file uses Table 1, which the paper presents as the final estimates. The table below shows that the choice barely moves 25(OH)D3. It does move the vitamin D3 level itself, roughly in proportion to 1/MCLH.

alt <- c(lka = log(0.2), lkp_other = log(0.1), lmclh = log(0.2),
         lkp_other_25d3 = log(0.5220573), lc50 = log(86.22754),
         lhill = log(5.514068), lclmax = log(0.03268347))
ev <- daily_events(50, 360, 30, obs_days = c(90, 360))
a <- SOLVE(mod, ev)
b <- SOLVE(mod, ev, params = alt)
tibble(day = a$time / 24, table1_25d3 = a$Cc_25d3, script_25d3 = b$Cc_25d3,
       table1_d3 = a$Cc, script_d3 = b$Cc) |>
  distinct() |>
  filter(day %in% c(90, 360)) |>
  rename("Day" = day, "25(OH)D3, Table 1" = table1_25d3,
         "25(OH)D3, script values" = script_25d3, "D3, Table 1" = table1_d3,
         "D3, script values" = script_d3) |>
  knitr::kable(digits = 2, caption = "50 ug/day, baseline 30 nmol/L")
50 ug/day, baseline 30 nmol/L
Day 25(OH)D3, Table 1 25(OH)D3, script values D3, Table 1 D3, script values
90 88.11 88.52 23.01 24.35
360 92.29 92.61 23.01 24.35

Assumptions and deviations

  • Units of SCLH and MCLH. Table 1 gives both hepatic clearances in h^-1. The supplement ODEs and the deposited script multiply them by the liver concentration (CLH x A_l / V_l / Kpl) to give an amount rate, so they are clearances in L/h. They are labelled L/h here. The values are unchanged.
  • A_l(0) in the supplement. The printed initial condition is A_l(0) = ENDOG x Vven / CLH x Kpl, with the venous volume. The script uses Vl, and only Vl gives a steady state (Validation 1 holds to 1e-6 with Vl). The model uses Vl.
  • Partition coefficient in the 25(OH)D3 clearance term. The supplement divides the liver 25(OH)D3 amount by Kpl in the clearance term, while the script uses Kp25l. Both equal 1, so the choice has no numerical effect. Kp25l is used because it is the 25(OH)D3 coefficient.
  • Kp25l = 1. It appears in the supplement ODEs but in no table. Its value comes from the deposited script. Table S7 confirms it was not estimated.
  • Fm = 1/3 rather than 0.33. Table 1 prints 0.33 (fixed). The equations and the script use exactly 3 and 1/3, which keeps the baseline balance exact.
  • Regimen switch. The paper uses SCLH for single-dose arms and MCLH for repeated daily arms. Here the covariate REGI_QD (1 = repeated daily, 0 = single dose) selects between them. Other dosing frequencies were excluded from the analysis, and the model should not be used for them without further justification.
  • Dose units. The model is dosed in nmol of vitamin D3, as in the script. Convert from ug with x 1000 / 384.64 (1 ug = 40 IU).
  • No variability or residual error. The paper fitted arm means with one parameter set and gives no residual-error estimate. The MCMC chain carries a model-variance term (var_Conc), but it was estimated on residuals weighted by the observed means, and the paper does not report or use it. The uncertainty bands in Figures 5 and 6 are posterior parameter uncertainty, which is not interindividual variability. The model is therefore deterministic.
  • 25(OH)D3 dosing (Figure S8). The paper also simulated oral 25(OH)D3 at 7 and 20 ug/day. It does not print how the 25(OH)D3 dose enters (absorption rate or bioavailability), so that route is not encoded.
  • Figure 6 caption. The caption lists panel (b) as “Baseline = 50, 800 IU/d” and (c) as “Baseline = 10, 2000 IU/d”. The panel titles in the figure are (b) baseline 10, 2000 IU/d and (c) baseline 50, 800 IU/d. The digitised values above follow the panel titles.
  • Figure 5, 20 ug/day prose. See Validation 3. The prose times to sufficiency at 800 IU/day do not match the solid lines in the paper’s own figure.
