Sufentanil (Hahn 2019)

Source: vignettes/articles/Hahn_2019_sufentanil.Rmd
Hahn_2019_sufentanil.Rmd

Model and source

  • Citation: Hahn J, Yang S, Min KL, Kim D, Jin BH, Park C, Park MS, Wi J, Chang MJ. Population pharmacokinetics of intravenous sufentanil in critically ill patients supported with extracorporeal membrane oxygenation therapy. Critical Care 2019;23:248. doi:10.1186/s13054-019-2508-4.
  • Description: Two-compartment IV population PK model for sufentanil in critically ill adults supported with venoarterial extracorporeal membrane oxygenation (VA-ECMO) after myocardial infarction. First-order elimination, no absorption (continuous IV infusion into the central compartment). Two covariates were retained after forward selection and backward elimination: an exponential effect of tympanic body temperature on clearance (+23.0% per degC, centered at the cohort median 36.9 degC) and a power effect of total plasma protein on the peripheral volume (exponent 2.46, centered at the cohort median 4.5 g/dL = 45 g/L). Inter-individual variability was estimated on CL and V2 only. Proportional residual error 29.0%. Relative to non-ECMO reference data the volumes are markedly increased and clearance decreased, consistent with circuit sequestration of this lipophilic, highly protein-bound drug and with reduced hepatic blood flow in critical illness. Parameter values from Hahn 2019 Table 2 (final model column).
  • Article: https://doi.org/10.1186/s13054-019-2508-4 (open access, Critical Care 2019;23:248)

Population

Hahn 2019 is a prospective, single-centre cohort PK study run at the cardiac intensive care unit of Severance Cardiovascular Hospital, Seoul, between January 2016 and June 2017 (IRB 4-20140919; ClinicalTrials.gov NCT02581280). Twenty critically ill Korean adults receiving sufentanil-based analgesia and sedation during venoarterial ECMO for myocardial infarction contributed 106 plasma samples. Median (range) age was 55 (23-88) years, body weight 69.4 (52.9-92.5) kg, lean body weight 55.3 (36.8-58.6) kg, and APACHE II score 29 (15-36); 16 of 20 were male. All received mechanical ventilation and started ECMO within 12 h of infarct onset; nine also received continuous venovenous hemodiafiltration. Median VA-ECMO duration was 138 (52.9-263) h and median sufentanil infusion duration 110 (34-260) h (Table 1).

The two covariates retained in the final model had cohort medians (ranges) of 36.9 (33-38.7) degC for tympanic body temperature and 4.5 (2.1-6) g/dL for total plasma protein (Table 1). Sufentanil was infused continuously at an initial 12.5 ug/h for patients under 60 kg (5 of 20) or 17.5 ug/h at or above 60 kg (15 of 20), titrated to a target Richmond Agitation Sedation Scale score.

The same information is available programmatically via the model’s population metadata (readModelDb("Hahn_2019_sufentanil")()$population).

Source trace

The per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Hahn_2019_sufentanil.R. The table below collects them in one place for review. All values are from the final model column of Table 2; the structural-model column is not used.

Equation / parameter Value Source location
lcl (CL) 37.8 L/h Table 2, Theta CL row, final model (RSE 3%)
lvc (V1) 229 L Table 2, Theta V1 row, final model (RSE 10%)
lq (Q) 41 L/h Table 2, Theta Q row, final model (RSE 12%)
lvp (V2) 1640 L Table 2, Theta V2 row, final model (RSE 9%)
e_bodytemp_cl 0.207 per degC Table 2, Theta Temp row (RSE 5%); Results final-model equation
e_tpro_vp 2.46 Table 2, Theta T.Prot row (RSE 7%); Results final-model equation
etalcl 0.167 (variance) Table 2, omega CL 2 row, final model (RSE 57%, shrinkage 20%)
etalvp 1.13 (variance) Table 2, omega V2 2 row, final model (RSE 48%, shrinkage 22%)
propSd 0.29 = sqrt(0.0841) Table 2, sigma 2 proportional row, final model = 0.0841
BODYTEMP reference 36.9 degC n/a Results final-model equation; Table 1 cohort median
TPRO reference 45 g/L (4.5 g/dL) n/a Results final-model equation; Table 1 cohort median
CL = 37.8 * exp(0.207 * (temperature - 36.9)) n/a Results, “Population PK model building”
V2 = 1640 * (total plasma protein / 4.5)^2.46 n/a Results, “Population PK model building”
Two-compartment IV disposition, first-order elimination n/a Results, “Population PK model building”; Discussion para. 1
Proportional residual error c = cp * (1 + eps) n/a Methods, “Population PK model development”
Log-normal IIV theta_i = theta_pop * exp(eta_i) n/a Methods, “Population PK model development”

Parameter scales worth stating explicitly, because they are the two places a transcription of this table can go wrong:

  • The IIV rows are labelled omega^2, so 0.167 and 1.13 are NONMEM log-normal variances and are carried into ini() unchanged (etalcl ~ 0.167), not squared or square-rooted.
  • The residual row is labelled sigma^2, so 0.0841 is a variance while nlmixr2’s prop() expects a standard deviation. sqrt(0.0841) = 0.29 exactly, which is itself a check that the variance reading is the right one.
# The exact square root is the evidence that Table 2's sigma^2 row is a
# variance rather than a CV: a 0.0841 CV would not be a round 0.29 when
# squared.
stopifnot(isTRUE(all.equal(sqrt(0.0841), 0.29, tolerance = 1e-12)))

Model structure

mod <- readModelDb("Hahn_2019_sufentanil")
mod_typical <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

# Reference covariate values (both cohort medians; the model centres on them).
ref_covs <- c(BODYTEMP = 36.9, TPRO = 45)

# Published typical values at the reference point.
pub <- c(CL = 37.8, V1 = 229, Q = 41, V2 = 1640)

The model is solved from explicit ODEs rather than rxode2’s analytic linear solver. That matters for every check below, so it is asserted rather than assumed.

ui <- rxode2::rxode2(readModelDb("Hahn_2019_sufentanil"))
#> ℹ parameter labels from comments will be replaced by 'label()'
stopifnot(is.null(ui$linCmt))
stopifnot(identical(ui$state, c("central", "peripheral1")))

Structural verification

These checks are deterministic: they use zeroRe() typical-value solves with no random draw at all, so they reproduce bit-for-bit on any machine, any thread count and any rxode2 build. The stochastic cohort further down is used for display, not for tight numeric bounds.

Covariate multipliers reproduce the published equations

cov_mult <- function(BODYTEMP, TPRO) {
  s <- rxode2::rxSolve(
    mod_typical,
    rxode2::et(amt = 100, cmt = "central") |> rxode2::et(c(0, 1)),
    params = c(BODYTEMP = BODYTEMP, TPRO = TPRO),
    returnType = "data.frame"
  )
  c(cl = s$cl[1], vp = s$vp[1])
}

# Published: CL = 37.8 * EXP(0.207 * (temperature - 36.9))
#            V2 = 1640 * (total plasma protein / 4.5)^2.46
chk_cl <- vapply(
  c(33, 35, 36.7, 36.9, 38, 39),
  function(tt) cov_mult(tt, 45)[["cl"]] / (37.8 * exp(0.207 * (tt - 36.9))),
  numeric(1)
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
chk_vp <- vapply(
  c(2, 4, 4.5, 6, 8),
  function(tp) cov_mult(36.9, tp * 10)[["vp"]] / (1640 * (tp / 4.5)^2.46),
  numeric(1)
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'

stopifnot(
  max(abs(chk_cl - 1)) < 1e-10,
  max(abs(chk_vp - 1)) < 1e-10
)

# At the reference covariates the individual parameters must be the published
# typical values exactly.
ref <- rxode2::rxSolve(
  mod_typical,
  rxode2::et(amt = 100, cmt = "central") |> rxode2::et(c(0, 1)),
  params = ref_covs, returnType = "data.frame"
)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
stopifnot(
  isTRUE(all.equal(ref$cl[1], pub[["CL"]], tolerance = 1e-10)),
  isTRUE(all.equal(ref$vc[1], pub[["V1"]], tolerance = 1e-10)),
  isTRUE(all.equal(ref$q[1],  pub[["Q"]],  tolerance = 1e-10)),
  isTRUE(all.equal(ref$vp[1], pub[["V2"]], tolerance = 1e-10))
)

The realised covariate effects, stated as fold-changes so they can be read against the paper’s Discussion:

tibble(
  Covariate = c(rep("Body temperature (degC)", 5), rep("Total plasma protein (g/dL)", 4)),
  Level = c(33, 35, 36.7, 38, 39, 2, 4, 6, 8),
  `Fold change vs reference` = c(
    exp(0.207 * (c(33, 35, 36.7, 38, 39) - 36.9)),
    (c(2, 4, 6, 8) / 4.5)^2.46
  ),
  `Affected parameter` = c(rep("CL", 5), rep("V2", 4))
) |>
  mutate(`Fold change vs reference` = round(`Fold change vs reference`, 3)) |>
  knitr::kable(
    caption = paste(
      "Covariate multipliers from the Hahn 2019 final-model equations, at the",
      "levels used in the paper's Monte Carlo simulations. Reference:",
      "36.9 degC and 4.5 g/dL."
    )
  )
Covariate multipliers from the Hahn 2019 final-model equations, at the levels used in the paper’s Monte Carlo simulations. Reference: 36.9 degC and 4.5 g/dL.
Covariate Level Fold change vs reference Affected parameter
Body temperature (degC) 33.0 0.446 CL
Body temperature (degC) 35.0 0.675 CL
Body temperature (degC) 36.7 0.959 CL
Body temperature (degC) 38.0 1.256 CL
Body temperature (degC) 39.0 1.544 CL
Total plasma protein (g/dL) 2.0 0.136 V2
Total plasma protein (g/dL) 4.0 0.748 V2
Total plasma protein (g/dL) 6.0 2.029 V2
Total plasma protein (g/dL) 8.0 4.118 V2

Clearance falls to 0.446 of its reference value at 33 degC and rises to 1.48 at 39 degC, matching the Discussion’s account of reduced hepatic blood flow and slowed CYP3A4 activity in hypothermia. The protein exponent is steep: V2 at 2 g/dL is only 0.136 of its reference value.

Steady-state identity: Css = infusion rate / CL

During a constant infusion long enough to reach steady state, the central concentration must equal Rate / CL exactly, whatever the distribution parameters are. This isolates CL and the temperature effect from V1, V2 and Q.

# The infusion must run long enough for the SLOWEST stratum to converge. At
# TPRO = 80 g/L, V2 = 1640 * (8/4.5)^2.46 = 7430 L and the terminal half-life
# is about 264 h, so 10000 h is roughly 38 terminal half-lives -- the residual
# approach-to-steady-state error is then far below the 1e-6 tolerance and the
# gate tests the identity rather than the simulation length.
css_check <- function(rate_ugh, BODYTEMP, TPRO, dur = 10000) {
  ev <- rxode2::et(amt = rate_ugh * dur, rate = rate_ugh, cmt = "central") |>
    rxode2::et(seq(0, dur, by = 25))
  s <- rxode2::rxSolve(
    mod_typical, ev,
    params = c(BODYTEMP = BODYTEMP, TPRO = TPRO), returnType = "data.frame"
  )
  tibble(
    rate_ugh = rate_ugh, BODYTEMP = BODYTEMP, TPRO = TPRO,
    Css_sim = s$Cc[nrow(s)], Css_closed = rate_ugh / s$cl[1]
  )
}

css <- bind_rows(
  css_check(12.5, 36.9, 45), css_check(17.5, 36.9, 45),
  css_check(17.5, 33.0, 45), css_check(17.5, 39.0, 45),
  css_check(17.5, 36.9, 20), css_check(17.5, 36.9, 80)
) |>
  mutate(ratio = Css_sim / Css_closed)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'

stopifnot(max(abs(css$ratio - 1)) < 1e-6)

css |>
  mutate(across(c(Css_sim, Css_closed), ~ round(.x, 4)), ratio = round(ratio, 8)) |>
  rename(
    "Rate (ug/h)" = rate_ugh, "Body temp (degC)" = BODYTEMP,
    "TPRO (g/L)" = TPRO, "Css simulated (ug/L)" = Css_sim,
    "Rate/CL (ug/L)" = Css_closed, "Ratio" = ratio
  ) |>
  knitr::kable(
    caption = paste(
      "Steady-state identity after a 3000 h infusion. Css depends only on",
      "CL, so the protein covariate (which acts on V2) leaves it unchanged."
    )
  )
Steady-state identity after a 3000 h infusion. Css depends only on CL, so the protein covariate (which acts on V2) leaves it unchanged.
Rate (ug/h) Body temp (degC) TPRO (g/L) Css simulated (ug/L) Rate/CL (ug/L) Ratio
12.5 36.9 45 0.3307 0.3307 1
17.5 36.9 45 0.4630 0.4630 1
17.5 33.0 45 1.0379 1.0379 1
17.5 39.0 45 0.2997 0.2997 1
17.5 36.9 20 0.4630 0.4630 1
17.5 36.9 80 0.4630 0.4630 1

Note that the two total-protein rows give identical Css: total plasma protein acts only on V2, so it changes how fast the steady state is approached, not where it lies. That distinction drives the interpretation of Figure 3b/3d below.

Terminal half-life matches the two-compartment eigenvalue

# Closed-form beta (terminal) rate constant of a two-compartment IV model.
beta_closed <- function(cl, vc, q, vp) {
  kel <- cl / vc; k12 <- q / vc; k21 <- q / vp
  s <- kel + k12 + k21
  0.5 * (s - sqrt(s^2 - 4 * kel * k21))
}
t_half_closed <- log(2) / beta_closed(pub[["CL"]], pub[["V1"]], pub[["Q"]], pub[["V2"]])

# Empirical terminal slope from a long washout after a short infusion.
ev_wash <- rxode2::et(amt = 100, rate = 100, cmt = "central") |>
  rxode2::et(seq(0, 1500, by = 1))
wash <- rxode2::rxSolve(mod_typical, ev_wash, params = ref_covs, returnType = "data.frame") |>
  filter(time >= 1000)
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
# Concentrations must still be strictly positive this far out, else the
# log-linear fit below would be silently dropping records.
stopifnot(all(wash$Cc > 0))
t_half_fit <- log(2) / -stats::coef(stats::lm(log(Cc) ~ time, data = wash))[["time"]]

stopifnot(abs(t_half_fit / t_half_closed - 1) < 1e-3)
c(closed_form_h = t_half_closed, regression_h = t_half_fit) |> round(3)
#> closed_form_h  regression_h
#>         60.06         60.06

The terminal half-life of about 60 h is long relative to the paper’s 120 h simulation window, which is exactly why the Figure 3 profiles are still rising at 120 h rather than flat.

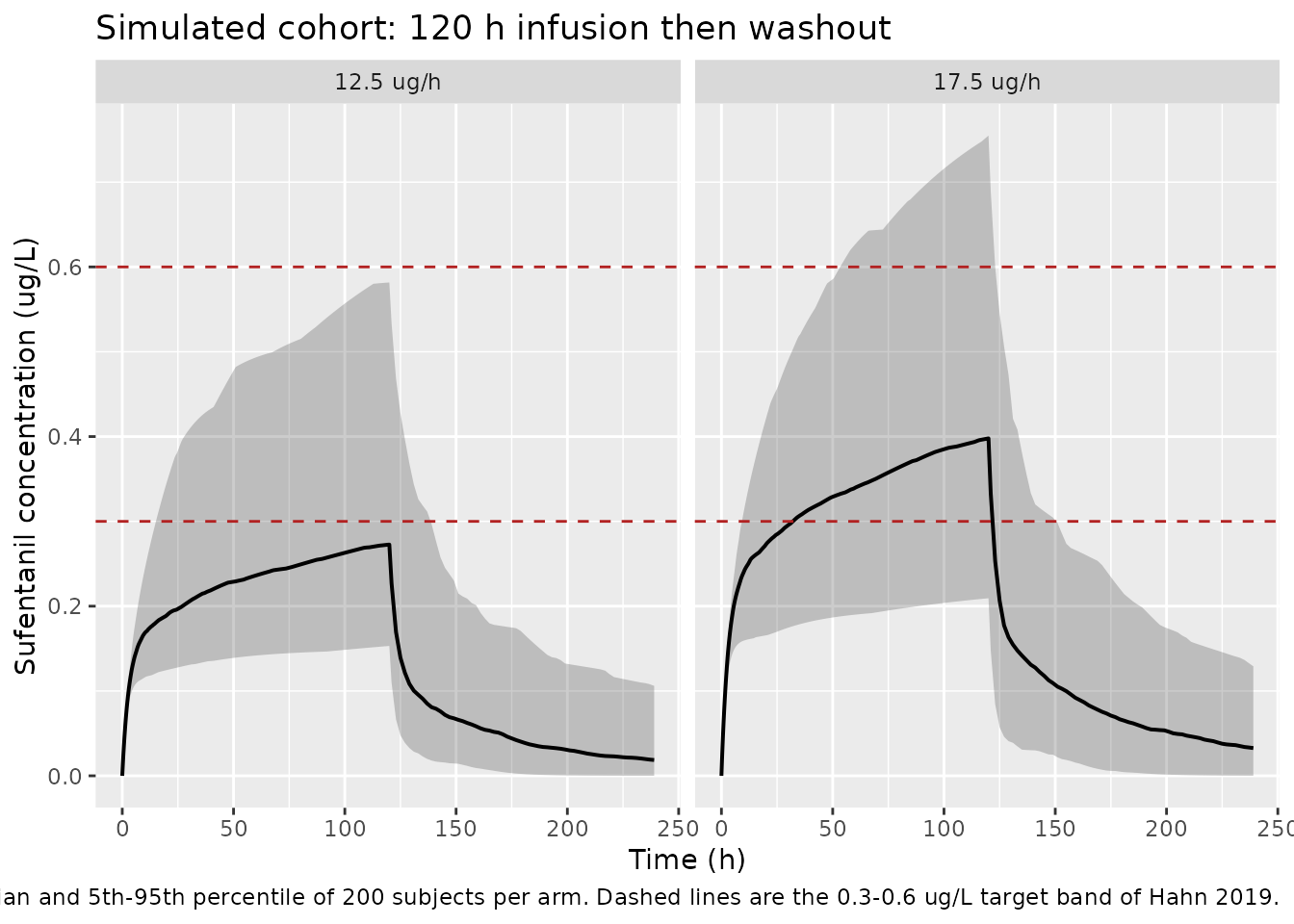

Virtual cohort

Original observed data are not publicly available (the paper states the dataset is available from the corresponding author on request). The cohort below draws covariates to approximate the Table 1 marginal distributions: body temperature and total plasma protein are drawn around their cohort medians and truncated to the reported ranges. The paper does not report a correlation between the two, so they are drawn independently.

# `set.seed()` seeds R's RNG but NOT rxode2's per-thread simulation streams, so
# this cohort is reproducible here and will differ on a machine with a
# different thread count. Every assertion in this vignette that carries a tight
# numeric bound is run against the deterministic `zeroRe()` solves above; the
# cohort is used for display and for the mass-balance gate, whose tolerance is
# a numerical-integration bound and not a property of the draw.
set.seed(20190701)

n_per_arm <- 200L
obs_grid <- c(seq(0, 12, by = 0.25), seq(12.5, 120, by = 0.5), seq(121, 600, by = 2))

make_arm <- function(n, rate_ugh, id_offset) {
  covs <- tibble(
    id = id_offset + seq_len(n),
    # Table 1: tympanic body temperature 36.9 (33-38.7) degC.
    BODYTEMP = pmin(pmax(stats::rnorm(n, 36.9, 1.2), 33), 38.7),
    # Table 1: total plasma protein 4.5 (2.1-6) g/dL, carried in SI g/L.
    TPRO = pmin(pmax(stats::rnorm(n, 45, 9), 21), 60),
    arm = paste0(rate_ugh, " ug/h"),
    rate_ugh = rate_ugh
  )
  dosing <- covs |>
    mutate(time = 0, evid = 1L, amt = rate_ugh * 120, rate = rate_ugh, cmt = "central")
  obs <- covs |>
    tidyr::expand_grid(time = obs_grid) |>
    mutate(evid = 0L, amt = 0, rate = 0, cmt = "central")
  bind_rows(dosing, obs) |> arrange(id, time, desc(evid))
}

# Two arms: the paper's 12.5 ug/h (< 60 kg) and 17.5 ug/h (>= 60 kg) starting
# infusions, each run for 120 h then followed to 600 h to capture the washout.
events <- bind_rows(
  make_arm(n_per_arm, 12.5, 0L),
  make_arm(n_per_arm, 17.5, 1000L)
) |>
  as.data.frame()

stopifnot(!anyDuplicated(unique(events[, c("id", "time", "evid")])))
sim <- rxode2::rxSolve(
  mod, events = events,
  keep = c("arm", "rate_ugh"), returnType = "data.frame"
) |>
  group_by(id) |>
  mutate(cl_i = first(cl), vp_i = first(vp)) |>
  ungroup()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim |>
  filter(time <= 240) |>
  group_by(arm, time) |>
  summarise(
    Q05 = quantile(Cc, 0.05), Q50 = median(Cc), Q95 = quantile(Cc, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = c(0.3, 0.6), linetype = "dashed", colour = "firebrick") +
  facet_wrap(~arm) +
  labs(
    x = "Time (h)", y = "Sufentanil concentration (ug/L)",
    title = "Simulated cohort: 120 h infusion then washout",
    caption = paste(
      "Median and 5th-95th percentile of 200 subjects per arm. Dashed lines",
      "are the 0.3-0.6 ug/L target band of Hahn 2019."
    )
  )

Replicate Figure 3

Figure 3 of Hahn 2019 shows Monte Carlo concentrations over a 120 h infusion at 12.5 and 17.5 ug/h, stratified by body temperature (panels a and c) and by total plasma protein (panels b and d). The panels below use the deterministic typical-value solve so that the numeric assertions are exactly reproducible; the stochastic version of the same strata follows for comparison against the paper’s simulated spread.

strata_temp <- tidyr::expand_grid(
  rate_ugh = c(12.5, 17.5),
  BODYTEMP = c(33, 35, 36.7, 38, 39)
) |>
  mutate(TPRO = 45, panel = "Body temperature (degC)", level = BODYTEMP)

strata_prot <- tidyr::expand_grid(
  rate_ugh = c(12.5, 17.5),
  tp_gdl = c(2, 4, 6, 8)
) |>
  mutate(BODYTEMP = 36.9, TPRO = tp_gdl * 10,
         panel = "Total plasma protein (g/dL)", level = tp_gdl) |>
  select(-tp_gdl)

solve_stratum <- function(rate_ugh, BODYTEMP, TPRO, panel, level) {
  ev <- rxode2::et(amt = rate_ugh * 120, rate = rate_ugh, cmt = "central") |>
    rxode2::et(seq(0, 120, by = 0.5))
  rxode2::rxSolve(
    mod_typical, ev,
    params = c(BODYTEMP = BODYTEMP, TPRO = TPRO), returnType = "data.frame"
  ) |>
    transmute(time, Cc, rate_ugh = rate_ugh, panel = panel, level = level)
}

strata <- bind_rows(strata_temp, strata_prot)
fig3 <- bind_rows(Map(
  solve_stratum,
  strata$rate_ugh, strata$BODYTEMP, strata$TPRO, strata$panel, strata$level
)) |>
  mutate(arm = paste0(rate_ugh, " ug/h"))
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvp'

fig3 |>
  ggplot(aes(time, Cc, colour = factor(level), group = level)) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = c(0.3, 0.6), linetype = "dashed", colour = "firebrick") +
  facet_grid(panel ~ arm) +
  labs(
    x = "Time (h)", y = "Sufentanil concentration (ug/L)", colour = "Level",

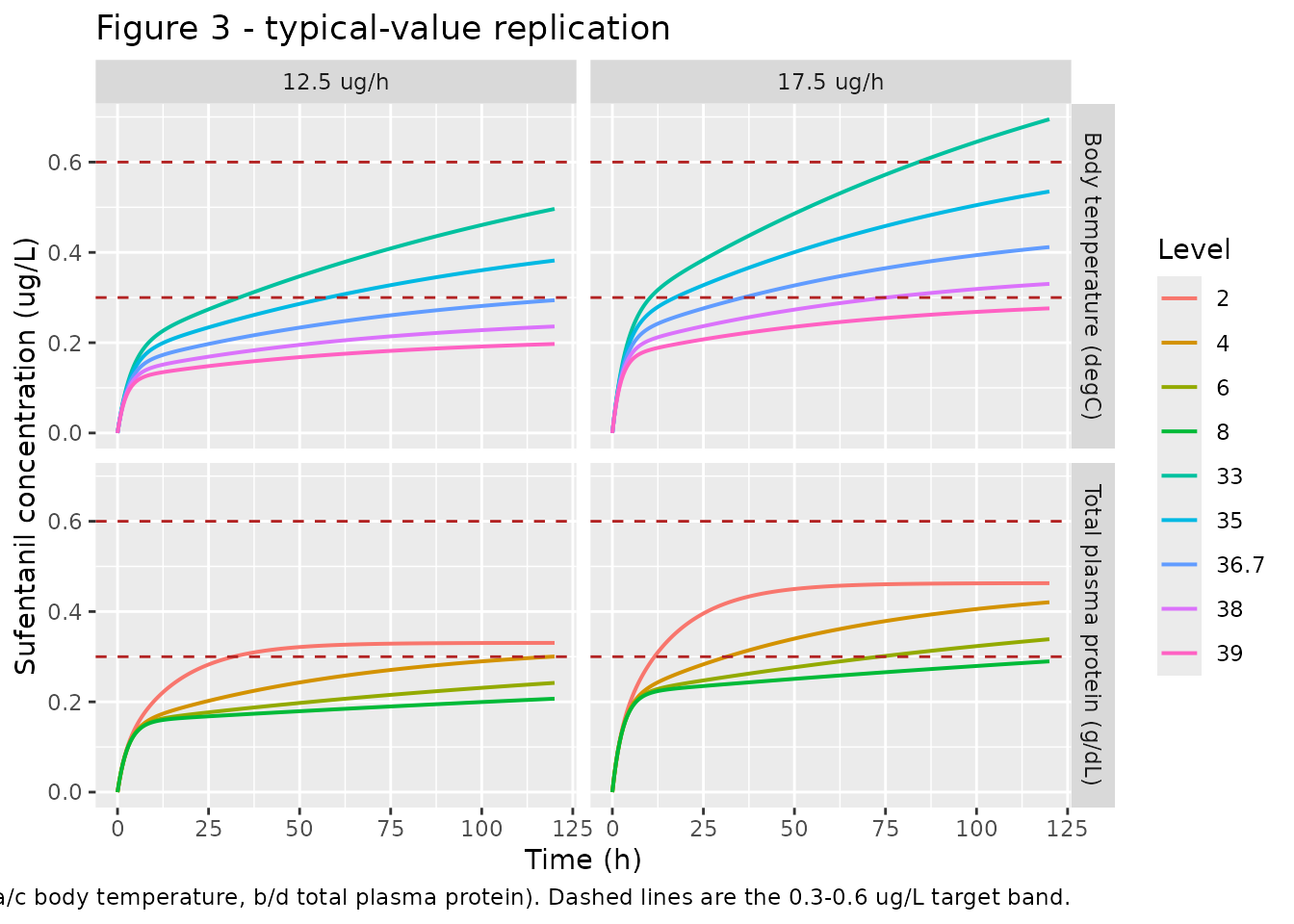

    title = "Figure 3 - typical-value replication",
    caption = paste(
      "Replicates Figure 3 of Hahn 2019 (a/c body temperature, b/d total",
      "plasma protein). Dashed lines are the 0.3-0.6 ug/L target band."
    )
  )

Assertions against the paper’s stated conclusions

The paper makes four quantitative claims about Figure 3. Each is asserted below over the 24-120 h window it refers to.

window <- fig3 |> filter(time >= 24)

summ <- window |>
  group_by(panel, arm, level) |>
  summarise(min_Cc = min(Cc), mean_Cc = mean(Cc), max_Cc = max(Cc), .groups = "drop")

temp175 <- summ |> filter(panel == "Body temperature (degC)", arm == "17.5 ug/h")
prot125 <- summ |> filter(panel == "Total plasma protein (g/dL)", arm == "12.5 ug/h")

stopifnot(
  # Claim 1 (Results/Discussion): at 17.5 ug/h, hypothermic patients (33 degC)
  # run ABOVE the 0.6 ug/L upper target bound.
  temp175$max_Cc[temp175$level == 33] > 0.6,

  # Claim 2: at 17.5 ug/h, febrile patients (39 degC) run BELOW the 0.3 ug/L
  # lower target bound across the whole window.
  temp175$max_Cc[temp175$level == 39] < 0.3,

  # Claim 3: at 17.5 ug/h, 35 degC sits entirely WITHIN the target band.
  temp175$min_Cc[temp175$level == 35] > 0.3,
  temp175$max_Cc[temp175$level == 35] < 0.6,

  # Claim 4 ("a dose of 12.5 ug/h was low for patients with total plasma
  # protein levels of 4-8 g/dL"): the window-average stays below the lower
  # target bound at every one of those three strata.
  all(prot125$mean_Cc[prot125$level %in% c(4, 6, 8)] < 0.3),

  # Monotonicity implied by the sign of both covariate effects: concentration
  # falls as temperature rises (CL up) and as total protein rises (V2 up, so
  # the approach to steady state is slower).
  !is.unsorted(rev(temp175$mean_Cc[order(temp175$level)])),
  !is.unsorted(rev(prot125$mean_Cc[order(prot125$level)]))
)

summ |>
  mutate(across(c(min_Cc, mean_Cc, max_Cc), ~ round(.x, 3))) |>
  rename(
    "Panel" = panel, "Infusion rate" = arm, "Level" = level,
    "Min Cc (ug/L)" = min_Cc, "Mean Cc (ug/L)" = mean_Cc, "Max Cc (ug/L)" = max_Cc
  ) |>
  knitr::kable(
    caption = paste(
      "Typical-value concentrations over the 24-120 h window of Figure 3.",
      "Target band 0.3-0.6 ug/L."
    )
  )
Typical-value concentrations over the 24-120 h window of Figure 3. Target band 0.3-0.6 ug/L.
Panel Infusion rate Level Min Cc (ug/L) Mean Cc (ug/L) Max Cc (ug/L)
Body temperature (degC) 12.5 ug/h 33.0 0.271 0.396 0.496
Body temperature (degC) 12.5 ug/h 35.0 0.232 0.318 0.382
Body temperature (degC) 12.5 ug/h 36.7 0.195 0.254 0.294
Body temperature (degC) 12.5 ug/h 38.0 0.168 0.209 0.236
Body temperature (degC) 12.5 ug/h 39.0 0.147 0.178 0.197
Body temperature (degC) 17.5 ug/h 33.0 0.379 0.554 0.695
Body temperature (degC) 17.5 ug/h 35.0 0.324 0.445 0.535
Body temperature (degC) 17.5 ug/h 36.7 0.274 0.355 0.412
Body temperature (degC) 17.5 ug/h 38.0 0.235 0.292 0.330
Body temperature (degC) 17.5 ug/h 39.0 0.206 0.249 0.276
Total plasma protein (g/dL) 12.5 ug/h 2.0 0.279 0.322 0.331
Total plasma protein (g/dL) 12.5 ug/h 4.0 0.200 0.262 0.300
Total plasma protein (g/dL) 12.5 ug/h 6.0 0.176 0.212 0.242
Total plasma protein (g/dL) 12.5 ug/h 8.0 0.167 0.188 0.207
Total plasma protein (g/dL) 17.5 ug/h 2.0 0.391 0.451 0.463
Total plasma protein (g/dL) 17.5 ug/h 4.0 0.280 0.367 0.421
Total plasma protein (g/dL) 17.5 ug/h 6.0 0.246 0.297 0.339
Total plasma protein (g/dL) 17.5 ug/h 8.0 0.234 0.263 0.290

PKNCA validation

The paper reports no NCA table, so there is no published Cmax / AUC / half-life to compare against. PKNCA is instead used to carry a mass-balance gate that the model must satisfy for every simulated subject: over any window, the amount eliminated equals CL_i times the AUC, and that must equal the dose infused minus the drug still in the body.

sim_nca <- sim |>
  filter(!is.na(Cc)) |>
  select(id, time, Cc, arm)

# Guarantee a time = 0 anchor per (id, arm); the infusion starts at t = 0 so
# the pre-dose concentration is 0.
sim_nca <- bind_rows(
  sim_nca,
  sim_nca |> distinct(id, arm) |> mutate(time = 0, Cc = 0)
) |>
  distinct(id, arm, time, .keep_all = TRUE) |>
  arrange(id, arm, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | arm + id)

dose_df <- events |>
  filter(evid == 1) |>
  select(id, time, amt, arm)
dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | arm + id)

intervals <- data.frame(
  start = 0, end = 600,
  auclast = TRUE, cmax = TRUE, tmax = TRUE, half.life = TRUE
)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals))
nca_wide <- as.data.frame(nca_res) |>
  select(arm, id, PPTESTCD, PPORRES) |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES)
# Amount still in the body at the end of the observation window.
remaining <- sim |>
  group_by(id, arm, cl_i, rate_ugh) |>
  summarise(
    in_body = last(central) + last(peripheral1),
    .groups = "drop"
  ) |>
  mutate(dose_given = rate_ugh * 120)

mb <- nca_wide |>
  inner_join(remaining, by = c("id", "arm")) |>
  mutate(
    eliminated_nca = cl_i * auclast,
    eliminated_bal = dose_given - in_body,
    rel_err = (eliminated_nca - eliminated_bal) / eliminated_bal
  )

stopifnot(
  nrow(mb) == 2L * n_per_arm,
  # Strict per-subject gate. The residual is trapezoidal-integration error on
  # the observation grid, not a property of the random draw, so this bound is
  # machine- and thread-count-independent.
  max(abs(mb$rel_err)) < 5e-3
)

c(
  median_abs_rel_err = median(abs(mb$rel_err)),
  q95_abs_rel_err = unname(quantile(abs(mb$rel_err), 0.95)),
  max_abs_rel_err = max(abs(mb$rel_err))
) |> signif(3)
#> median_abs_rel_err    q95_abs_rel_err    max_abs_rel_err
#>           0.000186           0.000326           0.000436

A mutation control confirms the gate is not vacuous: perturbing the clearance used in the balance by 2% must break it.

mb_mut <- mb |> mutate(rel_err = (1.02 * cl_i * auclast - eliminated_bal) / eliminated_bal)
stopifnot(max(abs(mb_mut$rel_err)) > 5e-3)

Simulated NCA summary

nca_wide |>
  group_by(arm) |>
  summarise(
    across(c(cmax, tmax, auclast, half.life),
           list(median = ~ median(.x, na.rm = TRUE),
                p05 = ~ quantile(.x, 0.05, na.rm = TRUE),
                p95 = ~ quantile(.x, 0.95, na.rm = TRUE)),
           .names = "{.col}__{.fn}"),
    .groups = "drop"
  ) |>
  tidyr::pivot_longer(-arm, names_to = c("param", "stat"), names_sep = "__") |>
  tidyr::pivot_wider(names_from = stat, values_from = value) |>
  mutate(
    param = recode(param,
      cmax = "Cmax (ug/L)", tmax = "Tmax (h)",
      auclast = "AUClast (ug*h/L)", `half.life` = "t-half (h)"
    ),
    across(c(median, p05, p95), ~ signif(.x, 3))
  ) |>
  rename(
    "Infusion rate" = arm, "NCA parameter" = param,
    "Median" = median, "5th pctile" = p05, "95th pctile" = p95
  ) |>
  knitr::kable(
    caption = paste(
      "Simulated NCA over 0-600 h (120 h infusion then washout). No published",
      "NCA table exists in Hahn 2019, so these are reported for reference",
      "rather than compared."
    )
  )
Simulated NCA over 0-600 h (120 h infusion then washout). No published NCA table exists in Hahn 2019, so these are reported for reference rather than compared.
Infusion rate NCA parameter Median 5th pctile 95th pctile
12.5 ug/h Cmax (ug/L) 0.273 0.153 0.582
12.5 ug/h Tmax (h) 120.000 120.000 120.000
12.5 ug/h AUClast (ug*h/L) 38.100 20.600 86.500
12.5 ug/h t-half (h) 45.100 8.600 358.000
17.5 ug/h Cmax (ug/L) 0.398 0.209 0.755
17.5 ug/h Tmax (h) 120.000 120.000 120.000
17.5 ug/h AUClast (ug*h/L) 55.600 28.600 107.000
17.5 ug/h t-half (h) 49.400 9.980 378.000

Cmax occurs at the end of infusion (Tmax near 120 h), as expected for a constant infusion with no bolus loading dose. The simulated median terminal half-life is longer than the 60 h typical value because the V2 variance of 1.13 is large and a long peripheral half-life is a right-tailed quantity.

Assumptions and deviations

  • Covariate distributions are reconstructed, not observed. Table 1 reports only medians and ranges, with no standard deviations and no correlation structure. Body temperature and total plasma protein are drawn as independent truncated normals centred on the reported medians and clipped to the reported ranges. This affects the displayed cohort spread only; every tight numeric assertion in this vignette runs against deterministic zeroRe() solves.
  • Total plasma protein is carried in SI g/L, not the paper’s g/dL. The canonical TPRO column is g/L, so the model uses a reference of 45 g/L where the paper writes 4.5 g/dL. Because the covariate enters as a ratio to its reference, (TPRO/45) in g/L is numerically identical to the paper’s (total plasma protein/4.5) in g/dL and no inline conversion is needed. Users must supply TPRO in g/L.
  • Body temperature is implemented as a plain covariate column and may be time-varying. Temperature was collected from the electronic medical record as an ICU vital sign, and the paper does not state whether the fitted covariate was an admission value or a per-record value. The model reads whatever BODYTEMP the user’s data supplies at each record, so either interpretation is expressible; the vignette holds it constant per subject.
  • The protein panels use 36.9 degC, not the 36.7 degC of the paper’s simulation list. Methods lists temperature levels of 33, 35, 36.7, 38 and 39 degC while Table 1 and the final-model equation both centre on 36.9 degC. The 36.7 level is retained in the temperature panel as published; the protein panels use the model’s own reference of 36.9 degC so that the protein effect is isolated. The difference is a 0.04-fold change in CL and is visually indistinguishable.
  • The paper’s “35-38 degC stays within target” claim reproduces only at its lower edge. Results states that at 17.5 ug/h “the concentrations of sufentanil from 24 to 120 h were within the target concentrations in patients with a body temperature of 35-38 degC”. In this replication the 35 degC stratum is indeed within 0.3-0.6 ug/L across the whole window (0.324-0.535 ug/L), but the 36.7 and 38 degC strata run below the 0.3 ug/L lower bound over part of it (36.7 degC reaches 0.3 only at about 40 h; 38 degC peaks at 0.330 ug/L and is below 0.3 until about 90 h). The bracketing claims reproduce exactly: 33 degC exceeds 0.6 ug/L and 39 degC never reaches 0.3 ug/L. The most likely reading is that Figure 3 plots a simulated distribution over 1000 individuals and that “within the target concentrations” describes the band rather than its median - the simulated 5th-95th percentile band here does span the target across all three strata. The paper’s own Discussion is consistent with the narrower reading, noting separately that “optimal levels of analgesia and sedation could not be induced with commonly used doses in hyperthermic patients”. No parameter was adjusted to close this gap.
  • No published NCA table exists, so the PKNCA section carries an internal mass-balance gate instead of a side-by-side comparison against reported Cmax / AUC / half-life values.
  • Covariates screened but not retained are recorded in the model file’s covariatesDataExcluded list rather than covariateData: total bilirubin (significant on CL univariately, dropped in backward elimination) and lean body weight (significant on V2 univariately, dropped). The paper reports no point estimate for either, so neither can be implemented.
  • All parameter values come from the paper’s own text and tables. No value was taken from a figure, from correspondence, or from an upstream model. No supplement or erratum was located for this article.
