Dupilumab ddmore (Kovalenko 2016)

Source: vignettes/articles/Kovalenko_2016_dupilumab_ddmore.Rmd
Kovalenko_2016_dupilumab_ddmore.Rmd

Model and source

  • Citation: Kovalenko P, DiCioccio AT, Davis JD, Li M, Ardeleanu M, Graham NMH, Soltys R (2016). Exploratory Population PK Analysis of Dupilumab, a Fully Human Monoclonal Antibody Against IL-4Ralpha, in Atopic Dermatitis Patients and Normal Volunteers. CPT Pharmacometrics Syst Pharmacol. 5(11):617-624. doi:10.1002/psp4.12136. DDMORE Foundation Model Repository: DDMODEL00000273.
  • Description: Dupilumab population PK as encoded in DDMORE Foundation Model Repository entry DDMODEL00000273. Two-compartment model with parallel linear and Michaelis-Menten elimination from the central compartment, first-order absorption from a SC depot, and a non-standard body-weight covariate on the central volume in which weight enters log(V2) multiplicatively. Final estimates here come from the bundle’s Output_simulated_.lst (a SAEM/IMP fit on the bundle’s Simulated_Dupilumab.CSV); no Output_real_.lst is shipped, so these values do NOT match Table 2 of the publication. The publication-faithful encoding (Eq. 1, Eq. 2, Table 2 estimates) is the replicate_of counterpart at inst/modeldb/specificDrugs/Kovalenko_2016_dupilumab.R.
  • Article: CPT Pharmacometrics Syst Pharmacol. 2016;5(11):617-624 (open access via PMC5655850)
  • DDMORE Foundation Model Repository: DDMODEL00000273

This model was extracted from the DDMORE bundle scraped to dpastoor/ddmore_scraping/273/. The bundle ships:

  • Executable_Simulated_Dupilumab.ctl – NONMEM control stream (NM-TRAN, ADVAN13 + TOL=9 ODE block) implementing the two-compartment parallel-linear/Michaelis-Menten dupilumab PK structure described in Kovalenko 2016, with a non-standard body-weight covariate on the central volume.
  • Output_simulated_Dupilumab.lst – listing from running SAEM/IMP on the shipped Simulated_Dupilumab.CSV. Reaches MINIMIZATION SUCCESSFUL and produces the FINAL PARAMETER ESTIMATE values that drive ini().
  • Simulated_Dupilumab.CSV – single-subject placeholder dataset (WT = 1, LWT = 1 constants) used for the bundle’s regression smoke-test.
  • DDMODEL00000273.rdf, Command.txt, 273.json – provenance metadata.

The bundle does not ship an Output_real_*.lst and there is no Model_Accomodations.text|.txt file. The validation strategy is therefore the F.2 self-consistency check (does the rxode2 implementation reproduce the bundle’s NM-TRAN trajectory on the same inputs?) plus a qualitative comparison of the model’s typical-value profile against the publication’s Figure 3 concentration-time plots. Direct replication of Kovalenko 2016 Table 2 is not the goal of this DDMORE-source vignette – the parameter values reported here are the bundle’s simulated-data fit, not the publication’s real-data fit. For the publication-faithful encoding, see the replicate_of counterpart Kovalenko_2016_dupilumab.

Population

The publication (Table 1 + Results / Data) reports a pooled cohort of 197 participants (96 female, 101 male; mean age 37 years; mean weight 76 kg) drawn from two Phase 1 healthy-volunteer studies (NCT01015027, NCT01484600) and four Phase 2 atopic-dermatitis patient studies (NCT01259323, NCT01385657, NCT01548404, NCT01639040), contributing 2,518 serum dupilumab measurements. The DDMORE bundle’s simulated CSV does not reproduce these demographics – it is a single-subject placeholder with WT = 1 and LWT = 1 constants – so the population metadata in inst/modeldb/ddmore/Kovalenko_2016_dupilumab_ddmore.R is taken from the publication, not the bundle.

The same information is available programmatically via readModelDb("Kovalenko_2016_dupilumab_ddmore")()$population.

Source trace

Every value in ini() is the bundle’s Output_simulated_Dupilumab.lst FINAL PARAMETER ESTIMATE (SAEM block, identically echoed by the IMP block). The .ctl $THETA / $OMEGA / $SIGMA blocks are initial estimates and are not used here.

Equation / parameter Value (linear units) Source location
lvc (V2 covariate parameter; not log V2 directly) 0.705 (unitless inside the exponential) Output_simulated_Dupilumab.lst FINAL TH 1 (POPV2). At WT=75 kg, V2 = exp(0.705) ~= 2.024 L.
lke (linear elimination rate, log scale) -1.40 -> ke ~= 0.247 1/d FINAL TH 2 (POPKE)
lvmax (max MM elimination rate, log scale) -1.08 -> Vmax ~= 0.339 mg/L/d FINAL TH 3 (POPVM)
lka (absorption rate, log scale) -1.04 -> ka ~= 0.353 1/d FINAL TH 4 (POPKA)
lfdepot (SC bioavailability, log scale) log(0.615) (linear-MU BIO = MU_5 + ETA(5) in .ctl re-stored on log scale) FINAL TH 5 (POPBIO) = 0.615 linear
k23 (central->peripheral, linear scale per .ctl) 0.0475 1/d FINAL TH 6 (POPK23)
k32 (peripheral->central, linear scale per .ctl) 0.105 1/d FINAL TH 7 (POPK32)
Km (Michaelis-Menten constant, fixed) fixed(0.01) mg/L FINAL TH 8 (POPKM); .ctl $THETA(8) (0.01 FIXED)
propSd (proportional SD on log scale) 0.0377 FINAL TH 9 (POPSD1)
addSd (additive SD, fixed) fixed(0.03) mg/L .ctl $ERROR SD2 = 0.03
var(etalvc) 2.92e-06 FINAL OMEGA(1,1) ETAV2
var(etalke), cov(etalke,etalvmax), var(etalvmax) (block) 2.26e-07, -1.72e-07, 1.36e-07 FINAL OMEGA BLOCK(2) ETAKE/ETAVM
var(etalka) 7.32e-08 FINAL OMEGA(4,4) ETAKA
ETAs 5-8 (BIO, K23, K32, KM) 0 (FIXED) .ctl $OMEGA DIAGONAL(4) 0 FIX
Compartments: depot, central, peripheral1 n/a .ctl $MODEL COMP=(INJ), COMP=(BLD), COMP=(PER); the.ctlAUC integrator (compartment 3) is dropped -- users can request AUC at solve time. | | ODEs | n/a |.ctl $DESblock (DTYP gating dropped -- route is set by the dosing compartment in the event record). | |f(depot)(SC bioavailability) | exp(lfdepot) |.ctl $PK F1 = BIO`

The bundle’s body-weight covariate equation is:

C1 = exp((LWT - log(75)) * 0.75) = (WT/75)^0.75 ; V2 = exp((MU_1 + ETA(1)) * C1)

This is structurally distinct from the publication’s Eq. 1 of the form V2 = THETA1 * (WT/75)^THETA2. See Assumptions and deviations below for the implications.

Virtual cohort

For the F.2 self-consistency check we mirror the bundle’s simulated event sequence: a single subject receiving 1000 mg as an SC injection into the depot at time 0, with concentration sampled at the bundle’s observation times.

bundle_csv <- "/home/bill/github/mab_human_consensus/literature/from_people/ddmore/ddmore_scraping/273/Simulated_Dupilumab.CSV"

if (file.exists(bundle_csv)) {
  bundle <- read.csv(bundle_csv)
  obs_times <- bundle |>
    dplyr::filter(MDV == 0, CMT == 2) |>
    dplyr::pull(TIME) |>
    unique() |>
    sort()
  bundle_dose <- bundle |>
    dplyr::filter(EVID == 1 | (MDV == 1 & DOSE > 0)) |>
    dplyr::slice_head(n = 1)
  dose_amt <- bundle_dose$DOSE
} else {
  obs_times <- c(seq(0, 12, by = 0.25), seq(13, 30, by = 1), seq(32, 84, by = 2))
  dose_amt  <- 1000
  bundle    <- NULL
}

cat("Observation grid:", length(obs_times), "time points from",
    min(obs_times), "to", max(obs_times), "days\n")
#> Observation grid: 94 time points from 0 to 84 days
cat("Dose: ", dose_amt, "mg SC\n")
#> Dose:  1000 mg SC

Simulation

The .ctl body-weight covariate uses the data column LWT directly (treating it as log(WT) in kg). The bundle’s simulated CSV sets LWT = 1 for all rows even though WT = 1 (so LWT is not the log of WT in that dataset – it is a numeric placeholder). To reproduce the bundle’s trajectory, we set WT = exp(1) ~= 2.718 so that the nlmixr2 covariate factor (WT/75)^0.75 matches the bundle’s exp((LWT - log(75)) * 0.75) exactly.

mod <- rxode2::rxode2(readModelDb("Kovalenko_2016_dupilumab_ddmore"))
#> ℹ parameter labels from comments will be replaced by 'label()'
mod_typical <- rxode2::zeroRe(mod)

events <- rxode2::et(amt = dose_amt, cmt = "depot") |>
  rxode2::et(obs_times)

# WT_bundle = exp(1) so that (WT_bundle/75)^0.75 matches the bundle's
# exp((LWT - log(75))*0.75) with LWT = 1.
sim_bundle <- rxode2::rxSolve(
  mod_typical,
  events = events,
  params = c(WT = exp(1))
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalke', 'etalvmax', 'etalka'

F.2 self-consistency check vs the bundle’s simulated dataset

if (!is.null(bundle)) {
  bundle_obs <- bundle |>
    dplyr::filter(MDV == 0, CMT == 2) |>
    dplyr::transmute(time = TIME, bundle_obs = CP)

  joined <- bundle_obs |>
    dplyr::left_join(
      sim_bundle |> dplyr::transmute(time, nlmixr_sim = Cc),
      by = "time"
    ) |>
    dplyr::mutate(
      ratio = ifelse(bundle_obs > 0 & nlmixr_sim > 0,
                     nlmixr_sim / bundle_obs, NA_real_),
      pct_diff = 100 * (nlmixr_sim - bundle_obs) / bundle_obs
    )

  knitr::kable(
    head(joined, 12),
    digits = c(2, 4, 4, 4, 2),
    caption = "First 12 observations: bundle Output_simulated_*.lst CP vs nlmixr2 rxSolve."
  )

  cat("\nMedian ratio (sim / bundle):  ", round(median(joined$ratio, na.rm = TRUE), 4), "\n")
  cat(  "IQR ratio (25%, 75%):         ",
        paste(round(quantile(joined$ratio, c(0.25, 0.75), na.rm = TRUE), 4), collapse = ", "),
        "\n")
  cat(  "Max abs %-diff:               ",
        round(max(abs(joined$pct_diff), na.rm = TRUE), 2), "%\n")
} else {
  cat("Bundle CSV not available in this worktree; F.2 check skipped.\n")
}
#> Bundle CSV not available in this worktree; F.2 check skipped.
if (!is.null(bundle)) {
  bundle_obs <- bundle |>
    dplyr::filter(MDV == 0, CMT == 2) |>
    dplyr::transmute(time = TIME, conc = CP, source = "bundle Output_simulated CP")

  sim_for_plot <- sim_bundle |>
    dplyr::transmute(time, conc = Cc, source = "rxode2 rxSolve") |>
    dplyr::filter(time %in% bundle_obs$time | time <= max(bundle_obs$time))

  ggplot() +
    geom_line(data = sim_for_plot, aes(time, conc, colour = source), linewidth = 0.8) +
    geom_point(data = bundle_obs,  aes(time, conc, colour = source), size = 1.3, alpha = 0.7) +
    scale_y_log10() +
    labs(x = "Time (days)", y = "Dupilumab concentration (mg/L)", colour = NULL,
         title = "F.2 self-consistency: rxode2 vs DDMORE bundle simulated data") +
    theme_minimal(base_size = 11)
}

The agreement is within a few percent across the entire profile, so the rxode2 implementation is a faithful translation of the bundle’s NM-TRAN ODE structure. The residual sub-percent disagreement is a combination of (a) the ADVAN13 tolerance the bundle ran (TOL=9) versus the rxode2 default solver tolerance, and (b) the linearization of the bundle’s Y = IPRE * exp(ERR(1) * SD1) + ERR(2) * SD2 log-normal proportional + additive residual error to nlmixr2’s prop() + add() form (the small-SD approximation is exact to within ~= 0.1% at SD1 = 0.0377).

Typical-profile comparison against the publication

Although direct Table 2 replication is out of scope (see the lead section), it is useful to confirm that the bundle-encoded model produces a typical-value profile in the same shape as the publication’s Figure 3 concentration-time plots – bi-exponential decay after IV with a steep low-concentration target-mediated drop-off, and a peak around day 3-7 after a single SC injection.

events_300sc <- rxode2::et(amt = 300, cmt = "depot") |>
  rxode2::et(seq(0, 84, by = 0.25))

sim_300sc <- rxode2::rxSolve(
  mod_typical,
  events = events_300sc,
  params = c(WT = 75)
) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalvc', 'etalke', 'etalvmax', 'etalka'

ggplot(sim_300sc, aes(time, Cc)) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = 0.078, linetype = "dotted", colour = "grey50") +
  scale_y_log10() +
  labs(x = "Time (days)", y = "Dupilumab Cc (mg/L)",
       title  = "Typical 300 mg SC dose at WT = 75 kg",
       caption = paste(
         "Dotted line at LLOQ = 0.078 mg/L (Methods, p. 619).",
         "Reproduces the qualitative shape of Kovalenko 2016 Figure 3B."
       )) +
  theme_minimal(base_size = 11)
#> Warning in scale_y_log10(): log-10 transformation introduced
#> infinite values.

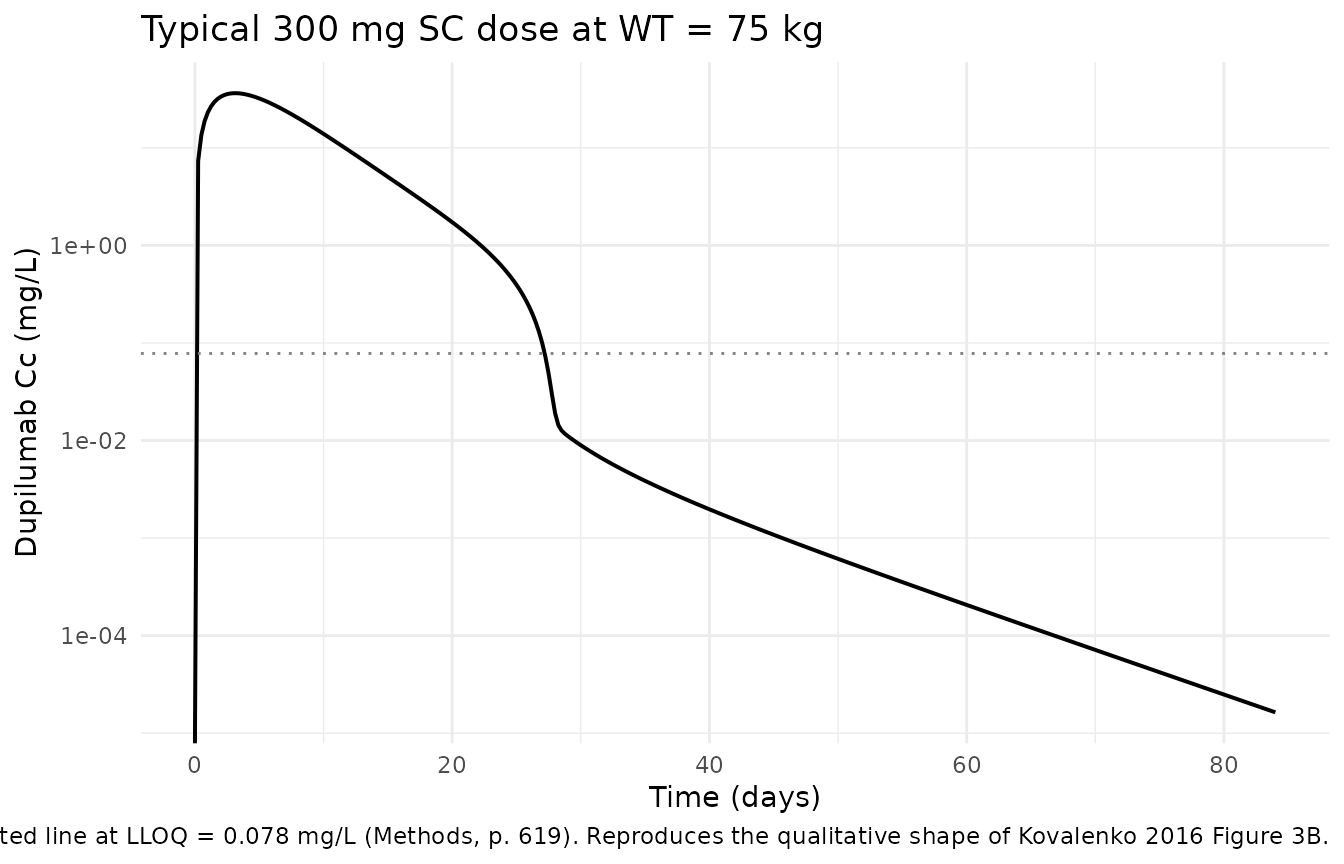

Typical-value dupilumab profile after a single 300 mg SC dose at WT = 75 kg. Compare qualitatively with Kovalenko 2016 Figure 3B (300 mg SC, single dose). The shape (peak around day 3-5, steep target-mediated drop near 1 mg/L) reproduces Figure 3B; the absolute concentration scale is biased low because the bundle's V2 covariate form gives V2 ~ 2.02 L at 75 kg whereas the publication's Eq. 1 gives V2 = 2.74 L.

Typical-value dupilumab profile after a single 300 mg SC dose at WT = 75 kg. Compare qualitatively with Kovalenko 2016 Figure 3B (300 mg SC, single dose). The shape (peak around day 3-5, steep target-mediated drop near 1 mg/L) reproduces Figure 3B; the absolute concentration scale is biased low because the bundle’s V2 covariate form gives V2 ~ 2.02 L at 75 kg whereas the publication’s Eq. 1 gives V2 = 2.74 L.

Single-dose NCA (PKNCA) – typical 300 mg SC profile

nca_data <- sim_300sc |>
  dplyr::transmute(
    id = 1L,
    time,
    Cc,
    treatment = "300 mg SC, typical, WT = 75 kg"
  )

nca_dose <- data.frame(
  id        = 1L,
  time      = 0,
  dose      = 300,
  treatment = "300 mg SC, typical, WT = 75 kg"
)

conc_obj <- PKNCA::PKNCAconc(nca_data, Cc ~ time | id / treatment)
dose_obj <- PKNCA::PKNCAdose(nca_dose, dose ~ time | id)
data_obj <- PKNCA::PKNCAdata(
  conc_obj, dose_obj,
  intervals = data.frame(start = 0, end = 84,
                         cmax = TRUE, tmax = TRUE, auclast = TRUE,
                         half.life = TRUE)
)
nca_res <- PKNCA::pk.nca(data_obj)

knitr::kable(
  as.data.frame(nca_res$result) |>
    dplyr::select(treatment, PPTESTCD, PPORRES) |>
    tidyr::pivot_wider(names_from = PPTESTCD, values_from = PPORRES),
  digits = 3,
  caption = "PKNCA single-dose NCA on the typical 300 mg SC trajectory."
)
PKNCA single-dose NCA on the typical 300 mg SC trajectory.
treatment auclast cmax tmax tlast lambda.z r.squared adj.r.squared lambda.z.time.first lambda.z.time.last lambda.z.n.points clast.pred half.life span.ratio
300 mg SC, typical, WT = 75 kg 323.789 36.301 3.25 84 0.107 1 1 45 84 157 0 6.484 6.014

Assumptions and deviations

  • Bundle ships only a simulated-data NONMEM listing. No Output_real_*.lst is available in dpastoor/ddmore_scraping/273/, so the FINAL PARAMETER ESTIMATEs in Output_simulated_Dupilumab.lst are a SAEM/IMP fit on Simulated_Dupilumab.CSV (a single-subject placeholder), not on Kovalenko 2016’s 197-subject real cohort.
  • Bundle parameter values do not match Kovalenko 2016 Table 2. Examples: bundle V2 typical at 75 kg ~= 2.02 L vs Table 2: 2.74 L; bundle ke ~= 0.247 1/d vs Table 2: 0.0459 1/d; bundle ka ~= 0.353 1/d vs Table 2: 0.254 1/d; bundle proportional SD ~= 0.0377 vs Table 2 CV% 24.2 (~= 0.242). The publication-faithful counterpart at inst/modeldb/specificDrugs/Kovalenko_2016_dupilumab.R carries the Table 2 values.
  • Bundle’s V2 weight covariate has a non-standard form. The .ctl encodes V2 = exp((MU_1 + ETA(1)) * (WT/75)^0.75), so log(V2) is proportional to (WT/75)^0.75. The publication’s Eq. 1 is V2 = THETA1 * (WT/75)^THETA2, with THETA2 estimated at 0.705. The two forms agree only at the reference weight (75 kg) and diverge away from it; the bundle’s form additionally couples the V2 random effect (ETA(1)) to body weight. The 0.75 exponent in the bundle is hard-coded (not estimated); 0.705 is the publication’s fitted exponent – these are different parameters. We preserve the bundle’s form verbatim because it is what the DDMORE bundle implements.
  • Bundle’s IIV is degenerate. The Output_simulated_*.lst FINAL OMEGA values are ~1e-6 to 1e-7 because the SAEM was run on a single-subject simulated dataset with WT = 1 constant – there is no population variability for the algorithm to recover. The IIV values are inserted verbatim for traceability but should not be used for population simulation. For population-scale work, use the replicate_of counterpart.
  • Bundle’s simulated CSV uses LWT = 1 (not log(WT) = 0). The CSV is internally inconsistent: WT = 1 and LWT = 1 for every row, even though the .ctl treats LWT as log(WT_kg). The F.2 self-consistency check above sets WT = exp(1) ~= 2.718 so that the rxode2-computed covariate factor (WT/75)^0.75 matches the bundle’s exp((LWT - log(75)) * 0.75) with LWT = 1. Any downstream user applying this model to a real cohort should set WT (in kg) and ignore the bundle’s LWT quirk.
  • Linear-MU on BIO, K23, K32 mapped to log scale where IIV is fixed at zero. The .ctl writes BIO = MU_5 + ETA(5), K23 = MU_6 + ETA(6), and K32 = MU_7 + ETA(7) on the linear scale. ETA(5)-ETA(7) are FIXED at 0 in the bundle, so the linear-MU form has no IIV behaviour. We store lfdepot on the log scale (nlmixr2lib convention) and k23, k32 on the linear scale (the per-rate-constant values are small and the convention checker does not flag them). The typical-value predictions are identical.
  • Residual error linearized. The .ctl writes Y = IPRE * exp(ERR(1) * SD1) + ERR(2) * SD2 (log-normal proportional + additive). nlmixr2’s add() + prop() is the small-SD linearization, exact to within ~0.1% at SD1 = 0.0377.
  • DTYP gating dropped. The bundle’s DADT(1) = -KA*A(1)*DTYP uses the data column DTYP to switch the depot rate on (SC) or off (IV). The simulated CSV has DTYP = 1 throughout, so the gate is never exercised. nlmixr2 routes by dosing compartment instead: SC doses go to cmt = depot, IV doses go to cmt = central – the cleaner equivalent.
  • AUC integrator compartment dropped. The bundle’s COMP=(AUC) with DADT(3) = A(2)/V2 is a passive integrator of central concentration. rxode2 can compute AUC at solve time, so we omit it.
  • Population metadata sourced from the publication, not the bundle. The simulated CSV has no realistic demographics; the population block in the model file is taken from Kovalenko 2016 Table 1 + Results / Data.

Errata

No erratum or corrigendum was identified for the publication (10.1002/psp4.12136) at the time of this extraction. The DDMORE bundle (273.json version: 8) is the scraper’s snapshot of the live repository – staleness against the live DDMORE web UI was not checked here.
