Model and source

  • Citation: Favie LMA, de Haan TR, Bijleveld YA, Rademaker CMA, Egberts TCG, Nuytemans DHGM, Mathot RAA, Groenendaal F, Huitema ADR. Prediction of Drug Exposure in Critically Ill Encephalopathic Neonates Treated With Therapeutic Hypothermia Based on a Pooled Population Pharmacokinetic Analysis of Seven Drugs and Five Metabolites. Clin Pharmacol Ther. 2020;108(5):1098-1106. doi:10.1002/cpt.1917.
  • Description: Integrated population PK model of seven drugs (morphine, midazolam, lidocaine, phenobarbital, amoxicillin, benzylpenicillin, gentamicin) and five metabolites (M3G, M6G, 1-hydroxymidazolam, hydroxymidazolam glucuronide, MEGX) in term encephalopathic neonates treated with therapeutic hypothermia (Favie 2020, PharmaCool). One- or two-compartment disposition per compound with parent-to-metabolite formation, fixed allometric birth-weight scaling, a fixed sigmoidal gestational-age maturation function, a linear postnatal-age (organ recovery) effect on clearance for high- and intermediate-clearance compounds, a linear body-temperature effect on clearance for intermediate-clearance compounds, and a common between-compound clearance random effect.
  • Article: https://doi.org/10.1002/cpt.1917 (open access, PMC7689752)
  • Supplement: Table S1 (full final parameter estimates and final-model equations) and Figures S1-S3, published with the article.

Favie 2020 pooled every concentration collected in the PharmaCool study into one population PK model. The structural model of each drug was taken from the individual PharmaCool publications, with all volumes fixed, and the clearances were re-estimated with shared, system-specific covariate effects:

  • allometric birth-weight scaling (exponent 0.75 on clearances, 1 on volumes);
  • a fixed sigmoidal maturation function of gestational age (TM50 54.2 weeks, Hill 3.92), normalised to 40 weeks;
  • a linear increase of clearance with postnatal age (organ recovery after asphyxia): 1.23 %/h for the “high-clearance” compounds (renally cleared compounds and lidocaine) and 0.54 %/h for the “intermediate-clearance” compounds (morphine, midazolam, 1-hydroxymidazolam), with a single log-normal random effect shared by the two slopes;
  • a linear body-temperature effect of 6.83 %/degC on intermediate-clearance compounds only;
  • a common random effect on all clearances except lidocaine, MEGX and phenobarbital, which induces the between-compound clearance correlations of Table 2.

Morphine, the reference compound of the common random effect, takes the bare canonical names (central, lcl, Cc, propSd); every other drug or metabolite carries a suffix (_m3g, _m6g, _midazolam, _1ohm, _hmg, _lidocaine, _megx, _phenobarbital, _amoxicillin, _benzylpenicillin, _gentamicin). Doses go into the parent’s central_<drug> compartment (or central for morphine), in mg of the free base.

Loading the model prints an rxode2 message that etalcl_common is not mu-referenced. That is expected: the common random effect has no typical value of its own and enters every clearance through a scaling factor.

Population

192 term and near-term neonates with moderate or severe encephalopathy after perinatal asphyxia, treated with therapeutic hypothermia (33.5 degC for 72 h started within 6 h of birth, then rewarming at 0.4 degC/h), were enrolled in the prospective PharmaCool cohort in 12 level III NICUs in the Netherlands and Belgium (Table 1). Gestational age was 39.7 +/- 1.66 weeks (range 36-42 by protocol), birth weight 3.38 +/- 0.617 kg and 61.5% were male. Samples were taken on days 2-5 of life. Patients / samples per drug: morphine 180 / 534, amoxicillin 125 / 1,280, midazolam 118 / 376, phenobarbital 113 / 378, gentamicin 47 / 471, benzylpenicillin 43 / 416 and lidocaine 28 / 77; metabolite concentrations come from the same samples as their parent.

The same information is available programmatically via readModelDb("Favie_2020_neonatalHypothermia")()$population.

Source trace

Every ini() value carries an in-file comment pointing to its source. Table 3 of the article reports the clearance-related estimates; Table S1 reports all estimates, including the fixed volumes, the intercompartmental clearances, the random effects and the residual errors, followed by the final-model equations.

Equation / parameter Value Source location
lcl, lcl_m3g, lcl_m6g, lcl_midazolam, lcl_1ohm, lcl_hmg log(0.811), log(0.241), log(0.765), log(0.511), log(1.72), log(0.111) L/h Table 3; Table S1
lcl_lidocaine, lcl_megx, lcl_phenobarbital log(0.937), log(1.51), log(0.00930) L/h Table 3; Table S1
lcl_amoxicillin, lcl_benzylpenicillin, lcl_gentamicin log(0.178), log(0.359), log(0.108) L/h Table 3; Table S1
lq_amoxicillin, lq_benzylpenicillin, lq_gentamicin log(0.686), log(0.178), log(0.158) L/h Table S1
lvc … lvp_gentamicin (15 volumes) all FIX Table S1
e_wt_cl_q, e_wt_vc_vp 0.75, 1 (fixed) Methods, ‘Body size’
ga_tm50, ga_hill 54.2 weeks, 3.92 (fixed) Methods, ‘Maturation’ equation
e_pna_cl_high, e_pna_cl_int 0.0123, 0.0054 per hour Table 3; Table S1 ‘Covariates’
e_bodytemp_cl 0.0683 per degC Table 3; Table S1 ‘Covariates’
sd_ratio_cl … sd_ratio_cl_gentamicin 1 FIX, 1.46, 1.38, 0.532, 0.504, 0.870, 0.541, 0.847, 0.327 Table S1 ‘Common THETA on IIV Cl’
etalcl_common 0.437^2 Table S1 ‘Common OMEGA on Cl’ 43.7%
etalcl … etalcl_gentamicin rsd^2 Table S1 ‘IIV Cl, rsd’
etalcl_m3g / etalcl_m6g covariance 0.242532 Back-solved from Table 2 (see Assumptions)
etae_pna_cl_high, sd_ratio_e_pna_cl_int 0.716^2, 0.765 Table S1 ‘IIV on PNA effect’
etalvc … etalvp_gentamicin rsd^2 (fixed) Table S1 ‘IIV V, rsd’ … FIX
propSd*, addSd* 0.0925-0.367; 0.01 or 0.1 mg/L (fixed) Table S1 ‘SIGMA structure’
CL equations n/a Table S1 ‘Final model’
fmat n/a Methods ‘Maturation’ equation; Table S1 ‘Final model’ GA / GAst
Common random effect CL = TVCL exp(eta_n + theta_n eta_common) n/a Methods ‘Correlation in clearance’ equations
Parent to metabolite formation, molar n/a Table S1 footnote section symbol; Methods of the predecessor morphine (Favie 2019) and lidocaine (Favie 2020) papers
Temperature profile (33.5 degC; 0.4 degC/h rewarming) n/a Methods ‘Body temperature’

Typical clearances at the reference covariates (Table 3)

Every observation row in this article carries dvid = 1L. The model has twelve outputs, and rxode2 needs a DV id on observation records of a multi-output model; all outputs are returned as columns whichever id is given.

Table 3 reports every clearance for a neonate of birth weight 3.5 kg, GA 40 weeks, PNA 0 h and temperature 36.5 degC. Solving the typical-value model at those covariates must return exactly those numbers.

mod <- readModelDb("Favie_2020_neonatalHypothermia")
mod_typ <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etalcl_common
#> as a work-around try putting the mu-referenced expression on a simple line
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etalcl_common
#> as a work-around try putting the mu-referenced expression on a simple line

ref_ev <- data.frame(
  id = 1L, time = 0, evid = 0L, amt = 0, cmt = "central", dvid = 1L,
  WT_BIRTH = 3.5, GA = 40, PNA = 0, BODYTEMP = 36.5
)
ref <- as.data.frame(rxode2::rxSolve(mod_typ, events = ref_ev))
#> ℹ omega/sigma items treated as zero: 'etalcl_common', 'etalcl', 'etalcl_m3g', 'etalcl_m6g', 'etalcl_midazolam', 'etalcl_1ohm', 'etalcl_hmg', 'etalcl_lidocaine', 'etalcl_megx', 'etalcl_phenobarbital', 'etalcl_amoxicillin', 'etalcl_benzylpenicillin', 'etalcl_gentamicin', 'etae_pna_cl_high', 'etalvc', 'etalvc_midazolam', 'etalvc_hmg', 'etalvc_lidocaine', 'etalvc_megx', 'etalvc_phenobarbital', 'etalvc_amoxicillin', 'etalvc_benzylpenicillin', 'etalvp_benzylpenicillin', 'etalvc_gentamicin', 'etalvp_gentamicin'

table3 <- tibble::tribble(
  ~compound,          ~column,                 ~published,
  "Morphine",         "cl",                    0.811,
  "Midazolam",        "cl_midazolam",          0.511,
  "OHM",              "cl_1ohm",               1.72,
  "M3G",              "cl_m3g",                0.241,
  "M6G",              "cl_m6g",                0.765,
  "HMG",              "cl_hmg",                0.111,
  "Amoxicillin",      "cl_amoxicillin",        0.178,
  "Benzylpenicillin", "cl_benzylpenicillin",   0.359,
  "Gentamicin",       "cl_gentamicin",         0.108,
  "Lidocaine",        "cl_lidocaine",          0.937,
  "MEGX",             "cl_megx",               1.51,
  "Phenobarbital",    "cl_phenobarbital",      0.00930
)
table3$model <- vapply(table3$column, function(x) ref[[x]][1], numeric(1))
# Algebraic identity: the model's typical clearance at the reference
# covariates is the Table 3 value, to rounding of the log transform.
stopifnot(all(abs(table3$model / table3$published - 1) < 1e-10))

table3 |>
  dplyr::select(-column) |>
  dplyr::rename(
    "Compound" = compound,
    "Table 3 CL (L/h)" = published,
    "Model CL (L/h)" = model
  ) |>
  knitr::kable(digits = 4, caption = "Typical clearances at BW 3.5 kg, GA 40 weeks, PNA 0 h, 36.5 degC.")
Typical clearances at BW 3.5 kg, GA 40 weeks, PNA 0 h, 36.5 degC.
Compound Table 3 CL (L/h) Model CL (L/h)
Morphine 0.8110 0.8110
Midazolam 0.5110 0.5110
OHM 1.7200 1.7200
M3G 0.2410 0.2410
M6G 0.7650 0.7650
HMG 0.1110 0.1110
Amoxicillin 0.1780 0.1780
Benzylpenicillin 0.3590 0.3590
Gentamicin 0.1080 0.1080
Lidocaine 0.9370 0.9370
MEGX 1.5100 1.5100
Phenobarbital 0.0093 0.0093

Body size and maturation (Figure 1)

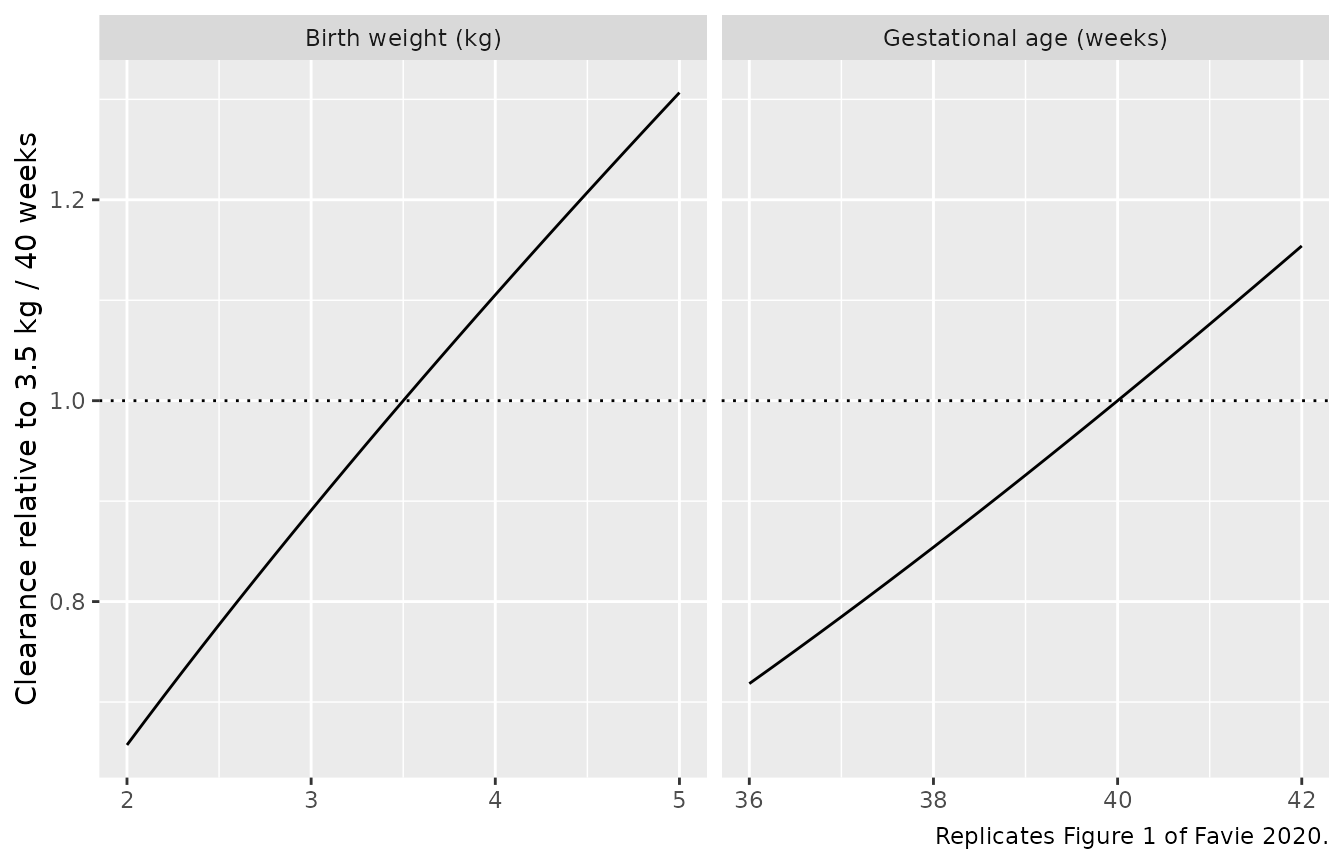

Figure 1 of the article shows the relative influence of birth weight and of gestational age on clearance, relative to 3.5 kg and 40 weeks. The same curve applies to every compound.

grid_bw <- data.frame(WT_BIRTH = seq(2, 5, by = 0.1), GA = 40)
grid_ga <- data.frame(WT_BIRTH = 3.5, GA = seq(36, 42, by = 0.25))
grid <- dplyr::bind_rows(
  grid_bw |> dplyr::mutate(panel = "Birth weight (kg)", x = WT_BIRTH),
  grid_ga |> dplyr::mutate(panel = "Gestational age (weeks)", x = GA)
) |>
  dplyr::mutate(id = dplyr::row_number(), time = 0, evid = 0L, amt = 0,
                cmt = "central", dvid = 1L, PNA = 0, BODYTEMP = 36.5)
fig1 <- as.data.frame(rxode2::rxSolve(mod_typ, events = grid,
                                      keep = c("panel", "x"))) |>
  dplyr::mutate(rel_cl = cl / 0.811)
#> ℹ omega/sigma items treated as zero: 'etalcl_common', 'etalcl', 'etalcl_m3g', 'etalcl_m6g', 'etalcl_midazolam', 'etalcl_1ohm', 'etalcl_hmg', 'etalcl_lidocaine', 'etalcl_megx', 'etalcl_phenobarbital', 'etalcl_amoxicillin', 'etalcl_benzylpenicillin', 'etalcl_gentamicin', 'etae_pna_cl_high', 'etalvc', 'etalvc_midazolam', 'etalvc_hmg', 'etalvc_lidocaine', 'etalvc_megx', 'etalvc_phenobarbital', 'etalvc_amoxicillin', 'etalvc_benzylpenicillin', 'etalvp_benzylpenicillin', 'etalvc_gentamicin', 'etalvp_gentamicin'
#> Warning: multi-subject simulation without without 'omega'

# Closed form from the Table S1 equations: (BW/3.5)^0.75 and
# GA^3.92/(GA^3.92 + 54.2^3.92) / (40^3.92/(40^3.92 + 54.2^3.92)).
mat <- function(ga) ga^3.92 / (ga^3.92 + 54.2^3.92)
fig1$closed <- (fig1$WT_BIRTH / 3.5)^0.75 * mat(fig1$GA) / mat(40)
stopifnot(all(abs(fig1$rel_cl / fig1$closed - 1) < 1e-8))
# Across the studied GA range the maturation factor moves clearance by about
# -28% (36 weeks) to +15% (42 weeks).
stopifnot(
  abs(mat(36) / mat(40) - 0.718) < 0.005,
  abs(mat(42) / mat(40) - 1.154) < 0.005
)

ggplot(fig1, aes(x, rel_cl)) +
  geom_line() +
  geom_hline(yintercept = 1, linetype = "dotted") +
  facet_wrap(~panel, scales = "free_x") +
  labs(x = NULL, y = "Clearance relative to 3.5 kg / 40 weeks",
       caption = "Replicates Figure 1 of Favie 2020.")

Postnatal age and body temperature (Figure 2)

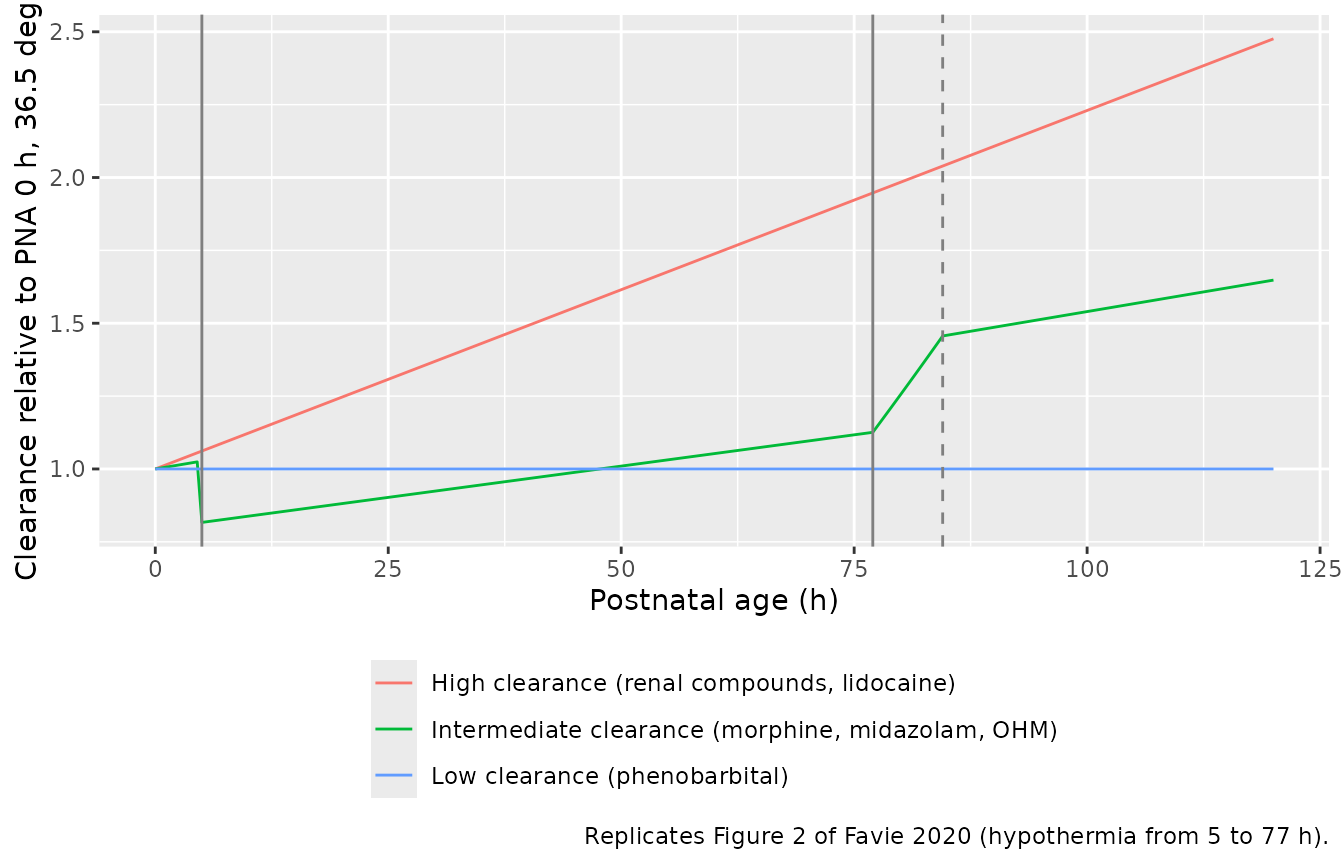

Figure 2 shows the typical relative clearance of the three compound groups over the first 120 h of life, with therapeutic hypothermia. The article does not state the start time used for the figure; here hypothermia starts at 5 h of life (the start used by the predecessor morphine paper for its simulations), lasts 72 h, and is followed by rewarming at 0.4 degC/h to 36.5 degC.

# Temperature profile of the article's dynamic temperature model. Before
# cooling starts, 36.5 degC is assumed.
temp_profile <- function(t, th_start, th_len = 72) {
  th_end <- th_start + th_len
  dplyr::case_when(
    t < th_start ~ 36.5,
    t < th_end ~ 33.5,
    TRUE ~ pmin(36.5, 33.5 + 0.4 * (t - th_end))
  )
}
h_per_month <- 24 * 30.4375
fig2_ev <- data.frame(id = 1L, time = seq(0, 120, by = 0.5), evid = 0L,
                      amt = 0, cmt = "central", dvid = 1L, WT_BIRTH = 3.5,
                      GA = 40) |>
  dplyr::mutate(PNA = time / h_per_month, BODYTEMP = temp_profile(time, 5))
fig2 <- as.data.frame(rxode2::rxSolve(mod_typ, events = fig2_ev)) |>
  dplyr::transmute(
    time,
    `High clearance (renal compounds, lidocaine)` = cl_gentamicin / 0.108,
    `Intermediate clearance (morphine, midazolam, OHM)` = cl / 0.811,
    `Low clearance (phenobarbital)` = cl_phenobarbital / 0.00930
  ) |>
  tidyr::pivot_longer(-time, names_to = "group", values_to = "rel_cl")
#> ℹ omega/sigma items treated as zero: 'etalcl_common', 'etalcl', 'etalcl_m3g', 'etalcl_m6g', 'etalcl_midazolam', 'etalcl_1ohm', 'etalcl_hmg', 'etalcl_lidocaine', 'etalcl_megx', 'etalcl_phenobarbital', 'etalcl_amoxicillin', 'etalcl_benzylpenicillin', 'etalcl_gentamicin', 'etae_pna_cl_high', 'etalvc', 'etalvc_midazolam', 'etalvc_hmg', 'etalvc_lidocaine', 'etalvc_megx', 'etalvc_phenobarbital', 'etalvc_amoxicillin', 'etalvc_benzylpenicillin', 'etalvp_benzylpenicillin', 'etalvc_gentamicin', 'etalvp_gentamicin'

at <- function(g, t) fig2$rel_cl[grepl(g, fig2$group) & fig2$time == t]
stopifnot(
  # High-clearance compounds: 1 + 0.0123 * PNA, no temperature effect.
  abs(at("High", 120) - (1 + 0.0123 * 120)) < 1e-8,
  # Intermediate: 20.5% lower during hypothermia (3 degC * 6.83 %/degC),
  # the figure quoted in the Results.
  abs(at("Intermediate", 24) - (1 + 0.0054 * 24) * (1 - 3 * 0.0683)) < 1e-8,
  abs((1 - 3 * 0.0683) - 0.795) < 0.001,
  # Phenobarbital: no postnatal-age or temperature effect.
  abs(at("Low", 60) - 1) < 1e-8
)

ggplot(fig2, aes(time, rel_cl, colour = group)) +
  geom_line() +
  geom_vline(xintercept = c(5, 77), linetype = "solid", colour = "grey50") +
  geom_vline(xintercept = 77 + 7.5, linetype = "dashed", colour = "grey50") +
  labs(x = "Postnatal age (h)", y = "Clearance relative to PNA 0 h, 36.5 degC",
       colour = NULL,
       caption = "Replicates Figure 2 of Favie 2020 (hypothermia from 5 to 77 h).") +
  theme(legend.position = "bottom", legend.direction = "vertical")

Correlation in clearance (Table 2)

With CL_n = TVCL_n exp(eta_n + theta_n eta_common), the implied correlation between the clearances of compounds 1 and 2 is theta_1 theta_2 omega_common^2 / (omega_1,total omega_2,total) (article Methods). The chunk below computes it from the packaged ini() block and compares it with Table 2.

ui <- rxode2::rxode2(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etalcl_common
#> as a work-around try putting the mu-referenced expression on a simple line
om <- ui$omega
th <- ui$theta
cmpd <- c(Morphine = "", Midazolam = "_midazolam", OHM = "_1ohm", M3G = "_m3g",
          M6G = "_m6g", HMG = "_hmg", Amoxicillin = "_amoxicillin",
          Benzylpenicillin = "_benzylpenicillin", Gentamicin = "_gentamicin")
etas <- paste0("etalcl", cmpd)
scale <- unname(th[paste0("sd_ratio_cl", cmpd)])
# Loading matrix: each log-clearance = its own eta + scale * common eta.
L <- cbind(diag(length(cmpd)), scale)
S <- om[c(etas, "etalcl_common"), c(etas, "etalcl_common")]
V <- L %*% S %*% t(L)
R <- stats::cov2cor(V) * 100
dimnames(R) <- list(names(cmpd), names(cmpd))

published <- matrix(NA_real_, 9, 9, dimnames = dimnames(R))
pub_lower <- c(
  62.2, 63.3, 35.4, 32.5, 62.6, 42.1, 58.6, 45.9, # Morphine column
  57.0, 31.9, 29.3, 56.4, 38.0, 52.8, 41.4, # Midazolam column
  32.2, 29.6, 57.0, 38.3, 53.4, 41.8, # OHM column
  94.8, 31.9, 21.4, 31.9, 23.4, # M3G column
  29.3, 19.7, 27.4, 21.5, # M6G column
  37.9, 52.8, 41.4, # HMG column
  35.5, 27.9, # Amoxicillin column
  38.8 # Benzylpenicillin column
)
published[lower.tri(published)] <- pub_lower

cmp2 <- data.frame(
  pair = outer(rownames(R), colnames(R), paste, sep = " / ")[lower.tri(R)],
  table2 = published[lower.tri(published)],
  model = R[lower.tri(R)]
) |>
  dplyr::mutate(diff = model - table2)

# Every cell except Benzylpenicillin / M3G is reproduced to within the
# rounding of the printed IIV estimates (measured max 0.4 points). The
# Benzylpenicillin / M3G cell is a known deviation (see Assumptions) and is
# excluded from the gate rather than widened into it.
known <- cmp2$pair == "Benzylpenicillin / M3G"
stopifnot(
  max(abs(cmp2$diff[!known])) < 1,
  abs(cmp2$diff[known] + 2) < 0.2
)

cmp2 |>
  dplyr::rename(
    "Compound pair" = pair,
    "Table 2 (%)" = table2,
    "Model (%)" = model,
    "Difference (points)" = diff
  ) |>
  knitr::kable(digits = 1, caption = "Between-compound clearance correlations.")
Between-compound clearance correlations.
Compound pair Table 2 (%) Model (%) Difference (points)
Midazolam / Morphine 62.2 62.6 0.4
OHM / Morphine 63.3 63.2 -0.1
M3G / Morphine 35.4 35.4 0.0
M6G / Morphine 32.5 32.4 -0.1
HMG / Morphine 62.6 62.5 -0.1
Amoxicillin / Morphine 42.1 42.1 0.0
Benzylpenicillin / Morphine 58.6 58.6 0.0
Gentamicin / Morphine 45.9 46.0 0.1
OHM / Midazolam 57.0 57.0 0.0
M3G / Midazolam 31.9 31.9 0.0
M6G / Midazolam 29.3 29.3 0.0
HMG / Midazolam 56.4 56.4 0.0
Amoxicillin / Midazolam 38.0 38.0 0.0
Benzylpenicillin / Midazolam 52.8 52.9 0.1
Gentamicin / Midazolam 41.4 41.5 0.1
M3G / OHM 32.2 32.2 0.0
M6G / OHM 29.6 29.5 -0.1
HMG / OHM 57.0 56.9 -0.1
Amoxicillin / OHM 38.3 38.3 0.0
Benzylpenicillin / OHM 53.4 53.4 0.0
Gentamicin / OHM 41.8 41.9 0.1
M6G / M3G 94.8 94.8 0.0
HMG / M3G 31.9 31.8 -0.1
Amoxicillin / M3G 21.4 21.4 0.0
Benzylpenicillin / M3G 31.9 29.9 -2.0
Gentamicin / M3G 23.4 23.4 0.0
HMG / M6G 29.3 29.2 -0.1
Amoxicillin / M6G 19.7 19.7 0.0
Benzylpenicillin / M6G 27.4 27.4 0.0
Gentamicin / M6G 21.5 21.5 0.0
Amoxicillin / HMG 37.9 37.9 0.0
Benzylpenicillin / HMG 52.8 52.8 0.0
Gentamicin / HMG 41.4 41.4 0.0
Benzylpenicillin / Amoxicillin 35.5 35.5 0.0
Gentamicin / Amoxicillin 27.9 27.9 0.0
Gentamicin / Benzylpenicillin 38.8 38.8 0.0

Metabolite formation and units: steady-state check

Each metabolite receives its parent’s whole elimination flux, converted mole for mole into metabolite mass, and its clearance and volume are apparent values relative to the unknown formation fraction. With covariates held constant the model is linear and time-invariant, so a long constant-rate infusion must reach Css = R / CL for a parent and Css = R (MW_metabolite / MW_parent) / CL_met for a metabolite (the intermediate metabolite does not change the terminal metabolite’s steady state).

rate <- c(central = 0.035, central_midazolam = 0.5, central_lidocaine = 7)
ss_ev <- dplyr::bind_rows(
  data.frame(time = 0, evid = 1L, cmt = names(rate), amt = rate * 300,
             rate = unname(rate)),
  data.frame(time = 300, evid = 0L, cmt = "central", amt = 0, rate = 0,
             dvid = 1L)
) |>
  dplyr::mutate(id = 1L, WT_BIRTH = 3.5, GA = 40, PNA = 48 / h_per_month,
                BODYTEMP = 36.5)
ss <- as.data.frame(rxode2::rxSolve(mod_typ, events = ss_ev,
                                    rtol = 1e-10, atol = 1e-12)) |>
  dplyr::filter(time == 300)
#> ℹ omega/sigma items treated as zero: 'etalcl_common', 'etalcl', 'etalcl_m3g', 'etalcl_m6g', 'etalcl_midazolam', 'etalcl_1ohm', 'etalcl_hmg', 'etalcl_lidocaine', 'etalcl_megx', 'etalcl_phenobarbital', 'etalcl_amoxicillin', 'etalcl_benzylpenicillin', 'etalcl_gentamicin', 'etae_pna_cl_high', 'etalvc', 'etalvc_midazolam', 'etalvc_hmg', 'etalvc_lidocaine', 'etalvc_megx', 'etalvc_phenobarbital', 'etalvc_amoxicillin', 'etalvc_benzylpenicillin', 'etalvp_benzylpenicillin', 'etalvc_gentamicin', 'etalvp_gentamicin'

mw <- c(morphine = 285.3, m3g = 461.5, midazolam = 325.8, ohm = 341.8,
        hmg = 517.9, lidocaine = 234.3, megx = 206.3)
ss_check <- tibble::tribble(
  ~analyte, ~model, ~expected,
  "Morphine", ss$Cc, rate[["central"]] / ss$cl,
  "M3G", ss$Cc_m3g, rate[["central"]] * mw[["m3g"]] / mw[["morphine"]] / ss$cl_m3g,
  "Midazolam", ss$Cc_midazolam, rate[["central_midazolam"]] / ss$cl_midazolam,
  "OHM", ss$Cc_1ohm, rate[["central_midazolam"]] * mw[["ohm"]] / mw[["midazolam"]] / ss$cl_1ohm,
  "HMG", ss$Cc_hmg, rate[["central_midazolam"]] * mw[["hmg"]] / mw[["midazolam"]] / ss$cl_hmg,
  "Lidocaine", ss$Cc_lidocaine, rate[["central_lidocaine"]] / ss$cl_lidocaine,
  "MEGX", ss$Cc_megx, rate[["central_lidocaine"]] * mw[["megx"]] / mw[["lidocaine"]] / ss$cl_megx
)
# 300 h is more than 35 half-lives of the slowest of these compounds
# (morphine, t1/2 about 6 h at PNA 48 h), so the residual is integration
# error.
stopifnot(all(abs(ss_check$model / ss_check$expected - 1) < 1e-6))
knitr::kable(ss_check, digits = 4,
             caption = "Typical steady-state concentrations (mg/L) at PNA 48 h, 36.5 degC.")
Typical steady-state concentrations (mg/L) at PNA 48 h, 36.5 degC.
analyte model expected
Morphine 0.0343 0.0343
M3G 0.1477 0.1477
Midazolam 0.7771 0.7771
OHM 0.2422 0.2422
HMG 4.5023 4.5023
Lidocaine 4.6973 4.6973
MEGX 2.5665 2.5665

Virtual cohort

Observed data are not public. The cohort below approximates Table 1: GA drawn from a normal distribution with mean 39.7 and SD 1.66 weeks and birth weight from a normal distribution with mean 3.38 and SD 0.617 kg, each redrawn until it falls inside the eligible range (36-42 weeks; 2.0-5.1 kg). Hypothermia starts between 2 and 6 h of life.

The article publishes no dosing simulations. The regimens below are taken from the PharmaCool predecessor publications where they give one and are otherwise illustrative; every neonate receives all seven drugs, which is harmless because the drugs share no compartments (only their random effects are correlated):

Drug Regimen Origin
Morphine 50 ug/kg at 4 h, then 10 ug/kg/h Favie 2019 (PLoS One), simulated regimen 2
Midazolam 0.1 mg/kg at 6 h, then 0.15 mg/kg/h Favie 2019 (Neonatology) simulations
Phenobarbital 20 mg/kg over 20 min at 4 h Favie 2019 (Neonatology) simulations
Lidocaine Hypothermia regimen by weight, starting at 12 h Favie 2020 (Br J Clin Pharmacol) Table 1
Gentamicin 5 mg/kg over 30 min every 36 h from 2 h Bijleveld 2016 regimens
Amoxicillin 25 mg/kg over 5 min every 12 h from 2 h illustrative
Benzylpenicillin 30 mg/kg over 5 min every 12 h from 2 h illustrative
set.seed(20201105)
n_sub <- 150

draw_truncated <- function(n, mean, sd, lo, hi) {
  x <- stats::rnorm(n, mean, sd)
  bad <- x < lo | x > hi
  while (any(bad)) {
    x[bad] <- stats::rnorm(sum(bad), mean, sd)
    bad <- x < lo | x > hi
  }
  x
}

subj <- data.frame(
  id = seq_len(n_sub),
  GA = draw_truncated(n_sub, 39.7, 1.66, 36, 42),
  WT_BIRTH = draw_truncated(n_sub, 3.38, 0.617, 2.0, 5.1),
  th_start = stats::runif(n_sub, 2, 6)
)

# Lidocaine hypothermia regimen (Favie 2020 Br J Clin Pharmacol Table 1):
# bolus 2 mg/kg over 10 min, then a loading phase, then two 12-h maintenance
# phases whose doses depend on weight (< 2.5 kg or >= 2.5 kg).
lido_doses <- function(wt, t0 = 12) {
  heavy <- wt >= 2.5
  data.frame(
    time = t0 + c(0, 1 / 6, 1 / 6 + 3.5, 1 / 6 + 3.5 + 12),
    amt = wt * c(2, if (heavy) 7 else 6, if (heavy) 3.5 else 3,
                 if (heavy) 1.75 else 1.5),
    dur = c(1 / 6, 3.5, 12, 12)
  )
}

make_doses <- function(s) {
  wt <- s$WT_BIRTH
  dplyr::bind_rows(
    data.frame(cmt = "central", time = 4, amt = 0.05 * wt, dur = 0),
    data.frame(cmt = "central", time = 4, amt = 0.01 * wt * 116, dur = 116),
    data.frame(cmt = "central_midazolam", time = 6, amt = 0.1 * wt, dur = 0),
    data.frame(cmt = "central_midazolam", time = 6, amt = 0.15 * wt * 114, dur = 114),
    data.frame(cmt = "central_phenobarbital", time = 4, amt = 20 * wt, dur = 1 / 3),
    lido_doses(wt) |> dplyr::mutate(cmt = "central_lidocaine"),
    data.frame(cmt = "central_gentamicin", time = c(2, 38, 74, 110),
               amt = 5 * wt, dur = 0.5),
    data.frame(cmt = "central_amoxicillin", time = seq(2, 110, by = 12),
               amt = 25 * wt, dur = 1 / 12),
    data.frame(cmt = "central_benzylpenicillin", time = seq(2, 110, by = 12),
               amt = 30 * wt, dur = 1 / 12)
  ) |>
    dplyr::mutate(id = s$id, evid = 1L)
}

doses <- dplyr::bind_rows(lapply(split(subj, subj$id), make_doses))
obs <- tidyr::expand_grid(id = subj$id, time = seq(0, 120, by = 1)) |>
  dplyr::mutate(evid = 0L, amt = 0, cmt = "central", dur = 0, dvid = 1L)

events <- dplyr::bind_rows(doses, obs) |>
  dplyr::left_join(subj, by = "id") |>
  dplyr::mutate(
    PNA = time / h_per_month,
    BODYTEMP = temp_profile(time, th_start),
    # Infusions are given as an explicit rate (amount / duration).
    rate = ifelse(evid == 1L & dur > 0, amt / dur, 0)
  ) |>
  dplyr::arrange(id, time, dplyr::desc(evid)) |>
  dplyr::select(id, time, evid, amt, cmt, dvid, rate, WT_BIRTH, GA, PNA,
                BODYTEMP)
stopifnot(!anyDuplicated(events[events$evid == 0L, c("id", "time")]))

Simulation

PNA and body temperature change continuously, so the covariates are linearly interpolated between records.

rxode2::rxSetSeed(20201105)
sim <- rxode2::rxSolve(mod, events = events, covsInterpolation = "linear",
                       returnType = "data.frame") |>
  dplyr::filter(time %in% 0:120)
#> ℹ parameter labels from comments will be replaced by 'label()'
#> Warning: some etas defaulted to non-mu referenced, possible parsing error: etalcl_common
#> as a work-around try putting the mu-referenced expression on a simple line

outputs <- c(
  Morphine = "Cc", M3G = "Cc_m3g", M6G = "Cc_m6g", Midazolam = "Cc_midazolam",
  OHM = "Cc_1ohm", HMG = "Cc_hmg", Lidocaine = "Cc_lidocaine", MEGX = "Cc_megx",
  Phenobarbital = "Cc_phenobarbital", Amoxicillin = "Cc_amoxicillin",
  Benzylpenicillin = "Cc_benzylpenicillin", Gentamicin = "Cc_gentamicin"
)
sim_long <- sim |>
  dplyr::select(id, time, dplyr::all_of(unname(outputs))) |>
  tidyr::pivot_longer(-c(id, time), names_to = "output", values_to = "conc") |>
  dplyr::mutate(compound = factor(names(outputs)[match(output, outputs)],
                                  levels = names(outputs)))
stopifnot(!anyNA(sim_long$conc), n_distinct(sim_long$id) == n_sub)
sim_long |>
  dplyr::group_by(compound, time) |>
  dplyr::summarise(
    Q05 = stats::quantile(conc, 0.05),
    Q50 = stats::quantile(conc, 0.50),
    Q95 = stats::quantile(conc, 0.95),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  facet_wrap(~compound, scales = "free_y", ncol = 3) +
  labs(x = "Postnatal age (h)", y = "Plasma concentration (mg/L)",

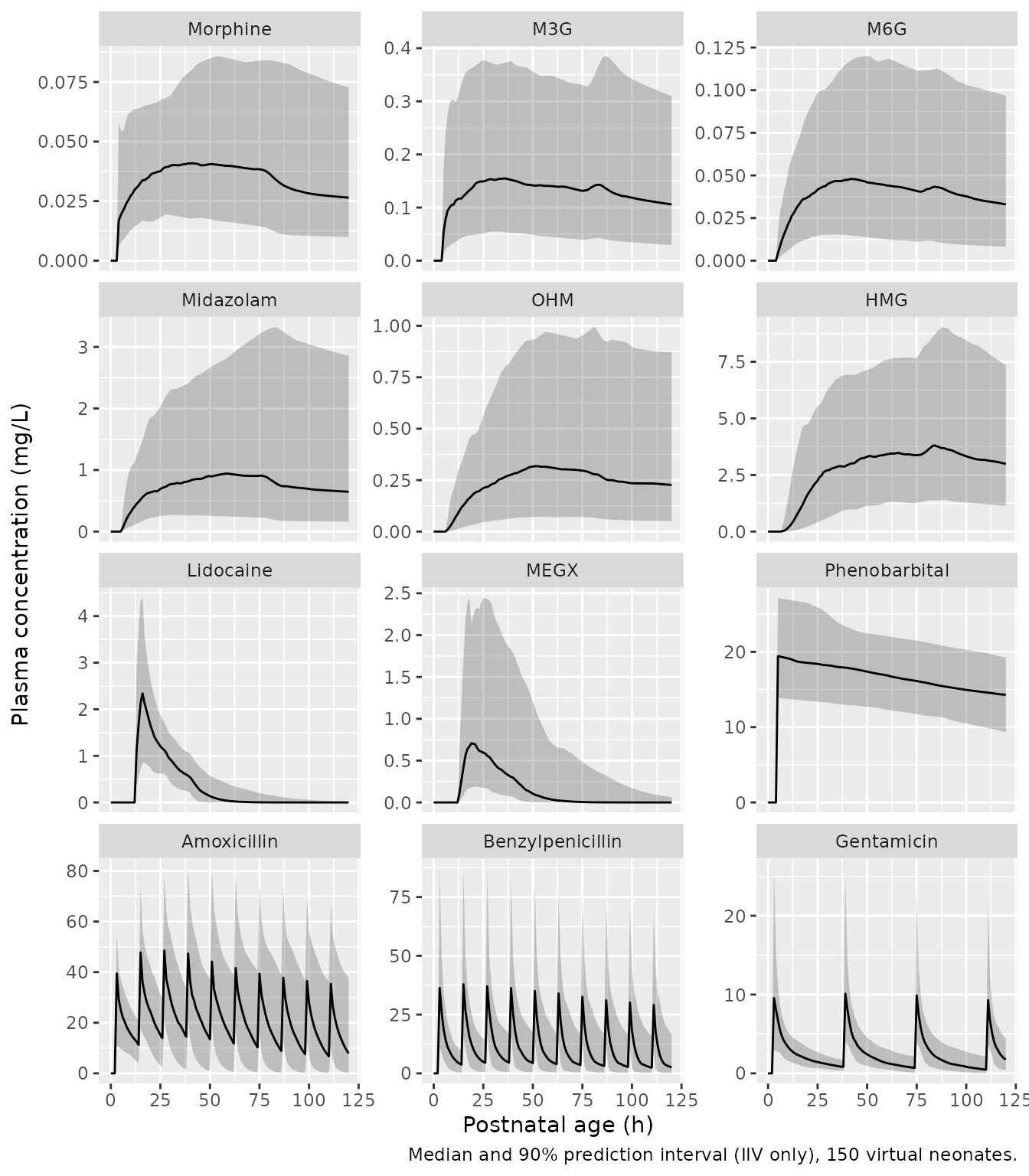

       caption = "Median and 90% prediction interval (IIV only), 150 virtual neonates.")

Two checks tie the simulation to physical expectations: 1 h after 20 mg/kg, the median phenobarbital concentration equals dose over volume (about 19.4 mg/L, just below the 20 mg/L lower bound of the therapeutic range, as the Neonatology predecessor paper describes for this dose), and the median midazolam concentration at 48 h lies inside the range observed in PharmaCool (0.02-3.25 mg/L).

med_at <- function(cmpd, t) {
  stats::median(sim_long$conc[sim_long$compound == cmpd & sim_long$time == t])
}
stopifnot(
  # Phenobarbital 1 h after 20 mg/kg: dose / (V/kg) = 20 / (3.60 / 3.5)
  # = 19.4 mg/L for the typical neonate.
  abs(med_at("Phenobarbital", 5) / 19.4 - 1) < 0.15,
  # Midazolam at 48 h on 0.15 mg/kg/h is within the observed 0.02-3.25 mg/L.
  med_at("Midazolam", 48) > 0.02, med_at("Midazolam", 48) < 3.25
)

PKNCA validation

Phenobarbital clearance carries no postnatal-age or temperature effect, so each neonate’s phenobarbital clearance is constant and the NCA identity AUC0-inf = Dose / CL must hold per subject. Phenobarbital’s half-life in this population is about 270 h, so this check uses a separate single-dose solve observed out to 3000 h.

pb_ev <- subj |>
  dplyr::select(id, WT_BIRTH, GA) |>
  dplyr::mutate(treatment = "Phenobarbital 20 mg/kg")
pb_times <- sort(unique(c(0, 1 / 3, exp(seq(log(0.5), log(3000), length.out = 60)))))
pb_events <- dplyr::bind_rows(
  pb_ev |> dplyr::mutate(time = 0, evid = 1L, amt = 20 * WT_BIRTH,
                         cmt = "central_phenobarbital", rate = amt * 3),
  tidyr::expand_grid(pb_ev, time = pb_times) |>
    dplyr::mutate(evid = 0L, amt = 0, cmt = "central_phenobarbital",
                  rate = 0, dvid = 1L)
) |>
  dplyr::mutate(PNA = 0, BODYTEMP = 36.5) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

rxode2::rxSetSeed(20201106)
pb_sim <- rxode2::rxSolve(mod, events = pb_events, keep = "treatment",
                          returnType = "data.frame")

conc <- pb_sim |>
  dplyr::filter(!is.na(Cc_phenobarbital)) |>
  dplyr::select(id, time, Cc_phenobarbital, treatment)
conc <- dplyr::bind_rows(
  conc,
  conc |> dplyr::distinct(id, treatment) |> dplyr::mutate(time = 0, Cc_phenobarbital = 0)
) |>
  dplyr::distinct(id, treatment, time, .keep_all = TRUE) |>
  dplyr::arrange(id, time)

dose_df <- pb_events |>
  dplyr::filter(evid == 1L) |>
  dplyr::select(id, time, amt, treatment)

nca_res <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(conc, Cc_phenobarbital ~ time | treatment + id),
  PKNCA::PKNCAdose(dose_df, amt ~ time | treatment + id),
  intervals = data.frame(start = 0, end = Inf, cmax = TRUE,
                         aucinf.obs = TRUE, half.life = TRUE)
))

pb_cl <- pb_sim |>
  dplyr::group_by(id) |>
  dplyr::summarise(cl_phenobarbital = dplyr::first(cl_phenobarbital),
                   .groups = "drop") |>
  dplyr::inner_join(dose_df |> dplyr::select(id, dose = amt), by = "id")
chk <- as.data.frame(nca_res) |>
  dplyr::filter(PPTESTCD == "aucinf.obs") |>
  dplyr::inner_join(pb_cl, by = "id") |>
  dplyr::mutate(pct_diff = 100 * (PPORRES / (dose / cl_phenobarbital) - 1))
stopifnot(
  nrow(chk) == n_sub,
  abs(stats::median(chk$pct_diff)) < 2,
  stats::quantile(abs(chk$pct_diff), 0.9) < 5
)

as.data.frame(nca_res) |>
  dplyr::filter(PPTESTCD %in% c("cmax", "aucinf.obs", "half.life")) |>
  dplyr::group_by(treatment, PPTESTCD) |>
  dplyr::summarise(median = stats::median(PPORRES),
                   p05 = stats::quantile(PPORRES, 0.05),
                   p95 = stats::quantile(PPORRES, 0.95), .groups = "drop") |>
  dplyr::rename("Group" = treatment, "NCA parameter" = PPTESTCD,
                "Median" = median, "5th pct" = p05, "95th pct" = p95) |>
  knitr::kable(digits = 2, caption = "Phenobarbital single-dose NCA (Cmax mg/L, AUC mg*h/L, half-life h).")
Phenobarbital single-dose NCA (Cmax mg/L, AUC mg*h/L, half-life h).
Group NCA parameter Median 5th pct 95th pct
Phenobarbital 20 mg/kg aucinf.obs 7116.31 2632.18 20114.07
Phenobarbital 20 mg/kg cmax 19.20 13.91 27.41
Phenobarbital 20 mg/kg half.life 251.94 93.26 831.67

For the cohort simulation, PKNCA summarises the first 24 hours of exposure to each parent drug from its first dose (clearance changes with postnatal age and temperature, so there is no closed form to compare against, and the article reports no NCA).

# Only Cmax and AUC are requested, so the dose amount (first record) is
# informational.
first_dose <- doses |>
  dplyr::group_by(id, cmt) |>
  dplyr::summarise(t0 = min(time), amt = dplyr::first(amt), .groups = "drop")
parent_out <- c(central = "Morphine", central_midazolam = "Midazolam",
                central_phenobarbital = "Phenobarbital",
                central_lidocaine = "Lidocaine",
                central_gentamicin = "Gentamicin",
                central_amoxicillin = "Amoxicillin",
                central_benzylpenicillin = "Benzylpenicillin")
day1 <- sim_long |>
  dplyr::filter(compound %in% parent_out) |>
  dplyr::mutate(treatment = as.character(compound)) |>
  dplyr::inner_join(
    first_dose |> dplyr::mutate(treatment = parent_out[cmt]) |>
      dplyr::select(id, treatment, t0),
    by = c("id", "treatment")
  ) |>
  dplyr::filter(time >= floor(t0), time <= floor(t0) + 25) |>
  dplyr::mutate(tad = time - floor(t0)) |>
  dplyr::select(id, treatment, tad, conc)

day1_dose <- first_dose |>
  dplyr::transmute(id, treatment = parent_out[cmt], tad = 0, amt)

nca_day1 <- PKNCA::pk.nca(PKNCA::PKNCAdata(
  PKNCA::PKNCAconc(day1, conc ~ tad | treatment + id),
  PKNCA::PKNCAdose(day1_dose, amt ~ tad | treatment + id),
  intervals = data.frame(start = 0, end = 24, cmax = TRUE, auclast = TRUE)
))
nca_day1_tab <- as.data.frame(nca_day1) |>
  dplyr::group_by(treatment, PPTESTCD) |>
  dplyr::summarise(median = stats::median(PPORRES), .groups = "drop") |>
  tidyr::pivot_wider(names_from = PPTESTCD, values_from = median)
stopifnot(nrow(nca_day1_tab) == length(parent_out), !anyNA(nca_day1_tab$auclast))
nca_day1_tab |>
  dplyr::rename("Drug" = treatment, "Median Cmax (mg/L)" = cmax,
                "Median AUC first 24 h (mg*h/L)" = auclast) |>
  knitr::kable(digits = 3, caption = "Exposure over the first 24 h of each drug.")
Exposure over the first 24 h of each drug.
Drug Median AUC first 24 h (mg*h/L) Median Cmax (mg/L)
Amoxicillin 524.207 48.262
Benzylpenicillin 319.635 40.209
Gentamicin 76.498 9.556
Lidocaine 32.514 2.340
Midazolam 13.261 0.771
Morphine 0.775 0.041
Phenobarbital 438.093 19.415

Assumptions and deviations

  • Molar parent-to-metabolite formation. Table S1 gives metabolite clearances and volumes relative to the formation fraction but not the units of the analysis. The predecessor PharmaCool papers state that morphine, M3G and M6G (Favie 2019, PLoS One) and lidocaine and MEGX (Favie 2020, Br J Clin Pharmacol) were analysed in umol and umol/L. The midazolam paper (Favie 2019, Neonatology) does not say, but the DV axes of the article’s Figure S3 reach about 10 for midazolam and 16 for HMG, which are the reported observed maxima (3.25 and 8.34 mg/L) expressed in umol/L. All three families are therefore modelled with mole-for-mole formation. The model keeps amounts in mg and converts with molecular weights: 285.3 (morphine base) and 461.5 (M3G, M6G) as printed in Favie 2019; 325.8 (midazolam), 341.8 (1-hydroxymidazolam), 517.9 (its glucuronide), 234.3 (lidocaine base) and 206.3 (MEGX) are standard molecular weights. Doses must be entered as mg of the free base (the predecessor papers converted morphine and lidocaine hydrochloride doses).
  • M3G-M6G covariance. Table S1 lists no M3G-M6G covariance, but Table 2 gives a 94.8% correlation between the two clearances that the common random effect alone can produce only as 16.5%, while every other Table 2 cell except one is reproduced to within 0.4 points. The maintainers back-solved the covariance of the two compound-specific etas from the Table 2 value (0.242532, correlation 0.939). The Results text gives 96.2% for the same correlation (covariance 0.24687 if used); the table value was kept.
  • Benzylpenicillin-M3G correlation. The model gives 29.9% where Table 2 prints 31.9%; every other cell in both rows matches, and 31.9% also appears in the two neighbouring M3G cells, so the printed value is most likely a copying slip in the table. It is recorded here and excluded from the gate.
  • IIV and residual-error scale. Table S1 prints random effects as relative standard deviations. They are encoded as variances rsd^2, the convention of the predecessor papers (for example morphine ‘variance 0.224 (rsd 47.3%)’), and the Table 2 reproduction above confirms it. Fixed volume variances use the 2020 rsd values (for example 0.681^2 = 0.4638 for morphine, printed as 0.464 in Favie 2019).
  • IIV on the postnatal-age effect is taken to be log-normal on the slope, like every other random effect in the model; the article gives it as an rsd (71.6%) with the intermediate-group SD scaled by 0.765 and the correlation fixed to 100%.
  • Additive residual errors are entered in mg/L as printed in Table S1 (0.01 for midazolam, OHM and HMG; 0.1 for lidocaine and MEGX). They were fixed at LLOQ/2 in the analysis, which was run in umol/L, so their numerical scale is uncertain; they matter only near the LLOQ. Combined residual error uses nlmixr2’s default (separate additive and proportional components).
  • Birth weight (WT_BIRTH) is the size covariate. The Methods call it body weight (BW), but Table 1, Figure 1 and Figure S2 identify it as birth weight, as do the predecessor papers.
  • Temperature before cooling starts is not described; 36.5 degC is used. The article reconstructs temperature from the recorded start and stop of hypothermia rather than measuring it, and users can supply either.
  • Phenobarbital co-medication was an effect on midazolam clearance in the midazolam predecessor model (2.33-fold) but is not part of the pooled model and is not included.
  • Dosing regimens in the cohort simulation are not from the article and are for illustration only; see the regimen table above.
  • Cohort covariates: only means and SDs of GA and birth weight are published; truncated normal distributions are assumed. Sex is not a covariate.
  • No erratum or correction notice for the article was found (checked 2026-09-27).
