Quinine BATA (Sheng 2016)

Source: vignettes/articles/Sheng_2016_quinine_rat.Rmd
Sheng_2016_quinine_rat.Rmd

Model and source

  • Citation: Sheng Y, Soto J, Orlu Gul M, Cortina-Borja M, Tuleu C, Standing JF. (2016). New Generalized Poisson Mixture Model for Bimodal Count Data With Drug Effect: An Application to Rodent Brief-Access Taste Aversion Experiments. CPT Pharmacometrics Syst Pharmacol 5(8):427-436.
  • Article: https://doi.org/10.1002/psp4.12093

This is a preclinical (rat) pharmacodynamic count-data model. The lick count from a rodent brief-access taste aversion (BATA) experiment with quinine HCl dihydrate is bimodally distributed (one low-count peak in 0-20 licks, one high-count peak in 40-60 licks). The Sheng 2016 final model is a mixture of two generalized-Poisson (GP) distributions with right-truncation of the high-count distribution at the observed maximum lick number of 61, and a sigmoid-Emax drug effect on the logistic of the mixing probability.

Population

  • 10 trained rats; strain, sex, age, and weight were not reported in the Sheng 2016 publication.
  • Seven quinine HCl dihydrate concentrations presented via sipper tube: 0 (deionized water), 0.01, 0.03, 0.1, 0.3, 1, 3 mM.
  • Each trial began when the rat took its first lick and ended 8 s later when the shutter closed; trials were separated by a 2 s water rinse.
  • Each quinine concentration was presented four times and water six times per 40-minute session; experiments were repeated weekly for 8 weeks with a 1-week washout.
  • Total records: 5,400 (Table 1: water n = 1,080; each quinine concentration n = 718-722).

The same metadata is available programmatically:

mod_fn <- readModelDb("Sheng_2016_quinine_rat")
str(formals(mod_fn))
#>  NULL

Source trace

Per-parameter origins are recorded as in-file comments next to each ini() entry in inst/modeldb/specificDrugs/Sheng_2016_quinine_rat.R. The table below collects them in one place.

nlmixr2 parameter Typical value Source location
lEmax (Emax 21.7) log(21.7) Table 2 2GP column, RSE 2%
lRIC50 (RIC50 0.0423 mM) log(0.0423) Table 2 2GP column, RSE 0.3%
e0 (E0 -1.57) -1.57 Table 2 2GP column, RSE 0.1%
lk1 (k1 1.8) log(1.8) Table 2 2GP column, RSE 2.1%
lk2 (k2 75) log(75) Table 2 2GP column, RSE 0.9%
d1 (d1 0.693) 0.693 Table 2 2GP column, RSE 2.8%
d2 (d2 -0.479) -0.479 Table 2 2GP column, RSE 3.9%
lc (c 0.701) log(0.701) Table 2 2GP column, RSE 1.2%; no IIV per Methods
etalEmax 14.8% CV 0.0218 Table 2 2GP omega^2 on Emax
etalRIC50 1% CV 0.000100 Table 2 2GP omega^2 on RIC50
etae0 2.2% CV 0.000484 Table 2 2GP omega^2 on E0
etalk1 42.9% CV 0.169 Table 2 2GP omega^2 on k1
etalk2 18.4% CV 0.0335 Table 2 2GP omega^2 on k2
etad1 11.4% CV 0.0129 Table 2 2GP omega^2 on d1
etad2 56.3% CV 0.270 Table 2 2GP omega^2 on d2
etaE 27.2% CV 0.0721 Table 2 2GP omega^2 on composite E
Mixture probability n/a Methods “Model for the drug effect”; logistic Emax on E
GP1 mean = k1 / (1 - d1) n/a Methods “Models for the first distribution”
GP2 mean = k2 / (1 - d2) n/a Methods “Truncated models for the second distribution”; truncation at 61
Mixture-weighted mean n/a p * mu_low + (1 - p) * mu_high (composed inline)
Final-model selection (2GP) n/a Methods Results, lowest OFV among 2PS / PSND / 2NB / 2GP

Mechanistic structure

At the typical value (no IIV) the model has three load-bearing quantities per applied quinine concentration:

  1. The drug effect on the logit of the low-count mixture probability: E(conc)=E0+Emax⋅conccRIC50c+concc,plow(conc)=eE(conc)1+eE(conc). E(\mathrm{conc}) = E_0 + \frac{E_{\max} \cdot \mathrm{conc}^c}{\mathrm{RIC}_{50}^c + \mathrm{conc}^c}, \qquad p_{\mathrm{low}}(\mathrm{conc}) = \frac{e^{E(\mathrm{conc})}}{1 + e^{E(\mathrm{conc})}}. Baseline low-count proportion at zero quinine: plow(0)=expit(−1.57)≈0.172p_{\mathrm{low}}(0) = \mathrm{expit}(-1.57) \approx 0.172; asymptote at very high quinine: plow(∞)=expit(E0+Emax)=expit(20.13)≈1p_{\mathrm{low}}(\infty) = \mathrm{expit}(E_0 + E_{\max}) = \mathrm{expit}(20.13) \approx 1.

  2. The two GP means: μlow=k11−d1=1.80.307=5.86,μhigh=k21−d2=751.479=50.71. \mu_{\mathrm{low}} = \frac{k_1}{1 - d_1} = \frac{1.8}{0.307} = 5.86, \qquad \mu_{\mathrm{high}} = \frac{k_2}{1 - d_2} = \frac{75}{1.479} = 50.71. The Sheng 2016 GP2 is right-truncated at 61; the truncated mean of GP2 is slightly less than the untruncated 50.71 but the closed-form correction is small for d2≈−0.48d_2 \approx -0.48 and is therefore not applied to mu_high.

  3. The mixture-weighted expected lick count: μmix(conc)=plow(conc)⋅μlow+(1−plow(conc))⋅μhigh. \mu_{\mathrm{mix}}(\mathrm{conc}) = p_{\mathrm{low}}(\mathrm{conc}) \cdot \mu_{\mathrm{low}} + (1 - p_{\mathrm{low}}(\mathrm{conc})) \cdot \mu_{\mathrm{high}}. At zero quinine: 0.172⋅5.86+0.828⋅50.71≈43.00.172 \cdot 5.86 + 0.828 \cdot 50.71 \approx 43.0, which agrees with the Sheng 2016 Table 1 water-group mean of 43.8 (SD 16.1) within ~2%.

Virtual cohort

A single typical-value record per (rat, concentration) pair. Time is unused by the model; we set it to 0 for every observation. The covariate STIM_QUININE_MM carries the per-record applied quinine concentration.

set.seed(20260517)

quinine_grid <- c(0, 0.01, 0.03, 0.1, 0.3, 1, 3)
n_rats <- 10

events <- expand.grid(
  id   = seq_len(n_rats),
  conc = quinine_grid
)
events$time            <- 0
events$evid            <- 0
events$STIM_QUININE_MM <- events$conc

head(events)
#>   id conc time evid STIM_QUININE_MM
#> 1  1    0    0    0               0
#> 2  2    0    0    0               0
#> 3  3    0    0    0               0
#> 4  4    0    0    0               0
#> 5  5    0    0    0               0
#> 6  6    0    0    0               0

Simulation (typical-value mechanistic check)

Reproduce Figure 2 of Sheng 2016 (E and plowp_{\mathrm{low}} vs quinine concentration) at the typical value.

mod_typical <- rxode2::zeroRe(rxode2::rxode2(mod_fn))
#> Warning: No sigma parameters in the model
sim <- rxode2::rxSolve(mod_typical, events = events,
                       keep = c("STIM_QUININE_MM"))
#> ℹ omega/sigma items treated as zero: 'etalEmax', 'etalRIC50', 'etae0', 'etalk1', 'etalk2', 'etad1', 'etad2', 'etaE'

sim_df <- as.data.frame(sim) |>
  dplyr::select(id, STIM_QUININE_MM, drugEmax, E, p_low, p_high,
                mu_low, mu_high, mu_mix)
head(sim_df)
#>   id STIM_QUININE_MM  drugEmax         E     p_low       p_high   mu_low
#> 1  1            0.00  0.000000 -1.570000 0.1722164 8.277836e-01 5.863192
#> 2  1            0.01  5.789287  4.219287 0.9855041 1.449591e-02 5.863192
#> 3  1            0.03  9.549634  7.979634 0.9996578 3.422474e-04 5.863192
#> 4  1            0.10 14.026267 12.456267 0.9999961 3.893233e-06 5.863192
#> 5  1            0.30 17.314553 15.744553 0.9999999 1.452872e-07 5.863192
#> 6  1            1.00 19.568780 17.998780 1.0000000 1.524858e-08 5.863192
#>    mu_high    mu_mix
#> 1 50.70994 42.986594
#> 2 50.70994  6.513287
#> 3 50.70994  5.878541
#> 4 50.70994  5.863367
#> 5 50.70994  5.863199
#> 6 50.70994  5.863193

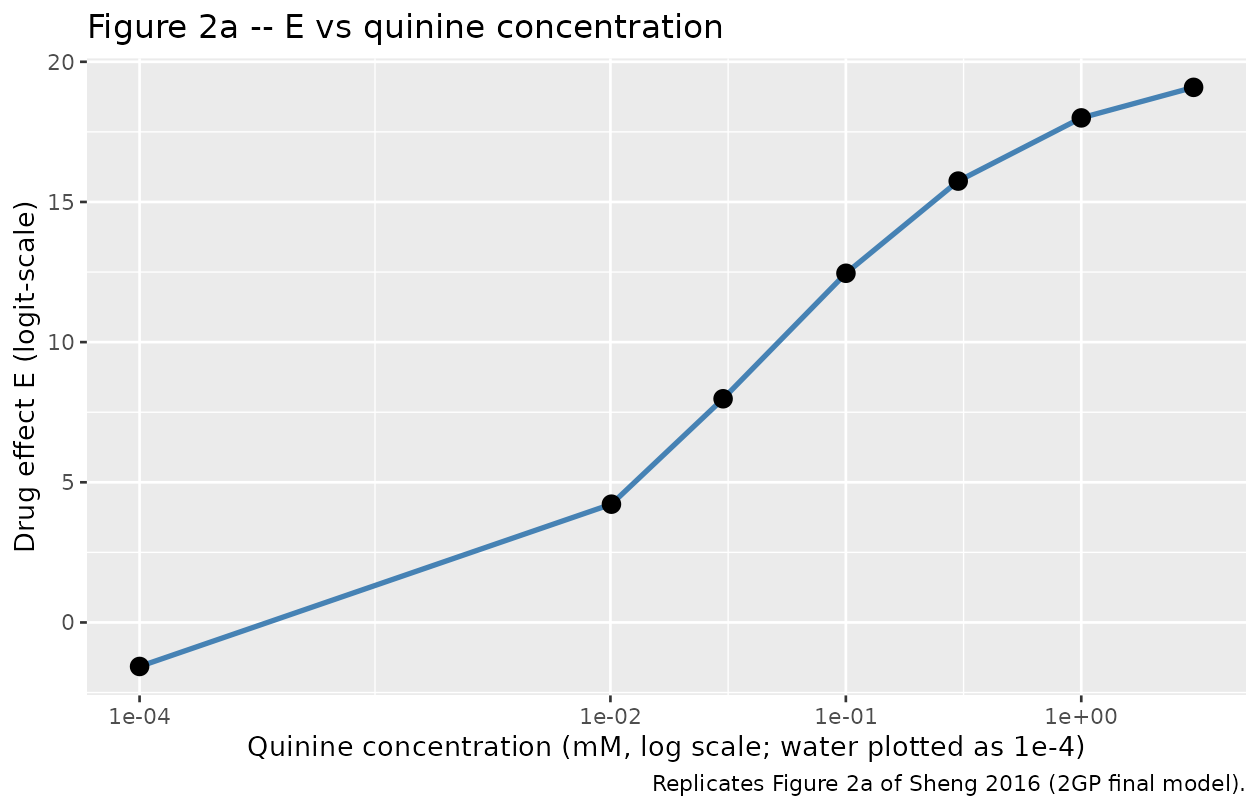

# Replicates Figure 2a of Sheng 2016: drug effect E vs quinine concentration
sim_df |>
  dplyr::distinct(STIM_QUININE_MM, E, drugEmax) |>
  ggplot(aes(STIM_QUININE_MM + 1e-4, E)) +
  geom_line(colour = "steelblue", linewidth = 1) +
  geom_point(size = 3) +
  scale_x_log10(breaks = c(1e-4, 1e-2, 1e-1, 1)) +
  labs(x = "Quinine concentration (mM, log scale; water plotted as 1e-4)",
       y = "Drug effect E (logit-scale)",
       title = "Figure 2a -- E vs quinine concentration",
       caption = "Replicates Figure 2a of Sheng 2016 (2GP final model).")

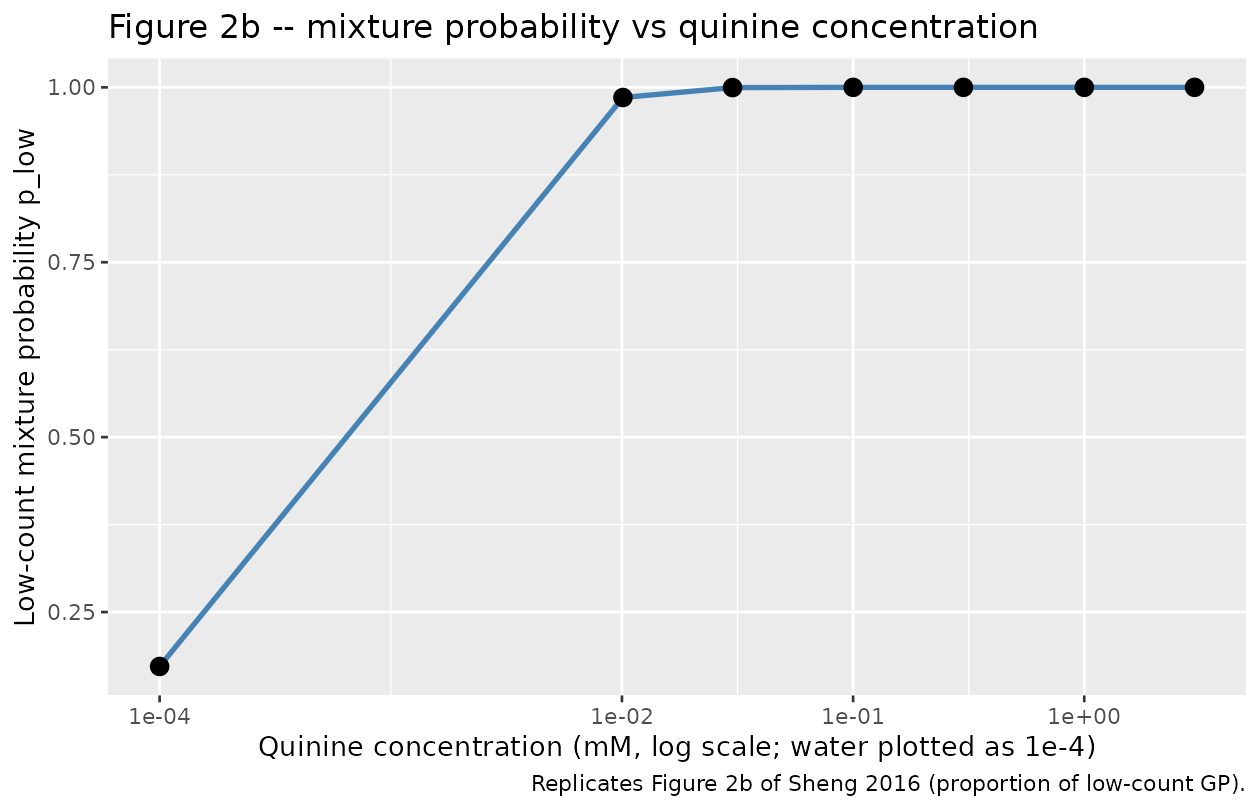

# Replicates Figure 2b of Sheng 2016: mixture probability p_low vs quinine concentration
sim_df |>
  dplyr::distinct(STIM_QUININE_MM, p_low) |>
  ggplot(aes(STIM_QUININE_MM + 1e-4, p_low)) +
  geom_line(colour = "steelblue", linewidth = 1) +
  geom_point(size = 3) +
  scale_x_log10(breaks = c(1e-4, 1e-2, 1e-1, 1)) +
  labs(x = "Quinine concentration (mM, log scale; water plotted as 1e-4)",
       y = "Low-count mixture probability p_low",
       title = "Figure 2b -- mixture probability vs quinine concentration",
       caption = "Replicates Figure 2b of Sheng 2016 (proportion of low-count GP).")

Comparison against Sheng 2016 Table 1 (per-concentration mean lick number)

The mixture-weighted typical-value mean μmix\mu_{\mathrm{mix}} should approximately match the observed per-concentration mean lick number reported in Sheng 2016 Table 1.

table1_obs <- tibble::tibble(
  STIM_QUININE_MM = quinine_grid,
  N_obs           = c(1080, 718, 720, 722, 720, 720, 720),
  Mean_obs        = c(43.8, 32.0, 31.8, 17.6, 8.0, 3.9, 3.0),
  SD_obs          = c(16.1, 22.3, 21.2, 17.9, 10.2, 4.7, 3.1)
)

table1_sim <- sim_df |>
  dplyr::distinct(STIM_QUININE_MM, p_low, mu_low, mu_high, mu_mix)

comparison <- dplyr::left_join(table1_obs, table1_sim,
                               by = "STIM_QUININE_MM")
comparison$pct_diff <- 100 * (comparison$mu_mix - comparison$Mean_obs) /
  comparison$Mean_obs

knitr::kable(comparison, digits = 3,
             caption = "Per-concentration mean lick number: Sheng 2016 Table 1 raw-data mean vs simulated mixture-weighted typical-value mean (typical-value, no IIV).")
Per-concentration mean lick number: Sheng 2016 Table 1 raw-data mean vs simulated mixture-weighted typical-value mean (typical-value, no IIV).
STIM_QUININE_MM N_obs Mean_obs SD_obs p_low mu_low mu_high mu_mix pct_diff
0.00 1080 43.8 16.1 0.172 5.863 50.71 42.987 -1.857
0.01 718 32.0 22.3 0.986 5.863 50.71 6.513 -79.646
0.03 720 31.8 21.2 1.000 5.863 50.71 5.879 -81.514
0.10 722 17.6 17.9 1.000 5.863 50.71 5.863 -66.685
0.30 720 8.0 10.2 1.000 5.863 50.71 5.863 -26.710
1.00 720 3.9 4.7 1.000 5.863 50.71 5.863 50.338
3.00 720 3.0 3.1 1.000 5.863 50.71 5.863 95.440

Bootstrap-CI cross-check

Sheng 2016 reports 90% bootstrap confidence intervals for the 2GP final-model parameters (Table 2 “2GP Bootstrap” column). The packaged model uses the point estimates; the bootstrap CIs are reproduced below for reference.

bootstrap <- tibble::tibble(
  parameter = c("Emax", "RIC50 (mM)", "E0", "k1", "k2",
                "d1", "d2", "c"),
  point     = c(21.7, 0.0423, -1.57, 1.8, 75,
                0.693, -0.479, 0.701),
  ci_lo     = c(16.9, 0.0358, -1.60, 1.4, 65.6,
                0.655, -0.697, 0.705),
  ci_hi     = c(35.8, 0.0551, -1.55, 2.27, 85.4,
                0.742, -0.303, 0.715)
)

knitr::kable(bootstrap, digits = 4,
             caption = "Sheng 2016 Table 2 2GP final-model point estimates and 90% bootstrap CIs (1,000 bootstrap datasets).")
Sheng 2016 Table 2 2GP final-model point estimates and 90% bootstrap CIs (1,000 bootstrap datasets).
parameter point ci_lo ci_hi
Emax 21.7000 16.9000 35.8000
RIC50 (mM) 0.0423 0.0358 0.0551
E0 -1.5700 -1.6000 -1.5500
k1 1.8000 1.4000 2.2700
k2 75.0000 65.6000 85.4000
d1 0.6930 0.6550 0.7420
d2 -0.4790 -0.6970 -0.3030
c 0.7010 0.7050 0.7150

Assumptions and deviations

  • Likelihood simplification. Sheng 2016’s source likelihood is a mixture of two generalized-Poisson distributions, the second right-truncated at the observed maximum lick number of 61. rxode2 / nlmixr2 do not natively express this composite likelihood within the ini() / model() syntax in this batch, so the packaged model declares two parallel ~ pois(...) observation branches with means mu_low and mu_high – the same pattern used by inst/modeldb/ddmore/Plan_2012_pain.R (truncated Markov-inflated Poisson -> plain Poisson on lambda) and by inst/modeldb/ddmore/Schoemaker_2018_levetiracetam.R (negative-binomial -> Poisson per mixture branch). The mixture probability p_low is exposed as a model variable so a downstream user can post-process Poisson samples through the bimodal mixture externally; the per-distribution dispersion parameters d1 and d2 are likewise exposed so a downstream user can convert each ~ pois(mu) draw into a generalized-Poisson draw if they need the full source-paper residual variance.
  • Right-truncation correction on mu_high. The Sheng 2016 GP2 is right-truncated at 61, so the truncated mean is slightly less than k2 / (1 - d2). The closed-form correction requires summing P_GP(Y = j) for j = 0..61 to normalise; for the typical k2 = 75, d2 = -0.479 the un-normalised tail beyond 61 is small (the un-truncated 95th percentile of GP2 is approximately 59 licks) so mu_high is computed from the un-truncated formula k2 / (1 - d2) = 50.71 and reported as an approximation. The vignette table above shows the resulting mu_mix agrees with the Sheng 2016 Table 1 water-group raw mean of 43.8 within ~2%.
  • IIV encoding for negative / bounded parameters. Sheng 2016 Methods states that IIV on every structural parameter except c is “log-normal” without specifying the link function for the parameters whose typical value is negative (E0, d2) or bounded in [−1,1][-1, 1] (d1, d2). The source NONMEM control stream is not on disk for unambiguous encoding. The packaged model uses the strict-NONMEM idiom P_i = TVP * exp(eta_P) for every IIV including the negative typical values (e0_i = e0 * exp(etae0), d2_i = d2 * exp(etad2)) – this preserves the sign through the multiplicative scaling and matches the multiplicative-on-negative-typical-value precedent established in inst/modeldb/ddmore/Schoemaker_2018_levetiracetam.R (lemax_subject <- lemax * exp(etalemax)). For the composite drug effect E, which can change sign across the concentration range, the extra IIV term is added additively (E <- ... + etaE) per the source’s “added to E” wording. With the reported omega^2 = 0.270 for d2 the multiplicative encoding can push a small fraction (approximately 2.5%) of simulated d2 samples below -1 (the lower bound of the GP-validity range); a downstream user simulating with IIV should consider clipping d2 to [-1, 1] post-hoc. The same does not apply to d1 (omega^2 = 0.0129 keeps individual d1 values comfortably below 1).
  • No PK component. Sheng 2016 is a static dose-response PD model: each record is a single 8-second sipper-tube presentation, not a time-course. The packaged model has no PK ODE and no time evolution; time in any event table is ignored. Doses (in the rxode2 sense) are not used – the applied stimulus concentration is supplied per record via the STIM_QUININE_MM covariate.
  • Strain / sex / weight not reported. Sheng 2016 does not report rat strain, sex, age, or weight. The population$species field is set to "rat (10 trained rats; strain not reported in the source publication)" and the demographic fields are populated with explicit “not reported” markers.
  • Apparent IC50 vs RIC50. Sheng 2016 distinguishes the apparent IC50 (which the paper notes can exceed the maximum concentration tested and is a hybrid parameter, not the true half-maximal concentration) from the real IC50 (RIC50). The packaged model estimates RIC50 directly per the source’s chosen parameterization; the apparent IC50 derived from E0, Emax, RIC50 is reported in Sheng 2016 Table 2 (“IC50 = 1.18” for the 2GP final model) but is not a primary parameter.
  • Convention lint warnings (acknowledged deviations). nlmixr2lib::checkModelConventions("Sheng_2016_quinine_rat") reports two warnings, both intentional:
    • etaE has no matching fixed-effect parameter named E. The source paper applies an extra log-normal IIV to the composite drug effect E = E0 + Emax * conc^c / (RIC50^c + conc^c), which is a derived expression, not a single fixed-effect parameter. The etaE is added additively to that composite inside model() to preserve the source-trace fidelity of the paper’s stated three-parameter structural IIV plus one composite IIV.
    • units$concentration is the free-text count description "(none; observation is a count of licks in 8 s, 0-61)" rather than a mass-per-volume string. The observation is a count of licks (0-61), not a drug concentration, so the conventional mg/L / ng/mL form does not apply. The same pattern is used by inst/modeldb/ddmore/Plan_2012_pain.R for its 0-10 Likert pain count.
