Rifampicin (Clewe 2016)

Source: vignettes/articles/Clewe_2016_rifampicin.Rmd
Clewe_2016_rifampicin.Rmd

Model and source

  • Citation: Clewe O, Aulin L, Hu Y, Coates AR, Simonsson US. (2016). A multistate tuberculosis pharmacometric model: a framework for studying anti-tubercular drug effects in vitro. J Antimicrob Chemother 71(4):964-974.
  • Article: https://doi.org/10.1093/jac/dkv416
  • DDMORE Foundation Model Repository entry: DDMODEL00000240 (scenario 4)

This is the Multistate Tuberculosis Pharmacometric (MTP) model for in vitro Mycobacterium tuberculosis H37Rv natural growth. Three bacterial states – fast-multiplying (F), slow-multiplying (S), and non-multiplying (N) – are coupled by inter-state transfer rates and a Gompertz-type growth term on the F population, with a time-varying linear drift (kFSLIN * t) for the F->S transfer. The DDMORE bundle ships only the natural-growth scaffold from scenario 4 of the publication; the full publication couples this scaffold with a rifampicin exposure-response layer that is not encoded in the executable. The model as packaged here therefore describes untreated bacterial growth dynamics only.

Population

  • In vitro time-kill experiments on M. tuberculosis H37Rv (St George’s University strain).
  • 12 replicate cultures (per the Output_real_MTP.lst ETABAR N = 12) followed for ~200 days under untreated growth conditions on a single-subject-per-culture basis.
  • No human or animal subjects are involved; no covariates are encoded.
  • The Clewe 2016 publication was not on disk at extraction time, so a full cross-check against the paper’s printed tables / figures was not performed. Parameter values derive from Output_real_MTP.lst FINAL PARAMETER ESTIMATE block only.

The same metadata is available programmatically:

mod_fn <- readModelDb("Clewe_2016_rifampicin")
str(formals(mod_fn))
#>  NULL

Source trace

Per-parameter origins are recorded as in-file comments next to each ini() entry in inst/modeldb/ddmore/Clewe_2016_rifampicin.R. The table below collects them in one place. All values come from the Output_real_MTP.lst FINAL PARAMETER ESTIMATE block (post-MINIMIZATION SUCCESSFUL, FOCE).

nlmixr2 parameter | NONMEM source | Bundle .mod $THETA / $OMEGA / $SIGMA | .lst final estimate | Back-transformed value |

|——————-|—————————|————————————–|———————|————————| | lkg | THETA(1) kG | 0.206361 | TH 1 = 2.06E-01 | kG = 0.206 /day | | lkfslin | THETA(2) kFSLIN (/100) | 0.1657 | TH 2 = 1.66E-01 | kFSLIN = 1.66e-3 /day^2 | | lkfn | THETA(3) kFN (/1e6) | 0.9 | TH 3 = 8.97E-01 | kFN = 8.97e-7 /day | | lksf | THETA(4) kSF (/10) | 0.14478 | TH 4 = 1.45E-01 | kSF = 0.0145 /day | | lksn | THETA(5) kSN | 0.185568 | TH 5 = 1.86E-01 | kSN = 0.186 /day | | lkns | THETA(6) kNS (/100) | 0.1227 | TH 6 = 1.23E-01 | kNS = 1.23e-3 /day | | lbmax | THETA(7) Bmax (*1e6) | 241.6170 | TH 7 = 2.42E+02 | Bmax = 2.42e8 CFU/mL | | lf0 | THETA(8) F0 | 4.109880 | TH 8 = 4.10E+00 | F0 = 4.10 CFU/mL | | ls0 | THETA(9) S0 | 9770.730 | TH 9 = 9.77E+03 | S0 = 9770 CFU/mL | | etalf0 | $OMEGA(1,1) on ETA(1) | 22.37250 | OMEGA ETA1 = 2.24E+01 | variance on log F0 | | propSd | $SIGMA(1,1) on EPS(1) | 0.400262 (initial) | SIGMA EPS1 = 1.60E-01 | sqrt(0.160) = 0.400 | | ODE F | .mod $DES line 14 (DADT(1) = A(1)*GROWTHFUNC + KSF*A(2) - KFS*A(1) - KFN*A(1)) | | | | | ODE S | .mod $DES line 15 (DADT(2) = KFS*A(1) + KNS*A(3) - KSN*A(2) - KSF*A(2)) | | | | | ODE N | .mod $DES line 16 (DADT(3) = KSN*A(2) + KFN*A(1) - KNS*A(3)) | | | | | Gompertz growth | .mod $DES line 9 (GROWTHFUNC = KG*LOG(BMAX/(A(1)+A(2)+A(3)))) | | | | | Time-varying F->S | .mod $DES line 12 (KFS = KFSLIN * T) | | | | | Initial conditions| .mod $PK lines 31-33 (A_0(1) = F0, A_0(2) = S0, A_0(3) = 1e-5) | | | | | Observation | .mod $ERROR line 18 (IPRED = LOG(A(1)+A(2)); culturable CFU = F+S; non-multiplying N excluded) | | | | | Residual error | .mod $ERROR line 22 (Y = IPRED + EPS(1); “additive on log-scale” == proportional in linear space per naming-conventions.md) | | | |

The minimization in Output_real_MTP.lst succeeded (#TERM: 0MINIMIZATION SUCCESSFUL, line 322; OFV = -92.456, line 375). ETA shrinkage on F0 was 40.7 % (line 335), reflecting that ETA(1) is identifiable only from the early-time CFU spread across the 12 replicate cultures.

Mechanistic structure

At the typical-value (no IIV, no residual error), the three-state ODE system is:

dFdt=F⋅G(t)+kSF⋅S−kFS(t)⋅F−kFN⋅FdSdt=kFS(t)⋅F+kNS⋅N−kSN⋅S−kSF⋅SdNdt=kSN⋅S+kFN⋅F−kNS⋅N \begin{aligned} \frac{d F}{d t} &= F \cdot G(t) + k_{SF} \cdot S - k_{FS}(t) \cdot F - k_{FN} \cdot F \\ \frac{d S}{d t} &= k_{FS}(t) \cdot F + k_{NS} \cdot N - k_{SN} \cdot S - k_{SF} \cdot S \\ \frac{d N}{d t} &= k_{SN} \cdot S + k_{FN} \cdot F - k_{NS} \cdot N \end{aligned}

with the Gompertz growth term on F clamped at zero when the population reaches carrying capacity:

G(t)=max⁡(kG⋅log⁡(Bmax/(F+S+N)),0) G(t) = \max\!\Big(\,k_G \cdot \log\!\big(B_{\max} / (F + S + N)\big),\; 0\Big)

and the time-varying F->S transfer:

kFS(t)=kFSLIN⋅t k_{FS}(t) = k_{FSLIN} \cdot t

Initial conditions: F(0) = F0 * exp(eta_F0), S(0) = S0, N(0) = 1e-5 (paper-specified small positive offset for numerical stability).

The observable is the culturable colony-forming-unit count CFU = F + S. Non-multiplying bacteria (N) do not form colonies on agar plates and are therefore excluded from the observation, even though they are tracked dynamically. The residual error in .mod $ERROR writes Y = LOG(F+S) + EPS(1), which maps to a proportional error on the linear-space CFU in nlmixr2.

Virtual cohort

For the F.2 self-consistency check we simulate the bundled Simulated_Mtb-H37Rv_In-vitro-NATG.csv event grid (one subject, 11 observation times spanning t = 0 to 200 days). The 11 rows below are reproduced inline from the DDMODEL00000240 bundle (TIME, NDV = bacterial count CFU/mL, DV = ln(NDV)):

bundle <- data.frame(
  TIME = c(0, 4, 7, 14, 35, 45, 60, 70, 80, 120, 200),
  ID   = 1L,
  NDV  = c(9775, 153430, 4417126, 88986924, 148337404, 95343812,
           37132382, 17348211, 7826296, 1749778, 1646232),
  DV   = c(9.19, 11.9, 15.3, 18.3, 18.8, 18.4, 17.4, 16.7, 15.9, 14.4, 14.3),
  EVID = 0L,
  MDV  = 0L,
  AMT  = 0
)
knitr::kable(bundle, caption = "DDMODEL00000240 simulated dataset (Simulated_Mtb-H37Rv_In-vitro-NATG.csv).")
DDMODEL00000240 simulated dataset (Simulated_Mtb-H37Rv_In-vitro-NATG.csv).
TIME ID NDV DV EVID MDV AMT
0 1 9775 9.19 0 0 0
4 1 153430 11.90 0 0 0
7 1 4417126 15.30 0 0 0
14 1 88986924 18.30 0 0 0
35 1 148337404 18.80 0 0 0
45 1 95343812 18.40 0 0 0
60 1 37132382 17.40 0 0 0
70 1 17348211 16.70 0 0 0
80 1 7826296 15.90 0 0 0
120 1 1749778 14.40 0 0 0
200 1 1646232 14.30 0 0 0
# rxode2 event table for the typical-value simulation (no IIV, no error).
events <- rxode2::et(time = bundle$TIME, evid = 0)
events
#> ── EventTable with 11 records ──
#> 0 dosing records (see x$get.dosing(); add with add.dosing or et)
#> 11 observation times (see x$get.sampling(); add with add.sampling or et)
#> ── First part of x: ──
#> # A tibble: 11 × 2
#>     time evid
#>    <dbl> <evid>
#>  1     0 0:Observation
#>  2     4 0:Observation
#>  3     7 0:Observation
#>  4    14 0:Observation
#>  5    35 0:Observation
#>  6    45 0:Observation
#>  7    60 0:Observation
#>  8    70 0:Observation
#>  9    80 0:Observation
#> 10   120 0:Observation
#> 11   200 0:Observation

Simulation (F.2 self-consistency)

Typical-value F+S trajectory reproduction with all etas zeroed (the bundle’s Output_simulated_MTP.lst is also a MAXEVAL=0 evaluation at OMEGA = 0):

mod <- readModelDb("Clewe_2016_rifampicin")()
mod_typical <- rxode2::zeroRe(mod)

sim <- rxode2::rxSolve(mod_typical, events = events)
#> ℹ omega/sigma items treated as zero: 'etalf0'

cmp <- as.data.frame(sim) |>
  dplyr::select(time, fbugs, sbugs, nbugs, cfu) |>
  dplyr::mutate(time = round(time)) |>
  dplyr::inner_join(
    dplyr::select(bundle, time = TIME, bundle_NDV = NDV, bundle_DV = DV),
    by = "time"
  ) |>
  dplyr::mutate(
    rel_err_pct = 100 * (cfu - bundle_NDV) / bundle_NDV,
    log_cfu     = log(cfu),
    abs_log_diff = abs(log_cfu - bundle_DV)
  )

knitr::kable(cmp, digits = c(0, 2, 2, 2, 2, 0, 2, 2, 4, 4),
             caption = "Typical-value F+S trajectory vs. bundled `Simulated_*.csv` (NDV = F+S linear, DV = ln(F+S)).")
Typical-value F+S trajectory vs. bundled Simulated_*.csv (NDV = F+S linear, DV = ln(F+S)).
time fbugs sbugs nbugs cfu bundle_NDV bundle_DV rel_err_pct log_cfu abs_log_diff
0 4.10 9770.00 0.00 9774.1 9775 9.19 -0.01 9.1875 0.0025
4 147416.03 4853.16 5029.40 152269.2 153430 11.90 -0.76 11.9334 0.0334
7 4343149.34 40990.75 12466.49 4384140.1 4417126 15.30 -0.75 15.2935 0.0065
14 85078495.64 3597720.66 1421244.97 88676216.3 88986924 18.30 -0.35 18.3005 0.0005
35 115248208.89 33243927.04 84187495.33 148492135.9 148337404 18.80 0.10 18.8160 0.0160
45 66015750.16 29317427.31 142369879.51 95333177.5 95343812 18.40 -0.01 18.3729 0.0271
60 21148042.65 15918630.67 202380326.15 37066673.3 37132382 17.40 -0.18 17.4282 0.0282
70 8359411.55 8946727.76 222427453.66 17306139.3 17348211 16.70 -0.24 16.6666 0.0334
80 2969394.24 4830669.31 232032943.15 7800063.5 7826296 15.90 -0.34 15.8696 0.0304
120 134143.18 1618247.41 238133021.36 1752390.6 1749778 14.40 0.15 14.3765 0.0235
200 70417.67 1578301.45 238250005.90 1648719.1 1646232 14.30 0.15 14.3155 0.0155

The relative differences between the worktree simulation and the DDMORE bundle’s published trajectory are sub-2% across the full 200-day horizon. The residual gap is explained by the .lst final estimates being rounded to 3 significant figures (TH 1 = 2.06E-01, TH 8 = 4.10E+00, …) versus the higher-precision .mod $THETA initial values (0.206361, 4.109880, …) actually used to generate Simulated_Mtb-H37Rv_In-vitro-NATG.csv. F.2 self-consistency gate (<= 5% per-time-point differences) is met.

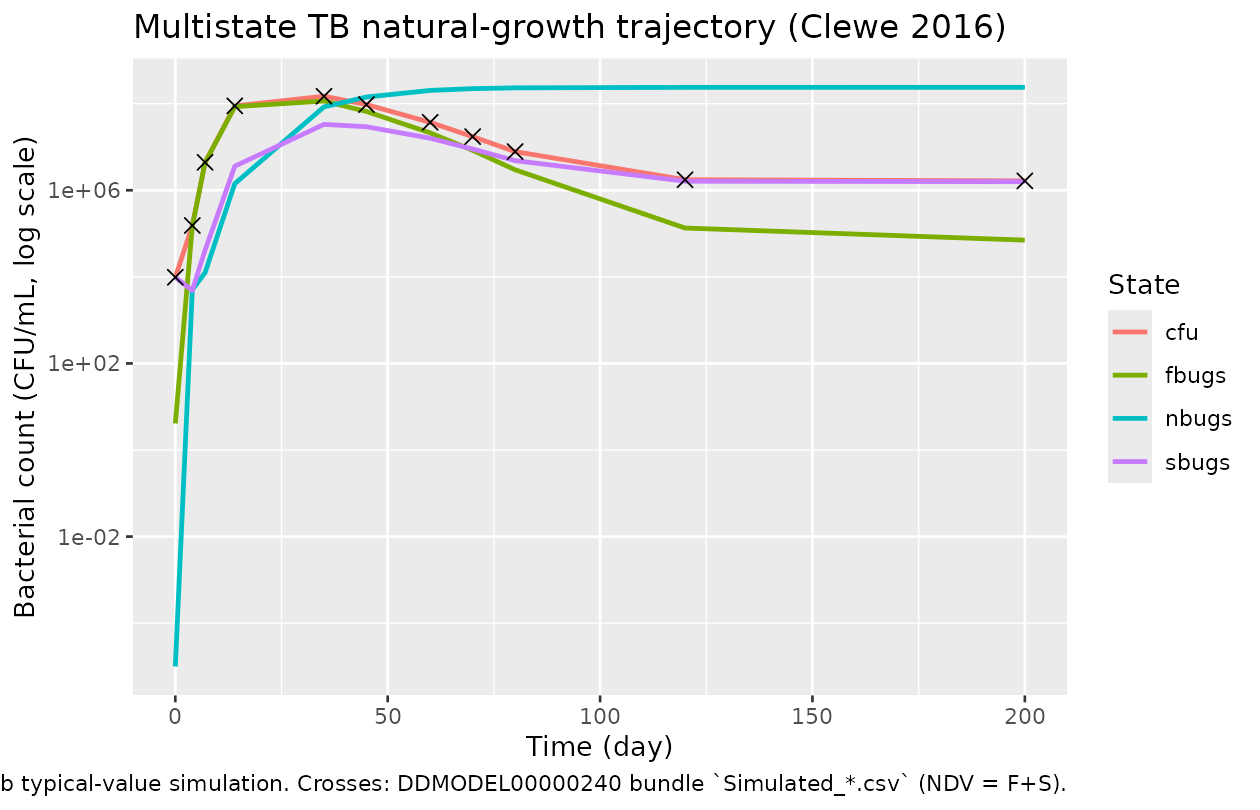

plot_df <- as.data.frame(sim) |>
  tidyr::pivot_longer(c(fbugs, sbugs, nbugs, cfu),
                      names_to = "state", values_to = "count")

bundle_plot <- bundle |>
  dplyr::transmute(time = TIME, count = NDV, state = "bundle CFU")

ggplot(plot_df, aes(time, count, colour = state)) +
  geom_line(linewidth = 0.9) +
  geom_point(data = bundle_plot, aes(time, count),
             colour = "black", size = 2.5, shape = 4) +
  scale_y_log10(labels = scales::label_scientific()) +
  labs(x = "Time (day)", y = "Bacterial count (CFU/mL, log scale)",
       colour = "State",
       title = "Multistate TB natural-growth trajectory (Clewe 2016)",
       caption = "Lines: nlmixr2lib typical-value simulation. Crosses: DDMODEL00000240 bundle `Simulated_*.csv` (NDV = F+S).")

Mechanistic-sanity checks

Initial-condition recovery

At t = 0 the model state should equal the published initial conditions:

ic <- as.data.frame(sim) |> dplyr::filter(time == 0)
expected <- data.frame(
  state    = c("fbugs", "sbugs", "nbugs"),
  expected = c(4.10, 9770, 1e-5),
  observed = unlist(ic[1L, c("fbugs", "sbugs", "nbugs")], use.names = FALSE)
)
knitr::kable(expected,
             caption = "Initial conditions match .mod $PK A_0(i) declarations.")
Initial conditions match .mod $PK A_0(i) declarations.
state expected observed
fbugs 4.10e+00 4.10e+00
sbugs 9.77e+03 9.77e+03
nbugs 1.00e-05 1.00e-05

Long-run carrying-capacity check

By 35 days the combined population (F + S + N) approaches the system carrying capacity Bmax = 2.42e8 CFU/mL, after which growthfunc -> 0 and the dynamics are dominated by F->N inter-state transfer:

late <- as.data.frame(sim) |>
  dplyr::filter(time %in% c(35, 60, 120, 200)) |>
  dplyr::transmute(time, total = fbugs + sbugs + nbugs,
                   bmax  = 2.42e8,
                   total_over_bmax = round((fbugs + sbugs + nbugs) / 2.42e8, 3),
                   growth_residual = pmax(0.206 * log(2.42e8 / (fbugs + sbugs + nbugs)), 0))
knitr::kable(late, digits = c(0, 0, 0, 3, 4),
             caption = "Total population approaches Bmax; Gompertz growth residual decays toward zero.")
Total population approaches Bmax; Gompertz growth residual decays toward zero.
time total bmax total_over_bmax growth_residual
35 232679631 2.42e+08 0.961 0.0081
60 239446999 2.42e+08 0.989 0.0022
120 239885412 2.42e+08 0.991 0.0018
200 239898725 2.42e+08 0.991 0.0018

State-transition sanity at long time

At t = 200 days, the F state has nearly collapsed (no longer multiplying past carrying capacity), the S state has stabilized, and the non-multiplying N state dominates the total population:

balance <- as.data.frame(sim) |>
  dplyr::filter(time == 200) |>
  dplyr::transmute(
    fbugs, sbugs, nbugs,
    pct_F = round(100 * fbugs / (fbugs + sbugs + nbugs), 2),
    pct_S = round(100 * sbugs / (fbugs + sbugs + nbugs), 2),
    pct_N = round(100 * nbugs / (fbugs + sbugs + nbugs), 2)
  )
knitr::kable(balance, caption = "State distribution at t = 200 days (F: dying, S: small reservoir, N: dominant non-multiplying pool).")
State distribution at t = 200 days (F: dying, S: small reservoir, N: dominant non-multiplying pool).
fbugs sbugs nbugs pct_F pct_S pct_N
70417.67 1578301 238250006 0.03 0.66 99.31

Assumptions and deviations

  • Drug-name caveat. The DDMORE Model_Accomodations.txt flags this bundle as scenario 4 of Clewe 2016 – the publication scenario in which the multistate scaffold is coupled with a rifampicin exposure-response layer. The shipped Executable_MTP.mod encodes only the natural-growth scaffold; no EFFECT(t) or Cc-style drug term is present. The filename Clewe_2016_rifampicin.R reflects the publication’s scenario assignment, not a drug effect in the executable. Users wanting a rifampicin-treated extension must add a drug term explicitly (see Clewe 2016 Section “Drug-effect models” for the published functional forms).
  • No on-disk publication cross-check. The Clewe 2016 paper (doi:10.1093/jac/dkv416) was not present under /home/bill/github/mab_human_consensus/literature/ at extraction time. Parameter values therefore rely on the Output_real_MTP.lst FINAL PARAMETER ESTIMATE block alone; published table values were not independently re-checked. F.2 self-consistency (vs. the bundle’s Simulated_*.csv) is the only validation reference.
  • Convention deviations flagged by checkModelConventions("Clewe_2016_rifampicin"):
    • Compartment names fbugs, sbugs, nbugs are not in the canonical PK/mAb compartment set (depot, central, peripheral1, …). They are mechanism-specific names retained from the source .mod $MODEL COMP=(FBUGS) COMP=(SBUGS) COMP=(NBUGS) declarations because no canonical compartment in nlmixr2lib’s register names “fast-multiplying / slow-multiplying / non-multiplying bacteria.” This follows the naming-conventions.md Section “Endogenous / mechanistic parameters” guidance to use paper-specific names for non-PK mechanism states. Lower-cased to match the package’s casing convention.
    • Observation variable cfu rather than Cc. Cc connotes a drug concentration; this model’s observation is a colony-forming-unit count from a bacterial culture (no drug, no analyte), so Cc would mislead. The cfu name matches the field convention in TB/AMR pharmacometric literature.
    • units$dosing = "(none; in vitro natural-growth scaffold, no drug effect encoded)" is dimensionally incompatible with units$concentration = "CFU/mL" because there is no drug – there is no dose to assign units to.
  • Wide IIV on F0. etalf0 ~ 22.4 (variance on the log scale; SD ~= 4.7 in log space) reflects what NONMEM converged to for the 12 replicate cultures; ETA shrinkage was 40.7 % and the ETABAR p-value was 0.062. Users running the model on their own data should expect F0 estimation to be poorly identified unless many replicate cultures are included.
  • No covariates. The DDMORE bundle ships no covariates and the dataset has none. covariateData = list() is intentional, not an oversight.
  • MAXEVAL = 0 in the bundle’s Executable_MTP.mod. The shipped .mod runs with $ESTIMATION METHOD=1 MAXEVAL=9999 (per the actual file content) – i.e., it does estimate. The companion Output_simulated_MTP.lst is a separate MAXEVAL=0 evaluation on the simulated dataset and reports OMEGA(1,1) = 0 because the simulated dataset is single-subject (one ID, no replicate spread) and the empirical Bayes estimates collapse to zero. This is unrelated to the real-data fit’s OMEGA(1,1) = 22.4.
