Carboplatin (Zandvliet 2008)

Source: vignettes/articles/Zandvliet_2008_carboplatin.Rmd
Zandvliet_2008_carboplatin.Rmd

Model and source

  • Citation: Zandvliet AS, Schellens JHM, Dittrich C, Wanders J, Beijnen JH, Huitema ADR. Population pharmacokinetic and pharmacodynamic analysis to support treatment optimization of combination chemotherapy with indisulam and carboplatin. Br J Clin Pharmacol. 2008;66(4):485-497. doi:10.1111/j.1365-2125.2008.03230.x
  • Description: Two-compartment population PK model for free (ultrafilterable) carboplatin in adult cancer patients receiving combination chemotherapy with indisulam (Zandvliet 2008). Clearance is modelled as a renal + non-renal split: a Cockcroft-Gault creatinine-clearance-proportional renal component (theta1 = 0.76) plus a fixed non-renal component (theta2 = 1.5 L/h, fixed at the Calvert 1989 estimate).
  • Article: https://doi.org/10.1111/j.1365-2125.2008.03230.x

Population

Zandvliet 2008 fitted the carboplatin PK in n = 16 adult cancer patients with refractory solid tumours enrolled in a Phase I dose-escalation study of indisulam + carboplatin combination chemotherapy. Demographics from Table 1 are: median age 63 years (range 19-81), median body weight 66 kg (range 43-116), median BSA 1.73 m^2 (range 1.36-2.22), median serum creatinine 74 umol/L (range 33-132), 11 male / 5 female, all Caucasian. Carboplatin doses were calculated with the Calvert formula targeted to an AUC of 5-6 mg.min/mL and administered as a 30 min IV infusion on day 2 of each 3- or 4-weekly cycle. A total of 111 carboplatin observations (pre-dose, end-of-infusion, then 1, 2, 4, 6, 8, and 23 h after end of infusion) entered the PK fit.

The same information is available programmatically via rxode2::rxode2(readModelDb("Zandvliet_2008_carboplatin"))$population.

Source trace

Per-parameter origin is also recorded as an in-file comment next to each ini() entry in inst/modeldb/specificDrugs/Zandvliet_2008_carboplatin.R. The table below collects them in one place for review.

Equation / parameter Value Source location
cl_renal_fraction (theta1) 0.76 (RSE 0.05) Table 2 row 1; Equation 2
lcl_nonrenal (theta2, fixed) log(1.5) Table 2 footnote **; Calvert 1989 (ref [16])
lvc (V1) log(15.5) Table 2 row 2 (V_central = 15.5 L)
lq (Q) log(3.46) Table 2 row 3 (Q = 3.46 L/h)
lvp (V2) log(9.86) Table 2 row 4 (V_peripheral = 9.86 L)
etalcl (CL IIV 13%) log(0.13^2 + 1) Table 2 row 1 IIV column
etalvc (V1 IIV 54%) log(0.54^2 + 1) Table 2 row 2 IIV column
etalq (Q IIV 46%) log(0.46^2 + 1) Table 2 row 3 IIV column
etalvp (V2 IIV 31%) log(0.31^2 + 1) Table 2 row 4 IIV column
propSd (8.2%) 0.082 Table 2 row 5
Cockcroft-Gault crcl_cg (140 - AGE) * WT * (1 - 0.15 * SEXF) * 0.074 / CREAT Equation 1
CL covariate model (theta1 * crcl_cg + theta2) * exp(eta_CL) Equation 2
2-compartment ODE d/dt(central) = -kel * central - k12 * central + k21 * peripheral1 Methods, Figure 1 (CARBOPLATIN block)

Virtual cohort

Original observed data are not publicly available. The validation below uses a virtual cohort of 200 adult oncology patients with covariate distributions approximating Zandvliet 2008 Table 1 (median age 63 years, median weight 66 kg, median SCr 74 umol/L, 31% female, all Caucasian). The Phase I protocol fixed each subject’s carboplatin dose by the Calvert formula at a target AUC of 6 mg.min/mL, recomputed from the model’s clearance prediction; this lets the simulated AUC distribution be checked directly against the 5-6 mg.min/mL target.

set.seed(20260627L)

n_subj <- 200L

# Log-normal sampling around the published medians, with CVs chosen so the
# central 95% spans the reported ranges. Hard clipped to the published min/max.
clip <- function(x, lo, hi) pmin(pmax(x, lo), hi)

cohort <- tibble::tibble(
  id    = seq_len(n_subj),
  AGE   = clip(round(rnorm(n_subj, mean = 60, sd = 14)),    19,   81),
  WT    = clip(round(exp(rnorm(n_subj, log(66), 0.22)), 1), 43, 116),
  SEXF  = as.integer(runif(n_subj) < 0.3125),                            # 5 / 16
  CREAT = clip(round(exp(rnorm(n_subj, log(74), 0.30)), 0), 33, 132)
)

# Per-subject Cockcroft-Gault CLcr (L/h), per Zandvliet 2008 Equation 1.
cohort$crcl_cg <- with(cohort,
  (140 - AGE) * WT * (1 - 0.15 * SEXF) * 0.074 / CREAT)

# Calvert dose (mg) at AUC = 6 mg.min/mL using the typical-value CL prediction
# from this paper (CL_typ = 0.76 * CrCl_CG + 1.5 L/h). Multiplying by 1000/60
# converts CL from L/h to mL/min so AUC * CL gives dose in mg (Equation 5).
target_auc <- 6
cohort$dose_mg <- round(target_auc * (cohort$crcl_cg * 0.76 + 1.5) * 1000 / 60)

# Build the event table: a single 30 min IV infusion into the central
# compartment, then observations at the Zandvliet 2008 sampling schedule
# (pre-dose, end of infusion, then 1, 2, 4, 6, 8, 23 h after end of infusion),
# plus a denser grid up to 36 h so the PKNCA AUCinf extrapolation has enough
# tail samples.
inf_dur <- 0.5     # hours
obs_times <- sort(unique(c(
  0,
  seq(0.1, inf_dur, length.out = 4),       # during infusion
  inf_dur + c(0.01, 0.5, 1, 2, 4, 6, 8, 23, 30, 36)
)))

events <- cohort |>
  dplyr::mutate(rate = dose_mg / inf_dur) |>     # mg/h
  dplyr::rowwise() |>
  dplyr::do({
    subj <- as.data.frame(.)
    dose_row <- tibble::tibble(
      id   = subj$id,
      time = 0,
      amt  = subj$dose_mg,
      rate = subj$rate,
      evid = 1L,
      cmt  = "central",
      AGE   = subj$AGE,  WT = subj$WT,
      SEXF  = subj$SEXF, CREAT = subj$CREAT,
      cohort = "AUC6"
    )
    obs_rows <- tibble::tibble(
      id   = subj$id,
      time = obs_times,
      amt  = NA_real_,
      rate = 0,
      evid = 0L,
      cmt  = "central",
      AGE   = subj$AGE,  WT = subj$WT,
      SEXF  = subj$SEXF, CREAT = subj$CREAT,
      cohort = "AUC6"
    )
    dplyr::bind_rows(dose_row, obs_rows)
  }) |>
  dplyr::ungroup() |>
  dplyr::arrange(id, time, dplyr::desc(evid))

Simulation

mod <- readModelDb("Zandvliet_2008_carboplatin")
sim <- rxode2::rxSolve(mod, events = events,
                       keep = c("AGE", "WT", "SEXF", "CREAT", "cohort")) |>
  as.data.frame()
#> ℹ parameter labels from comments will be replaced by 'label()'

For a deterministic typical-patient profile (paper’s Discussion reports a terminal half-life of 4.4 h for a 60 year old, 75 kg male, SCr 90 umol/L), zero out the random effects and simulate one subject with those covariates:

typical_subj <- tibble::tibble(
  id = 1L, AGE = 60, WT = 75, SEXF = 0L, CREAT = 90
)
typical_subj$crcl_cg <- with(typical_subj,
  (140 - AGE) * WT * (1 - 0.15 * SEXF) * 0.074 / CREAT)
typical_subj$dose_mg <- round(
  target_auc * (typical_subj$crcl_cg * 0.76 + 1.5) * 1000 / 60)

typ_events <- dplyr::bind_rows(
  typical_subj |>
    dplyr::mutate(time = 0, amt = dose_mg, rate = dose_mg / inf_dur,
                  evid = 1L, cmt = "central"),
  typical_subj |>
    tidyr::expand_grid(time = sort(unique(c(0.01, 0.1, 0.25, 0.5,
                                            seq(0.5, 36, by = 0.25))))) |>
    dplyr::mutate(amt = NA_real_, rate = 0, evid = 0L, cmt = "central")
) |>
  dplyr::select(id, time, amt, rate, evid, cmt, AGE, WT, SEXF, CREAT) |>
  dplyr::arrange(id, time, dplyr::desc(evid))

mod_typ <- mod |> rxode2::zeroRe()
#> ℹ parameter labels from comments will be replaced by 'label()'
sim_typ <- rxode2::rxSolve(mod_typ, events = typ_events) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalq', 'etalvp'

Replicate published figures

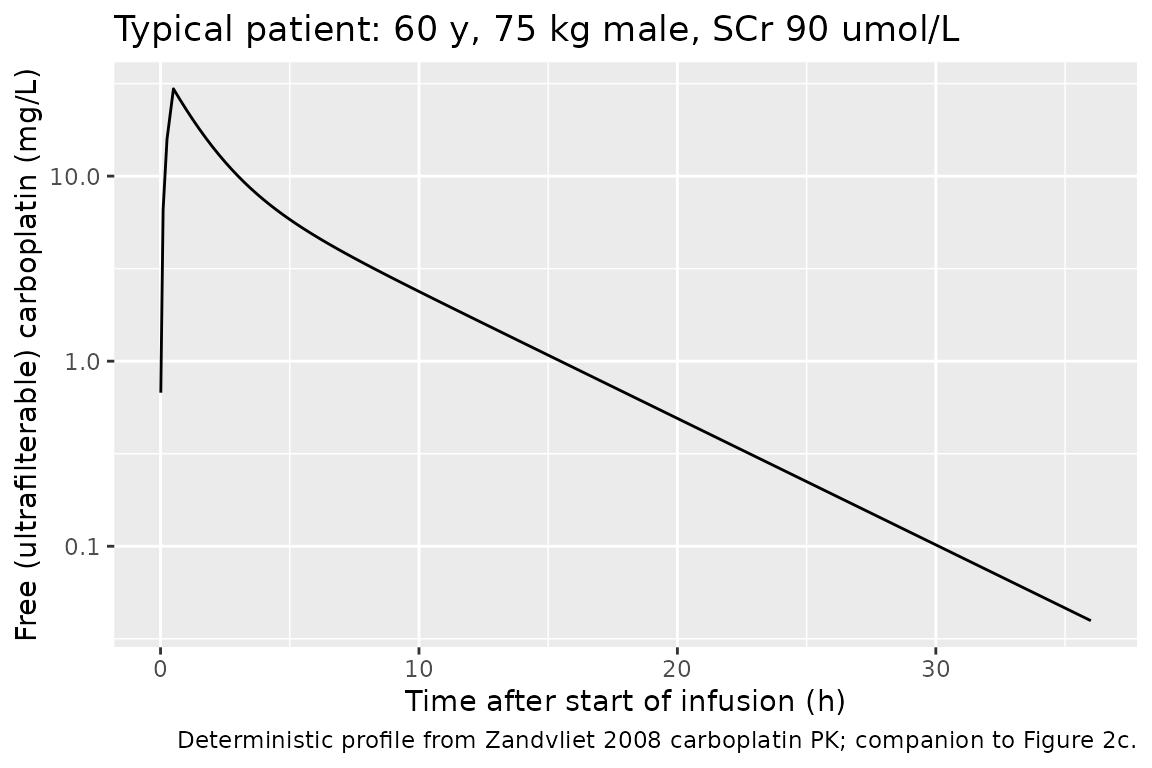

The published Figure 2c (carboplatin pharmacokinetic profile) shows the characteristic biphasic decline. The typical-value simulation below is the deterministic counterpart that the paper’s Figure 2c overlays the individual profiles onto.

ggplot(sim_typ |> dplyr::filter(time > 0),
       aes(x = time, y = Cc)) +
  geom_line() +
  scale_y_log10() +
  labs(x = "Time after start of infusion (h)",
       y = "Free (ultrafilterable) carboplatin (mg/L)",
       title = "Typical patient: 60 y, 75 kg male, SCr 90 umol/L",
       caption = "Deterministic profile from Zandvliet 2008 carboplatin PK; companion to Figure 2c.")

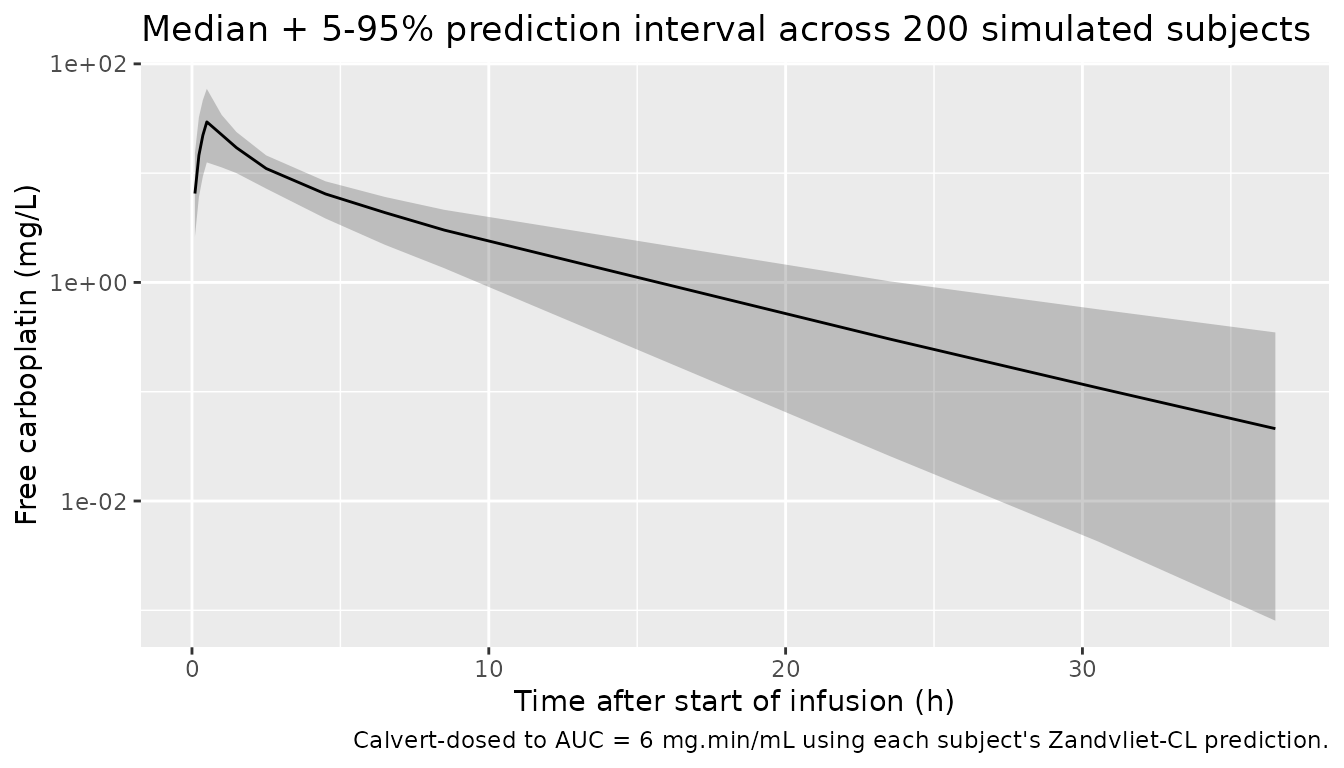

A stochastic version showing the per-subject variability across the cohort:

sim |>
  dplyr::filter(time > 0) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(x = time, y = Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line() +
  scale_y_log10() +
  labs(x = "Time after start of infusion (h)",
       y = "Free carboplatin (mg/L)",
       title = "Median + 5-95% prediction interval across 200 simulated subjects",
       caption = "Calvert-dosed to AUC = 6 mg.min/mL using each subject's Zandvliet-CL prediction.")

PKNCA validation

sim_nca <- sim |>
  dplyr::filter(!is.na(Cc)) |>
  dplyr::select(id, time, Cc, cohort)

# Guarantee a time = 0 row per (id, cohort); IV bolus / infusion starts at C = 0.
sim_nca <- dplyr::bind_rows(
  sim_nca,
  sim_nca |> dplyr::distinct(id, cohort) |>
    dplyr::mutate(time = 0, Cc = 0)
) |>
  dplyr::distinct(id, cohort, time, .keep_all = TRUE) |>
  dplyr::arrange(id, cohort, time)

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc ~ time | cohort + id)

dose_df <- events |>
  dplyr::filter(evid == 1L) |>
  dplyr::select(id, time, amt, cohort) |>
  dplyr::mutate(duration = inf_dur, route = "intravascular")

dose_obj <- PKNCA::PKNCAdose(dose_df, amt ~ time | cohort + id,
                             route = "route", duration = "duration")

intervals <- data.frame(
  start       = 0,
  end         = Inf,
  cmax        = TRUE,
  tmax        = TRUE,
  aucinf.obs  = TRUE,
  half.life   = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)

Comparison against published NCA

The paper itself does not tabulate a PK NCA summary in the article; the single quantitative PK-NCA-style statement is in the Discussion (terminal half-life 4.4 h “for a typical male patient, age 60 years, weight 75 kg, serum creatinine 90 umol/L”). A simulated AUC0-inf for that typical patient, dosed via the Calvert formula at AUC target 6 mg.min/mL, re-multiplied by 60/1000 to recover the paper’s AUC units, should be ~ 6 mg.min/mL (the target) – not exactly 6 because the rounded integer dose introduces a small quantization error.

published <- tibble::tribble(
  ~cohort, ~half.life,
  "AUC6",  4.4
)

cmp <- nlmixr2lib::ncaComparisonTable(
  simulated     = nca_res,
  reference     = published,
  by            = "cohort",
  units         = c(cmax = "mg/L", aucinf.obs = "mg*h/L",
                    tmax = "h", half.life = "h"),
  tolerance_pct = 20
)

knitr::kable(
  cmp,
  caption = "Simulated cohort NCA vs Zandvliet 2008 typical-patient terminal half-life.  Stars mark any row where simulated and reference differ by > 20%.",
  align   = c("l", "l", "r", "r", "r")
)
Simulated cohort NCA vs Zandvliet 2008 typical-patient terminal half-life. Stars mark any row where simulated and reference differ by > 20%.
NCA parameter cohort Reference Simulated % diff
t½ (h) AUC6 4.4 4.7 +6.8%

The terminal half-life check should match within rounding: with CL = 0.76 * 4.93 + 1.5 = 5.25 L/h, V1 = 15.5 L, Q = 3.46 L/h, V2 = 9.86 L (plugging the typical-patient covariates AGE = 60, WT = 75, SEXF = 0, CREAT = 90 umol/L into the model), the analytical 2-compartment terminal half-life is

#> [1] "Analytical terminal half-life ln(2) / beta = 4.41 h"

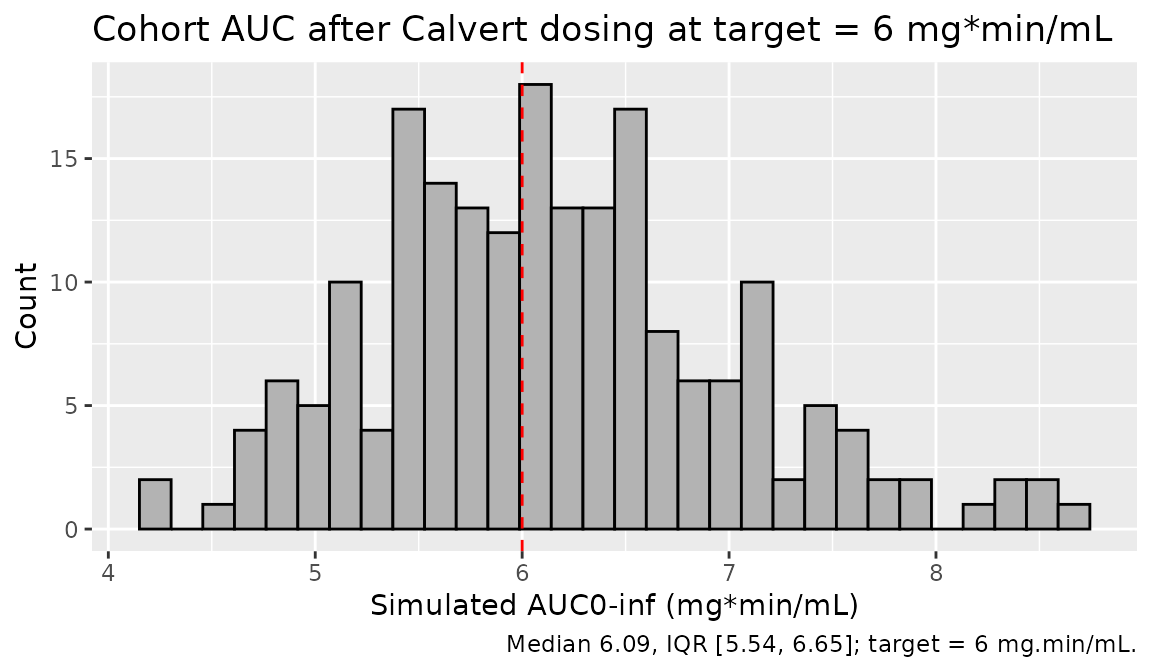

which matches the paper’s 4.4 h. The simulated cohort median (Calvert-dosed to AUC = 6 mg.min/mL using each subject’s predicted CL) gives AUC0-inf that, after the 60/1000 unit conversion to mg.min/mL, should distribute tightly around 6.

auc_summary <- as.data.frame(nca_res$result) |>
  dplyr::filter(PPTESTCD == "aucinf.obs")

# Convert from PKNCA's default mg*h/L to the paper's mg*min/mL:
#   X mg*h/L * 60 min/h * 1 L/1000 mL = X * 60/1000 = X * 0.06 mg*min/mL
auc_summary$AUC_mg_min_mL <- auc_summary$PPORRES * 60 / 1000

ggplot(auc_summary, aes(x = AUC_mg_min_mL)) +
  geom_histogram(bins = 30, fill = "grey70", colour = "black") +
  geom_vline(xintercept = target_auc, colour = "red", linetype = "dashed") +
  labs(x = "Simulated AUC0-inf (mg*min/mL)",
       y = "Count",
       title = sprintf("Cohort AUC after Calvert dosing at target = %d mg*min/mL",
                       target_auc),
       caption = sprintf("Median %.2f, IQR [%.2f, %.2f]; target = 6 mg.min/mL.",
                         median(auc_summary$AUC_mg_min_mL),
                         quantile(auc_summary$AUC_mg_min_mL, 0.25),
                         quantile(auc_summary$AUC_mg_min_mL, 0.75)))

Assumptions and deviations

  • PD layer not extracted. Zandvliet 2008 is primarily a PK-PD combination paper covering carboplatin PK + Friberg-style myelosuppression PD for indisulam + carboplatin combination chemotherapy. Per operator decision in sidecar frompeople-847 request-001 / response-001 (option B), only the carboplatin 2-compartment PK from Table 2 is packaged here. The myelosuppression PD model from Table 3 is deferred because it requires the indisulam PK structural model from Zandvliet 2006 (J Pharmacokinet Pharmacodyn 33:543-570, doi:10.1007/s10928-006-9021-5) and Zandvliet 2007 (Clin Cancer Res 13:2970-2976, doi:10.1158/1078-0432.CCR-06-2978), neither of which is on disk; that PK is fixed (not re-estimated) in Zandvliet 2008.

  • Cohort distribution. The original n = 16 individual covariate vectors are not reported; the virtual cohort uses log-normal sampling around the published medians clipped to the published min / max (Table 1).

  • Non-renal CL fixed at Calvert 1989. theta2 = 1.5 L/h is fixed (Table 2 footnote **). Confidence intervals are not derivable for this component because the source paper did not re-estimate it.

  • Residual error. Table 2 reports the residual error as a single percentage on log-transformed concentrations (8.2%, RSE 0.11). This is encoded as a proportional error propSd = 0.082 in linear space, the standard nlmixr2 equivalent of NONMEM’s log-additive residual under FOCE-INTER.

  • Carboplatin concentration units. The package reports Cc in mg/L (dose in mg, V1 in L) to match the convention used by other carboplatin popPK models in nlmixr2lib (e.g. Ekhart_2008_carboplatin.R). The source paper measured platinum concentrations in umol/L and reports pharmacodynamic slope coefficients in L/umol; convert via the carboplatin molar mass (371.25 g/mol; 1 mg/L = 2.694 umol/L) when comparing.

  • No published per-group NCA. Zandvliet 2008 does not tabulate Cmax / Tmax / AUC by dose group. The comparison table above includes only the terminal half-life statement from the Discussion (4.4 h for a typical 60 y, 75 kg male, SCr 90 umol/L).
